    CP15916_CARMEN-RS-C

    Print

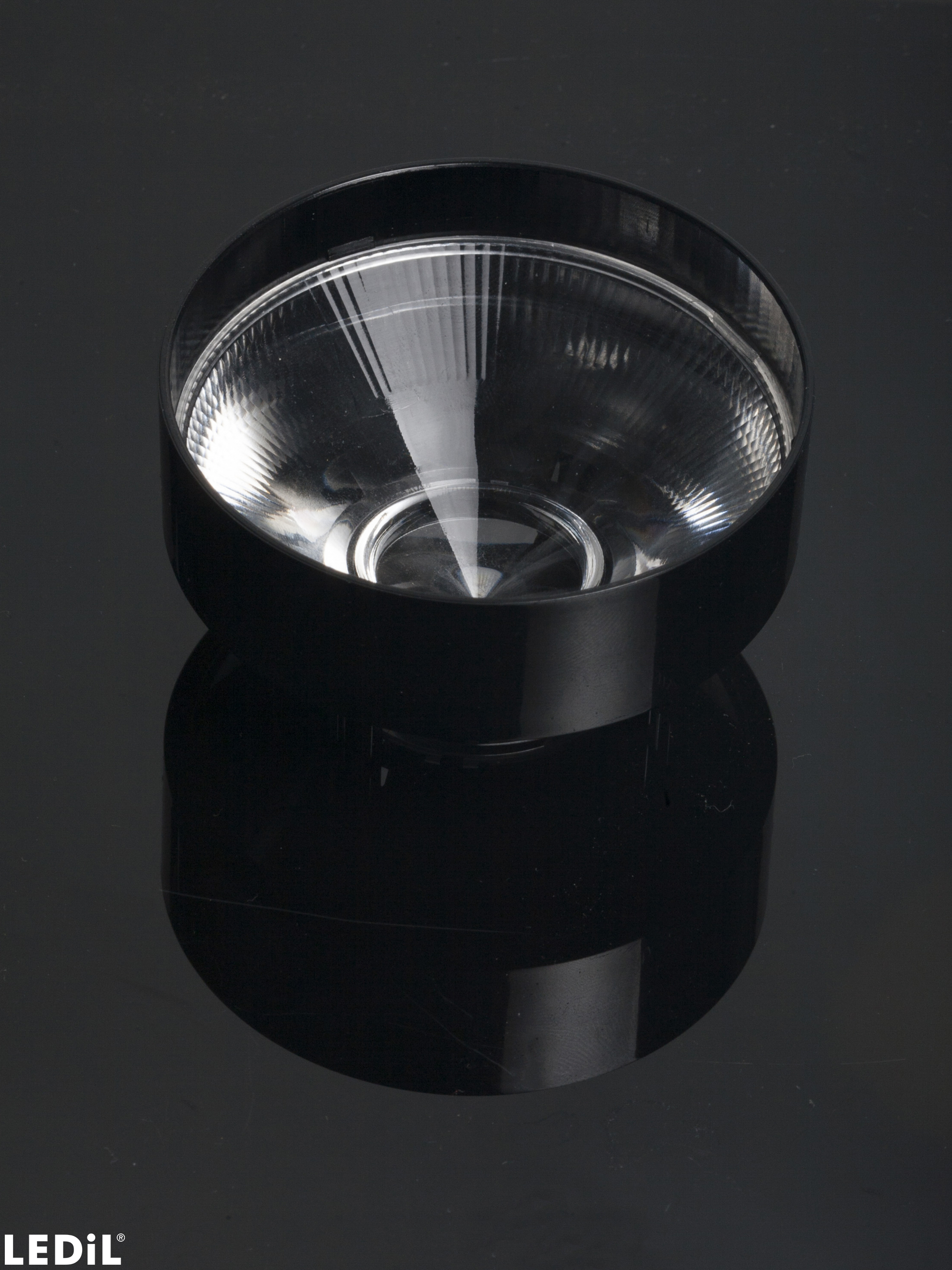

    ~10° spot beam. Assembly with holder C compatible with LEDiL HEKLA.

    Specification
    • Dimensions:
      70 mm
    • Height:
      41.50 mm
    • Fastening:
      socket
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      150 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.2 kg
    • MPQ:
      15 pcs
    • MOQ:
      150 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      6.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP15916_CARMEN-RS-C
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Compatible product

    B+W 630 Hekla datasheet

    Luminaire, example

    Track light luminaire with CARMEN-70 and shade

    News

    PRODUCT NEWS - CARMEN-RS

    Compatibility guide

    LEDiL connector and socket compatibility guide

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Platek floodlight

    News

    PRODUCT NEWS - CARMEN

    News

    Effective fashion retail lighting

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    XTM-ADAPTER-50-C

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with RONDA & CARMEN

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    CARMEN-70-SHD

    Shade for an extremely tight cut-off in high contrast applications compatible with CARMEN-SS and -RS

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

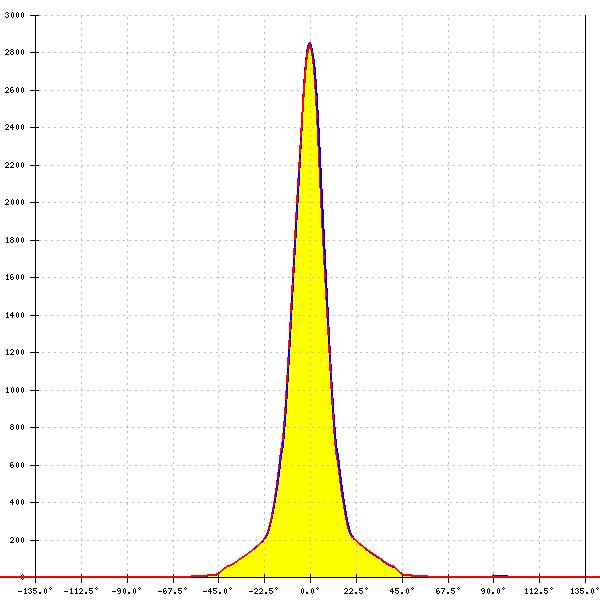

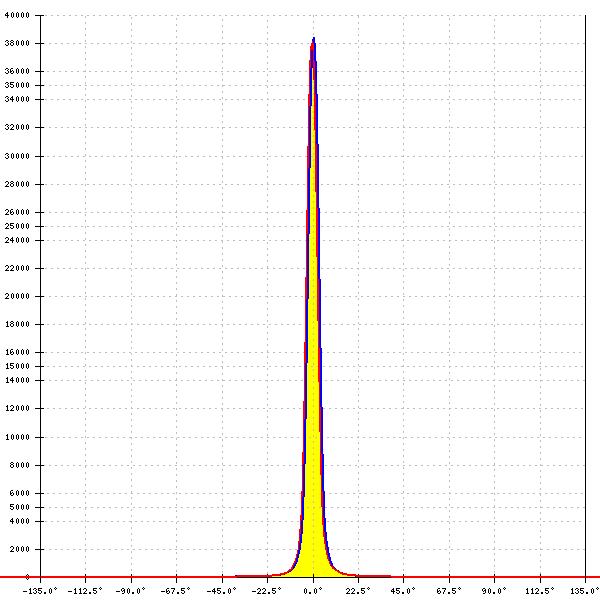

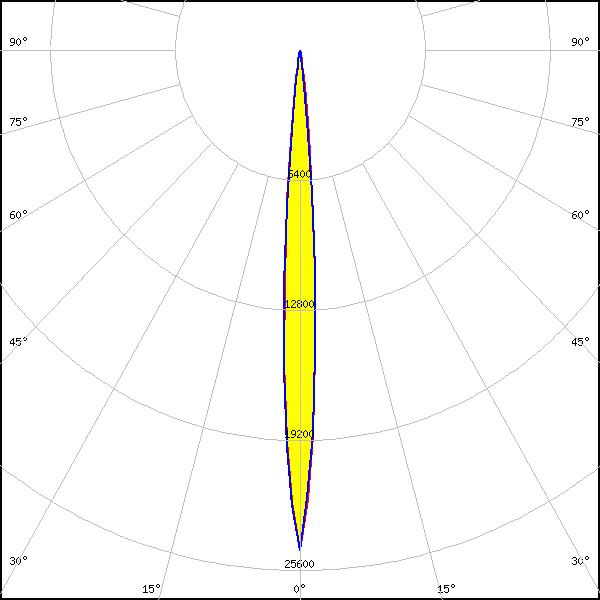

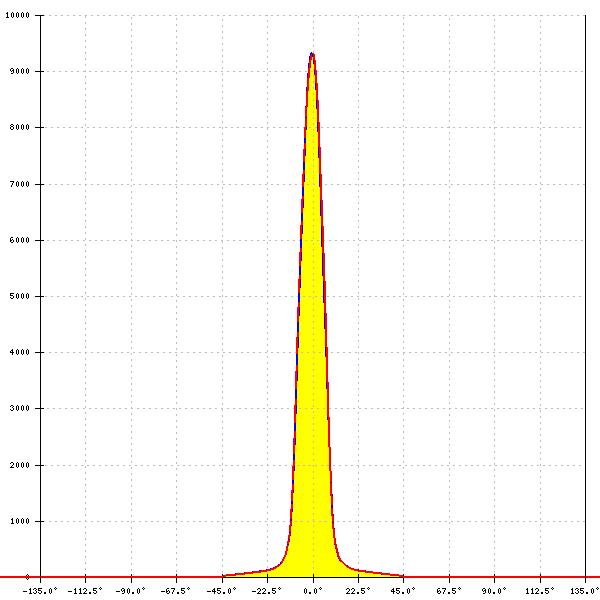

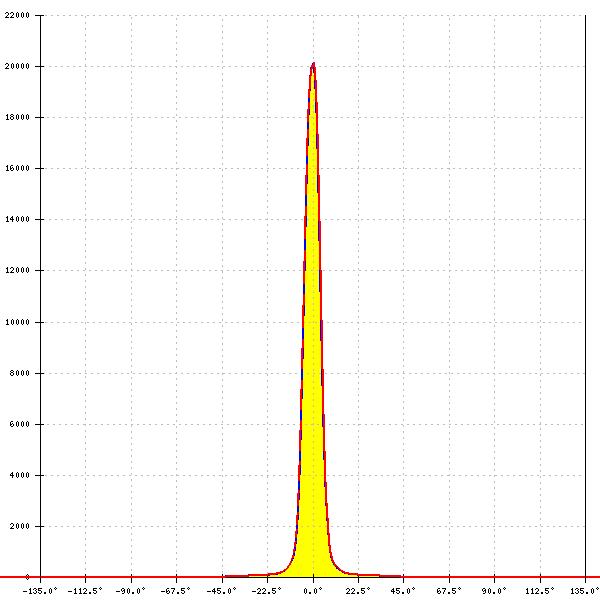

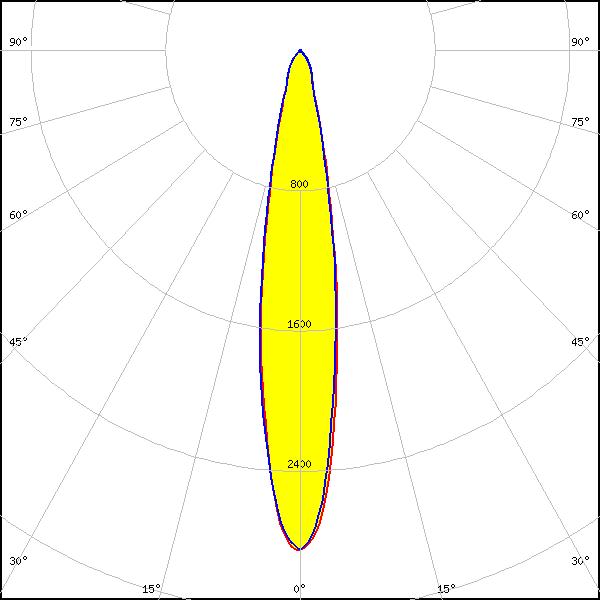

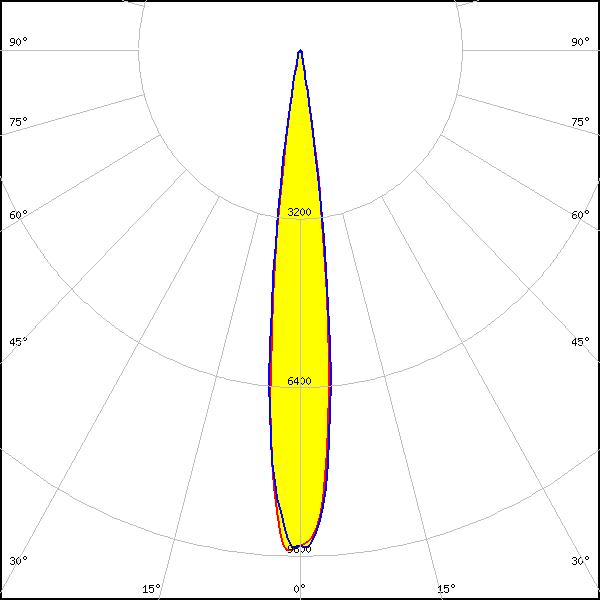

    Optical results

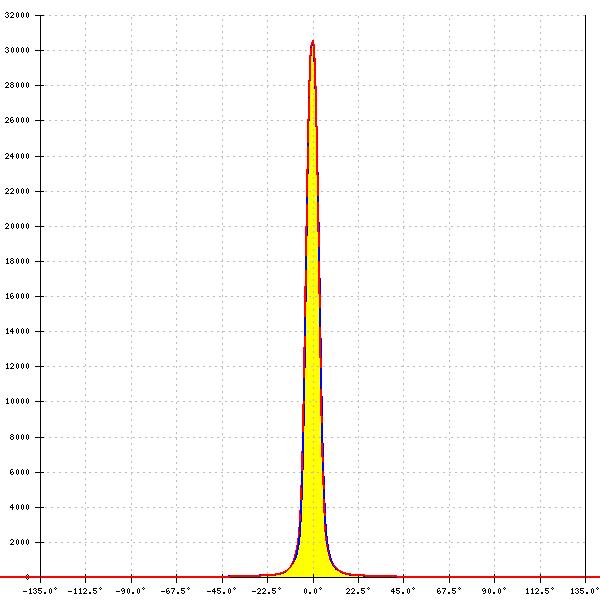

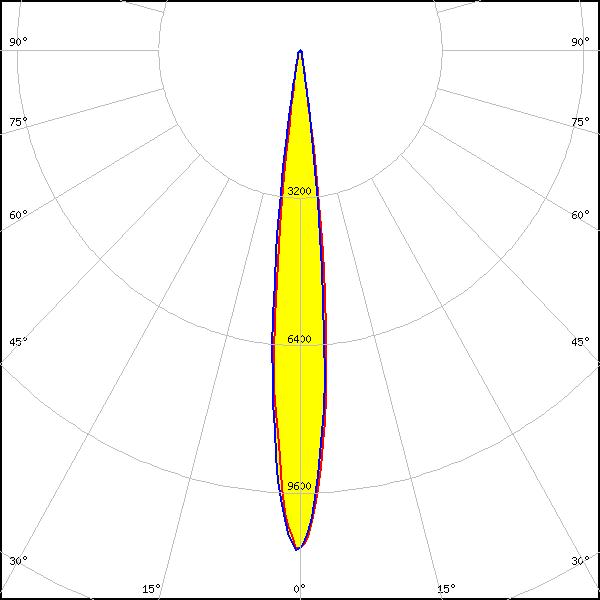

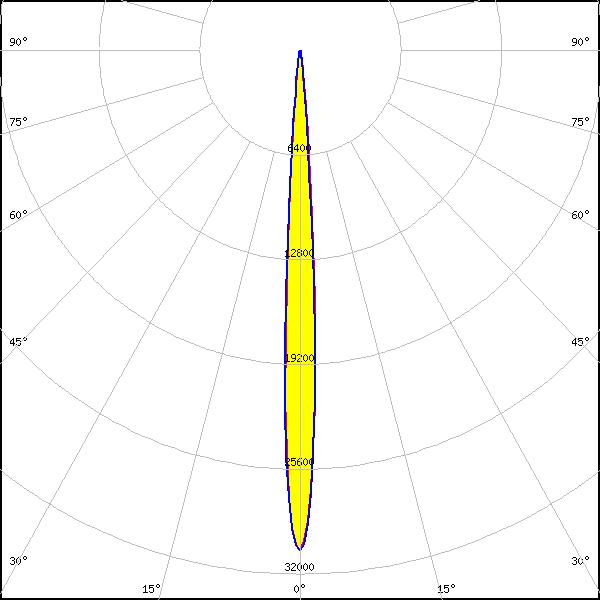

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 7°
    FWTM: 12°
    Peak intensity: 31.000 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White

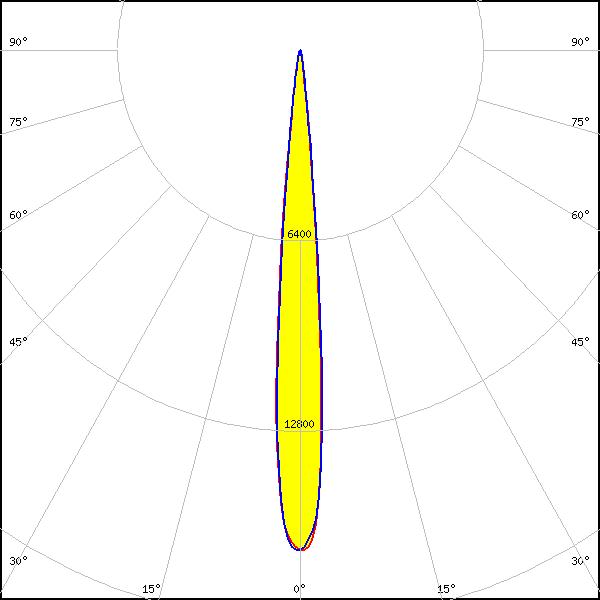

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 10°
    FWTM: 15°
    Peak intensity: 16.900 cd/lm
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour/type: White

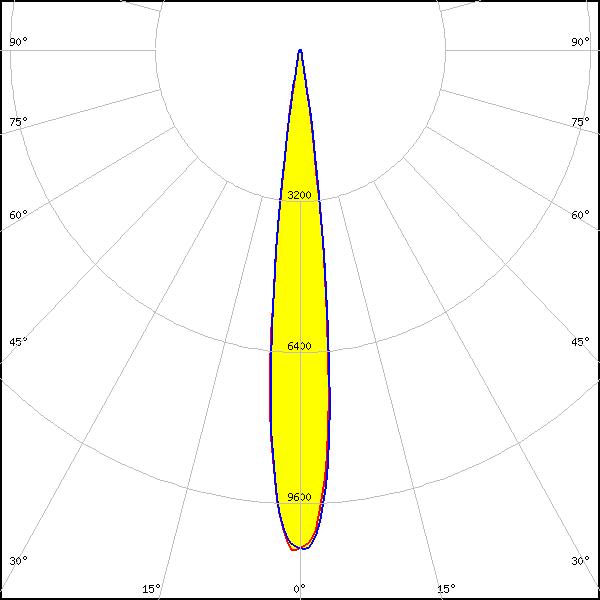

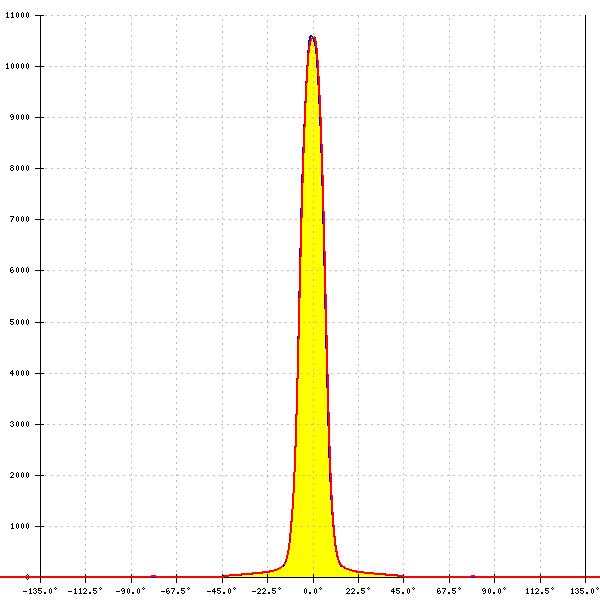

    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 13°
    FWTM: 20°
    Peak intensity: 10.600 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White

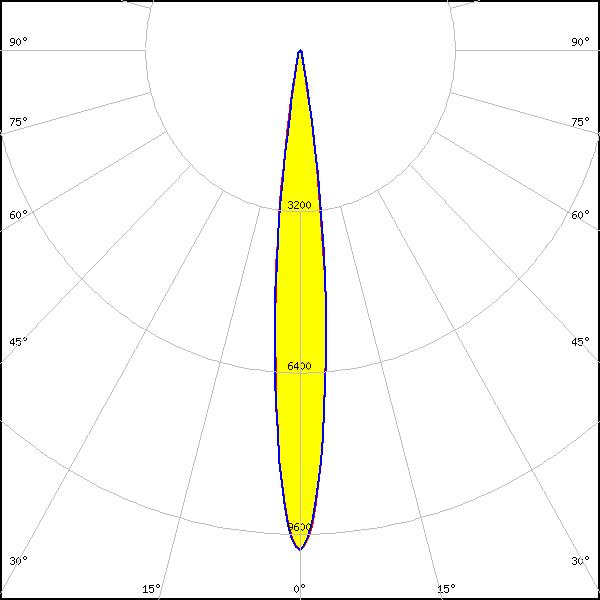

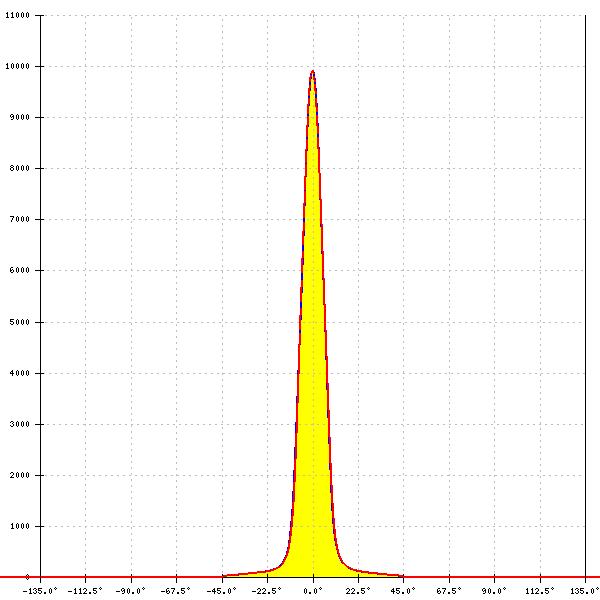

    LED: VERO10
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 12°
    FWTM: 21°
    Peak intensity: 9.900 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White

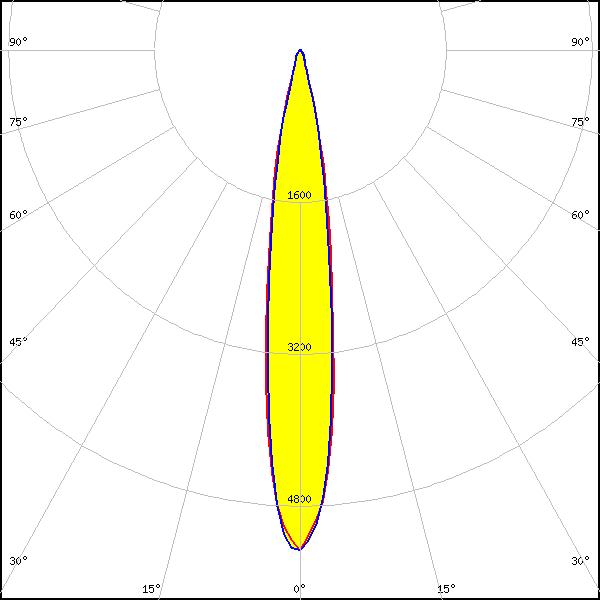

    LED: VERO13
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 15°
    FWTM: 30°
    Peak intensity: 5.267 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: 9°
    FWTM: 16°
    Peak intensity: 16.507 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 9mm (9W) DP
    LES size: 10.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 7.830 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 1
    Light colour/type: White

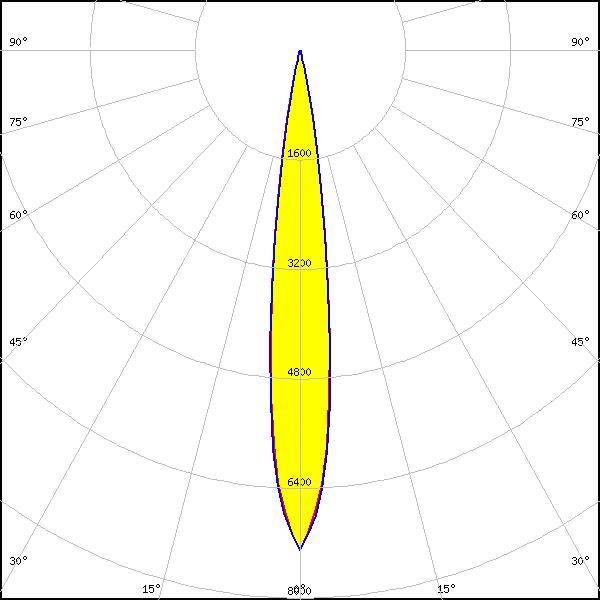

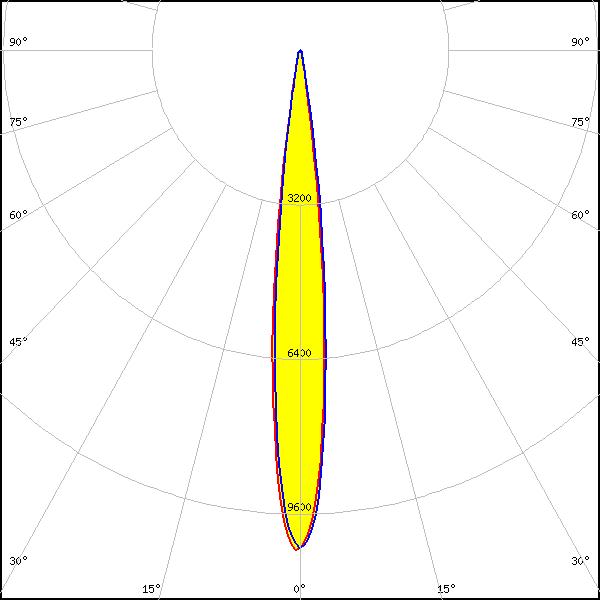

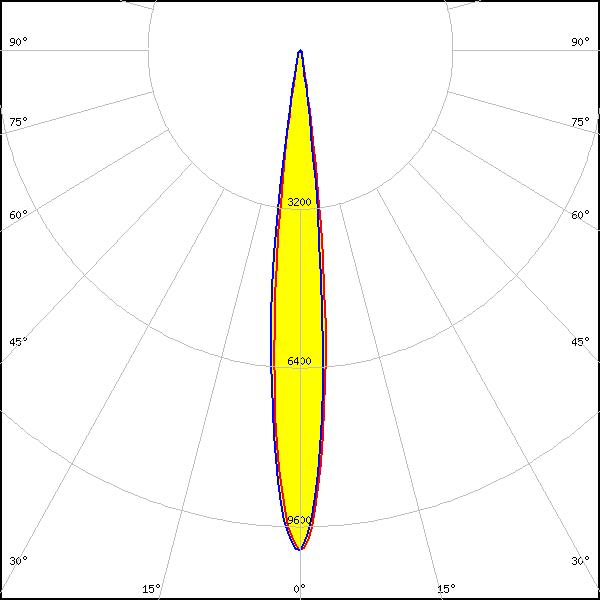

    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    C16752_CARMEN-70-SHD
    FWHM: 14°
    FWTM: 24°
    Peak intensity: 7.305 cd/lm
    Efficiency: 45 %
    LEDs/each optic: 1
    Light colour/type: White

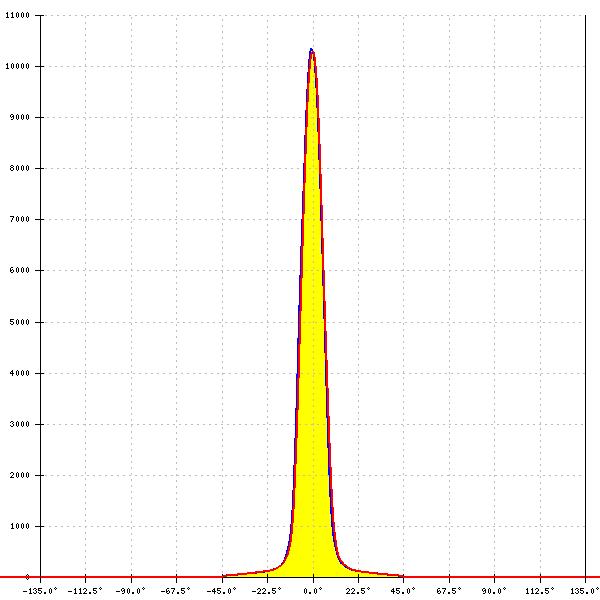

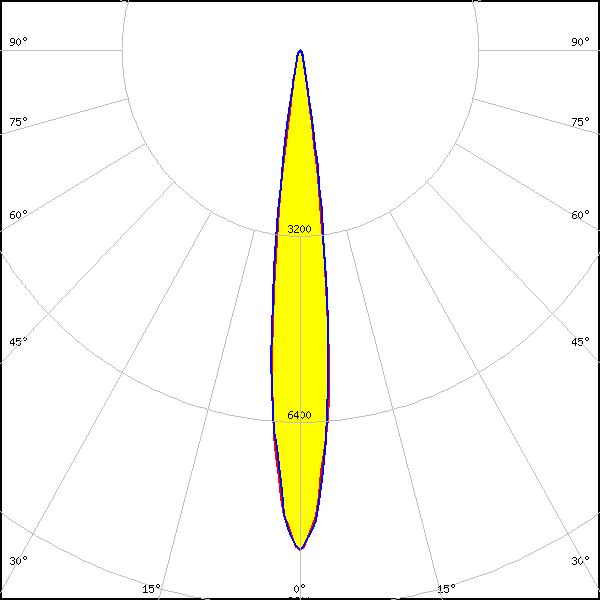

    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 13°
    FWTM: 22°
    Peak intensity: 8.600 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White

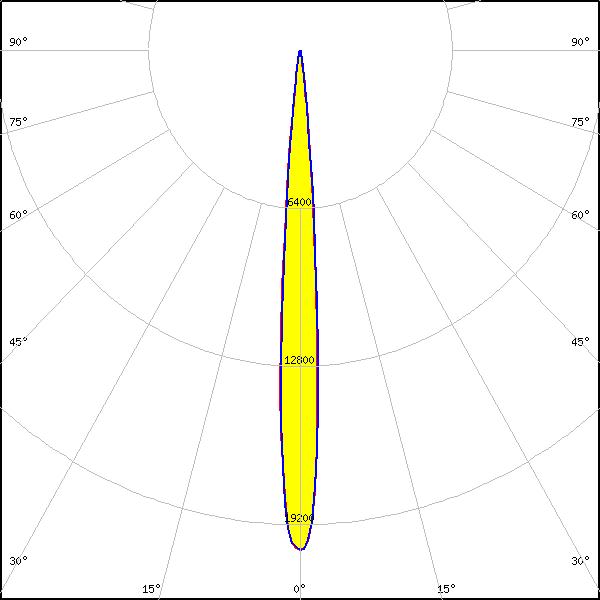

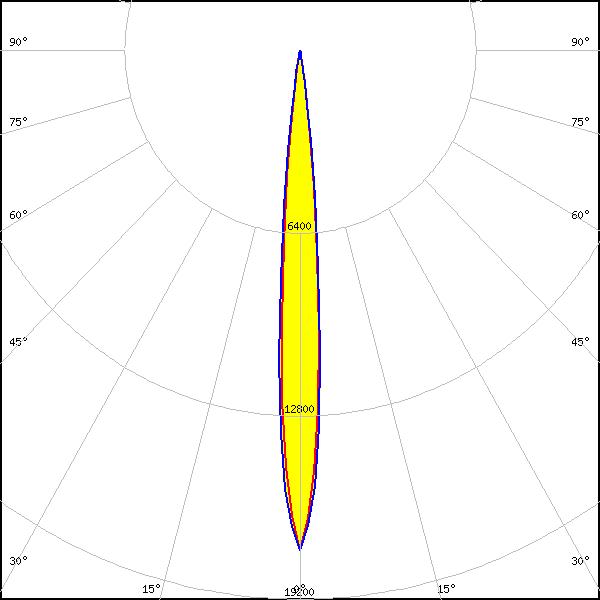

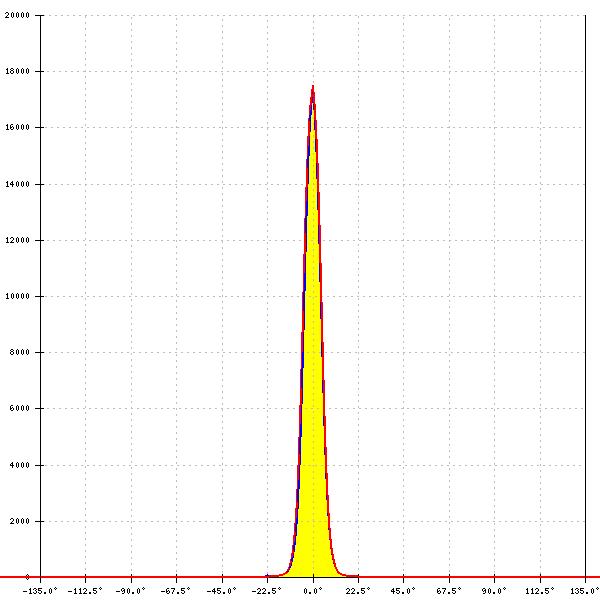

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    C16752_CARMEN-70-SHD
    FWHM: 9°
    FWTM: 16°
    Peak intensity: 17.497 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White

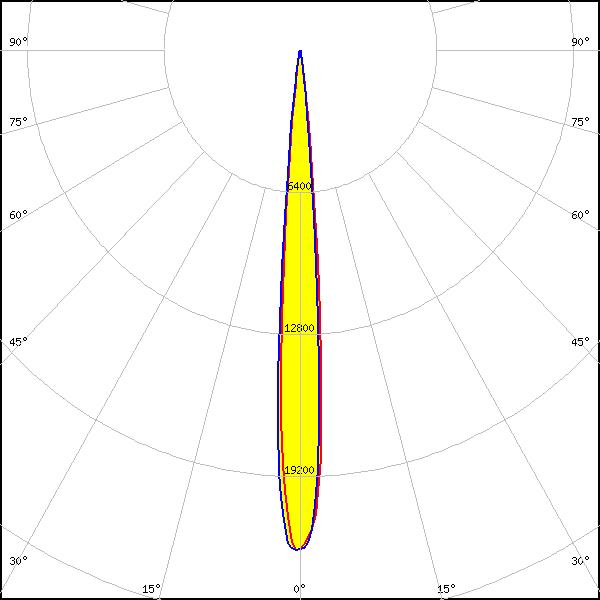

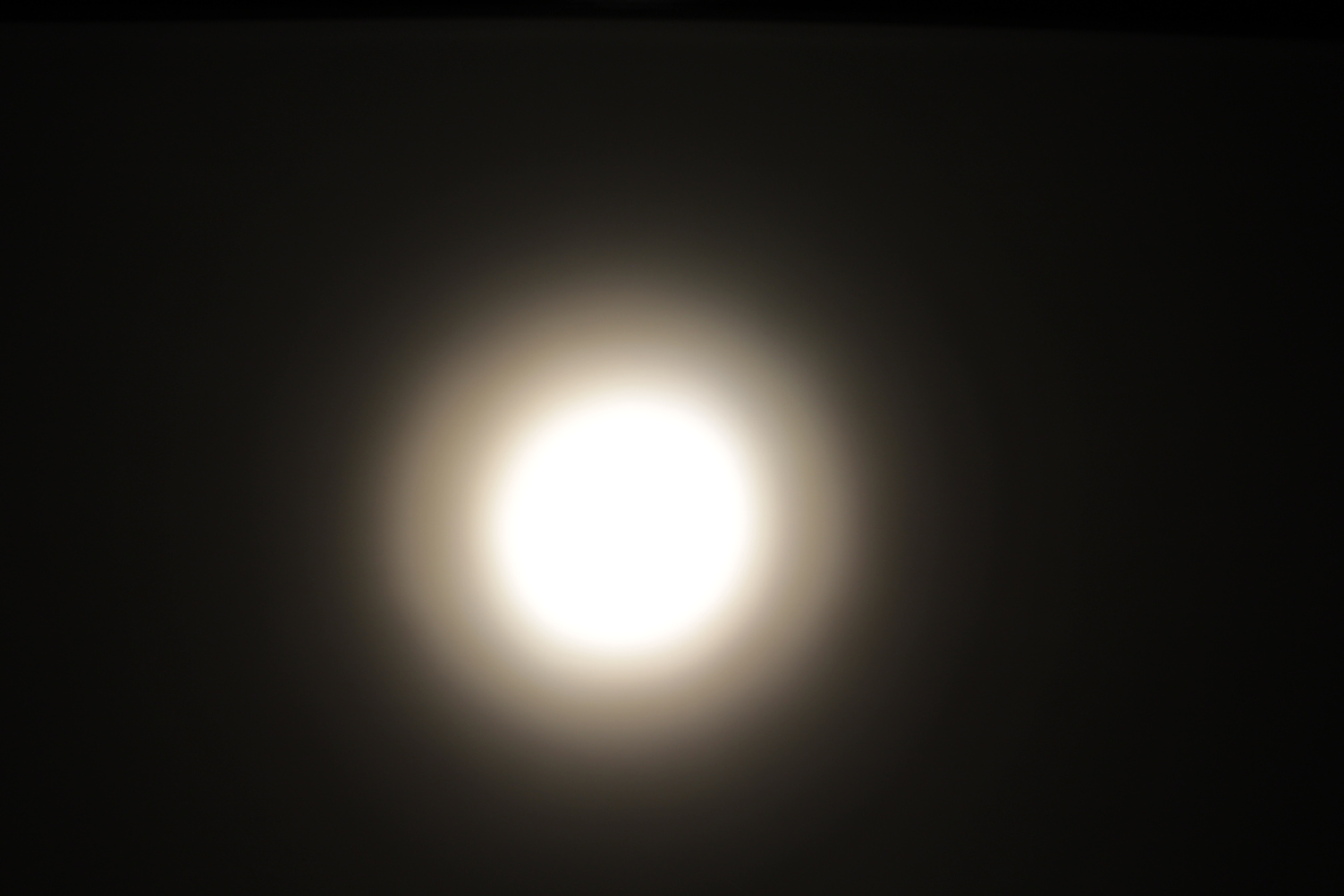

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 9°
    FWTM: 15°
    Peak intensity: 22.600 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

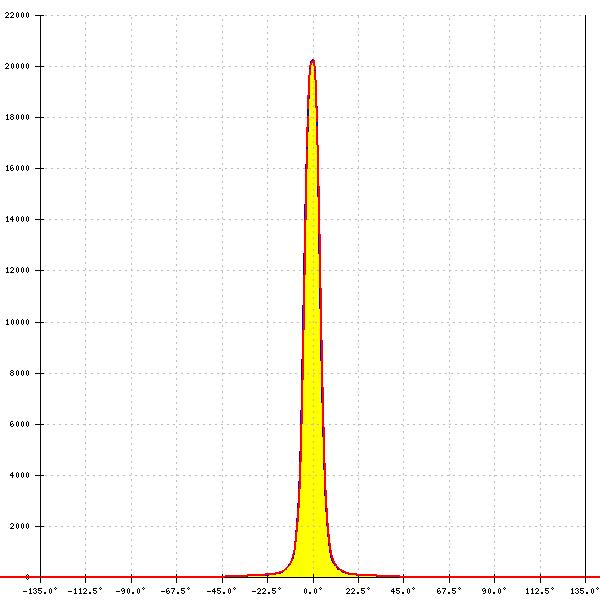

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 8°
    FWTM: 15°
    Peak intensity: 20.200 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White

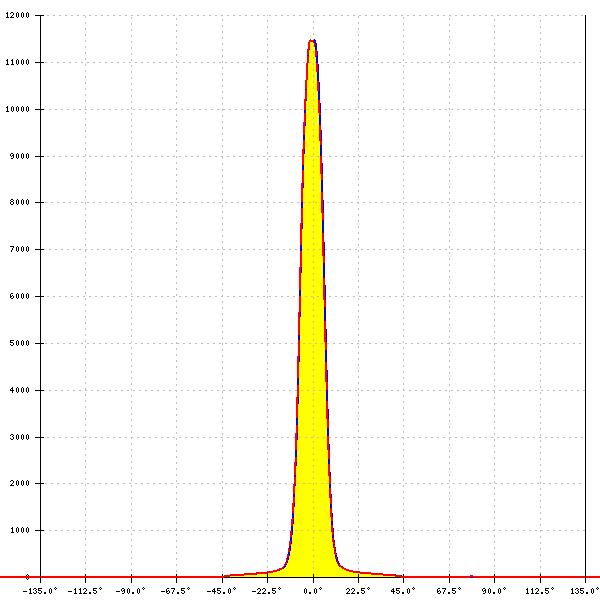

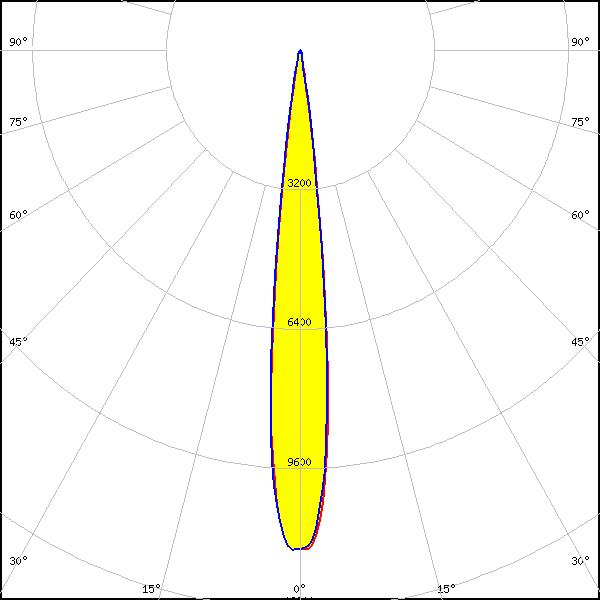

    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 12°
    FWTM: 19°
    Peak intensity: 11.500 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

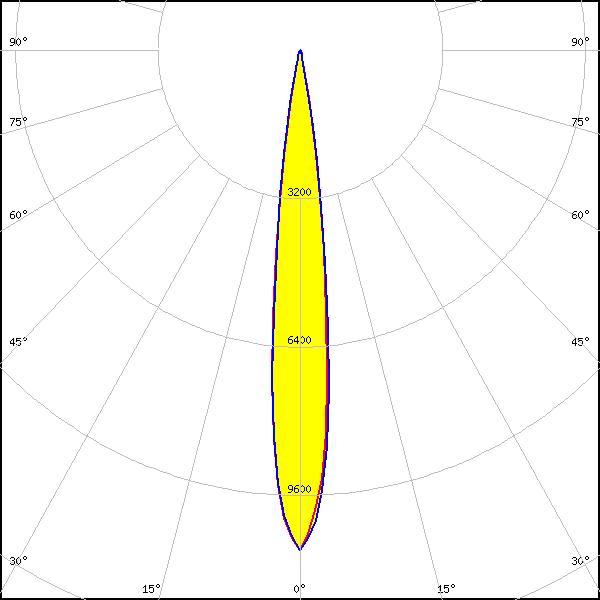

    LED: CLU712/713
    LES size: 8.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 10.784 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

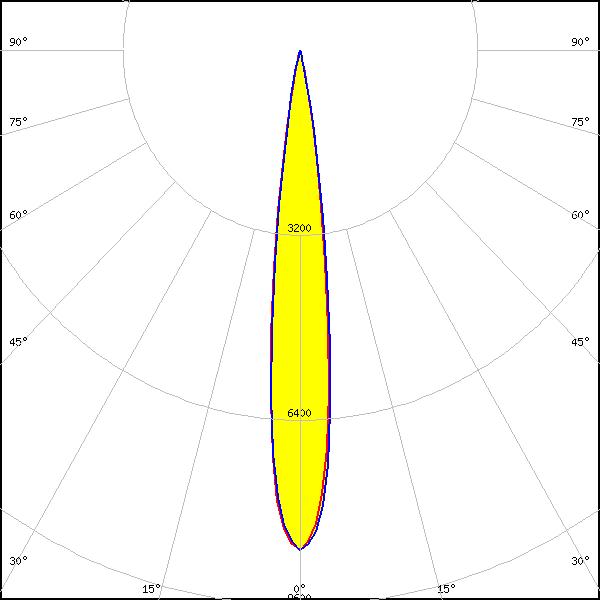

    LED: CLU712/713
    LES size: 8.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    C16752_CARMEN-70-SHD
    FWHM: 13°
    FWTM: 22°
    Peak intensity: 8.655 cd/lm
    Efficiency: 47 %
    LEDs/each optic: 1
    Light colour/type: White

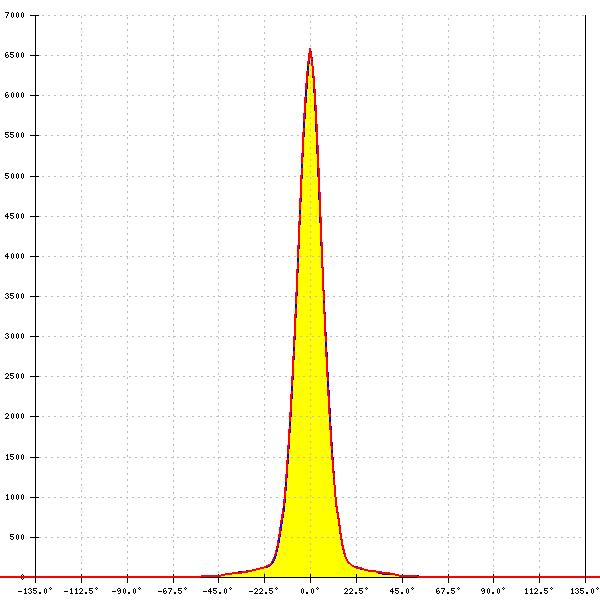

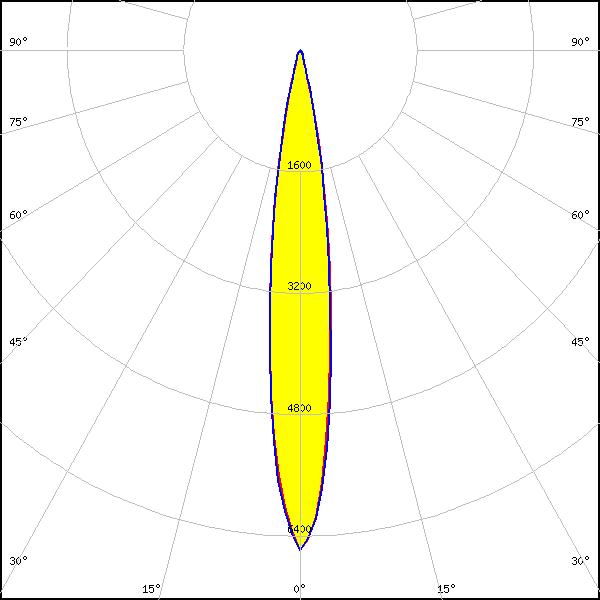

    LED: CLU720/721/723
    LES size: 11.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 15°
    FWTM: 29°
    Peak intensity: 6.590 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White

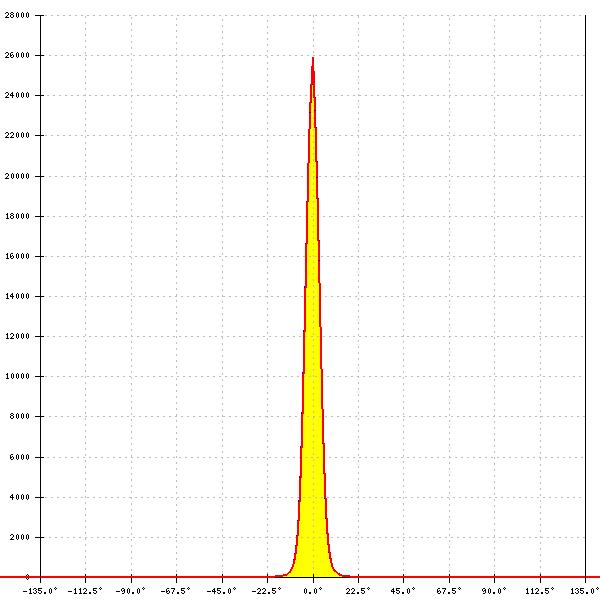

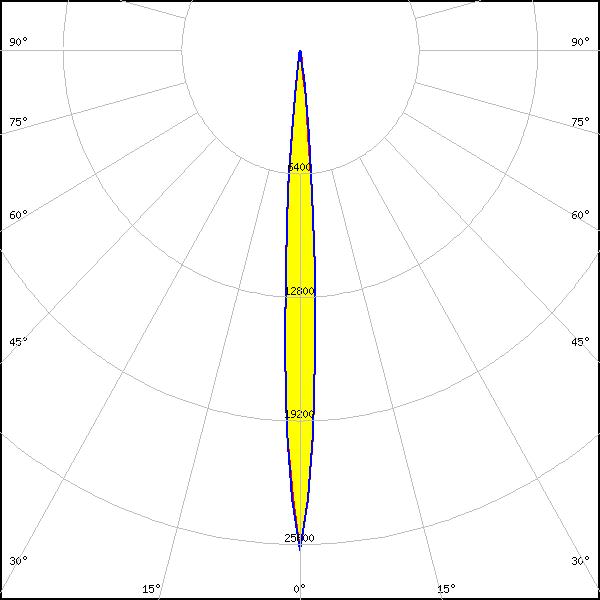

    LED: CLU7A2/7A3
    LES size: 4.2 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    C16752_CARMEN-70-SHD
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 25.908 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 1
    Light colour/type: White

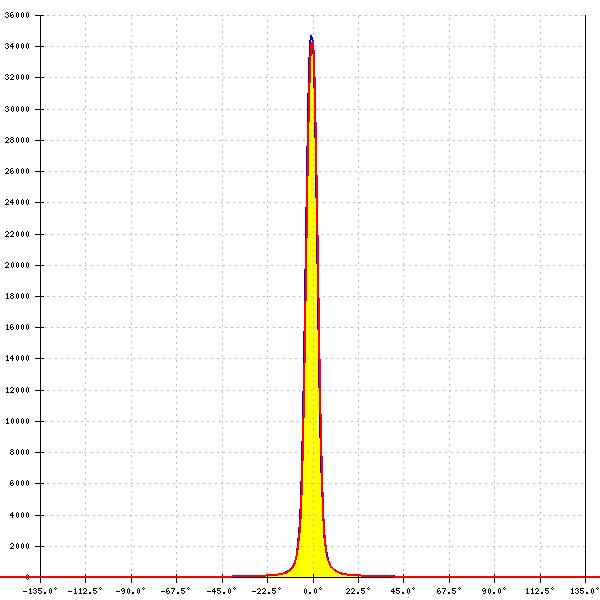

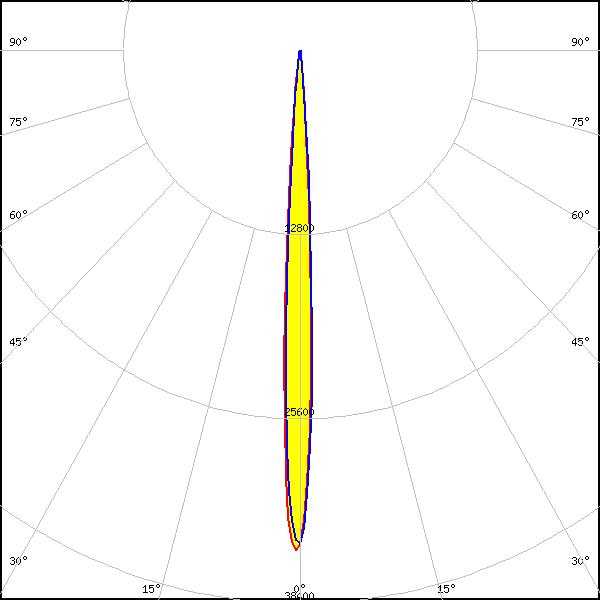

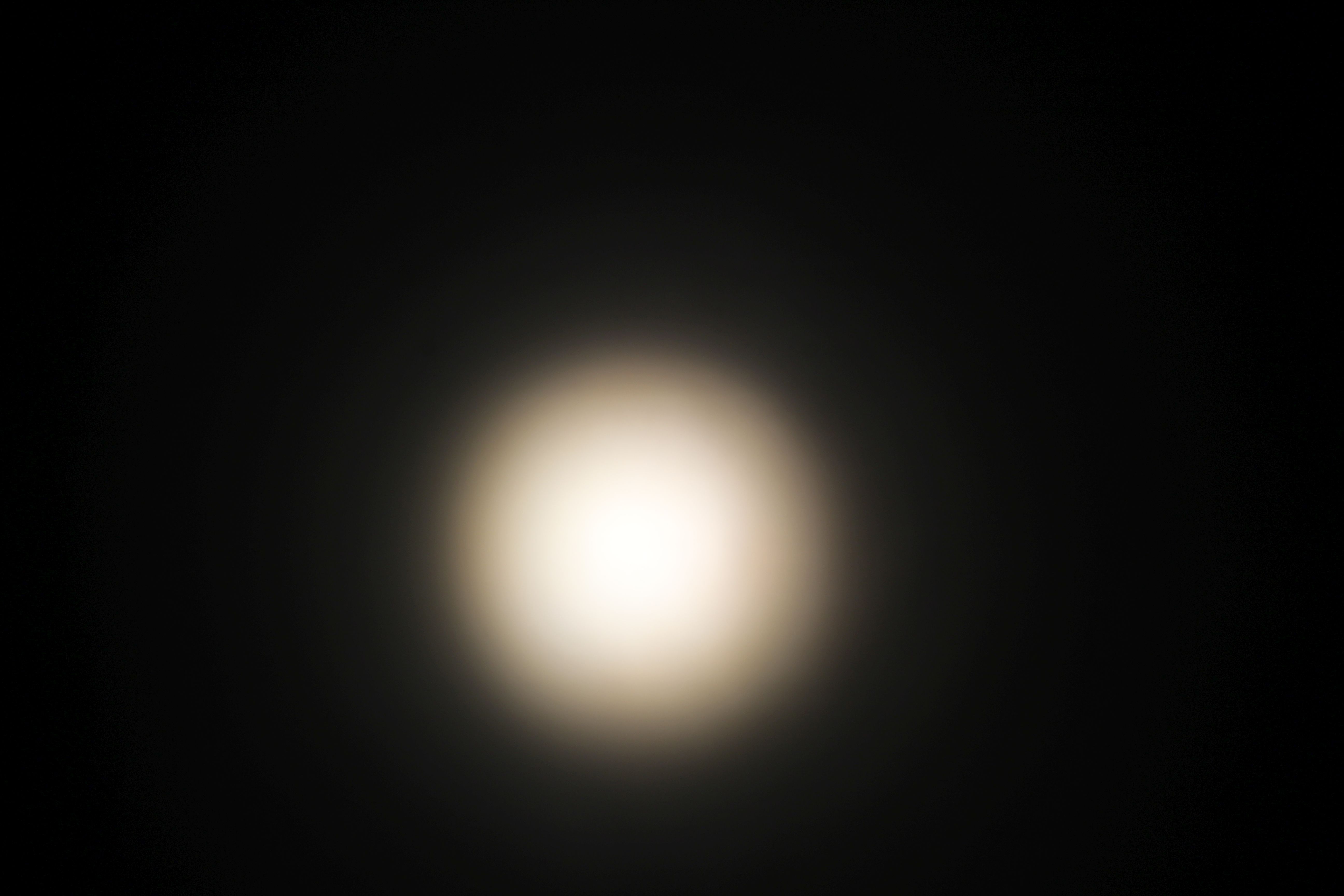

    LED: CLU7A2/7A3
    LES size: 4.2 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 6°
    FWTM: 11°
    Peak intensity: 34.700 cd/lm
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour/type: White

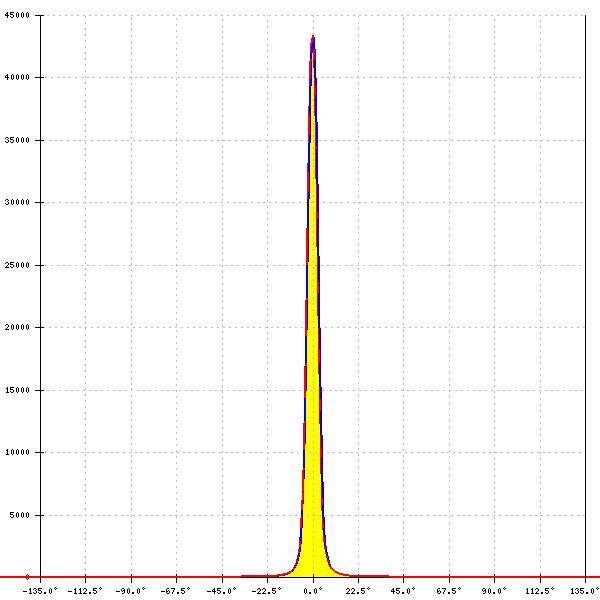

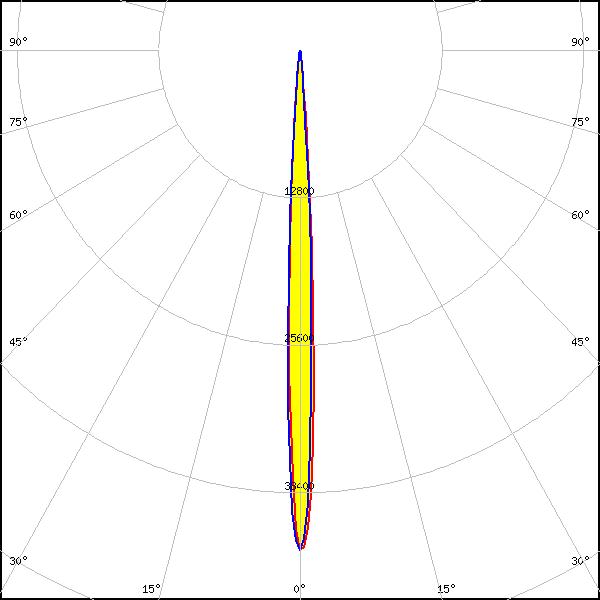

    LED: CLU7B2
    LES size: 3.3 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 6°
    FWTM: 10°
    Peak intensity: 43.392 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: White

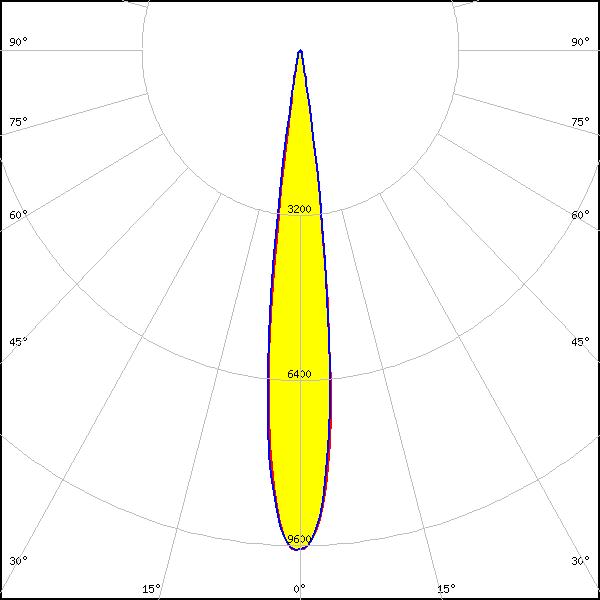

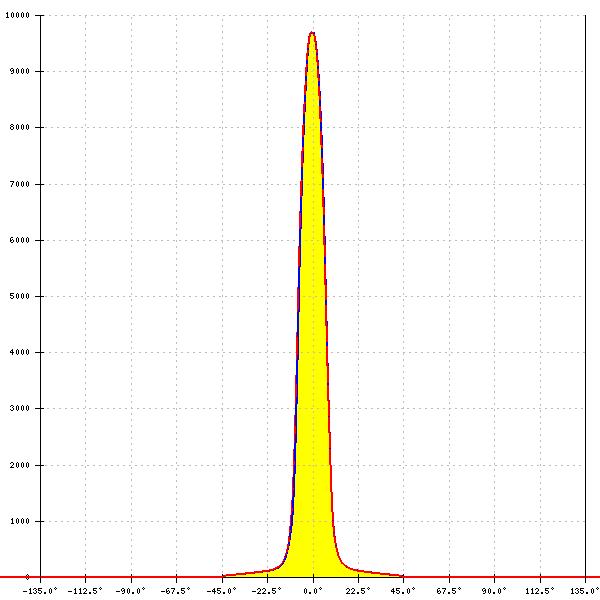

    LED: CMA1516
    LES size: 9.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 13°
    FWTM: 20°
    Peak intensity: 9.700 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White

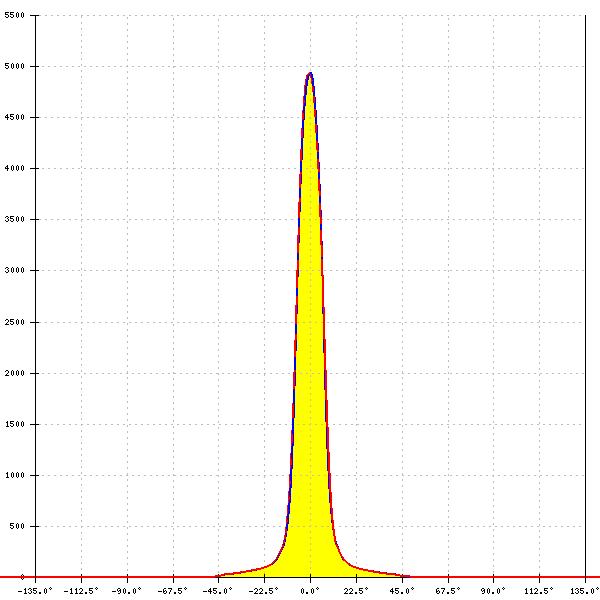

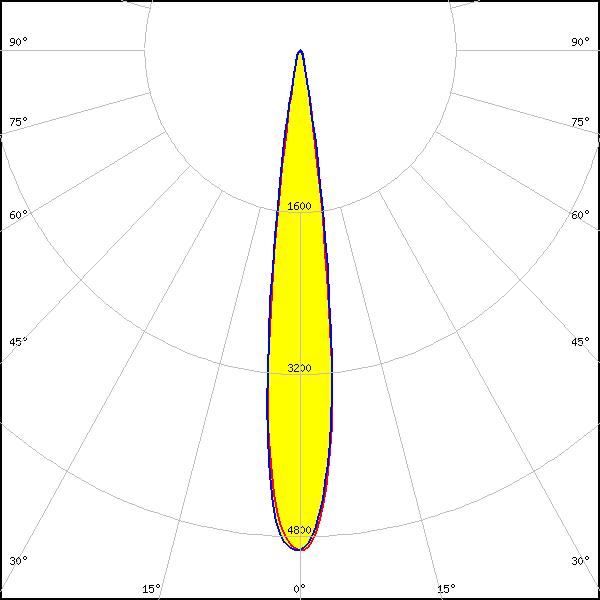

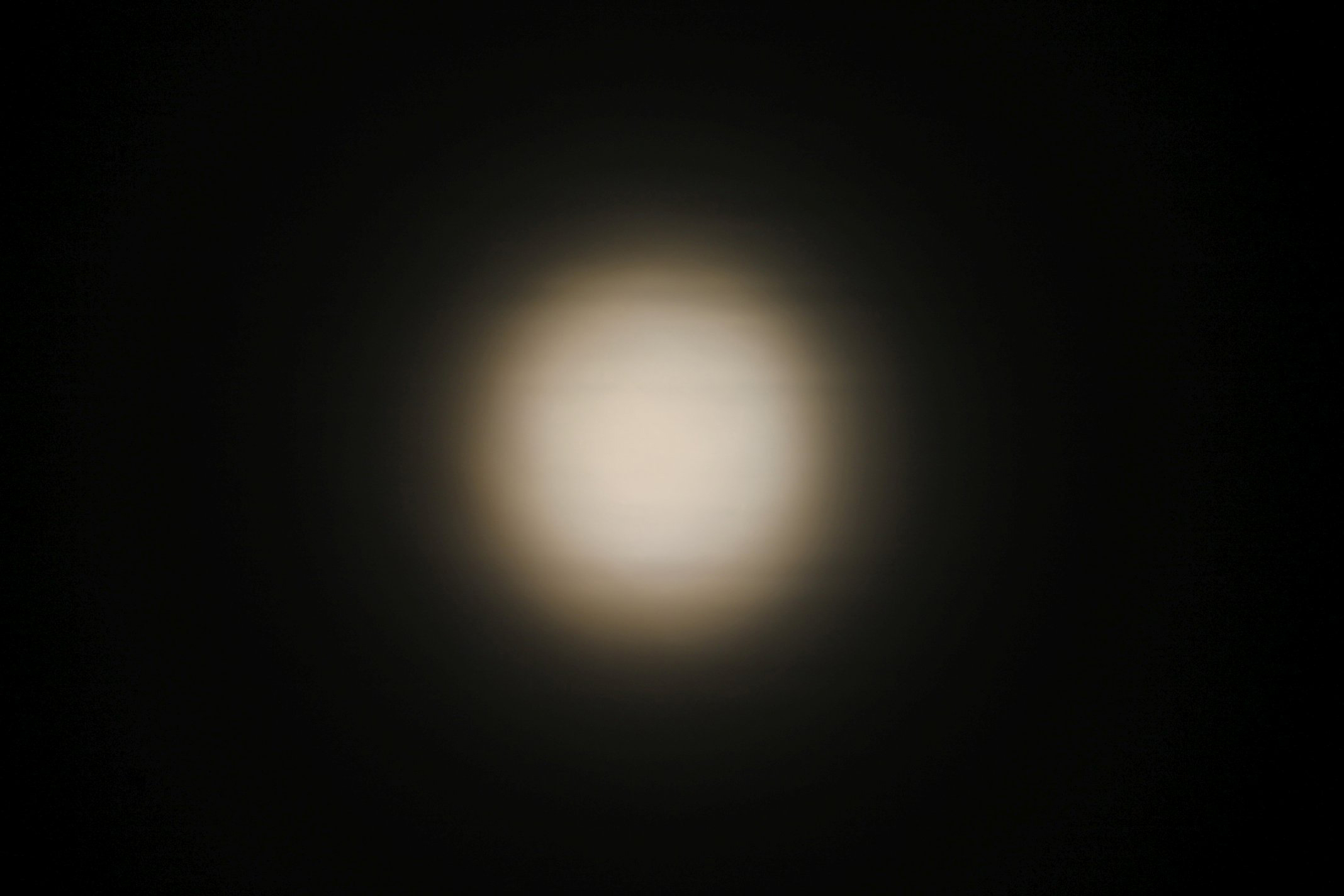

    LED: CMT14xx
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 14°
    FWTM: 23°
    Peak intensity: 4.950 cd/lm
    Efficiency: 40 %
    LEDs/each optic: 1
    Light colour/type: White

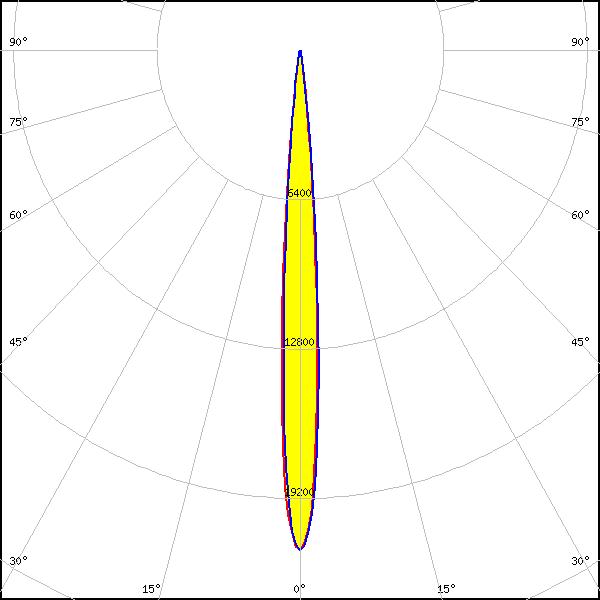

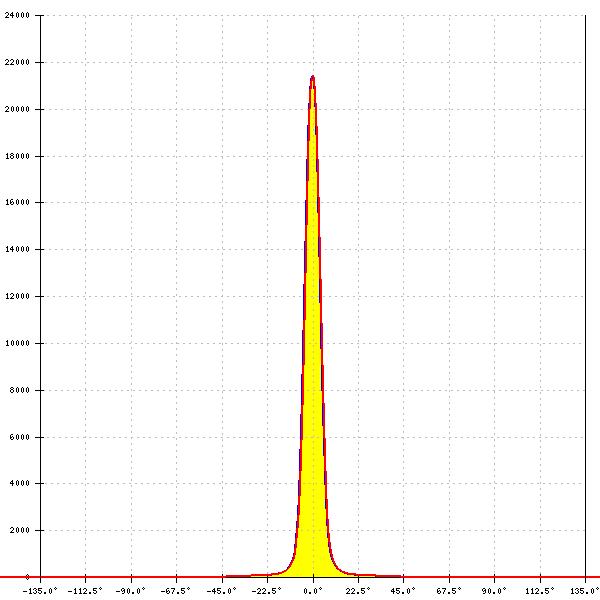

    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 8°
    FWTM: 15°
    Peak intensity: 21.400 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

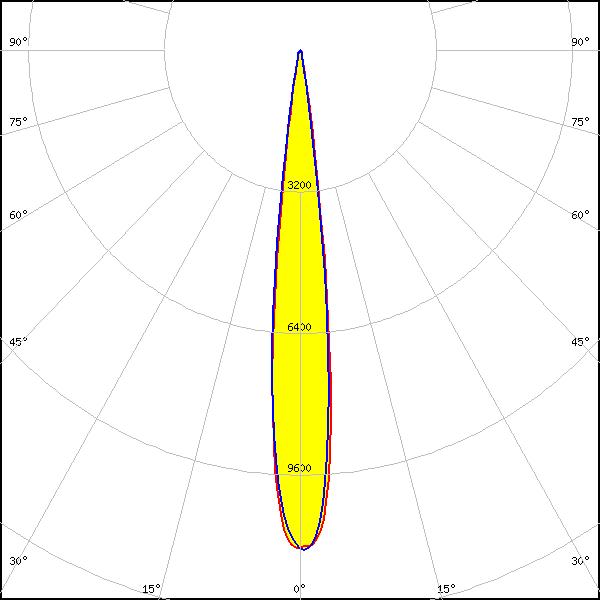

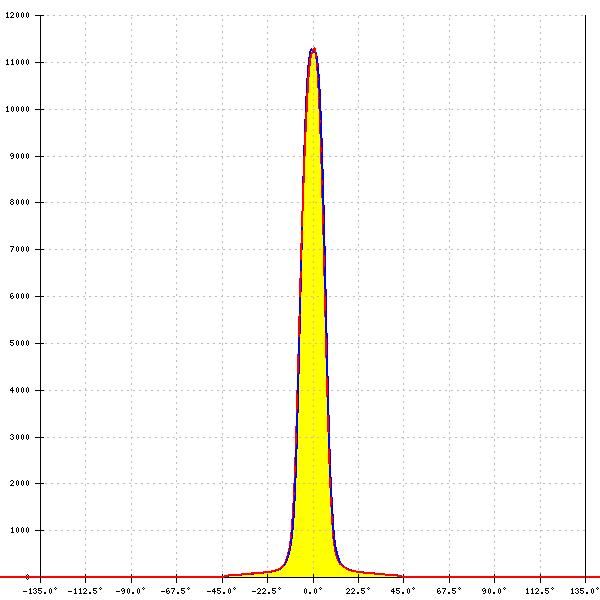

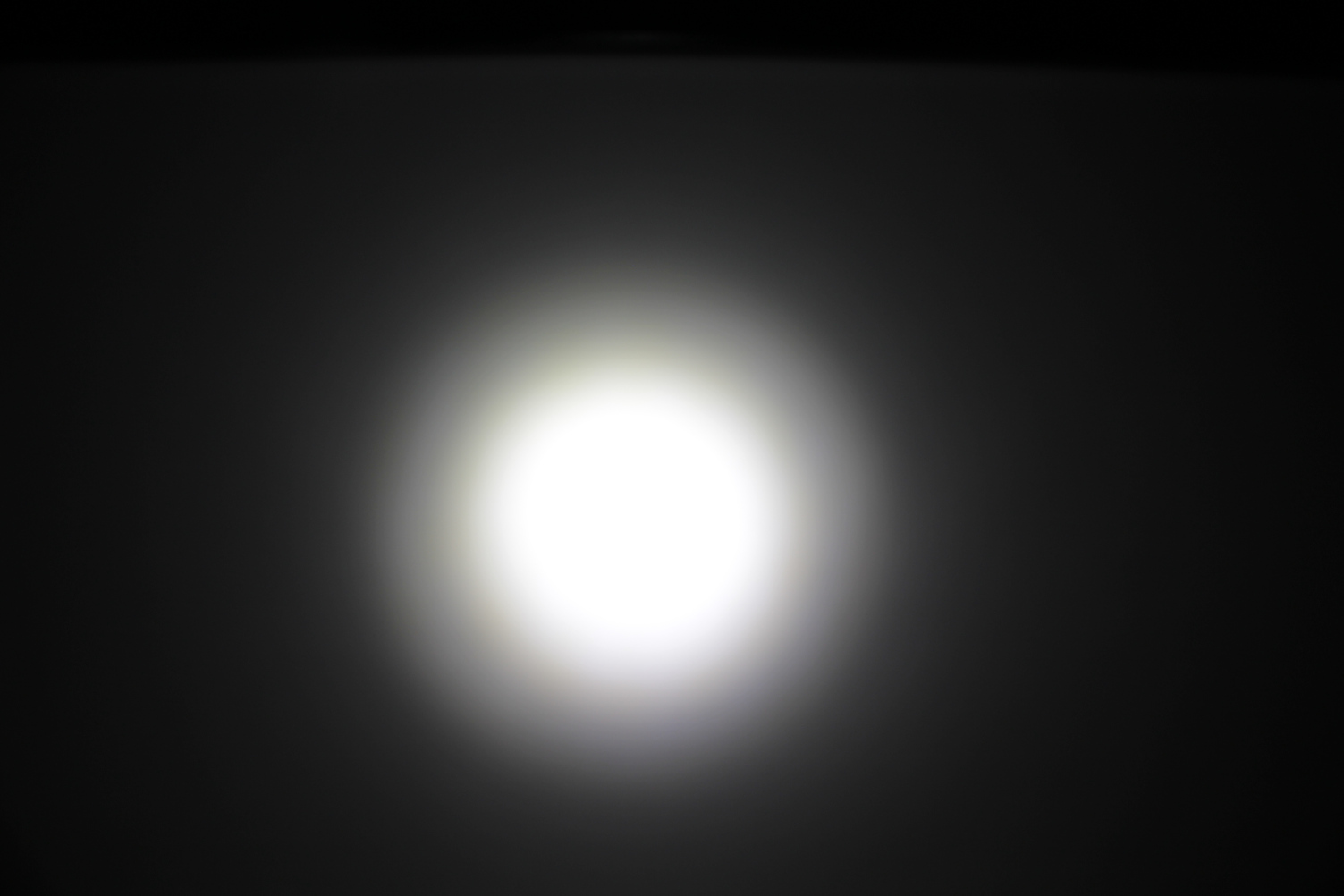

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 13°
    FWTM: 20°
    Peak intensity: 11.300 cd/lm
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour/type: White

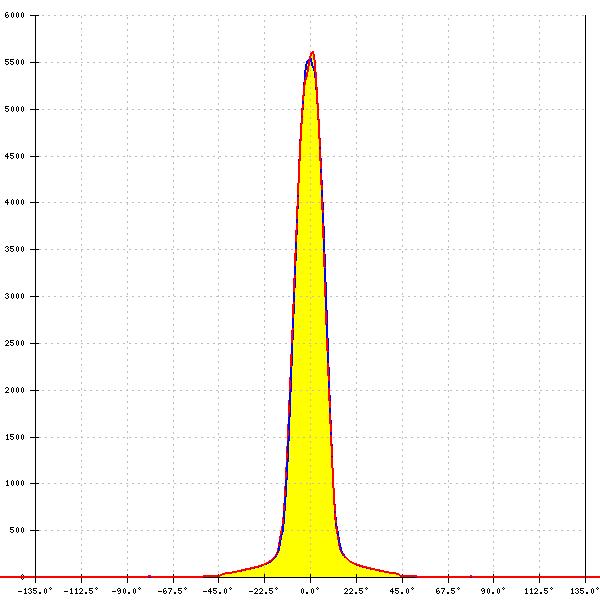

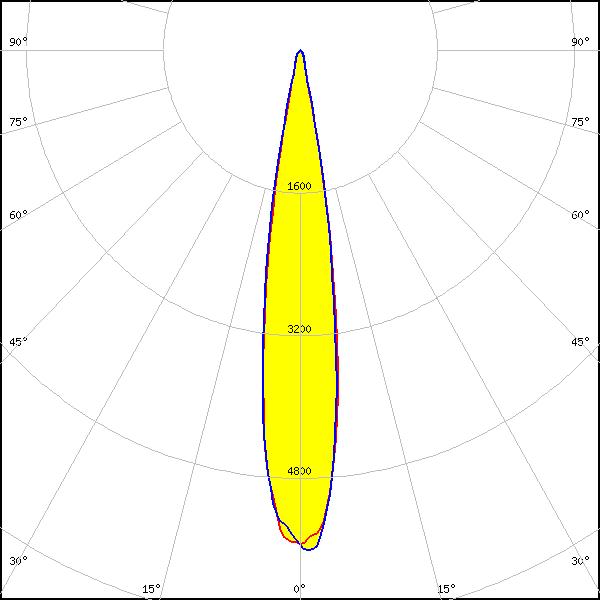

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 17°
    FWTM: 26°
    Peak intensity: 5.600 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White

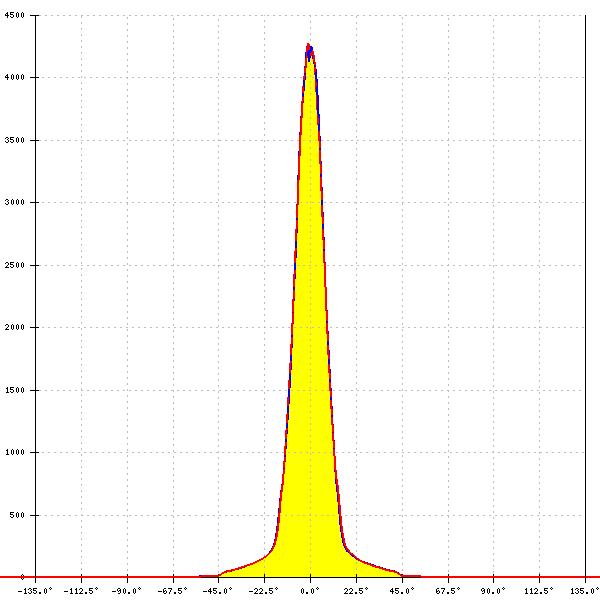

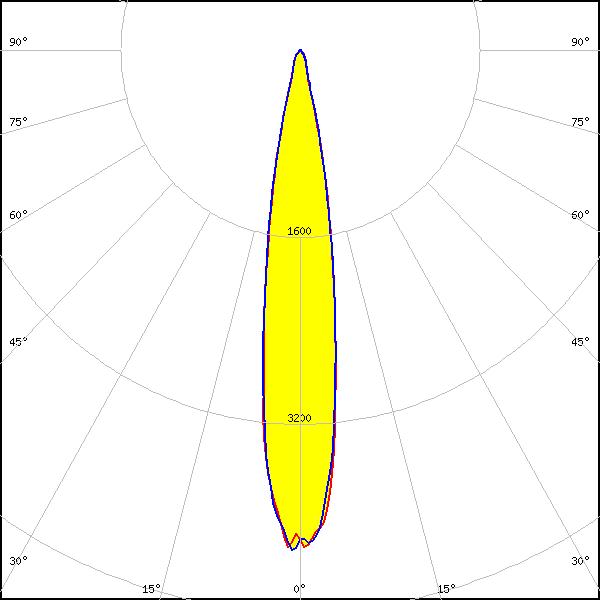

    LED: LUXEON CX Plus CoB L08 (Gen2)
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 17°
    FWTM: 30°
    Peak intensity: 4.285 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: White

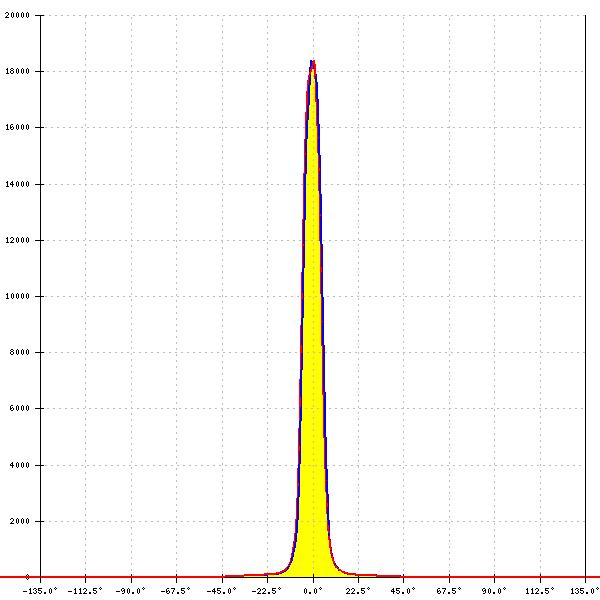

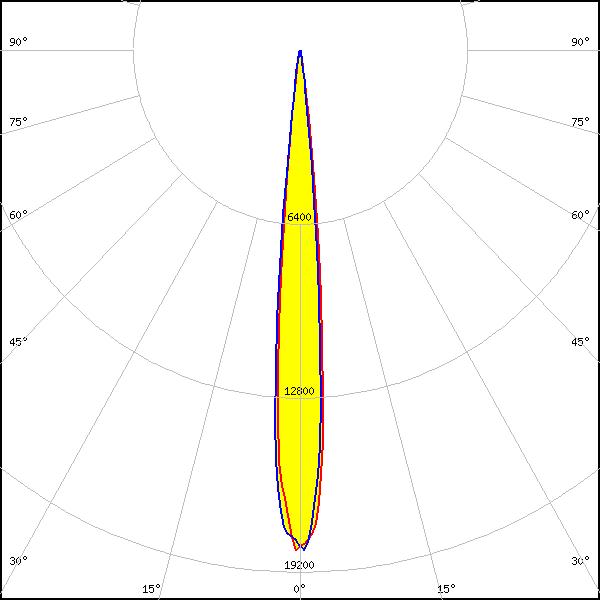

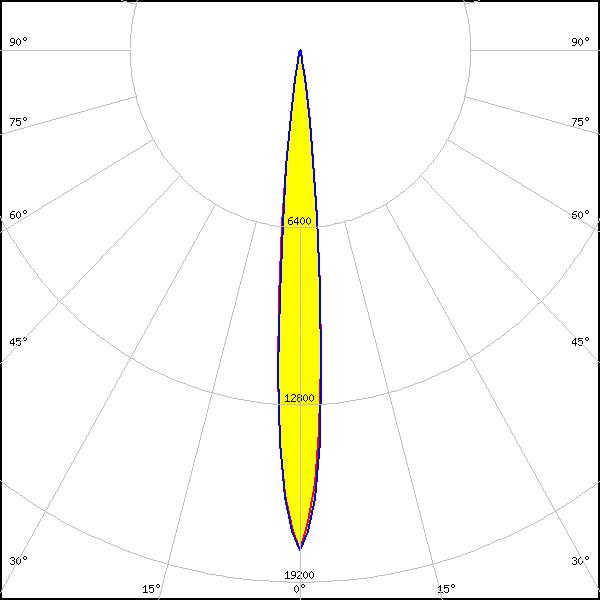

    LED: LUXEON CoB 1202HD
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 10°
    FWTM: 15°
    Peak intensity: 18.500 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: White

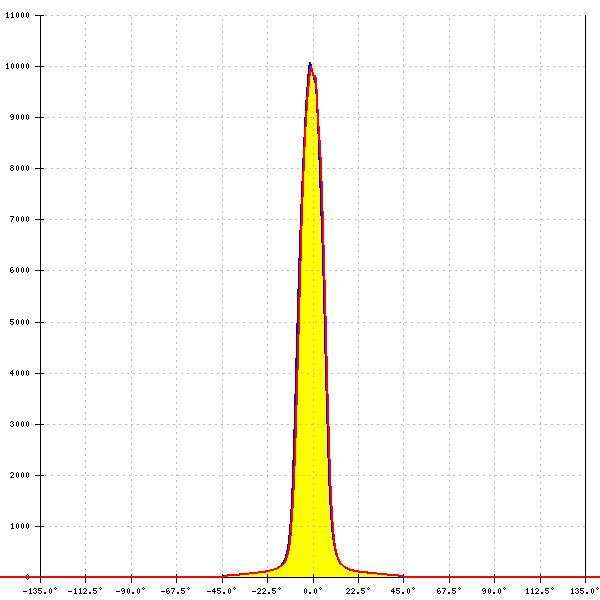

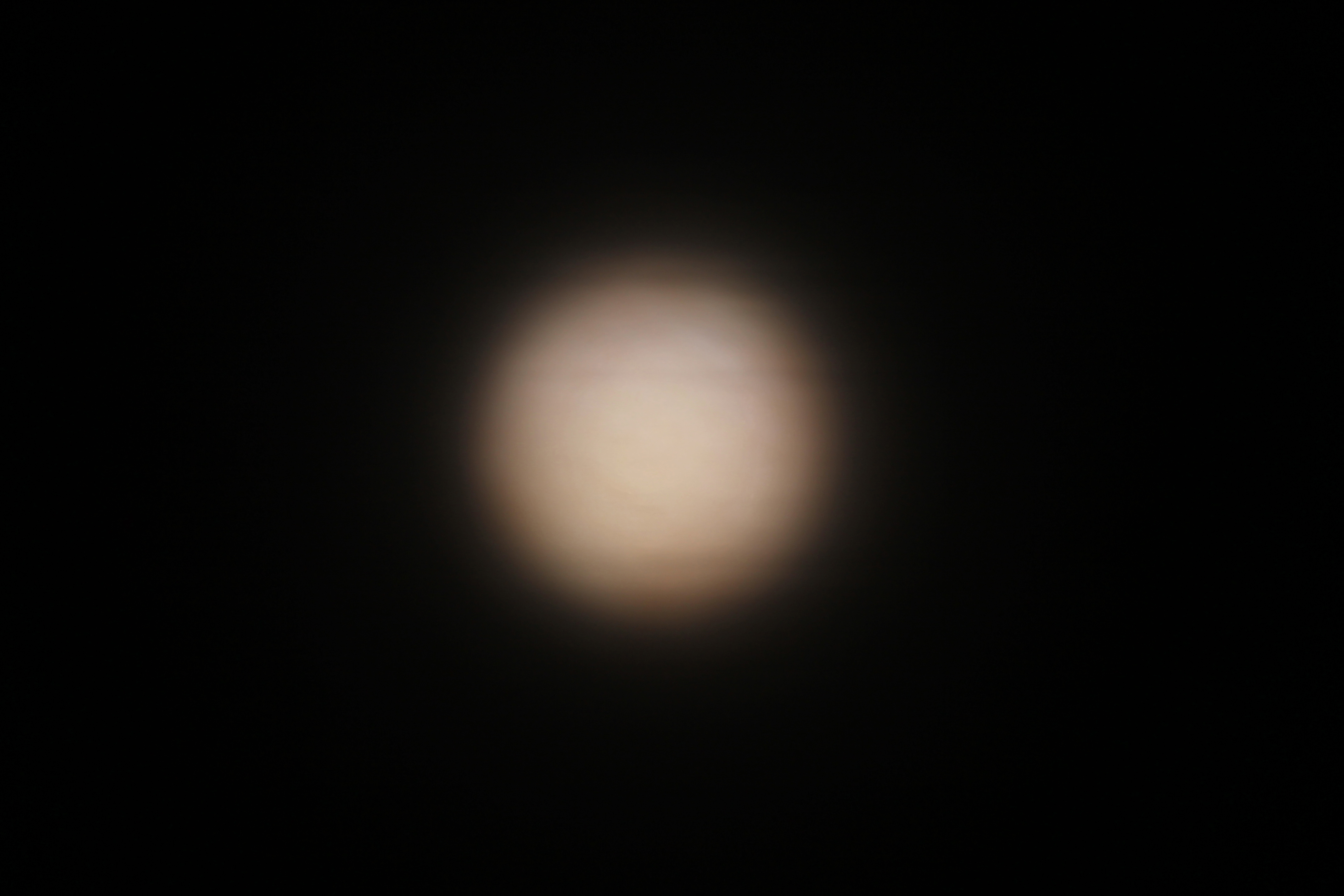

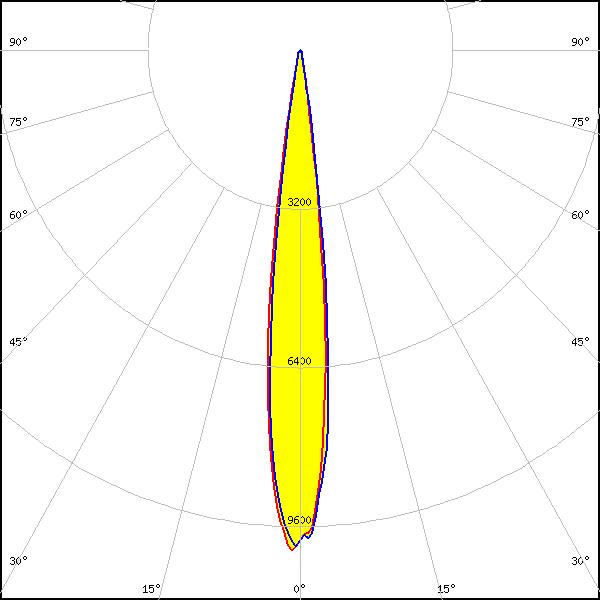

    LED: LUXEON CoB 1204HD
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 13°
    FWTM: 20°
    Peak intensity: 10.000 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White

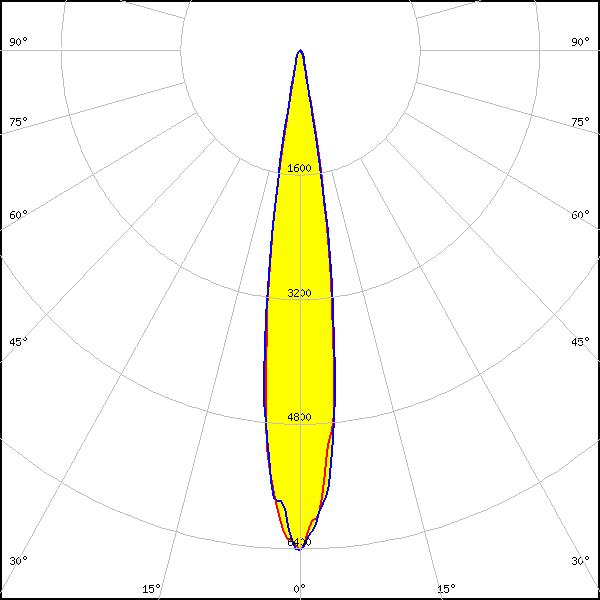

    LED: LUXEON CoB 1205HD
    LES size: 11.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 15°
    FWTM: 25°
    Peak intensity: 6.400 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White

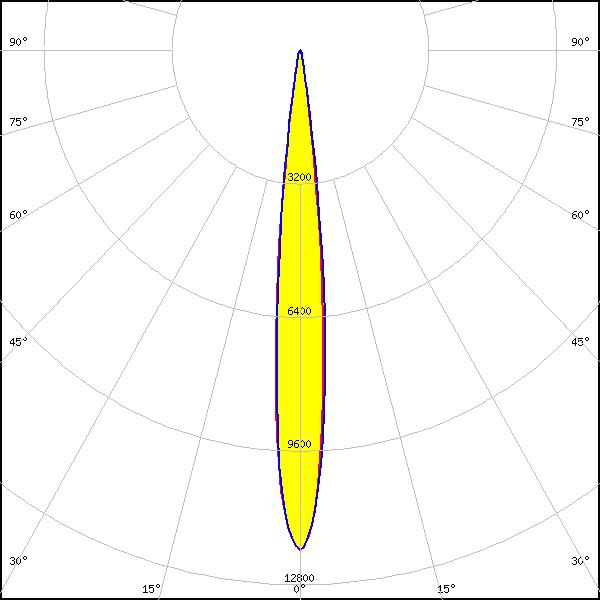

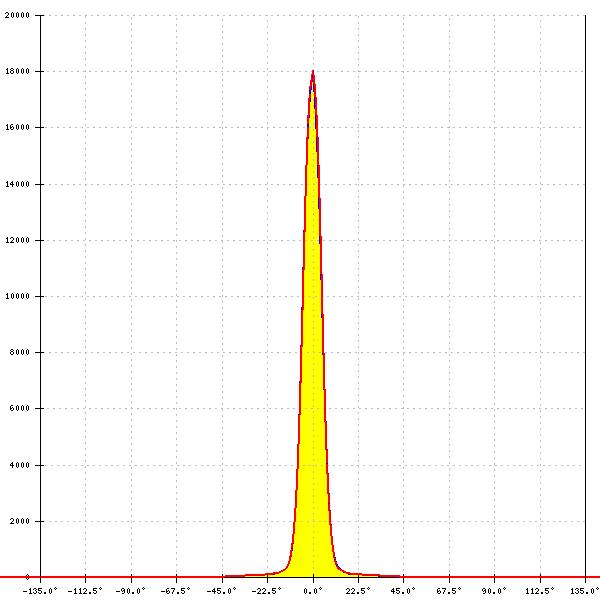

    LED: LUXEON CoB Compact
    LES size: 6.5 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.000 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

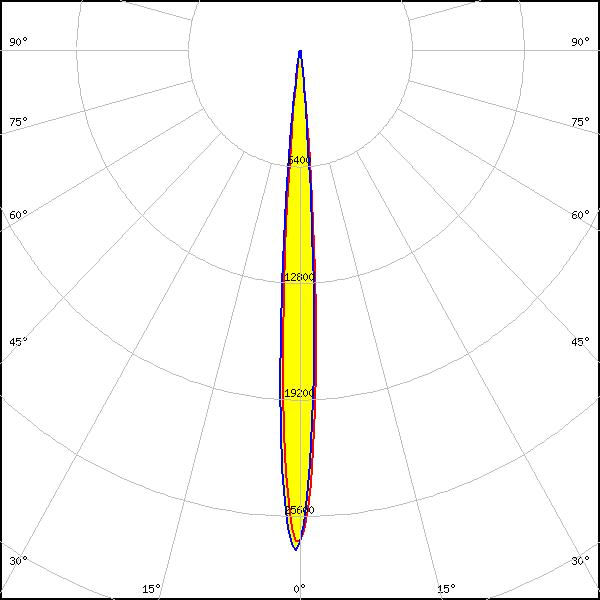

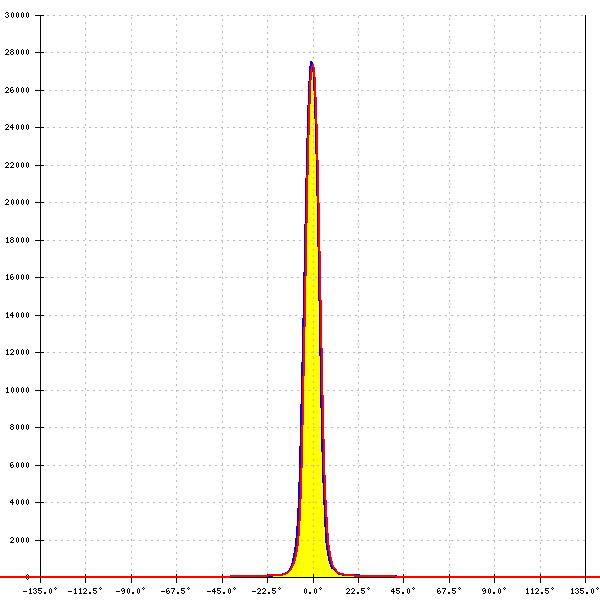

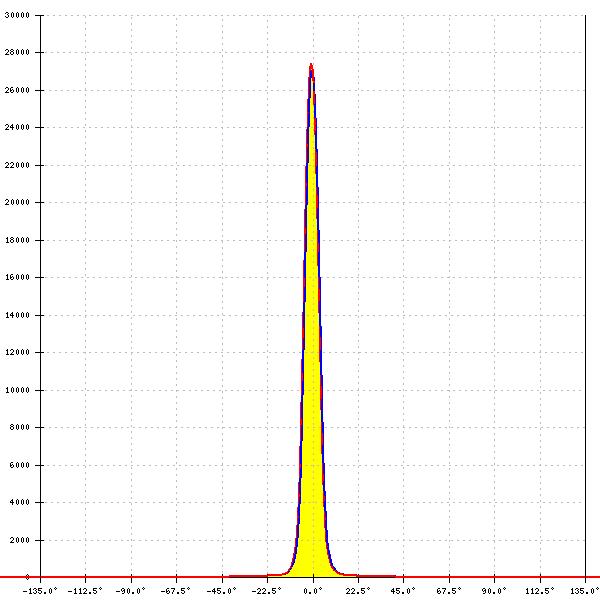

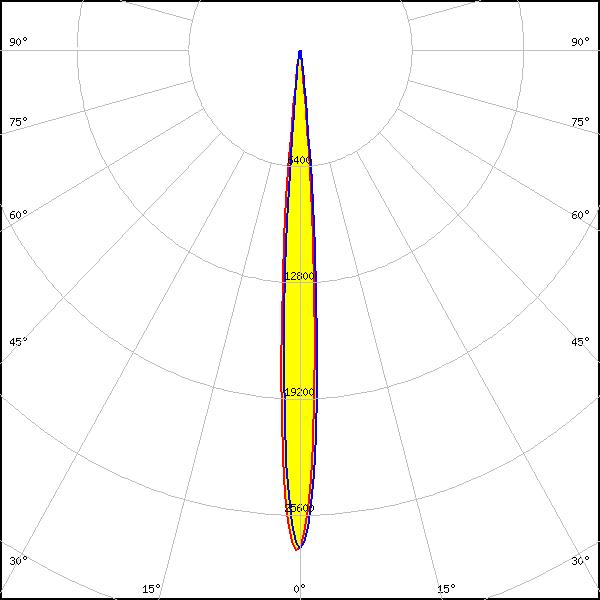

    LED: LUXEON CX Plus CoB - HD S01H4
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 27.543 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 1
    Light colour/type: White

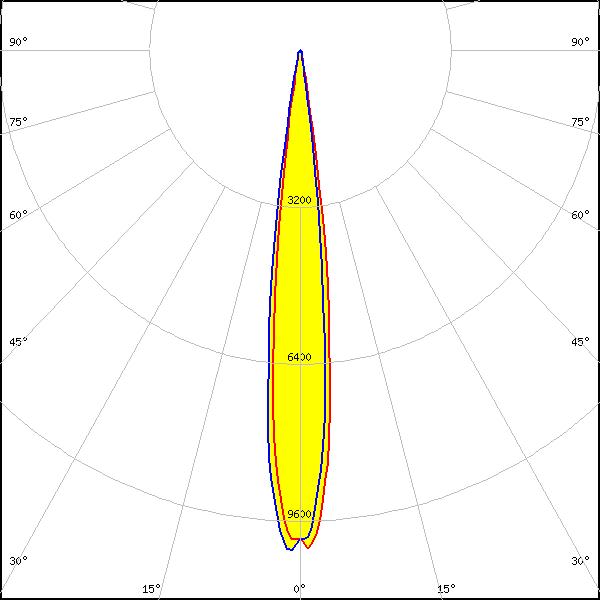

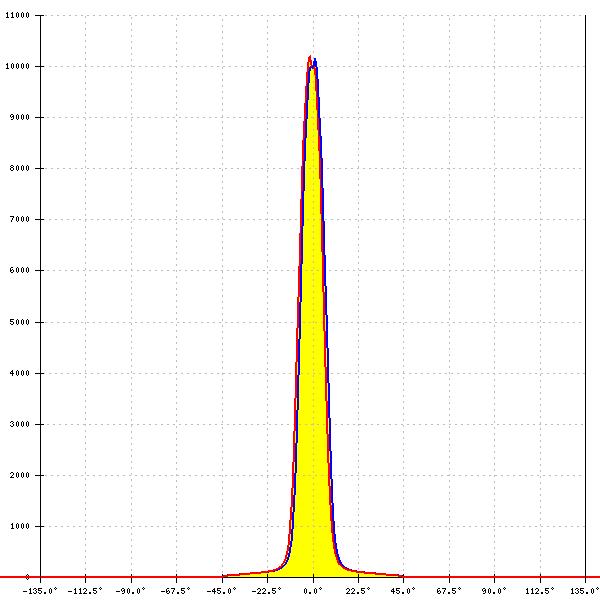

    LED: LUXEON CX Plus CoB - HD S04H9
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 13°
    FWTM: 20°
    Peak intensity: 10.326 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 15°
    FWTM: 26°
    Peak intensity: 6.536 cd/lm
    Efficiency: 58 %
    LEDs/each optic: 1
    Light colour/type: White

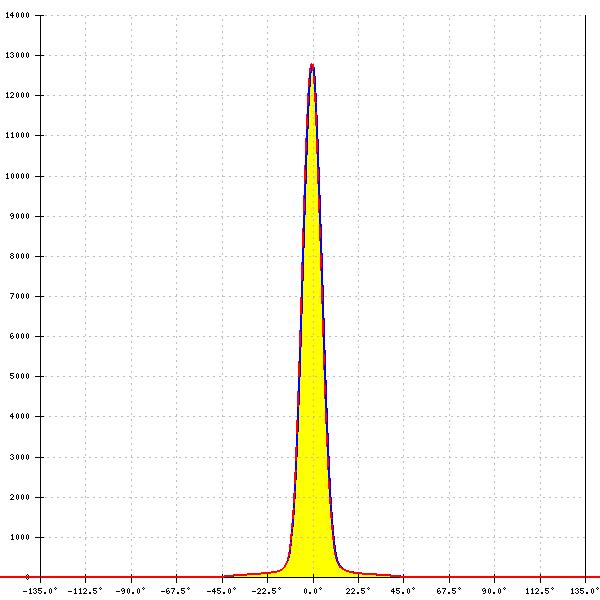

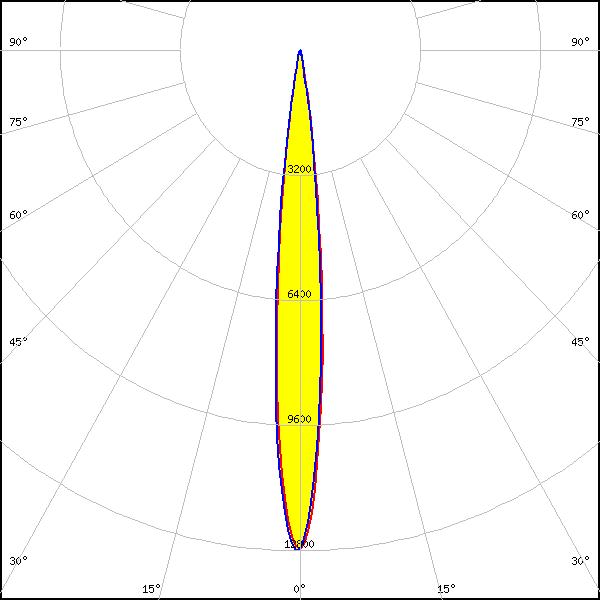

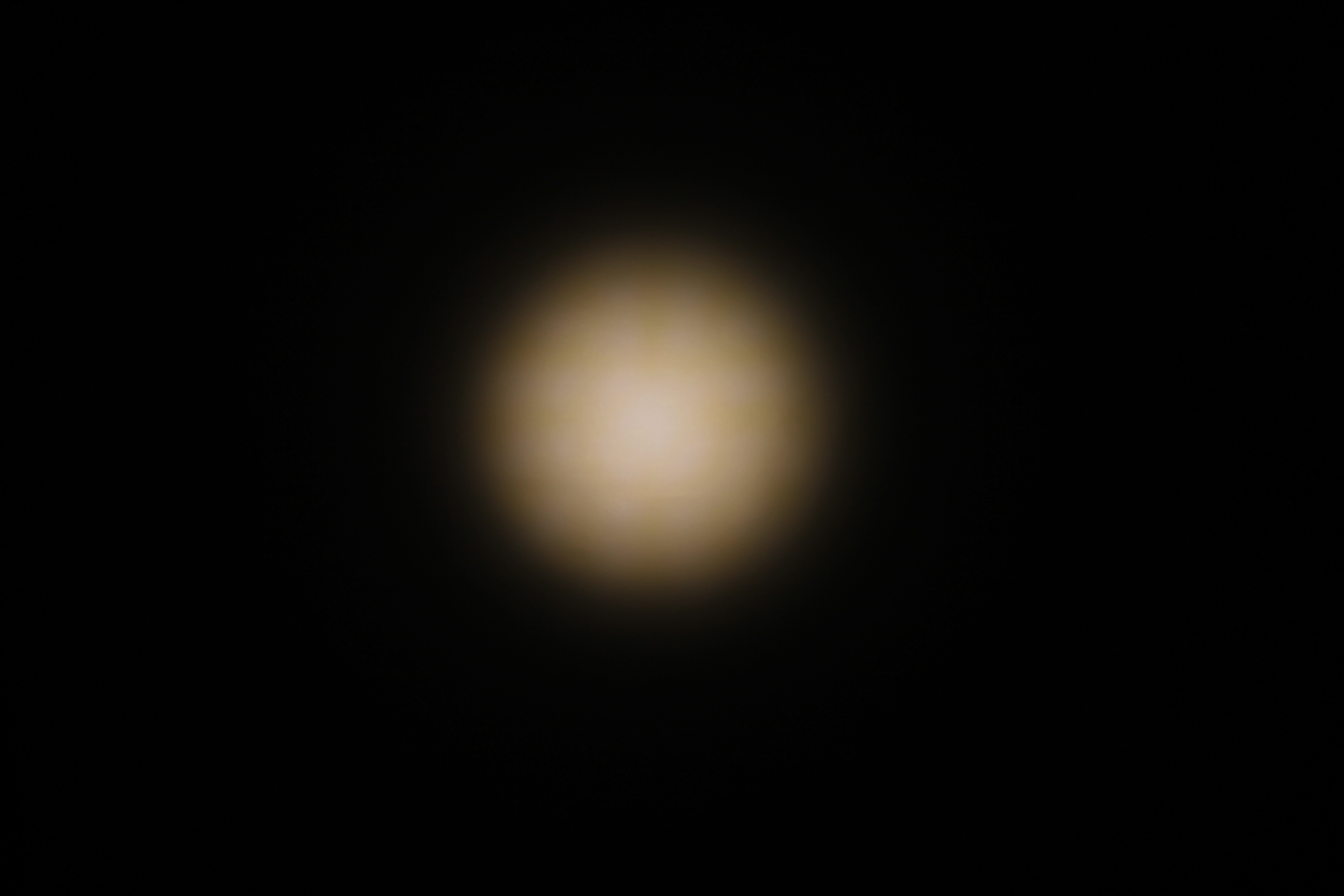

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 641a Hekla
    FWHM: 11°
    FWTM: 20°
    Peak intensity: 12.791 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 27.464 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: White

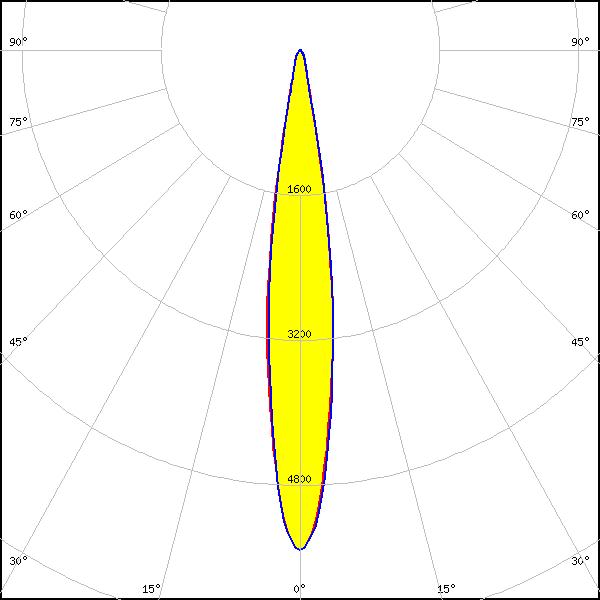

    LED: CxM-11 (19x19)
    LES size: 11.7 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 15°
    FWTM: 26°
    Peak intensity: 5.516 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 1
    Light colour/type: White

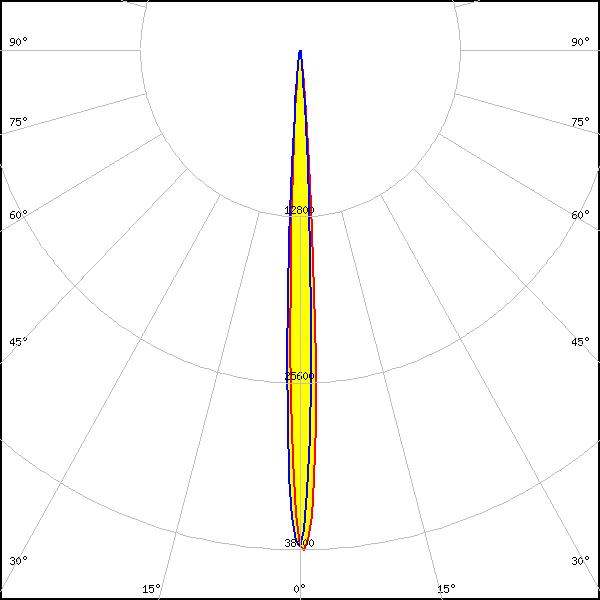

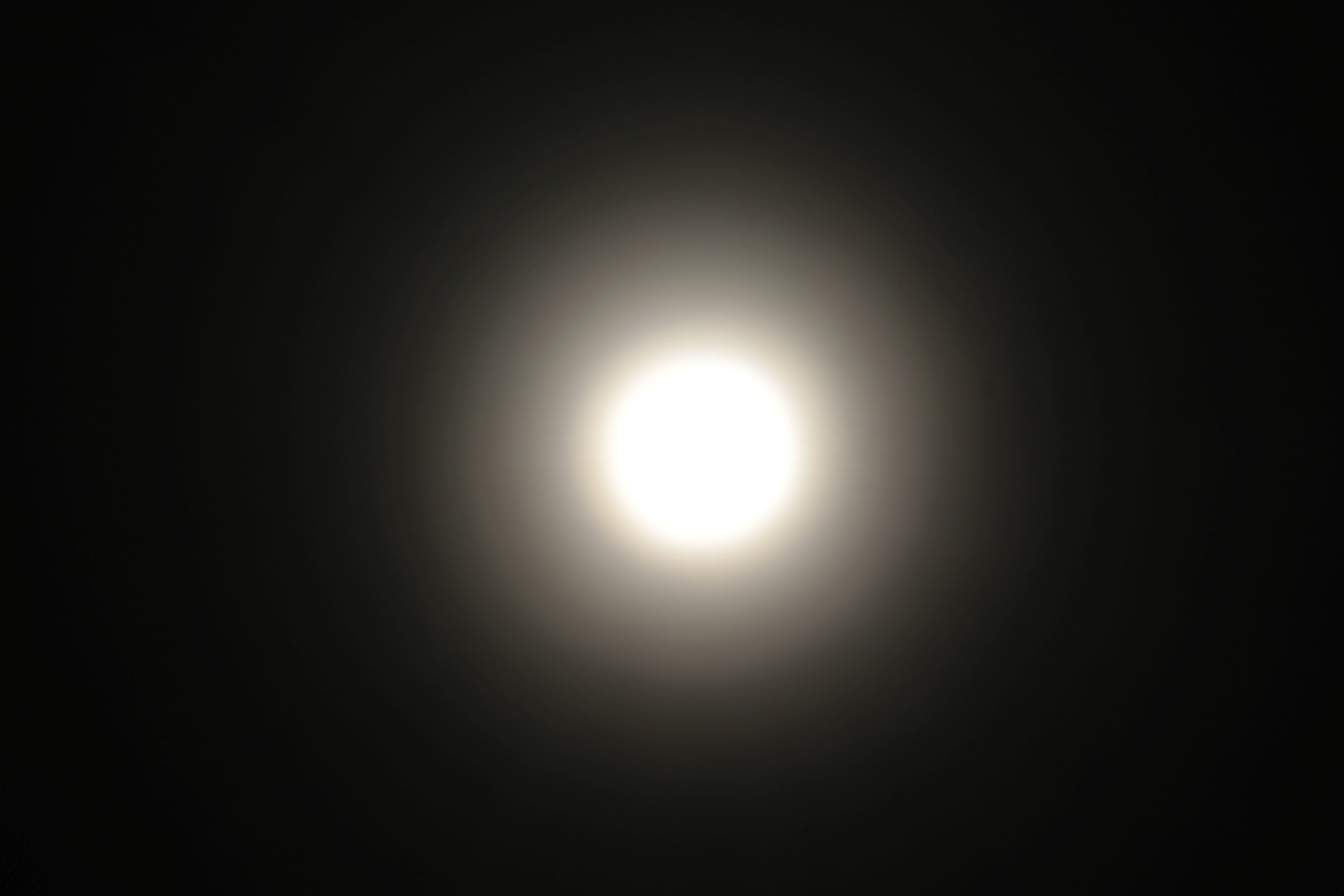

    LED: CXM-3
    LES size: 3.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 6°
    FWTM: 11°
    Peak intensity: 38.452 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: White

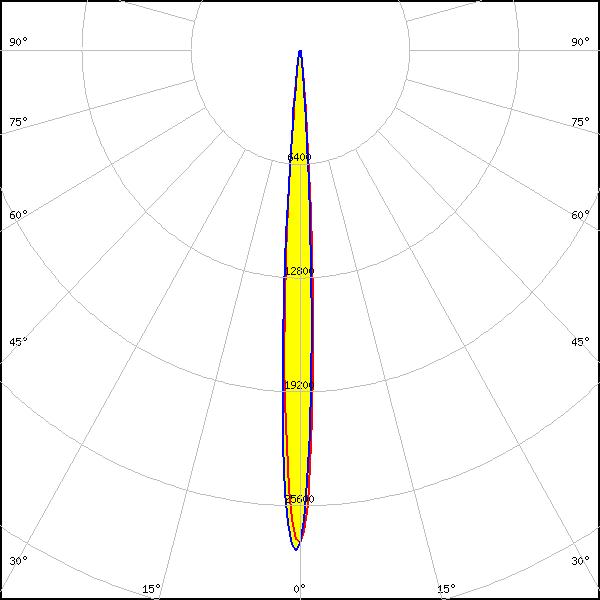

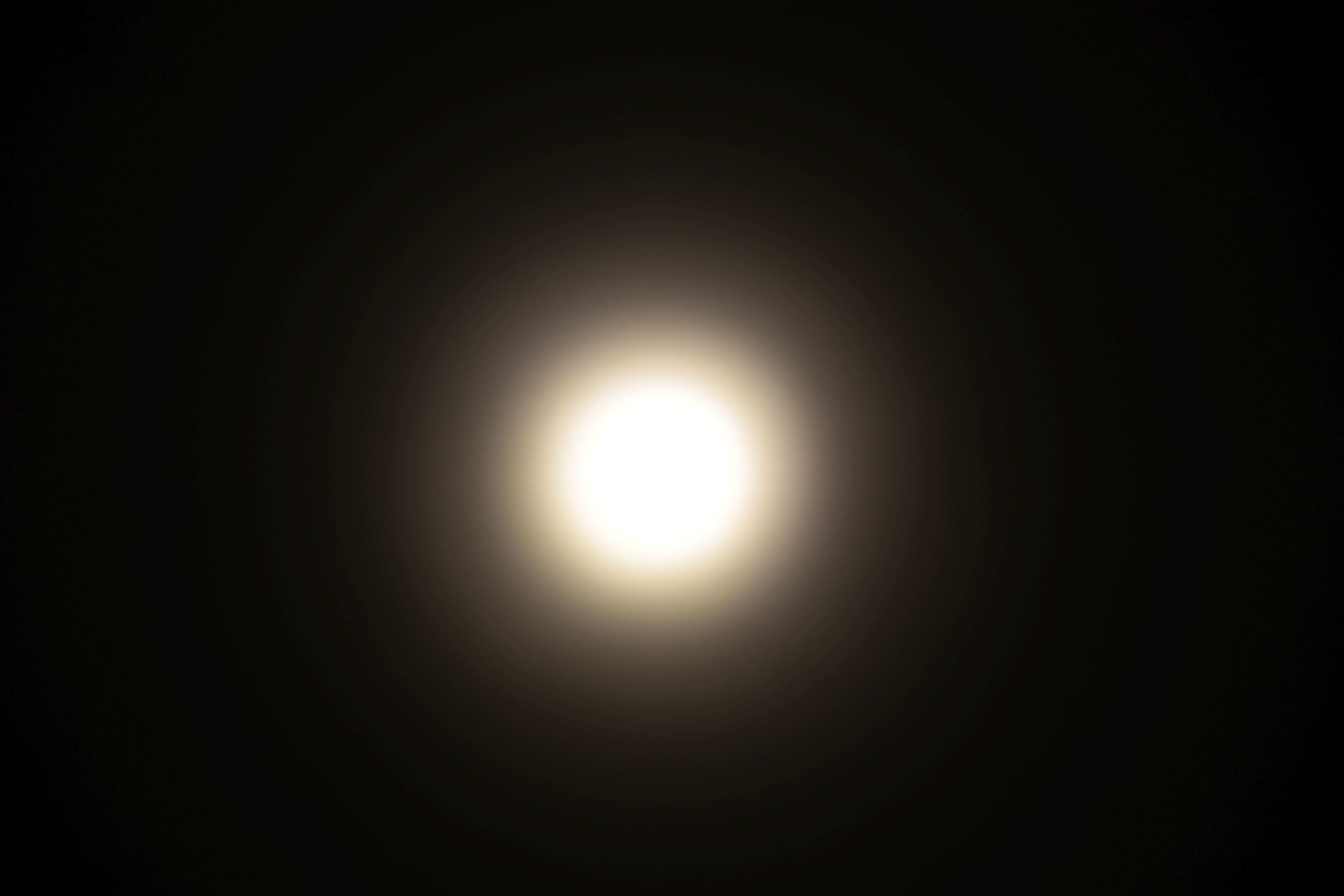

    LED: CXM-4
    LES size: 4.5 mm
    Required components:
    F17435_HEKLA-G2-C
    C16752_CARMEN-70-SHD
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 24.607 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 1
    Light colour/type: White

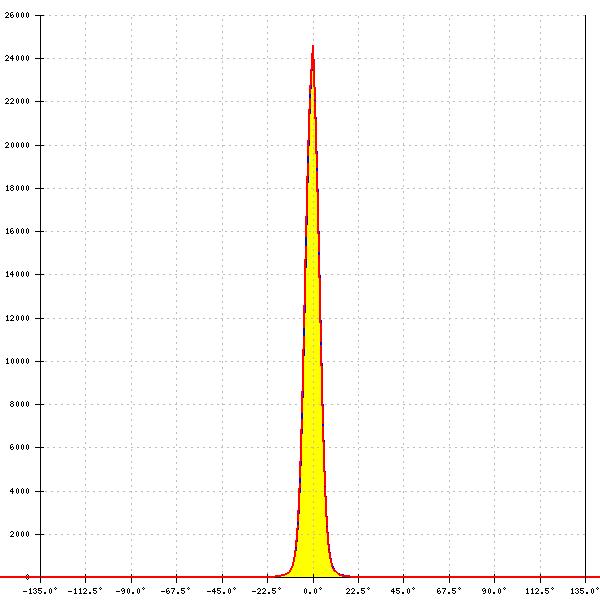

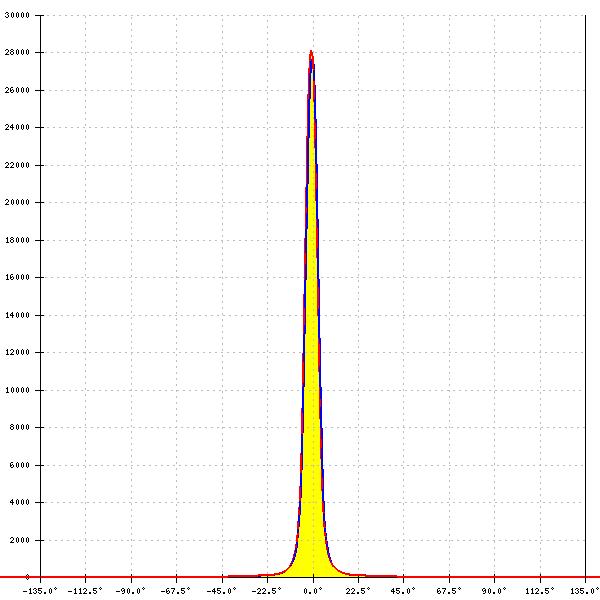

    LED: CXM-4
    LES size: 4.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 7°
    FWTM: 13°
    Peak intensity: 28.116 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White

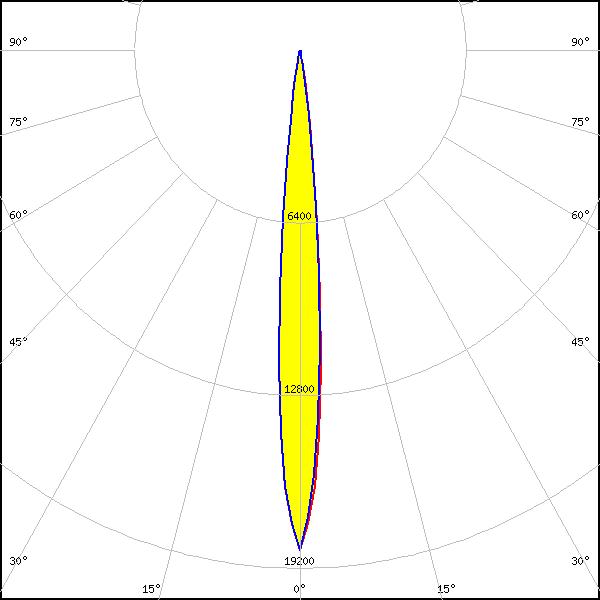

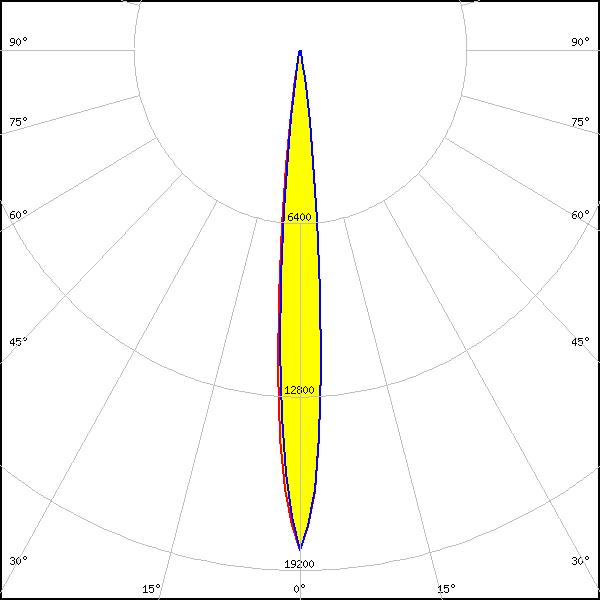

    LED: CxM-6 (12x13)
    LES size: 6.3 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.461 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    LES size: 6.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.540 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White

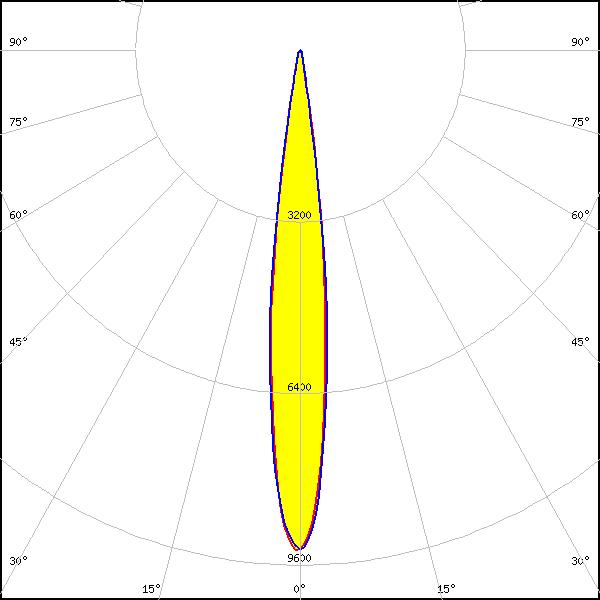

    LED: CxM-9 (13.5x13.5)
    LES size: 9.6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 13°
    FWTM: 21°
    Peak intensity: 9.300 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White

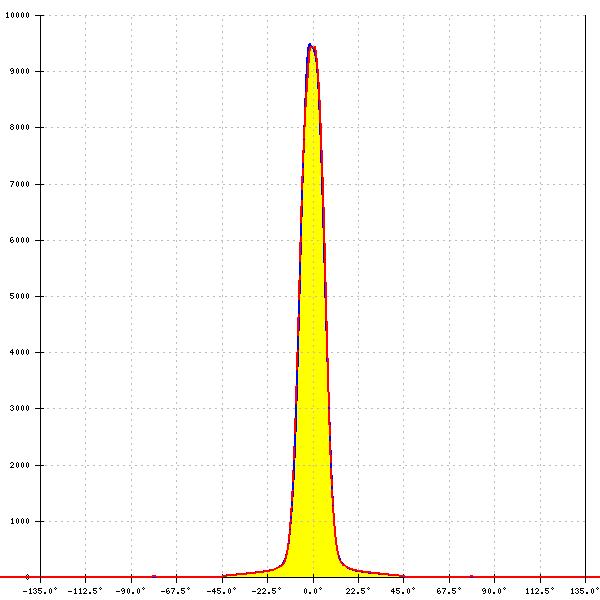

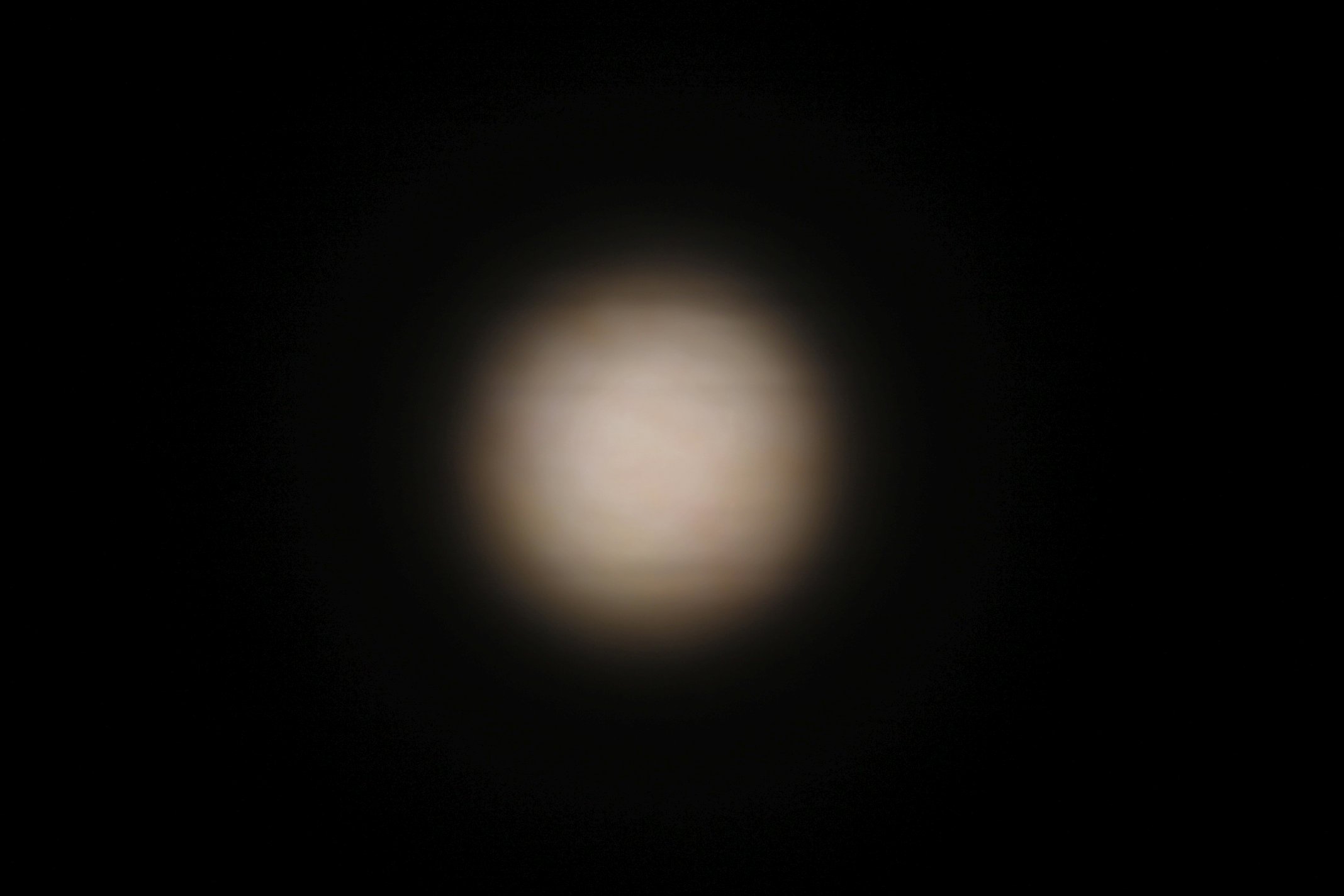

    LED: Fortimo SLM L09 CoB
    LES size: 9.0 mm
    Required components:
    F15858_HEKLA-SOCKET-H
    FWHM: 13°
    FWTM: 21°
    Peak intensity: 9.600 cd/lm
    Efficiency: 63 %
    LEDs/each optic: 1
    Light colour/type: White

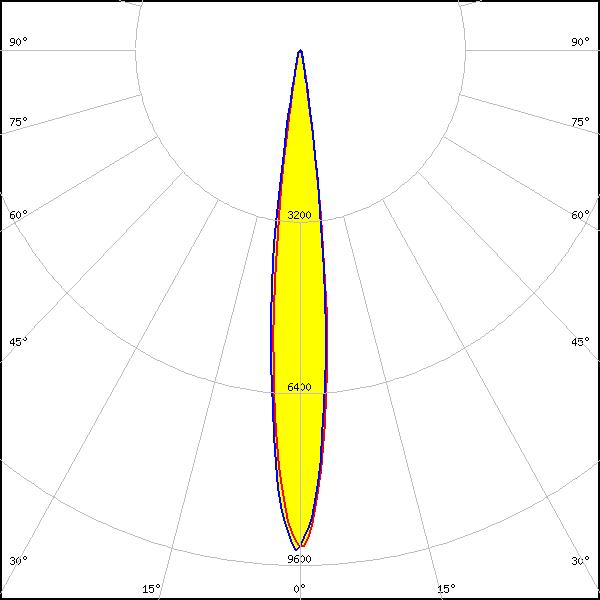

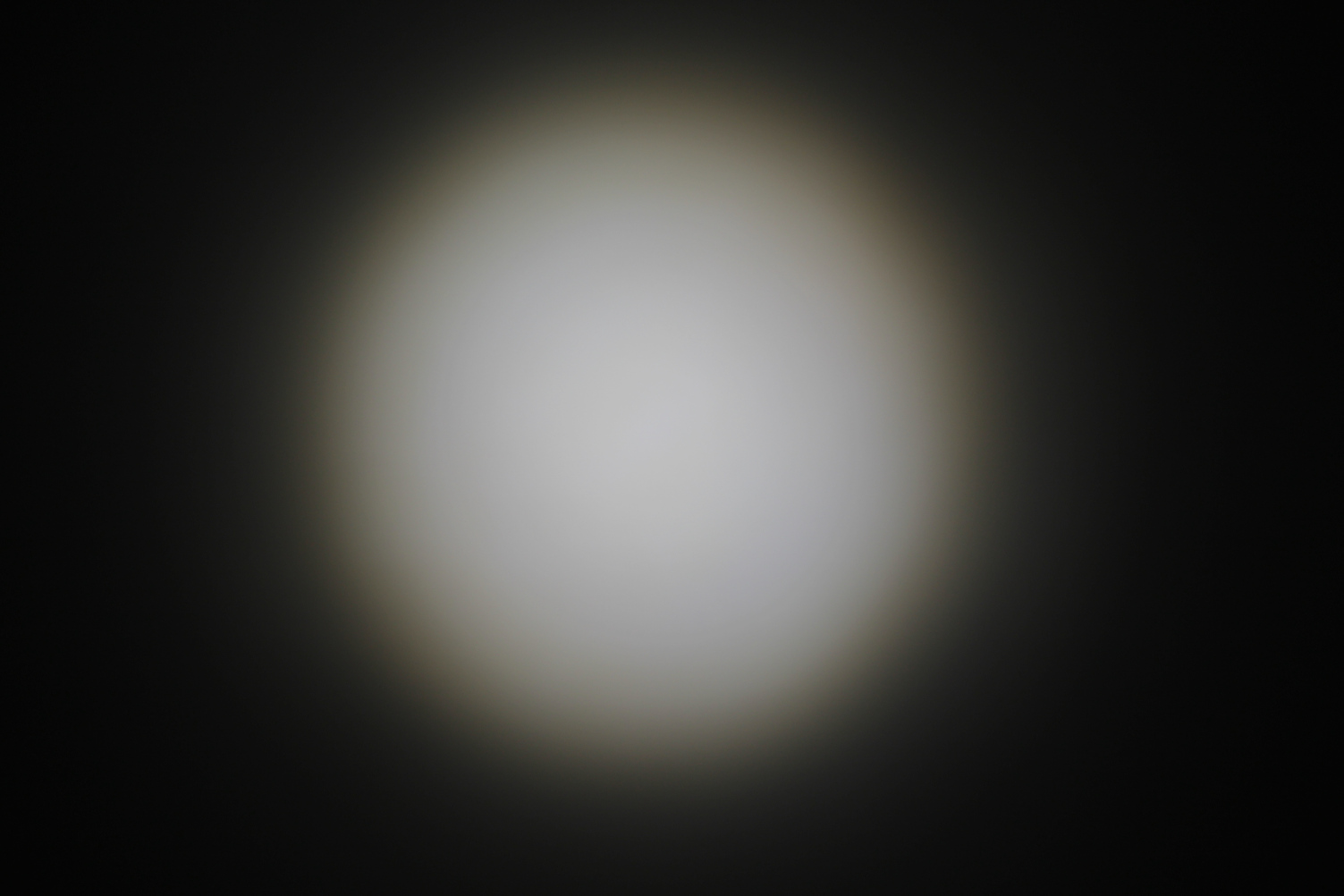

    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 13°
    FWTM: 21°
    Peak intensity: 9.300 cd/lm
    Efficiency: 60 %
    LEDs/each optic: 1
    Light colour/type: White

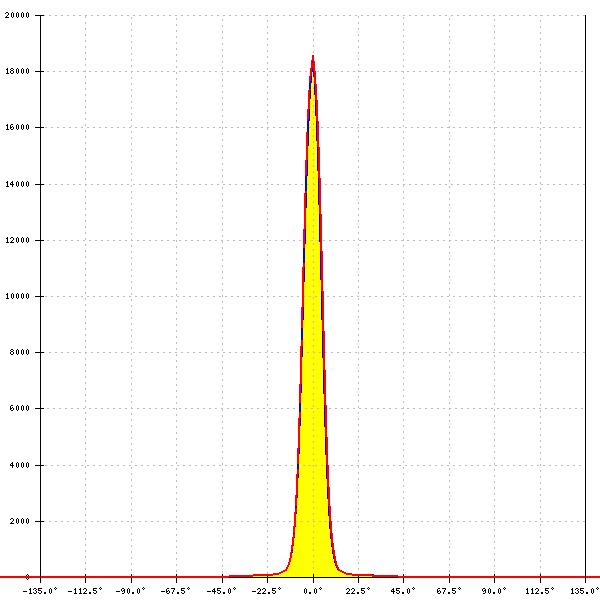

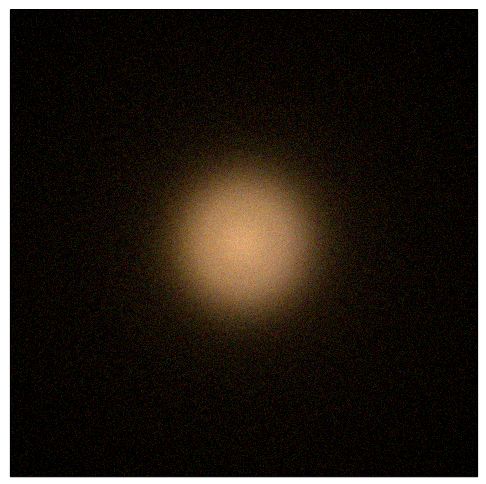

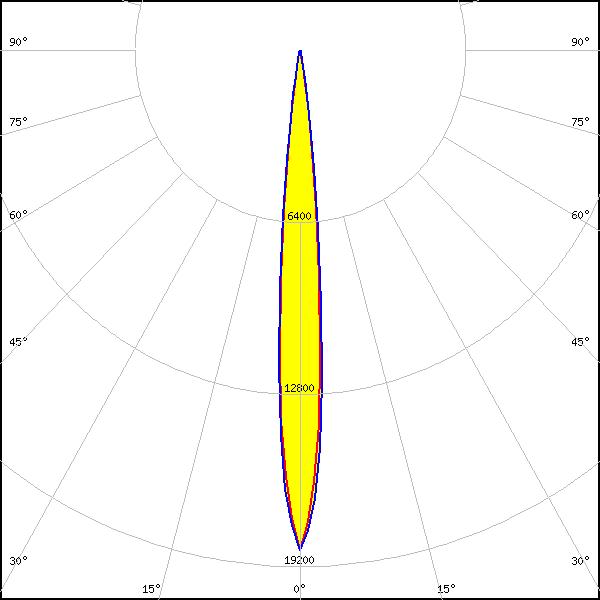

    LED: LC010C
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 18.593 cd/lm
    Efficiency: 68 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC020C
    LES size: 8.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 11°
    FWTM: 19°
    Peak intensity: 12.000 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White

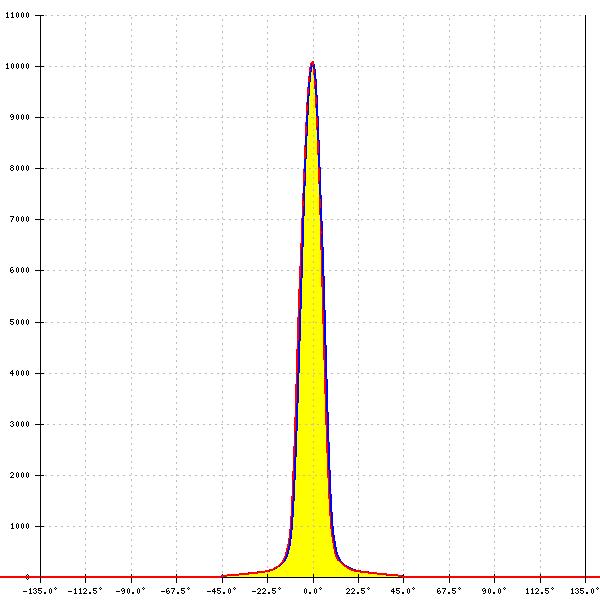

    LED: LC020C G2
    LES size: 8.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 10.000 cd/lm
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: White

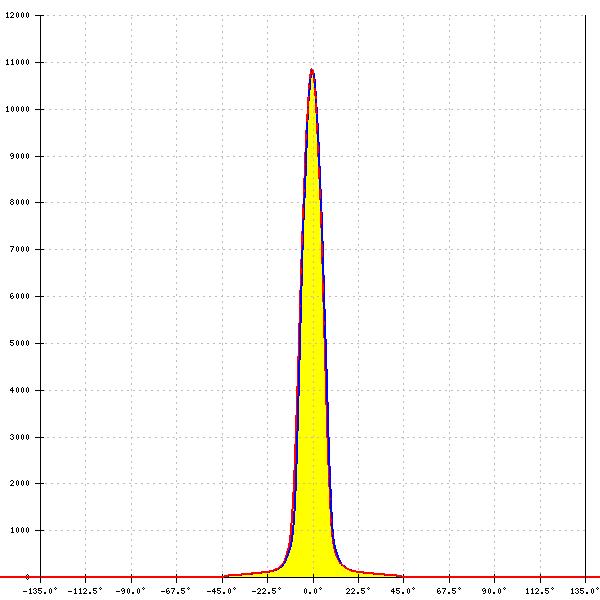

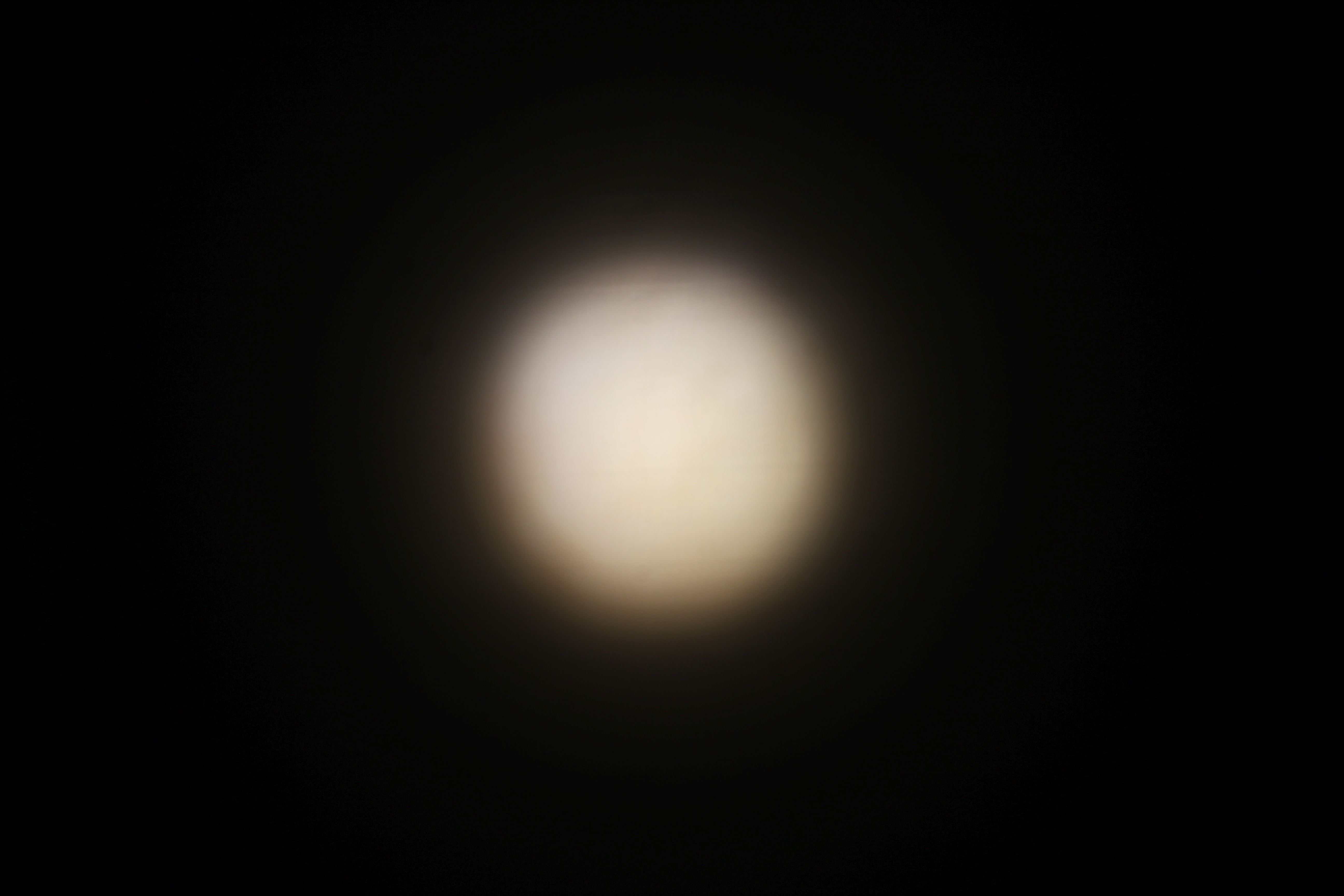

    LED: SLE G7 LES09
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 12°
    FWTM: 19°
    Peak intensity: 10.900 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White

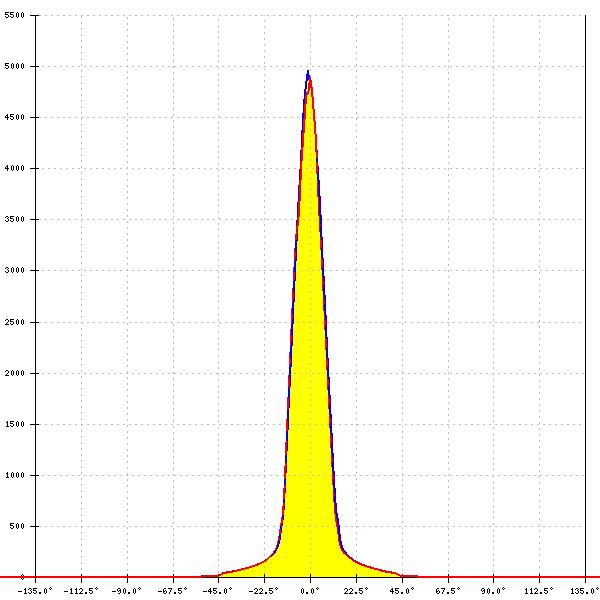

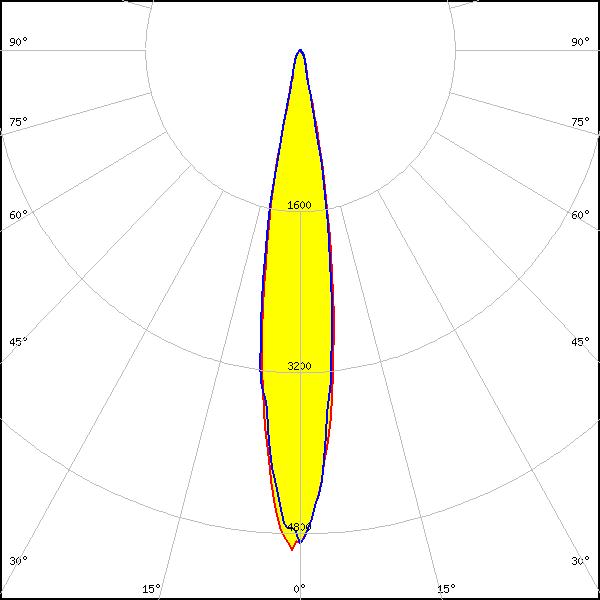

    LED: SLE G7 LES13
    LES size: 13.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 17°
    FWTM: 28°
    Peak intensity: 5.000 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 1
    Light colour/type: White

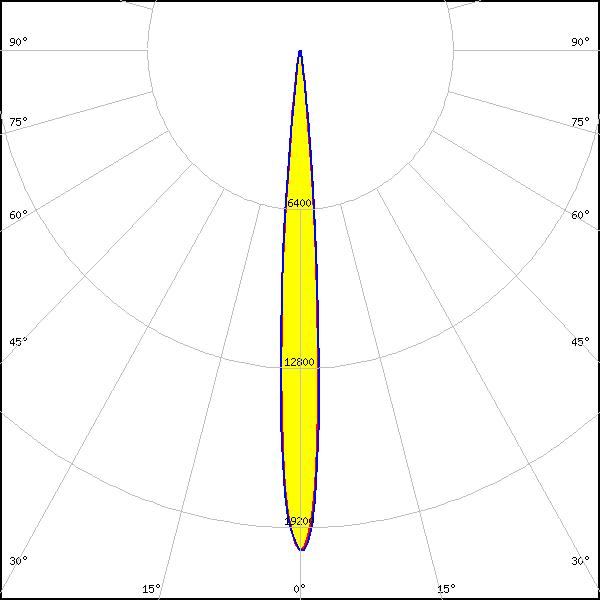

    LED: XOB 6 mm
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 9°
    FWTM: 15°
    Peak intensity: 20.143 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 9.8 mm
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 10.353 cd/lm
    Efficiency: 60 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XTM - 19mm LES
    LES size: 19.0 mm
    Required components:
    C16058_XTM-ADAPTER-50-C
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 2.900 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
