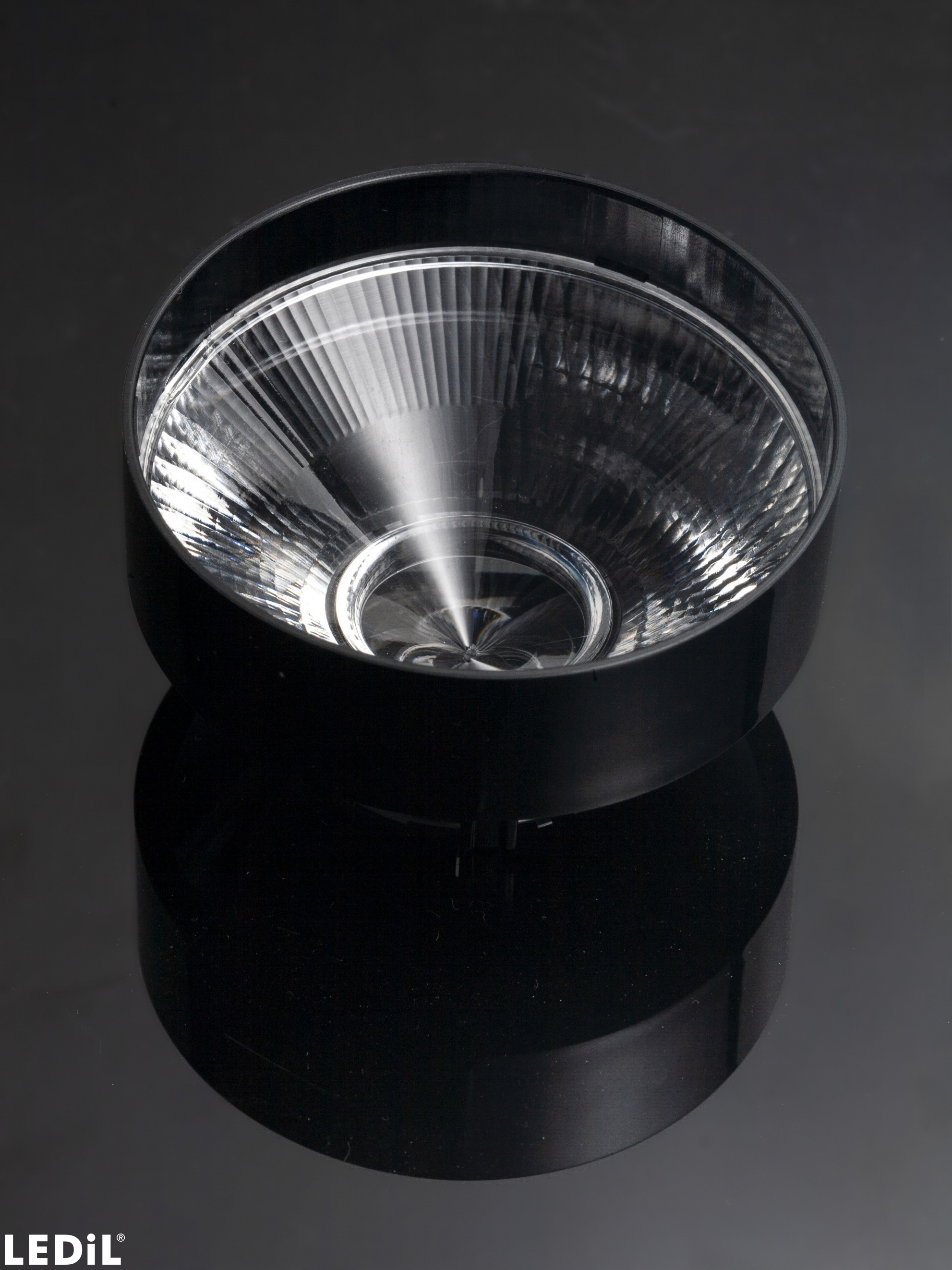

CP16601_CARMEN-SS-C

Print

~12° smooth spot beam. Assembly with holder C compatible with LEDiL HEKLA. Updated version with good colour mixing capability.

Specification
  • Dimensions:
    70 mm
  • Height:
    41.5 mm
  • Fastening:
    socket
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials
  • CARMEN-SS, Single lens, PMMA
  • CARMEN-HLD-C, Holder, PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    150 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.4 kg
  • MPQ:
    15 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    8.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP16601_CARMEN-SS-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Typical Applications

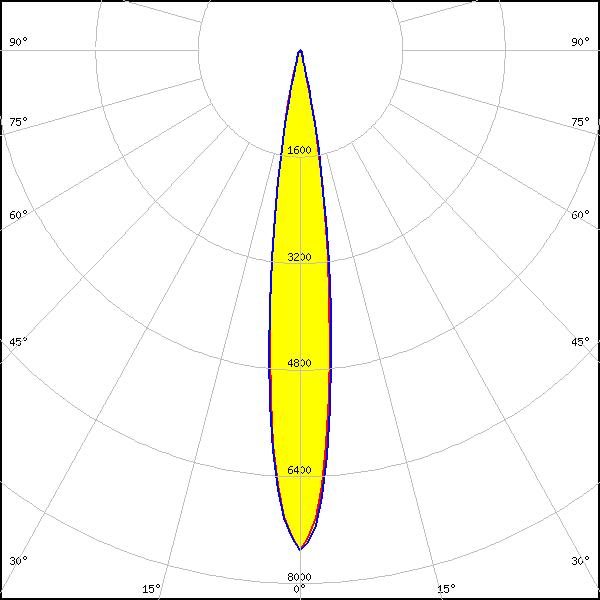

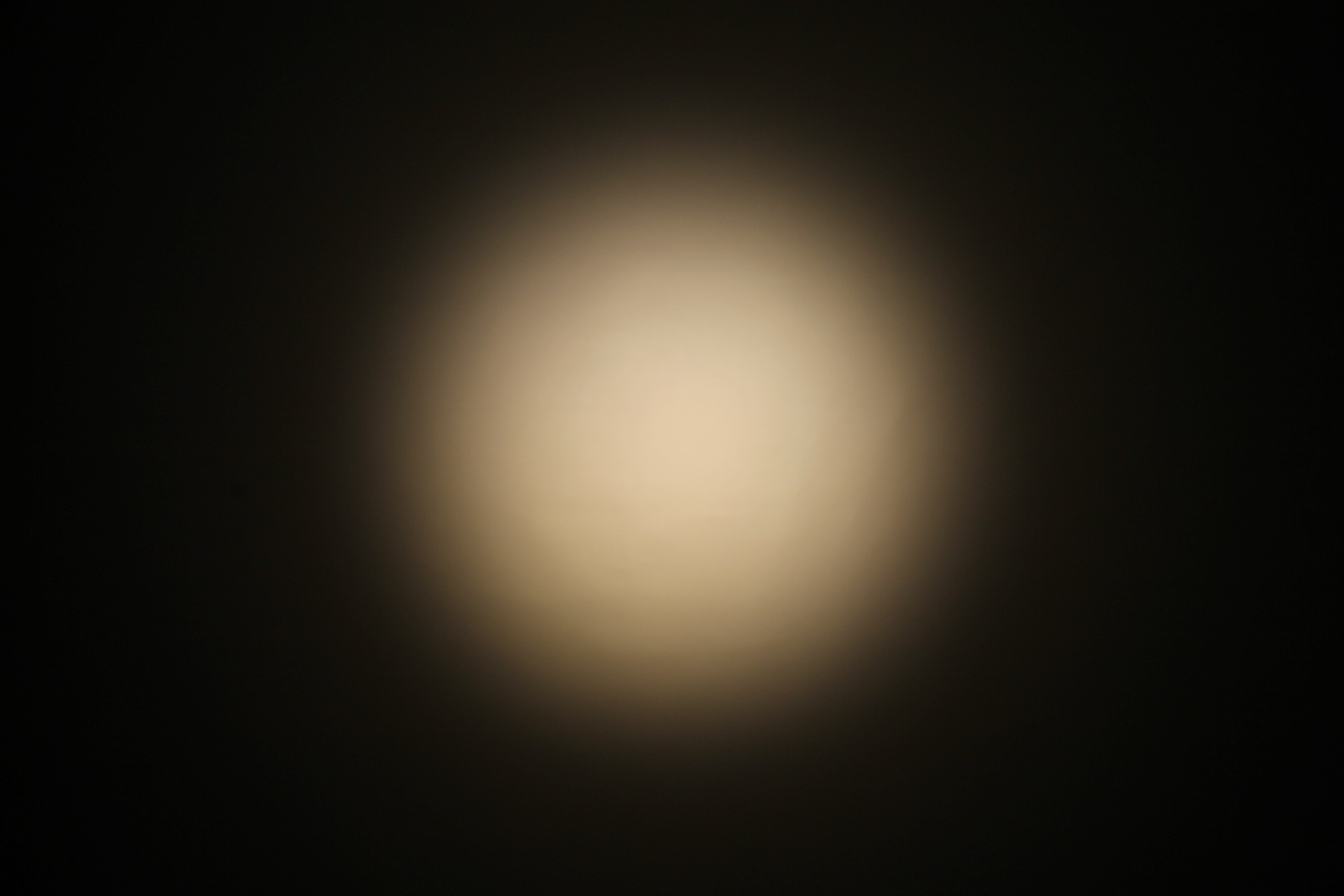

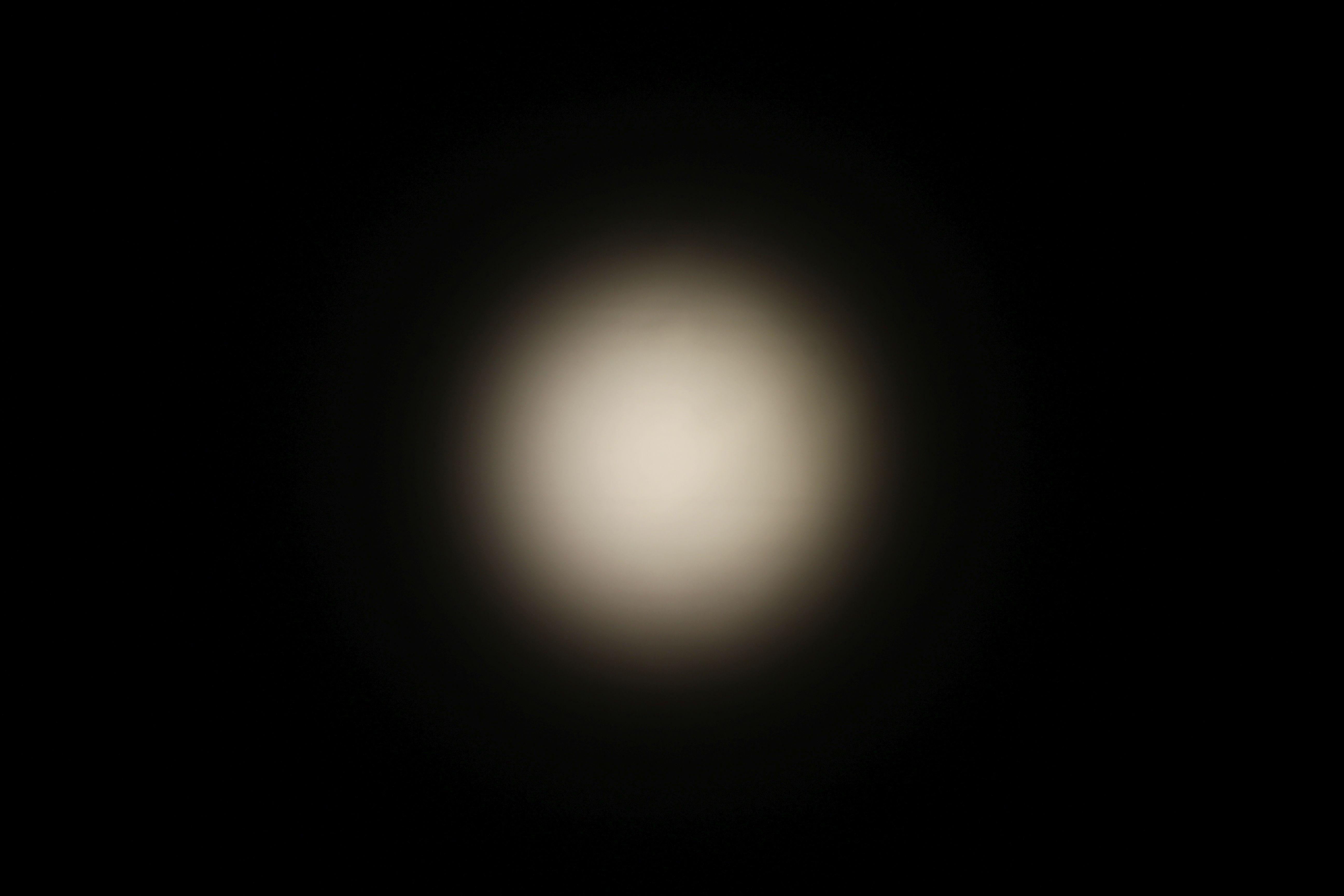

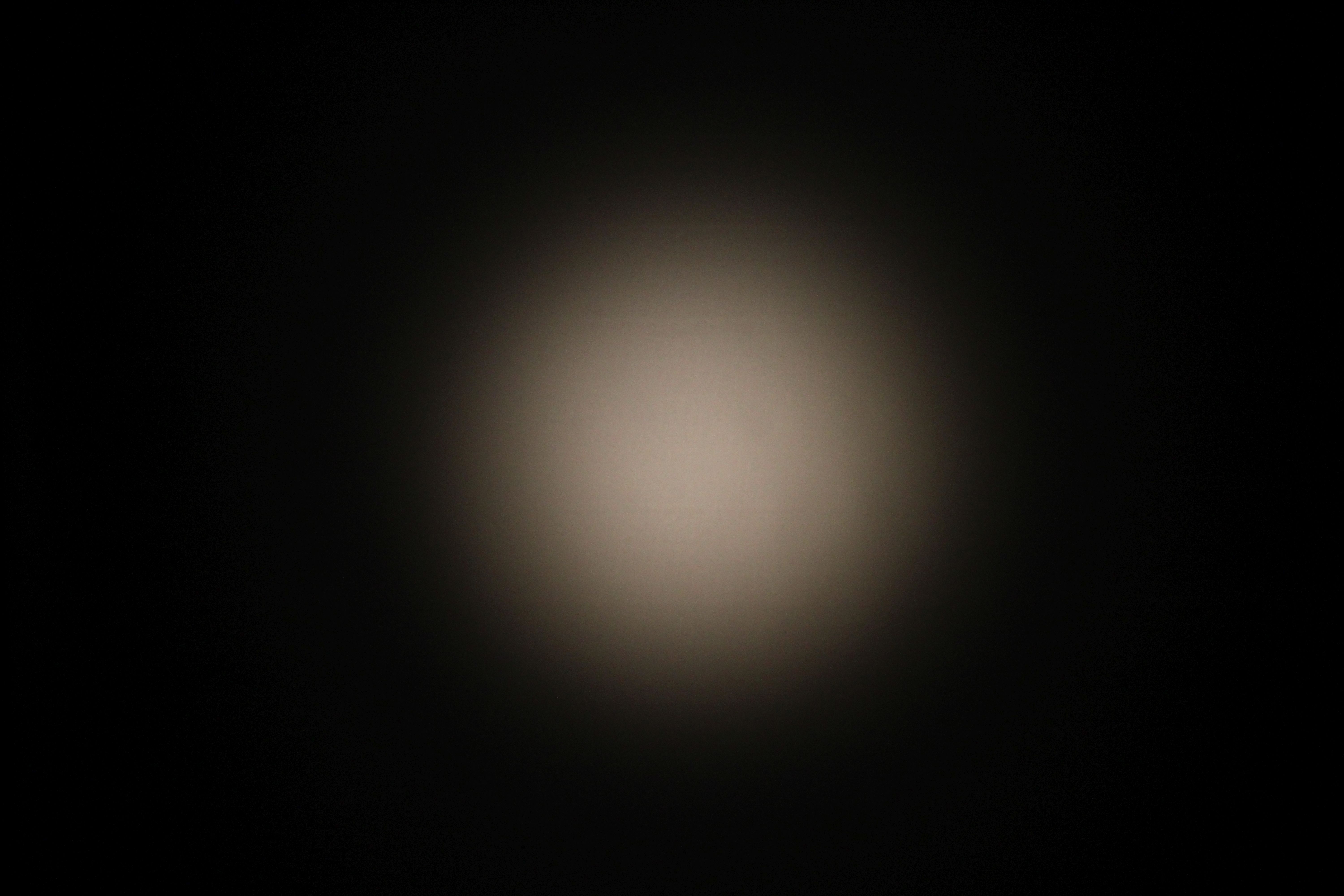

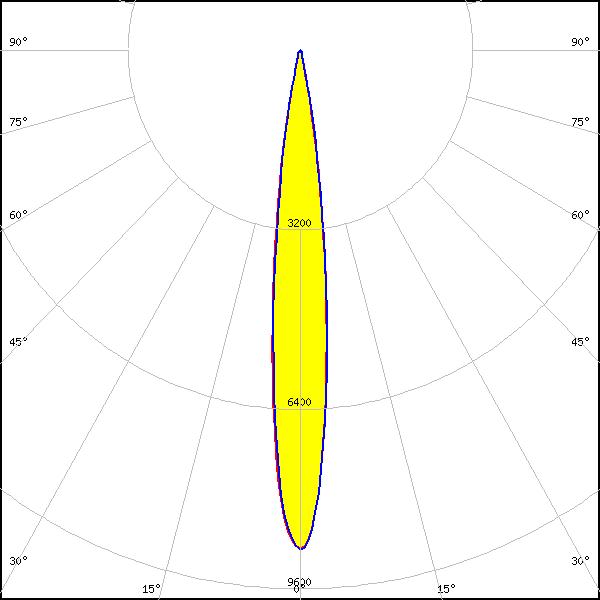

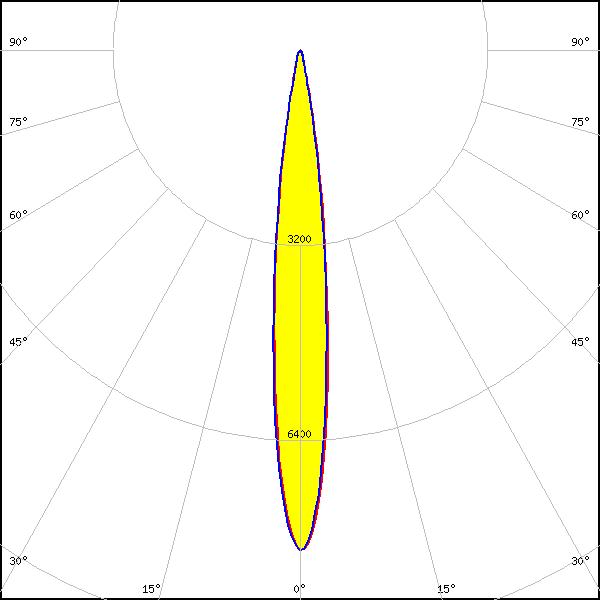

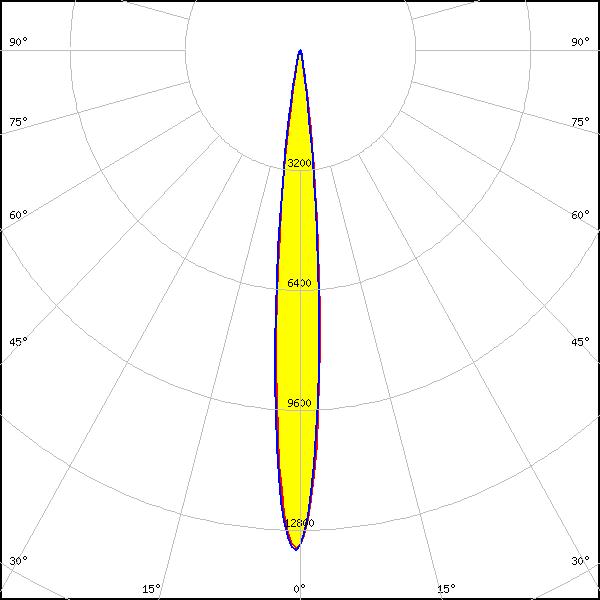

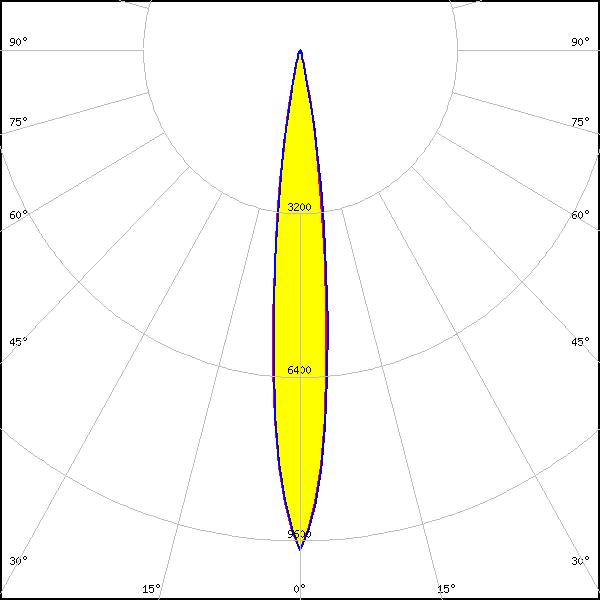

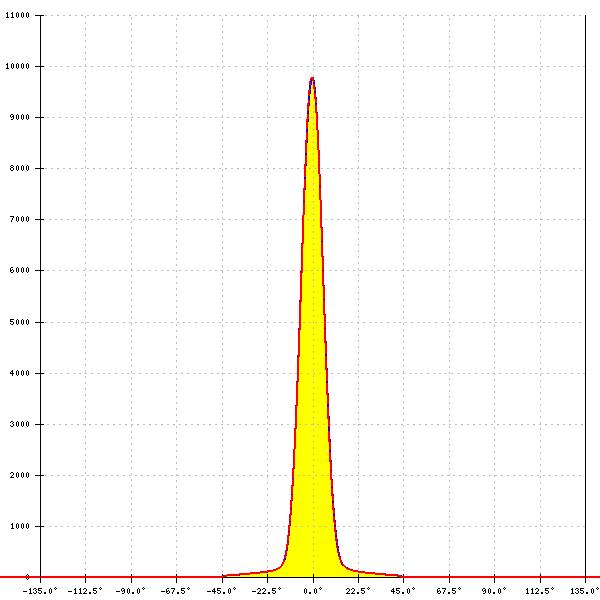

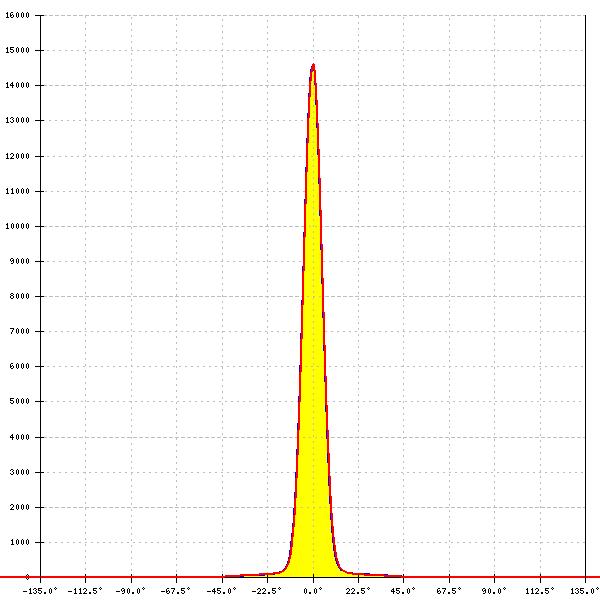

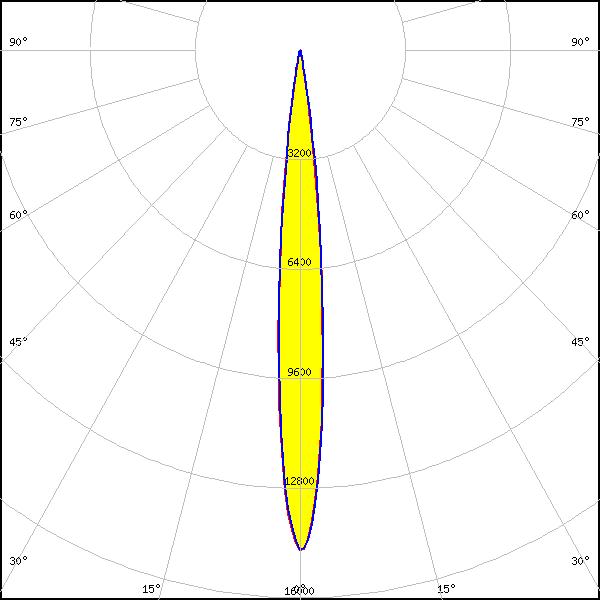

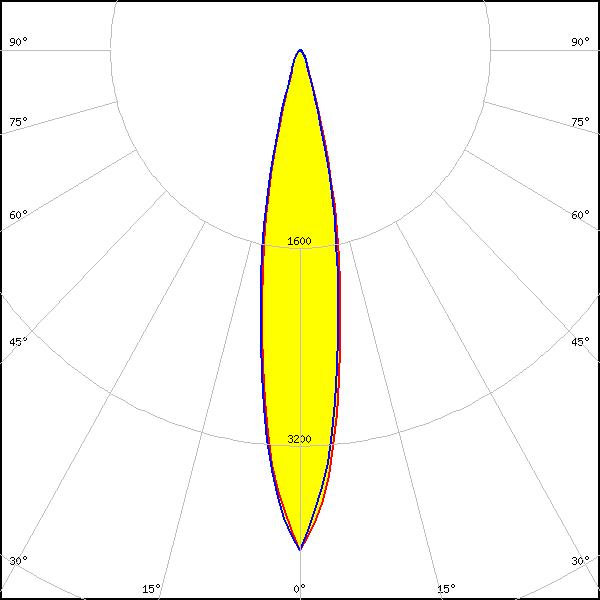

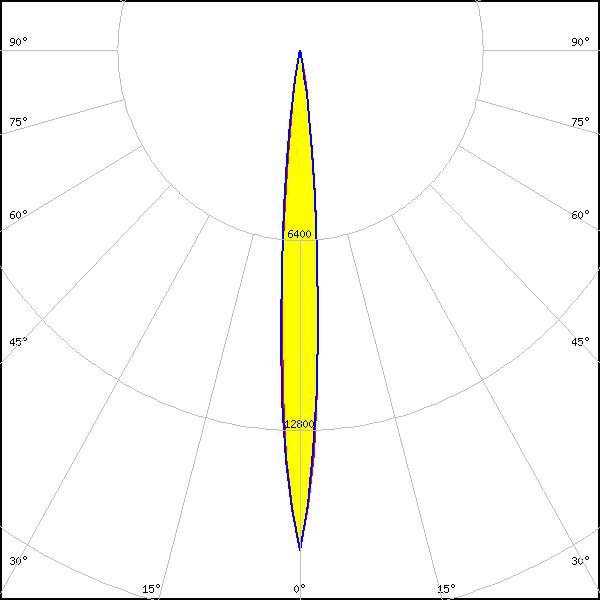

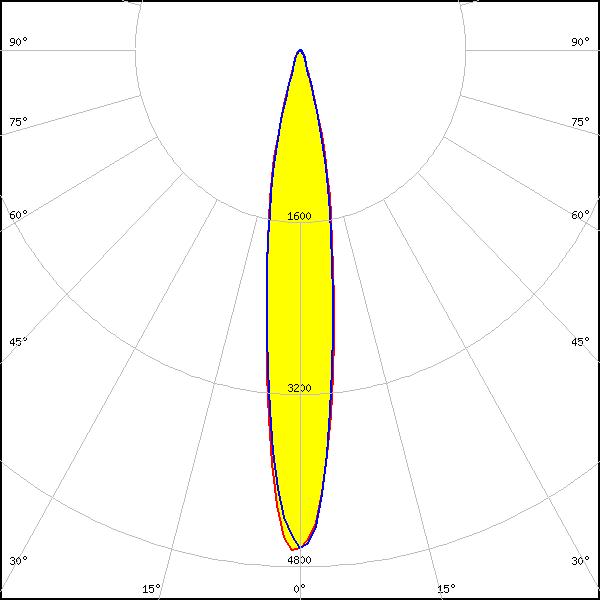

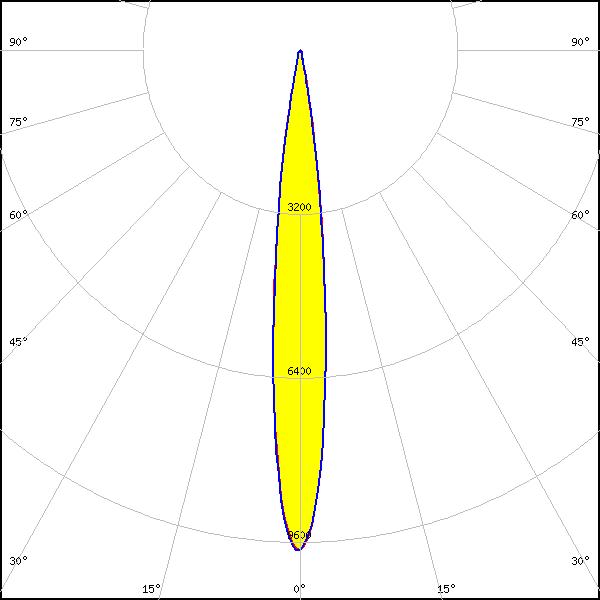

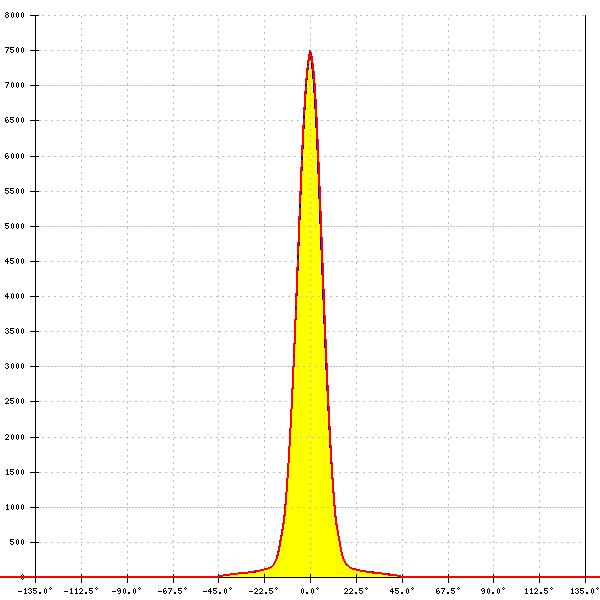

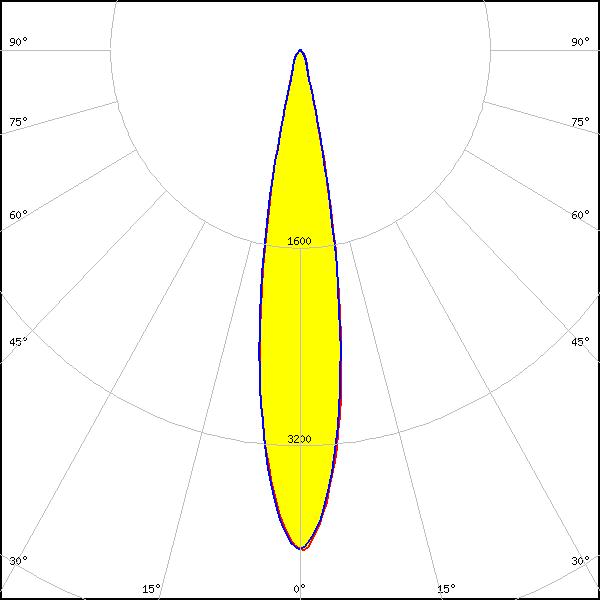

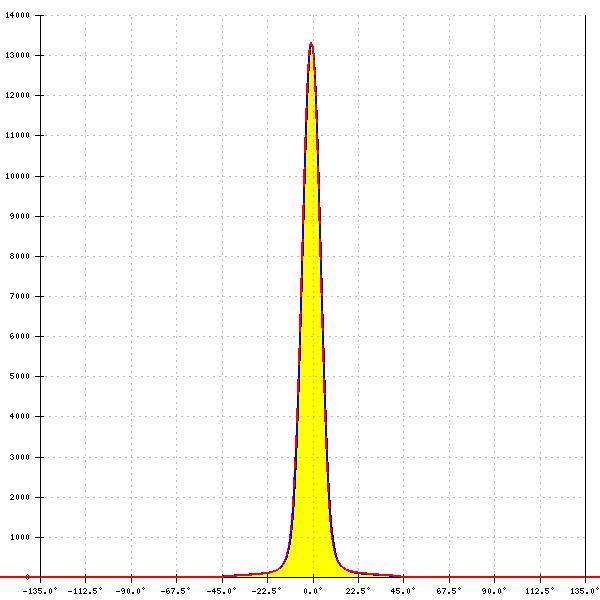

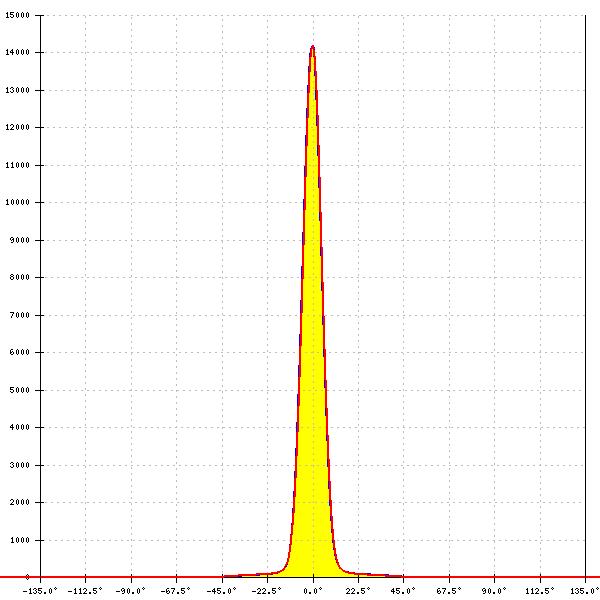

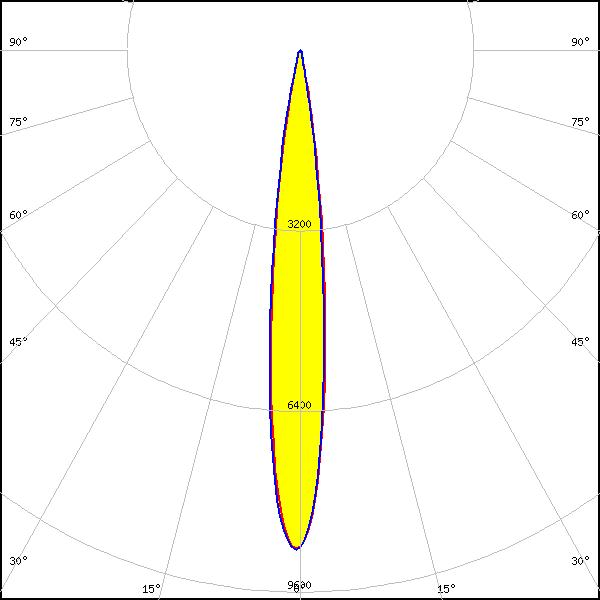

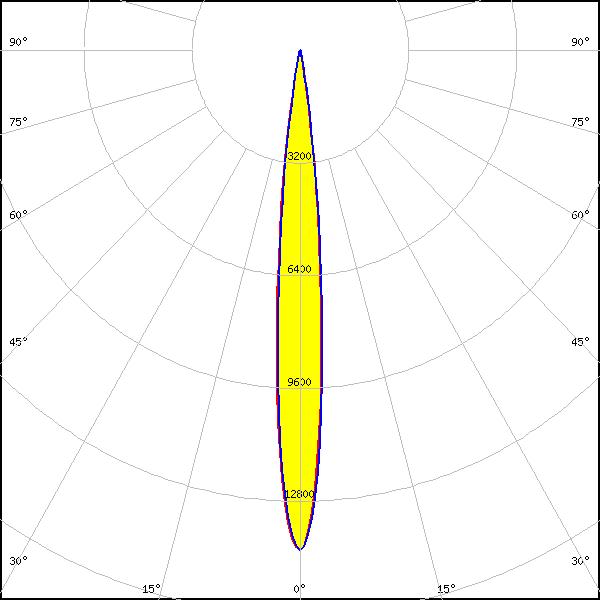

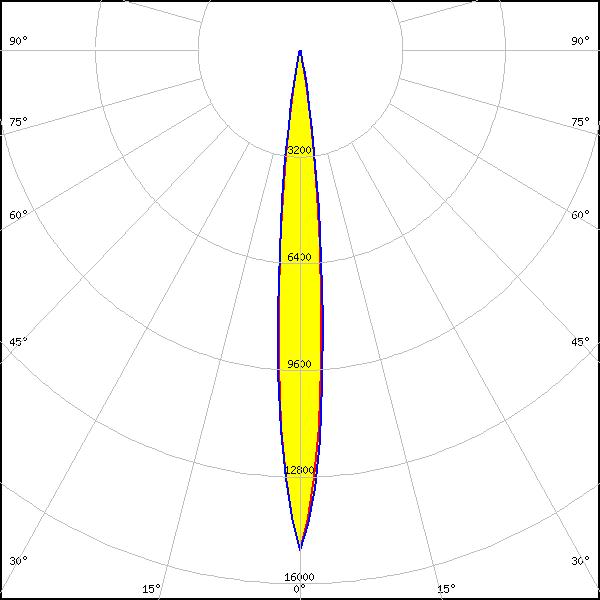

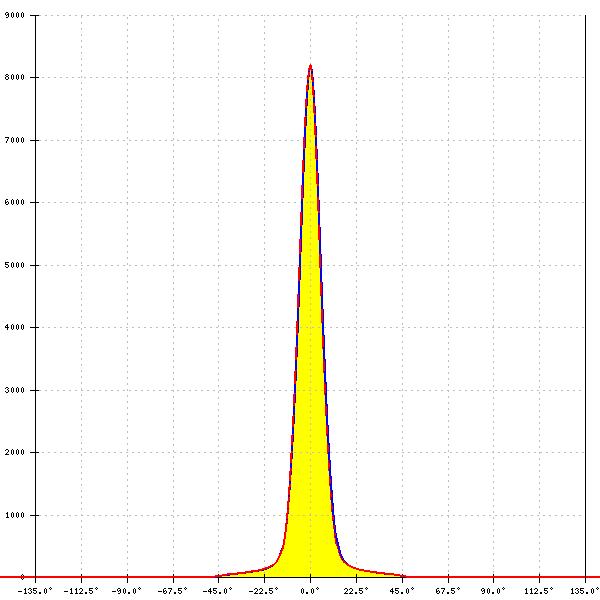

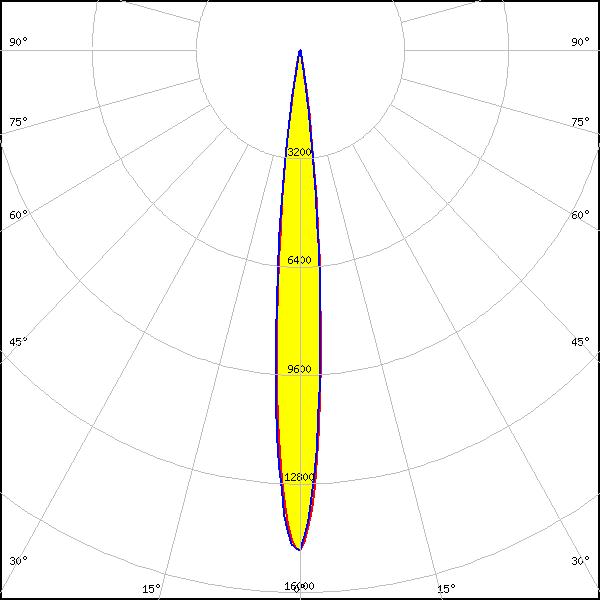

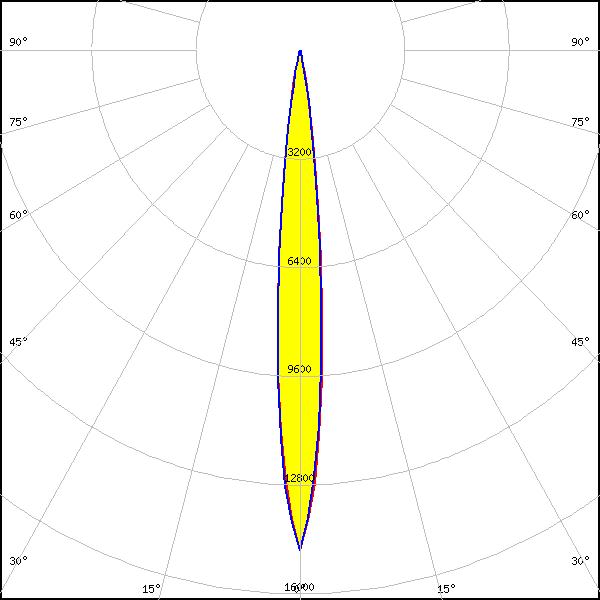

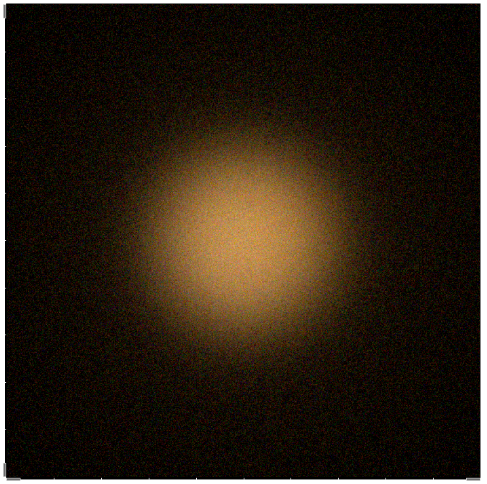

Optical results

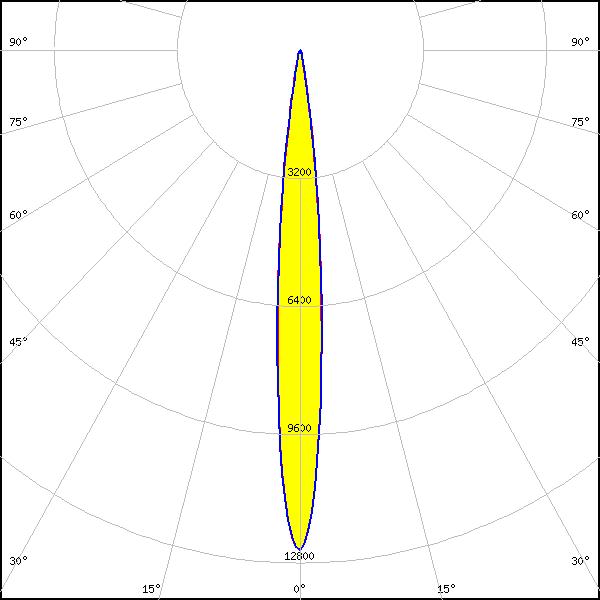

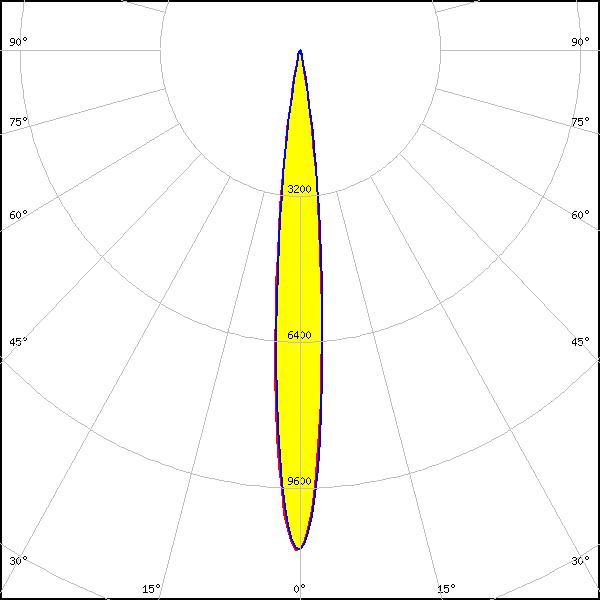

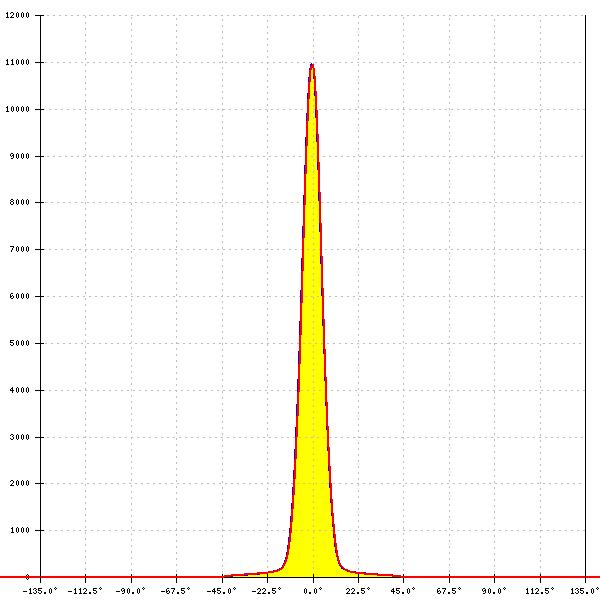

LED: Vesta TW 9mm (9W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 13°
Peak intensity: 7.0 cd/lm
Efficiency: 58 %
LEDs/each optic: 1
Light colour: White

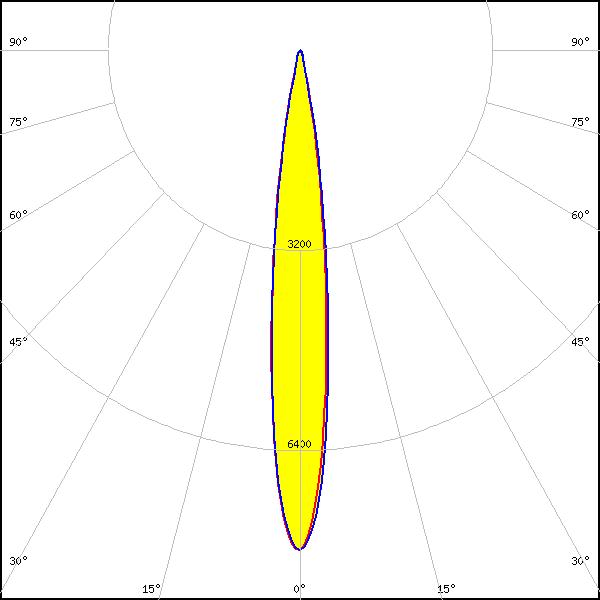

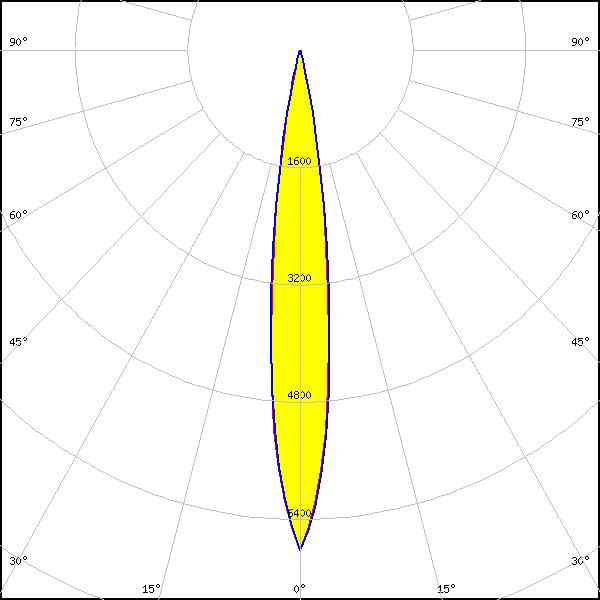

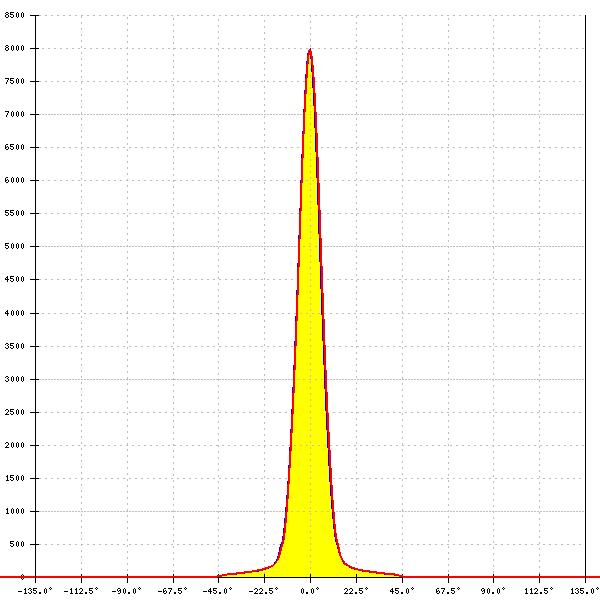

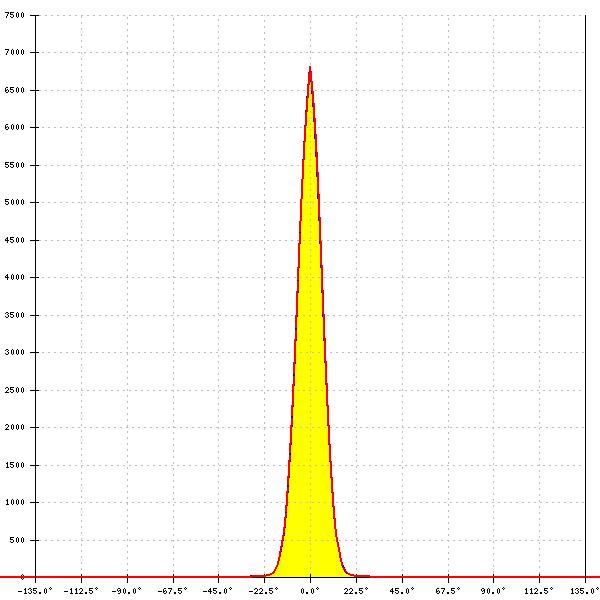

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 13°
Peak intensity: 8.0 cd/lm
Efficiency: 61 %
LEDs/each optic: 1
Light colour: White

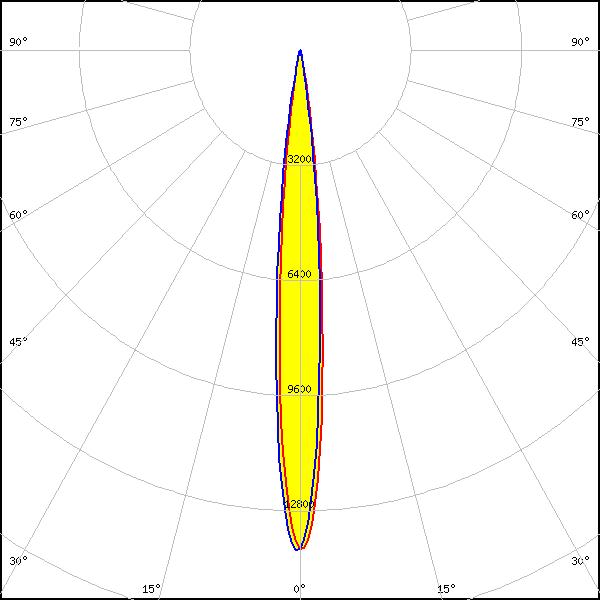

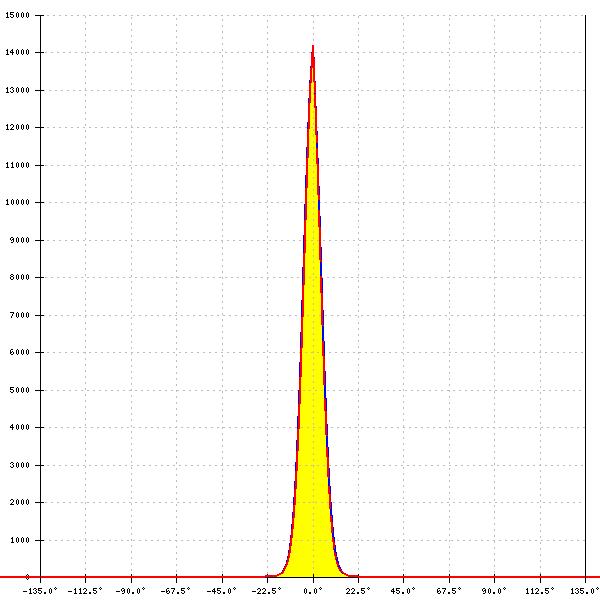

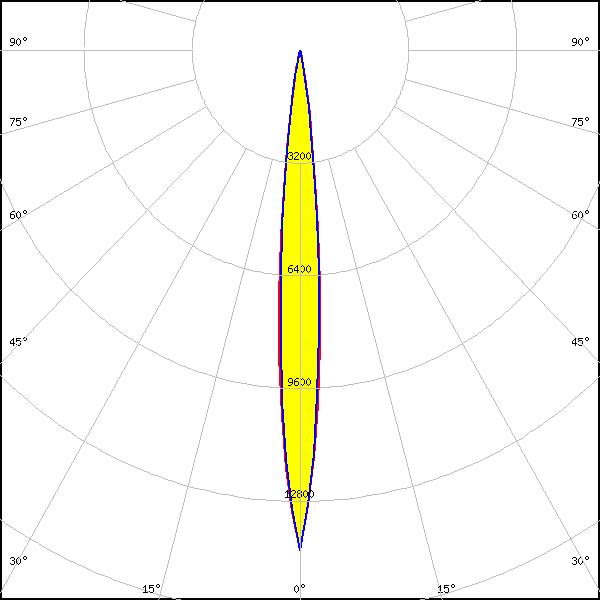

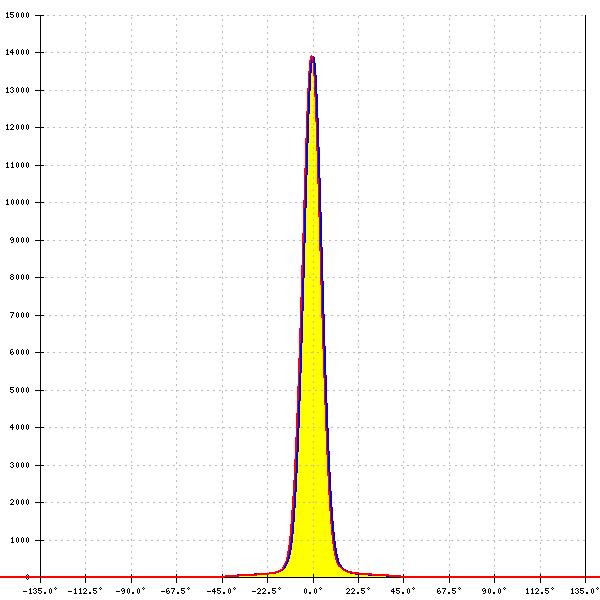

LED: CLU700/701/702
Required components:
FWHM: 10°
Peak intensity: 13.9 cd/lm
Efficiency: 64 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
Required components:
FWHM: 10°
Peak intensity: 17.4 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
Required components:
FWHM: 10°
Peak intensity: 14.2 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: White

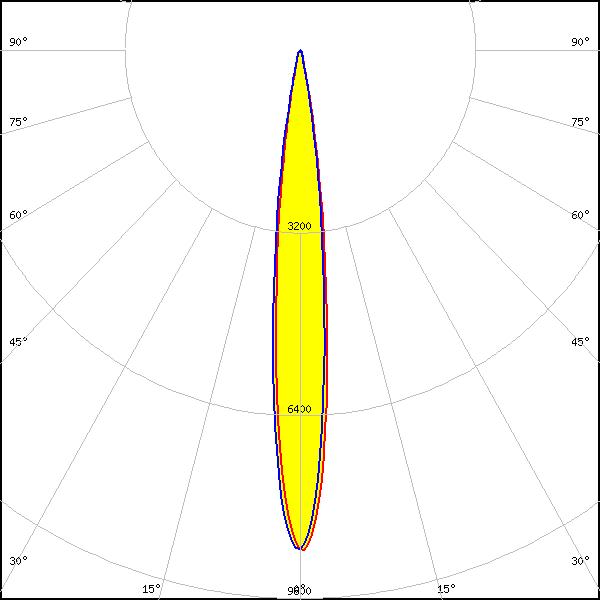

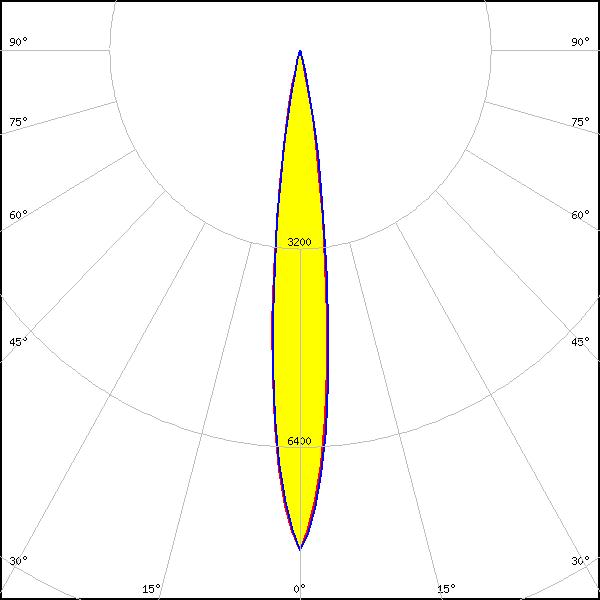

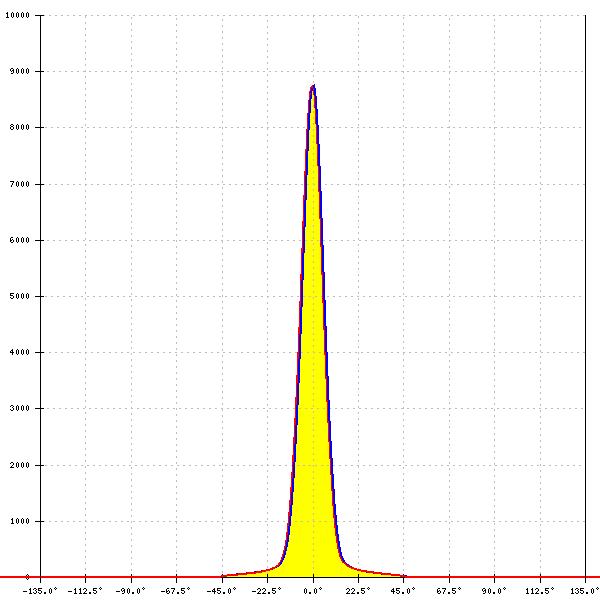

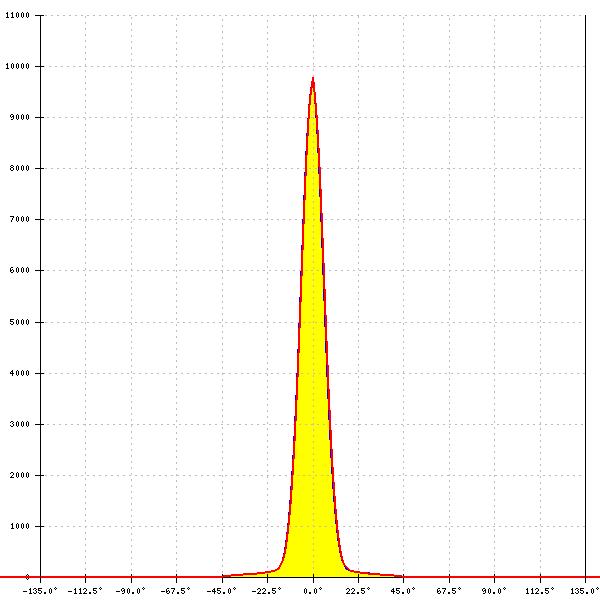

LED: CLU710/711
Required components:
FWHM: 12°
Peak intensity: 8.8 cd/lm
Efficiency: 60 %
LEDs/each optic: 1
Light colour: White

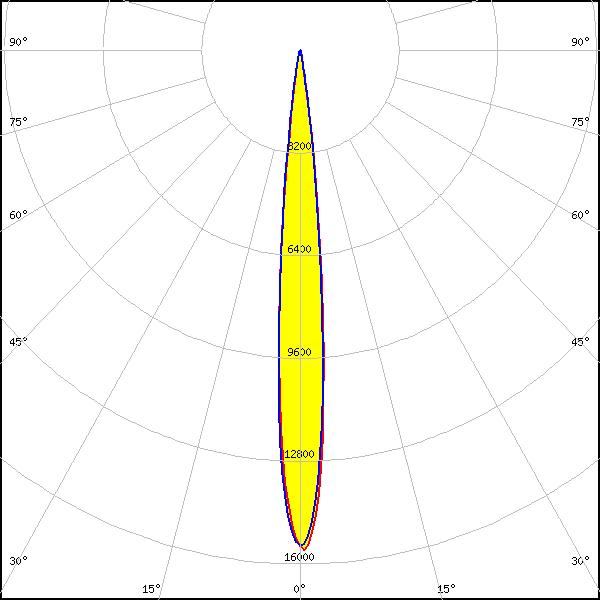

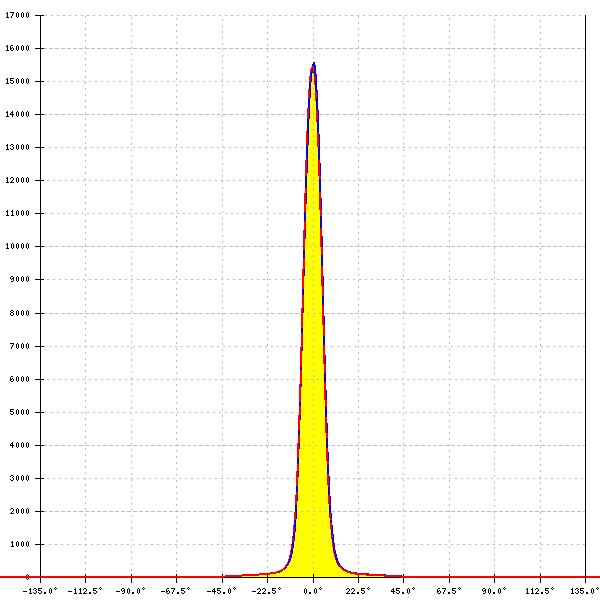

LED: CLU7B2
Required components:
FWHM: 10°
Peak intensity: 15.6 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White

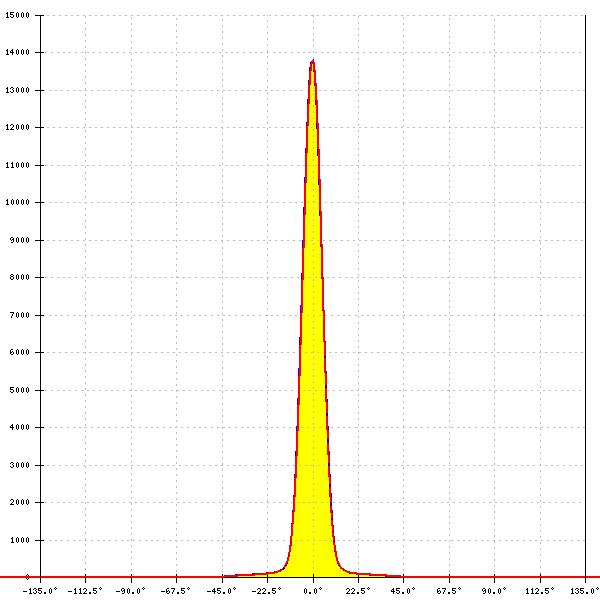

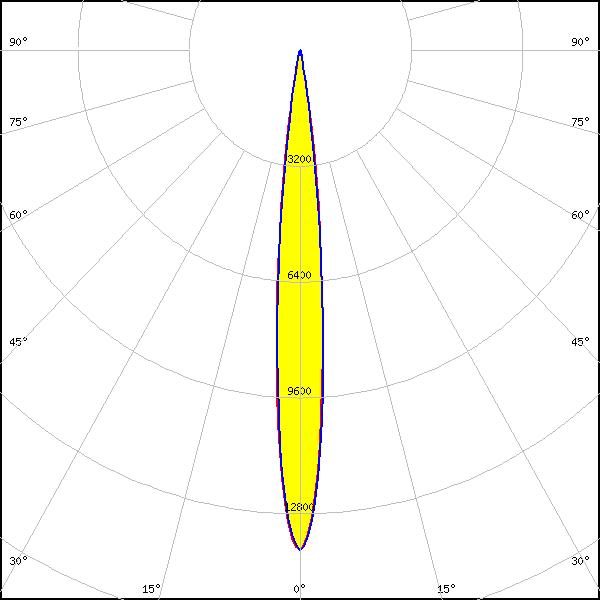

LED: CXA/B 13xx
Required components:
FWHM: 11°
Peak intensity: 13.8 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White

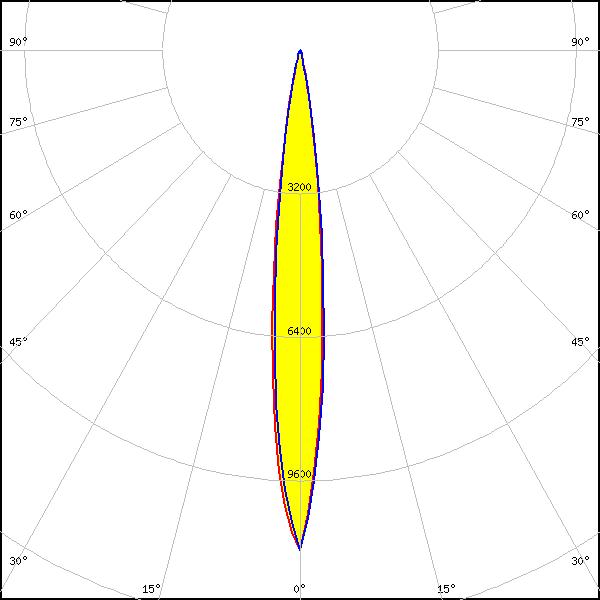

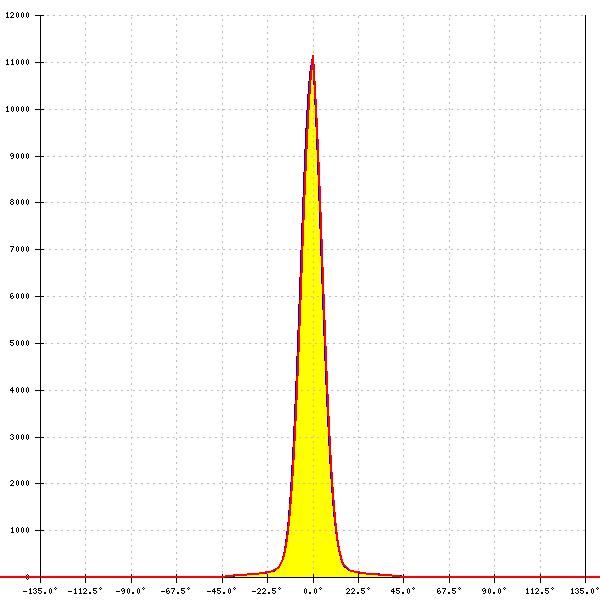

LED: CXA/B 15xx
Required components:
FWHM: 12°
Peak intensity: 11.1 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour: White
LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 13°
Peak intensity: 8.9 cd/lm
Efficiency: 60 %
LEDs/each optic: 1
Light colour: White

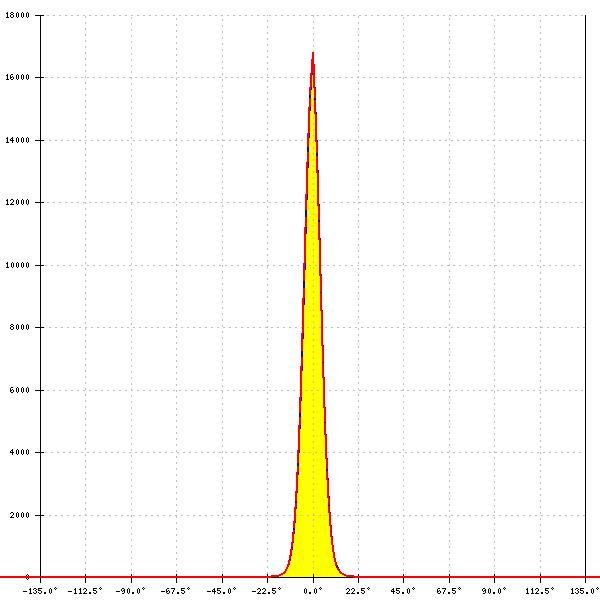

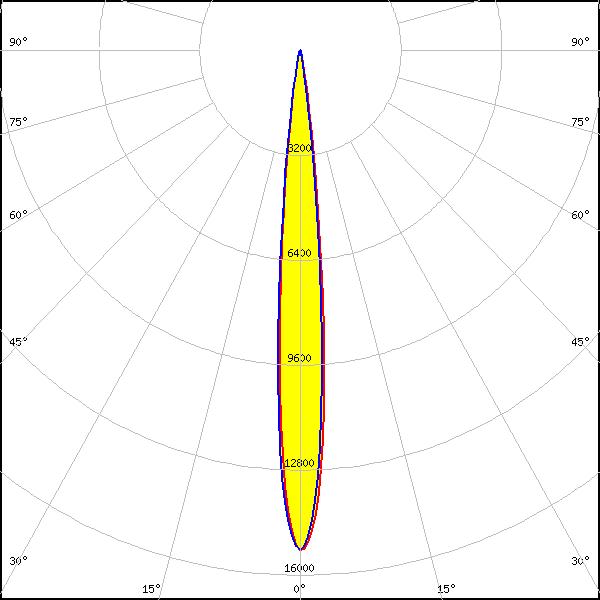

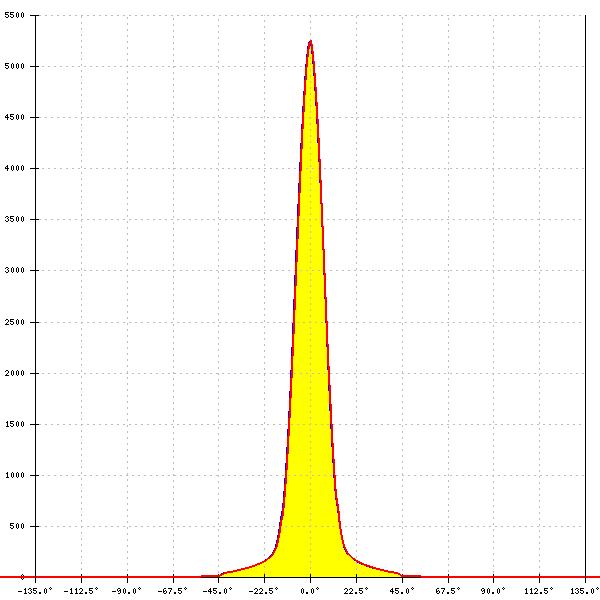

LED: CXM-3
