    CP16633_CARMEN-50-S-C-WHT

    Print

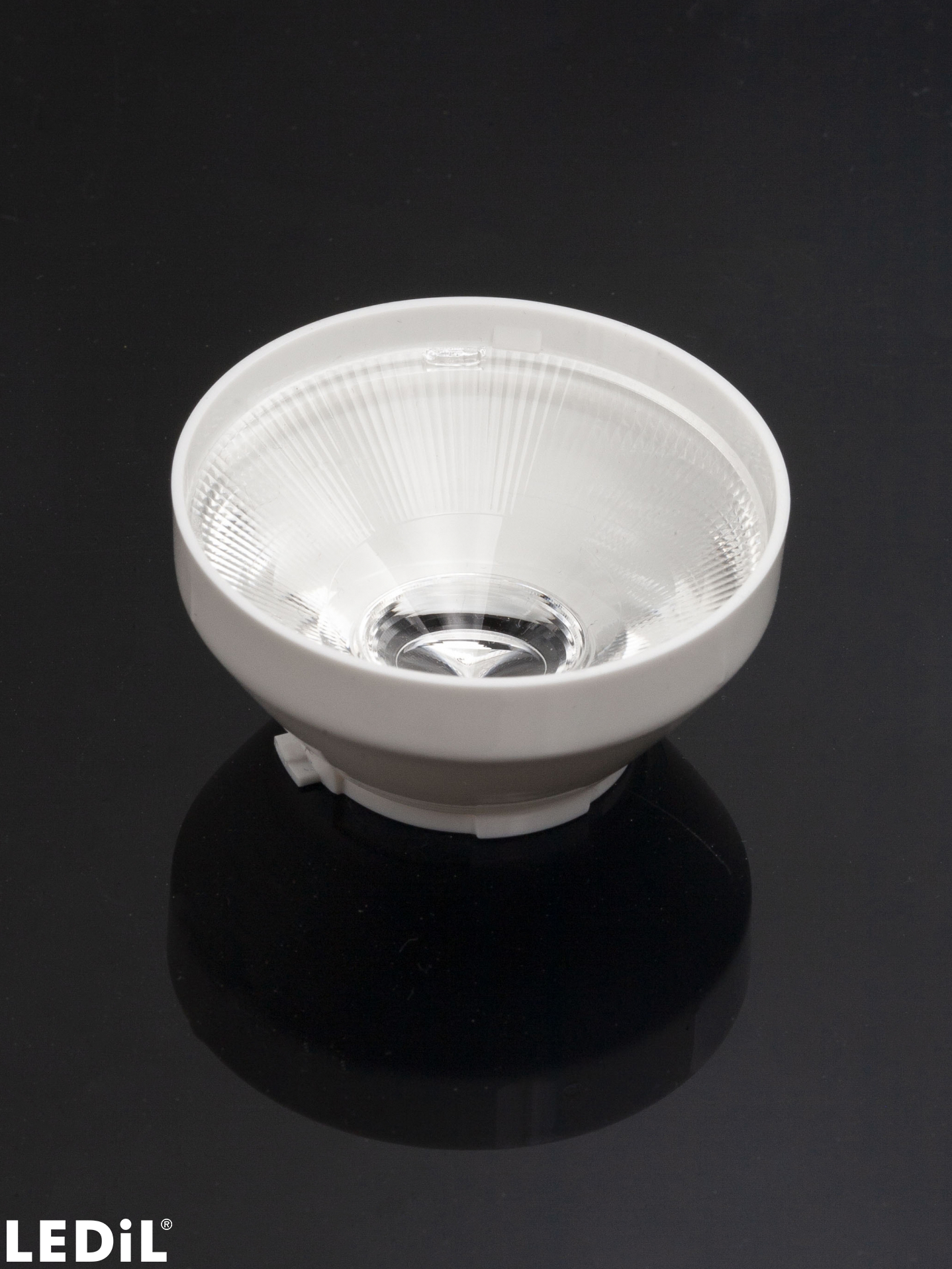

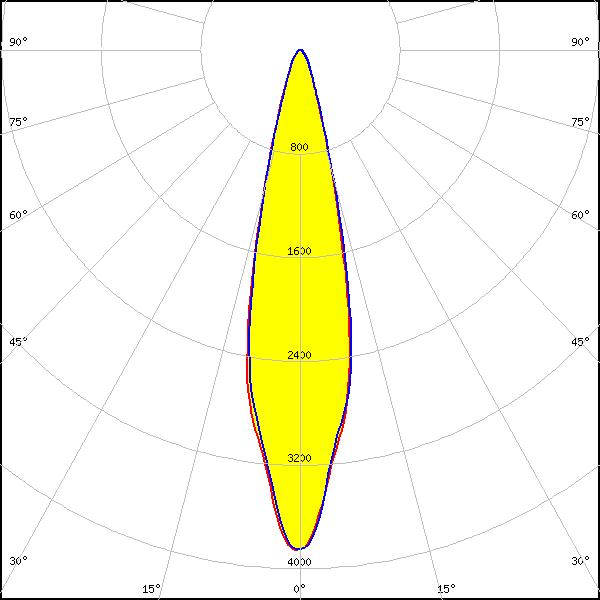

    ~25° spot beam. Assembly with holder C compatible with HEKLA sockets and connectors. White version.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      25.5 mm
    • Fastening:
      socket
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • CARMEN-50-S, Single lens, PMMA
    • CARMEN-50-HLD-C-WHT, Holder, PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      308 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      6.9 kg
    • MPQ:
      28 pcs
    • MOQ:
      112 pcs
    • MOQ size:
      480 x 280 x 120 mm
    • MOQ weight:
      2.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP16633_CARMEN-50-S-C-WHT

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General Installation Guide

    Application guide

    Guide_for_Retal_Lighting_Optics_v.1.4_2020_WEB

    Compatibility document

    B+W 630 Hekla datasheet

    PCN

    Product change notification NR162 - Changes in product mechanics

    News

    Effective fashion retail lighting

    Case story

    Platek flood the world with light here comes the SUN

    News

    New Products 2018-07-06

    News

    PRODUCT NEWS - CARMEN-50

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FP15947_HEKLA-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    F15253_HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    F15859_HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    F17436_HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    F17438_HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    F15956_HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    C16142_HEKLA-SOCKET-K

    Version compatible with Vero 13, Vero 18, and Bender+Wirth Typ L8

    FP15501_HEKLA-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    FP15502_HEKLA-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    FP15490_HEKLA-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    FP15500_HEKLA-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    F15256_HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    F15255_HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    F15254_HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    FP15948_HEKLA-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    FP15503_HEKLA-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    FP15949_HEKLA-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    F15616_HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    FP15957_HEKLA-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    C15743_XTM-ADAPTER-50-B

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with HEKLA (∅30 mm) and B-type reflectors (∅50 mm) interfaces.

    F17435_HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    F15848_HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    F17437_HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    F15858_HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    F17439_HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    F14988_HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

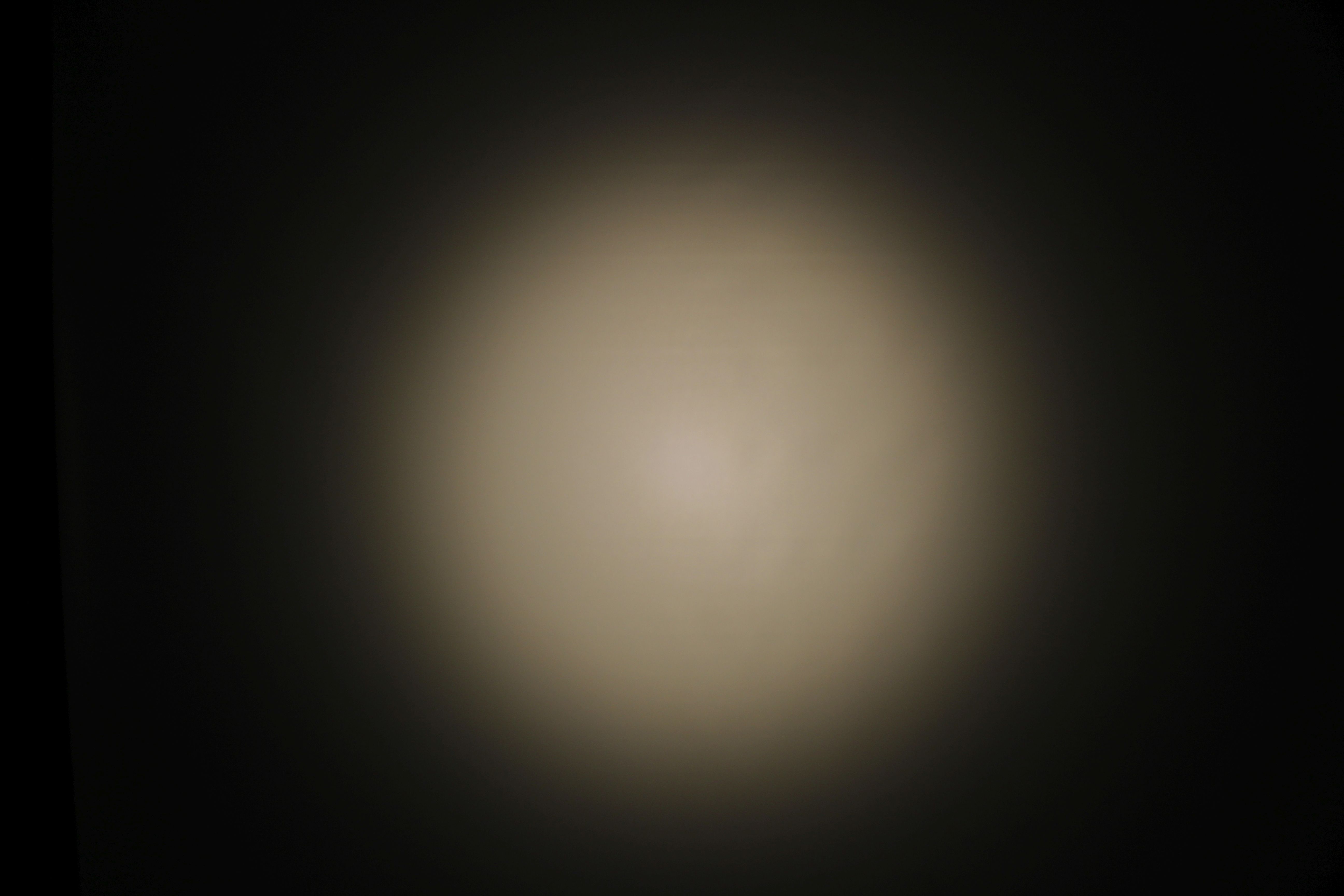

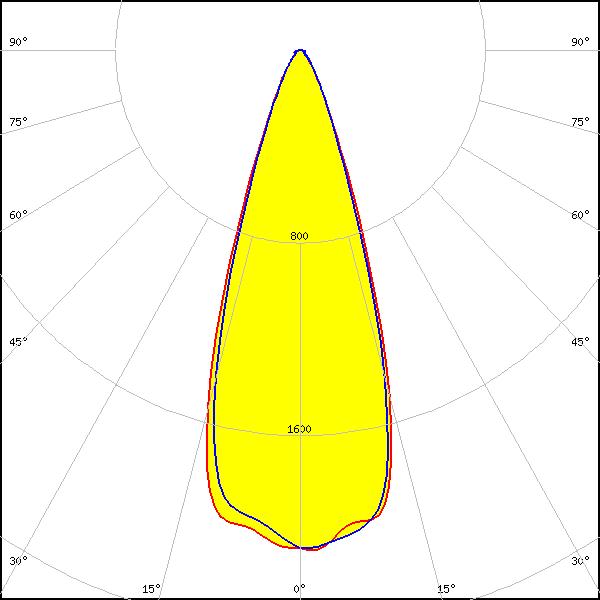

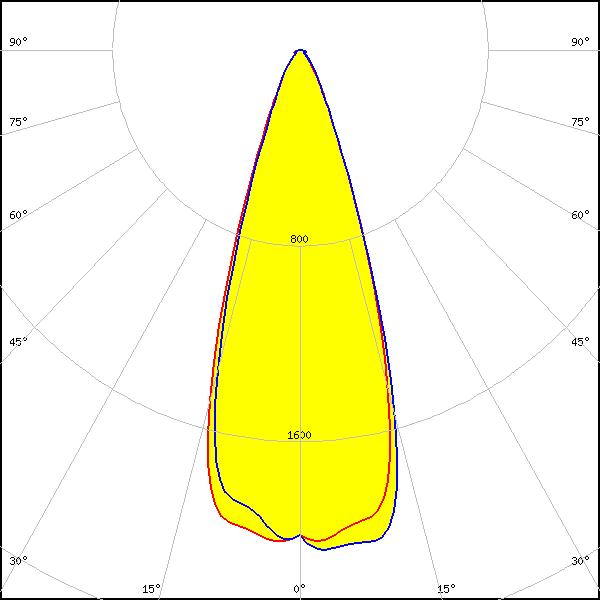

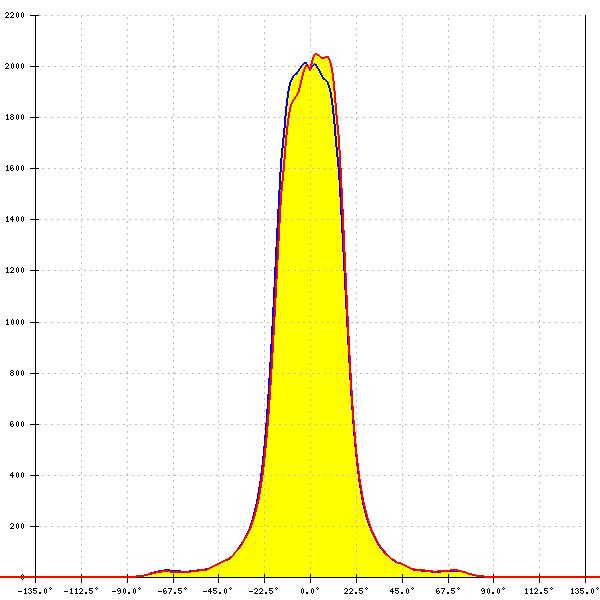

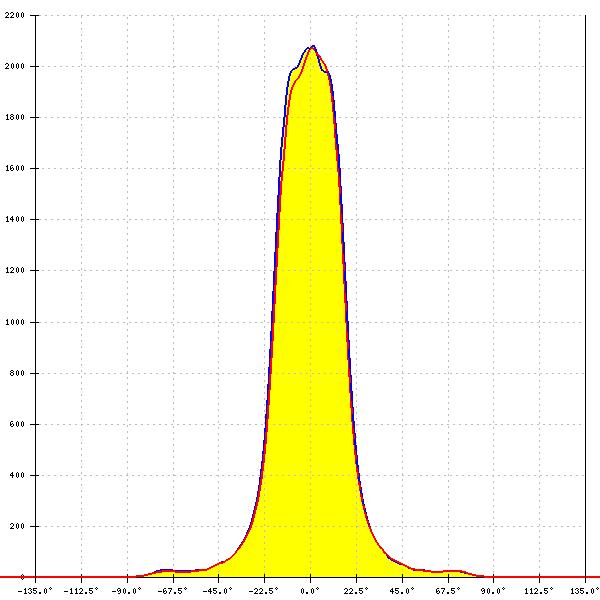

    Optical results

    LED: Vesta DTW 13mm (21W)
    Required components:
    C16142_HEKLA-SOCKET-K

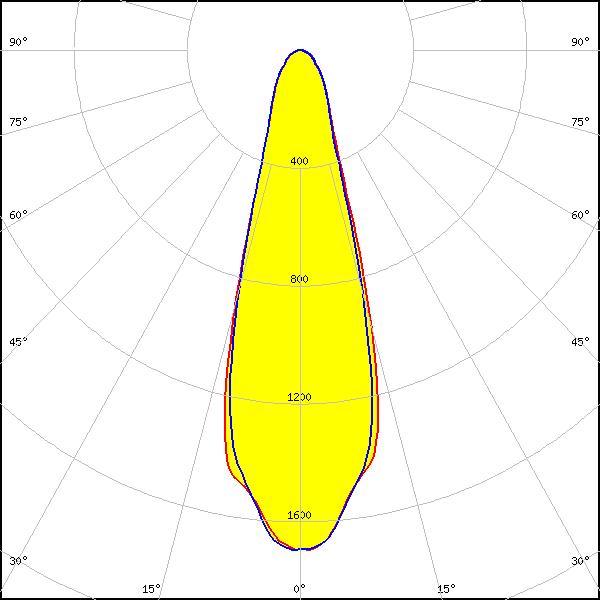

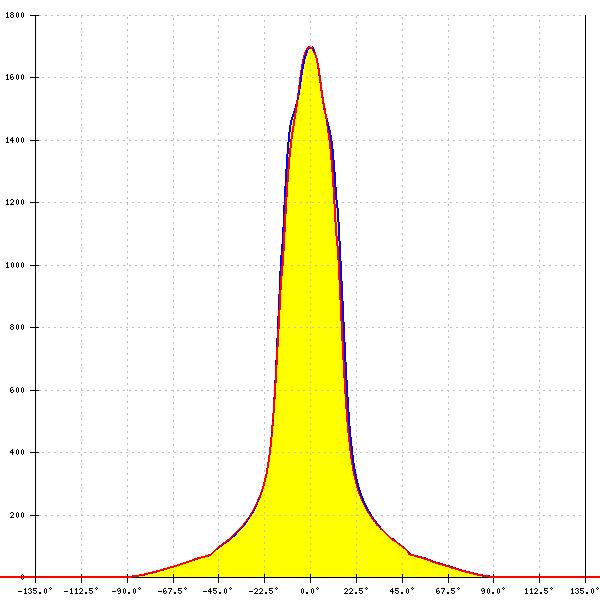

    Bender Wirth: 491 Typ L8
    FWHM: 31°
    Peak intensity: 1.7 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour: Tunable White
    LED: Vesta TW 6mm DP
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: 18°
    Peak intensity: 4.7 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour: White
    LED: Vesta TW 9mm (9W) DP
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 489 Typ L8
    FWHM: 23°
    Peak intensity: 3.1 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour: White

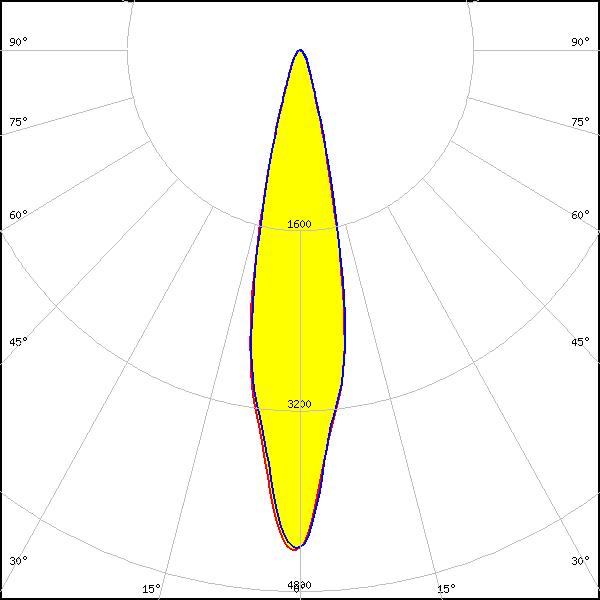

    LED: CLU700/701/702
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 22°
    Peak intensity: 4.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White
    LED: CLU700/701/702
    Required components:
    FP15501_HEKLA-C
    FWHM: 22°
    Peak intensity: 4.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

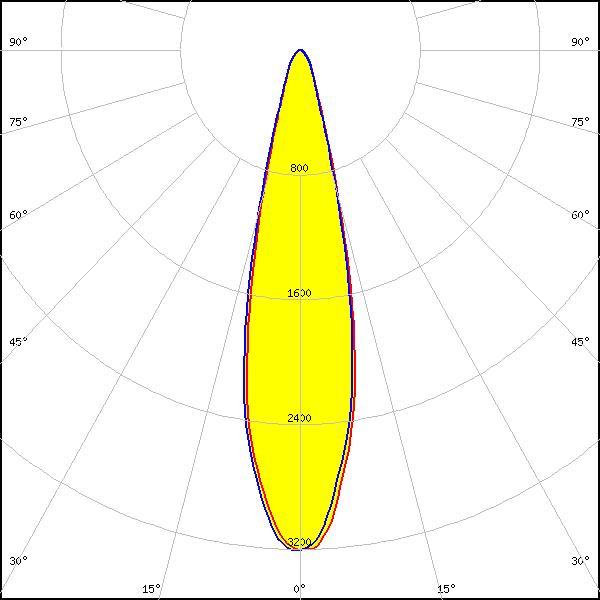

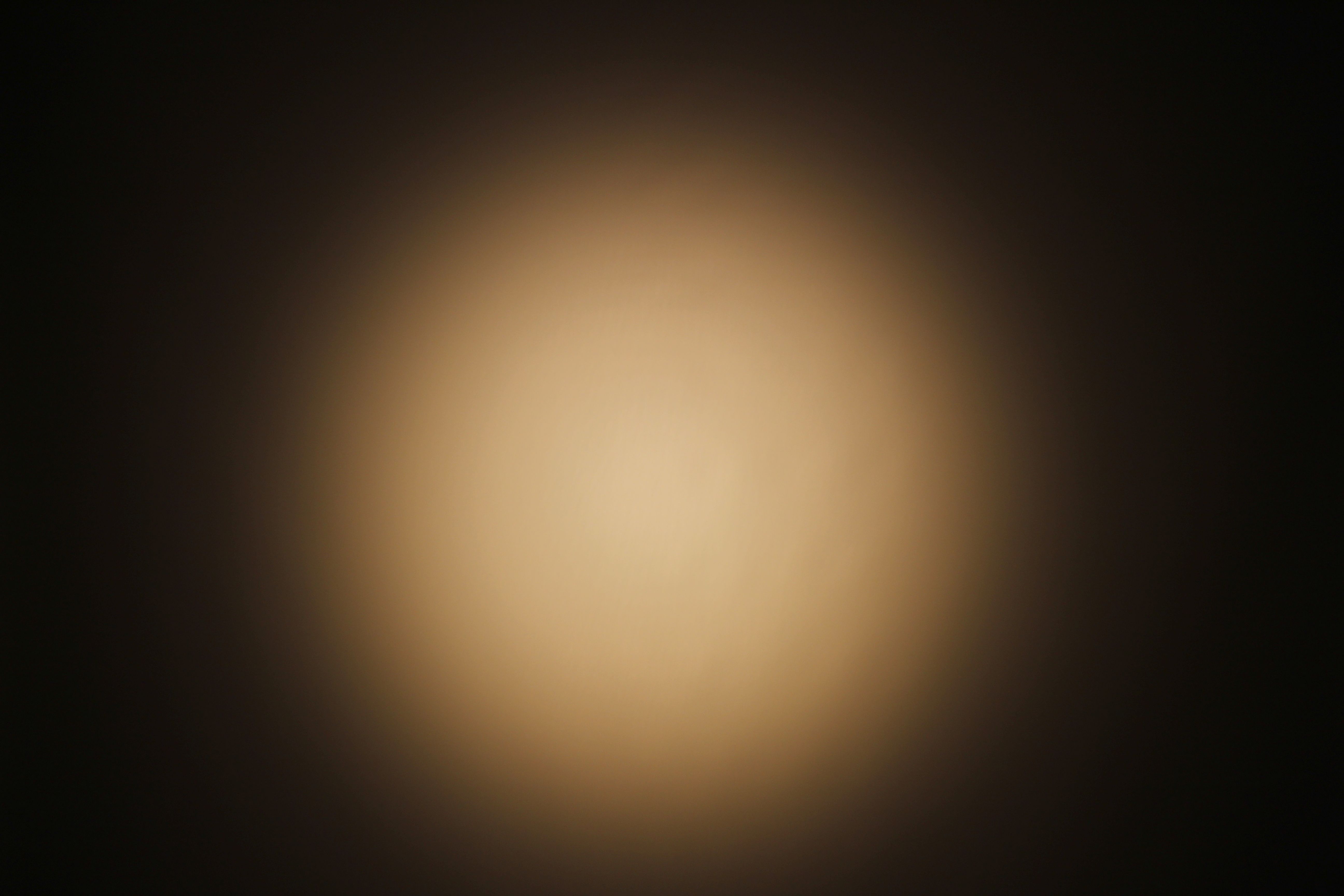

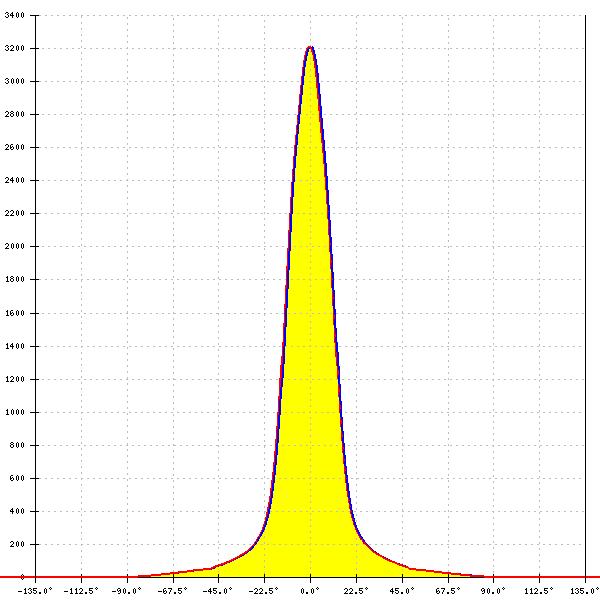

    LED: CLU710/711
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 25°
    Peak intensity: 3.2 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

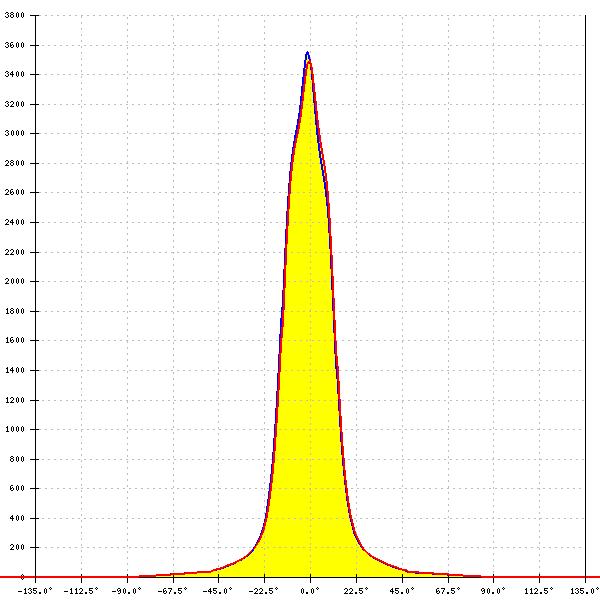

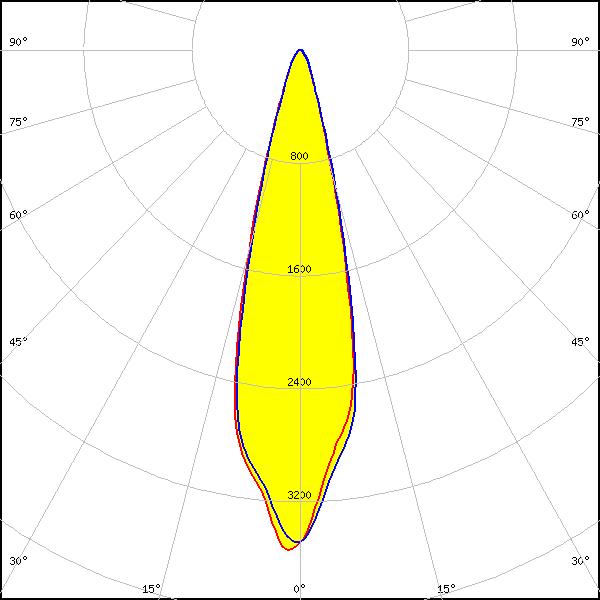

    LED: CXA/B 13xx
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 26°
    Peak intensity: 3.5 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White
    LED: CXA/B 13xx
    Required components:
    FP15957_HEKLA-J
    FWHM: 26°
    Peak intensity: 3.5 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

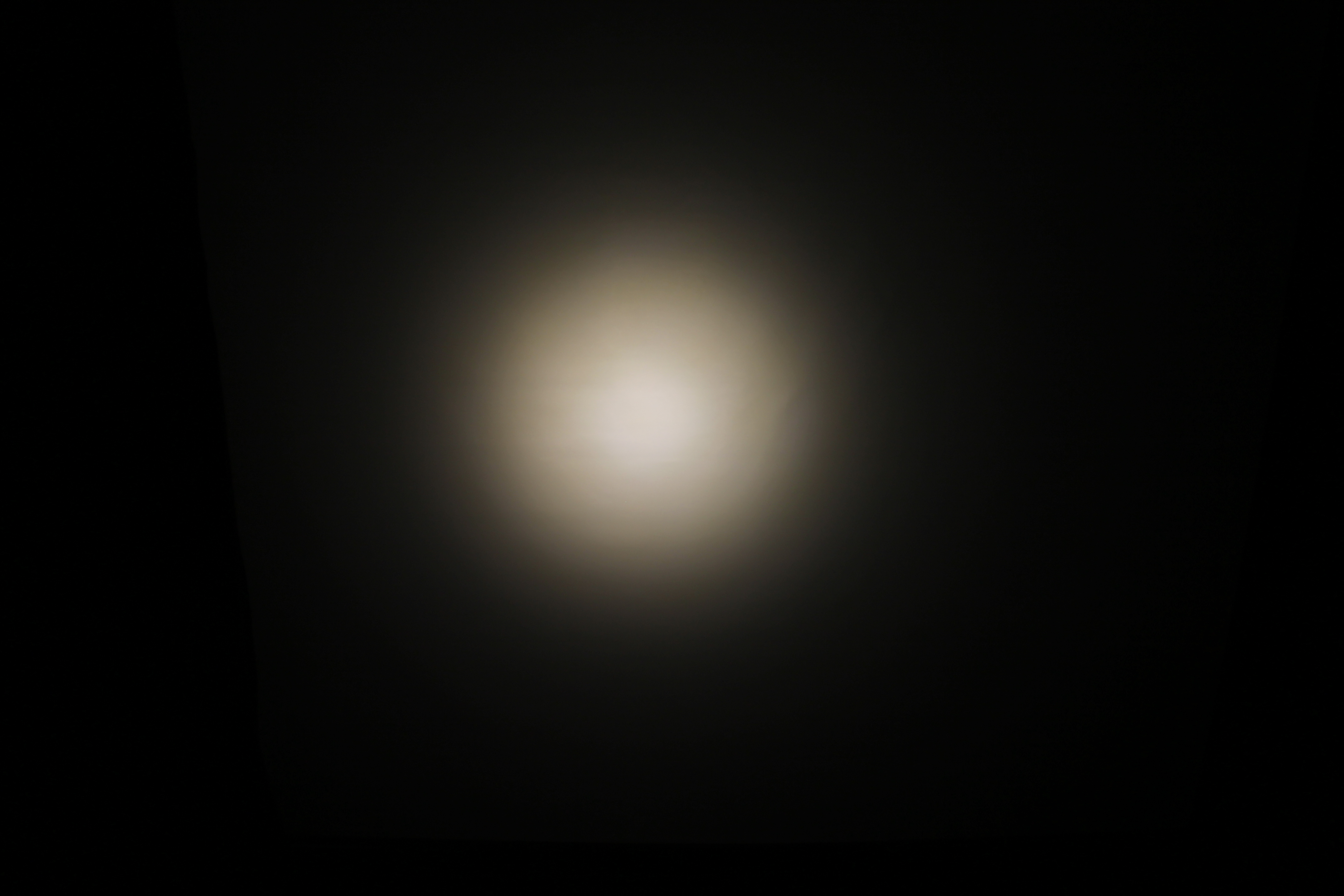

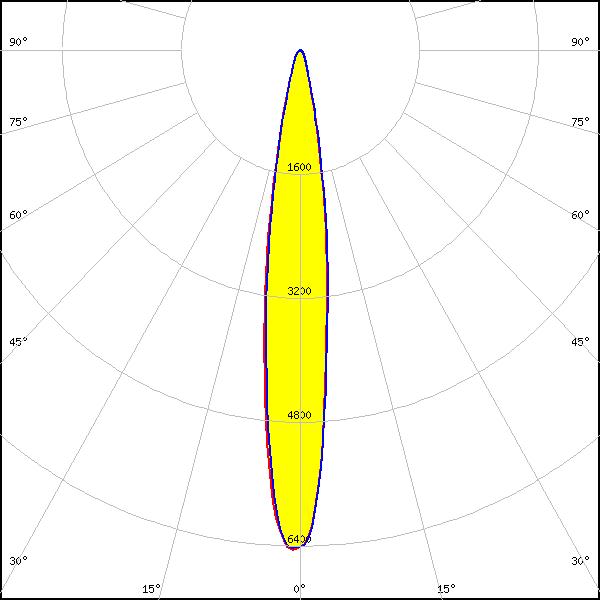

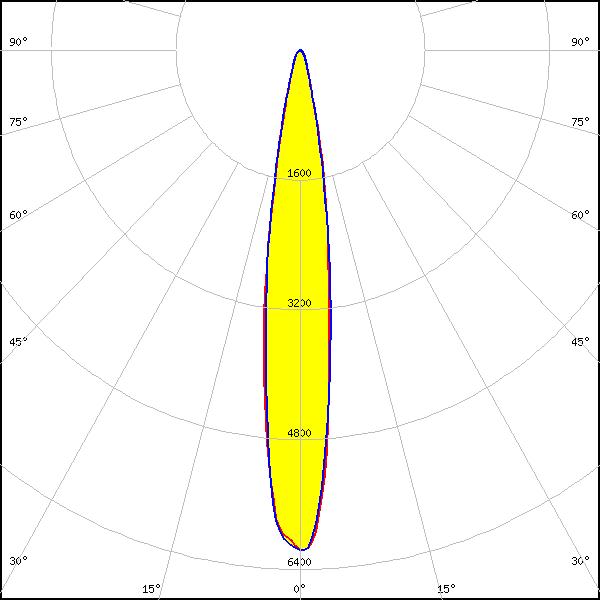

    LED: LUXEON CX Plus CoB - HD S01H4
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 15°
    Peak intensity: 6.5 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 16°
    Peak intensity: 6.2 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

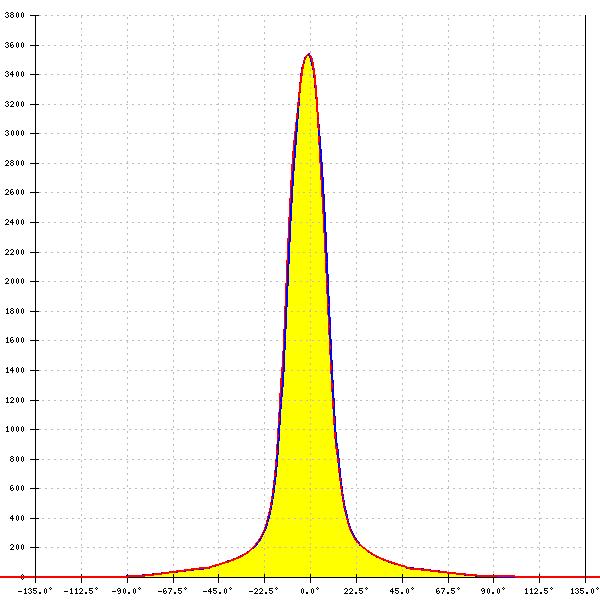

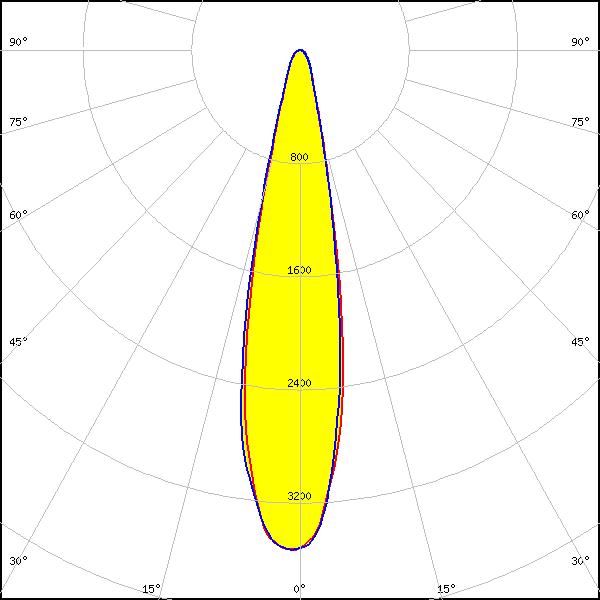

    LED: LUXEON CX Plus CoB - HD S04H9
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 22°
    Peak intensity: 3.5 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

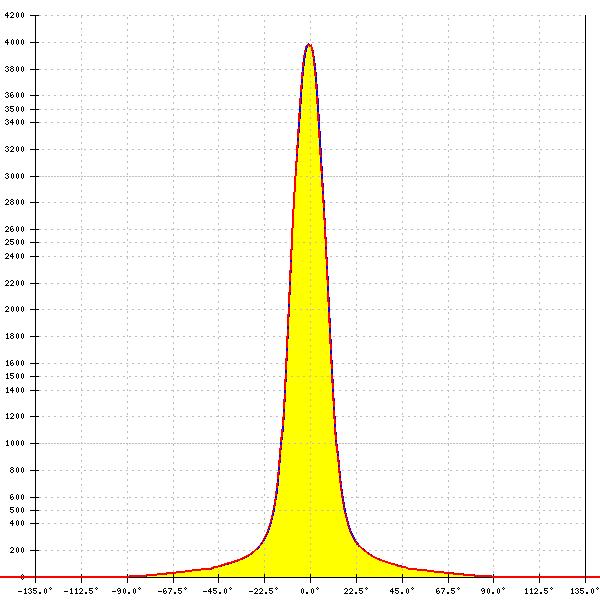

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    Required components:

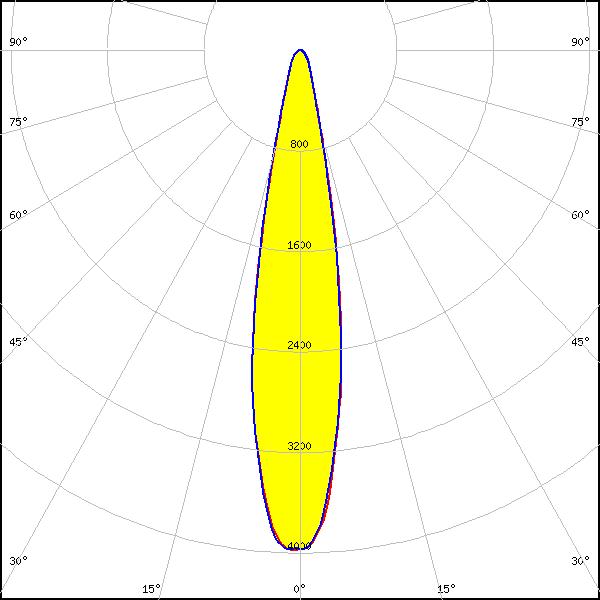

    Bender Wirth: 641a Hekla
    FWHM: 20°
    Peak intensity: 4.0 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

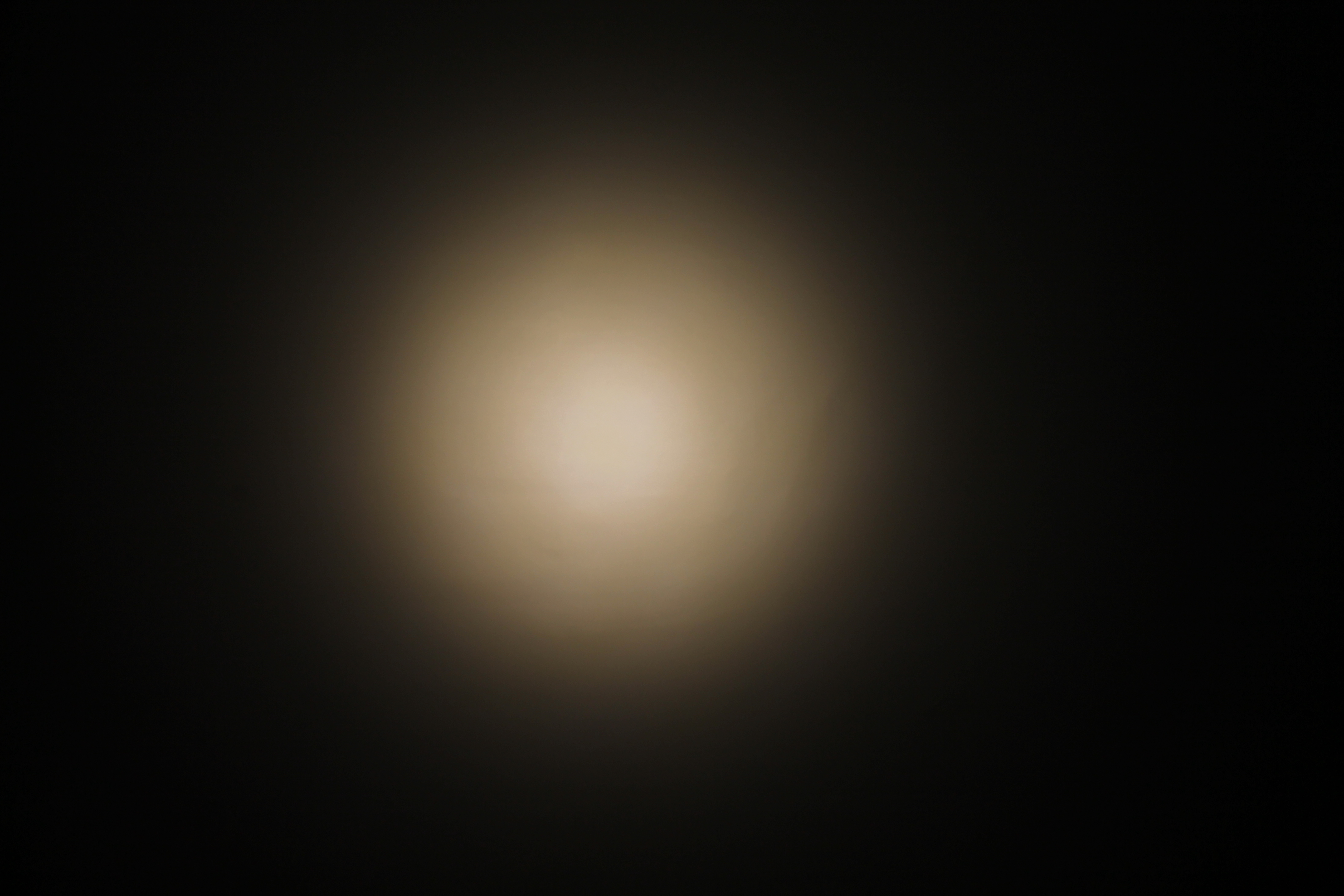

    LED: LUXEON CX Plus CoB S01 (Gen2)
    Required components:

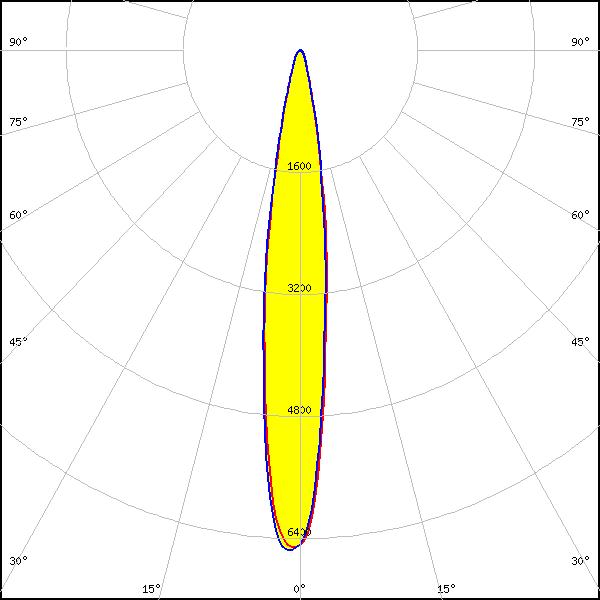

    Bender Wirth: 634c Hekla
    FWHM: 15°
    Peak intensity: 6.6 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

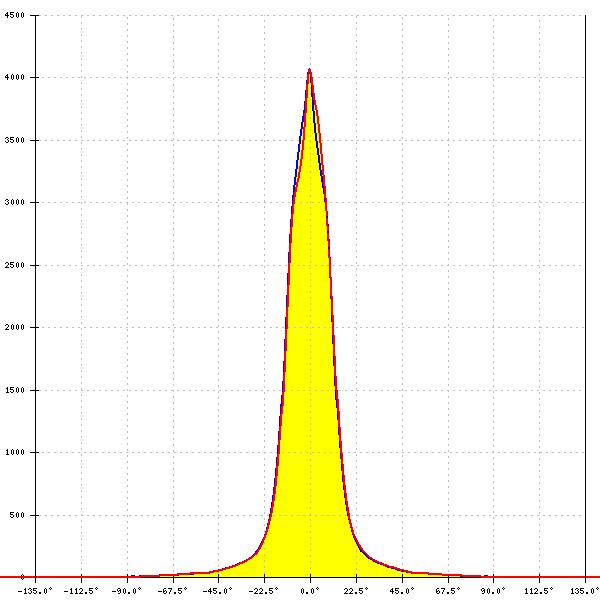

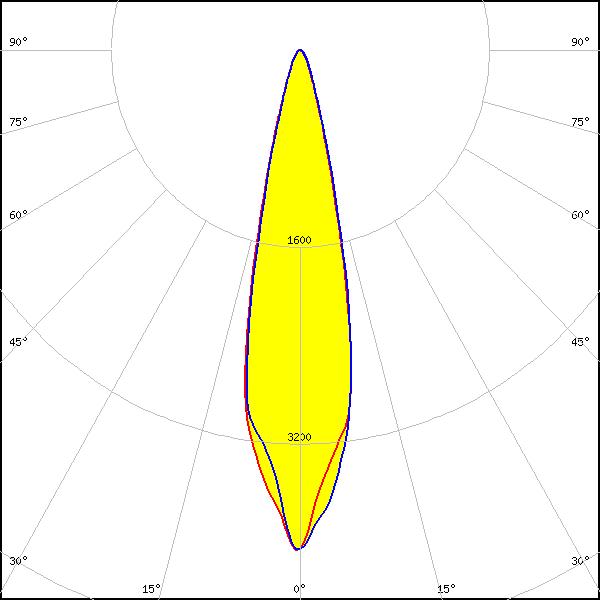

    LED: CXM-4
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 23°
    Peak intensity: 4.1 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White
    LED: XOB 6 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 23°
    Peak intensity: 3.9 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

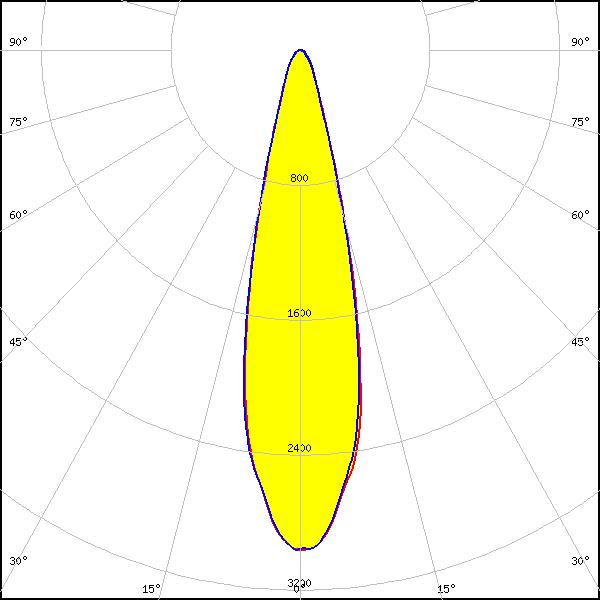

    LED: XOB 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 26°
    Peak intensity: 3.0 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
