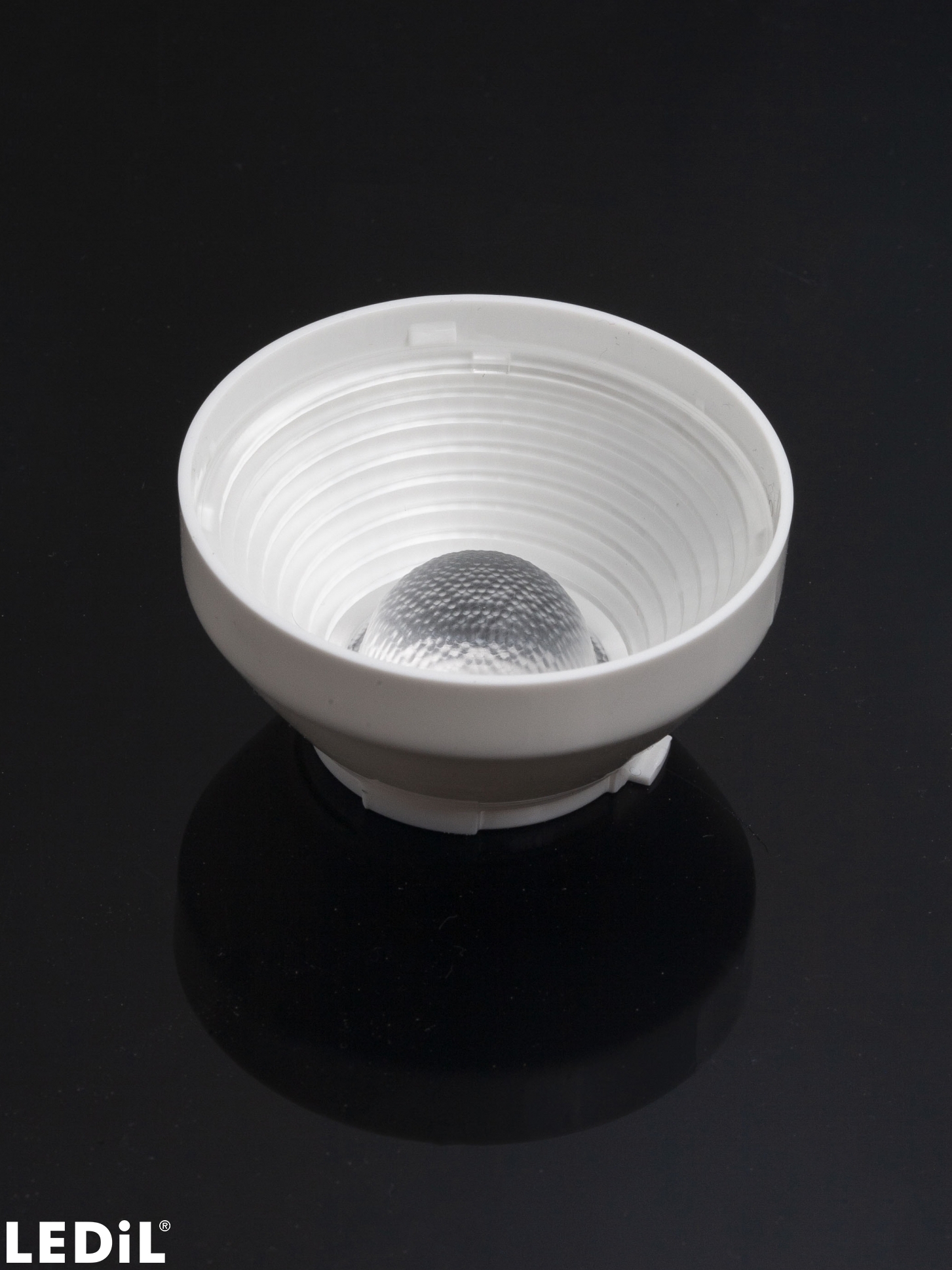

CP16634_CARMEN-50-M-C-WHT

Print

~35° spot beam. Assembly with holder C compatible with HEKLA sockets and connectors. White version.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    25.5 mm
  • Fastening:
    socket
  • Colour:
    white
  • RoHS and REACH compliant:
    Yes
Materials
  • CARMEN-50-M, Single lens, PMMA
  • CARMEN-50-HLD-C-WHT, Holder, PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    308 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    5.9 kg
  • MPQ:
    28 pcs
  • MOQ:
    112 pcs
  • MOQ size:
    480 x 280 x 120 mm
  • MOQ weight:
    2.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP16634_CARMEN-50-M-C-WHT

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Typical Applications

Optical results

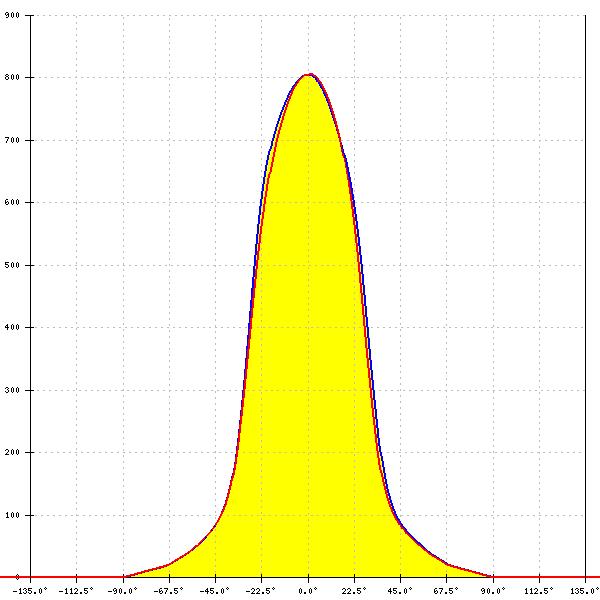

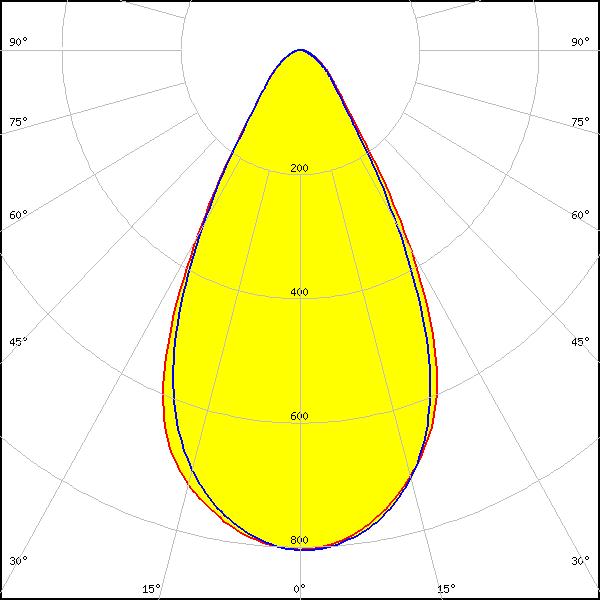

LED: Vesta TW 9mm (9W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 42°
Peak intensity: 1.3 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

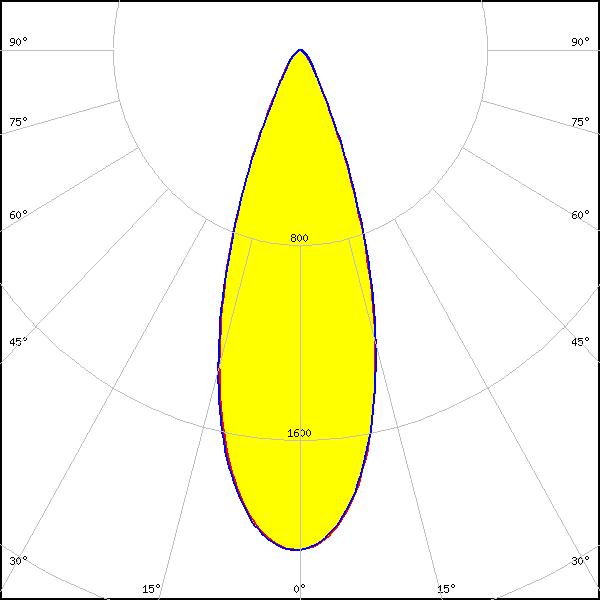

LED: CLU700/701/702
Required components:
FWHM: 36°
Peak intensity: 2.1 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
Required components:
FWHM: 36°
Peak intensity: 2.1 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

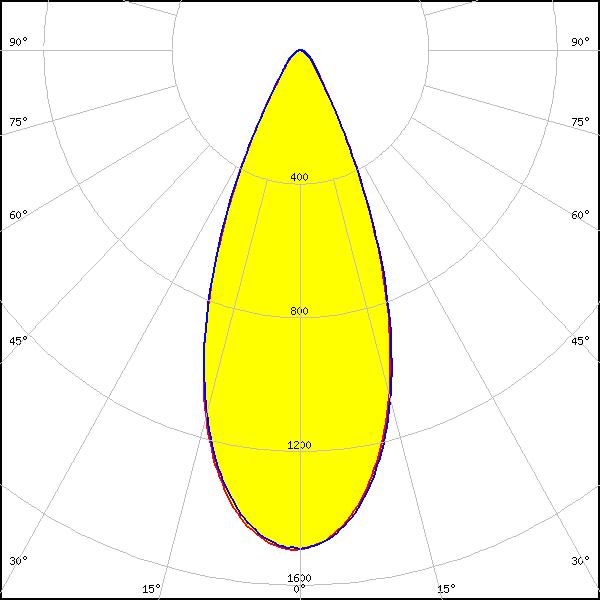

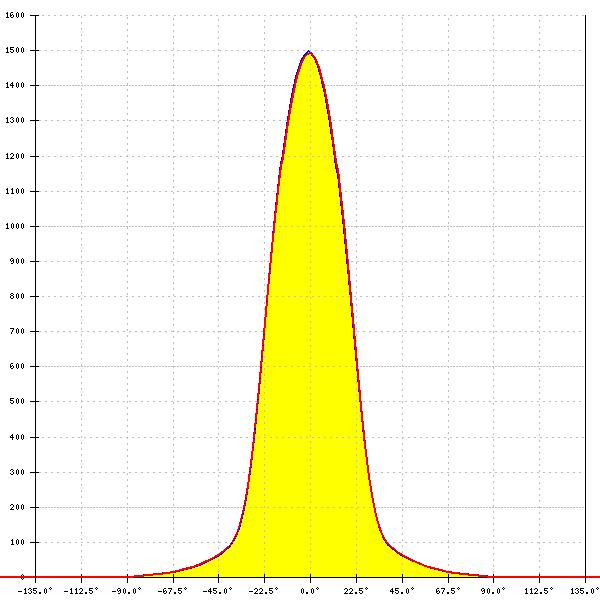

LED: CLU710/711
Required components:
FWHM: 42°
Peak intensity: 1.5 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

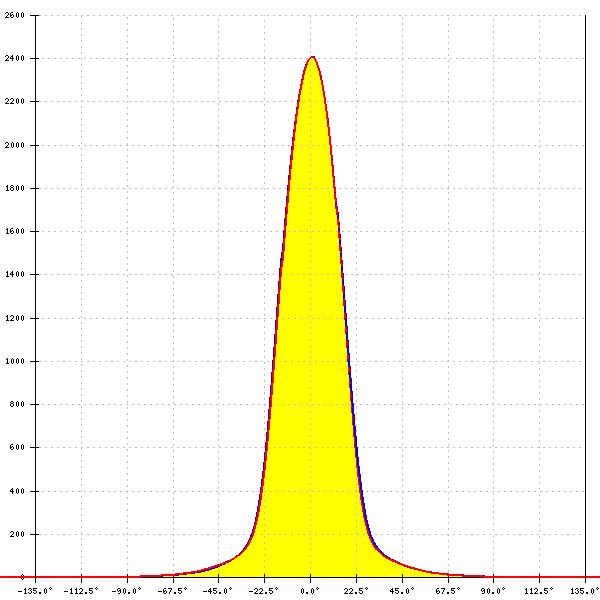

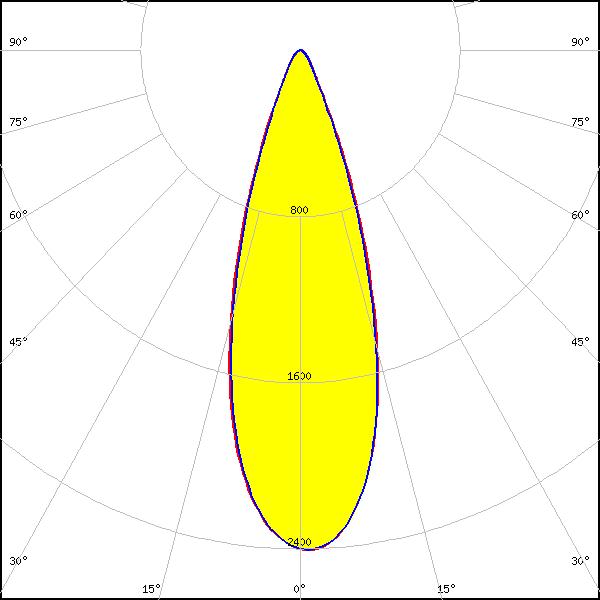

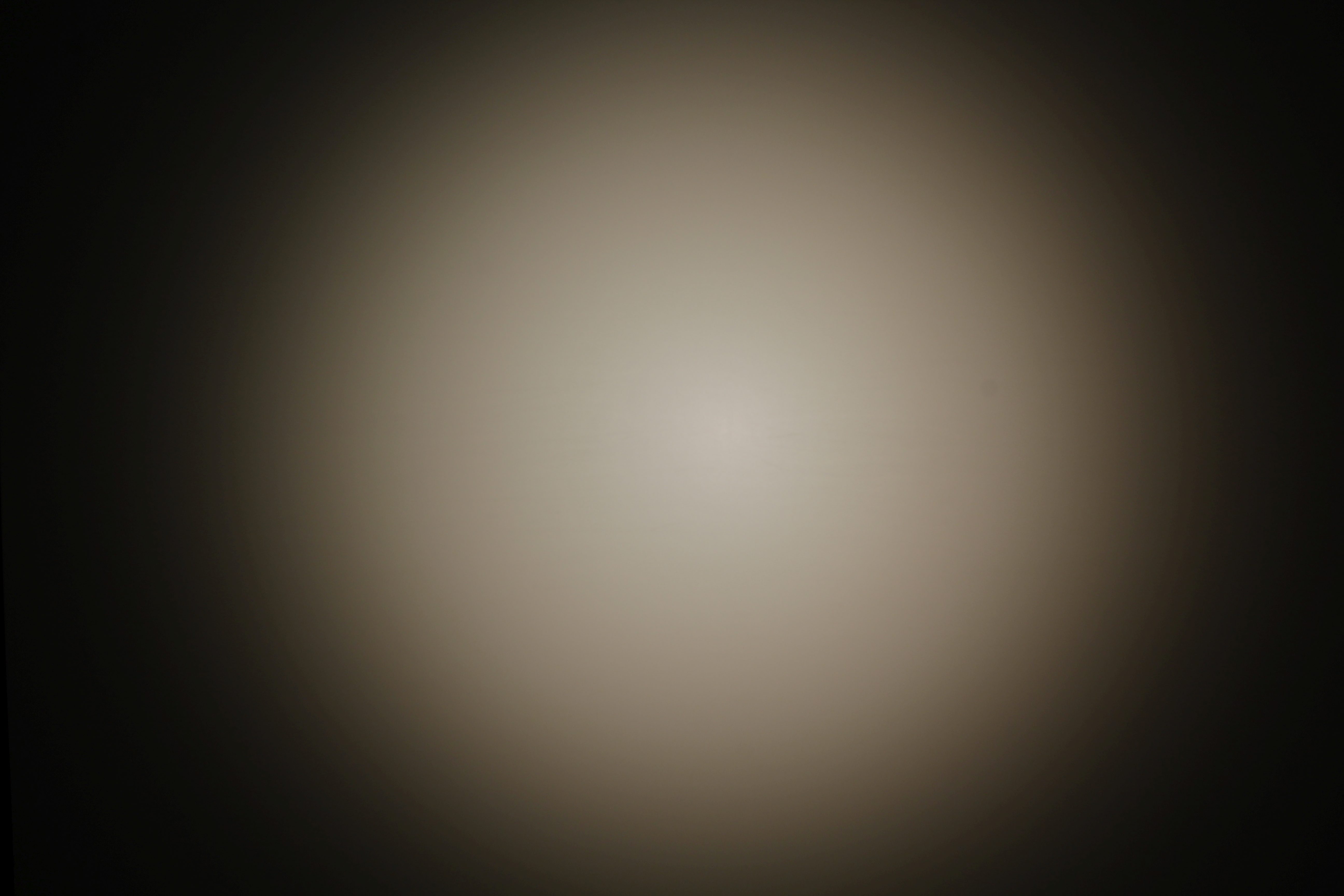

LED: CLU7B2
Required components:
FWHM: 34°
Peak intensity: 2.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

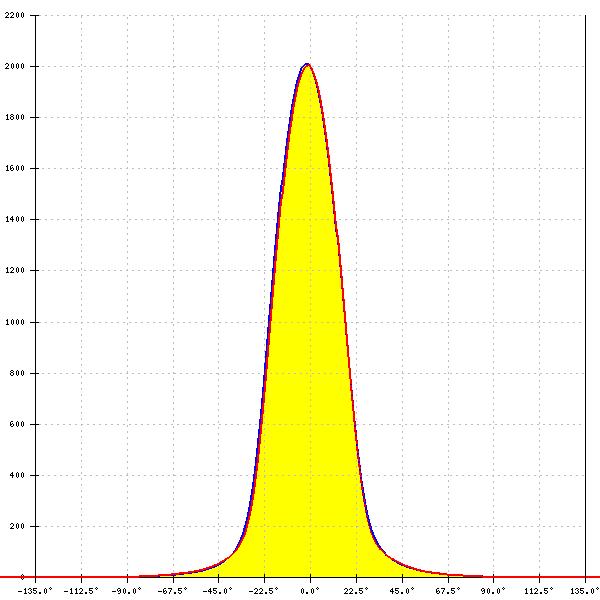

LED: CXA/B 13xx
Required components:
FWHM: 37°
Peak intensity: 2.0 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 13xx
Required components:
FWHM: 37°
Peak intensity: 2.0 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

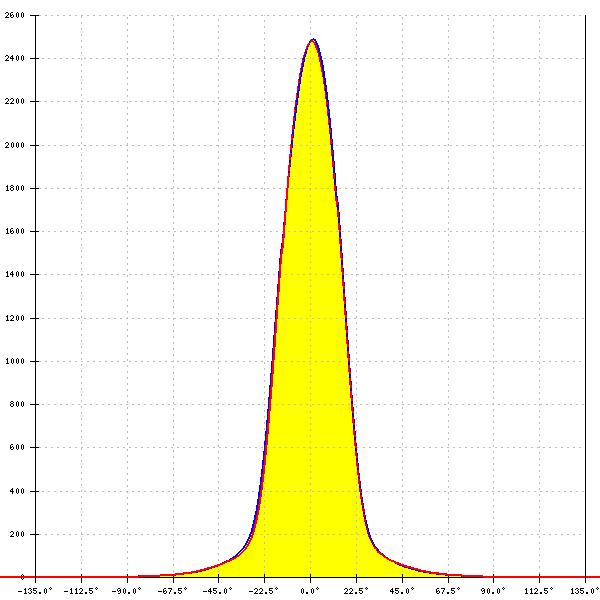

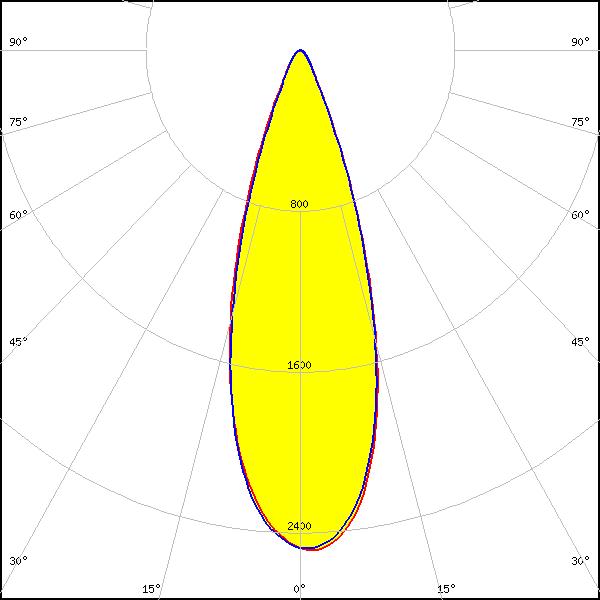

LED: CXM-3
Required components:
FWHM: 33°
Peak intensity: 2.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

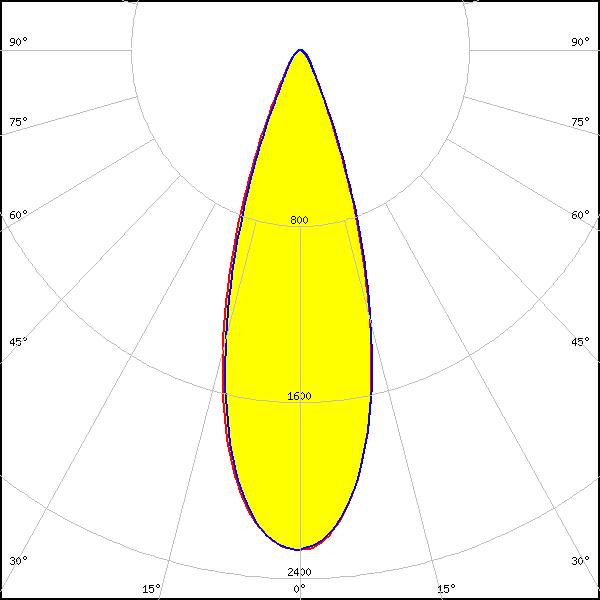

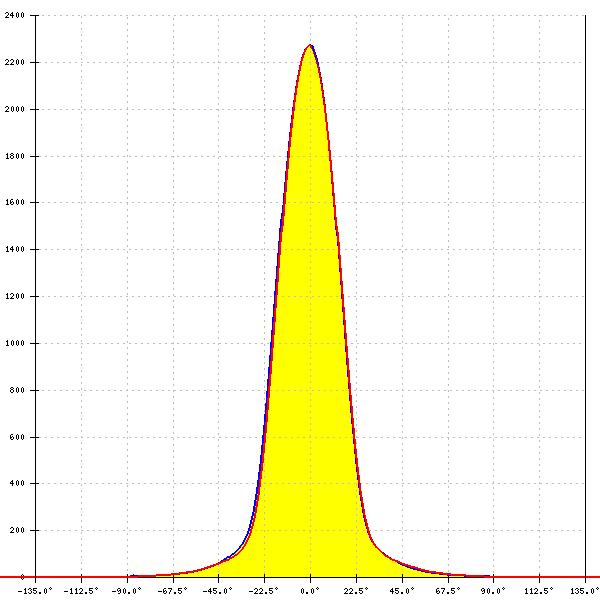

LED: CXM-4
Required components:
FWHM: 34°
Peak intensity: 2.3 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

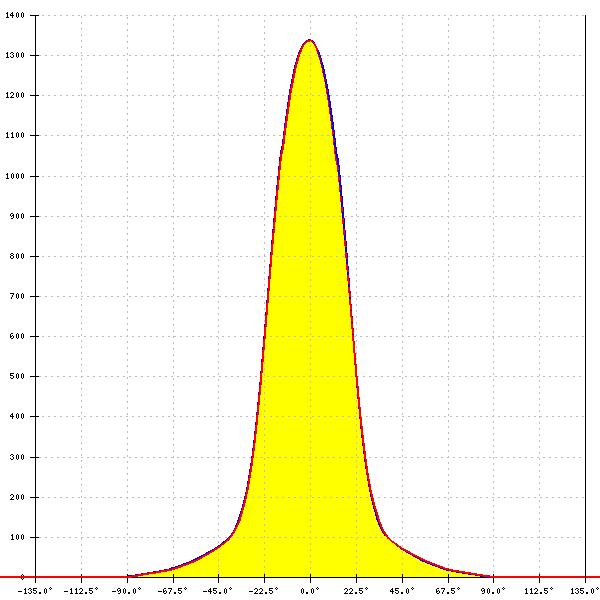

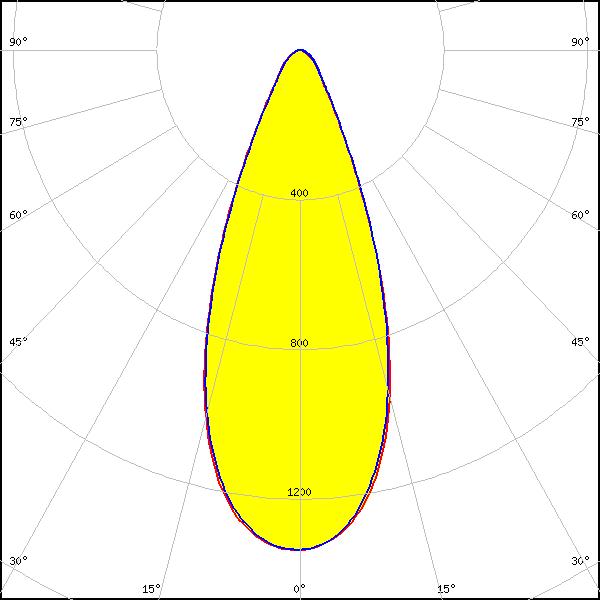

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 41°
Peak intensity: 1.3 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: Tunable White

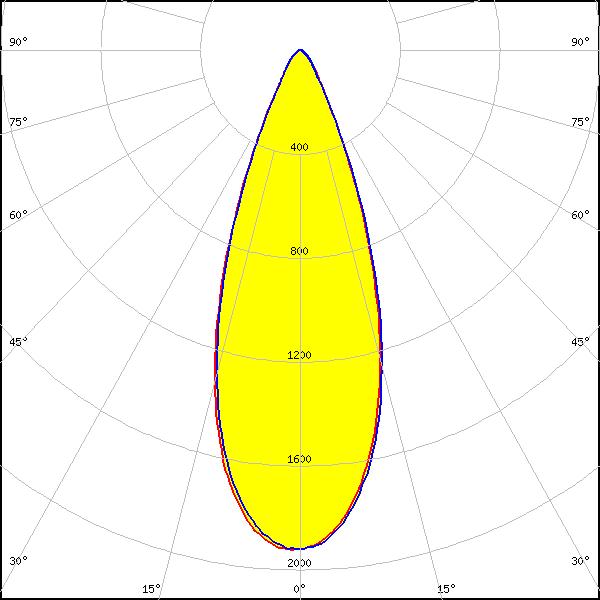

LED: XOB 6 mm
Required components:
FWHM: 37°
Peak intensity: 1.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

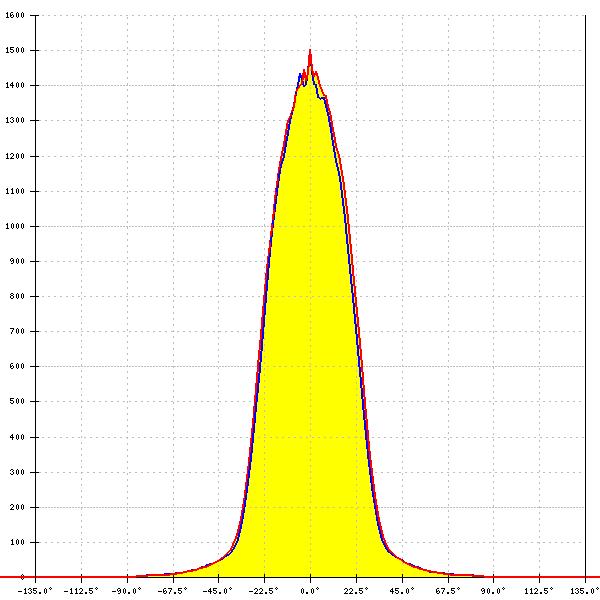

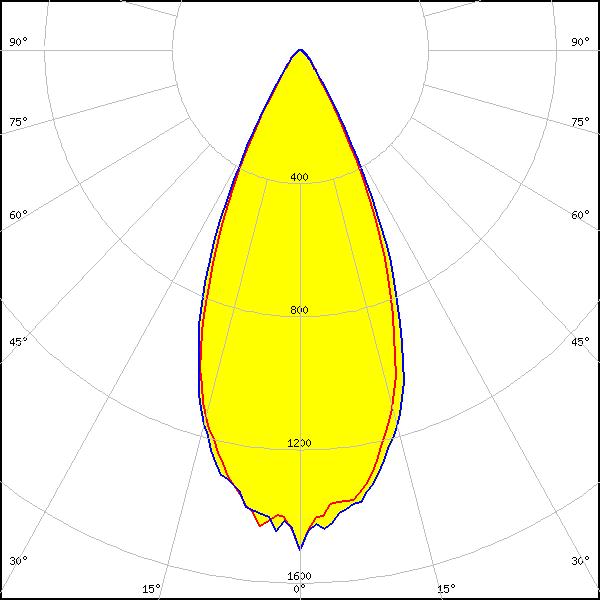

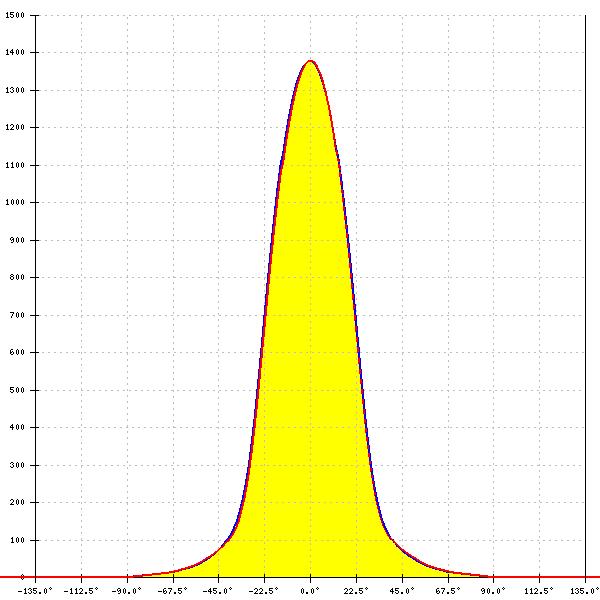

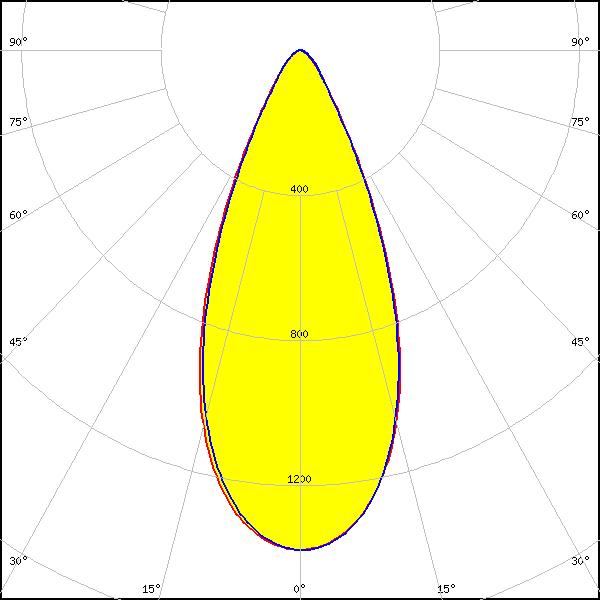

LED: XOB 9.8 mm
Required components:
FWHM: 45°
Peak intensity: 1.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
