CP16939_CARMEN-W-C-WHT

Print

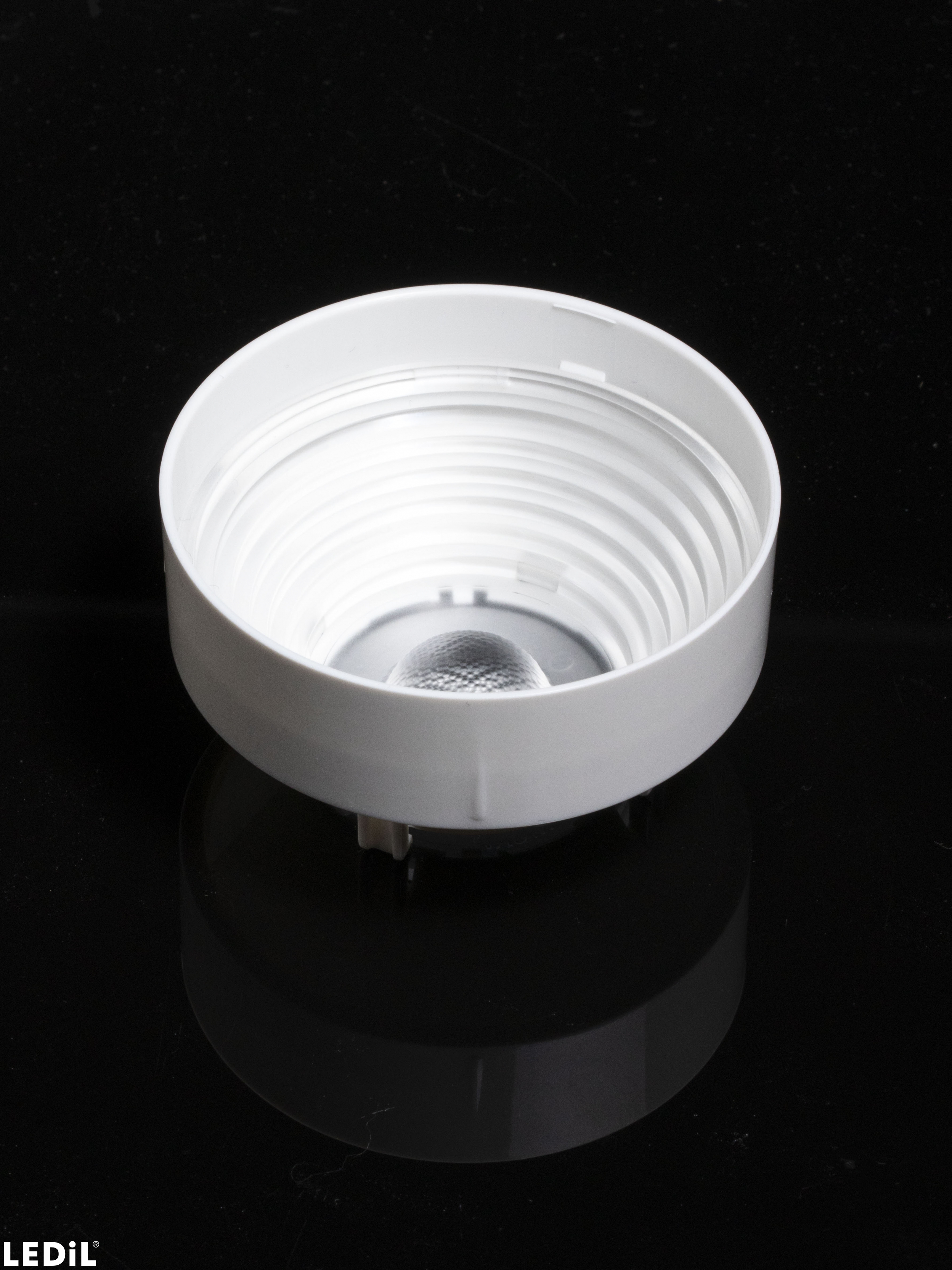

~55° wide beam. Assembly with holder C compatible with HEKLA sockets and connectors. White version.

Specification
  • Dimensions:
    70 mm
  • Height:
    41.50 mm
  • Fastening:
    socket
  • Colour:
    white
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    6.2 kg
  • MPQ:
    15 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    6.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP16939_CARMEN-W-C-WHT

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

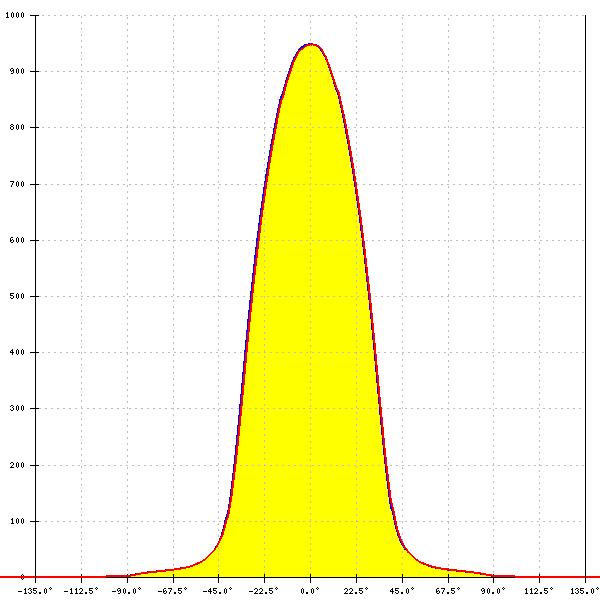

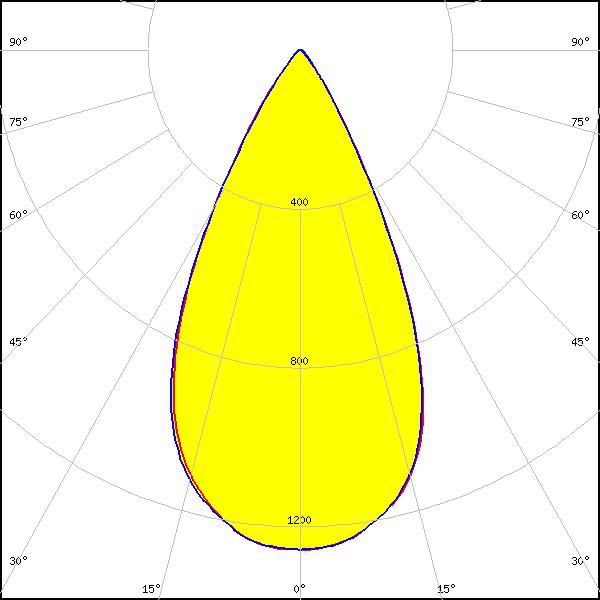

Optical results

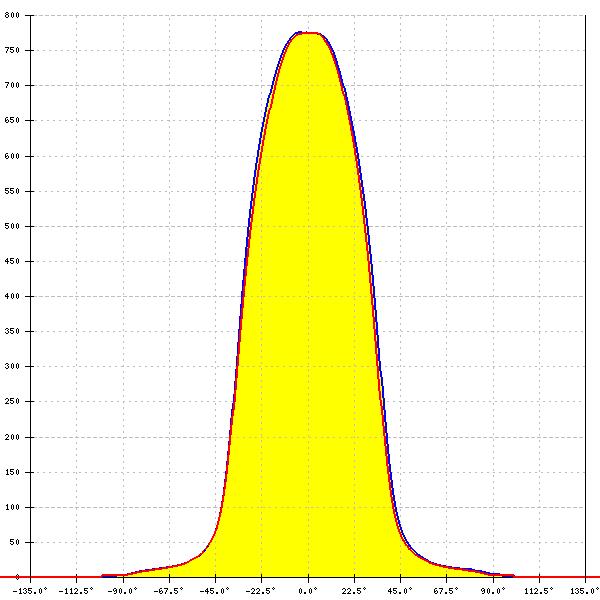

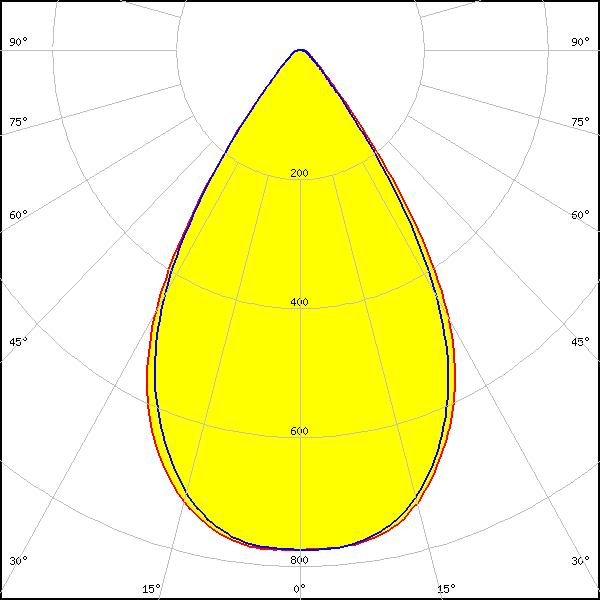

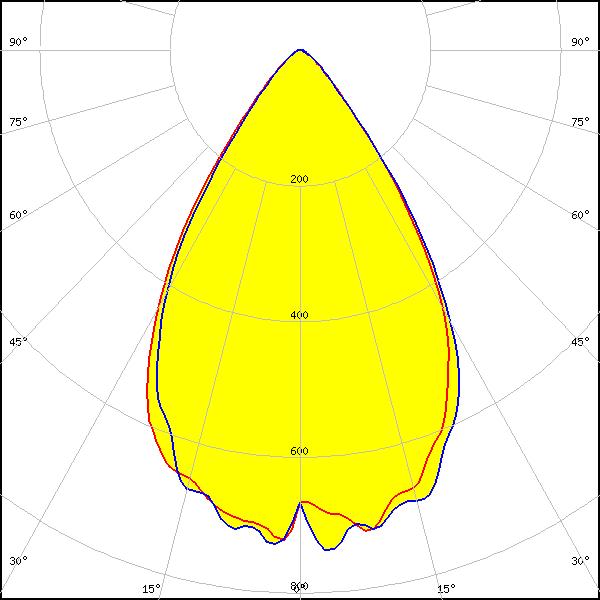

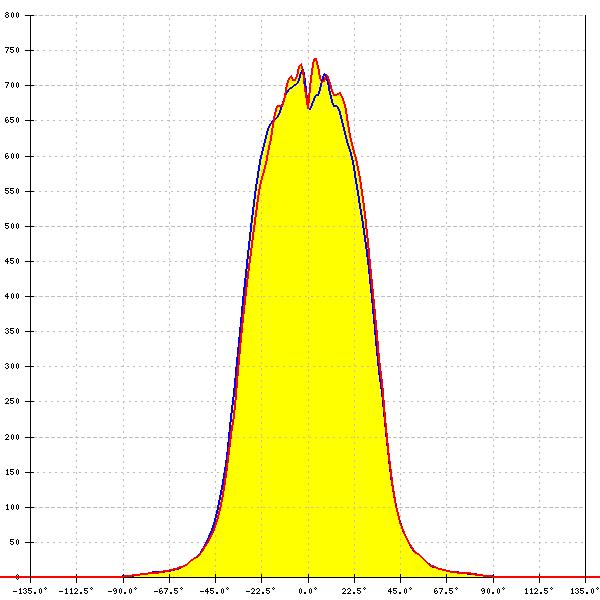

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 65°
FWTM: 88°
Peak intensity: 0.776 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 50°
FWTM: 73°
Peak intensity: 1.285 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (9W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 52°
FWTM: 77°
Peak intensity: 1.151 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

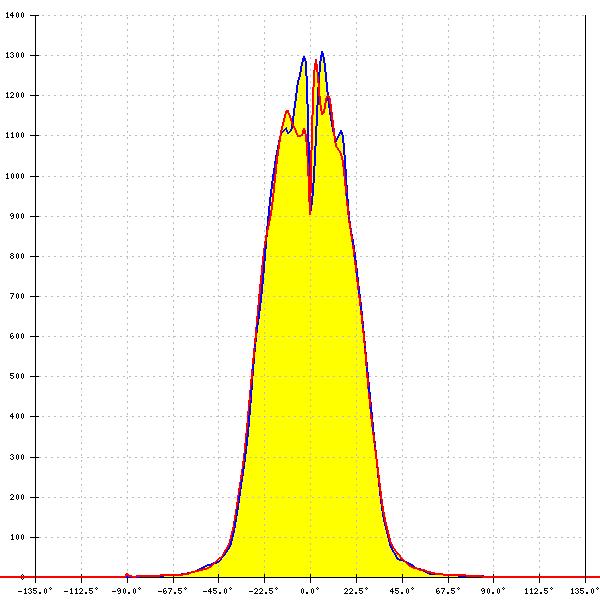

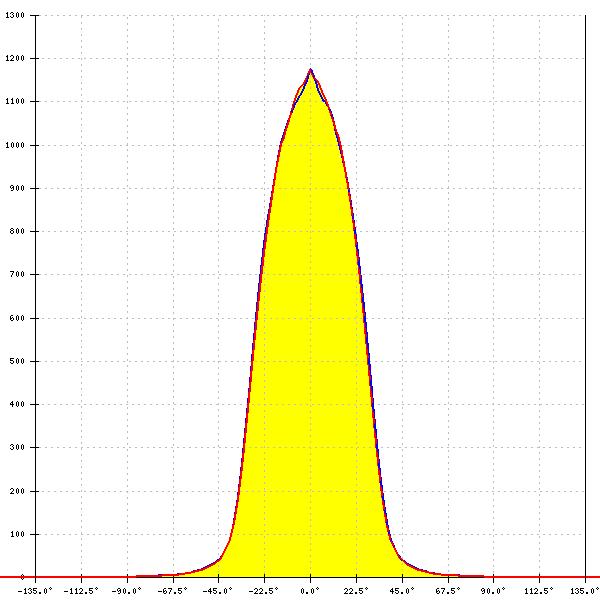

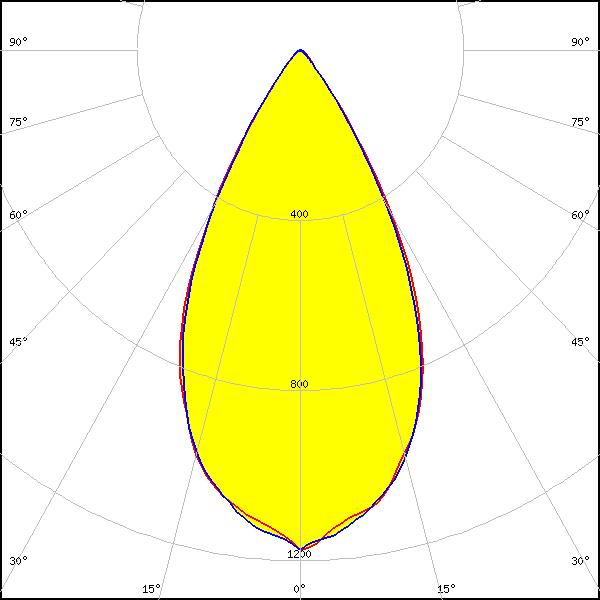

LED: CLL02x/CLU02x (LES10)
FWHM: 54°
FWTM: 76°
Peak intensity: 1.185 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

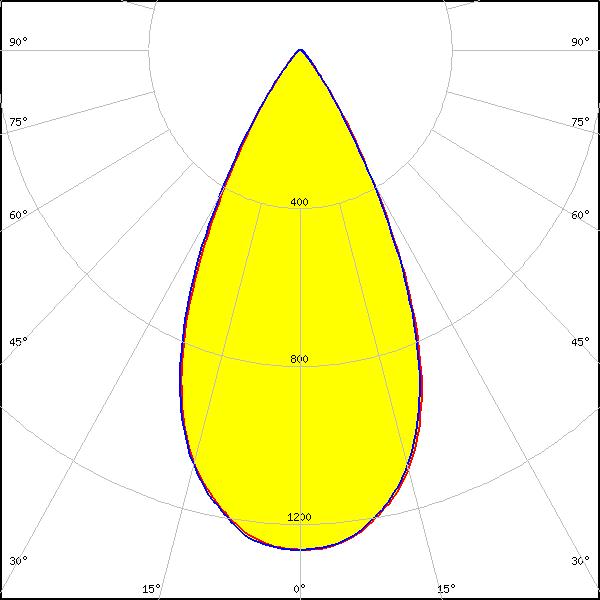

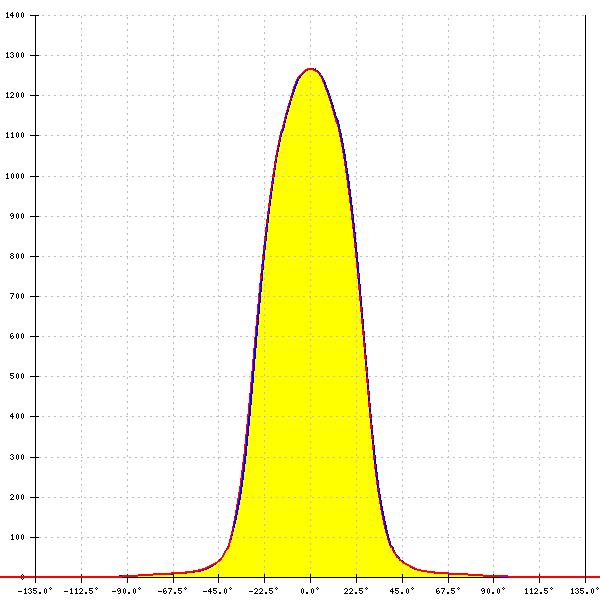

LED: CLU700/701/702/703
Required components:
FWHM: 52°
FWTM: 75°
Peak intensity: 1.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

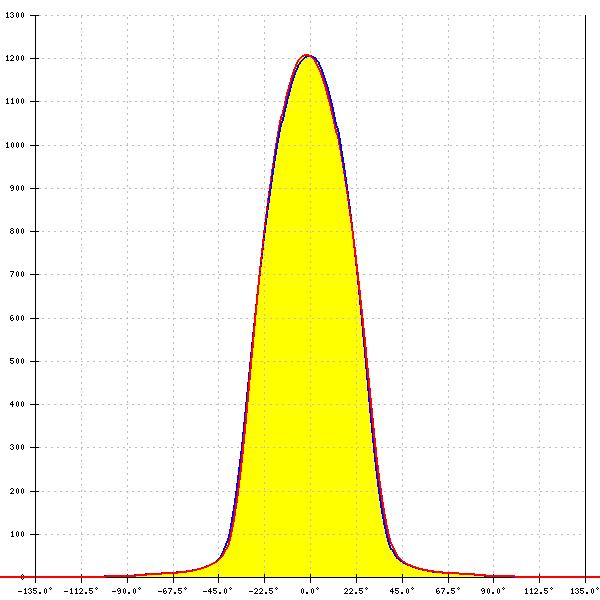

LED: CLU710/711

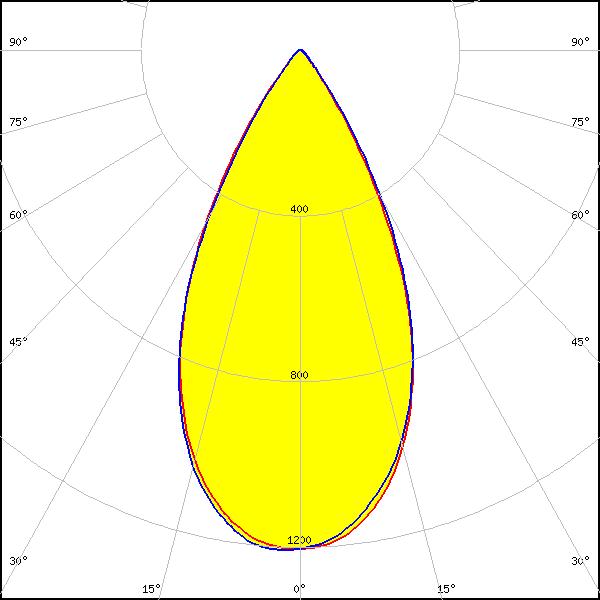

Required components:
FWHM: 53°
FWTM: 76°
Peak intensity: 1.208 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

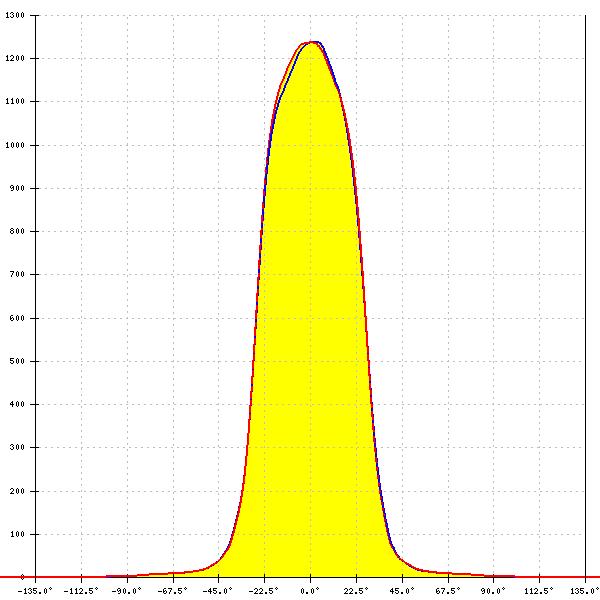

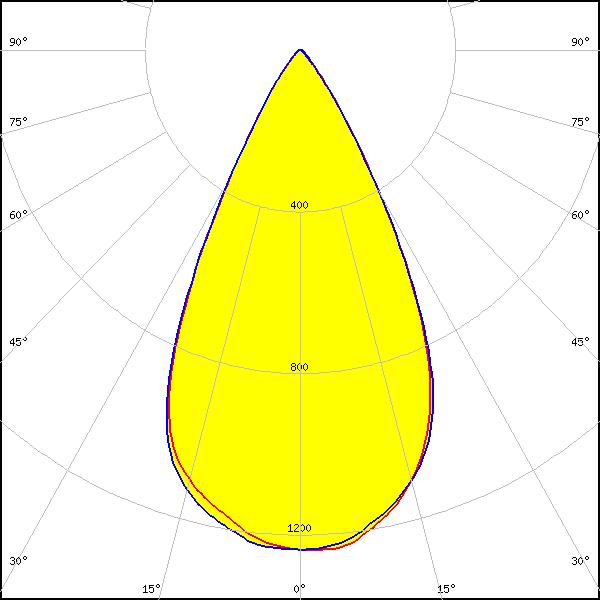

LED: CLU7B2
Required components:
FWHM: 53°
FWTM: 75°
Peak intensity: 1.239 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

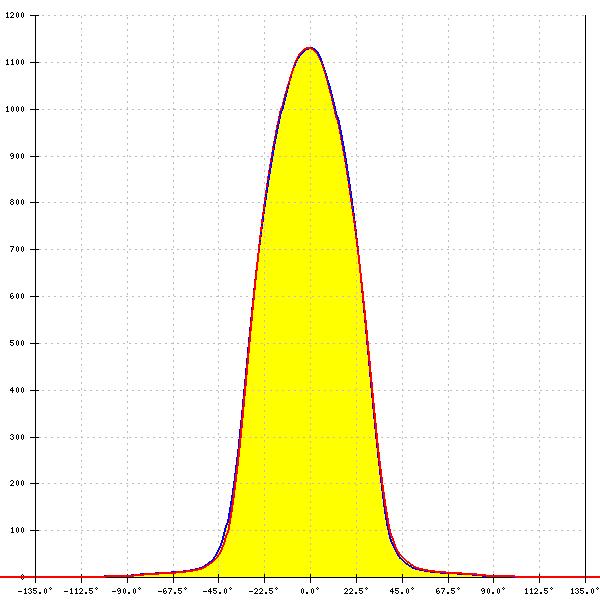

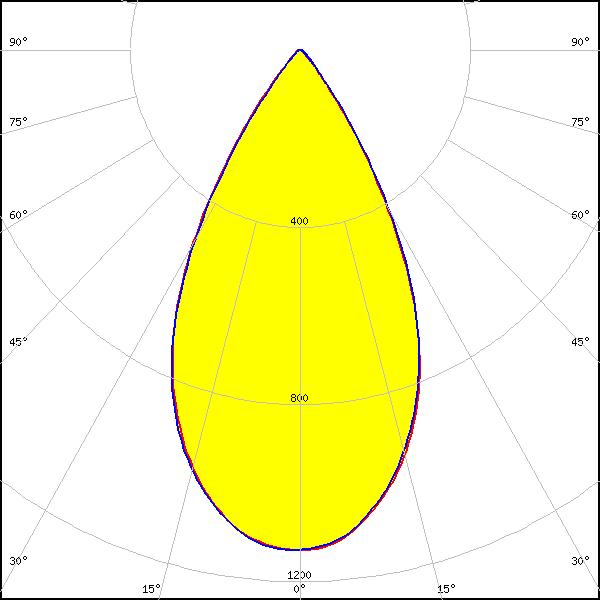

LED: CXA/B 15xx
Required components:
FWHM: 55°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

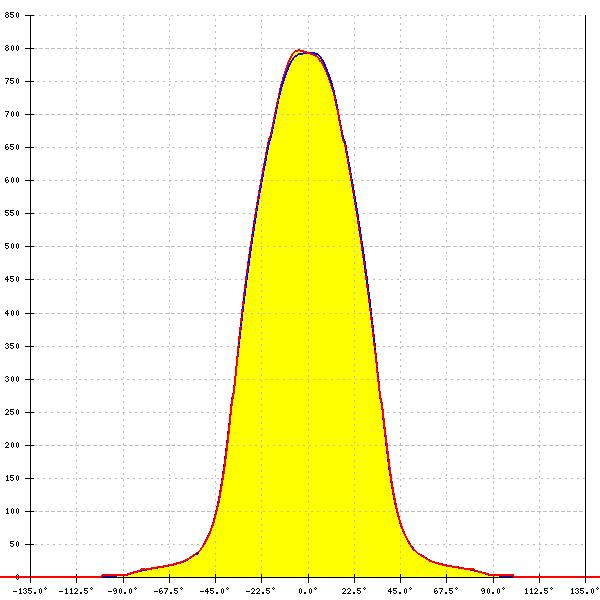

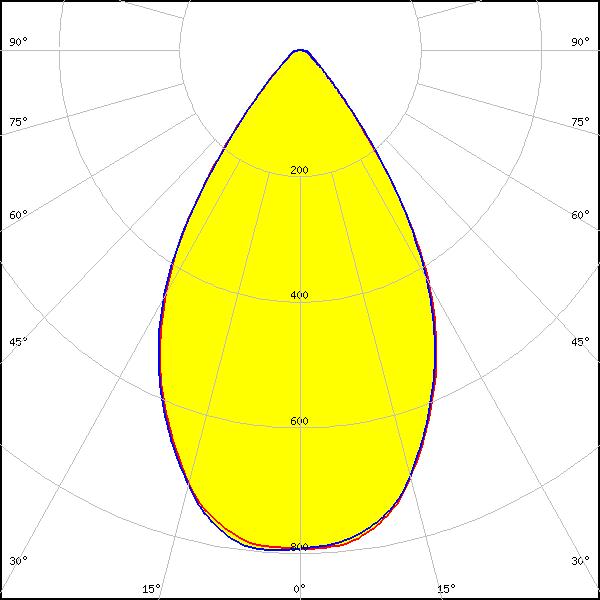

LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 63°
FWTM: 92°
Peak intensity: 0.796 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

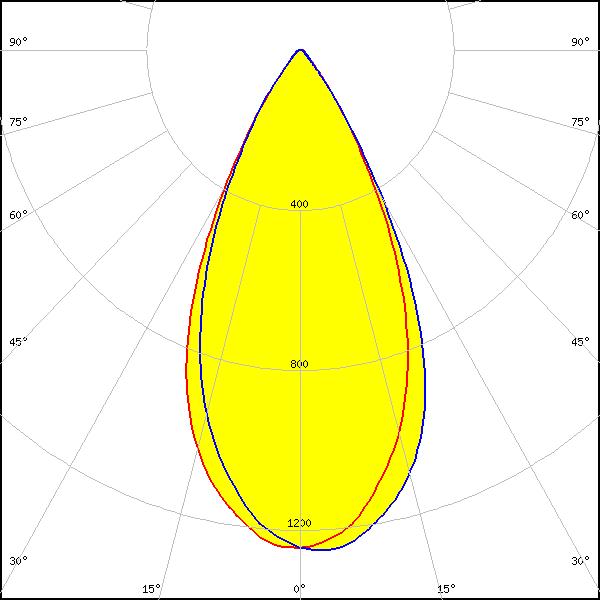

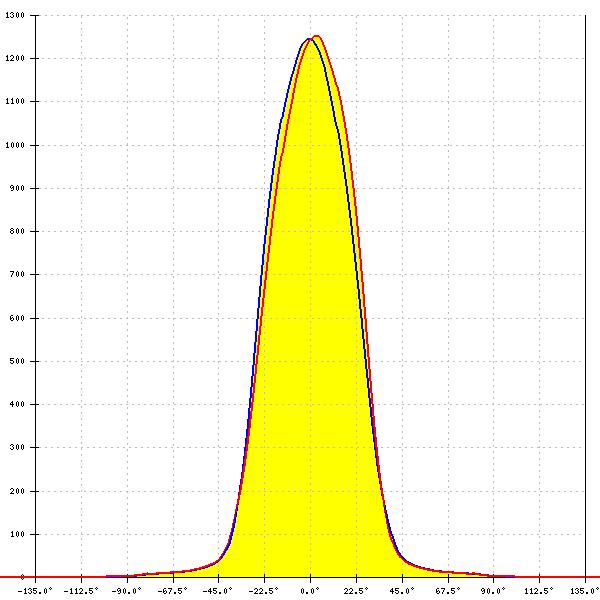

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 50°
FWTM: 77°
Peak intensity: 1.253 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

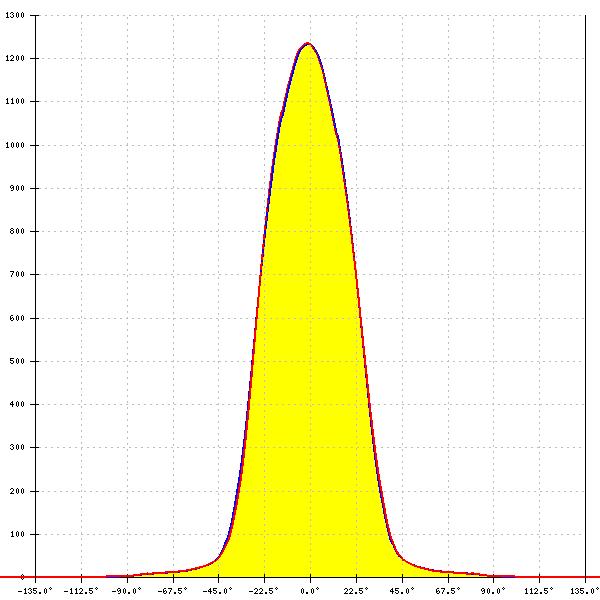

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 51°
FWTM: 77°
Peak intensity: 1.235 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

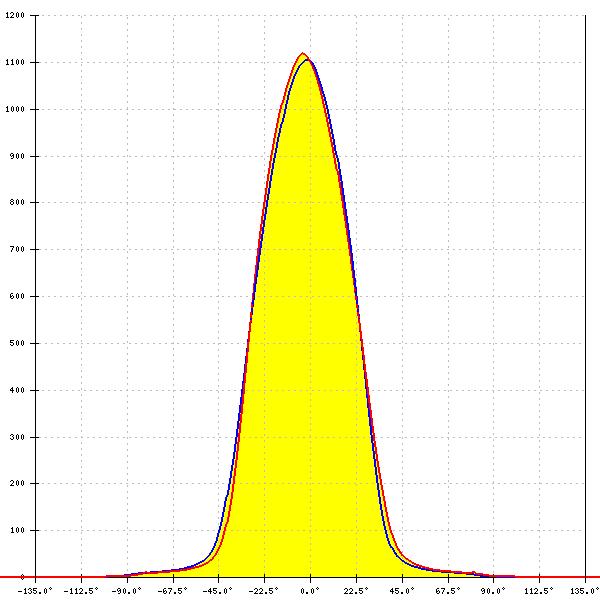

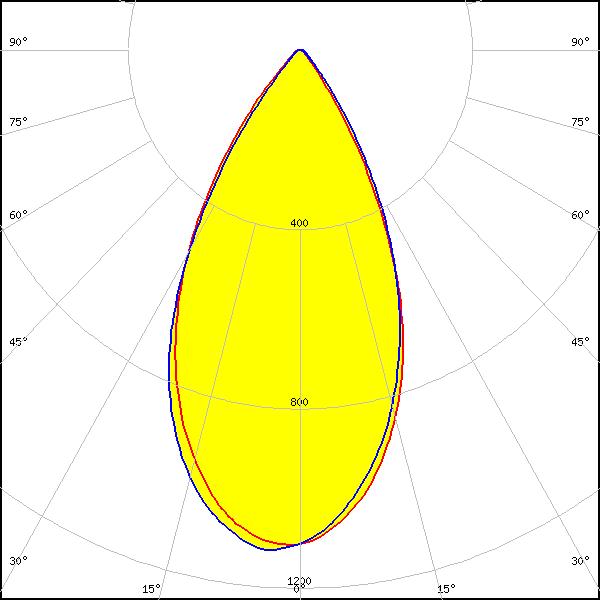

LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 53°
FWTM: 80°
Peak intensity: 1.120 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 57°
FWTM: 85°
Peak intensity: 0.964 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

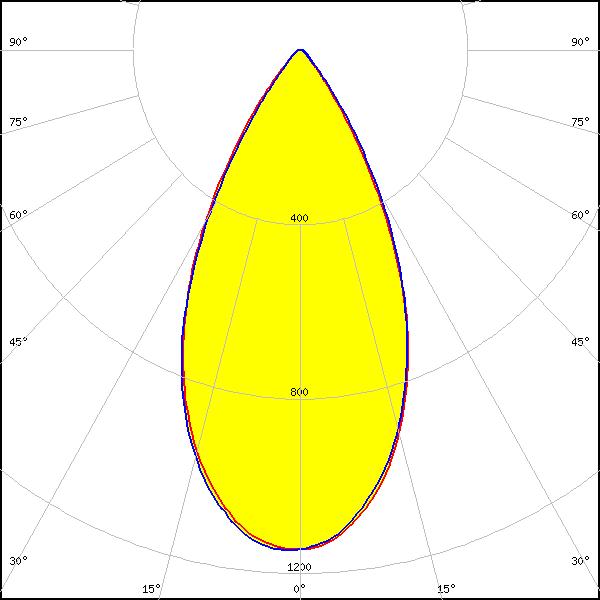

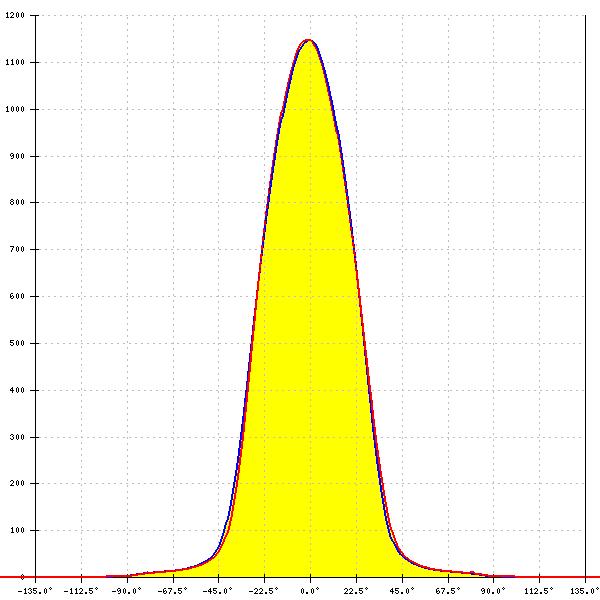

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 52°
FWTM: 79°
Peak intensity: 1.148 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

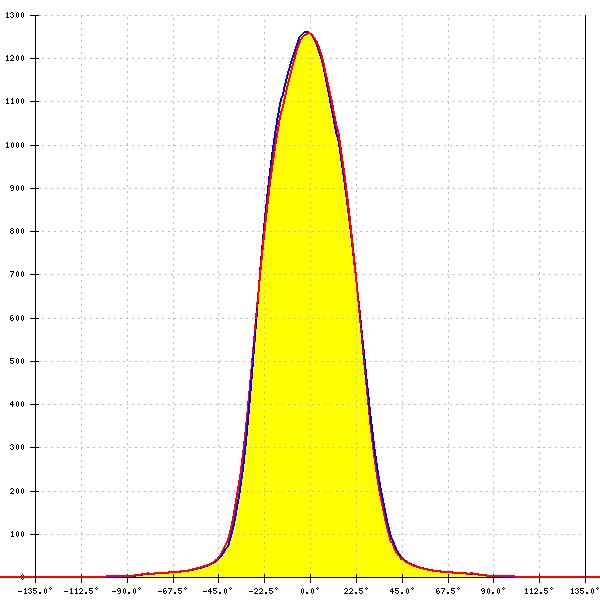

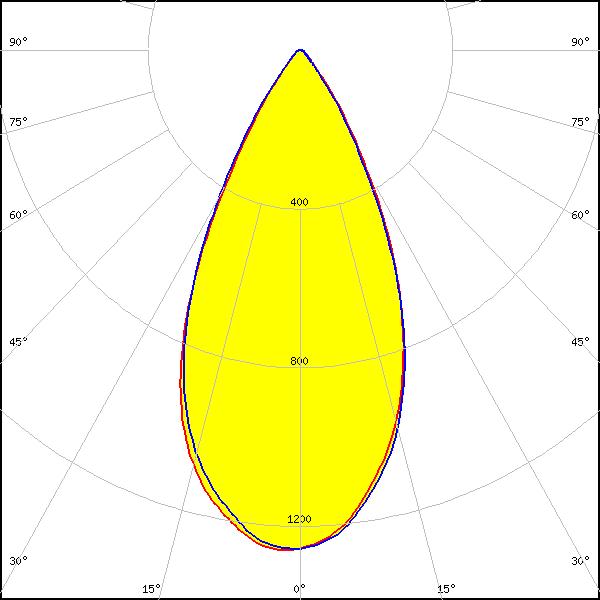

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 50°
FWTM: 76°
Peak intensity: 1.261 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Fusion 21-up (20x24)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 48°
FWTM: 73°
Peak intensity: 1.343 cd/lm
Efficiency: 88 %
LEDs/each optic: 21
Light colour: White

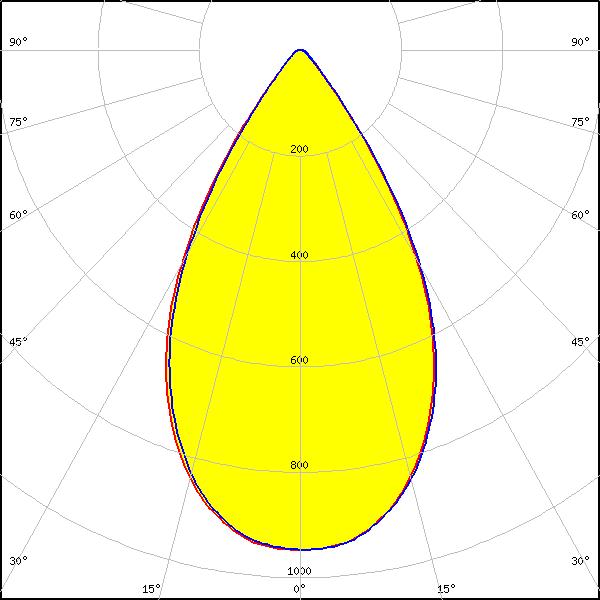

LED: CxM-11 (19x19)
Required components:
FWHM: 60°
FWTM: 83°
Peak intensity: 0.949 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

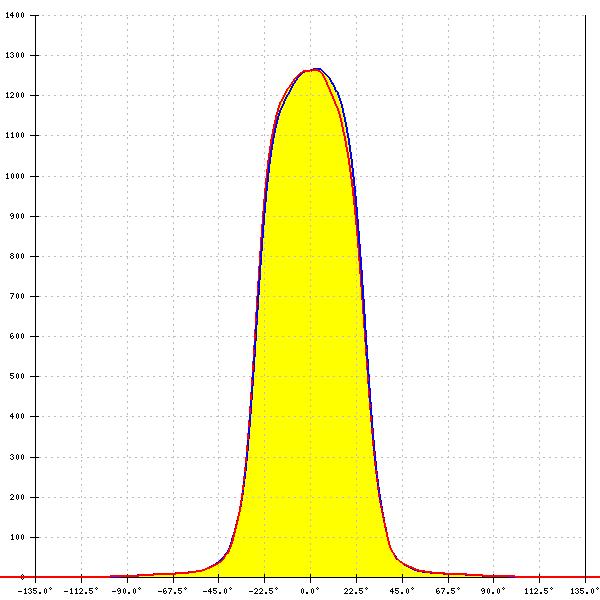

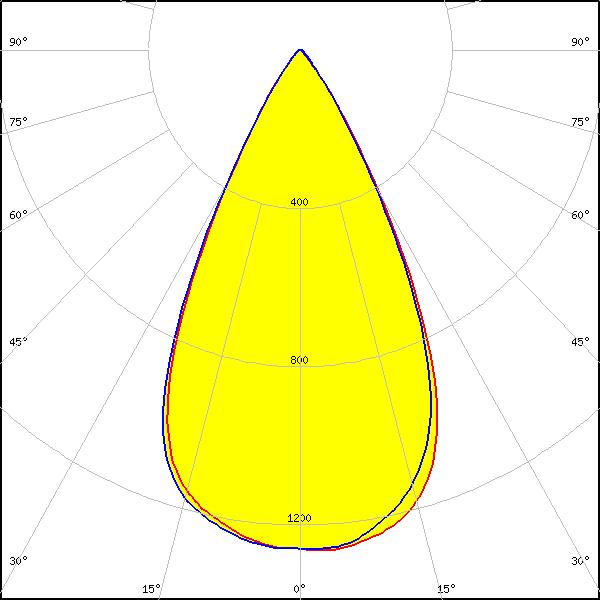

LED: CXM-3
Required components:
FWHM: 53°
FWTM: 74°
Peak intensity: 1.267 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

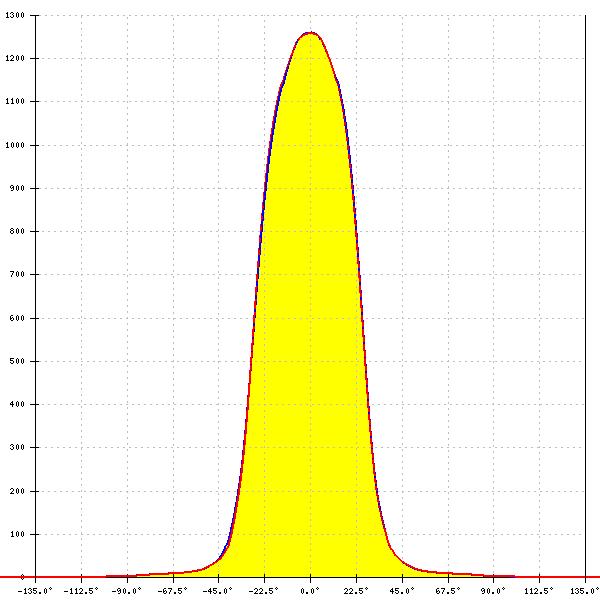

LED: CXM-4
Required components:
FWHM: 52°
FWTM: 74°
Peak intensity: 1.260 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

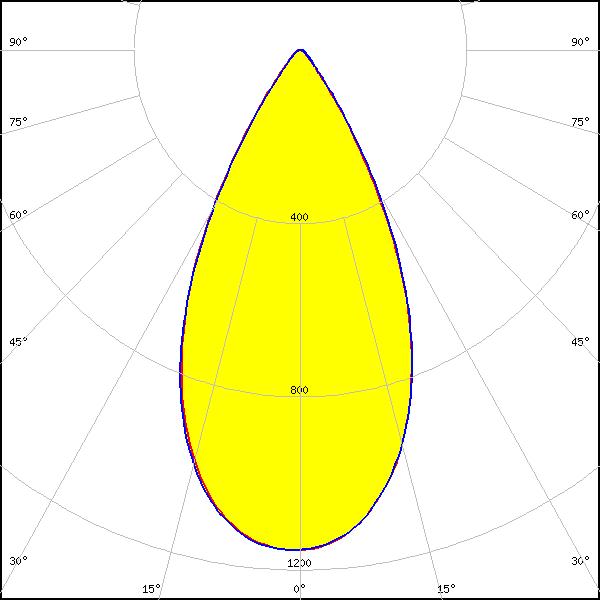

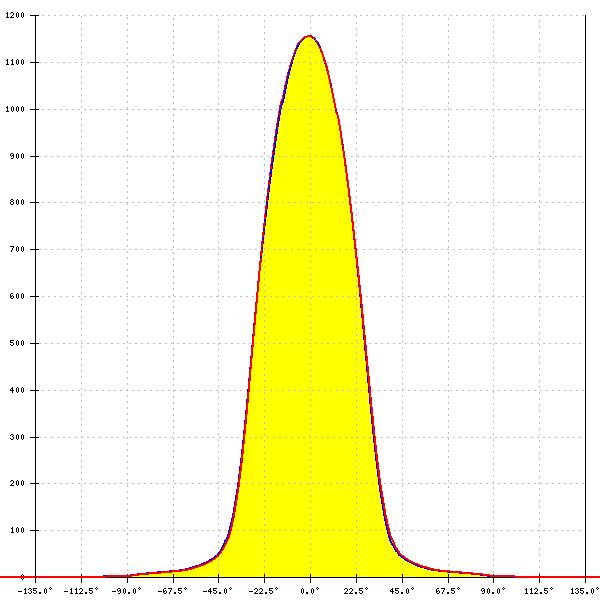

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 52°
FWTM: 77°
Peak intensity: 1.155 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: Tunable White

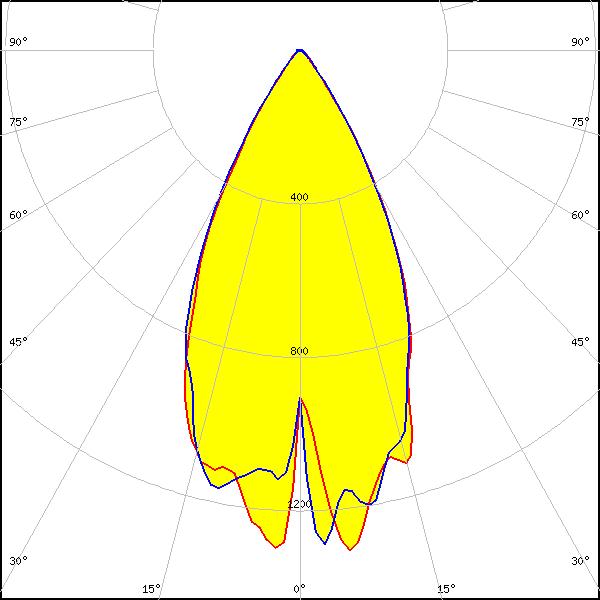

LED: SLE G7 LES09
Required components:
FWHM: 51°
FWTM: 76°
Peak intensity: 1.432 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

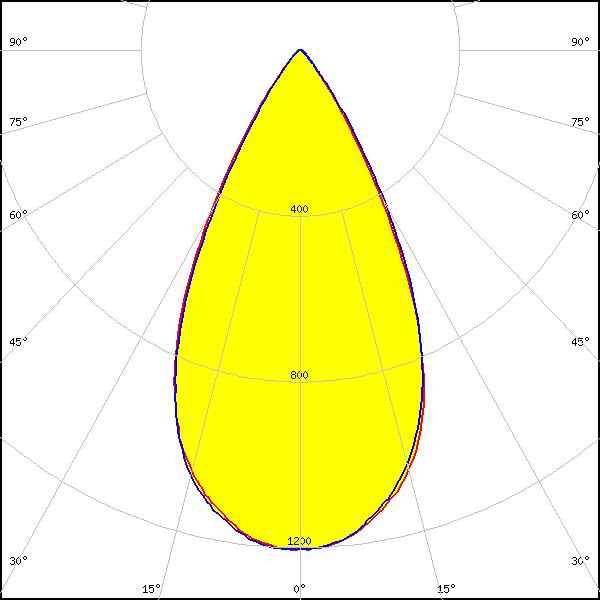

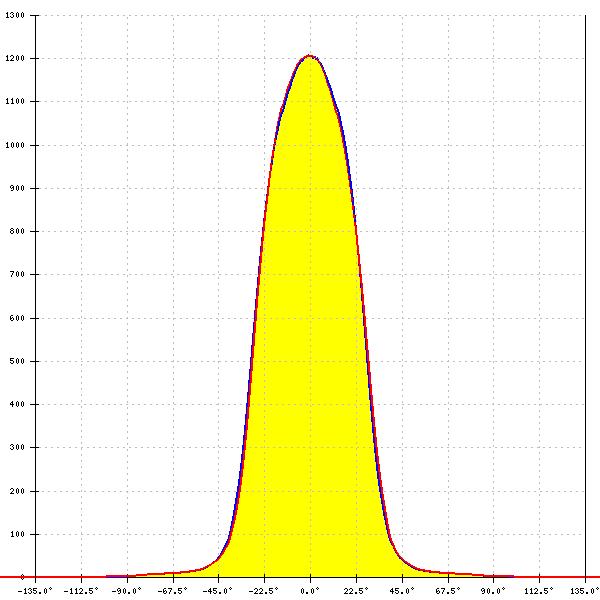

LED: XOB 6 mm
Required components:
FWHM: 54°
FWTM: 76°
Peak intensity: 1.206 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

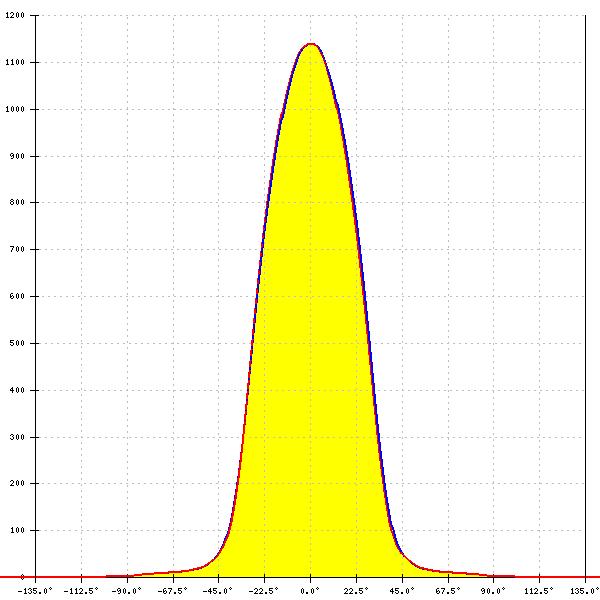

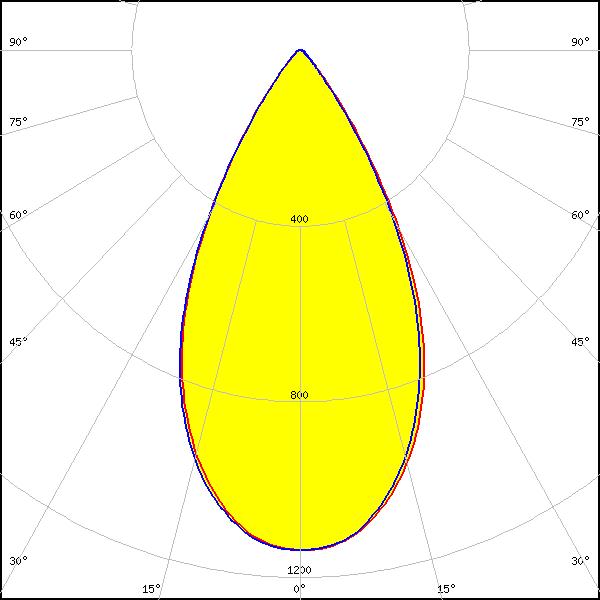

LED: XOB 9.8 mm
Required components:
FWHM: 54°
FWTM: 79°
Peak intensity: 1.139 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
