CP17138_CARMEN-M2-C-WHT

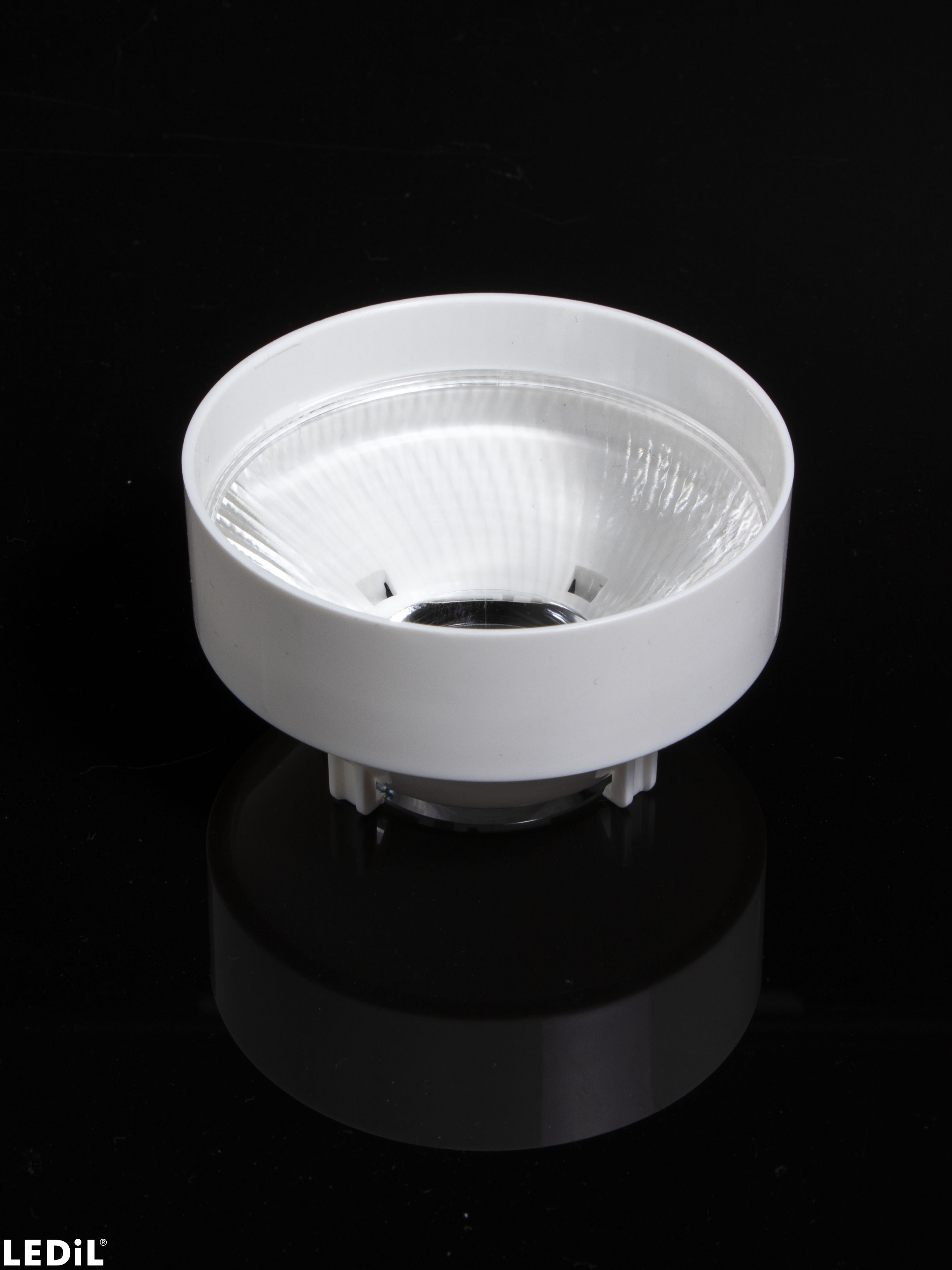

Print~25° wide beam. Assembly with holder C compatible with LEDiL HEKLA. White version.
Specification
-
Dimensions:70 mm
-
Height:41.50 mm
-
Fastening:socket
-
Colour:white
-
RoHS and REACH compliant:Yes
Component Materials
- CARMEN-M2Single lensPMMA
- CARMEN-HLD-C-WHTHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:150 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:8.8 kg
-
MPQ:15 pcs
-
MOQ:150 pcs
-
MOQ size:480 x 280 x 300 mm
-
MOQ weight:150.0 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

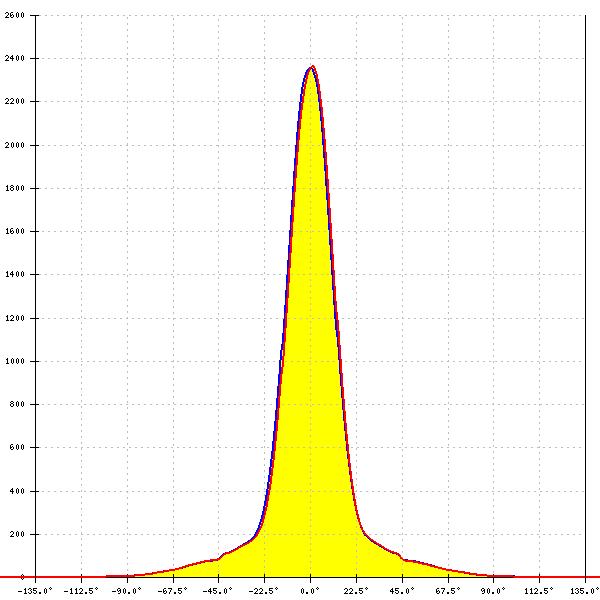

Optical results

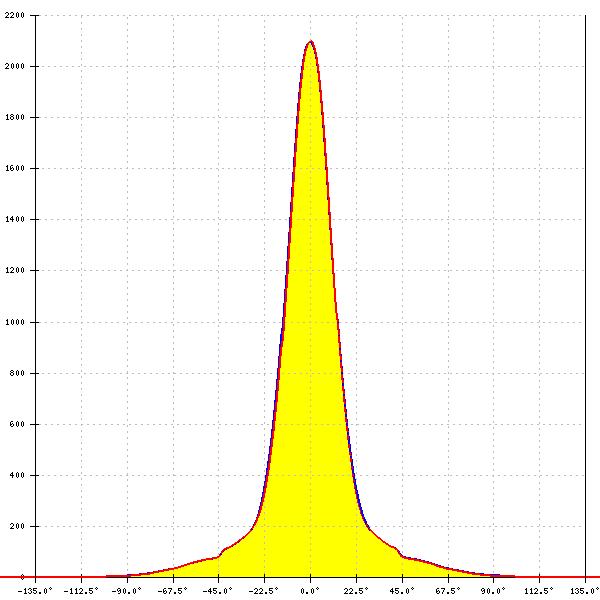

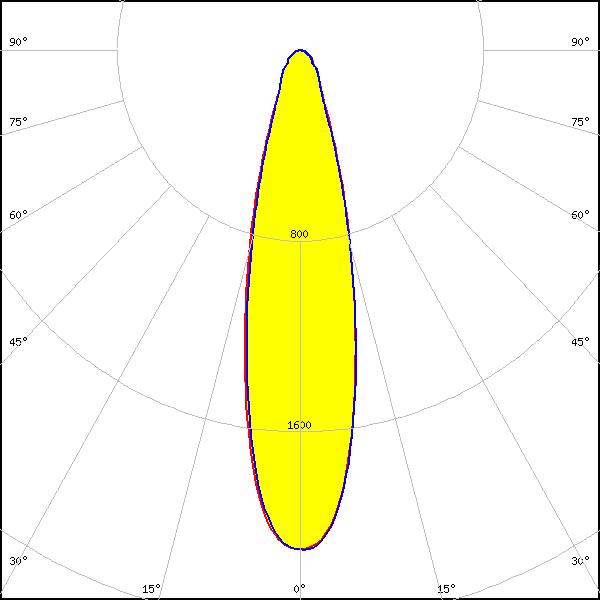

LED:
Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
26°
FWTM:
55°
Peak intensity:
2.098 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
24°
FWTM:
39°
Peak intensity:
3.638 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

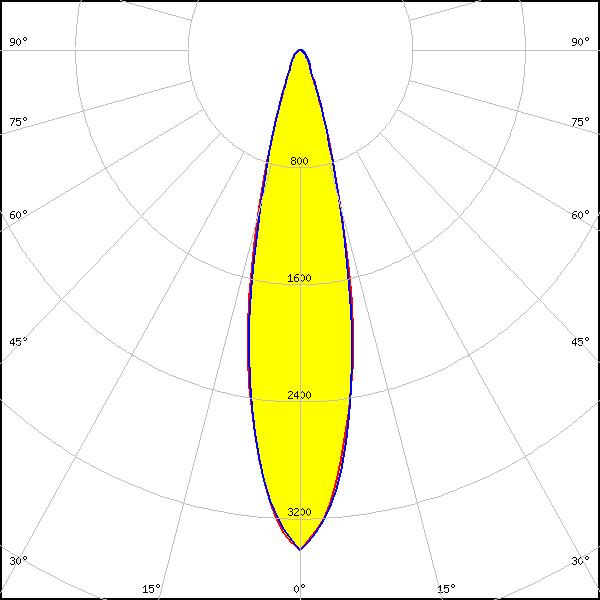

LED:
CLU02x (LES10)
LES size: 9.8 mm
FWHM:
24°
FWTM:
45°
Peak intensity:
3.415 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

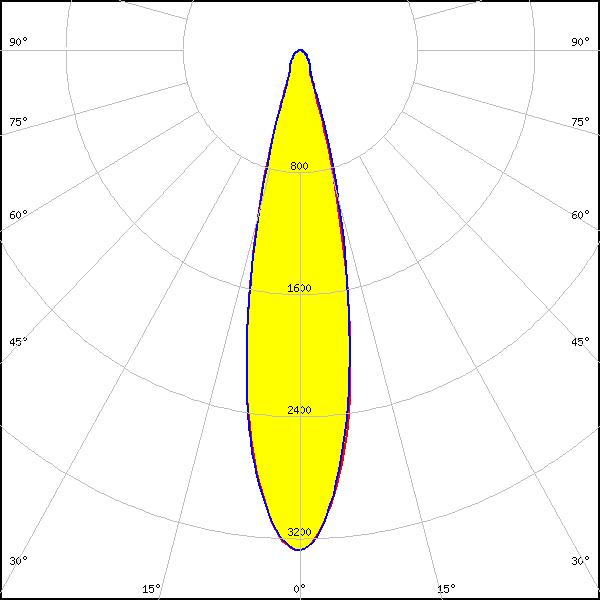

LED:

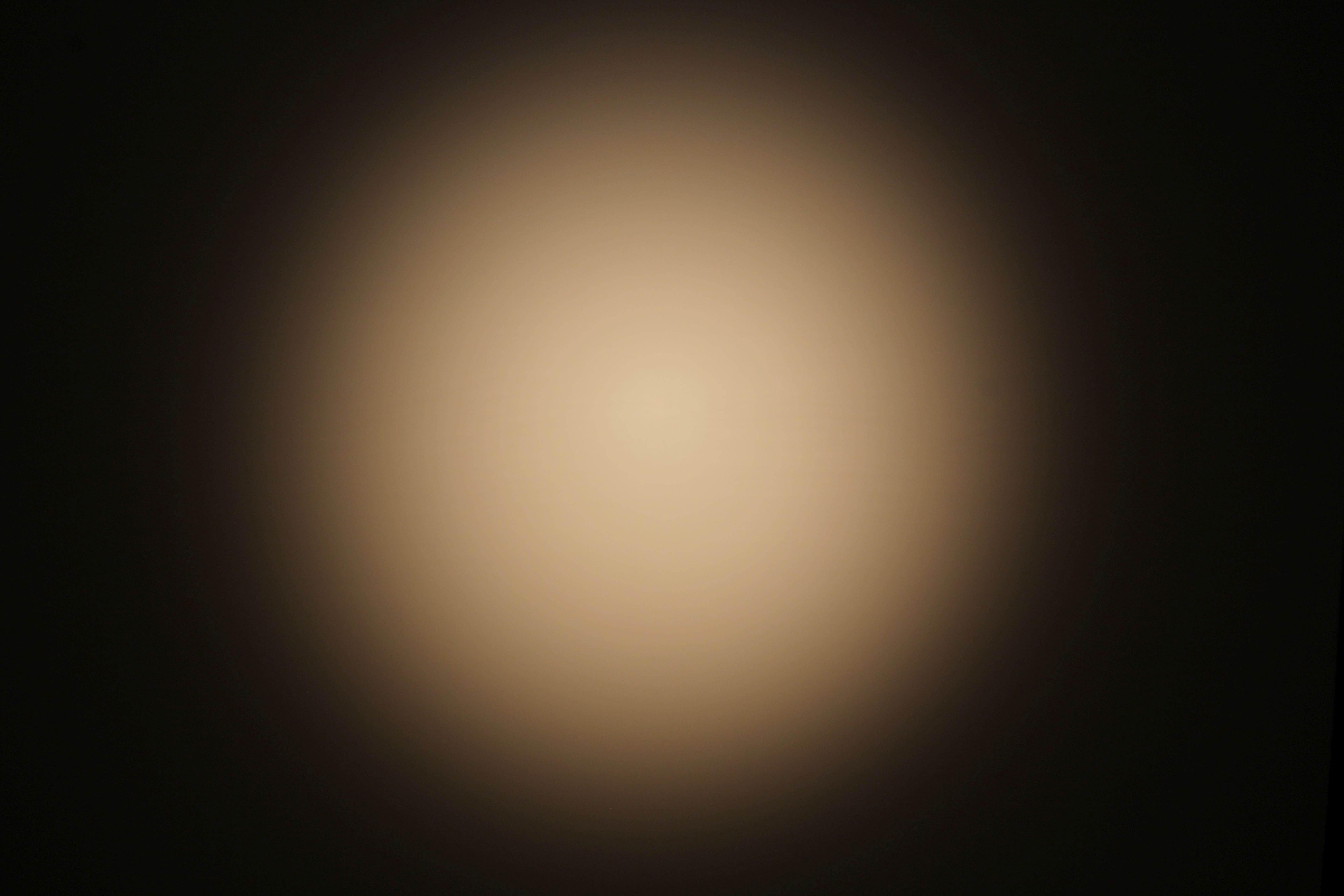

CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
24°
FWTM:
41°
Peak intensity:
3.275 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

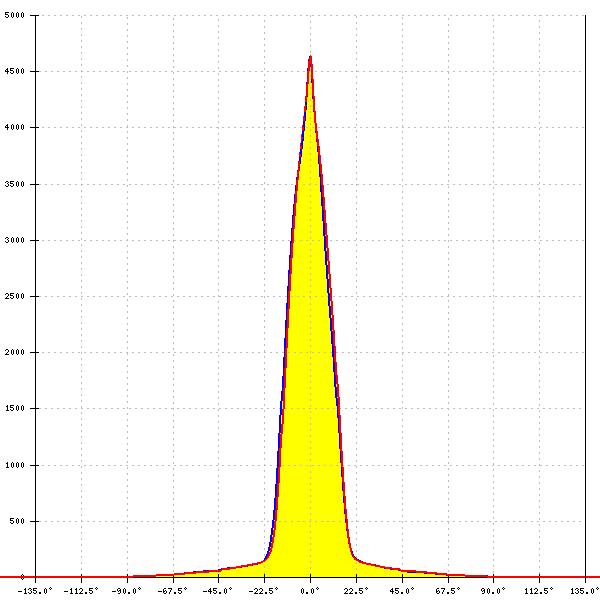

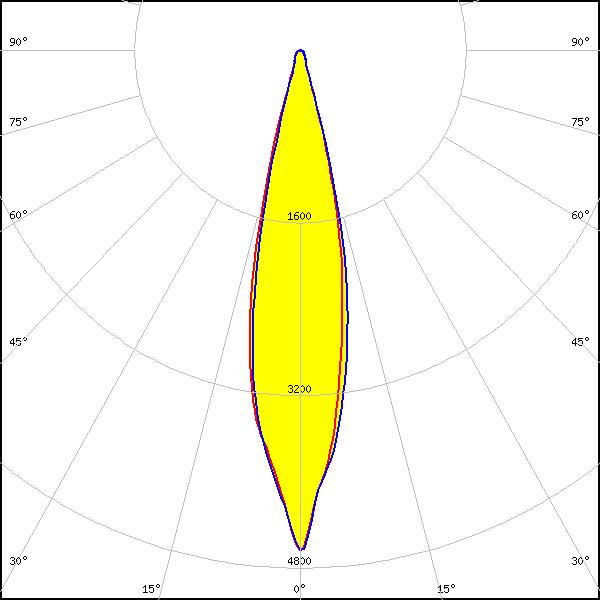

CLU7B2
LES size: 3.3 mm
Required components:
FWHM:
22°
FWTM:
36°
Peak intensity:
4.637 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

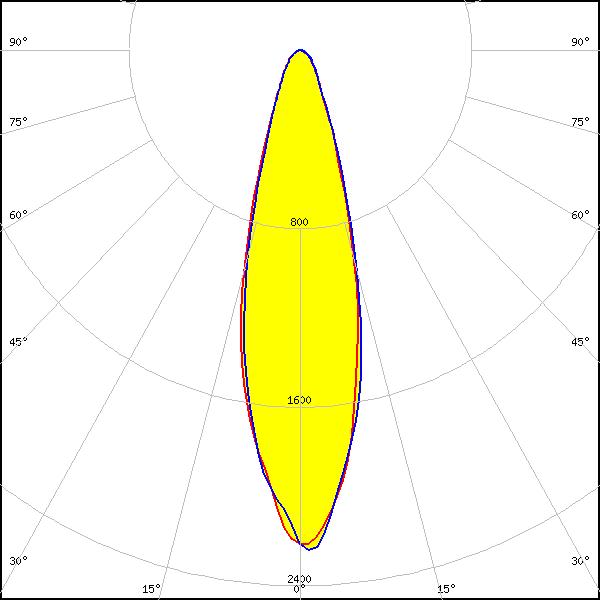

CMU15xx
LES size: 14.5 mm
Required components:
FWHM:
28°
FWTM:
56°
Peak intensity:
2.272 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

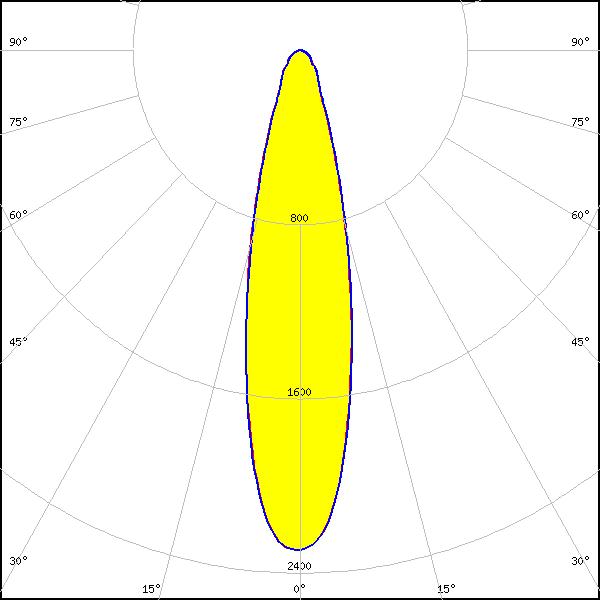

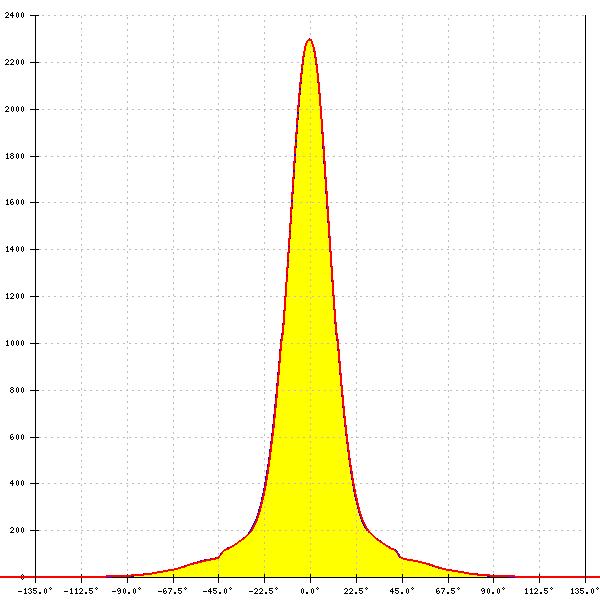

LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
25°
FWTM:
53°
Peak intensity:
2.296 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

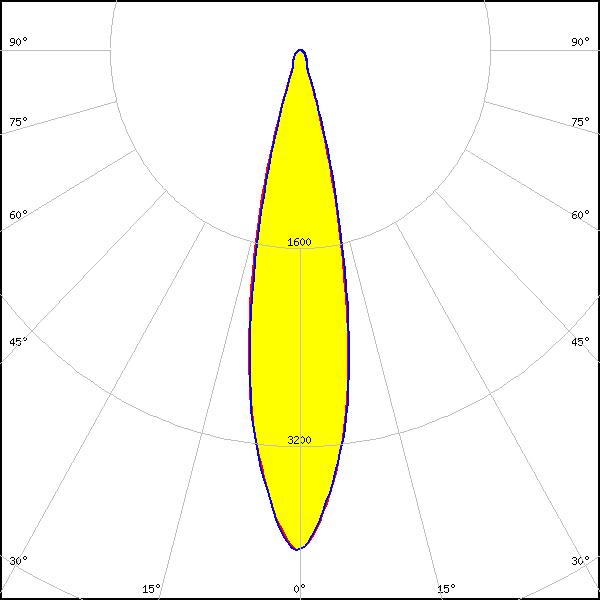

LED:

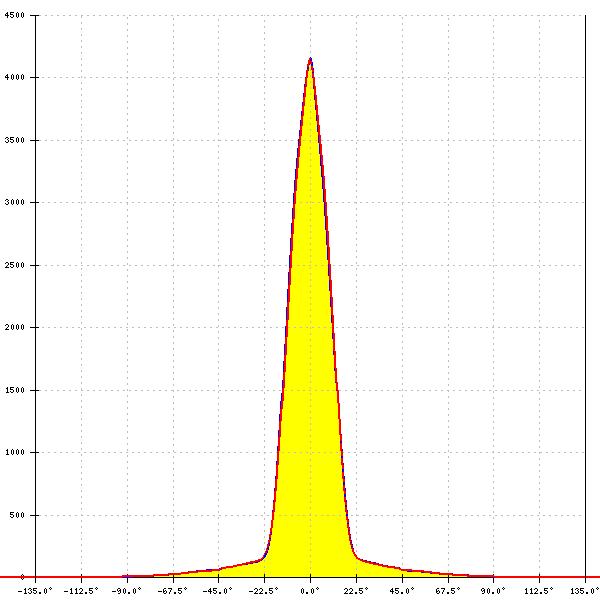

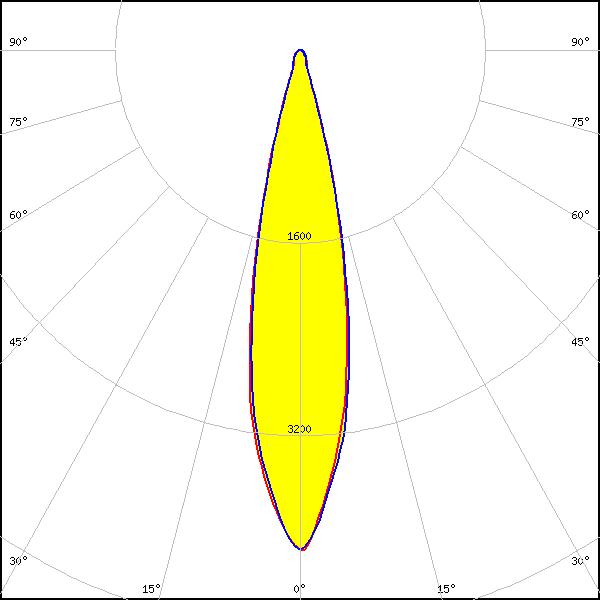

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
23°
FWTM:
37°
Peak intensity:
4.153 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
23°
FWTM:
38°
Peak intensity:
4.039 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

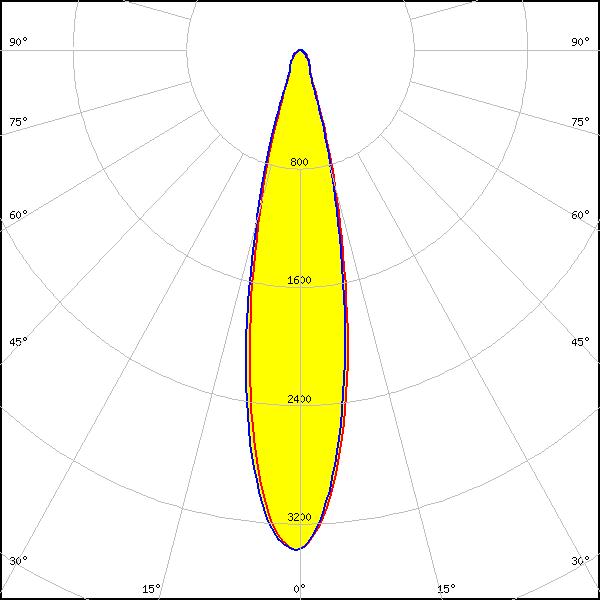

LED:

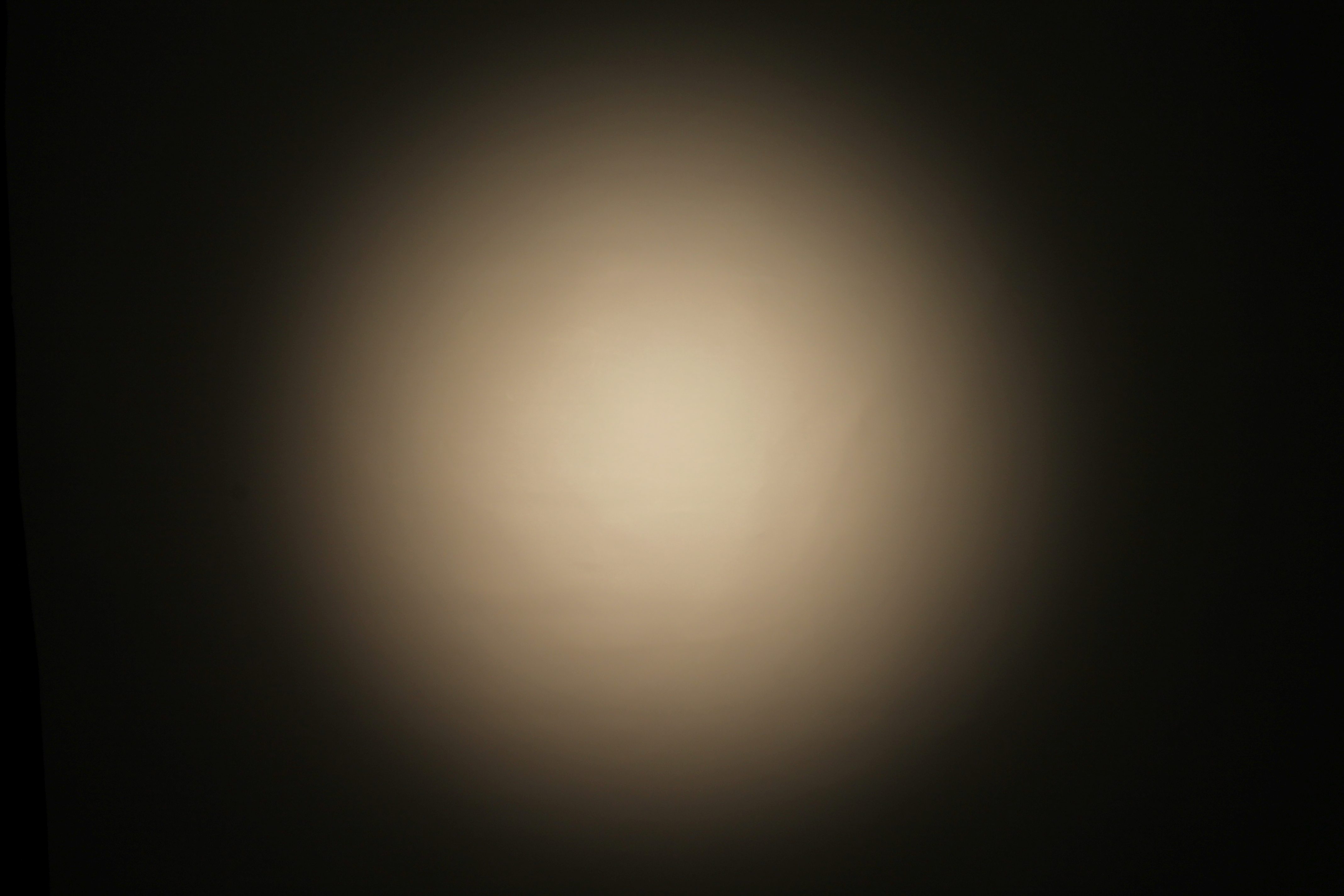

LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
23°
FWTM:
42°
Peak intensity:
3.378 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
24°
FWTM:
46°
Peak intensity:
2.799 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

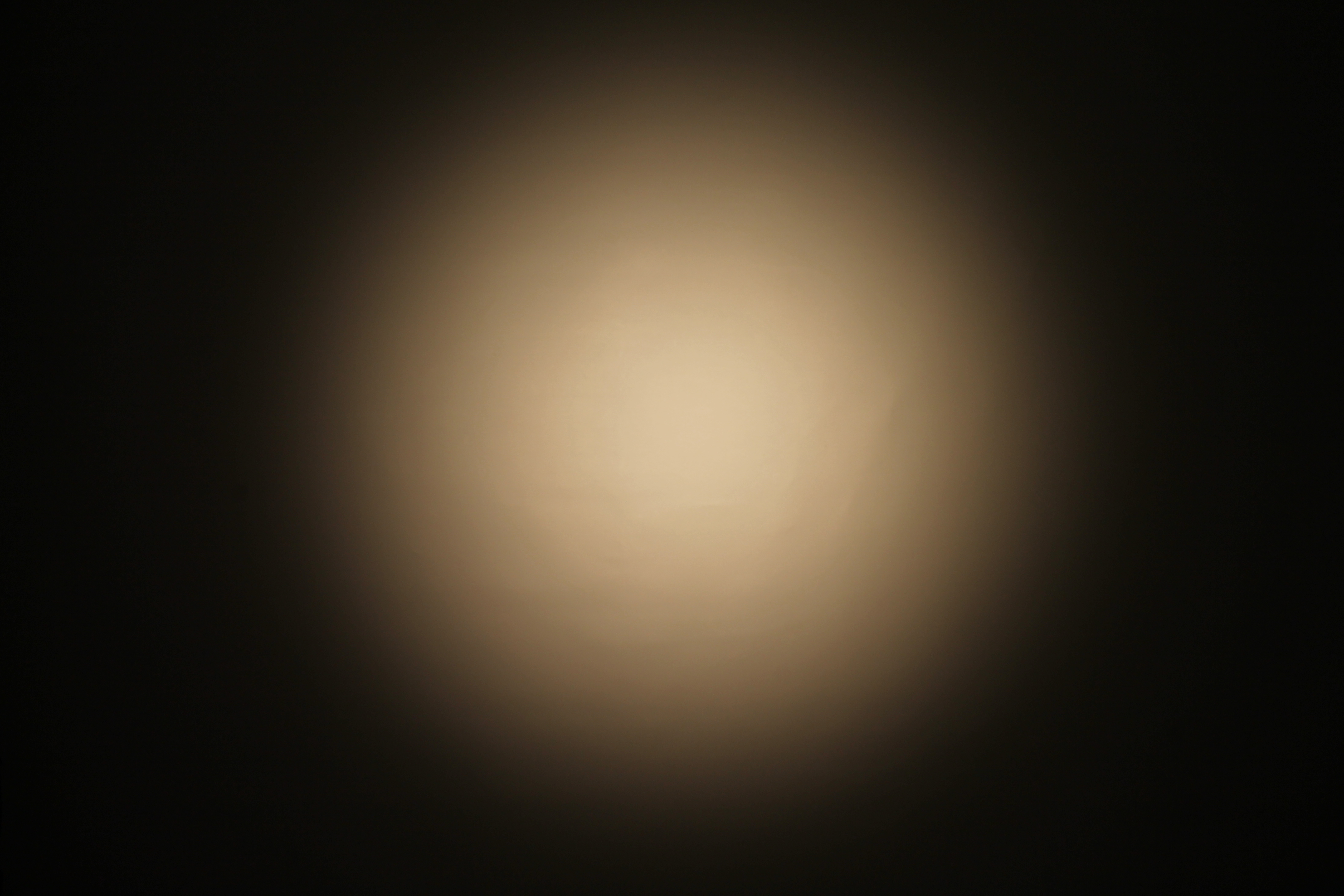

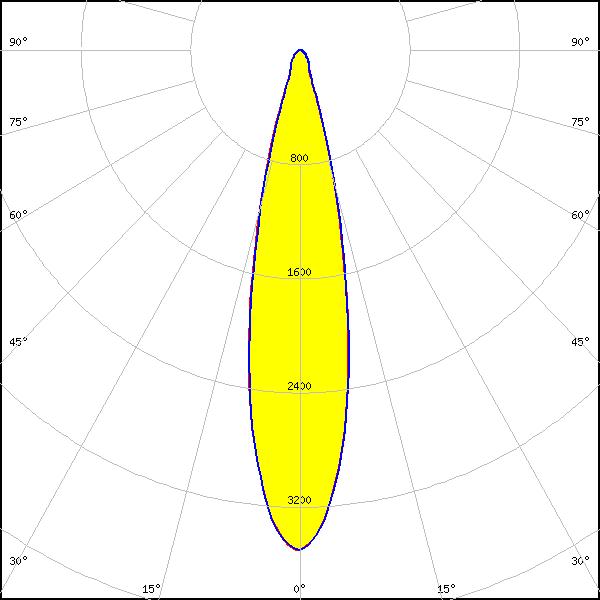

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
23°
FWTM:
41°
Peak intensity:
3.503 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

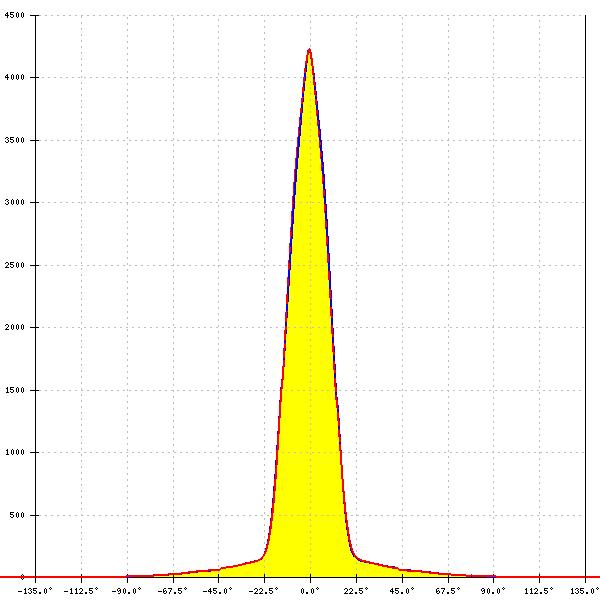

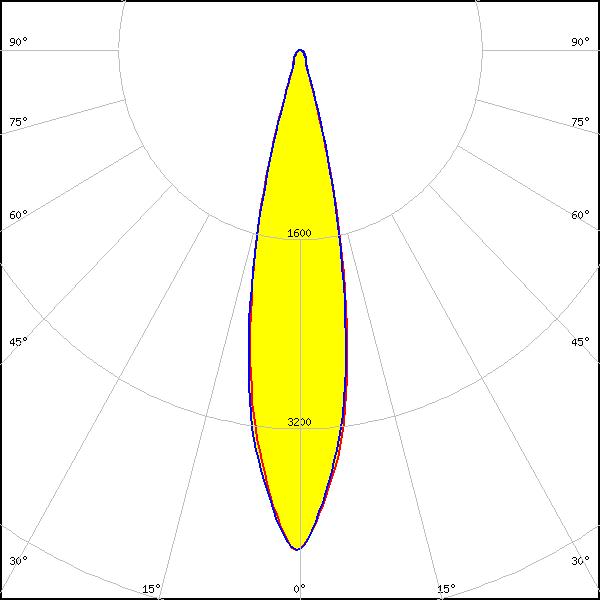

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
23°
FWTM:
37°
Peak intensity:
4.234 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Fusion 21-up (20x24)
LES size: 7.5 mm
Required components:
FWHM:
25°
FWTM:
41°
Peak intensity:
3.117 cd/lm
Efficiency:
83 %
LEDs/each optic:
21
Light colour/type:
White
LED:
CxM-11 (19x19)
LES size: 11.7 mm
Required components:
FWHM:
26°
FWTM:
50°
Peak intensity:
2.394 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

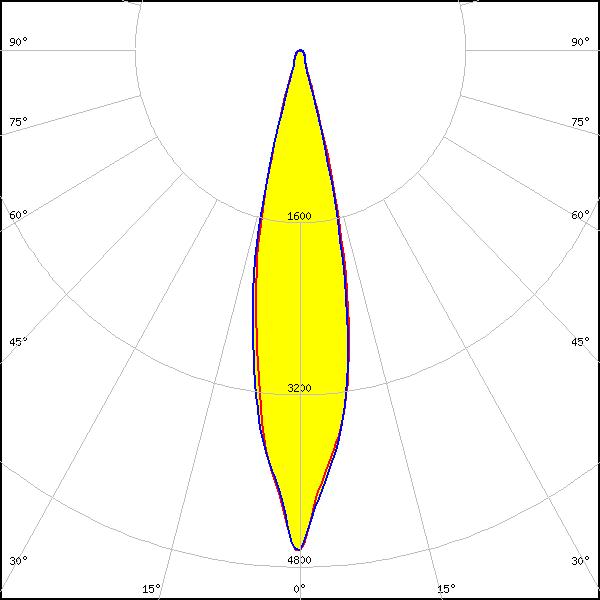

CXM-3
LES size: 3.5 mm
Required components:
FWHM:
22°
FWTM:
35°
Peak intensity:
4.645 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

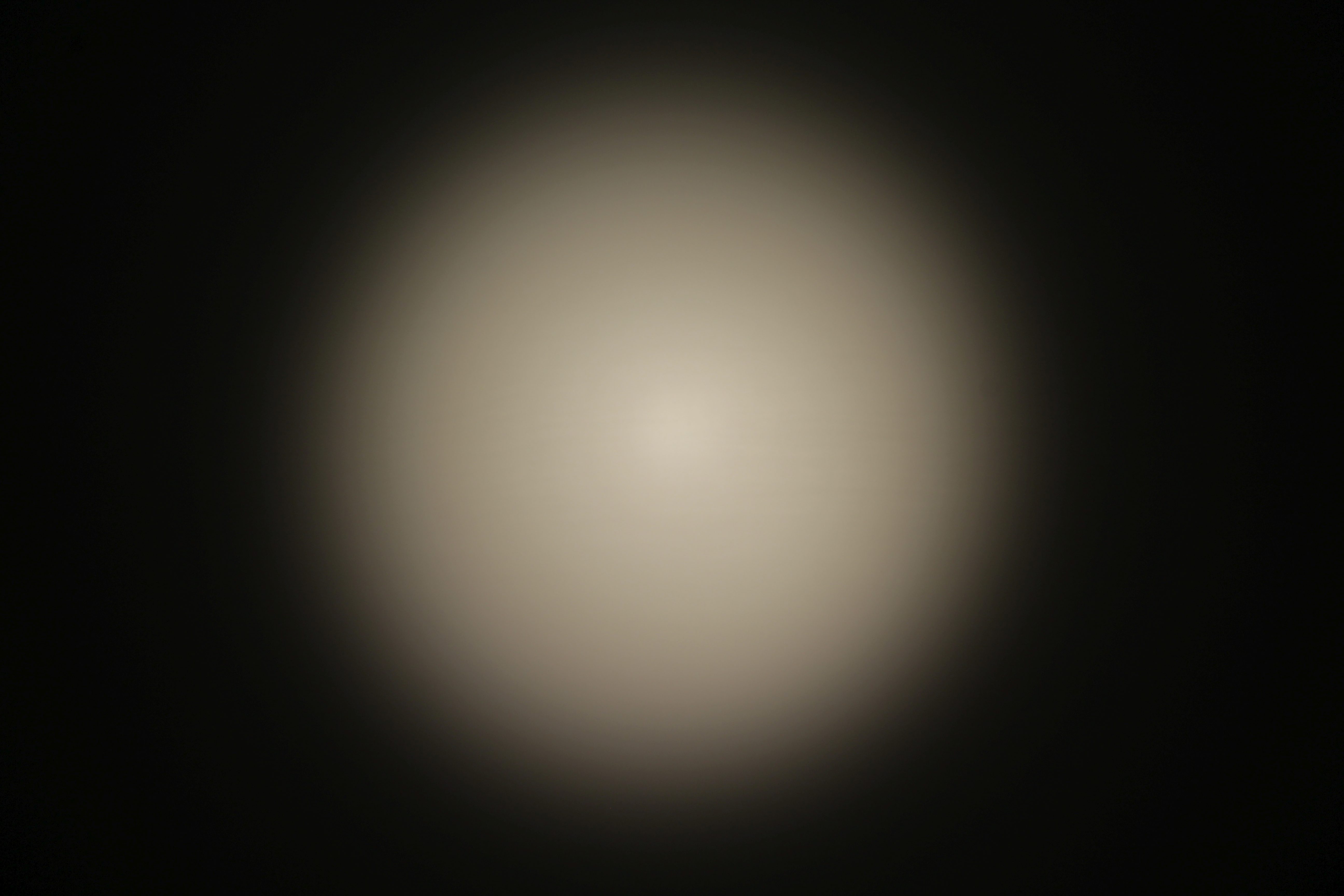

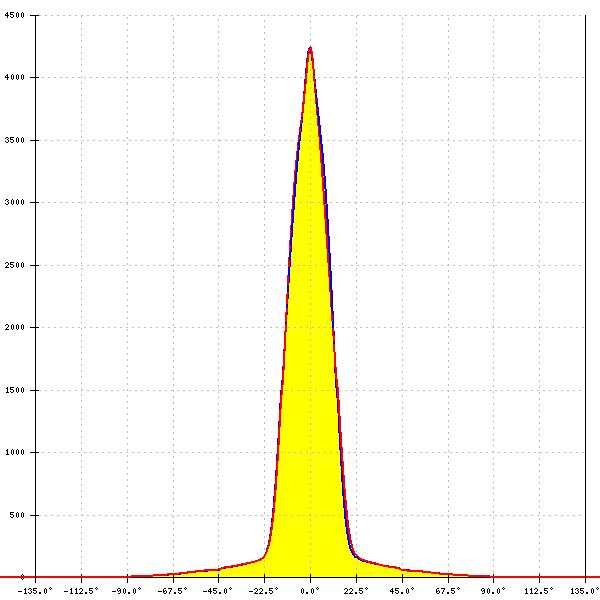

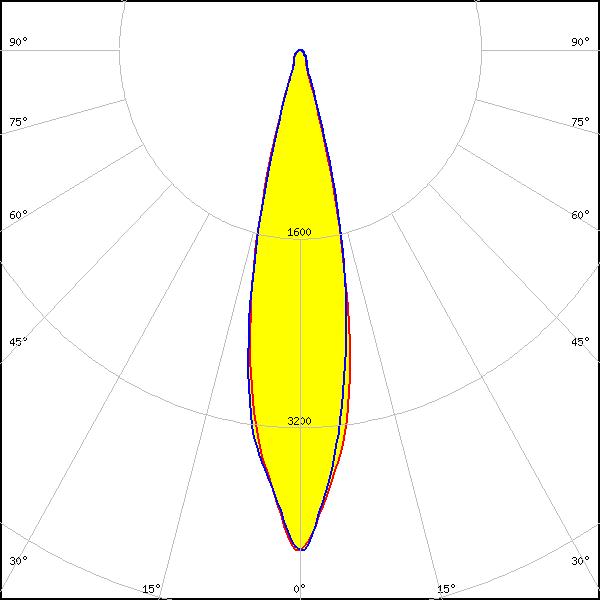

CXM-4
LES size: 4.5 mm
Required components:
FWHM:
23°
FWTM:
36°
Peak intensity:
4.241 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

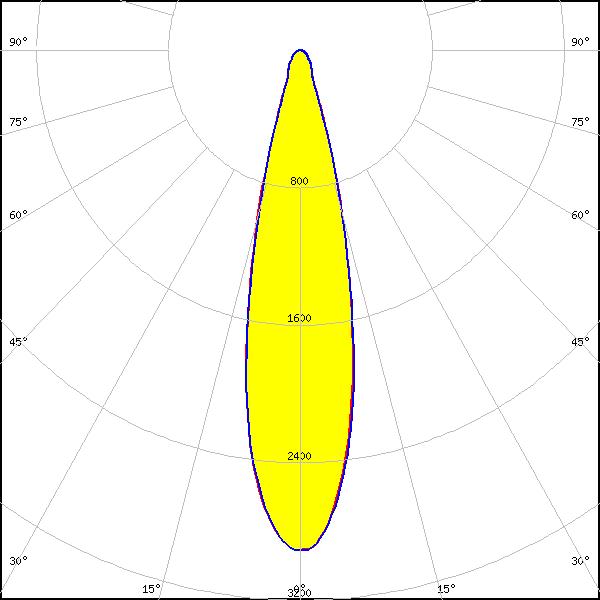

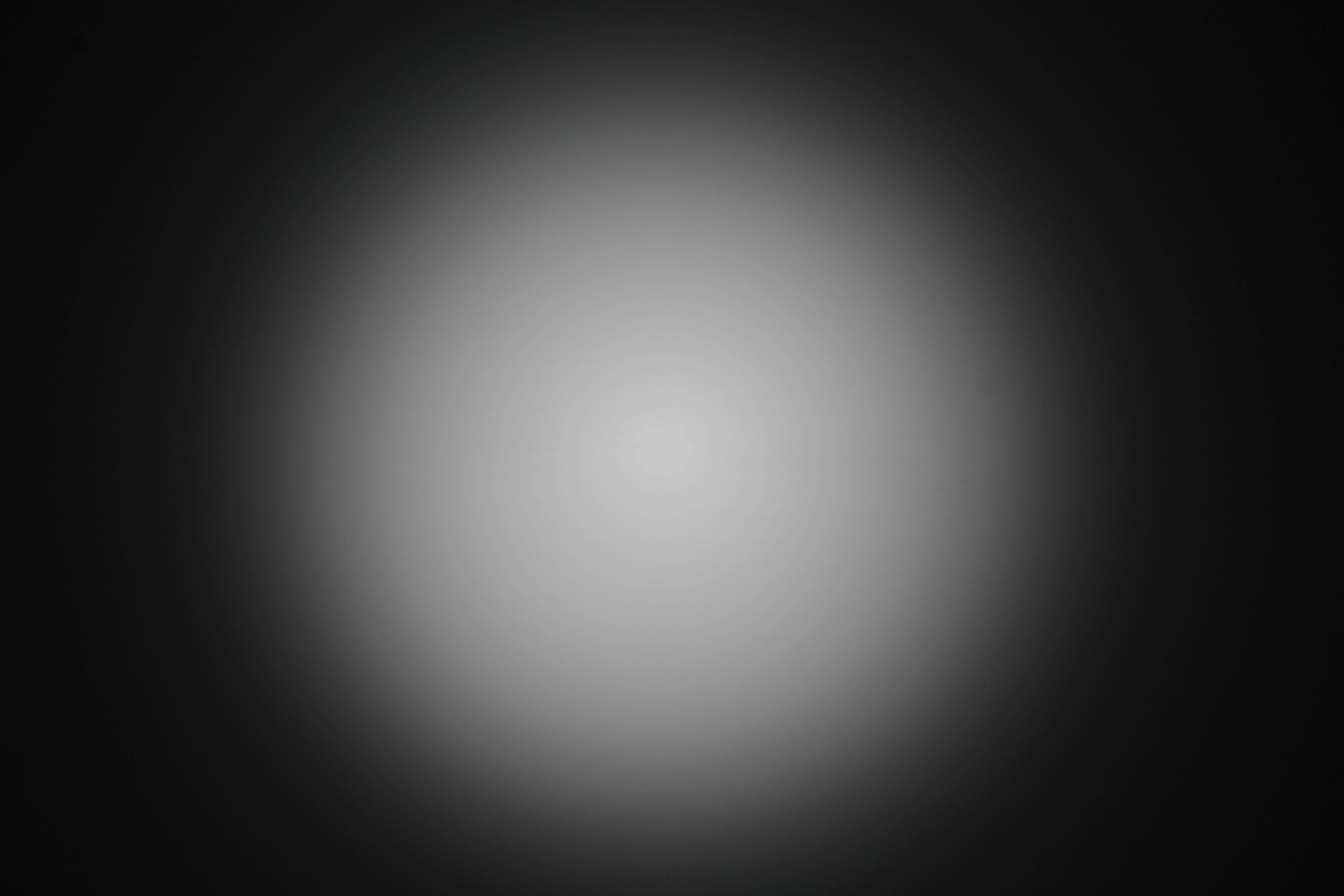

LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
24°
FWTM:
43°
Peak intensity:
2.911 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
