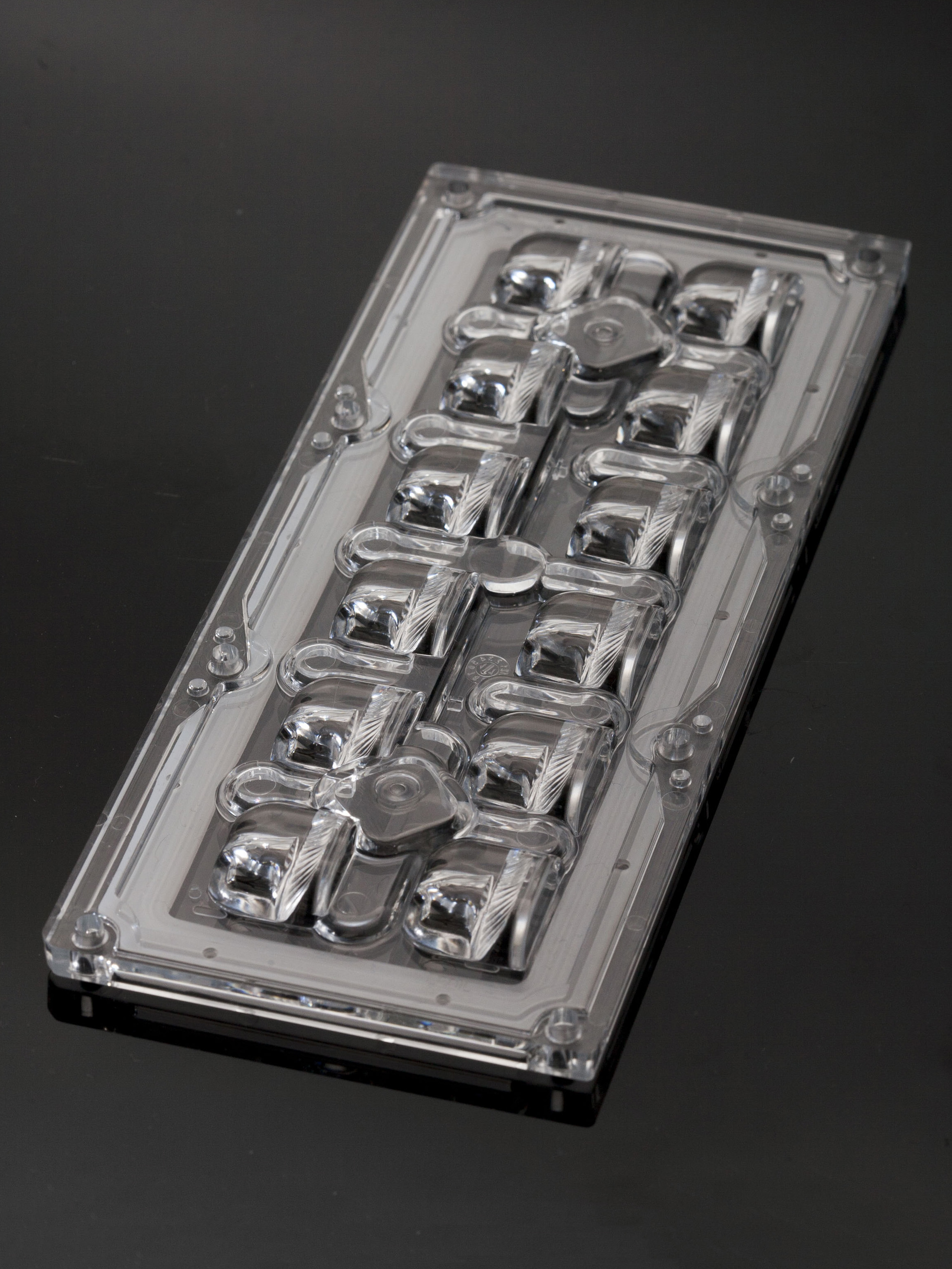

    CS15223_STRADA-IP-2X6-T2-C-90

    Print

    IESNA Type II (medium) beam with added house side backlight. Designed for tilted and long armatures. Variant with beam direction rotated 90°.

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      9.25 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      7.2 kg
    • MPQ:
      40 pcs
    • MOQ:
      40 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      2.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS15223_STRADA-IP-2X6-T2-C-90

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Application guide

    LEDiL guide for street lighting optics

    PCN

    Product change notification NR164 - Material change for STRADA- and HB-IP-2X6 lens gaskets

    Case story

    GM-TRAC LED headlight

    PCN

    Product change notification NR134.a - Change of packaging methods 200417

    Installation guide

    STRADA-IP-2X6 Installation Guide

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

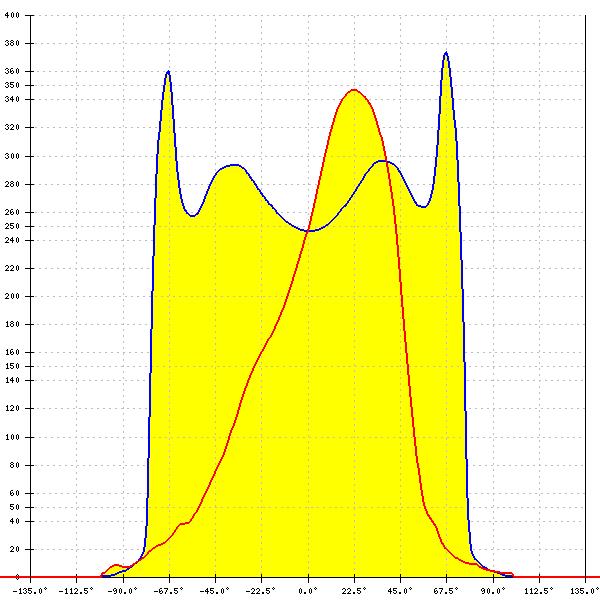

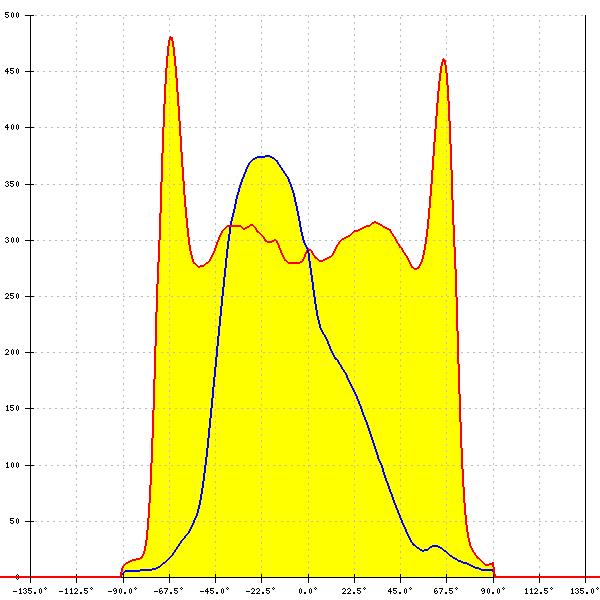

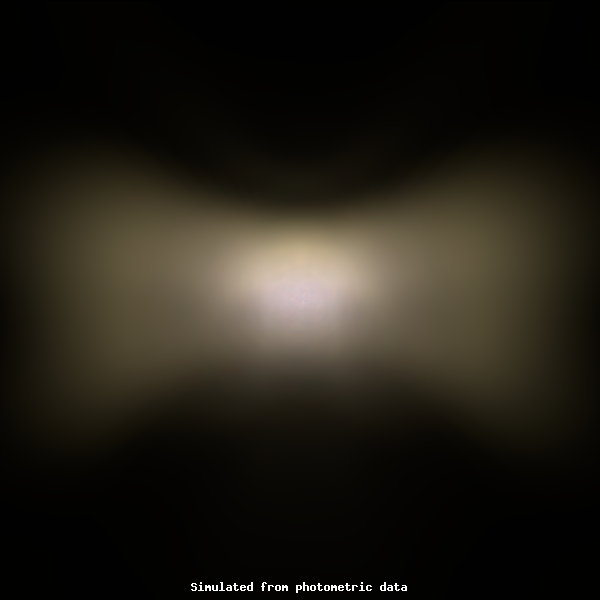

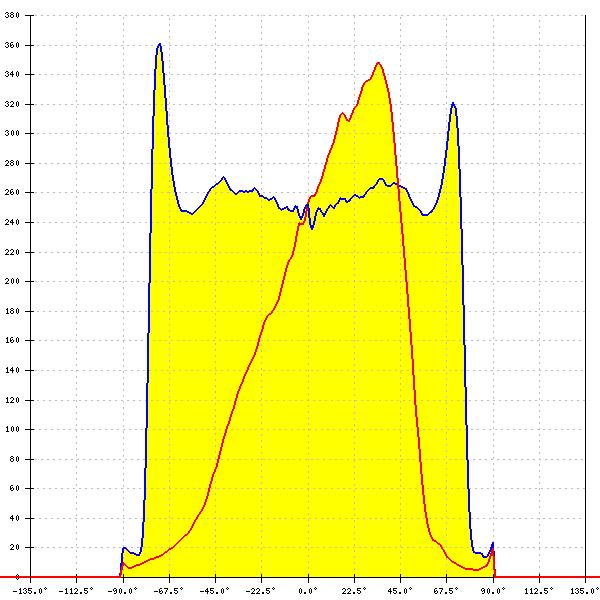

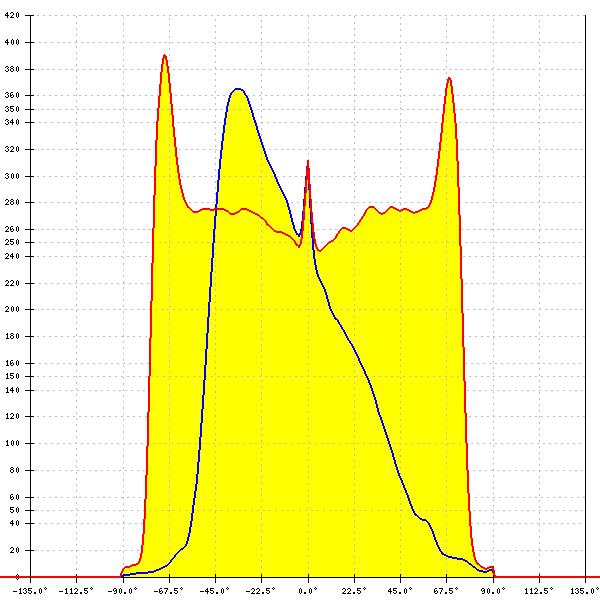

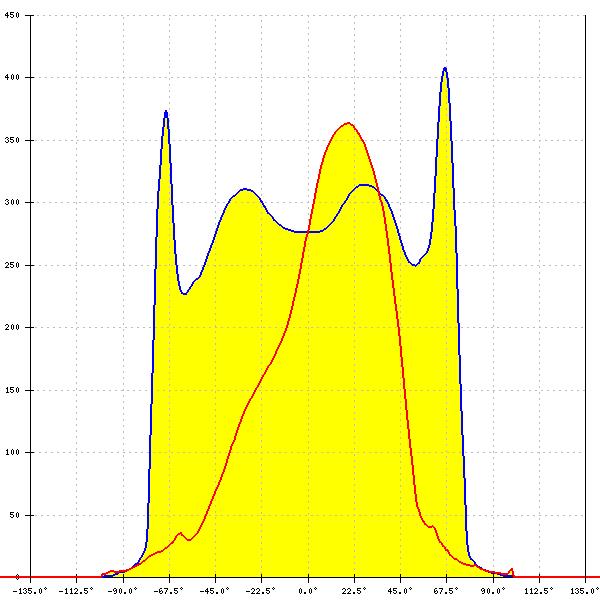

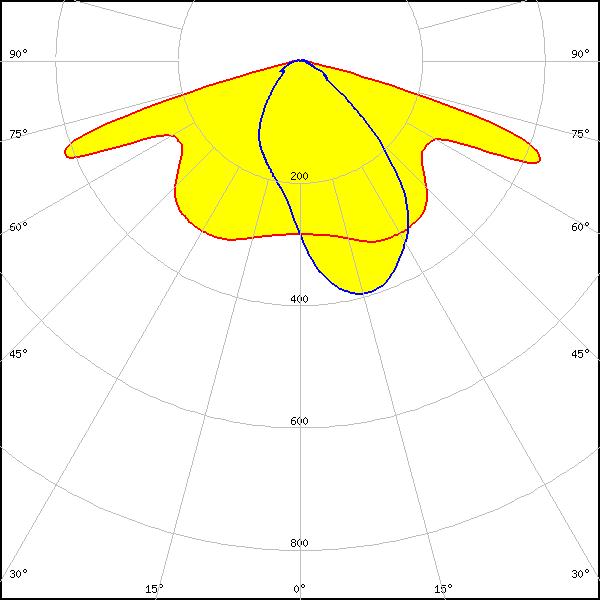

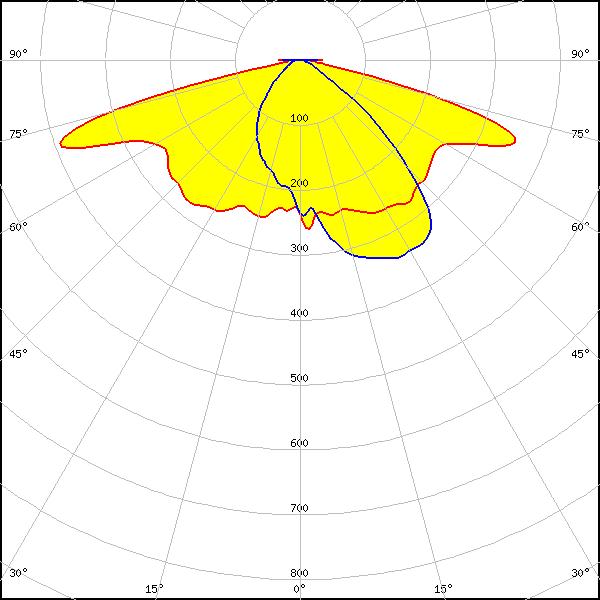

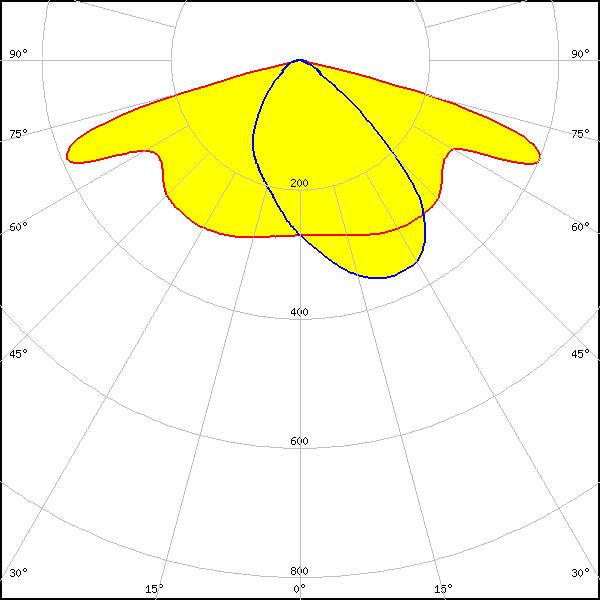

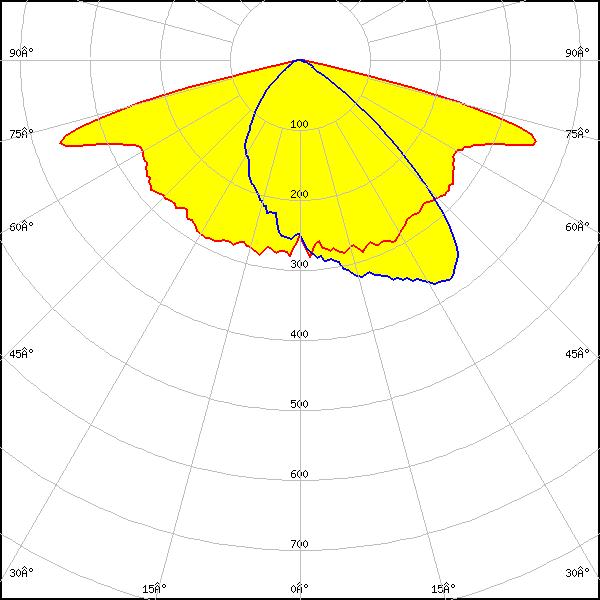

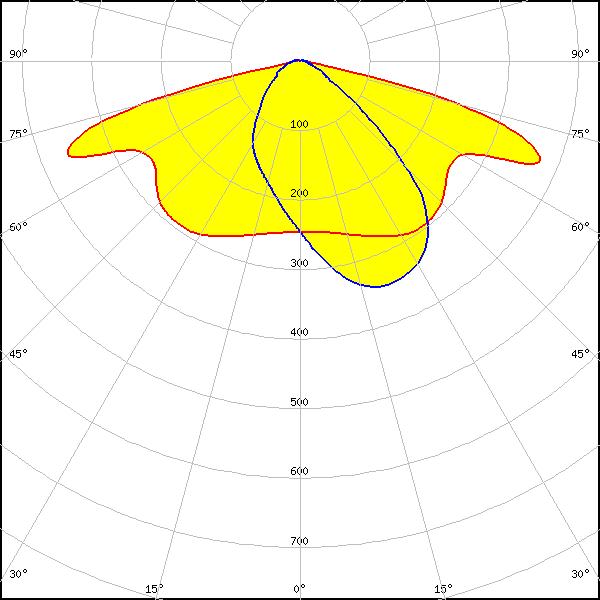

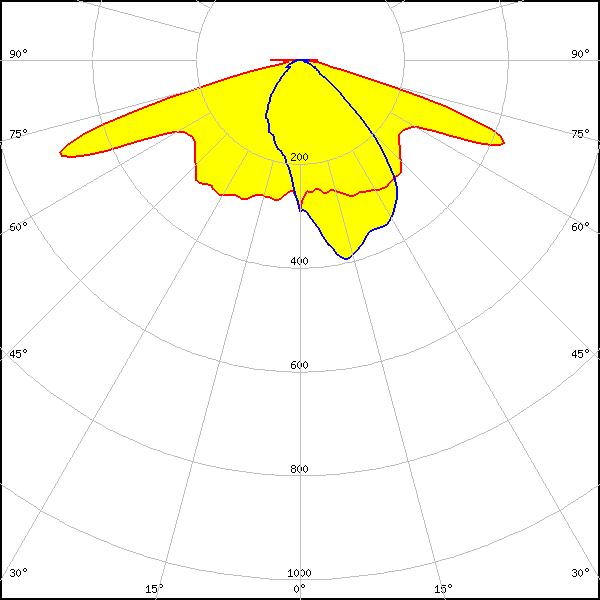

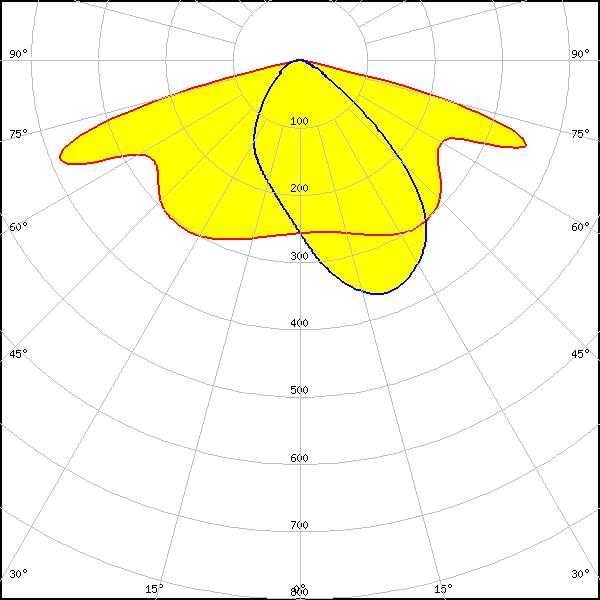

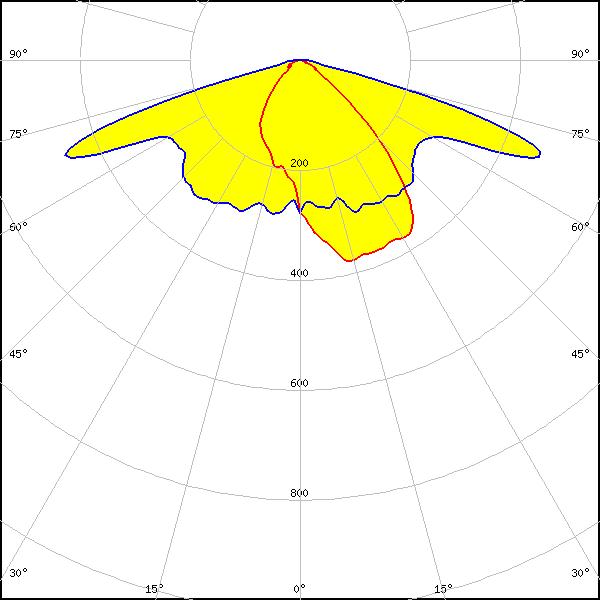

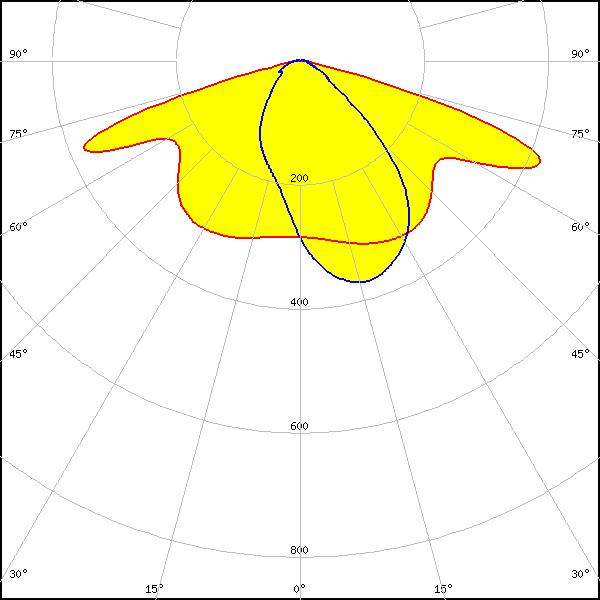

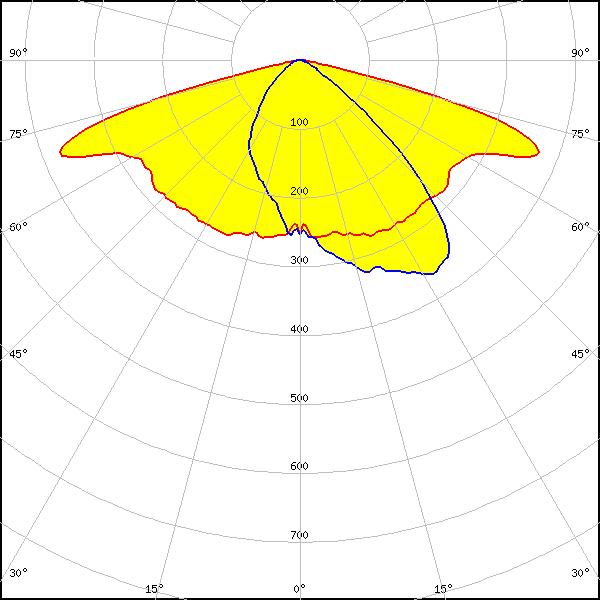

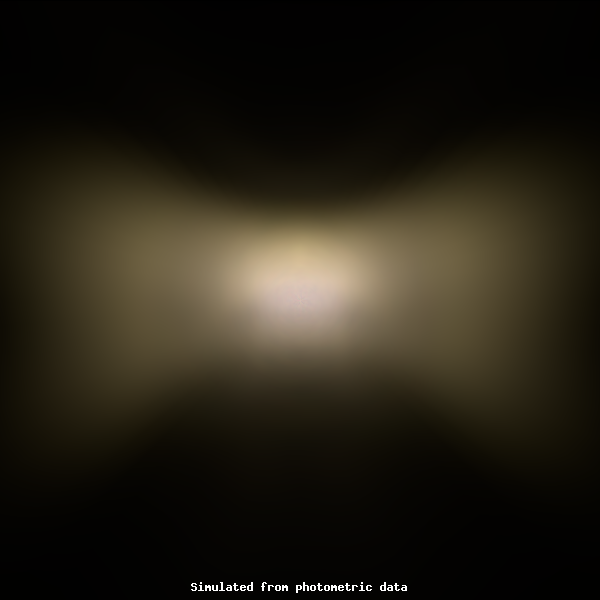

    Optical results

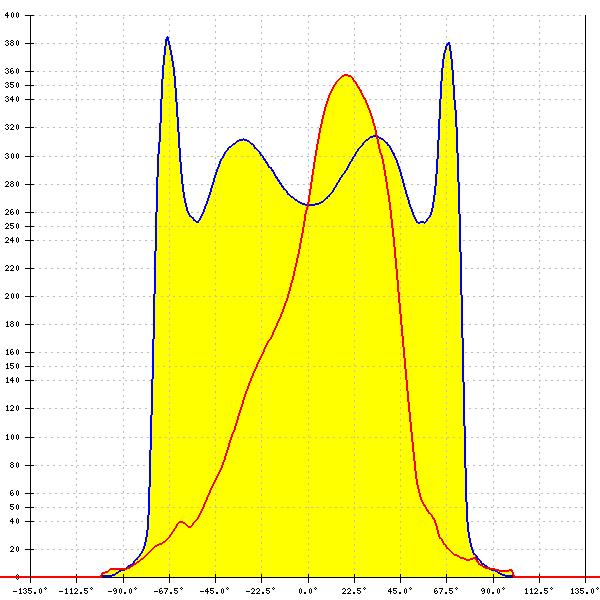

    LED: QUICK FLUX 2x6 LED XG xxx G7+
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

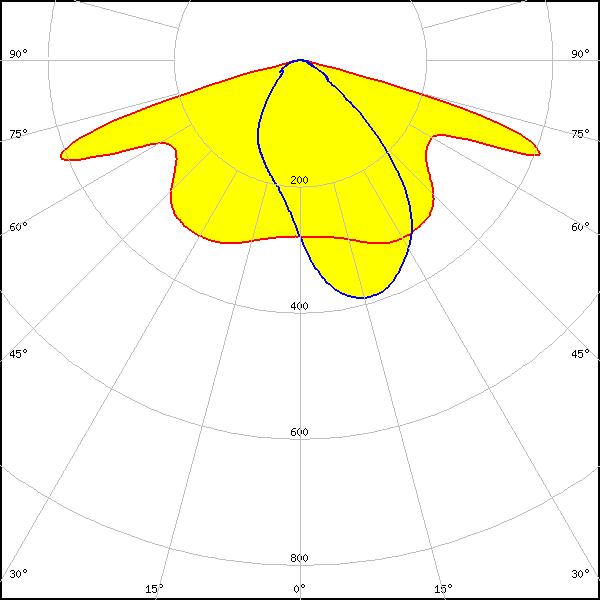

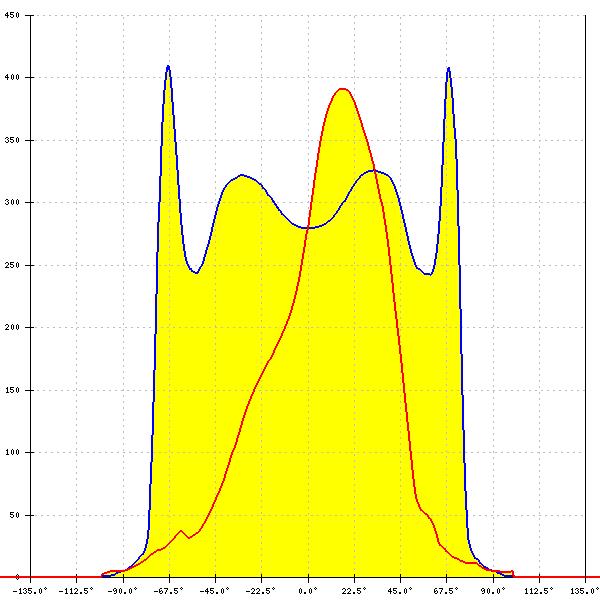

    LED: QUICK FLUX 2x6 LED XT xxx G5
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

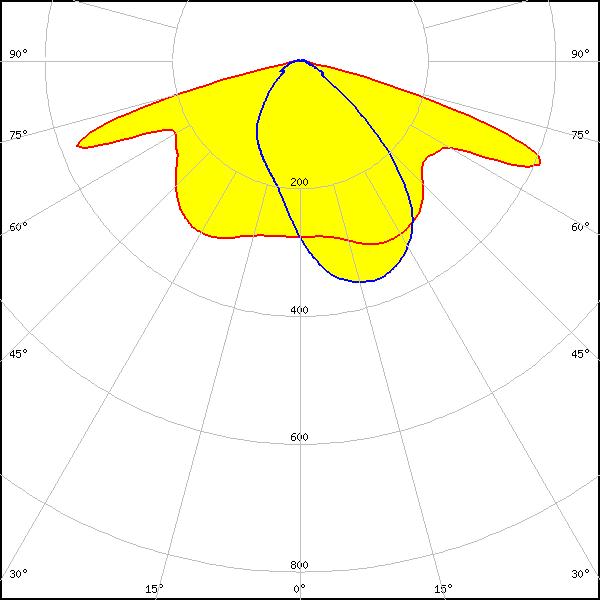

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

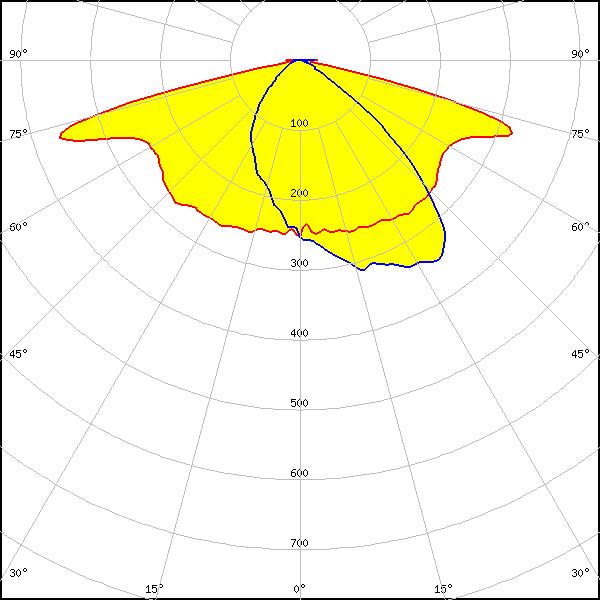

    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 0.437 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

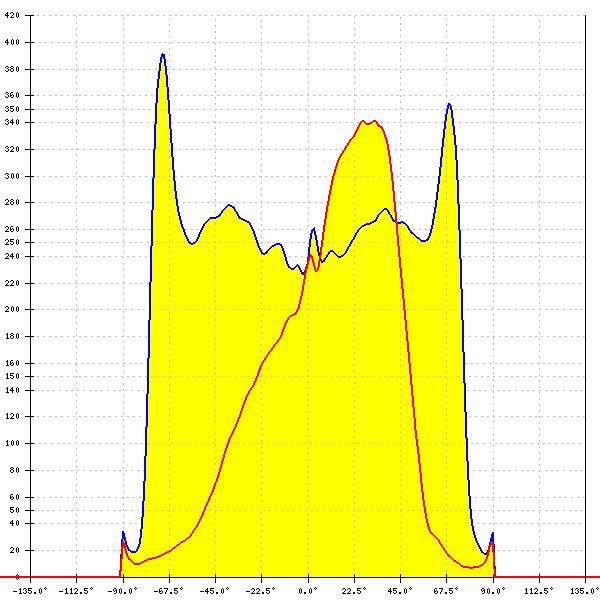

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

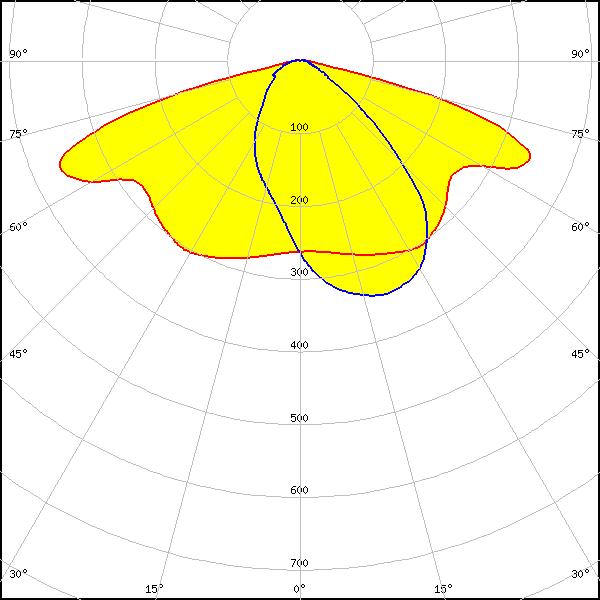

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.510 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

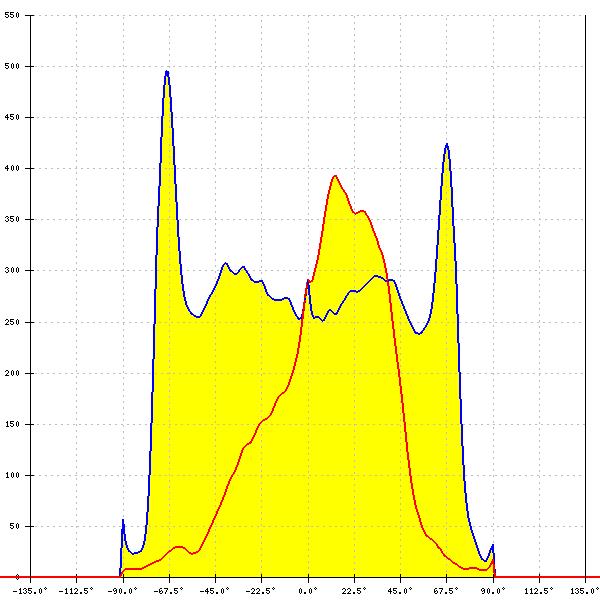

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.580 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E HE
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

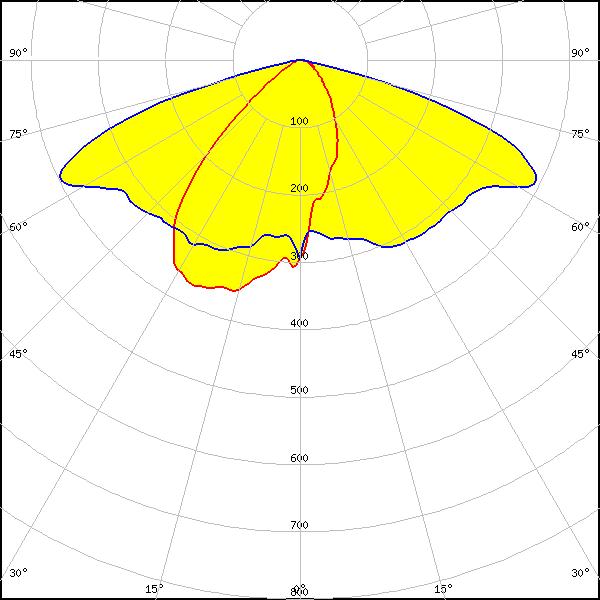

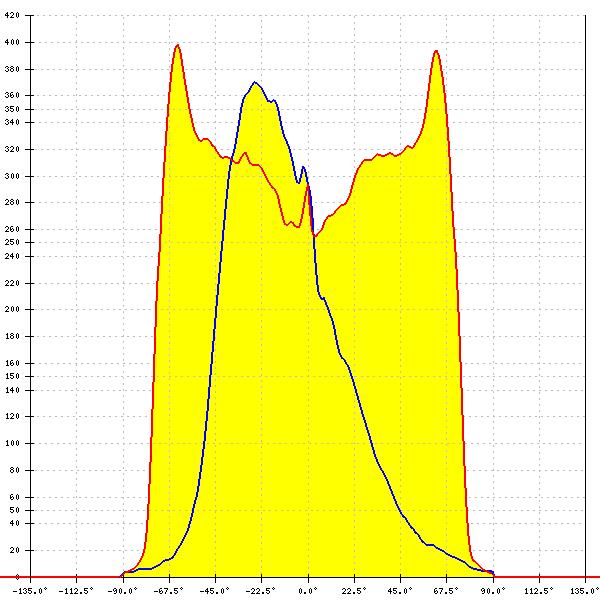

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.480 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

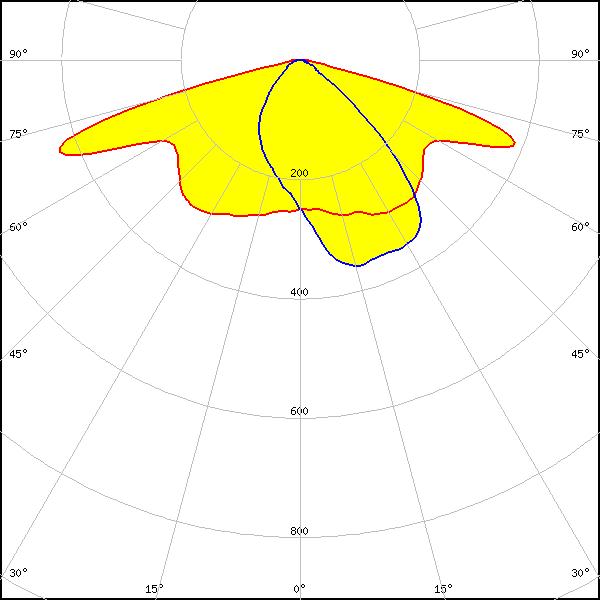

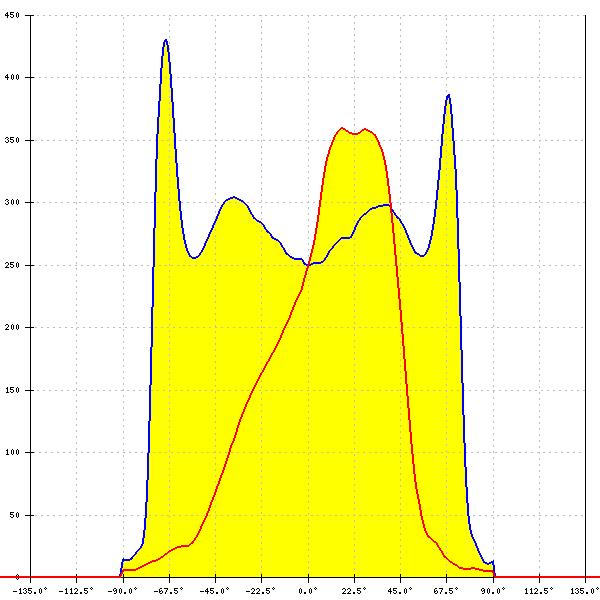

    LED: LUXEON V2
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

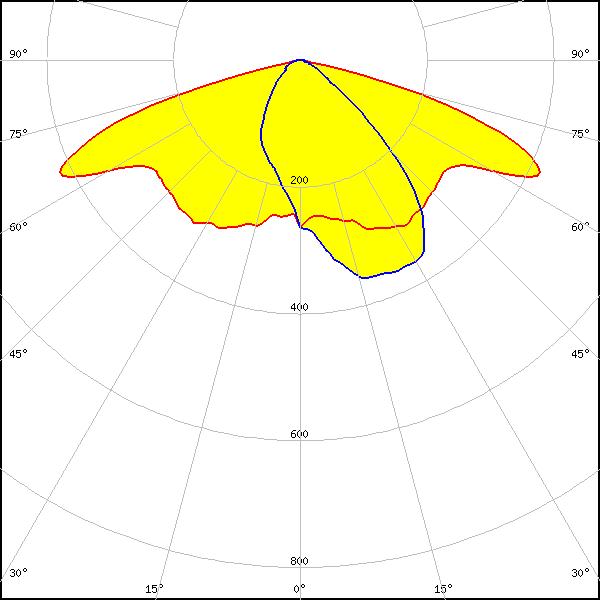

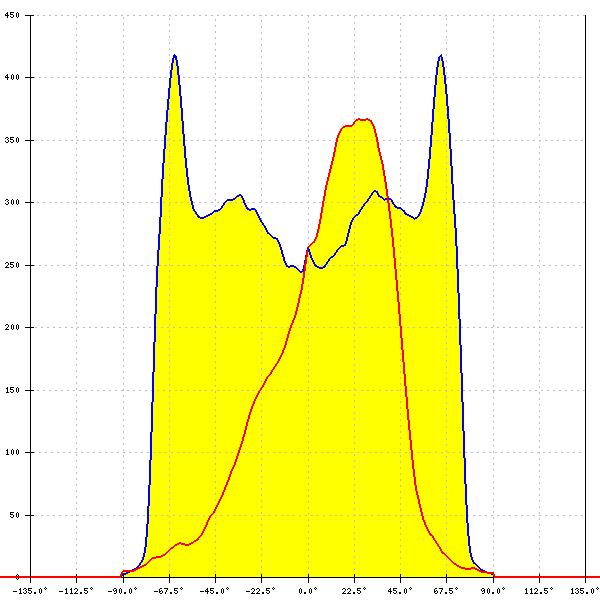

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 0.528 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

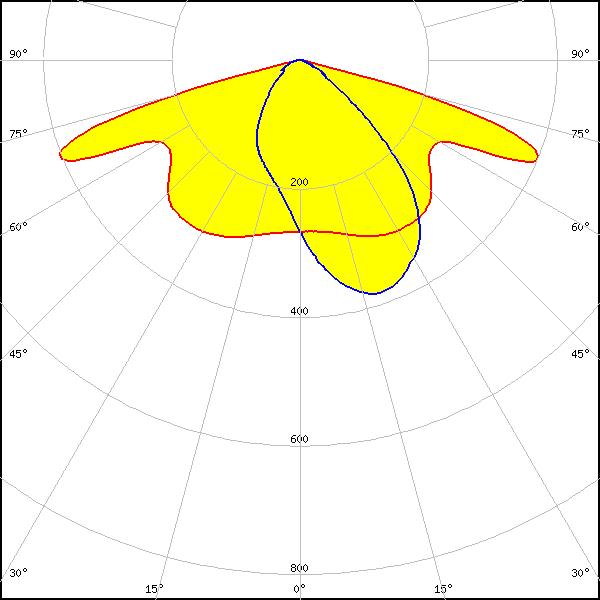

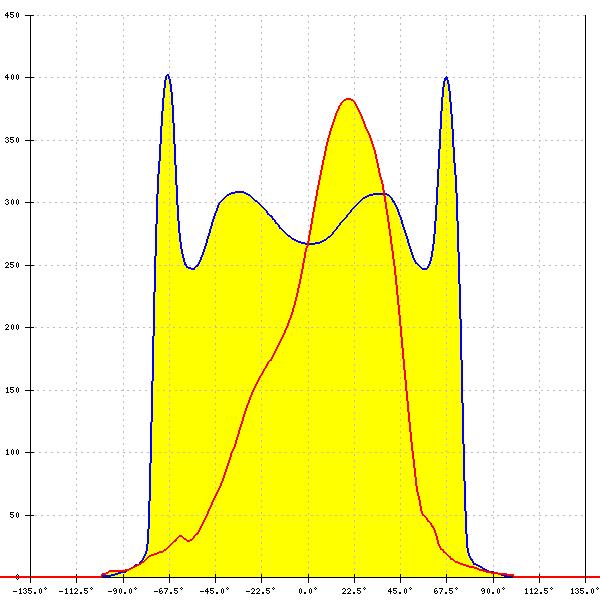

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

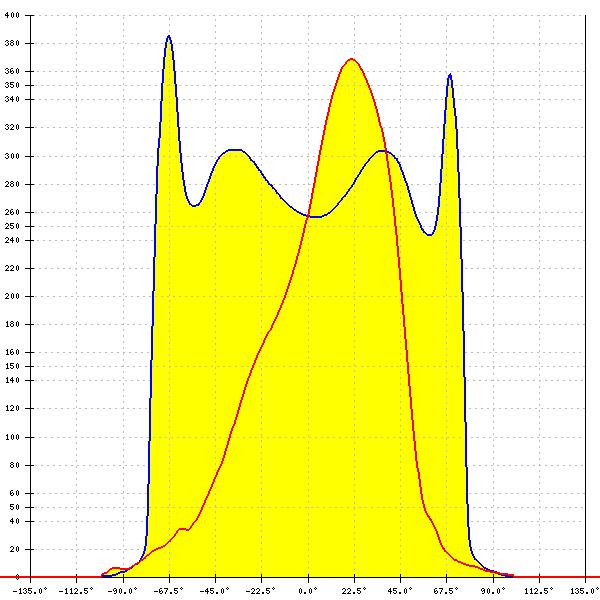

    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 0.560 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.523 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

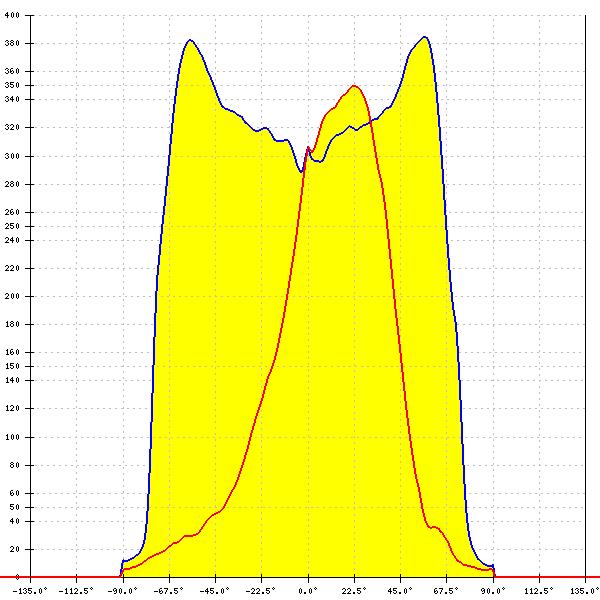

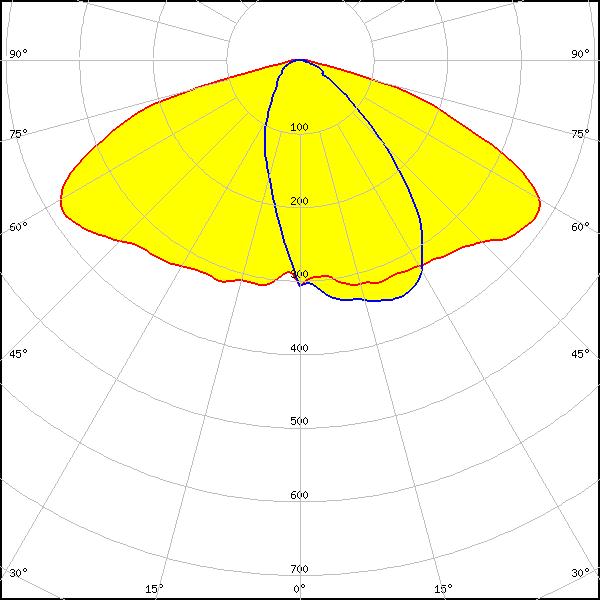

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.459 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White

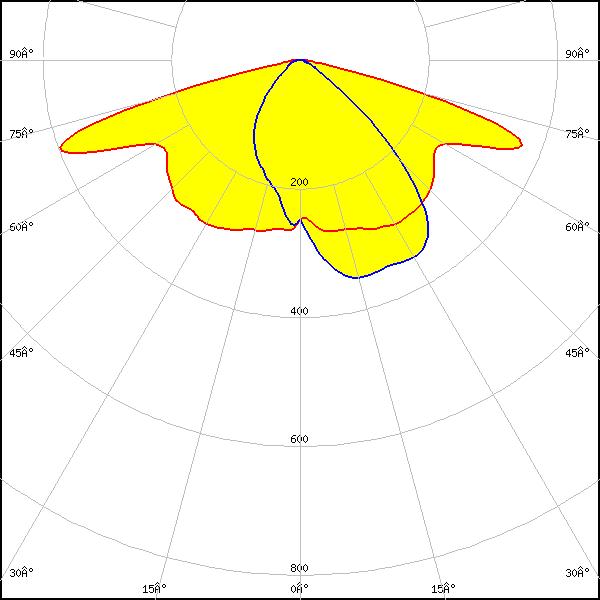

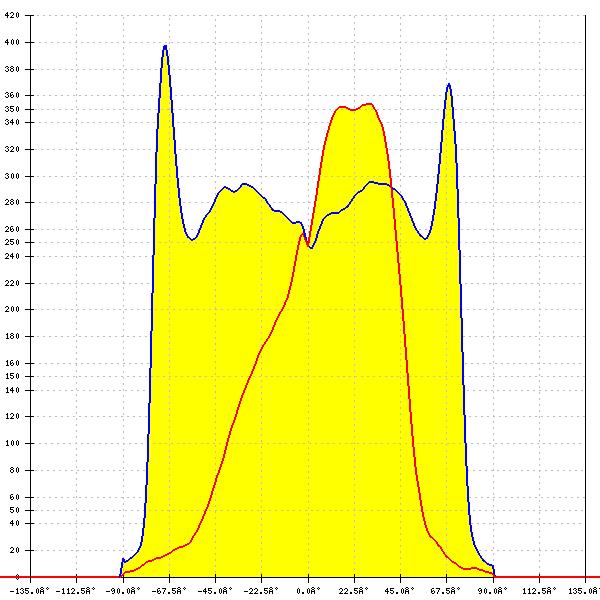

    LED: PrevaLED Brick HP IP 2x6
    FWHM: asymmetric
    Peak intensity: 0.448 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

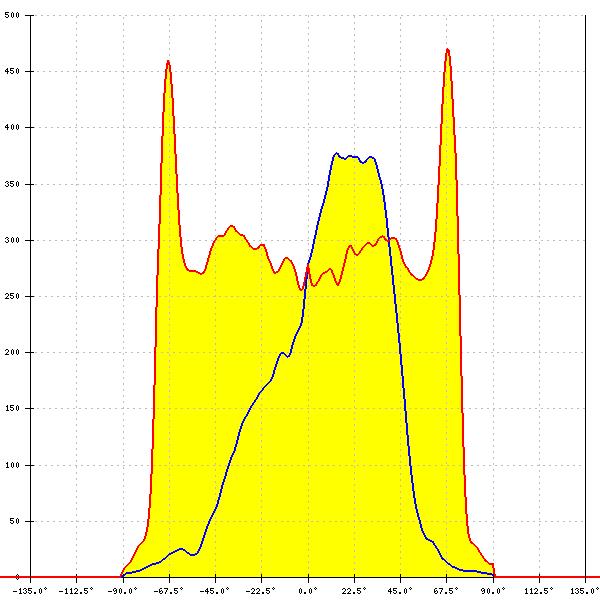

    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 0.556 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

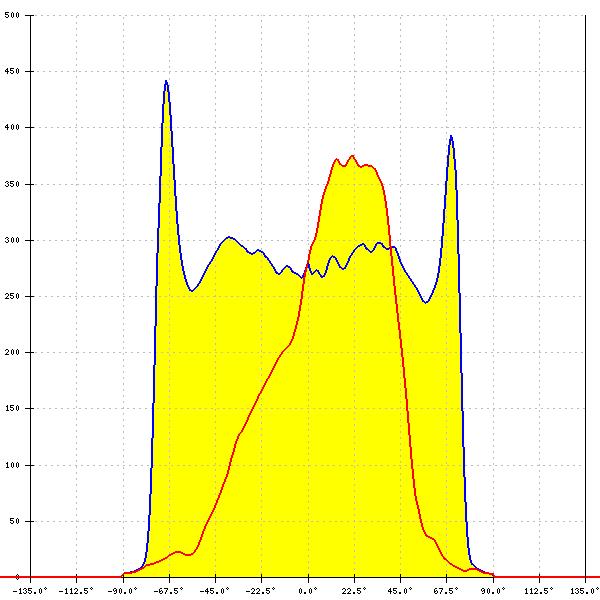

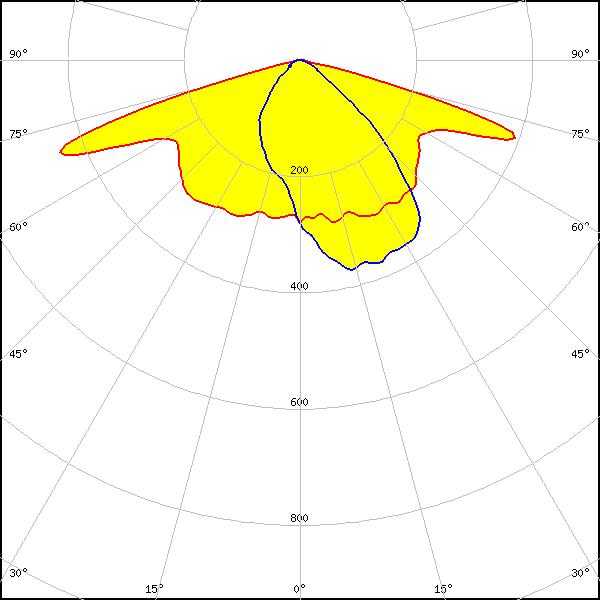

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.565 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

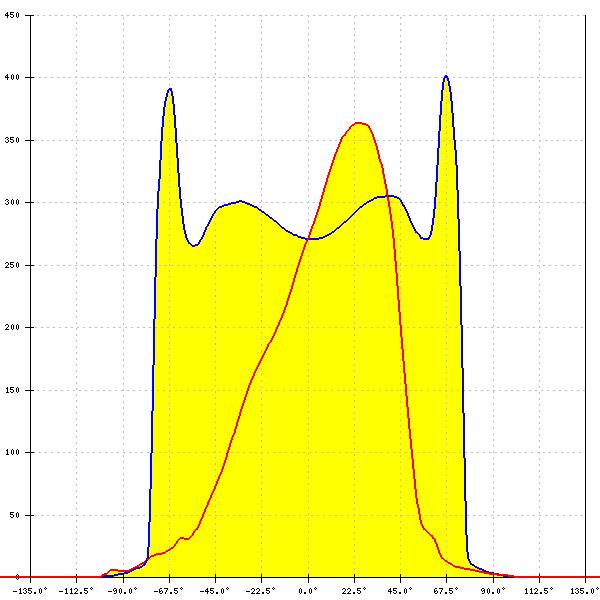

    LED: HiLOM RH12 (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.560 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

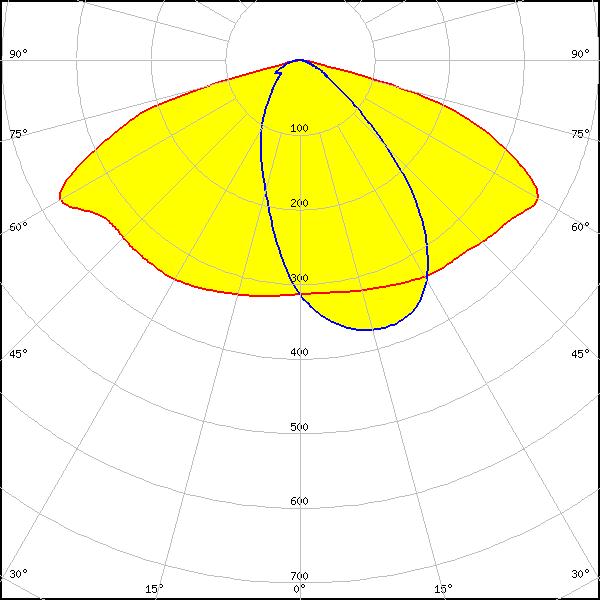

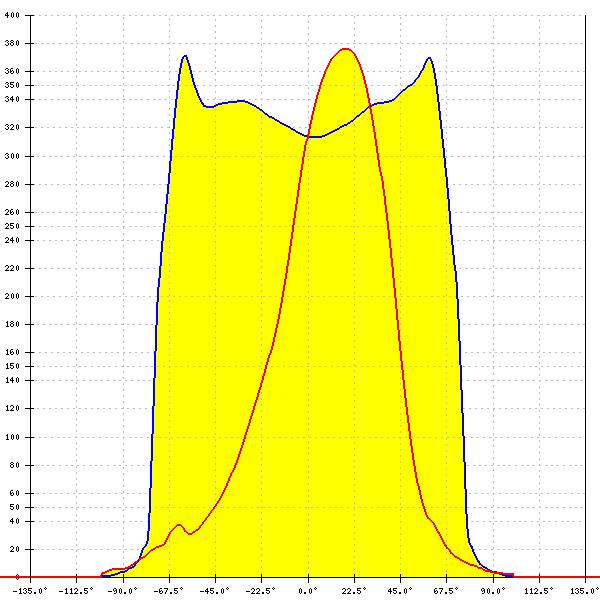

    LED: HiLOM RM12 ZP (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.497 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

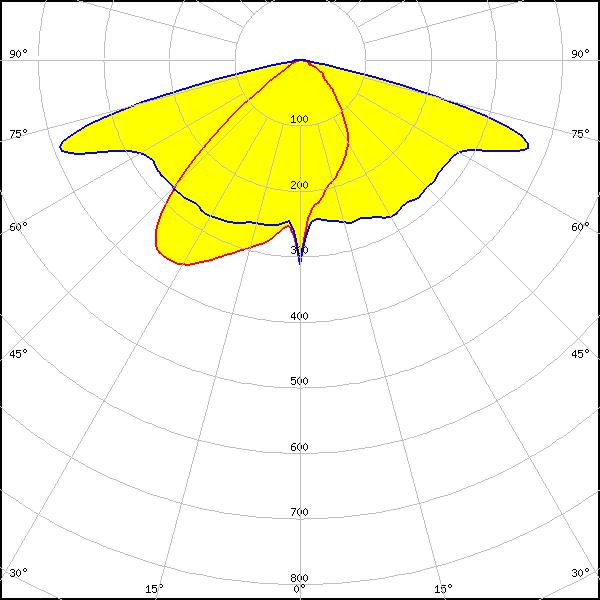

    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.438 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

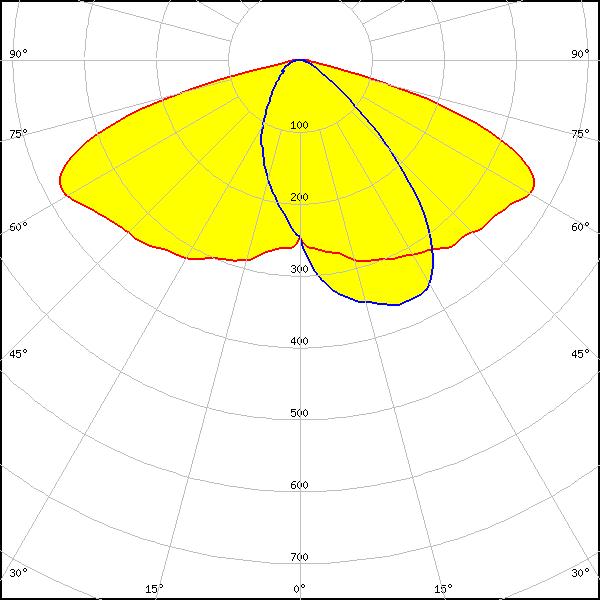

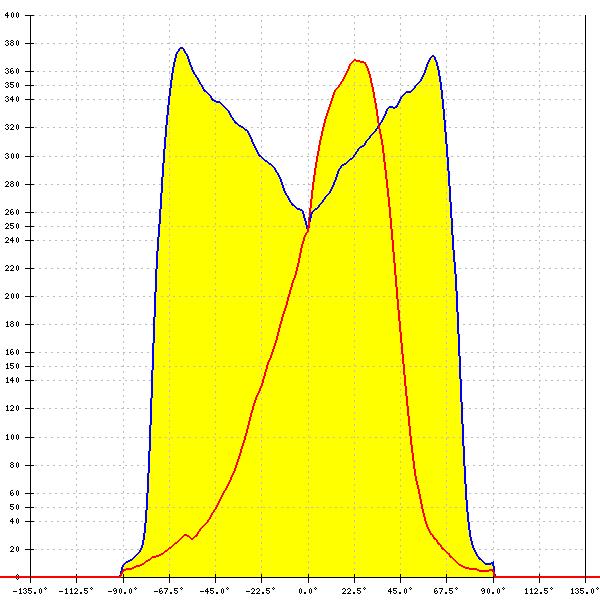

    LED: LH502C
    FWHM: asymmetric
    Peak intensity: 0.452 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

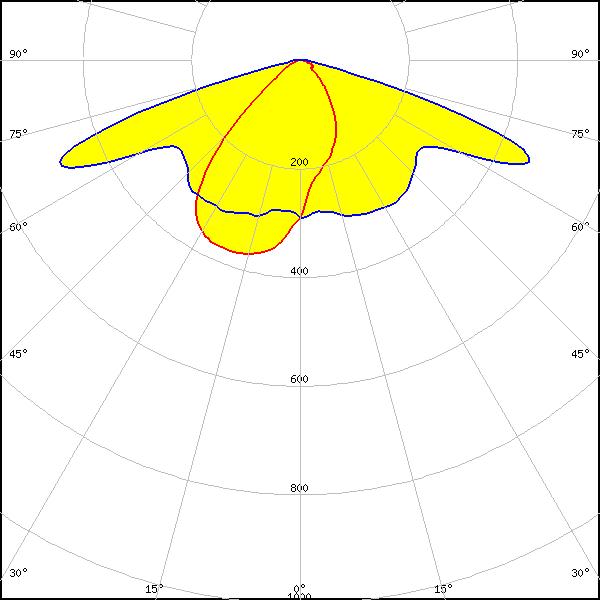

    LED: LM301D
    FWHM: asymmetric
    Peak intensity: 0.547 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

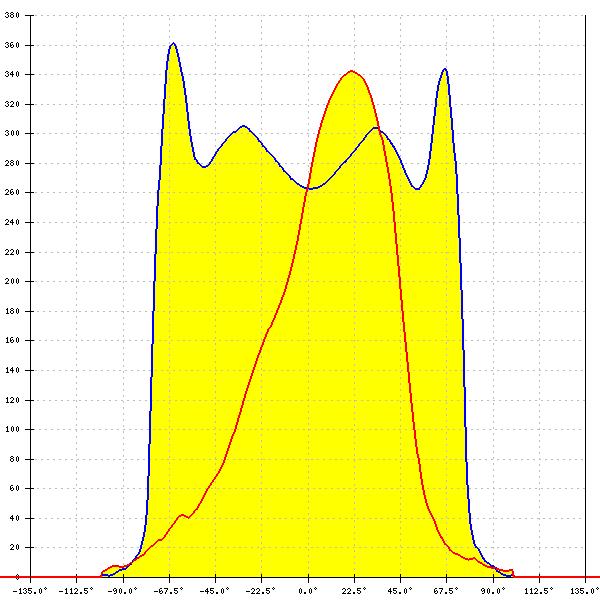

    LED: ROY-S26XPL2 (XP-L2)
    FWHM: asymmetric
    Peak intensity: 0.506 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

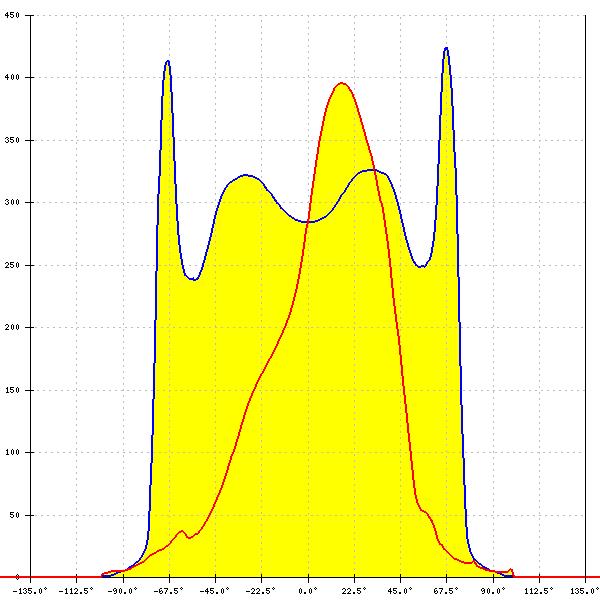

    LED: XLE-S22C4XTEHE (XT-E HE)
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

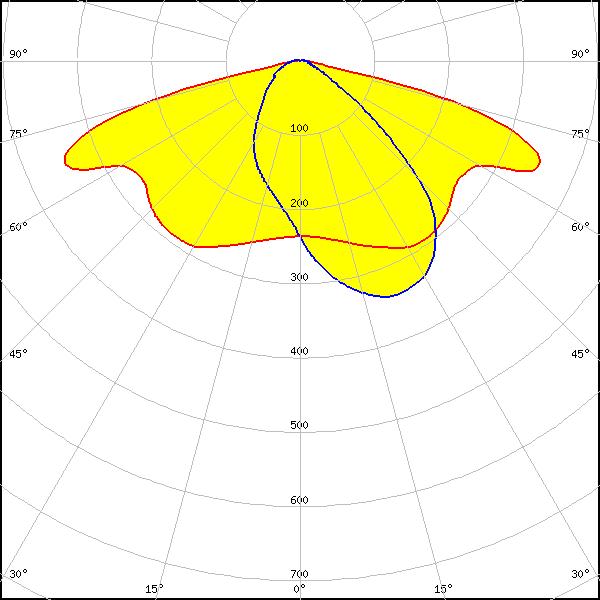

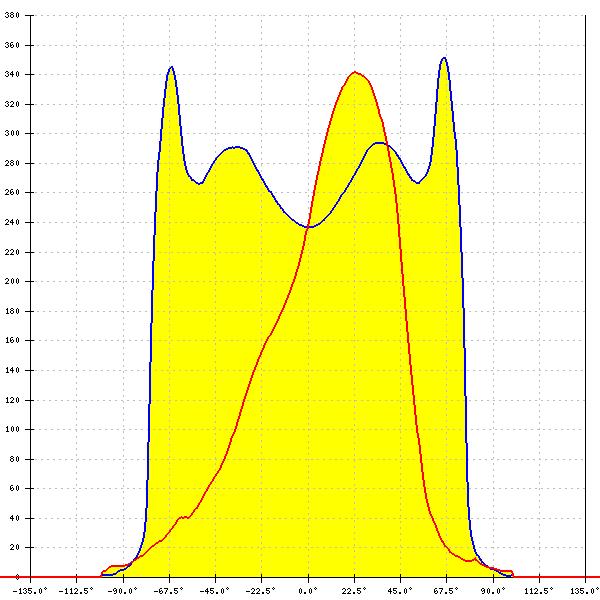

    LED: XLE-S26XHP35 (XHP35 HD)
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

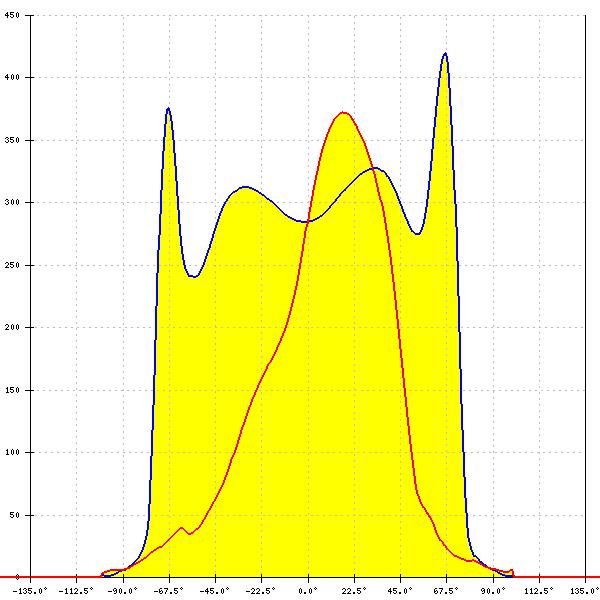

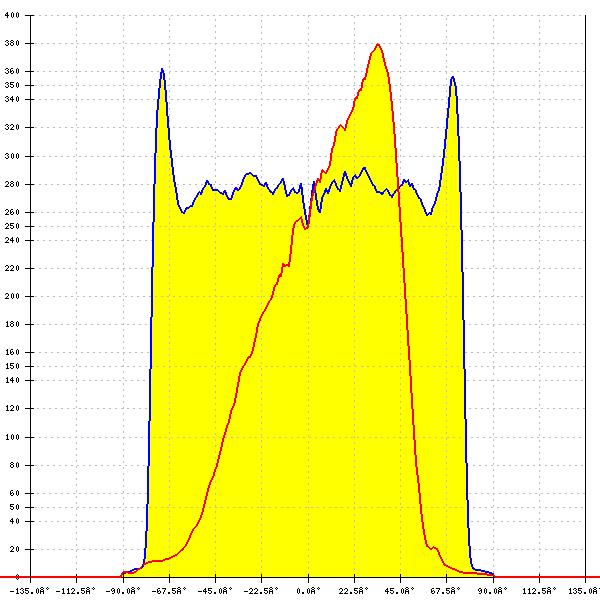

    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.615 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

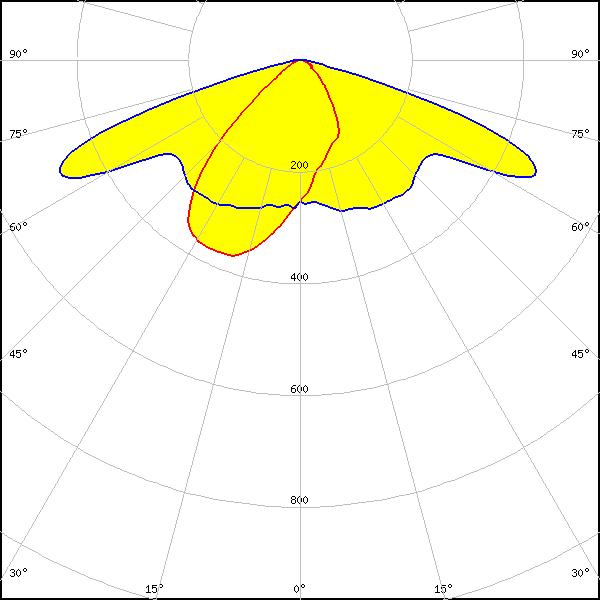

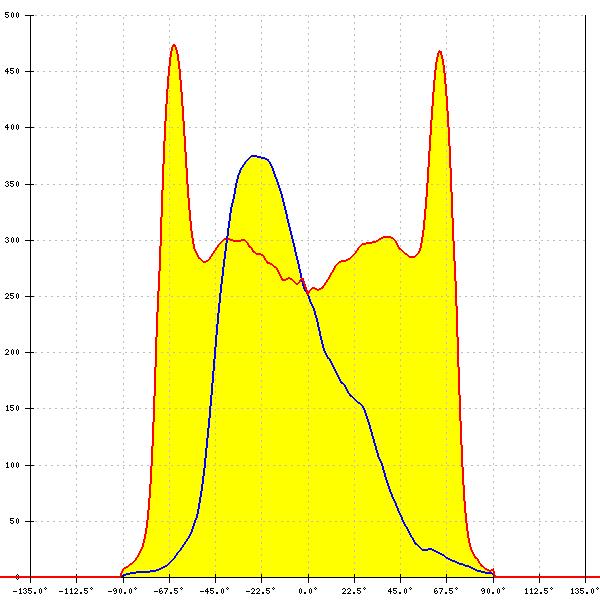

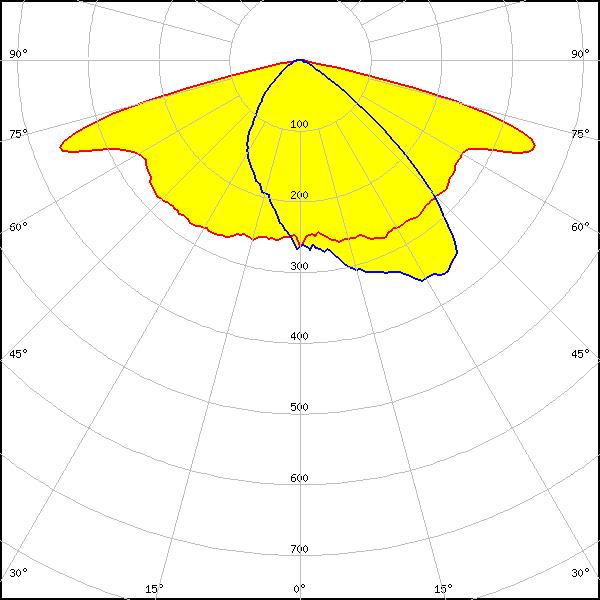

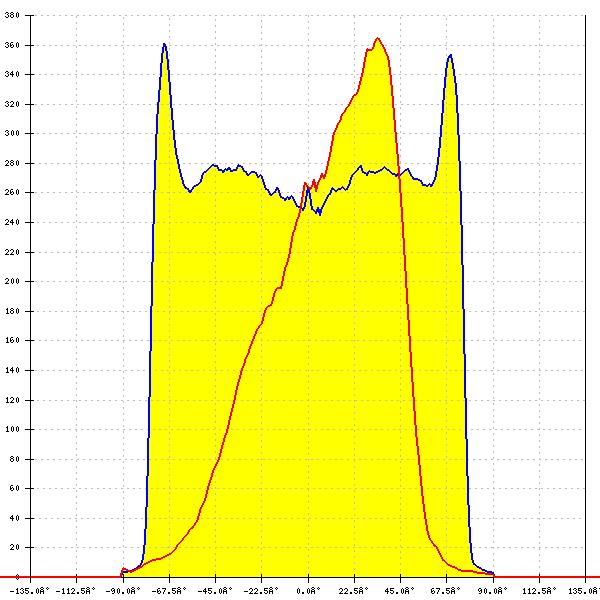

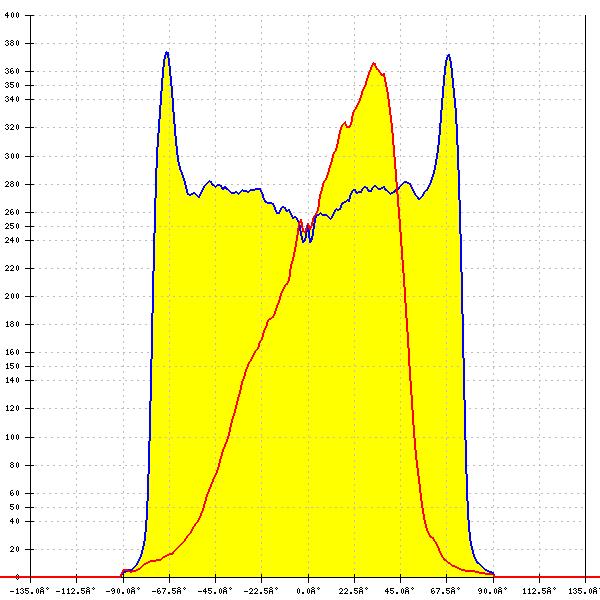

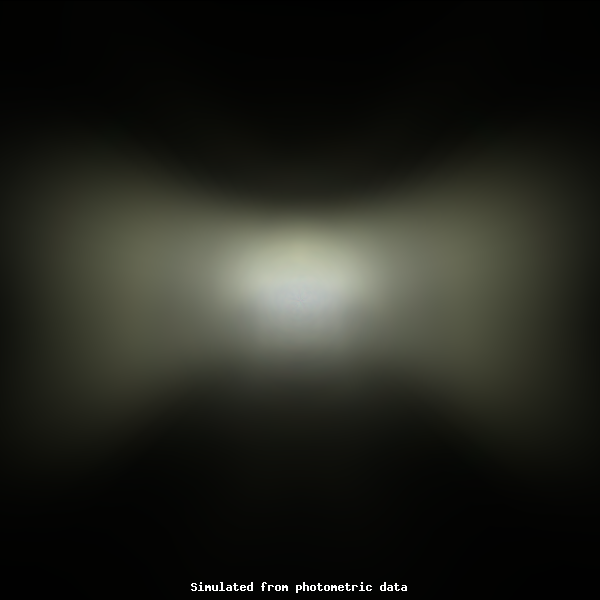

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.549 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

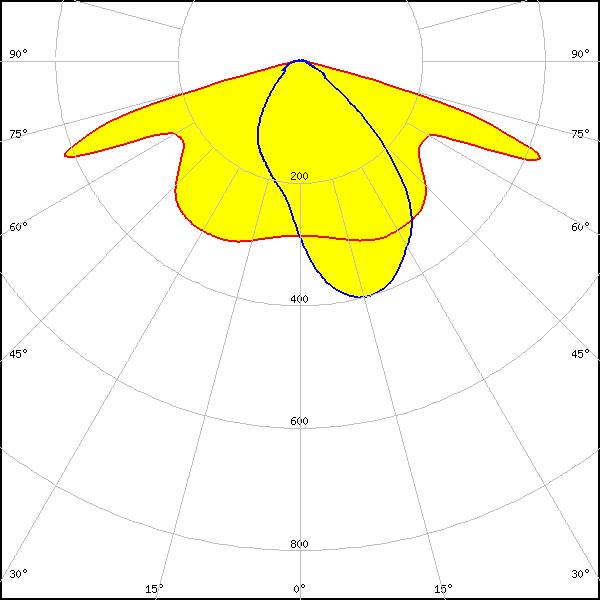

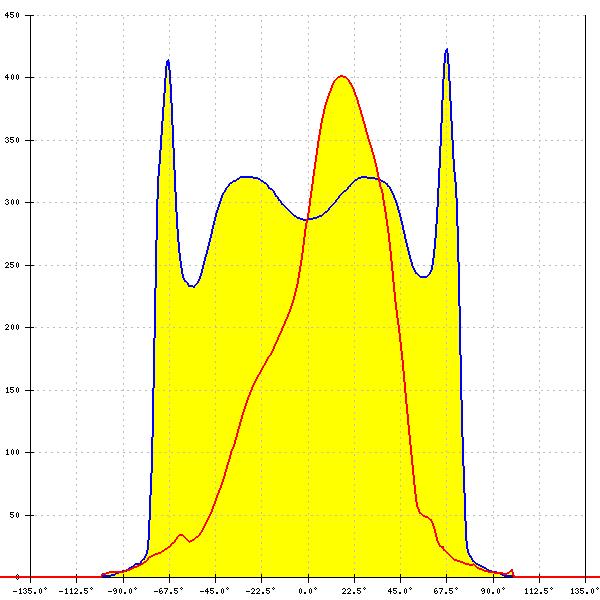

    LED: RLE 2x6 3000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
