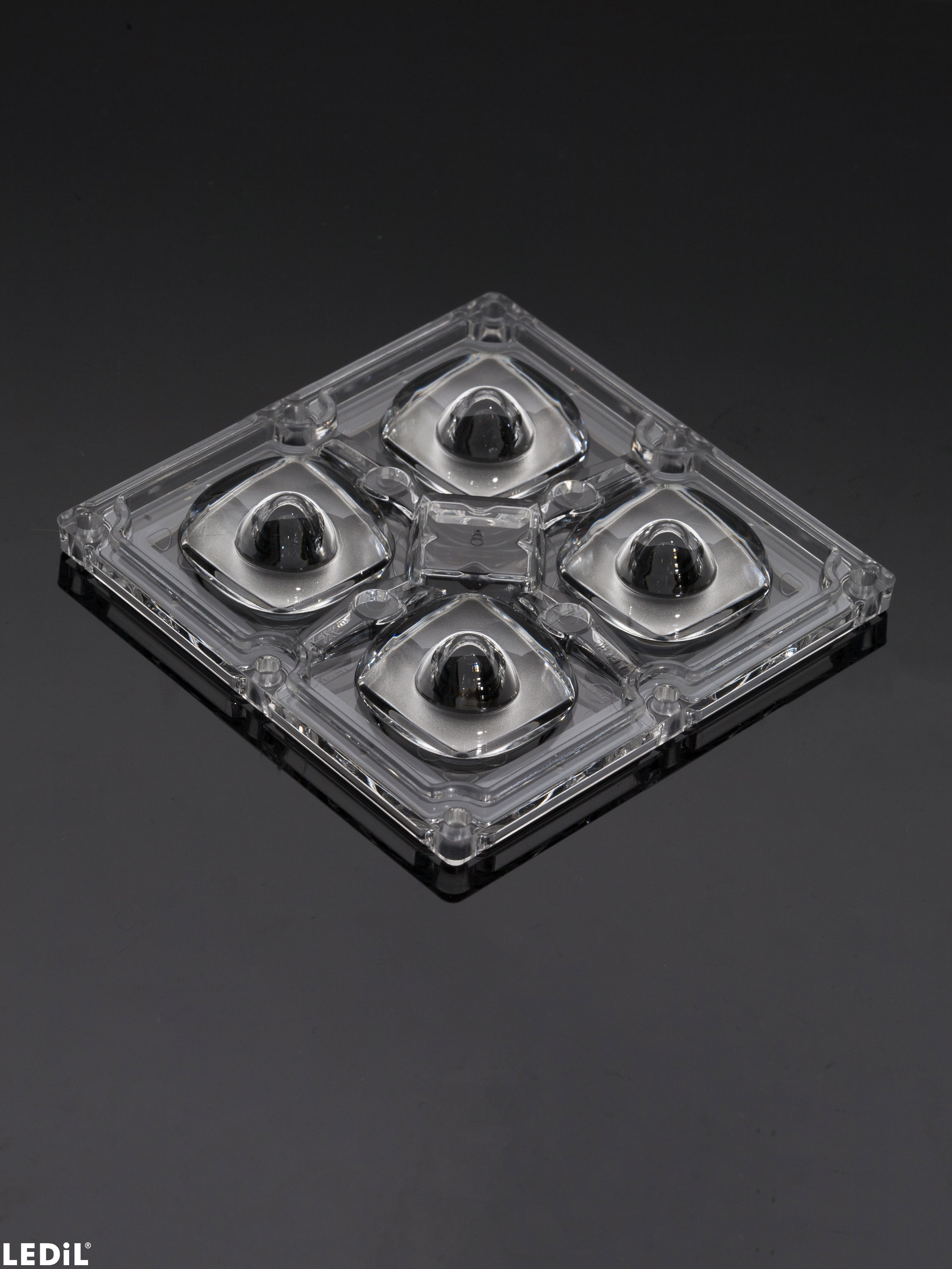

CS15763_STRADA-2X2MX-8-VSM

Print

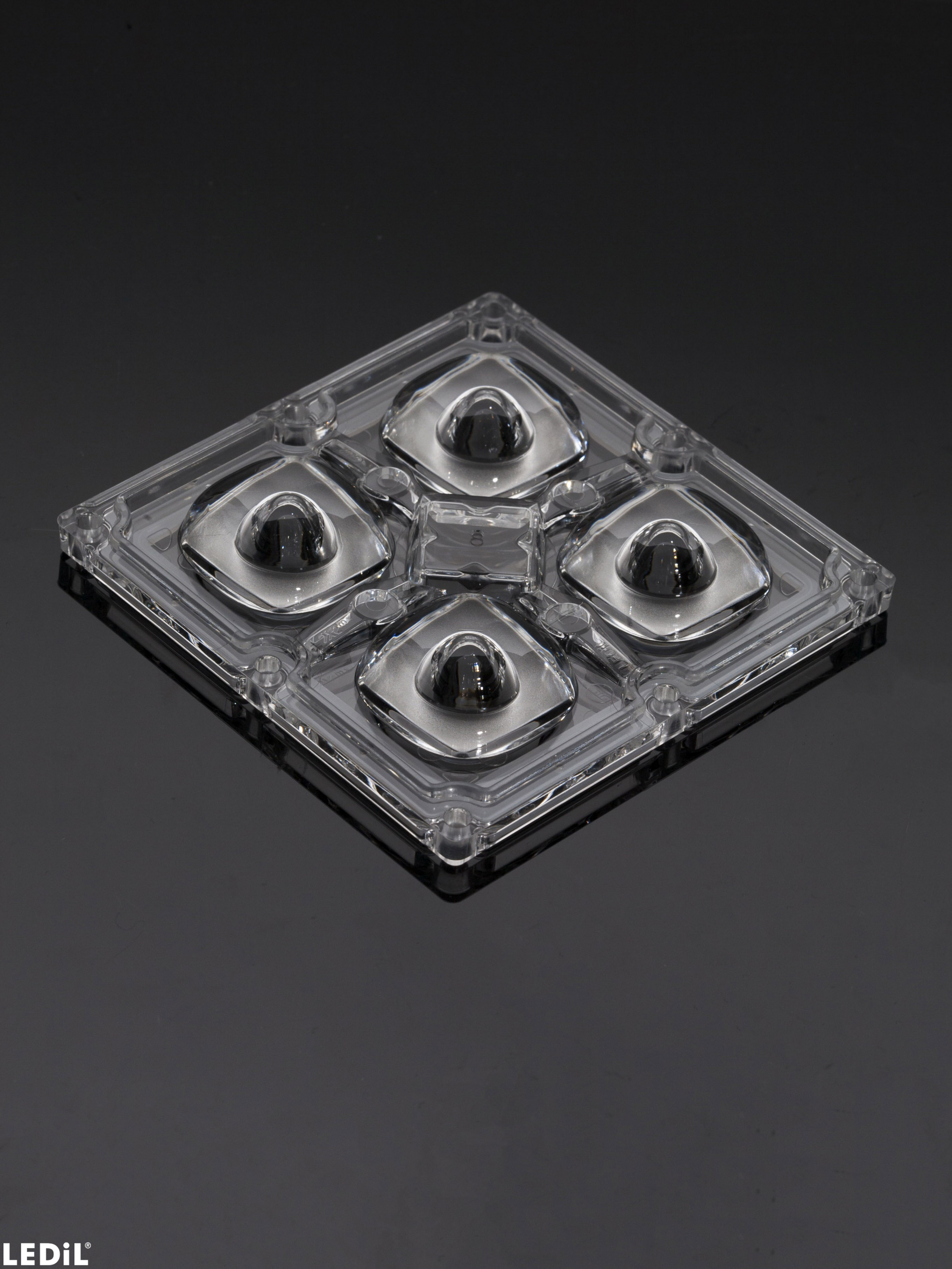

IESNA Type V (square) for wide areas lighting such as car parks. New revision.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    13.1 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • STRADA-2X2MX-8-VSM, Multi-lens, PMMA
  • STRADA-2X2MX-8-SEAL, Seal, Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.6 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    3.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

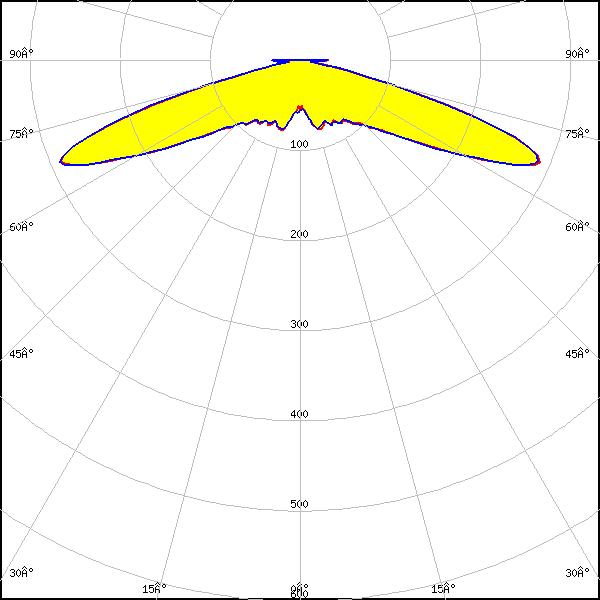

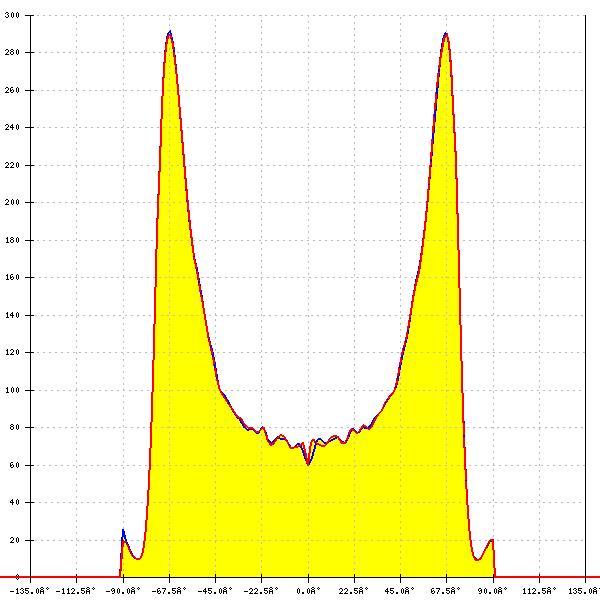

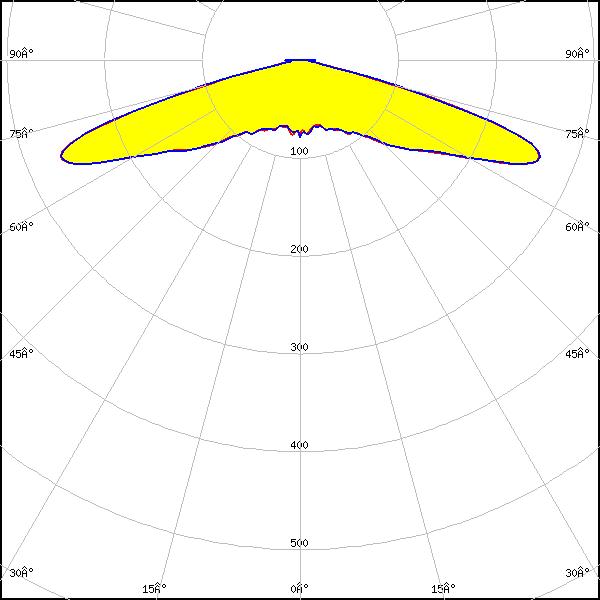

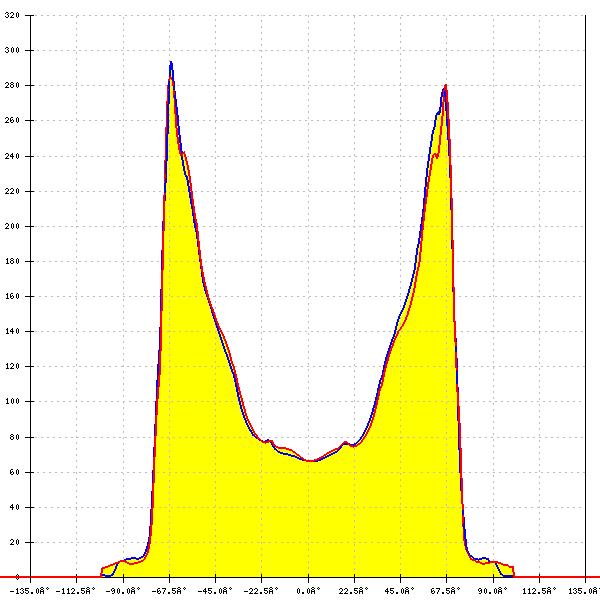

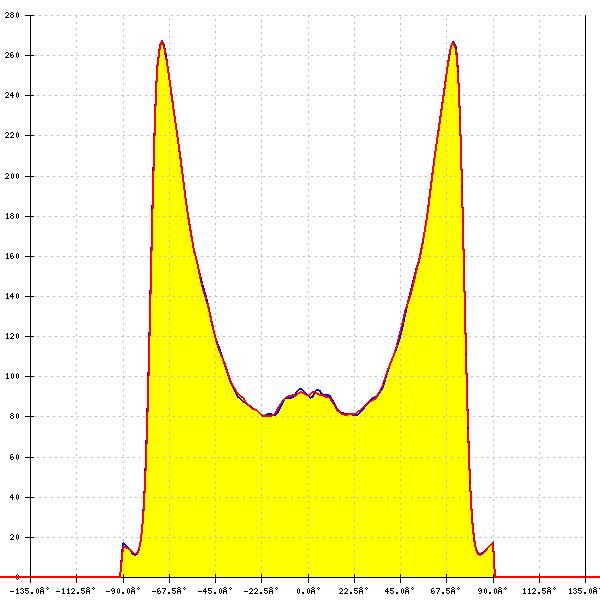

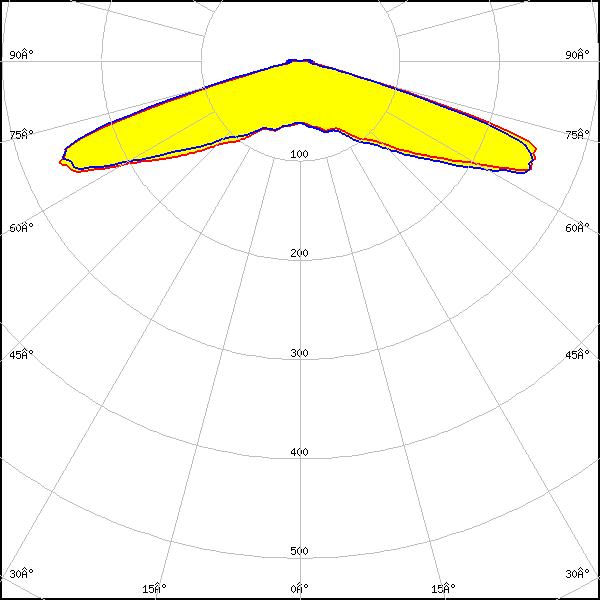

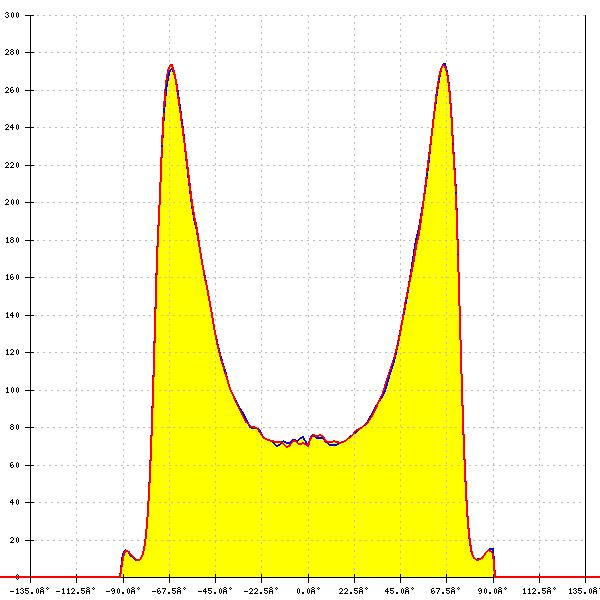

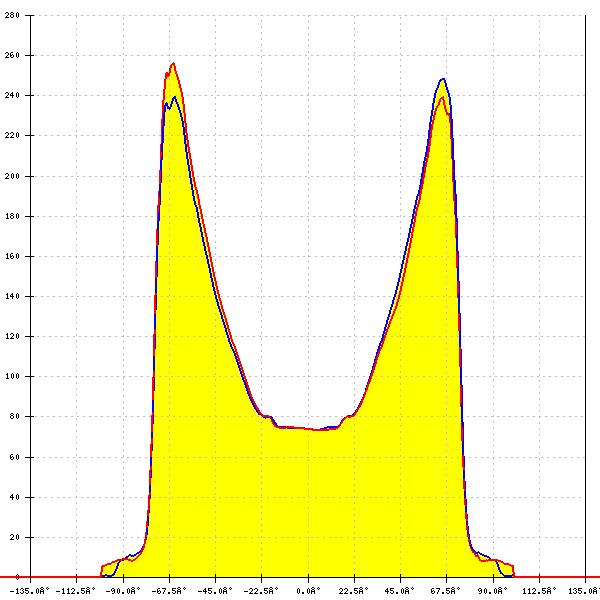

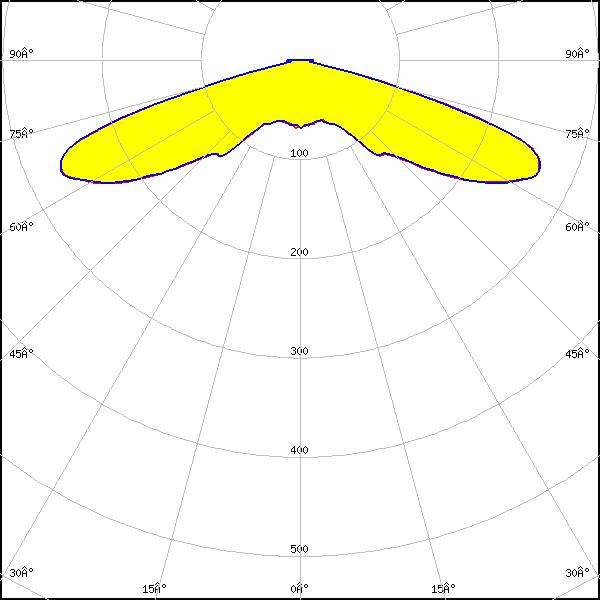

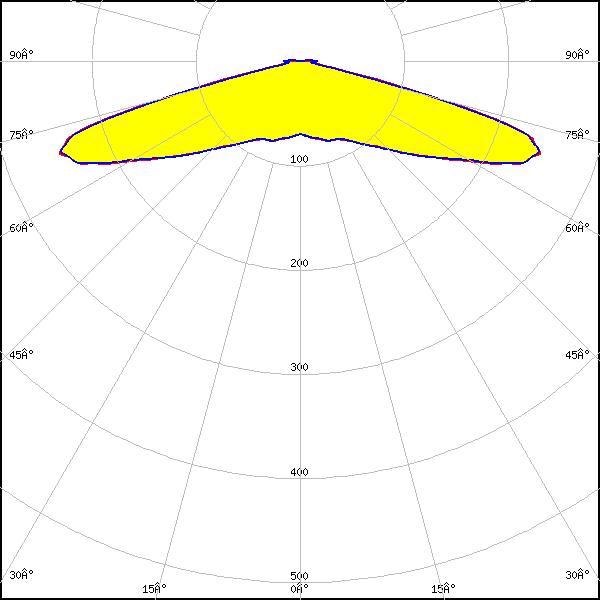

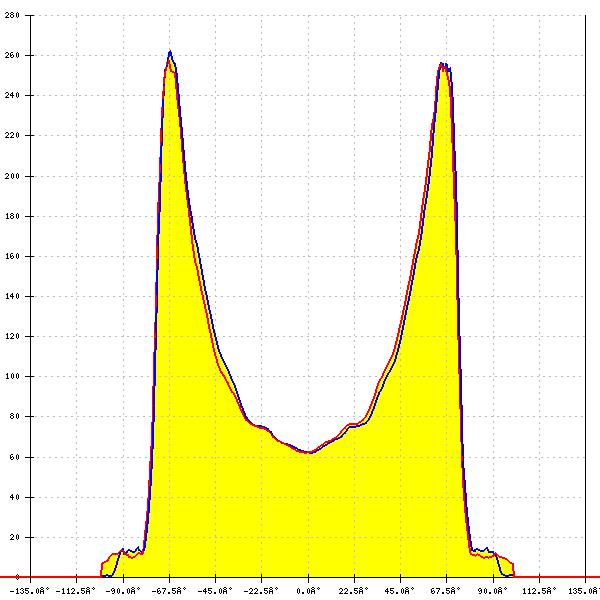

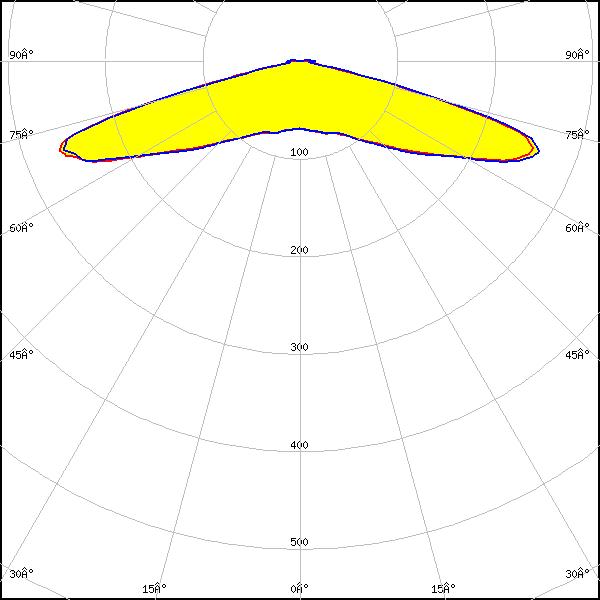

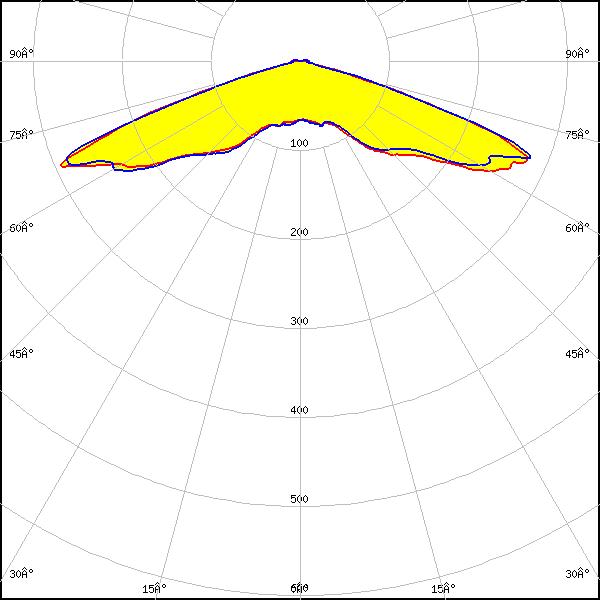

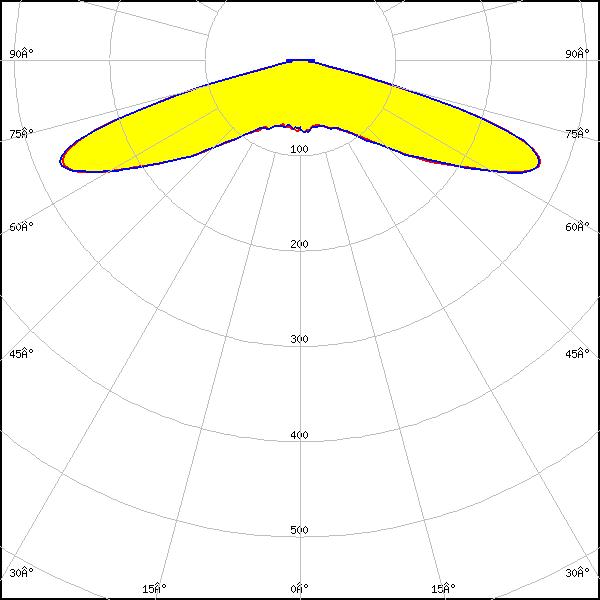

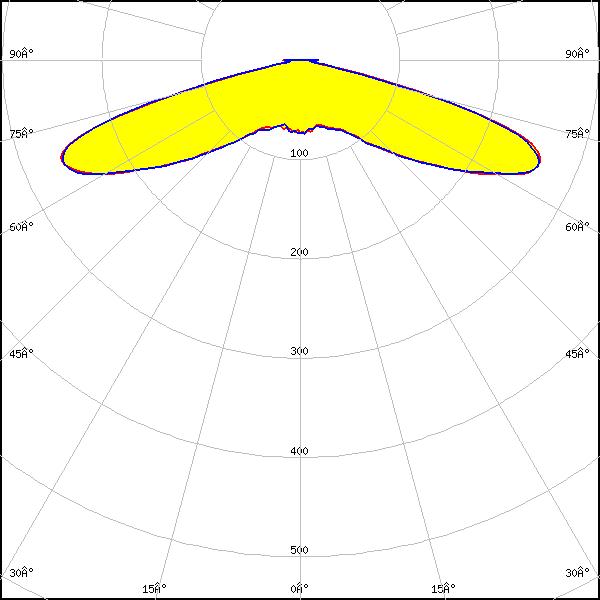

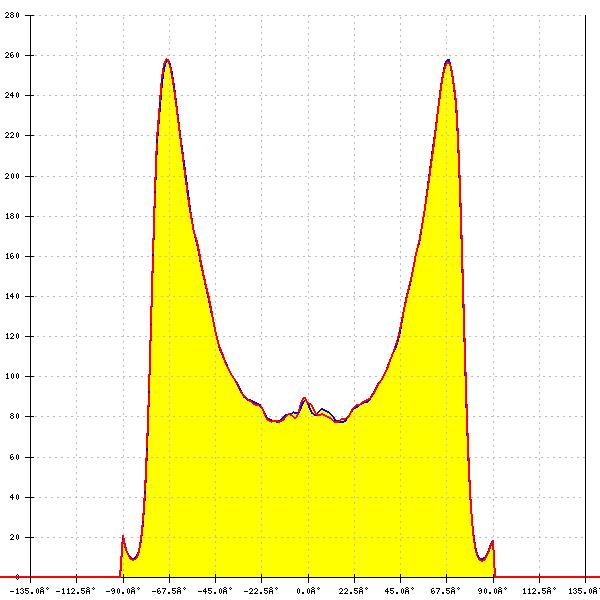

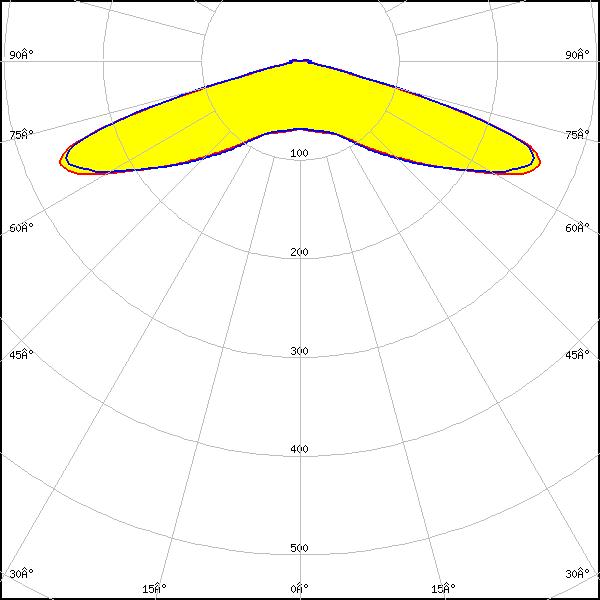

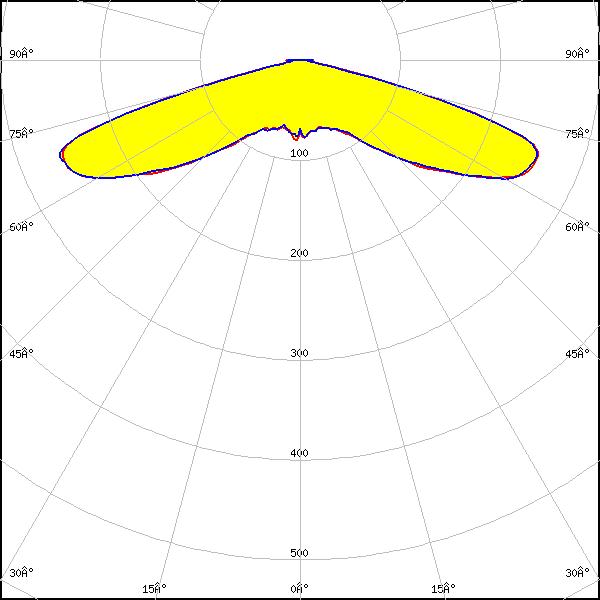

Optical results

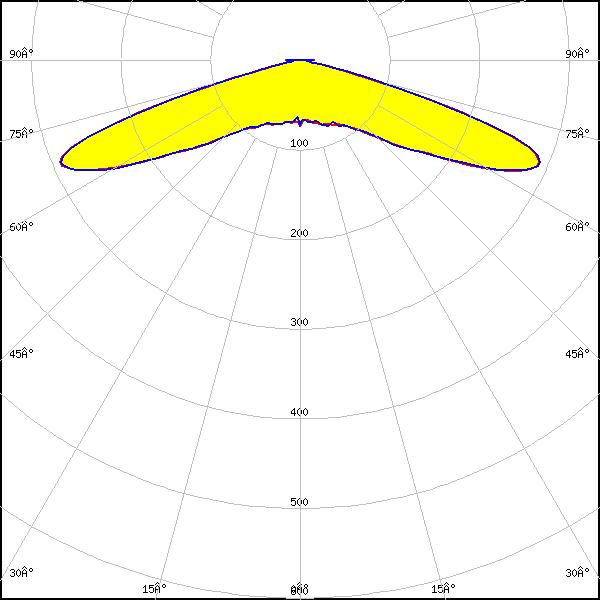

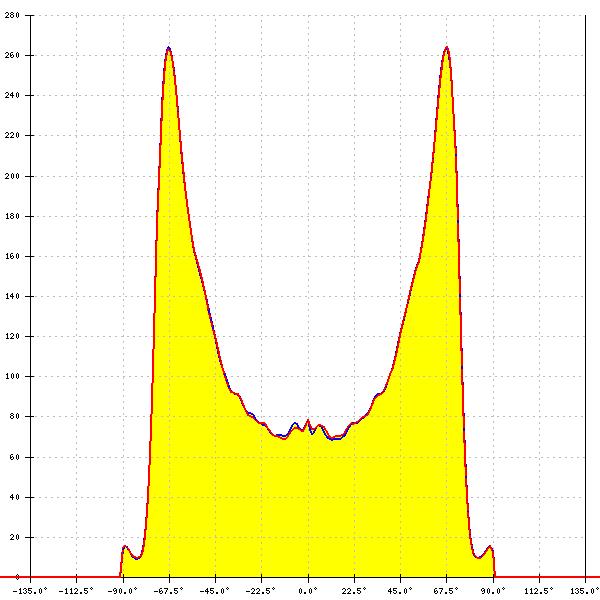

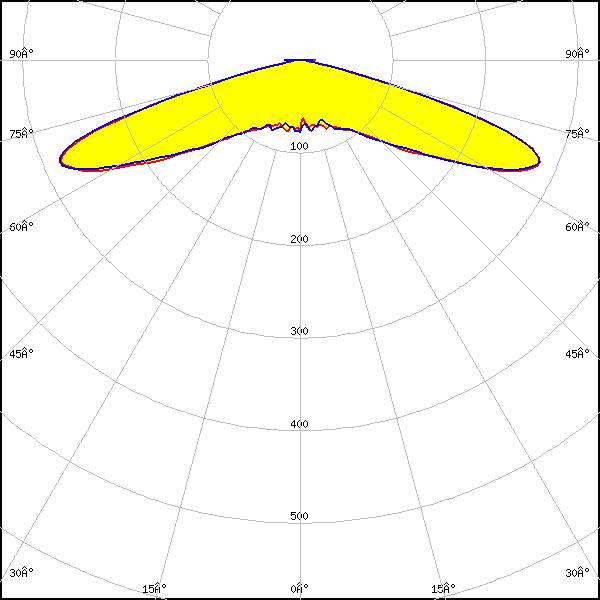

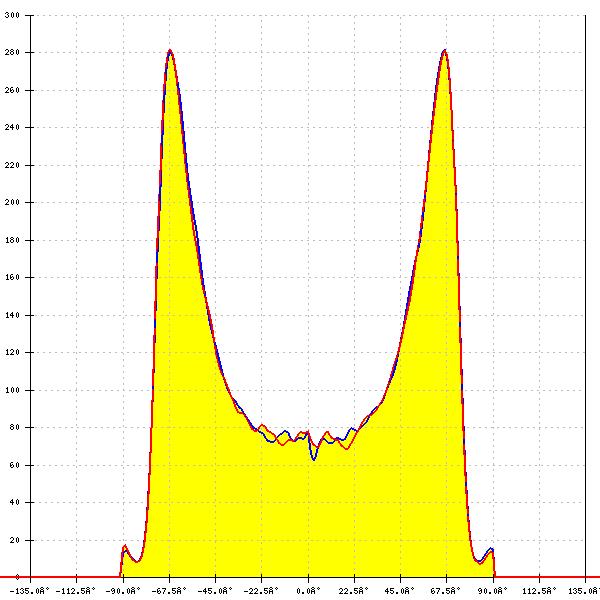

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

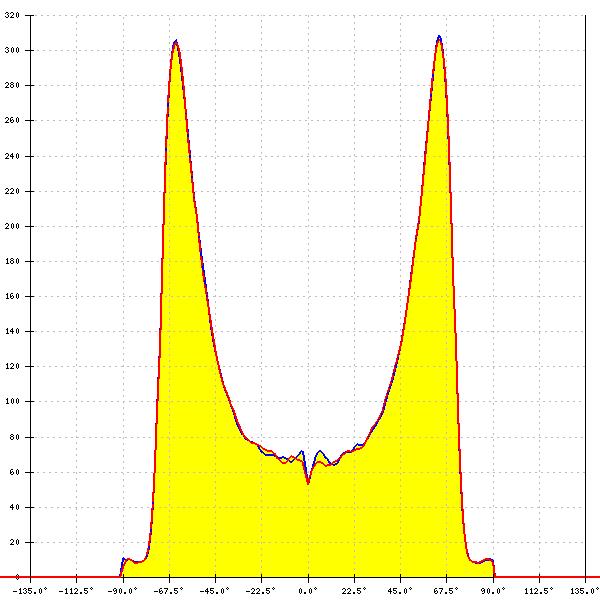

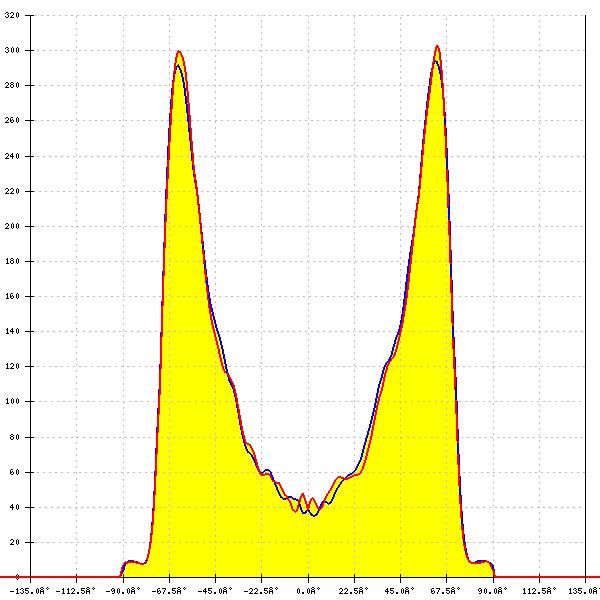

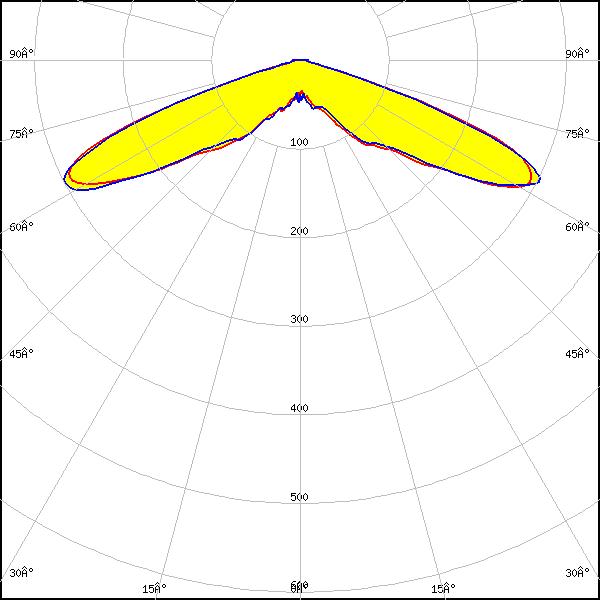

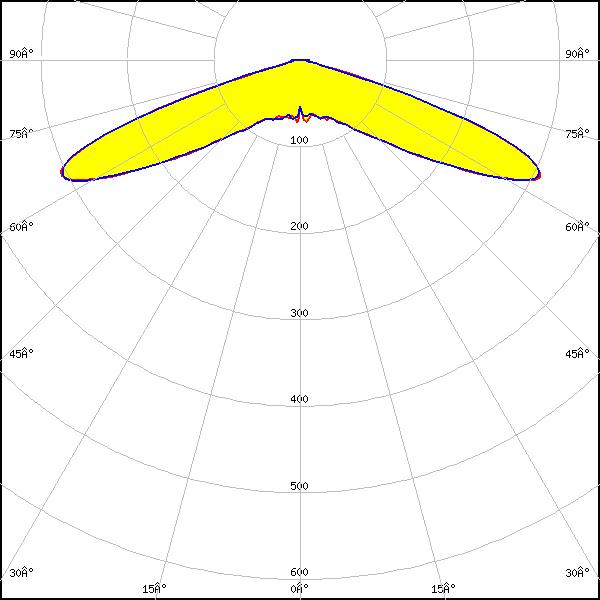

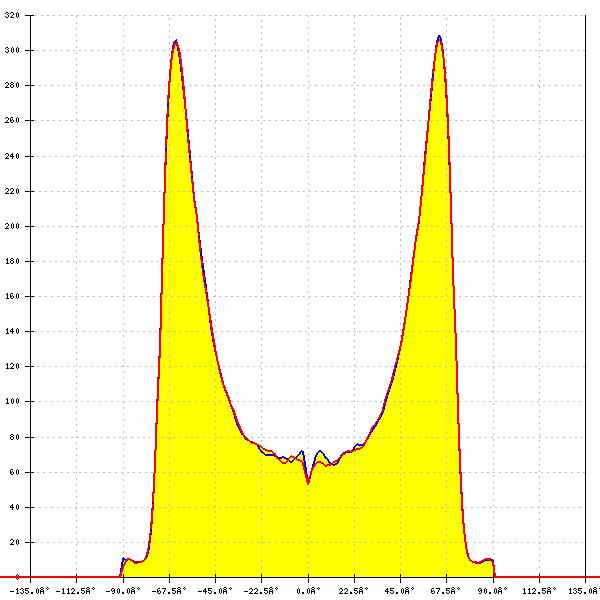

LED: CLU700/701
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

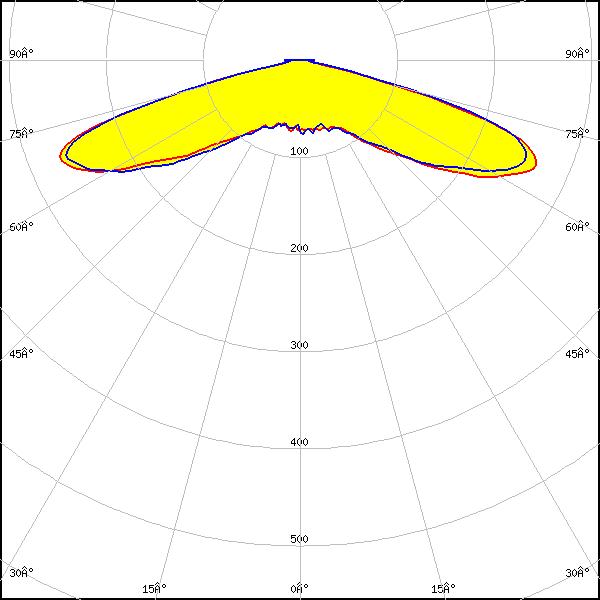

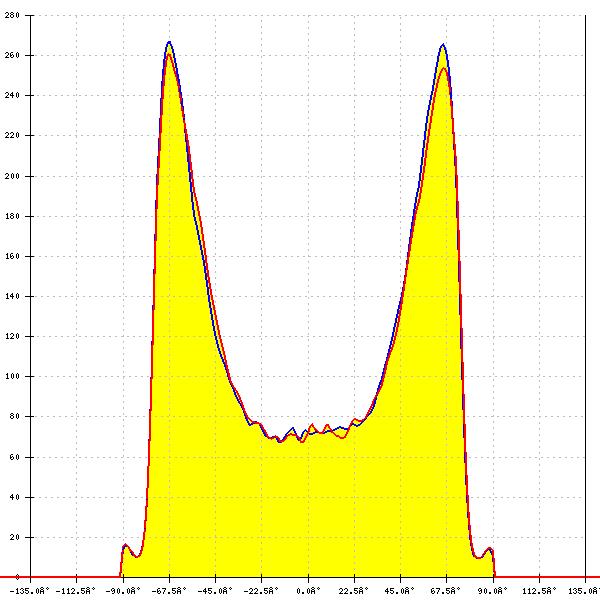

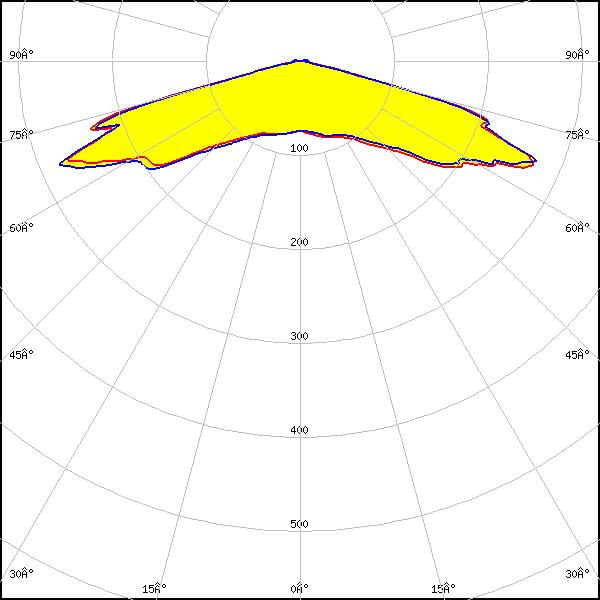

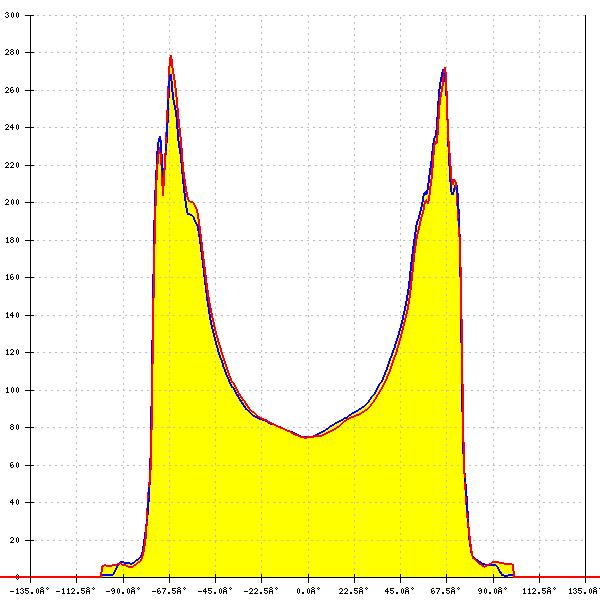

LED: LUXEON M/MX
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

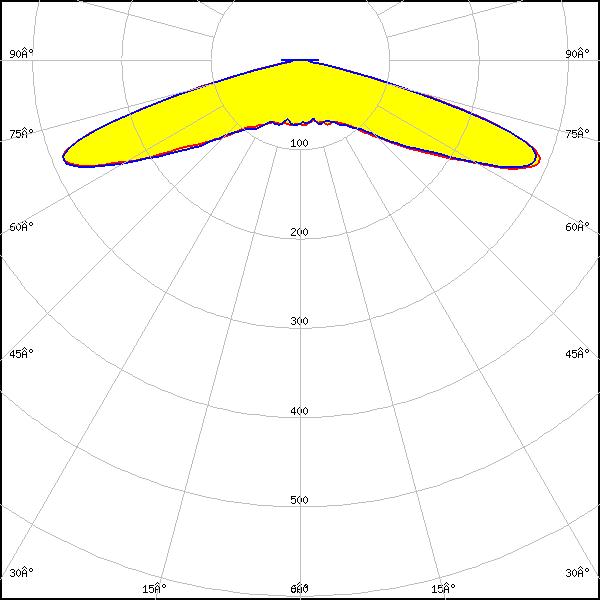

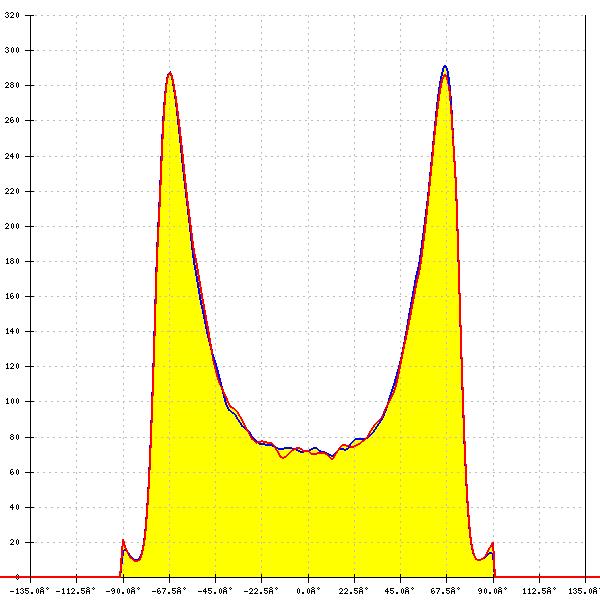

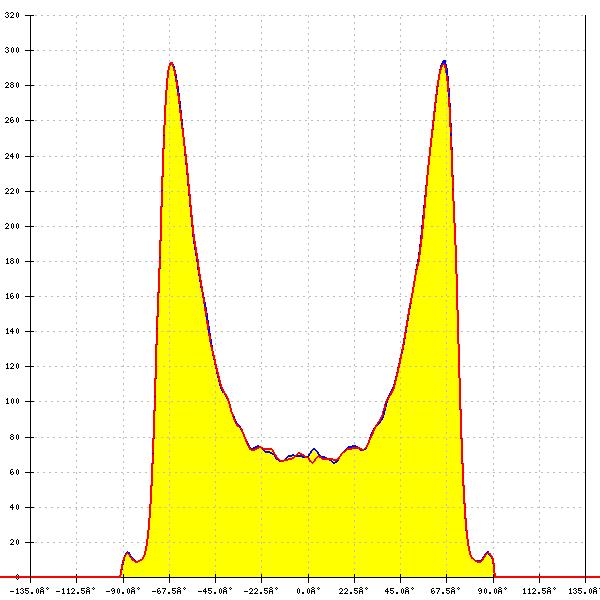

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 45.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

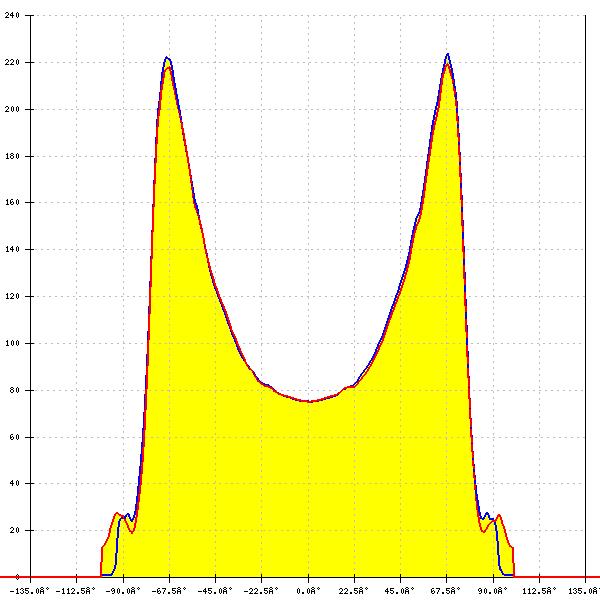

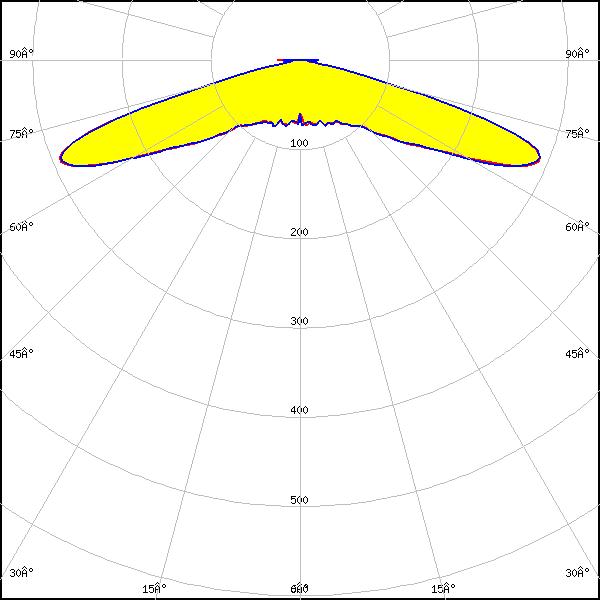

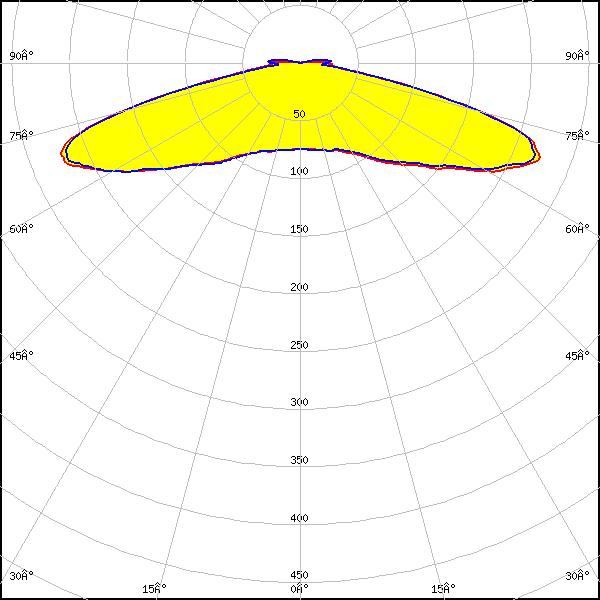

LED: NV9W149AM
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

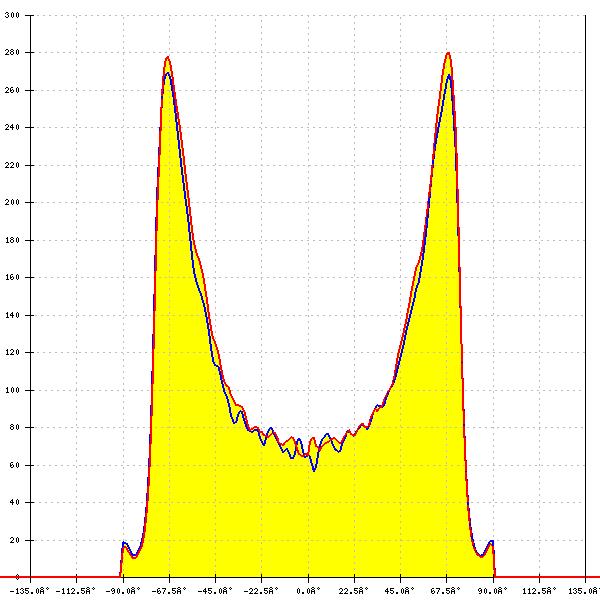

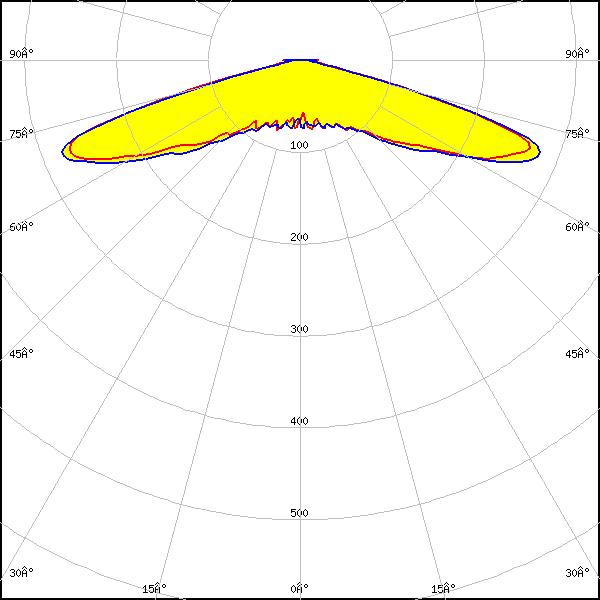

LED: OSCONIQ P 7070
FWHM: asymmetric
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x2 70x70 DC G4
FWHM: asymmetric
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

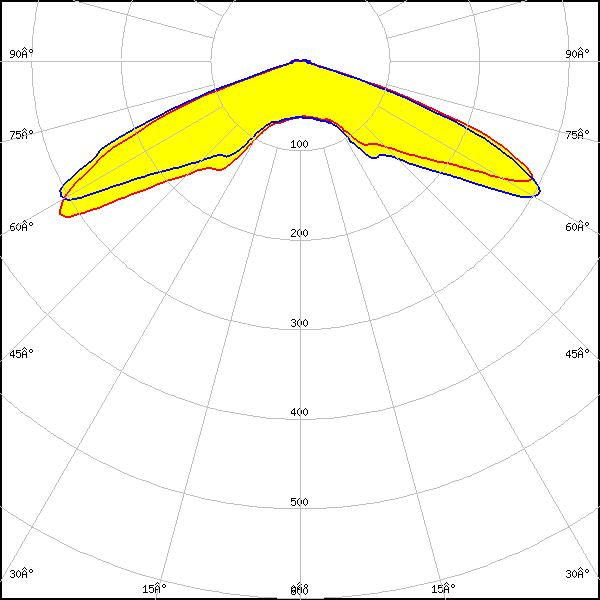

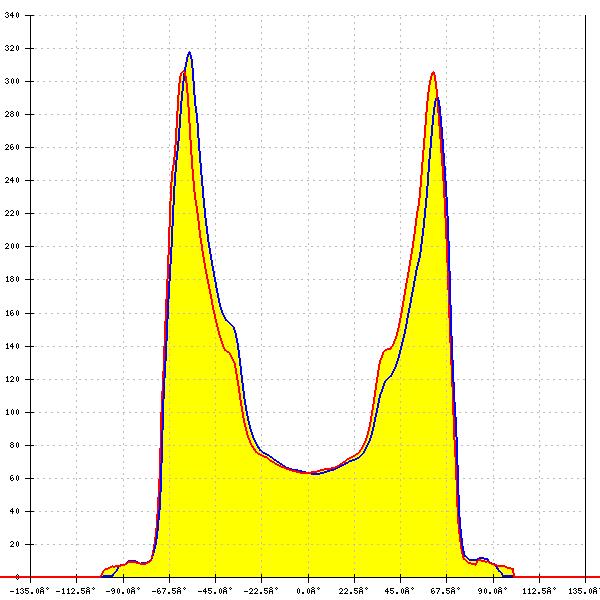

LED: HiLOM SC16 (LH181B)
FWHM: 140°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

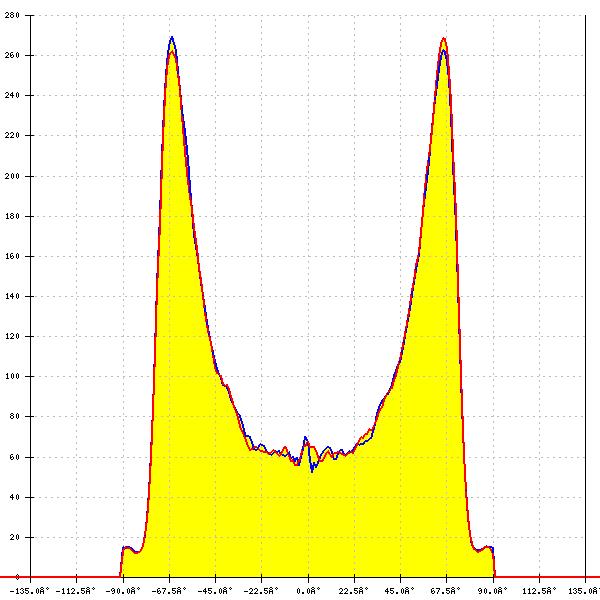

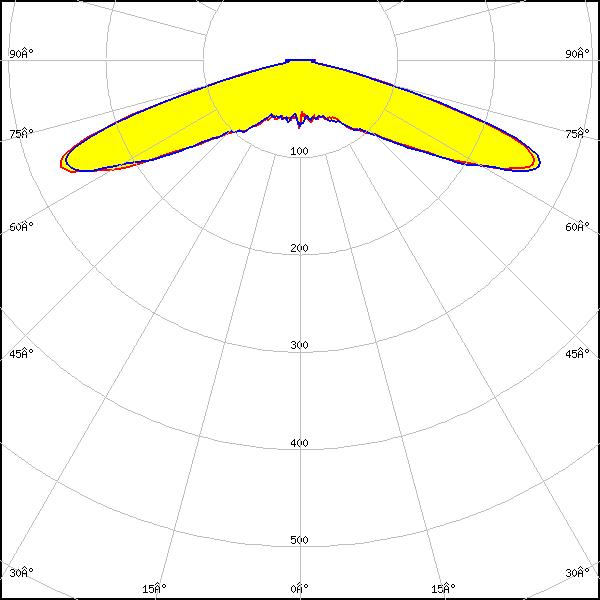

LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour: White

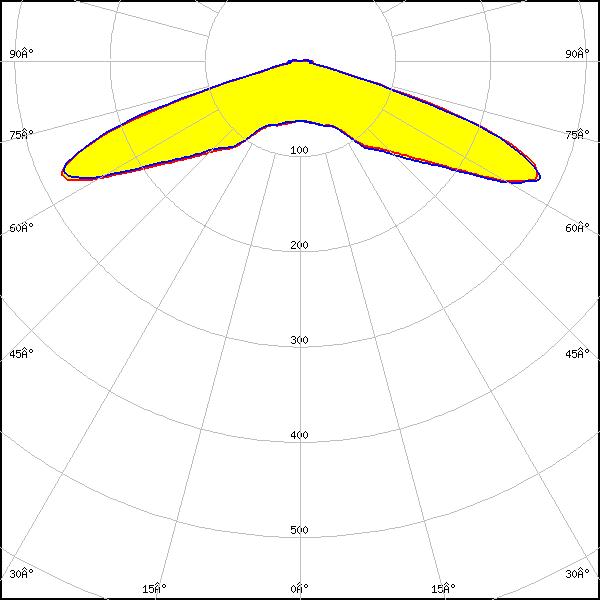

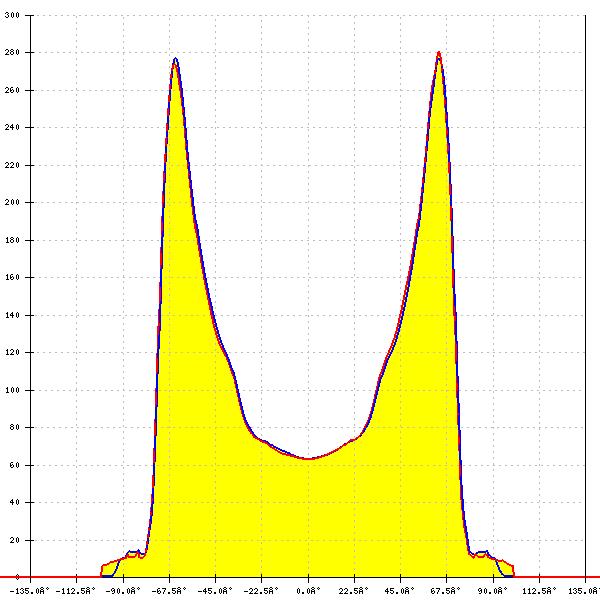

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White
