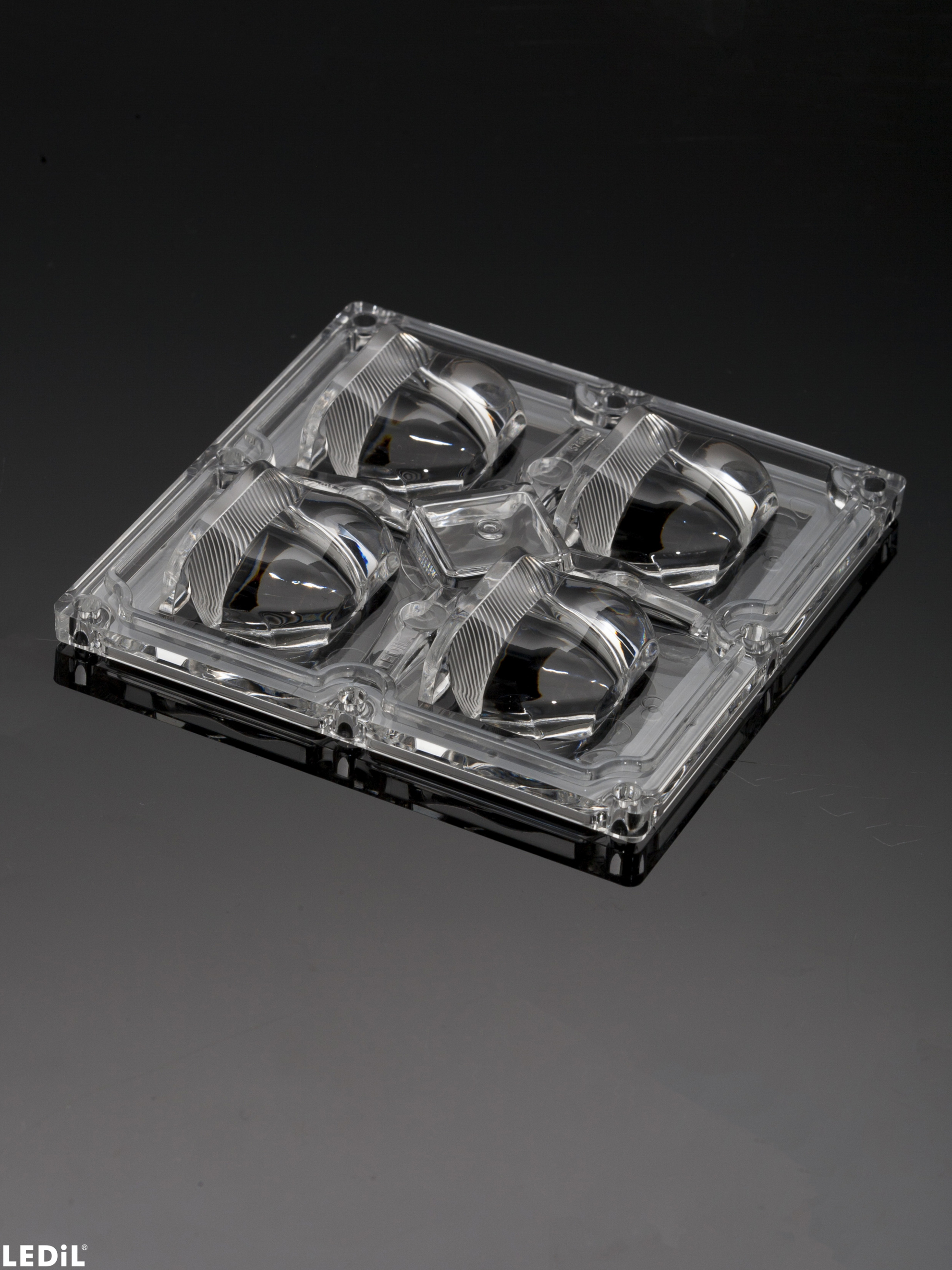

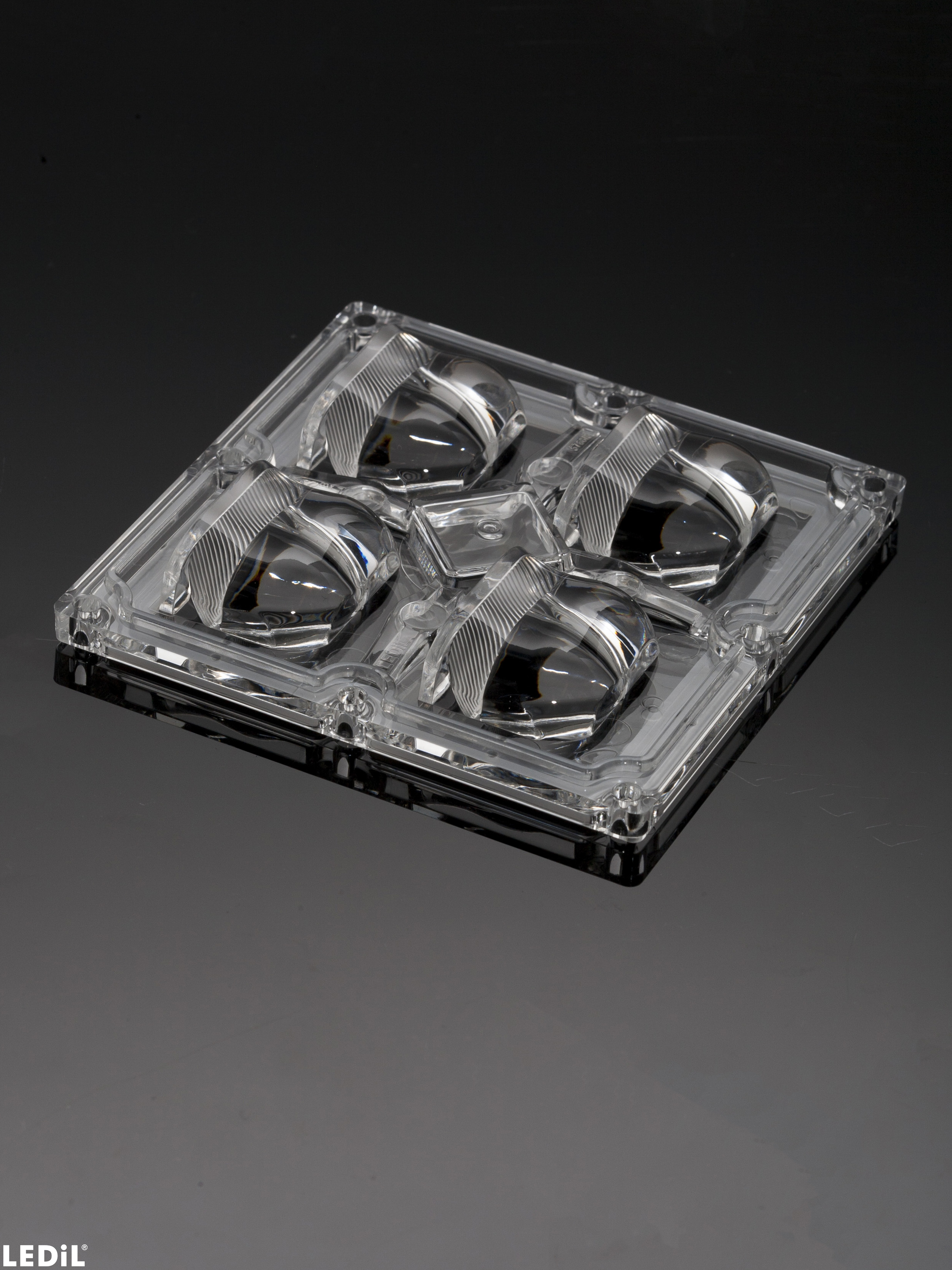

CS15769_STRADA-2X2MX-8-T2-S

Print

IESNA Type II (short) beam perfect for high or dense pole setups and European ME roads. Ideal for US car dealership front row lighting. New revision.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    13.90 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.2 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    2.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS15769_STRADA-2X2MX-8-T2-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

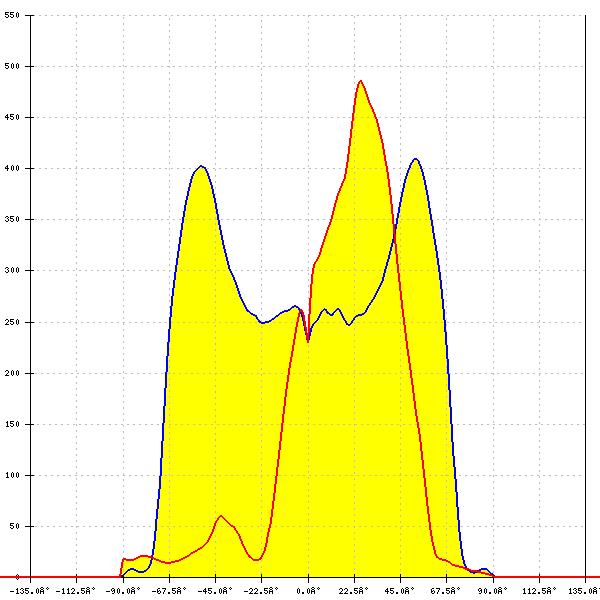

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

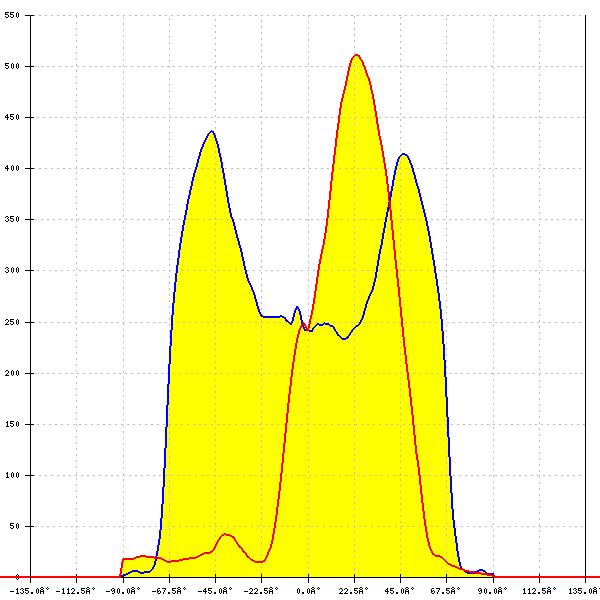

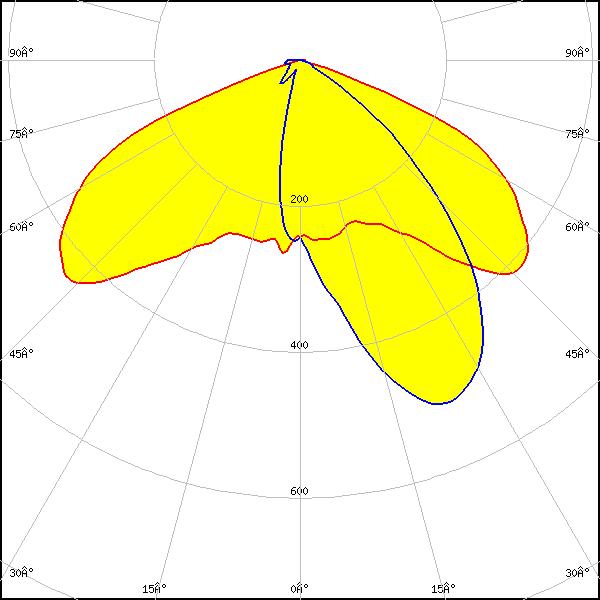

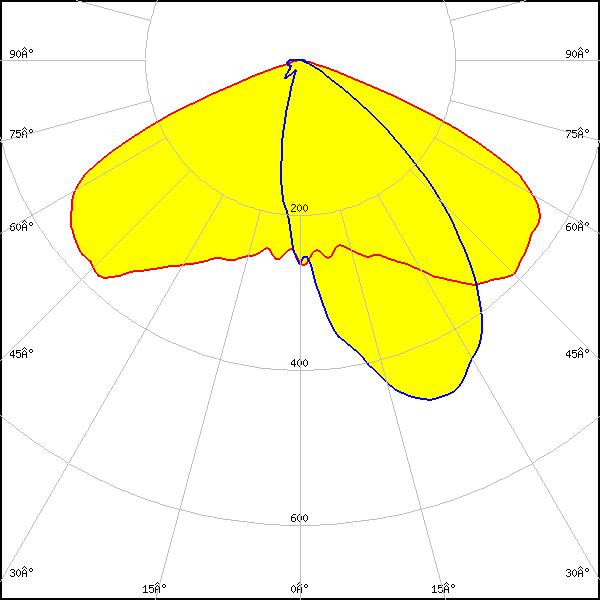

LED: CLU700/701/702
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

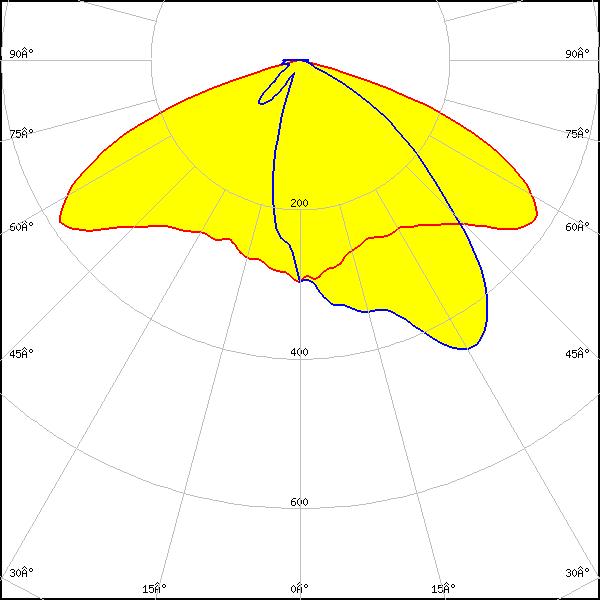

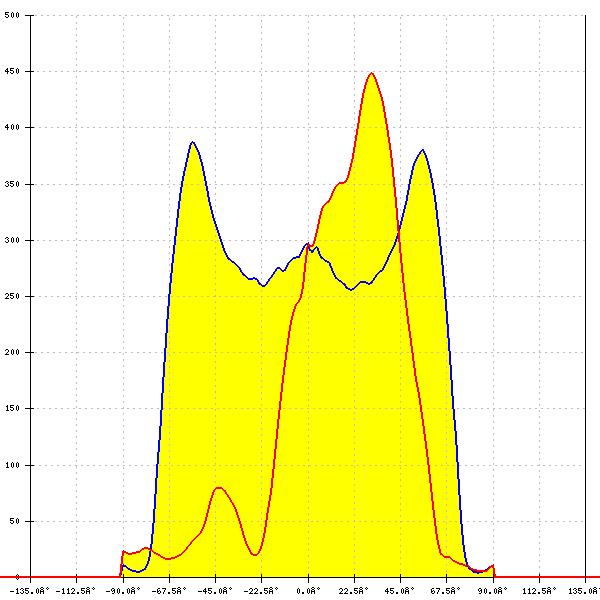

LED: MHB-A/B
FWHM: asymmetric
Peak intensity: 0.589 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

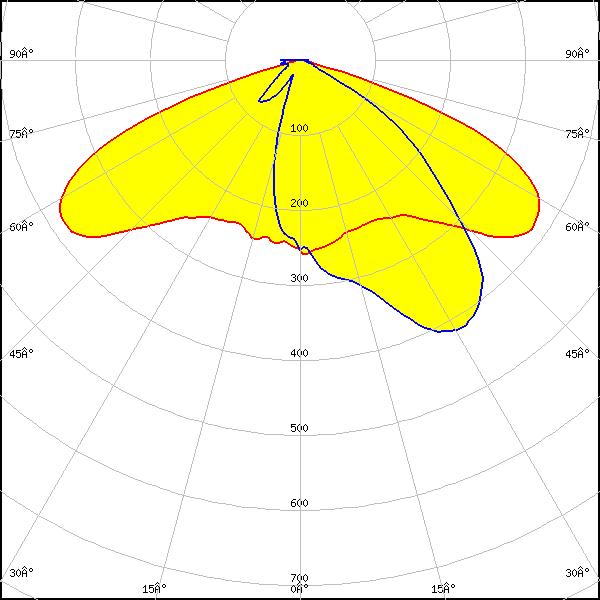

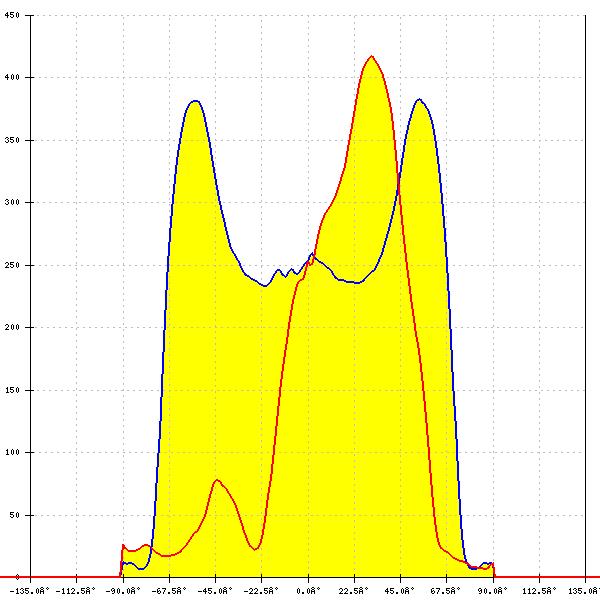

LED: XHP50.2
FWHM: asymmetric
Peak intensity: 0.594 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

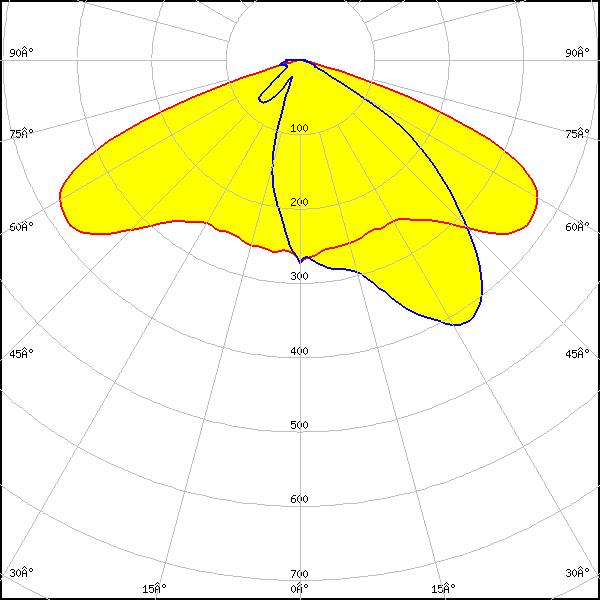

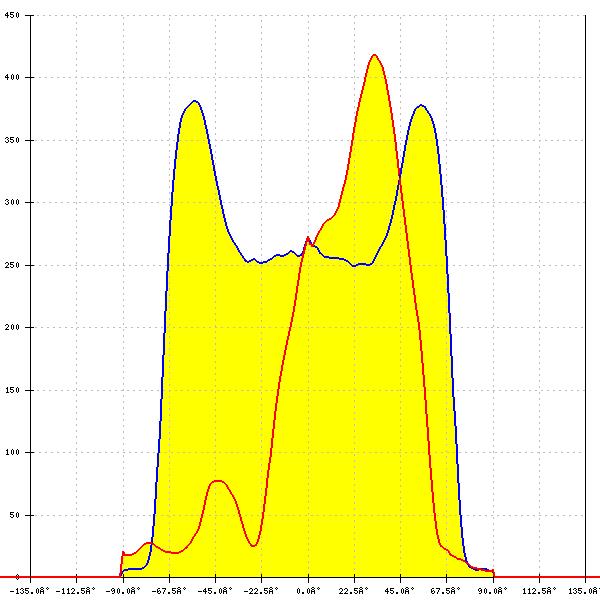

LED: XHP70.3 HD
FWHM: asymmetric
Peak intensity: 0.553 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

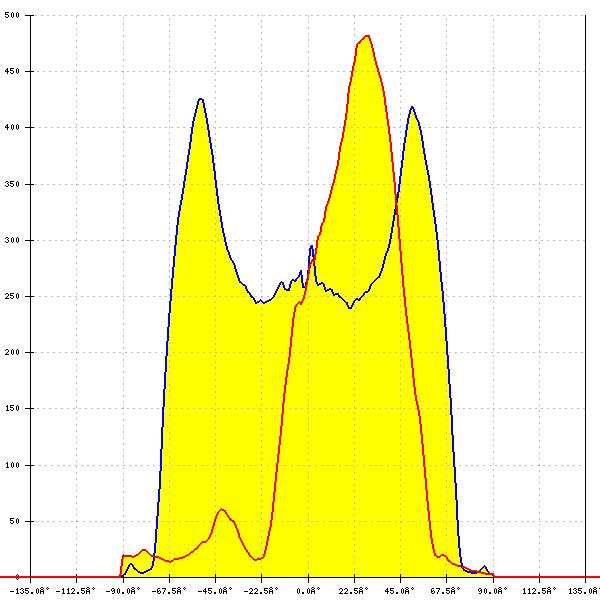

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

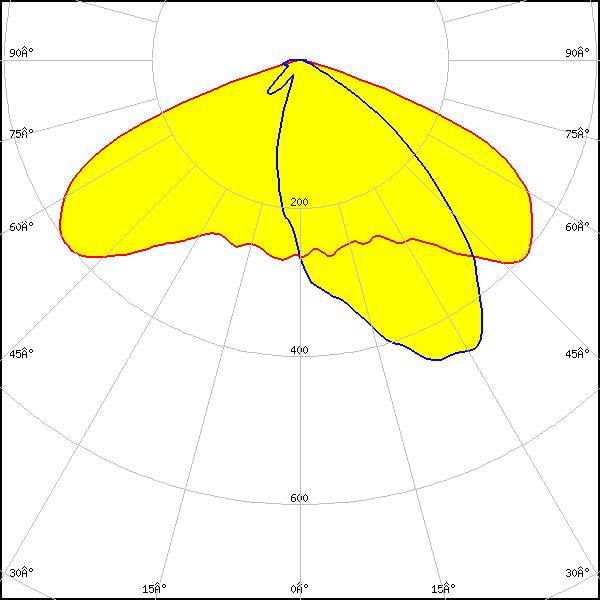

LED: LUXEON 7070
FWHM: asymmetric
Peak intensity: 0.578 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

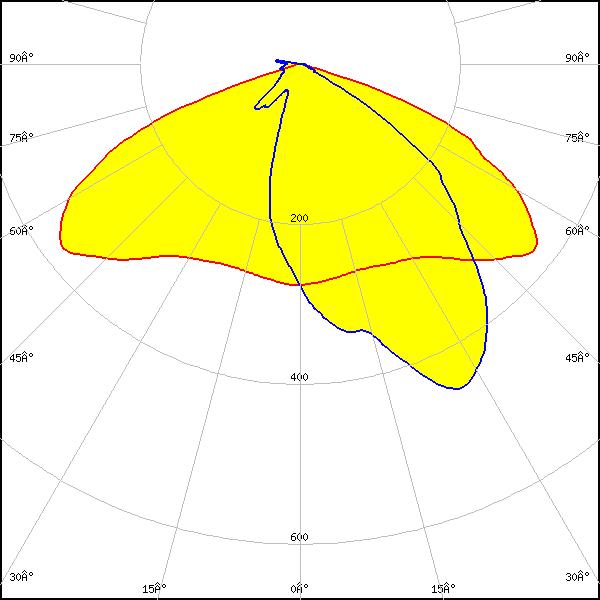

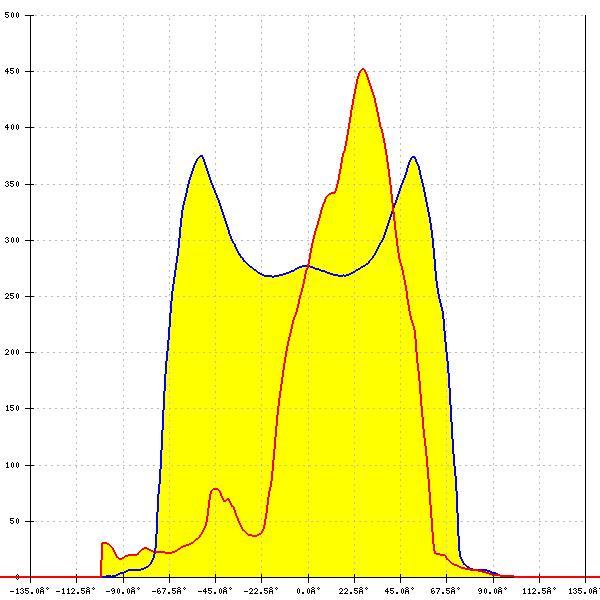

LED: LUXEON M/MX
FWHM: asymmetric
Peak intensity: 0.690 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

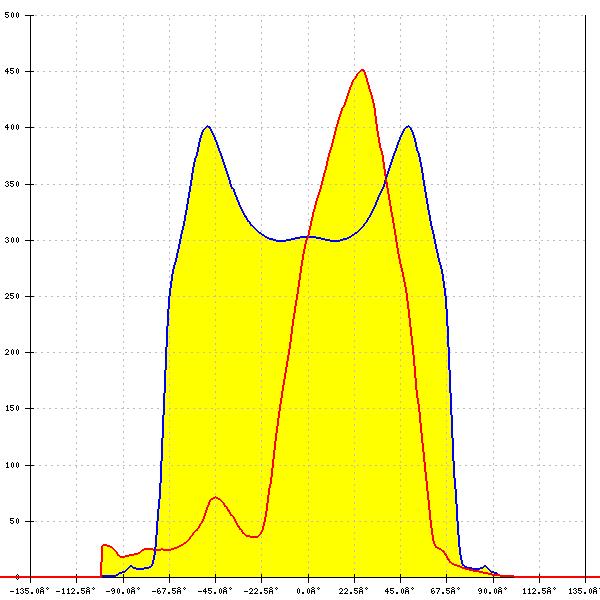

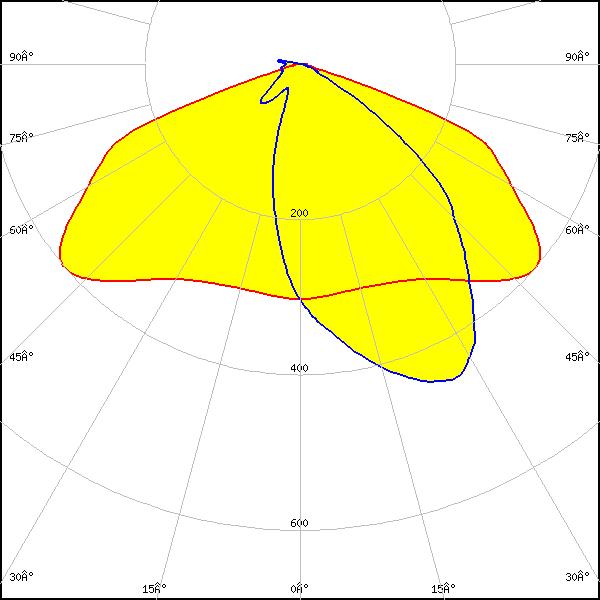

LED: LUXEON XR-7070
FWHM: asymmetric
Peak intensity: 0.575 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

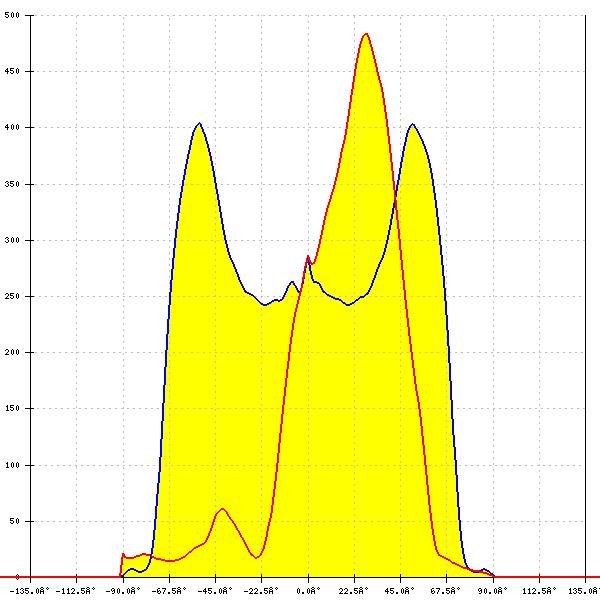

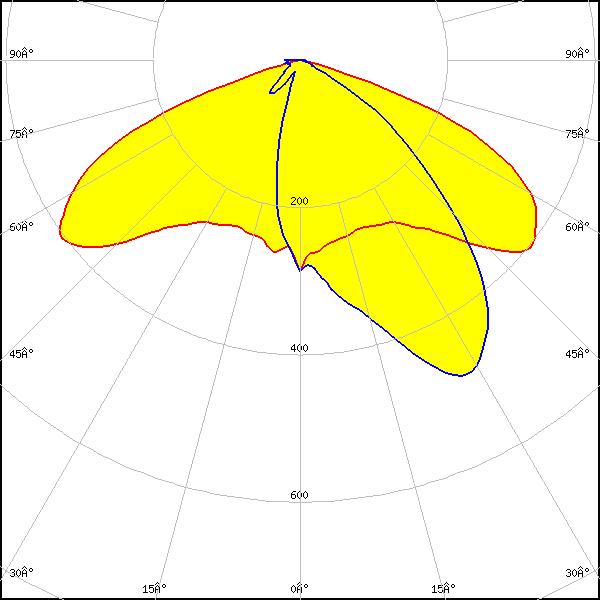

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

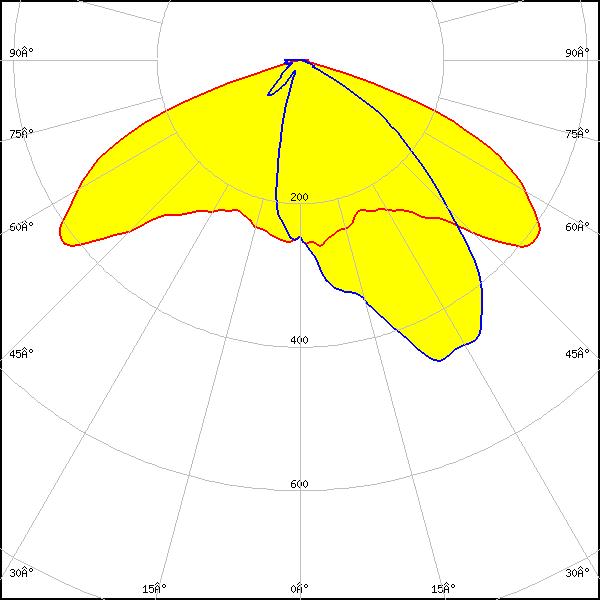

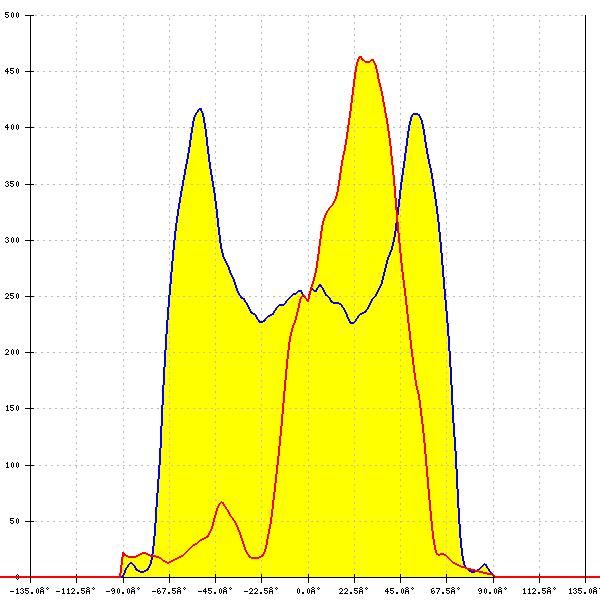

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.644 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

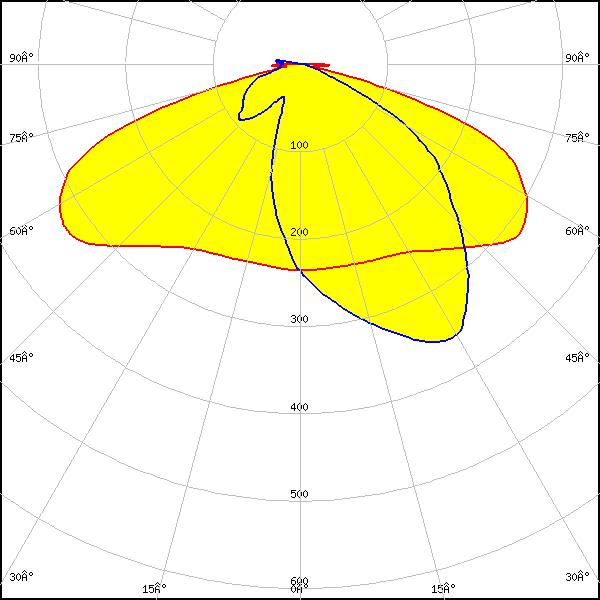

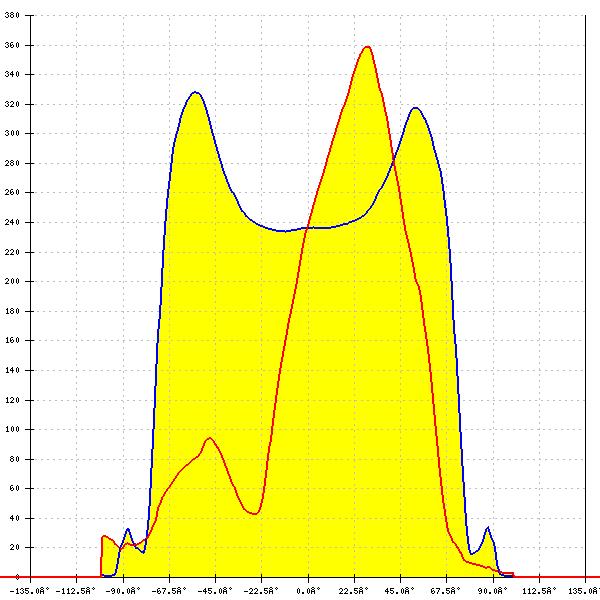

LED: NV9W149AM
FWHM: asymmetric
Peak intensity: 0.540 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

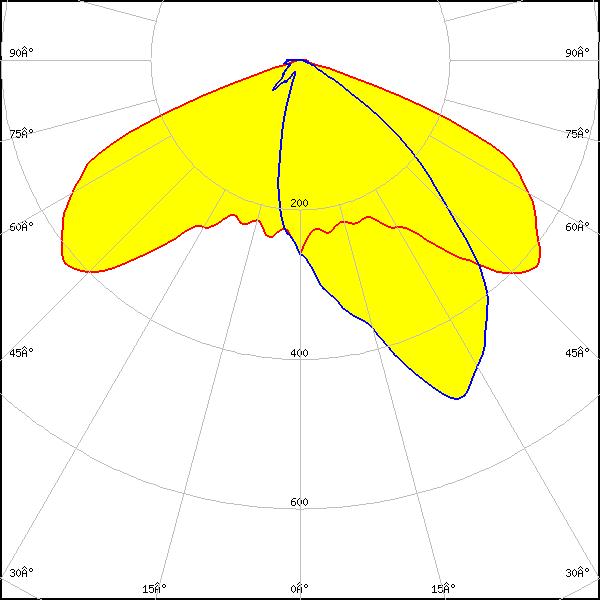

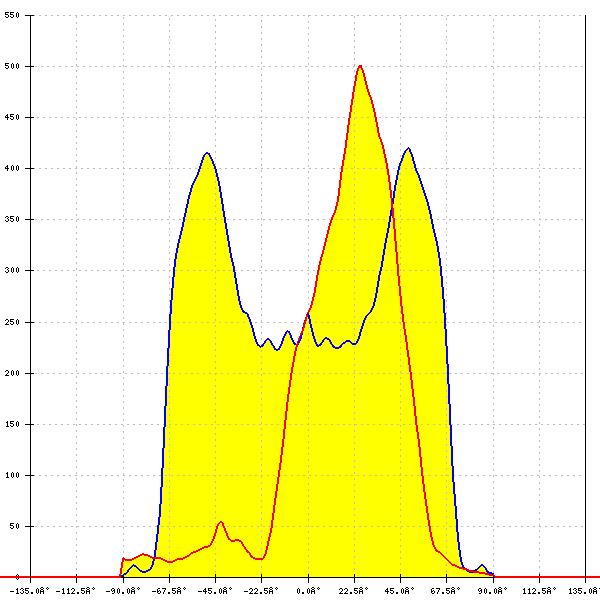

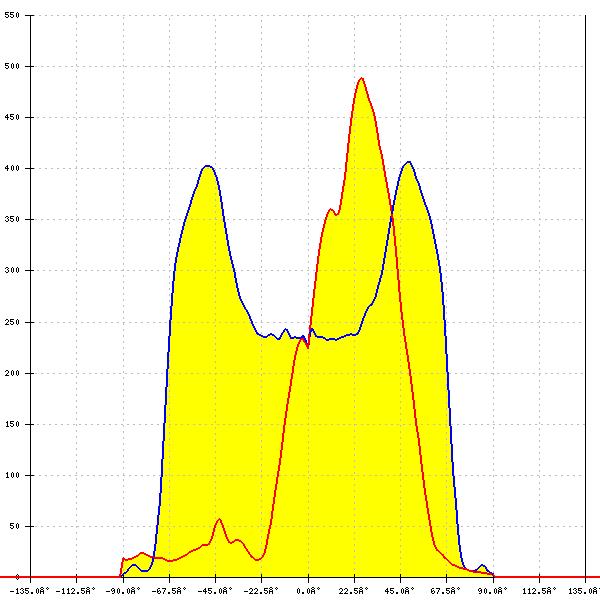

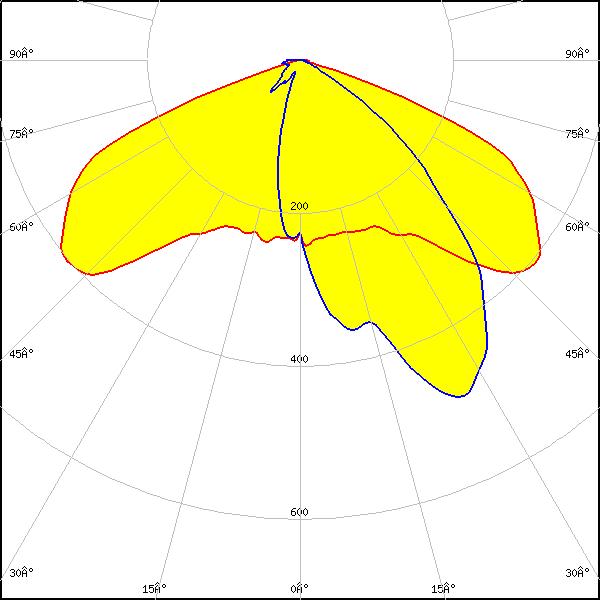

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.634 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

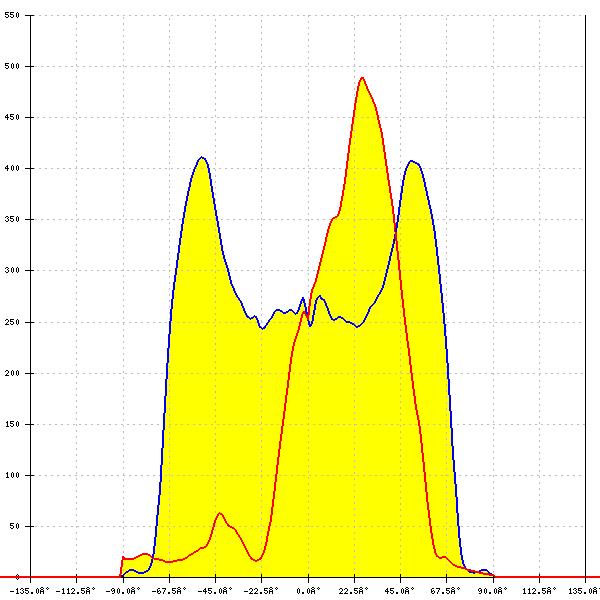

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.622 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 7070
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

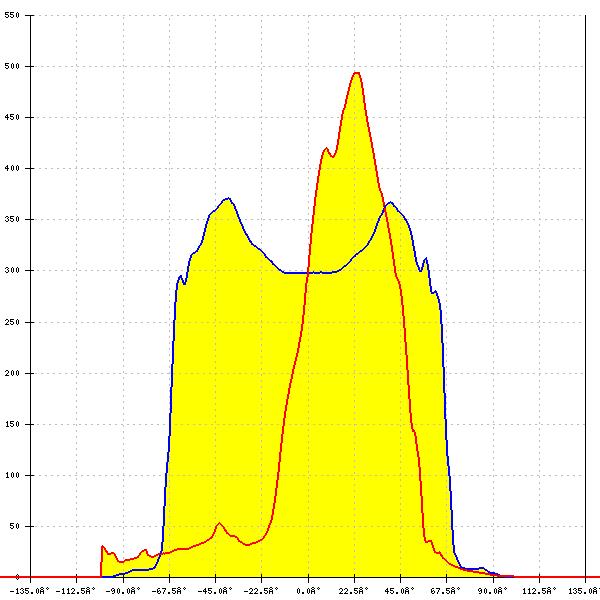

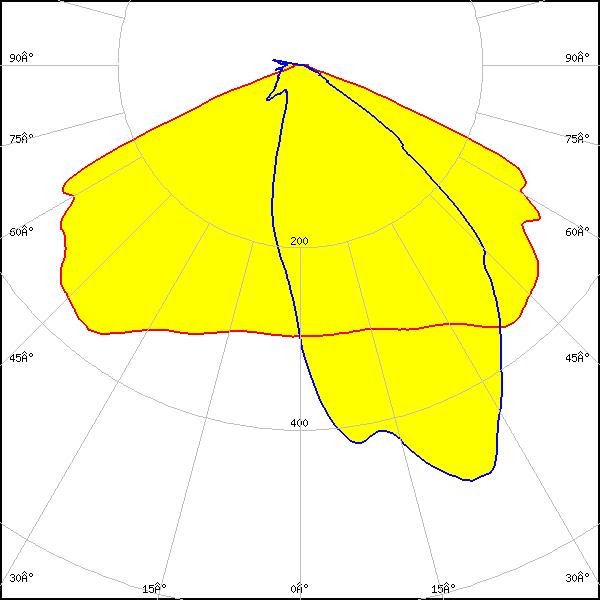

LED: HiLOM SC16 (LH181B)
FWHM: asymmetric
Peak intensity: 0.810 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH181B
FWHM: asymmetric
Peak intensity: 0.694 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

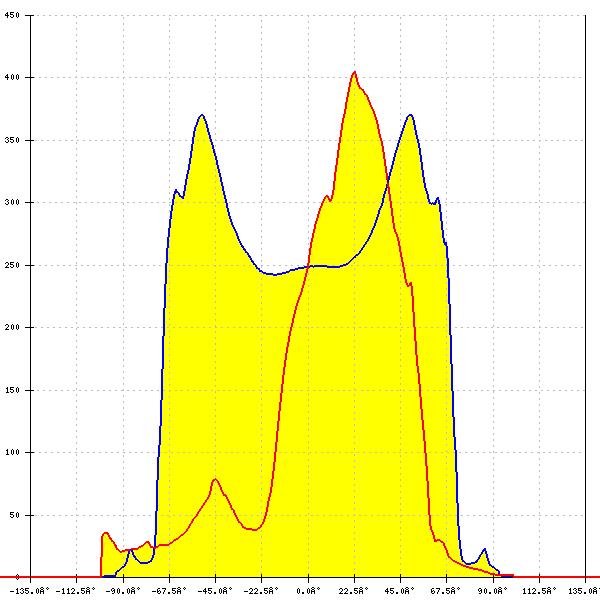

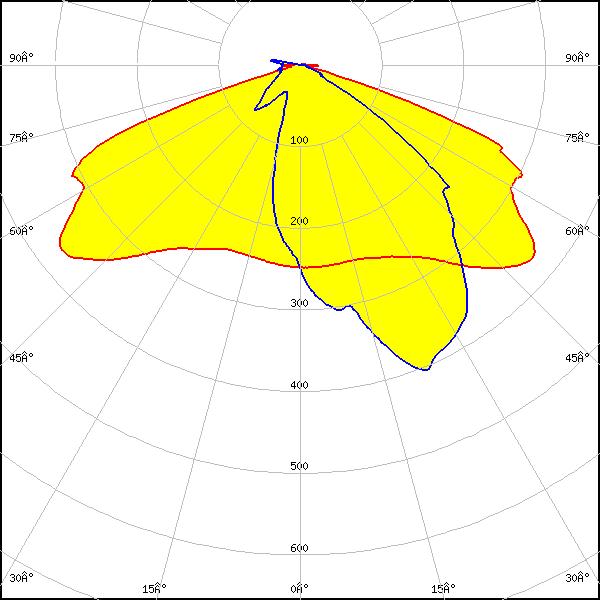

LED: XLE-S22C4XD16 (XD16)
FWHM: asymmetric
Peak intensity: 0.690 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

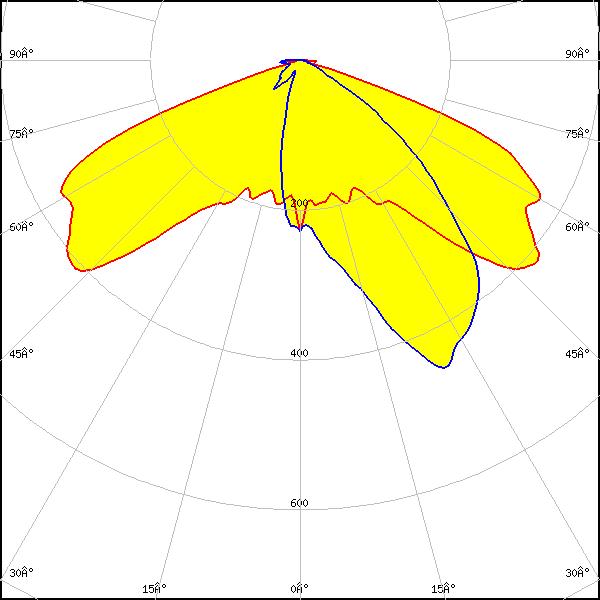

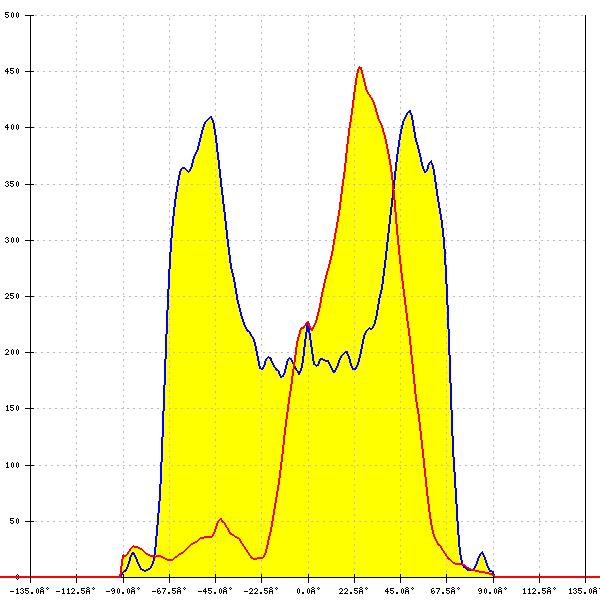

LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.695 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

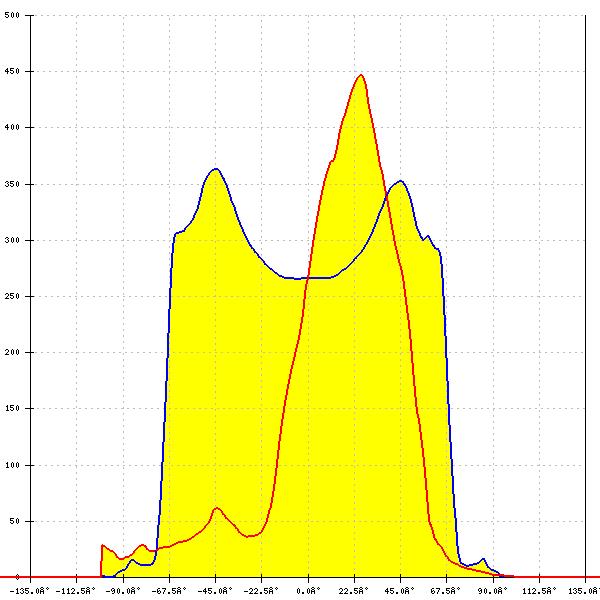

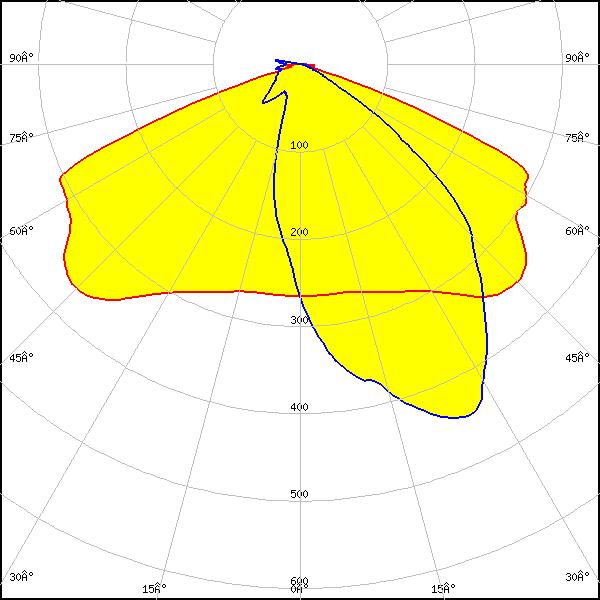

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.716 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White
