CS16515_SITARA-2X2-T2

IESNA Type II (medium) beam, applicable for European P-class standard pedestrian lighting and M-class roads.

Specification

Dimensions:

50 x 50 mm
Height:

9.30 mm
Fastening:

pin, screw
Colour:

clear
Ingress protection classes:

IP67
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

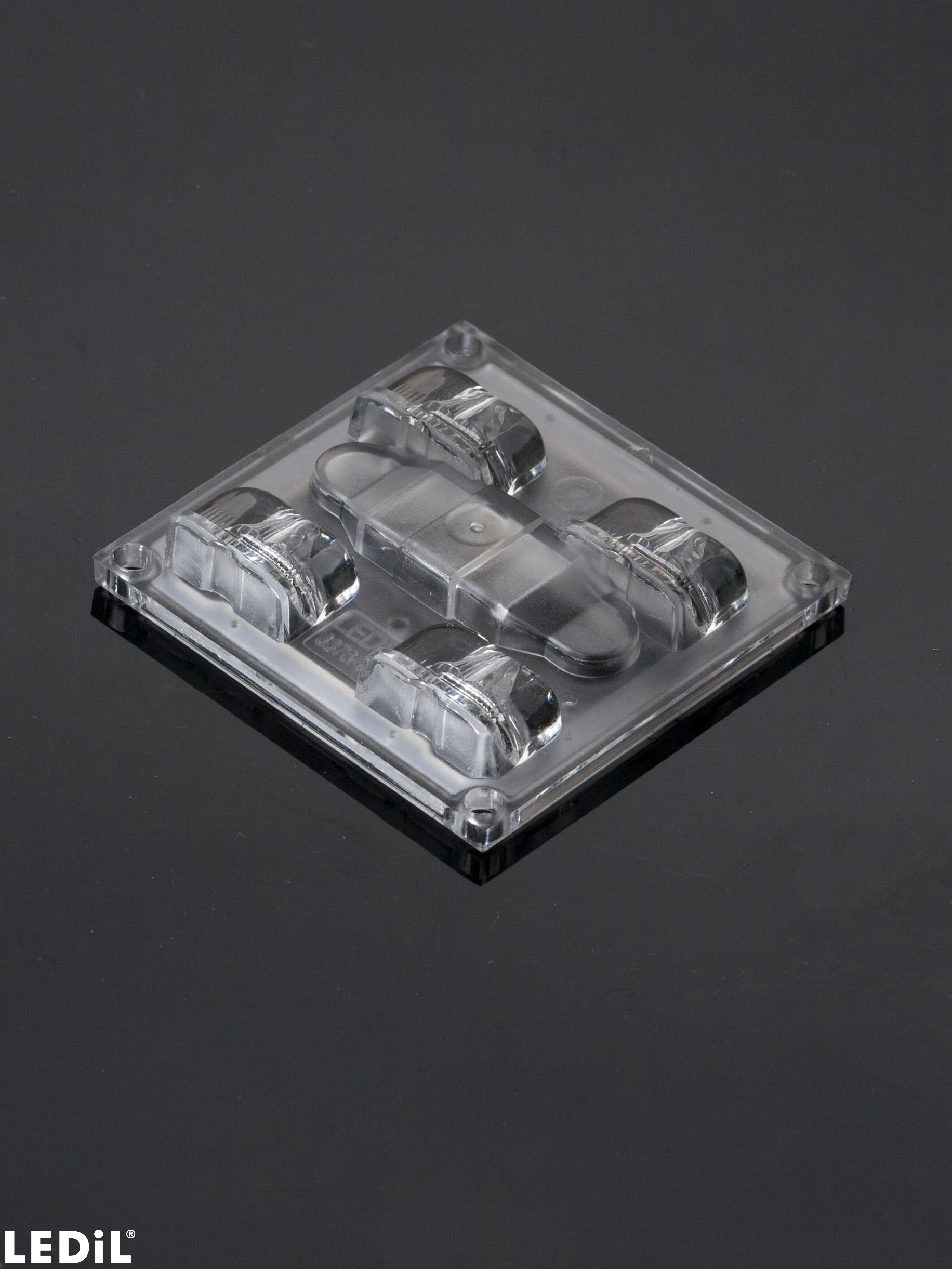

SITARA-2X2-T2
Multi-lens
PC
SITARA-2X2-SEAL
Seal
Silicone
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

770 pcs
Box size:

480 x 280 x 300 mm
Box weight:

7.9 kg
MPQ:

154 pcs
MOQ:

154 pcs
MOQ size:

480 x 280 x 80 mm
MOQ weight:

1.8 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: CS16515_SITARA-2X2-T2

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CS16515_SITARA-2X2-T2

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR183 - Additional gasket material approved for LEDiL products

Case story

Low level lighting bollards

Application guide

Guide for Street lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

News

New Products - 2018-05-09

Application area

Street Lighting

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

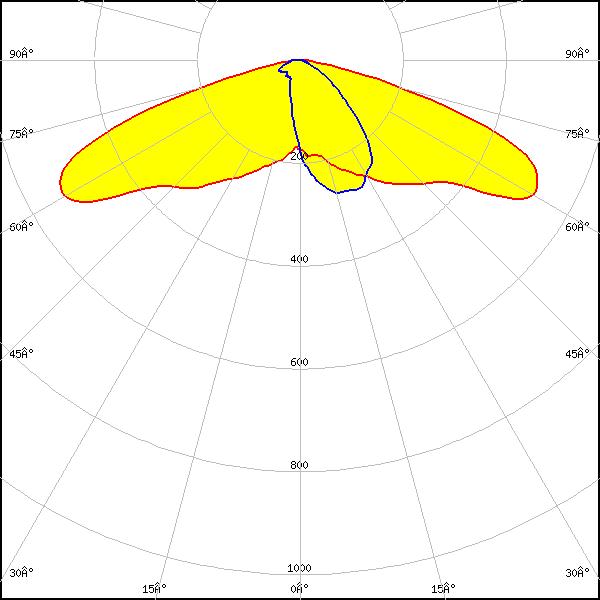

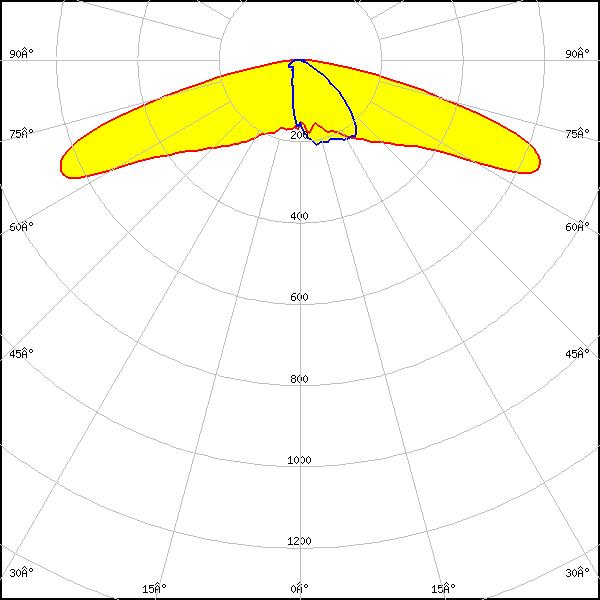

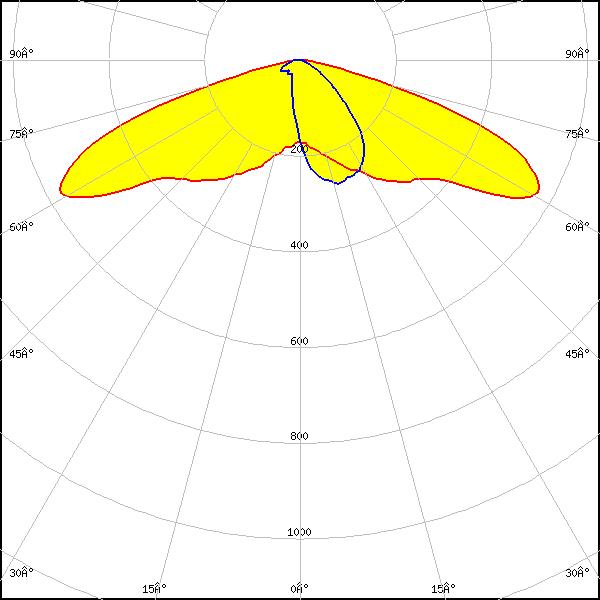

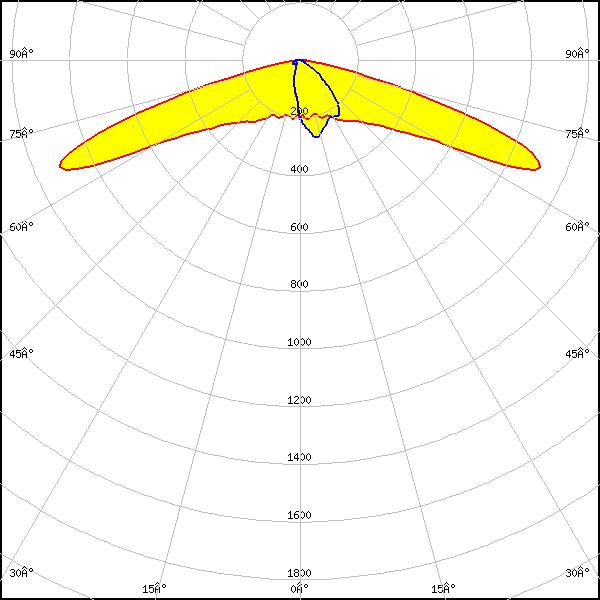

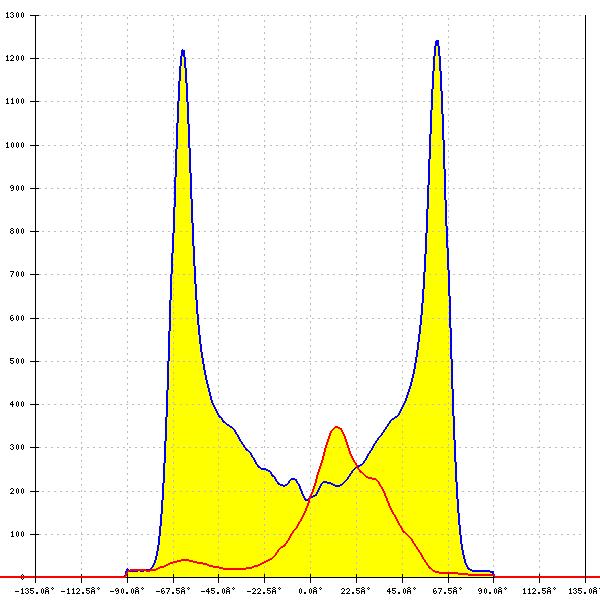

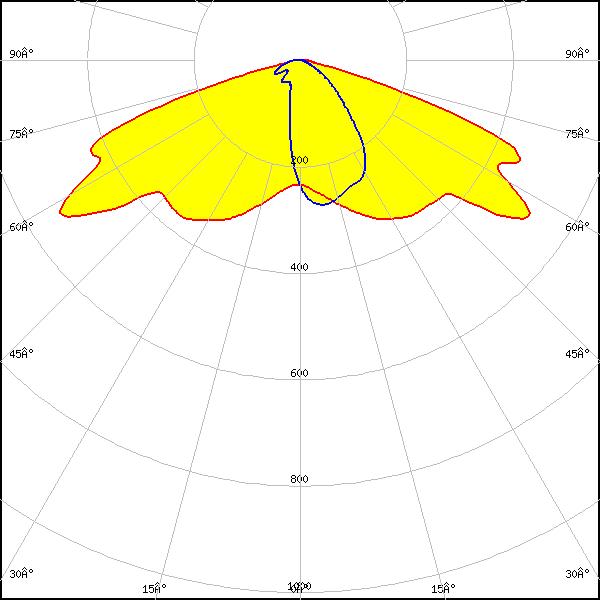

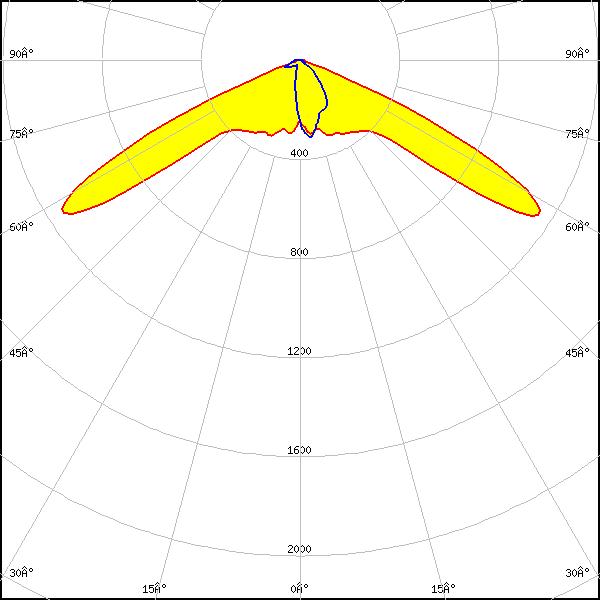

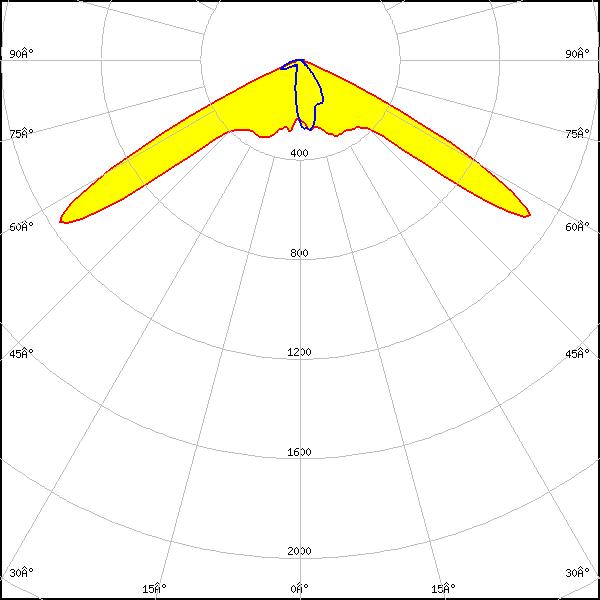

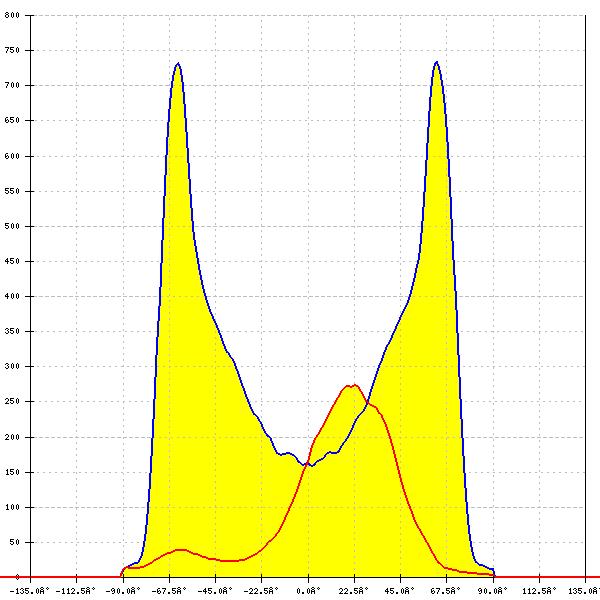

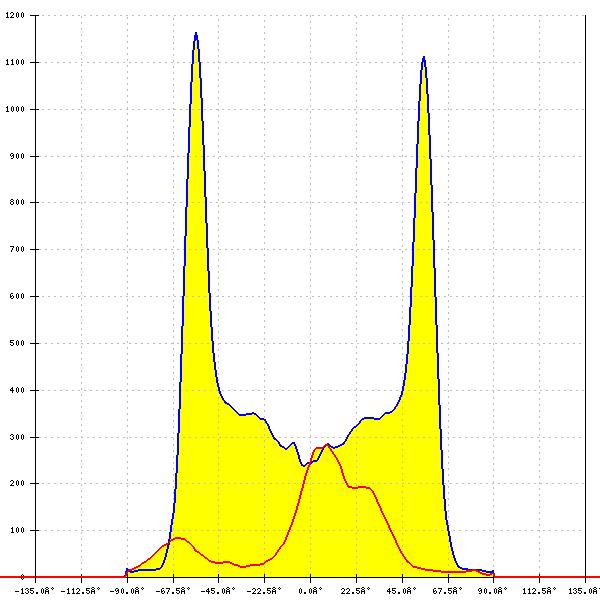

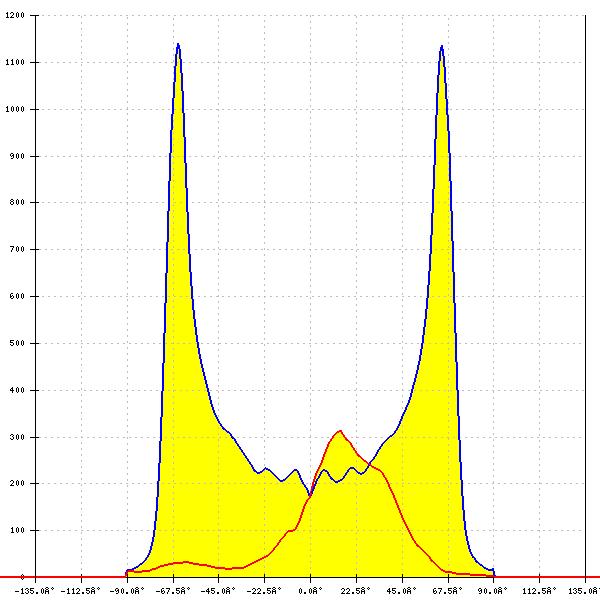

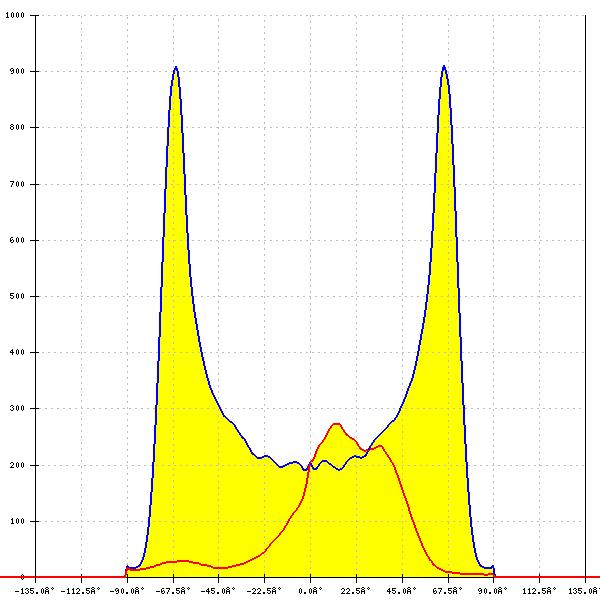

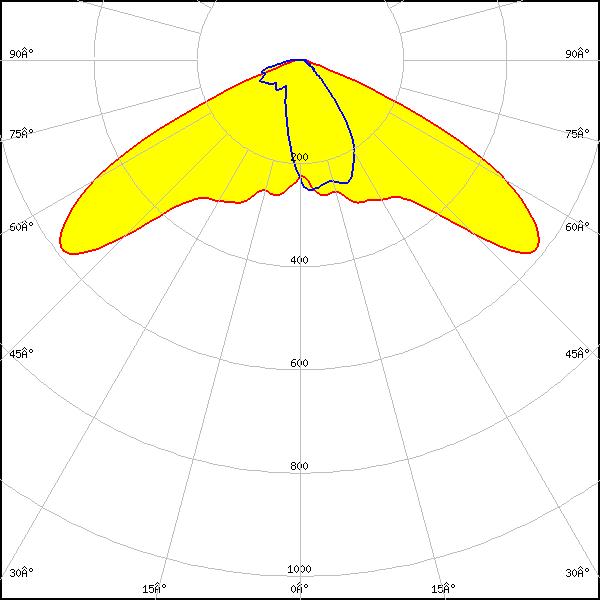

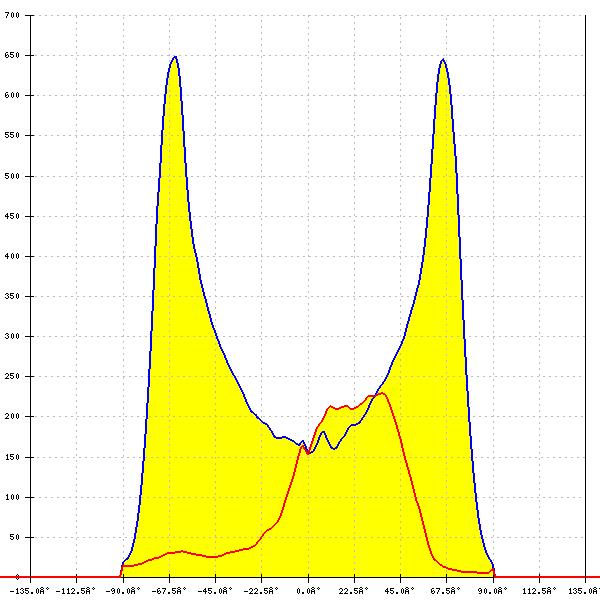

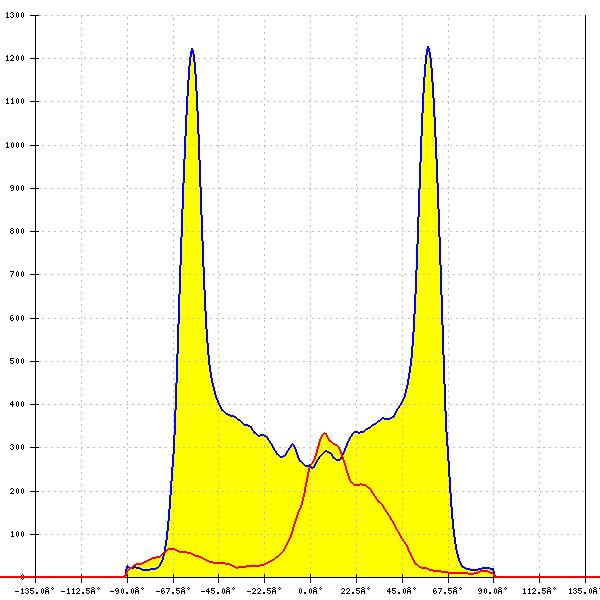

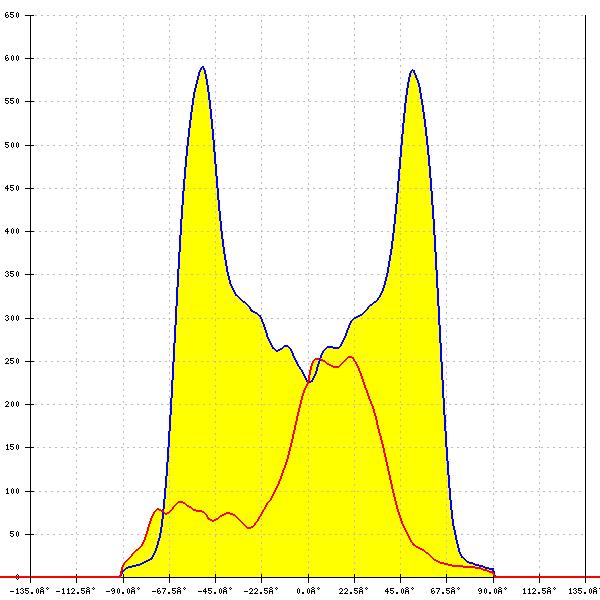

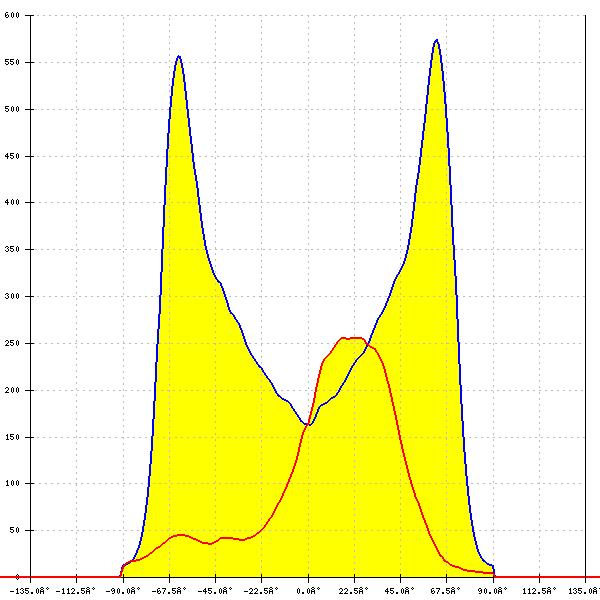

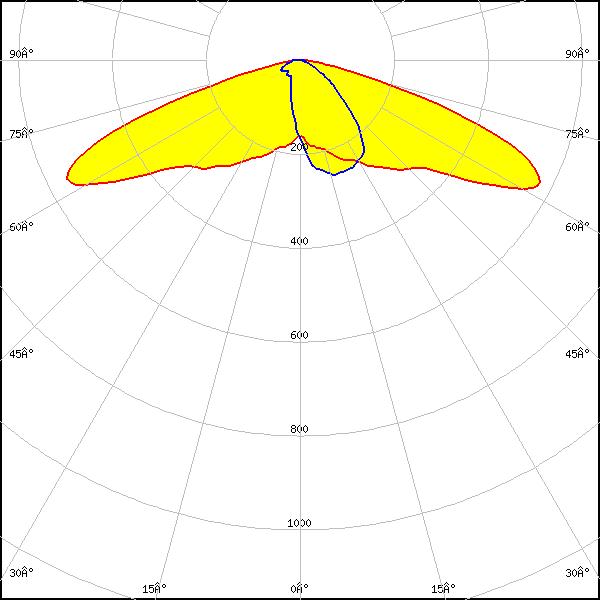

Optical results

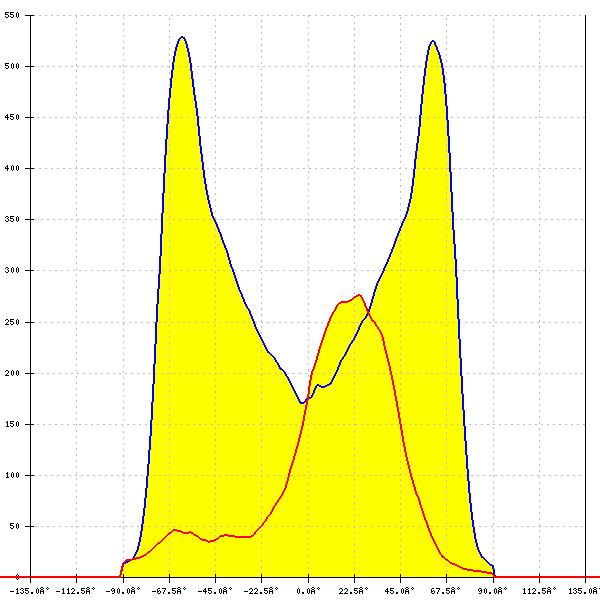

LED: Bridgelux SMD 5050

FWHM: asymmetric

Peak intensity: 0.570 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

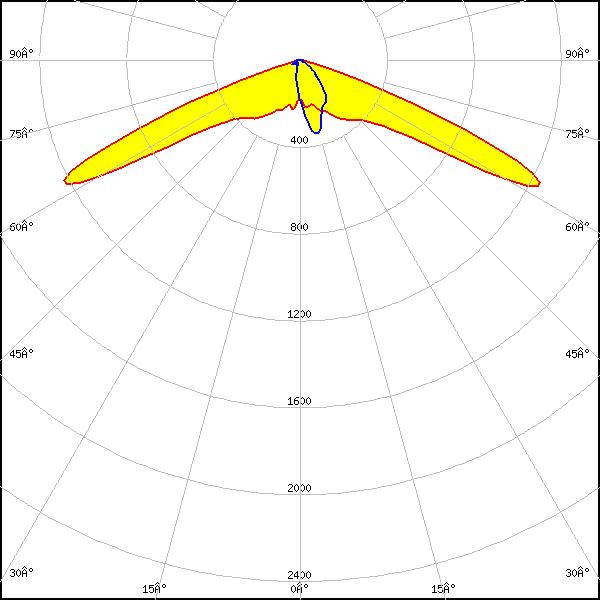

LED: CSP 2323 (BXCP)

FWHM: asymmetric

Peak intensity: 1.422 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

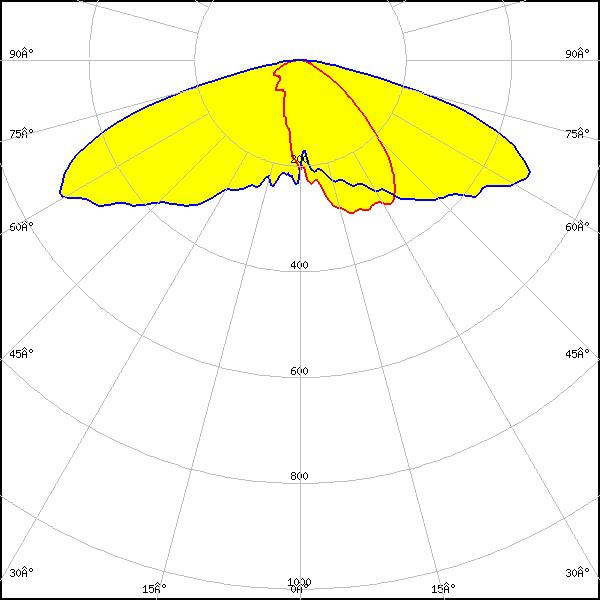

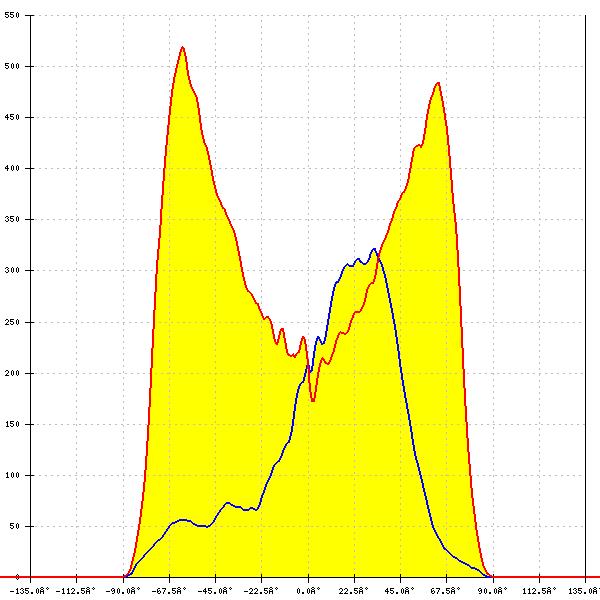

LED: MHB-A/B

FWHM: asymmetric

Peak intensity: 0.000 cd/lm

Efficiency: 74 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

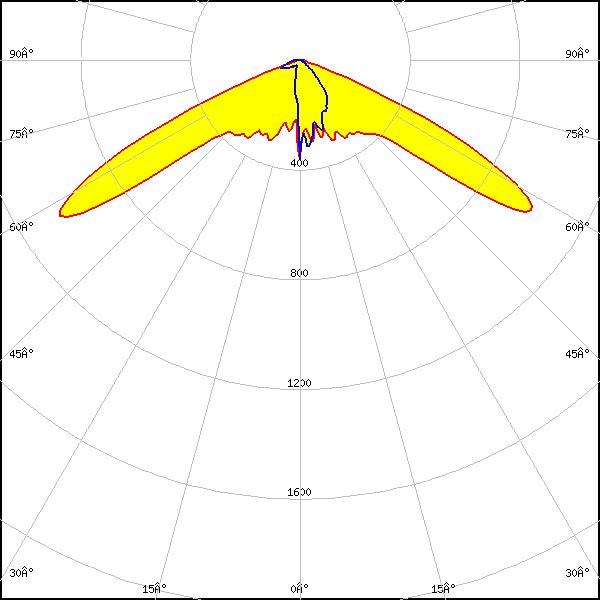

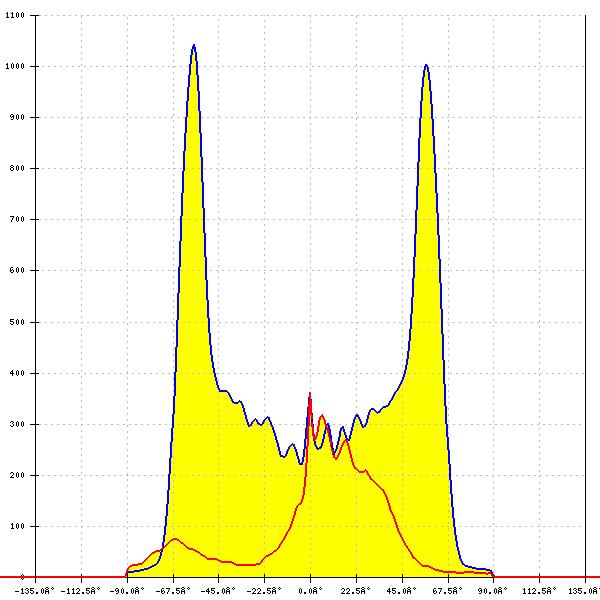

LED: XP-G3

FWHM: asymmetric

Peak intensity: 1.150 cd/lm

Efficiency: 79 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

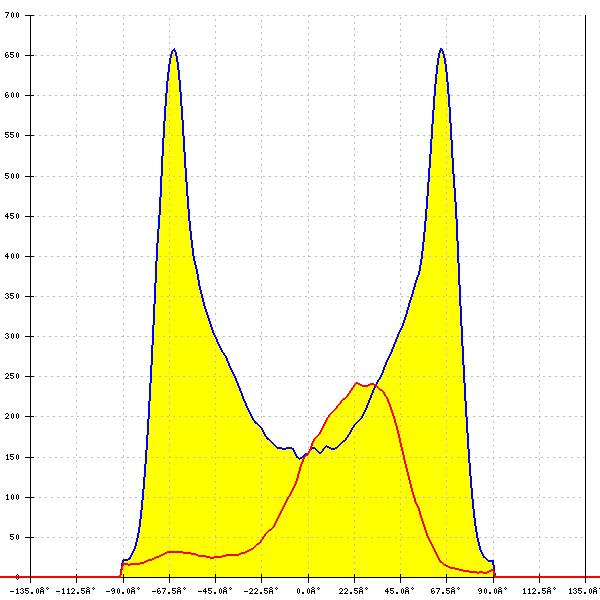

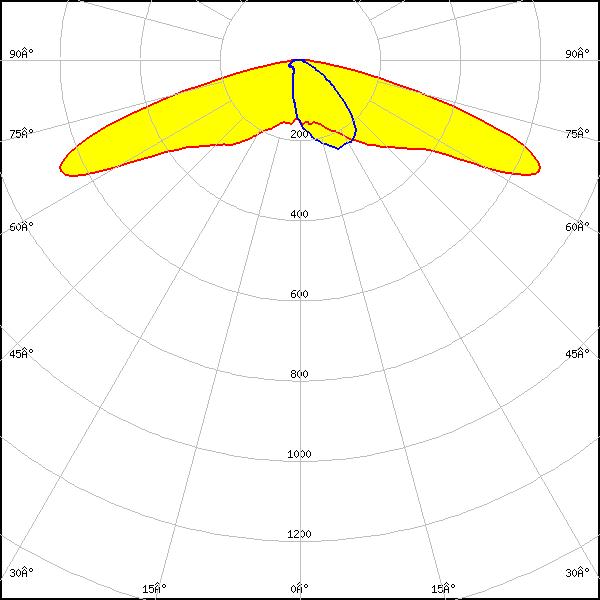

LED: XP-L2

FWHM: asymmetric

Peak intensity: 0.721 cd/lm

Efficiency: 83 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XT-E

FWHM: asymmetric

Peak intensity: 1.310 cd/lm

Efficiency: 76 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

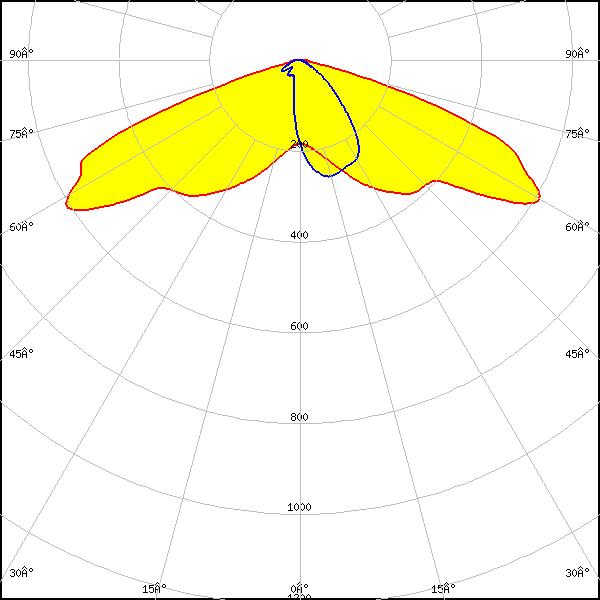

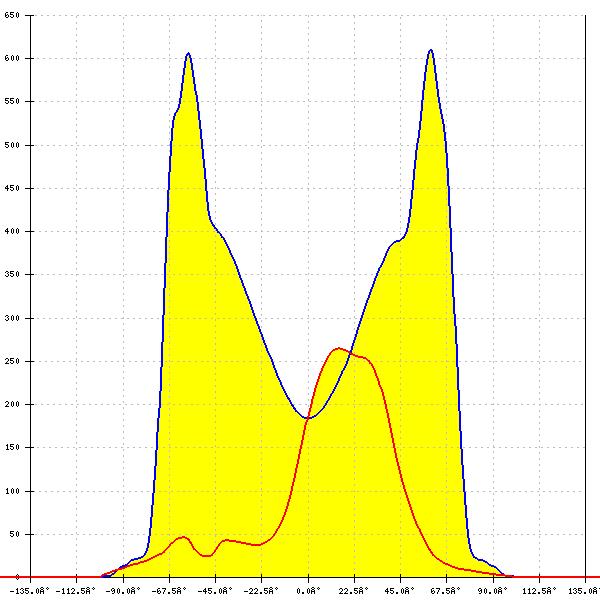

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.700 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

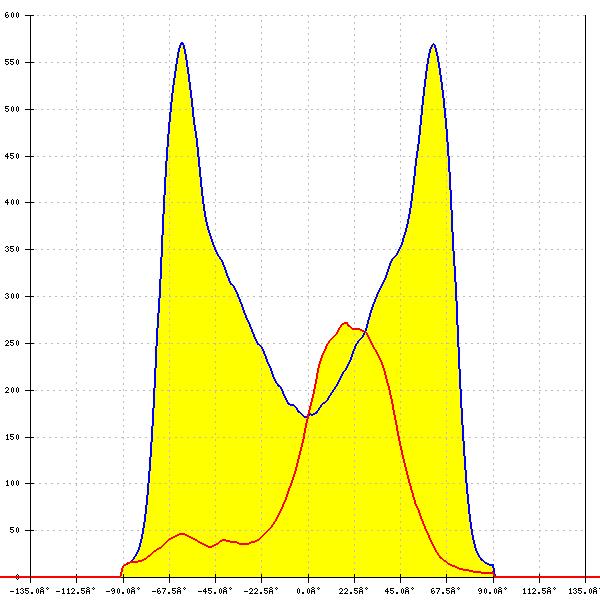

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.616 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

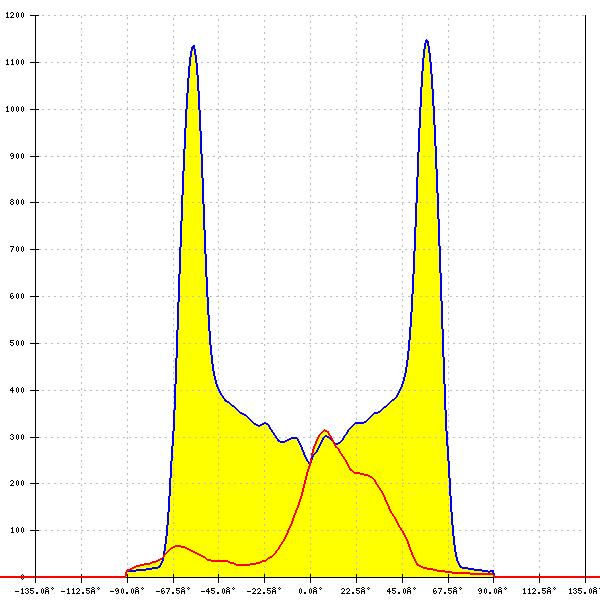

LED: LUXEON HL2X

FWHM: asymmetric

Peak intensity: 1.275 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

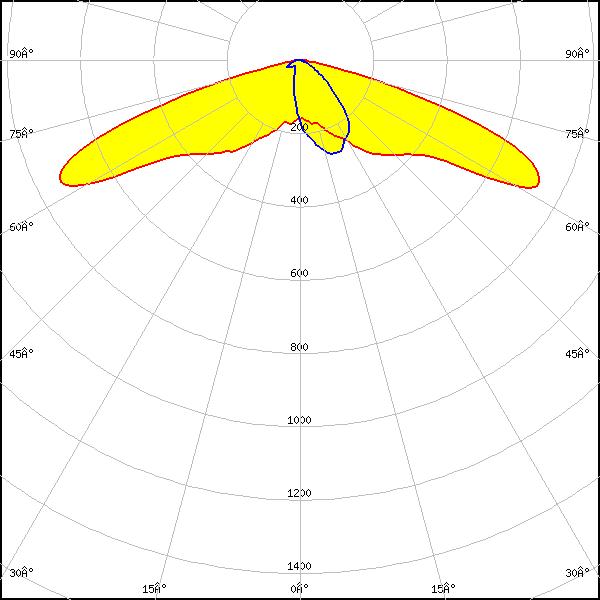

LED: NV4WB35AM

FWHM: asymmetric

Peak intensity: 0.796 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.586 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

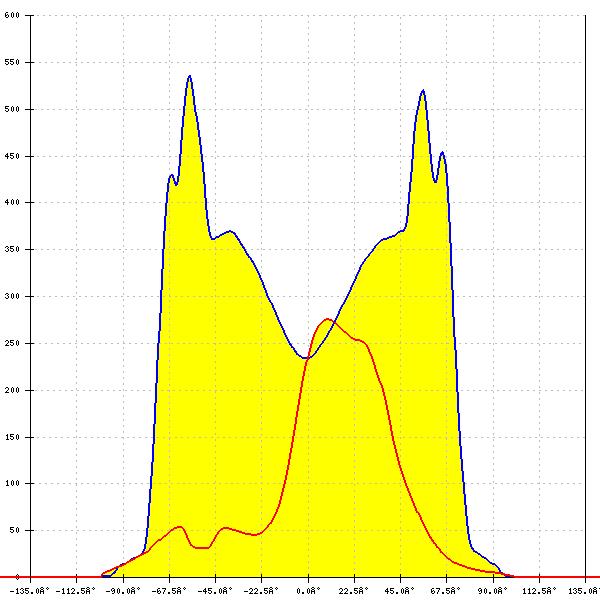

LED: OSCONIQ P 3737 (2W) PUSRA1

FWHM: asymmetric

Peak intensity: 1.318 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

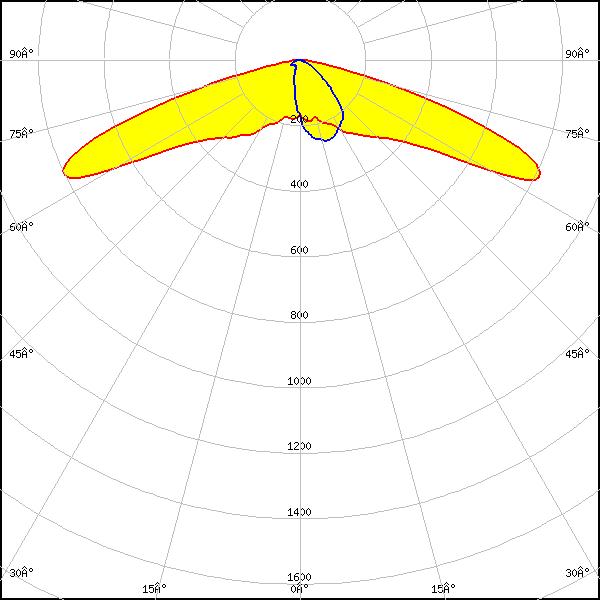

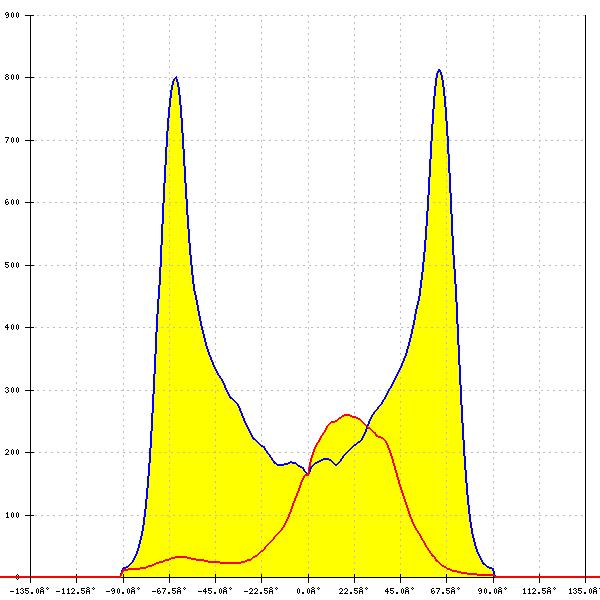

LED: OSCONIQ P 3737 (3W) PUSTA1

FWHM: asymmetric

Peak intensity: 0.890 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

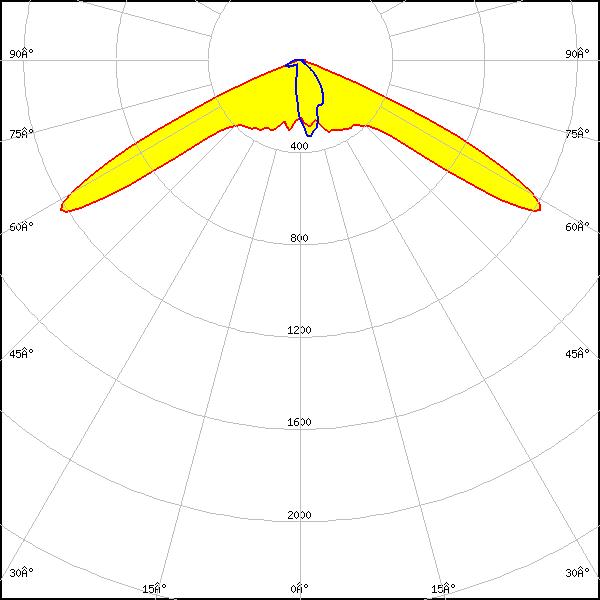

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 1.420 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH351B

FWHM: asymmetric

Peak intensity: 1.029 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

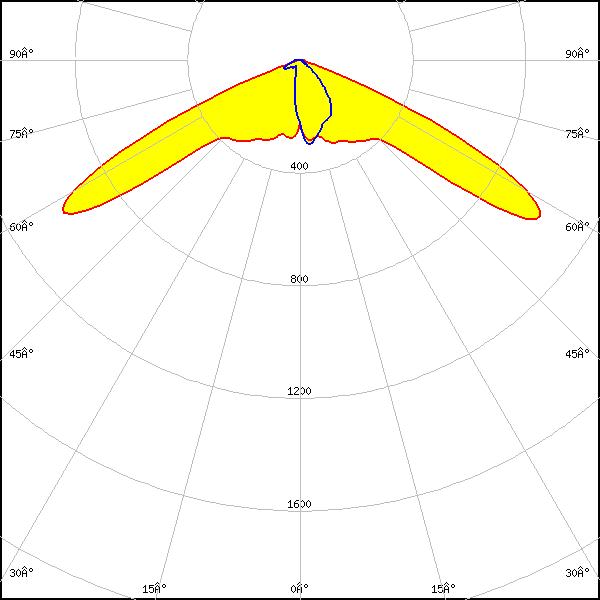

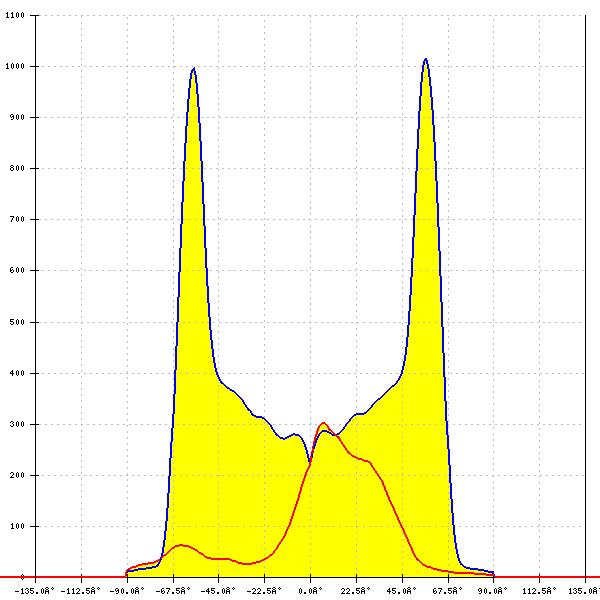

LED: LH351C
