CS16575_STRADELLA-IP-28-T1-A

Print

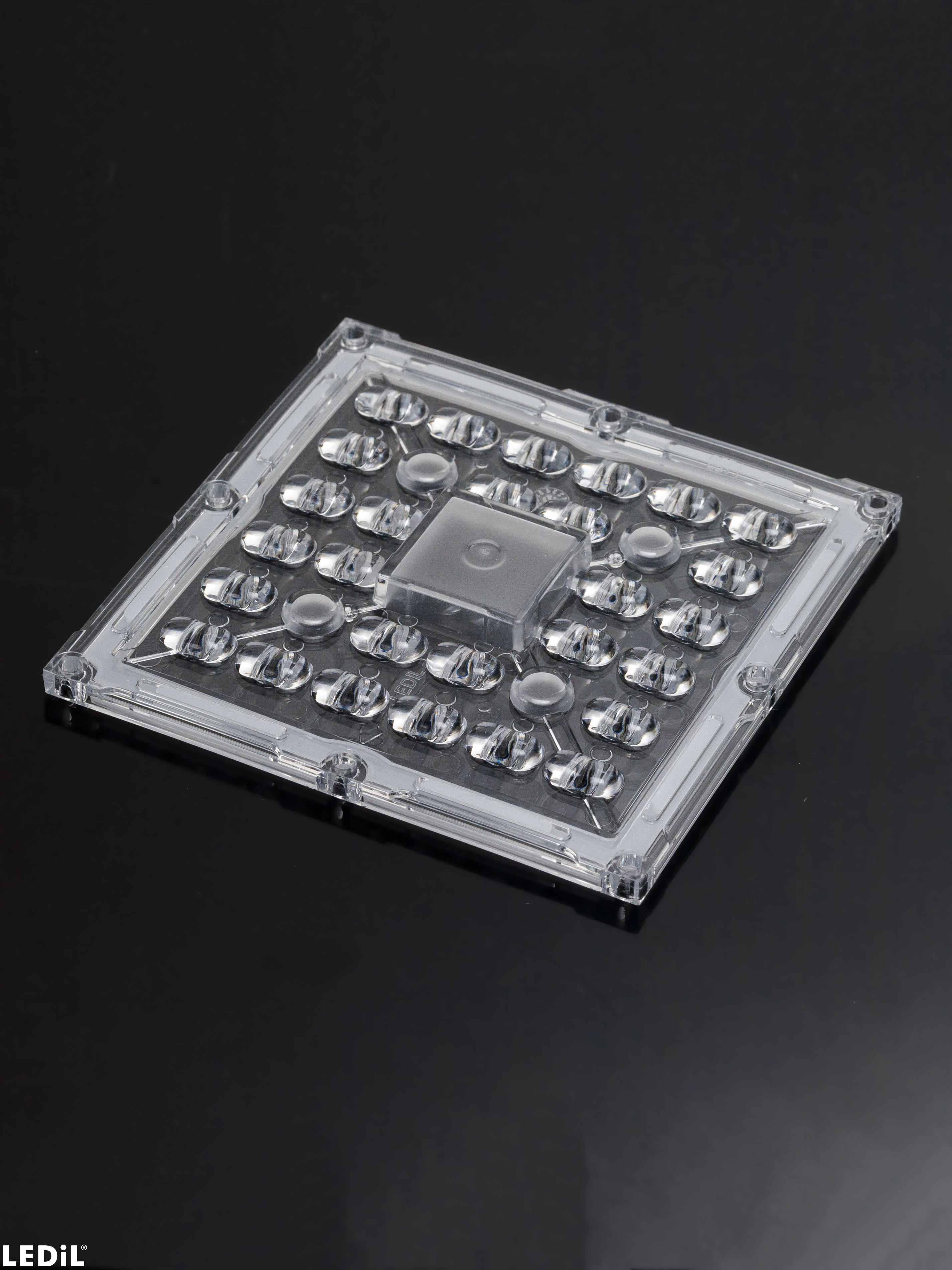

Asymmetric IESNA Type I (short) beam. Results a Type II beam with tilted poles. Targeted for Indian market. Variant made from PMMA.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.50 mm
  • Fastening:
    screw
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    5.8 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16575_STRADELLA-IP-28-T1-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

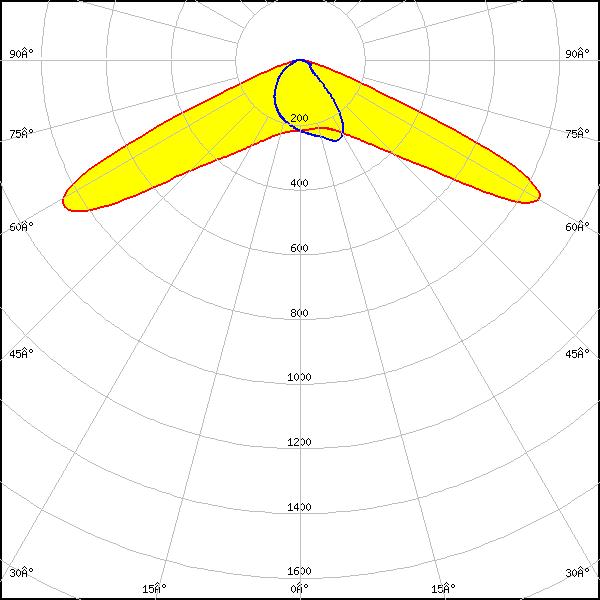

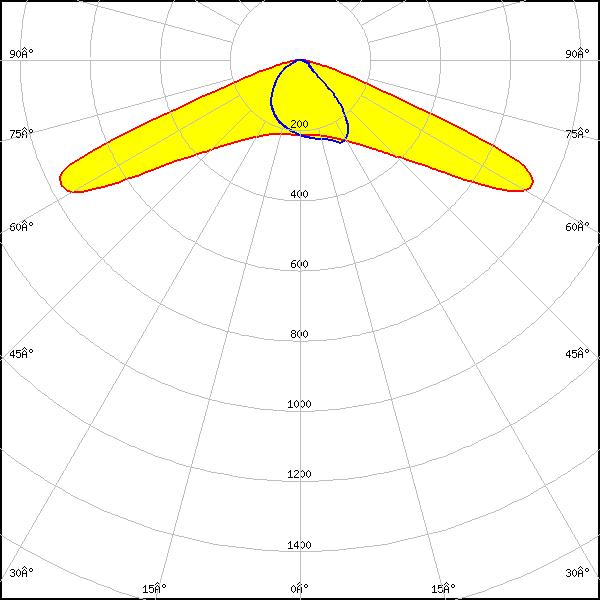

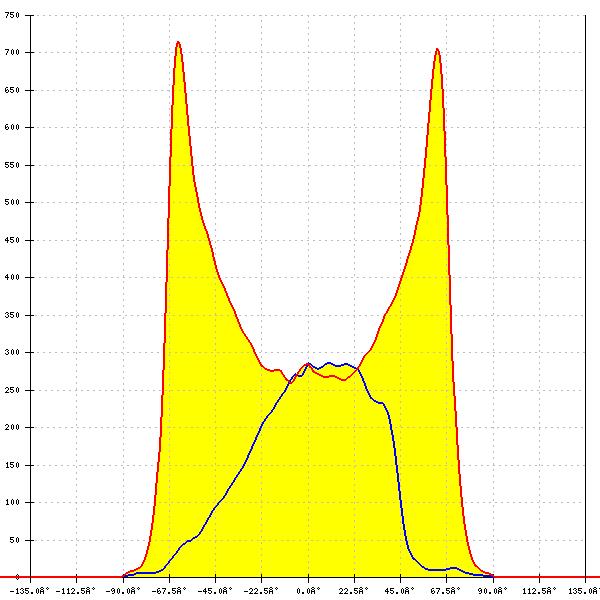

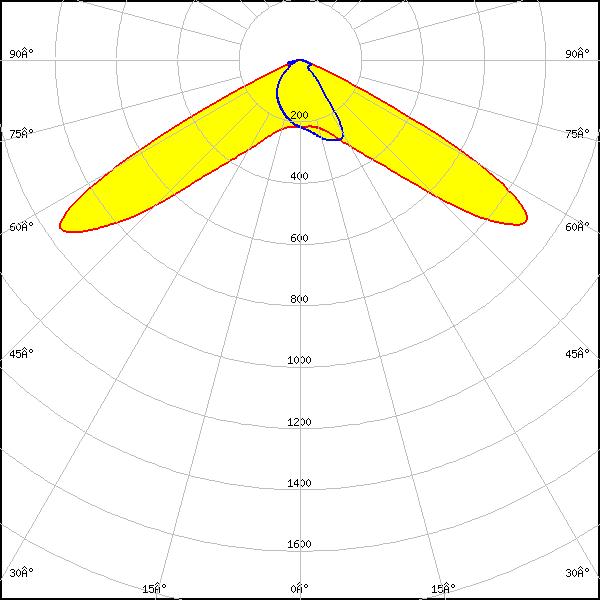

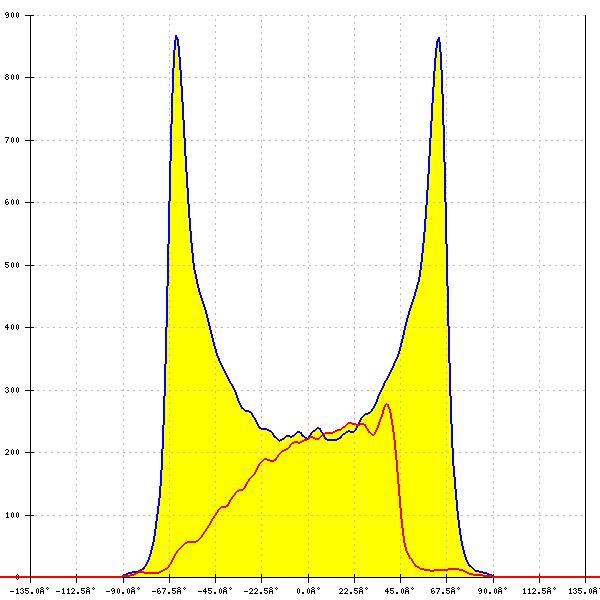

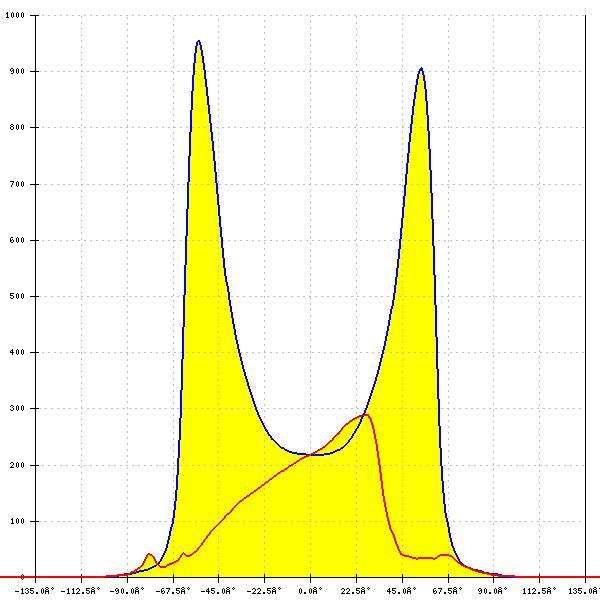

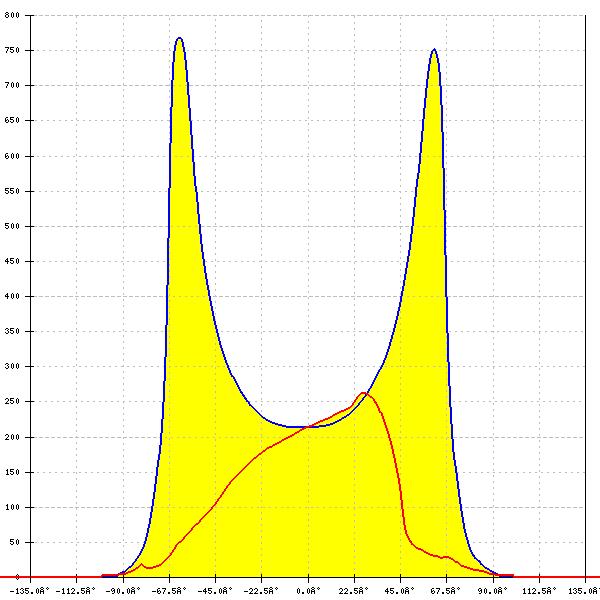

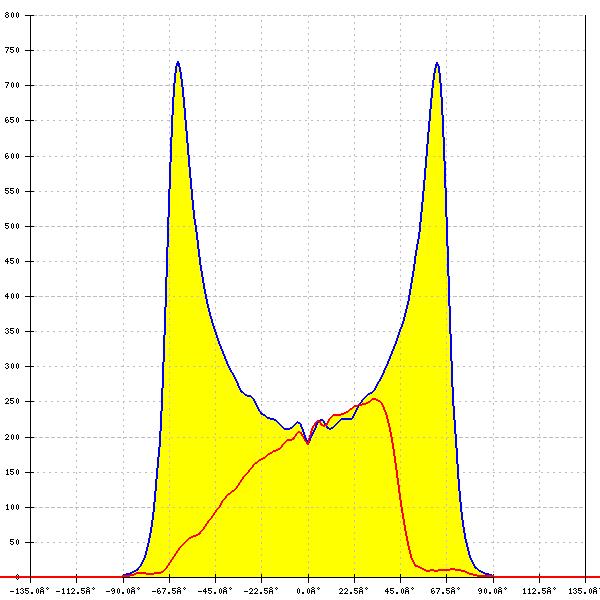

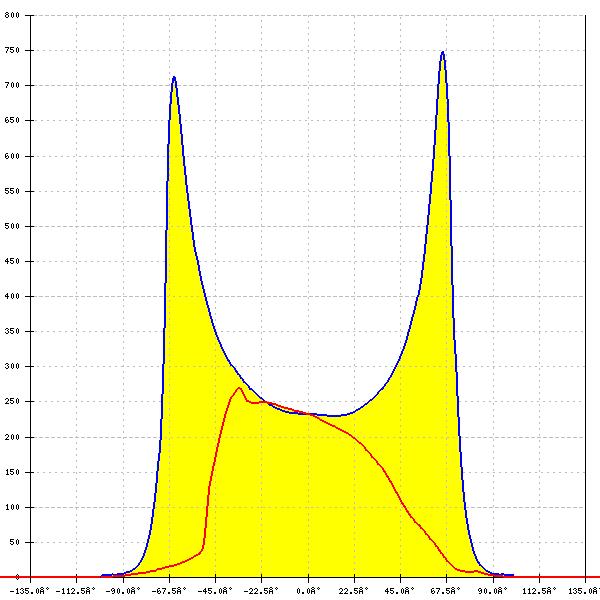

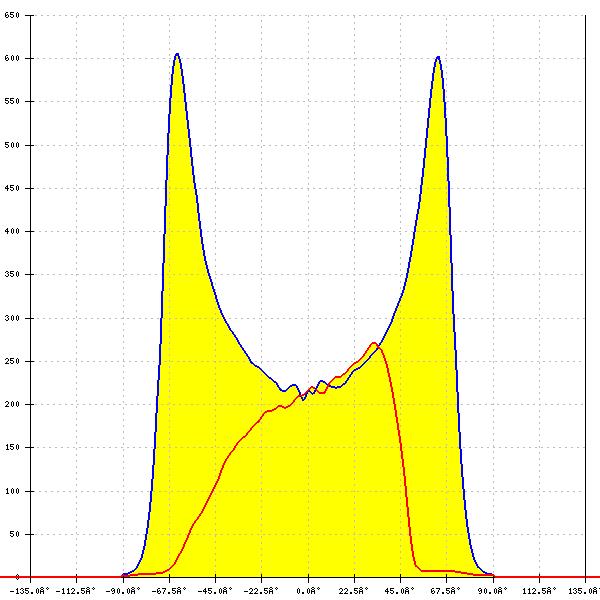

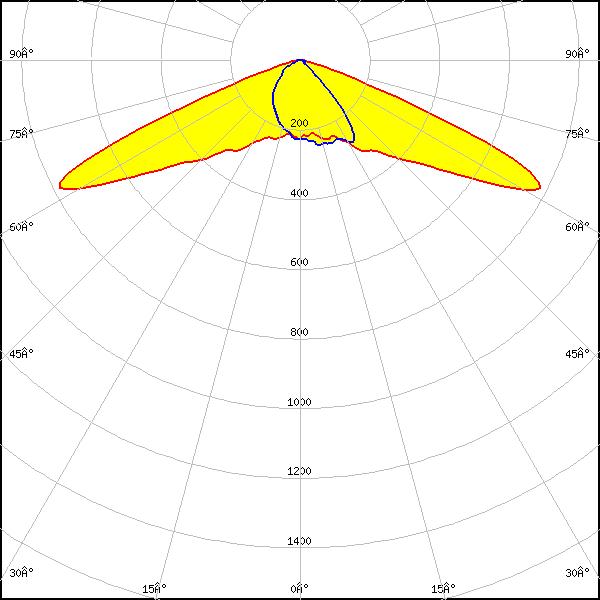

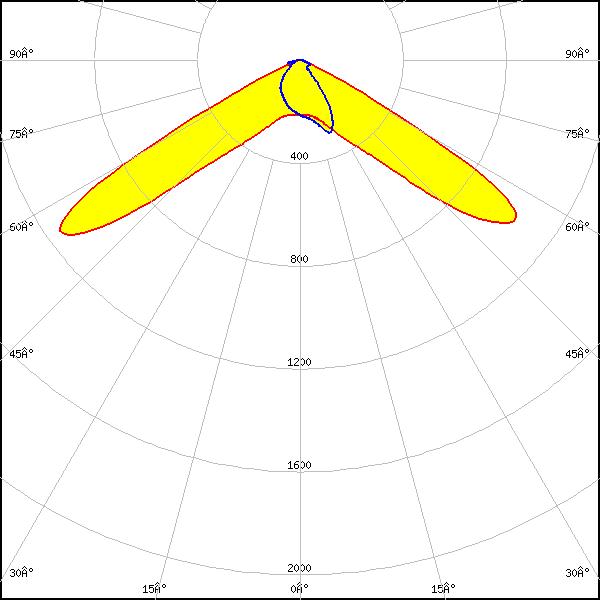

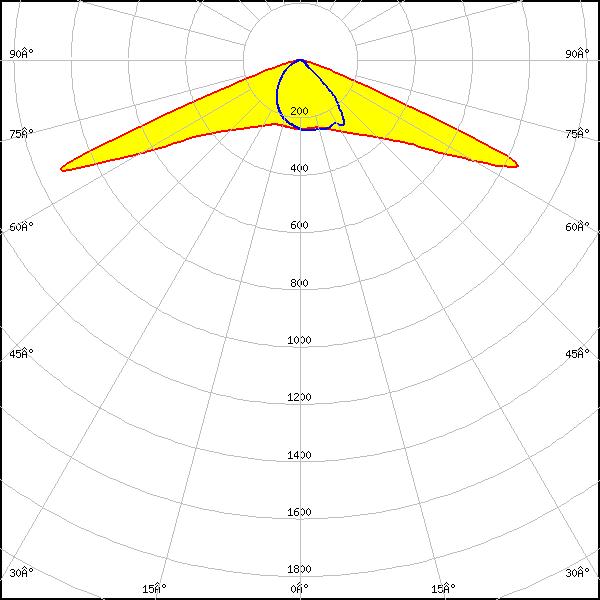

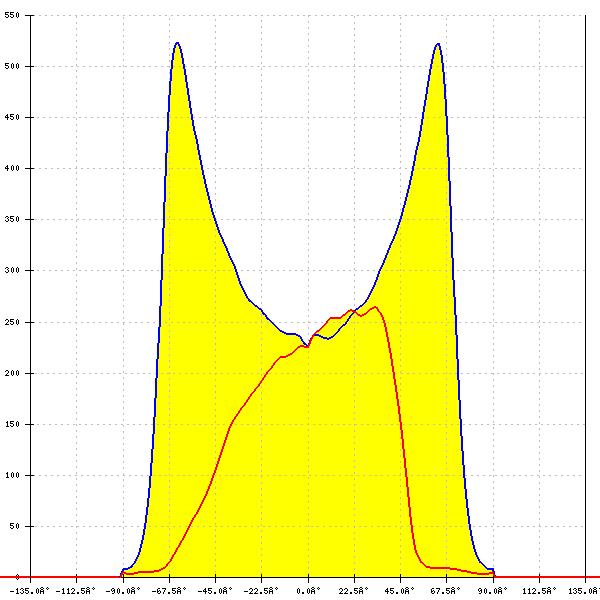

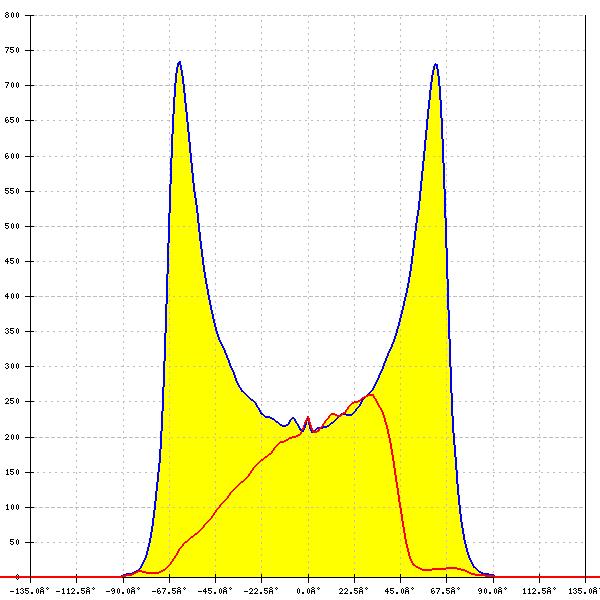

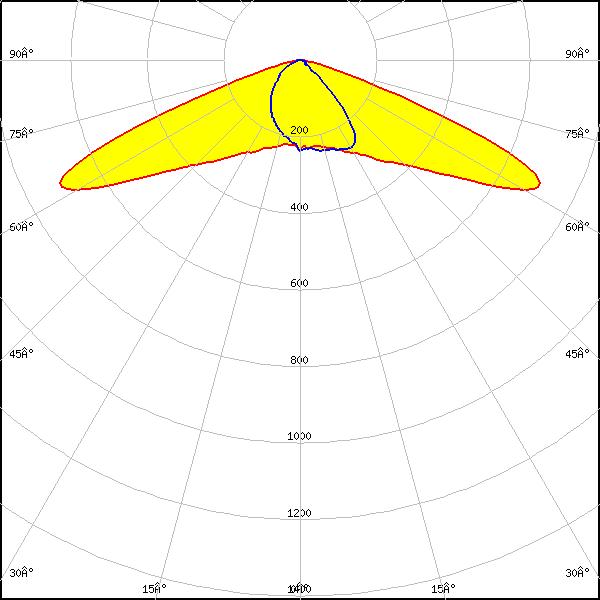

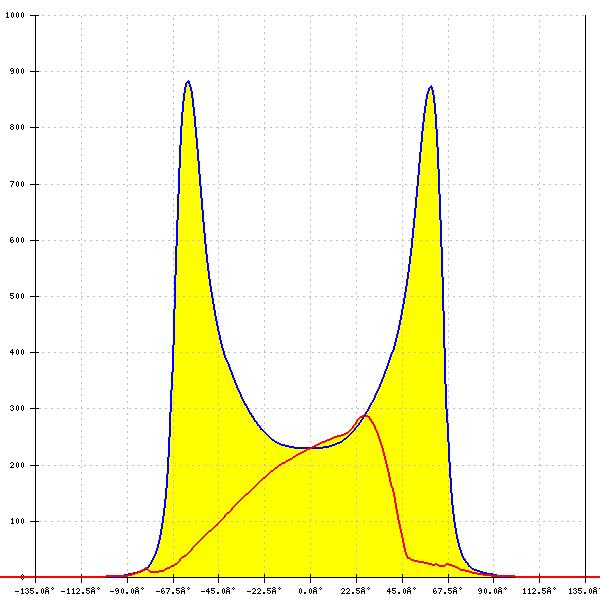

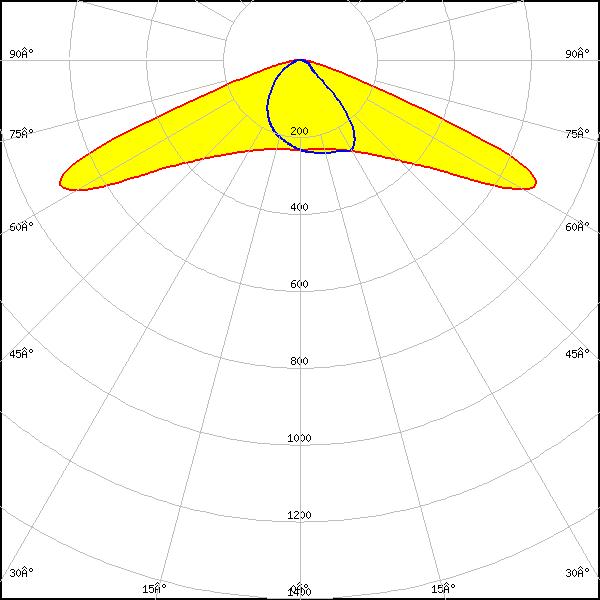

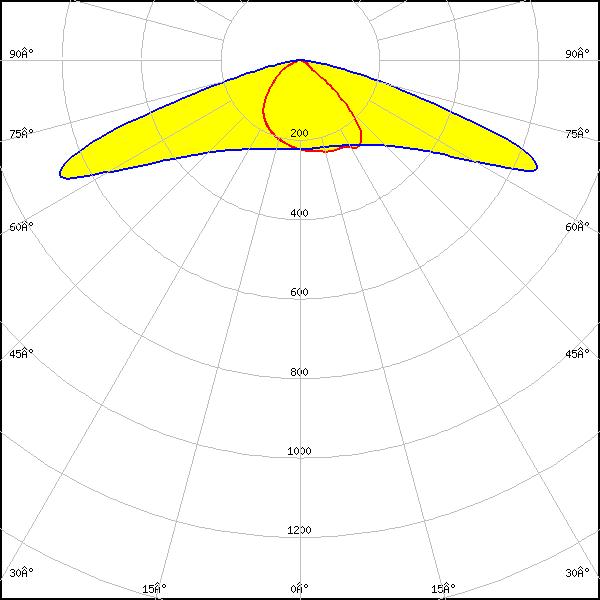

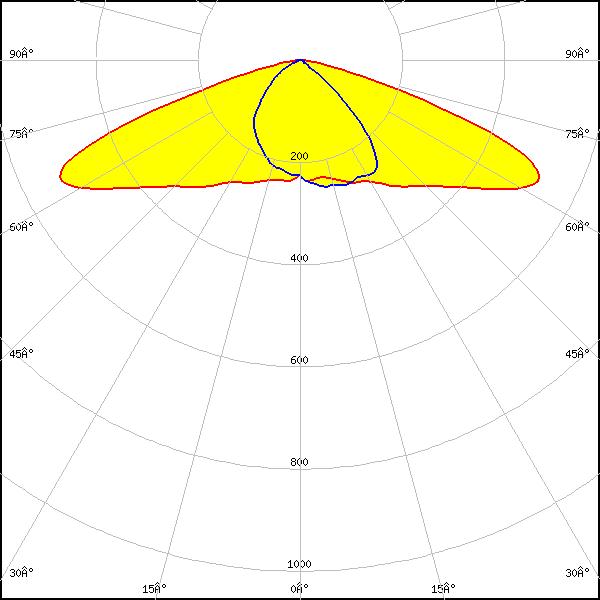

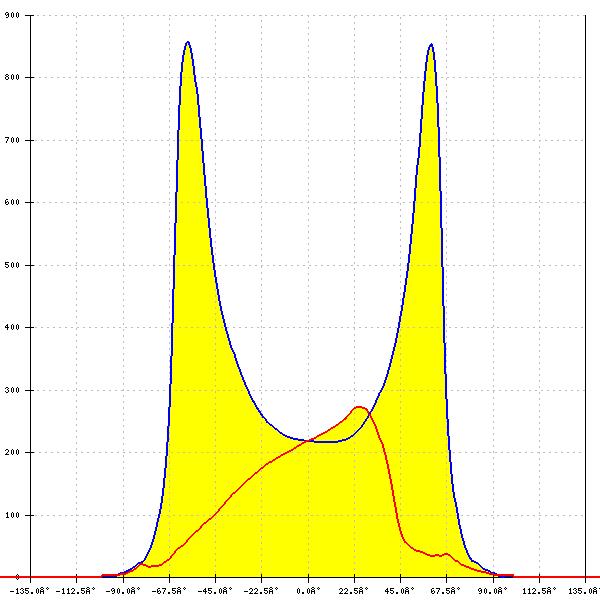

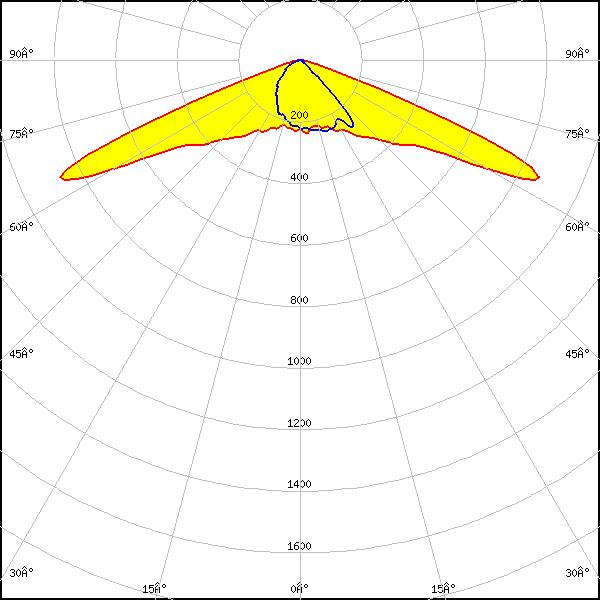

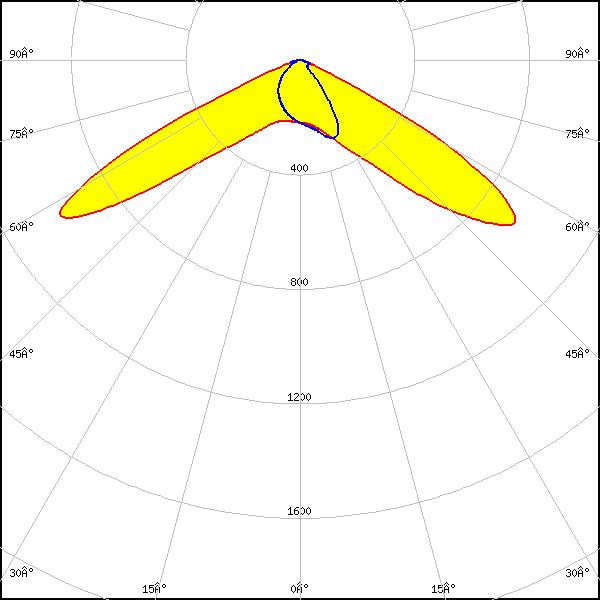

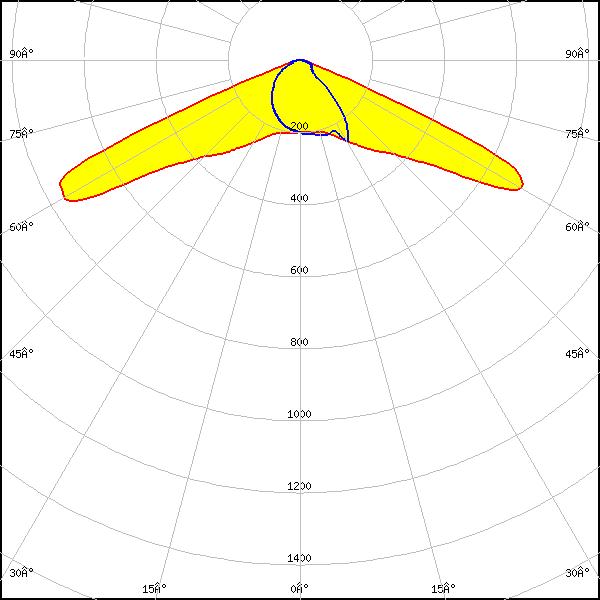

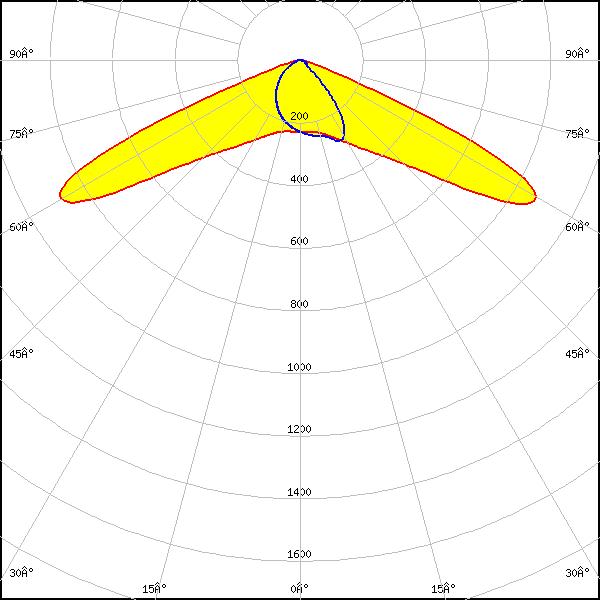

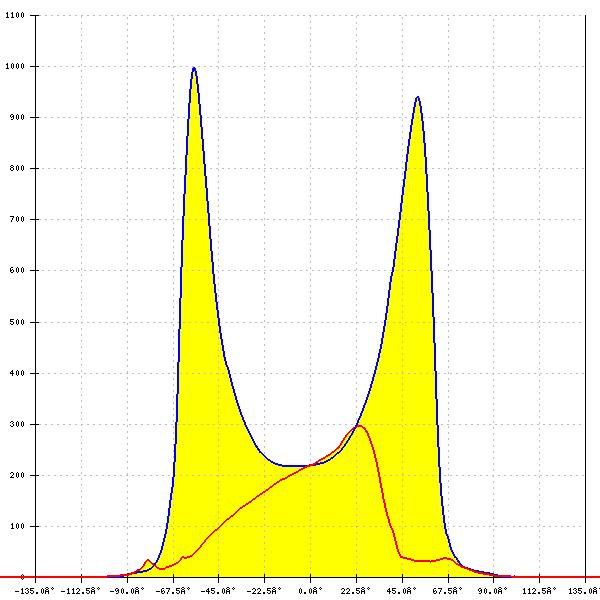

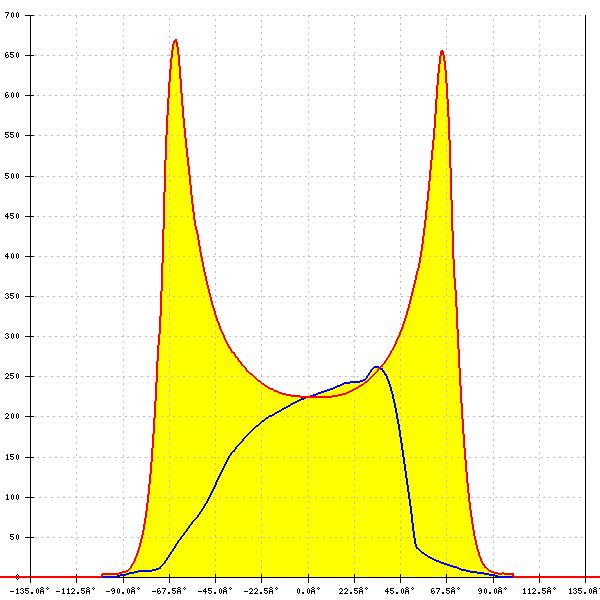

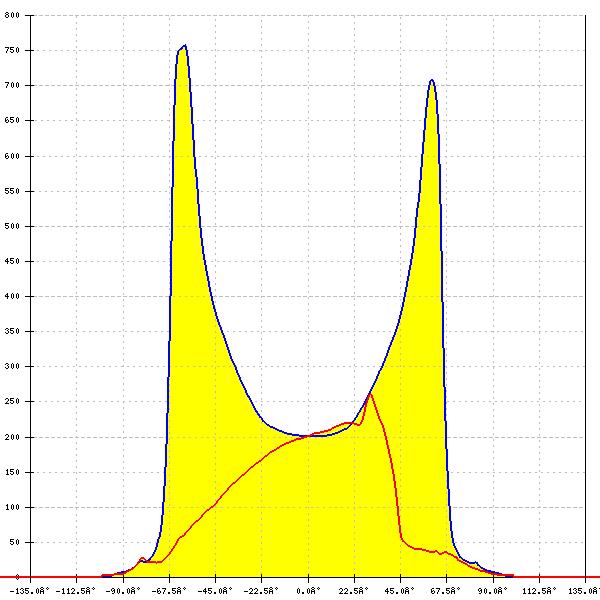

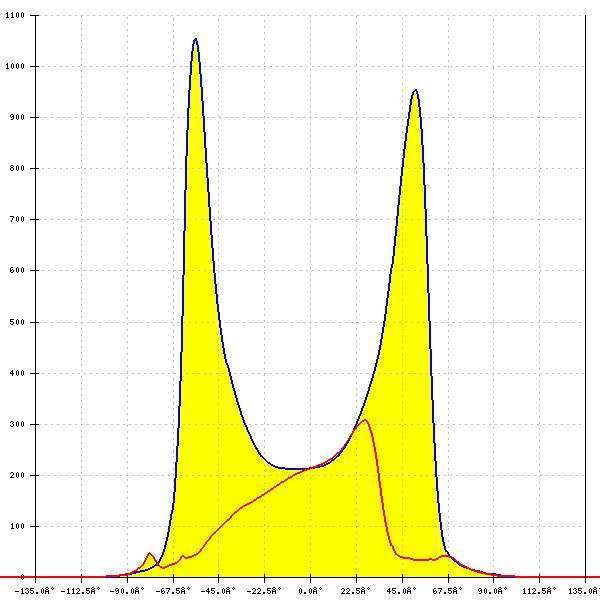

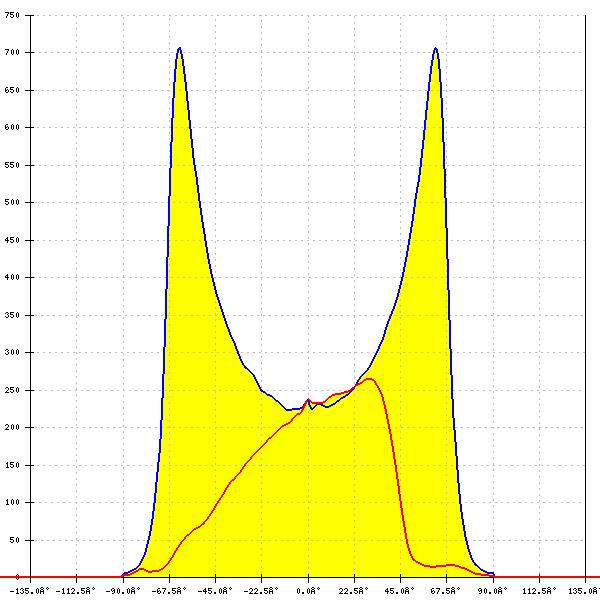

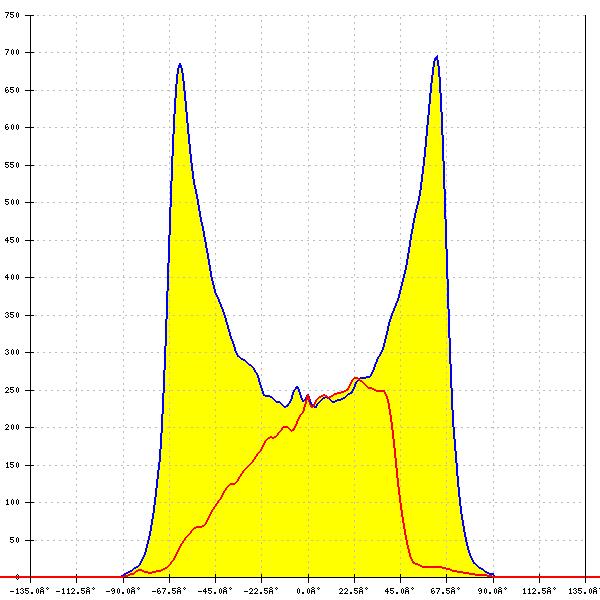

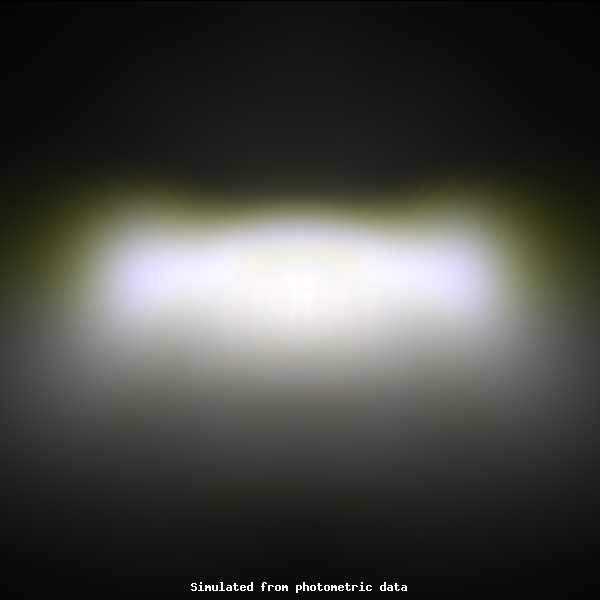

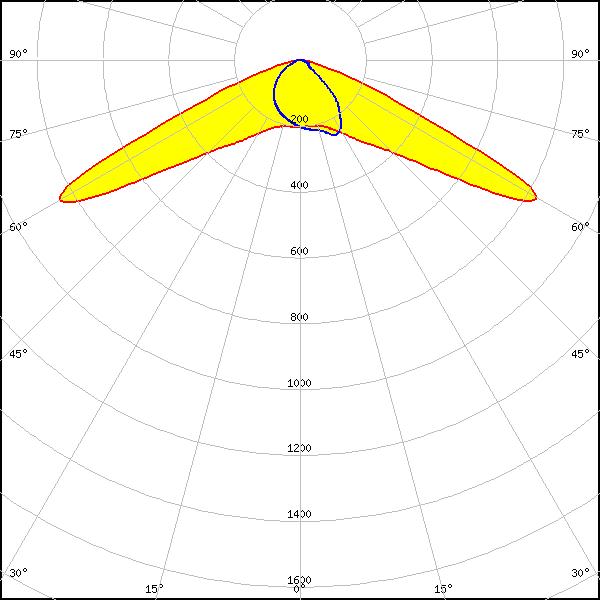

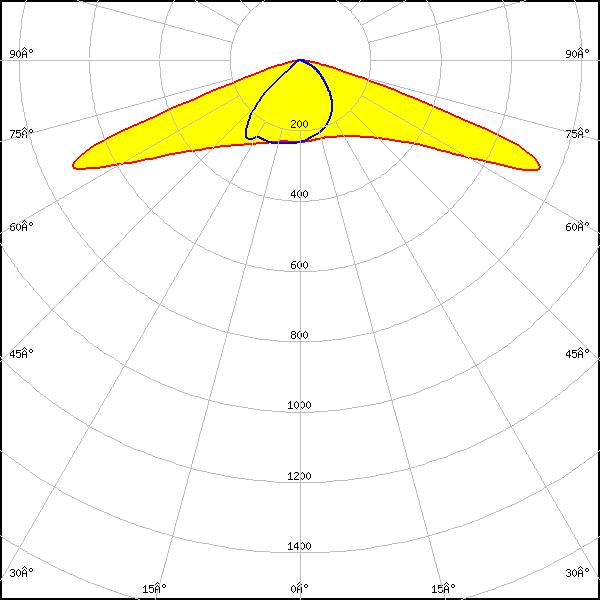

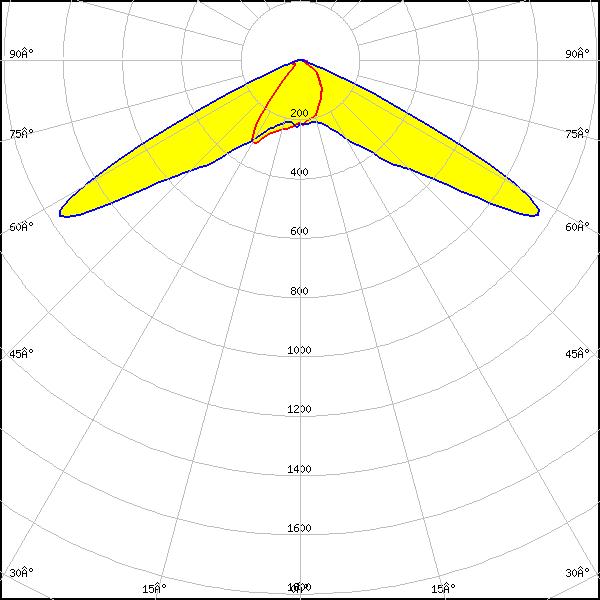

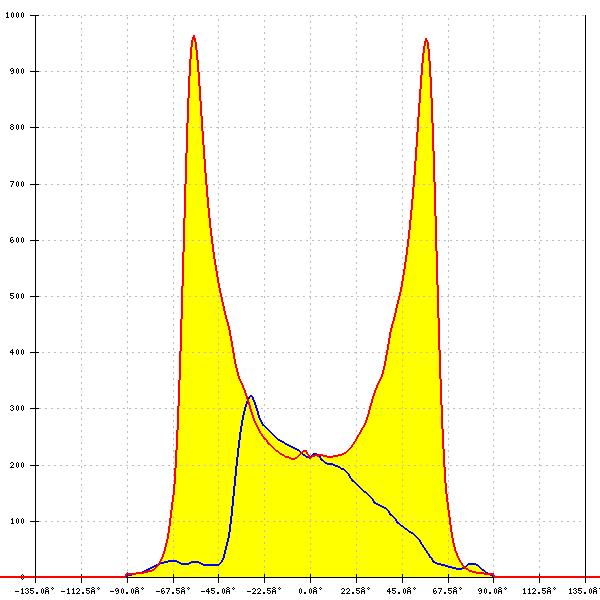

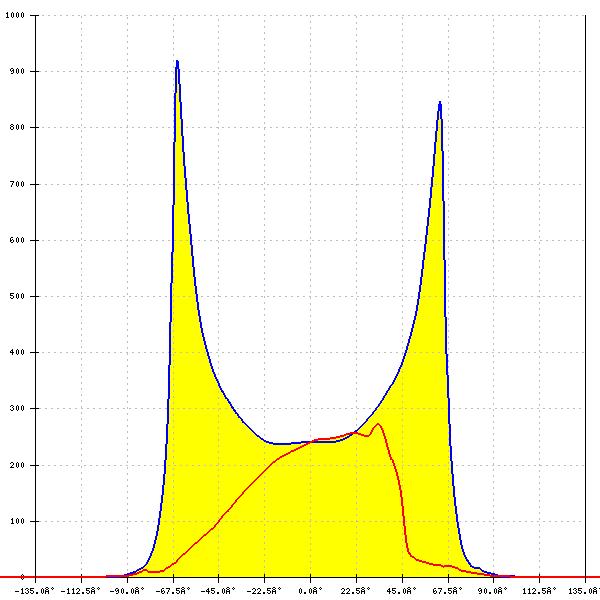

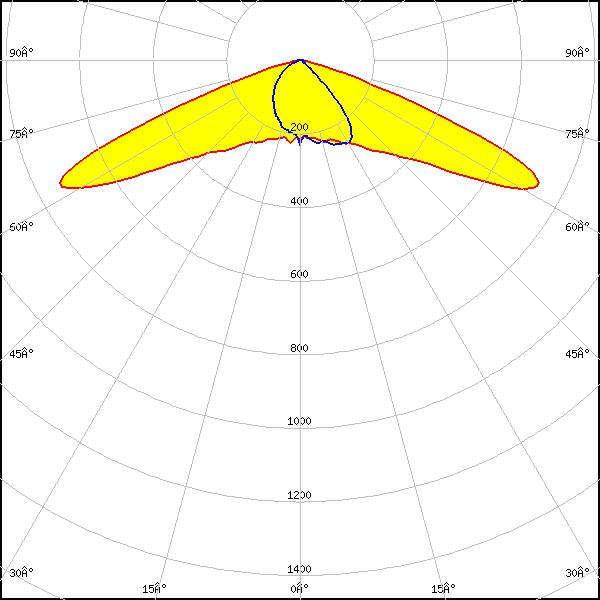

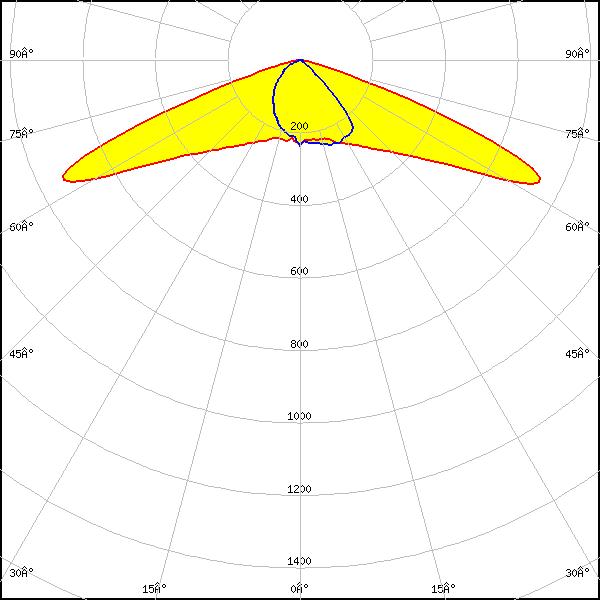

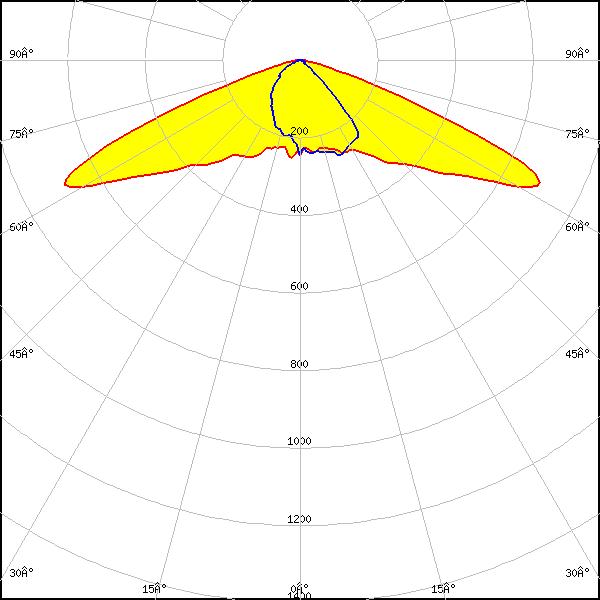

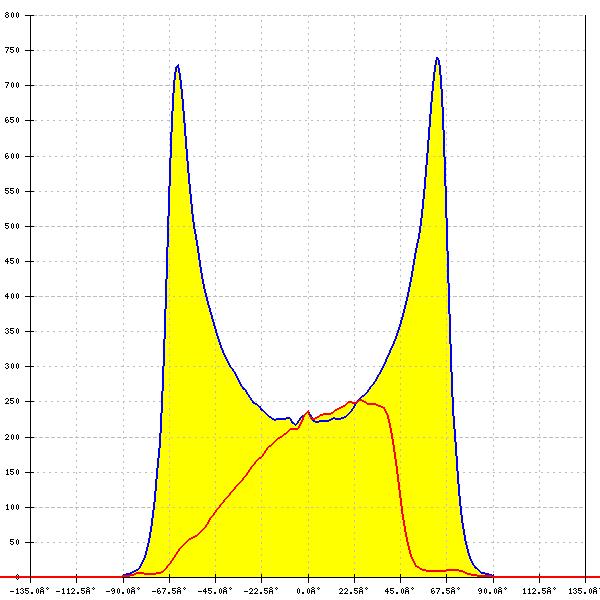

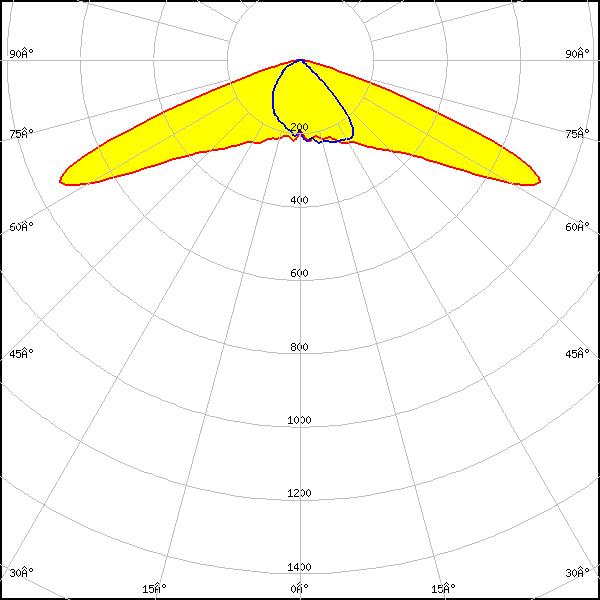

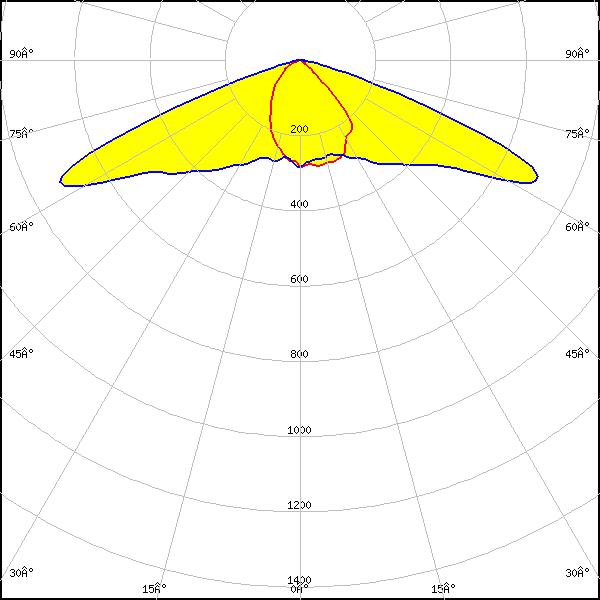

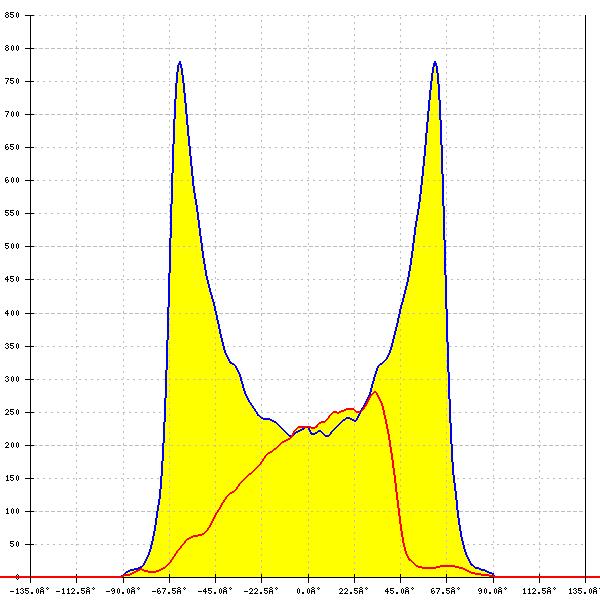

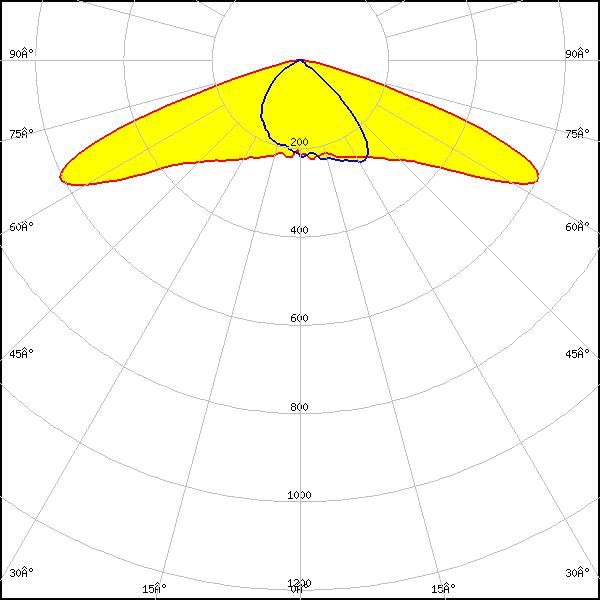

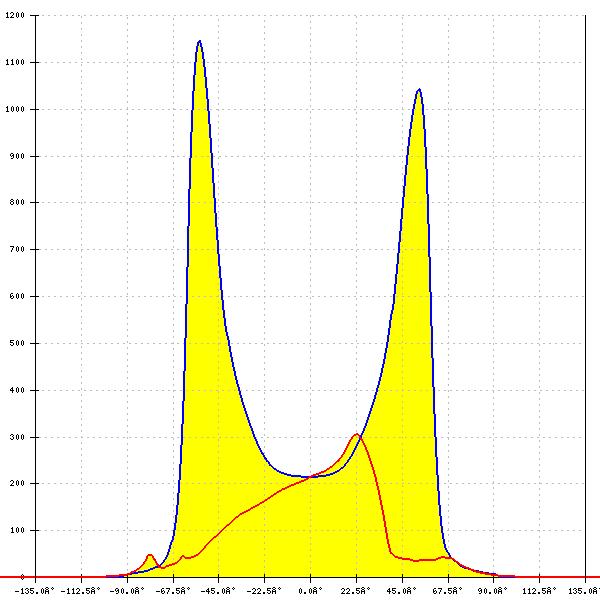

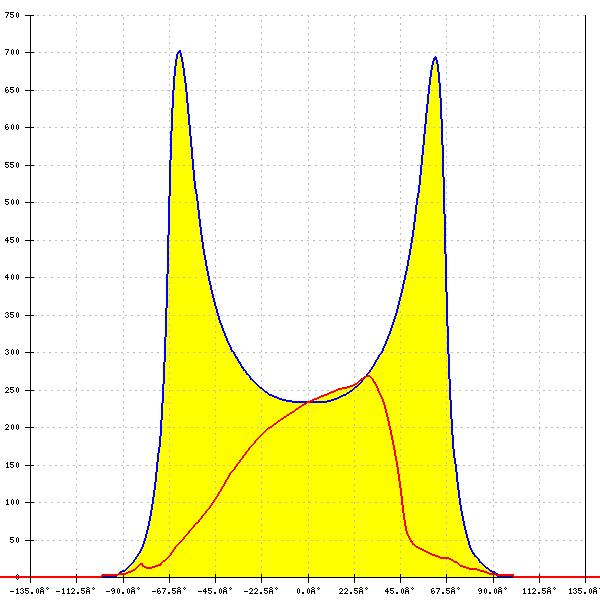

Optical results
