CS16577_STRADELLA-IP-28-VSM
Print

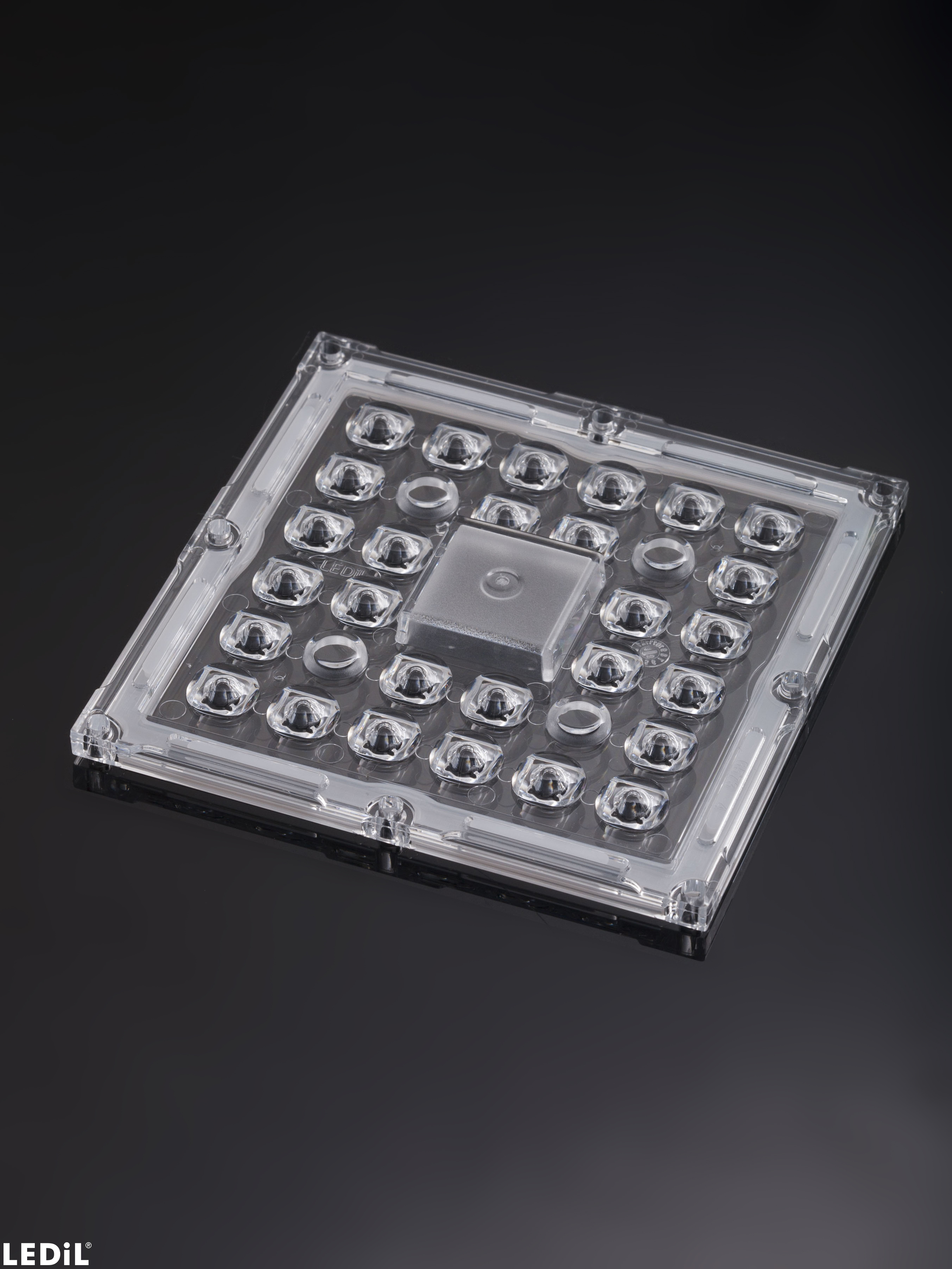

IESNA Type V (square) beam for wide areas lighting such as car parks. Variant made from PMMA.
Component Materials
- STRADELLA-IP-28-VSMMulti-lensPMMA
- STRADELLA-28-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.
Related Content

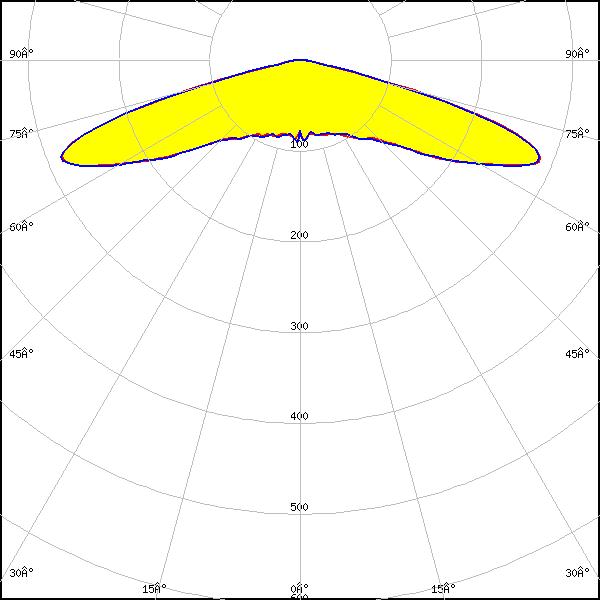

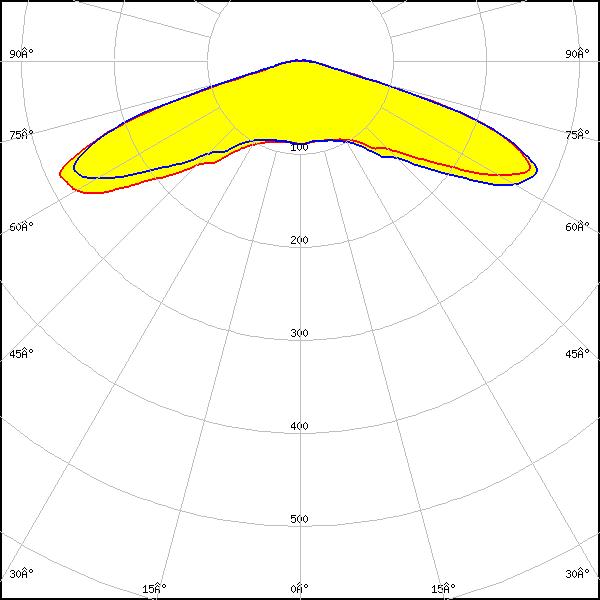

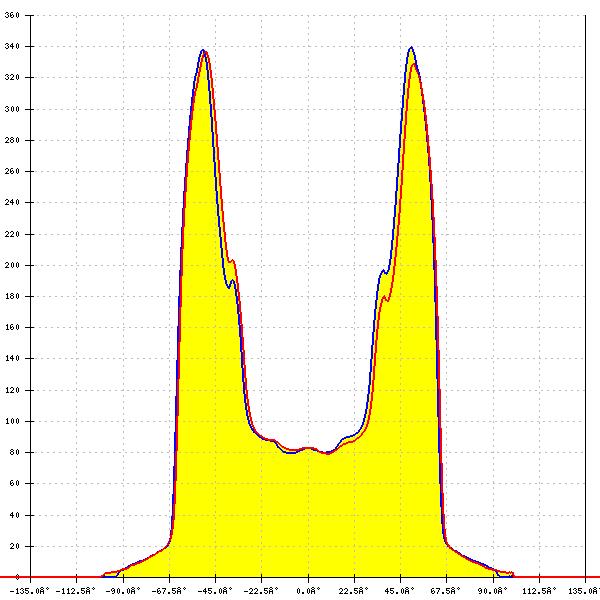

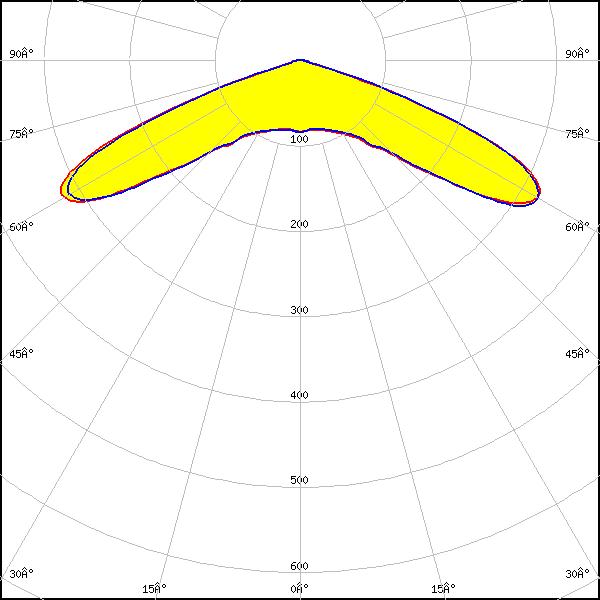

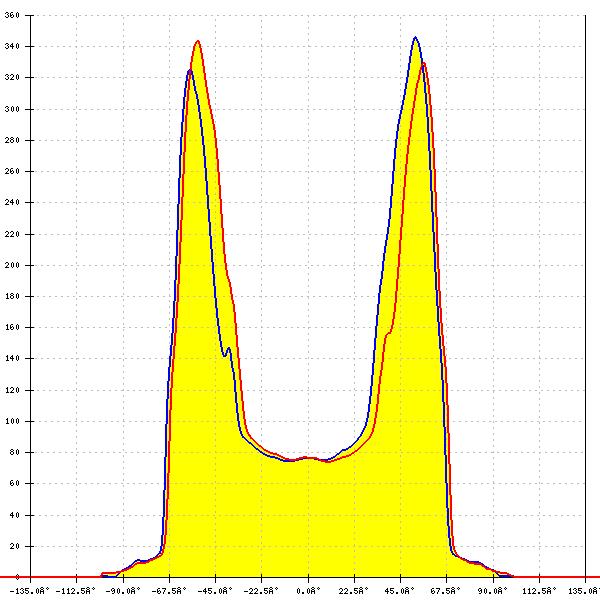

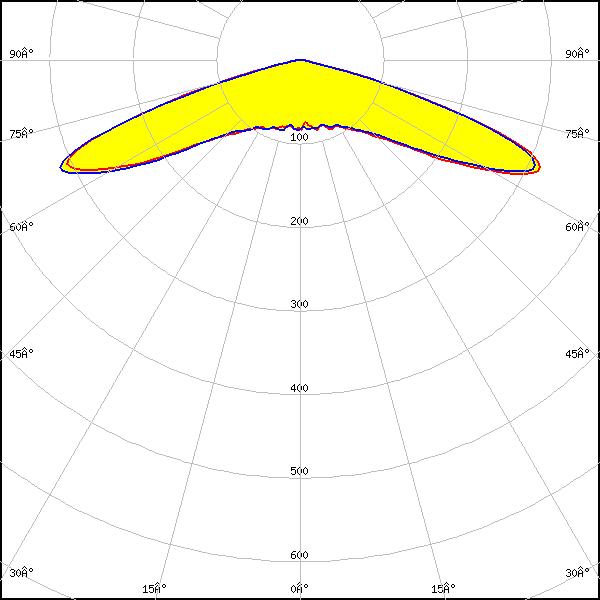

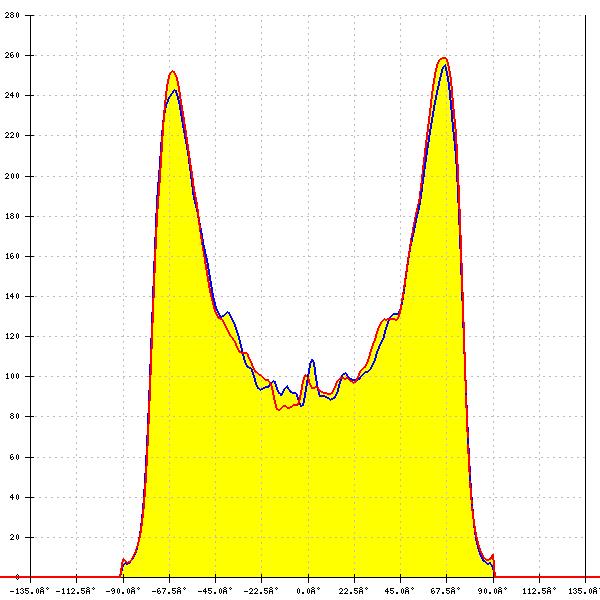

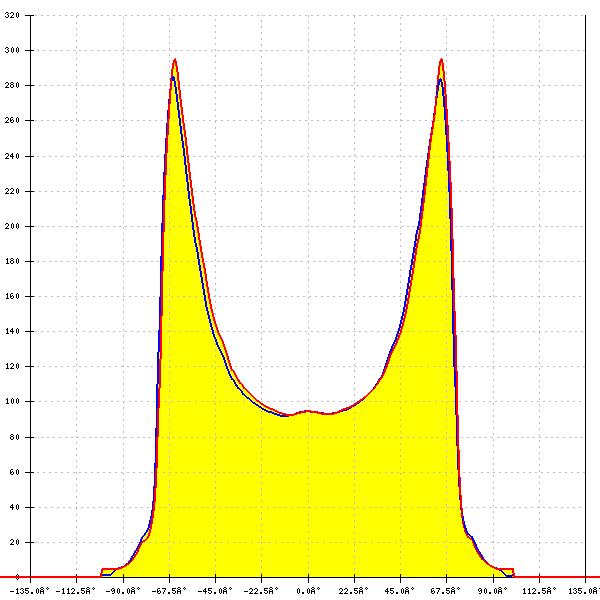

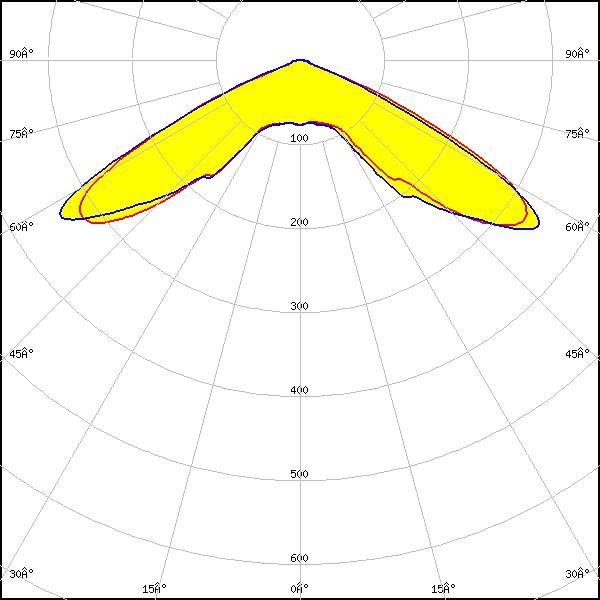

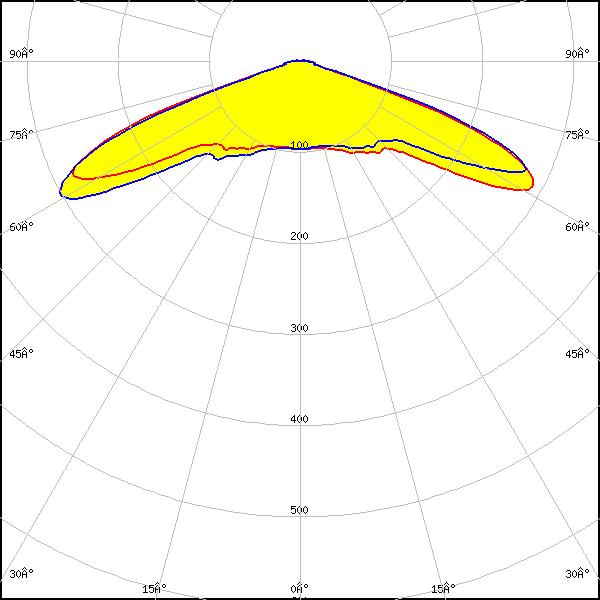

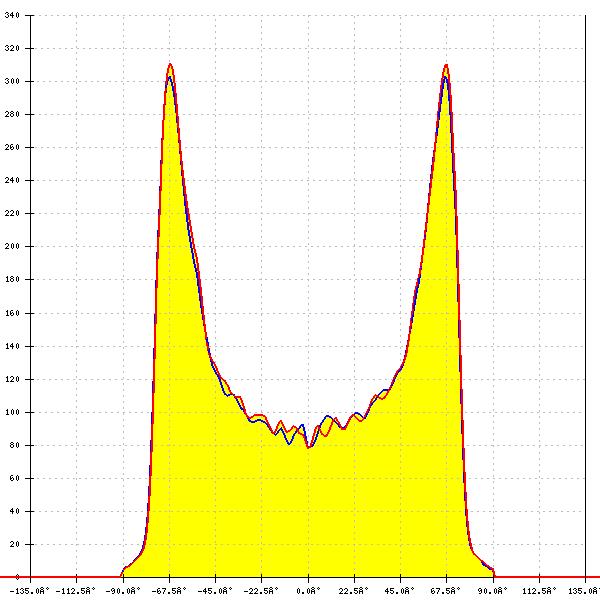

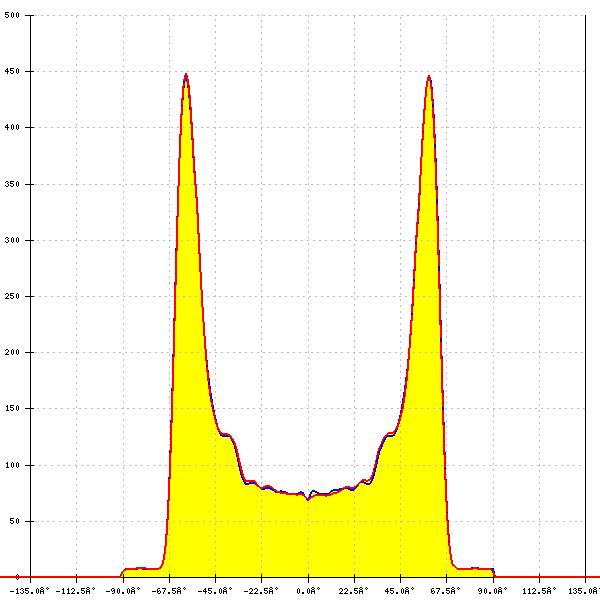

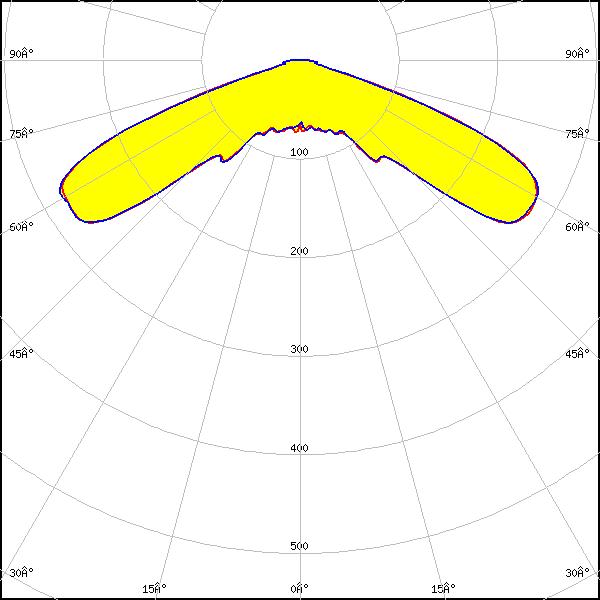

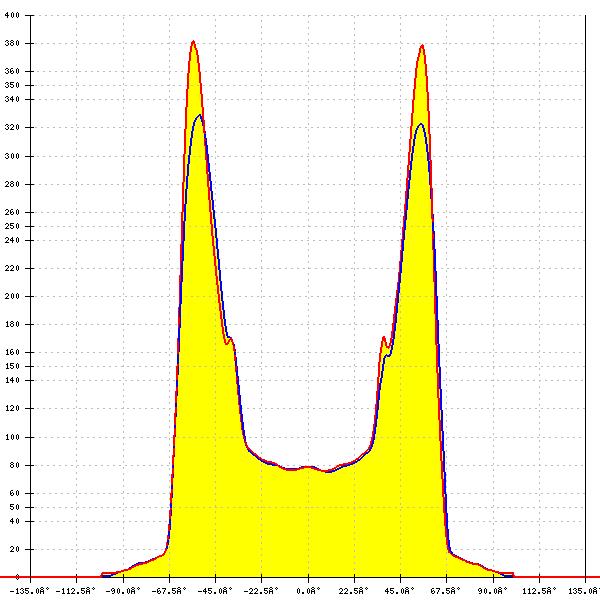

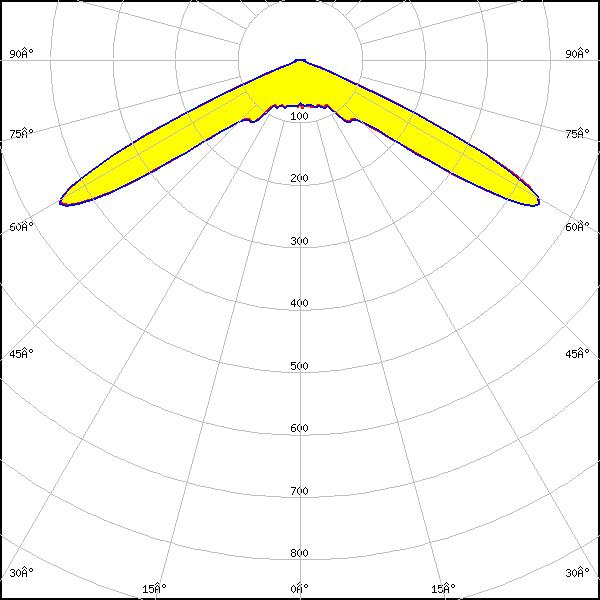

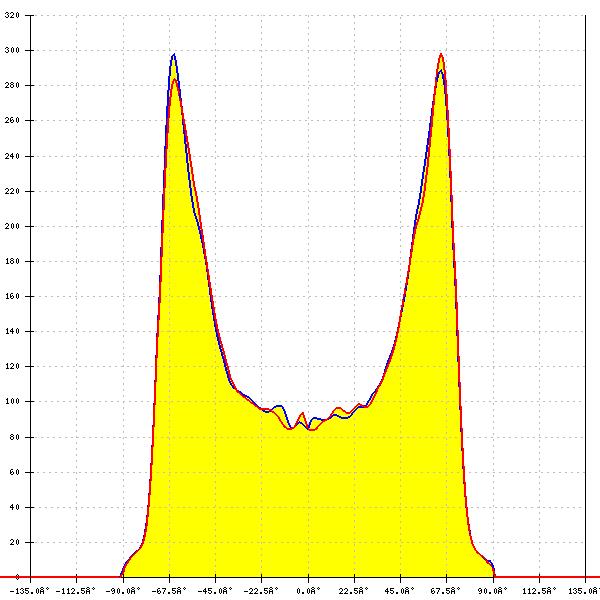

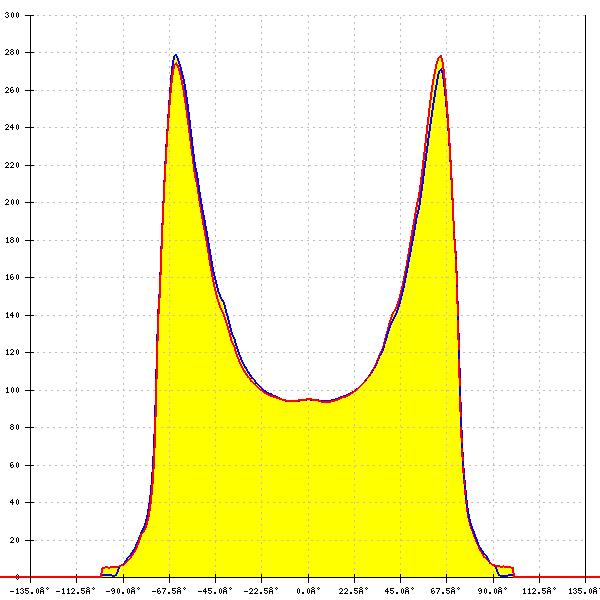

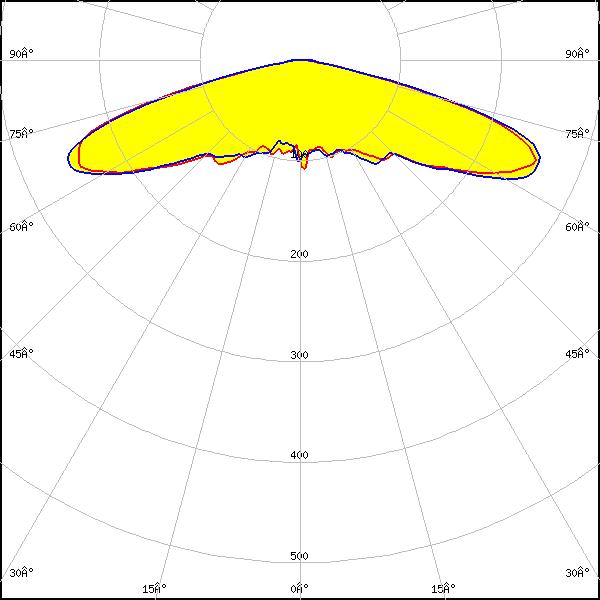

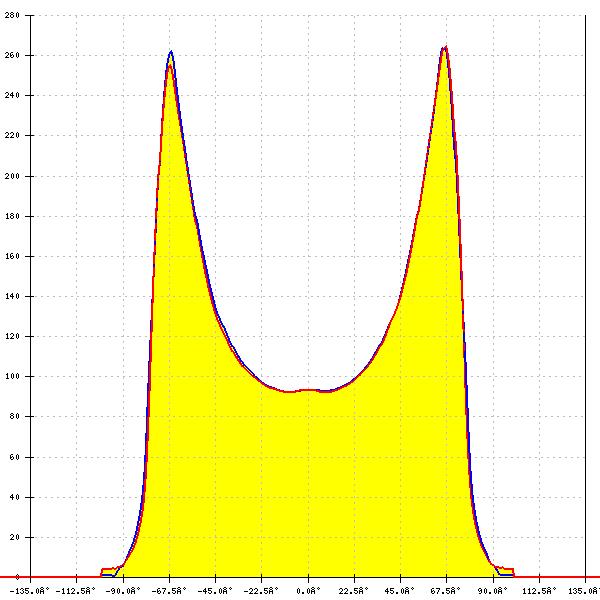

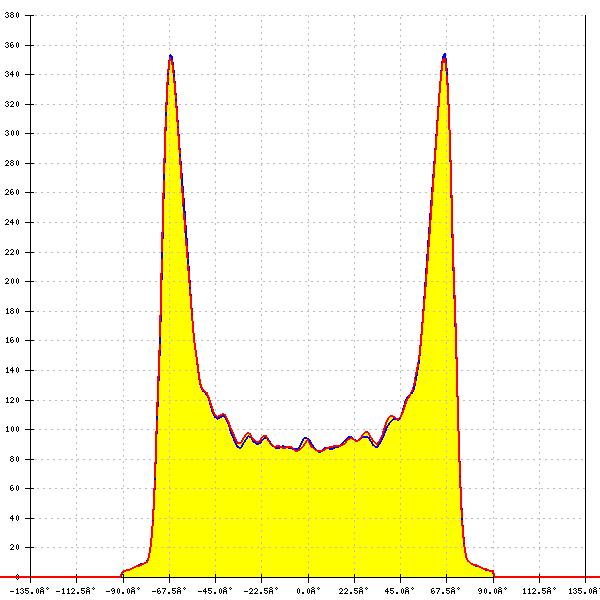

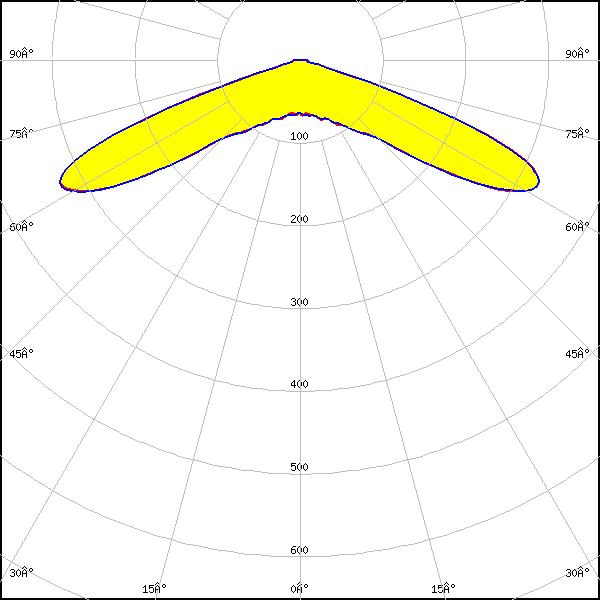

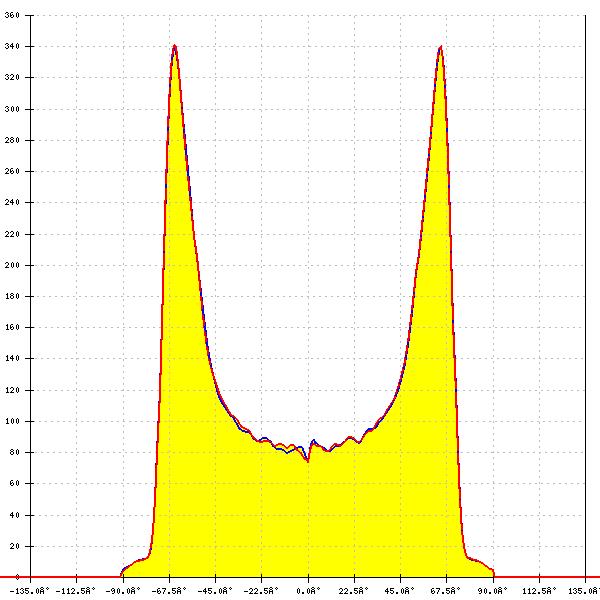

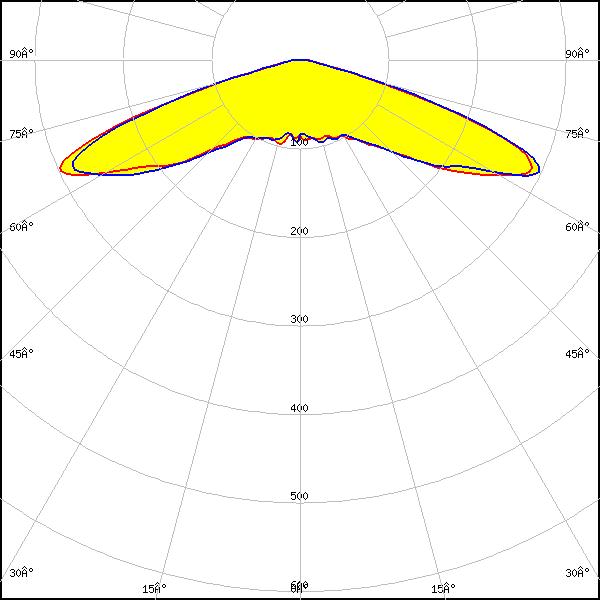

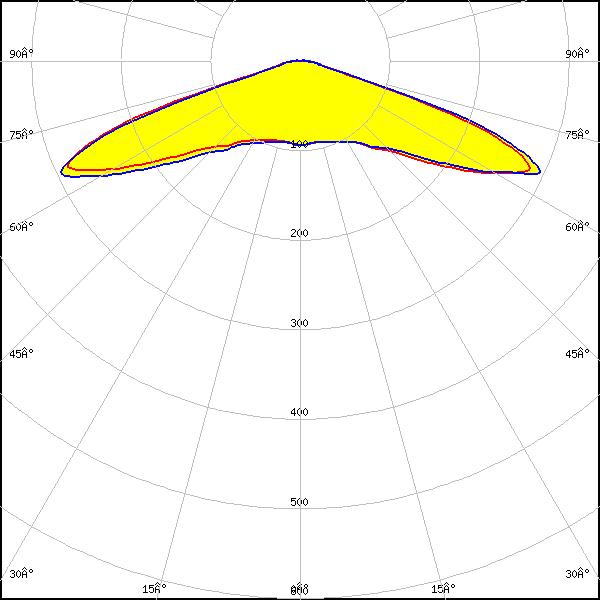

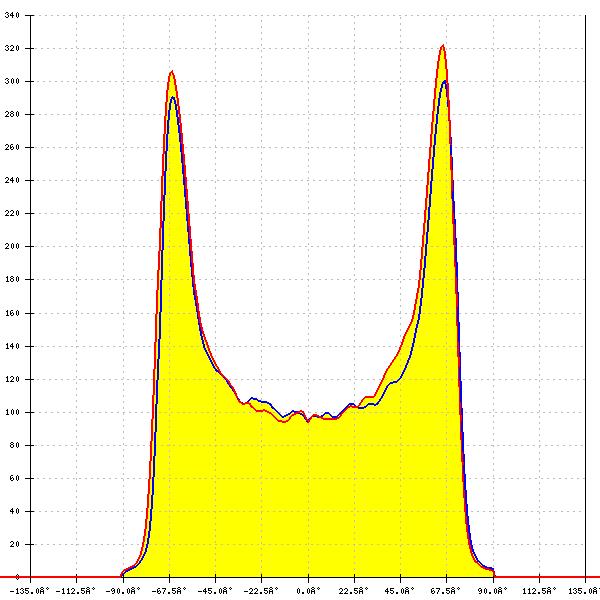

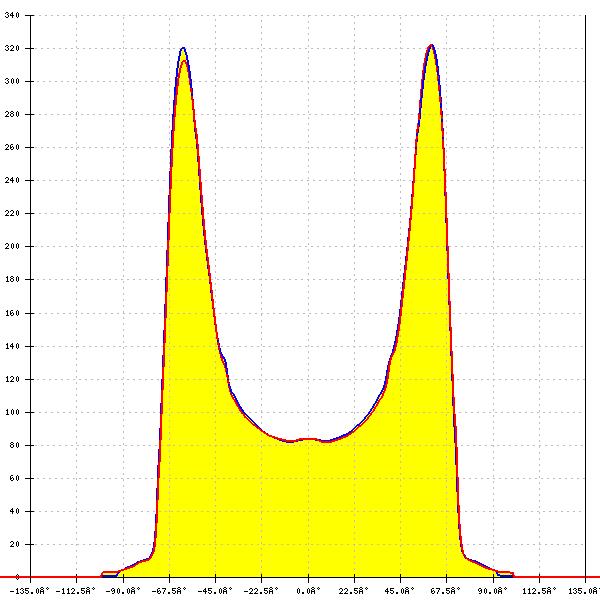

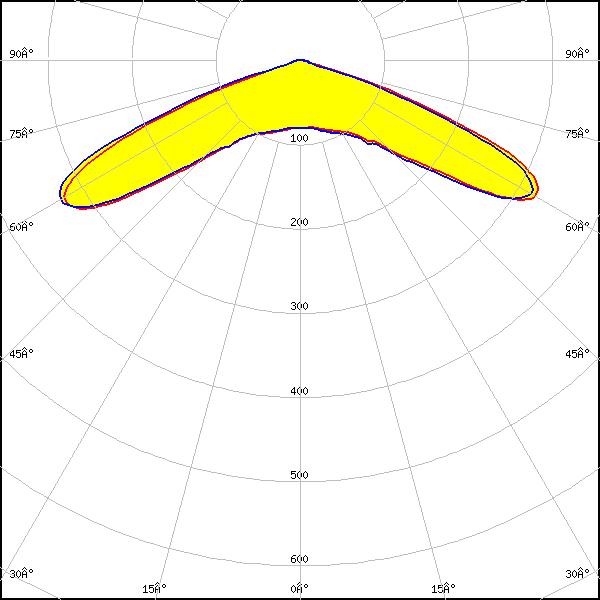

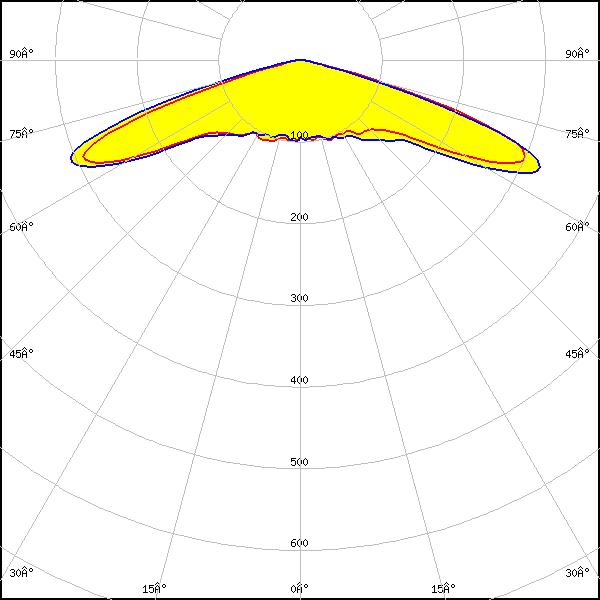

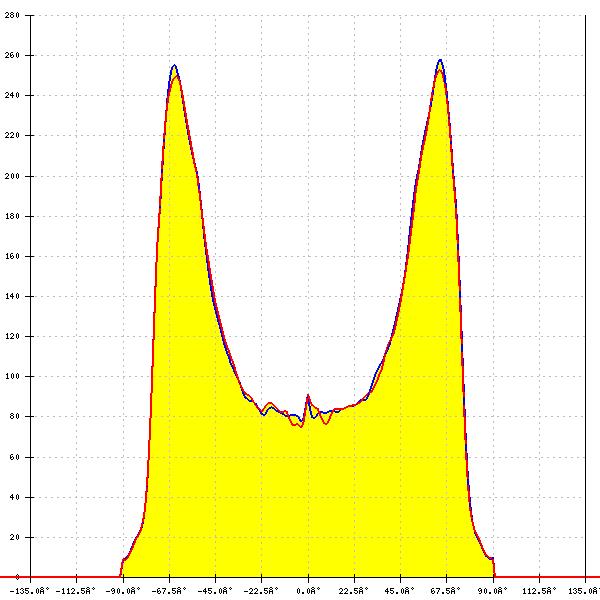

Optical results

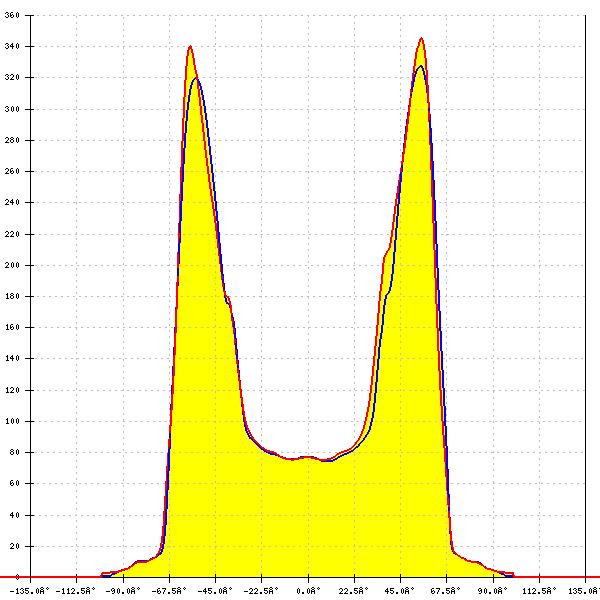

LED:
HiQLED STR28 CR JE2835 4x7 xxx
FWHM:
129°
FWTM:
140°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

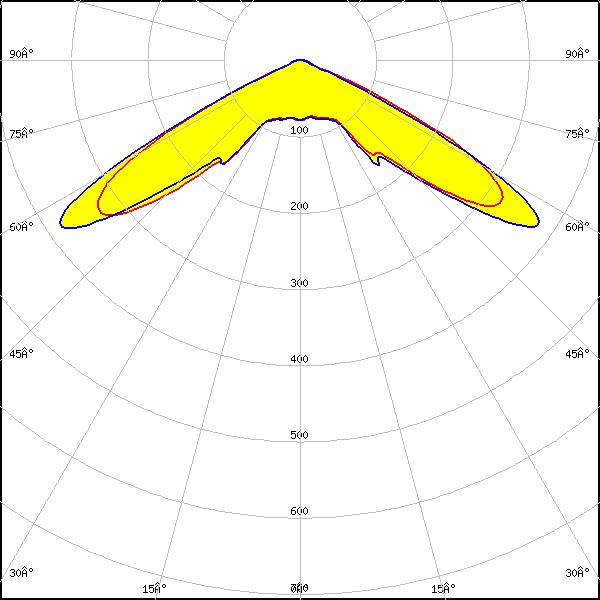

LED:
HiQLED STR28 CR JK3030 4x7 xxx
FWHM:
128°
FWTM:
137°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX STR28 XD2x14 xxx G8
FWHM:
141°
FWTM:
148°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX STR28 XP2x14 xxx G7
FWHM:
146°
FWTM:
159°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
QUICK FLUX STR28 XT2x14 xxx G5
FWHM:
146°
FWTM:
157°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 2835
FWHM:
129°
FWTM:
140°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

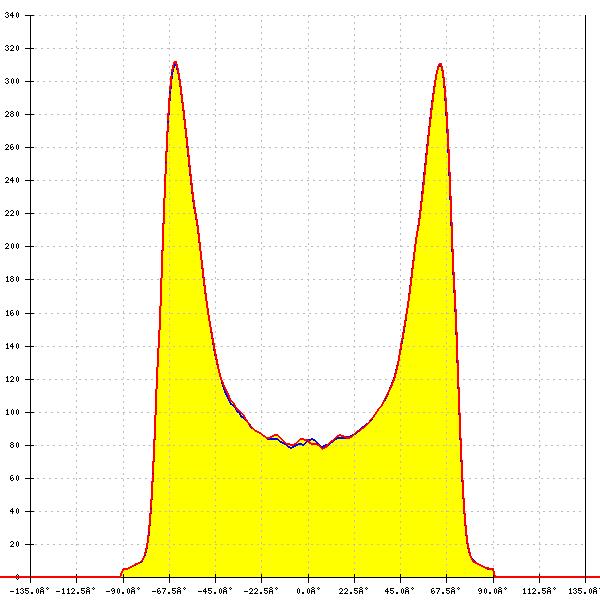

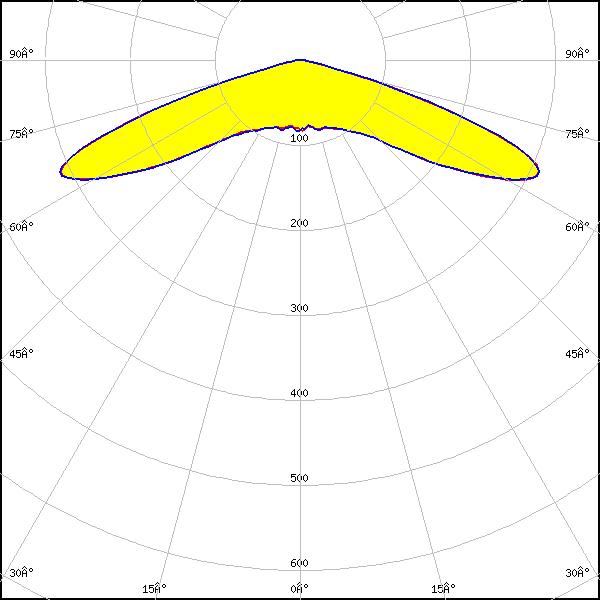

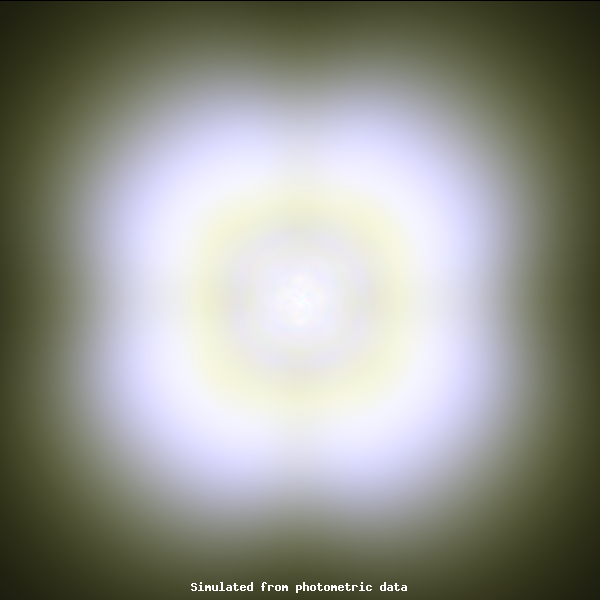

LED:
J Series 3030C
FWHM:
144°
FWTM:
154°
Peak intensity:
0.397 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

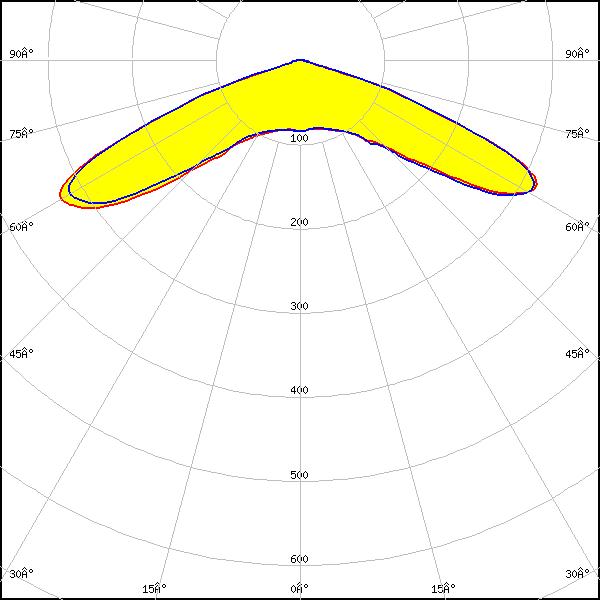

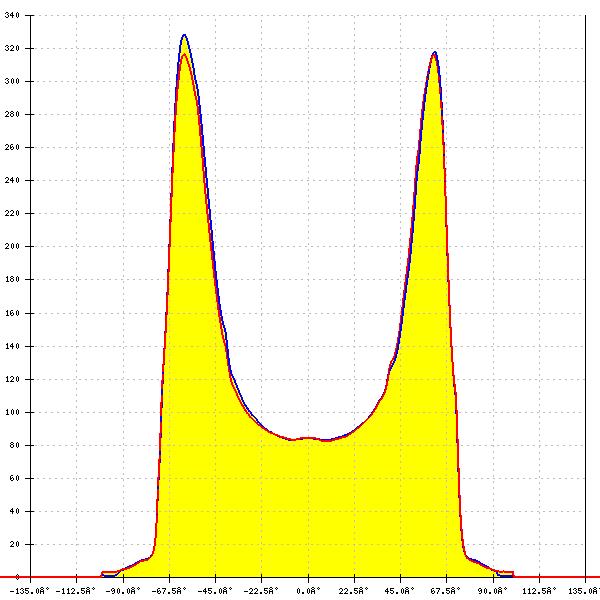

LED:
JB3030 HE B Class
FWHM:
138°
FWTM:
148°
Peak intensity:
0.428 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
JB3030 HE B Class
FWHM:
128°
FWTM:
137°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

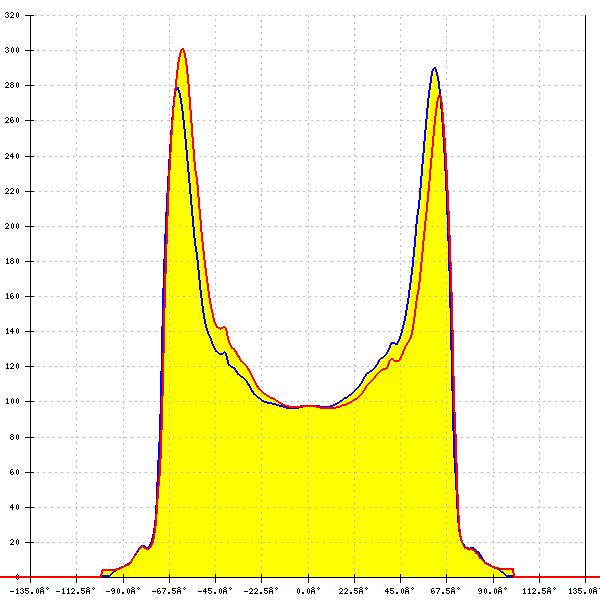

LED:
XD16
FWHM:
141°
FWTM:
148°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
FWHM:
130°
FWTM:
137°
Peak intensity:
0.585 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

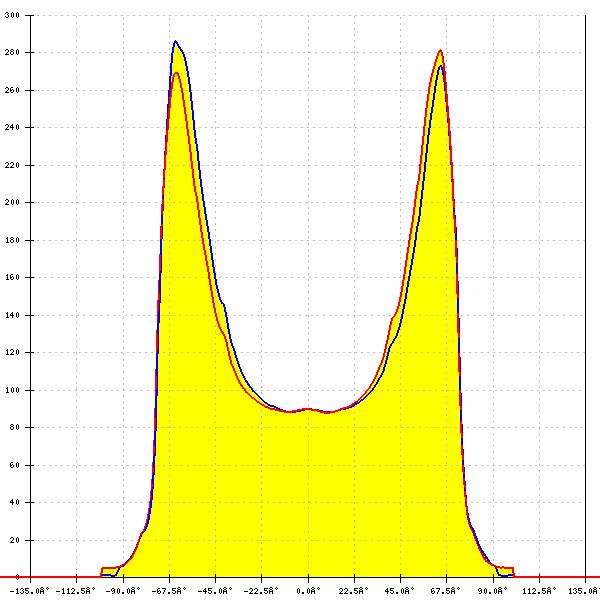

LED:
XP-G3
FWHM:
146°
FWTM:
159°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
146°
FWTM:
157°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

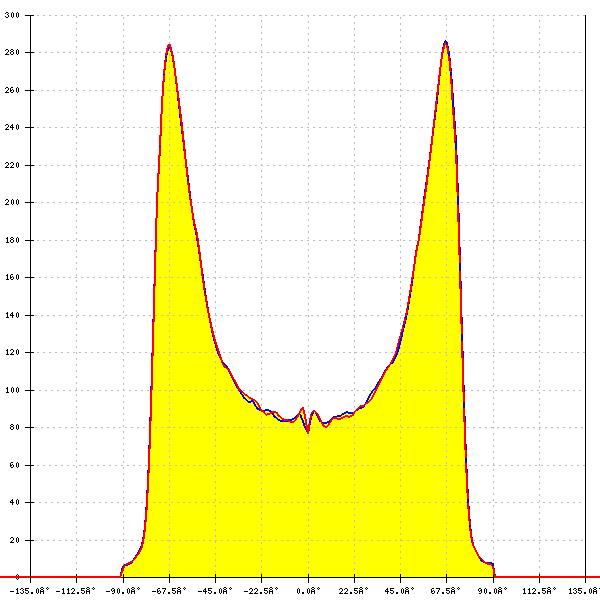

LUXEON V2
FWHM:
150°
FWTM:
158°
Peak intensity:
0.377 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

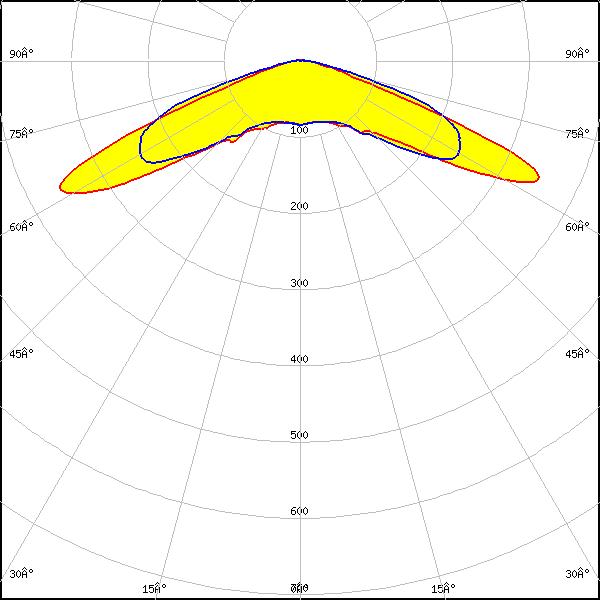

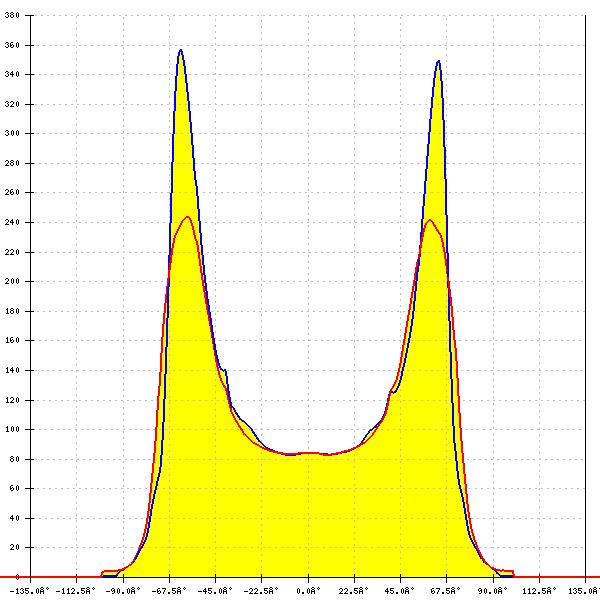

LED:
NF2W585AR
FWHM: asymmetric
Peak intensity:
0.391 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2W585AR
FWHM: asymmetric
Peak intensity:
0.392 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757G
FWHM:
144°
FWTM:
155°
Peak intensity:
0.340 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

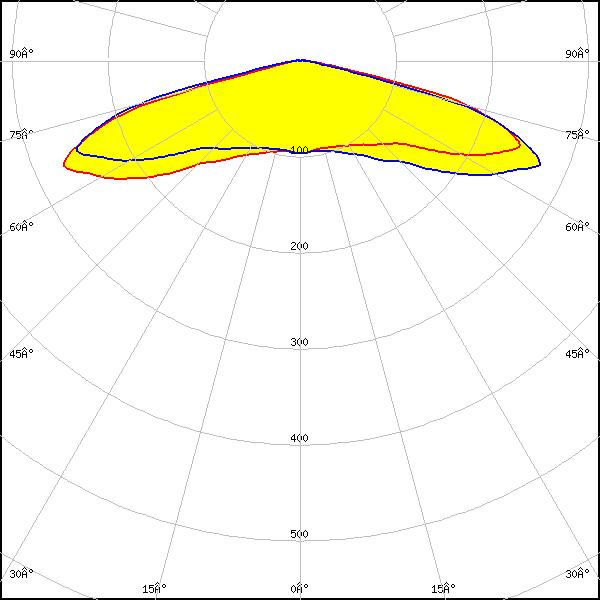

LED:

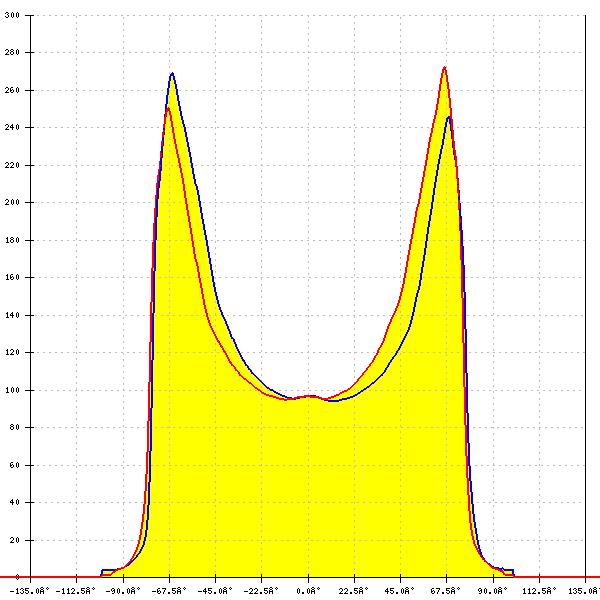

NVSW219F
FWHM:
153°
FWTM:
161°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

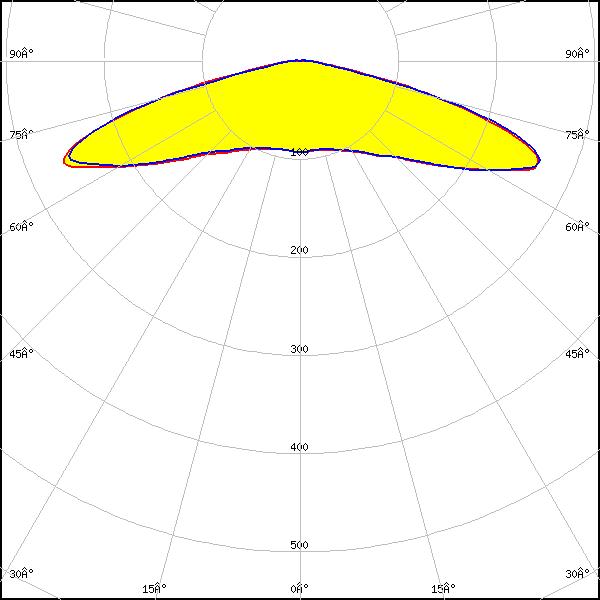

LED:
NVSW319B
FWHM:
154°
FWTM:
166°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

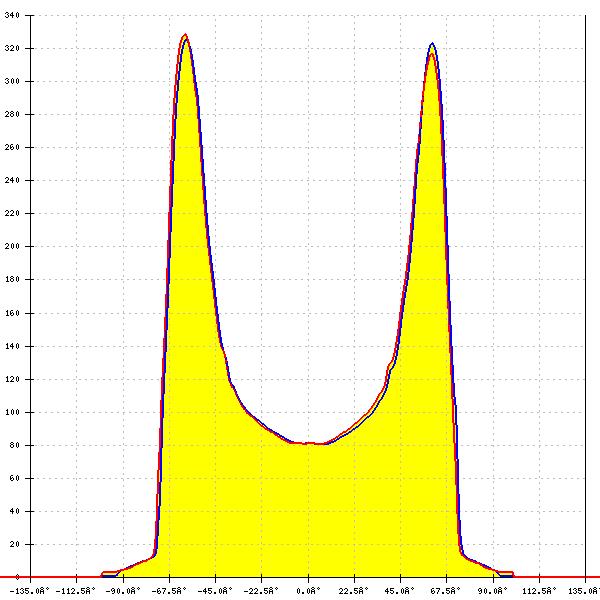

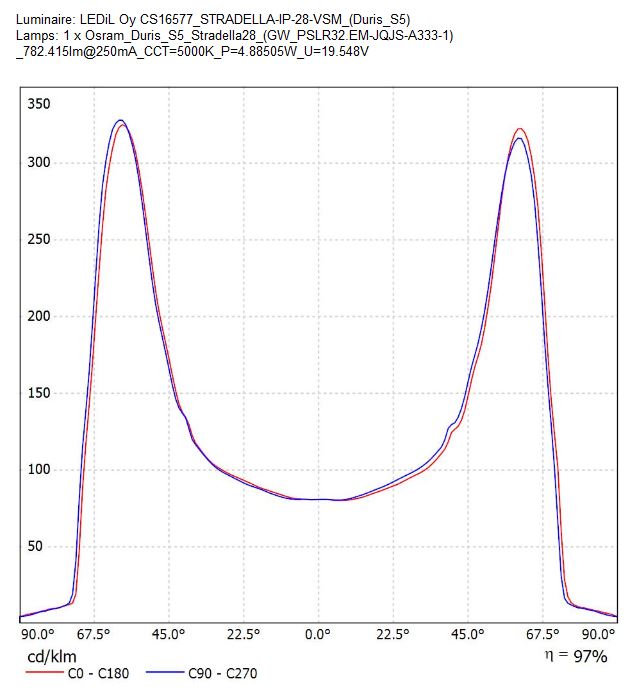

LED:
DURIS S5 (Single chip)
FWHM:
138°
FWTM:
146°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

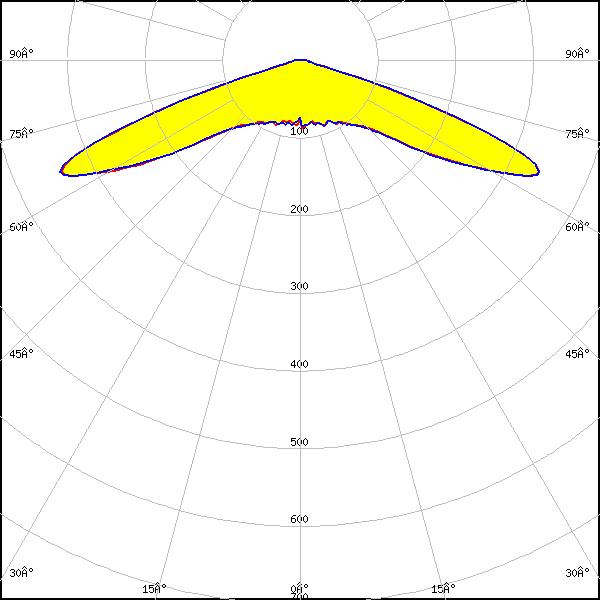

OSCONIQ C 2424 Gen1
FWHM:
142°
FWTM:
150°
Peak intensity:
0.446 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
142°
FWTM:
152°
Peak intensity:
0.409 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
146°
FWTM:
156°
Peak intensity:
0.460 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 3030 (QSLR31)
FWHM: asymmetric
Peak intensity:
0.425 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

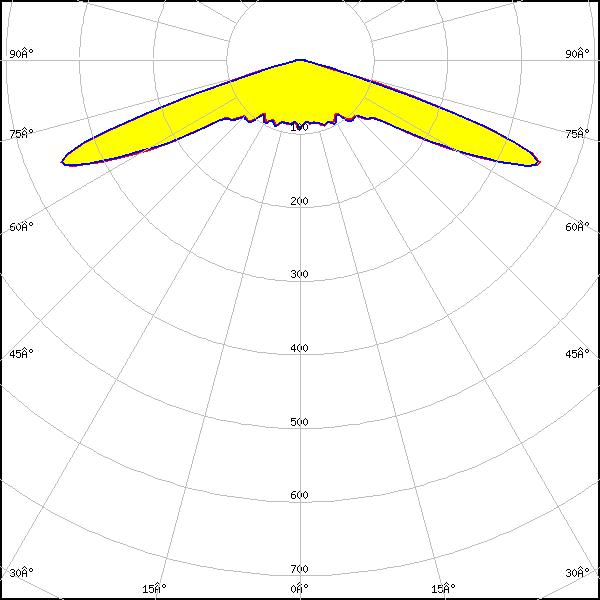

LED:
OSLON Pure 1414
FWHM:
144°
FWTM:
150°
Peak intensity:
0.534 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

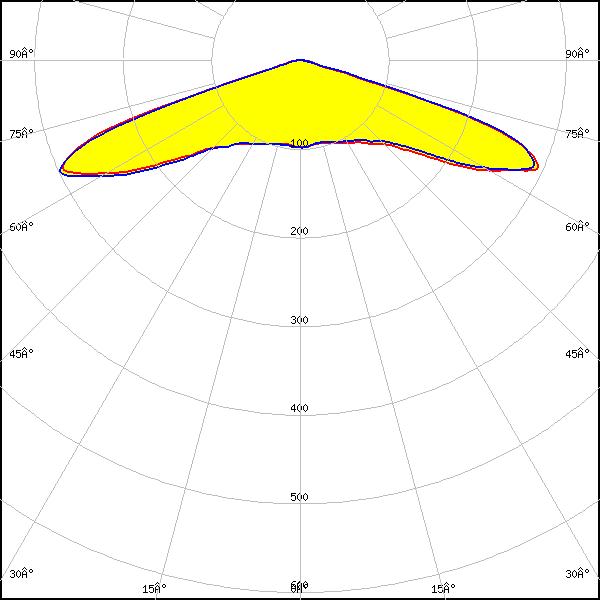

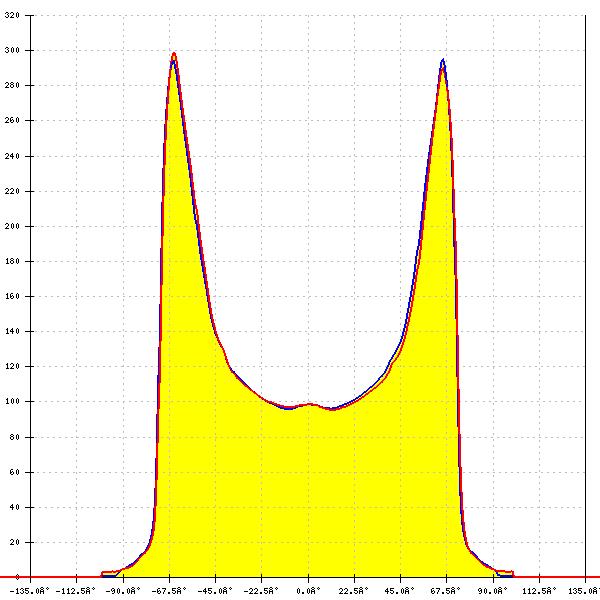

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
144°
FWTM:
151°
Peak intensity:
0.428 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

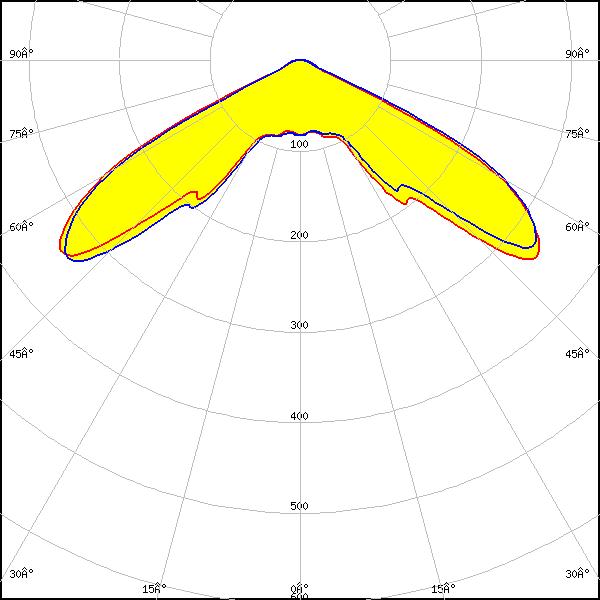

LED:
HiLOM SC28 (LH181B)
FWHM:
125°
FWTM:
134°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

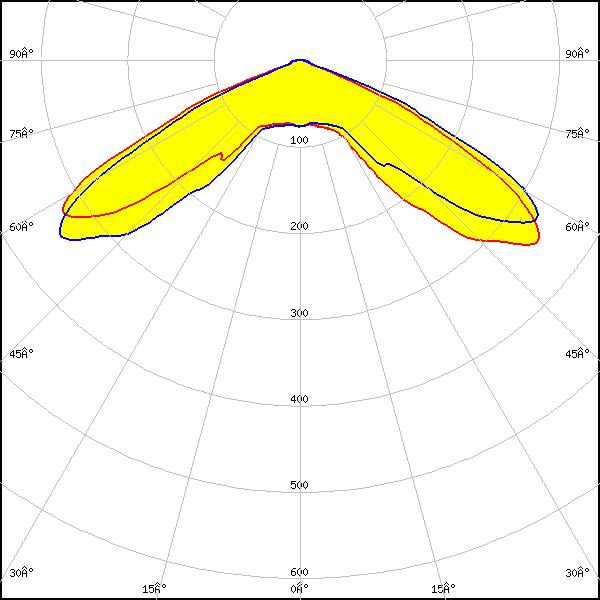

LED:
HiLOM SM28 (LM301B)
FWHM:
129°
FWTM:
142°
Peak intensity:
0.460 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

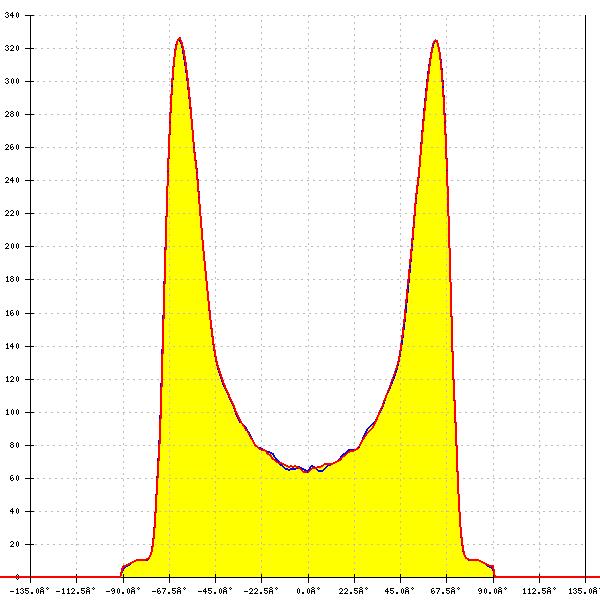

LED:
LH181B
FWHM:
140°
FWTM:
148°
Peak intensity:
0.428 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
151°
FWTM:
162°
Peak intensity:
0.323 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

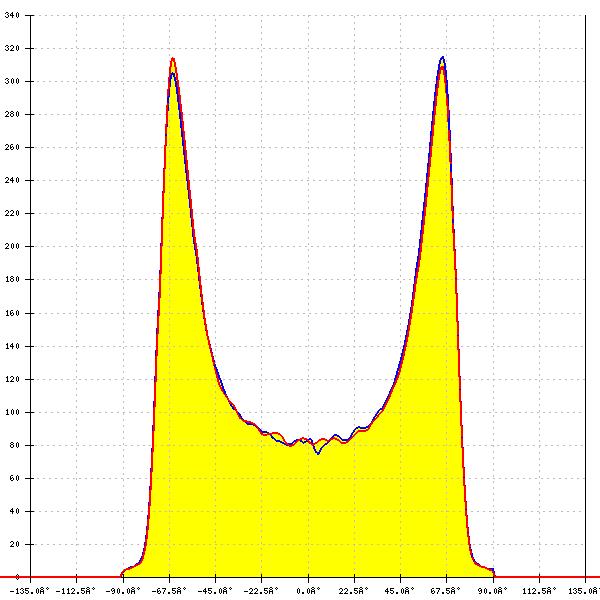

LED:
SEOUL DC 3030C
FWHM:
146°
FWTM:
156°
Peak intensity:
0.424 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

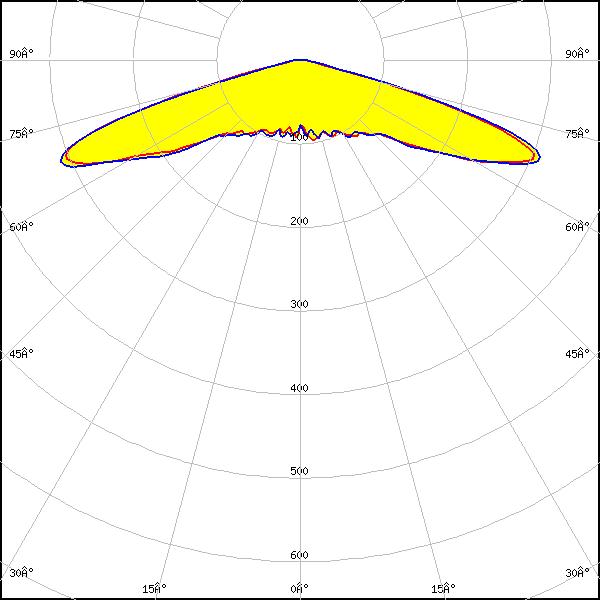

LED:
Z5M1/Z5M2
FWHM:
147°
FWTM:
158°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

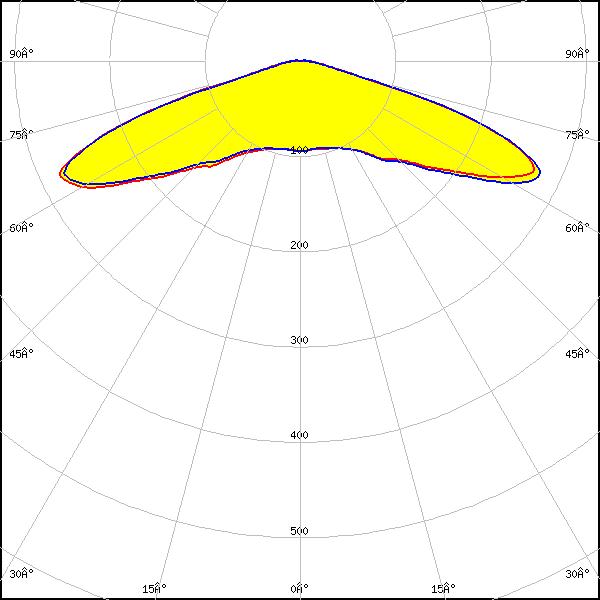

LED:
Z5M3
FWHM:
147°
FWTM:
162°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

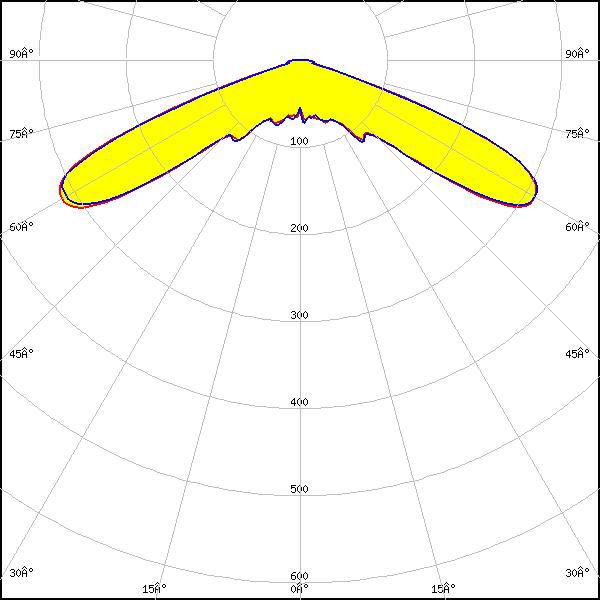

LED:
Z8Y19
FWHM:
138°
FWTM:
148°
Peak intensity:
0.430 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

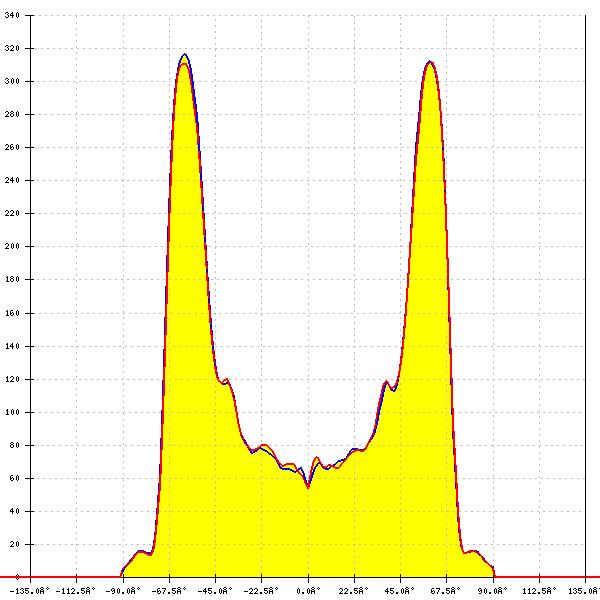

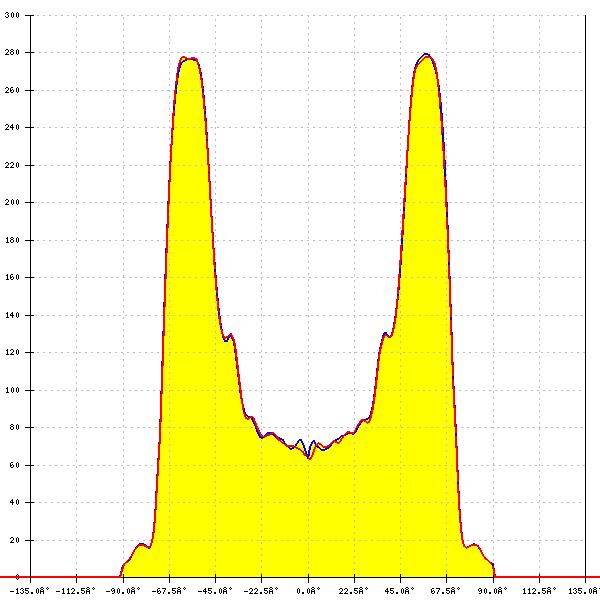

LED:

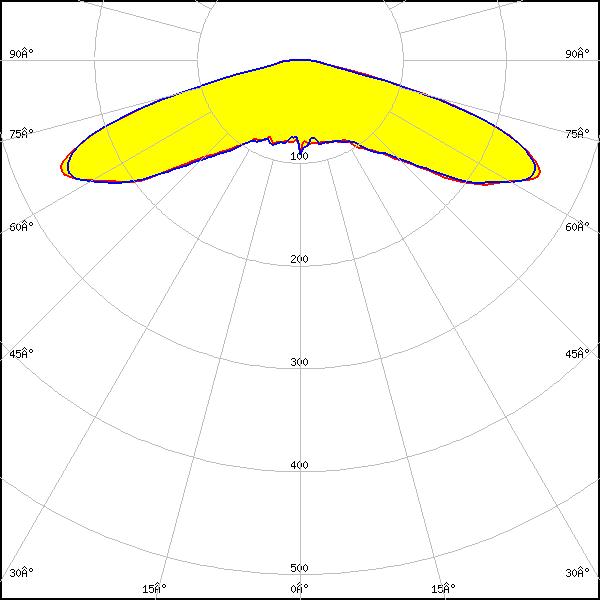

Z8Y22
FWHM:
140°
FWTM:
148°
Peak intensity:
0.371 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
