CS16581_STRADELLA-IP-28-VSM-PC

Print

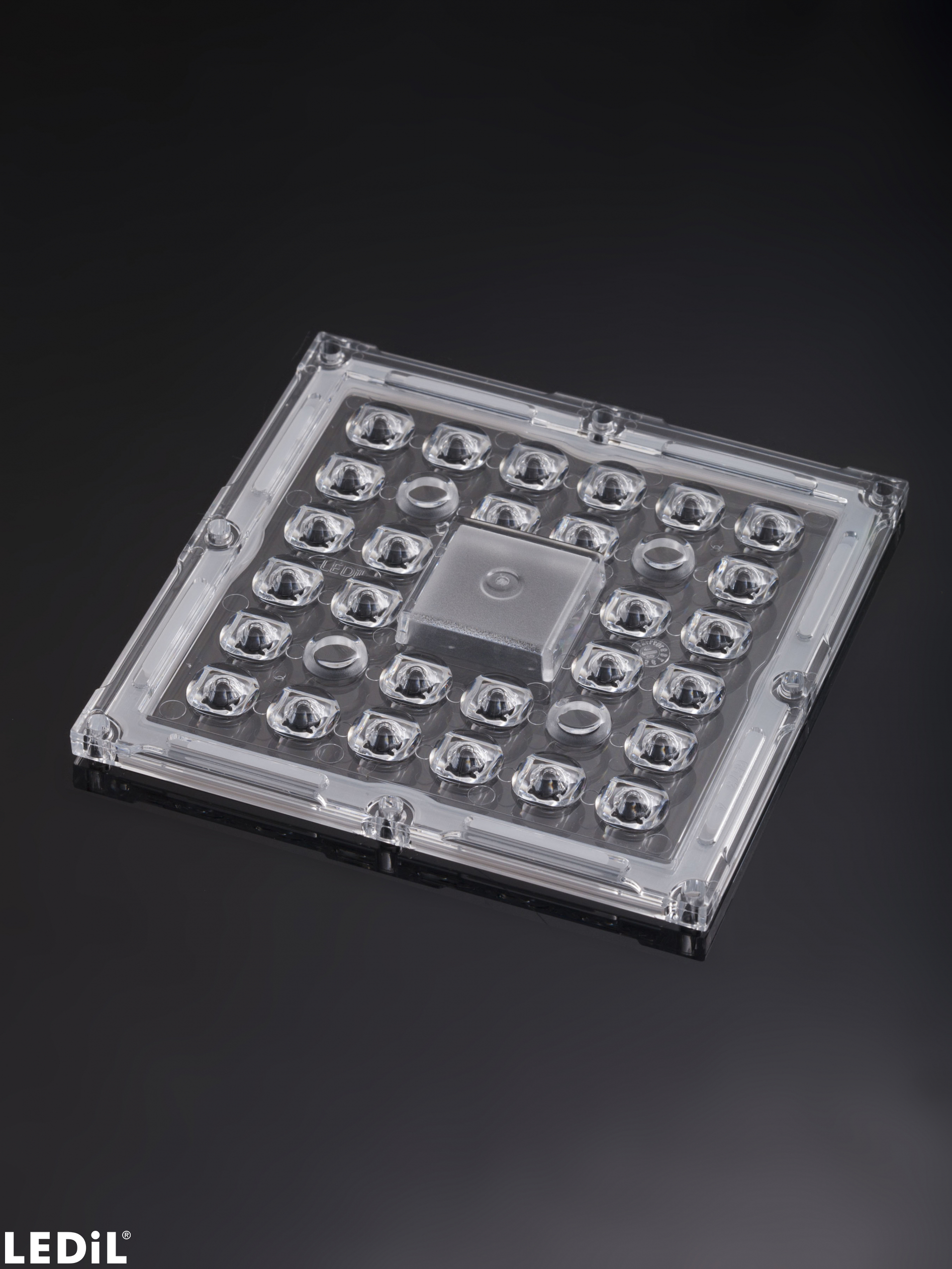

IESNA Type V (square) beam for wide areas lighting such as car parks. Variant made from PC.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.50 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.0 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16581_STRADELLA-IP-28-VSM-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

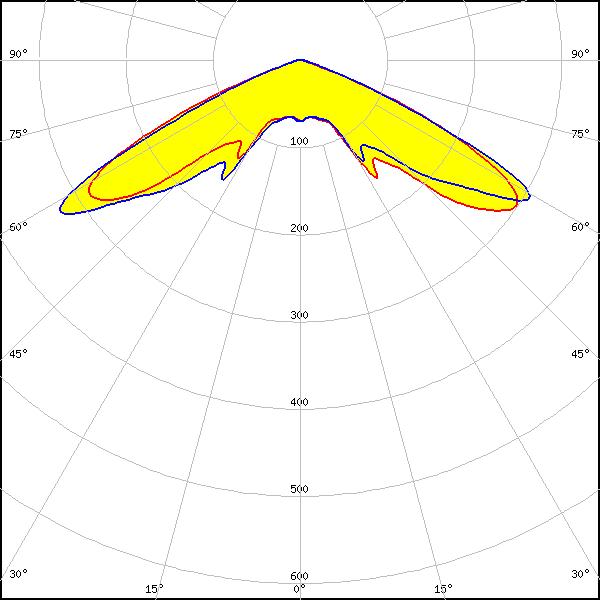

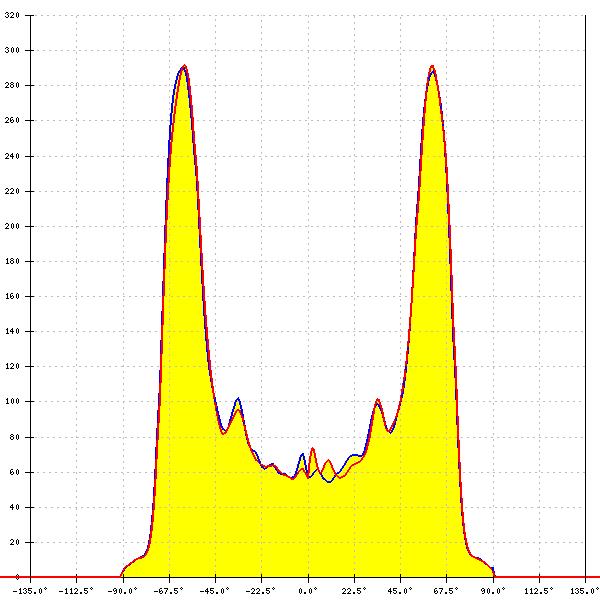

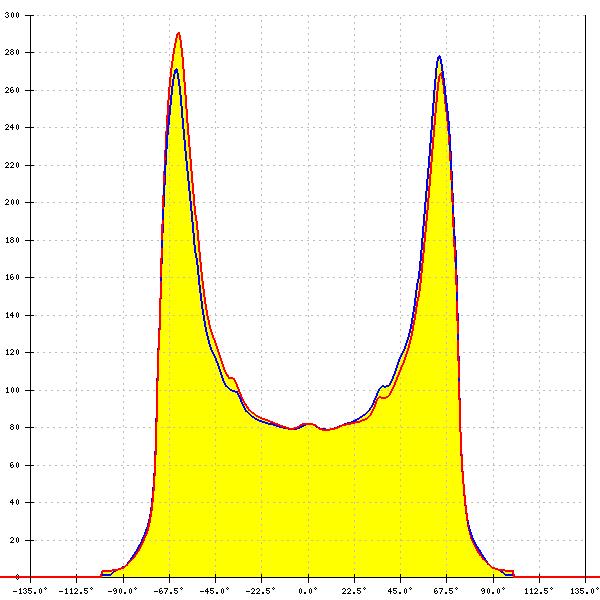

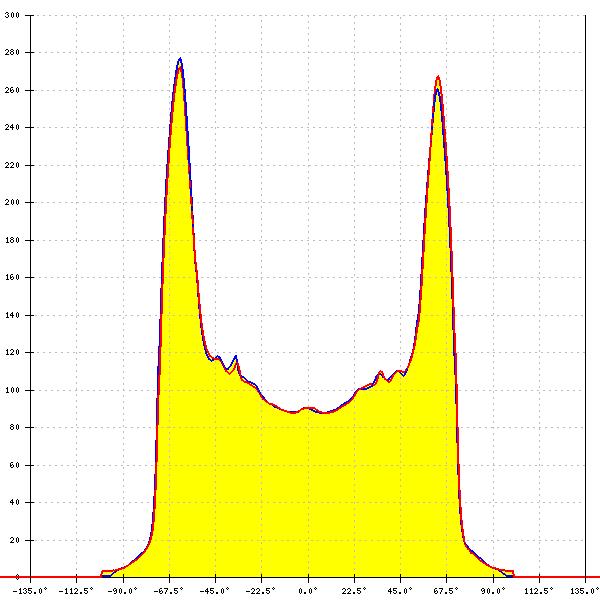

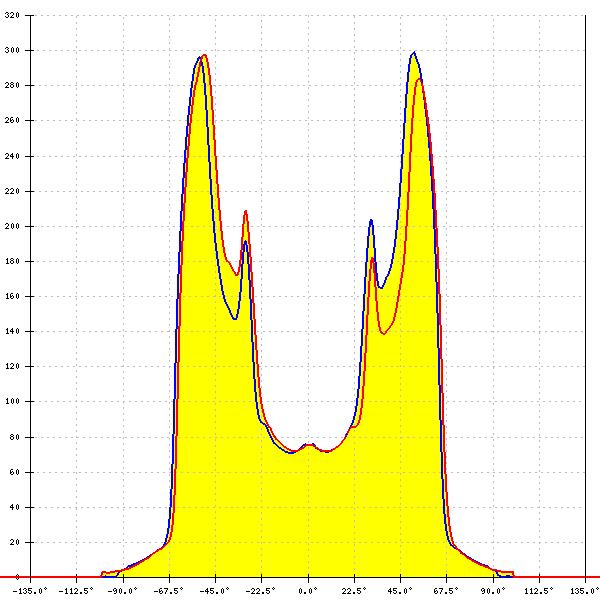

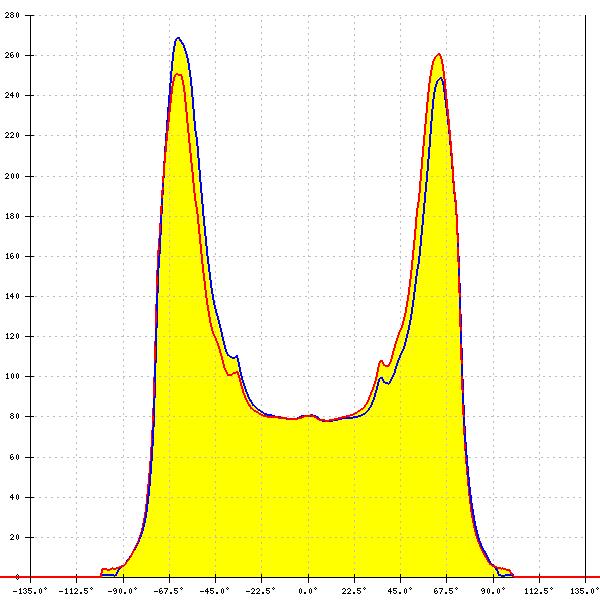

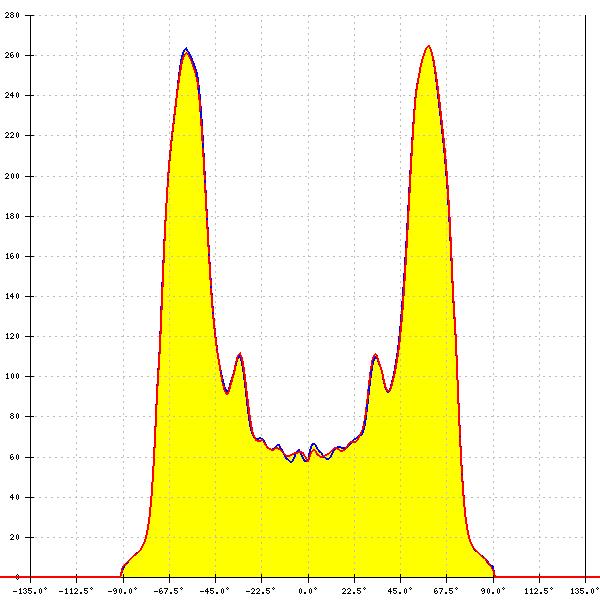

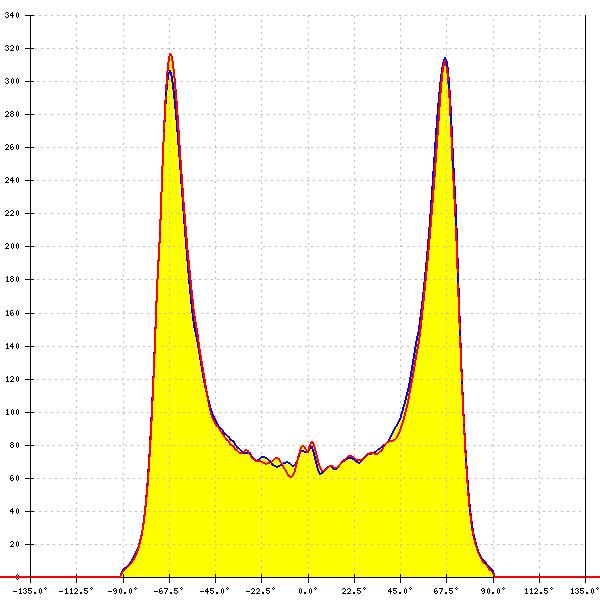

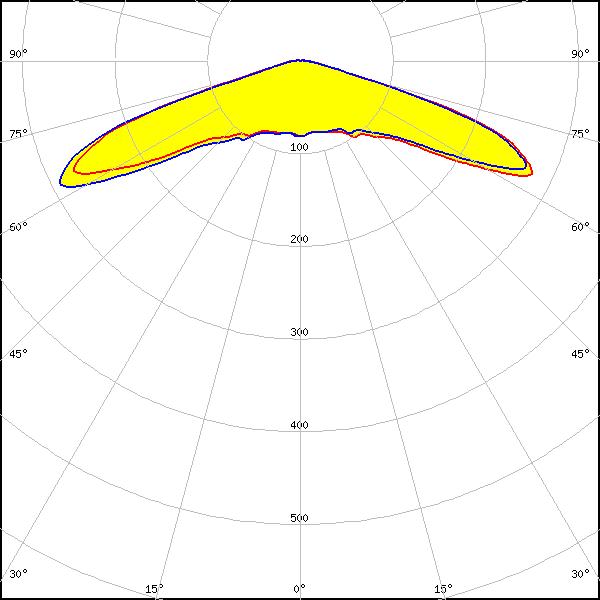

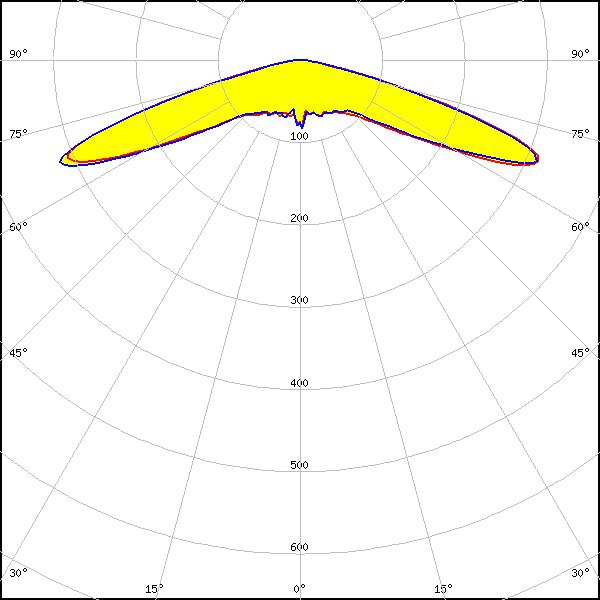

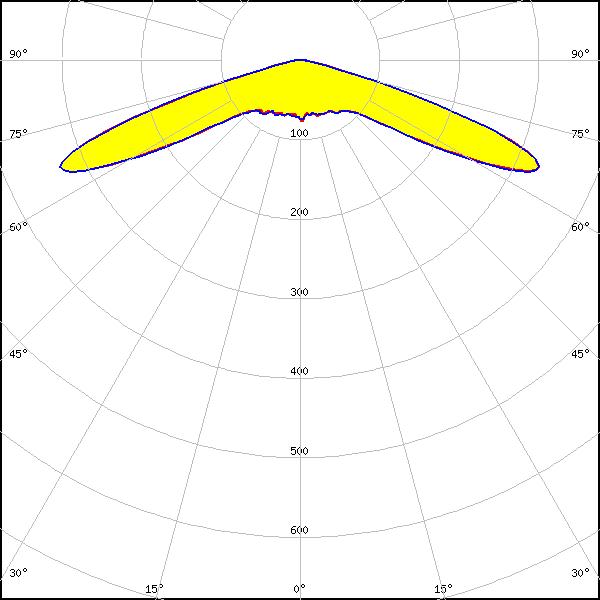

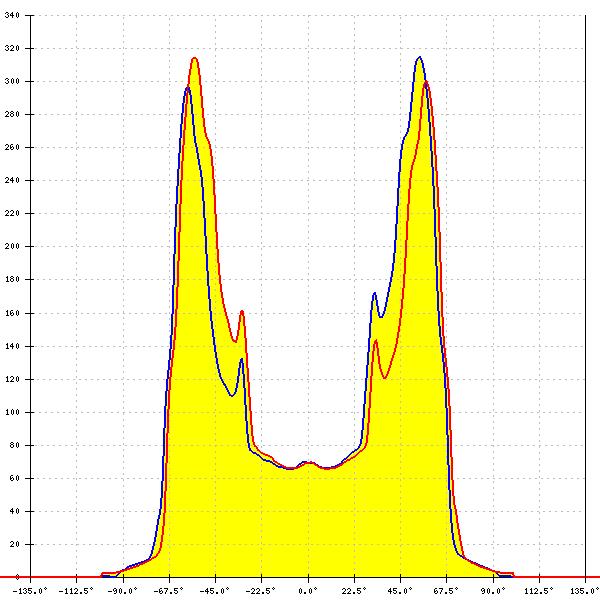

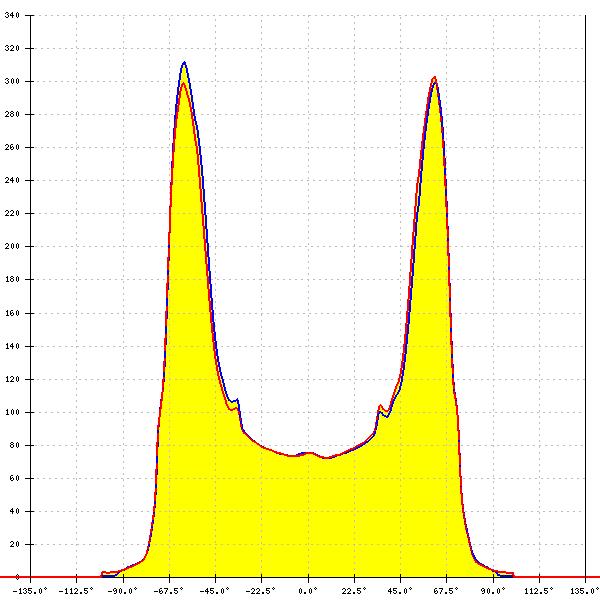

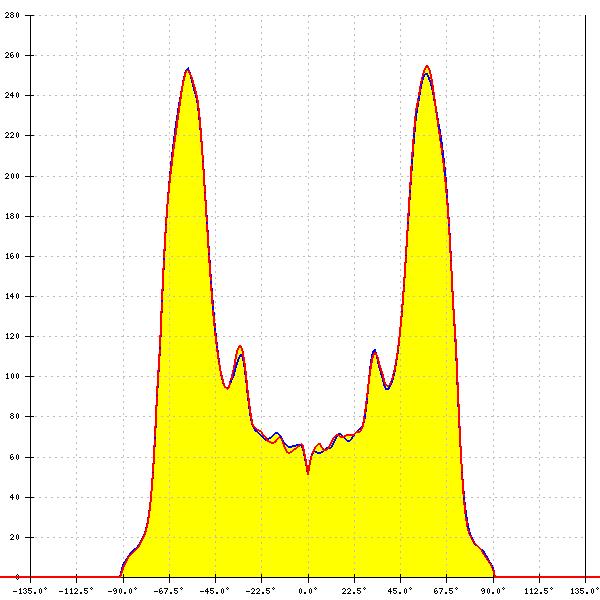

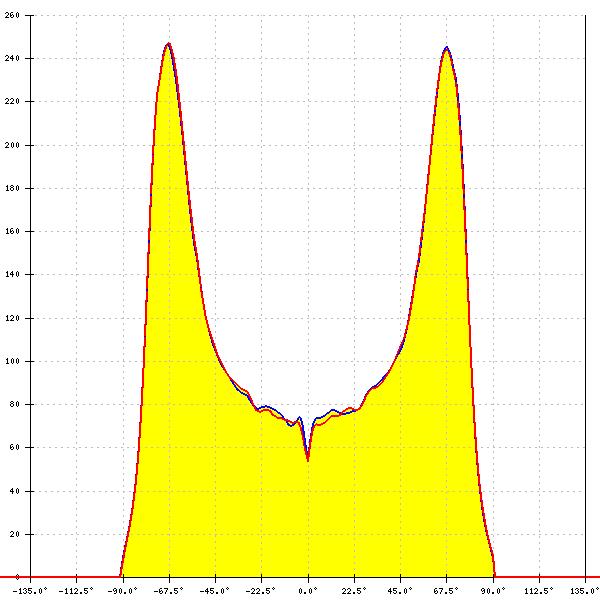

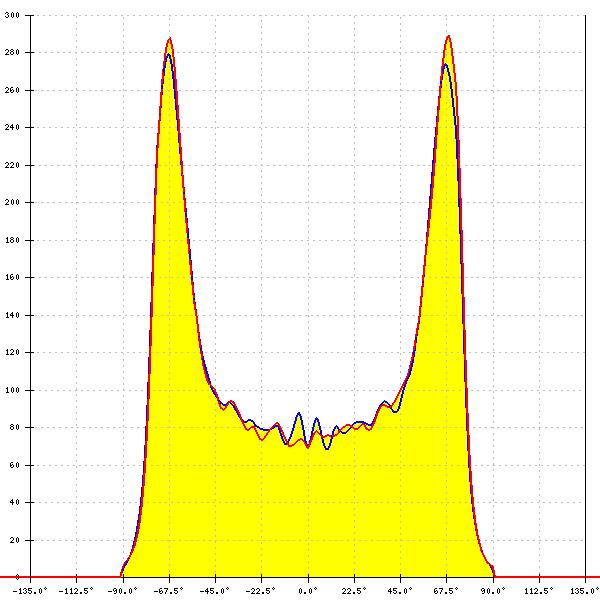

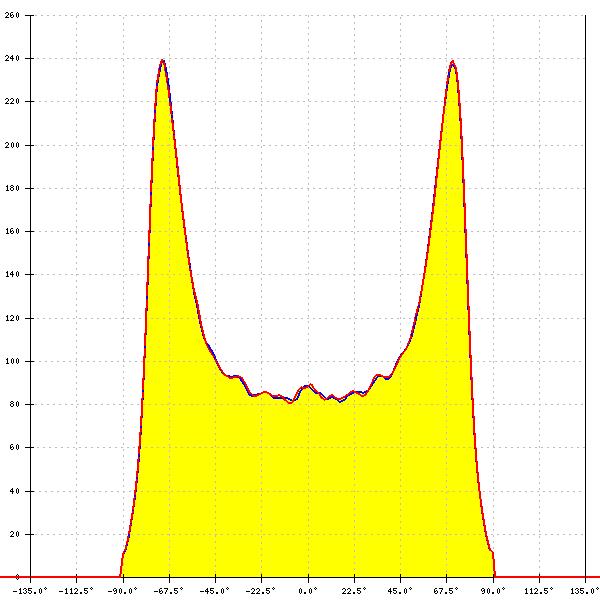

Optical results

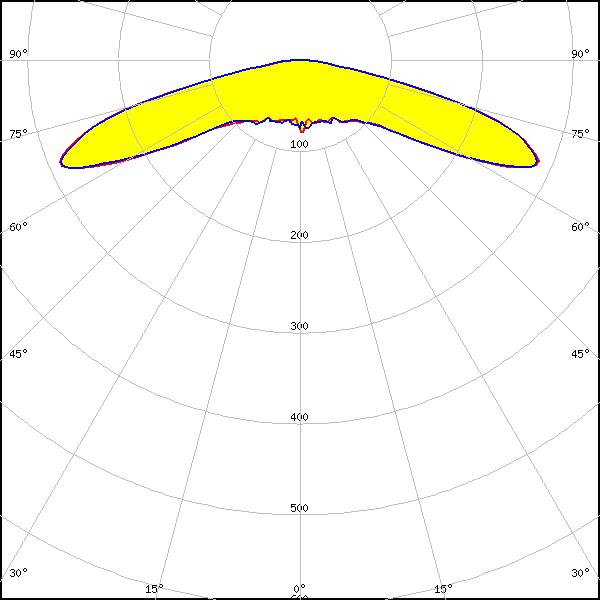

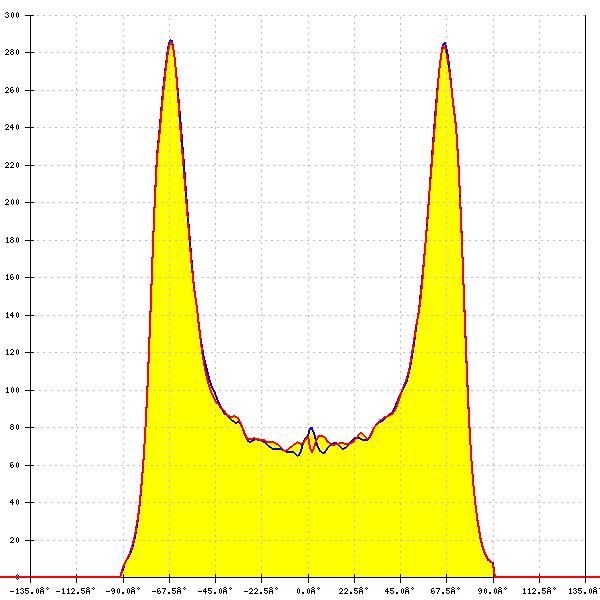

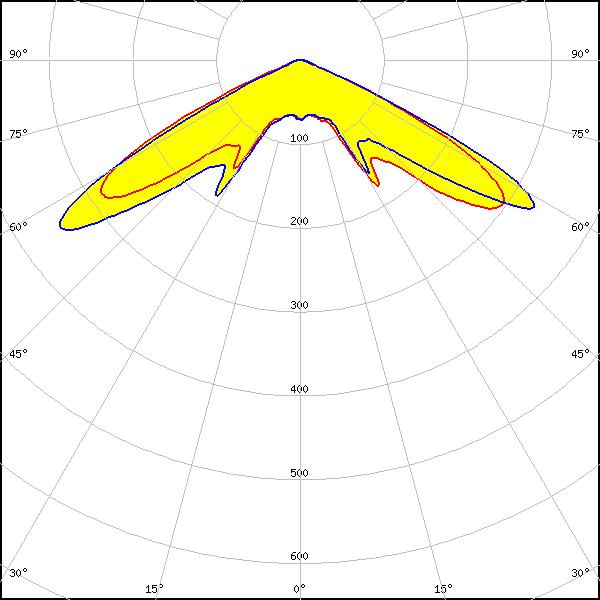

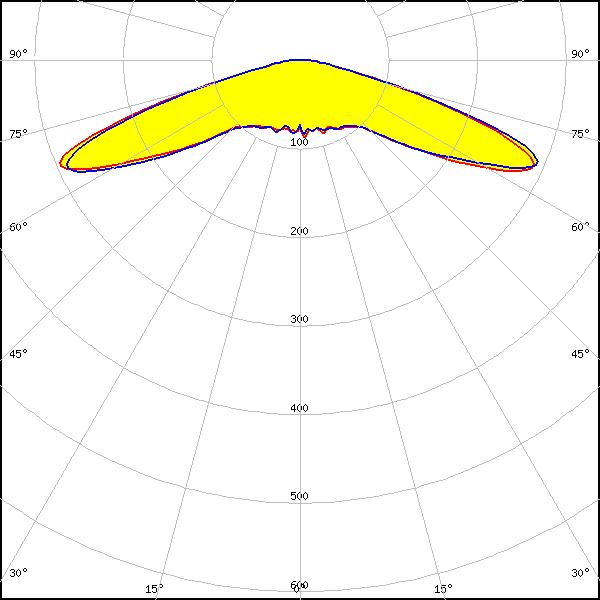

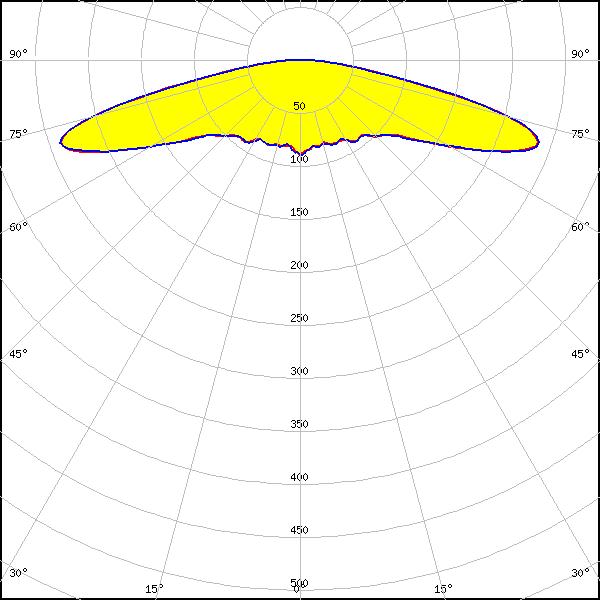

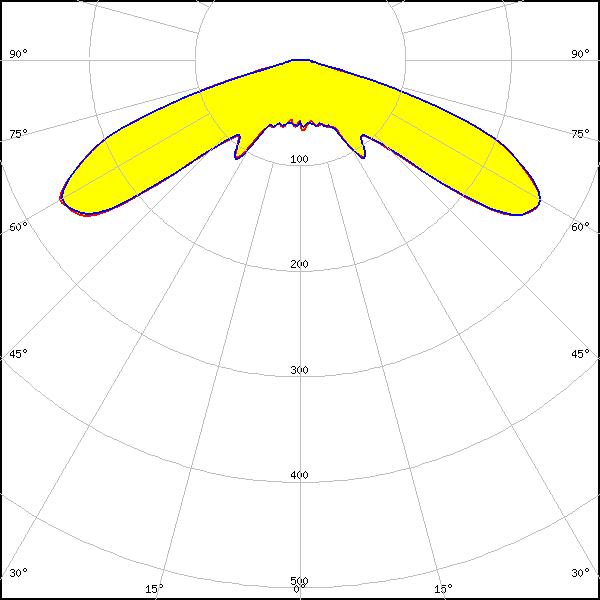

LED: HiQLED STR28 CR JК3030 4x7 xxx
FWHM: 130°
FWTM: 140°
Peak intensity: 0.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

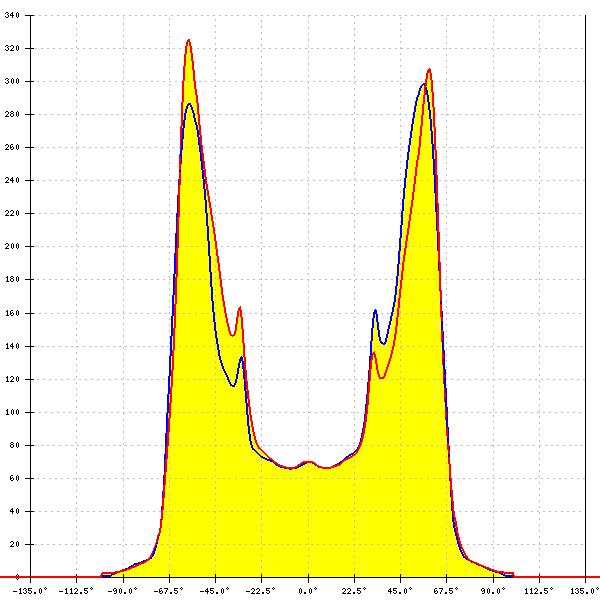

LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: 132°
FWTM: 145°
Peak intensity: 0.440 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: 143°
FWTM: 150°
Peak intensity: 0.460 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

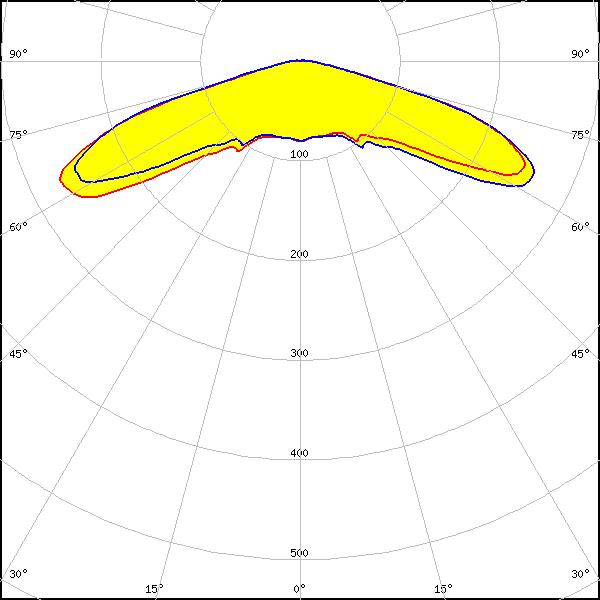

LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: 147°
FWTM: 161°
Peak intensity: 0.360 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: 147°
FWTM: 159°
Peak intensity: 0.440 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: J Series 2835
FWHM: 132°
FWTM: 145°
Peak intensity: 0.440 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

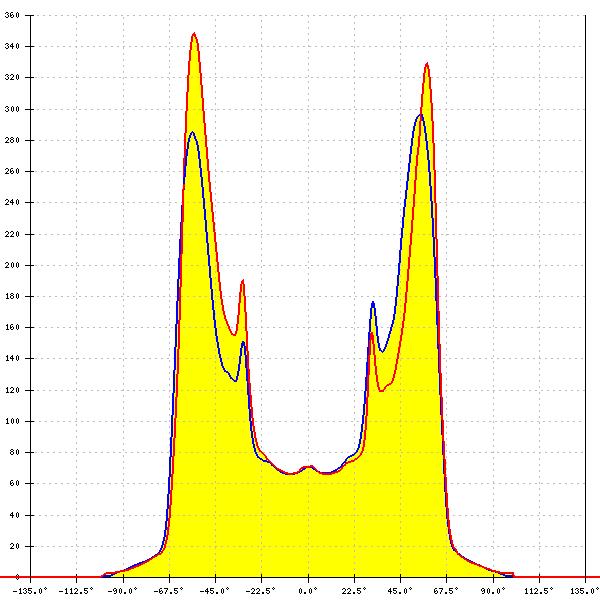

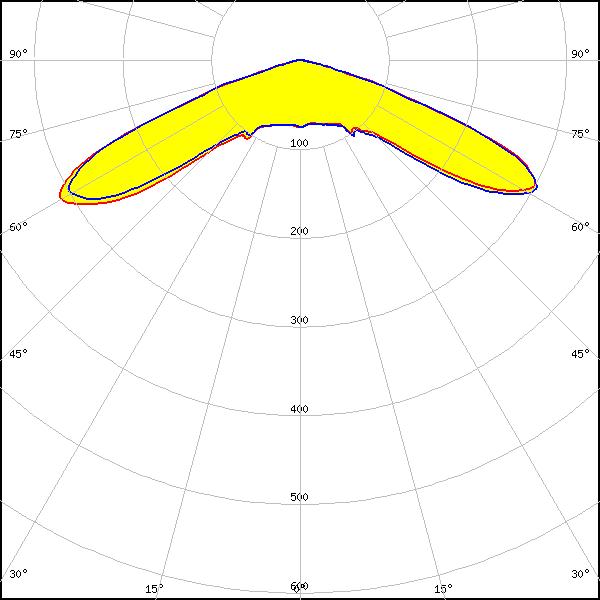

LED: J Series 3030
FWHM: 139°
FWTM: 153°
Peak intensity: 0.435 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: J Series 3030
FWHM: 130°
FWTM: 140°
Peak intensity: 0.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

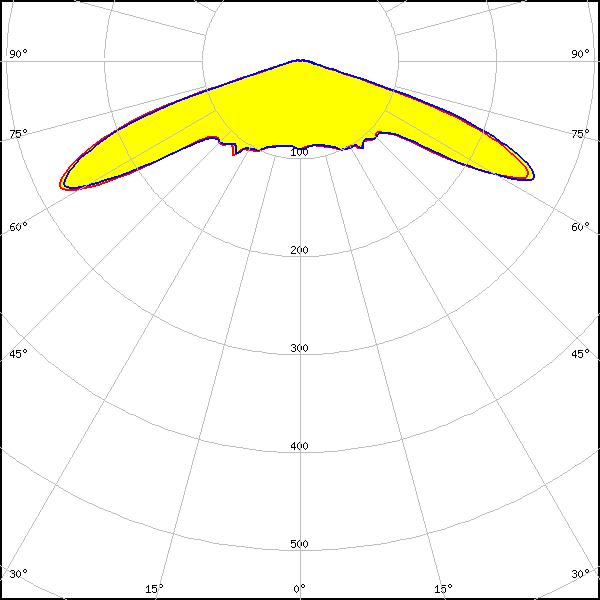

LED: XD16
FWHM: 143°
FWTM: 150°
Peak intensity: 0.460 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: 147°
FWTM: 161°
Peak intensity: 0.360 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: XT-E
FWHM: 147°
FWTM: 159°
Peak intensity: 0.440 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

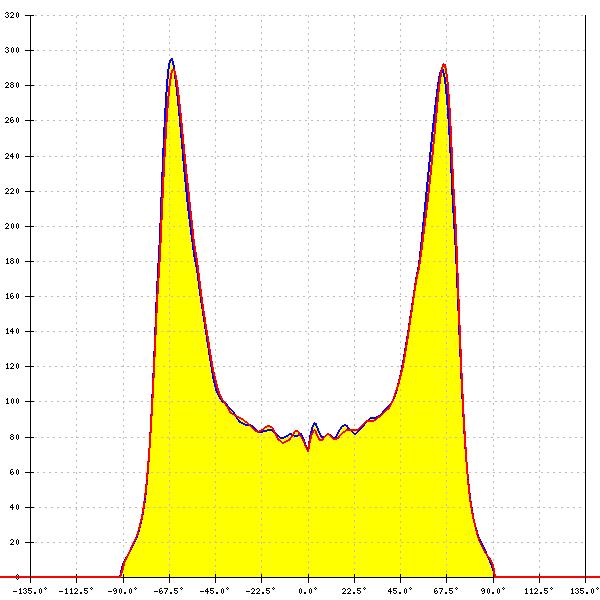

LED: NF2x757G
FWHM: 148°
FWTM: 163°
Peak intensity: 0.360 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ C 2424
FWHM: 144°
FWTM: 154°
Peak intensity: 0.462 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

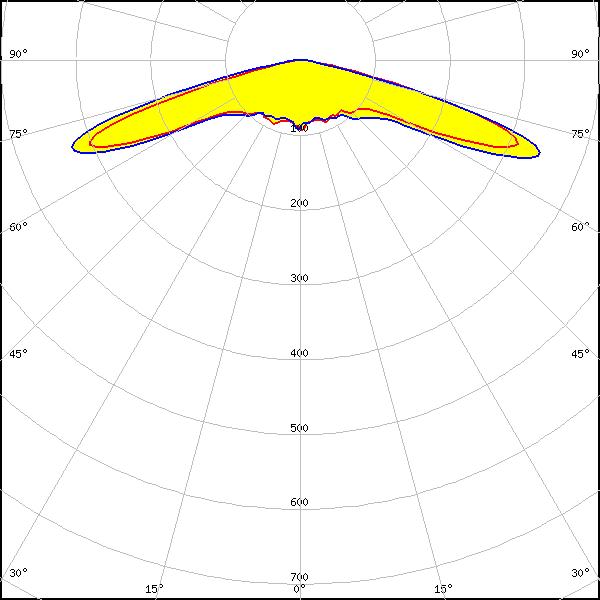

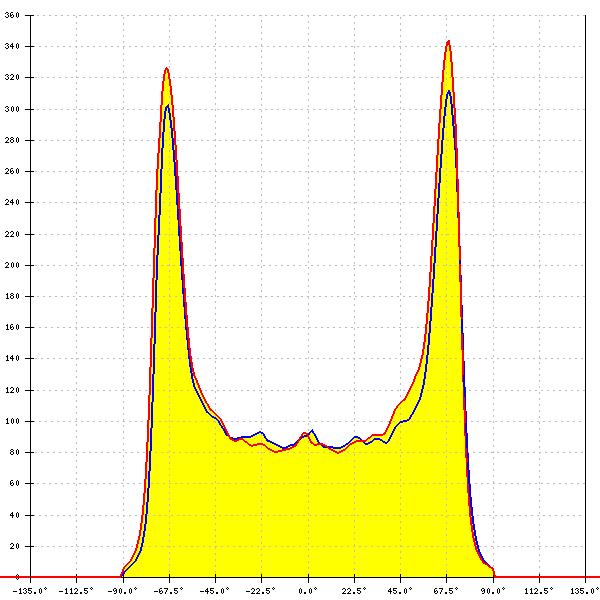

LED: OSCONIQ P 3030
FWHM: 147°
FWTM: 161°
Peak intensity: 0.516 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

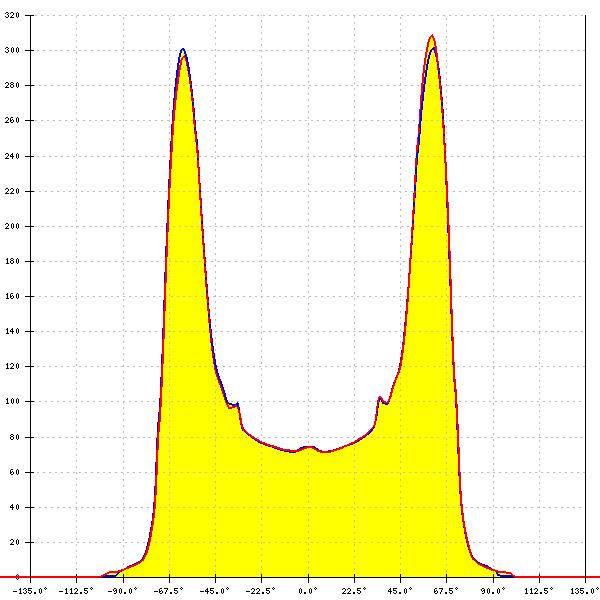

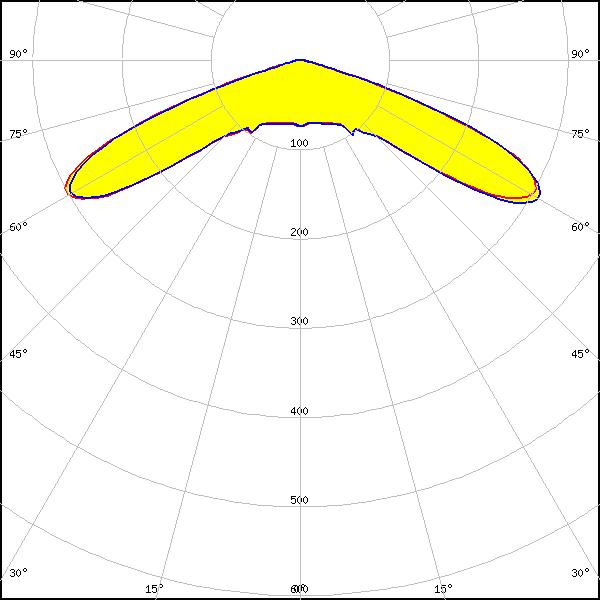

LED: OSCONIQ S 3030
FWHM: asymmetric
Peak intensity: 0.426 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

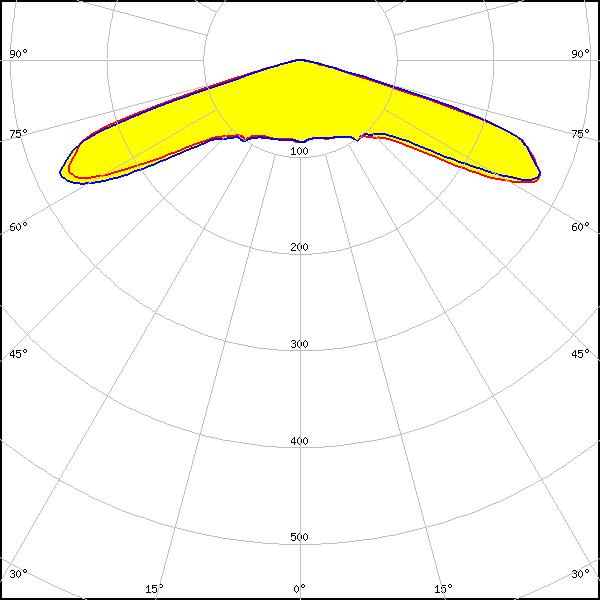

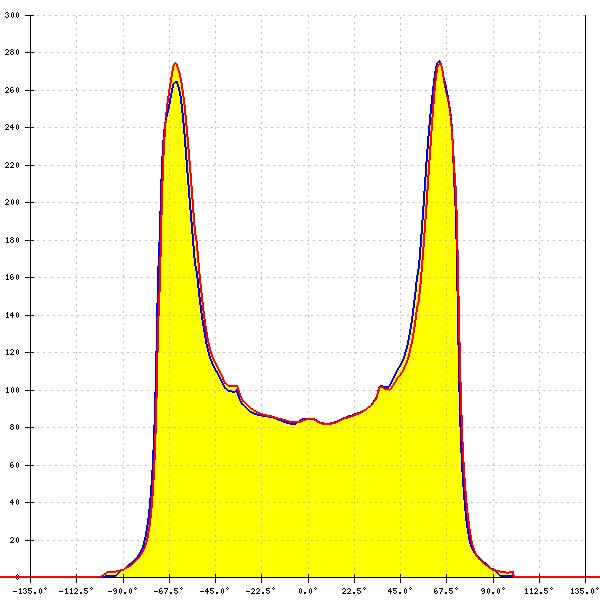

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 146°
FWTM: 156°
Peak intensity: 0.471 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

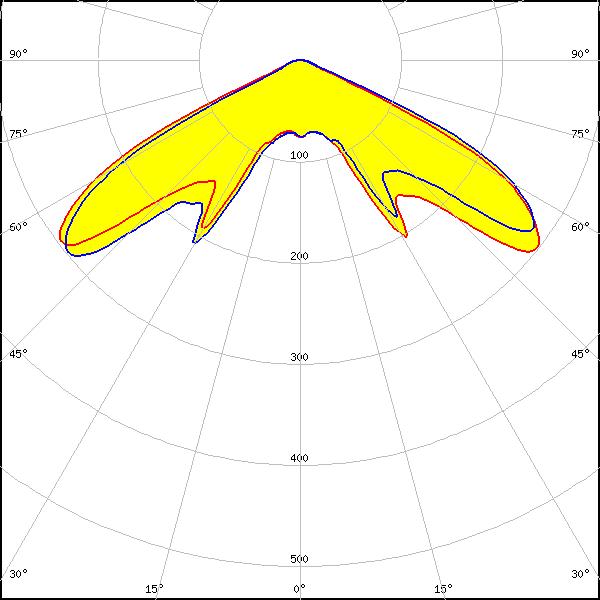

LED: HiLOM SC28 (LH181B)
FWHM: 130°
FWTM: 139°
Peak intensity: 0.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

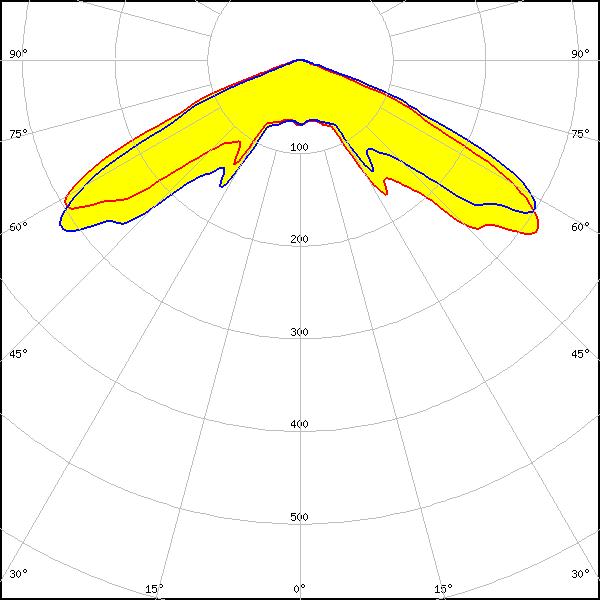

LED: HiLOM SM28 (LM301B)
FWHM: 134°
FWTM: 144°
Peak intensity: 0.440 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

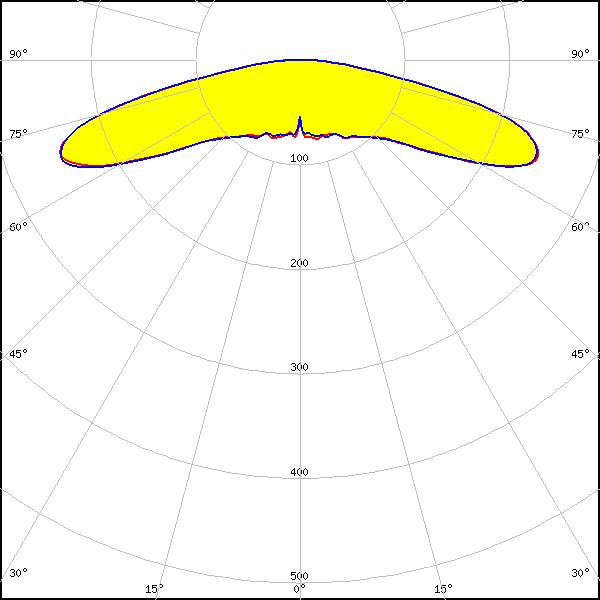

LED: LH351C
FWHM: 156°
FWTM: 174°
Peak intensity: 0.328 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030C
FWHM: 148°
FWTM: 160°
Peak intensity: 0.449 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

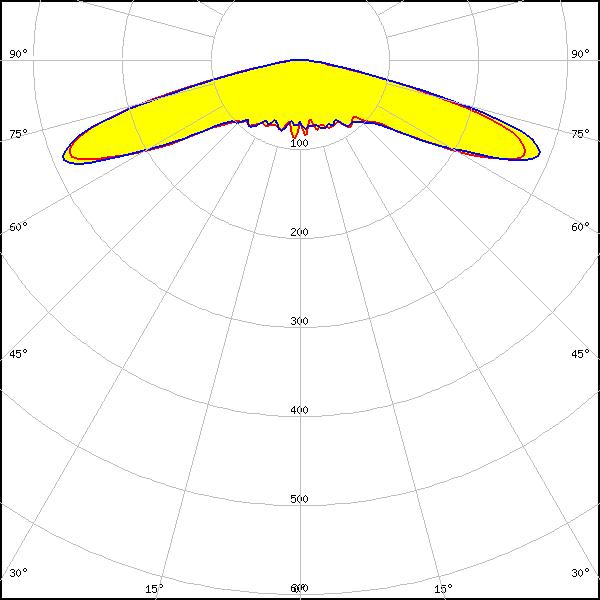

LED: Z5M1/Z5M2
FWHM: 150°
FWTM: 164°
Peak intensity: 0.410 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

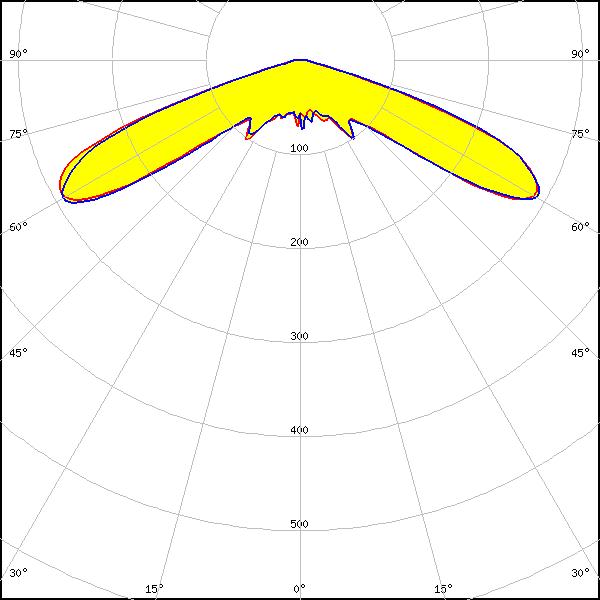

LED: Z8Y19
FWHM: 141°
FWTM: 153°
Peak intensity: 0.420 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

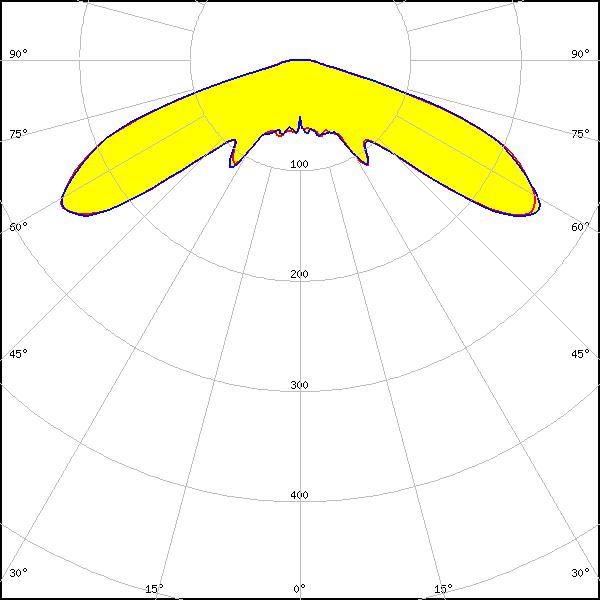

LED: Z8Y22
FWHM: 142°
FWTM: 156°
Peak intensity: 0.325 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22P
FWHM: 142°
FWTM: 154°
Peak intensity: 0.346 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
