CS16582_STRADELLA-IP-28-T4B-PC

Print

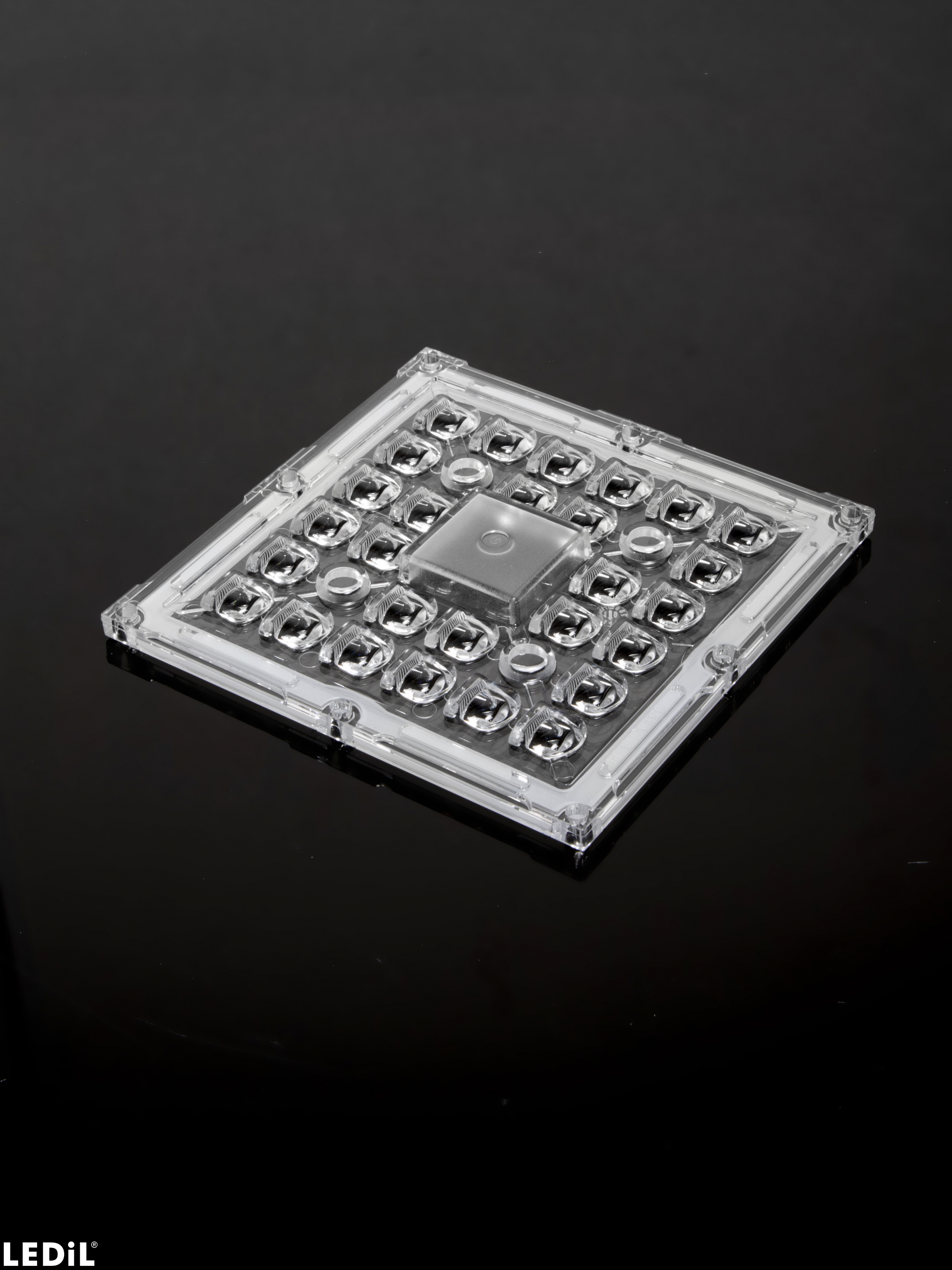

Wide IESNA Type IV forward-throw beam for wide area lighting like car parks. Variant made from PC.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.4 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • STRADELLA-IP-28-T4B-PC, Multi-lens, PC
  • STRADELLA-28-SEAL, Seal, Silicone

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.1 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16582_STRADELLA-IP-28-T4B-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

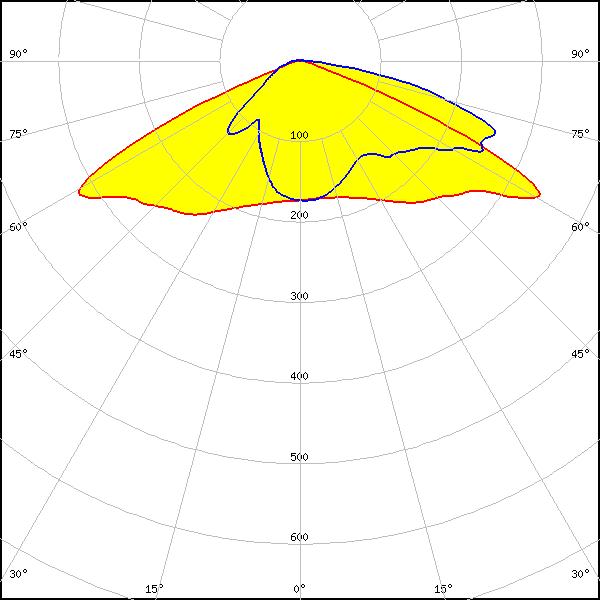

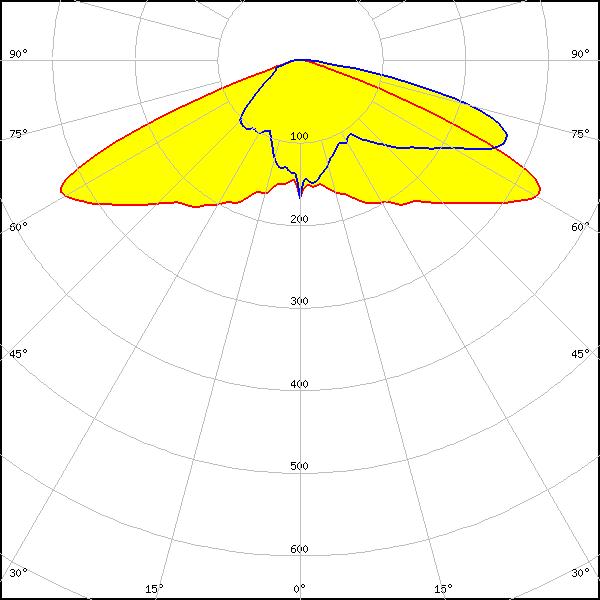

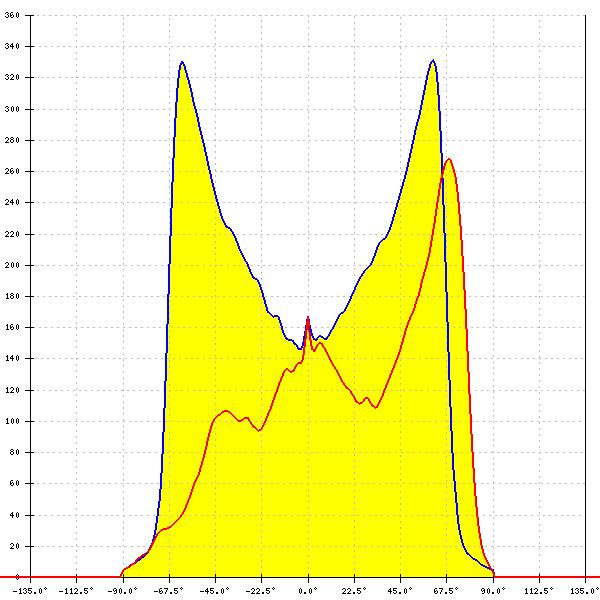

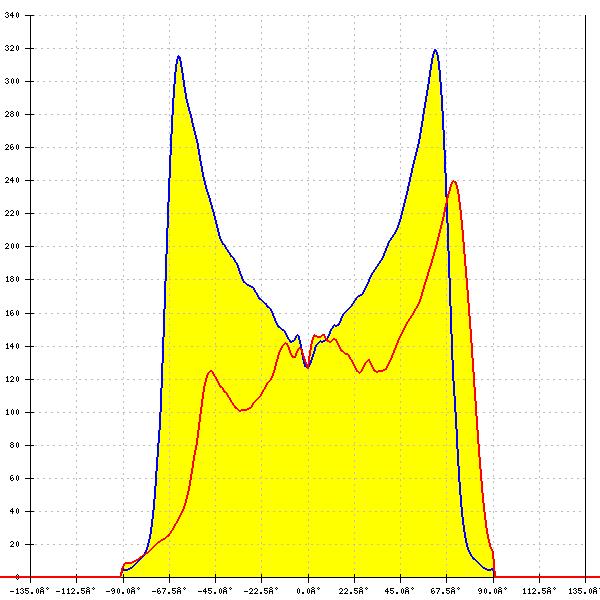

Optical results

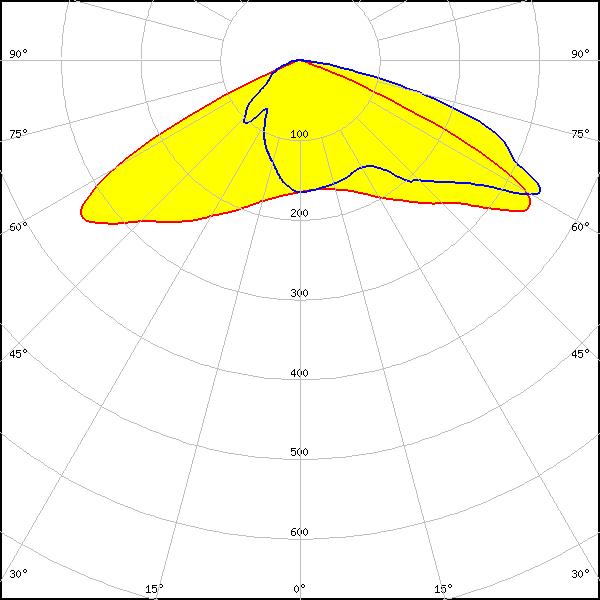

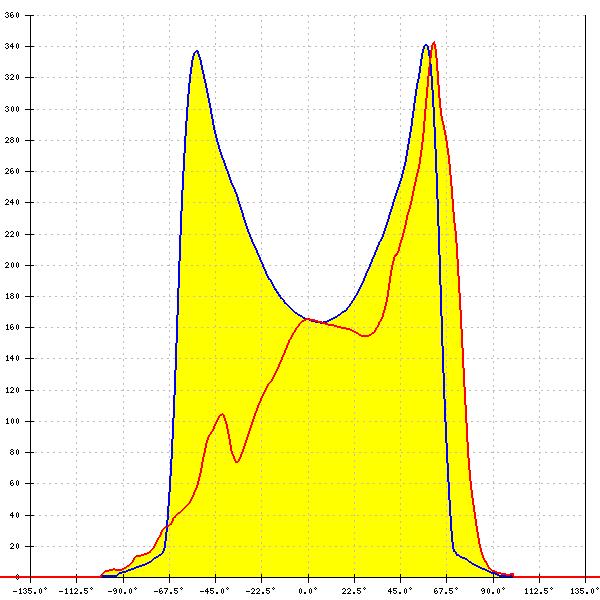

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

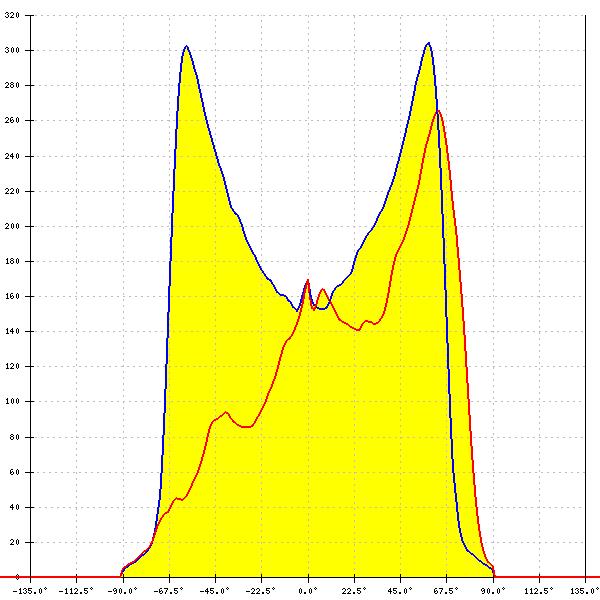

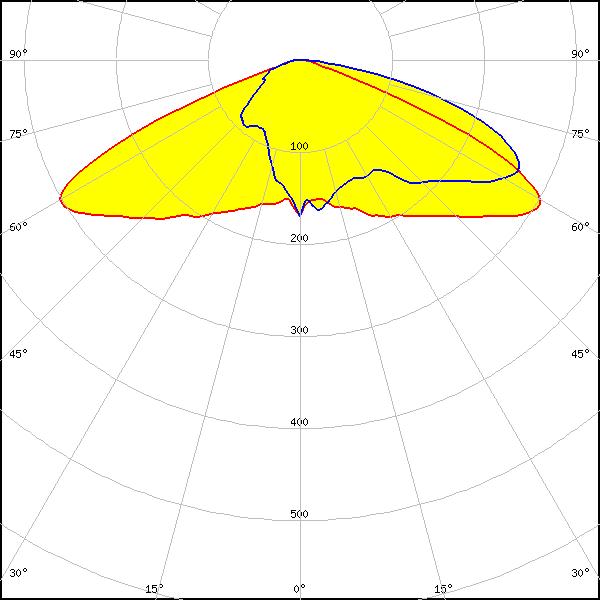

LED: LH231B
FWHM: asymmetric
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

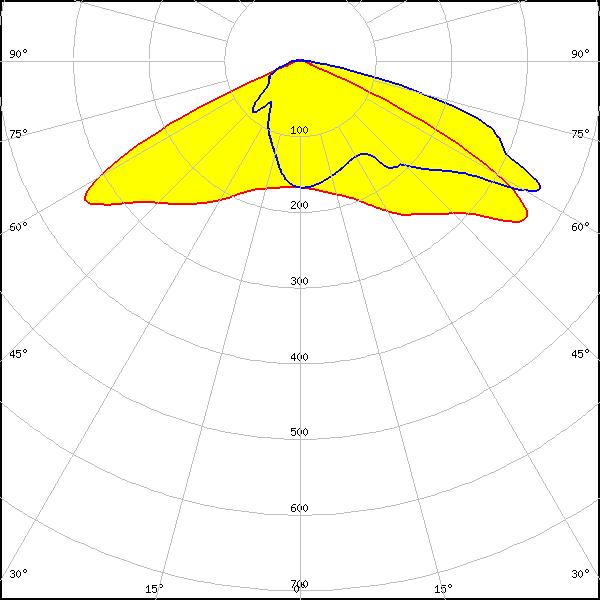

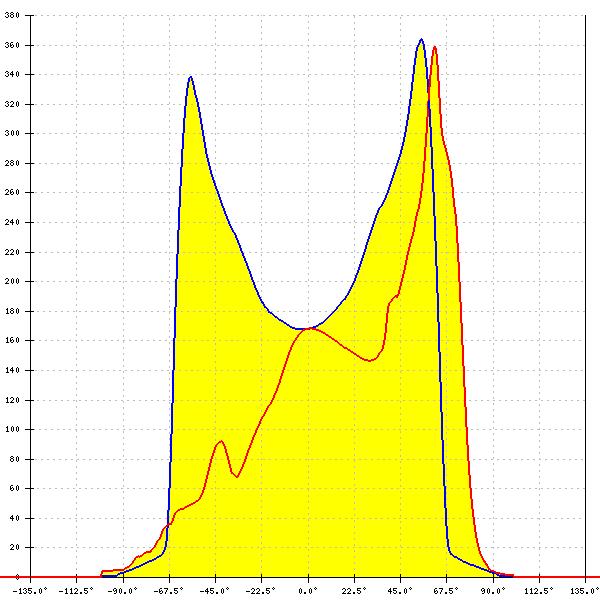

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

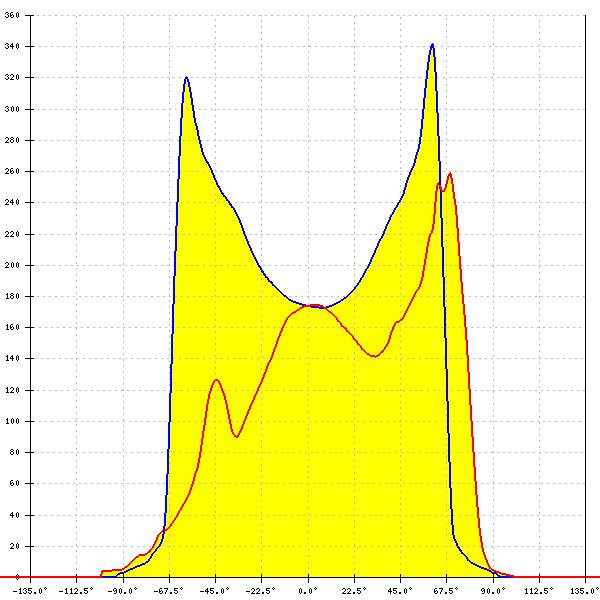

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.4 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White

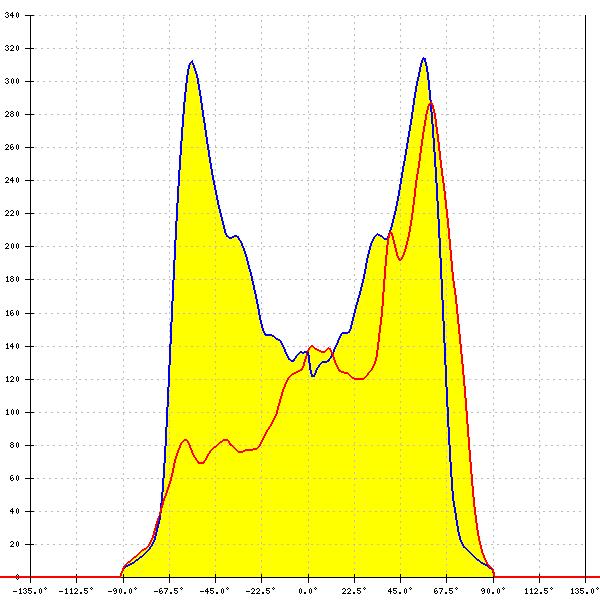

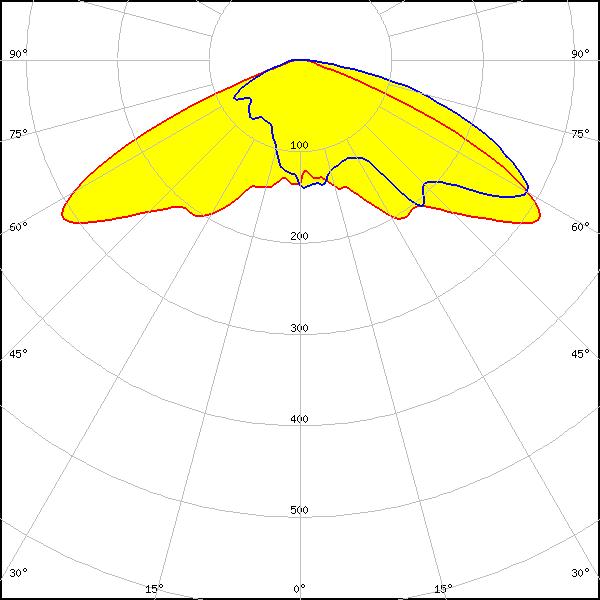

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.4 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

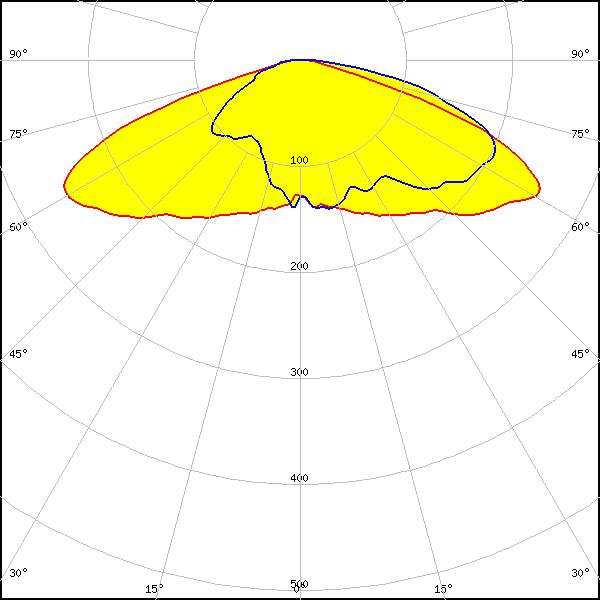

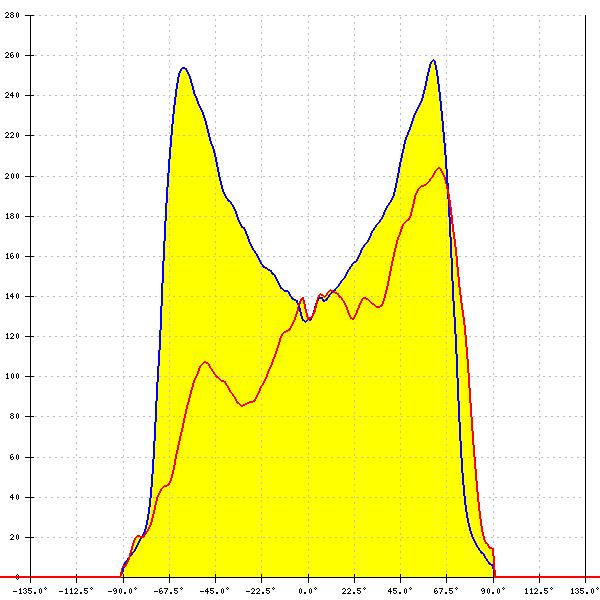

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.3 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
