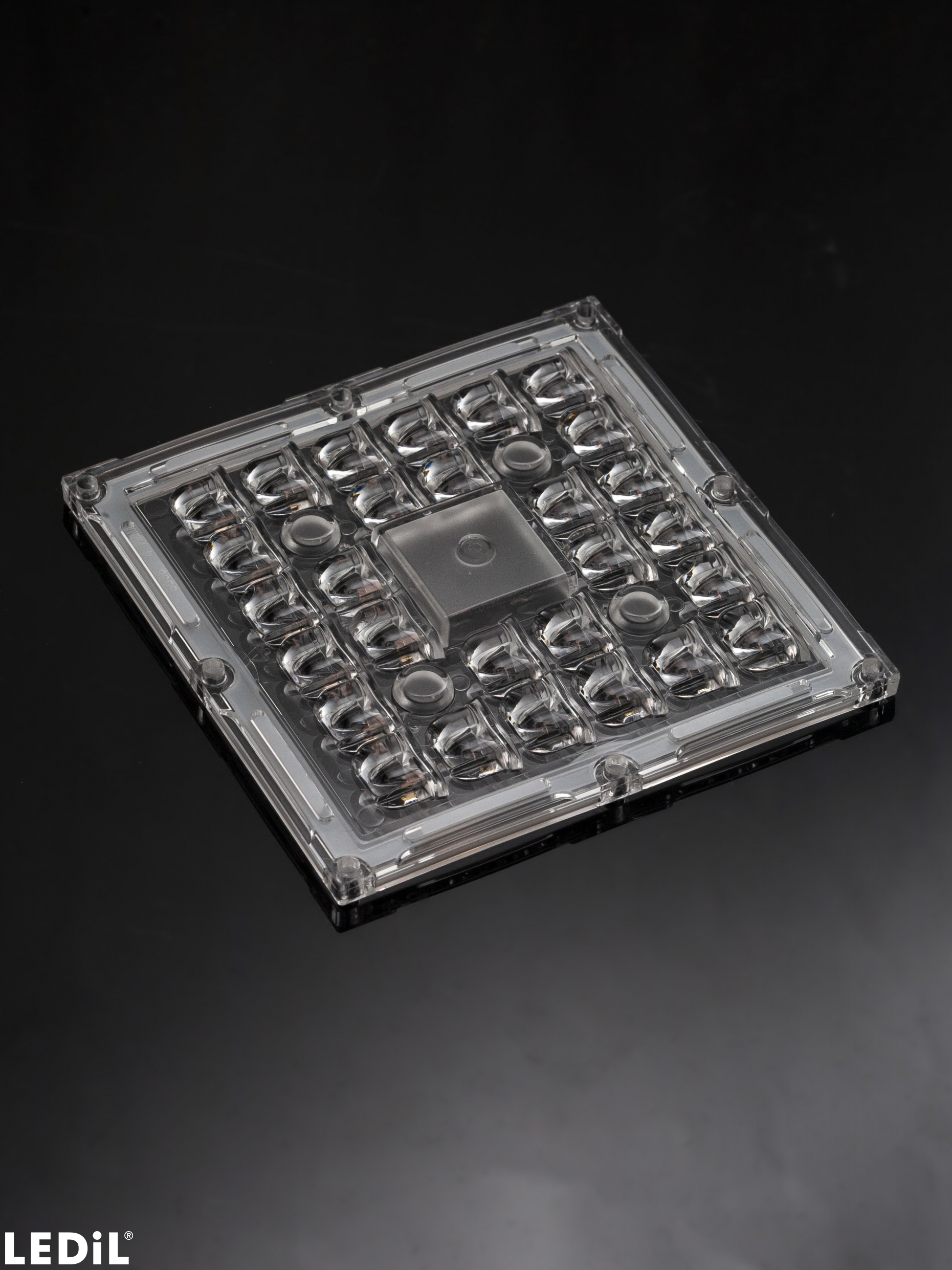

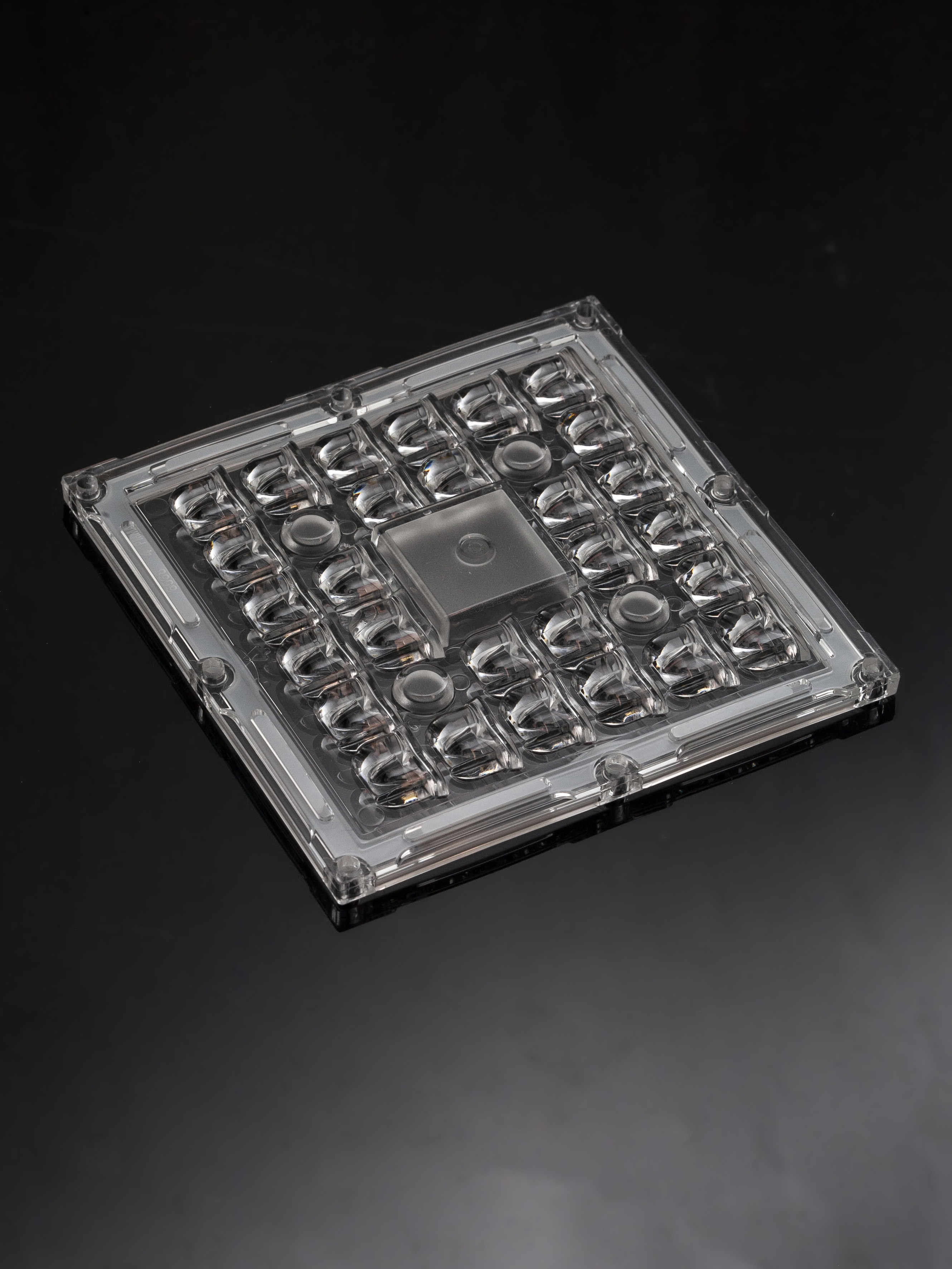

CS16691_STRADELLA-IP-28-SCL-PC

Print

Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes. Variant made from PC.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.50 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.6 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16691_STRADELLA-IP-28-SCL-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

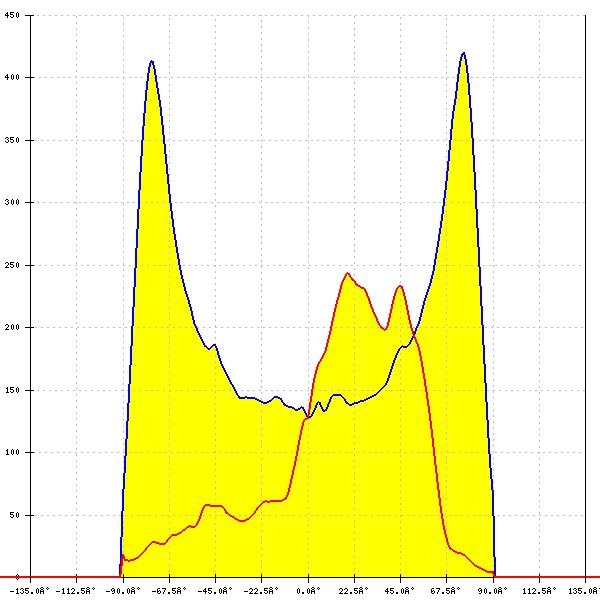

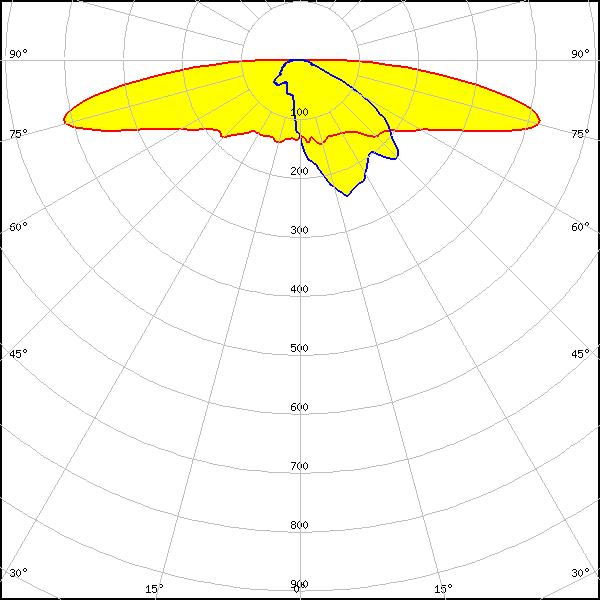

Optical results

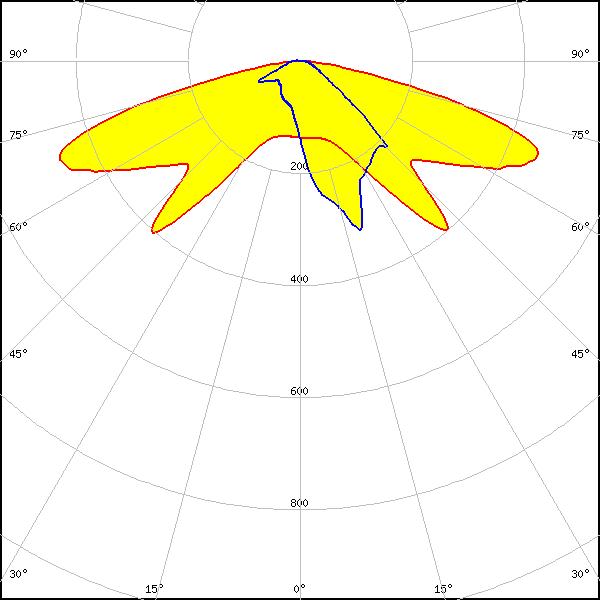

LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: HiQLED STR28 CR JK3030 4x7 xxx
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

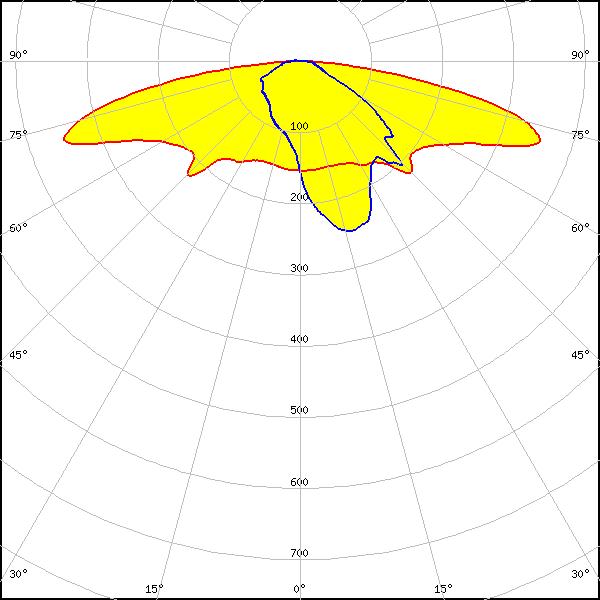

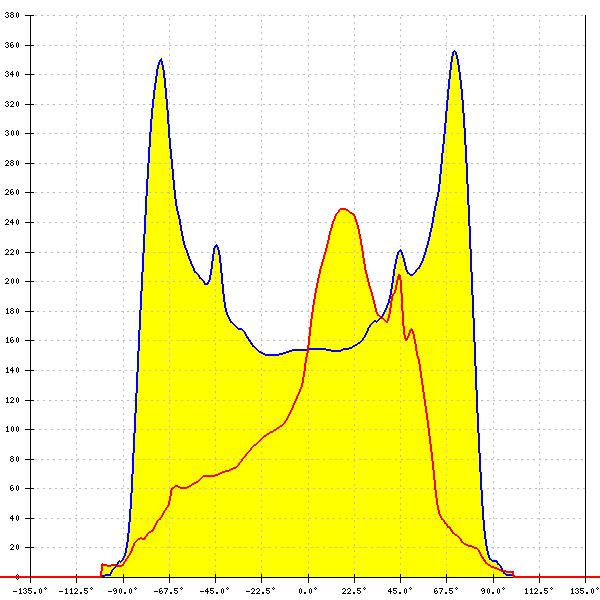

LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

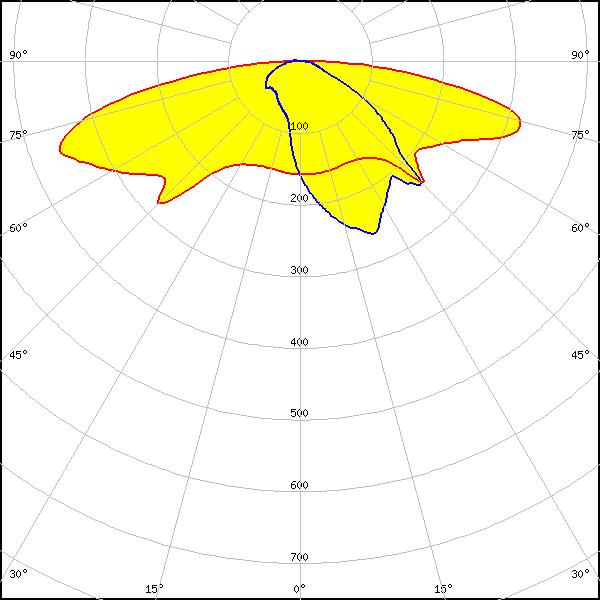

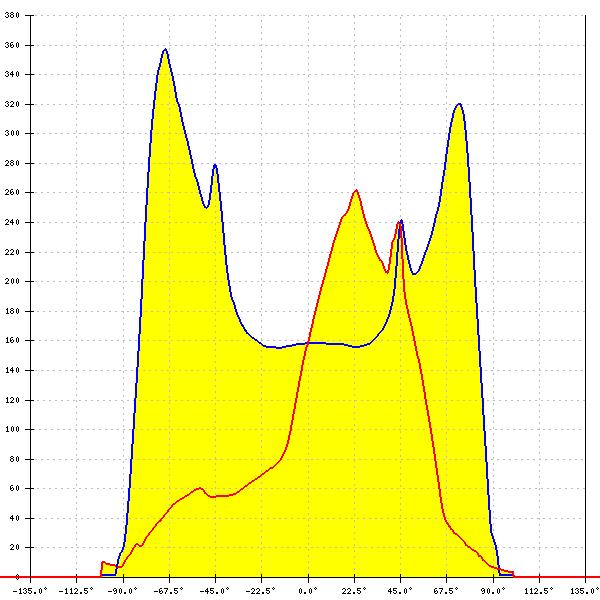

LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

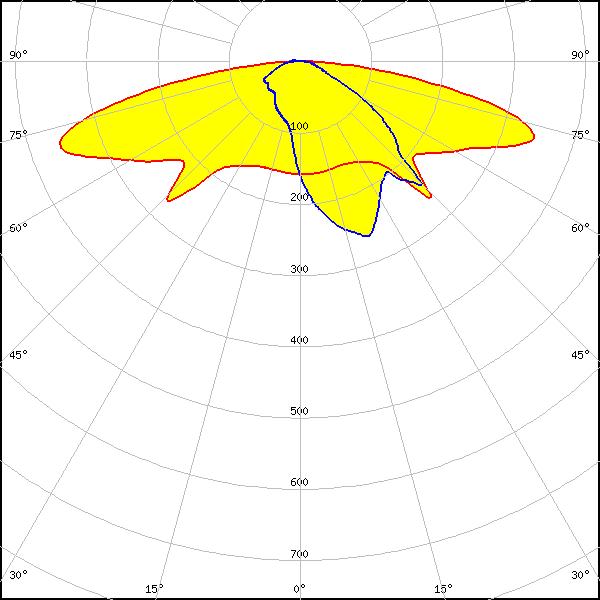

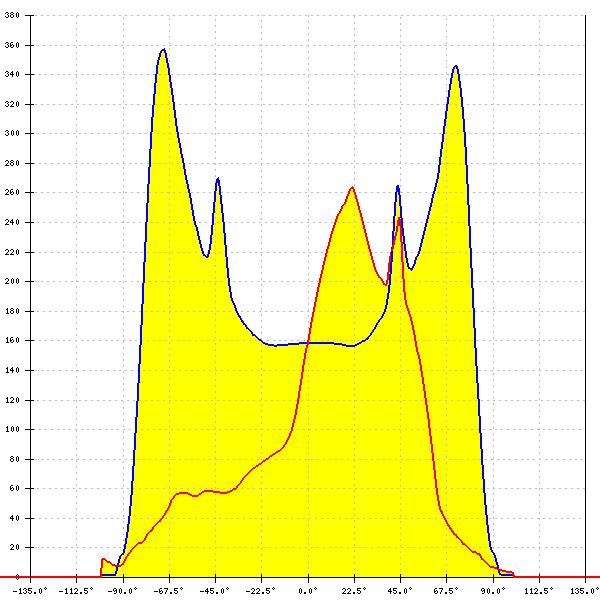

LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

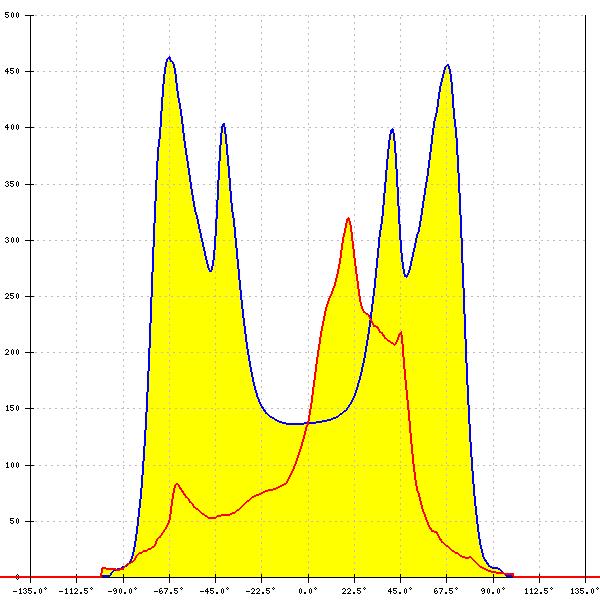

LED: J Series 2835
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

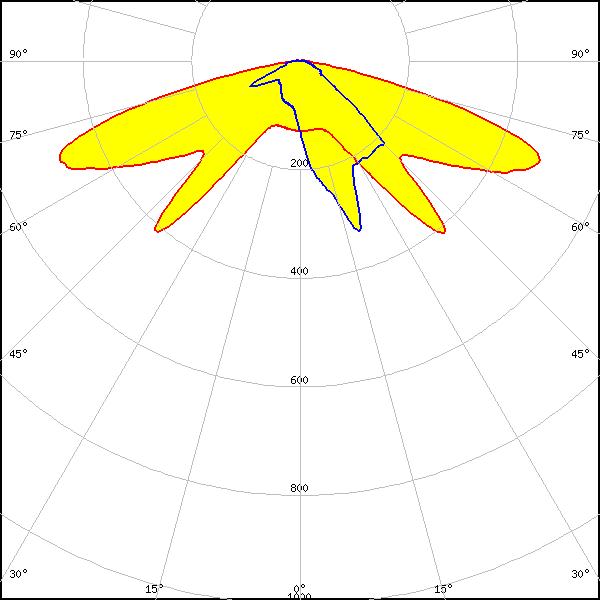

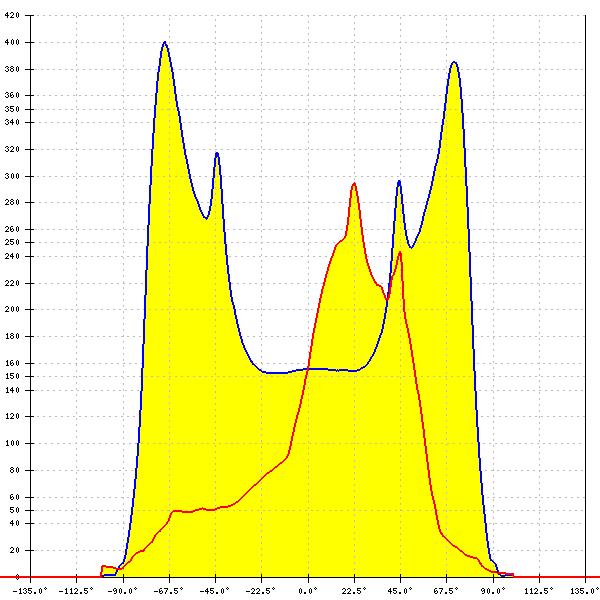

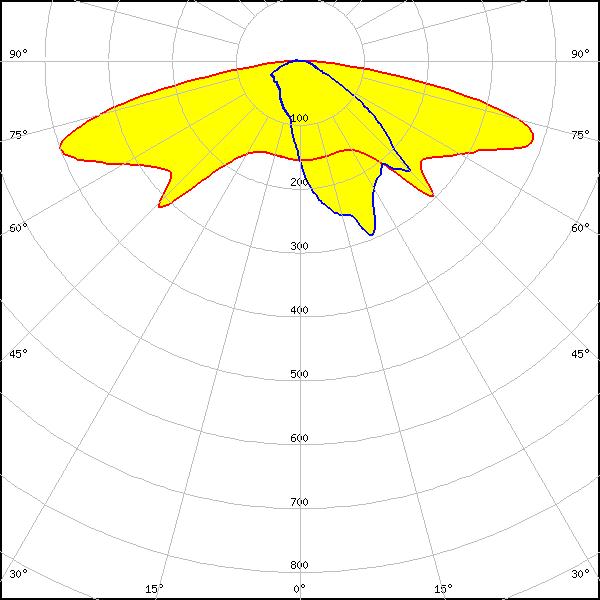

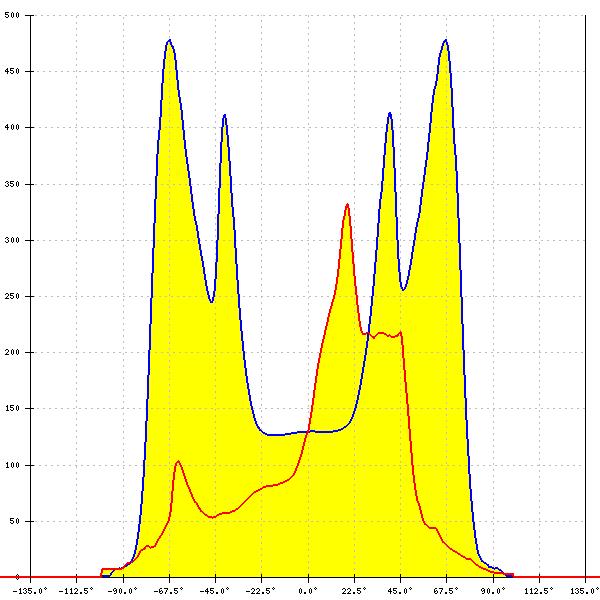

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.645 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: XD16
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

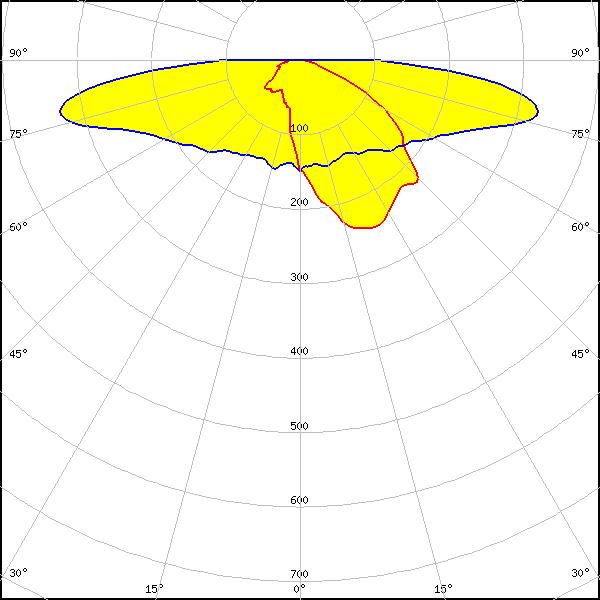

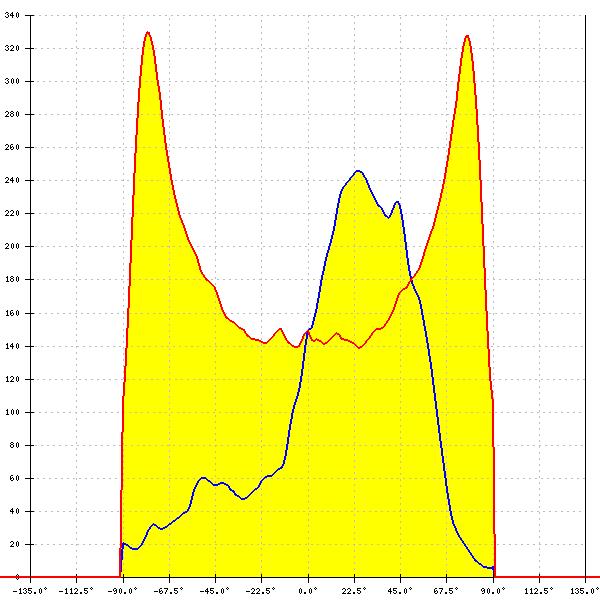

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.474 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

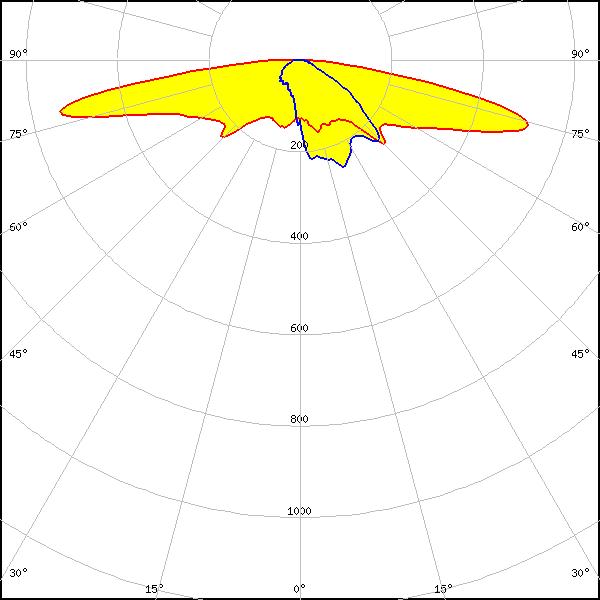

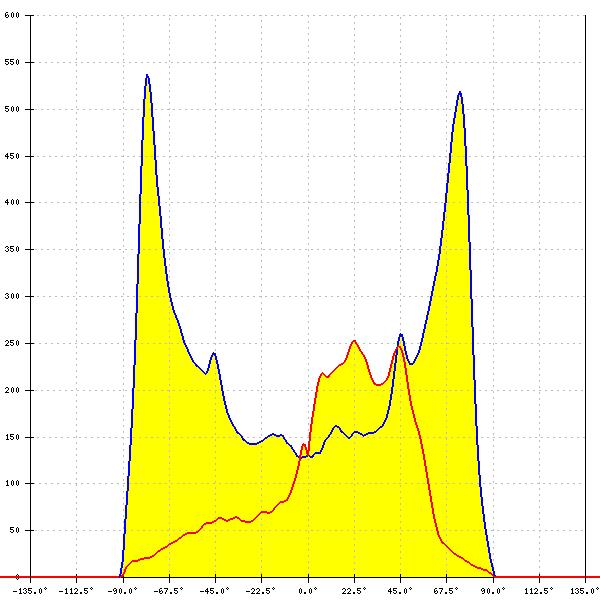

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.709 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

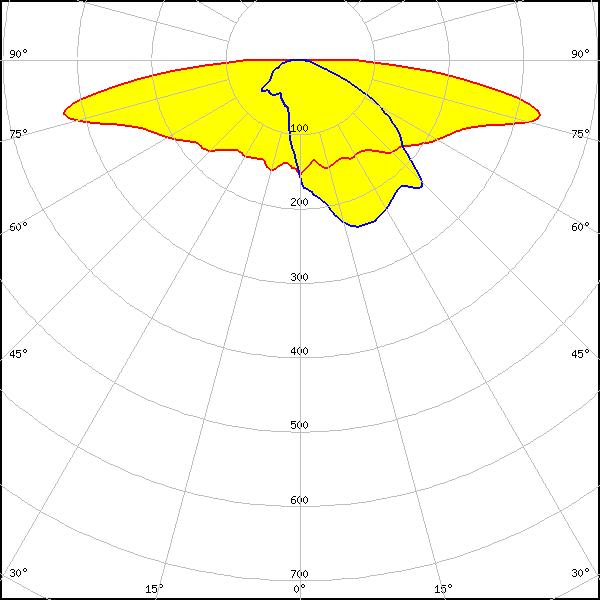

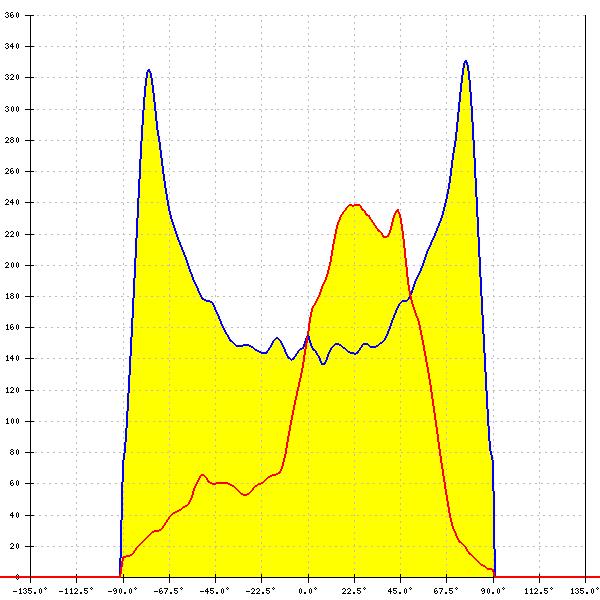

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

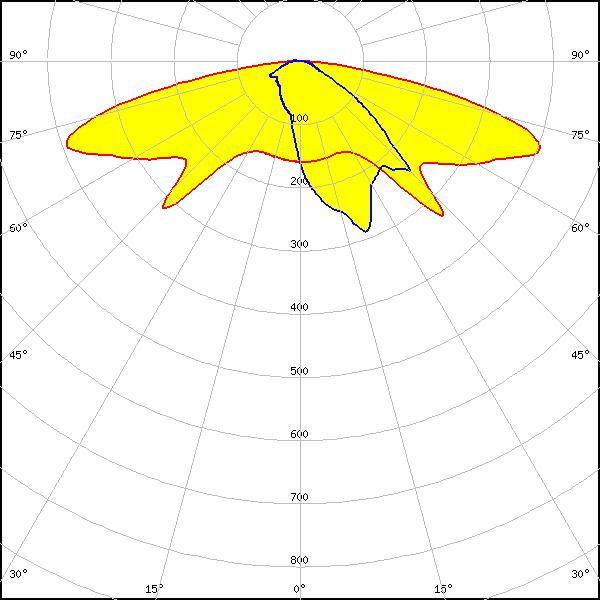

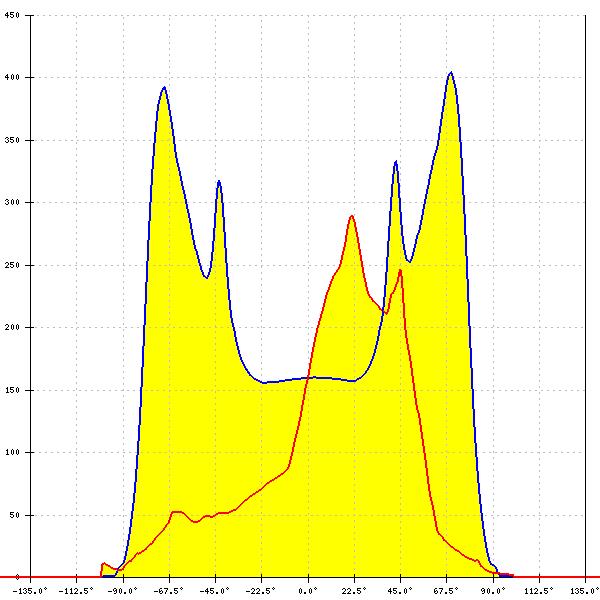

LED: Duris S5 (2 chip)
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

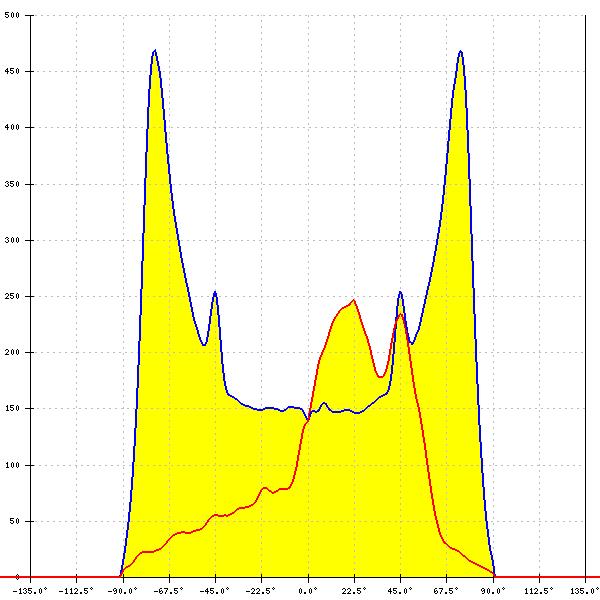

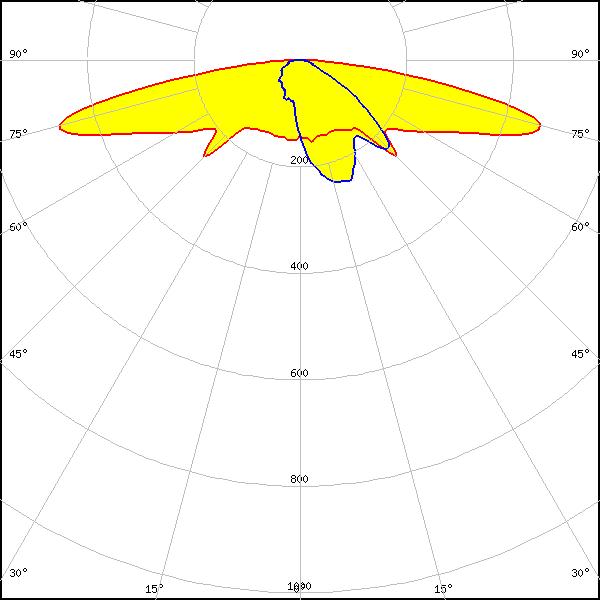

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.659 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

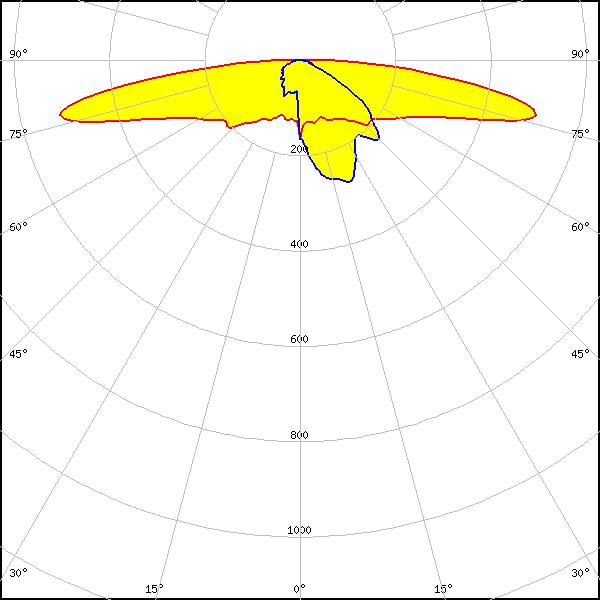

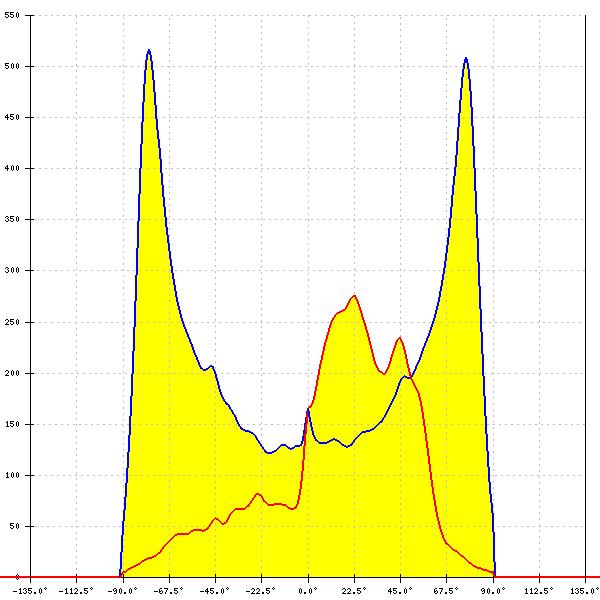

LED: OSCONIQ P 3030
FWHM: asymmetric
Peak intensity: 0.744 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

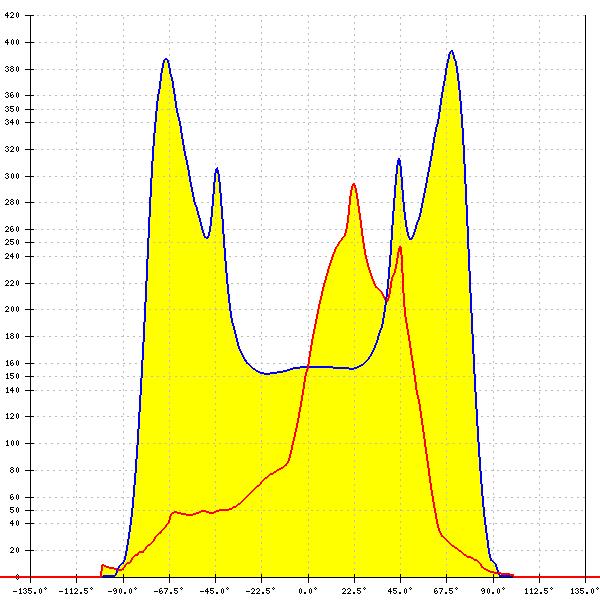

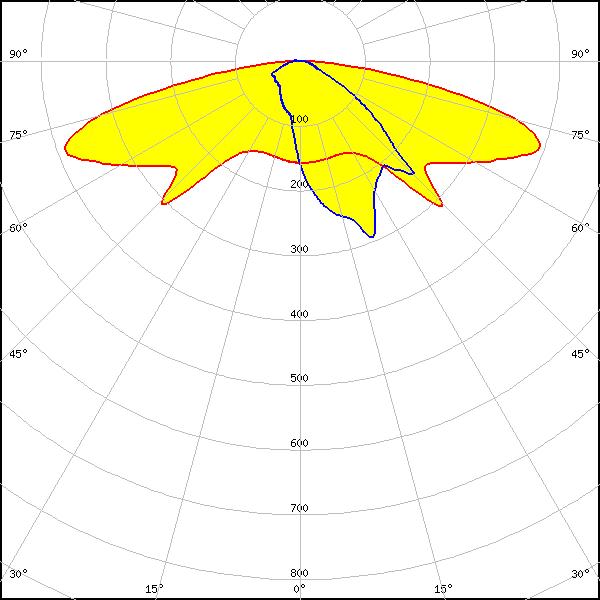

LED: OSCONIQ S 3030 (QSLR31)
FWHM: asymmetric
Peak intensity: 0.622 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

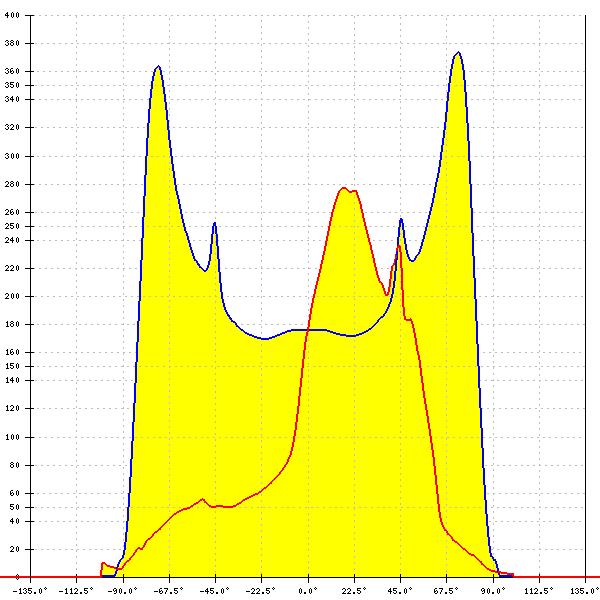

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.675 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

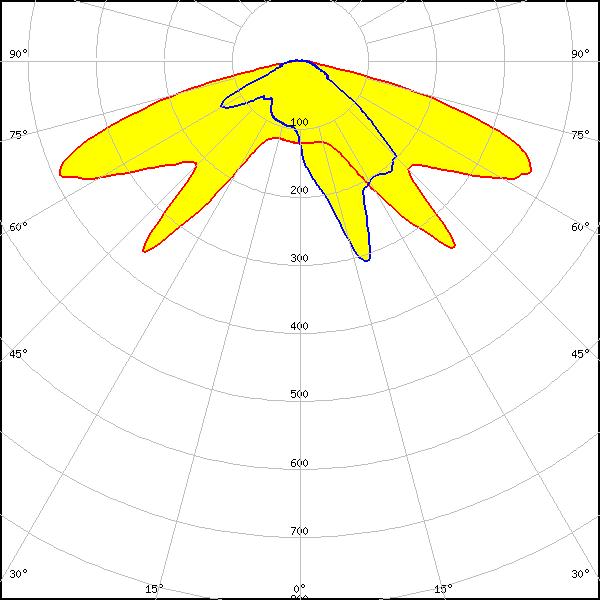

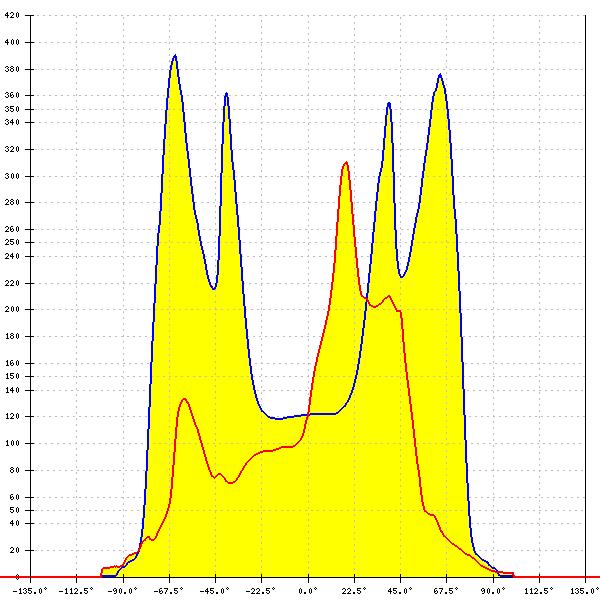

LED: HiLOM SC28 (LH181B)
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

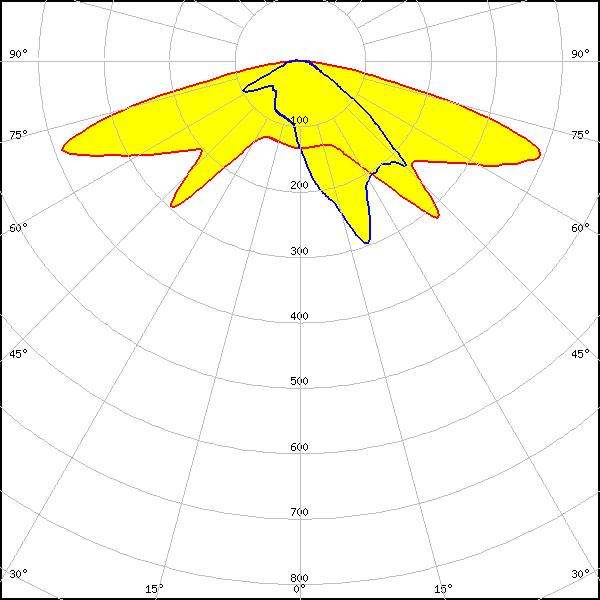

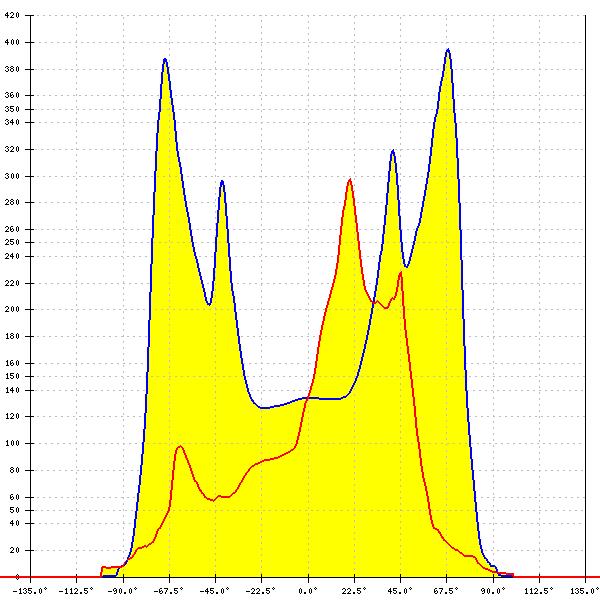

LED: HiLOM SM28 (LM301B)
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

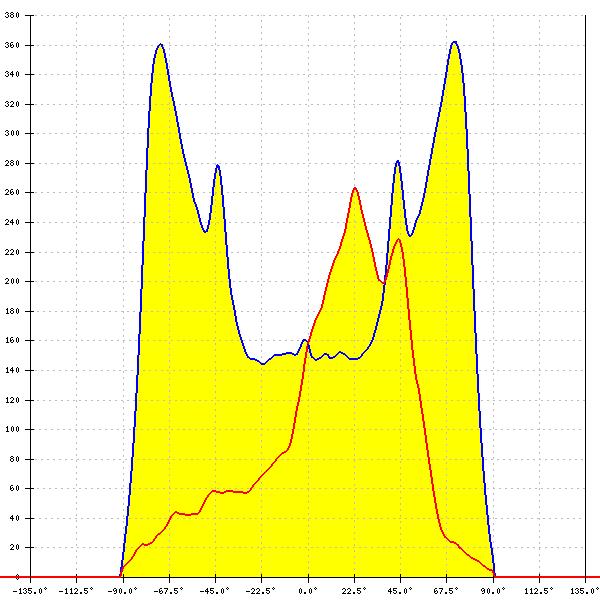

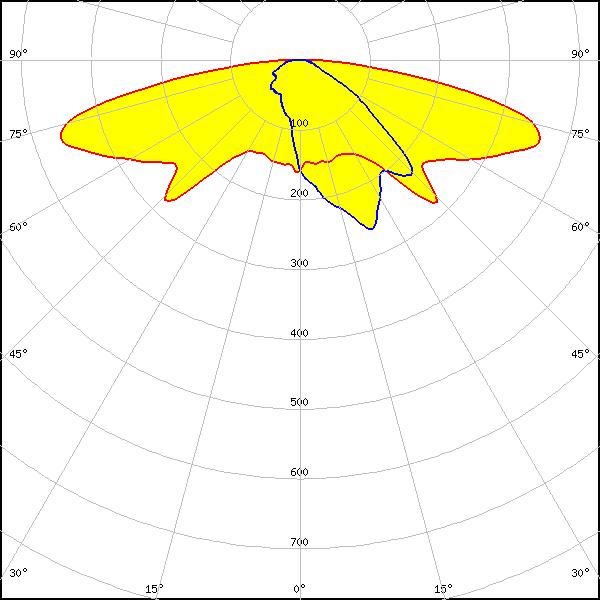

LED: LH231B
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

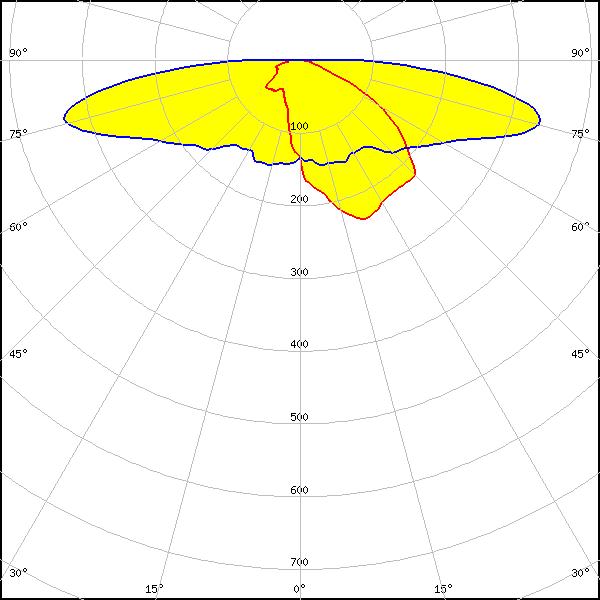

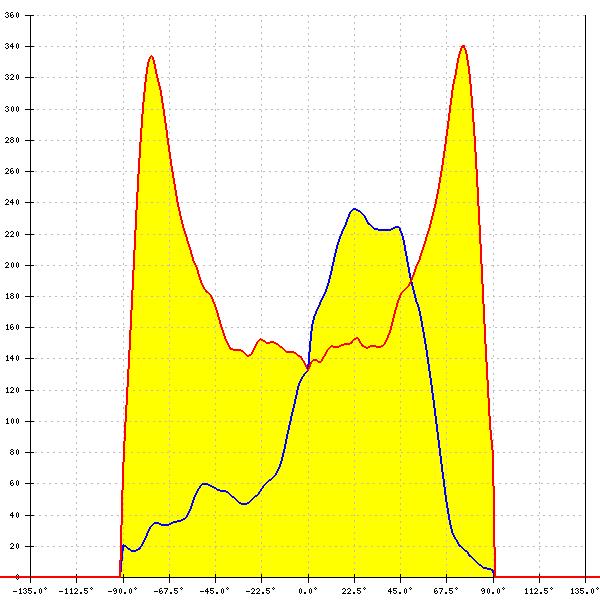

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.457 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

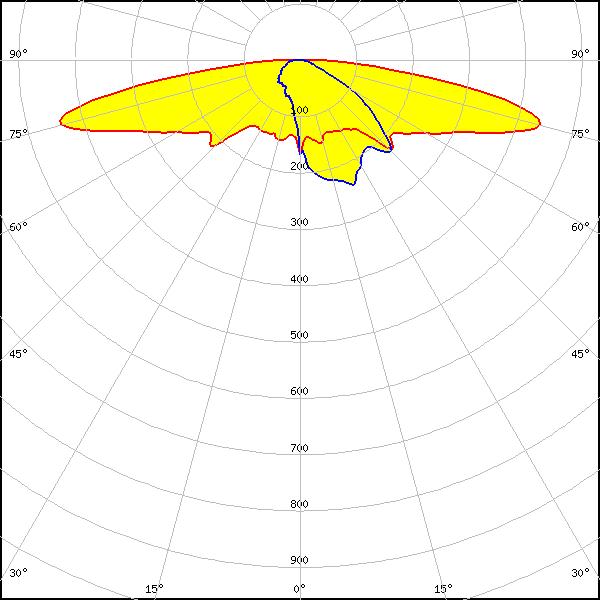

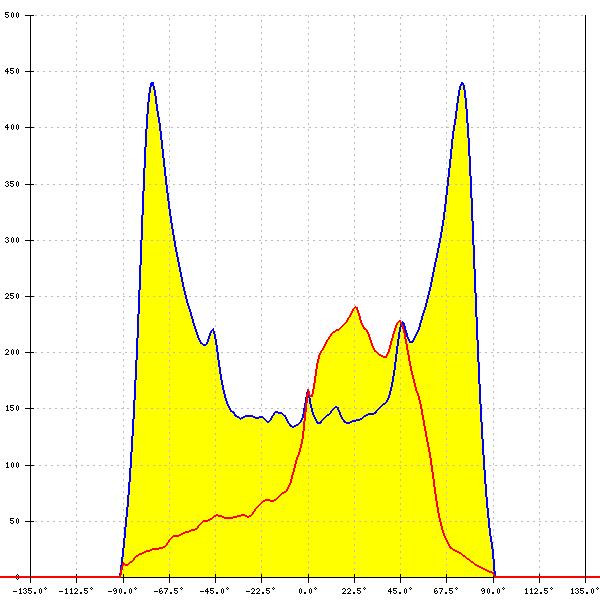

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 0.638 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

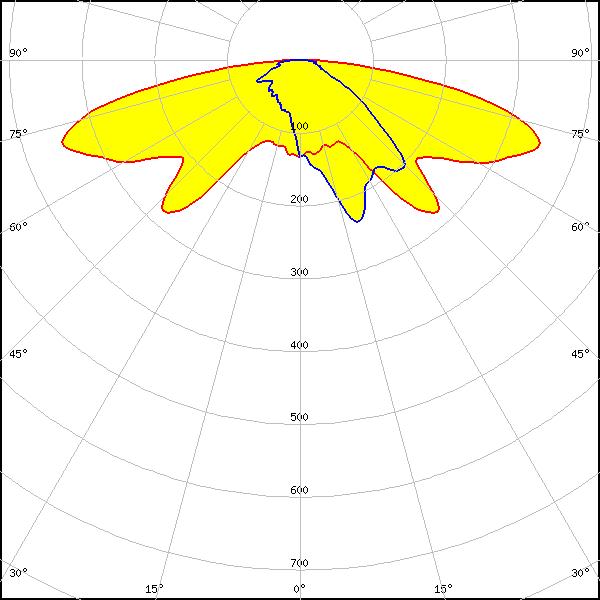

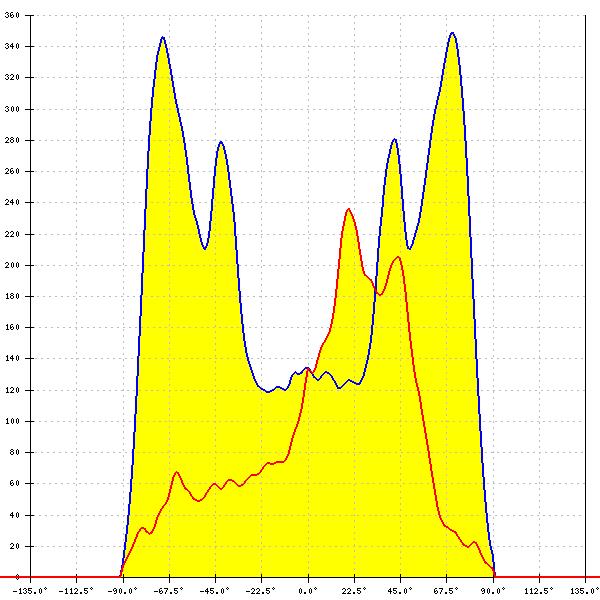

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.473 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

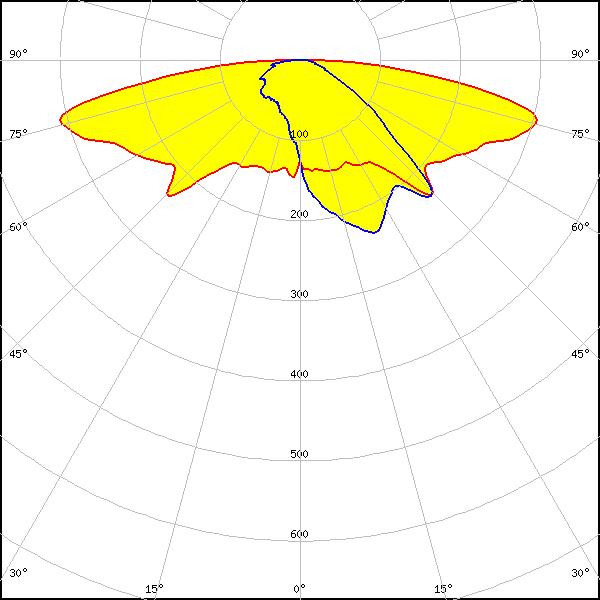

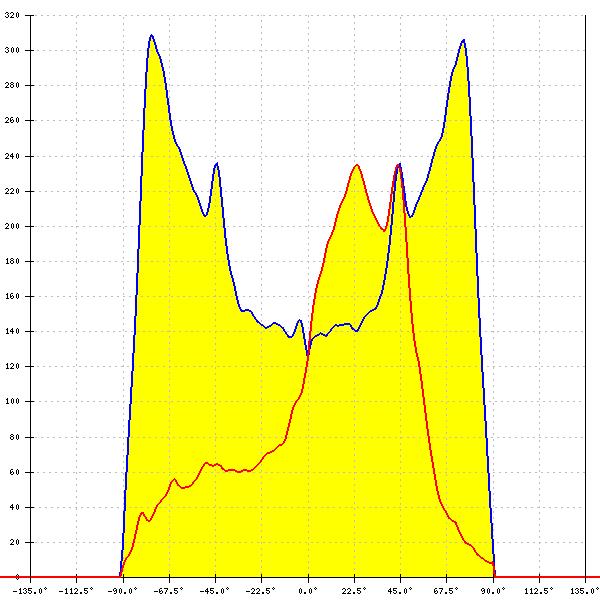

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.427 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
