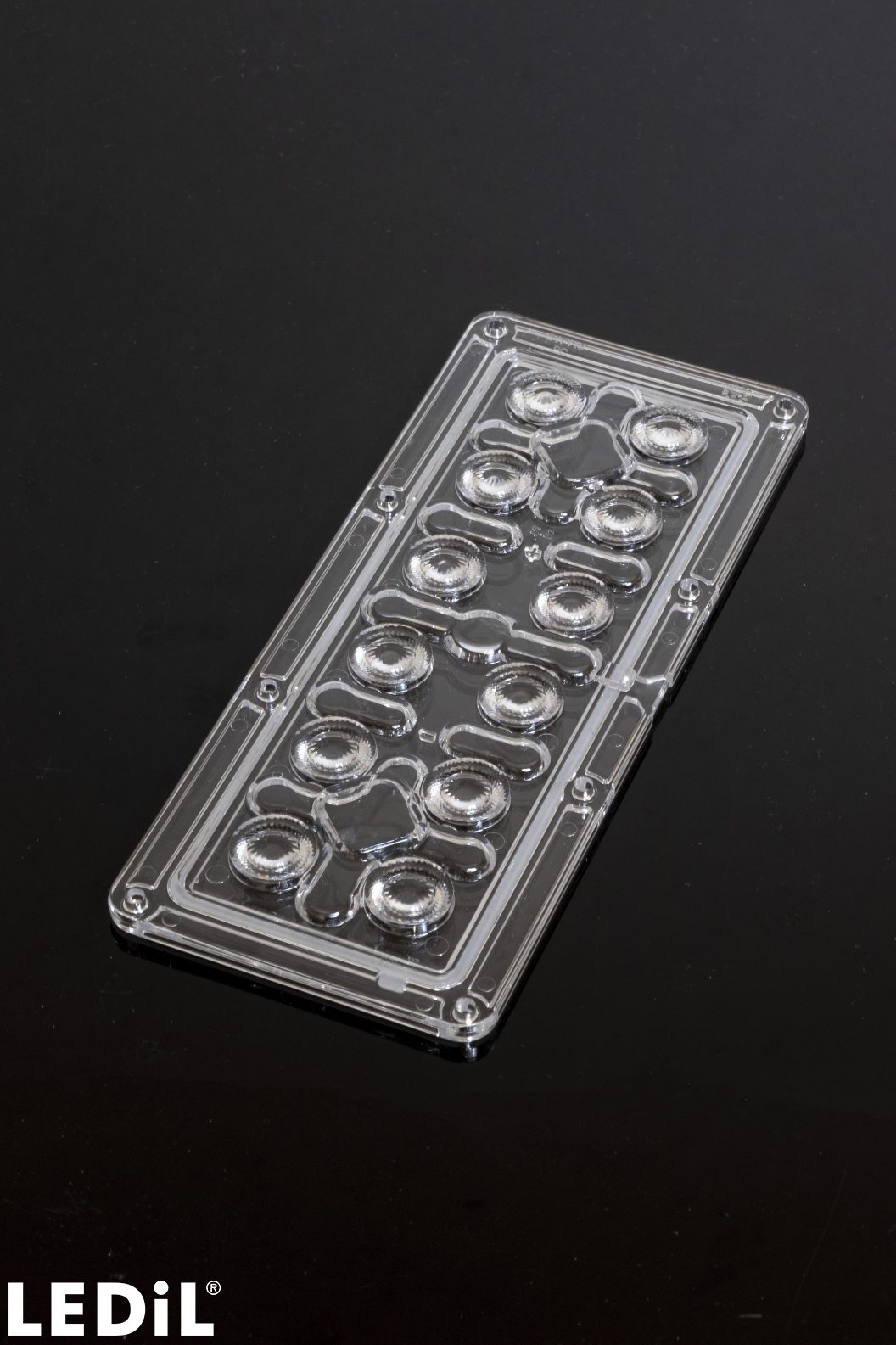

CS17149_HB-IP-2X6-G2-W-PC

Print

~60° wide beam. Variant made from PC.

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification
  • Dimensions:
    172 x  71 mm
  • Height:
    8.20 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    132 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.2 kg
  • MPQ:
    132 pcs
  • MOQ:
    1056 pcs
  • MOQ size:
    476 x 273 x 247 mm
  • MOQ weight:
    6.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS17149_HB-IP-2X6-G2-W-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
WHERE TO BUY

Optical results

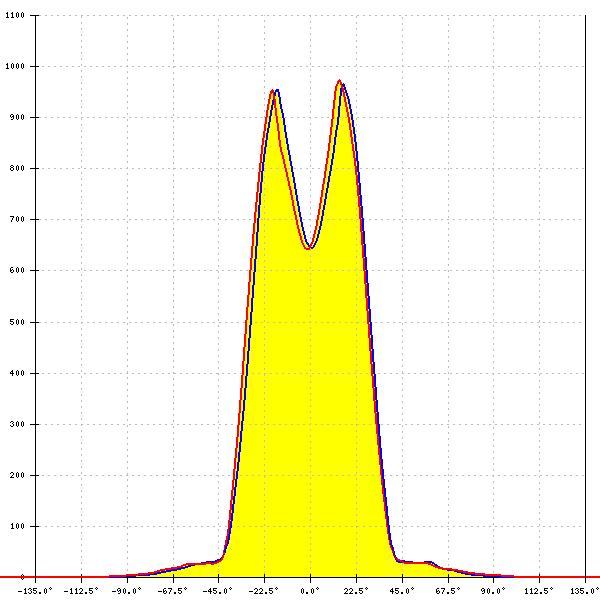

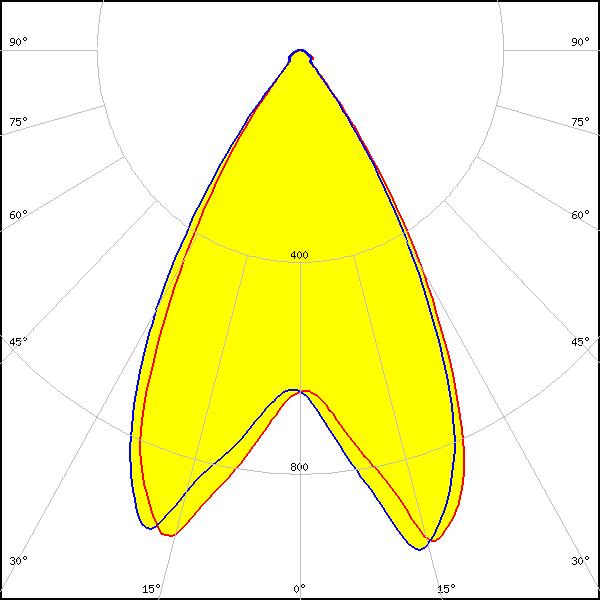

LED: NVSW519A
FWHM: 60°
FWTM: 78°
Peak intensity: 1.010 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

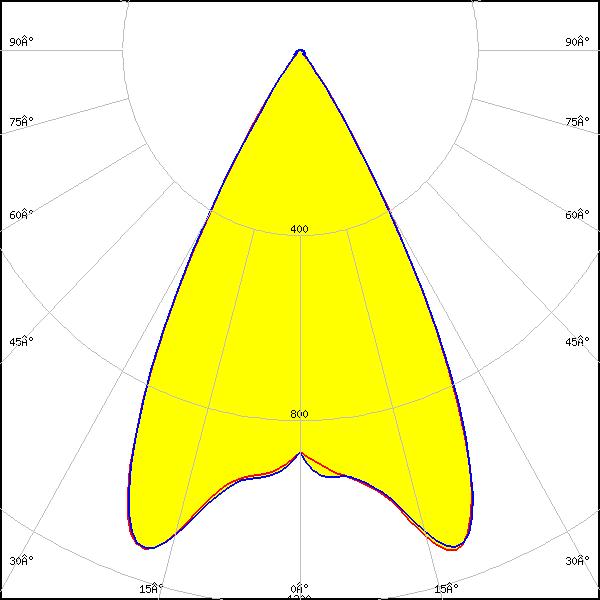

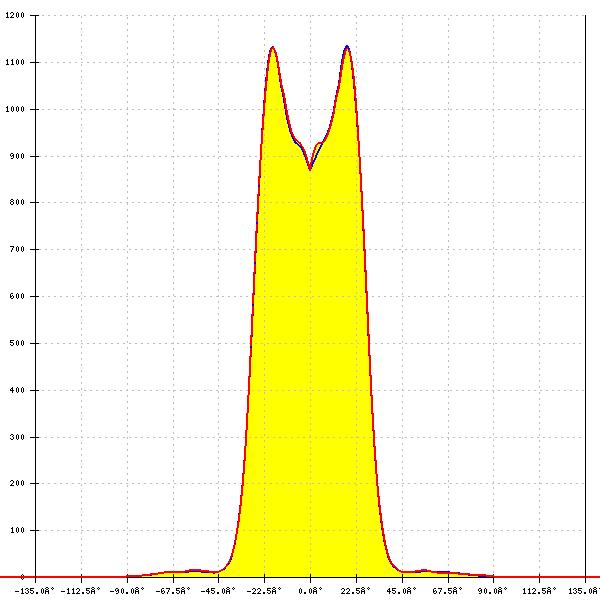

LED: PrevaLED Brick HP IP 2x6
FWHM: 56°
FWTM: 70°
Peak intensity: 1.170 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

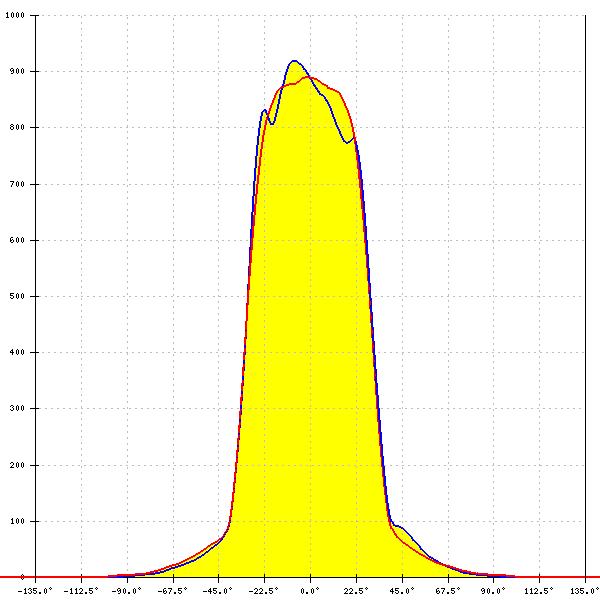

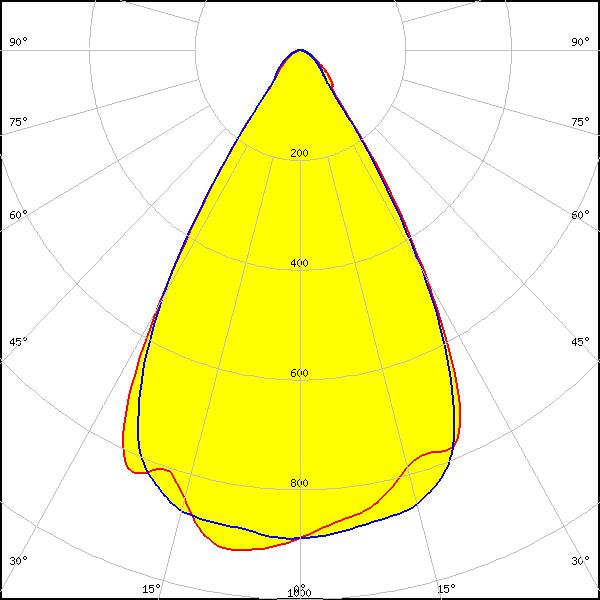

LED: Duris S8
FWHM: 62°
FWTM: 81°
Peak intensity: 0.919 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
