CS17760_STRADA-IP-24-DWC-PC

Print

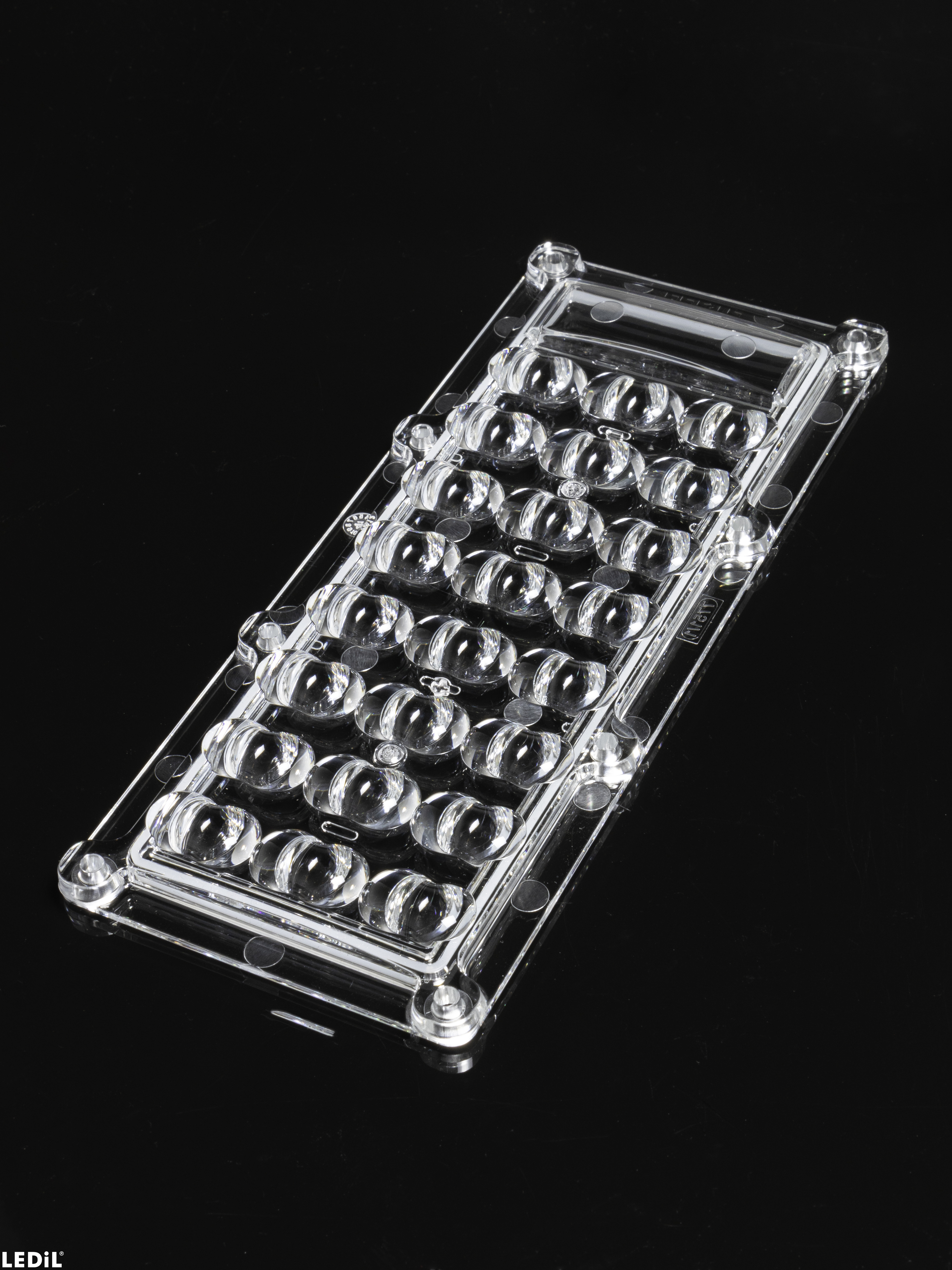

Universal road lighting (IESNA Type II medium) beam with excellent mixed illuminance and luminance uniformity. Variant made from PC.

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    9.00 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.1 kg
  • MPQ:
    40 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    476 x 273 x 247 mm
  • MOQ weight:
    6.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CS17760_STRADA-IP-24-DWC-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

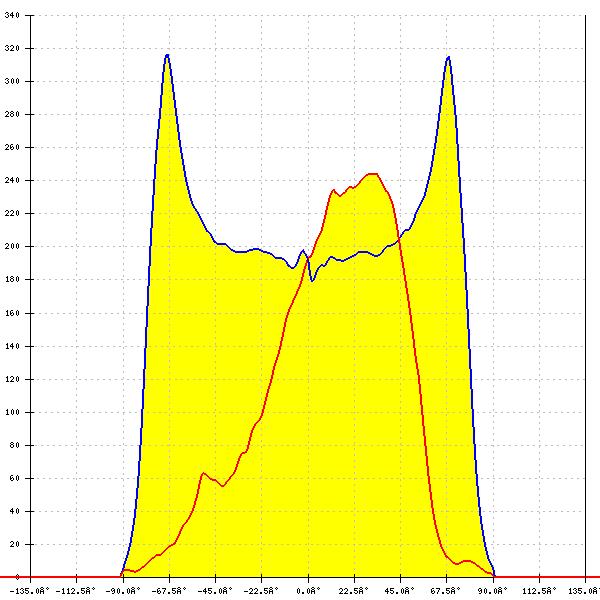

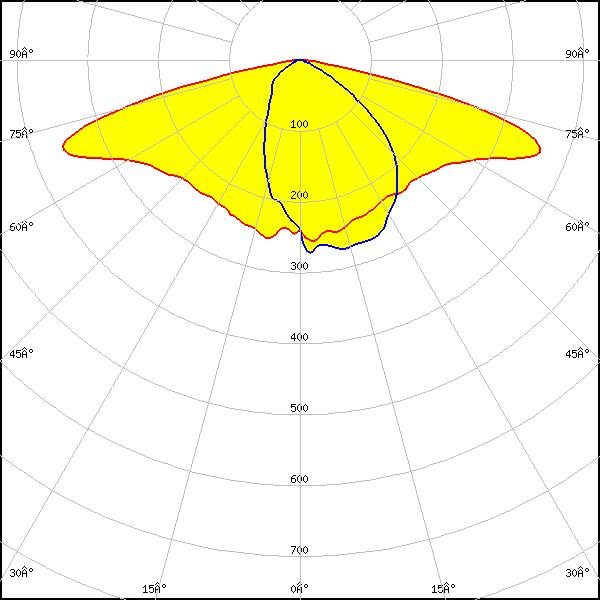

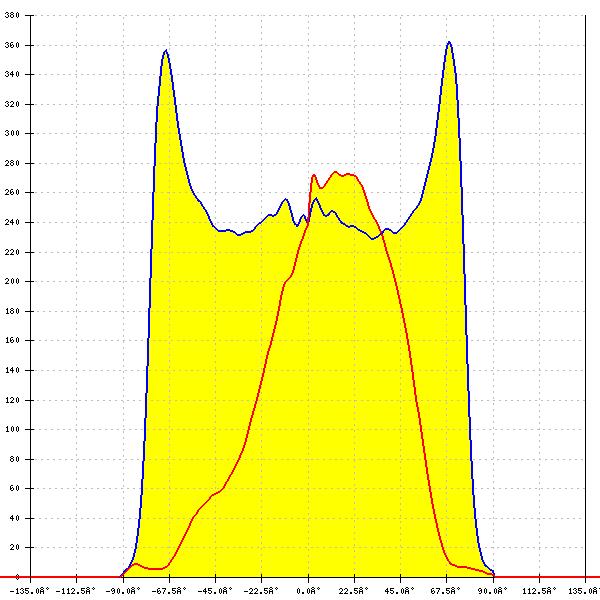

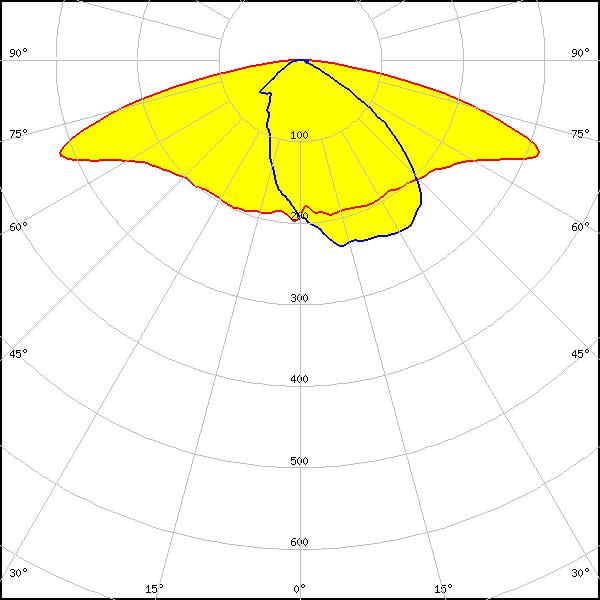

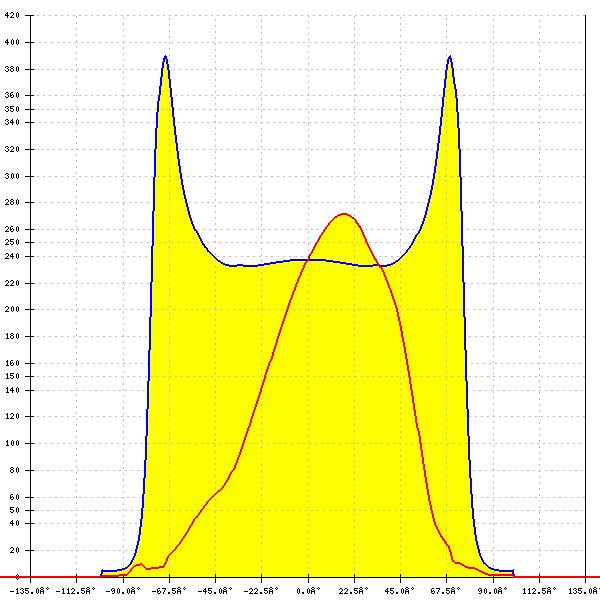

Optical results

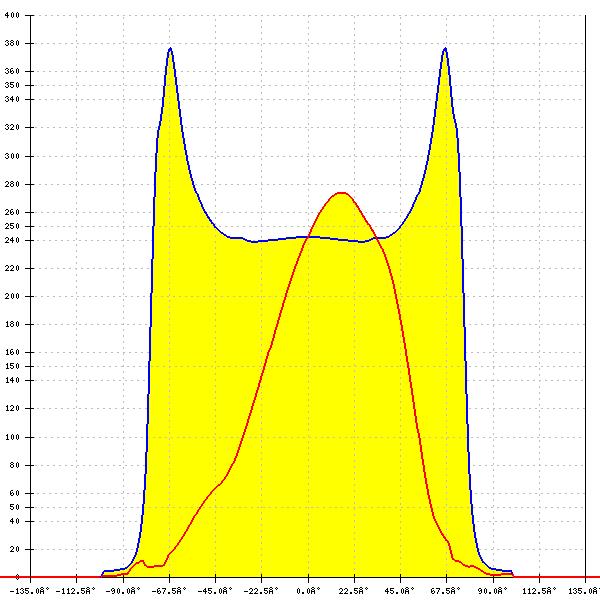

LED: LIGHT ENGINE STRADA-IP 24 LEDs 147.4 x 46.2 x 1.5
FWHM: asymmetric
Peak intensity: 0.451 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

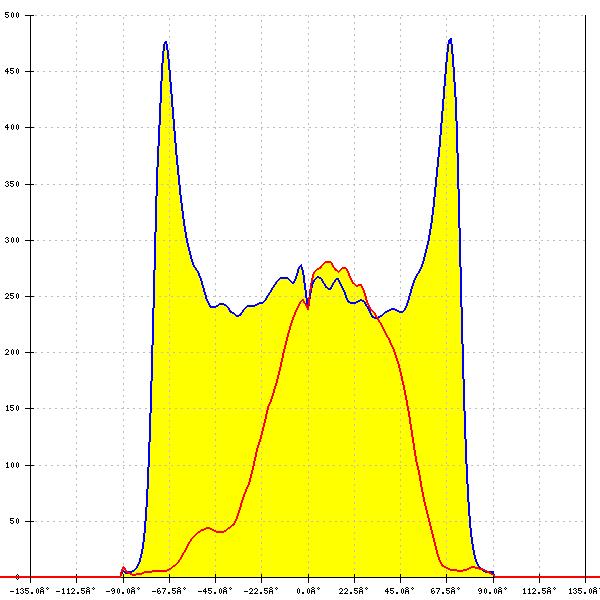

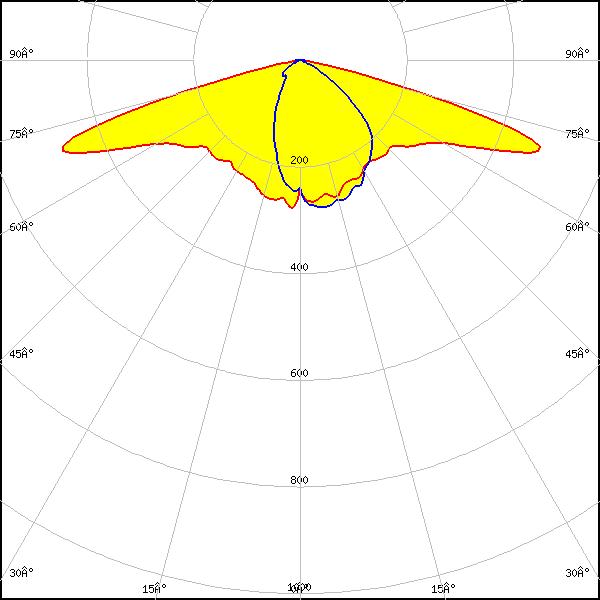

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.511 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.404 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

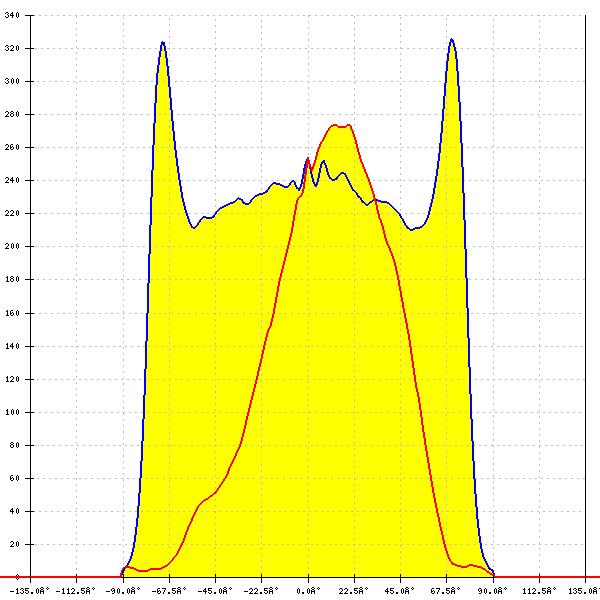

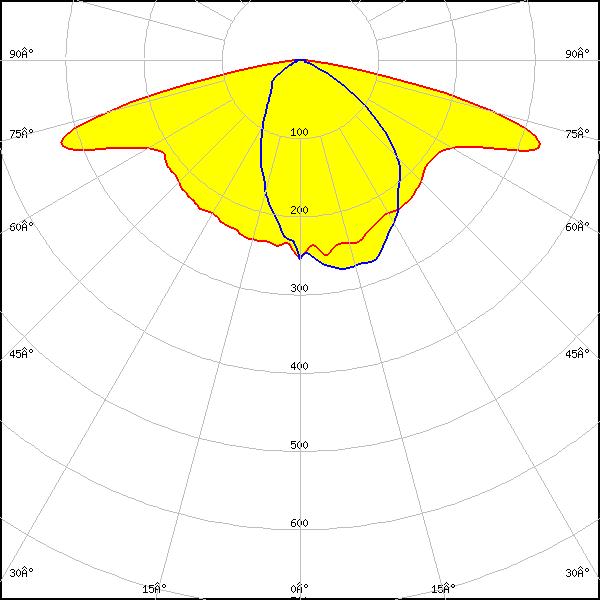

LED: J Series 5050B 30V K Class
FWHM: asymmetric
Peak intensity: 0.382 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

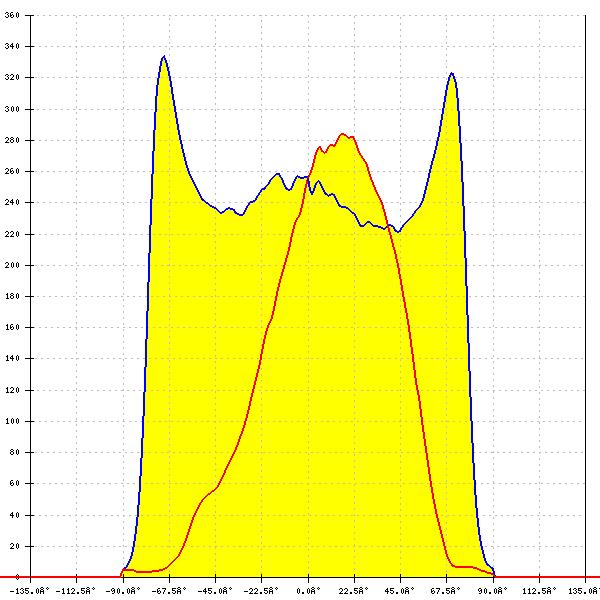

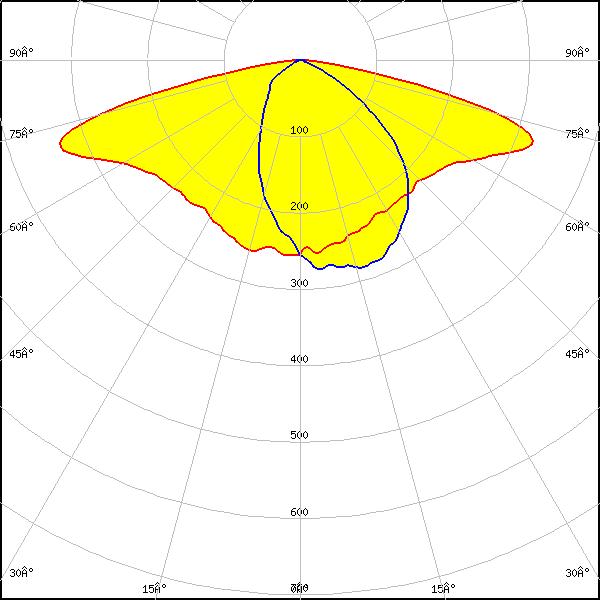

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.387 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

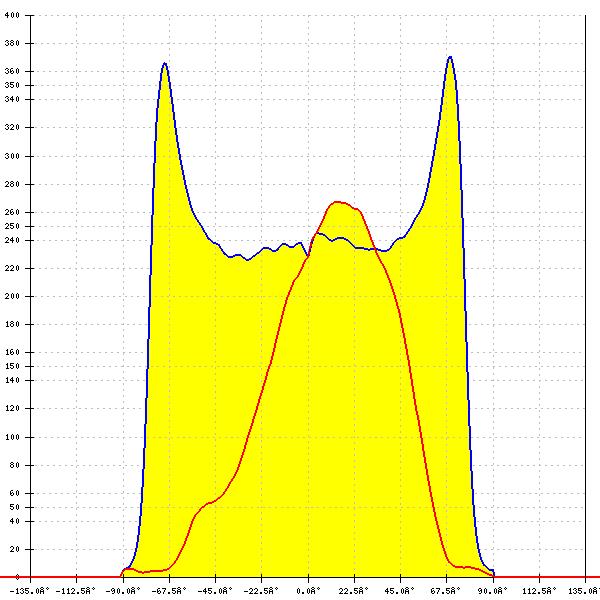

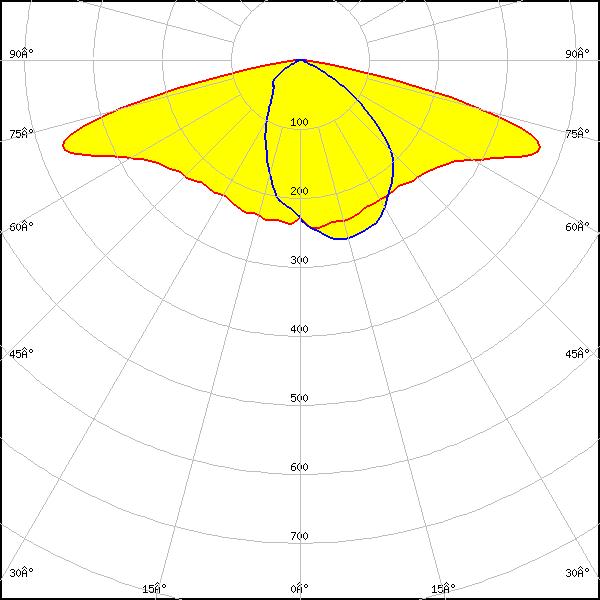

LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

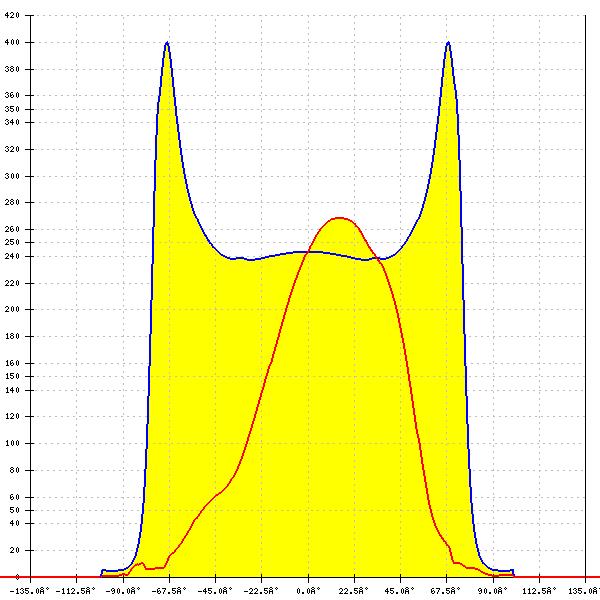

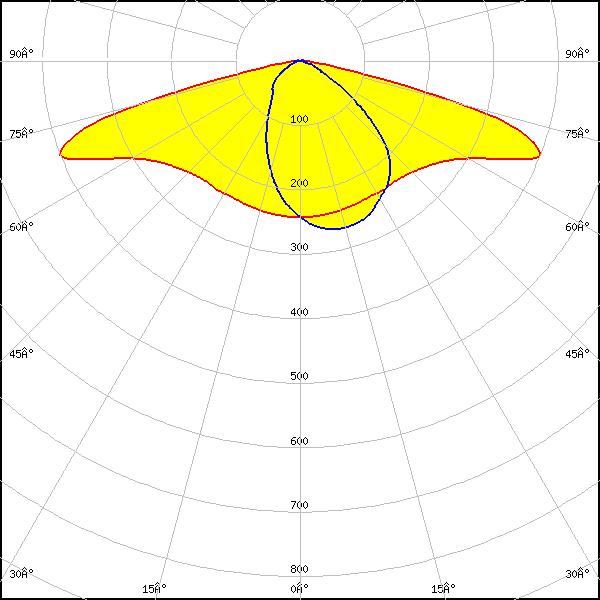

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.476 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

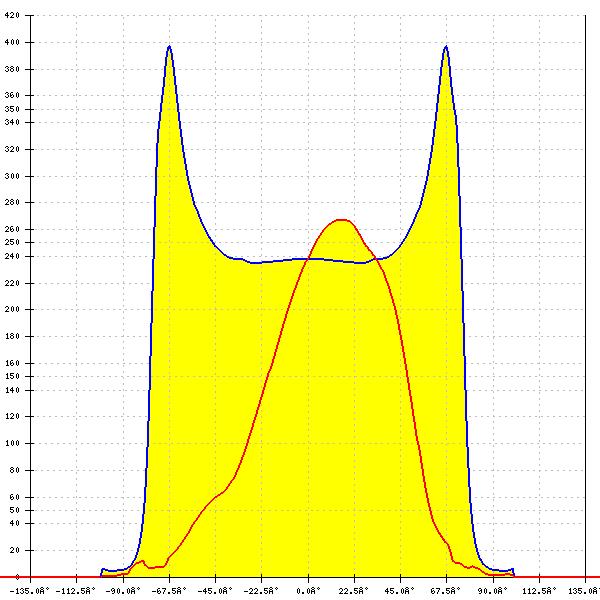

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.473 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

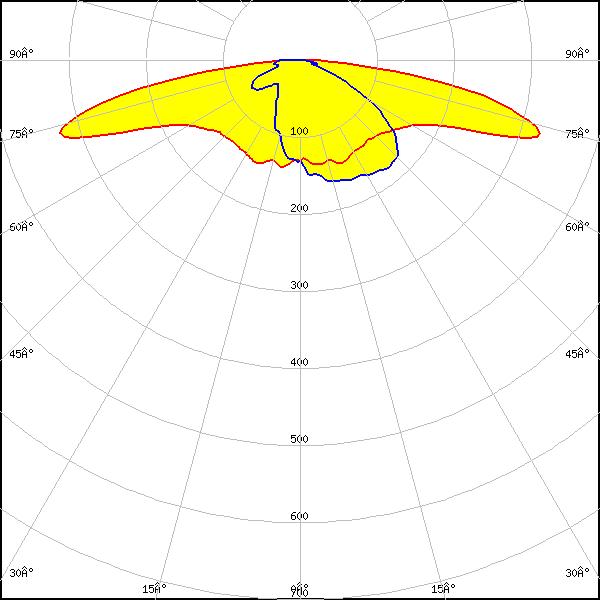

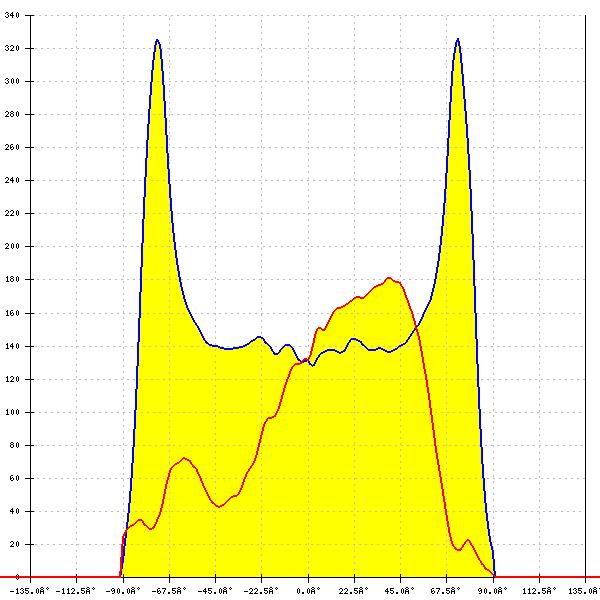

LED: LUXEON C
FWHM: asymmetric
Peak intensity: 0.493 cd/lm
Efficiency: 79 %
LEDs/each optic: 4
Light colour/type: RGBW

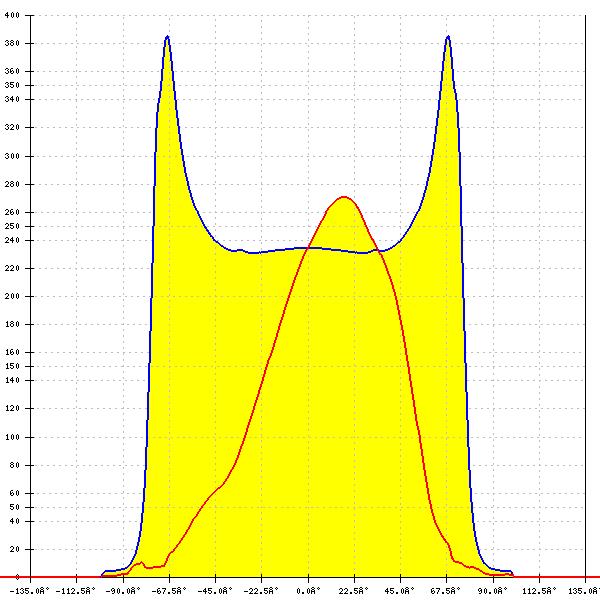

LED: LUXEON XR-5050 HE (L225-xxxx024MLU010)
FWHM: asymmetric
Peak intensity: 0.466 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

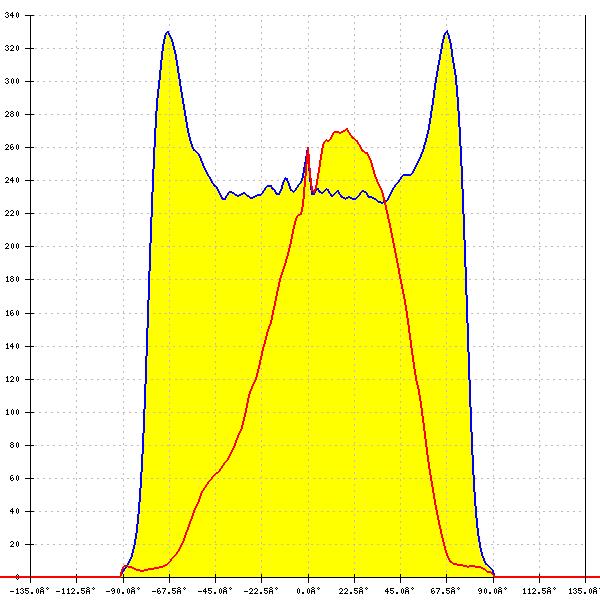

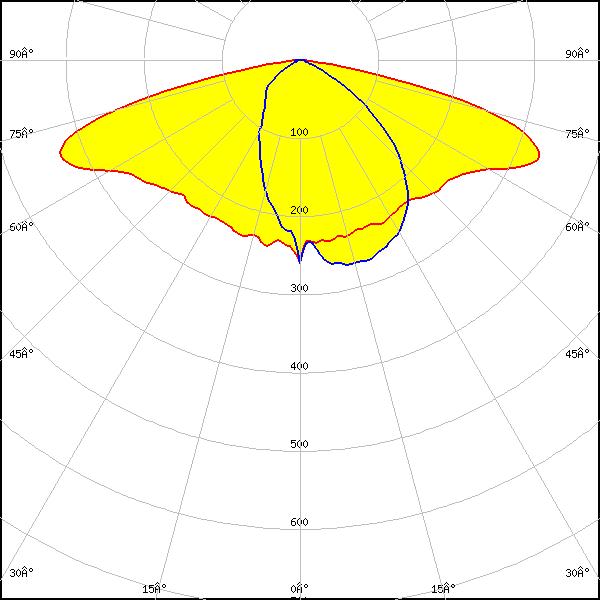

LED: RecLED 147x47mm 5800lm 7x0 5050 STRADA-IP-24 G2
FWHM: asymmetric
Peak intensity: 0.390 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

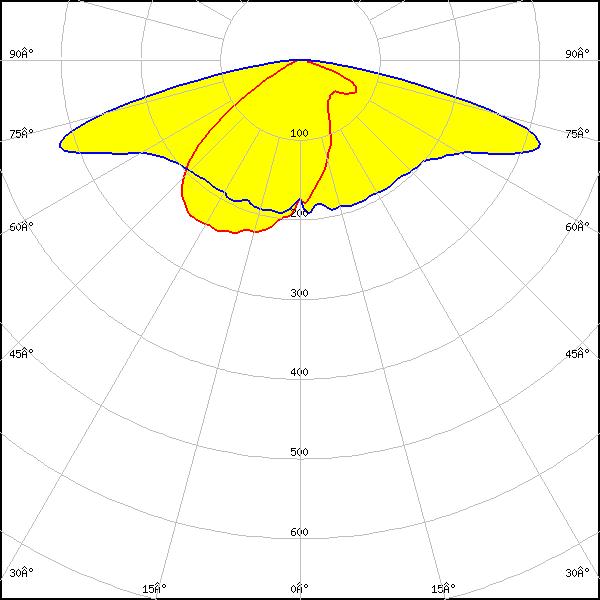

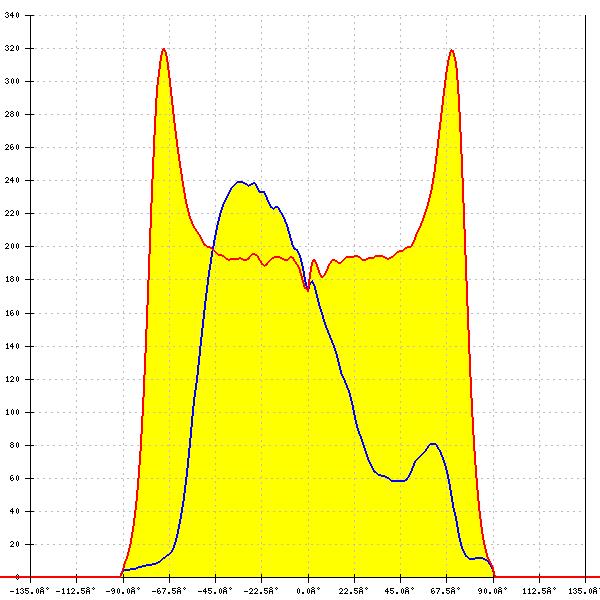

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

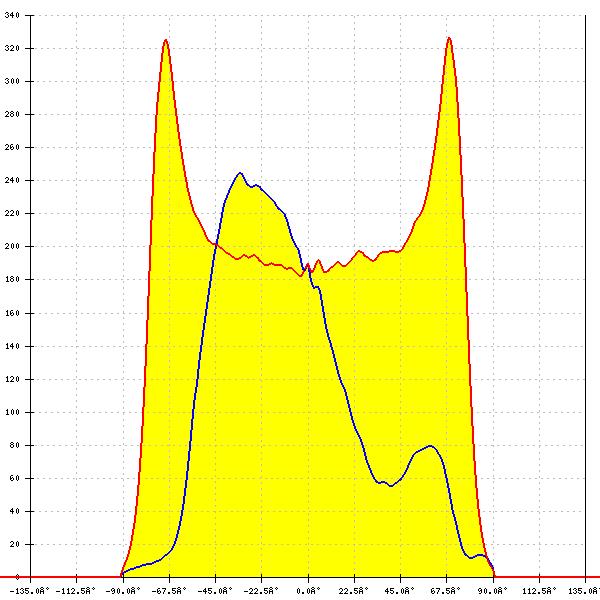

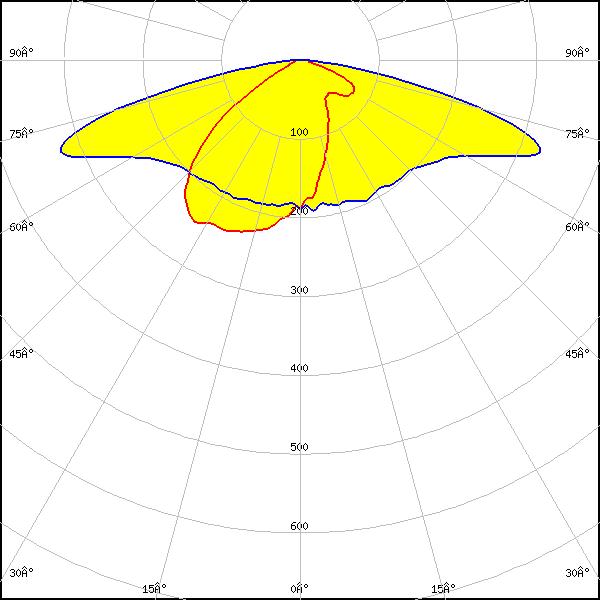

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

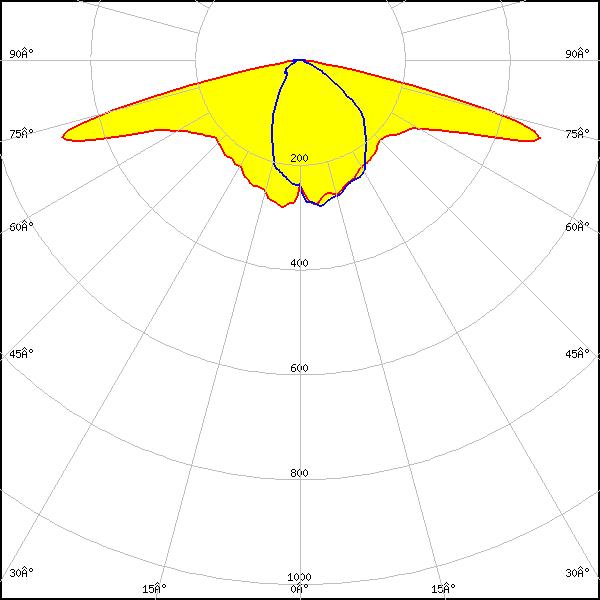

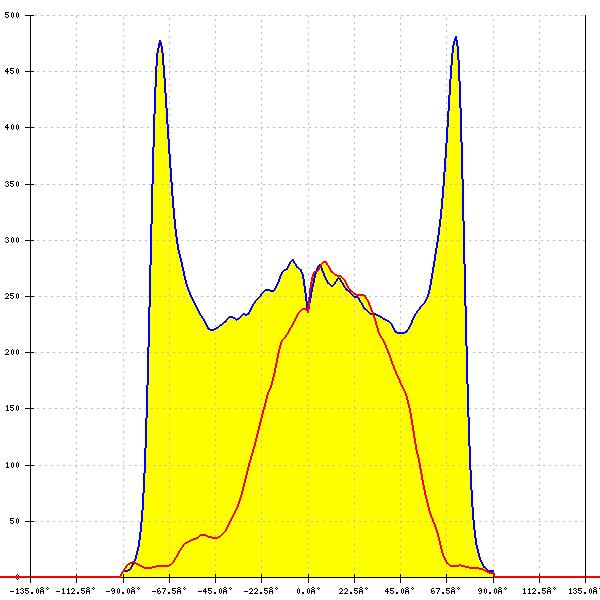

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.504 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

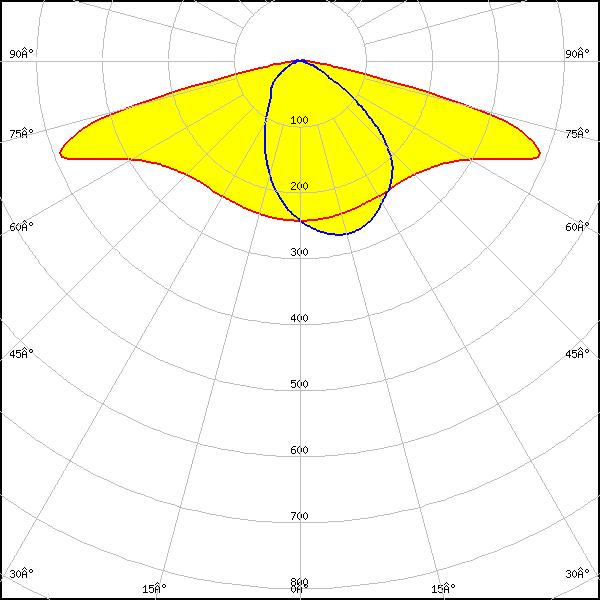

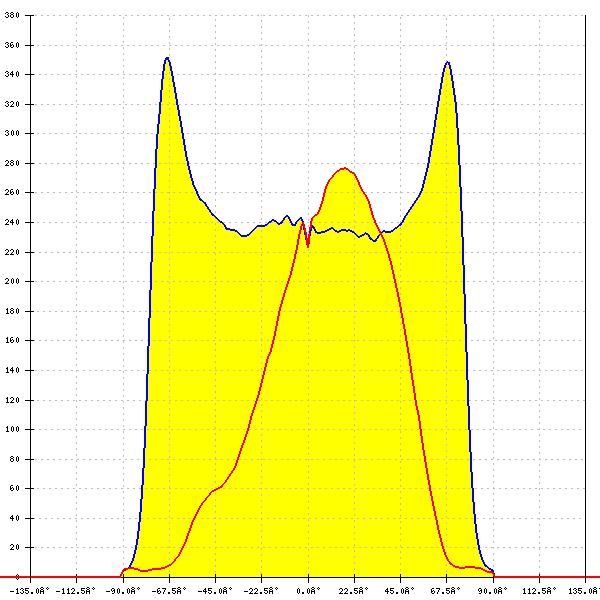

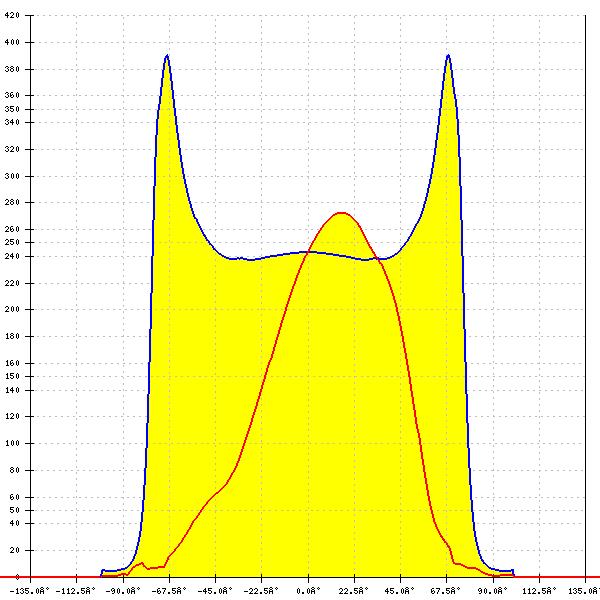

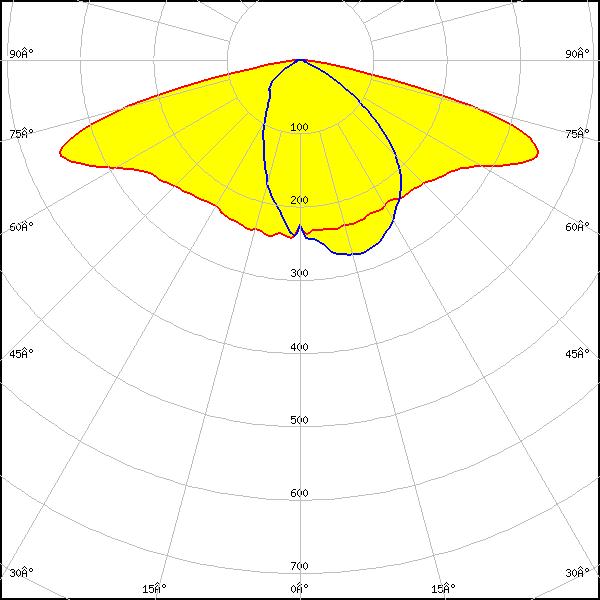

LED: HiLOM RM24 ZP (LH502C)
FWHM: asymmetric
Peak intensity: 0.406 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM24 ZP (LH502D)
FWHM: asymmetric
Peak intensity: 0.468 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502C
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

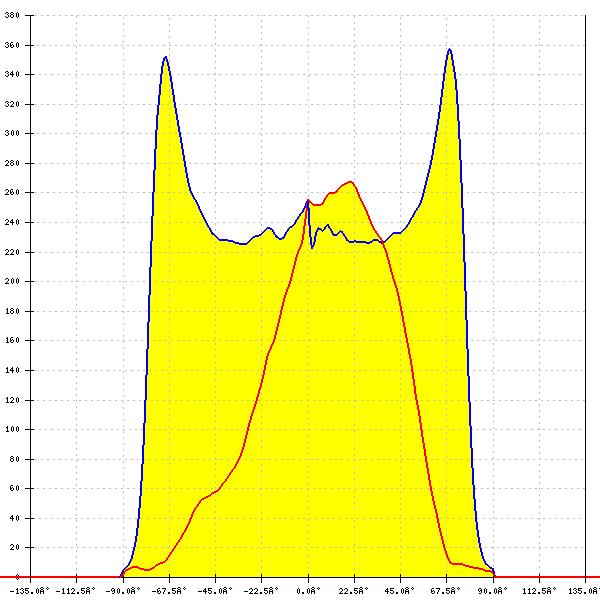

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.408 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

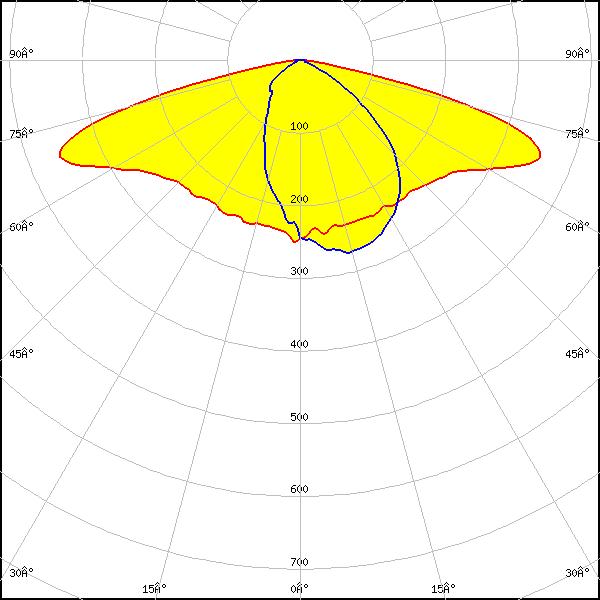

LED: LH508C
FWHM: asymmetric
Peak intensity: 0.411 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

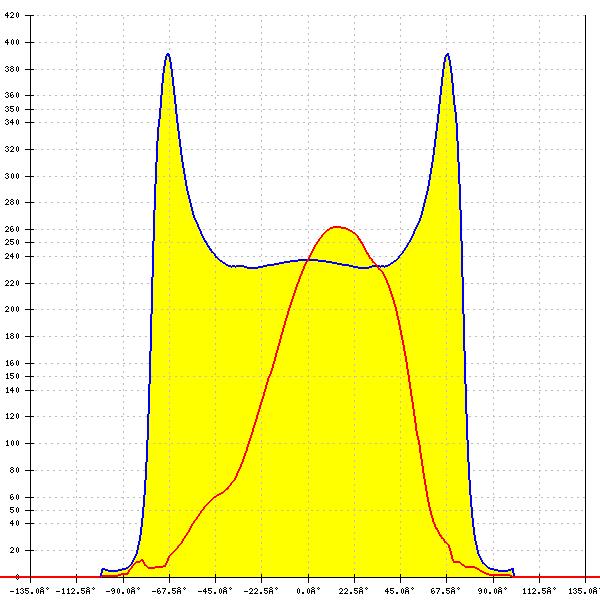

LED: CHI-VP-10K5-740-36
FWHM: asymmetric
Peak intensity: 0.473 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

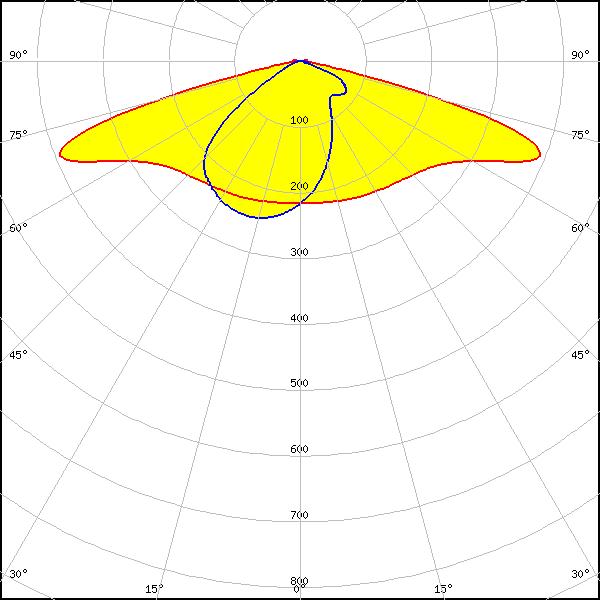

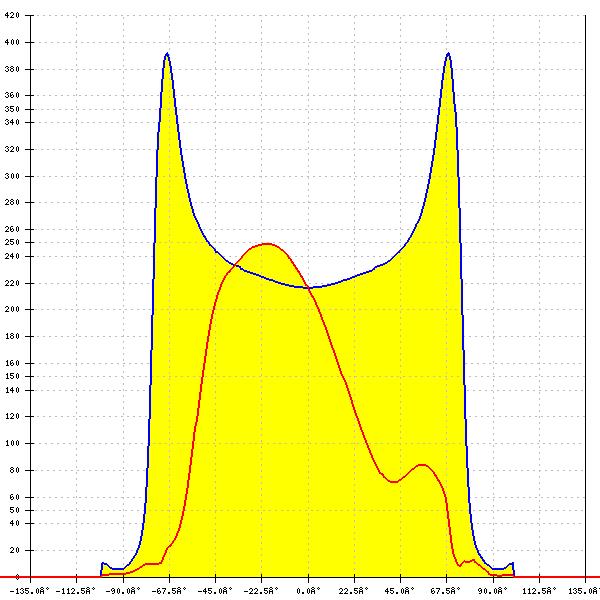

LED: CHIEC-VE-11K4-740-48
FWHM: 151° + 77°
FWTM: 160° + 137°
Peak intensity: 0.540 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

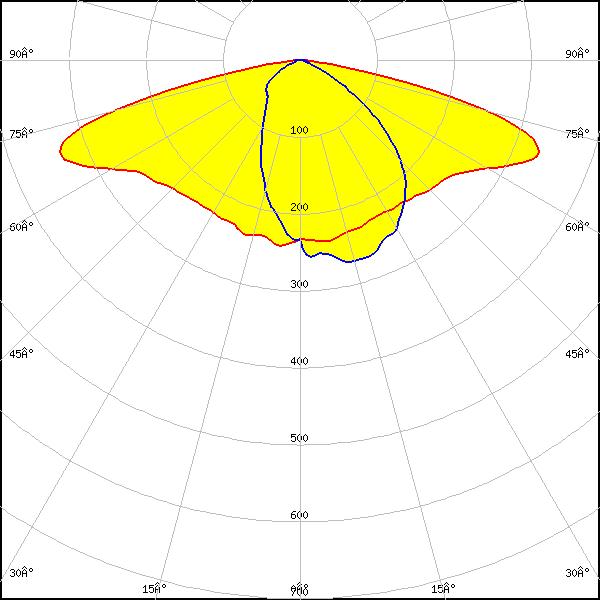

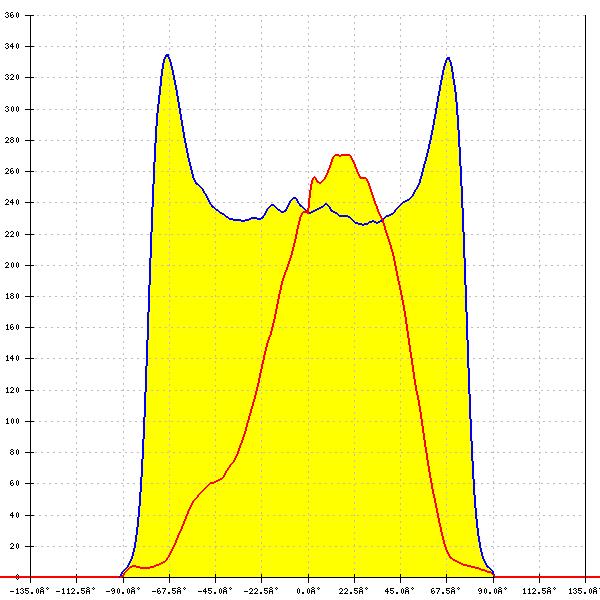

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.387 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
