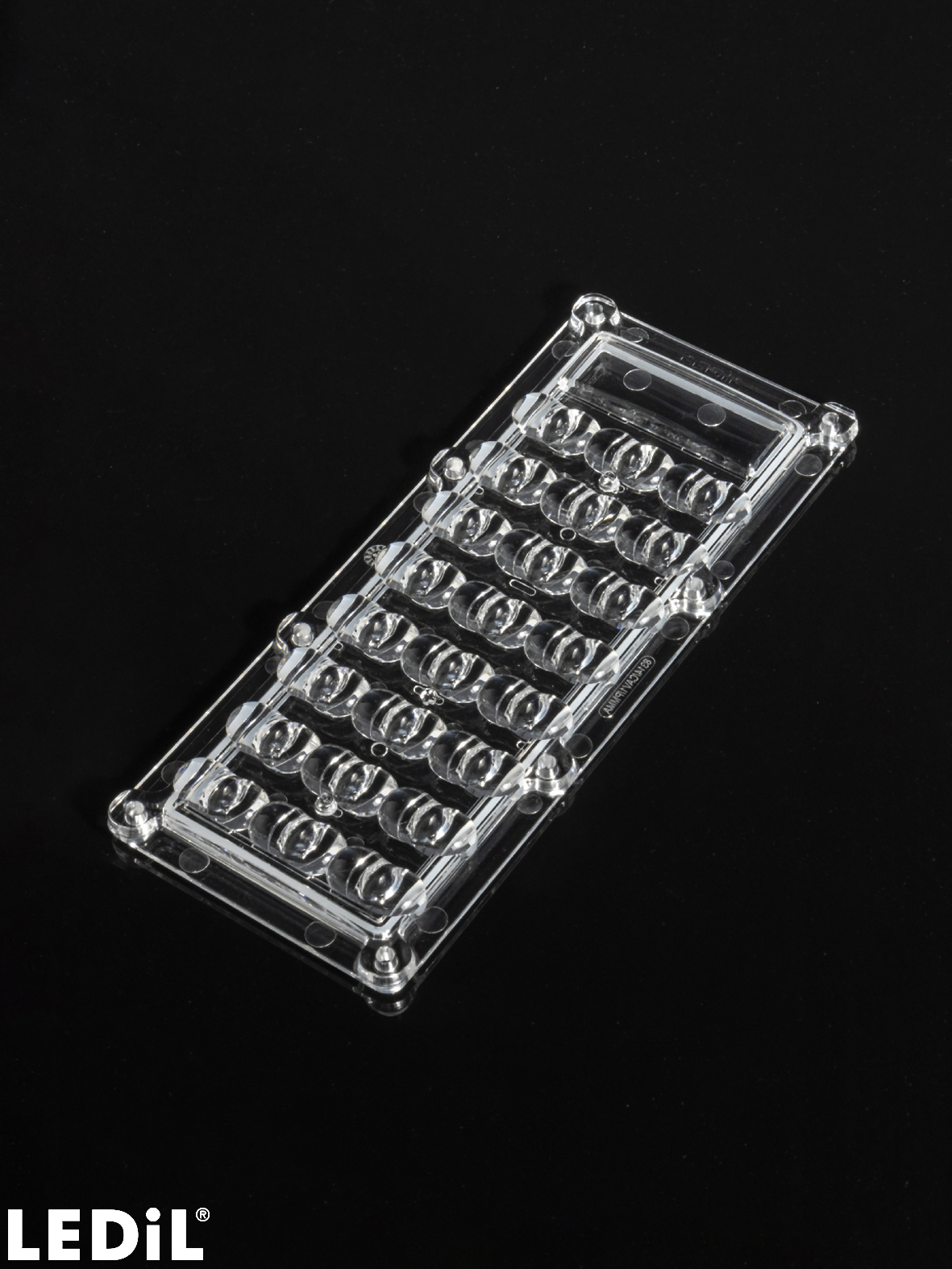

CS18315_STRADA-IP-24-T3-M

IESNA Type III (medium) beam with excellent backlight control, illuminance uniformity and cutoff.

Specification

Dimensions:

173 x 71 mm
Height:

9.00 mm
Fastening:

pin, screw
Colour:

clear
Ingress protection classes:

IP66, IP67
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

STRADA-IP-24-T3-M
Multi-lens
PMMA
STRADA-IP-24-SEAL
Seal
Silicone
Request material files from Tech Support

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

120 pcs
Box size:

476 x 273 x 247 mm
Box weight:

7.0 kg
MPQ:

40 pcs
MOQ:

120 pcs
MOQ size:

476 x 273 x 247 mm
MOQ weight:

7.0 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: CS18315_STRADA-IP-24-T3-M

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

CS18315_STRADA-IP-24-T3-M

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

New beams and products – October 2023

Application example

C3 Street lighting with STRADA-IP-24-T3-M

Catalogue

LEDiL Latest products catalogue Q1 2025

Application guide

Guide for Street lighting optics

Reference product

The Oaken sustainability in street lighting

Application area

Urban lighting with LEDiL optics

Application example

Urban lighting with LEDiL optics

News

STRADA-IP-24 – ME & SCL, making the most versatile even more versatile

News

STRADA-IP-24 – Real value for luminaire designers and end-users

News

Boost your luminaire efficiency and output with the new STRADA-IP-24 family

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

Optical results

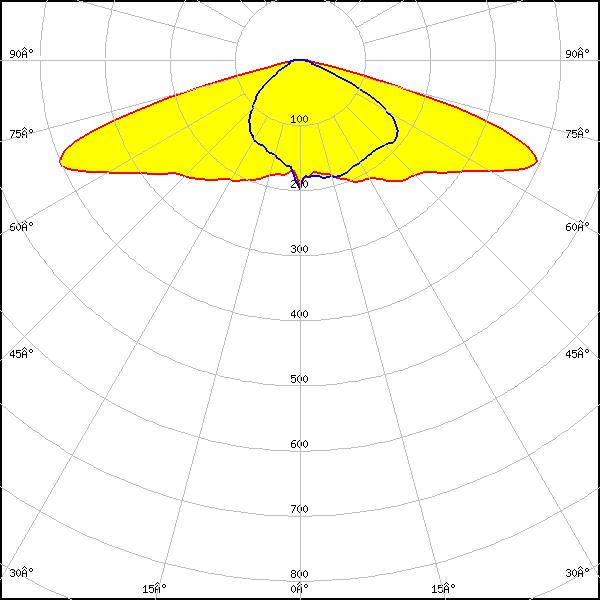

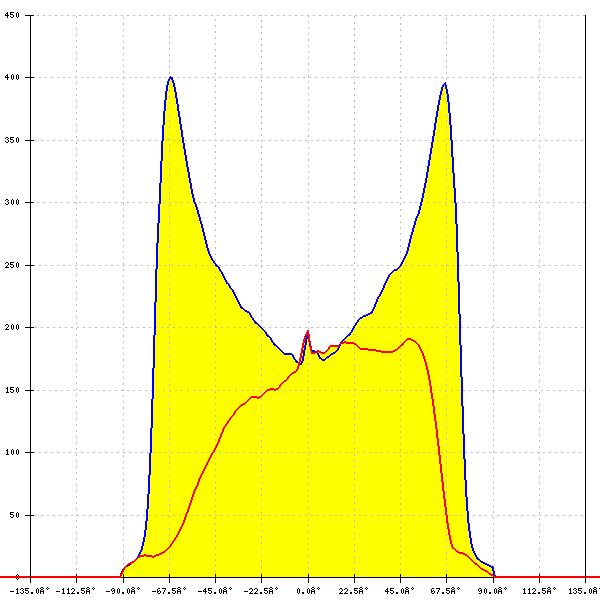

LED: J Series 5050 6V P Class

FWHM: asymmetric

Peak intensity: 0.521 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

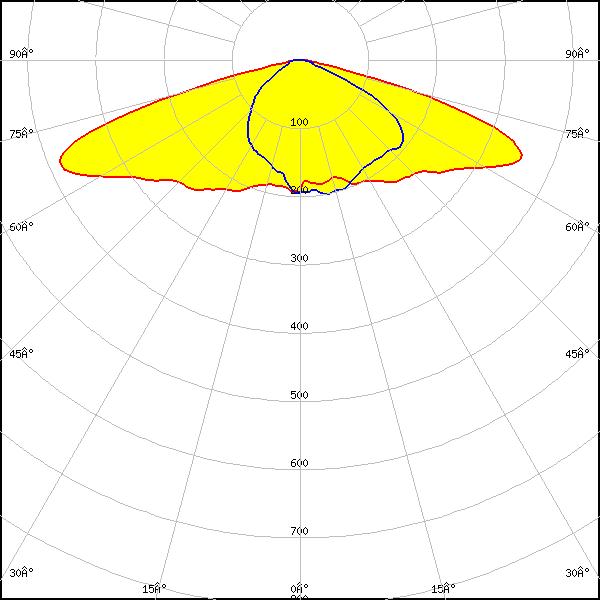

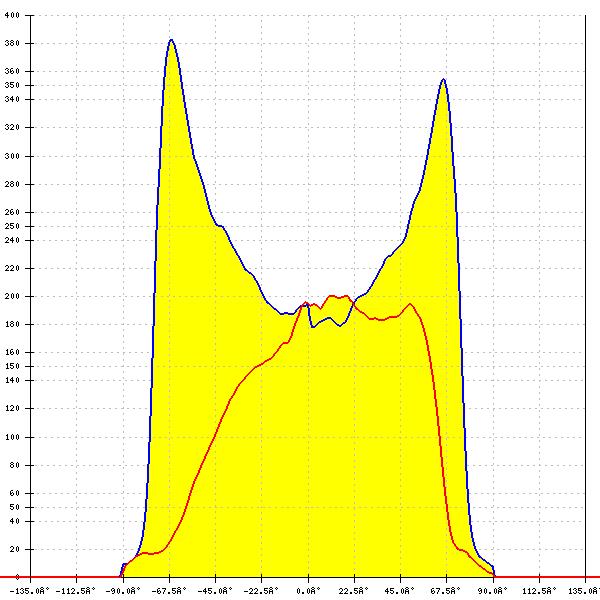

LED: J Series 5050B 6V K Class

FWHM: asymmetric

Peak intensity: 0.488 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

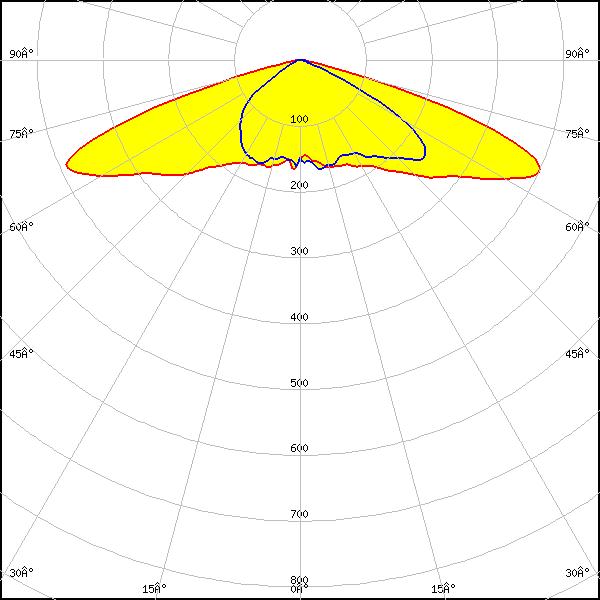

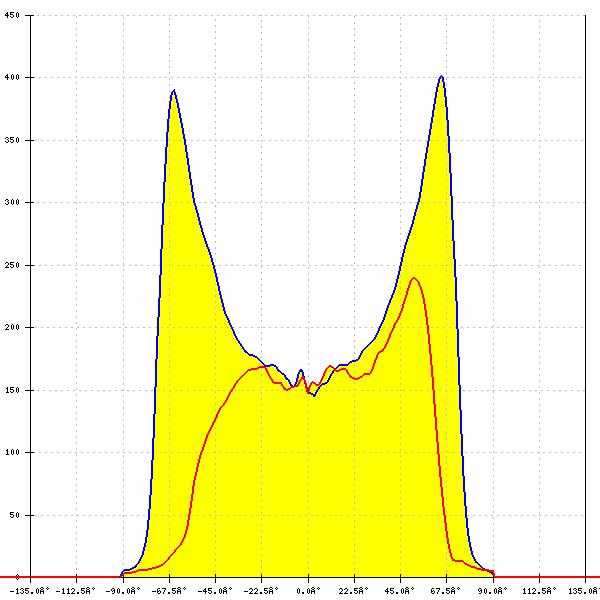

LED: J Series 5050C 6V E Class

FWHM: asymmetric

Peak intensity: 0.512 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

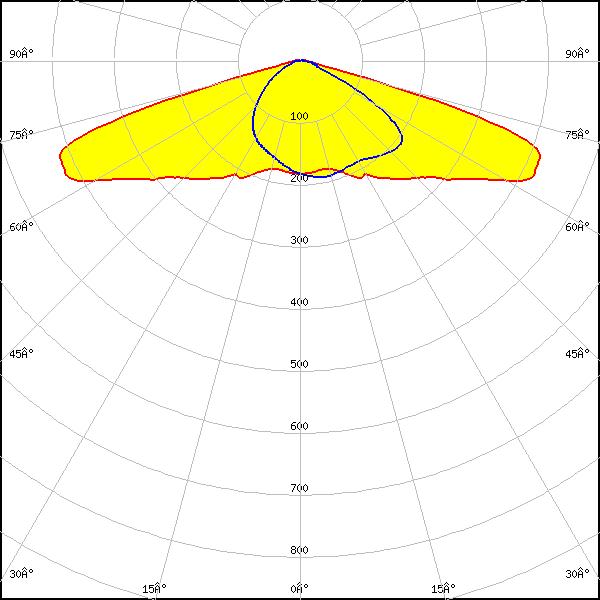

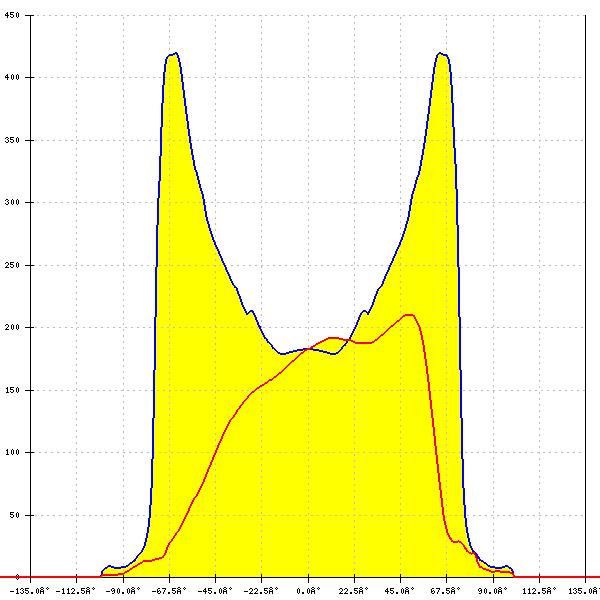

LED: PL-BRICK HP 3x8 IP-24

FWHM: asymmetric

Peak intensity: 0.543 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

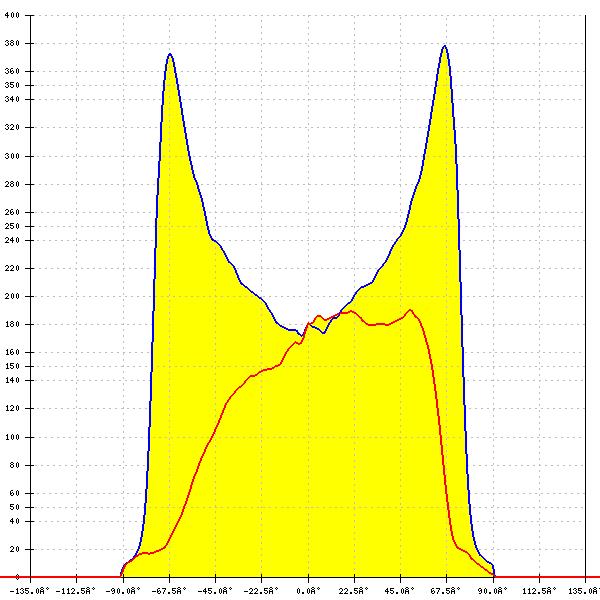

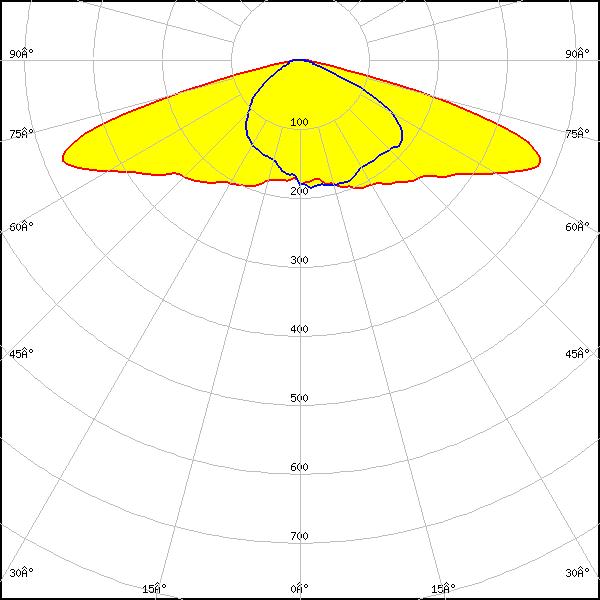

LED: LUXEON 5050 HE

FWHM: asymmetric

Peak intensity: 0.495 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

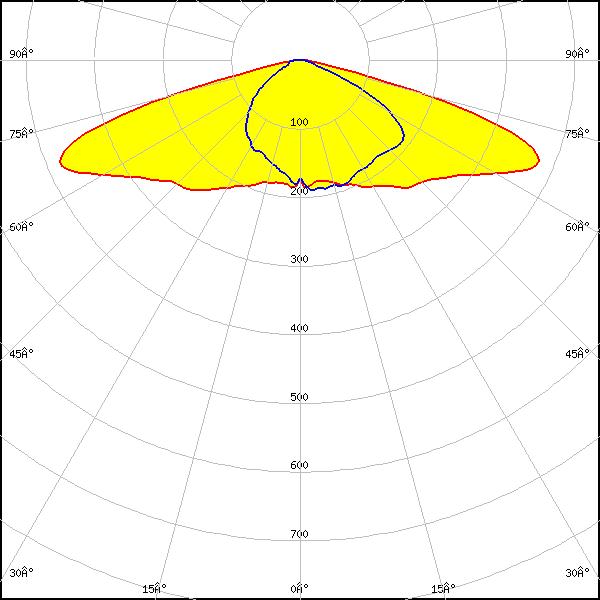

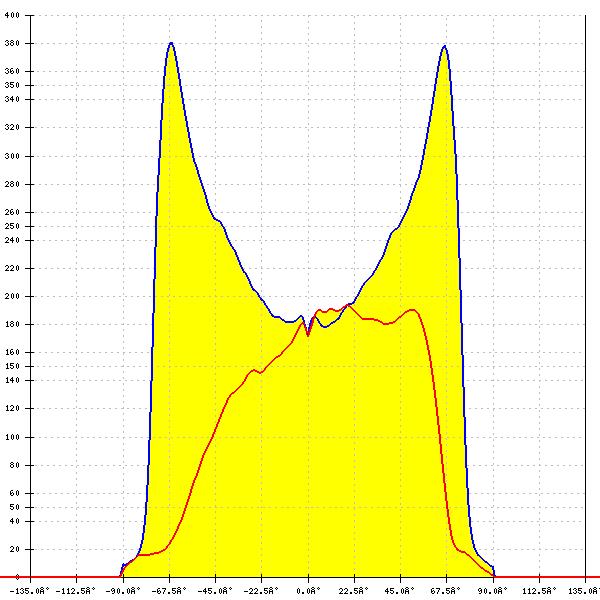

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

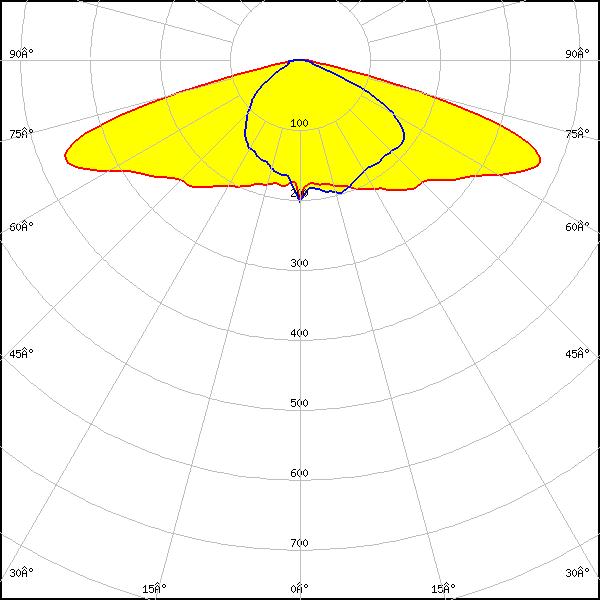

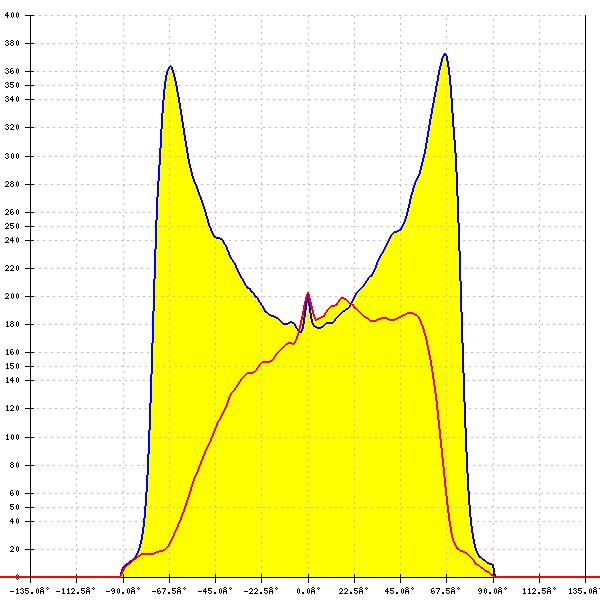

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.492 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

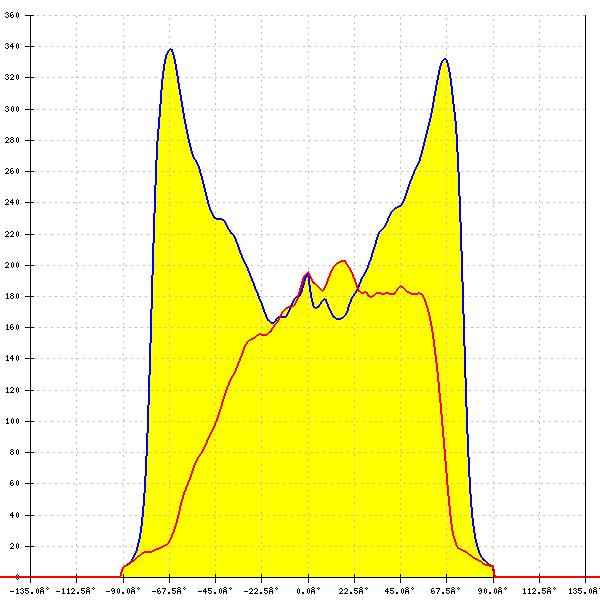

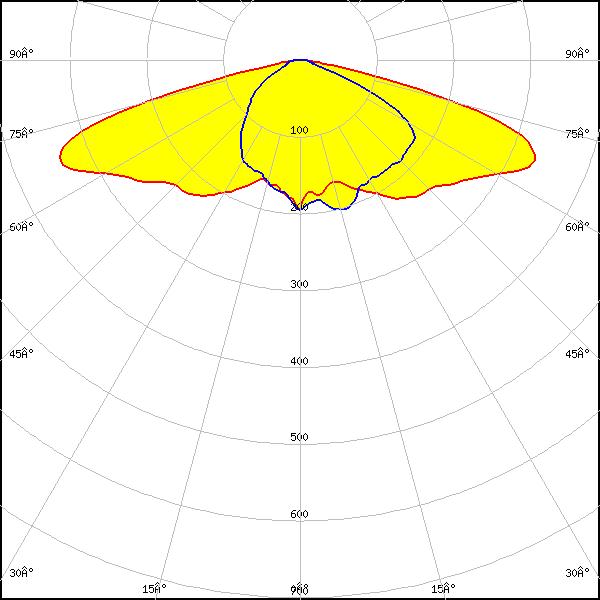

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.463 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

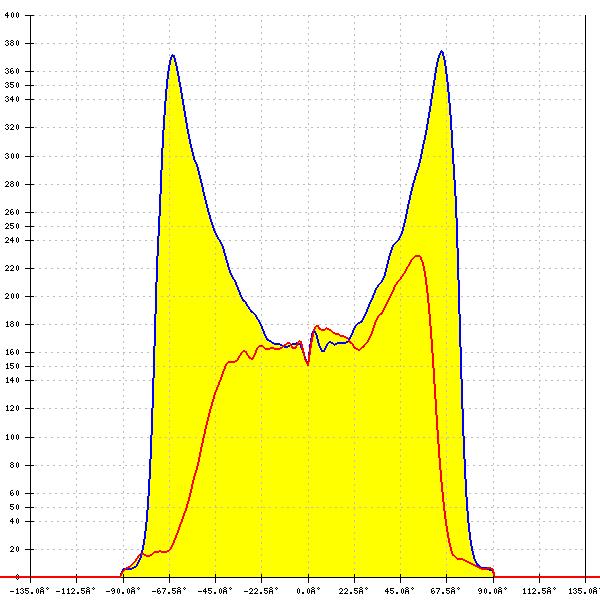

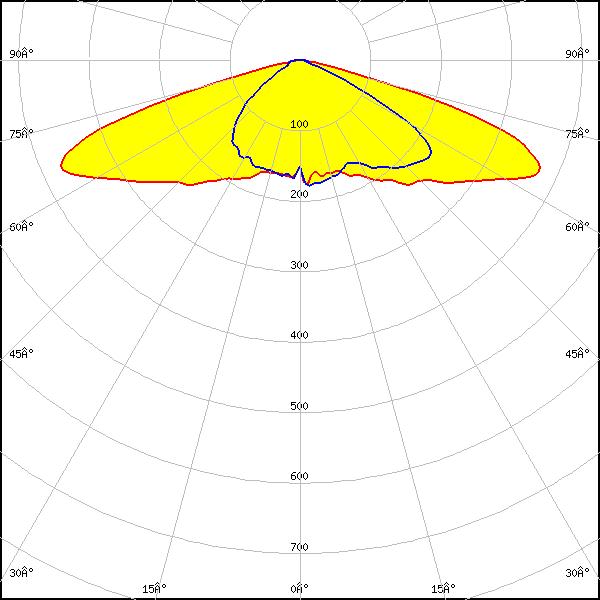

LED: LH502C

FWHM: asymmetric

Peak intensity: 0.504 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

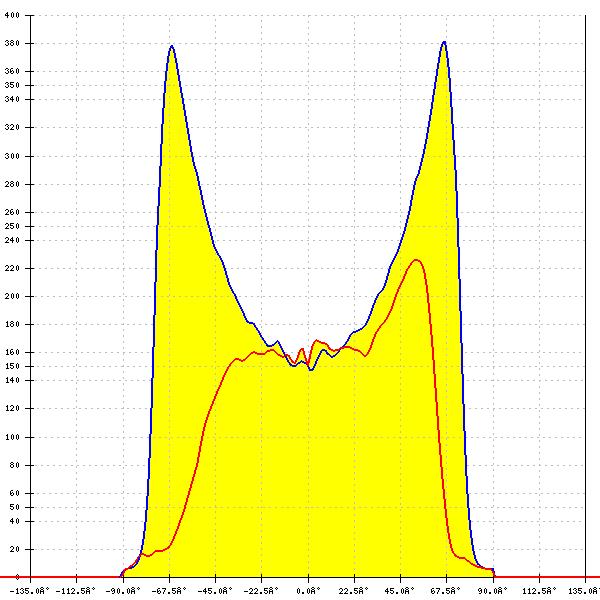

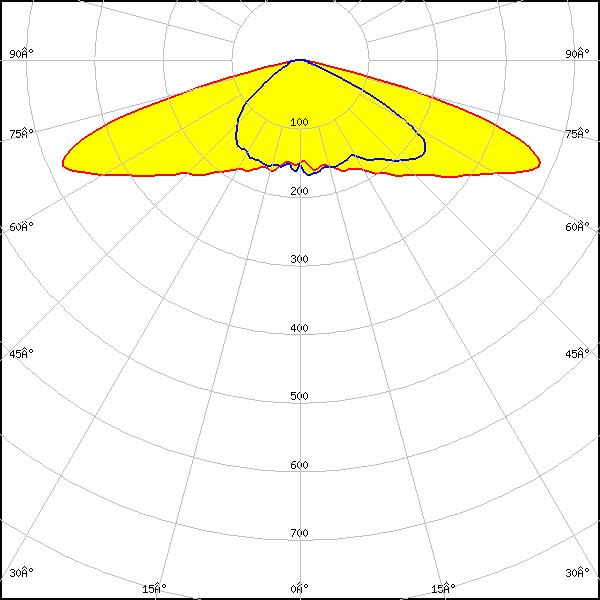

LED: LH502D

FWHM: asymmetric

Peak intensity: 0.510 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

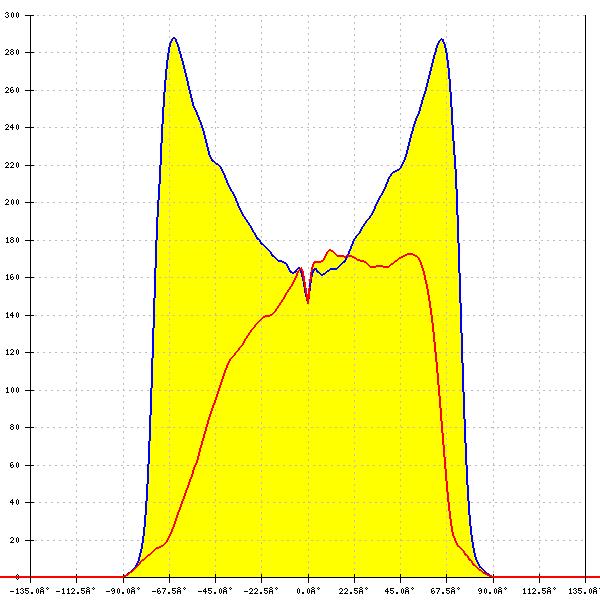

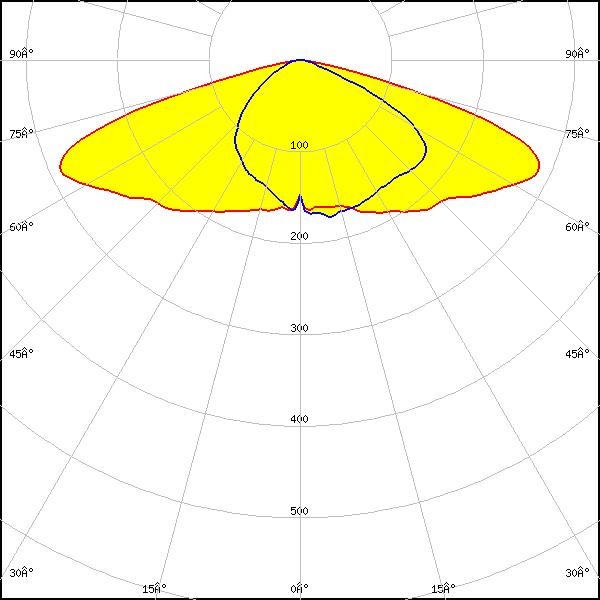

LED: LH502D

FWHM: asymmetric

Peak intensity: 0.367 cd/lm

Efficiency: 74 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

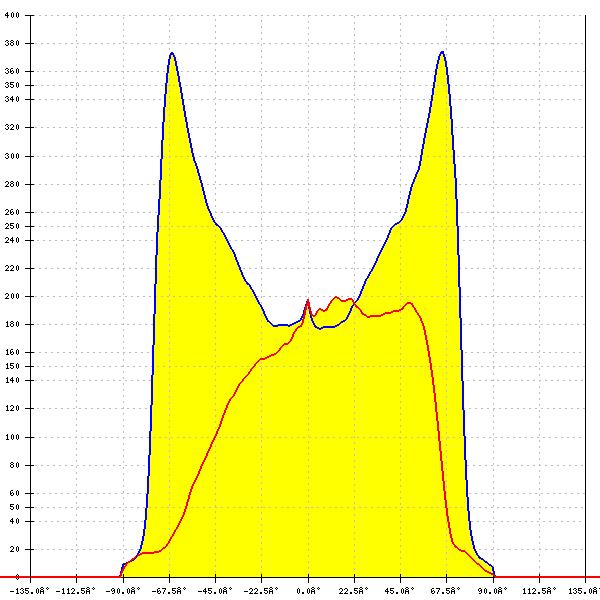

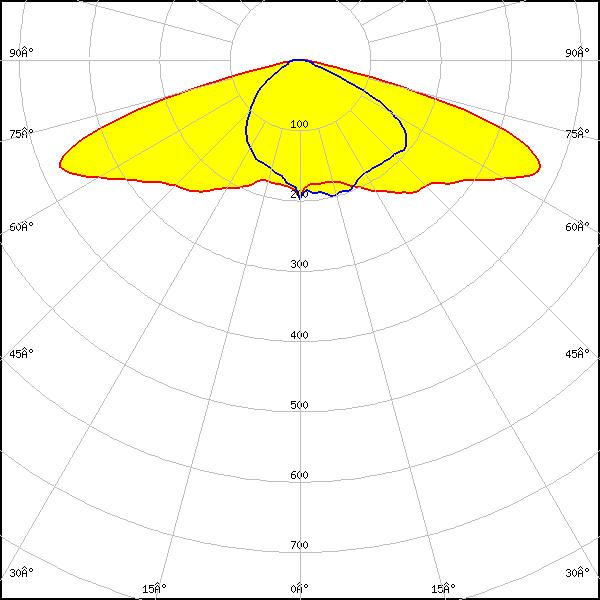

LED: LH508C

FWHM: asymmetric

Peak intensity: 0.489 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: SEOUL DC 5050 6V

FWHM: asymmetric

Peak intensity: 0.458 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

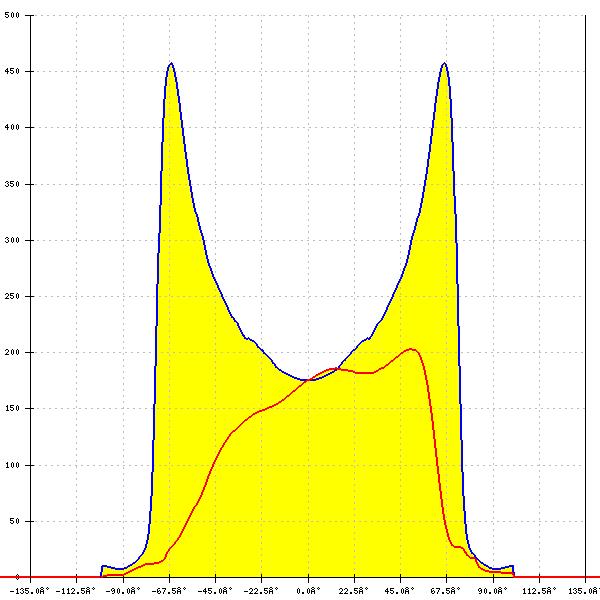

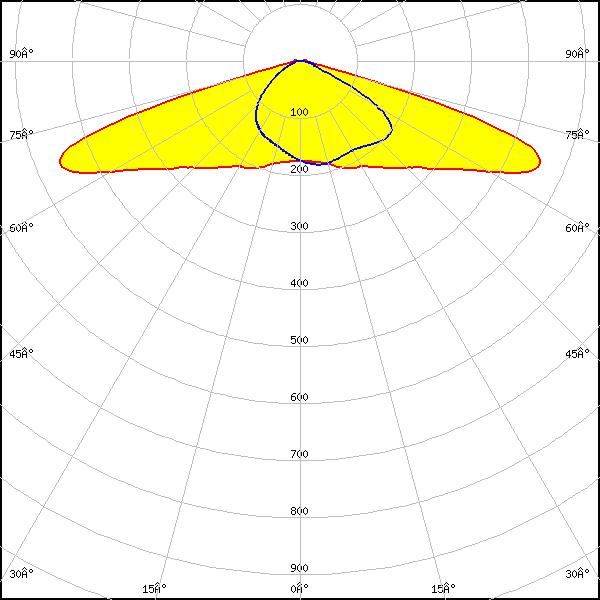

LED: RLE 3x8 6000lm HP HE EXC3 OTD

FWHM: asymmetric

Peak intensity: 0.603 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
