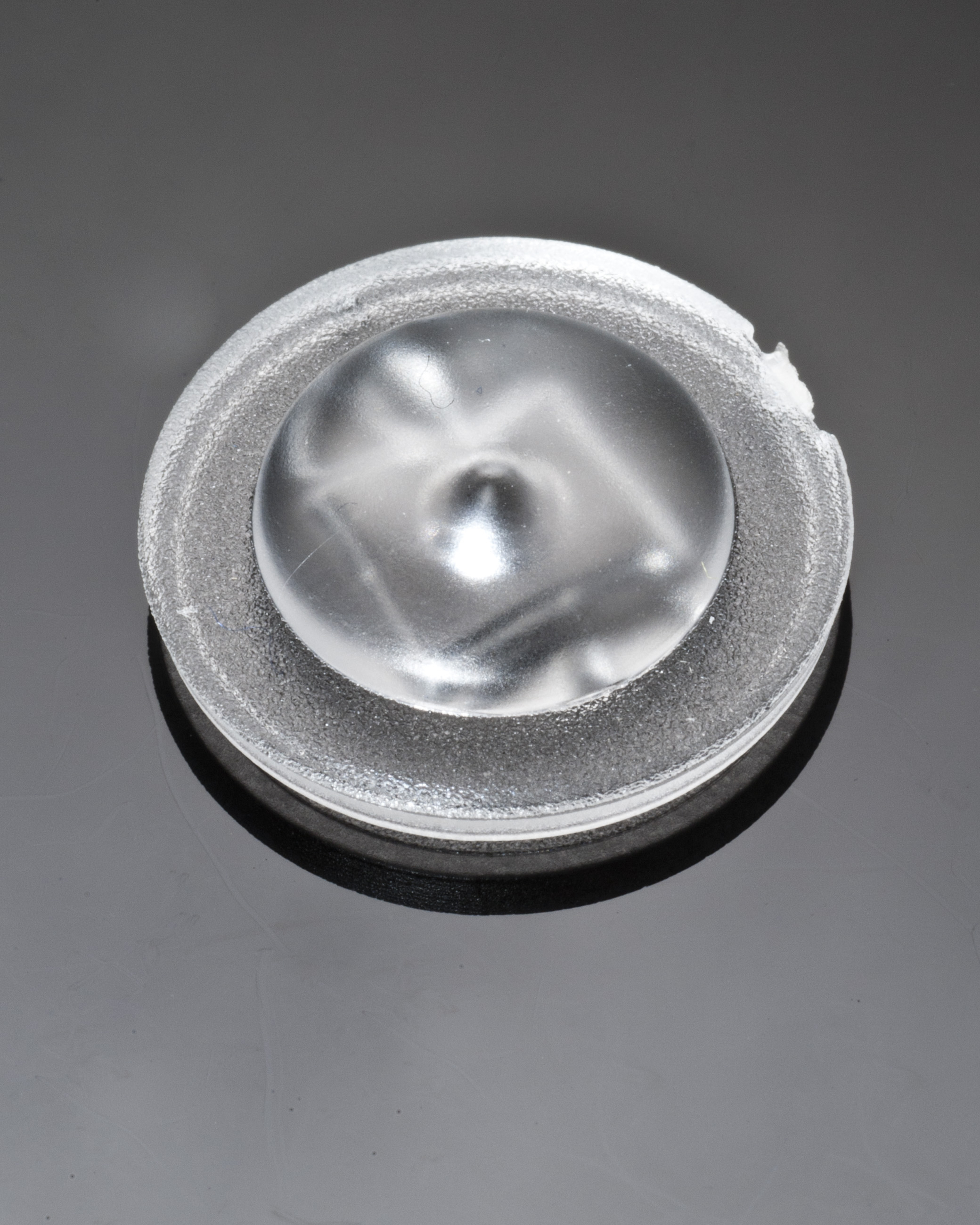

F11947_JULIA-A

Print

~90° + 160° wide beam

Specification
  • Dimensions:
    19 mm
  • Height:
    4.7 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Packing information
  • Quantity in box:
    4500 pcs
  • Box size:
    470 x 235 x 270 mm
  • Box weight:
    7.9 kg
  • MPQ:
    500 pcs
  • MOQ:
    1000 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F11947_JULIA-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Typical Applications

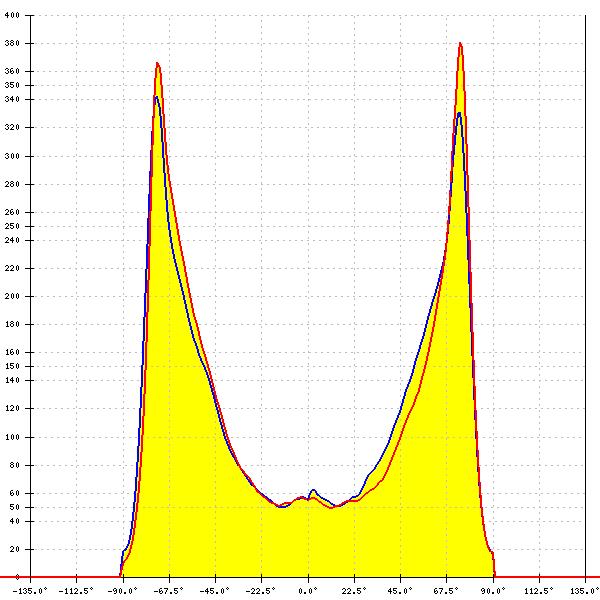

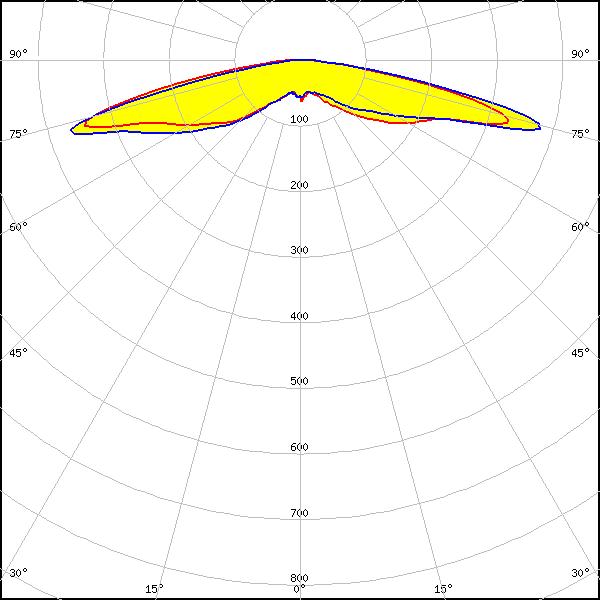

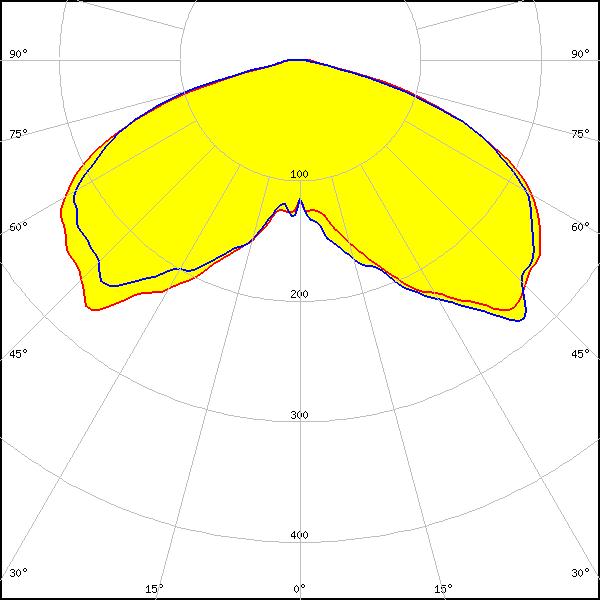

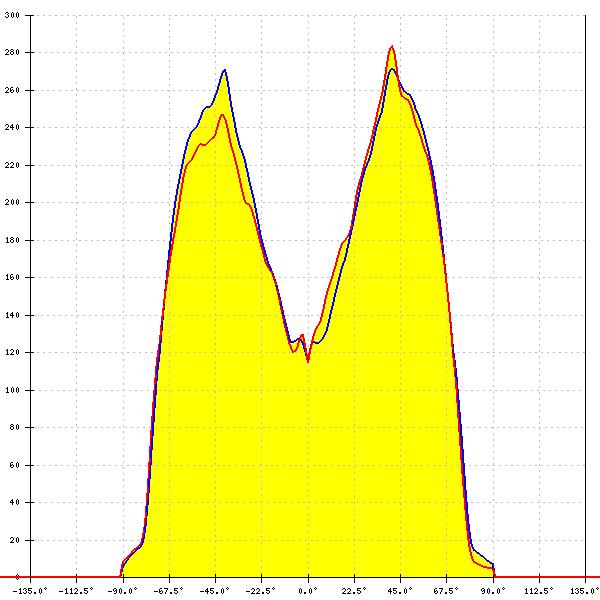

Optical results

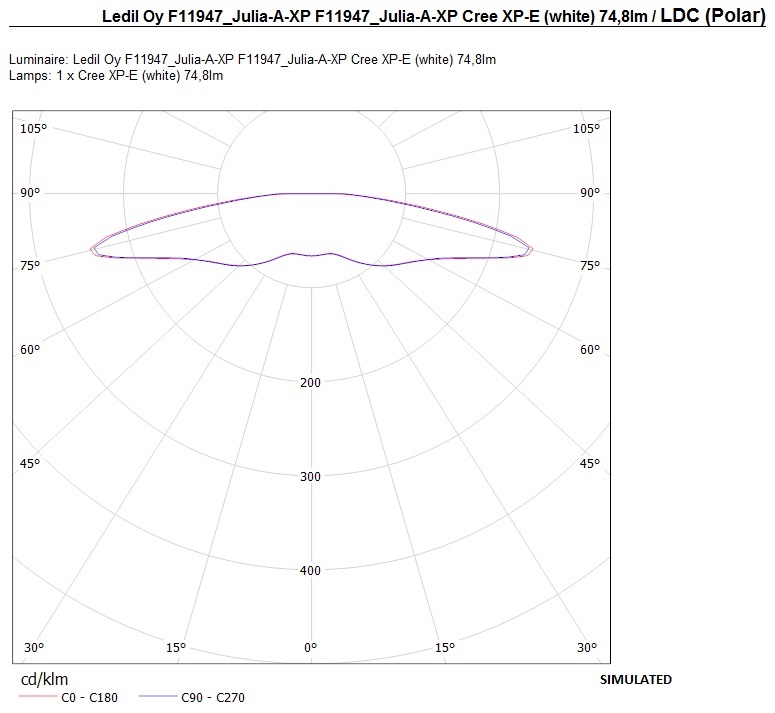

LED: XP-E
FWHM: 164°
Peak intensity: 0.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

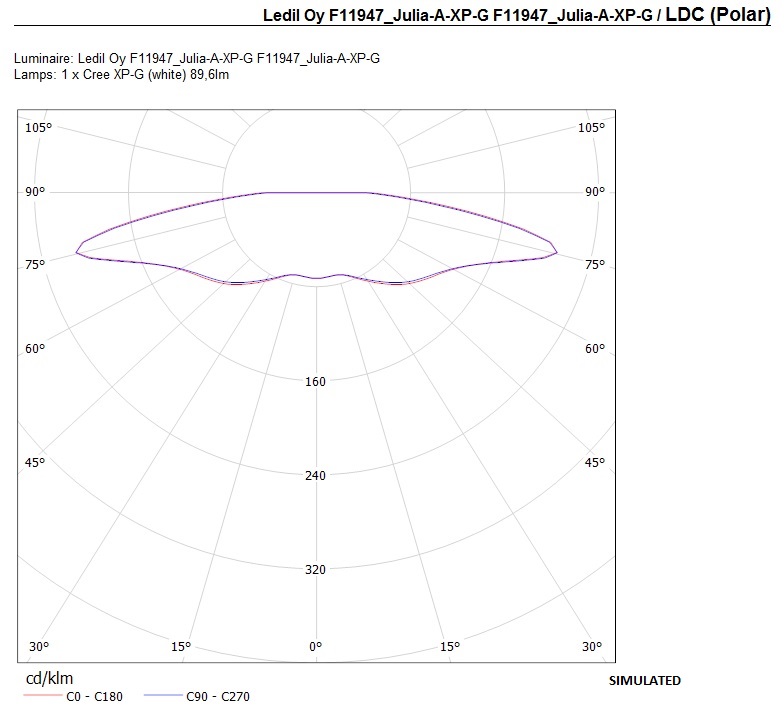

LED: XP-G
FWHM: 166°
Peak intensity: 0.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Rebel
FWHM: 154°
Peak intensity: 0.3 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

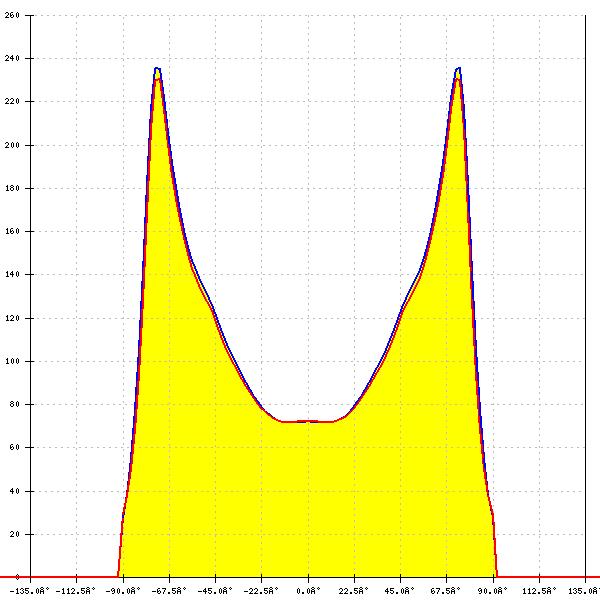

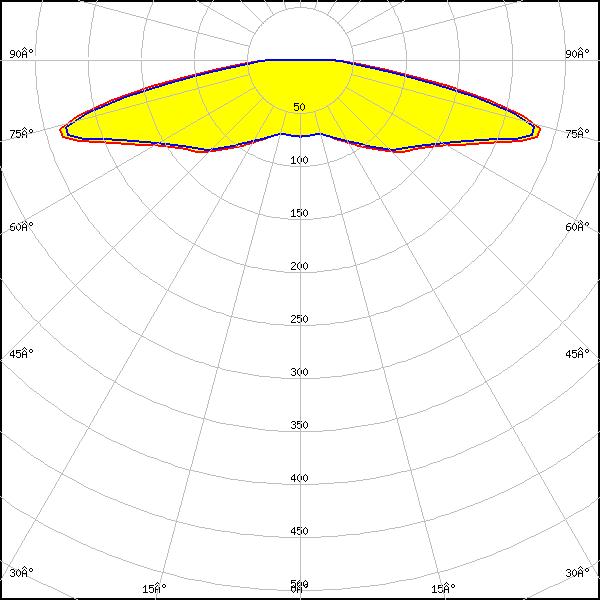

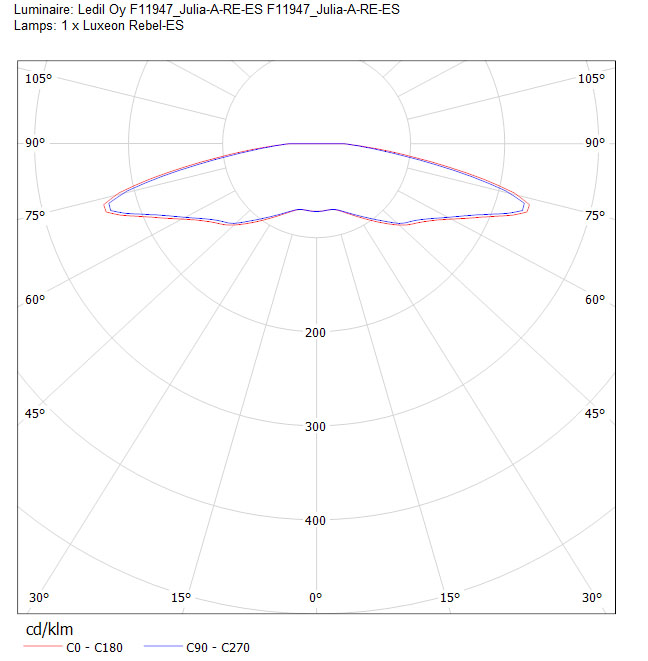

LED: LUXEON Rebel ES
FWHM: 163°
Peak intensity: 0.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: NCSxx19A
FWHM: 156°
Peak intensity: 0.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19A
FWHM: 159°
Peak intensity: 0.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

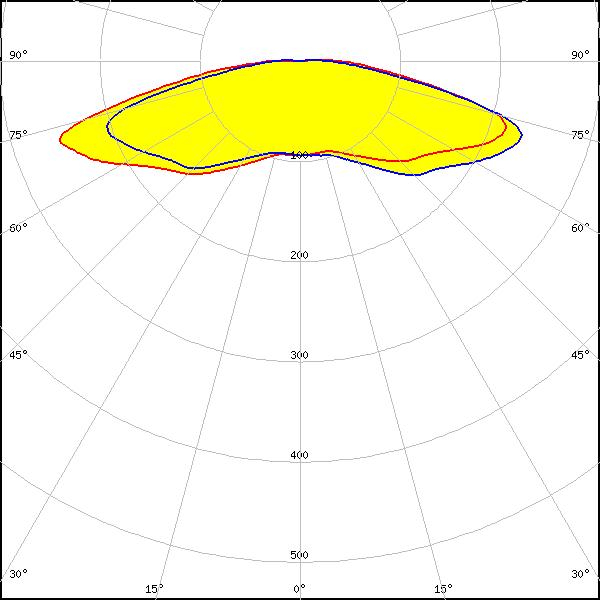

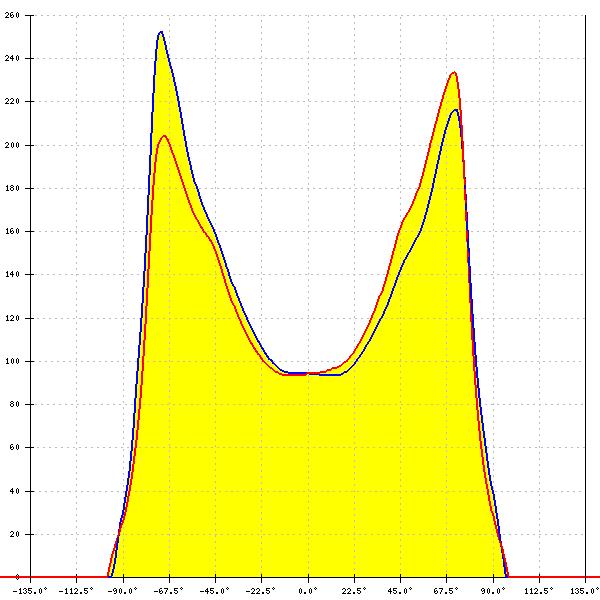

LED: OSLON Square PC
FWHM: 165°
Peak intensity: 0.3 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: OSLON SSL 150
FWHM: 159°
Peak intensity: 0.3 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

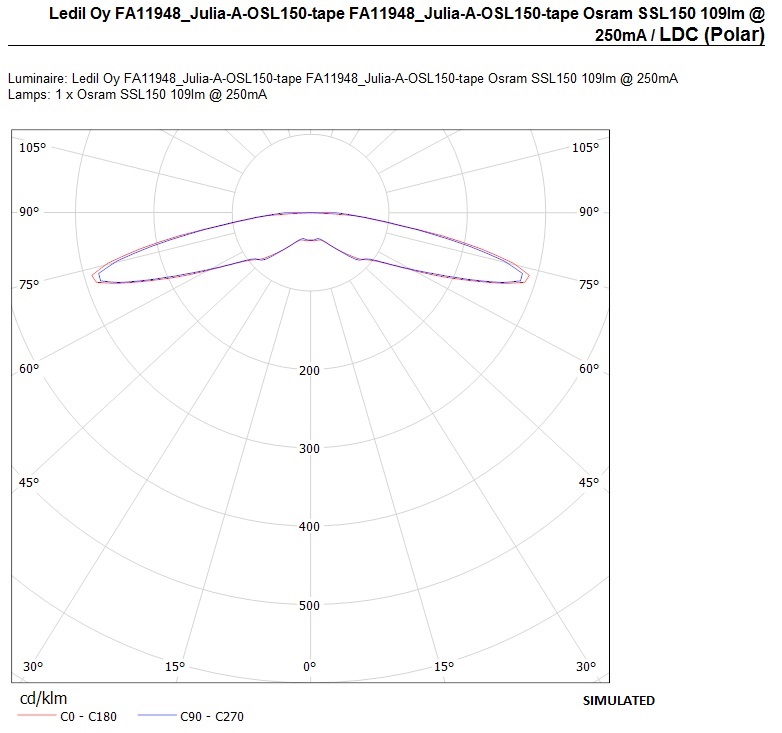

LED: OSLON SSL 80
FWHM: 158°
Peak intensity: 0.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

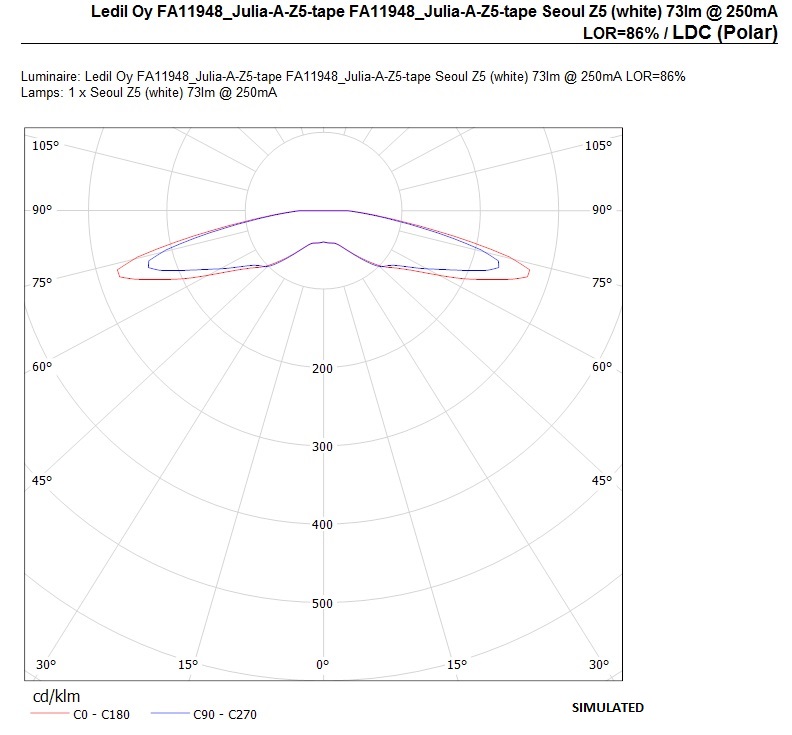

LED: Z5
FWHM: 160°
Peak intensity: 0.3 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
