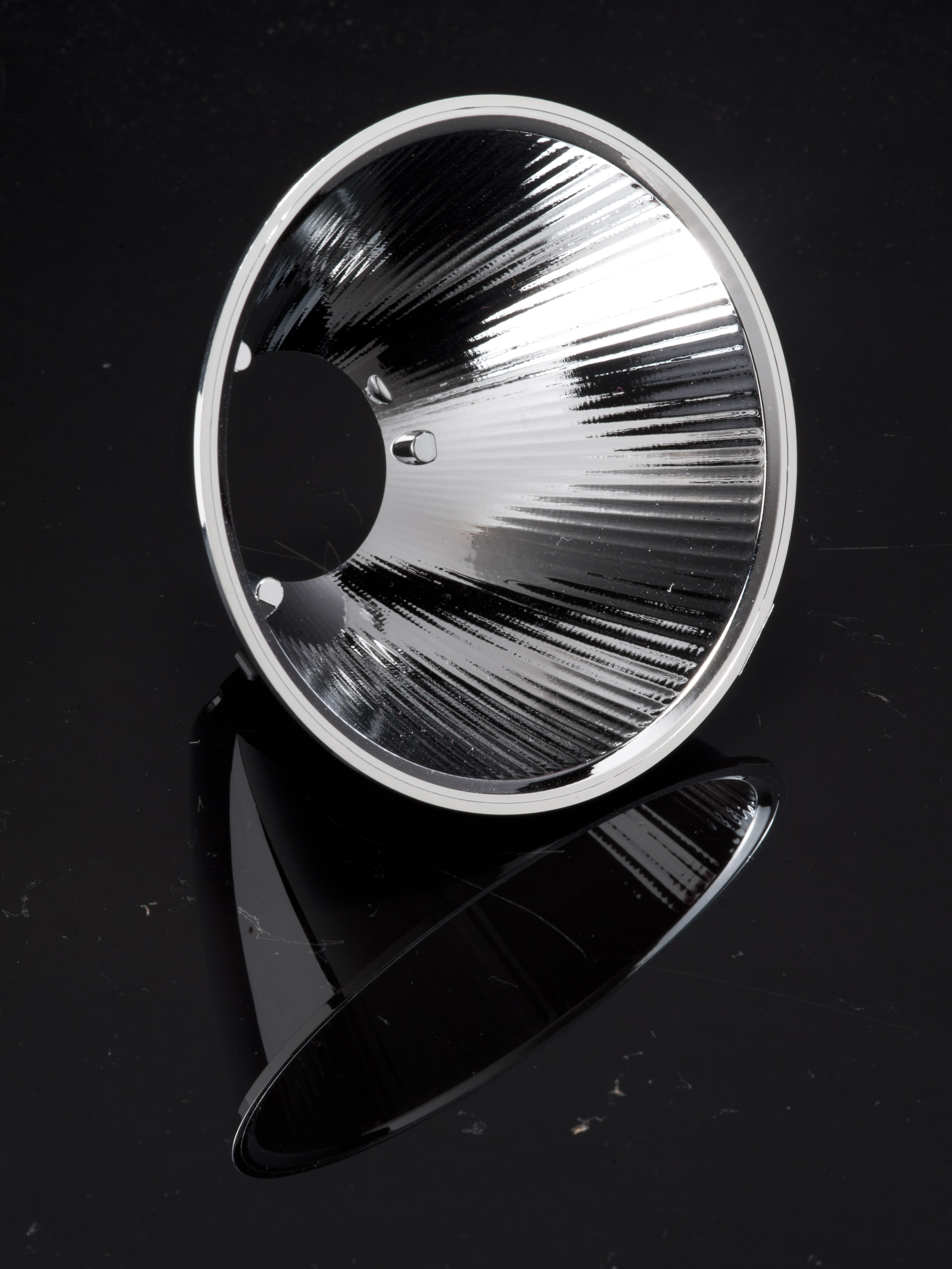

F13700_BARBARA-S-PF

Print

~15° spot beam

Specification
  • Dimensions:
    70 mm
  • Height:
    41.7 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes

WARNING: Cancer and reproductive Harm – www.P65Warnings.ca.gov

Materials
  • PC
Packing information
  • Quantity in box:
    288 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.1 kg
  • MPQ:
    18 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 140 mm
  • MOQ weight:
    2.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

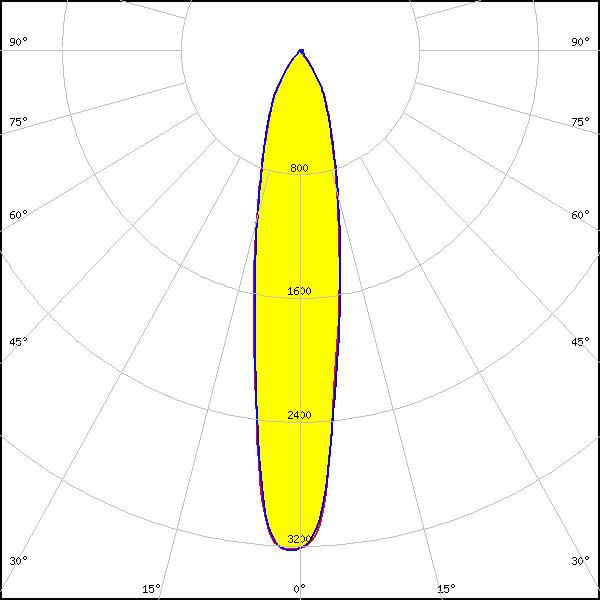

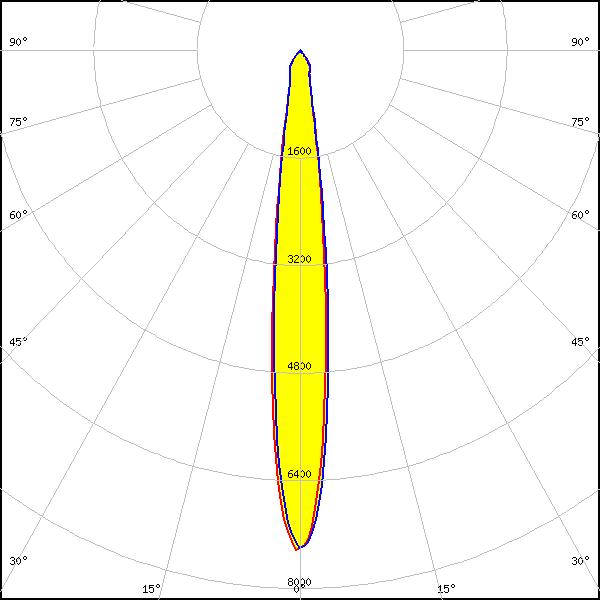

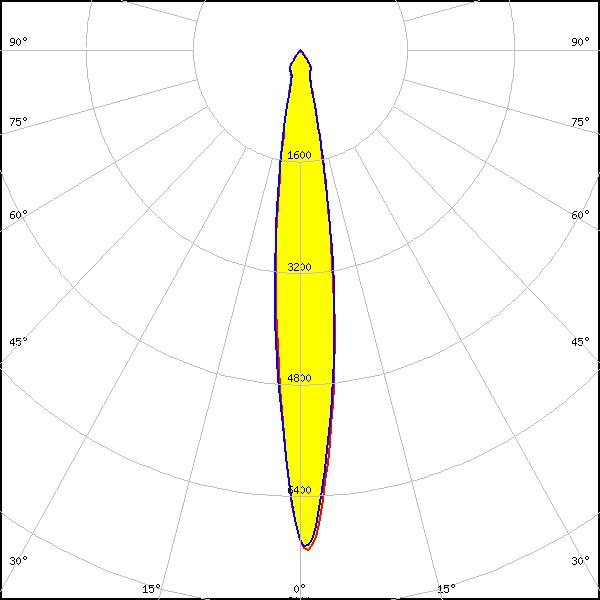

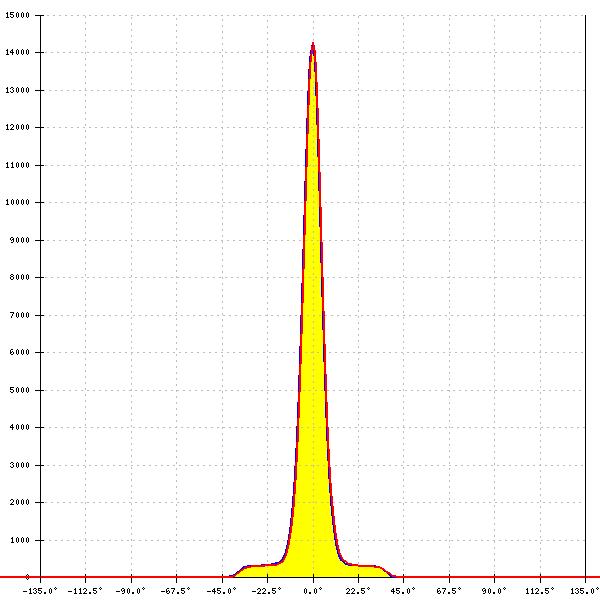

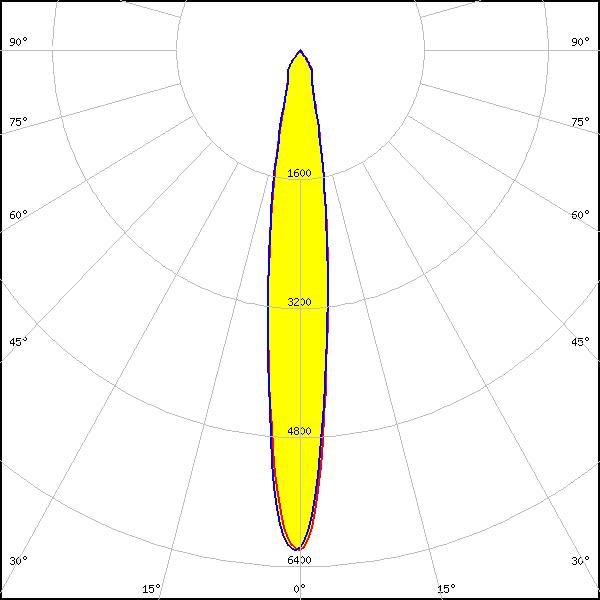

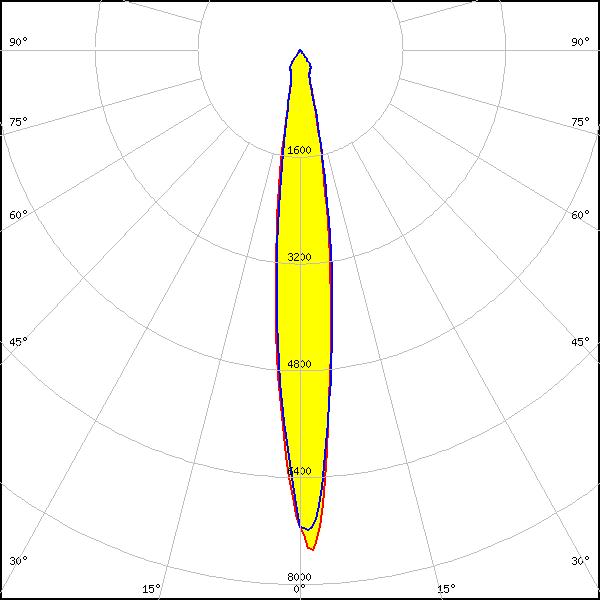

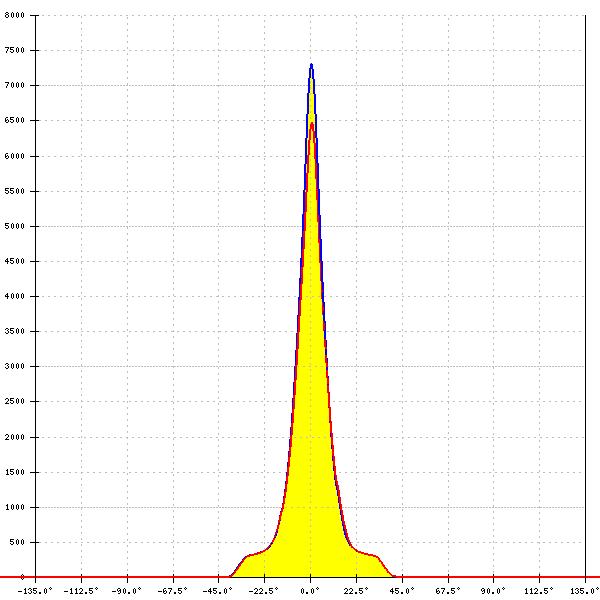

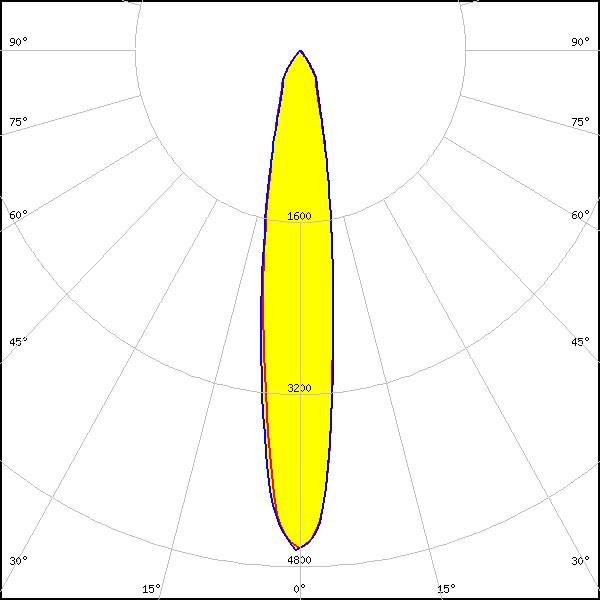

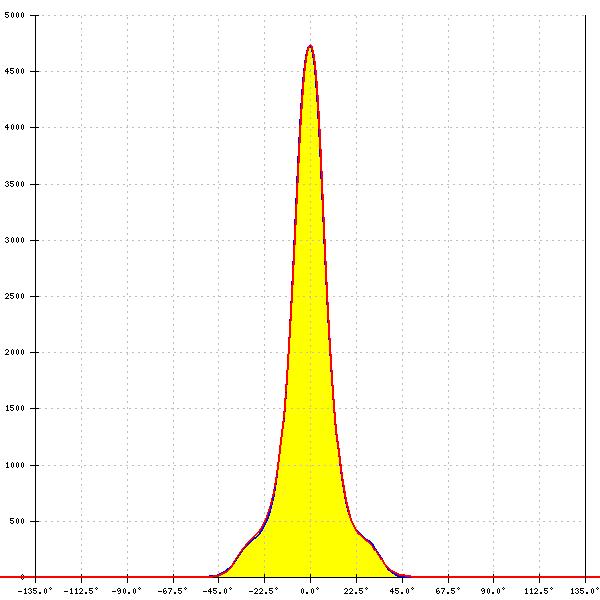

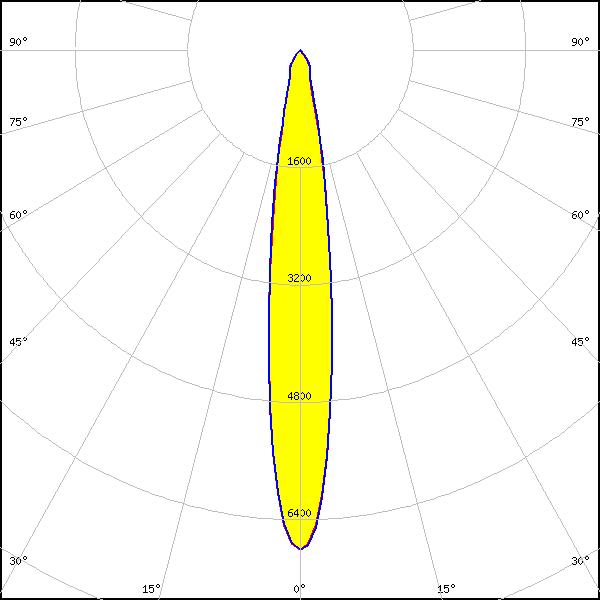

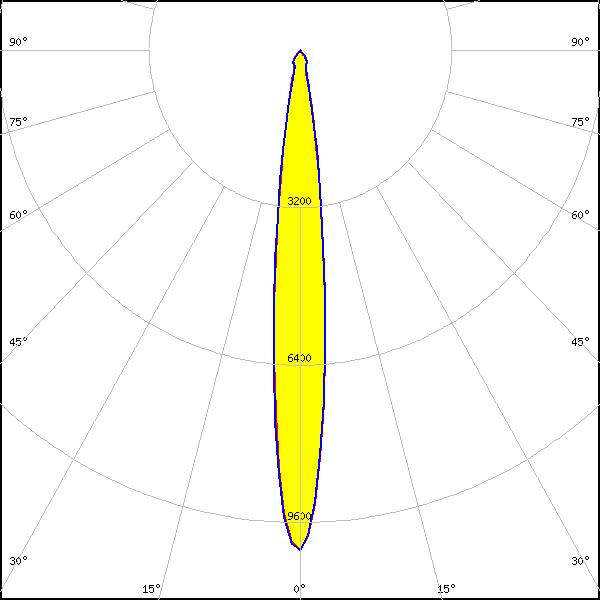

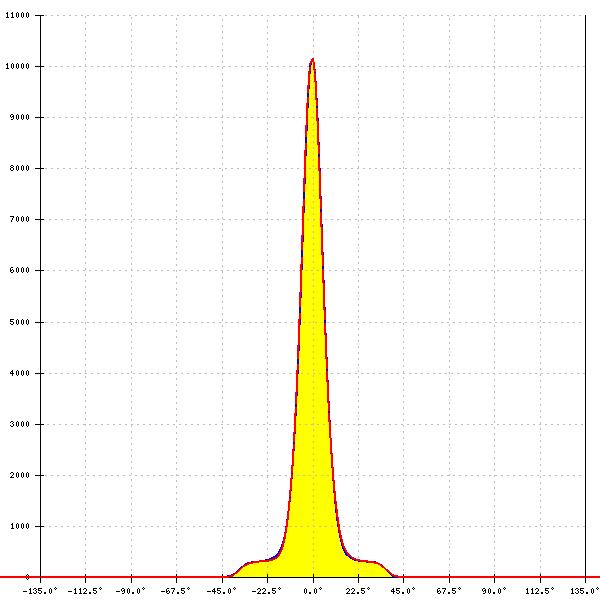

Optical results

LED: V10 Gen7
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: 12°
Peak intensity: 9.4 cd/lm
Efficiency: 91 %
LED: V15 Gen6
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 456 Typ L2
FWHM: 18°
Peak intensity: 4.8 cd/lm
Efficiency: 92 %
LED: V8 Gen6
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 460 Typ L1
FWHM: 13°
Peak intensity: 10.6 cd/lm
Efficiency: 86 %

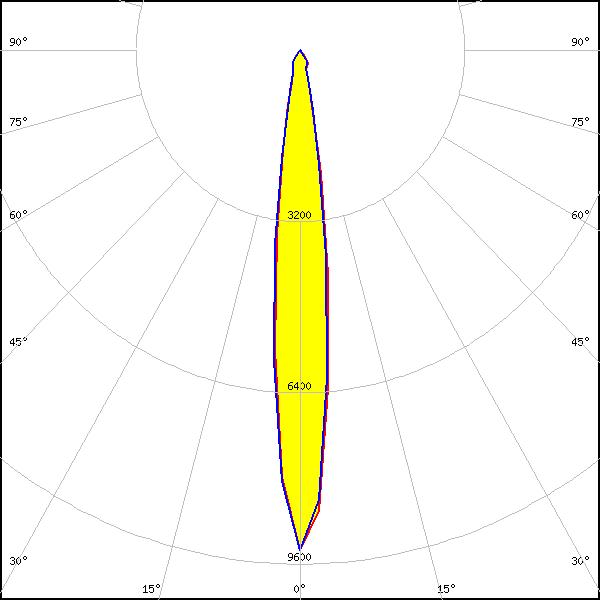

LED: VERO10
Required components:
FWHM: 13°
Peak intensity: 9.3 cd/lm
Efficiency: 90 %
LED: VERO10
FWHM: 13°
Peak intensity: 0.0 cd/lm

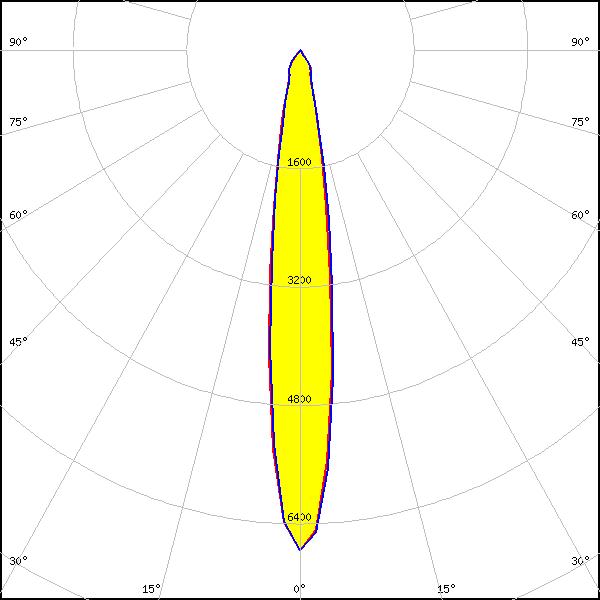

LED: VERO13
Required components:
FWHM: 15°
Peak intensity: 6.8 cd/lm
Efficiency: 91 %
LED: VERO13
FWHM: 15°
Peak intensity: 0.0 cd/lm

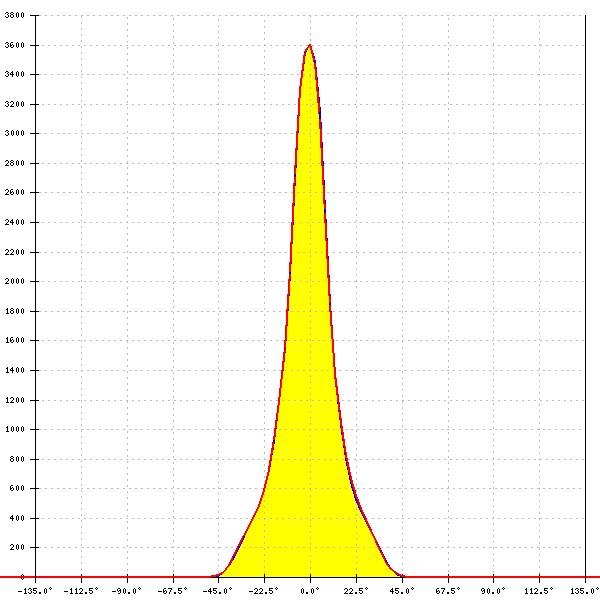

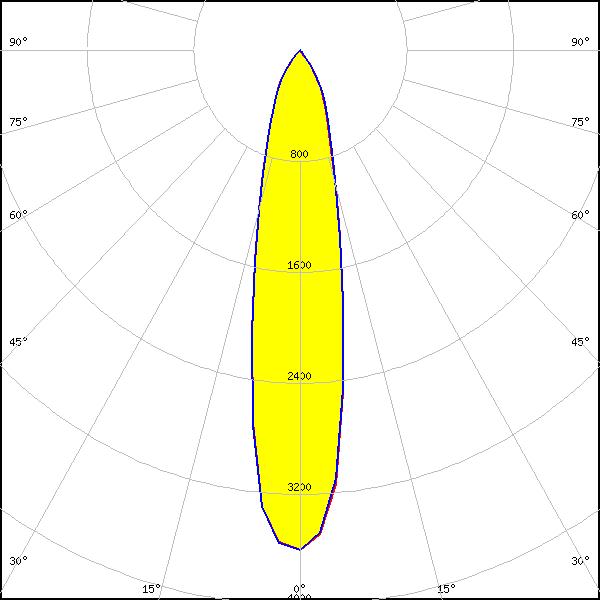

LED: VERO18
Required components:
FWHM: 22°
Peak intensity: 3.6 cd/lm
Efficiency: 91 %
LED: VERO18
FWHM: 21°
Peak intensity: 0.0 cd/lm

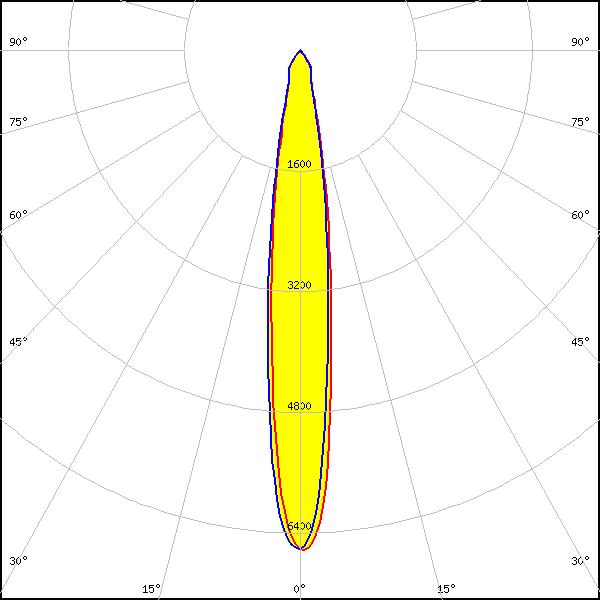

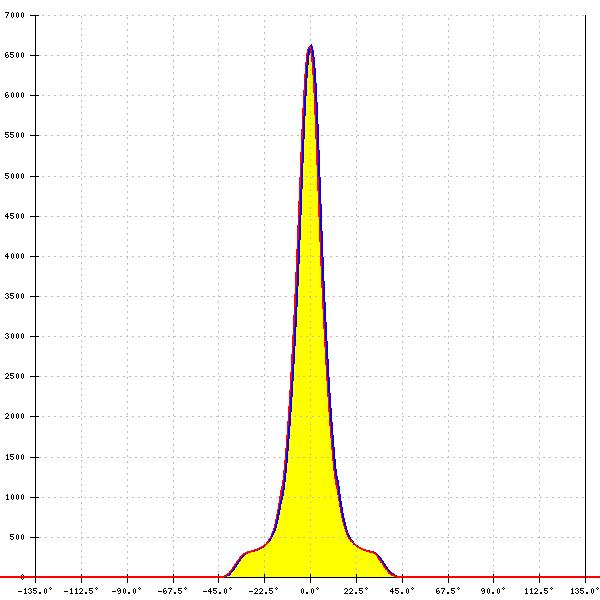

LED: Xenio Point 13mm
Required components:
FWHM: 14°
Peak intensity: 6.6 cd/lm
Efficiency: 91 %

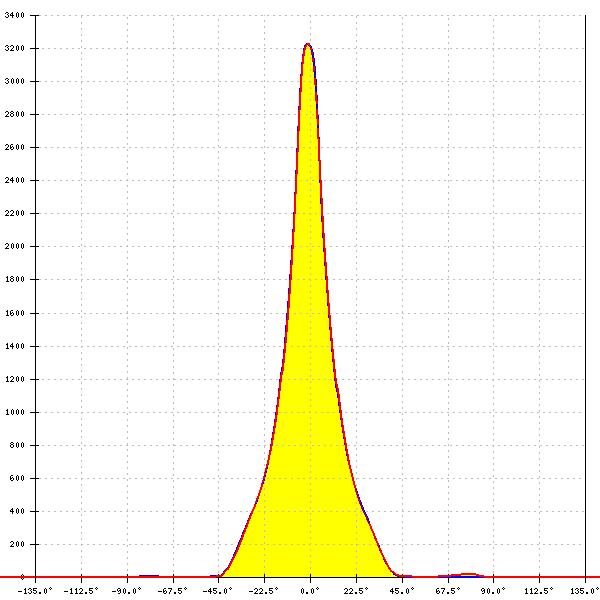

LED: Xenio Point 18mm
Required components:
FWHM: 21°
Peak intensity: 3.2 cd/lm
Efficiency: 86 %

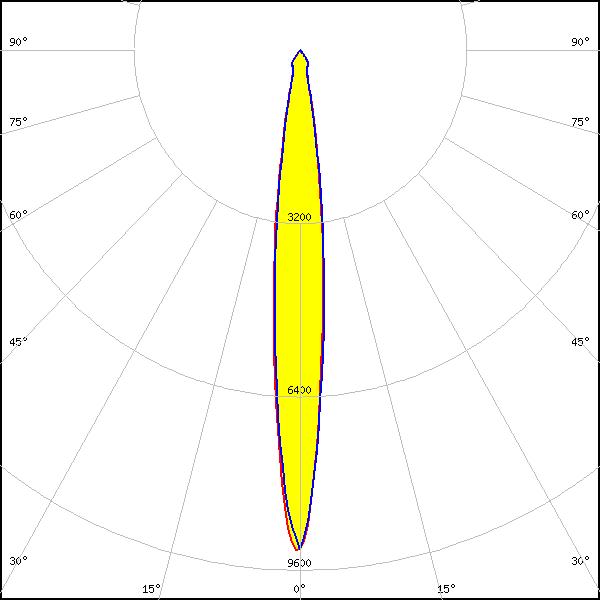

LED: CLL02x/CLU02x (LES10)
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 12°
Peak intensity: 9.2 cd/lm
Efficiency: 89 %

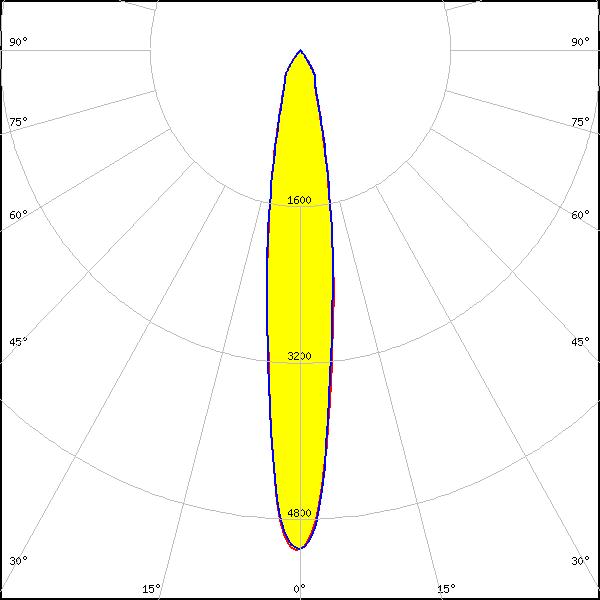

LED: CLL03x/CLU03x
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 16°
Peak intensity: 5.1 cd/lm
Efficiency: 88 %

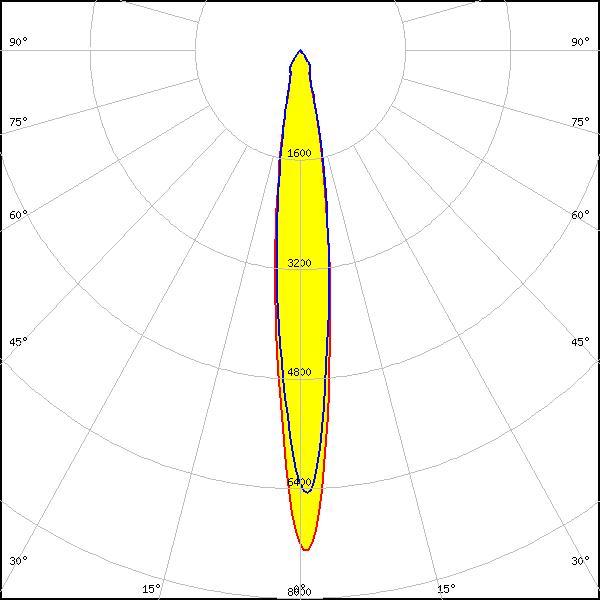

LED: CLU720/721
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 14°
Peak intensity: 7.3 cd/lm
Efficiency: 87 %

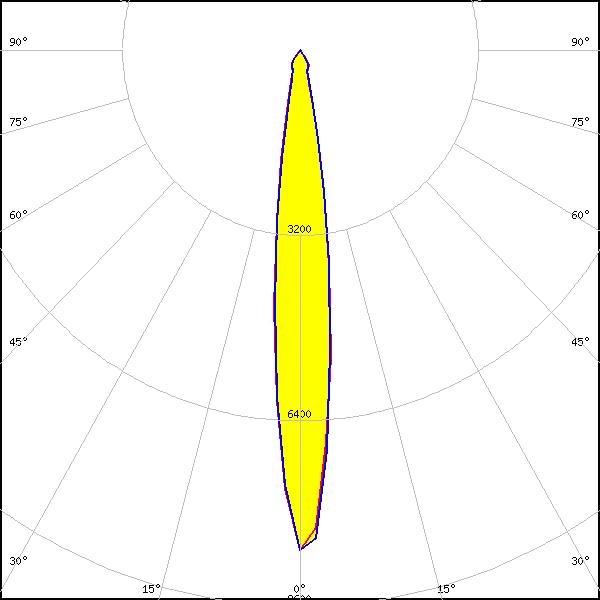

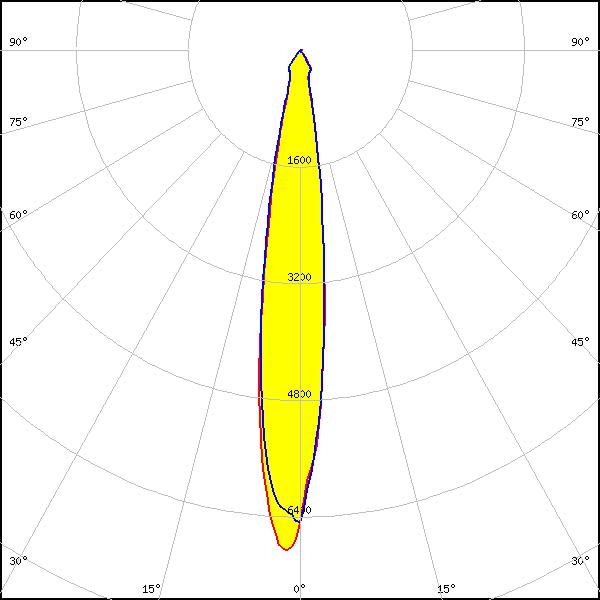

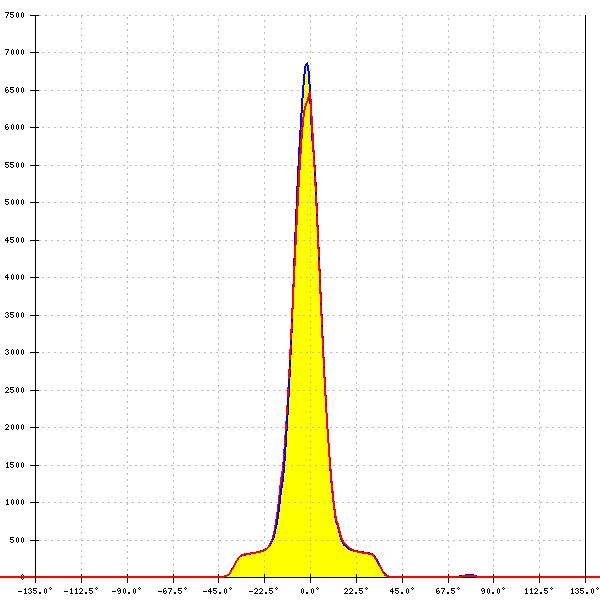

LED: CXA/B 15xx
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: 15°
Peak intensity: 6.9 cd/lm
Efficiency: 89 %

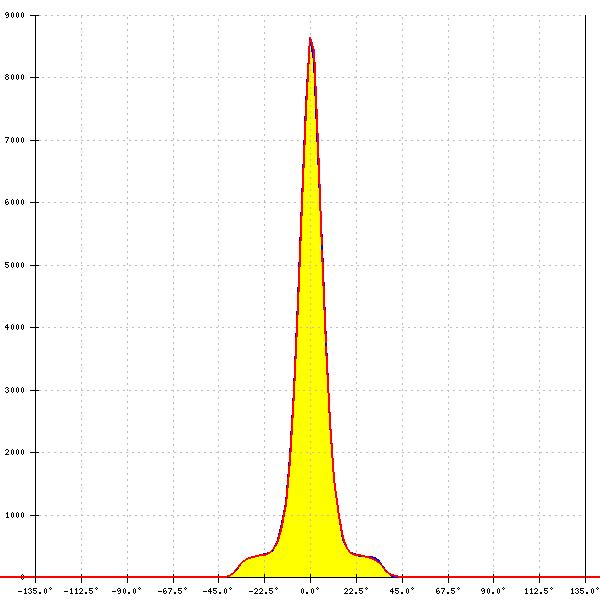

LED: CXA/B 15xx
Required components:
FWHM: 14°
Peak intensity: 8.6 cd/lm
Efficiency: 91 %
LED: CXA/B 15xx
Required components:
FWHM: 13°
Peak intensity: 7.4 cd/lm
Efficiency: 85 %
LED: CXA/B 15xx
FWHM: 12°
Peak intensity: 0.0 cd/lm

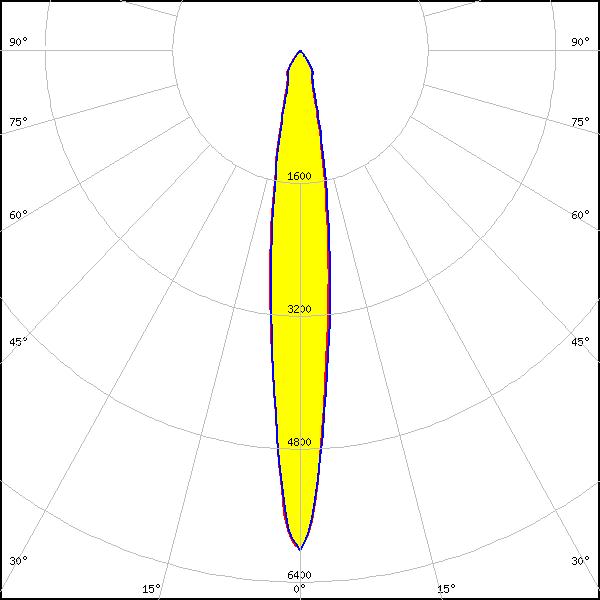

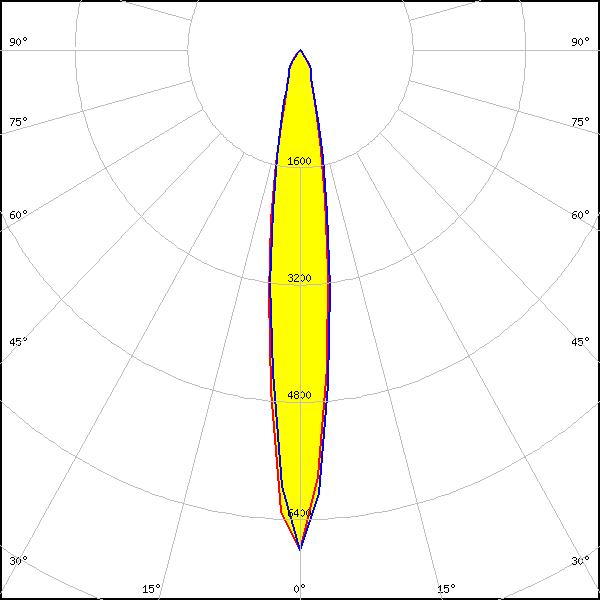

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 14°
Peak intensity: 6.1 cd/lm
Efficiency: 86 %
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 15°
Peak intensity: 6.8 cd/lm
Efficiency: 92 %

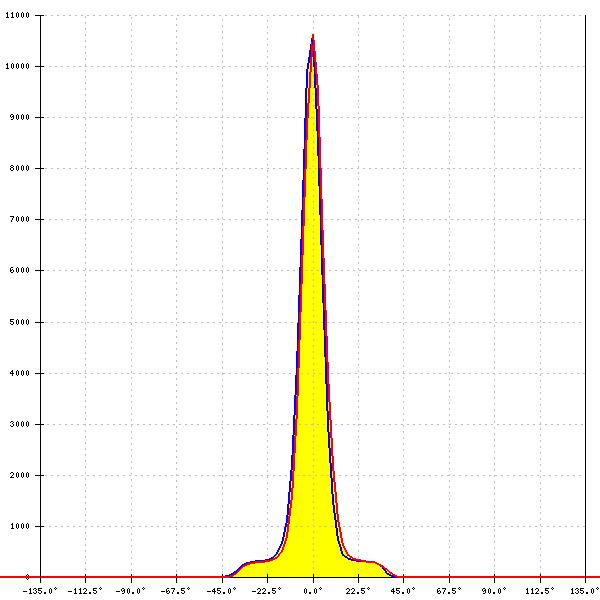

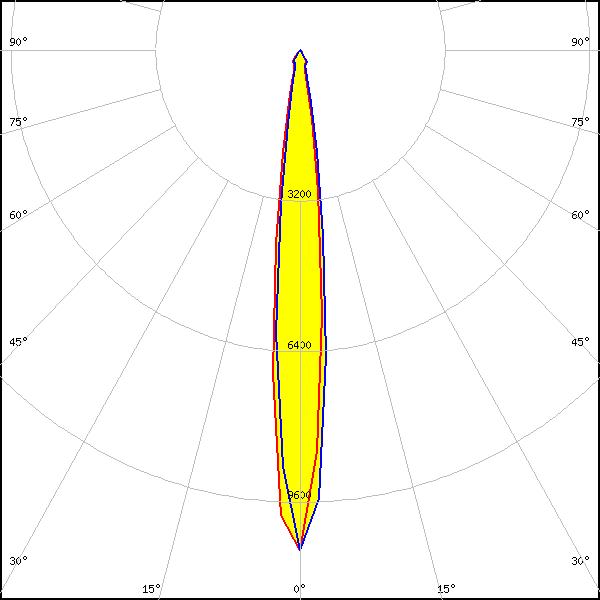

LED: LUXEON CoB 1202/1203
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 14°
Peak intensity: 7.3 cd/lm
Efficiency: 88 %
LED: LUXEON CoB 1202/1203
Required components:
FWHM: 12°
Peak intensity: 10.6 cd/lm
Efficiency: 90 %
LED: LUXEON CoB 1202s
Required components:
FWHM: 9°
Peak intensity: 19.6 cd/lm
Efficiency: 90 %
LED: LUXEON CoB Compact
Required components:
FWHM: 9°
Peak intensity: 19.6 cd/lm
Efficiency: 90 %
LED: CXM-14
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 16°
Peak intensity: 5.1 cd/lm
Efficiency: 88 %
LED: CXM-9
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 12°
Peak intensity: 9.2 cd/lm
Efficiency: 89 %

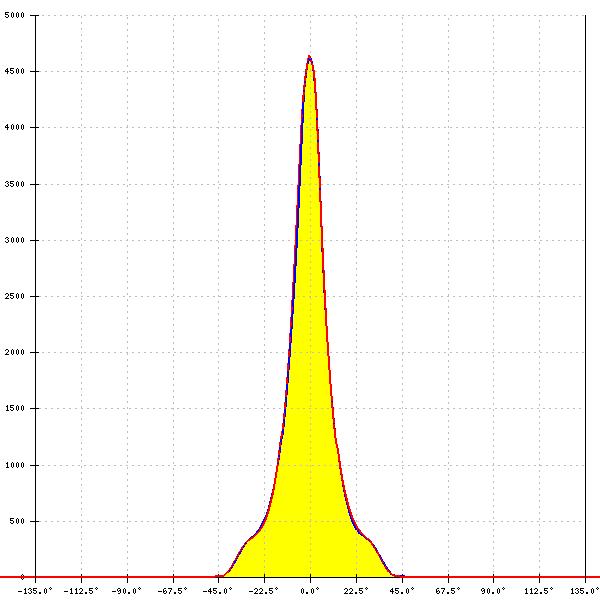

LED: COB J-Type
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 463 Typ L2
FWHM: 17°
Peak intensity: 4.6 cd/lm
Efficiency: 88 %
LED: COB J-Type
Required components:
FWHM: 19°
Peak intensity: 4.7 cd/lm
Efficiency: 91 %

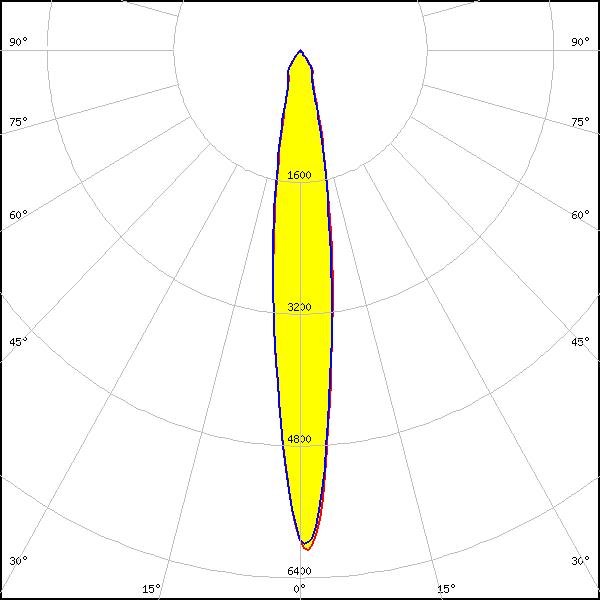

LED: COB L-Type (LES 11)
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 14°
Peak intensity: 6.1 cd/lm
Efficiency: 86 %
LED: COB L-Type (LES 11)
Required components:
FWHM: 15°
Peak intensity: 6.8 cd/lm
Efficiency: 90 %
LED: COB L-Type (LES 9)
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 13°
Peak intensity: 8.4 cd/lm
Efficiency: 90 %
LED: COB L-Type (LES 9)
Required components:
FWHM: 13°
Peak intensity: 10.1 cd/lm
Efficiency: 90 %

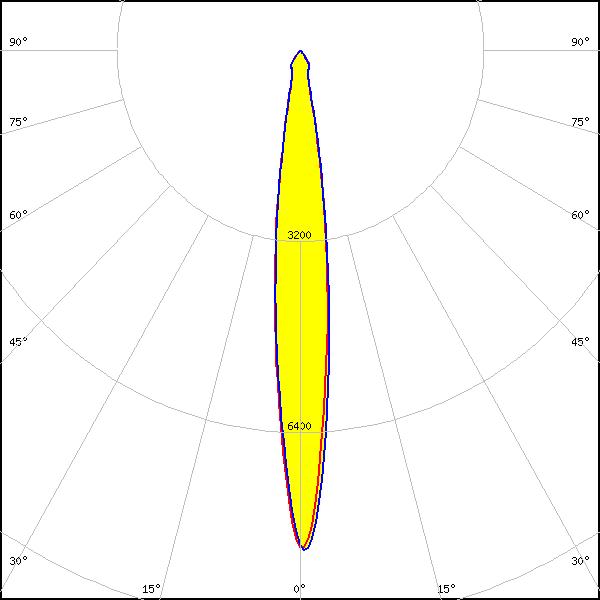

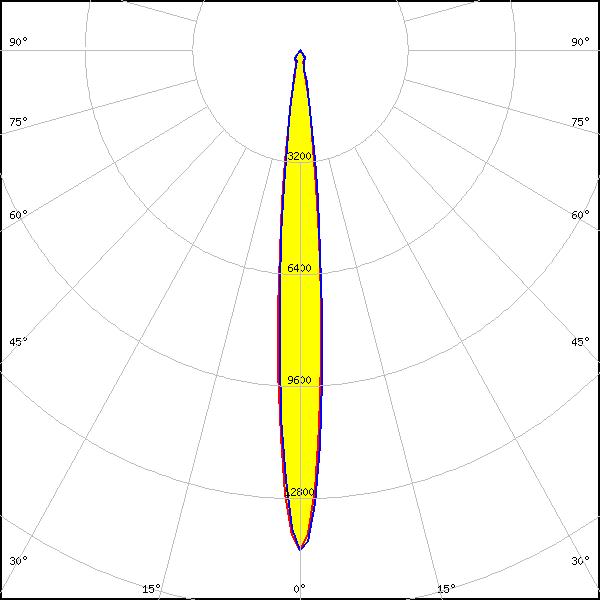

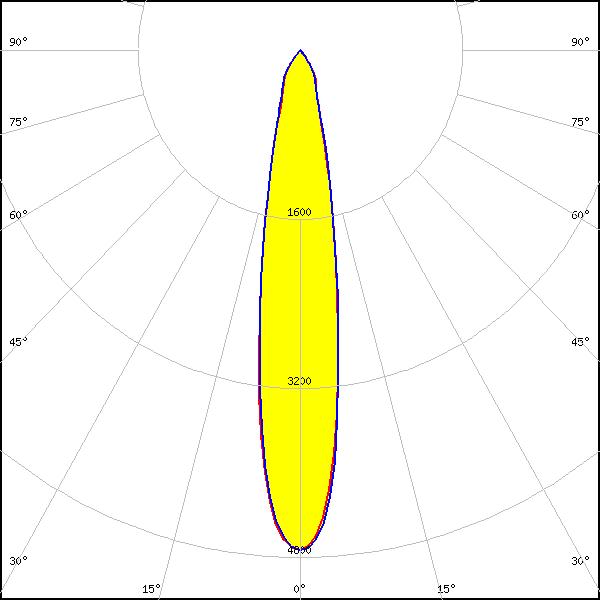

LED: NSCxL036A
Required components:
FWHM: 11°
Peak intensity: 14.1 cd/lm
Efficiency: 89 %
LED: OSTAR Stage (S2WP)
Required components:

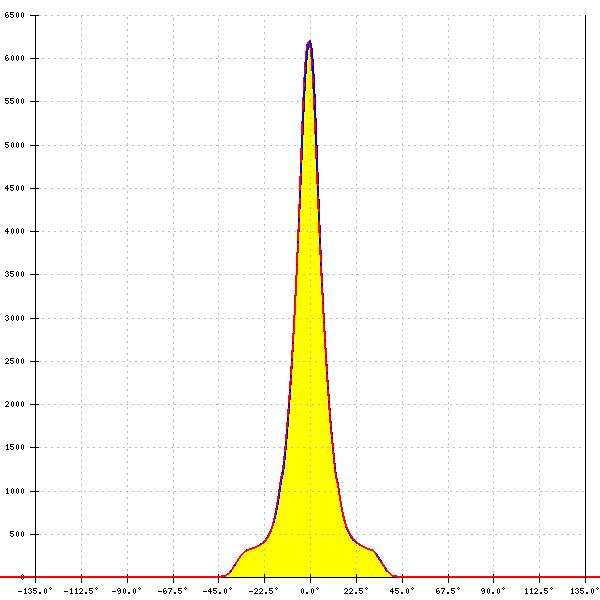

LED: Soleriq S13
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 14°
Peak intensity: 6.2 cd/lm
Efficiency: 89 %

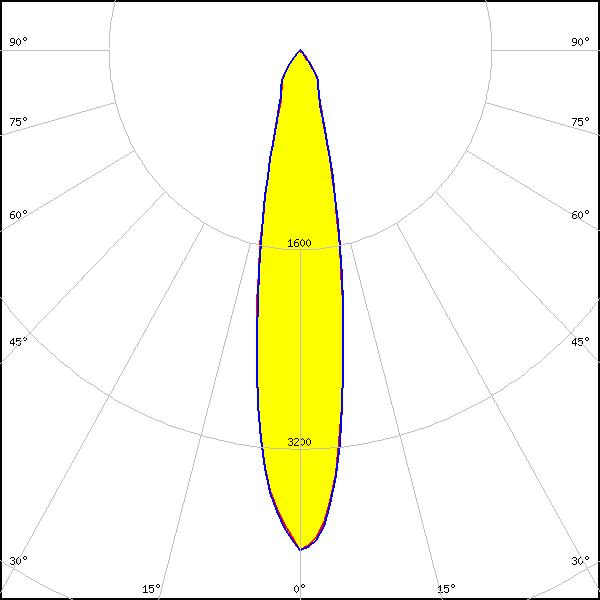

LED: Soleriq S15
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 20°
Peak intensity: 4.0 cd/lm
Efficiency: 88 %
LED: LC010C
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 479 Typ L1
FWHM: 9°
Peak intensity: 16.3 cd/lm
Efficiency: 89 %
LED: LC020C
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 479 Typ L1
FWHM: 10°
Peak intensity: 12.3 cd/lm
Efficiency: 89 %

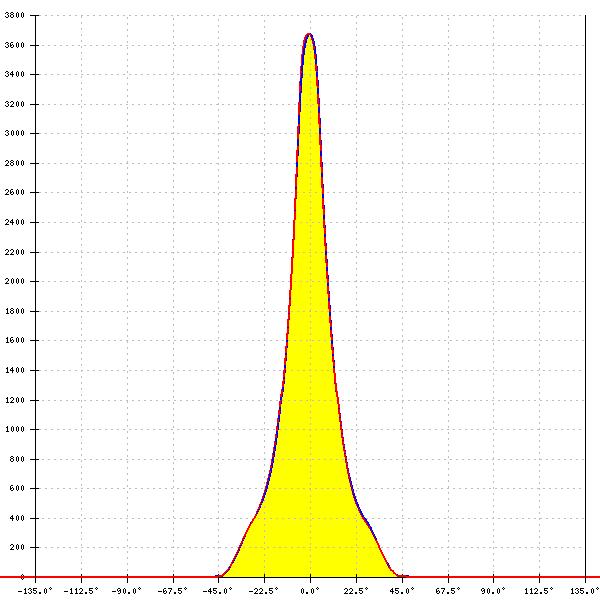

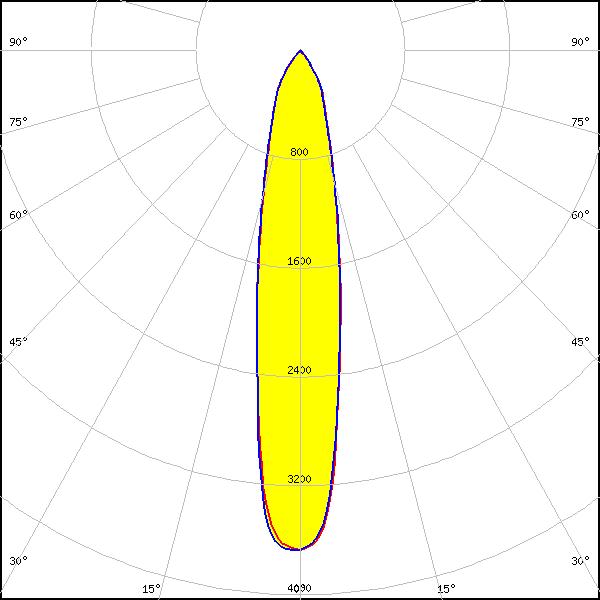

LED: LC026B / 033B / 040B
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 450 Typ L2
FWHM: 20°
Peak intensity: 3.7 cd/lm
Efficiency: 88 %
LED: LC040C
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 480 Typ L1
FWHM: 13°
Peak intensity: 7.3 cd/lm
Efficiency: 85 %
LED: ZC12/18
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 16°
Peak intensity: 5.1 cd/lm
Efficiency: 88 %
LED: ZC4/6
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 12°
Peak intensity: 9.2 cd/lm
Efficiency: 89 %
LED: SLE G5 LES11
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 13°
Peak intensity: 8.5 cd/lm
Efficiency: 91 %

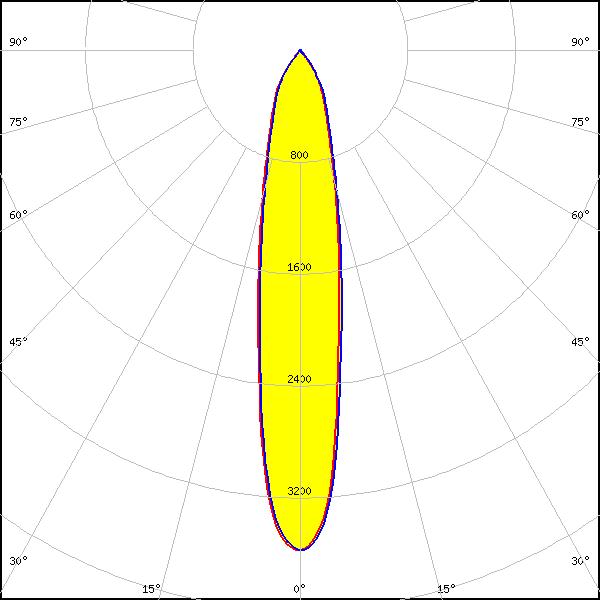

LED: XTM - 19mm LES
Required components:
FWHM: 20°
Peak intensity: 3.6 cd/lm
Efficiency: 88 %

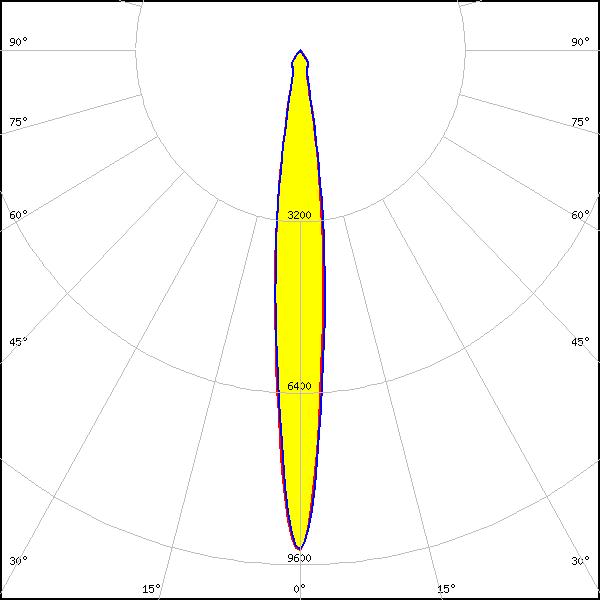

LED: XTM - 9mm LES
Required components:
FWHM: 12°
Peak intensity: 9.3 cd/lm
Efficiency: 90 %
