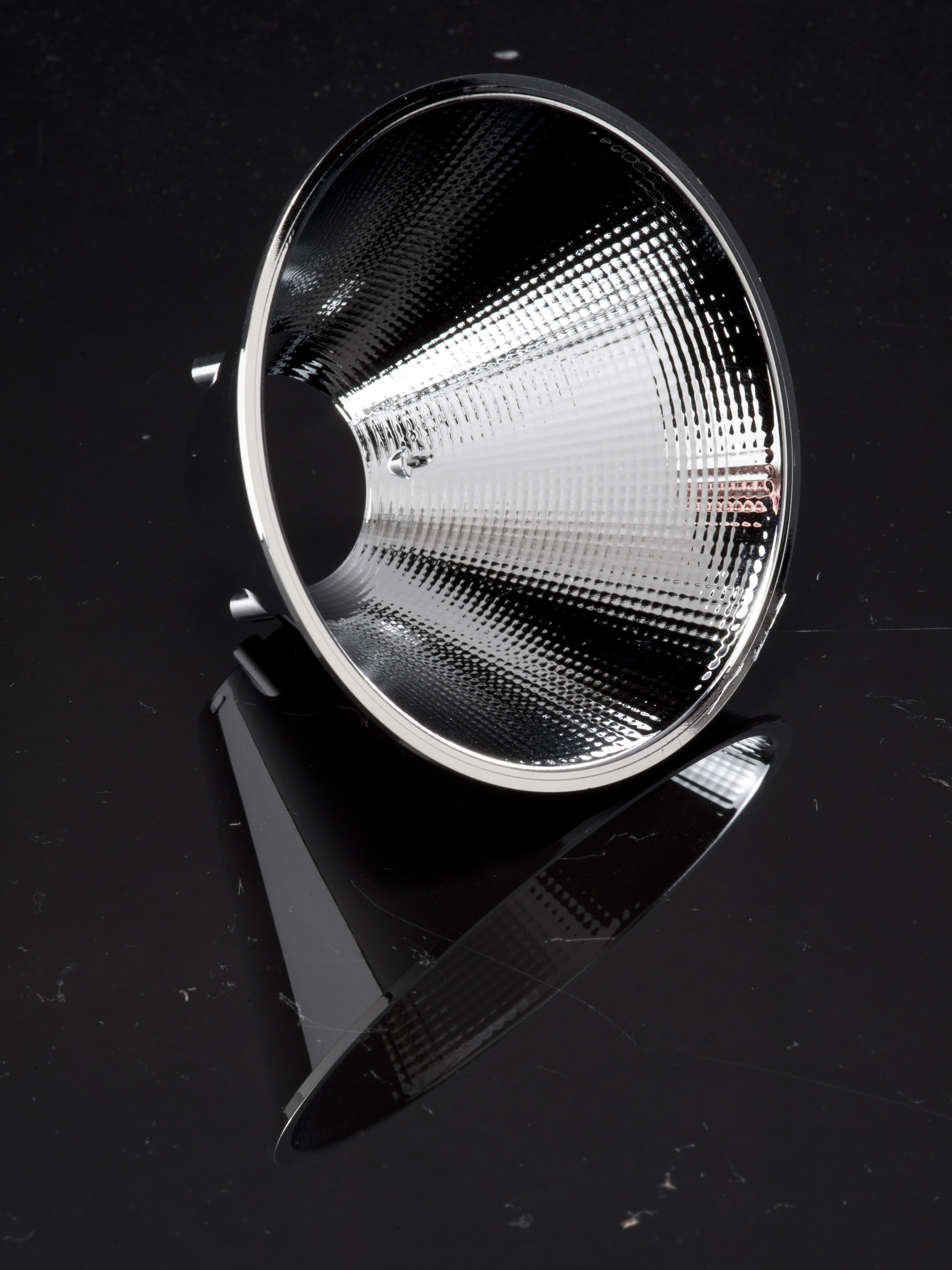

F13701_BARBARA-W-PF

Print

~35° wide beam

Specification
  • Dimensions:
    70 mm
  • Height:
    41.70 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    288 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.6 kg
  • MPQ:
    18 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F13701_BARBARA-W-PF

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

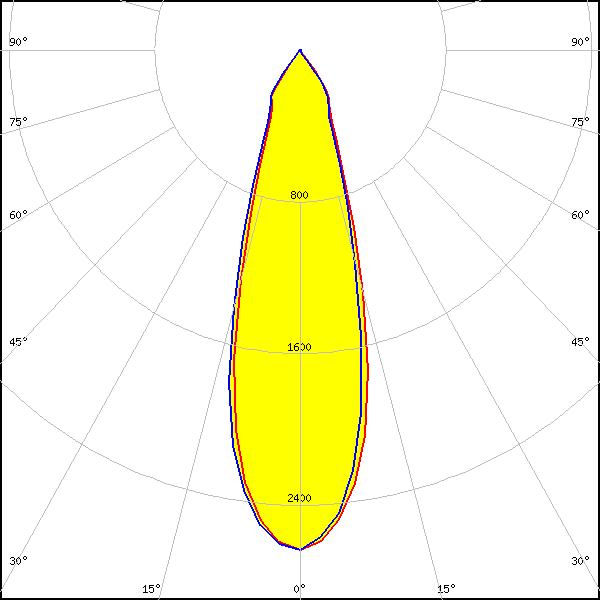

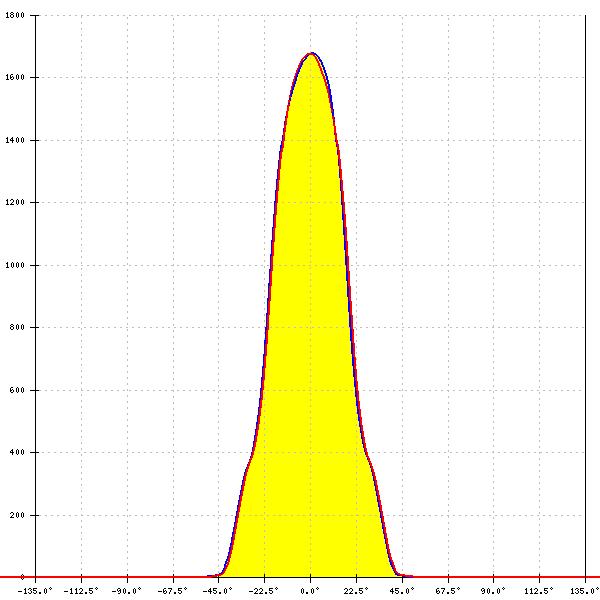

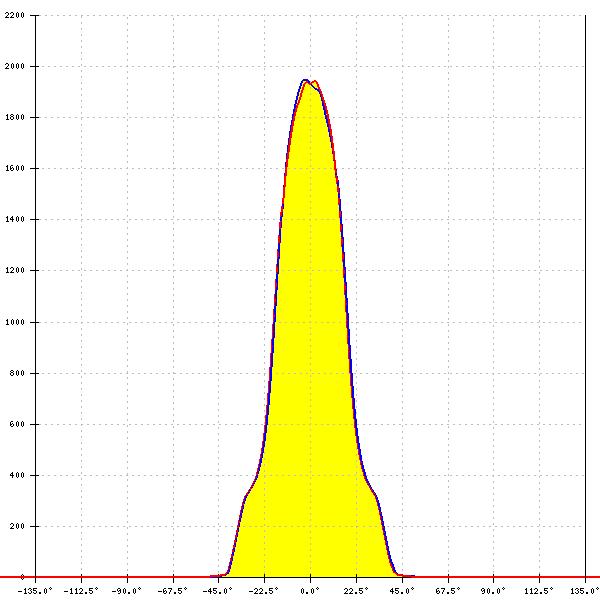

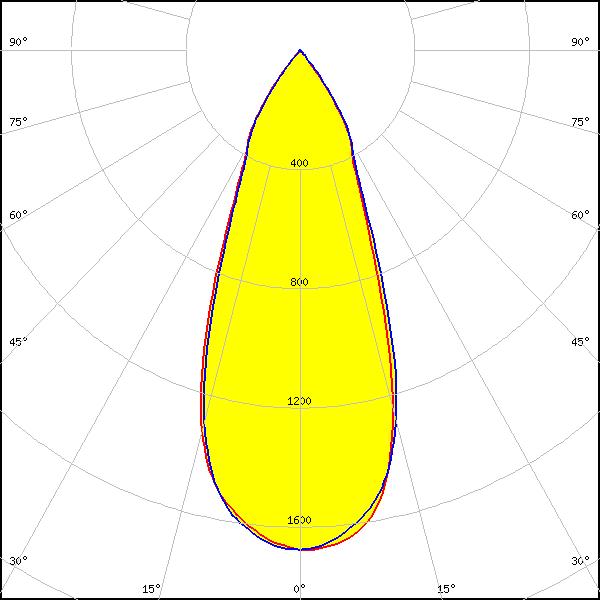

Optical results

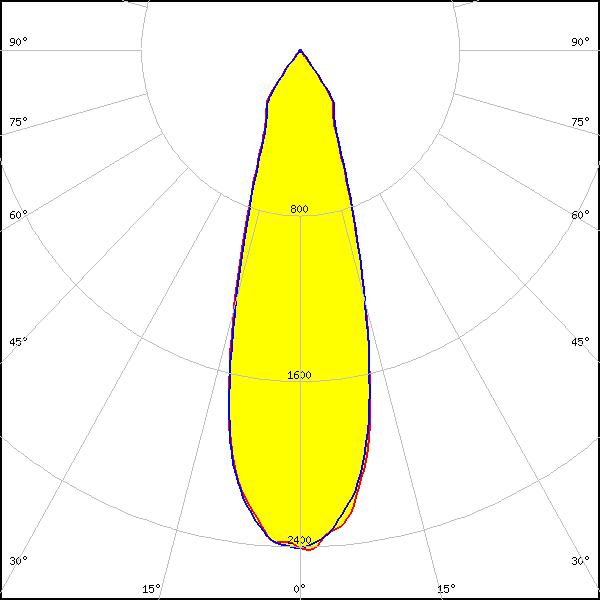

LED: V10 Gen7
LES size: 10.2 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: 31°
FWTM: 69°
Peak intensity: 2.450 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen7
LES size: 10.2 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 31°
FWTM: 70°
Peak intensity: 2.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

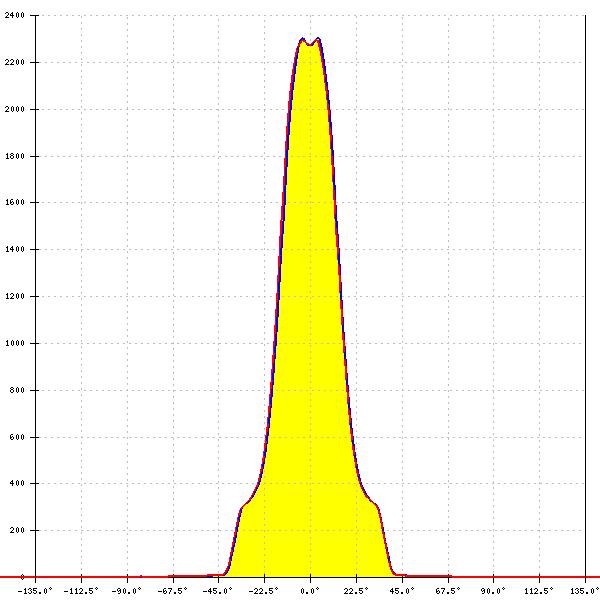

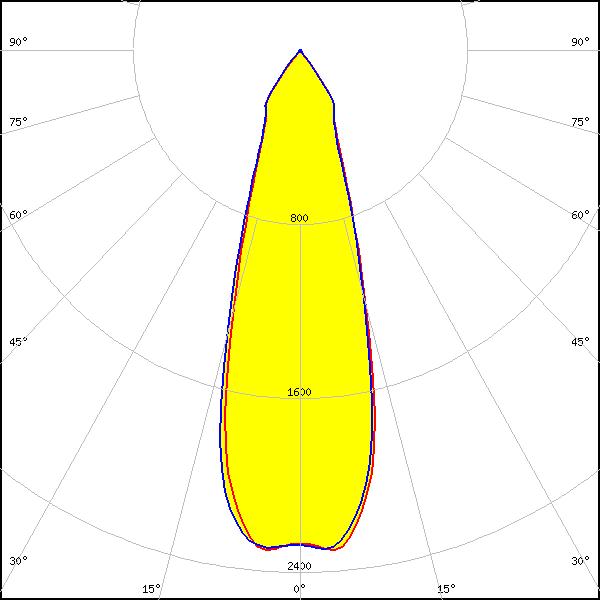

LED: VERO10
LES size: 9.9 mm
Required components:
FWHM: 31°
FWTM: 71°
Peak intensity: 2.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 36°
FWTM: 72°
Peak intensity: 2.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

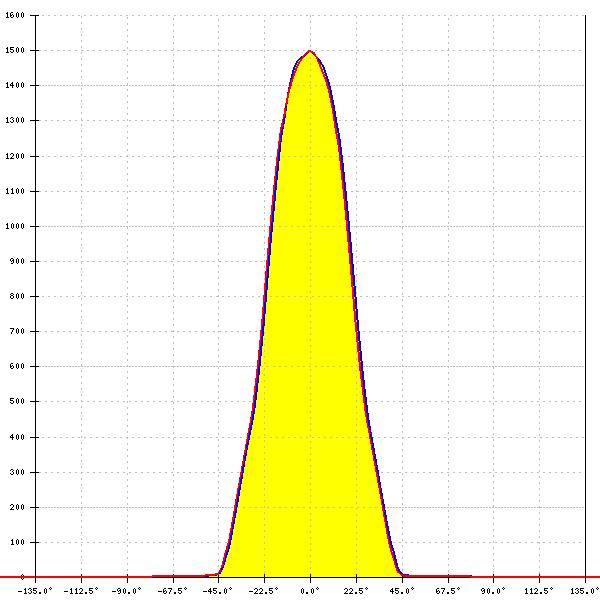

LED: VERO18
LES size: 18.6 mm
Required components:
FWHM: 45°
FWTM: 76°
Peak intensity: 1.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

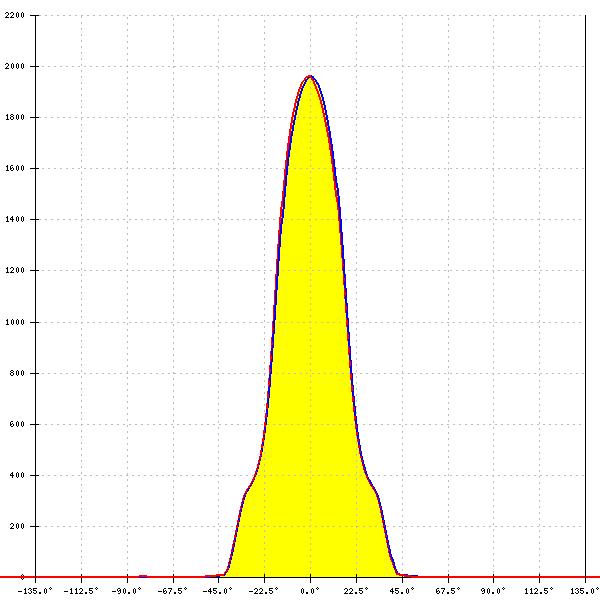

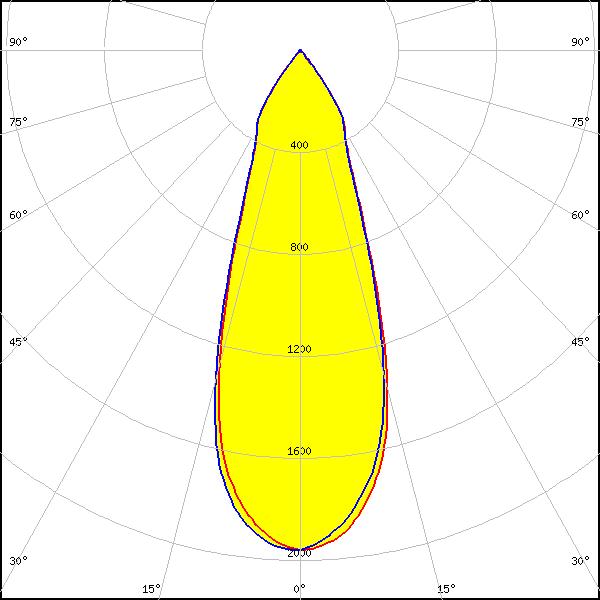

LED: Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM: 36°
FWTM: 73°
Peak intensity: 1.960 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

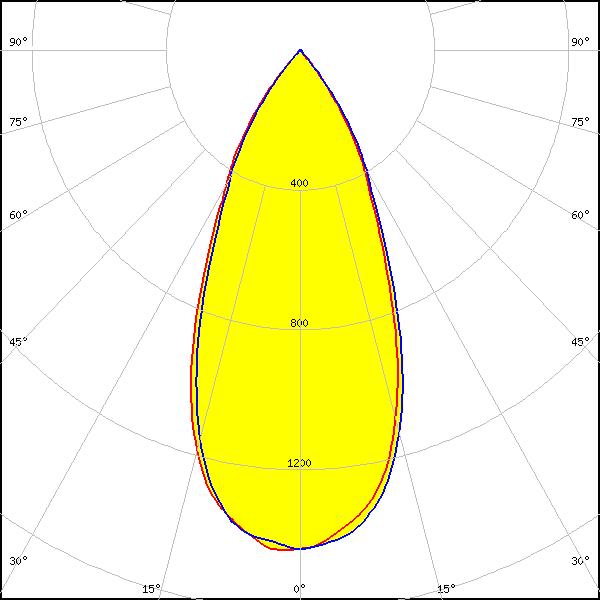

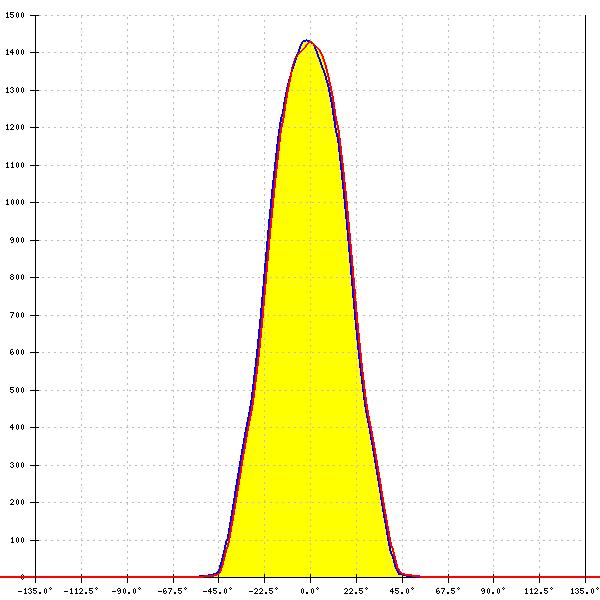

LED: Xenio Point 18mm
LES size: 18.4 mm
Required components:
FWHM: 46°
FWTM: 77°
Peak intensity: 1.430 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

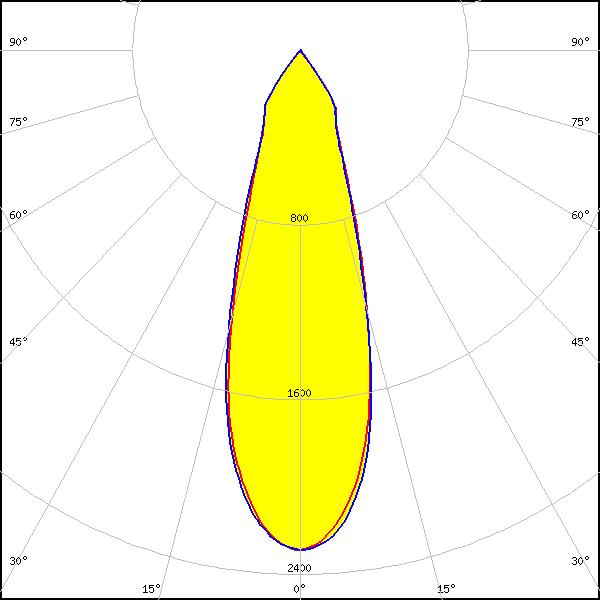

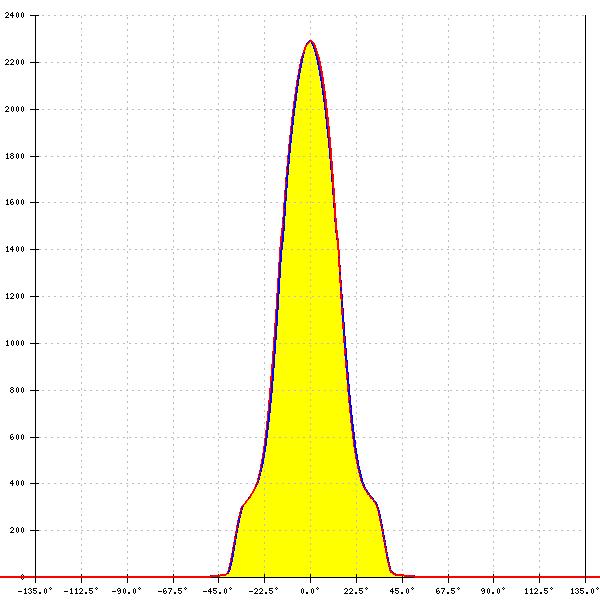

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 32°
FWTM: 71°
Peak intensity: 2.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

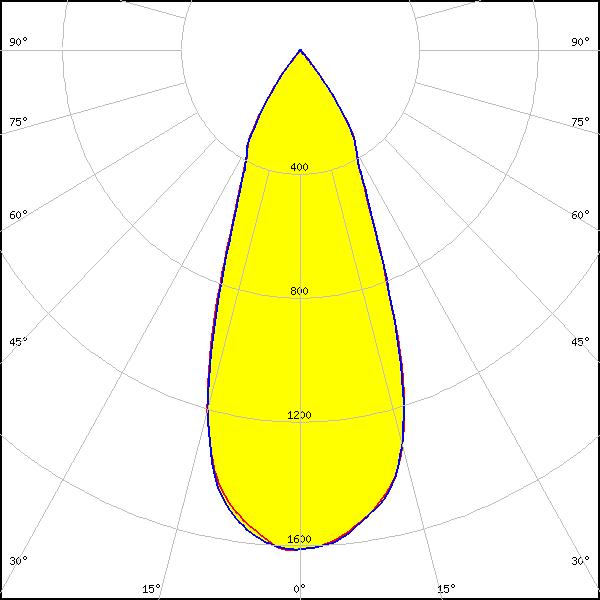

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 41°
FWTM: 73°
Peak intensity: 1.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

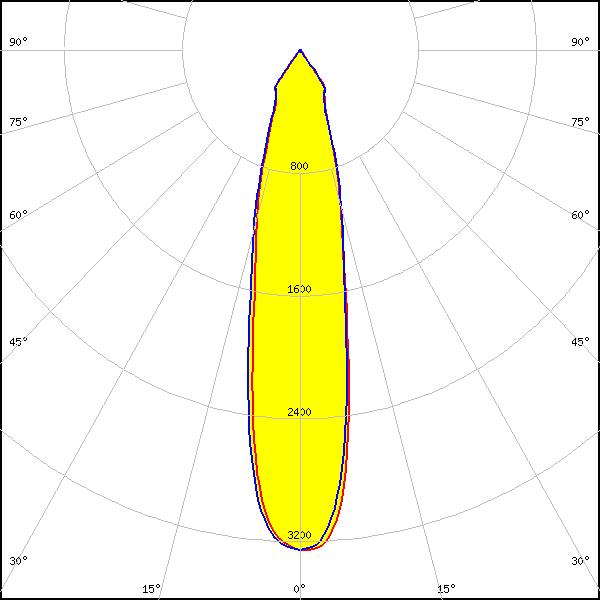

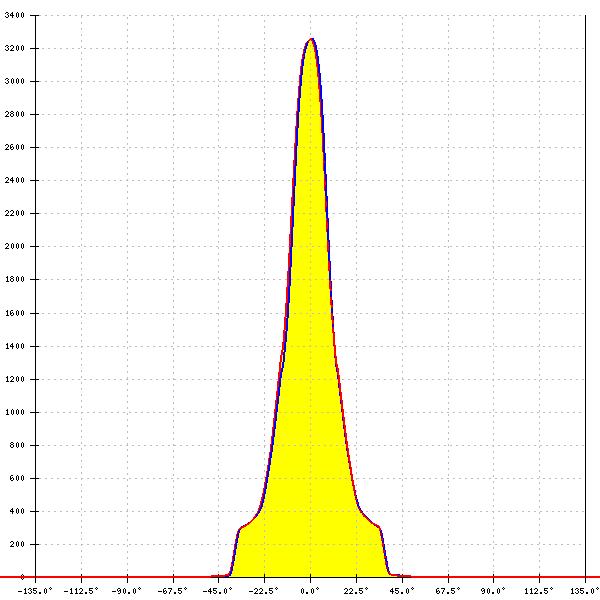

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 22°
FWTM: 61°
Peak intensity: 3.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

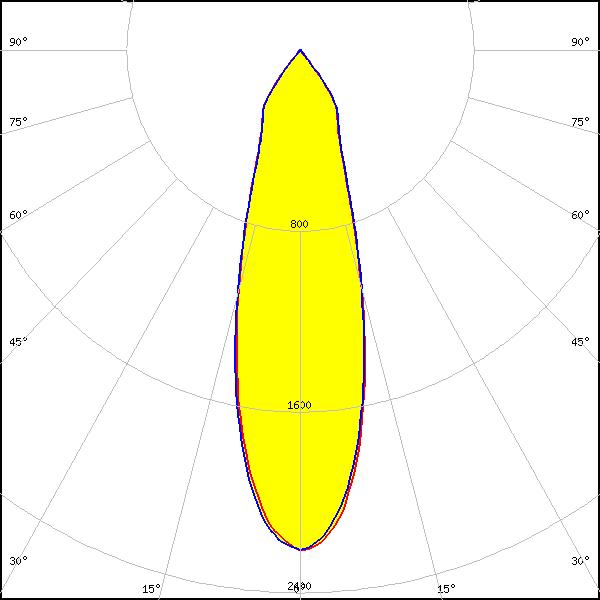

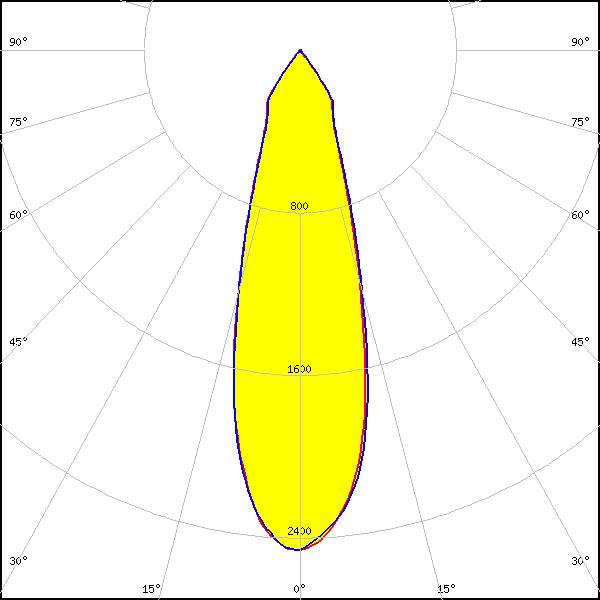

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: 30°
FWTM: 70°
Peak intensity: 2.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 30°
FWTM: 69°
Peak intensity: 2.640 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 30°
FWTM: 73°
Peak intensity: 2.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

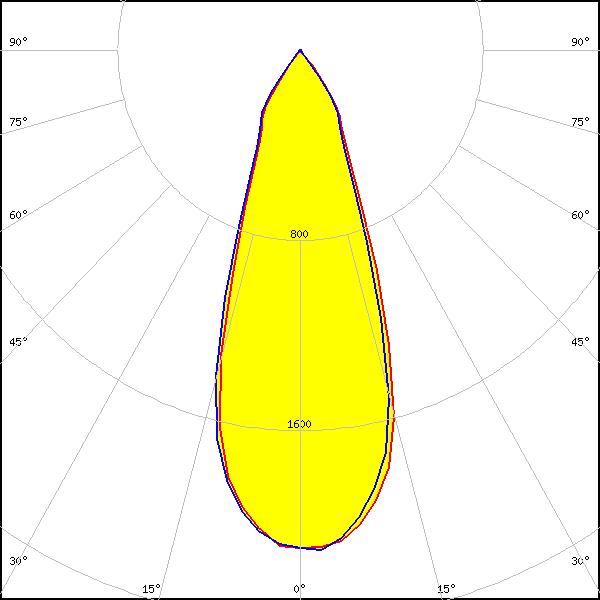

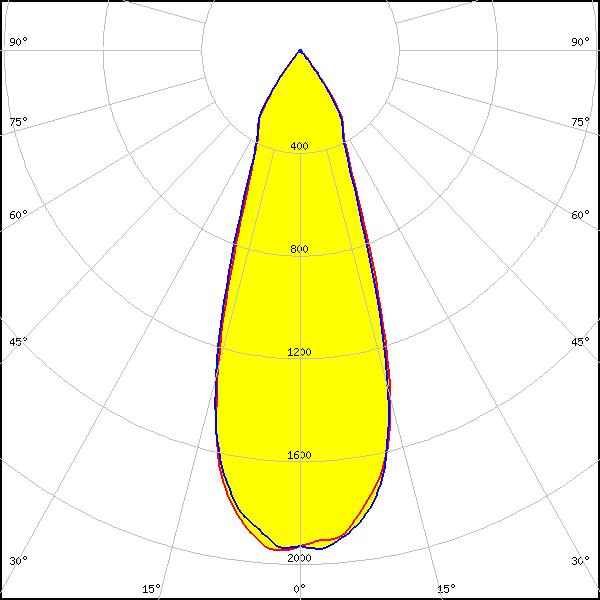

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 36°
FWTM: 72°
Peak intensity: 2.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

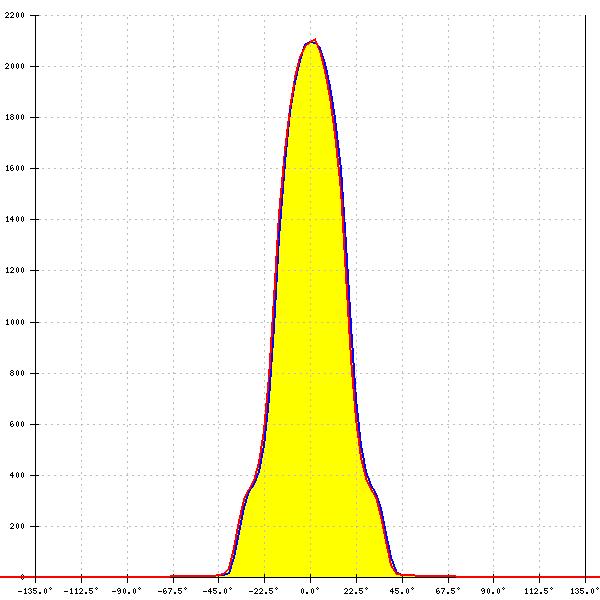

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: 36°
FWTM: 71°
Peak intensity: 2.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

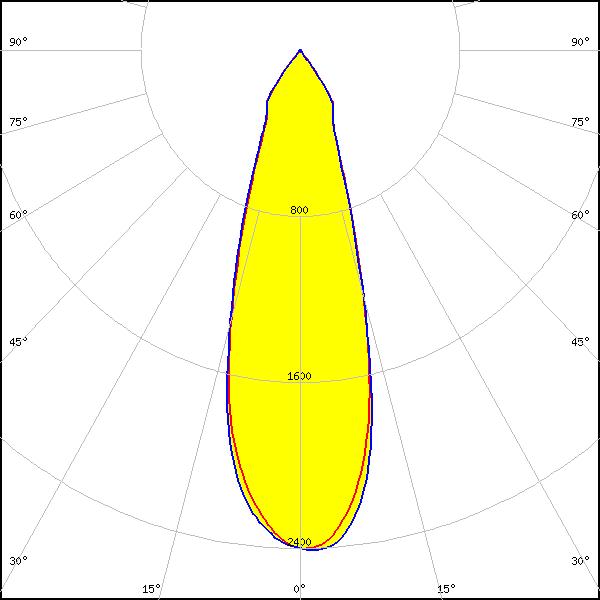

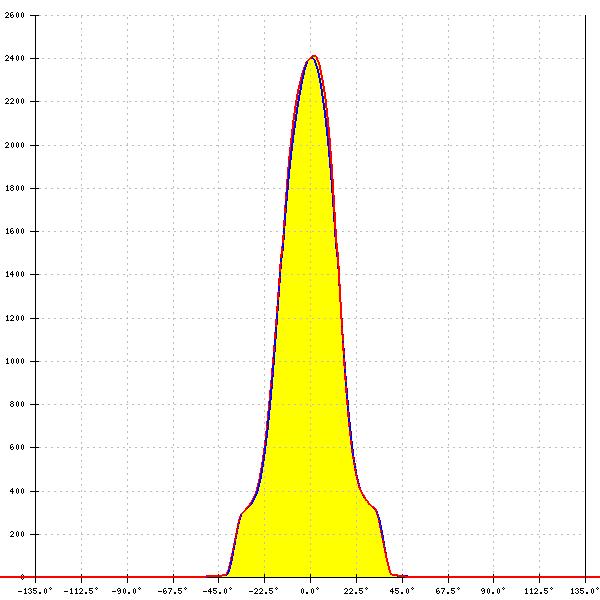

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 31°
FWTM: 70°
Peak intensity: 2.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

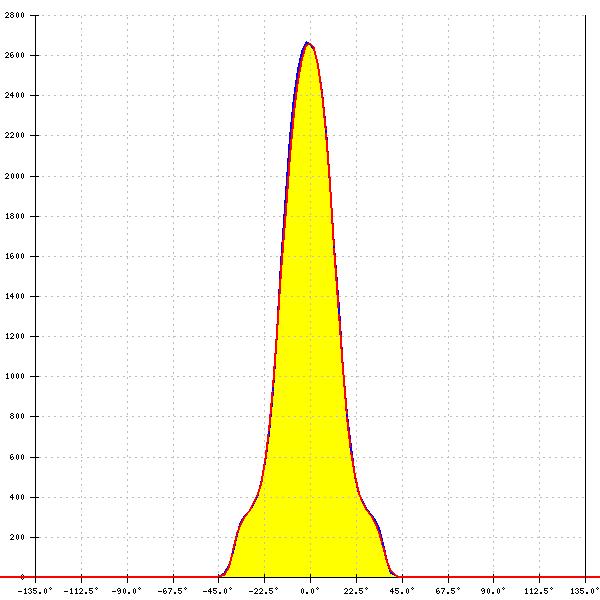

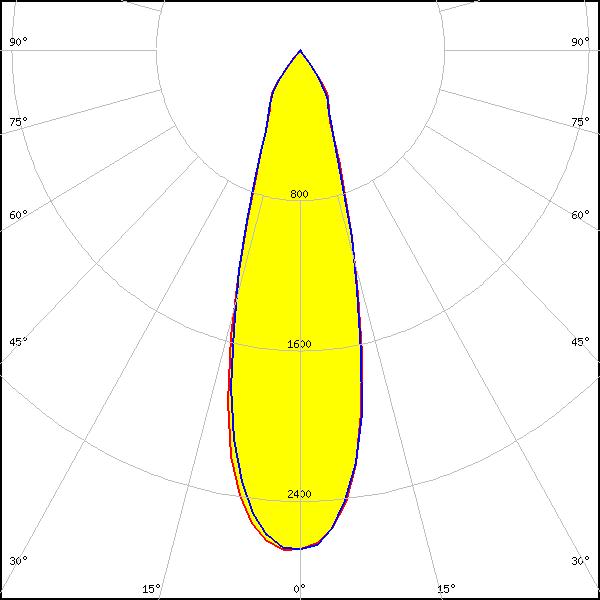

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: 30°
FWTM: 68°
Peak intensity: 2.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM: 20°
FWTM: 52°
Peak intensity: 4.100 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM: 20°
FWTM: 52°
Peak intensity: 4.100 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 41°
FWTM: 73°
Peak intensity: 1.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 32°
FWTM: 71°
Peak intensity: 2.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
LES size: 14.6 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 463 Typ L2
FWHM: 40°
FWTM: 73°
Peak intensity: 1.700 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

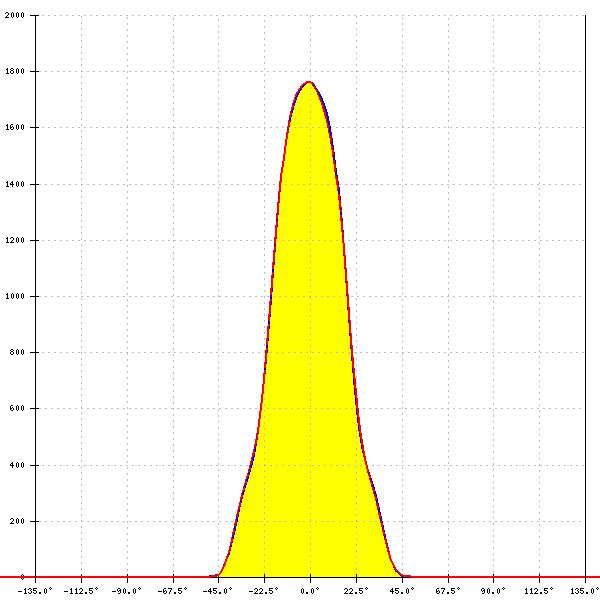

LED: COB J-Type
LES size: 14.6 mm
Required components:
FWHM: 41°
FWTM: 74°
Peak intensity: 1.760 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 35°
FWTM: 72°
Peak intensity: 2.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 35°
FWTM: 71°
Peak intensity: 2.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 30°
FWTM: 70°
Peak intensity: 2.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

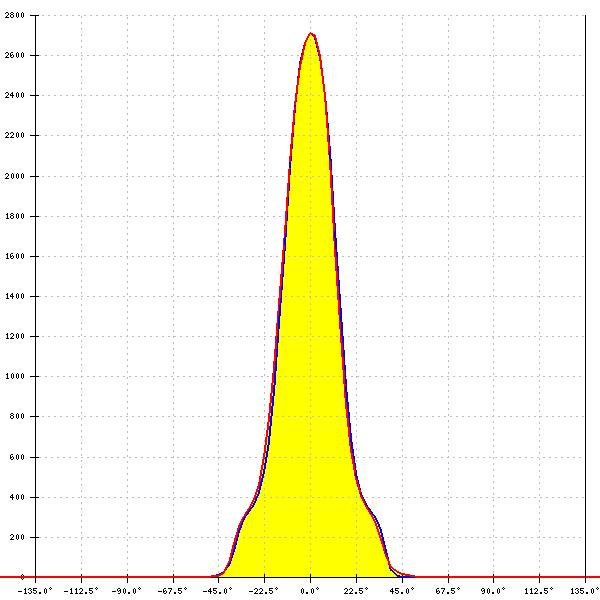

LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: 30°
FWTM: 68°
Peak intensity: 2.710 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

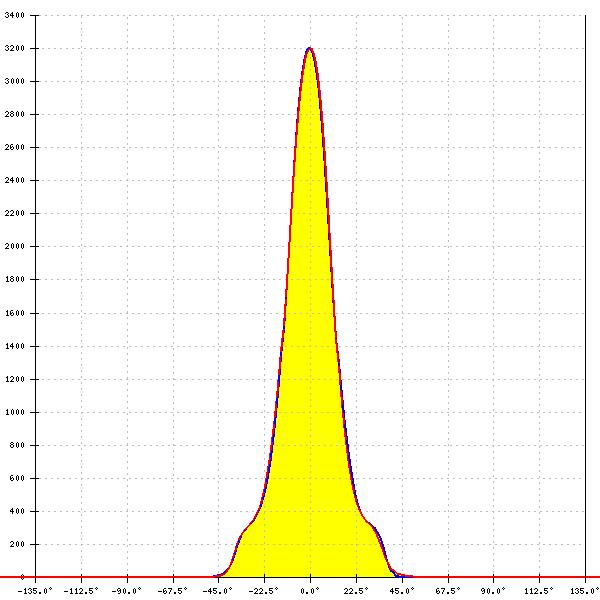

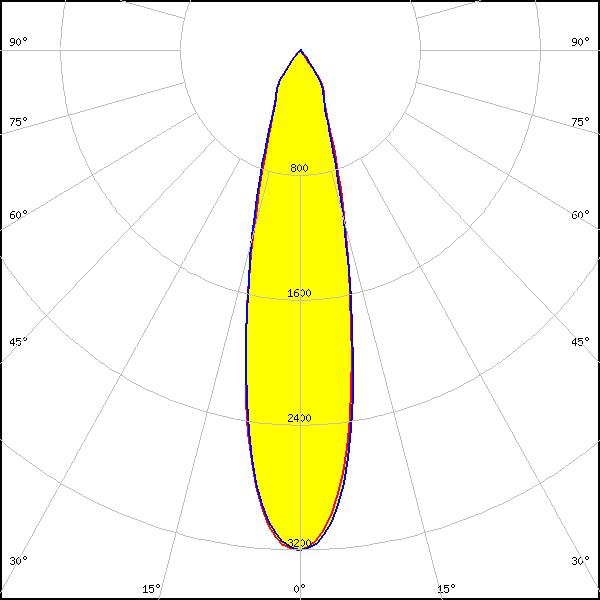

LED: NSCxL036A
LES size: 7.0 mm
Required components:
FWHM: 25°
FWTM: 60°
Peak intensity: 3.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

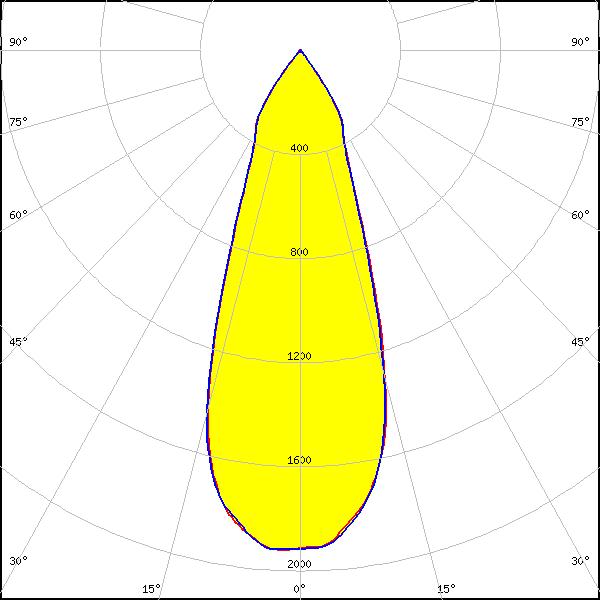

LED: Soleriq S13
LES size: 13.2 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 37°
FWTM: 72°
Peak intensity: 1.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

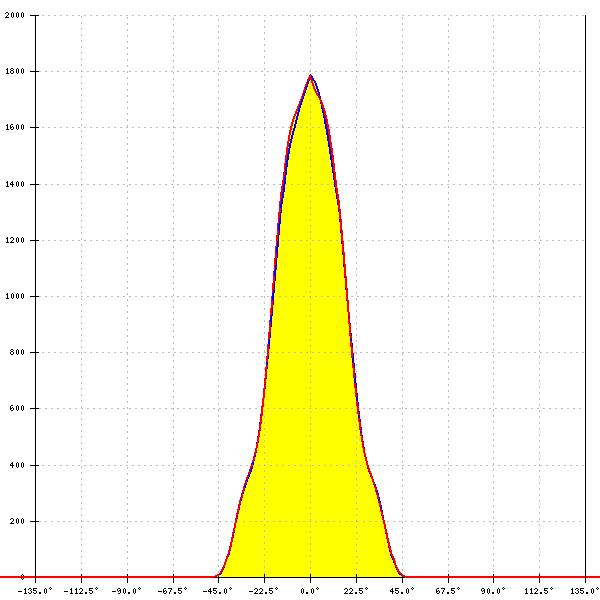

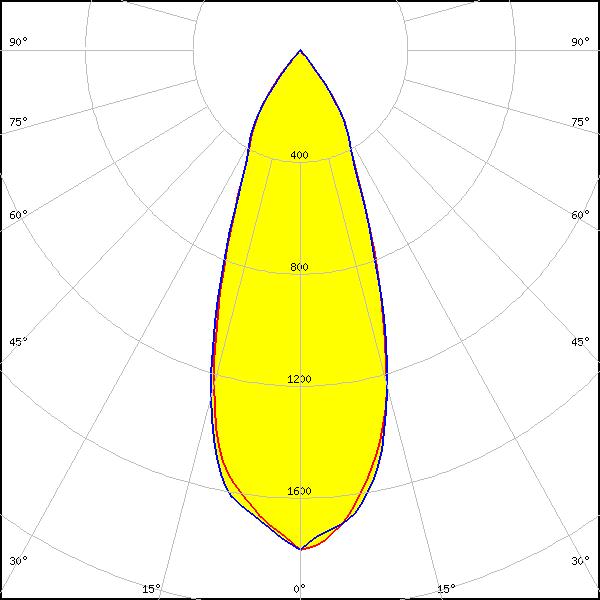

LED: Soleriq S15
LES size: 14.7 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 39°
FWTM: 74°
Peak intensity: 1.810 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010C
LES size: 6.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 479 Typ L1
FWHM: 23°
FWTM: 54°
Peak intensity: 3.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LC020C
LES size: 8.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 479 Typ L1
FWHM: 27°
FWTM: 65°
Peak intensity: 2.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

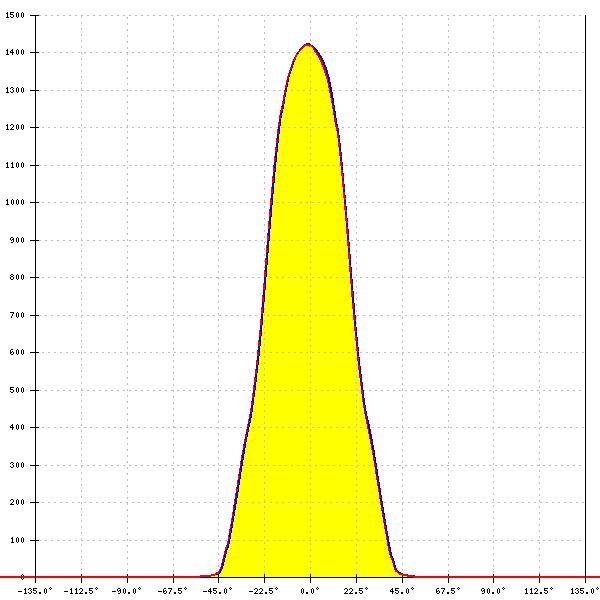

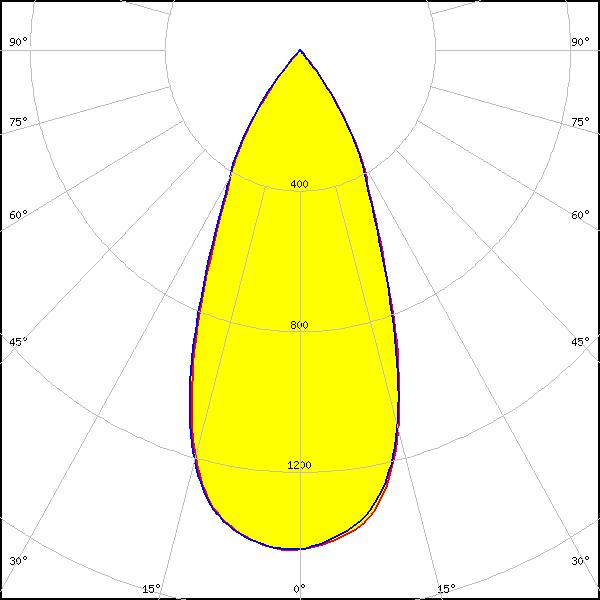

LED: LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 450 Typ L2
FWHM: 45°
FWTM: 76°
Peak intensity: 1.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LC040C
LES size: 11.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 480 Typ L1
FWHM: 33°
FWTM: 70°
Peak intensity: 2.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC12/18
LES size: 14.6 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 41°
FWTM: 73°
Peak intensity: 1.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 32°
FWTM: 71°
Peak intensity: 2.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

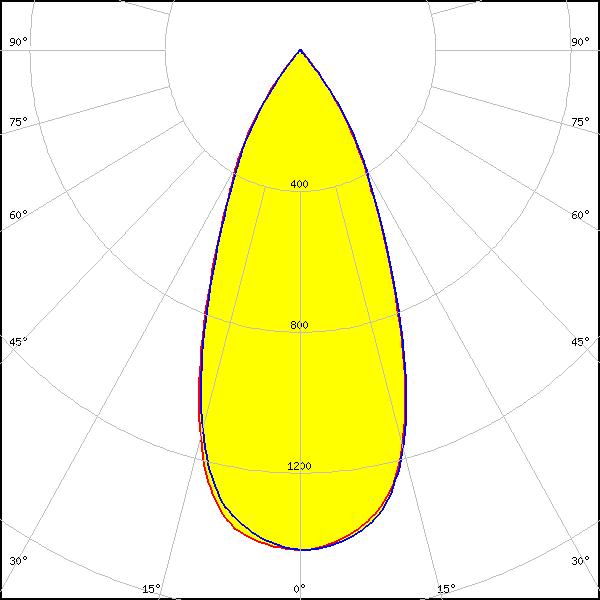

LED: XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM: 45°
FWTM: 75°
Peak intensity: 1.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

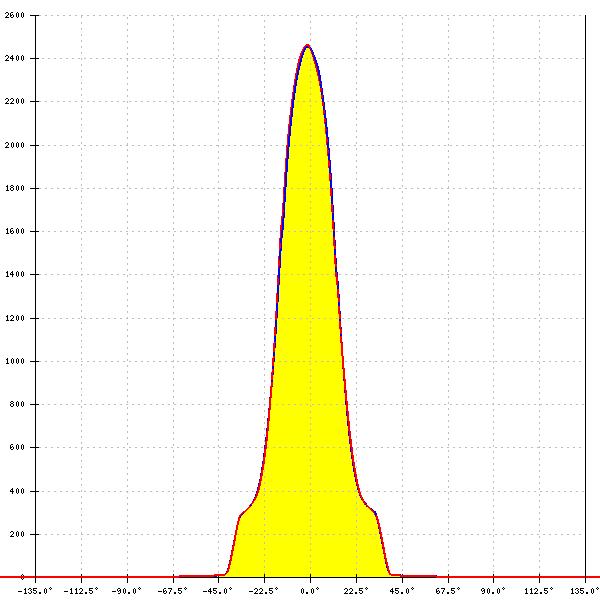

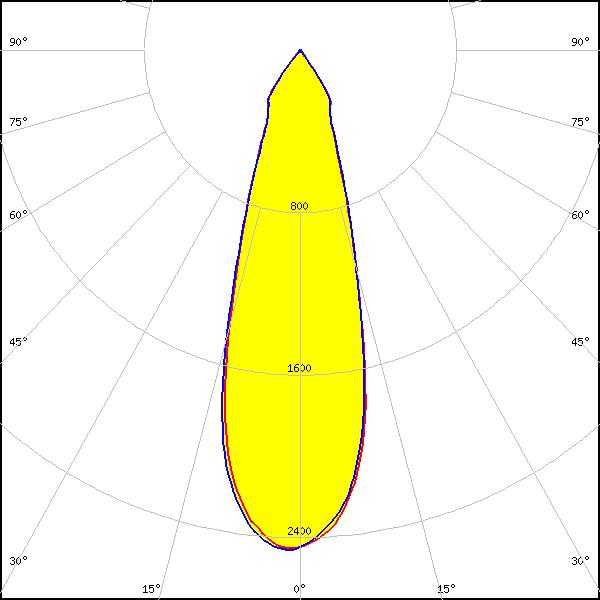

LED: XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM: 30°
FWTM: 70°
Peak intensity: 2.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
