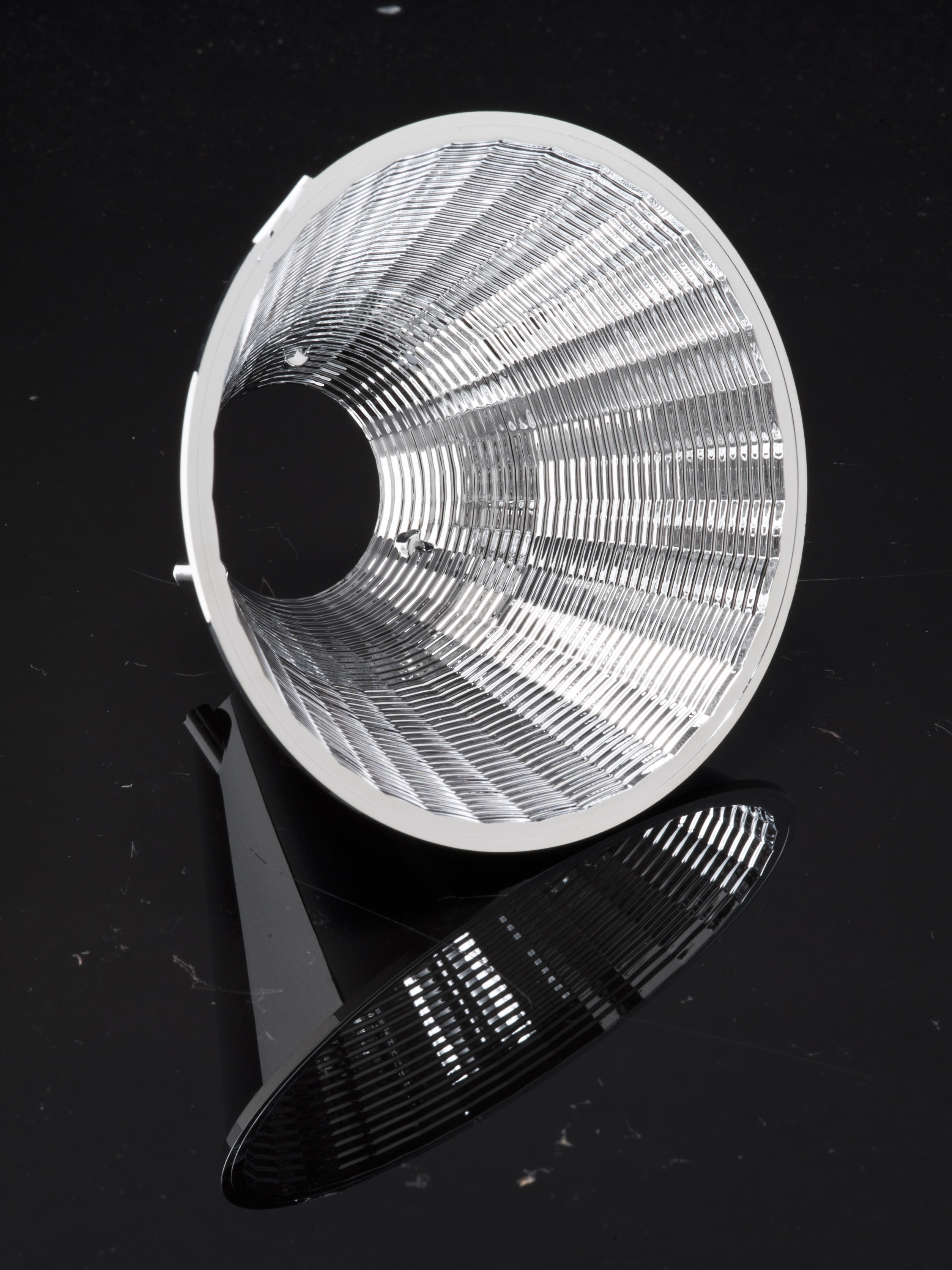

    F13702_BARBARA-WW-PF

    Print

    ~60° wide beam

    Specification
    • Dimensions:
      70 mm
    • Height:
      41.7 mm
    • Fastening:
      socket
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Packing information
    • Quantity in box:
      288 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.3 kg
    • MPQ:
      18 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 140 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
       Subscribe to LEDiL Newsletters
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    Typical Applications

    Downlighting
    Track and spot lighting
    Colour mixing lighting

    Downlighting
    Track and spot lighting
    Colour mixing lighting
    Tunable white lighting

    AVAILABLE LEDiL ACCESSORIES

    C14658_BARBARA-RZ-LENS

    Colour mixing sublens for BARBARA-PF, BARBARA-G2 and BROOKE-G2

    C14115_PF-SOCKET-CXA15-18

    Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for CREE CXA/B 15xx and CXA/B 18xx.

    C14636_XTM-PF-ADAPTER

    Basepart with press fit installation. Compatible with BARBARA-PF and MIRELLA-PF with Xicato XTM/XIM modules.

    C14037_PF-NSX-SOCKET

    Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for CREE Nichia NSCxL036A, J- and L-Type (LES 9 and 11mm) COBs.

    C13761_PF-SOCKET-CXA15

    Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for CREE CXA/B 15xx.

    C13709_PF-SOCKET-VERO13-18

    Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for Bridgelux VERO13 and VERO18.

    C13708_PF-SOCKET-VERO10

    Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for Bridgelux VERO10.

    C13083_PF-SOCKET

    Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF

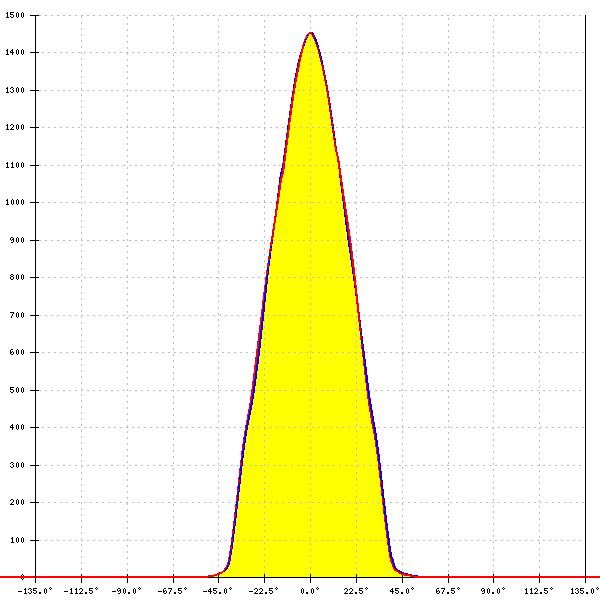

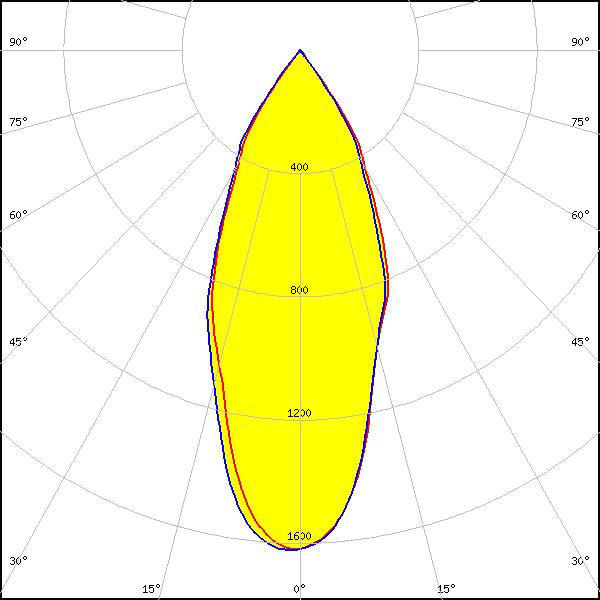

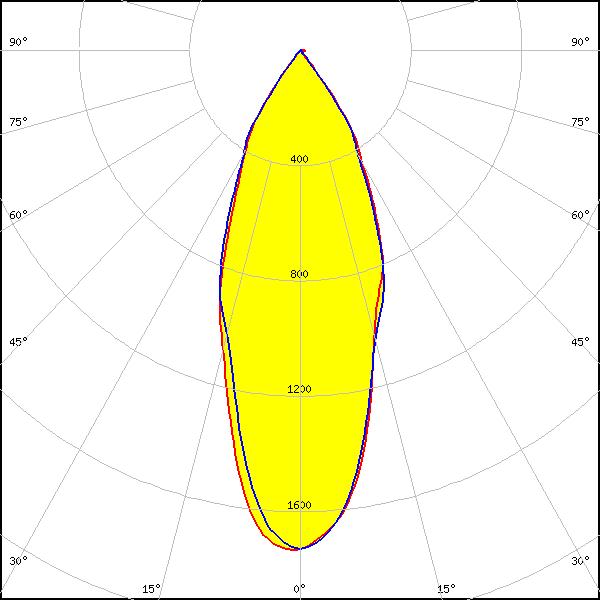

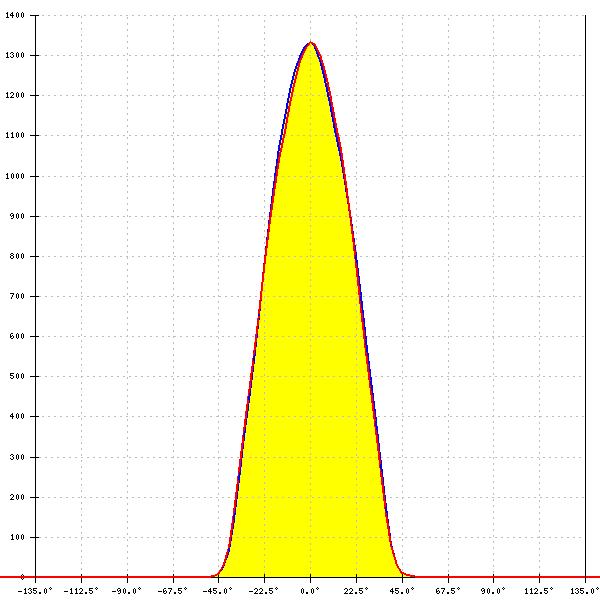

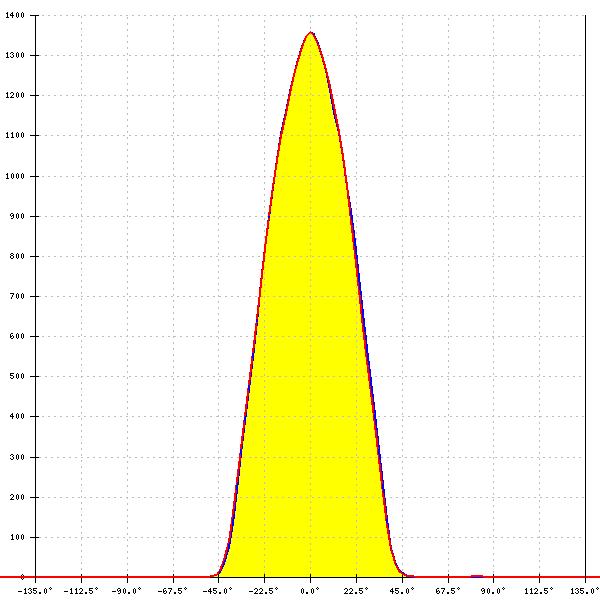

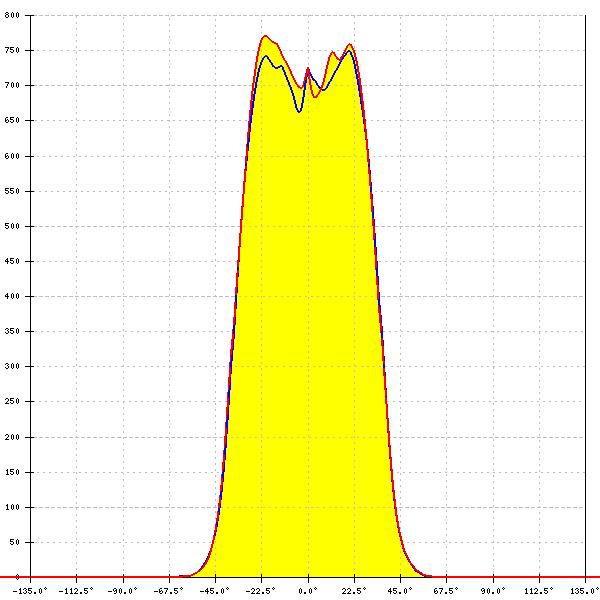

    Optical results

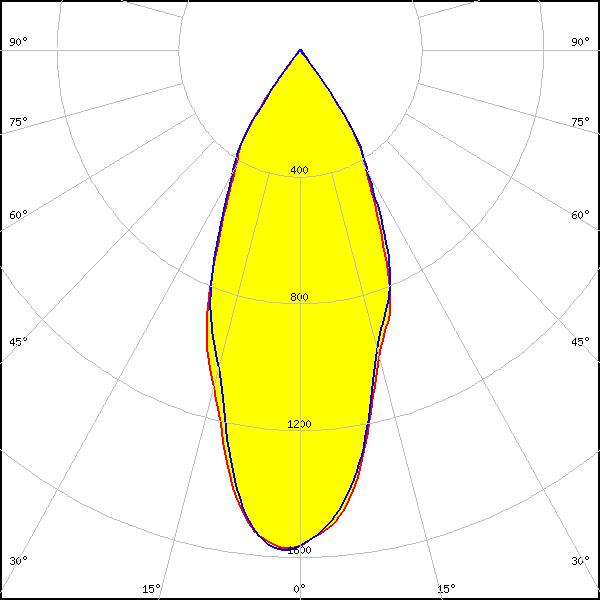

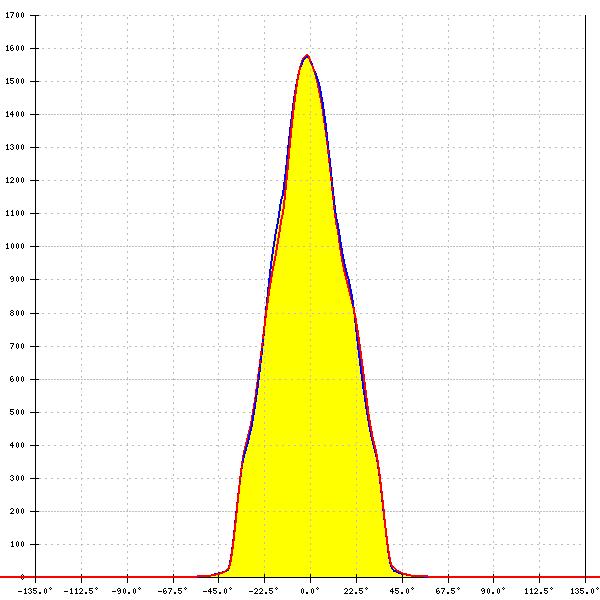

    LED: V10 Gen7
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 44°
    Peak intensity: 1.6 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White
    LED: V15 Gen6
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 456 Typ L2
    FWHM: 51°
    Peak intensity: 1.4 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

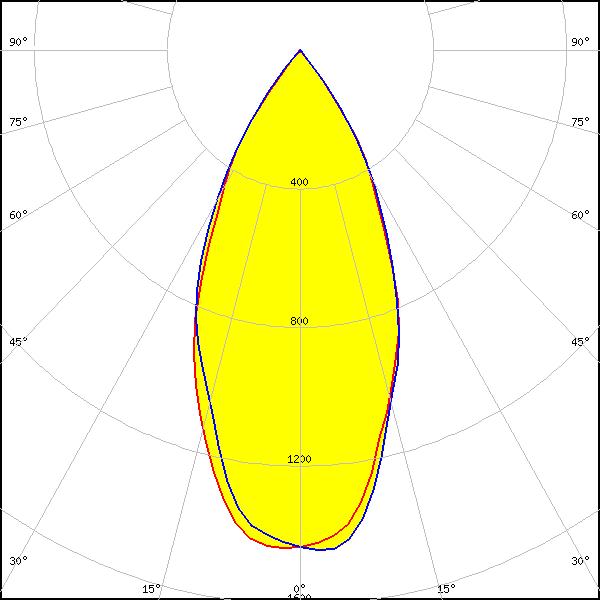

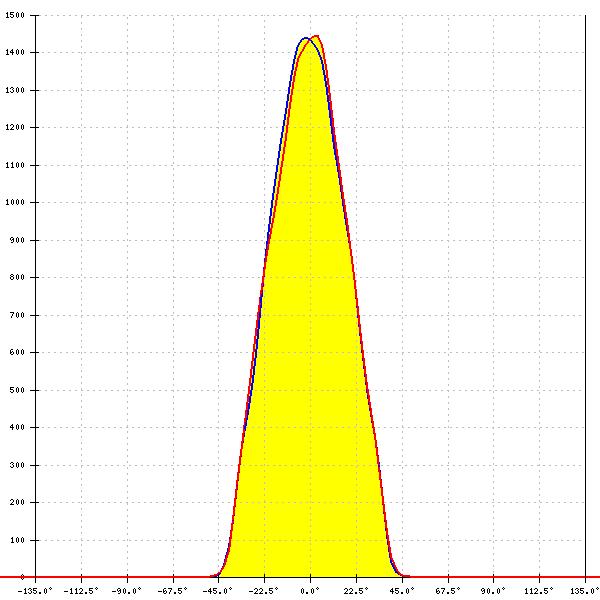

    LED: VERO10
    Required components:
    C13708_PF-SOCKET-VERO10
    FWHM: 49°
    Peak intensity: 1.5 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White
    LED: VERO10
    FWHM: 66°
    LEDs/each optic: 1
    Light colour: White

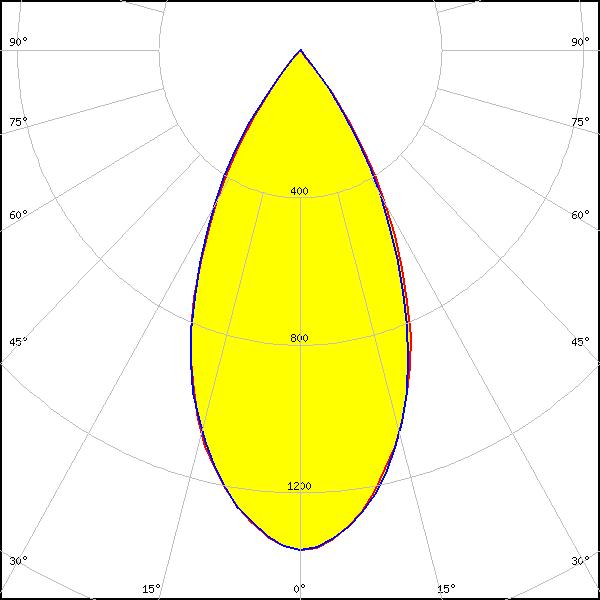

    LED: VERO13
    Required components:
    C13709_PF-SOCKET-VERO13-18
    FWHM: 51°
    Peak intensity: 1.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White
    LED: VERO13
    FWHM: 67°
    LEDs/each optic: 1
    Light colour: White

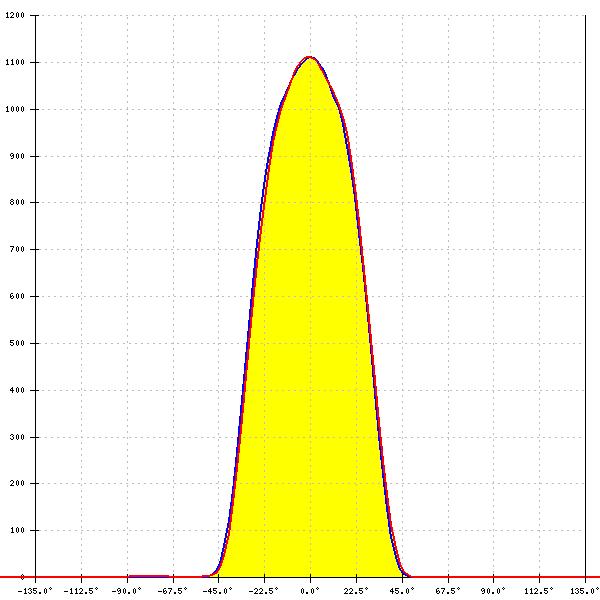

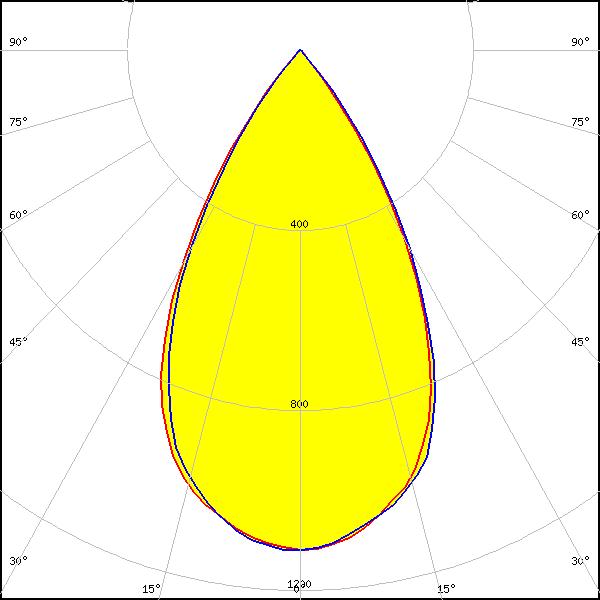

    LED: VERO18
    Required components:
    C13709_PF-SOCKET-VERO13-18
    FWHM: 58°
    Peak intensity: 1.2 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: VERO18
    FWHM: 68°
    LEDs/each optic: 1
    Light colour: White

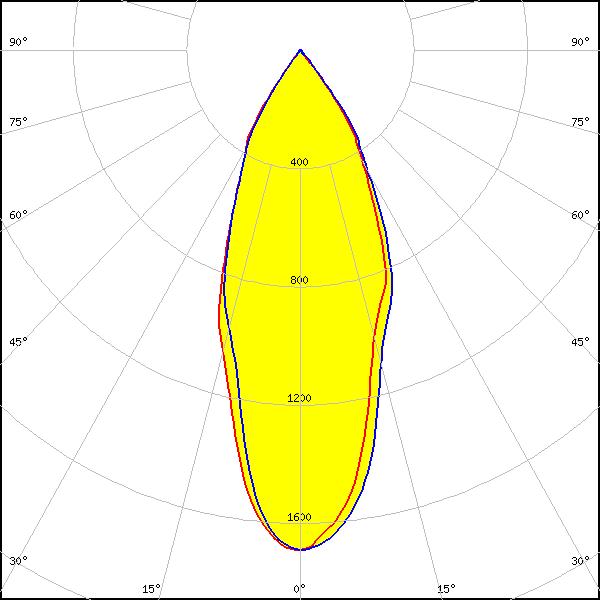

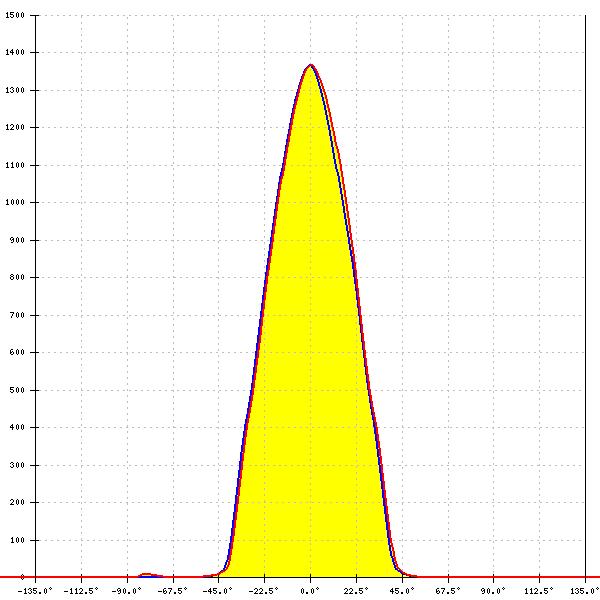

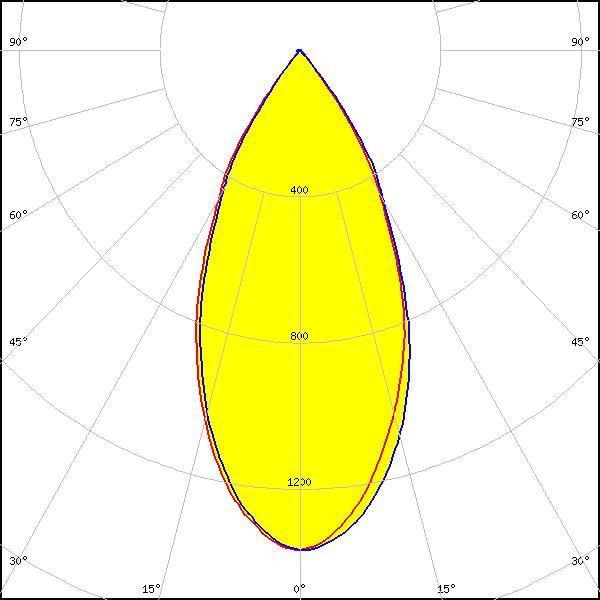

    LED: Xenio Point 13mm
    Required components:
    C13709_PF-SOCKET-VERO13-18
    FWHM: 49°
    Peak intensity: 1.4 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

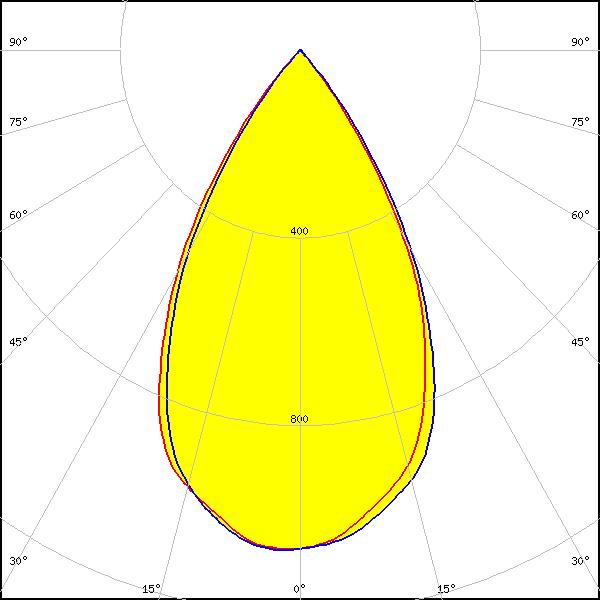

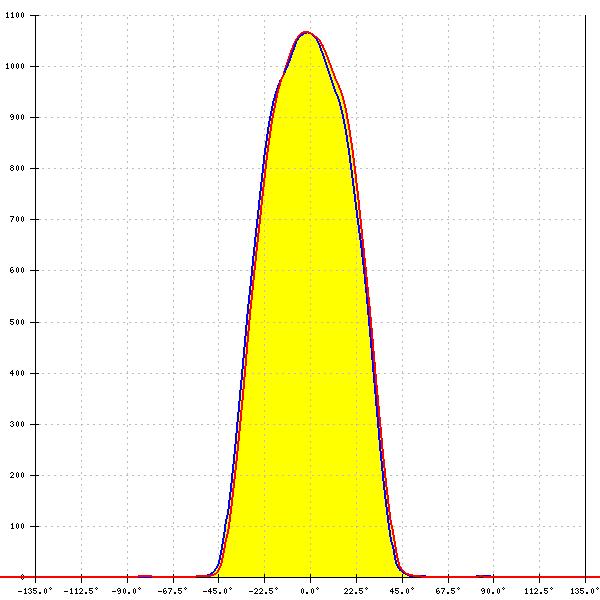

    LED: Xenio Point 18mm
    Required components:
    C13709_PF-SOCKET-VERO13-18
    FWHM: 59°
    Peak intensity: 1.1 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

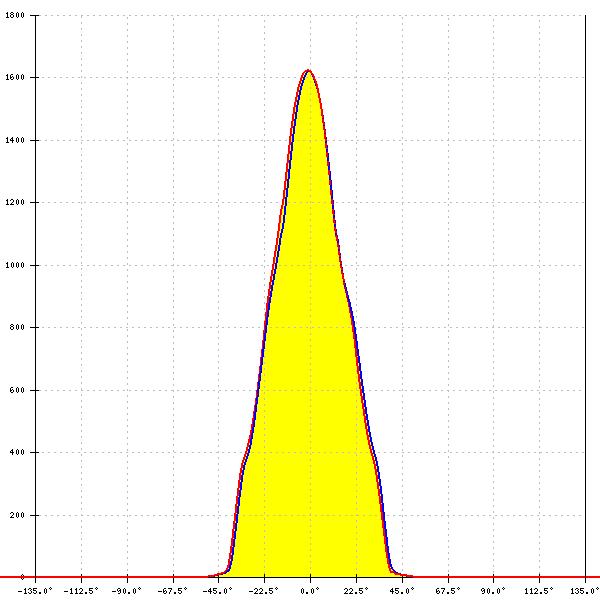

    LED: CLL02x/CLU02x (LES10)
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 43°
    Peak intensity: 1.6 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

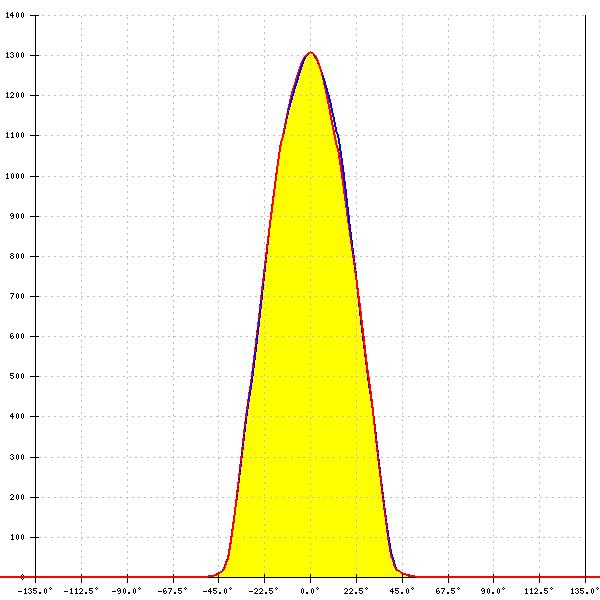

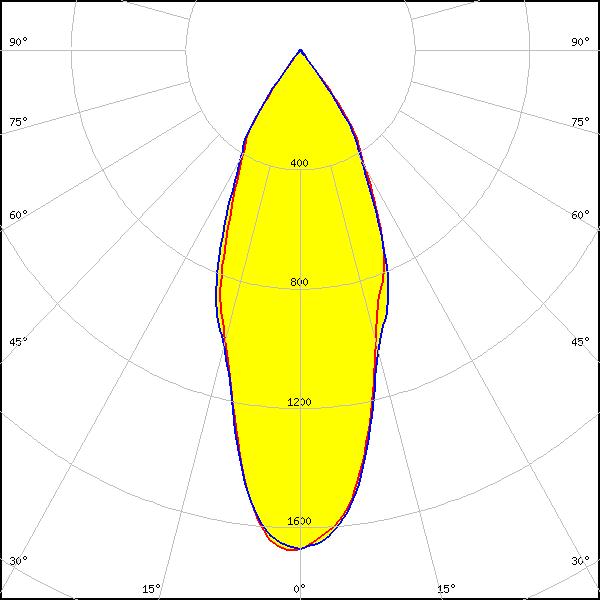

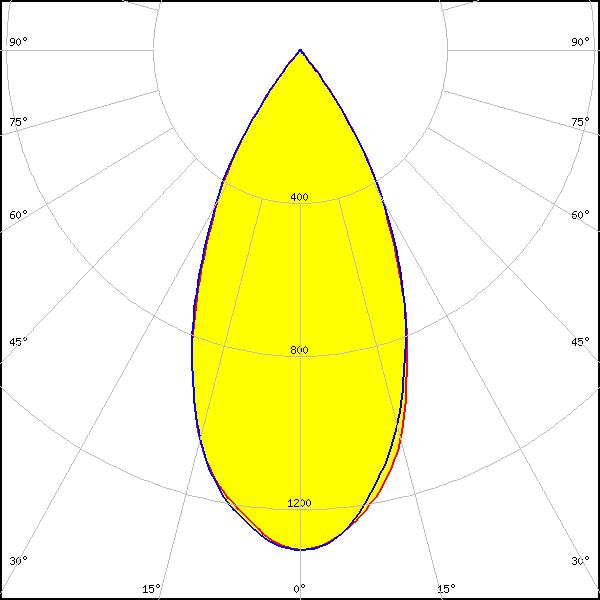

    LED: CLL03x/CLU03x
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 433 Typ L1
    FWHM: 50°
    Peak intensity: 1.3 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

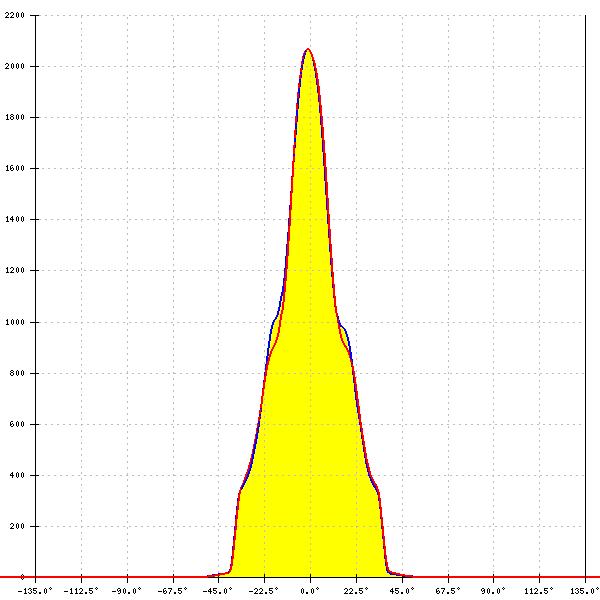

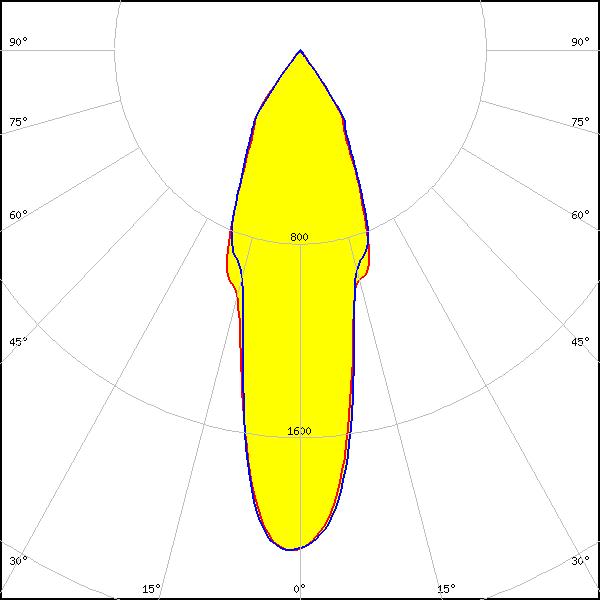

    LED: CLU700/701
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 28°
    Peak intensity: 2.1 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

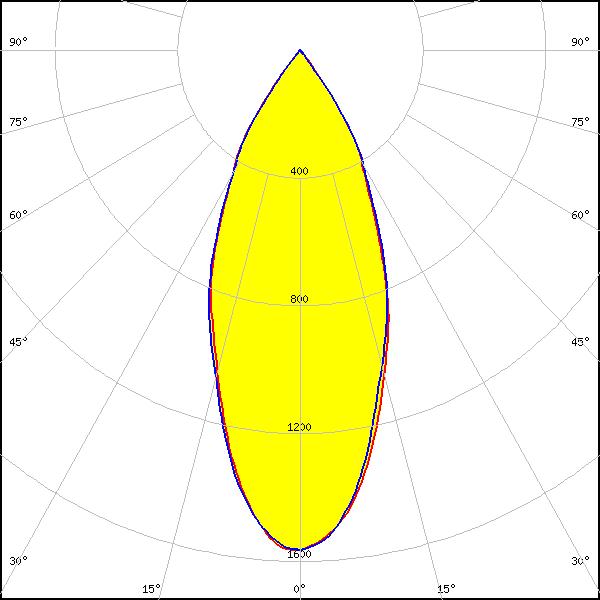

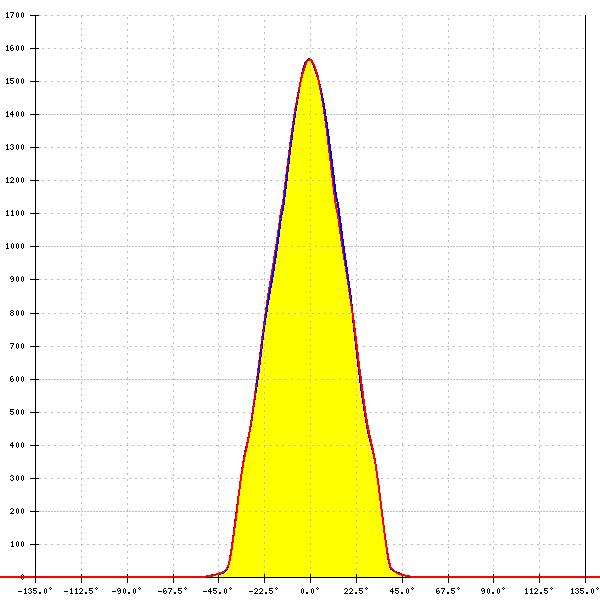

    LED: CLU720/721
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 433 Typ L1
    FWHM: 43°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

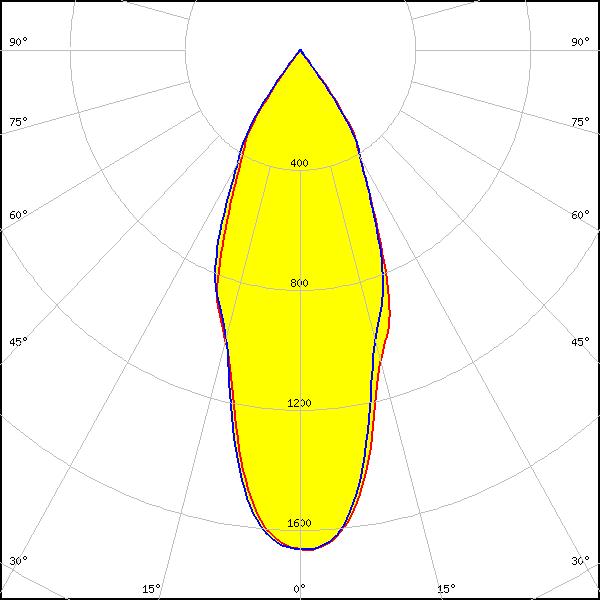

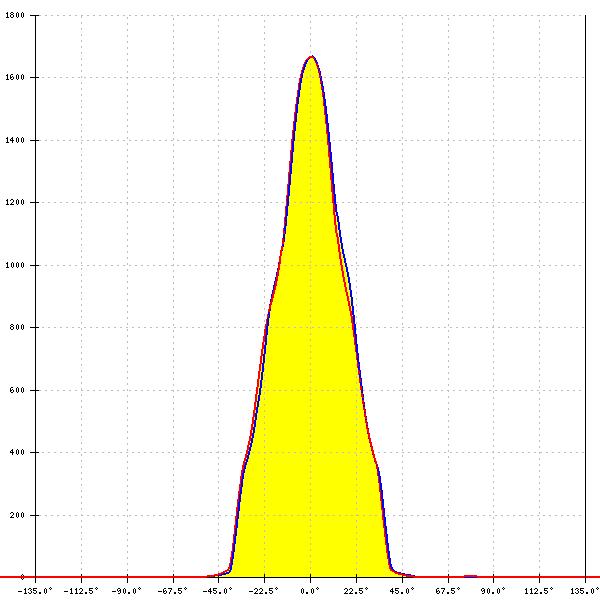

    LED: CXA/B 15xx
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 441 Typ L1
    FWHM: 41°
    Peak intensity: 1.7 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

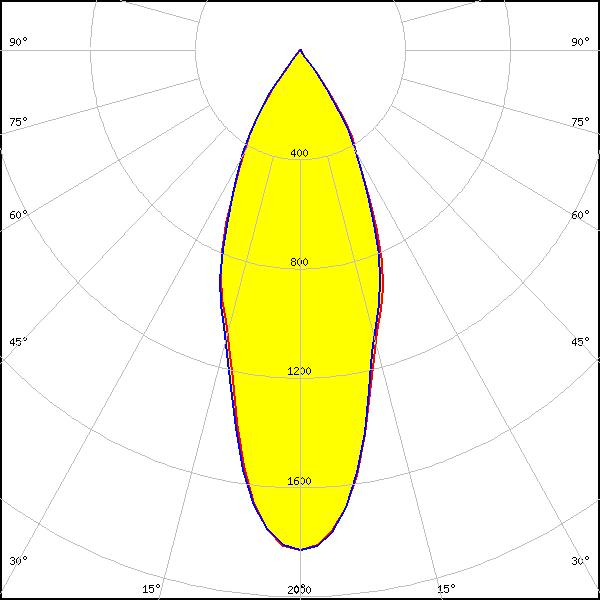

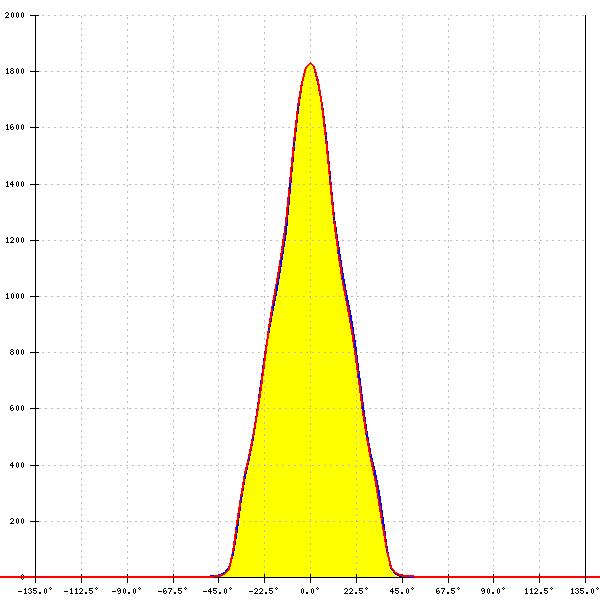

    LED: CXA/B 15xx
    Required components:
    C14115_PF-SOCKET-CXA15-18
    FWHM: 40°
    Peak intensity: 1.8 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

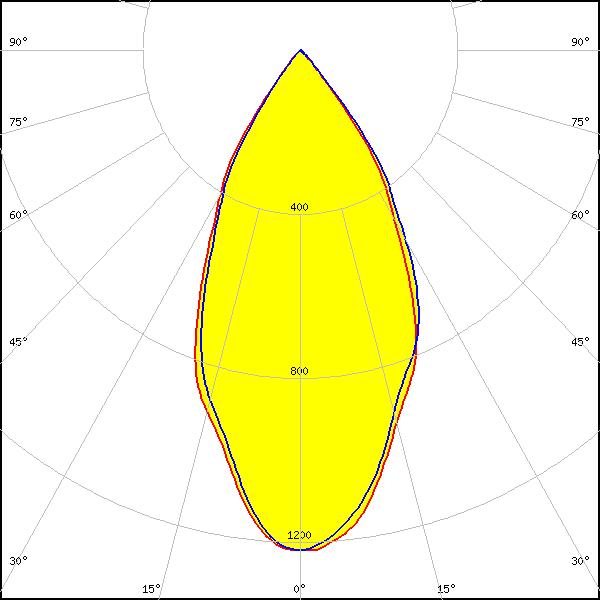

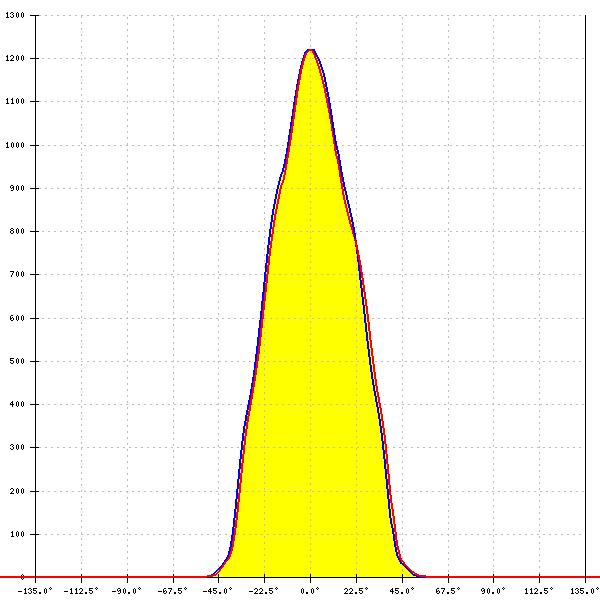

    LED: CXA/B 15xx
    Required components:
    C13083_PF-SOCKET
    C14658_BARBARA-RZ-LENS
    FWHM: 51°
    Peak intensity: 1.2 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour: White

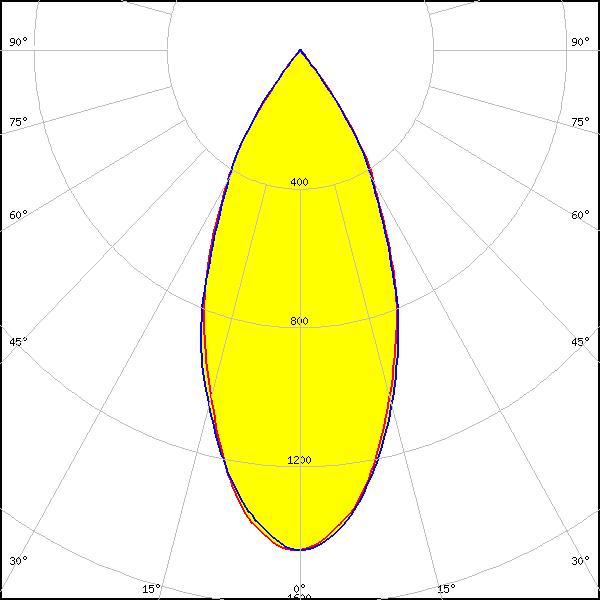

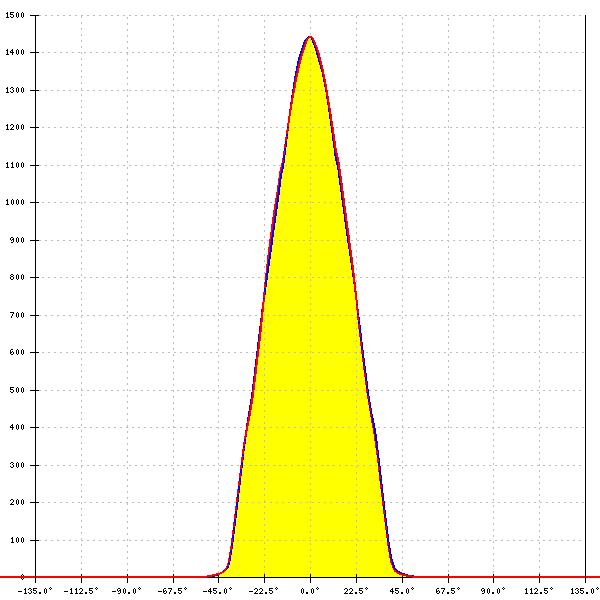

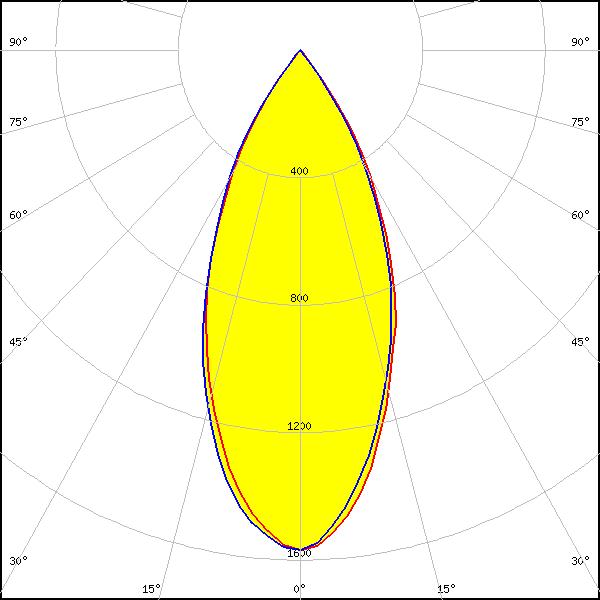

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 437 Typ L1
    FWHM: 46°
    Peak intensity: 1.4 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

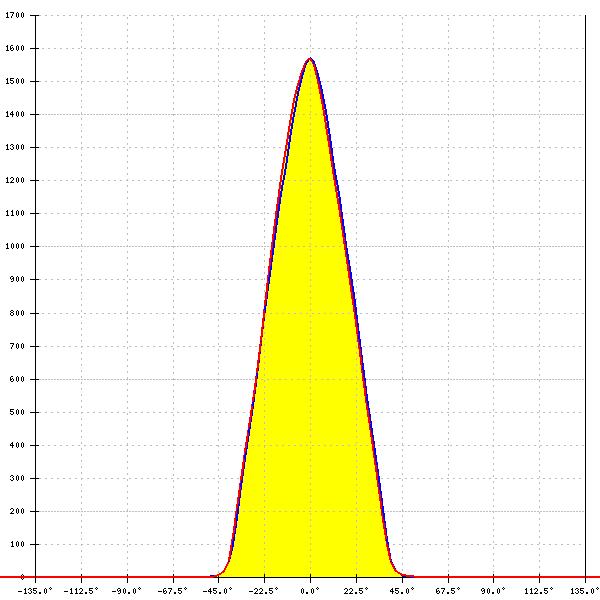

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    Required components:
    C14115_PF-SOCKET-CXA15-18
    FWHM: 46°
    Peak intensity: 1.6 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

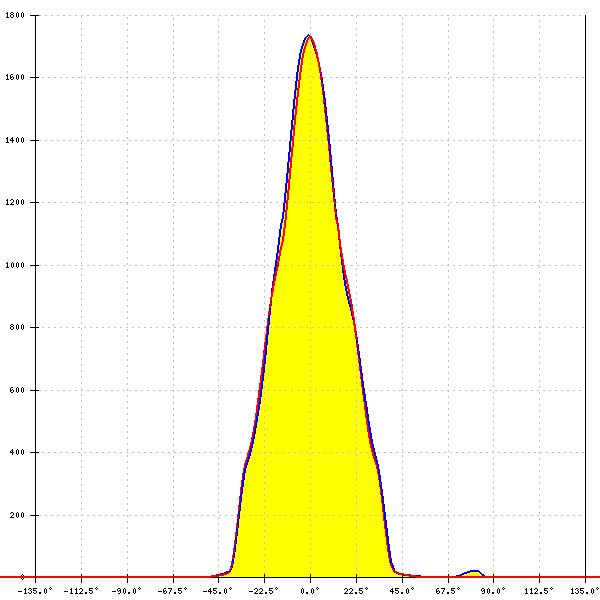

    LED: LUXEON CoB 1202/1203
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 438 Typ L1
    FWHM: 39°
    Peak intensity: 1.7 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON CoB 1202/1203
    Required components:
    C14037_PF-NSX-SOCKET
    LEDs/each optic: 1
    Light colour: White
    LED: CxM-14 (19x19)
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 433 Typ L1
    FWHM: 50°
    Peak intensity: 1.3 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White
    LED: CxM-9 (13.5x13.5)
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 43°
    Peak intensity: 1.6 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

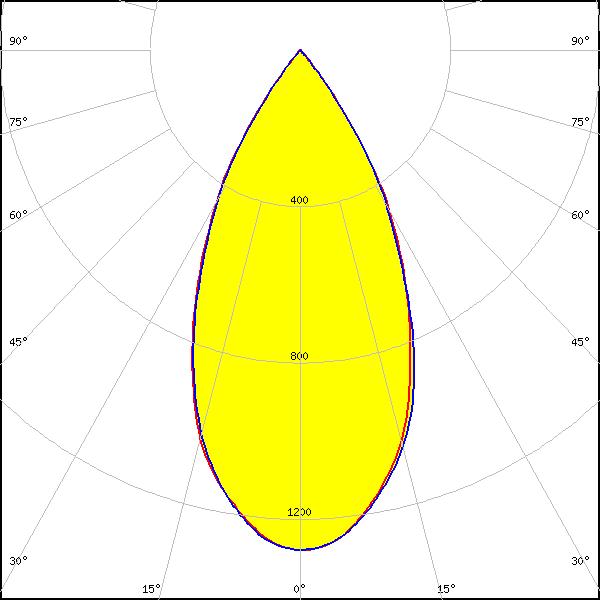

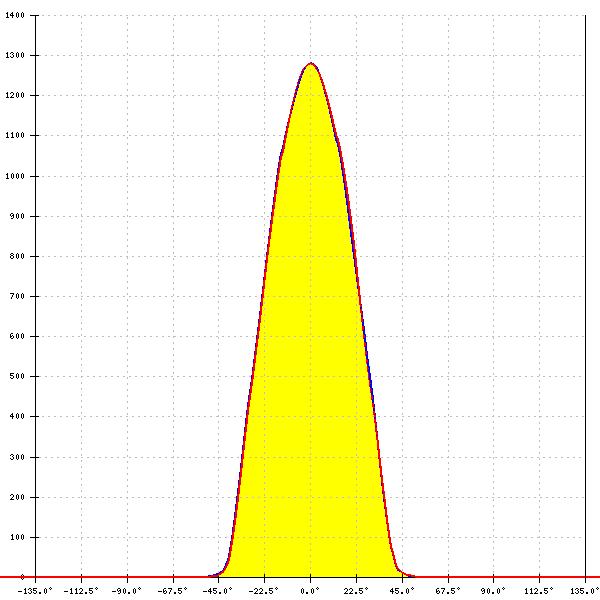

    LED: COB J-Type
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 463 Typ L2
    FWHM: 51°
    Peak intensity: 1.3 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

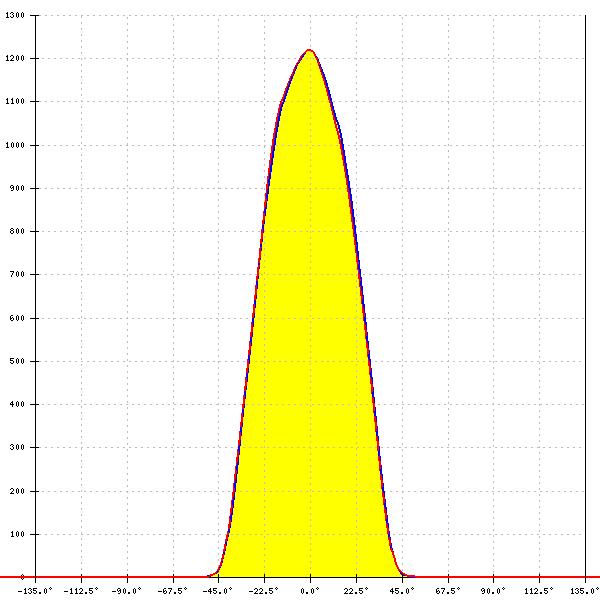

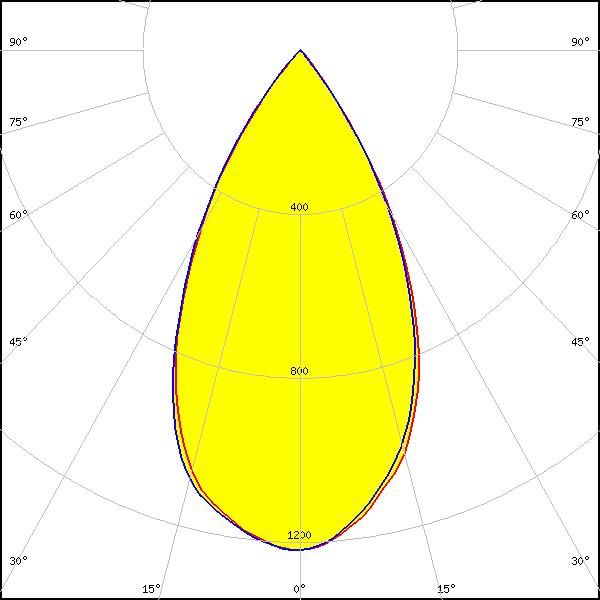

    LED: COB J-Type
    Required components:
    C14037_PF-NSX-SOCKET
    FWHM: 55°
    Peak intensity: 1.2 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

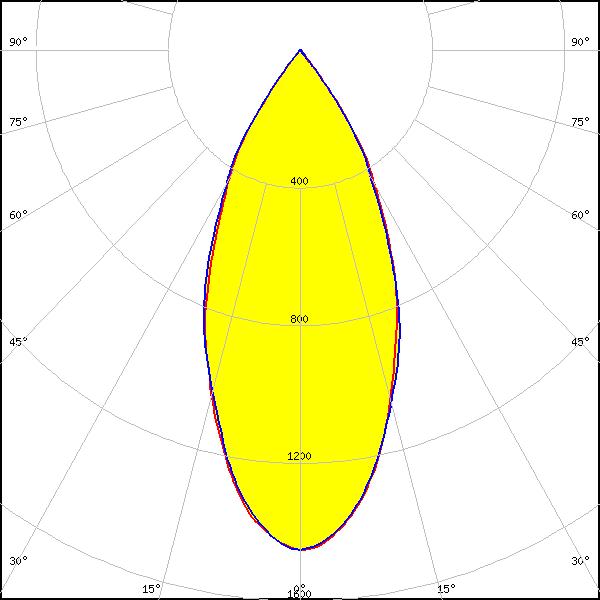

    LED: COB L-Type (LES 11)
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 438 Typ L1
    FWHM: 46°
    Peak intensity: 1.5 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

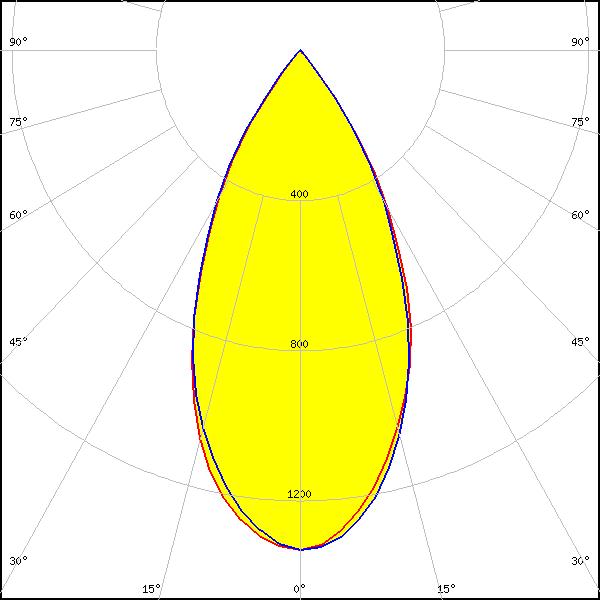

    LED: COB L-Type (LES 11)
    Required components:
    C14037_PF-NSX-SOCKET
    FWHM: 51°
    Peak intensity: 1.3 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

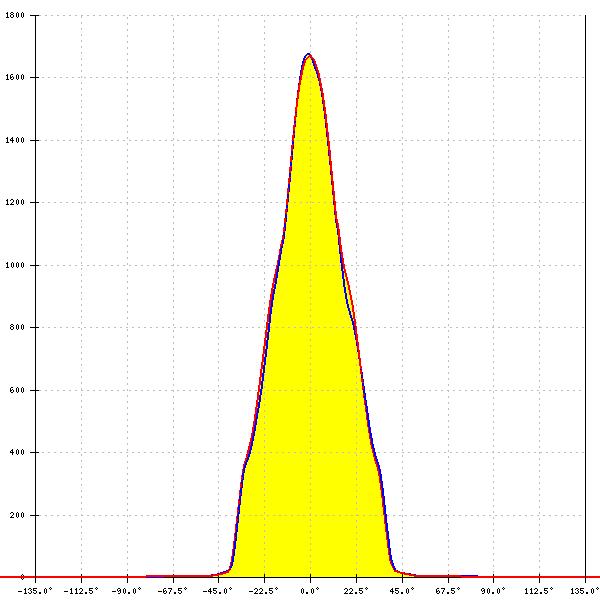

    LED: COB L-Type (LES 9)
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 438 Typ L1
    FWHM: 41°
    Peak intensity: 1.7 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

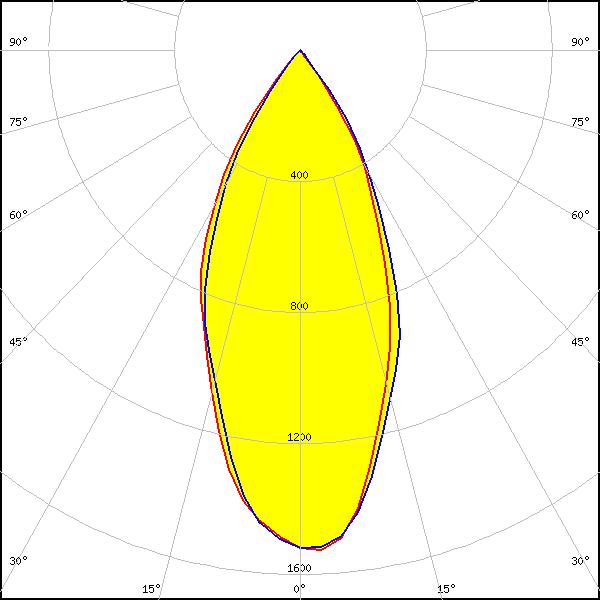

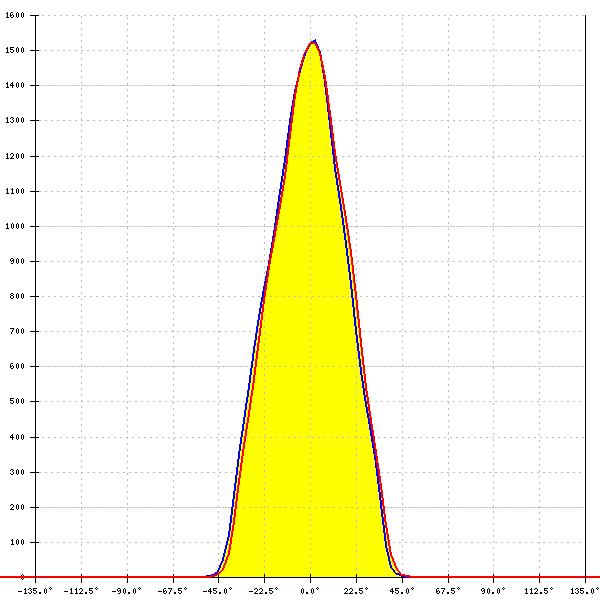

    LED: COB L-Type (LES 9)
    Required components:
    C14037_PF-NSX-SOCKET
    FWHM: 47°
    Peak intensity: 1.5 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

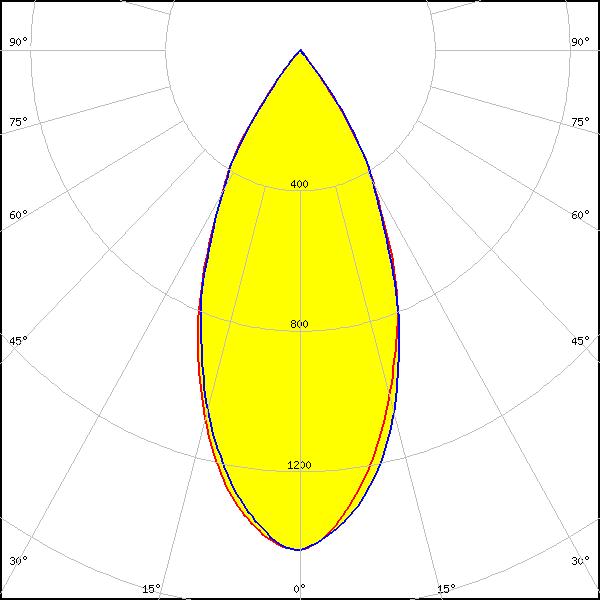

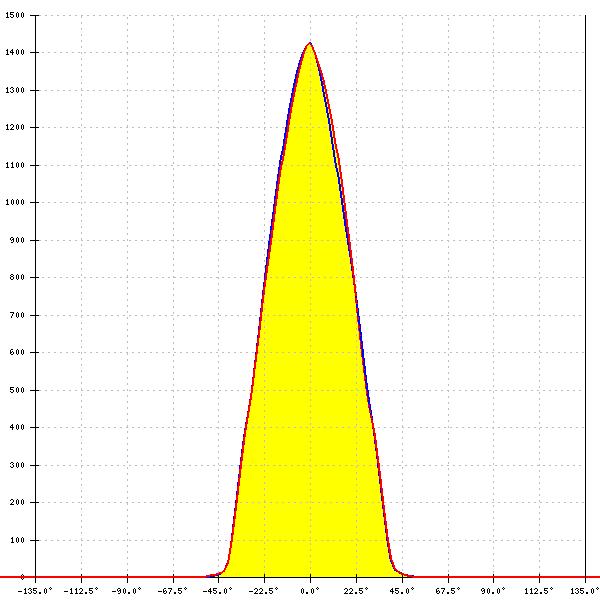

    LED: Soleriq S13
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 437 Typ L1
    FWHM: 47°
    Peak intensity: 1.4 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

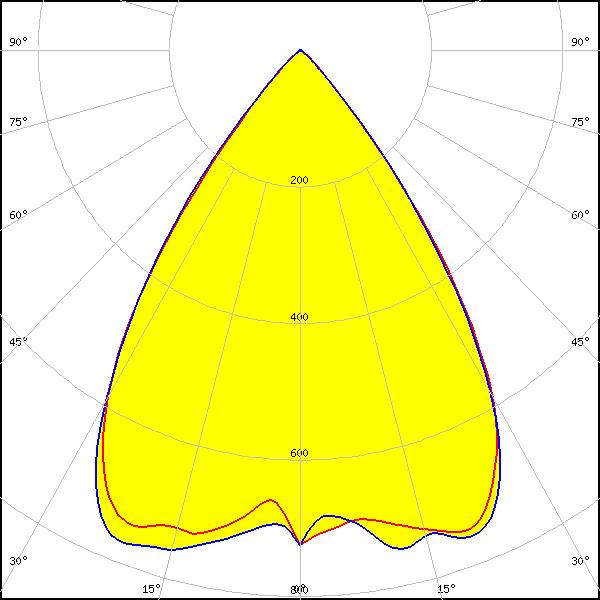

    LED: Soleriq S15
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 433 Typ L1
    FWHM: 73°
    Peak intensity: 0.8 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

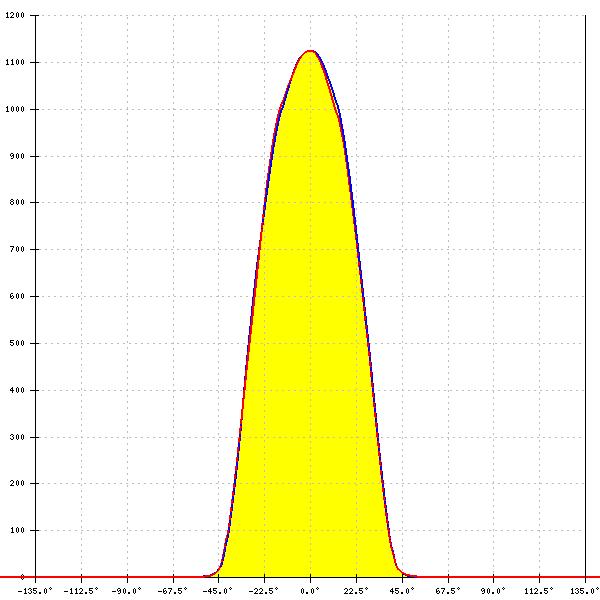

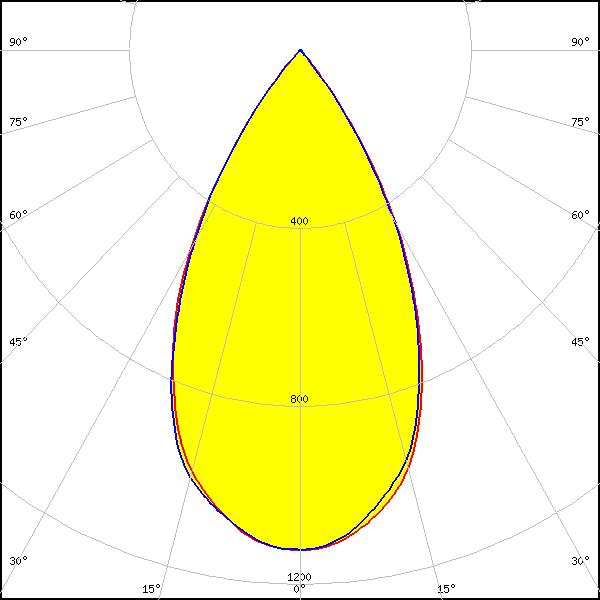

    LED: LC026B / 033B / 040B
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 450 Typ L2
    FWHM: 55°
    Peak intensity: 1.1 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White
    LED: ZC12/18
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 433 Typ L1
    FWHM: 50°
    Peak intensity: 1.3 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White
    LED: ZC4/6
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 43°
    Peak intensity: 1.6 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White
    LED: SLE G5 LES11
    Required components:
    C13709_PF-SOCKET-VERO13-18
    Bender Wirth: 434 Typ L1
    FWHM: 43°
    Peak intensity: 1.6 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

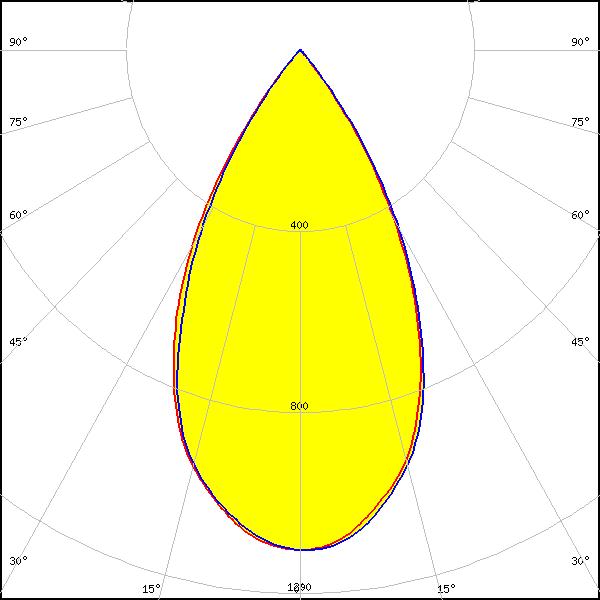

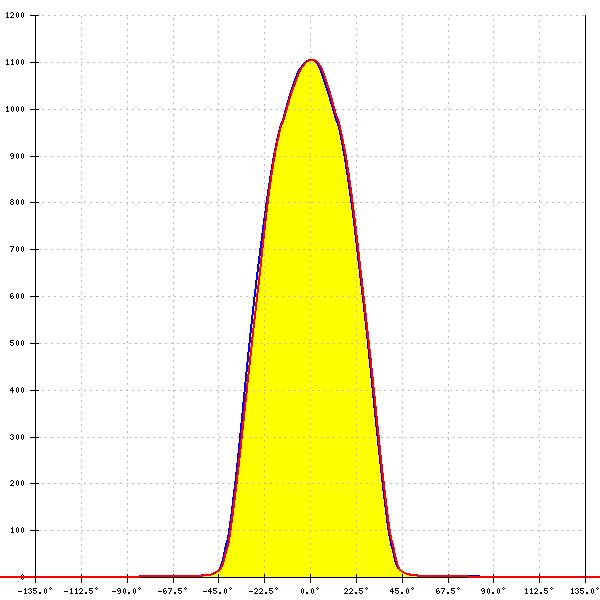

    LED: XTM - 19mm LES
    Required components:
    C14636_XTM-PF-ADAPTER
    FWHM: 55°
    Peak intensity: 1.1 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour: White

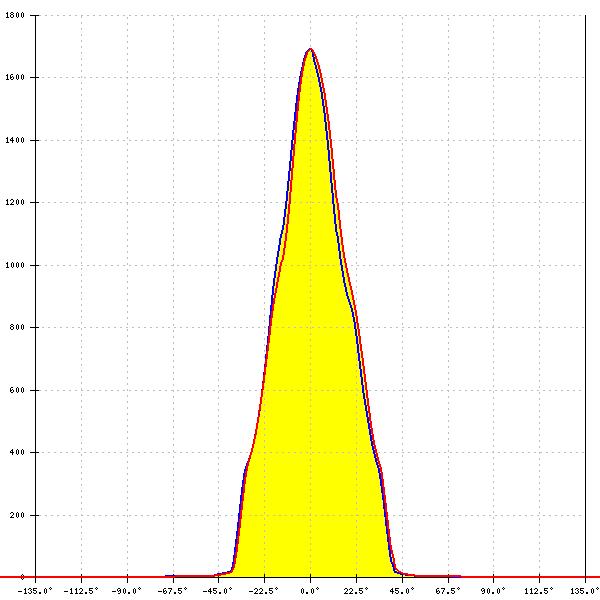

    LED: XTM - 9mm LES
    Required components:
    C14636_XTM-PF-ADAPTER
    FWHM: 42°
    Peak intensity: 1.7 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White
