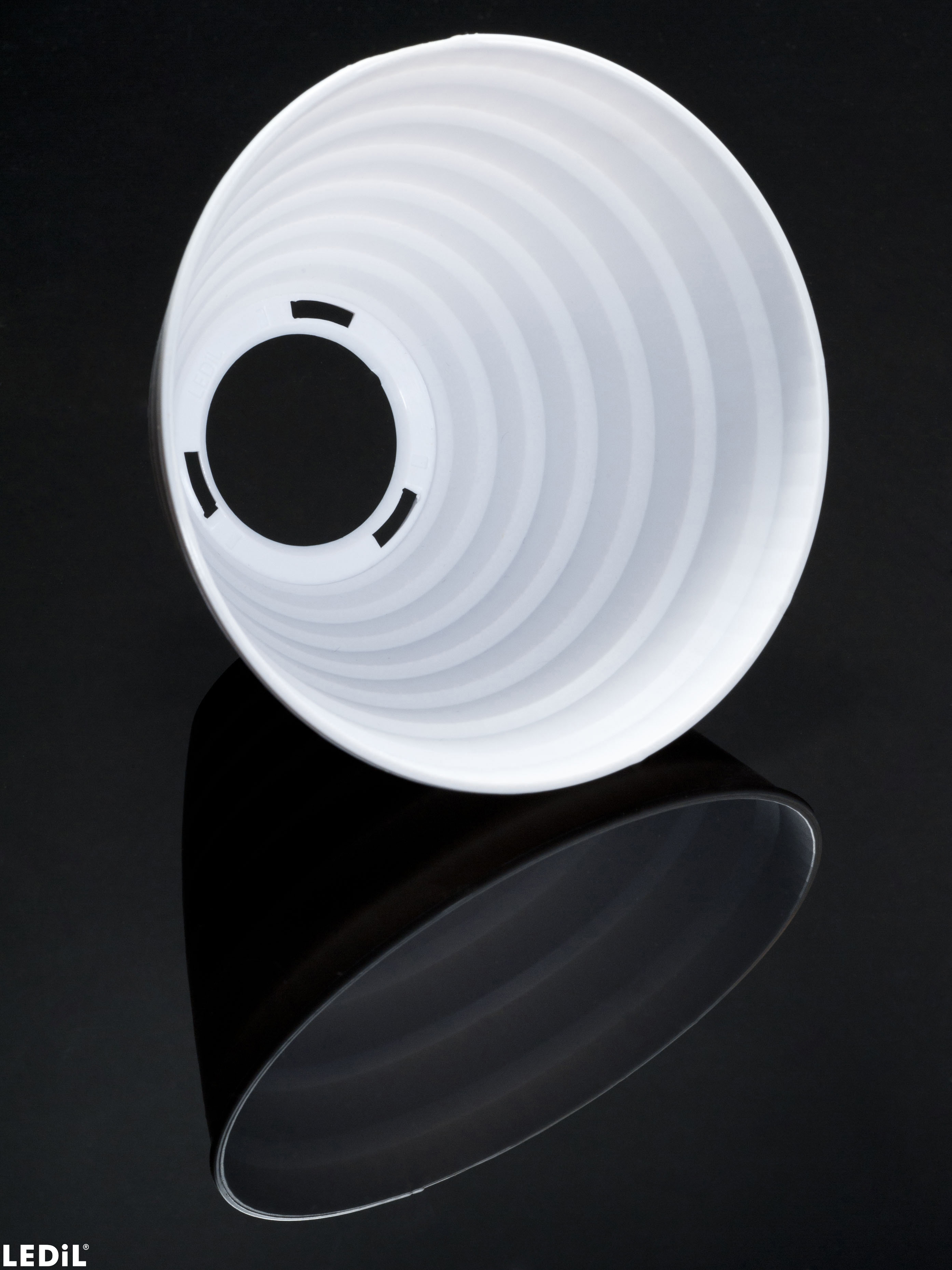

F13840_ANGELA-XW

Print

White version with ~70° wide beam

Specification
  • Dimensions:
    120 mm
  • Height:
    74.3 mm
  • Fastening:
    socket
  • Colour:
    white
  • RoHS and REACH compliant:
    Yes

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Materials
  • HRPC
Packing information
  • Quantity in box:
    180 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.1 kg
  • MPQ:
    40 pcs
  • MOQ:
    80 pcs
  • MOQ size:
    480 x 280 x 150 mm
  • MOQ weight:
    4.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

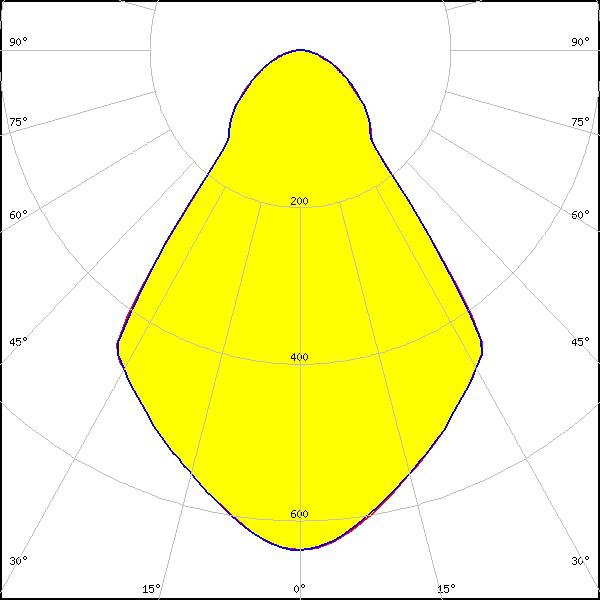

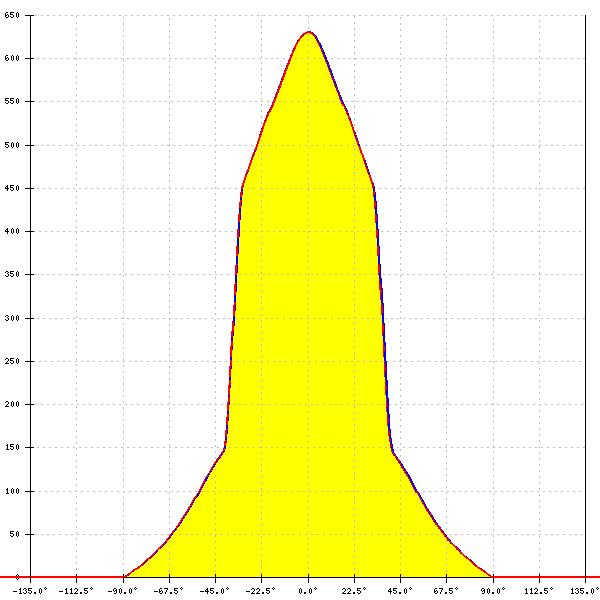

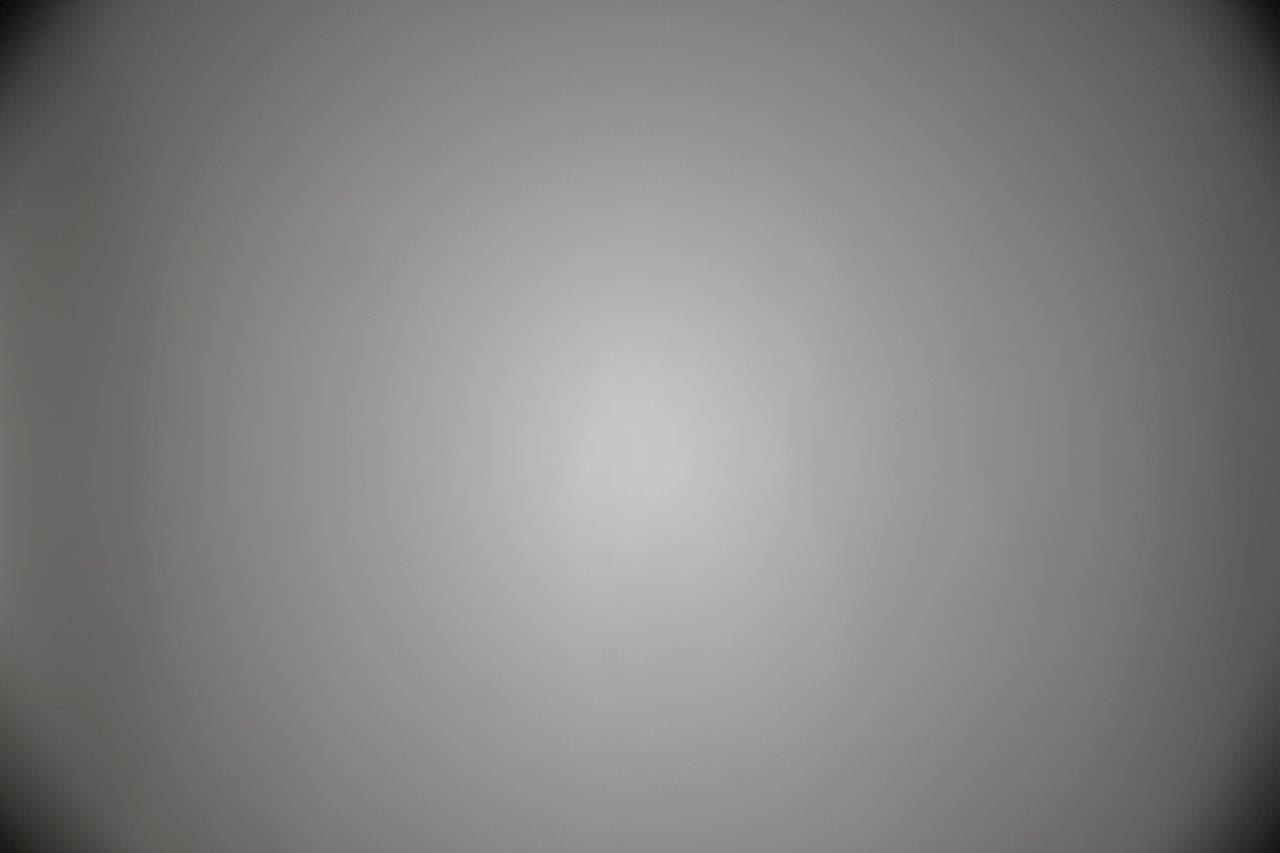

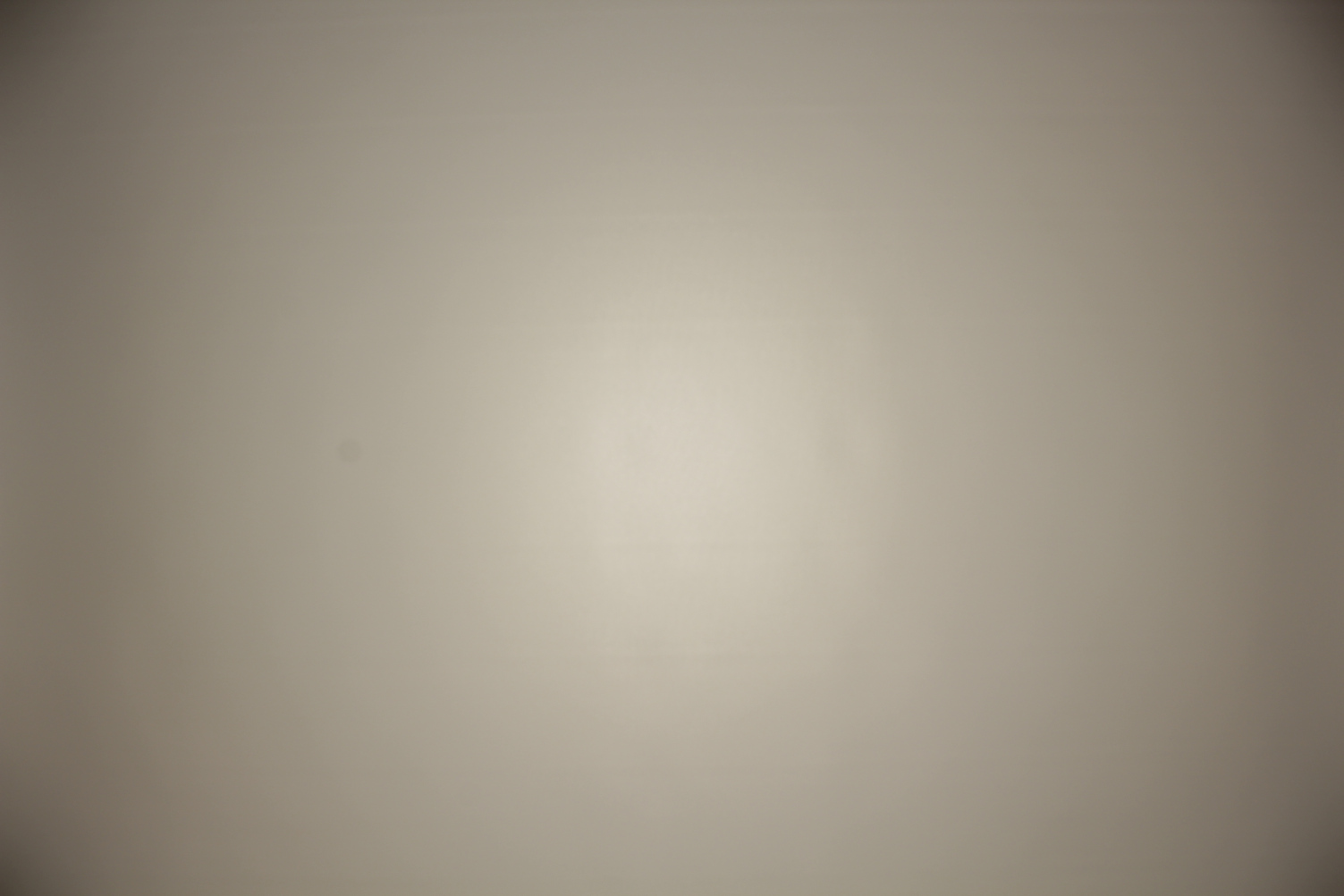

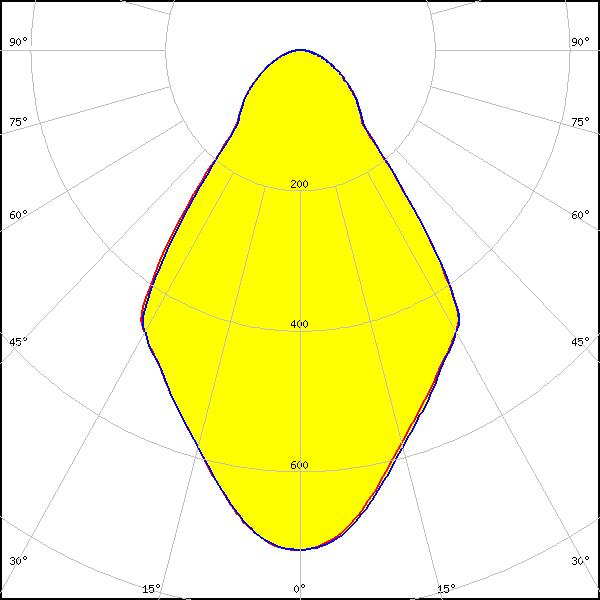

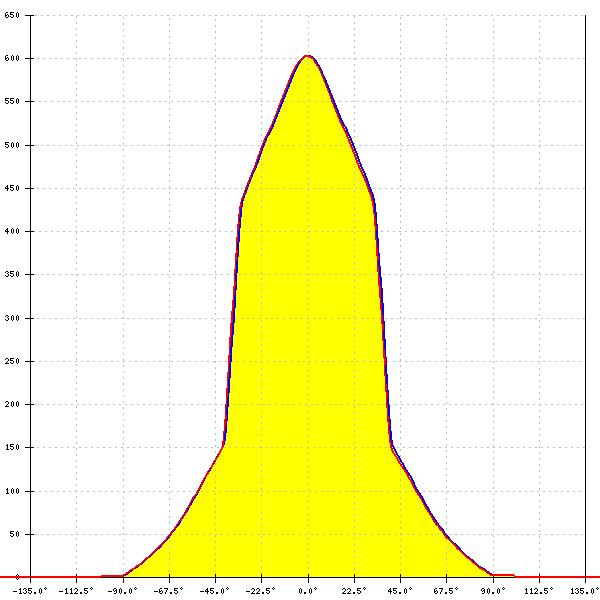

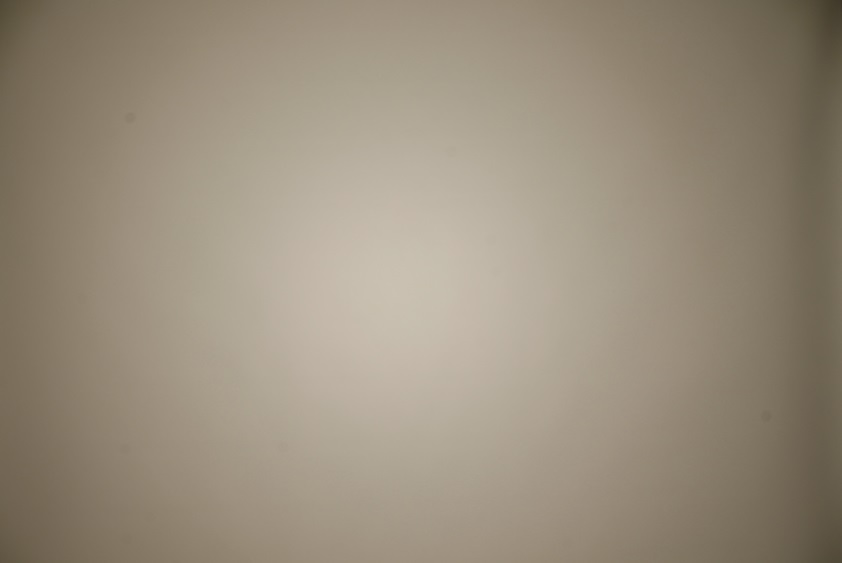

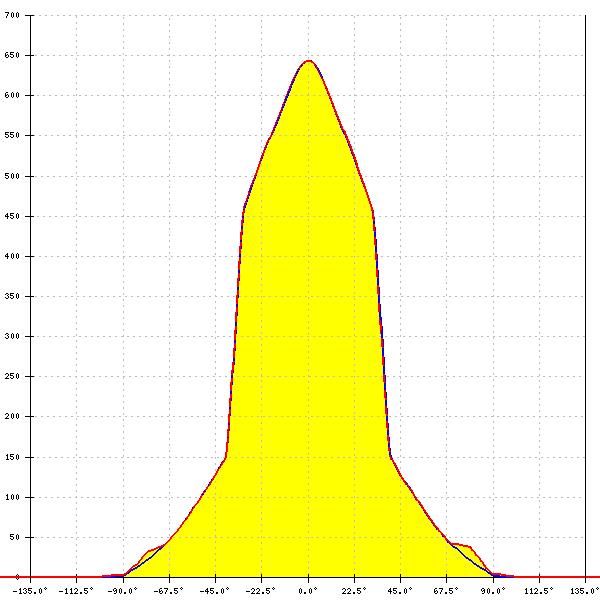

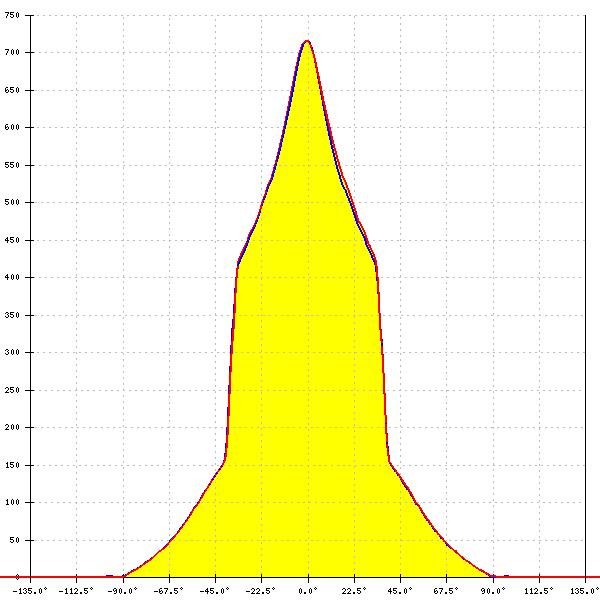

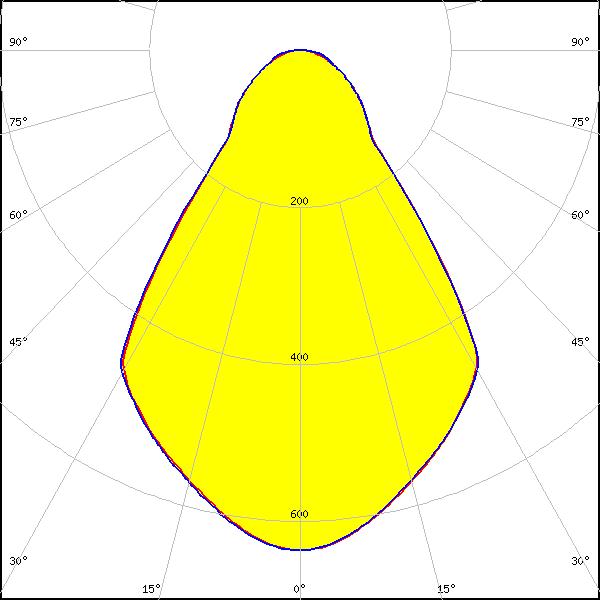

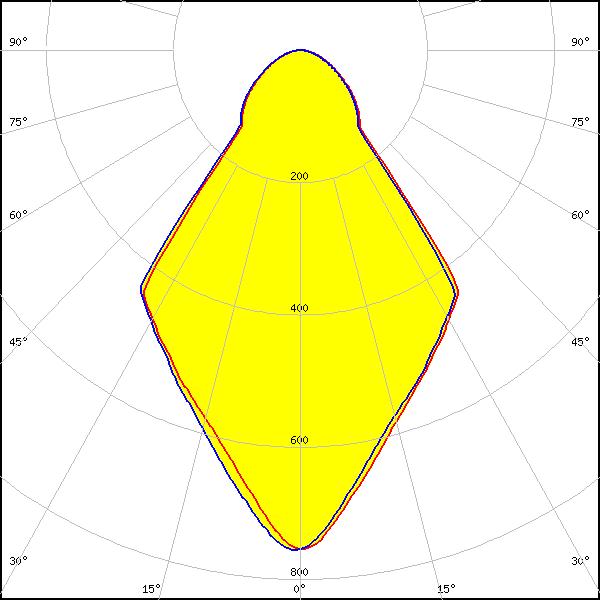

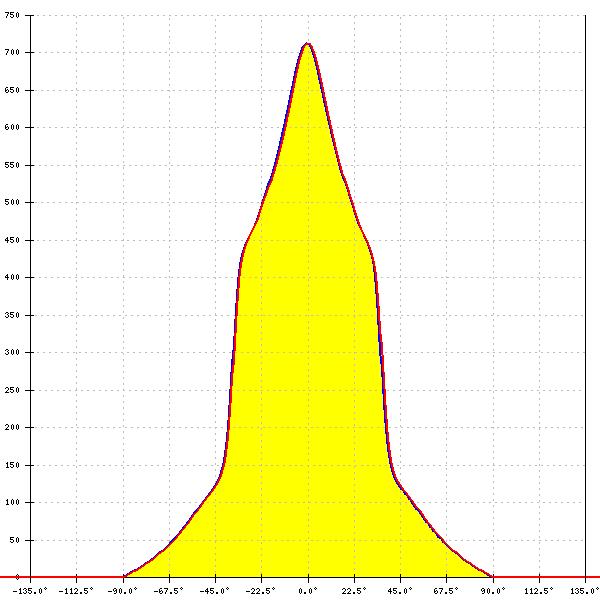

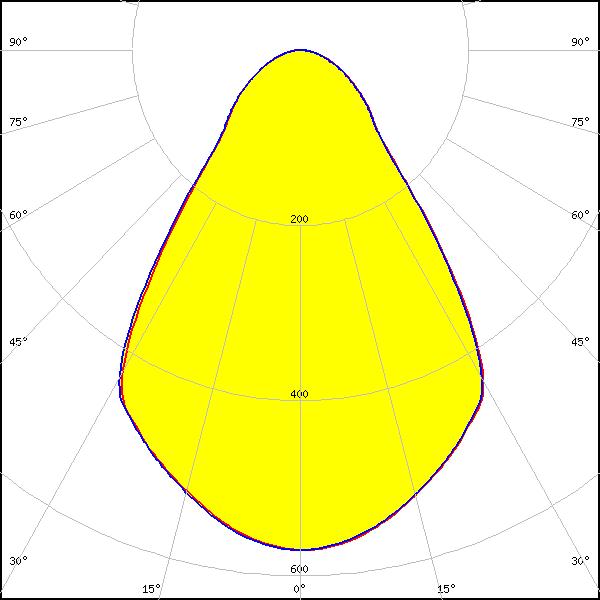

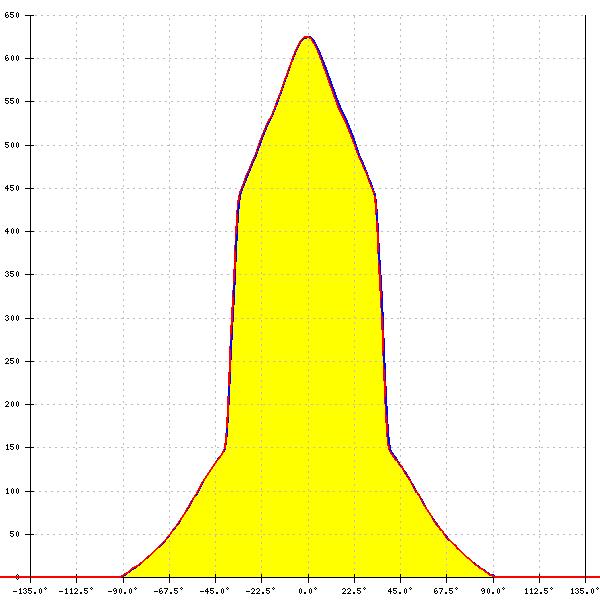

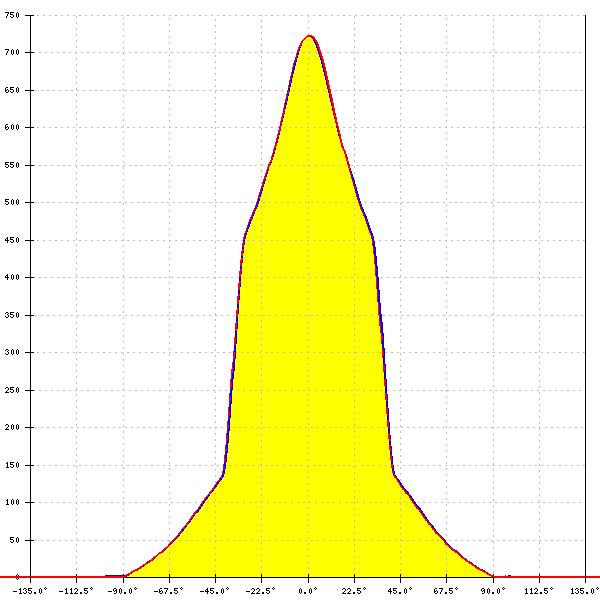

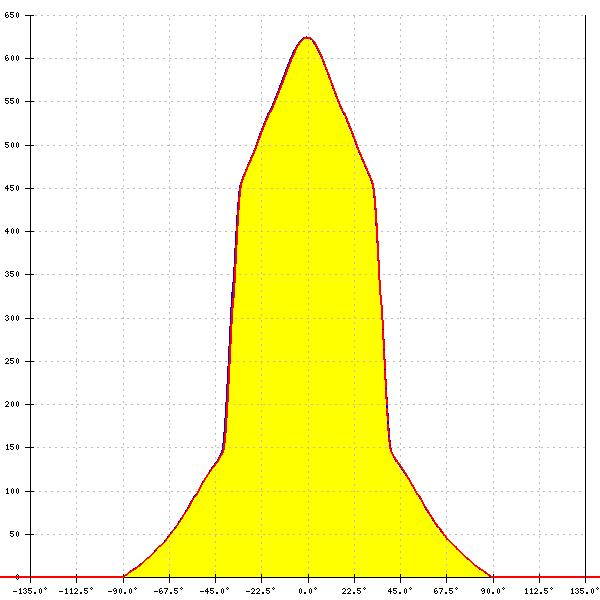

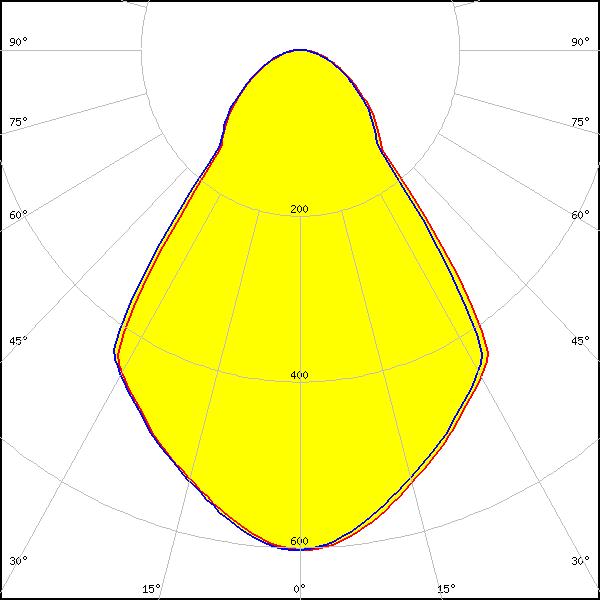

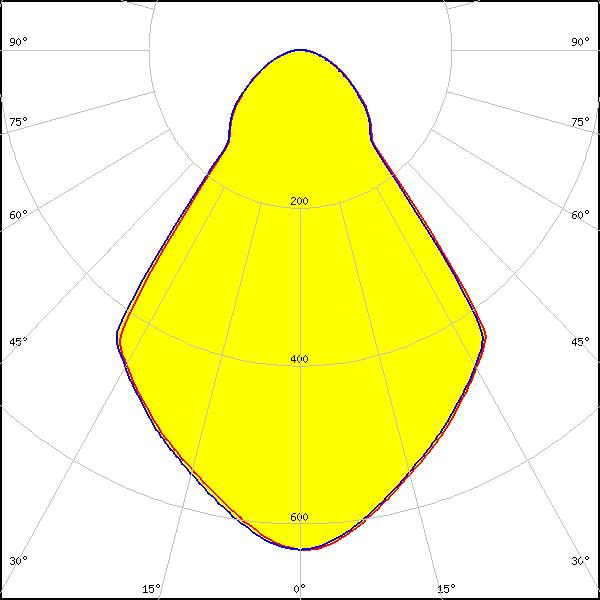

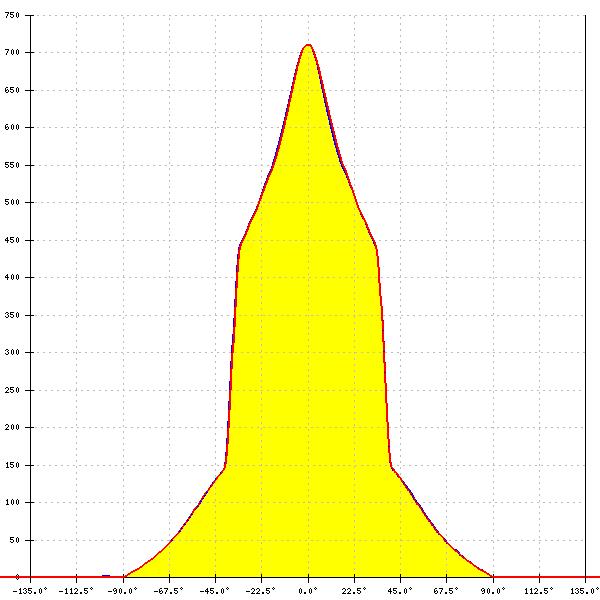

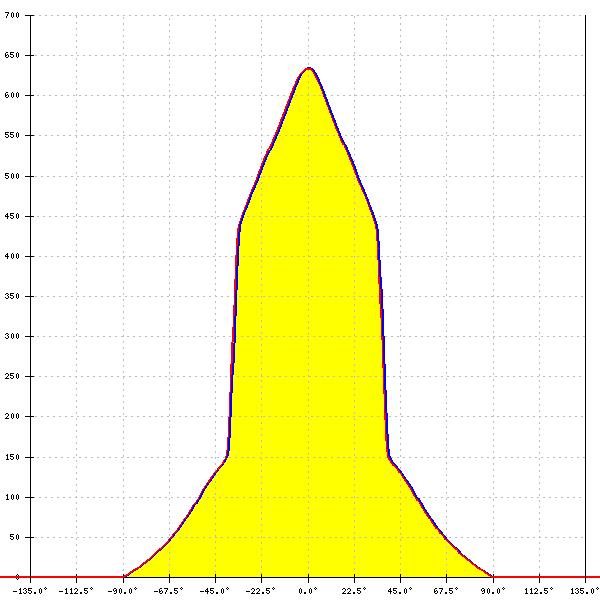

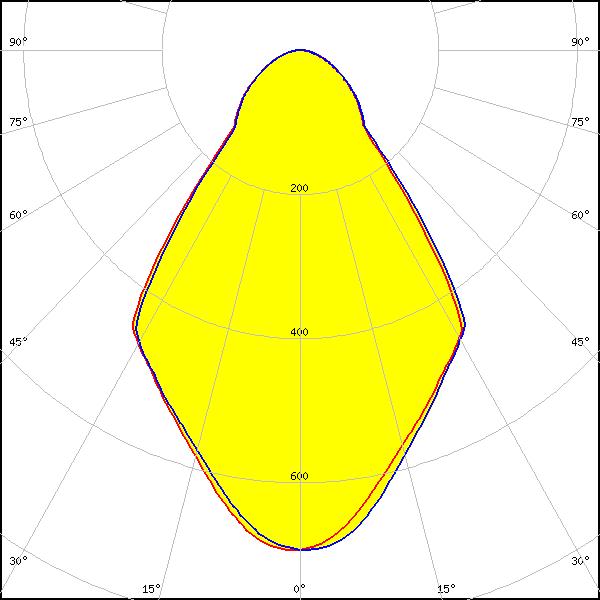

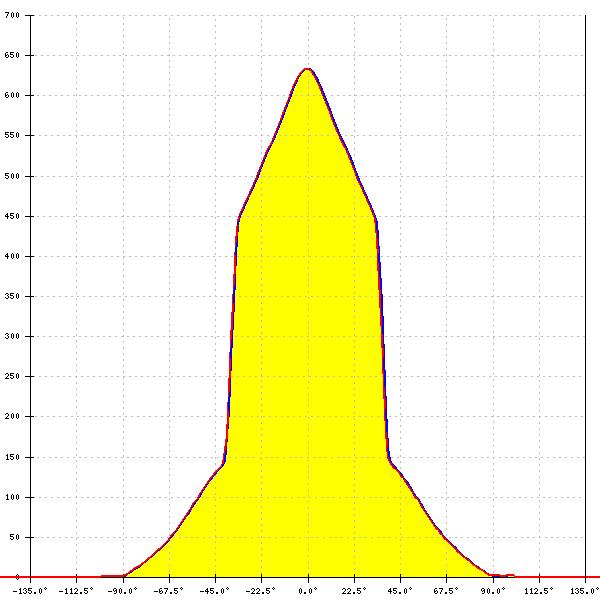

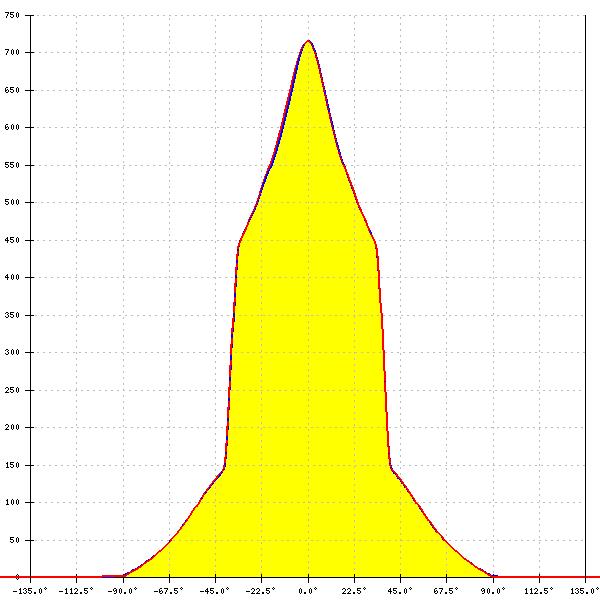

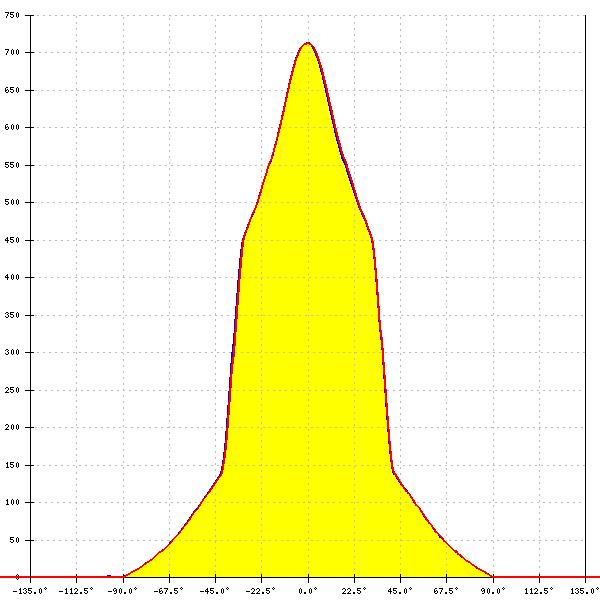

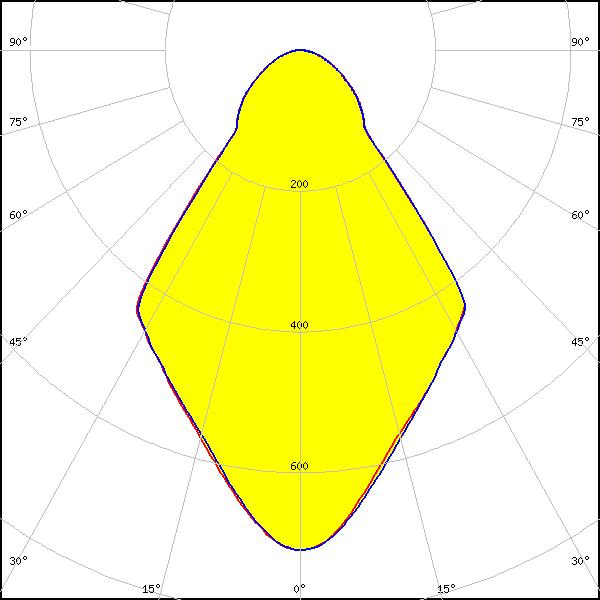

Optical results

LED: BXRA ES Rectangle
LED: V10 Gen7
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 86 %
LED: V10 Gen7
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 87 %

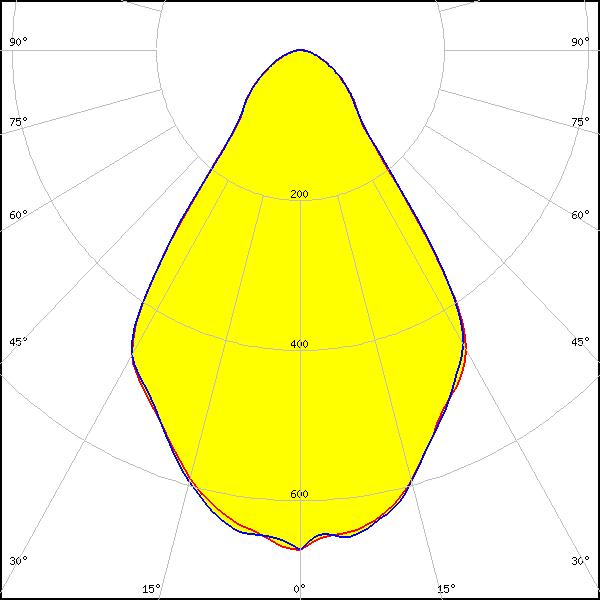

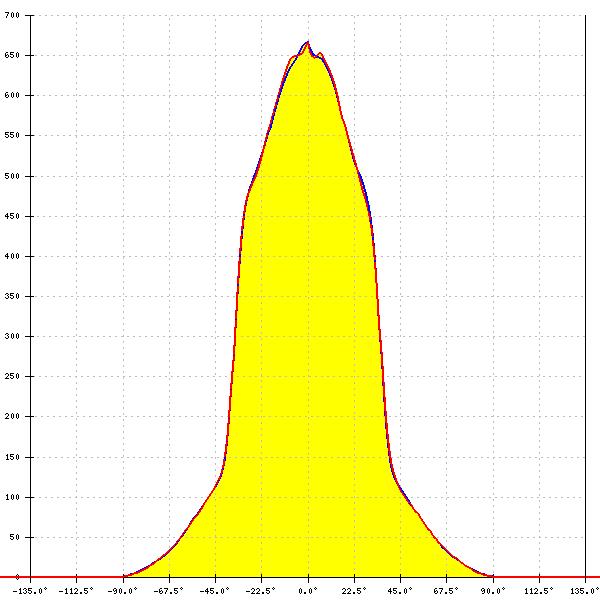

LED: V13 Gen7
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 69°
Peak intensity: 0.7 cd/lm
Efficiency: 86 %
LED: V13 Gen7
Required components:
TE: 2213254-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 87 %
LED: V13 Gen7
Required components:
TE: 2213254-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

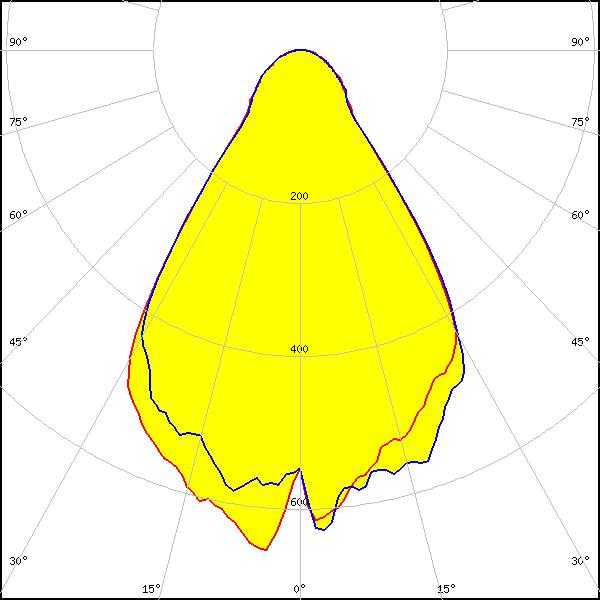

LED: V22 Gen7
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 66°
Peak intensity: 0.7 cd/lm
Efficiency: 80 %

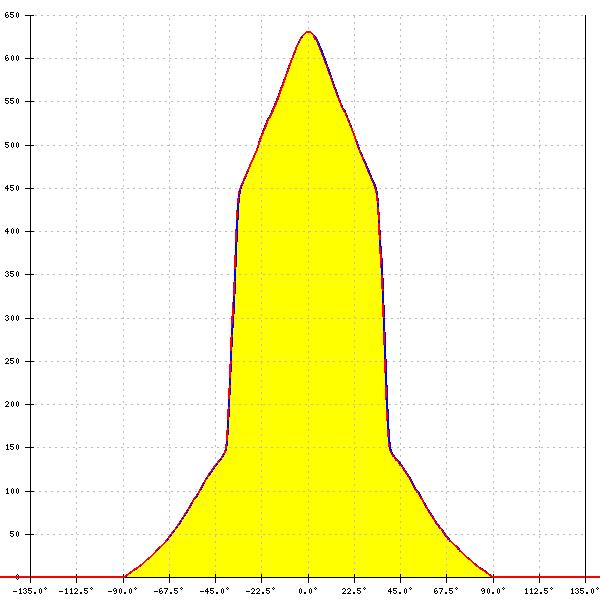

LED: Vero SE 13
Required components:
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: Vero SE 18
Required components:
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

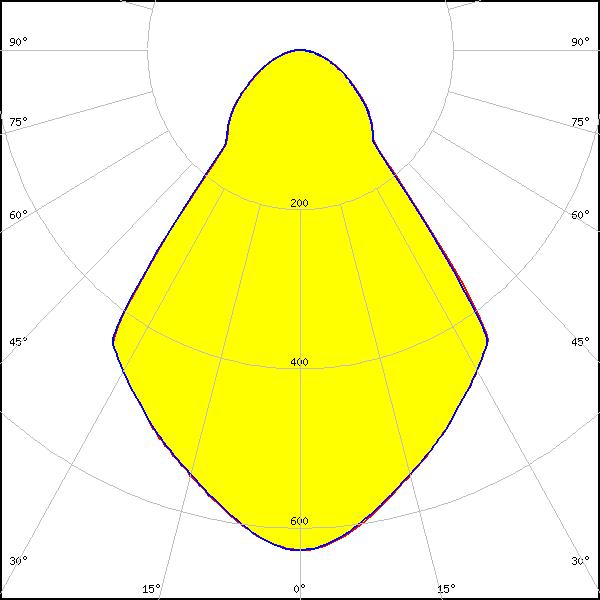

LED: VERO13
Required components:
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: VERO13

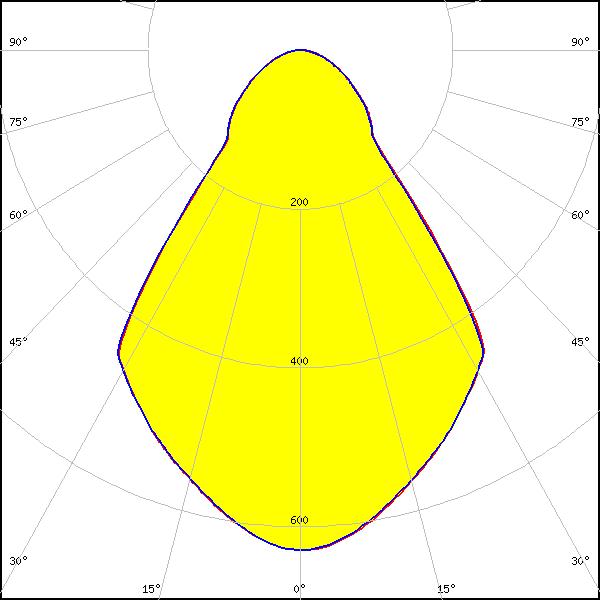

LED: VERO18
Required components:
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: VERO18

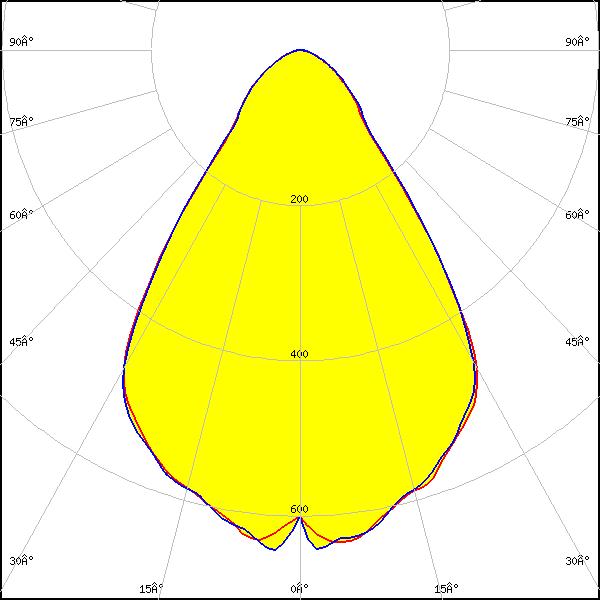

LED: VERO29
Required components:
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LED: VERO29
Required components:
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 88 %

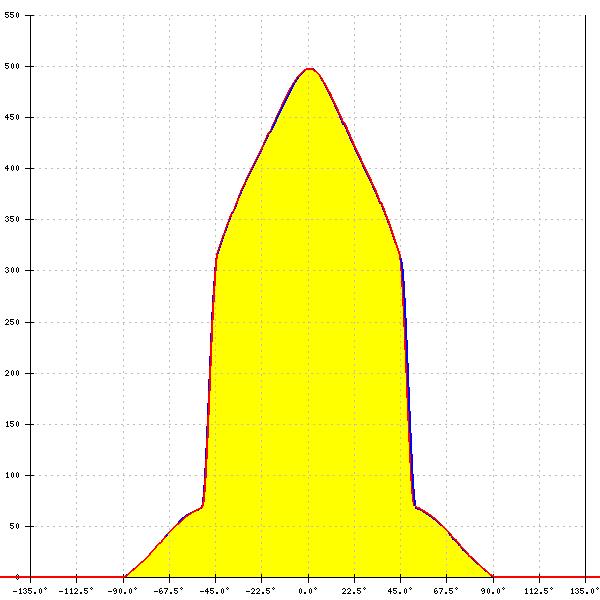

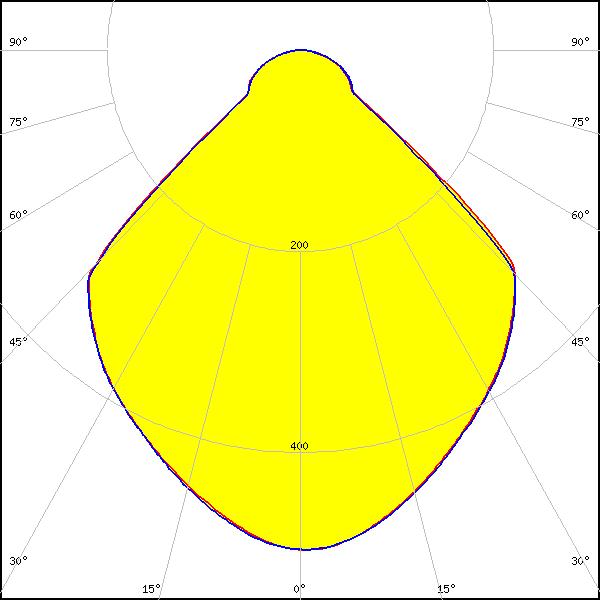

LED: CLL02x/CLU02x (LES10)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

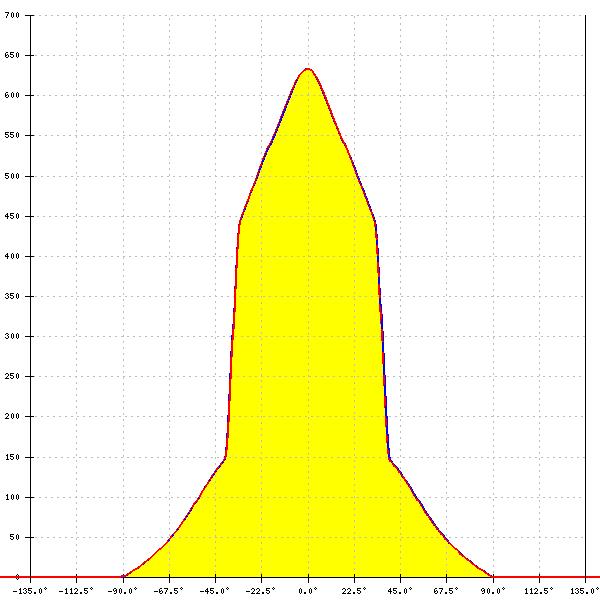

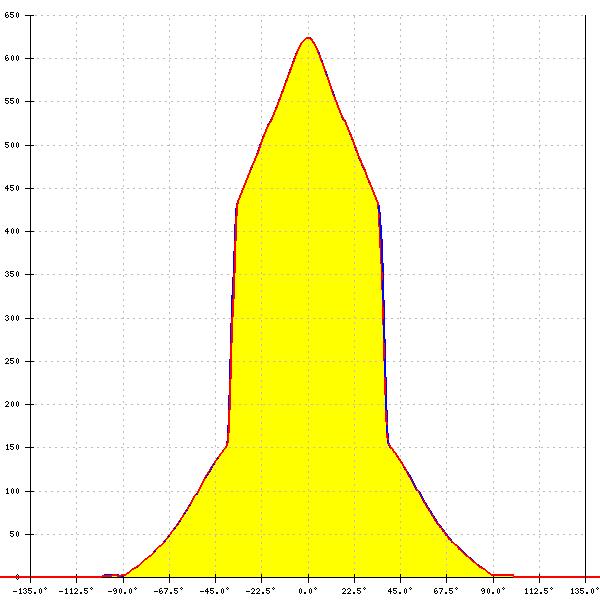

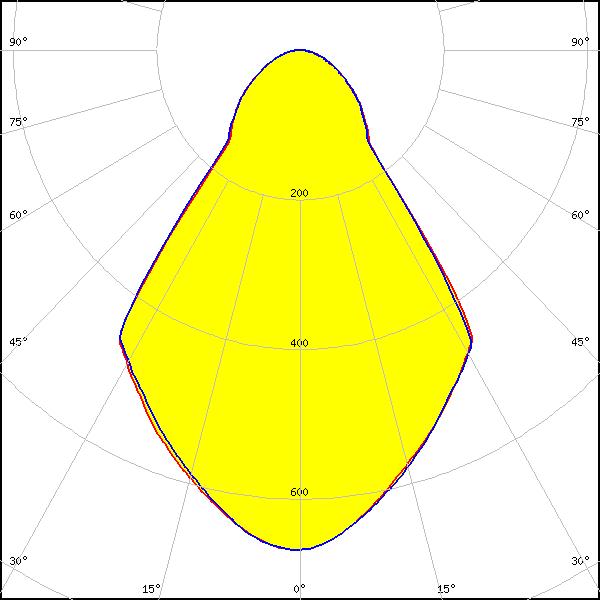

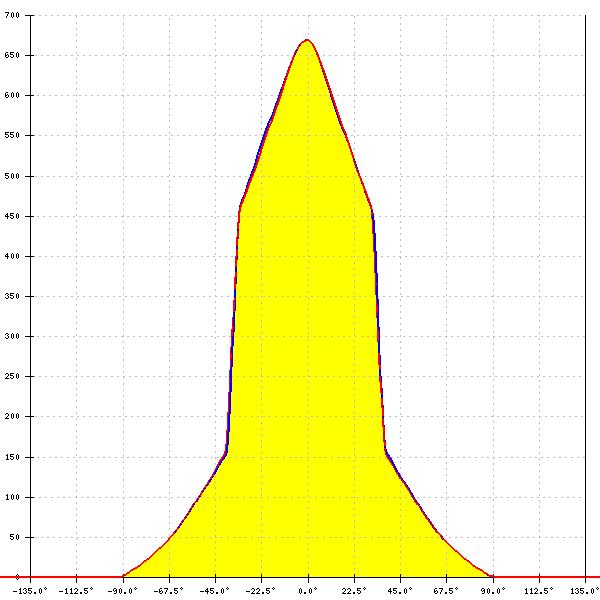

LED: CLL03x/CLU03x
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

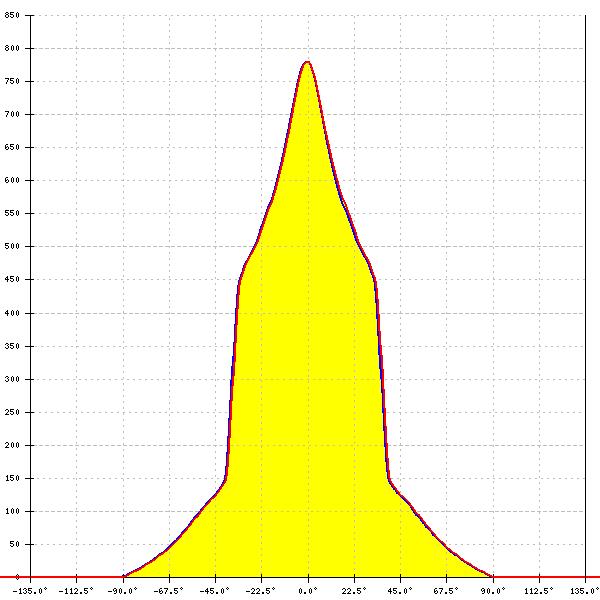

LED: CLL03x/CLU03x
Required components:
C16791_CLAMP-Z45-A
TE: 2325807-3
FWHM: 69°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LED: CLL03x/CLU03x
Required components:
FWHM: 69°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LED: CLL03x/CLU03x
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 70°
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LED: CLL03x/CLU03x
Required components:
TE: 2213254-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

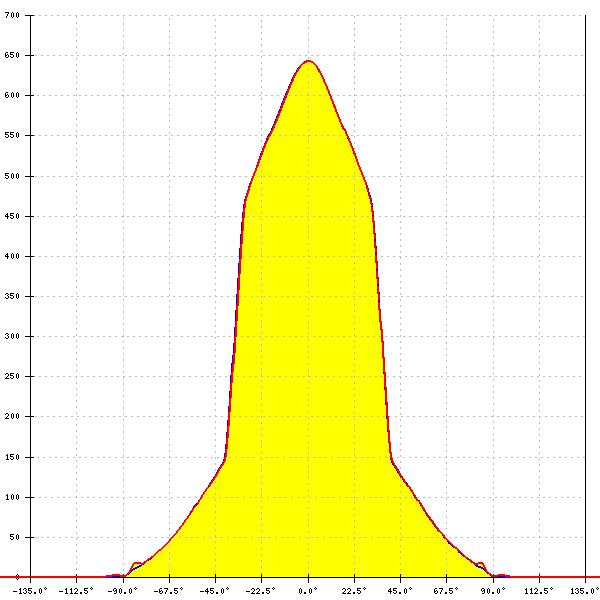

LED: CLL04x/CLU04x
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 431 Typ L3
FWHM: 70°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

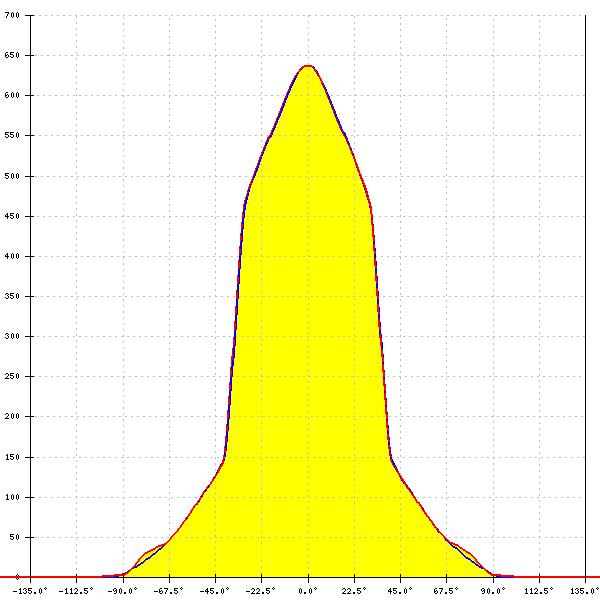

LED: CLL04x/CLU04x
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 70°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: CLU700/701
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

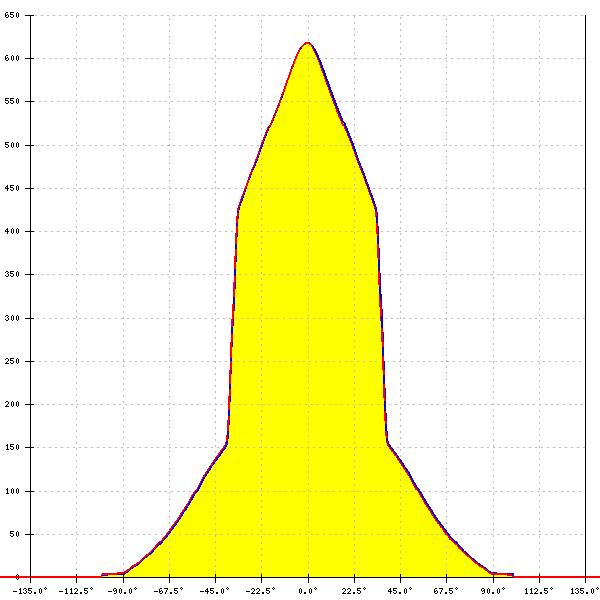

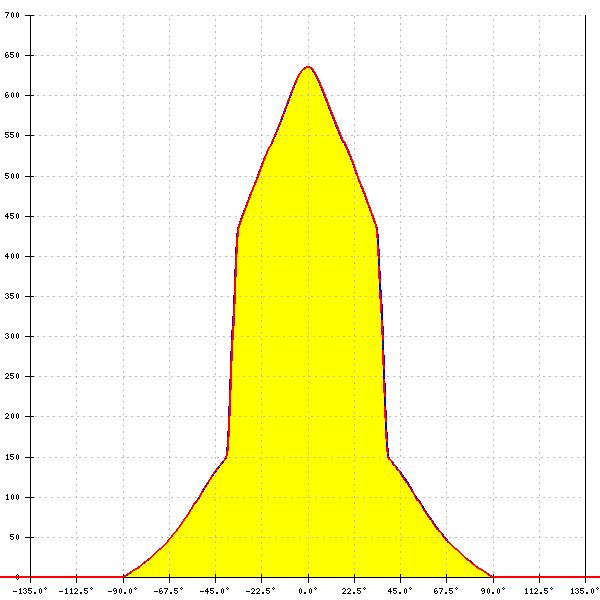

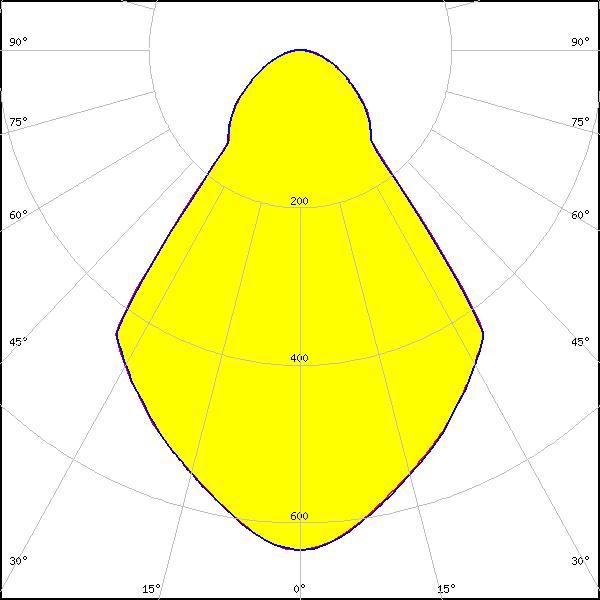

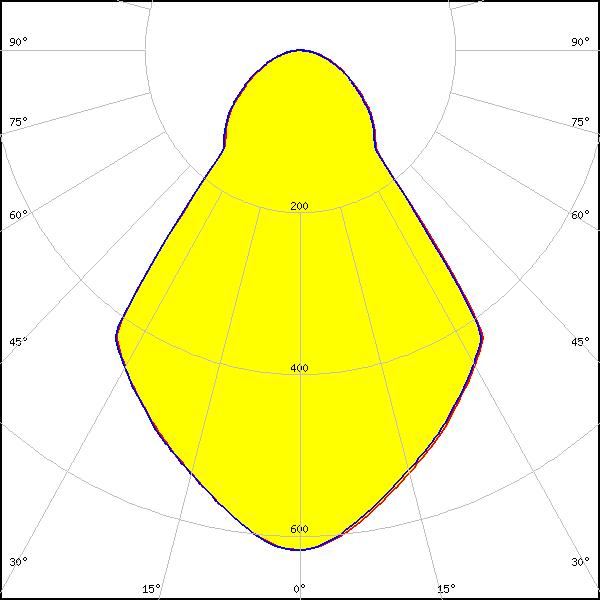

LED: CLU720/721
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: CLU720/721
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 70°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LED: CLU720/721
Required components:
TE: 2213254-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

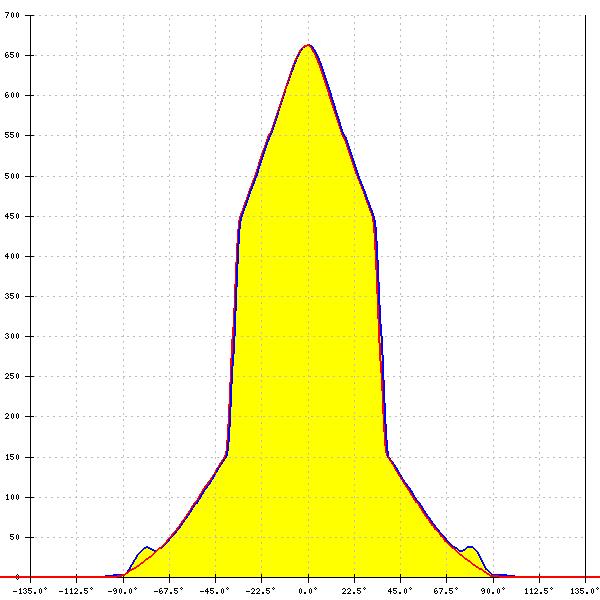

LED: CLU730/731
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 93 %

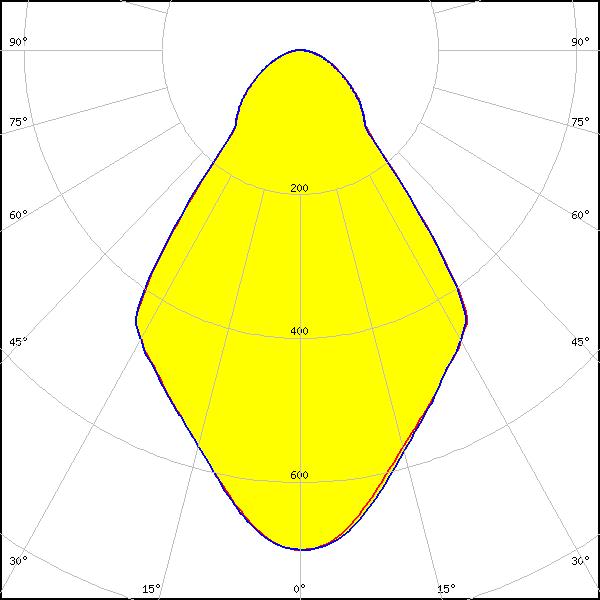

LED: CMA2550
Required components:
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

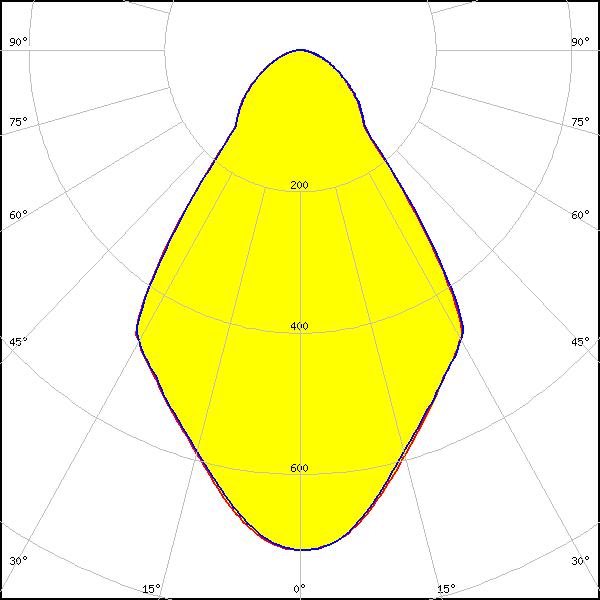

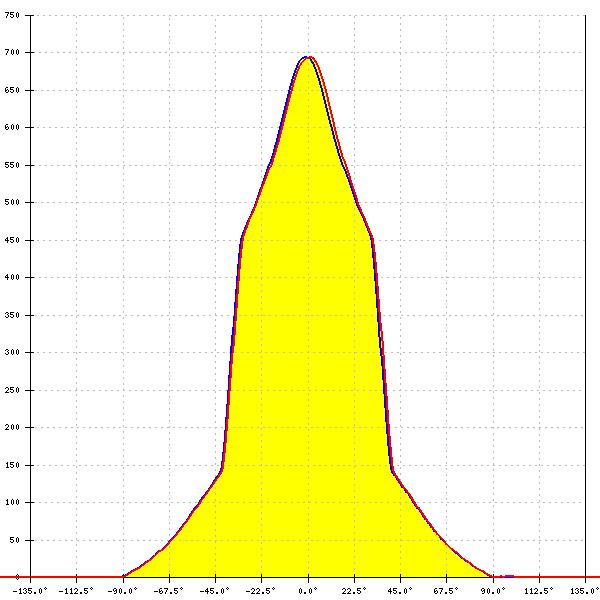

LED: CMA3090
Required components:
FWHM: 70°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

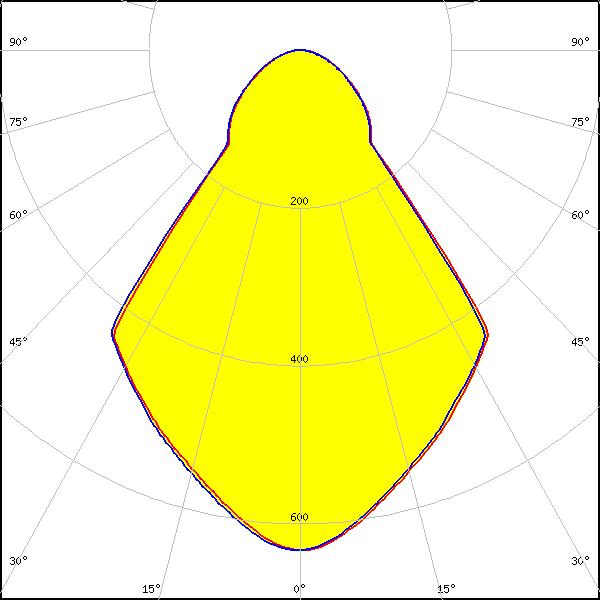

LED: CXA/B 15xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

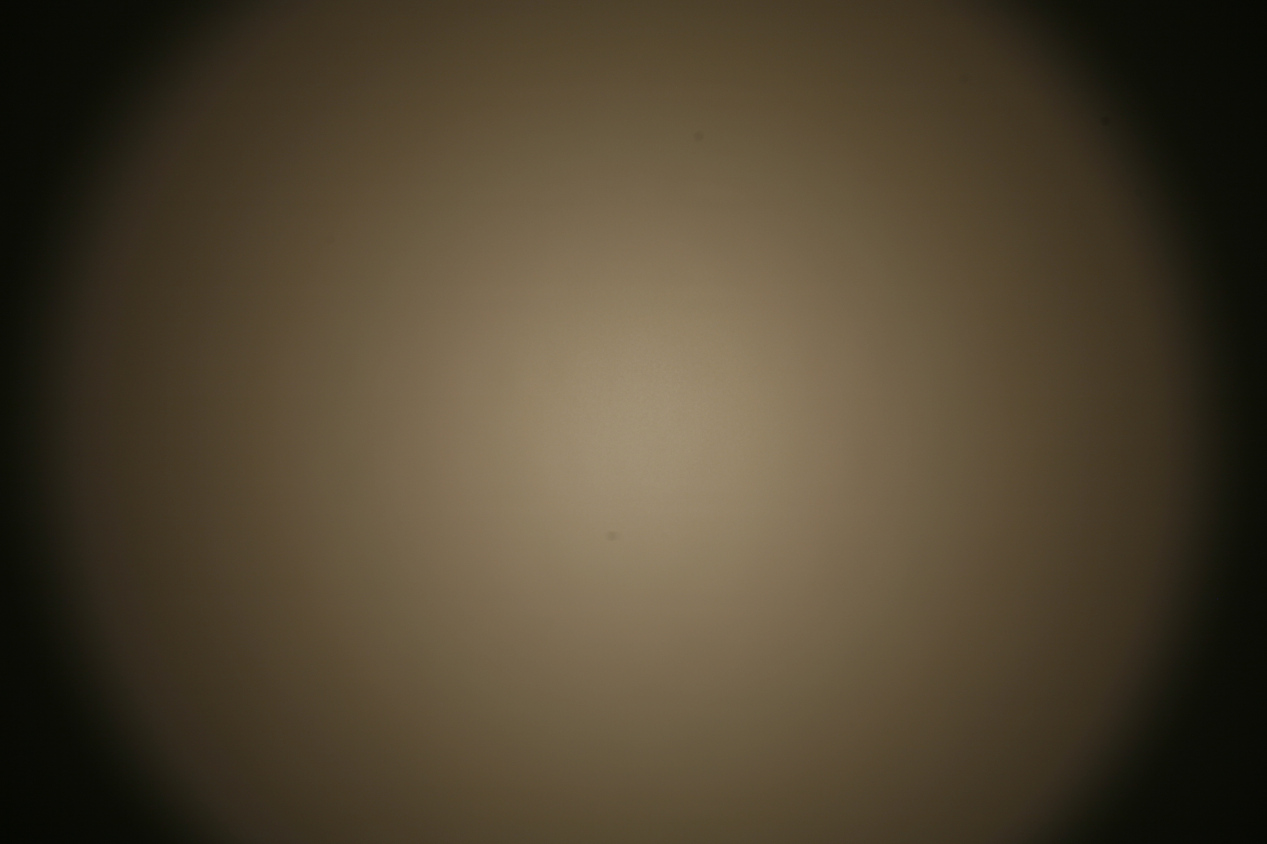

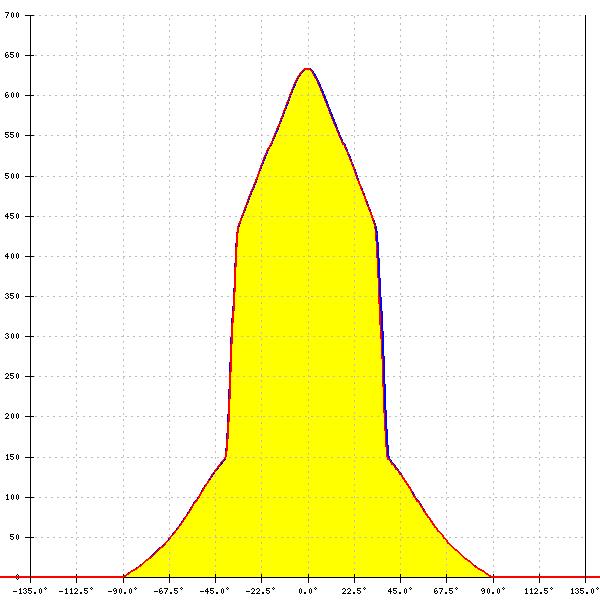

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 72°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: CXA/B 1830
Required components:
TE: 2213401-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 73°
Peak intensity: 0.5 cd/lm
Efficiency: 88 %

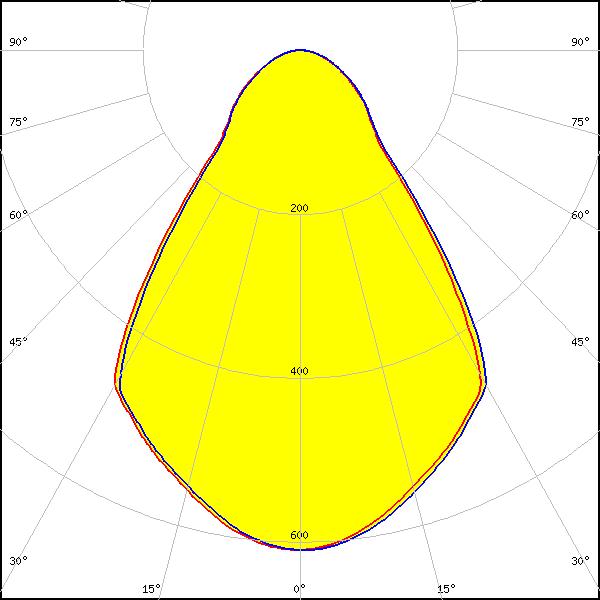

LED: CXA/B 3590
Required components:
IDEAL: 50-2303CR
IDEAL: 50-2300AN
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LED: CHI3030 19W
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 468 Typ L3
F13671_ANGE-RZ-LENS
FWHM: 71°
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LED: CHI3030 29W
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 468 Typ L3
F13671_ANGE-RZ-LENS
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 90 %

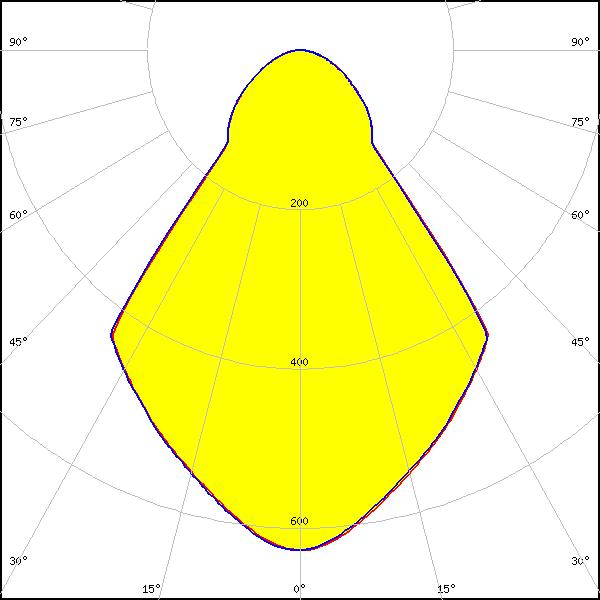

LED: LUXEON CoB 1202/1203
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

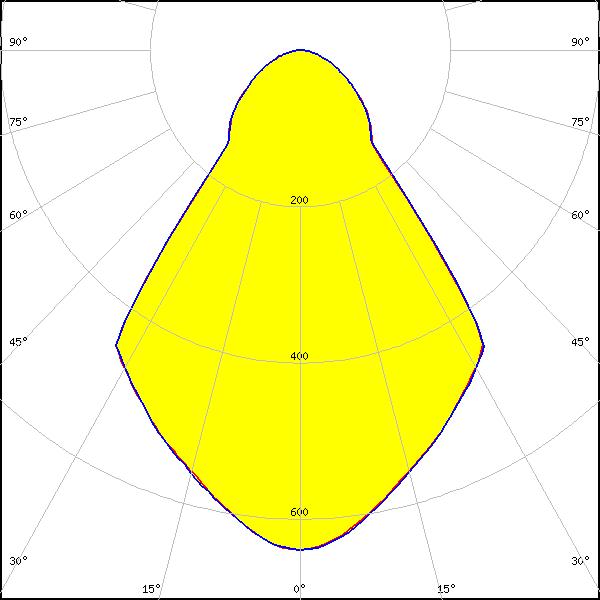

LED: LUXEON CoB 1204/1205
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

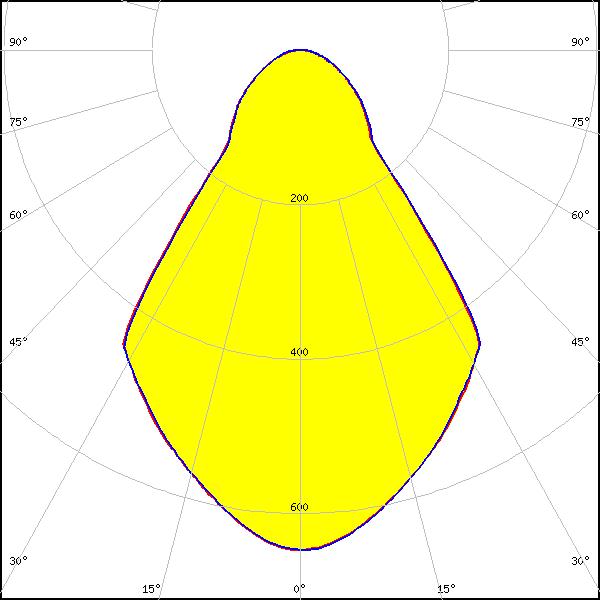

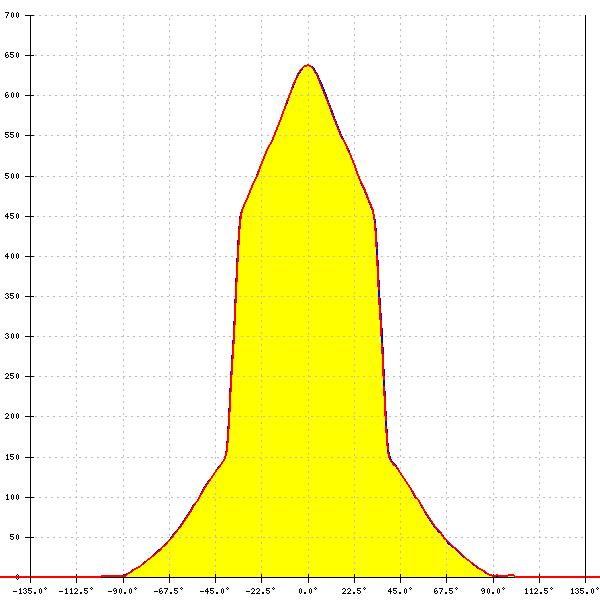

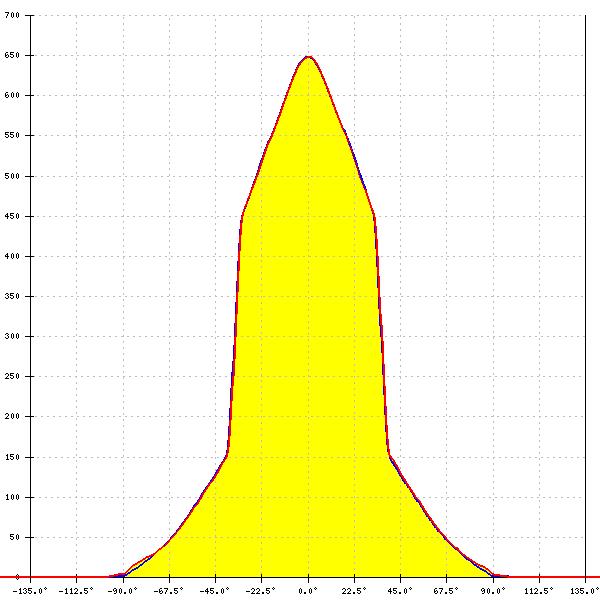

LED: LUXEON CoB 1208
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LED: LUXEON CoB 1208
Required components:
TE: 2213130-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: LUXEON CoB 1211
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 431 Typ L3
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

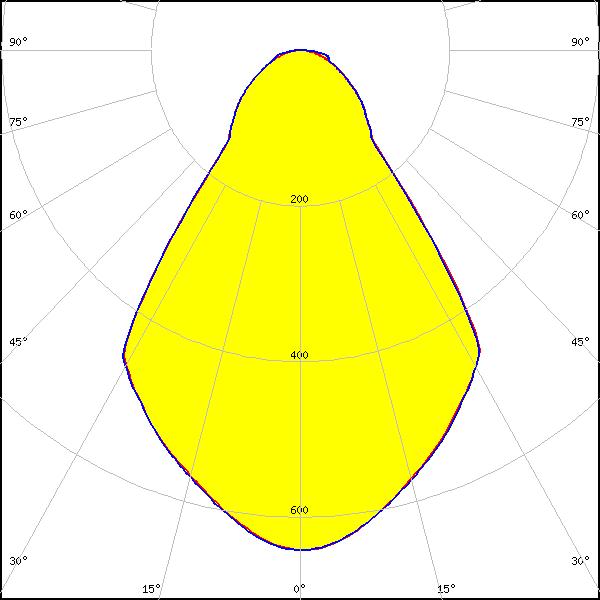

LED: LUXEON CoB 1211
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

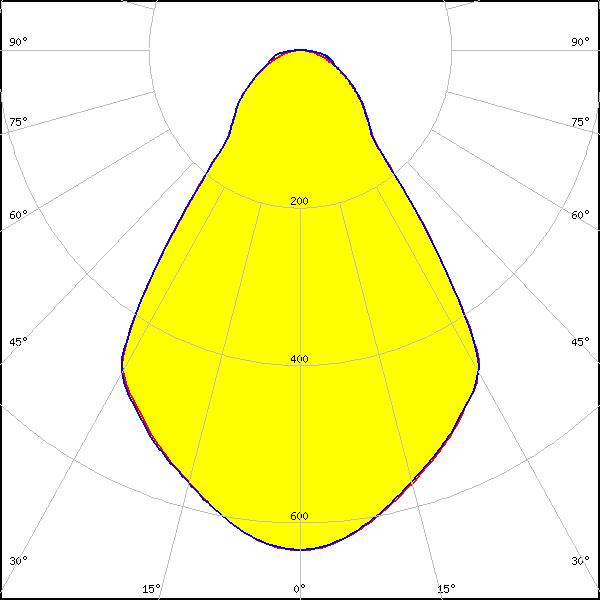

LED: LUXEON CoB 1216/1812
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 70°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

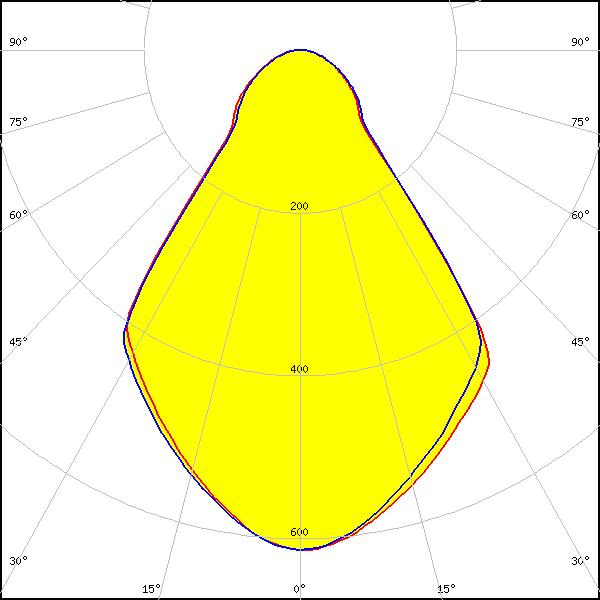

LED: LUXEON K12
Required components:
TE: 2213134-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 89 %

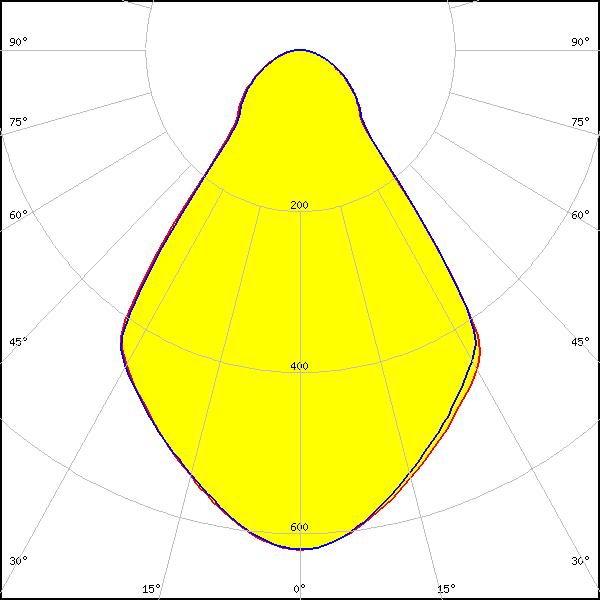

LED: LUXEON K16
Required components:
TE: 2213134-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 88 %
LED: CDM-14 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 92 %
LED: CDM-14 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
F13671_ANGE-RZ-LENS
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 87 %
LED: CDM-18 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 70°
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LED: CDM-18 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
F13671_ANGE-RZ-LENS
FWHM: 70°
Peak intensity: 0.7 cd/lm
Efficiency: 88 %

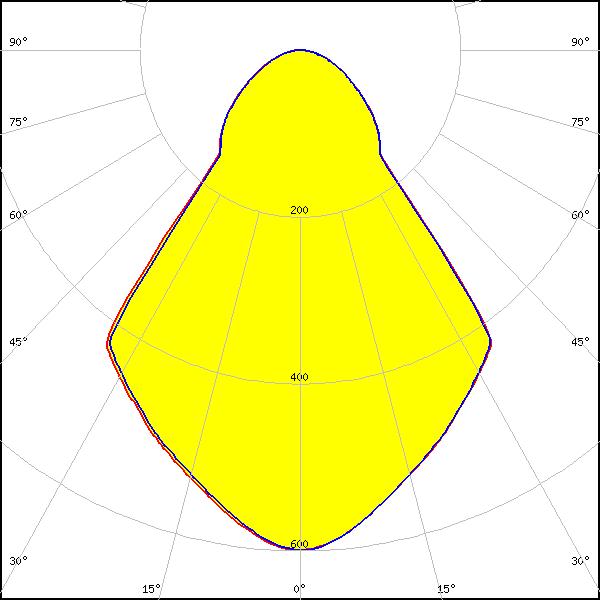

LED: CDM-9 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 490 Typ L1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: CDM-9 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 490 Typ L1
F13671_ANGE-RZ-LENS
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 86 %

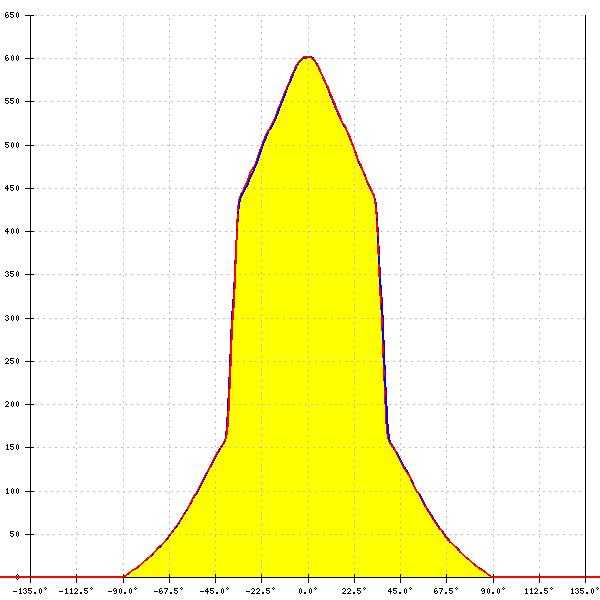

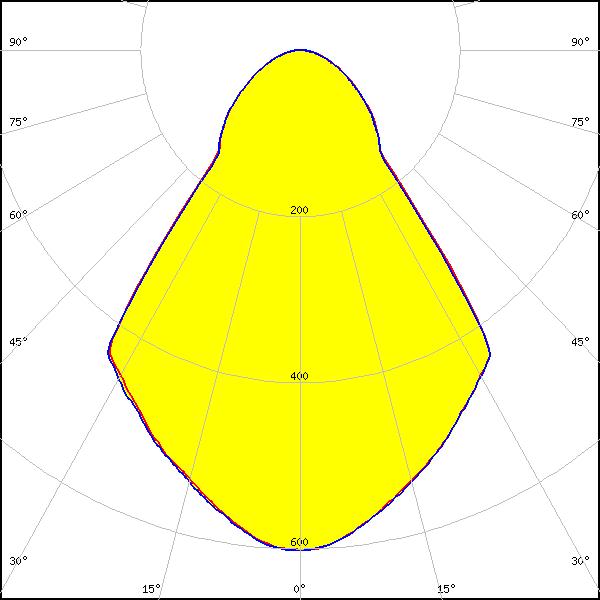

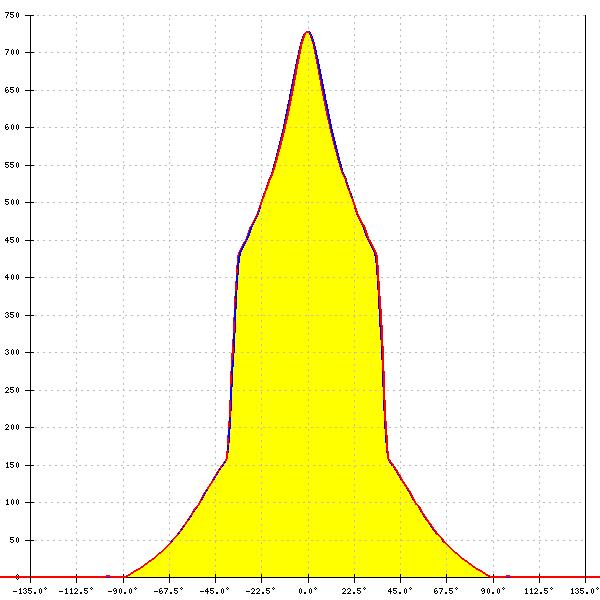

LED: CTM-14 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 442 Typ L3
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

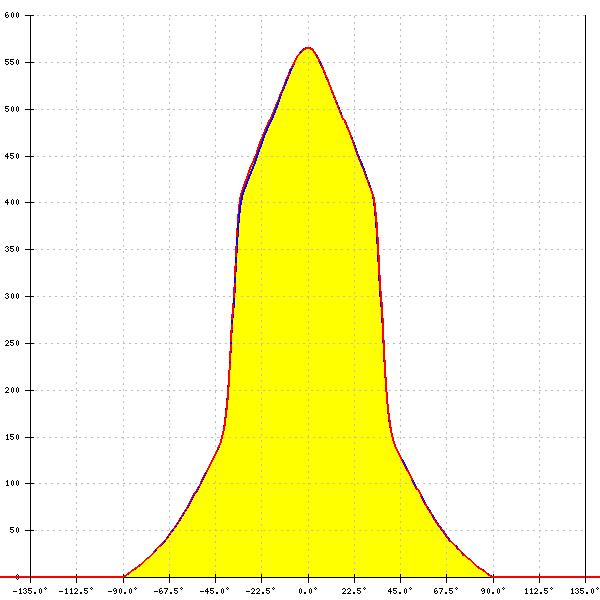

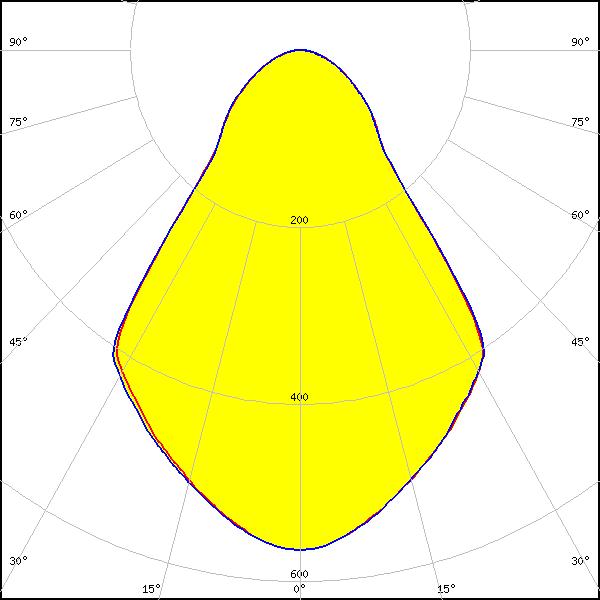

LED: CTM-14 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 442 Typ L3
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 86 %

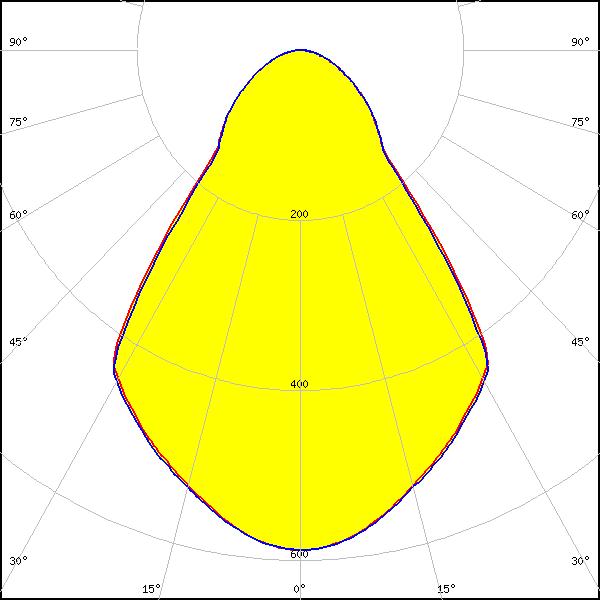

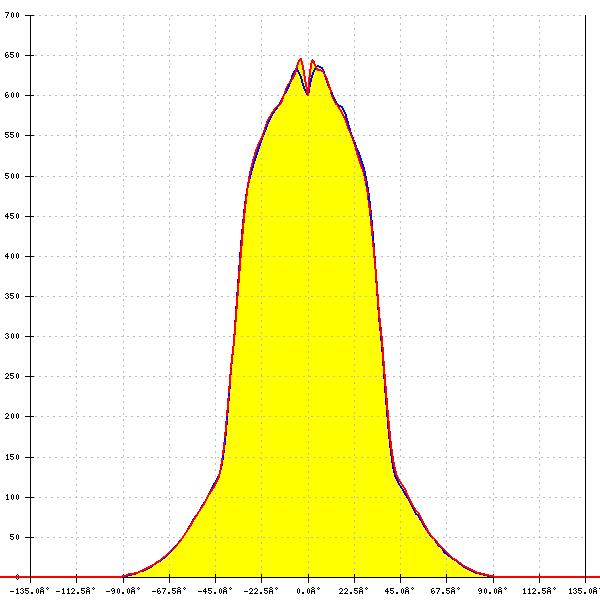

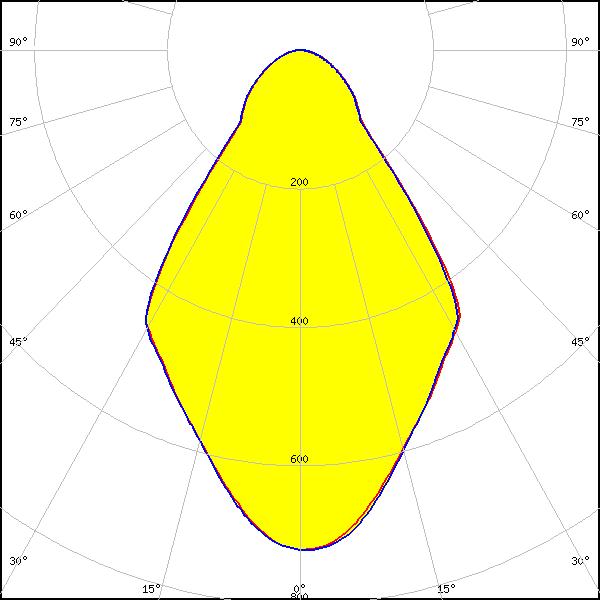

LED: CTM-22 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 91 %

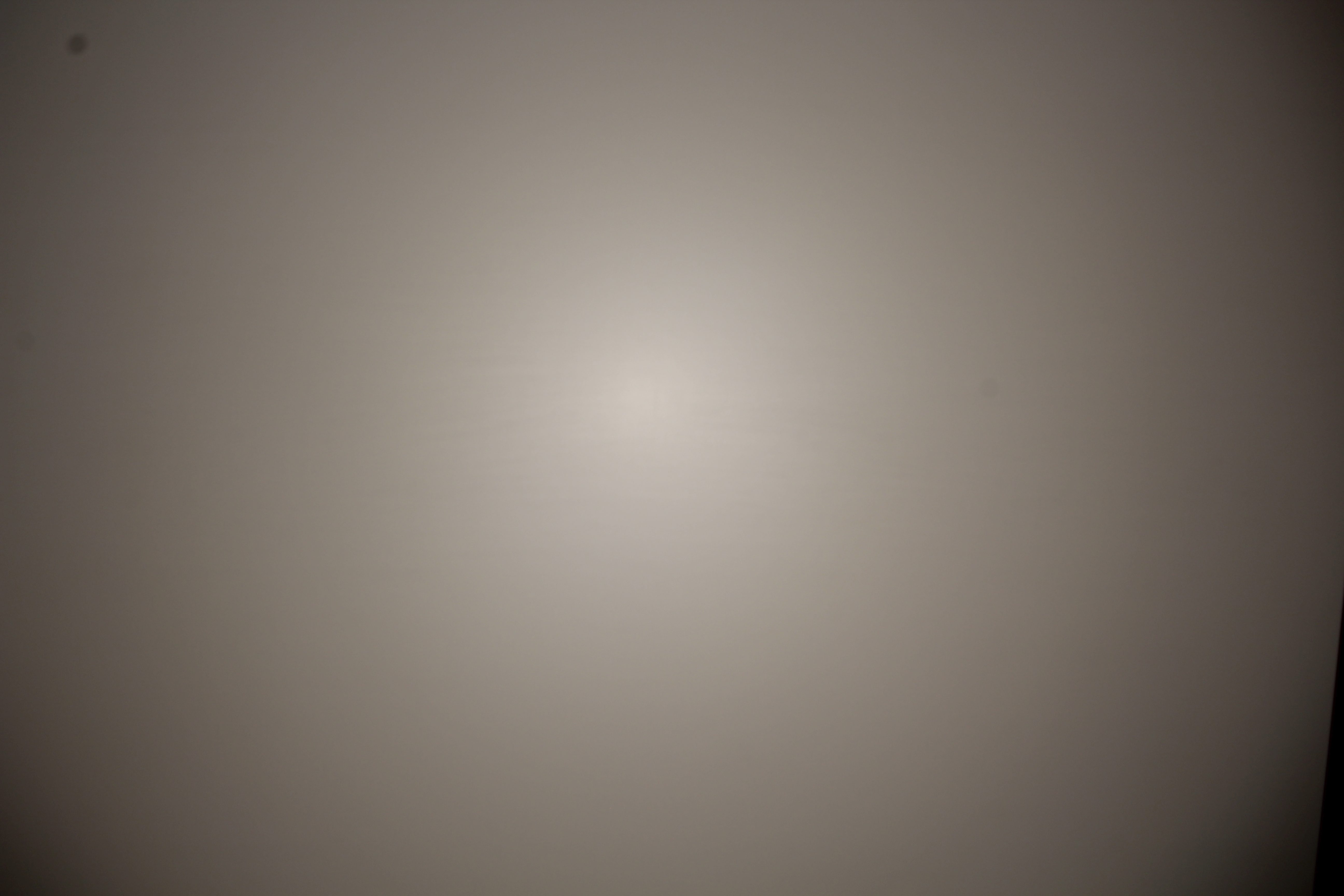

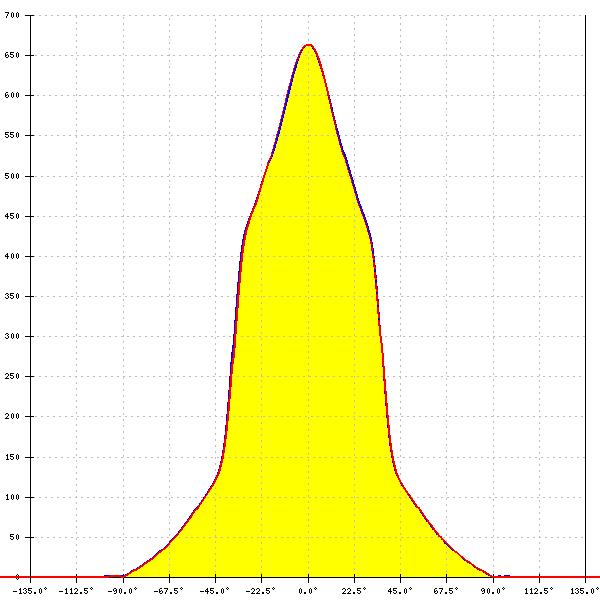

LED: CTM-22 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 86 %
LED: CXM-14
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: CXM-14
Required components:
TE: 2213254-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: CXM-9
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

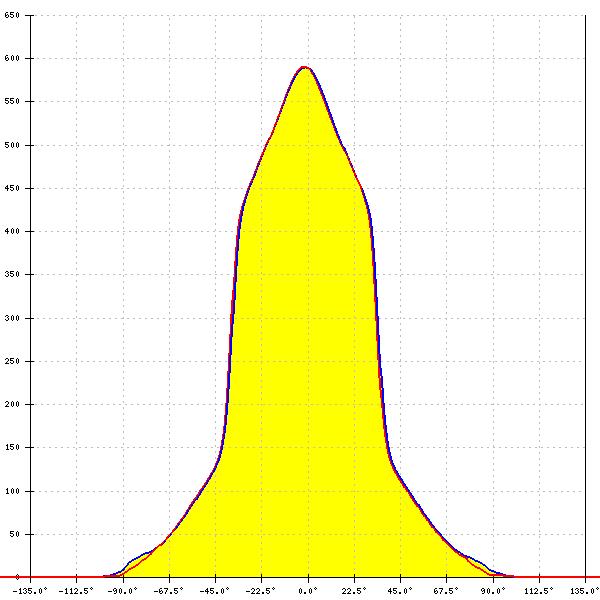

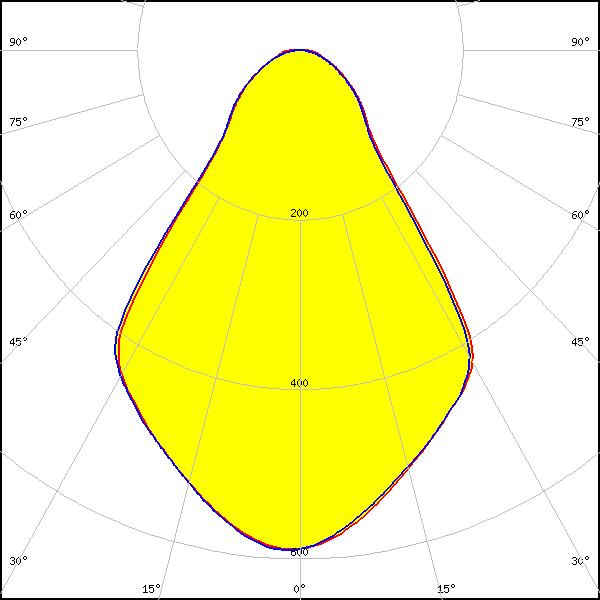

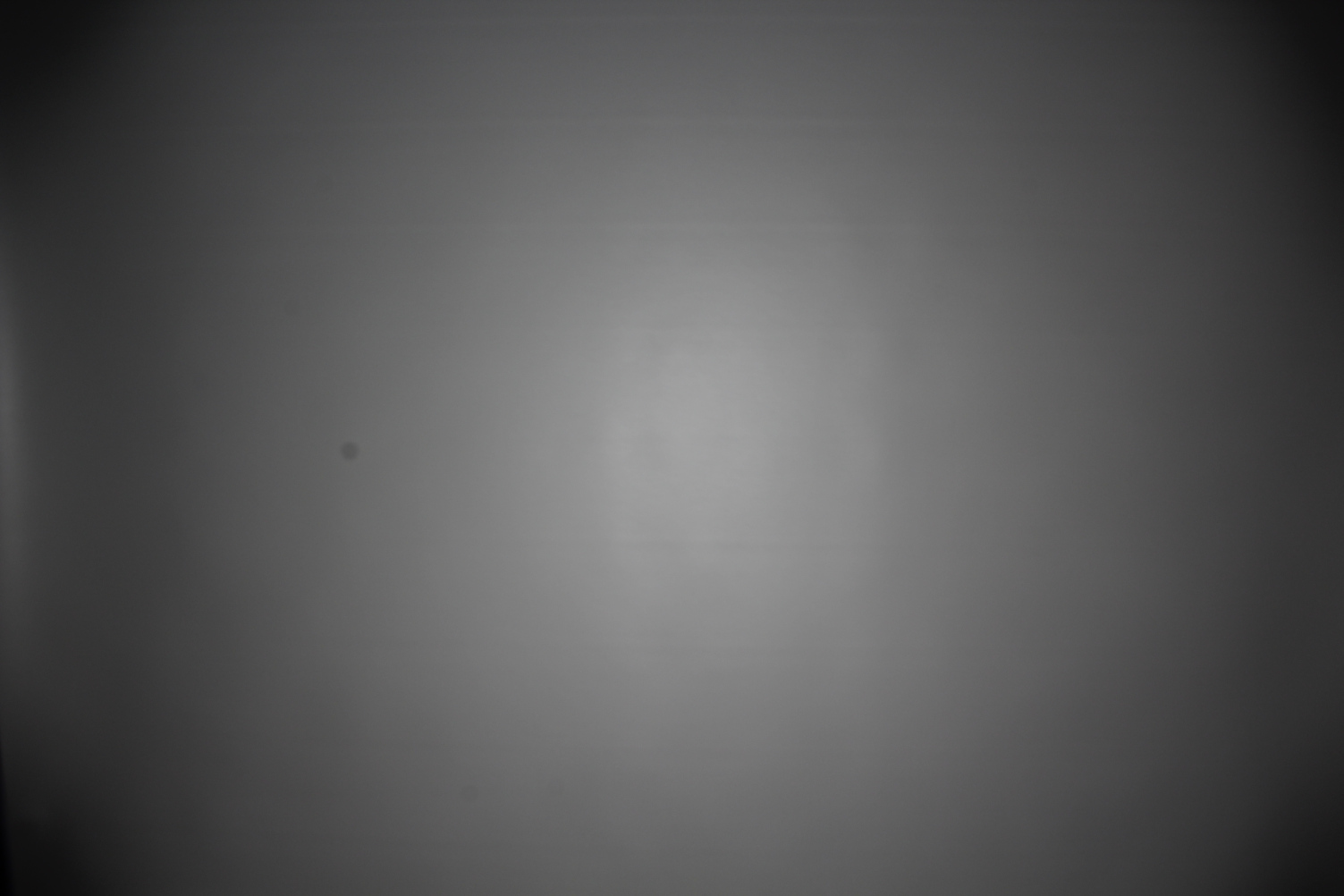

LED: COB J-Type
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 87 %
LED: COB J-Type
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 463 Typ L2
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

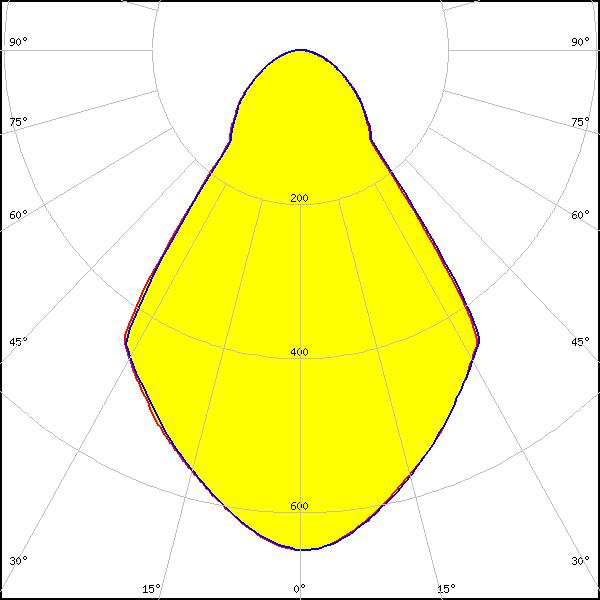

LED: COB J-Type
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 91 %

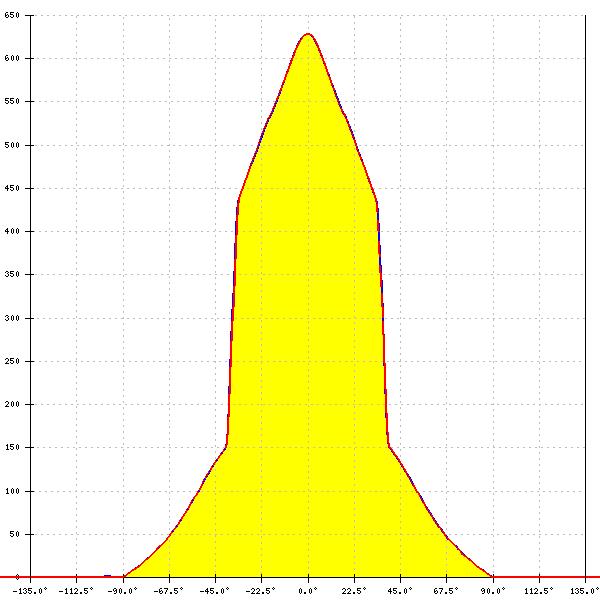

LED: COB L-Type (LES 11)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

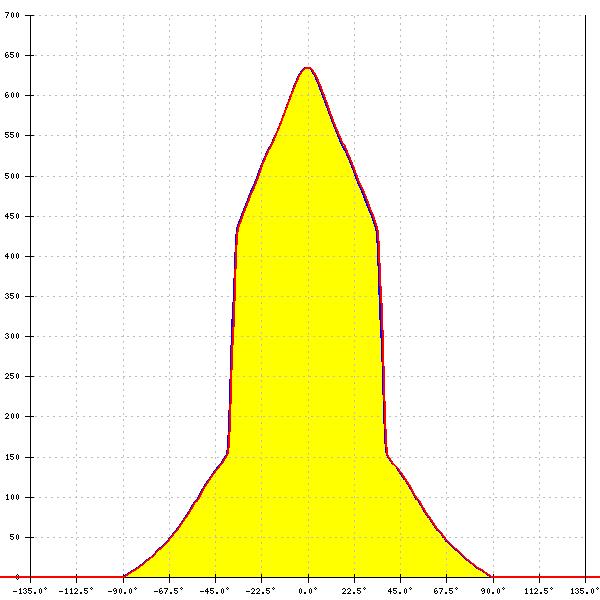

LED: COB L-Type (LES 11)
Required components:
TE: 2213382-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: COB L-Type (LES 11)
Required components:
Molex: 180580-0005
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %

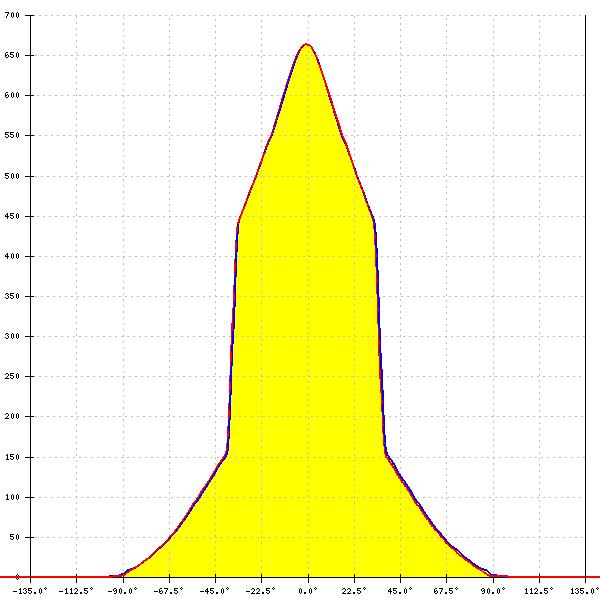

LED: COB L-Type (LES 11)
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 92 %
LED: COB L-Type (LES 9)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LED: COB L-Type (LES 9)
Required components:
TE: 2213382-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 498 Typ L2
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 85 %
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 498 Typ L2
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 69°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 69°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %

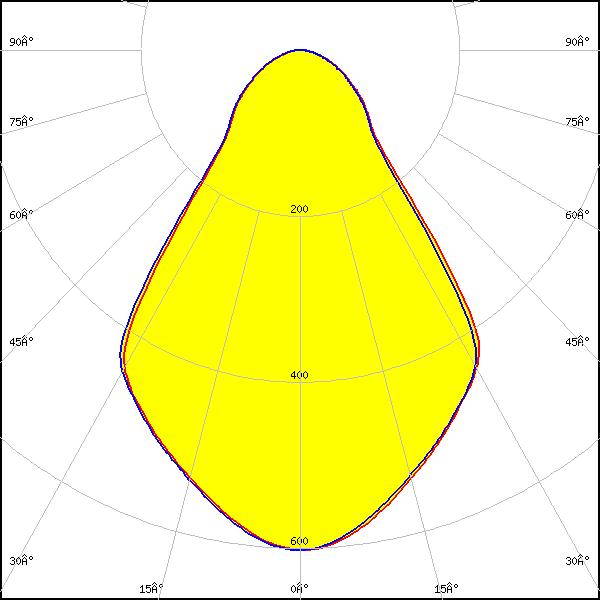

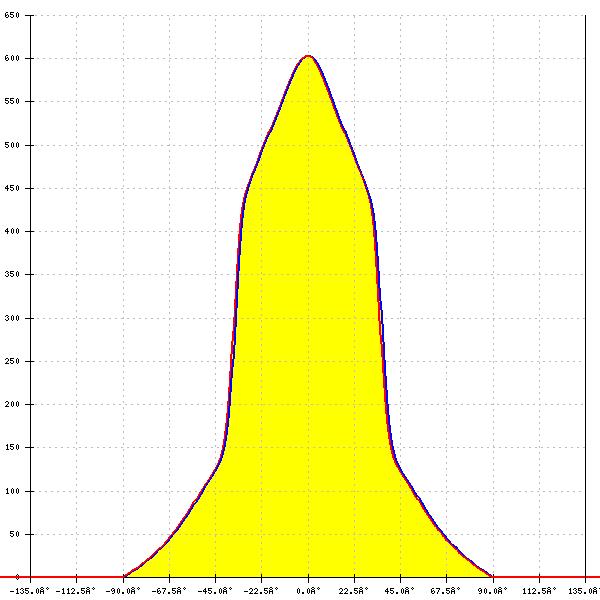

LED: PrevaLED Core Z4 LES19
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 88 %

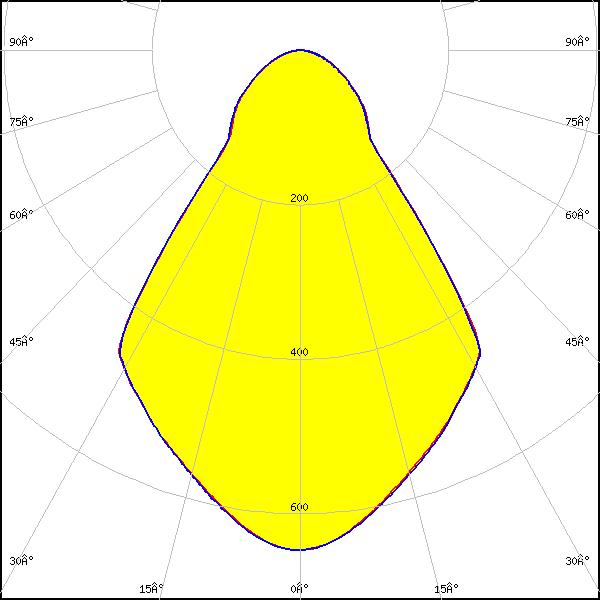

LED: PrevaLED Core Z4 LES19
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LED: Soleriq S13
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: Soleriq S13
Required components:
TE: 2213401-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: Soleriq S13 Gen2
Required components:
TE: 2213254-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

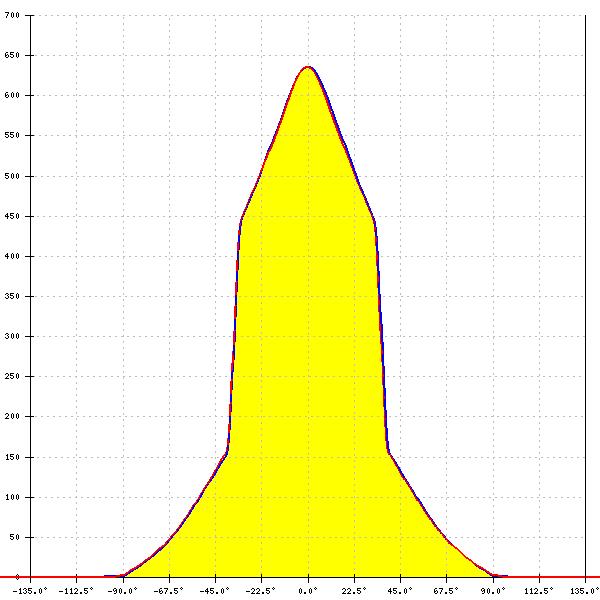

LED: Soleriq S13 Gen2
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

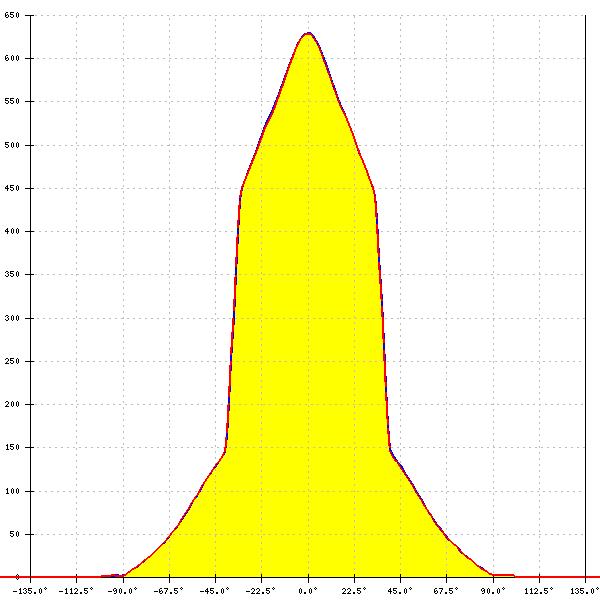

LED: Soleriq S19
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 462 Typ L3
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: Soleriq S19
Required components:
TE: 2213407-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

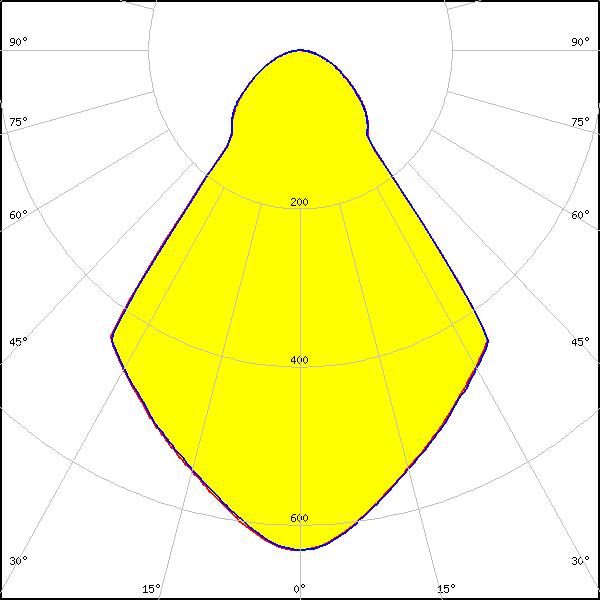

LED: Fortimo SLM L09 + SLM holder
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

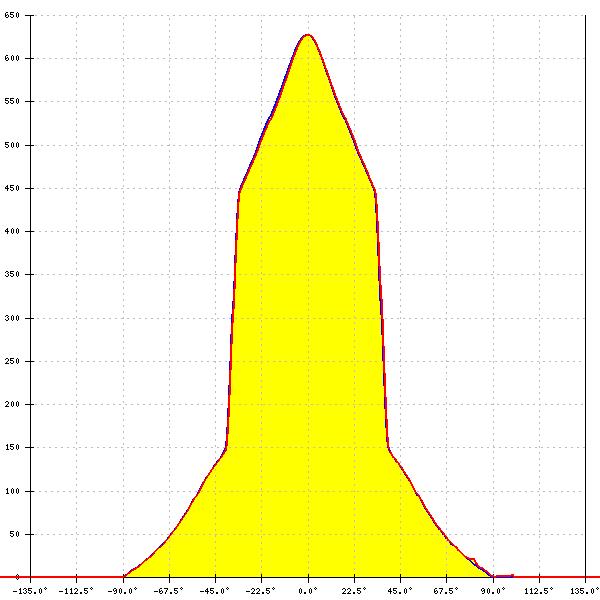

LED: Fortimo SLM L13 + SLM holder
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: Fortimo SLM L13 CoB
Required components:
TE: 2213130-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 85 %
LED: Fortimo SLM L13 CoB
Required components:
TE: 2213130-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 93 %

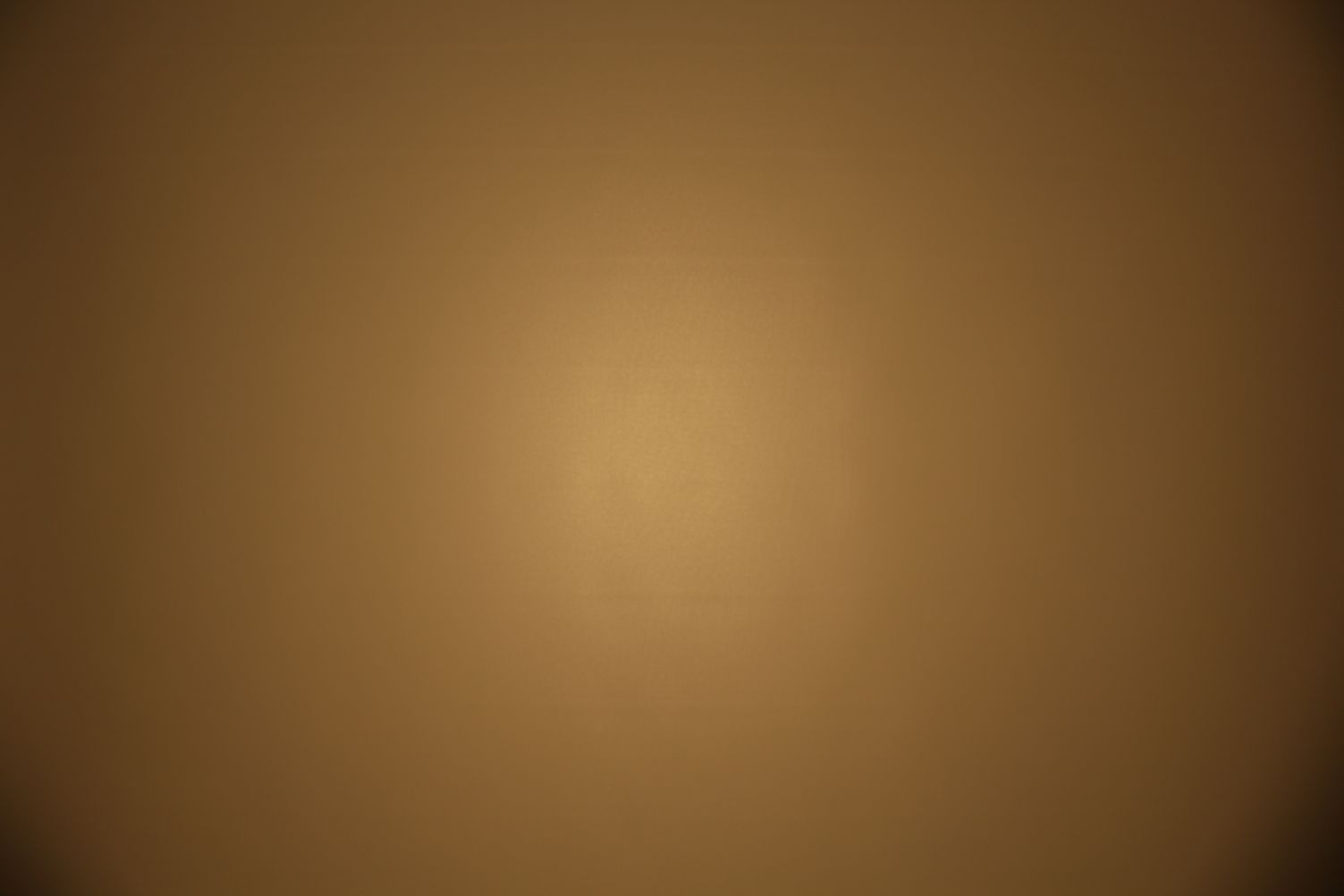

LED: Fortimo SLM L15 + SLM holder
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 87 %

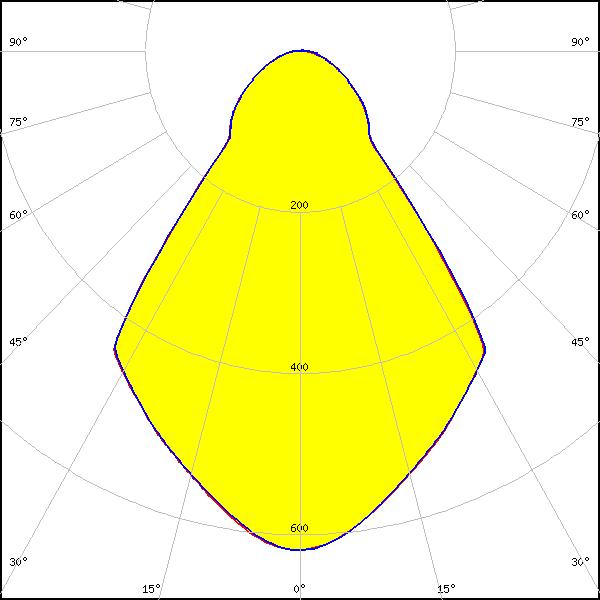

LED: Fortimo SLM L15 + SLM holder
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 90 %

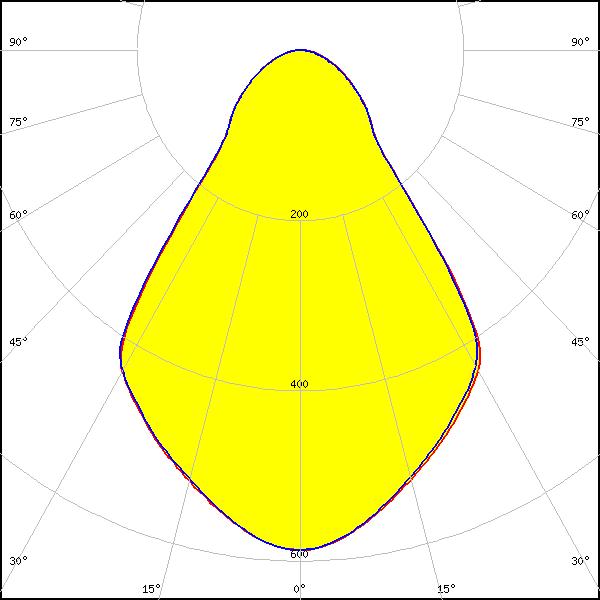

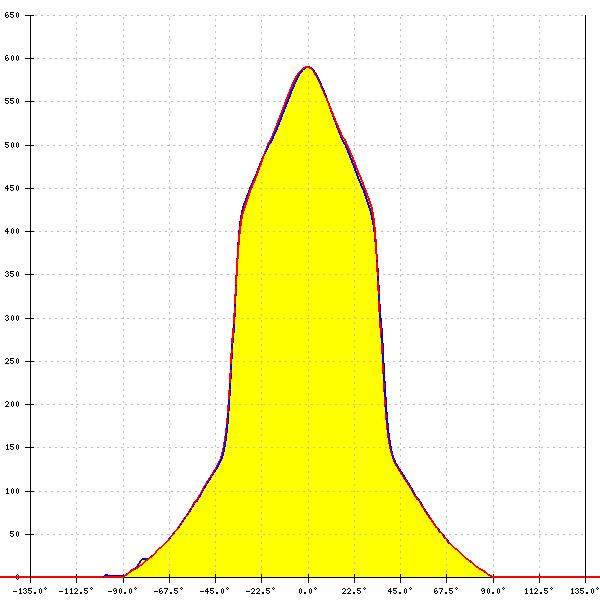

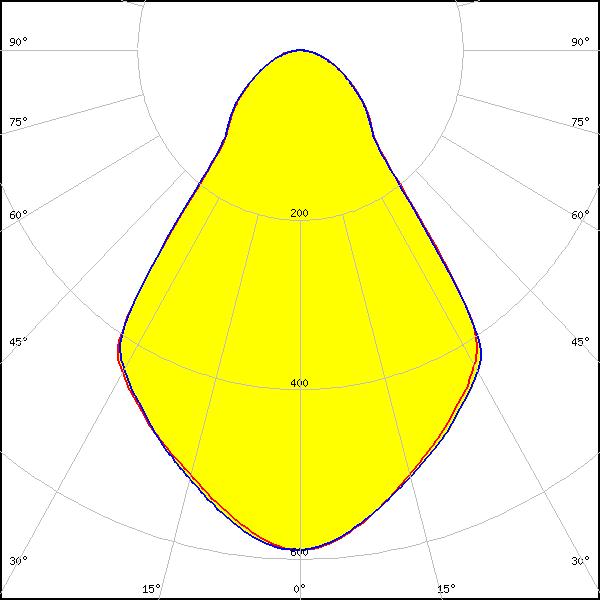

LED: Fortimo SLM L15 CoB
Required components:
TE: 2213130-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 70°
Peak intensity: 0.6 cd/lm
Efficiency: 85 %
LED: Fortimo SLM L15 CoB
Required components:
TE: 2213130-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 92 %

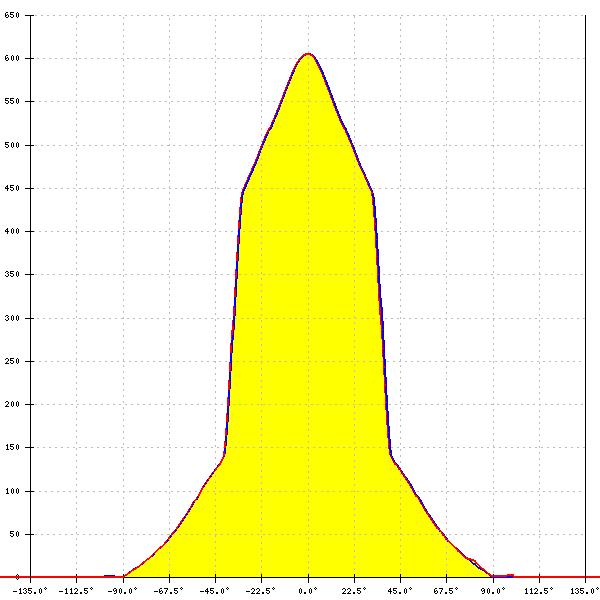

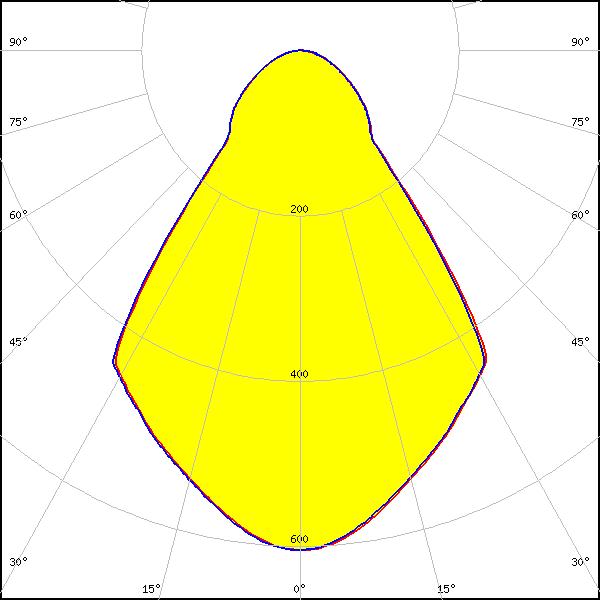

LED: Fortimo SLM L19 + SLM holder
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 89 %

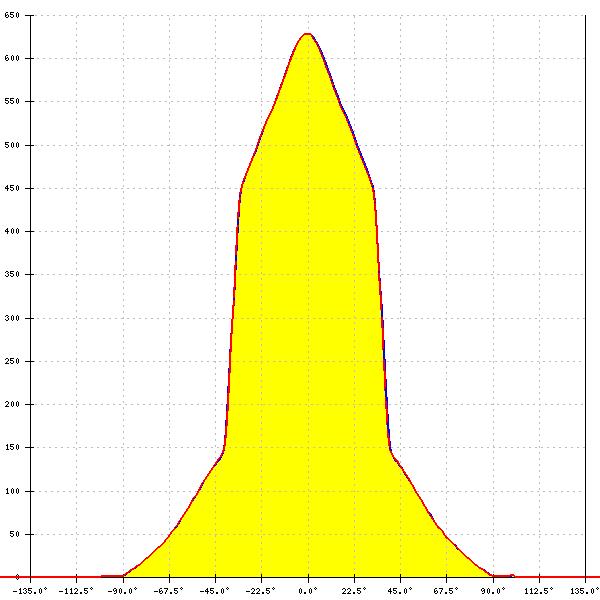

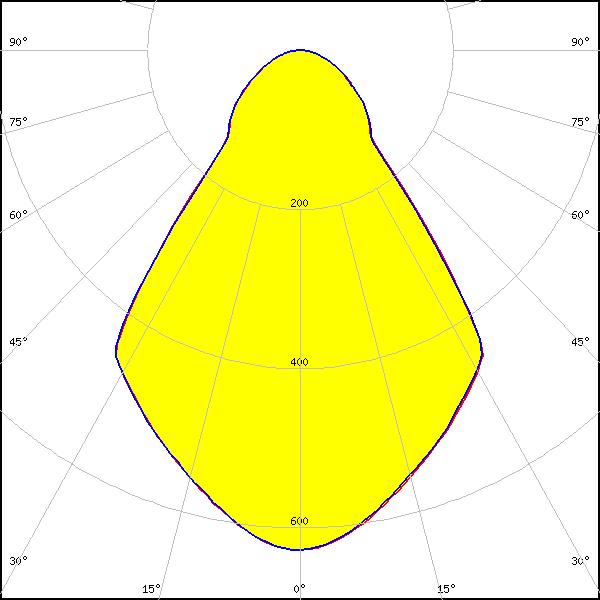

LED: LC026B / 033B / 040B
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

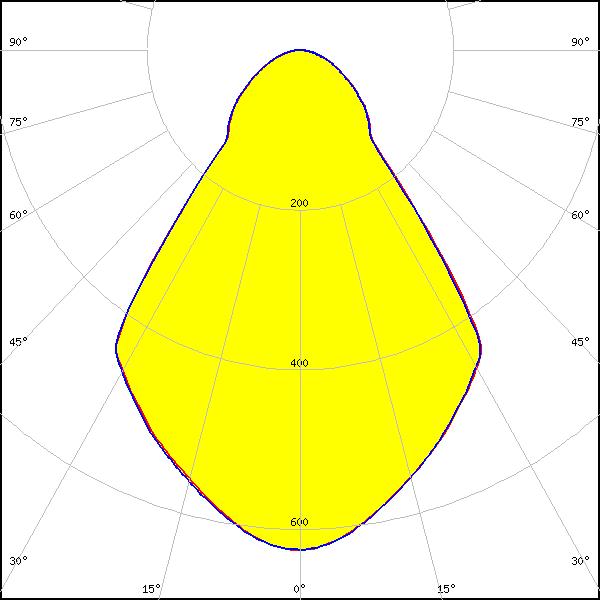

LED: LC026B / 033B / 040B
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 450 Typ L2
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: LC040C
Required components:
TE: 2213382-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: AC Zhaga COB
Required components:
Optosource: SEHSMJD-A
F13671_ANGE-RZ-LENS
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 87 %

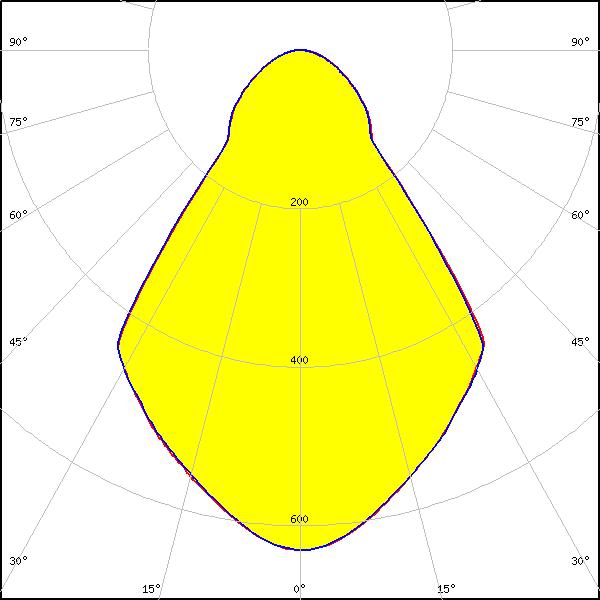

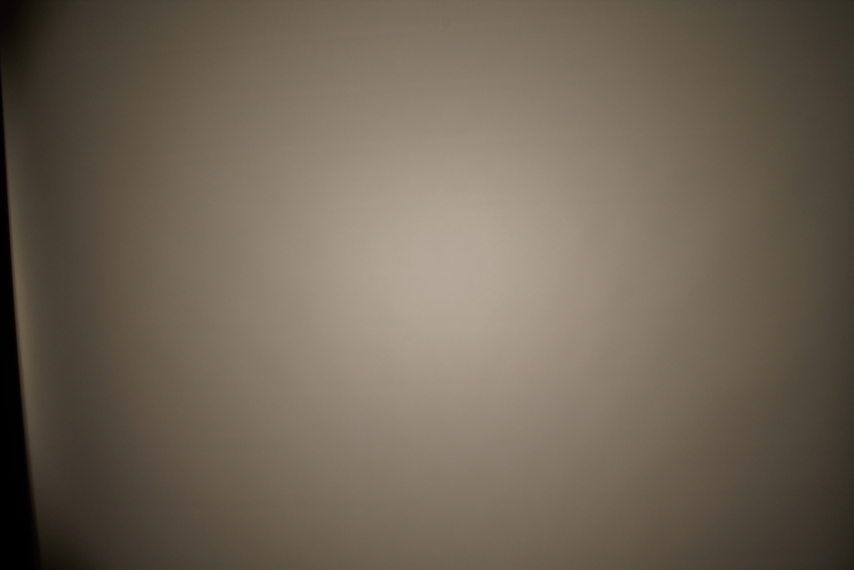

LED: MJT COB LES 14.5
Required components:
TE: 2213254-2
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: ZC12/18
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: ZC4/6
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %
LED: SLE G5 LES11
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

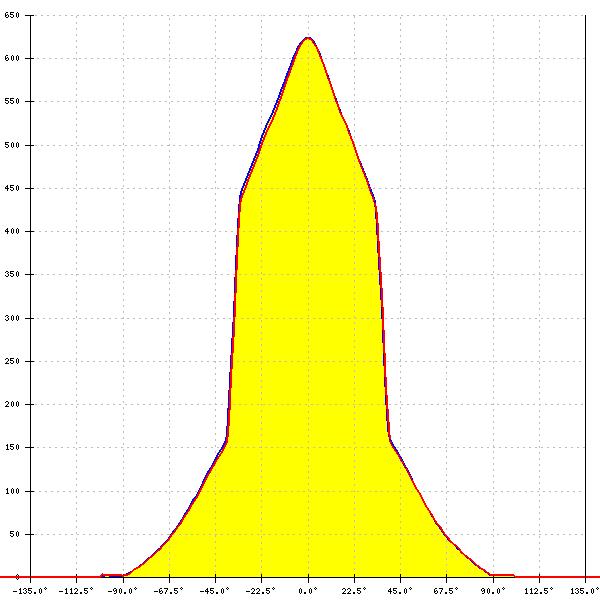

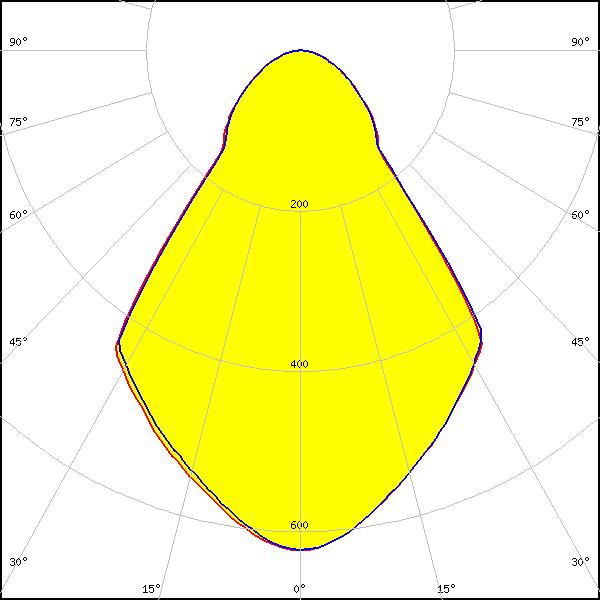

LED: WU-M-461
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

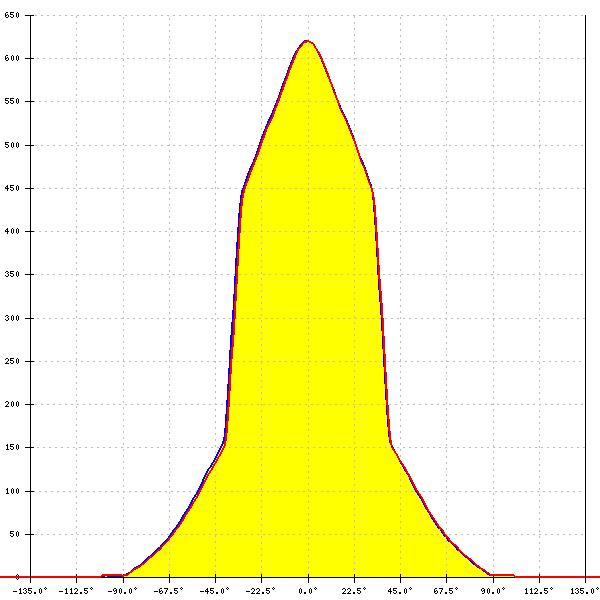

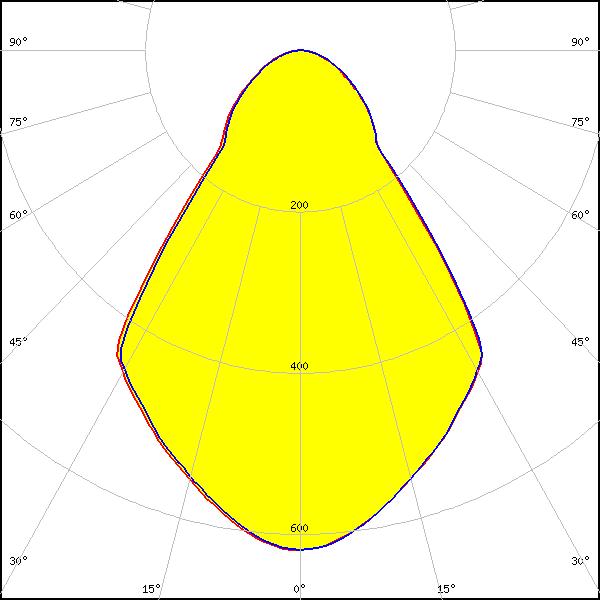

LED: WU-M-462
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 72°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

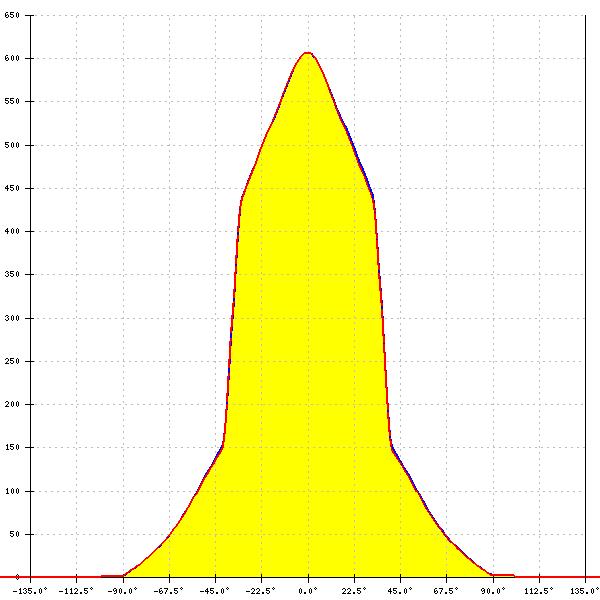

LED: WU-M-464
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %

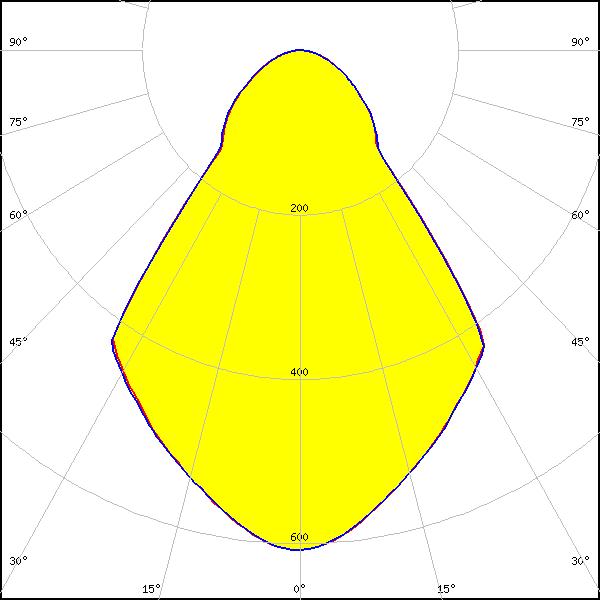

LED: WU-M-484
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: WU-M-485
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LED: WU-M-486
Required components:
TE: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 73°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
