F14170_FLORENCE-ZT25

Print

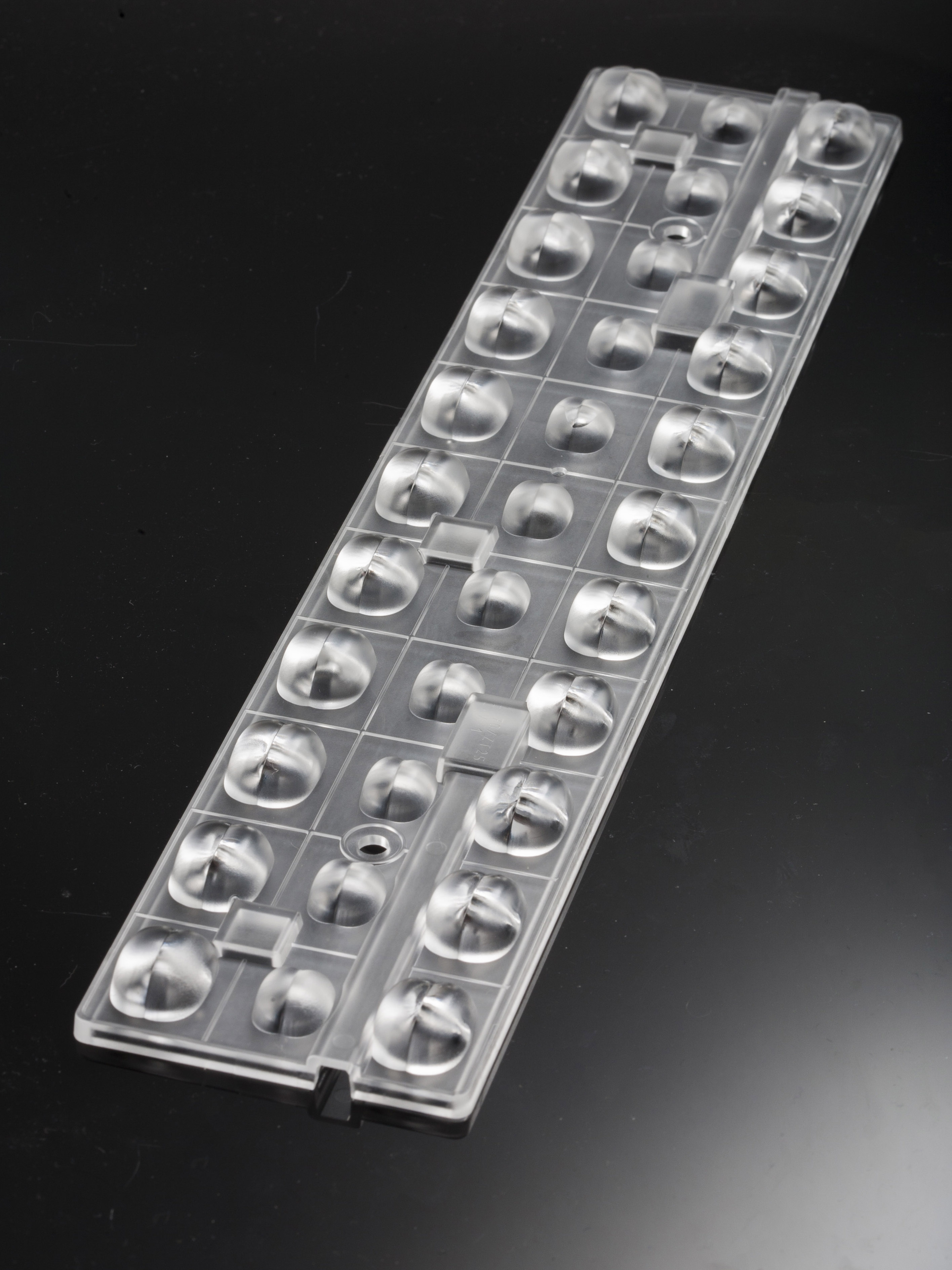

Double asymmetric beam for aisle and shelf lighting

Specification
  • Dimensions:
    286 x  61 mm
  • Height:
    11.00 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    60 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    5.8 kg
  • MPQ:
    6 pcs
  • MOQ:
    18 pcs
  • MOQ size:
    390 x 300 x 60 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14170_FLORENCE-ZT25

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

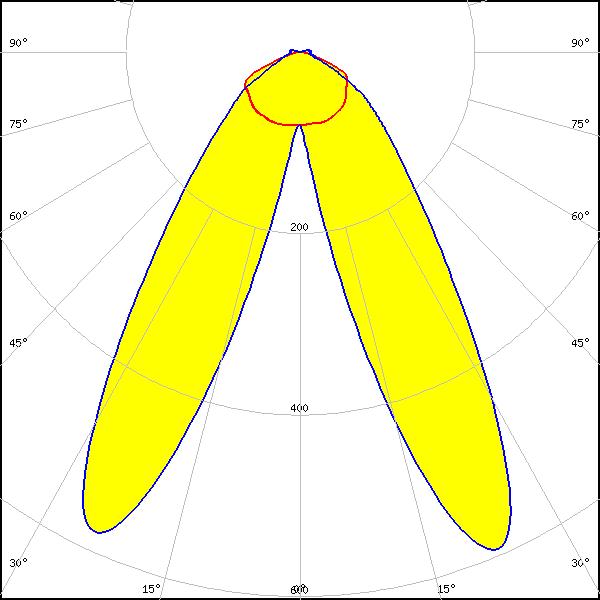

Optical results

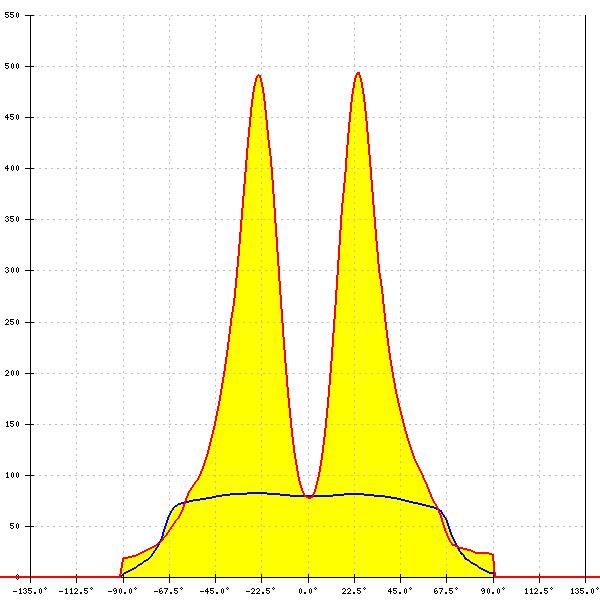

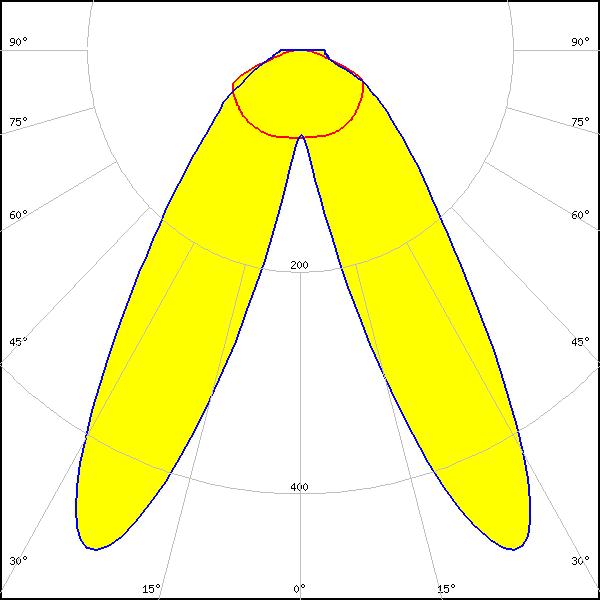

LED: XH-B/G
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

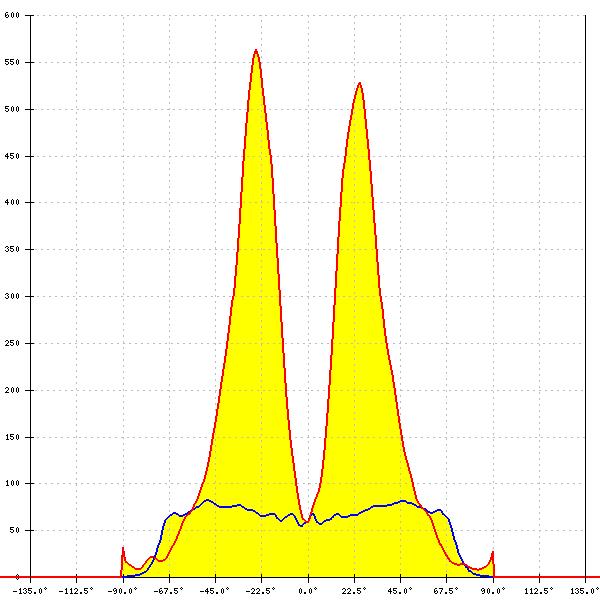

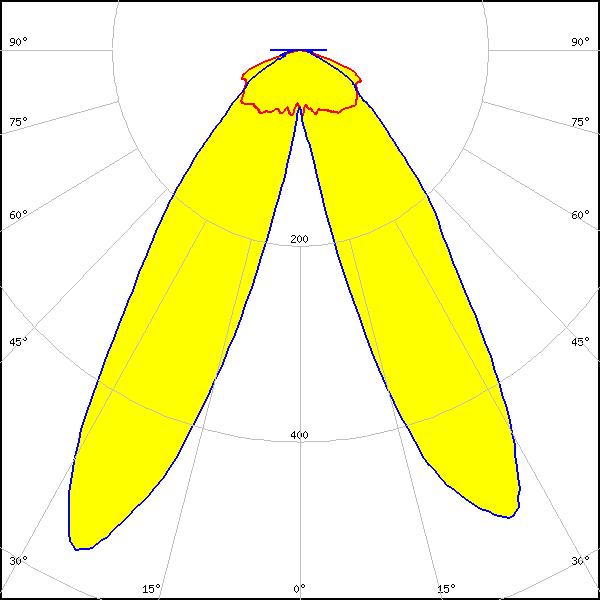

LED: XP-G
FWHM: asymmetric
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

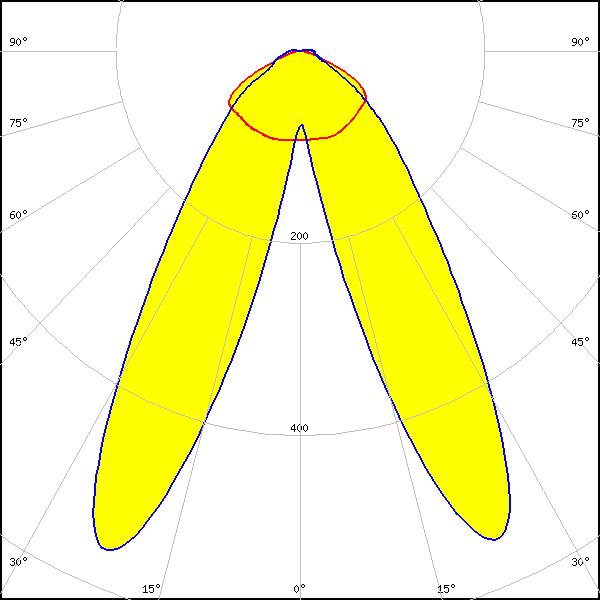

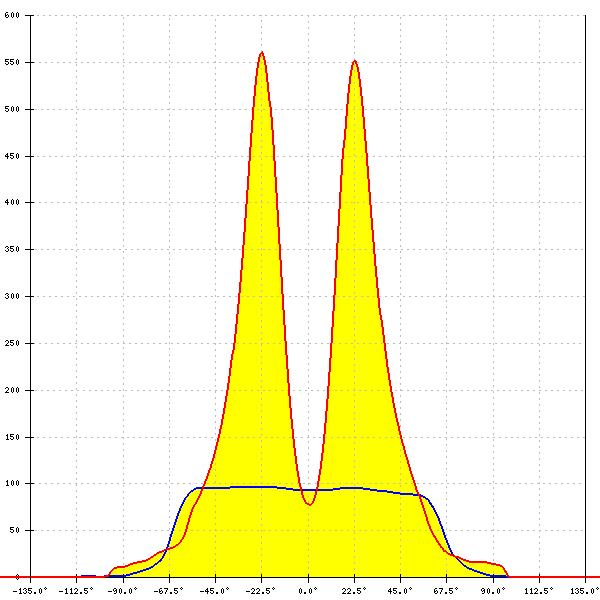

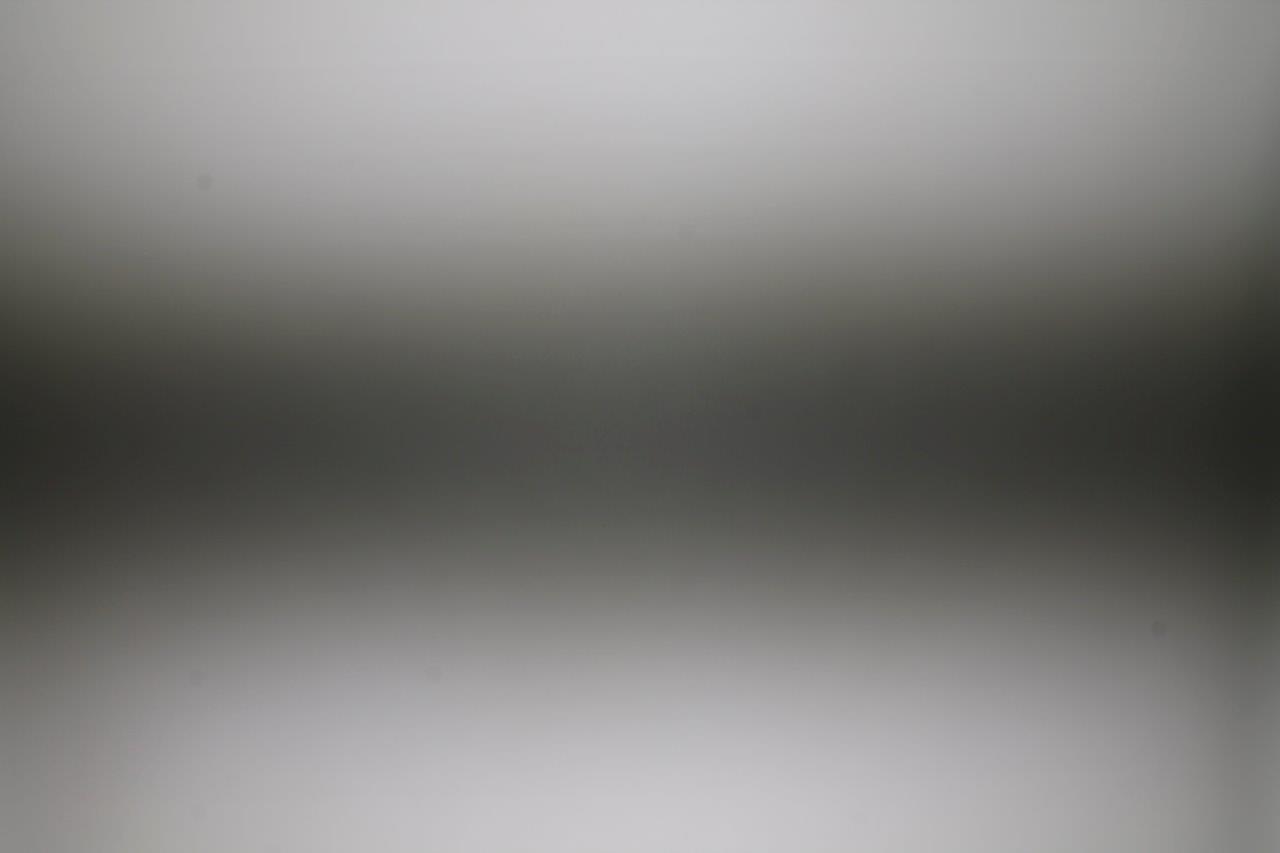

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.560 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

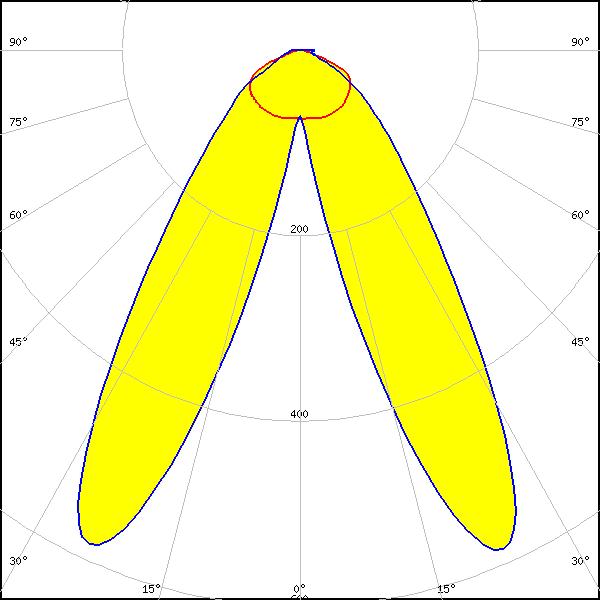

LED: LUXEON 3535 2D
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

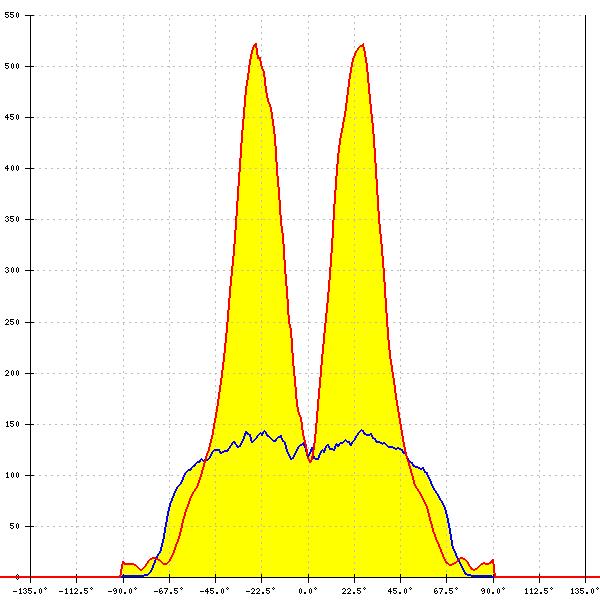

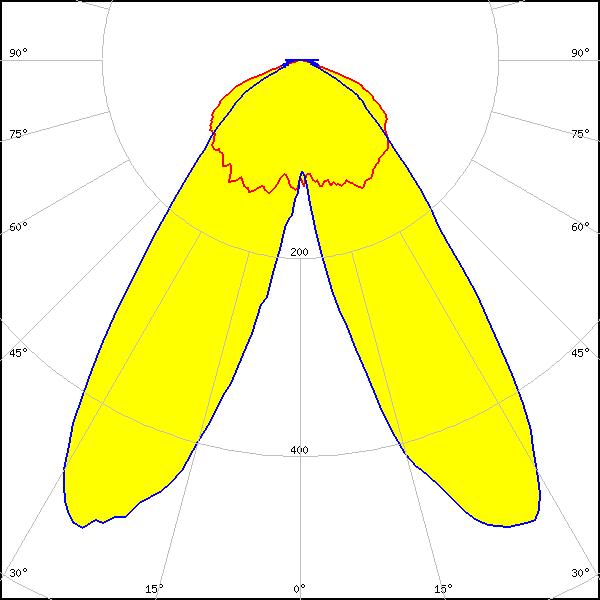

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.540 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

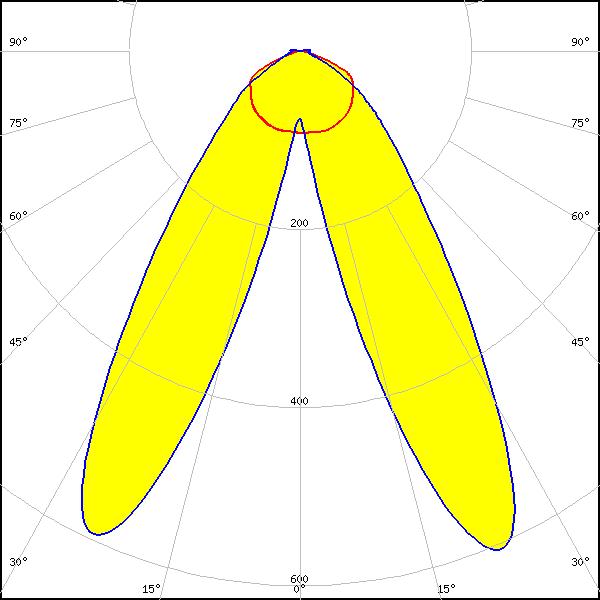

LED: LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

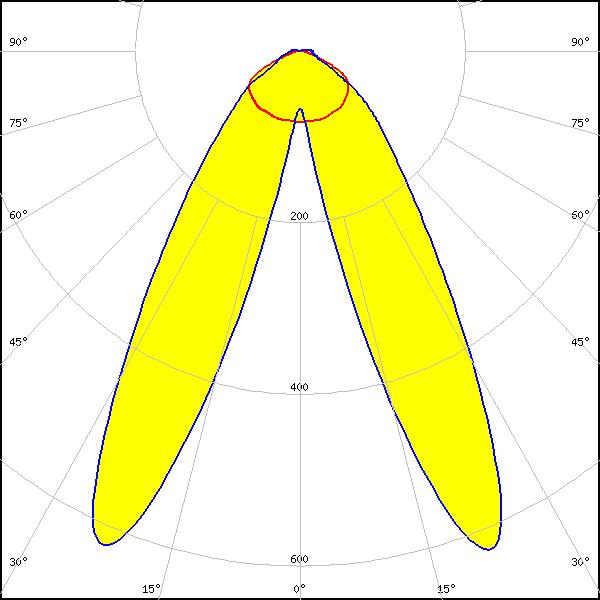

LED: MP-2016
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

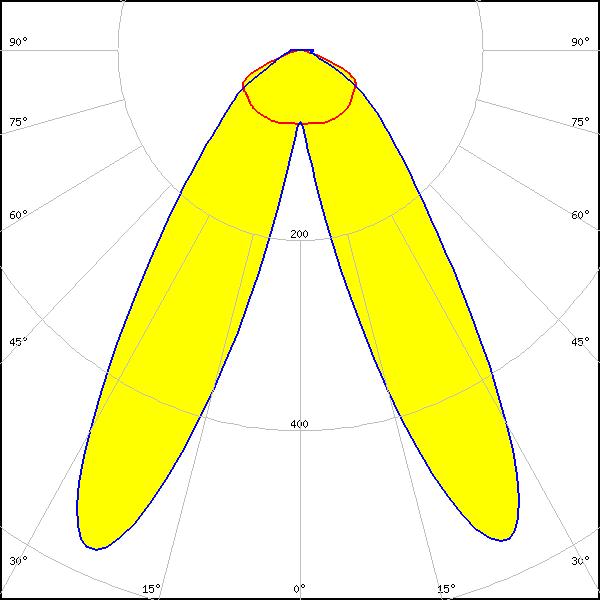

LED: NF2x757D
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

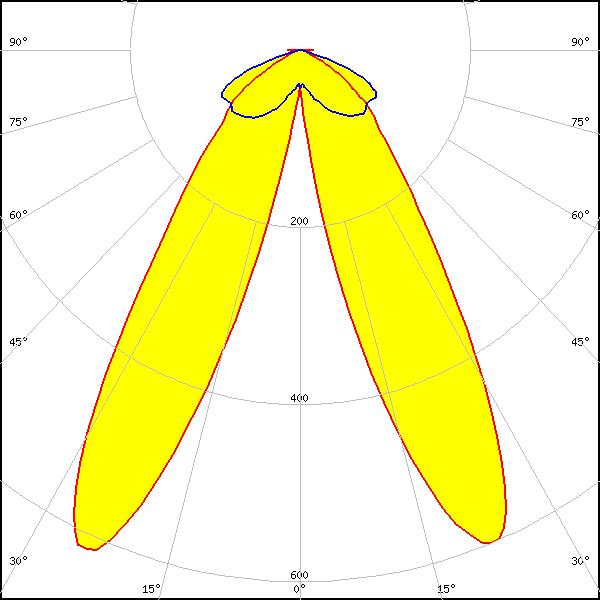

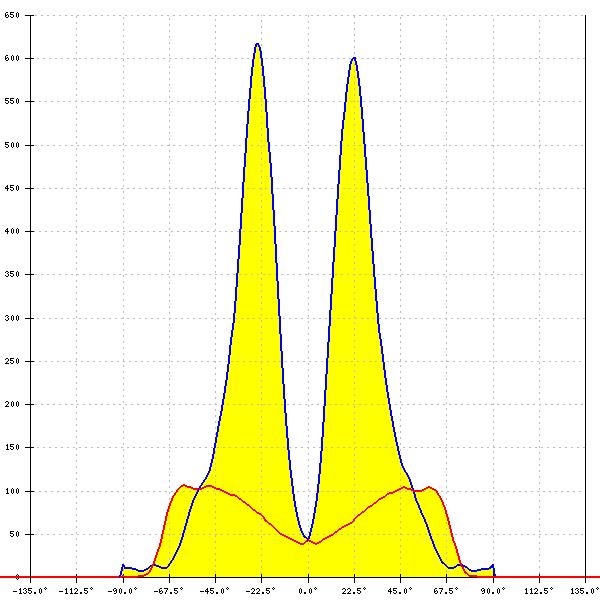

LED: NF2x757G
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

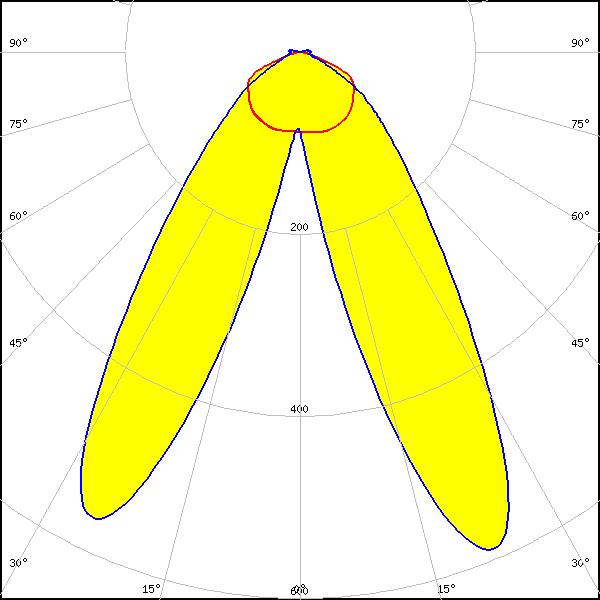

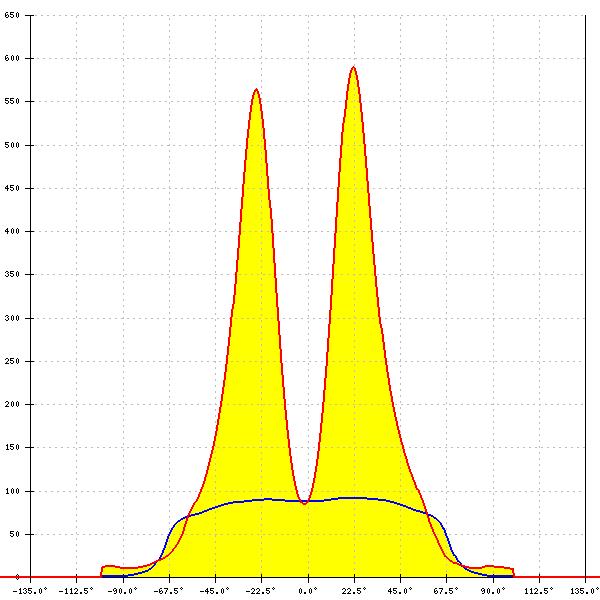

LED: NFSW757H
FWHM: asymmetric
Peak intensity: 0.591 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

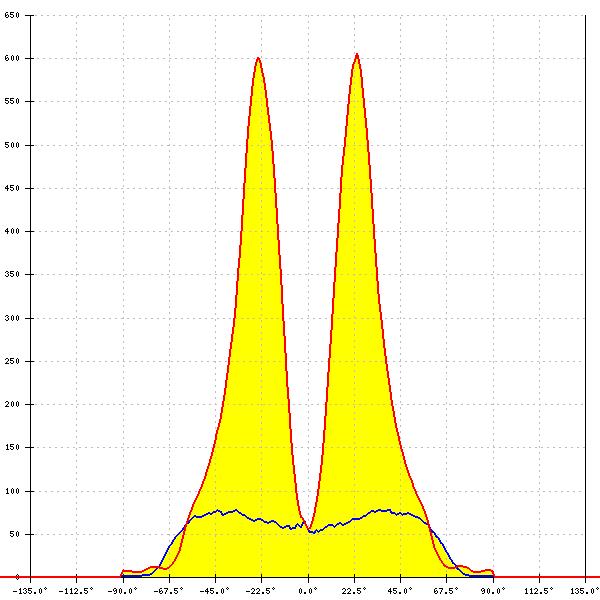

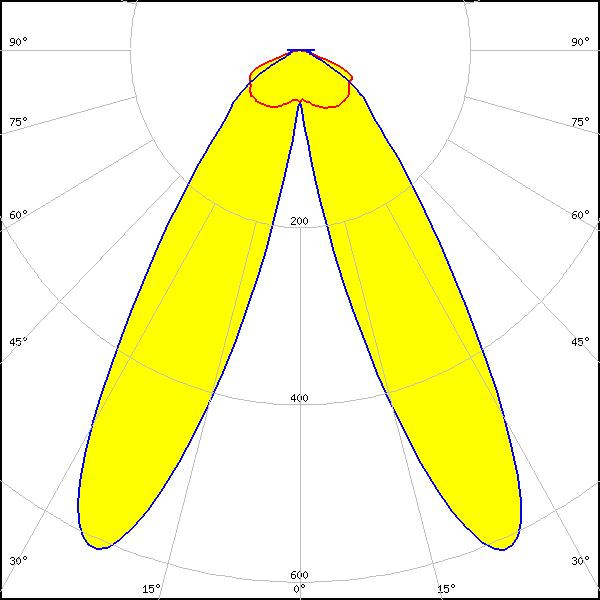

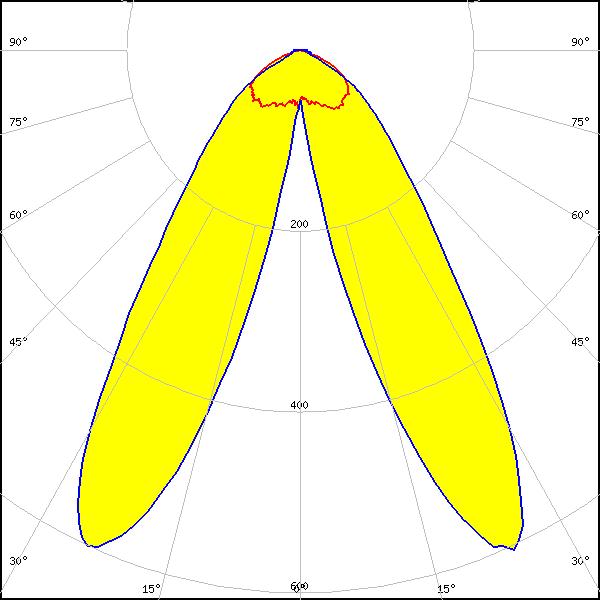

LED: NFSx757G
FWHM: asymmetric
Peak intensity: 0.606 cd/lm
Efficiency: 96 %
LEDs/each optic: 2
Light colour: White
LED: NFSx757G
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: PL-BAR-G3 1100 280x55
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: PLG2-BAR-1100-xxx-280x55-DC
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

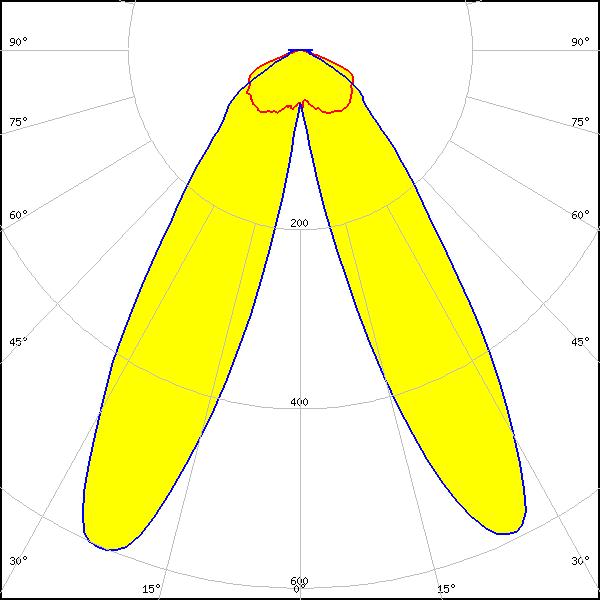

LED: Duris E 2835
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

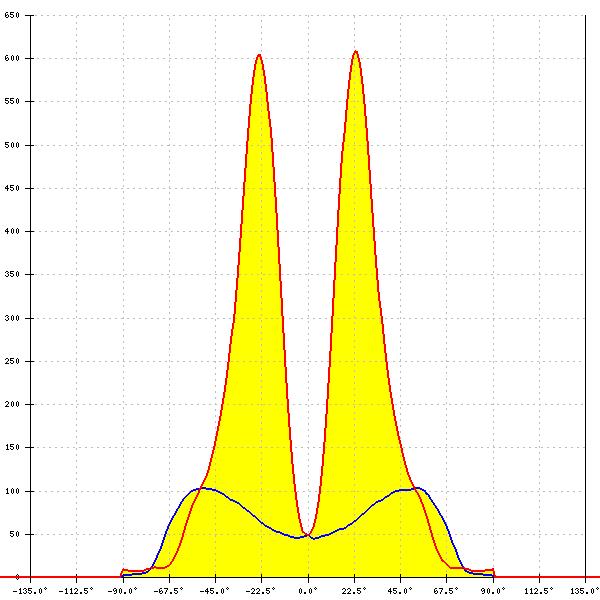

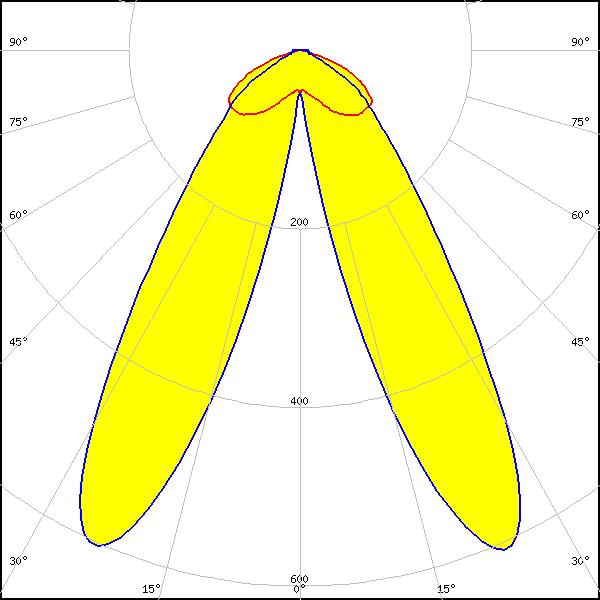

LED: Duris E 2835
FWHM: asymmetric
Peak intensity: 0.609 cd/lm
Efficiency: 96 %
LEDs/each optic: 2
Light colour: White

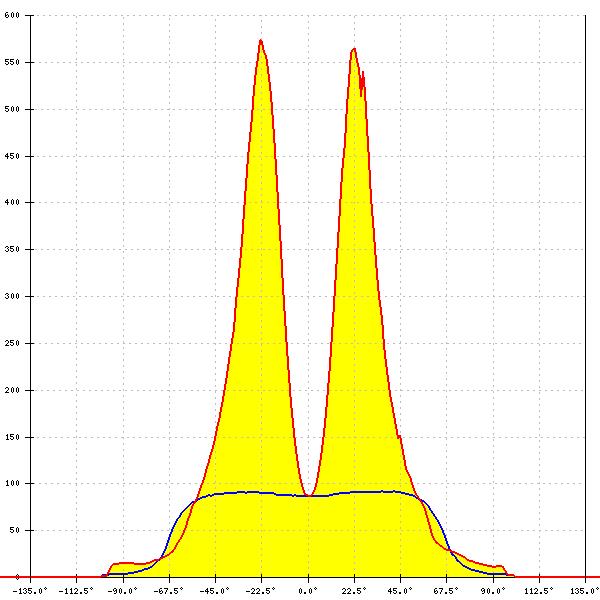

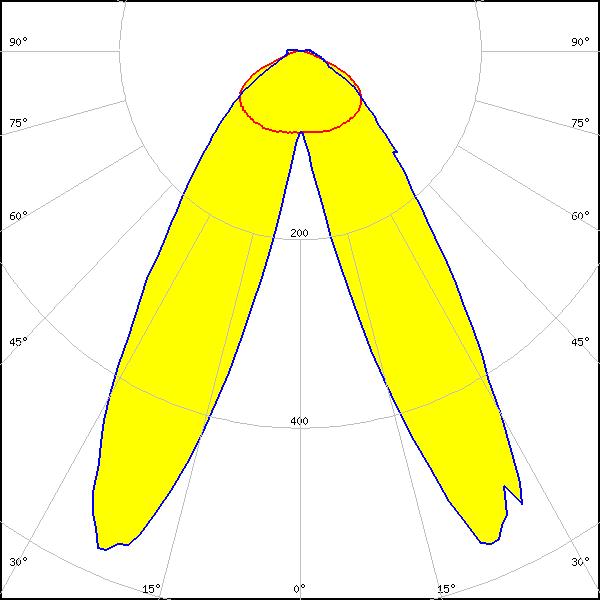

LED: Duris E5
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

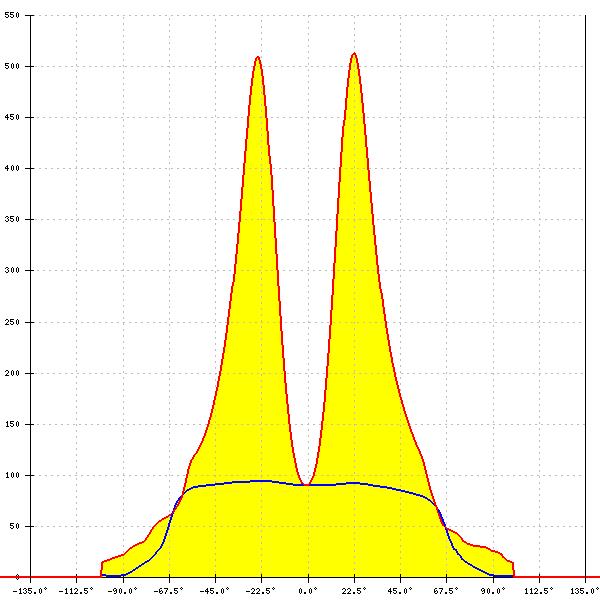

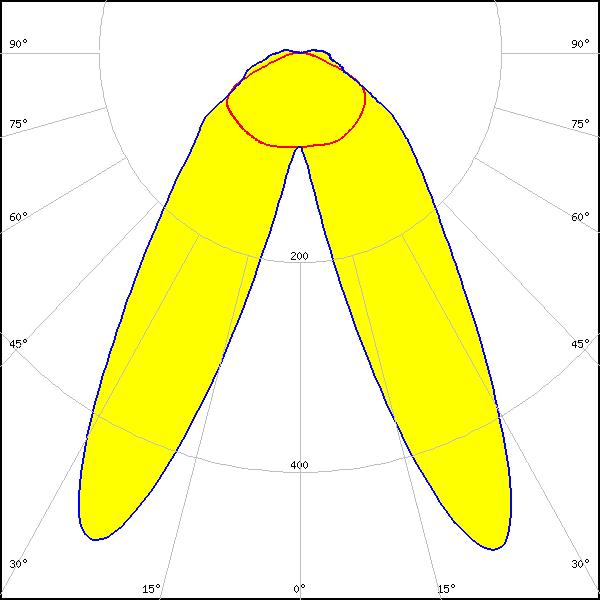

LED: Duris S2
FWHM: asymmetric
Peak intensity: 0.510 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

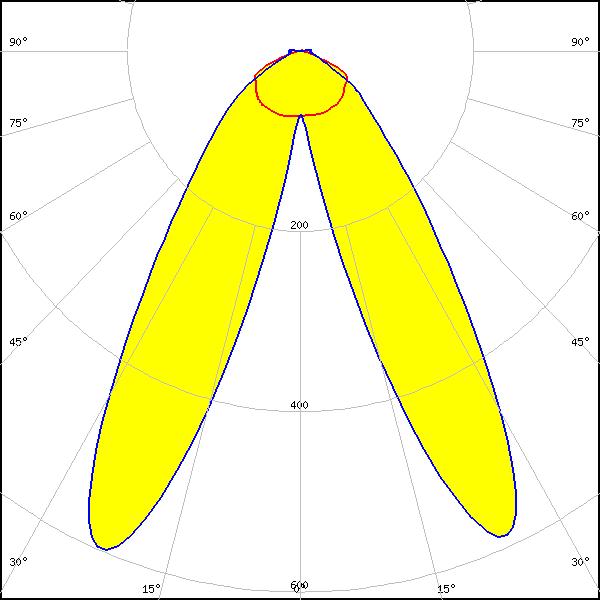

LED: Duris S5 (Single chip)
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

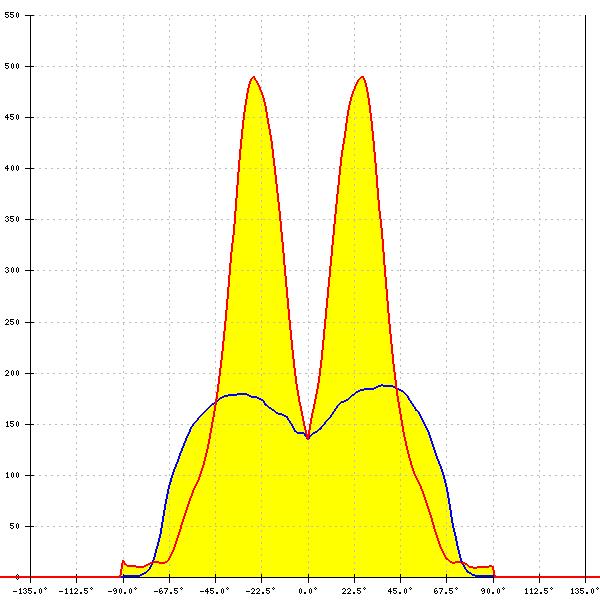

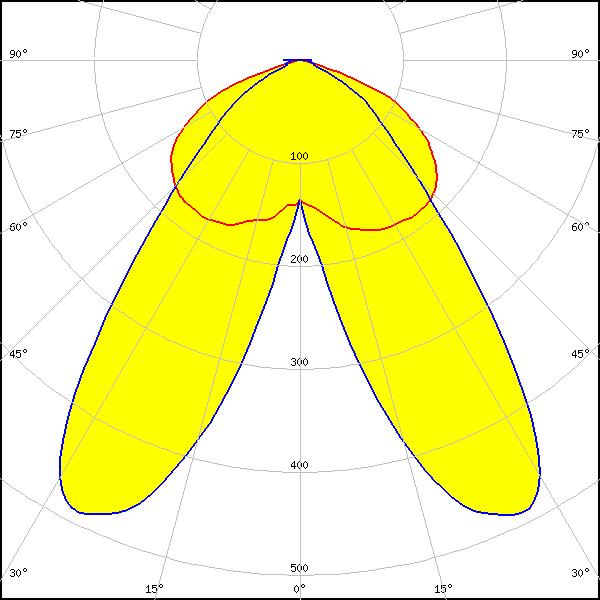

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.491 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 2226
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

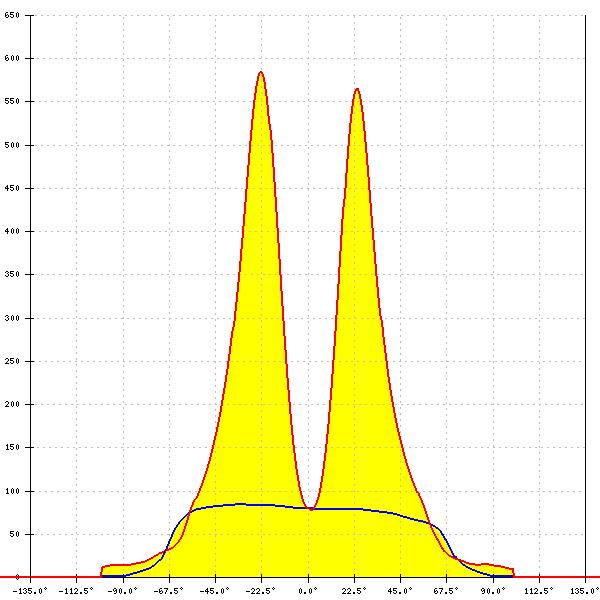

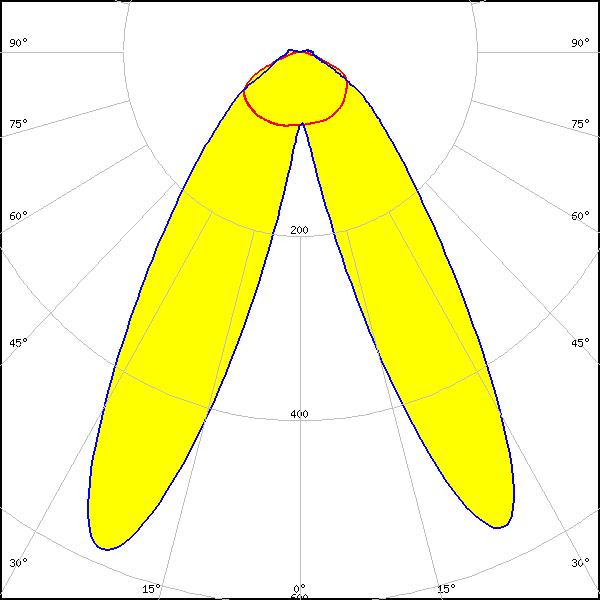

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line VO 1ft MF 3R HV5
FWHM: asymmetric
Peak intensity: 0.825 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft HF 3R HV5
FWHM: asymmetric
Peak intensity: 0.725 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM: asymmetric
Peak intensity: 0.774 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM: asymmetric
Peak intensity: 0.738 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

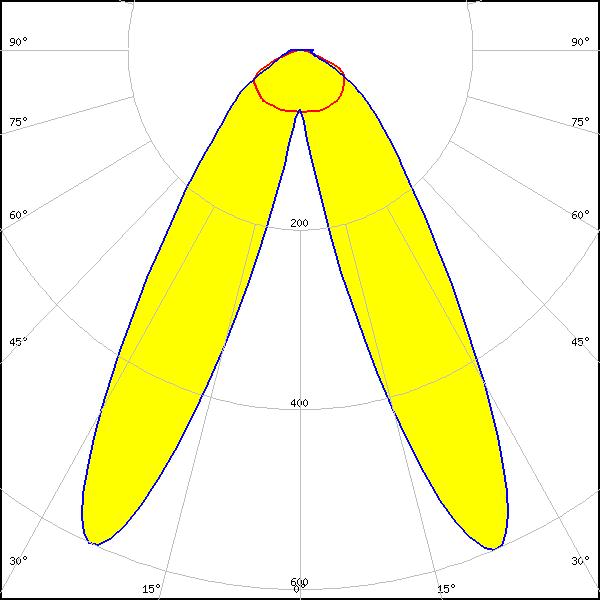

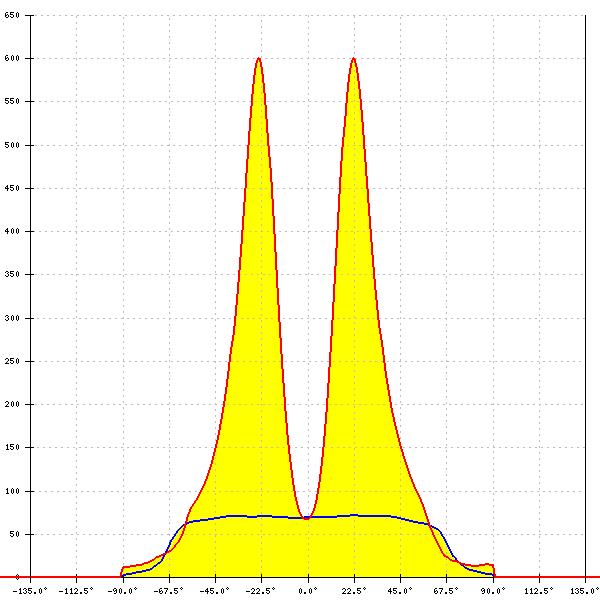

LED: LM231 A/B
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

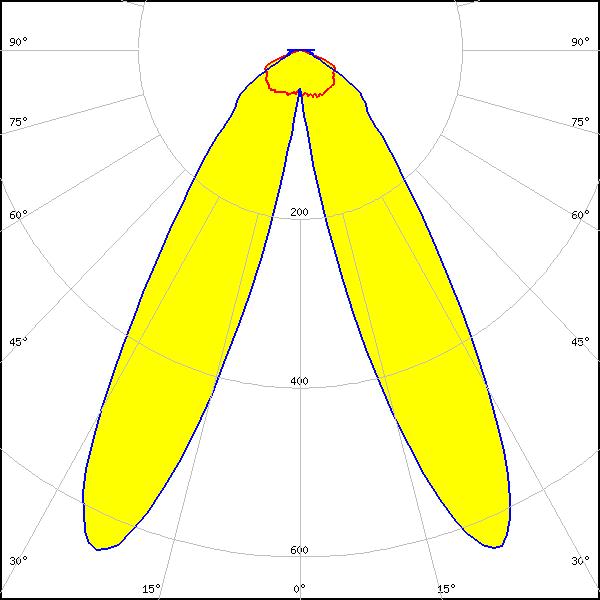

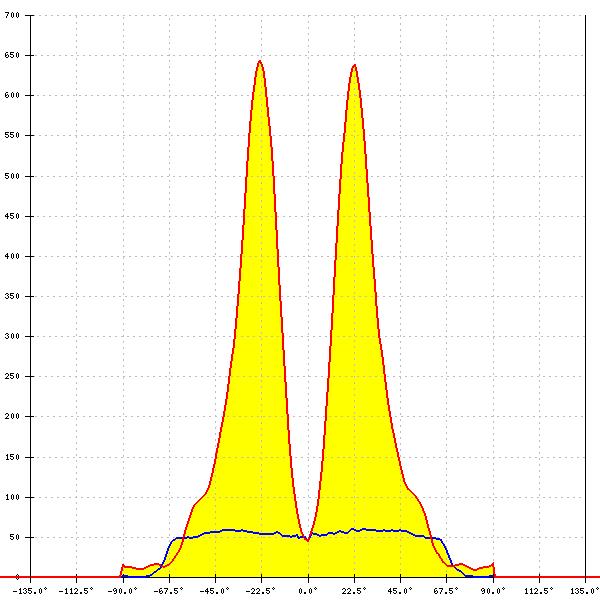

LED: LM28xB Series
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

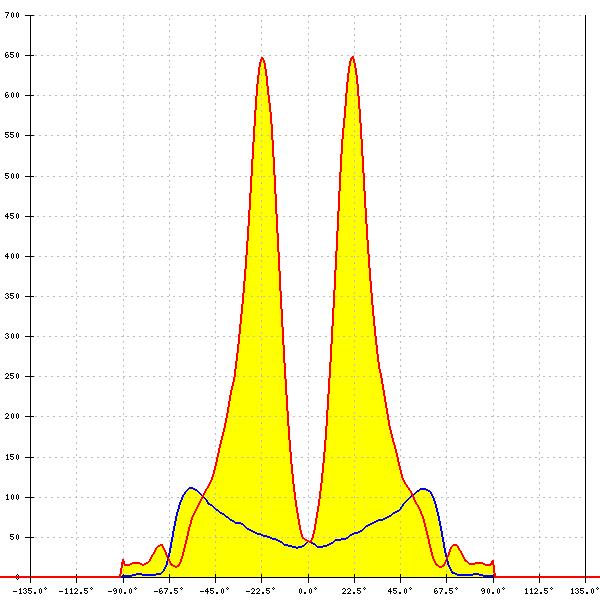

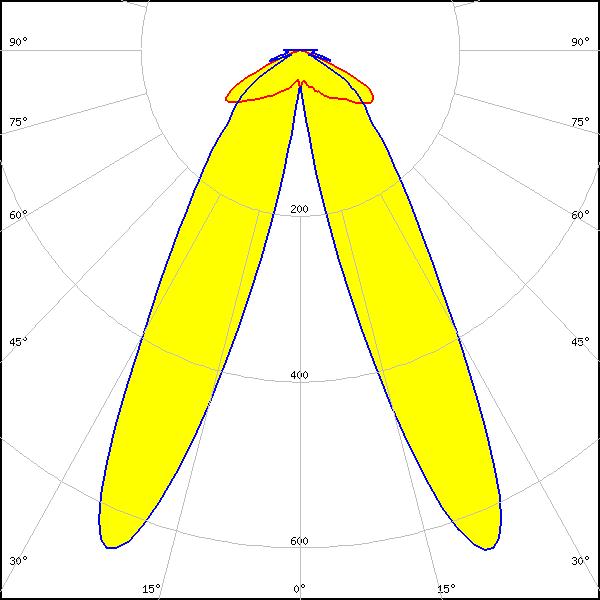

LED: LM301B
FWHM: asymmetric
Peak intensity: 0.649 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

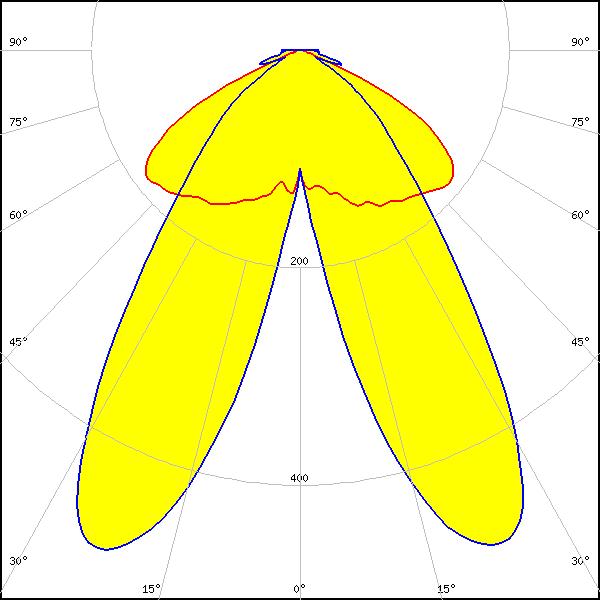

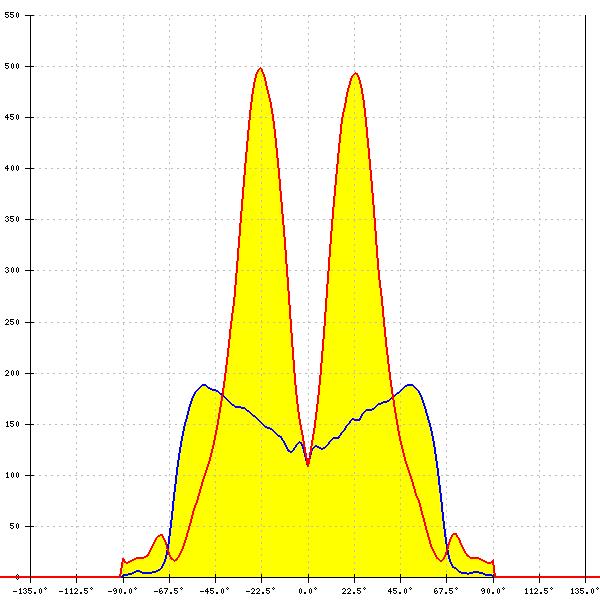

LED: LM301B
FWHM: asymmetric
Peak intensity: 0.499 cd/lm
Efficiency: 95 %
LEDs/each optic: 2
Light colour: White

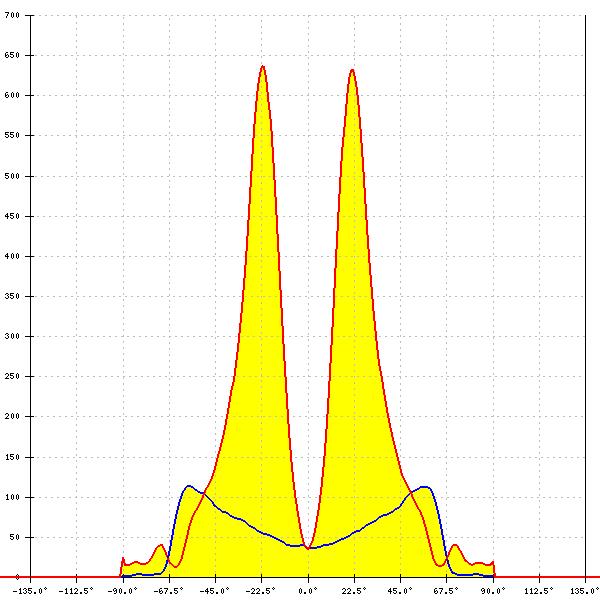

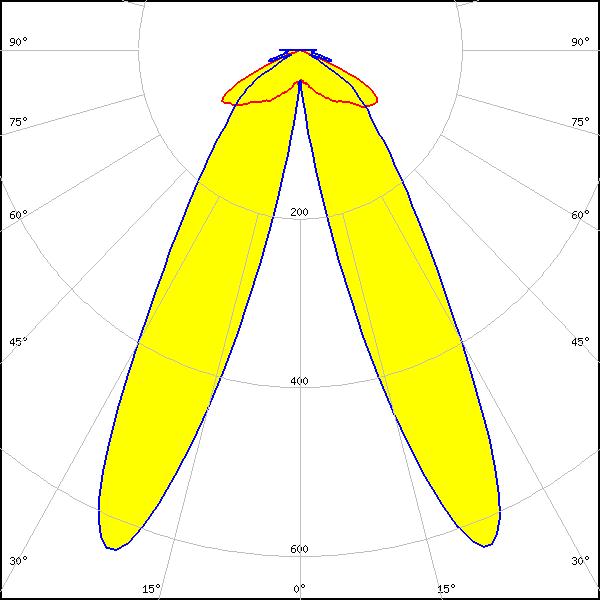

LED: LM302Z plus
FWHM: asymmetric
Peak intensity: 0.637 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

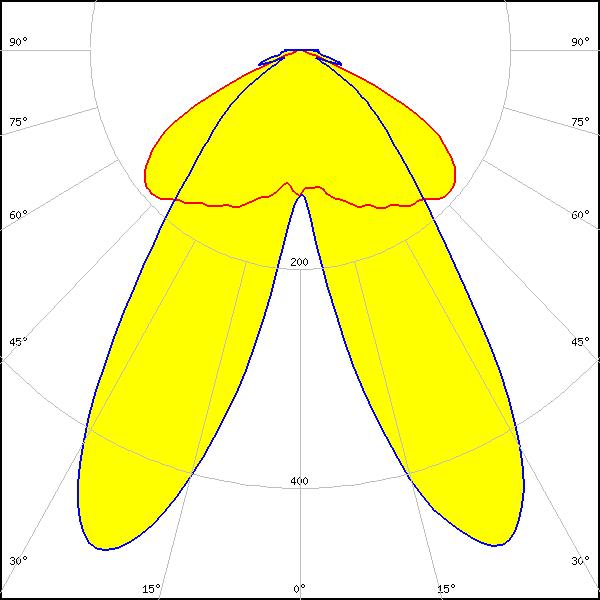

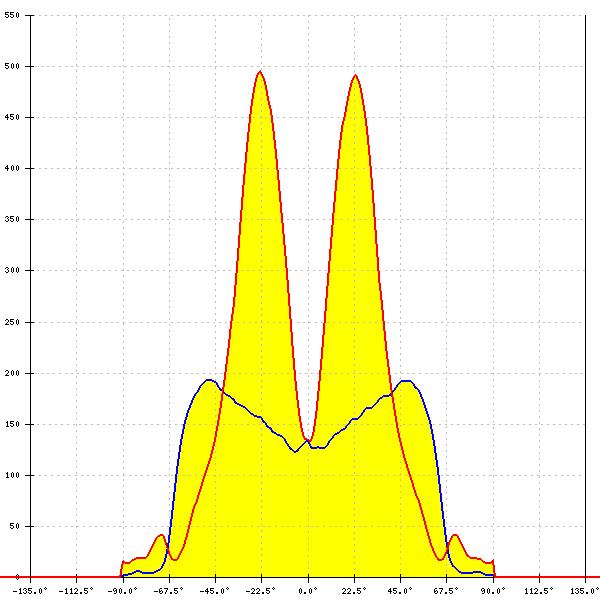

LED: LM302Z plus
FWHM: asymmetric
Peak intensity: 0.495 cd/lm
Efficiency: 95 %
LEDs/each optic: 2
Light colour: White

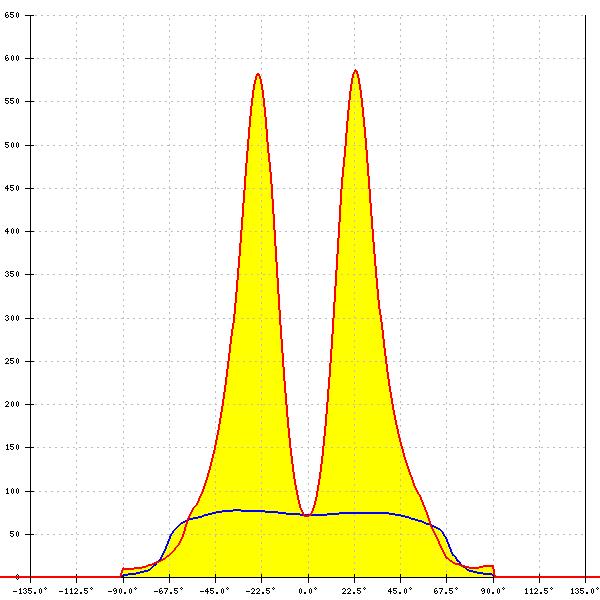

LED: LM561B
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

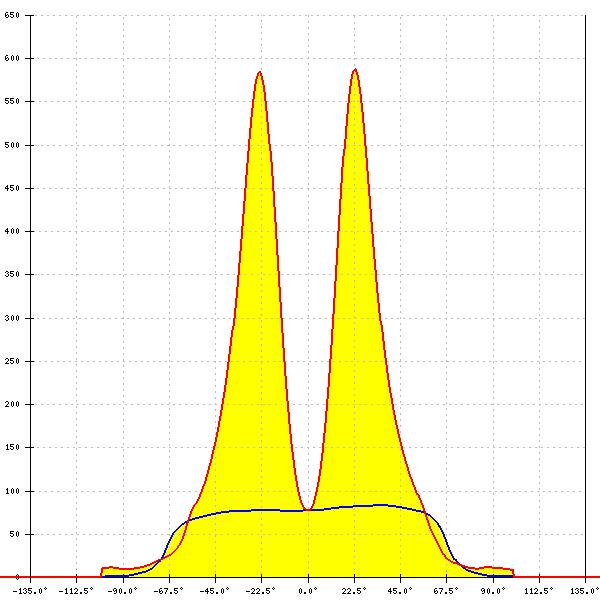

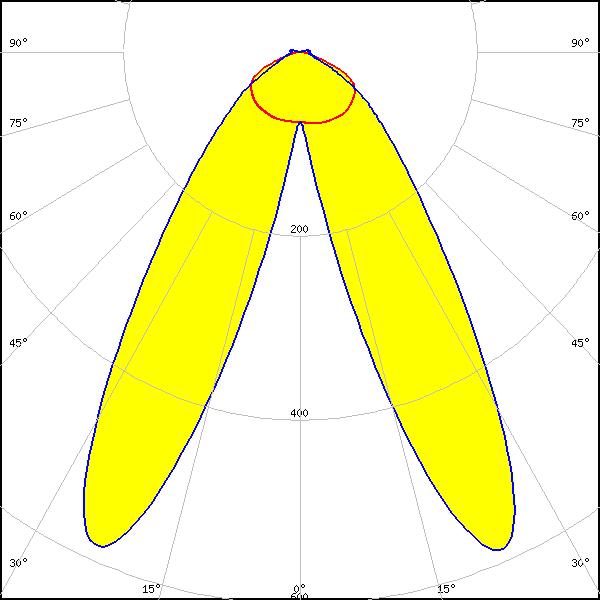

LED: LM561B Plus
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

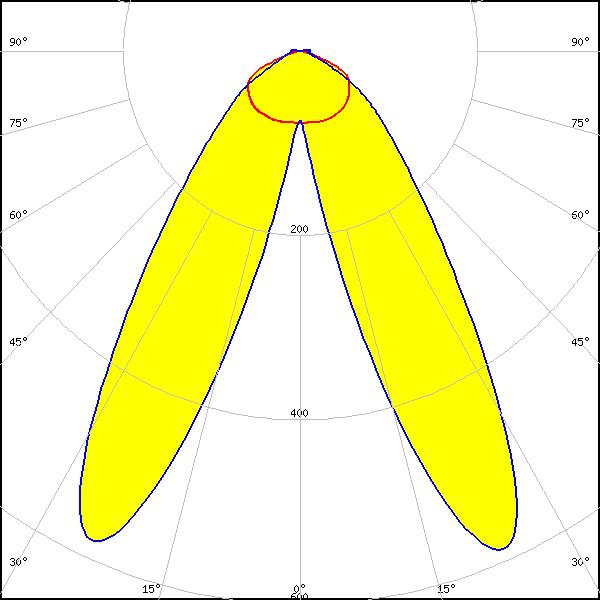

LED: LT-R286A
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

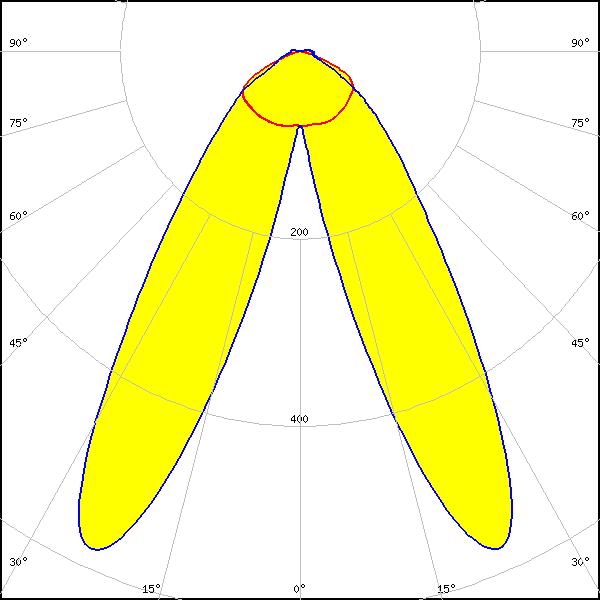

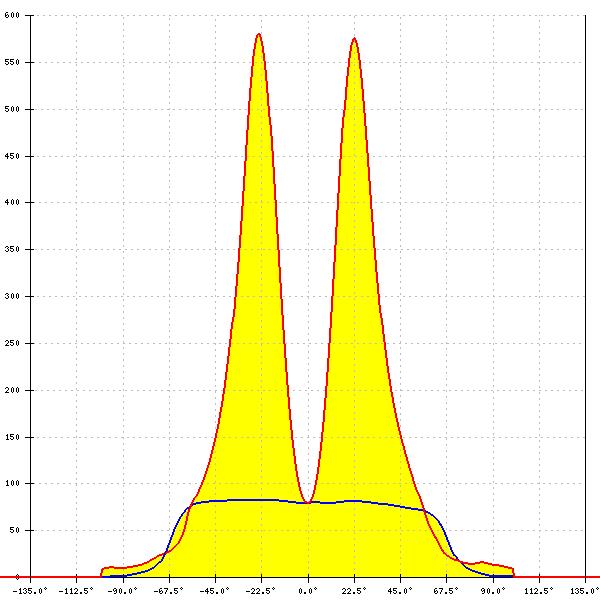

LED: SEOUL 3030
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

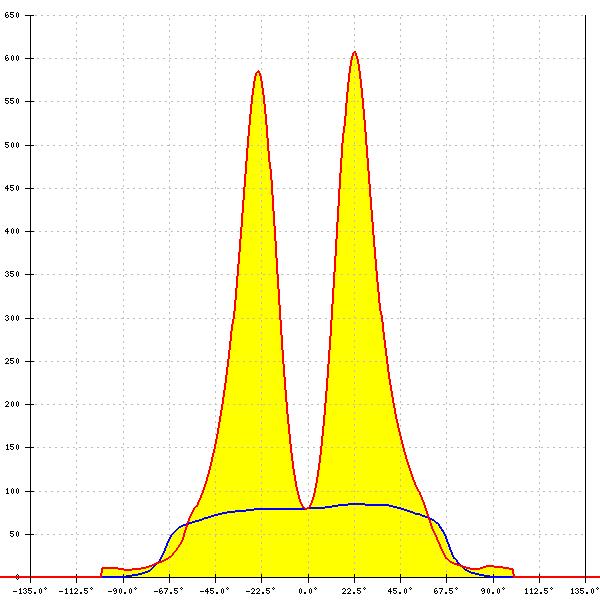

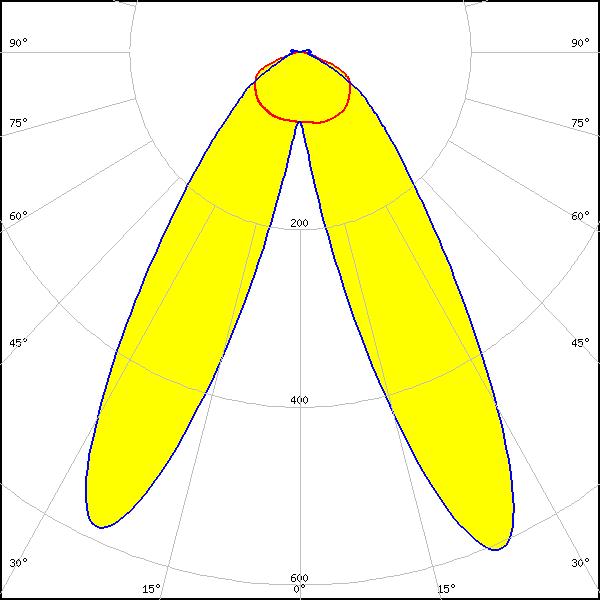

LED: SEOUL 5630C
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

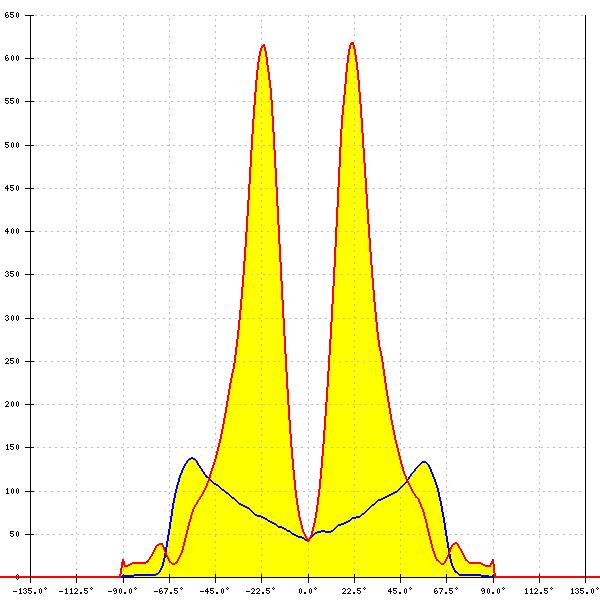

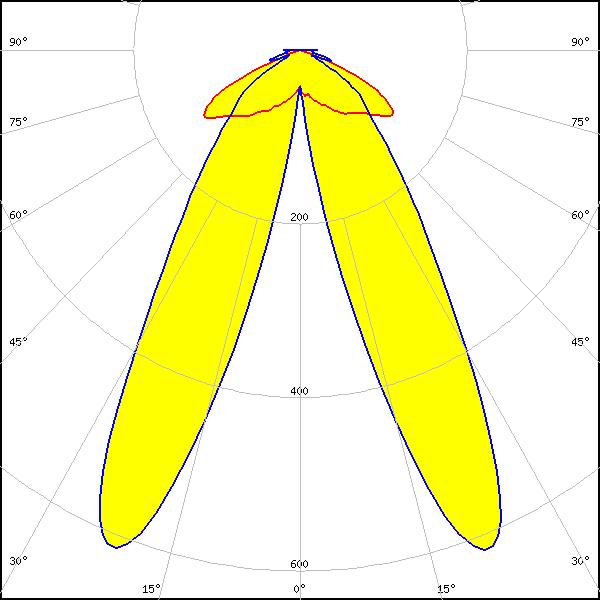

LED: SEOUL 5630D
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

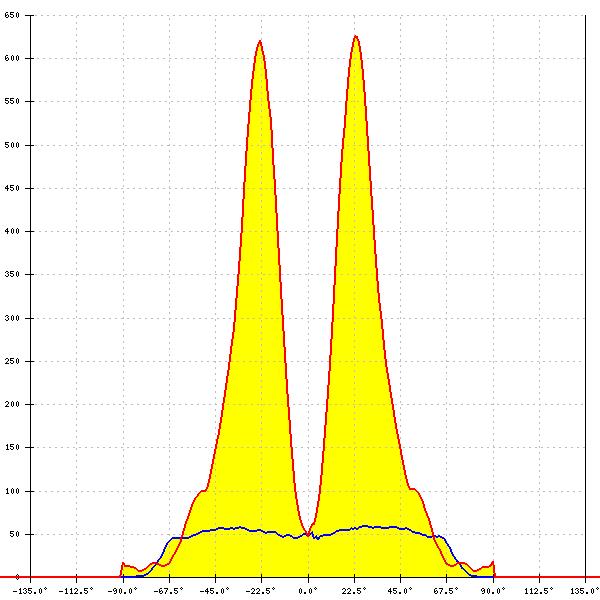

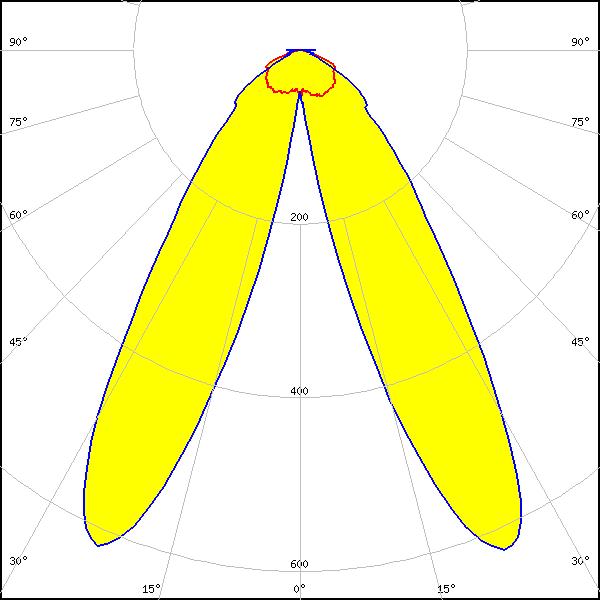

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 0.626 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

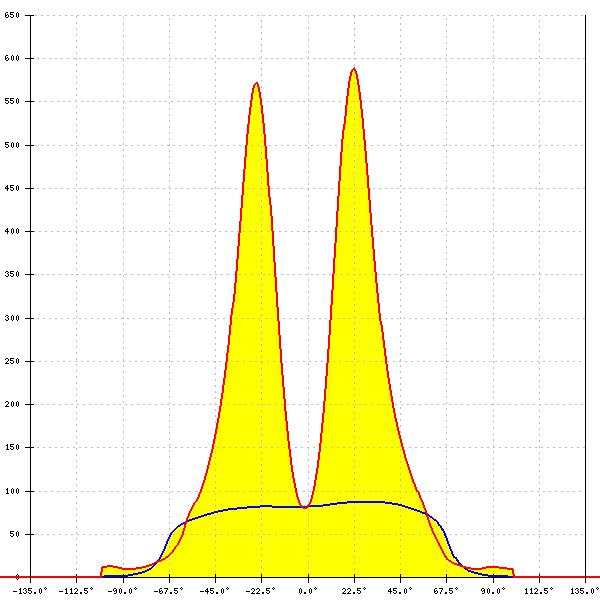

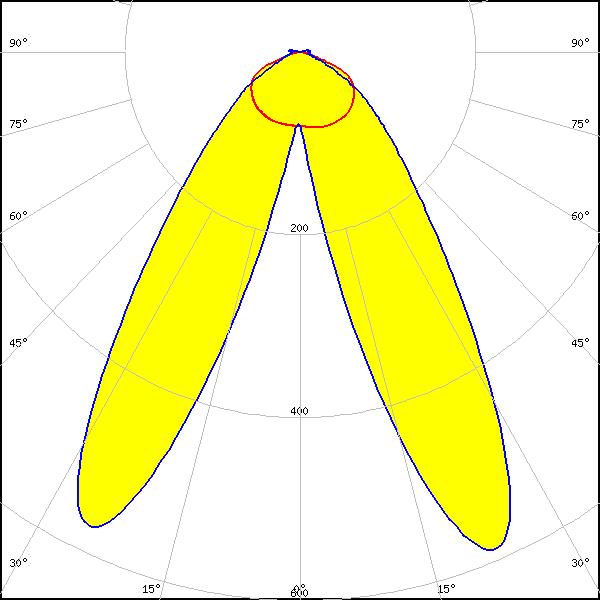

LED: LLE G2 55x280mm 2000lm
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
