F14325_JENNY-8X1-CY
Print

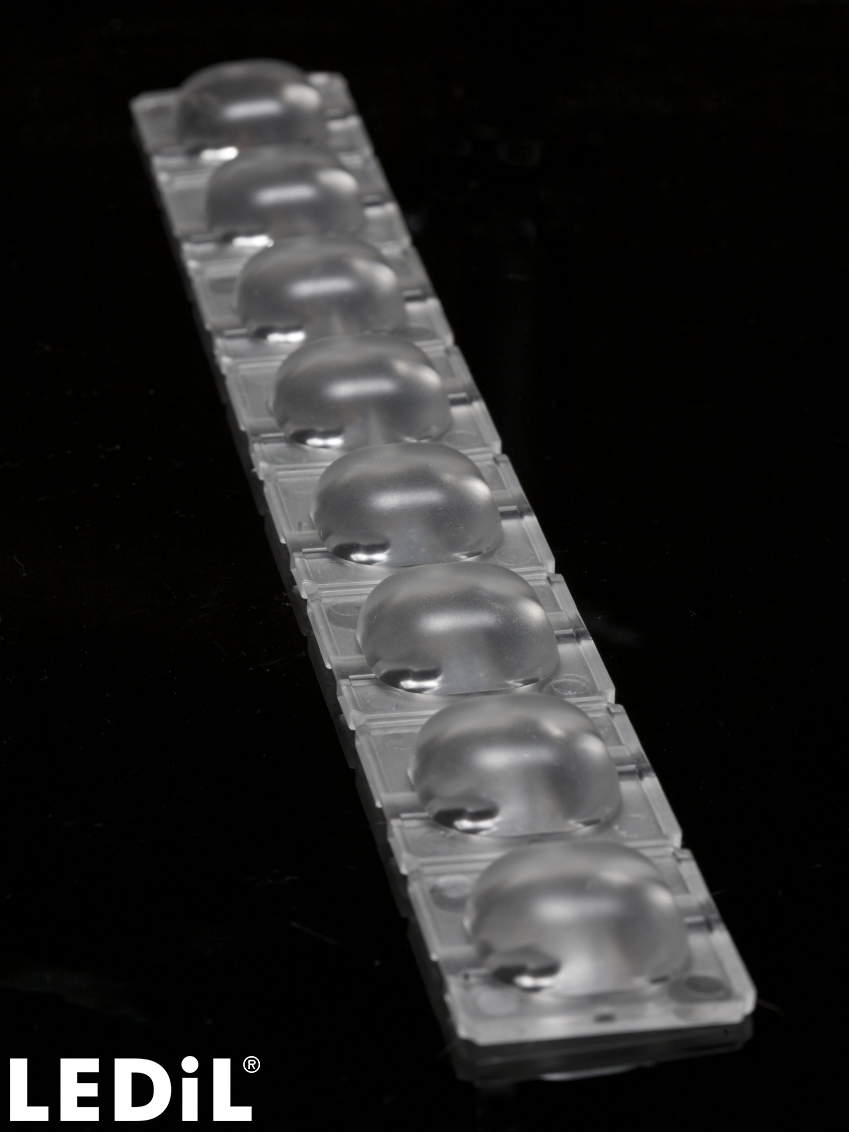

~105° + 105° batwing light distribution for canopy and symmetrical tunnel lighting. Variant with 8 lenses and cable channels on the sides.
Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.
Component Materials
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT USWHERE TO BUY
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

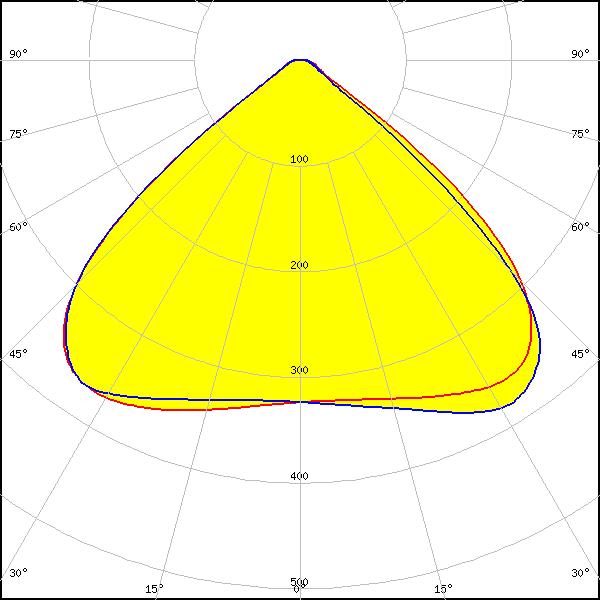

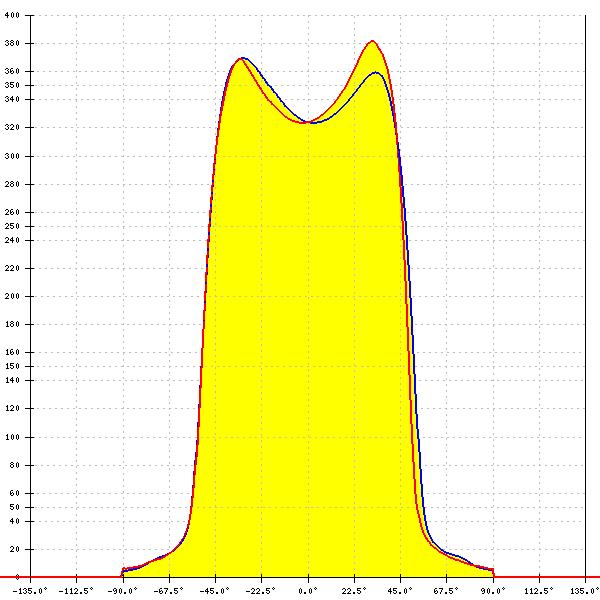

LED:
V10 Gen6
LES size: 9.9 mm
FWHM:
102°
FWTM:
117°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

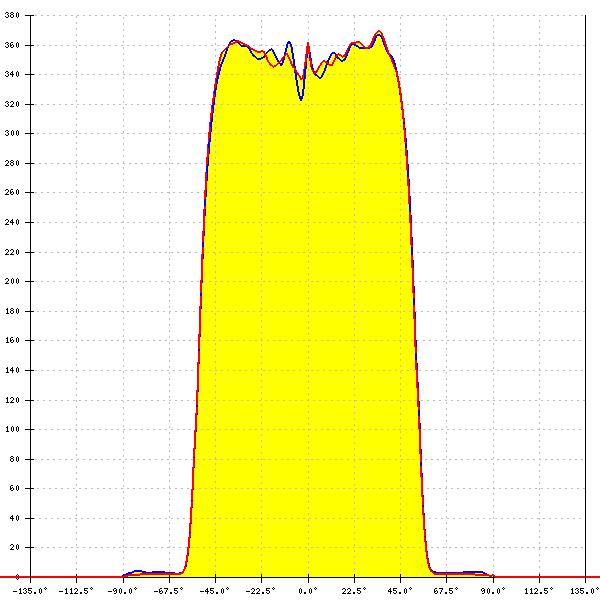

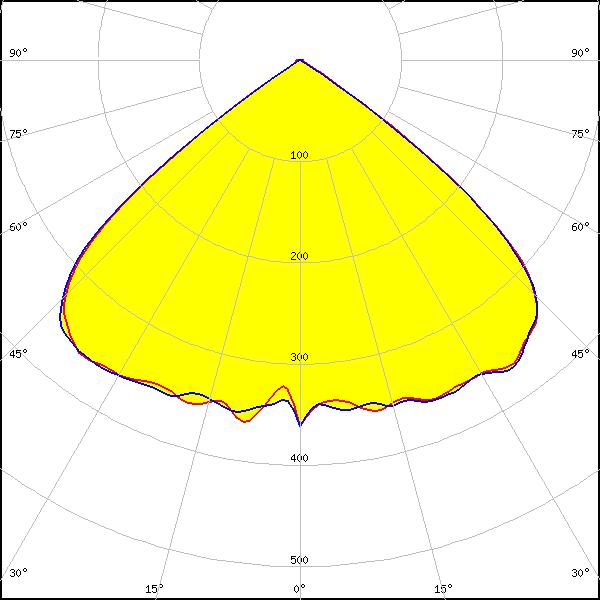

V10 Gen7
LES size: 10.2 mm
FWHM:
97° + 100°
FWTM:
107° + 110°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

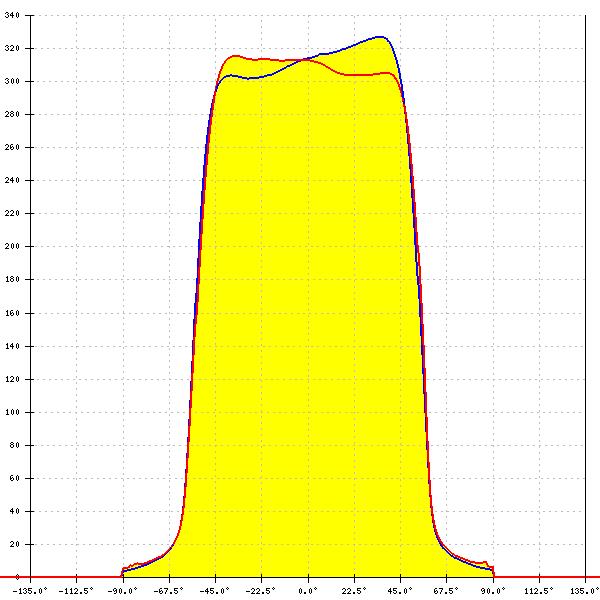

LED:

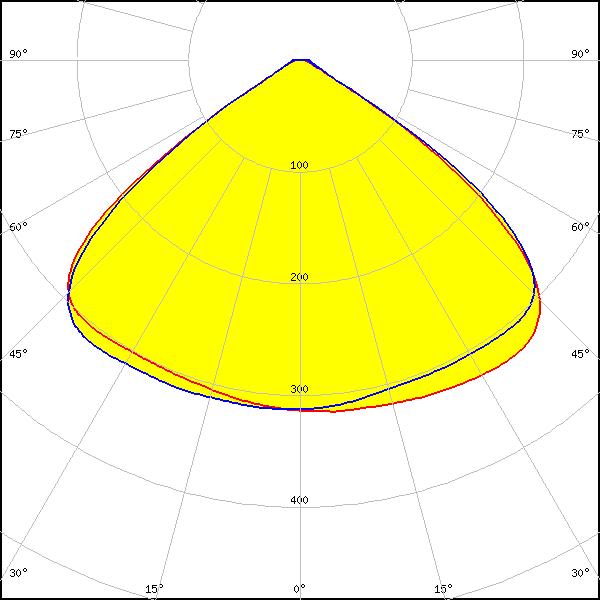

V6 Gen6
LES size: 6.0 mm
FWHM:
110°
FWTM:
123°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

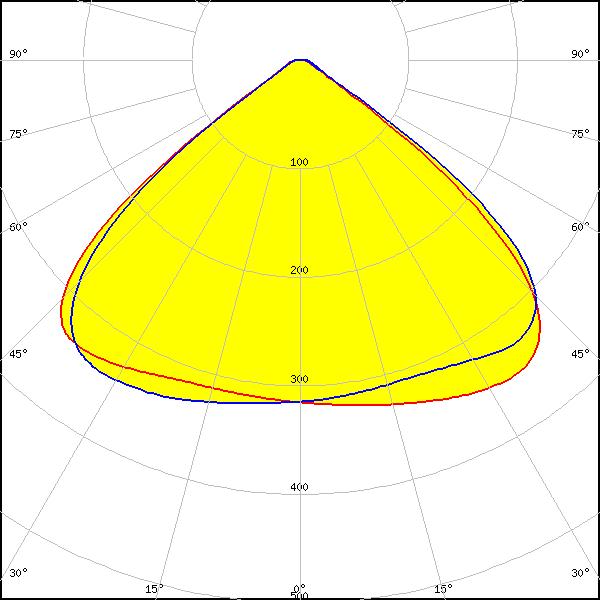

LED:

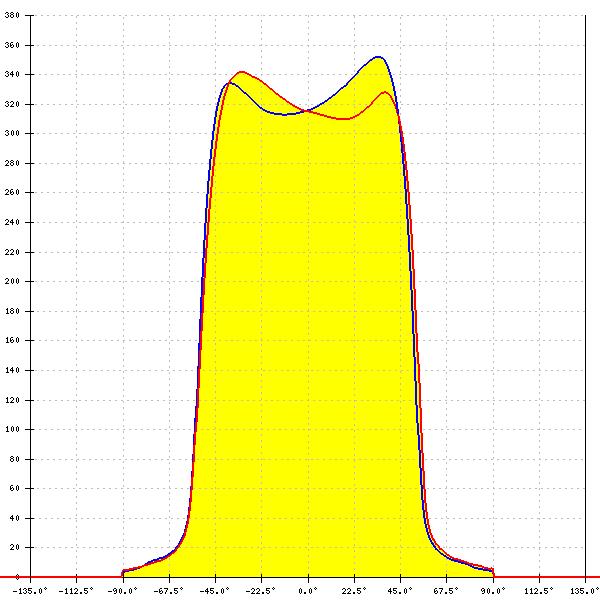

V8 Gen6
LES size: 8.1 mm
FWHM:
105°
FWTM:
121°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

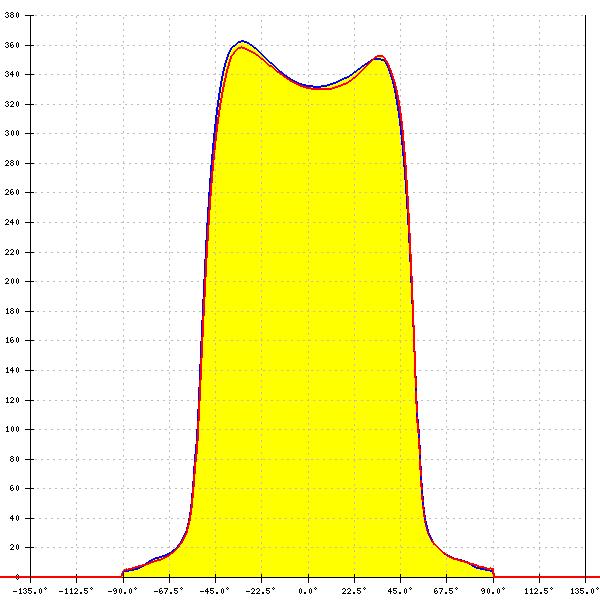

LED:

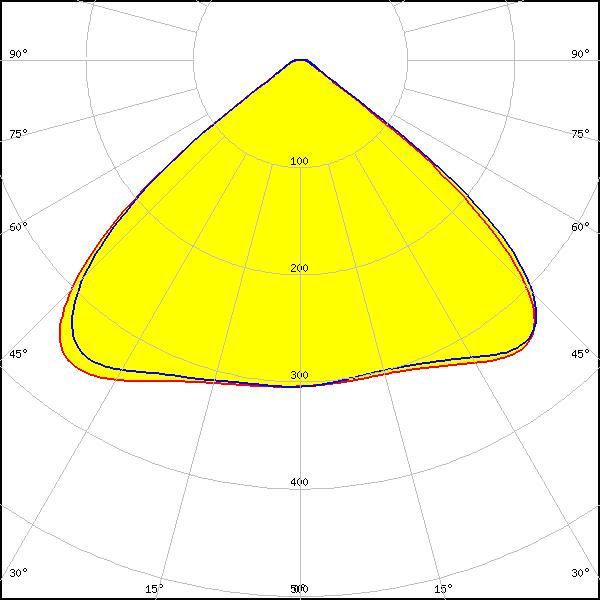

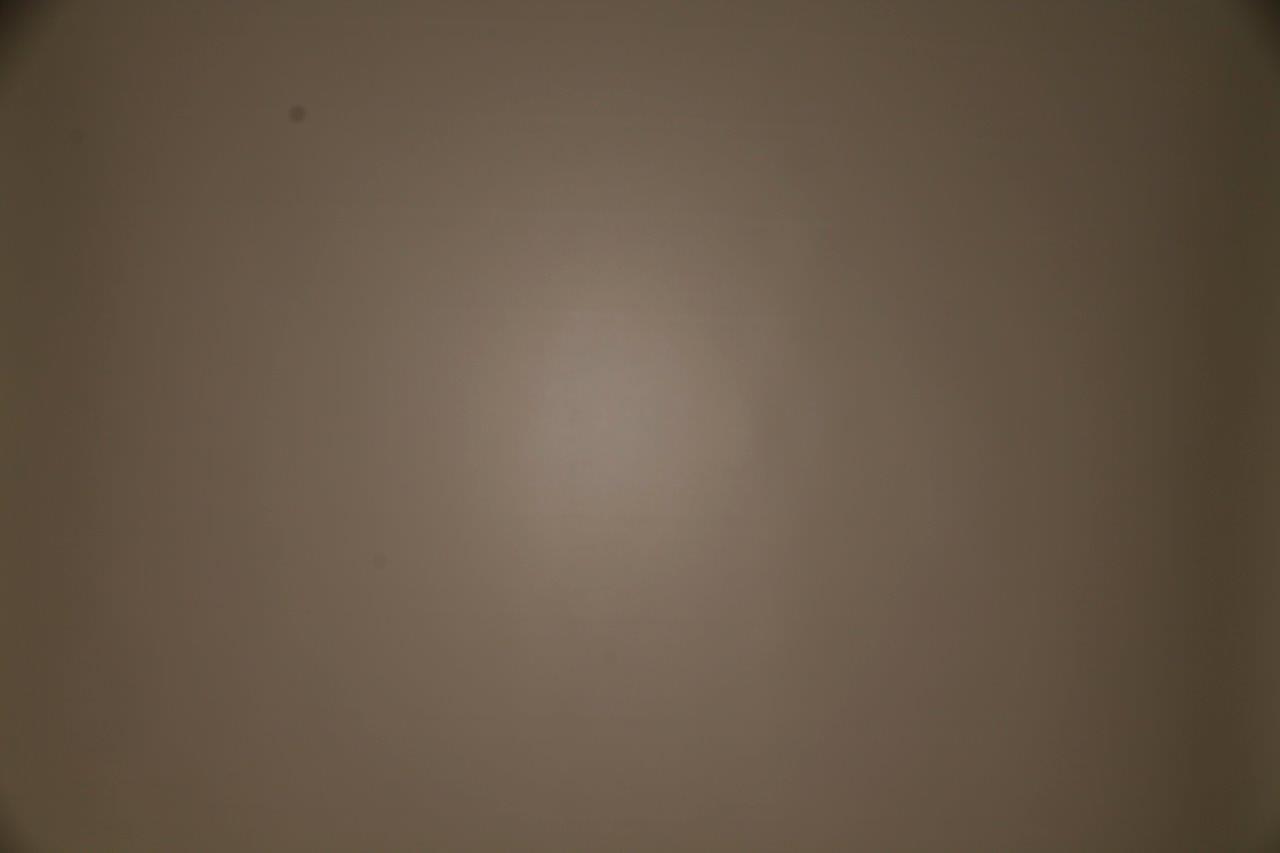

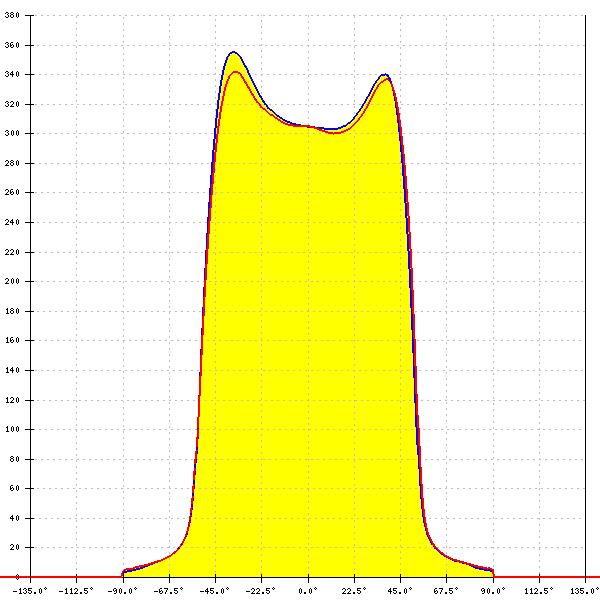

CLL01x
LES size: 6.0 mm
FWHM:
104°
FWTM:
117°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

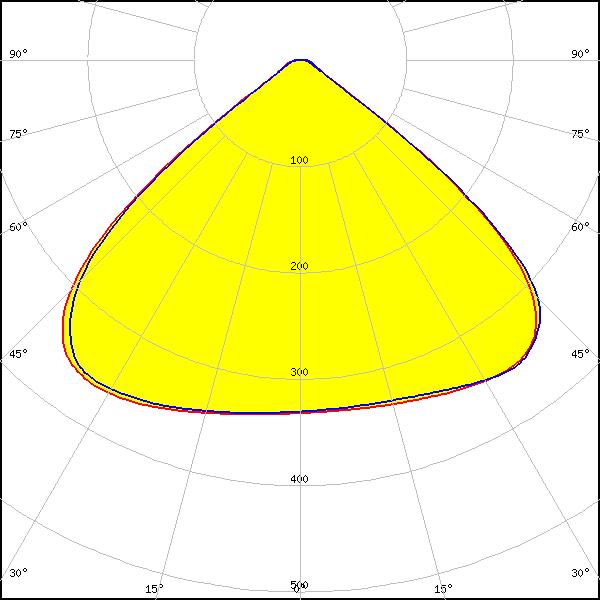

CLU02x (LES10)
LES size: 9.8 mm
FWHM:
103°
FWTM:
116°
Peak intensity:
0.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

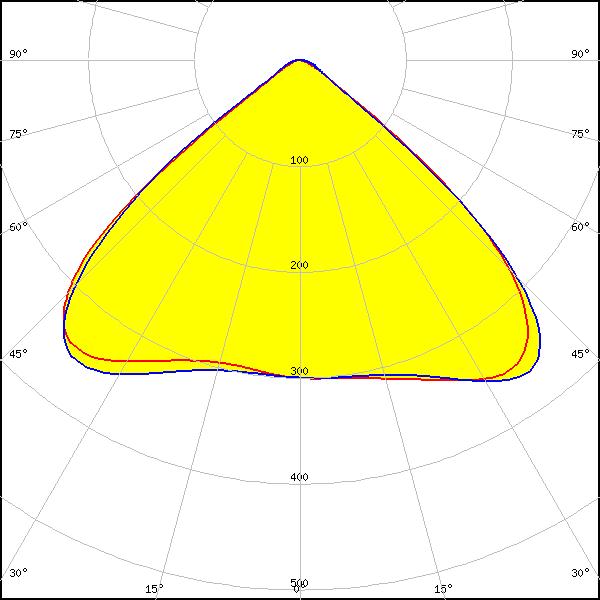

LED:

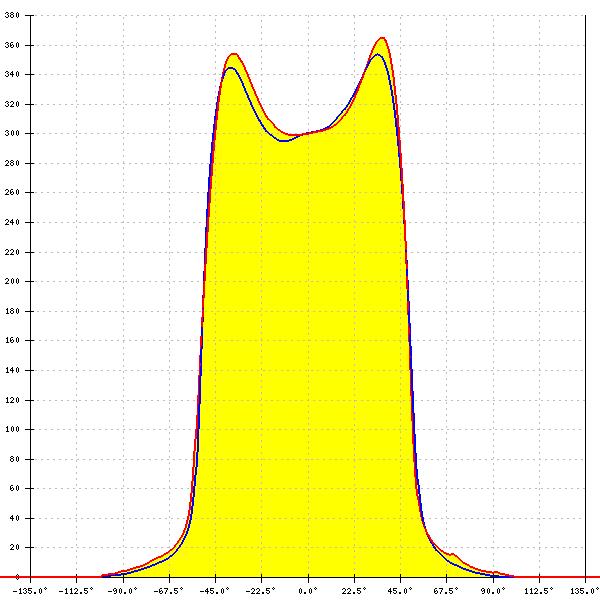

CLU700/701/702/703
LES size: 6.0 mm
FWHM:
102°
FWTM:
116°
Peak intensity:
0.470 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

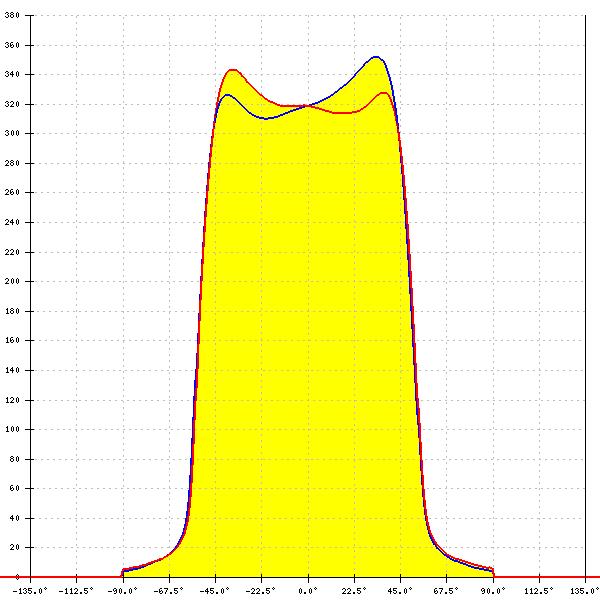

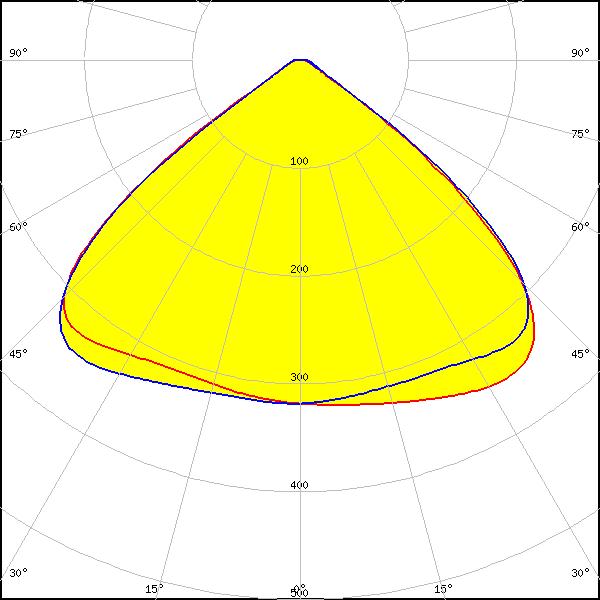

CXA/B 13xx
LES size: 6.0 mm
FWHM:
105°
FWTM:
119°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

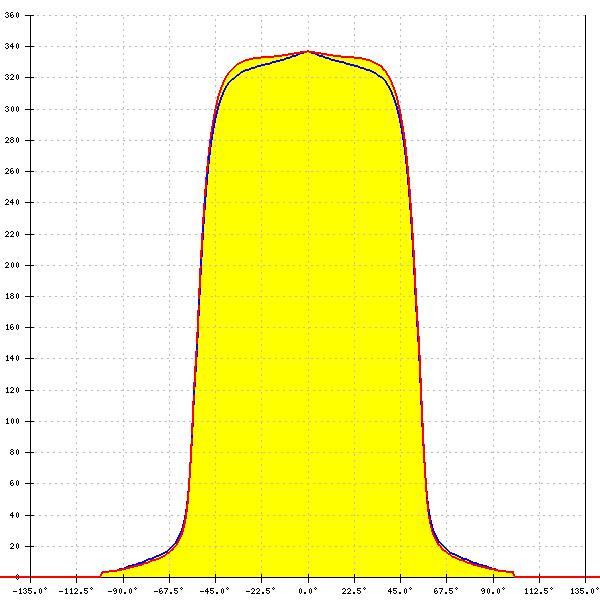

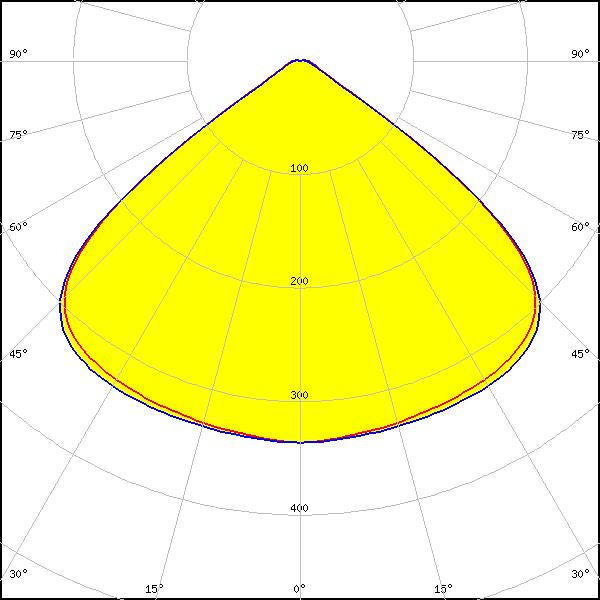

LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
106°
FWTM:
119°
Peak intensity:
0.380 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

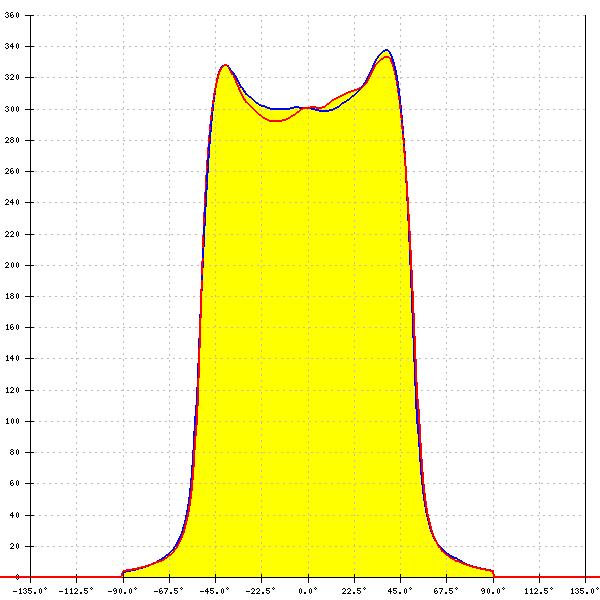

LED:

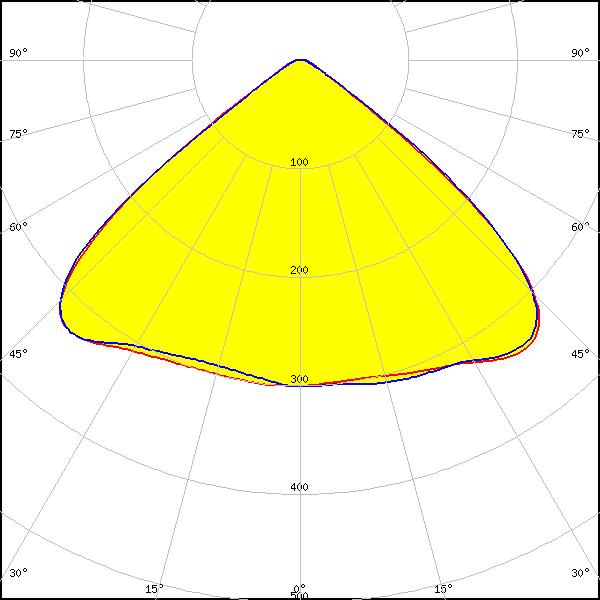

MK-R
LES size: 0.0 mm
FWHM:
105°
FWTM:
120°
Peak intensity:
0.420 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

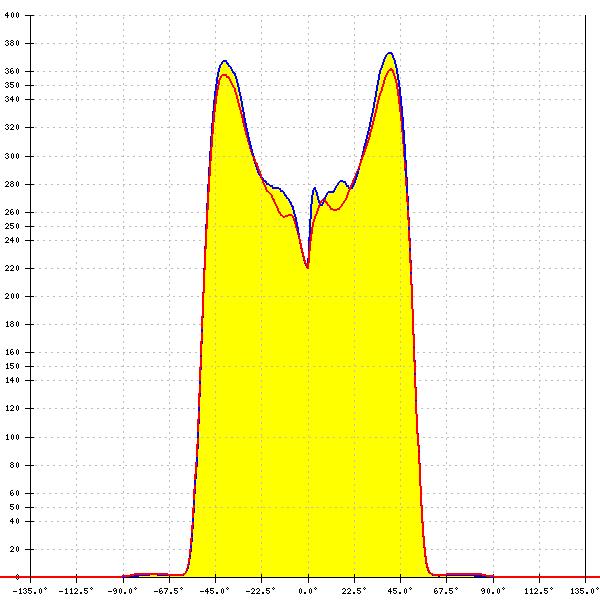

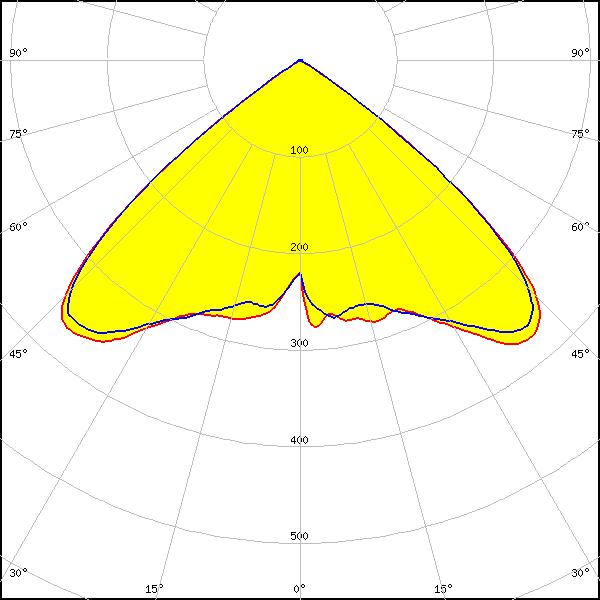

LED:
MX-6
LES size: 0.0 mm
FWHM:
102°
FWTM:
-
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

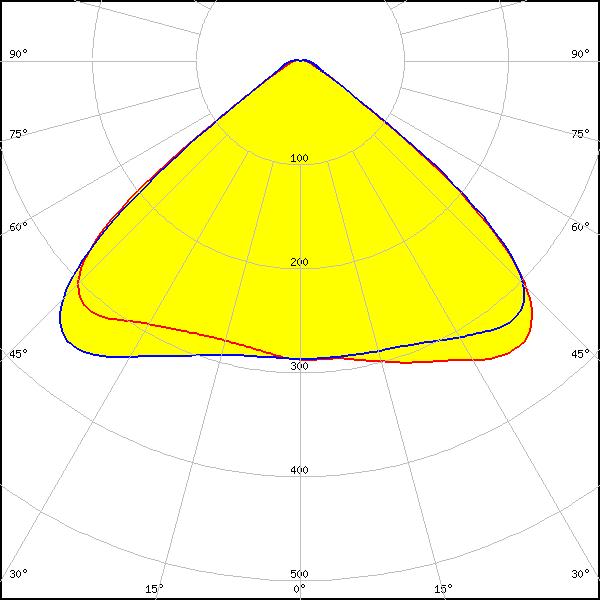

LED:

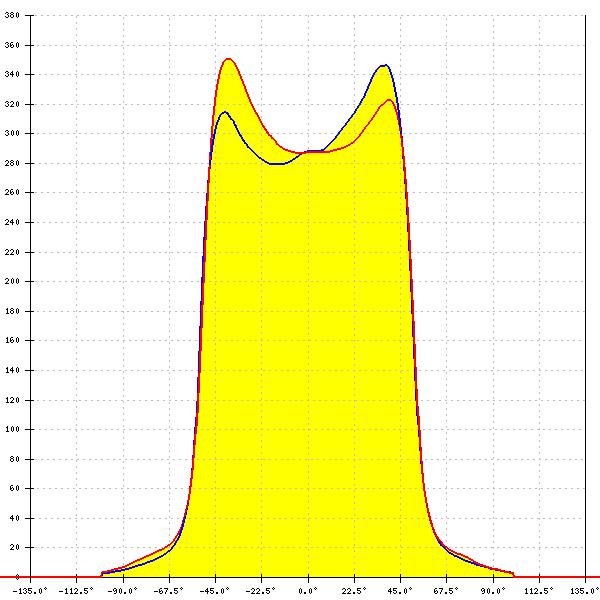

XHP50
LES size: 0.0 mm
FWHM:
105°
FWTM:
117°
Peak intensity:
0.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

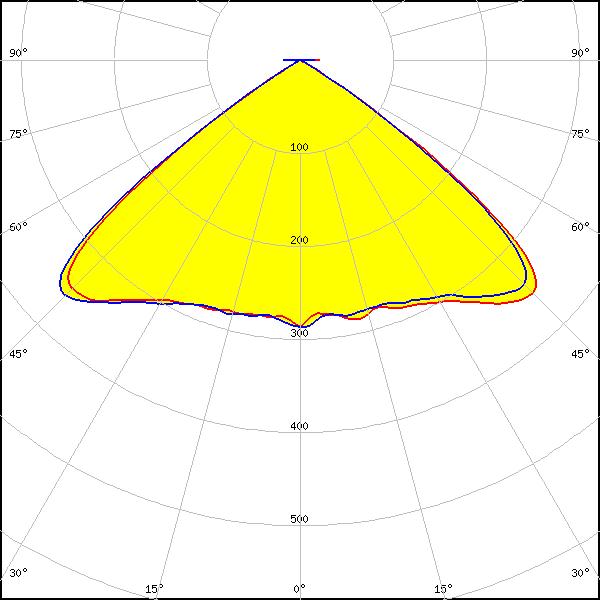

LED:

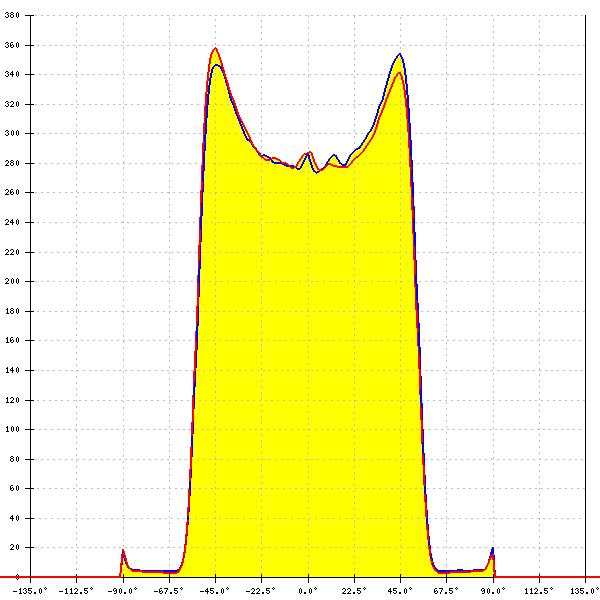

XHP50.2
LES size: 0.0 mm
FWHM:
106°
FWTM:
115°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

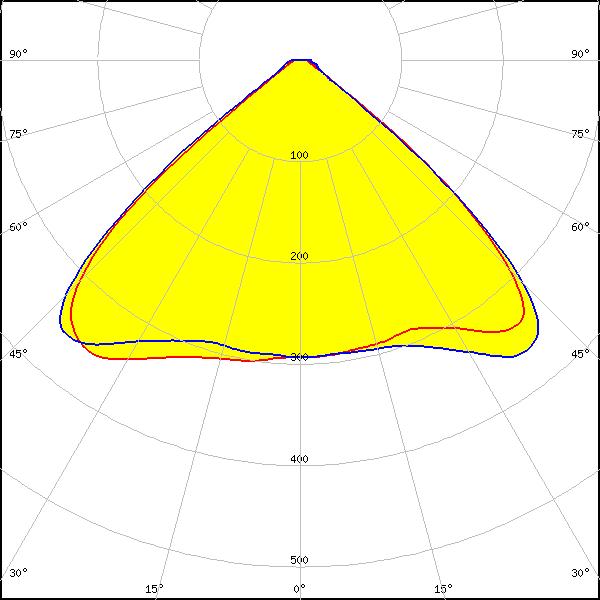

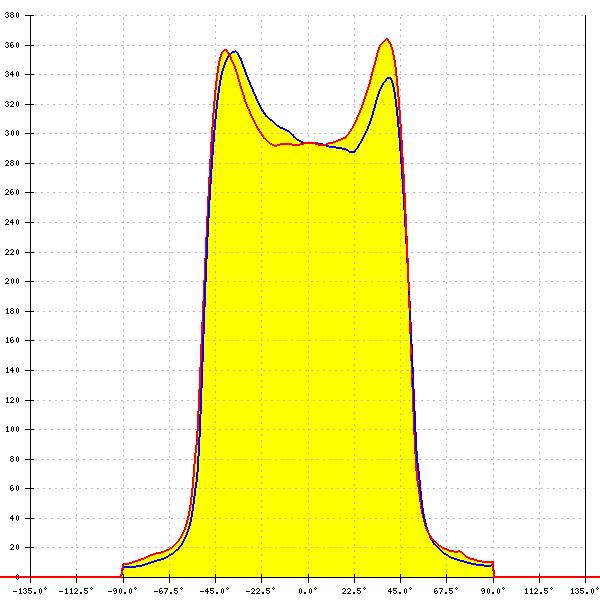

LED:
XM-L EZW
LES size: 0.0 mm
FWHM:
103°
FWTM:
119°
Peak intensity:
0.460 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

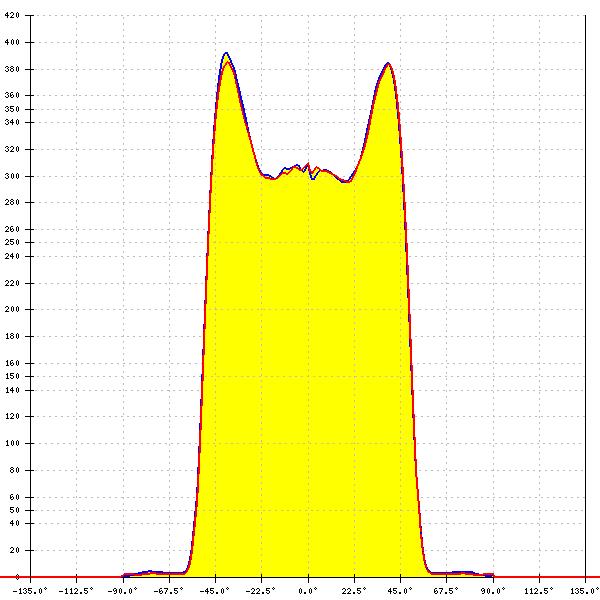

LED:
LUXEON 5050 Round LES
LES size: 0.0 mm
FWHM:
100°
FWTM:
110°
Peak intensity:
0.550 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

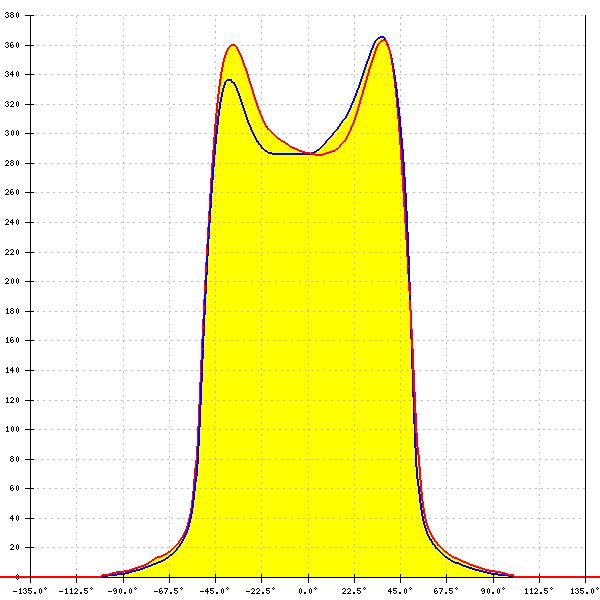

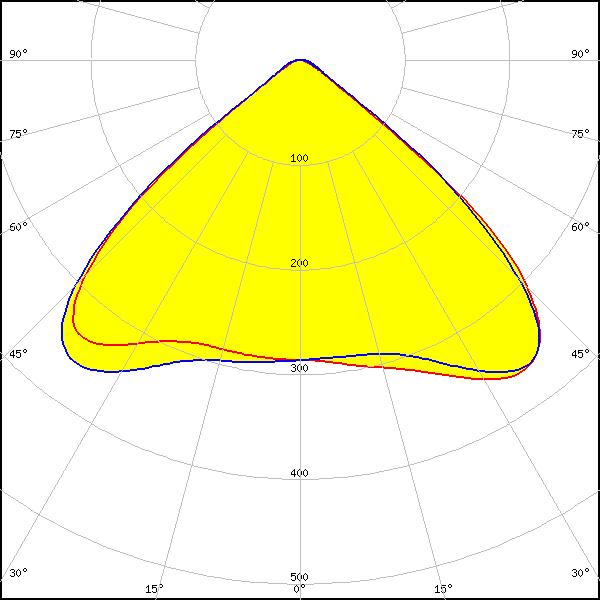

LUXEON 5258
LES size: 0.0 mm
FWHM:
103°
FWTM:
118°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

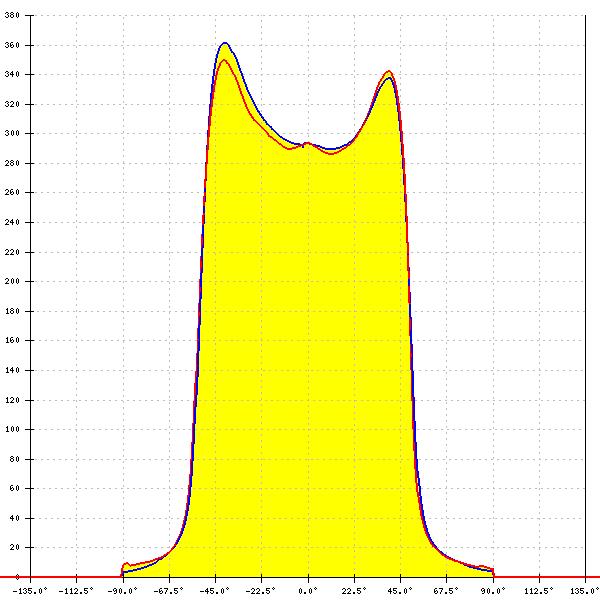

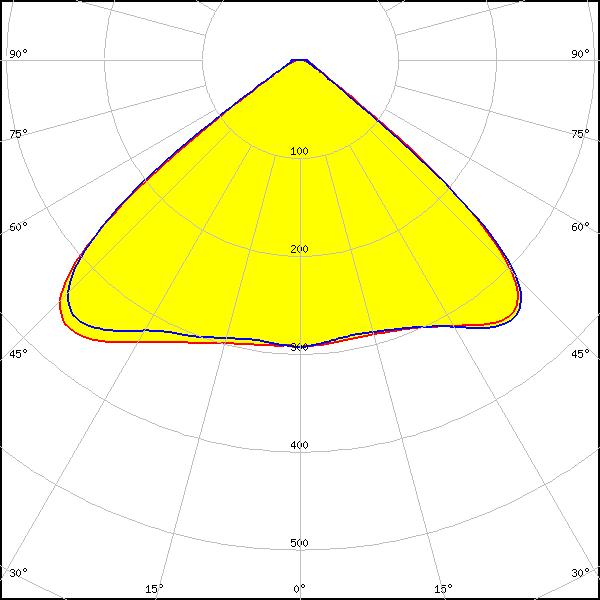

LUXEON M/MX
LES size: 0.0 mm
FWHM:
104°
FWTM:
120°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

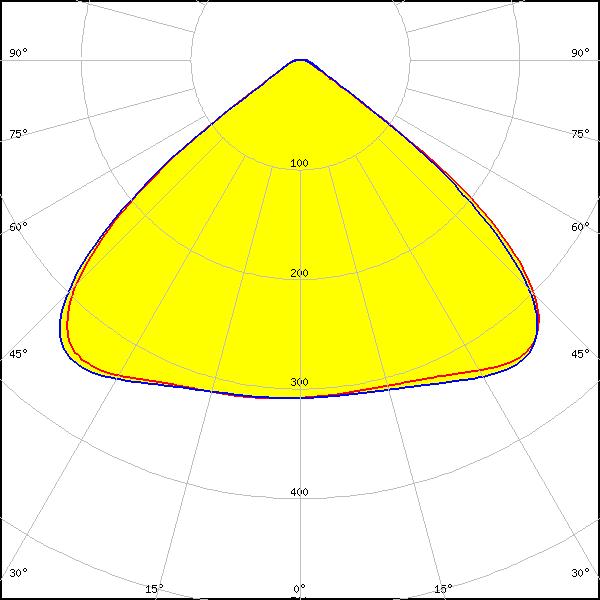

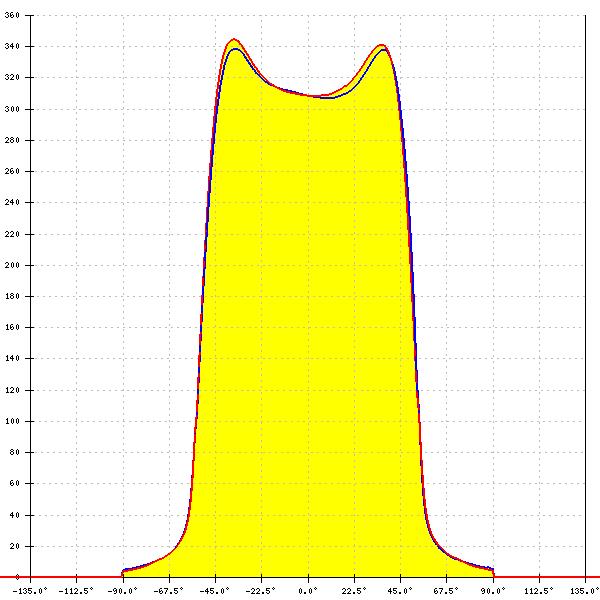

NSMx286M
FWHM:
105°
FWTM:
118°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
FWHM:
108°
FWTM:
124°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

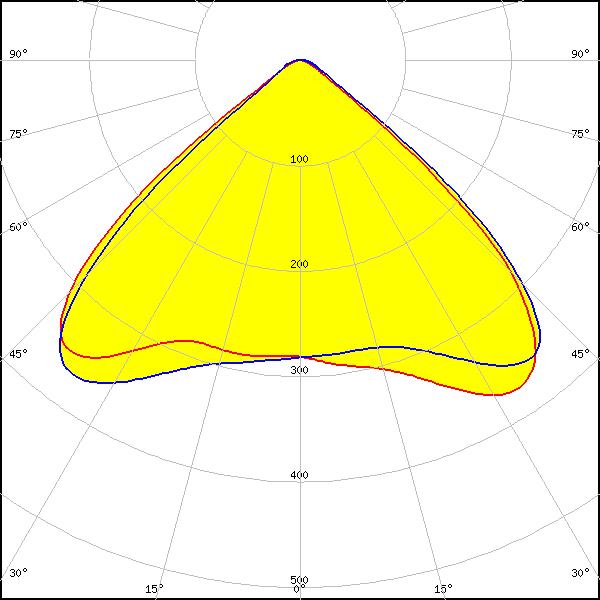

LED:

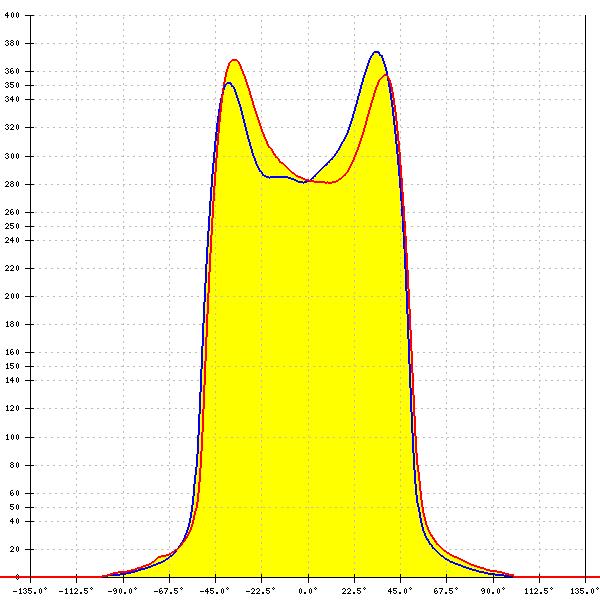

Duris S8
LES size: 0.0 mm
FWHM:
102°
FWTM:
118°
Peak intensity:
0.520 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
LES size: 0.0 mm
FWHM:
100°
FWTM:
106°
Peak intensity:
0.535 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

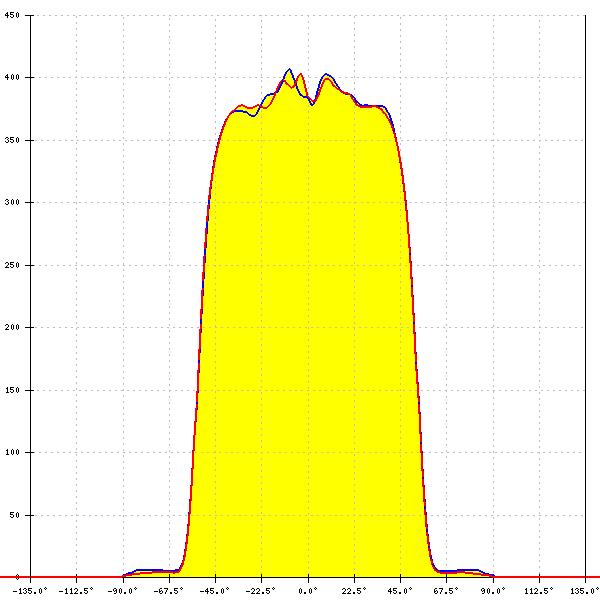

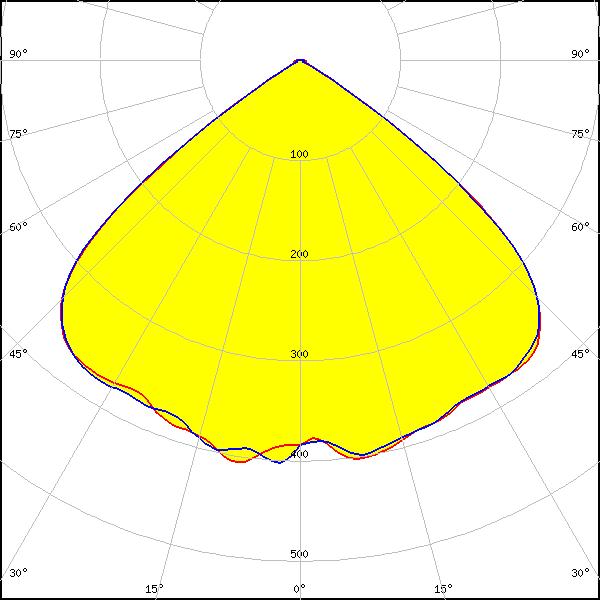

LED:
Soleriq S9
LES size: 9.8 mm
FWHM:
104°
FWTM:
116°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

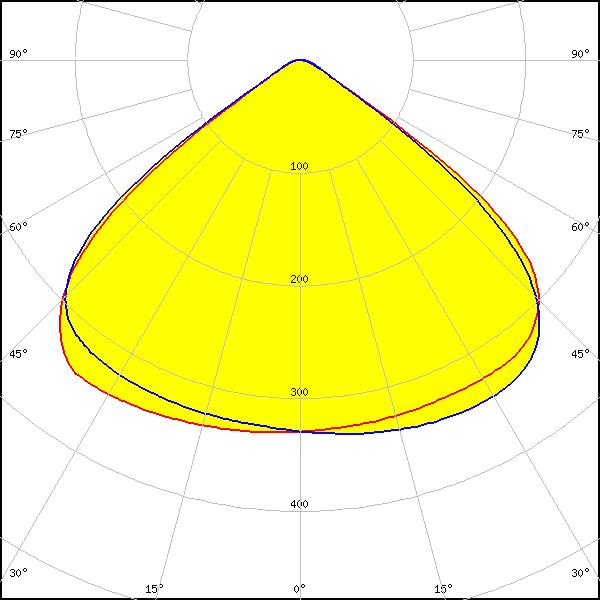

LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
FWHM:
106°
FWTM:
121°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

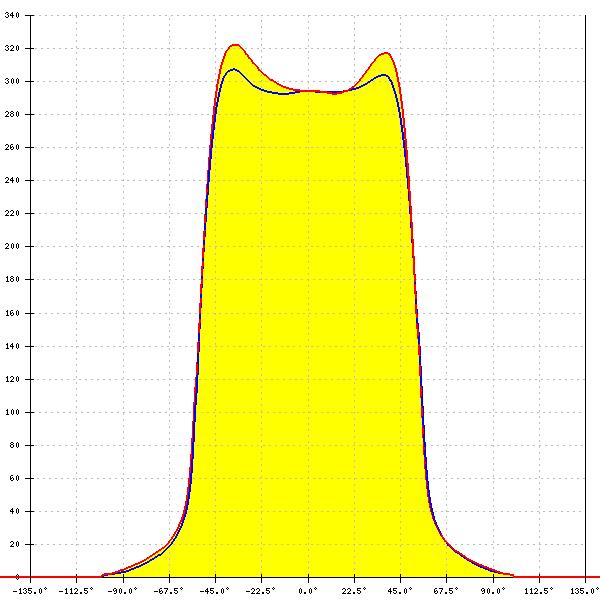

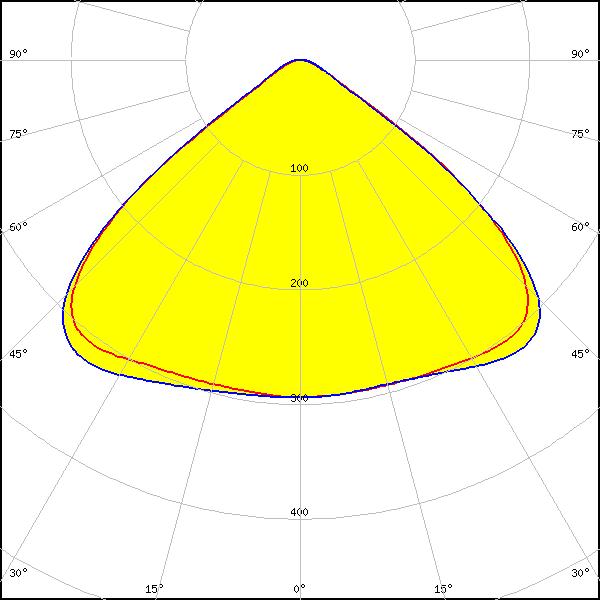

MJT COB LES 6
LES size: 6.0 mm
FWHM:
111°
FWTM:
130°
Peak intensity:
0.360 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

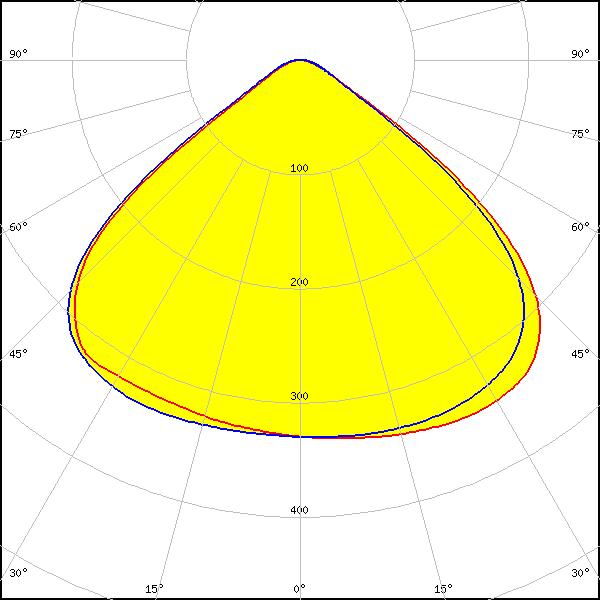

LED:

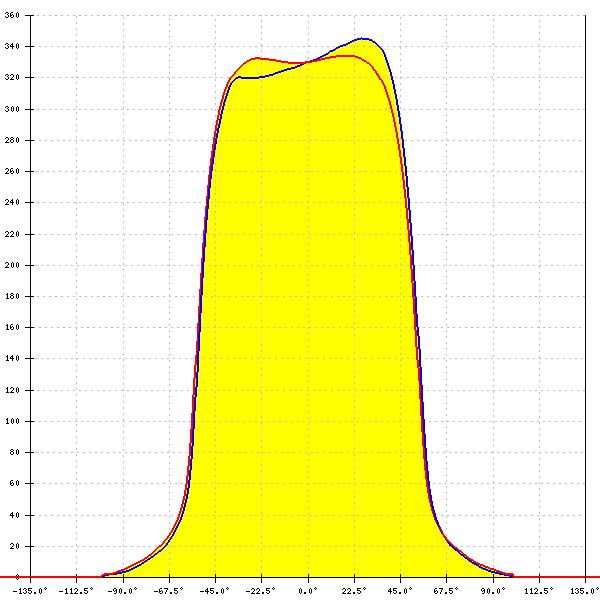

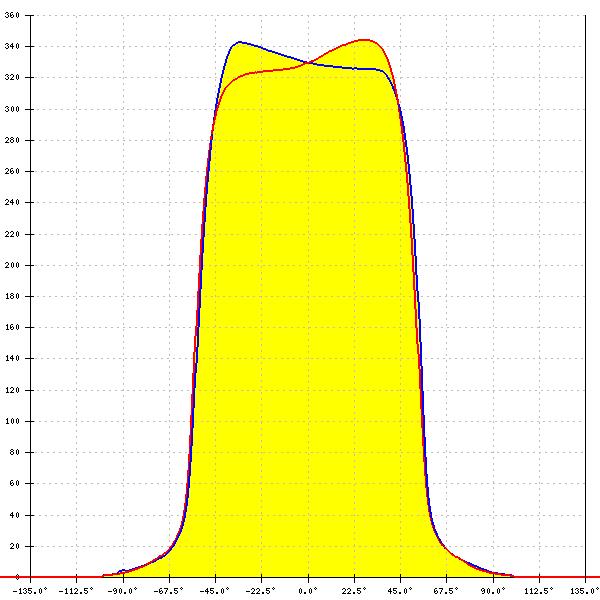

MJT COB LES 9.8
LES size: 9.8 mm
FWHM:
105°
FWTM:
128°
Peak intensity:
0.360 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

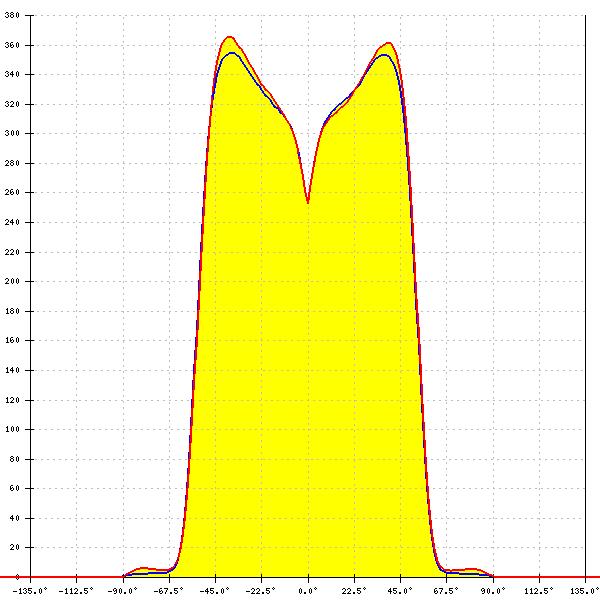

LED:

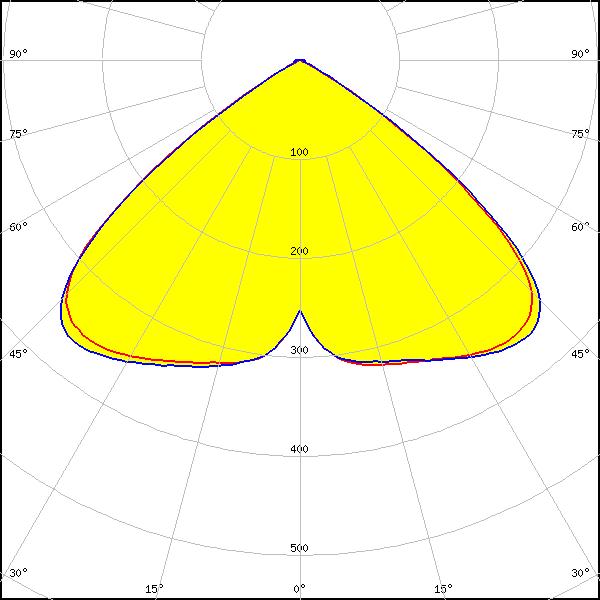

Mini Zenigata (GW6BM)
LES size: 8.6 mm
FWHM:
105°
FWTM:
-
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
