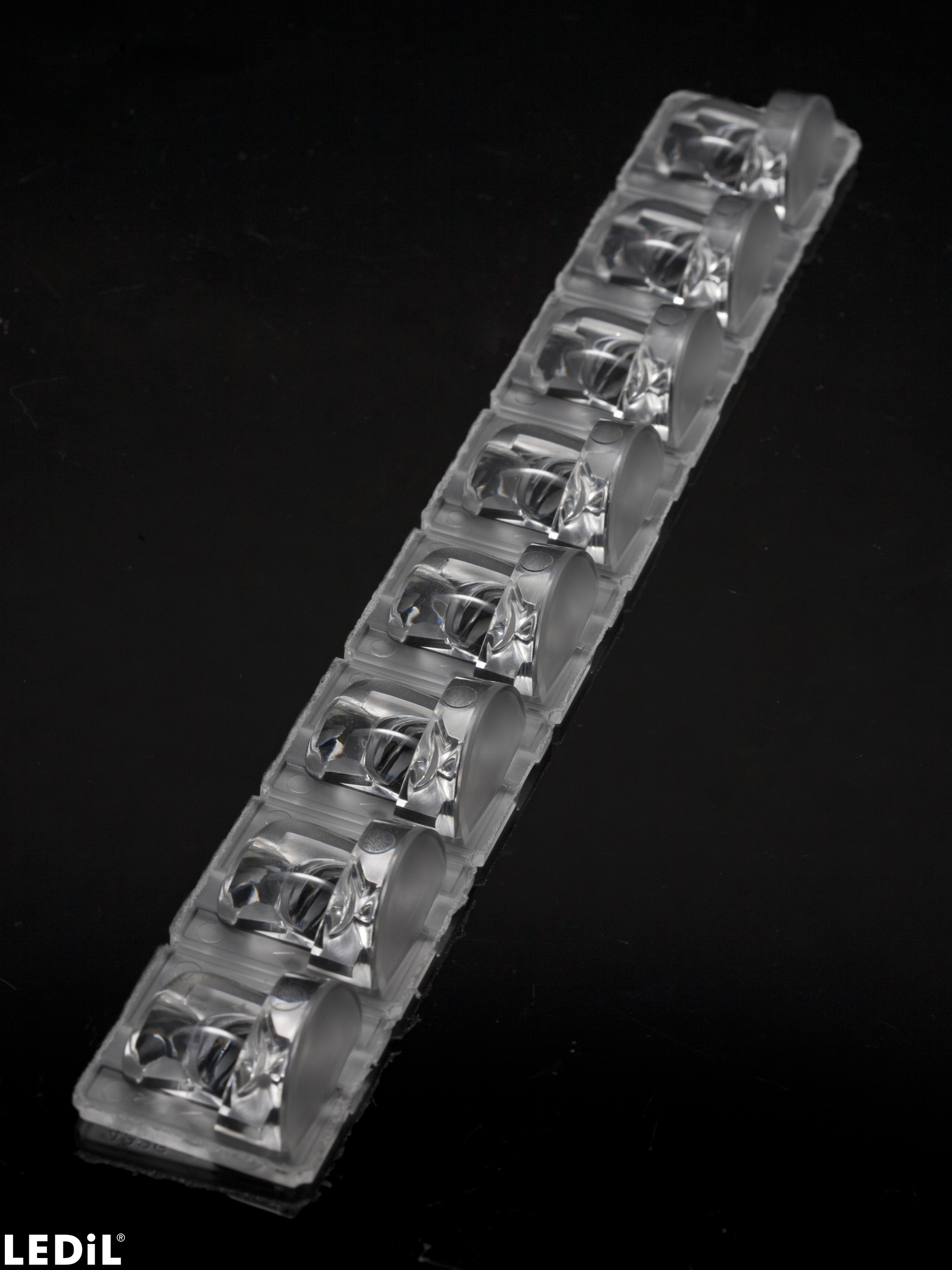

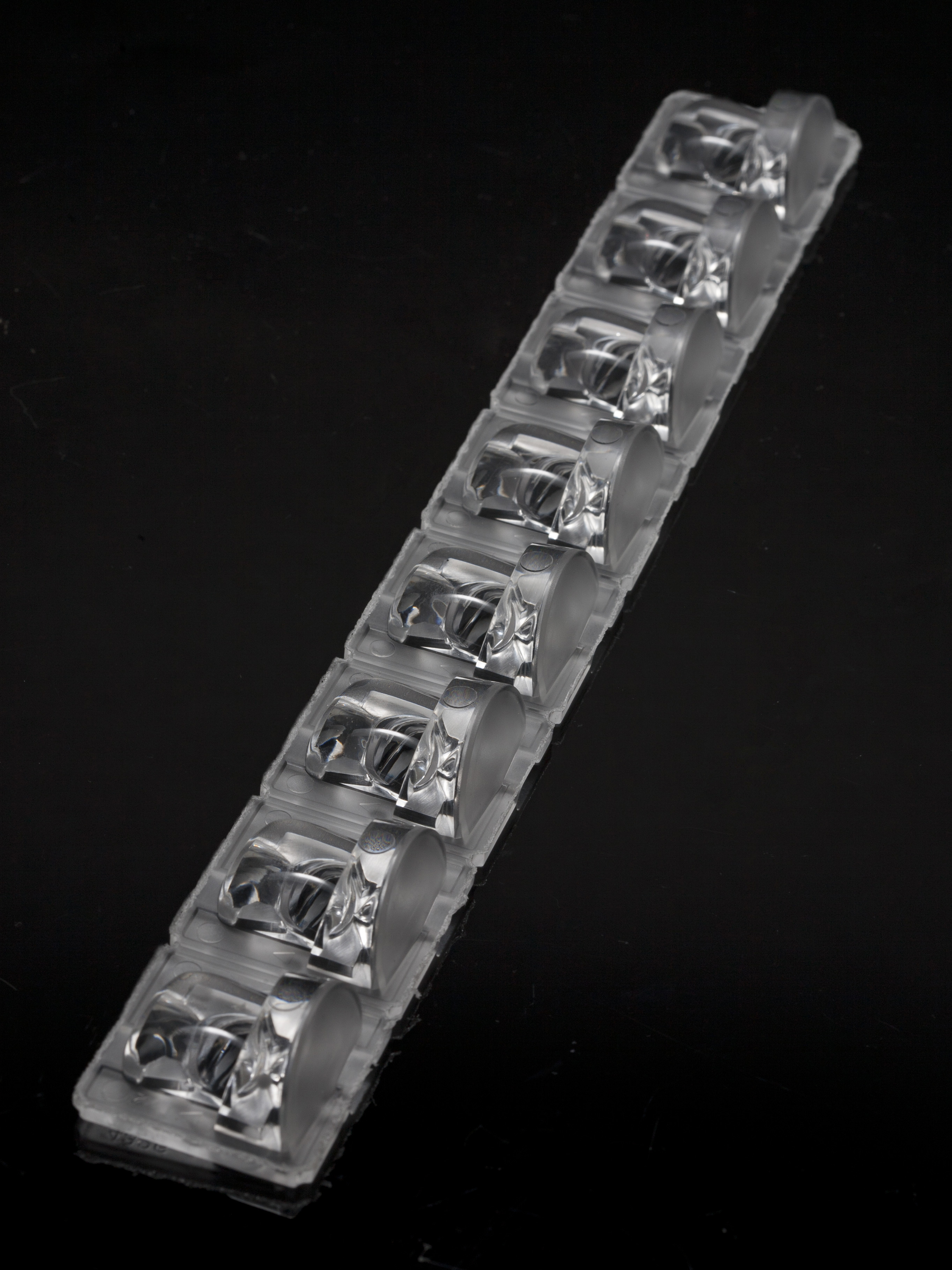

F14326_JENNY-8X1-T4

IESNA Type IV light distribution for wider roads and large outdoor areas. Variant with 8 lenses and cable channels on the sides.

Specification

Dimensions:

35 x 280 mm
Height:

17.02 mm
Fastening:

glue, pin
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

Silicone
Request material files from Tech Support

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

130 pcs
Box size:

398 x 298 x 265 mm
Box weight:

8.5 kg
MPQ:

10 pcs
MOQ:

20 pcs
MOQ size:

380 x 300 x 50 mm
MOQ weight:

1.6 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: F14326_JENNY-8X1-T4

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

F14326_JENNY-8X1-T4

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR128.e - Change of packaging quantities 241016

Application area

Tunnel and Transportation Lighting

Catalogue

LEDiL Latest products catalogue 2026

Application guide

Guide for Sports lighting optics

Application guide

Guide for Street lighting optics

Application guide

Street lighting optics - 2020_v.1.1_WEB

News

New Products - 2019-01-31

News

New members of the JENNY family for sports field lighting

Application area

Outdoor Special Applications

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

AVAILABLE LEDiL ACCESSORIES

JENNY-HLD-A-BLK

Black frame for JENNY optics

Optical results

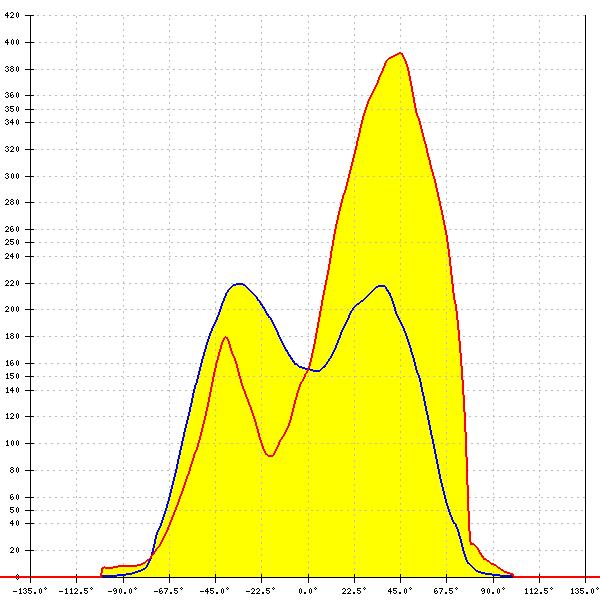

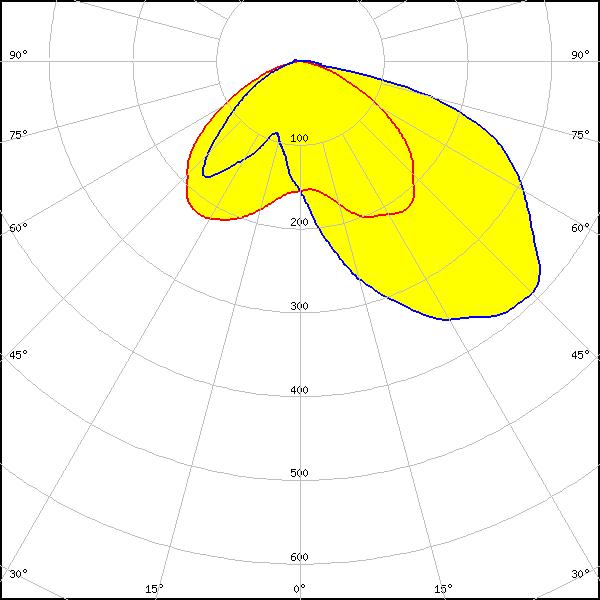

LED: V10 Gen6

LES size: 9.9 mm

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

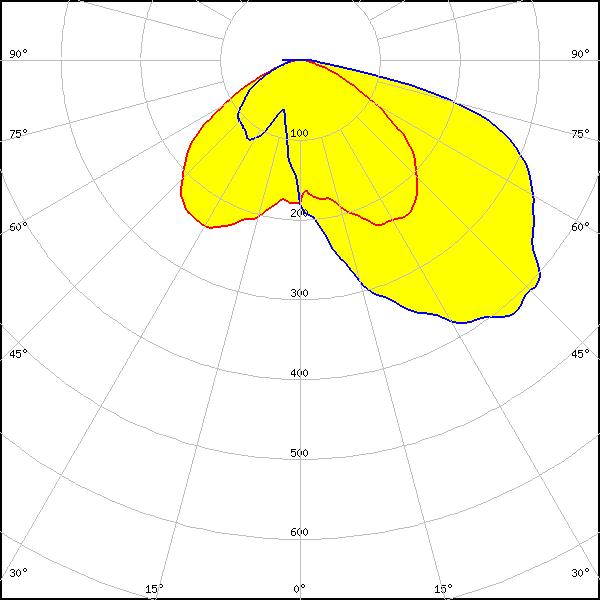

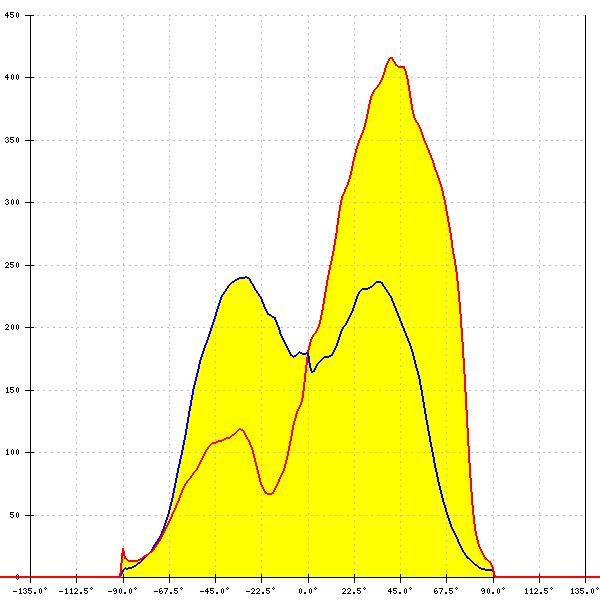

LED: V10 Gen7

LES size: 10.2 mm

FWHM: asymmetric

Peak intensity: 0.450 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

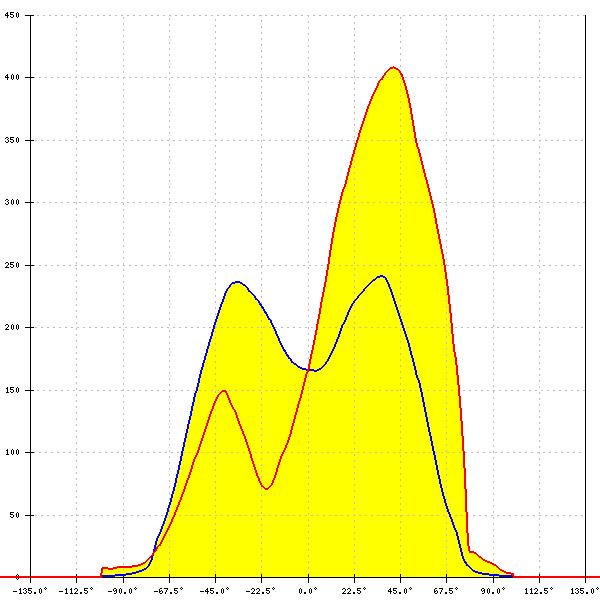

LED: CLU02x (LES10)

LES size: 9.8 mm

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

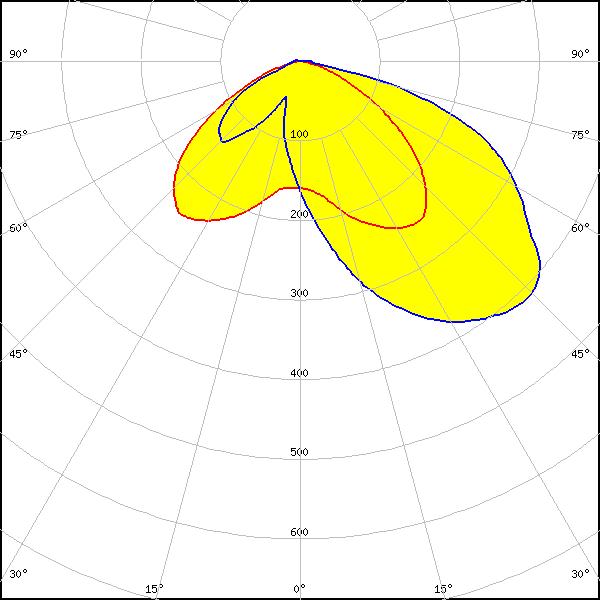

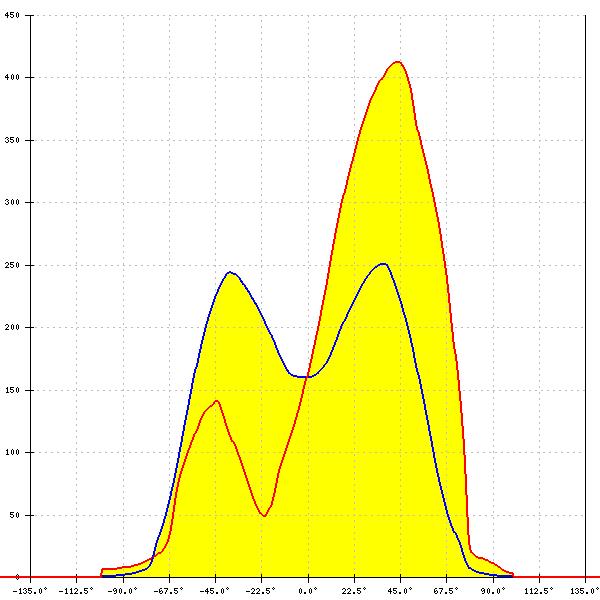

LED: CXA/B 15xx

LES size: 8.9 mm

FWHM: asymmetric

Peak intensity: 0.480 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

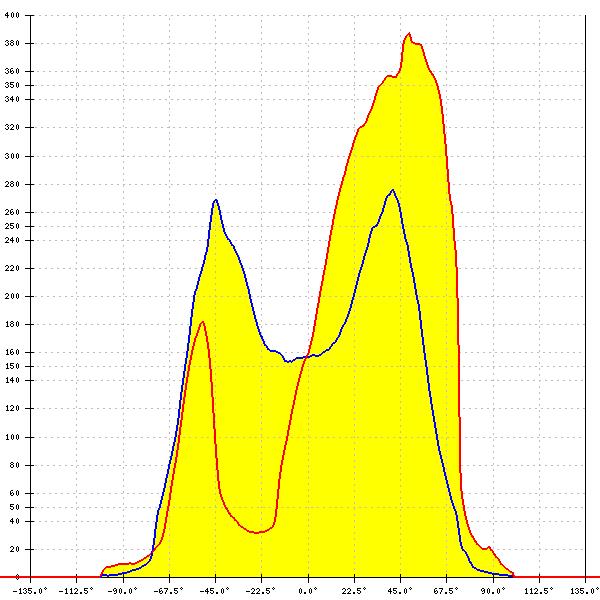

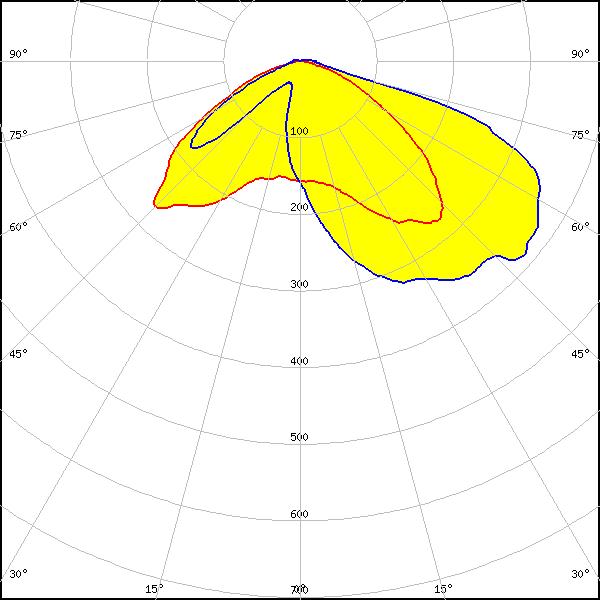

LED: MK-R

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.560 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

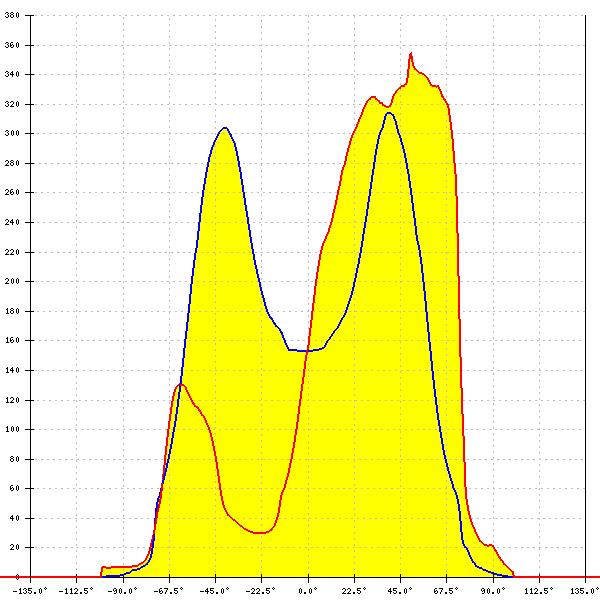

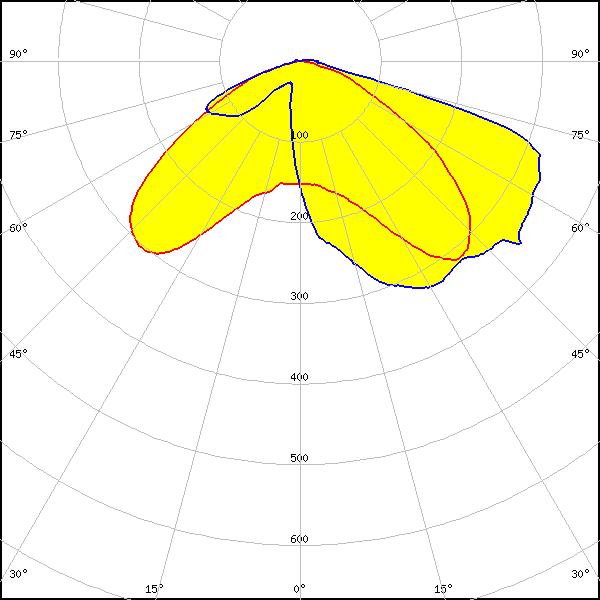

LED: MX-6

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.610 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

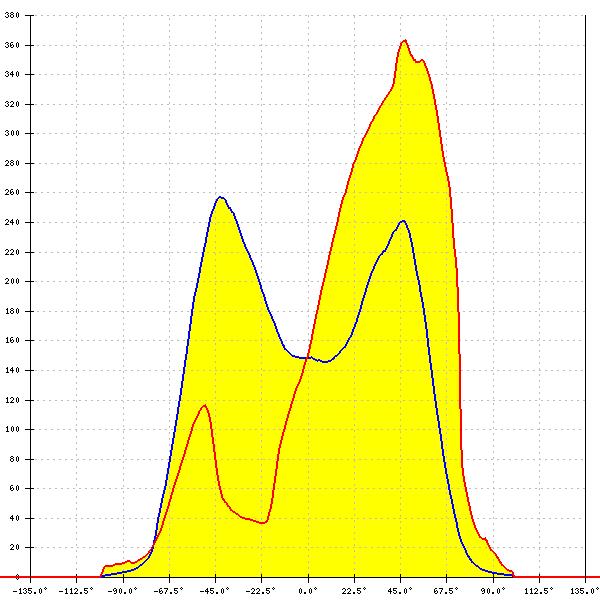

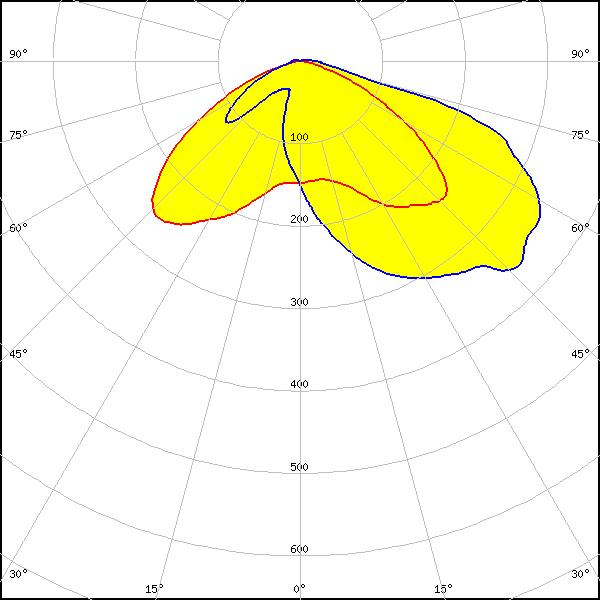

LED: XHP70

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

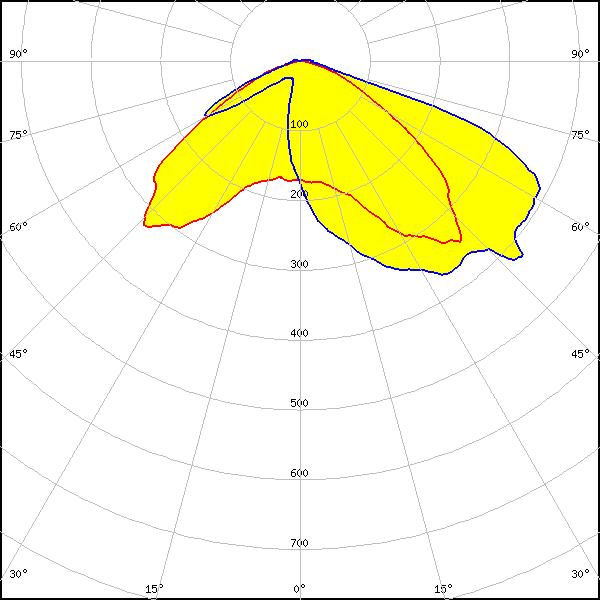

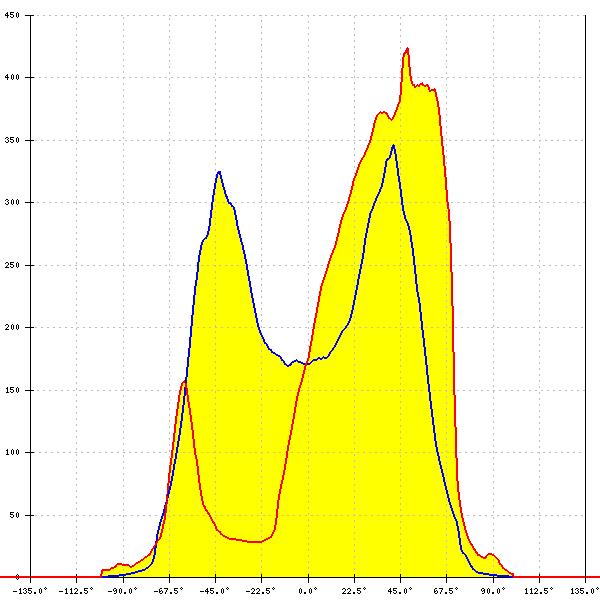

LED: XM-L EZW

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.680 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

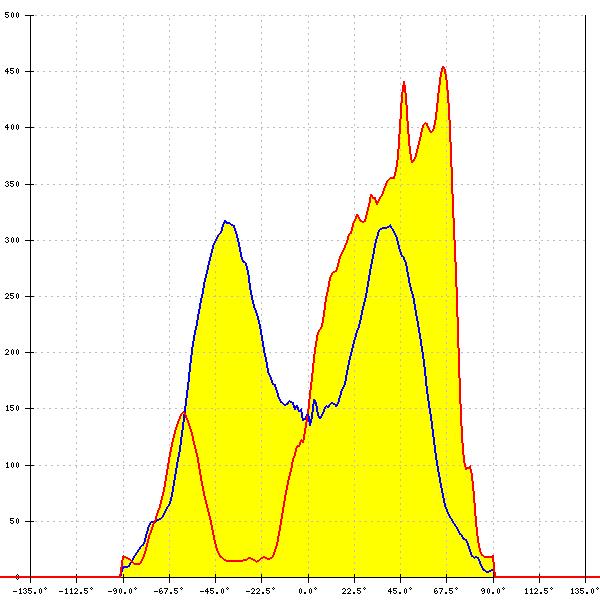

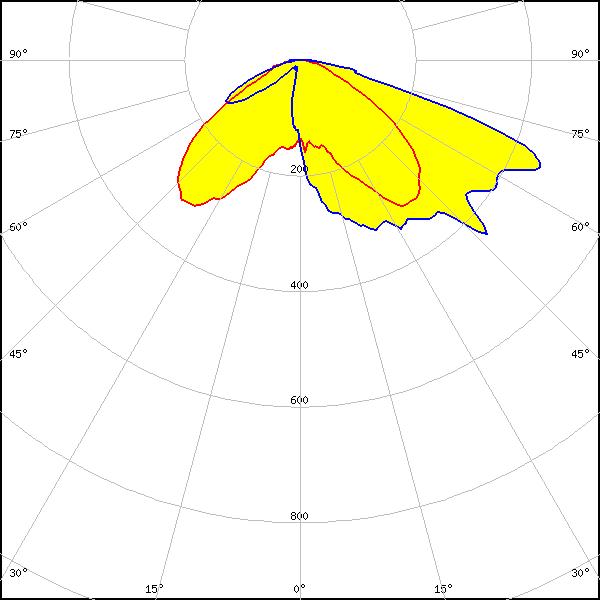

LED: LUXEON 5050 Round LES

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.630 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

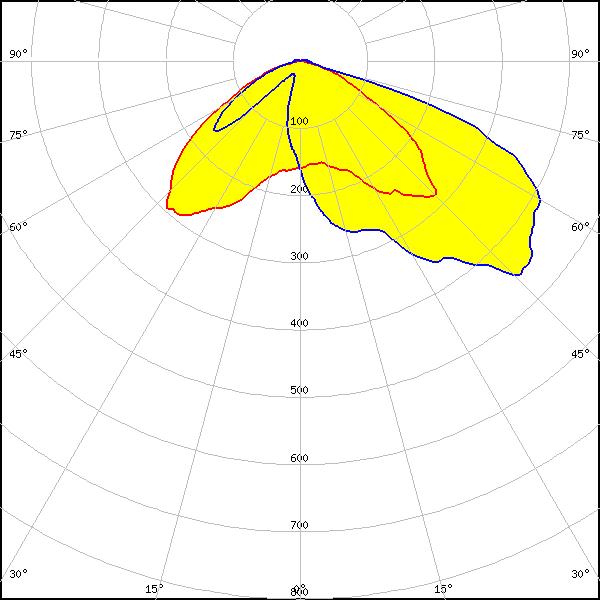

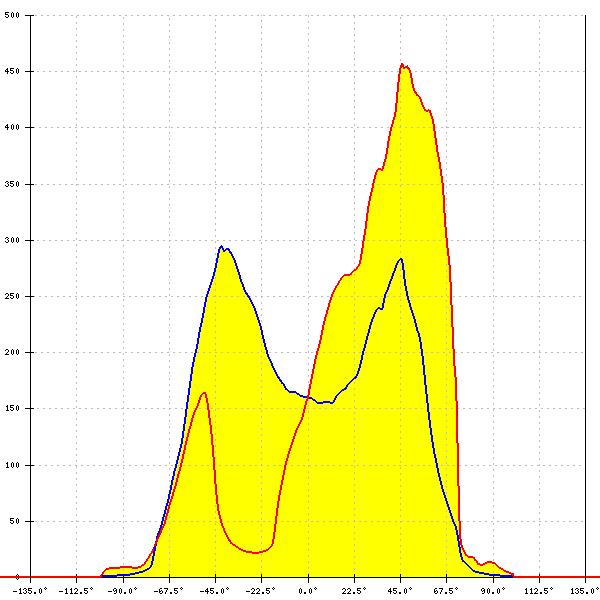

LED: LUXEON M/MX

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.660 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

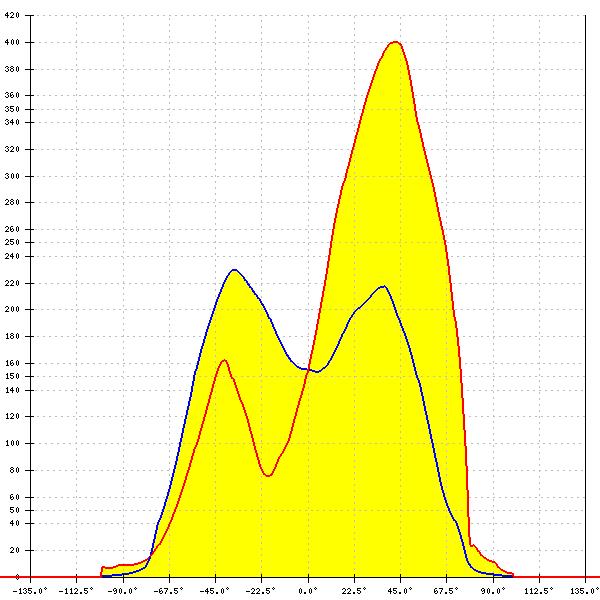

LED: CxM-9 (13.5x13.5)

LES size: 9.6 mm

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 7070

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.557 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LC003D / LC006D / LC009D / LC013D

LES size: 9.8 mm

FWHM: asymmetric

Peak intensity: 0.470 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

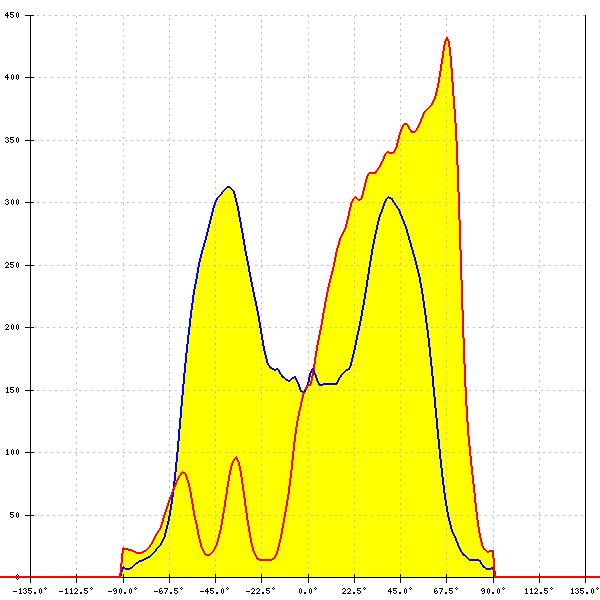

LED: LH351D

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.603 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

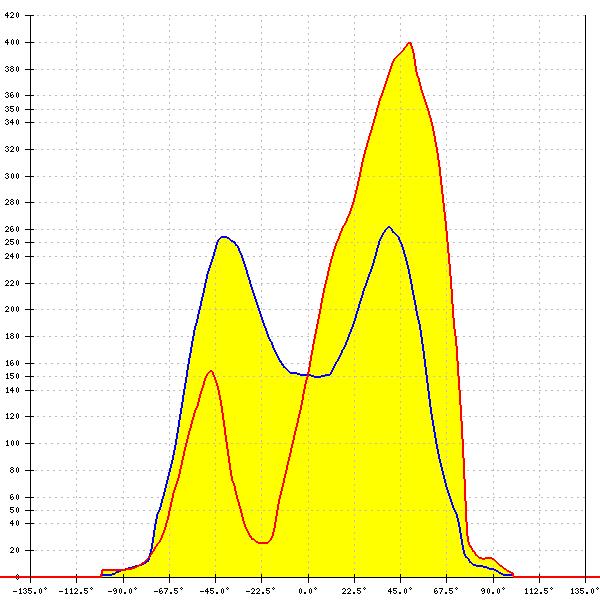

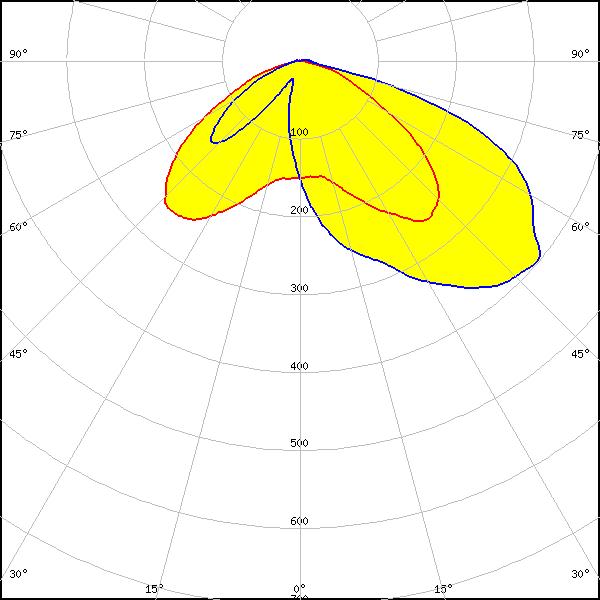

LED: MJT COB LES 6

LES size: 6.0 mm

FWHM: asymmetric

Peak intensity: 0.540 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

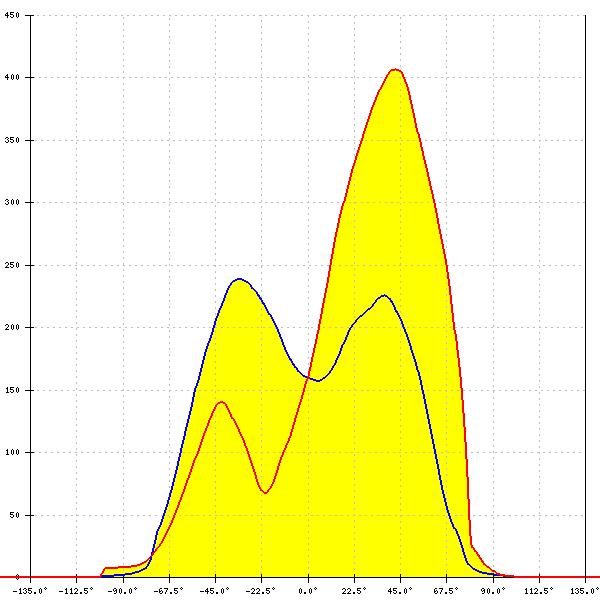

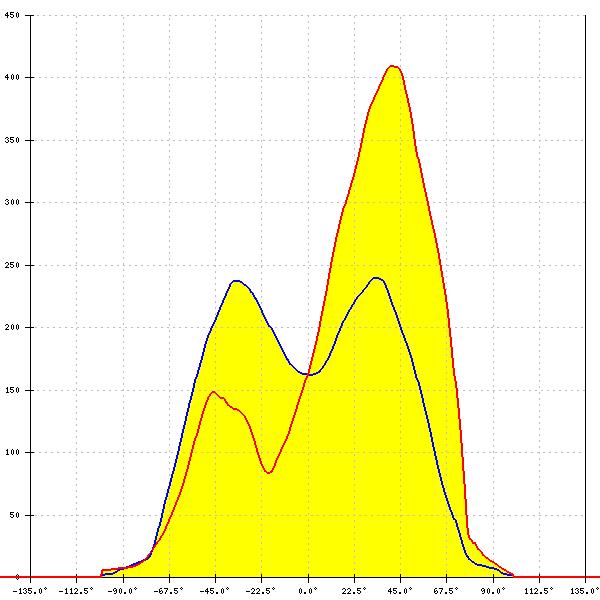

LED: MJT COB LES 9.8

LES size: 9.8 mm

FWHM: asymmetric

Peak intensity: 0.470 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
