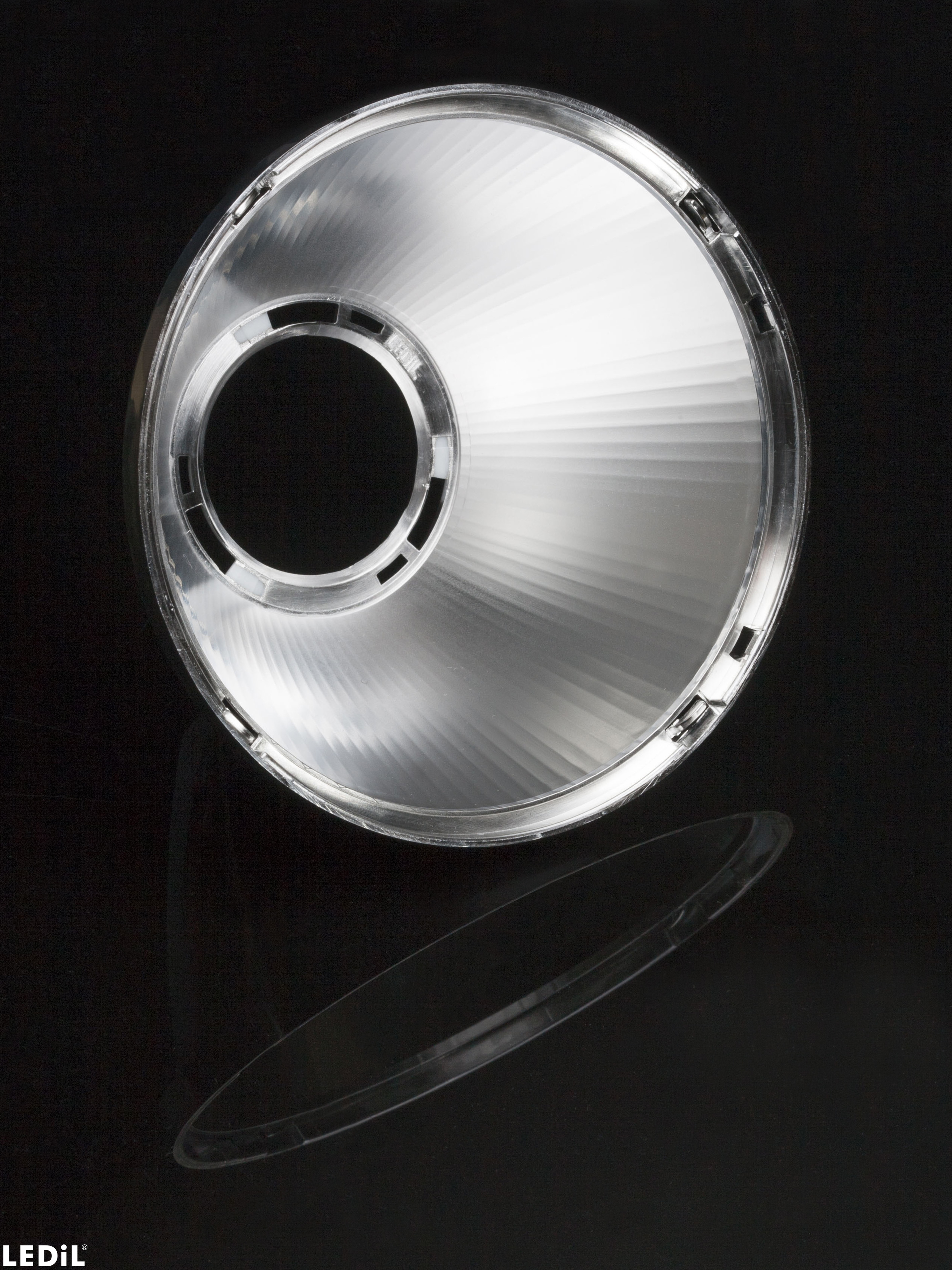

F14532_ANGELETTE-S

Print

~10° spot beam

Specification
  • Dimensions:
    110 mm
  • Height:
    57.30 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    180 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    7.4 kg
  • MPQ:
    45 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 150 mm
  • MOQ weight:
    3.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14532_ANGELETTE-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

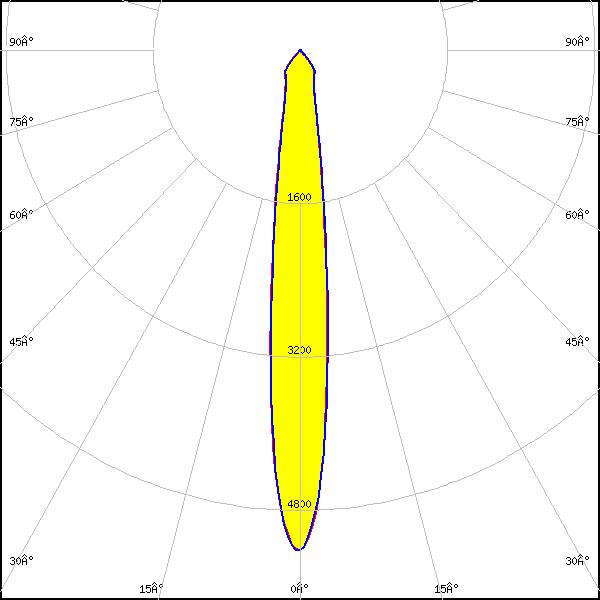

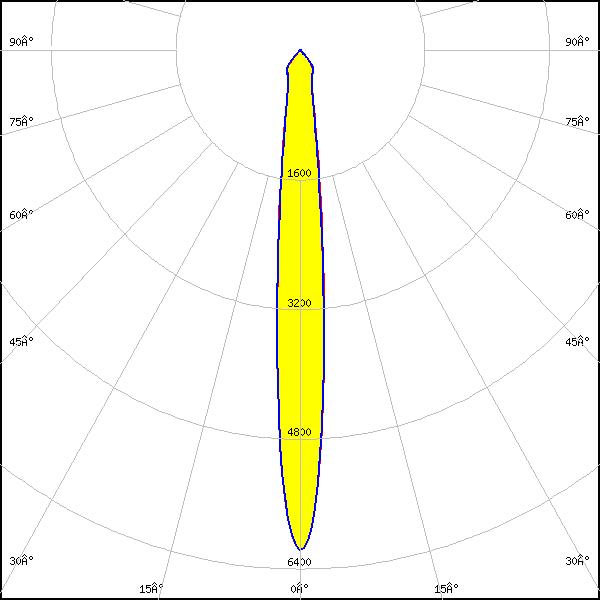

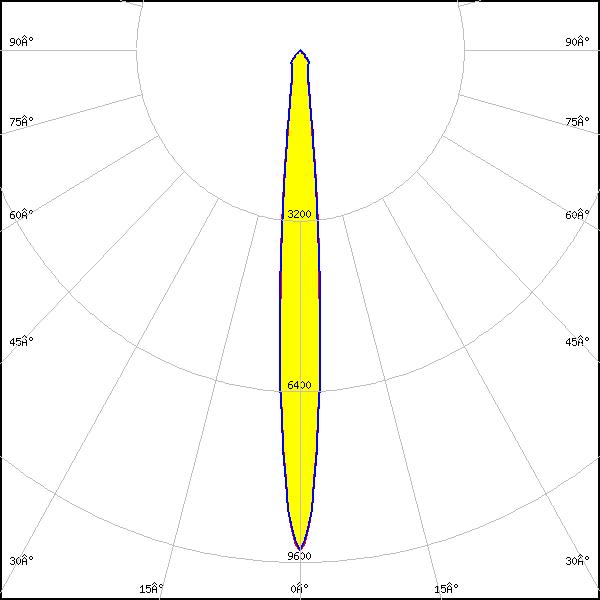

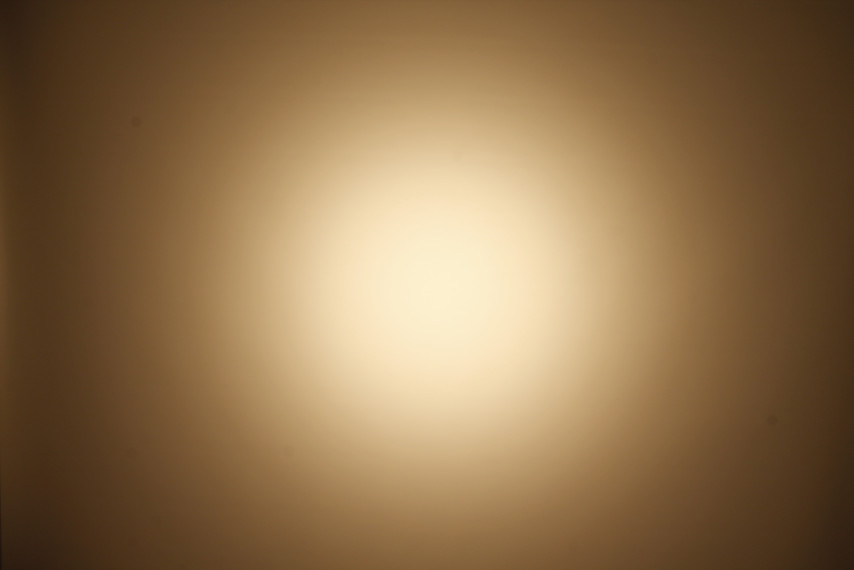

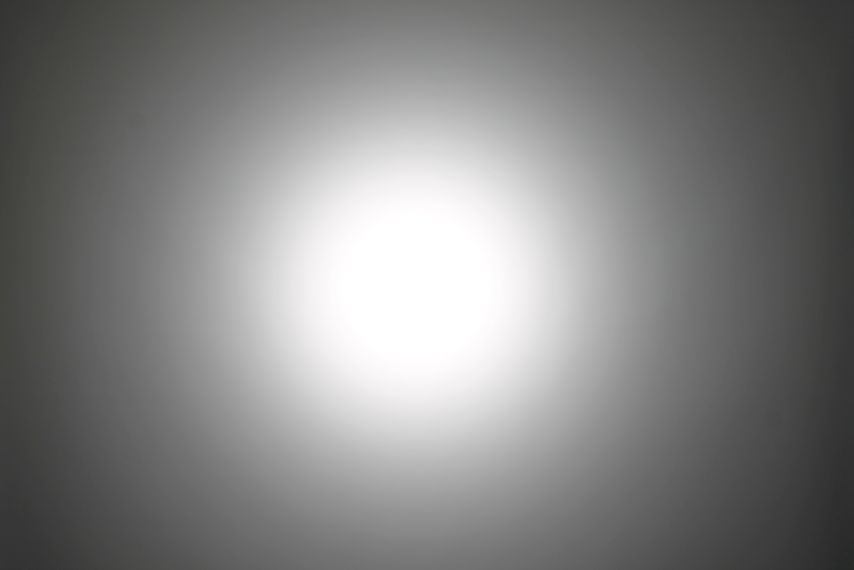

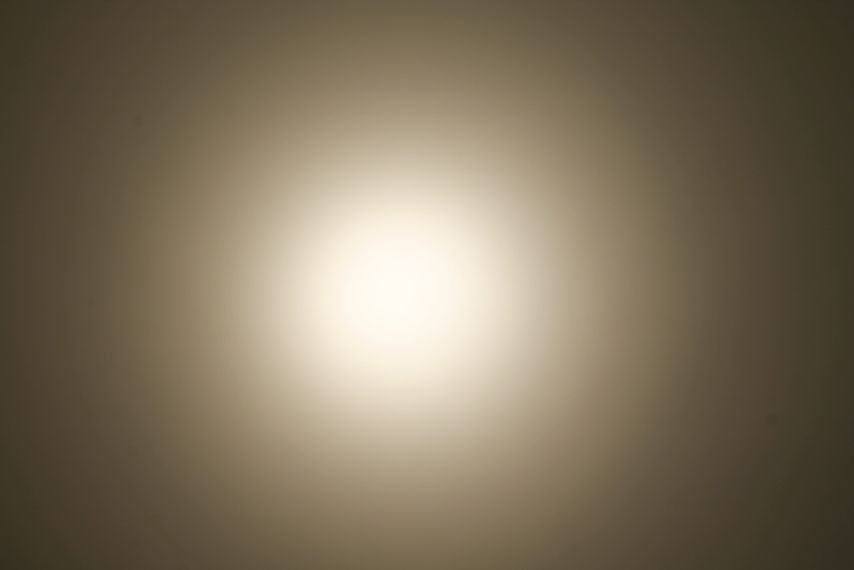

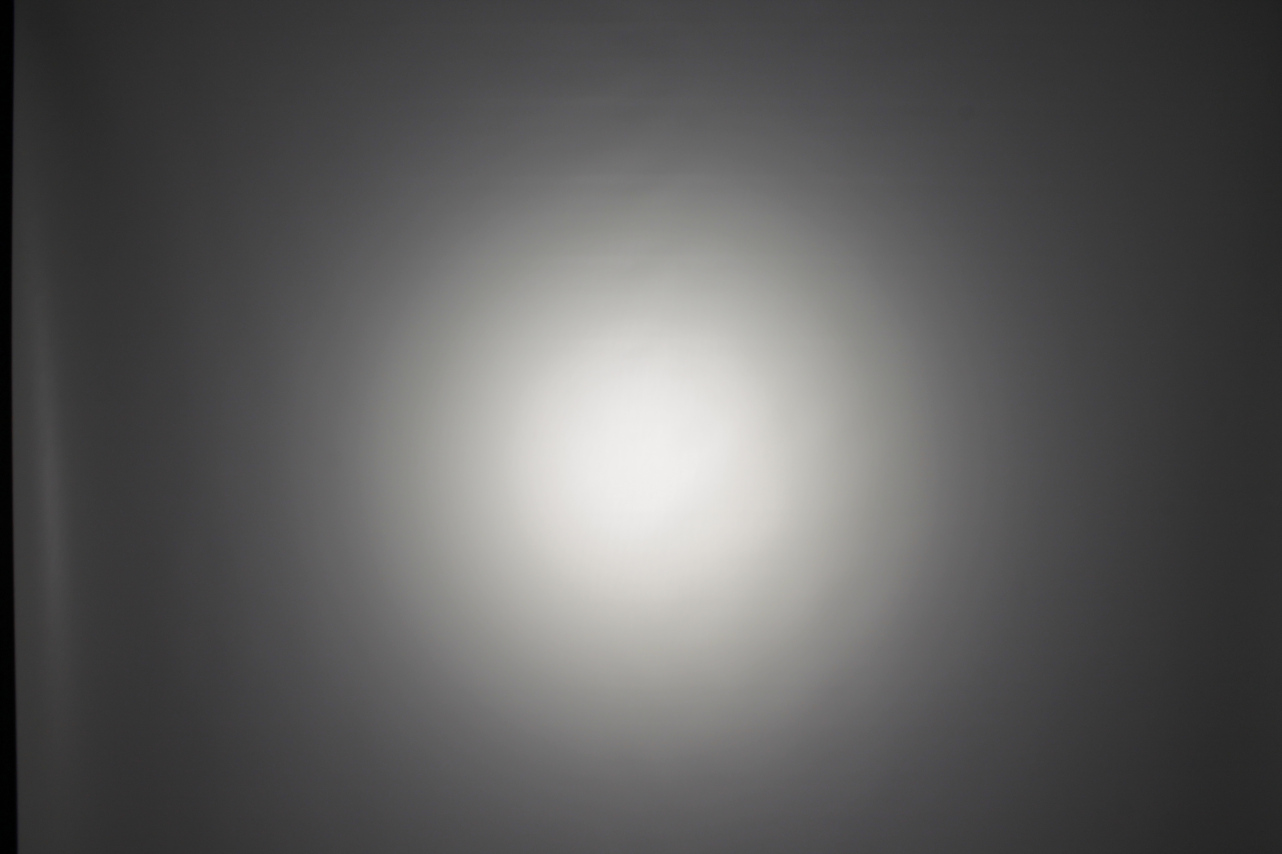

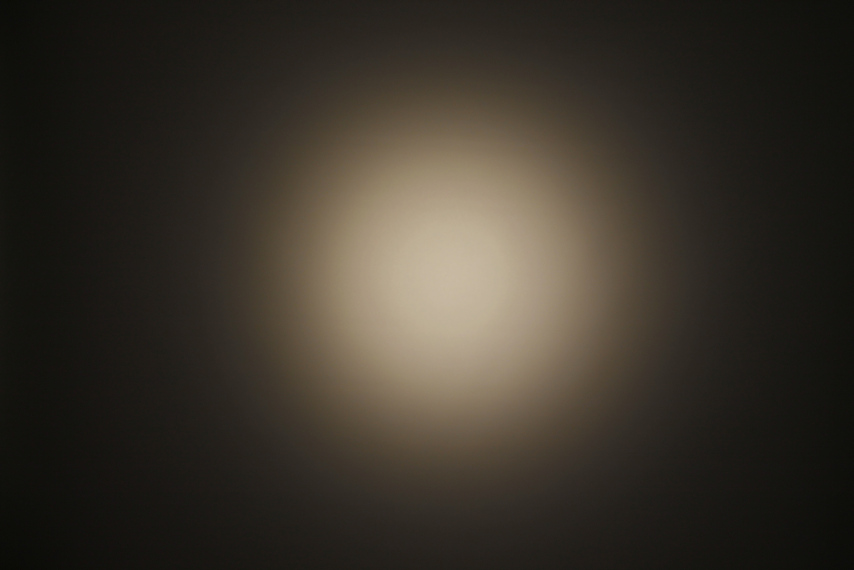

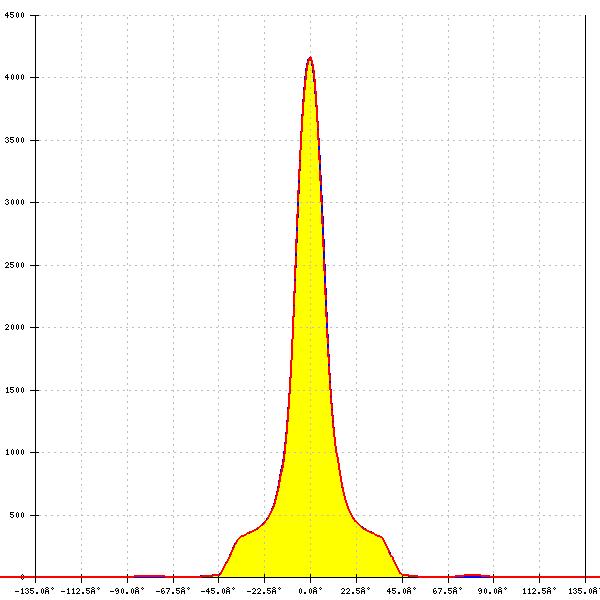

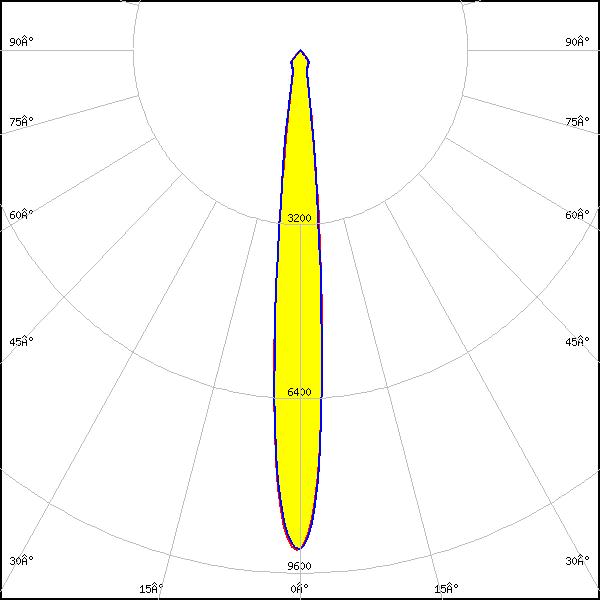

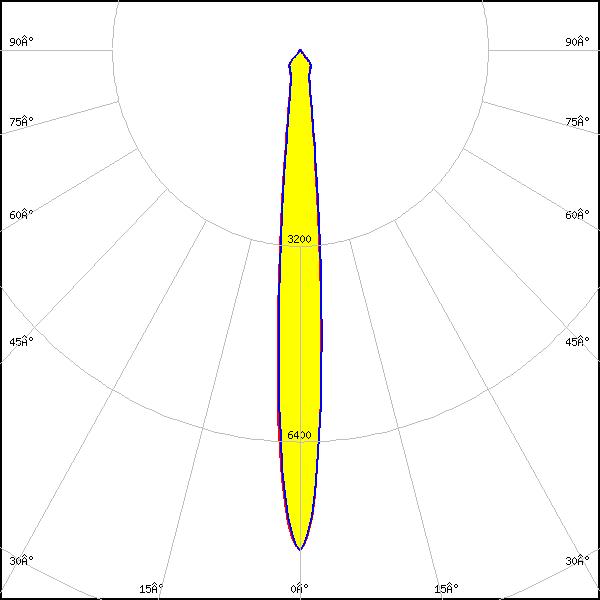

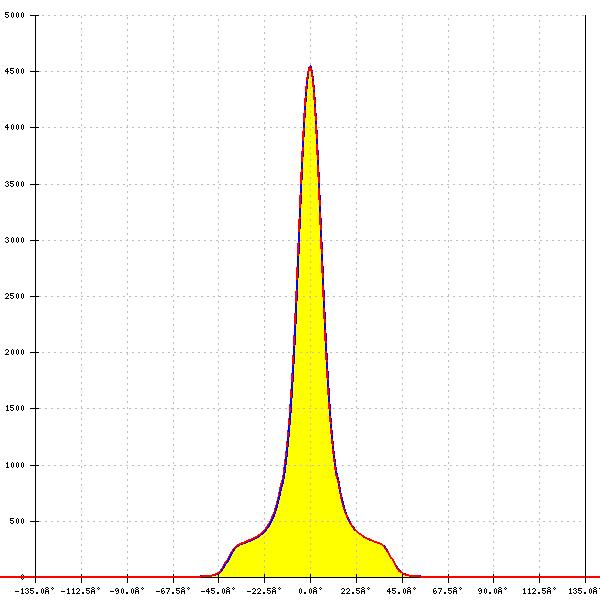

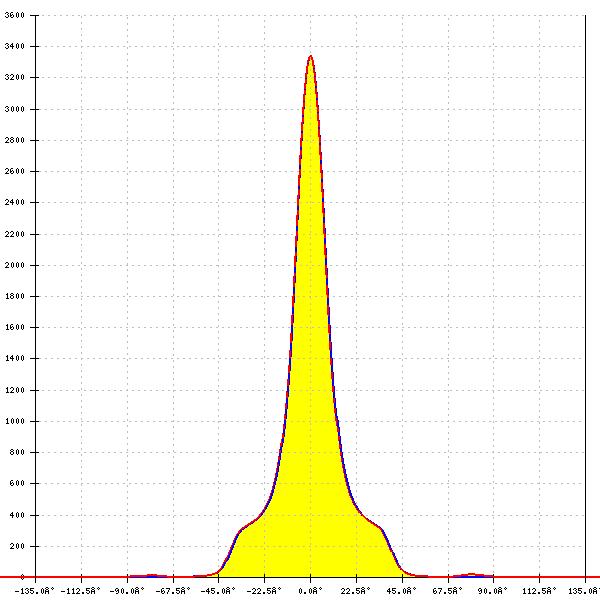

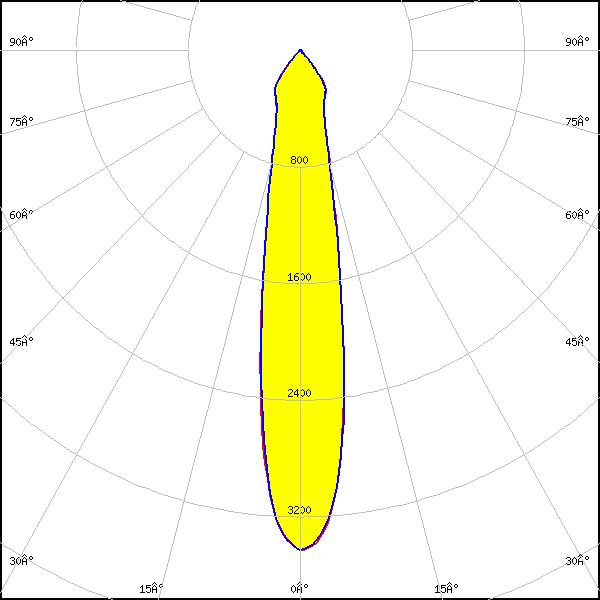

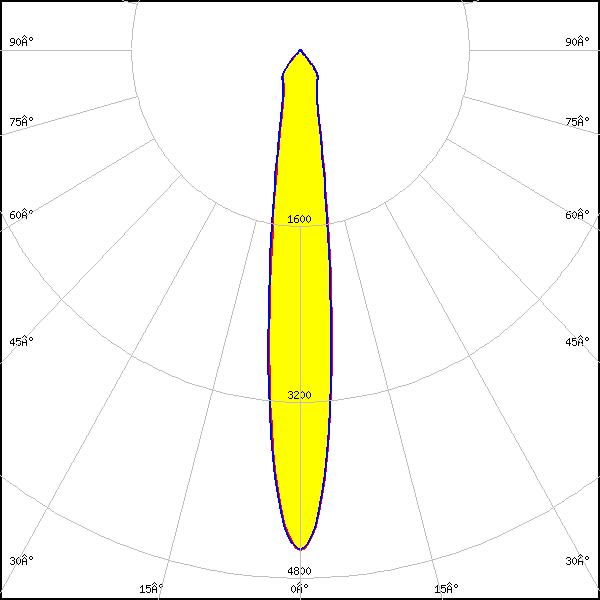

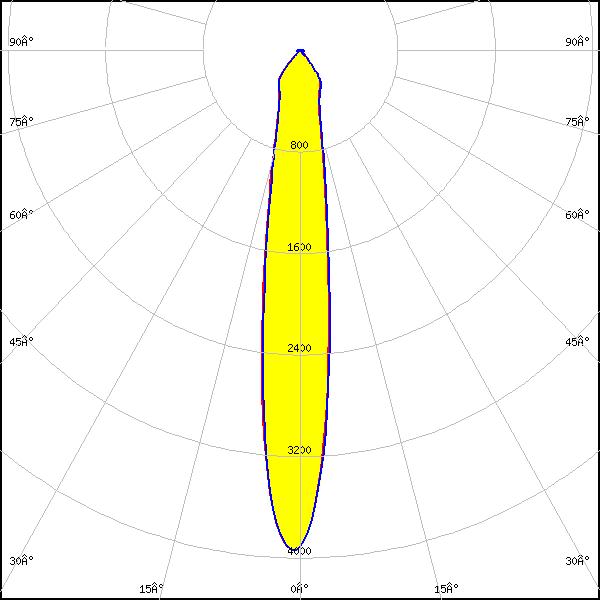

Optical results

LED: V10 Gen7
Required components:
FWHM: 11°
FWTM: 31°
Peak intensity: 6.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen7
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: 9°
FWTM: 20°
Peak intensity: 11.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

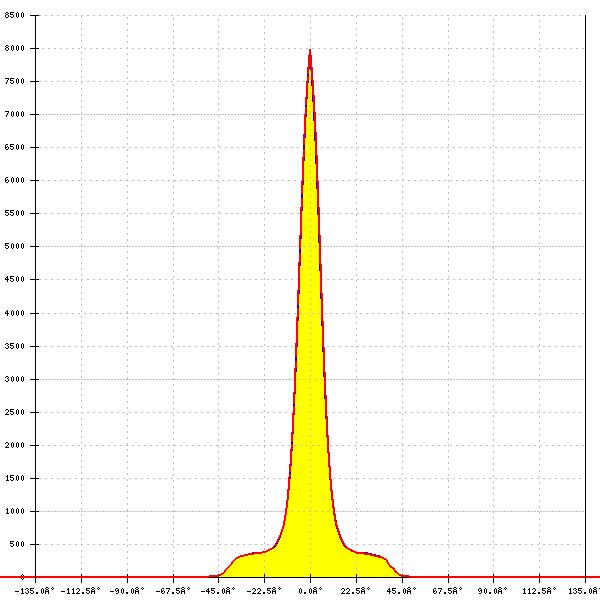

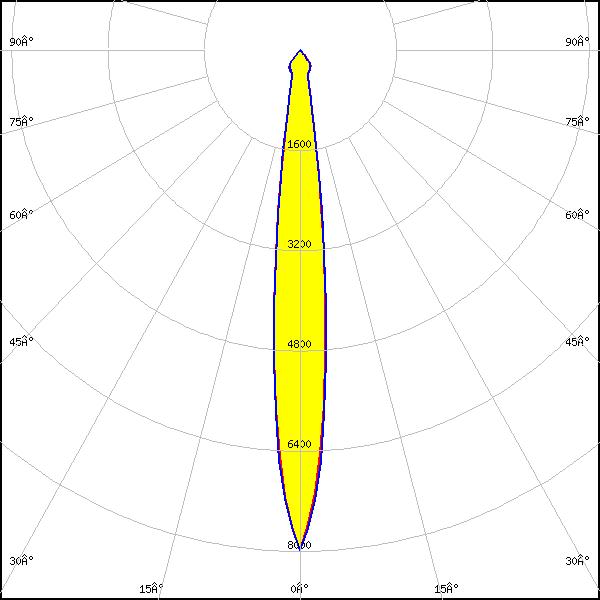

LED: V13 Gen7
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 12°
FWTM: 26°
Peak intensity: 7.980 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 11°
FWTM: 22°
Peak intensity: 10.670 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

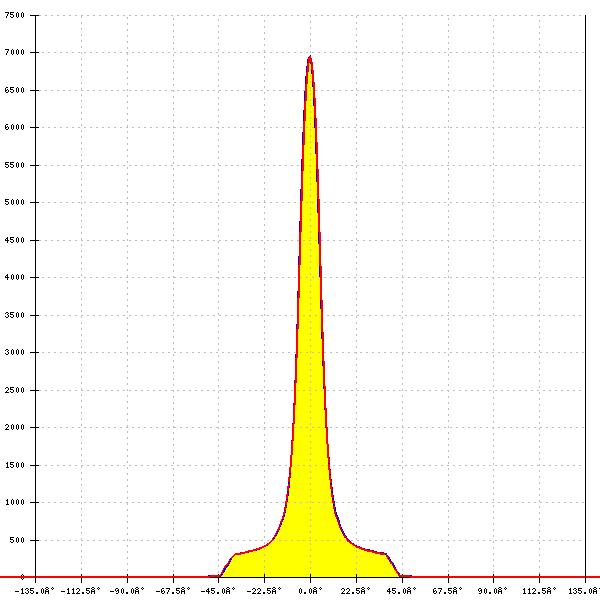

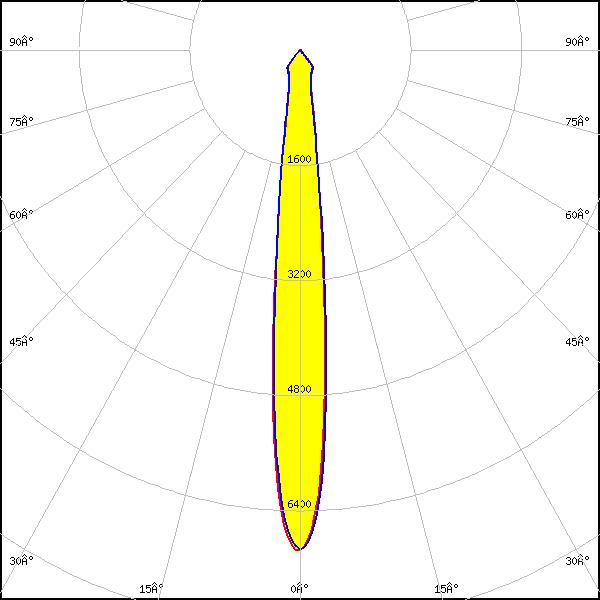

LED: V13 Gen7
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 12°
FWTM: 29°
Peak intensity: 7.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

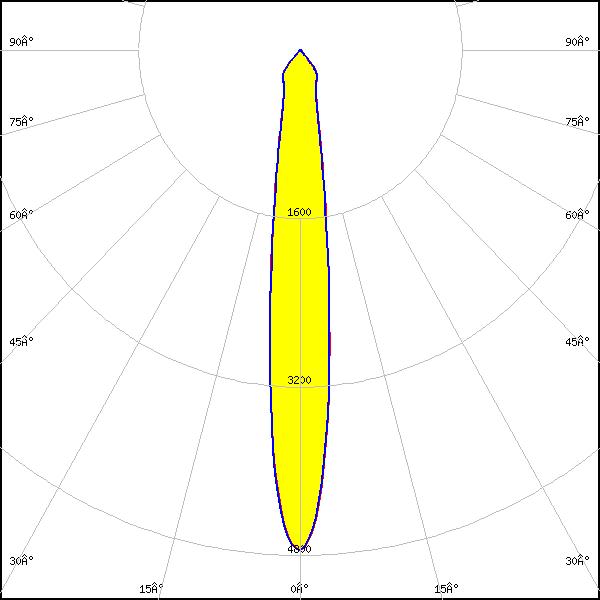

LED: V13 Gen7
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 14°
FWTM: 40°
Peak intensity: 4.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

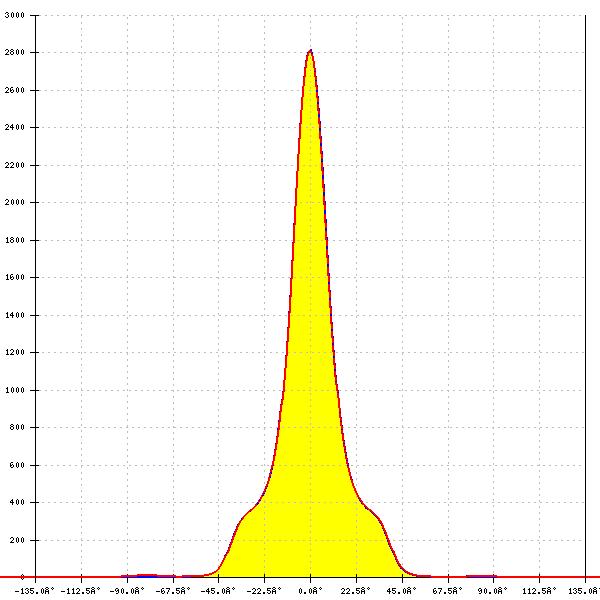

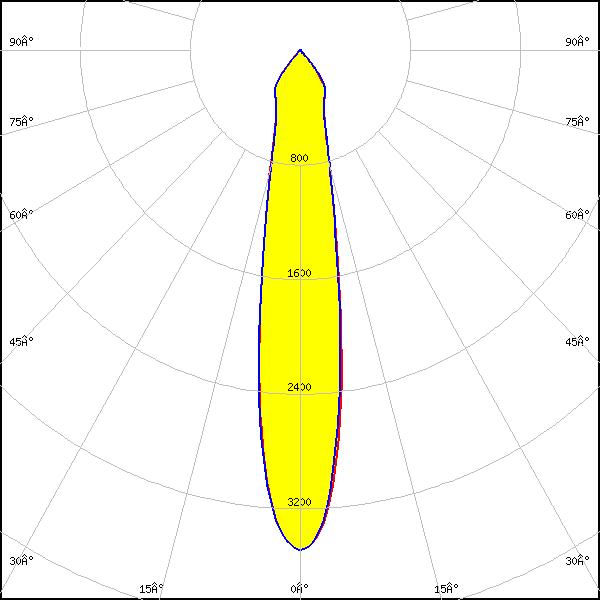

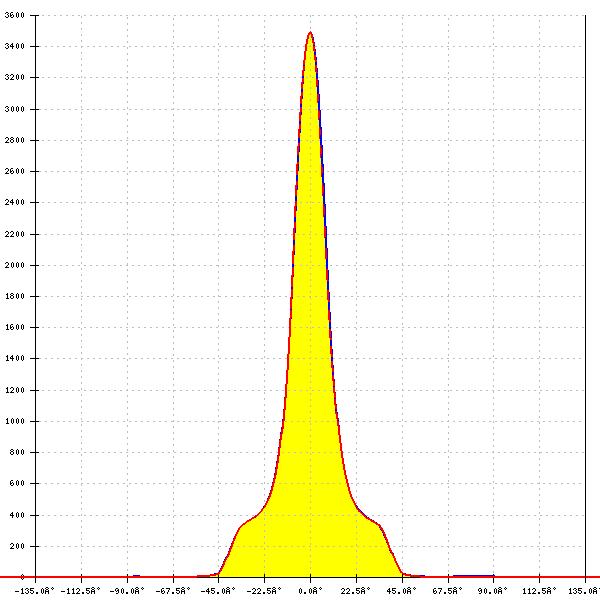

LED: V22 Gen6
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 19°
FWTM: 64°
Peak intensity: 3.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

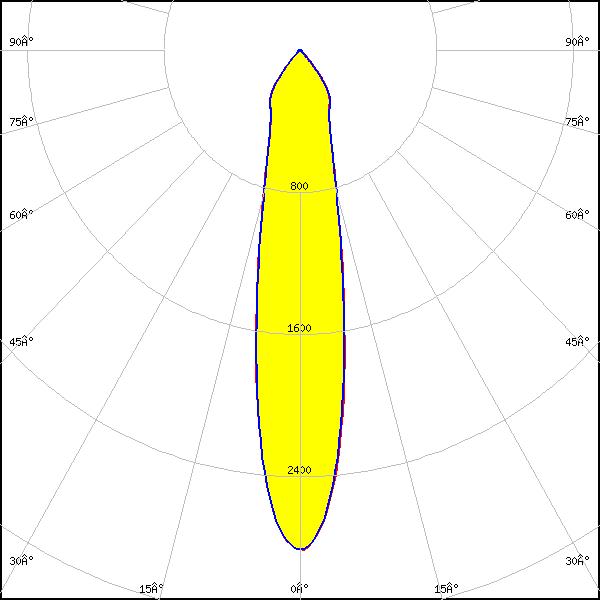

LED: V22 Gen6
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 21°
FWTM: 71°
Peak intensity: 2.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

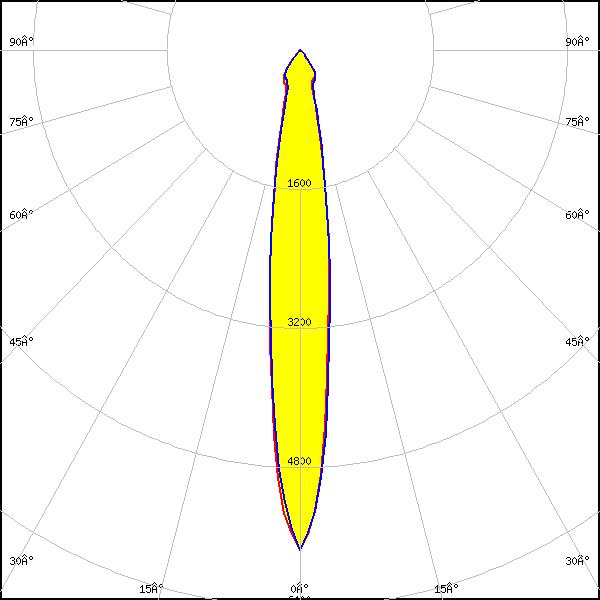

LED: V22 Gen7
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 14°
FWTM: 34°
Peak intensity: 5.753 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

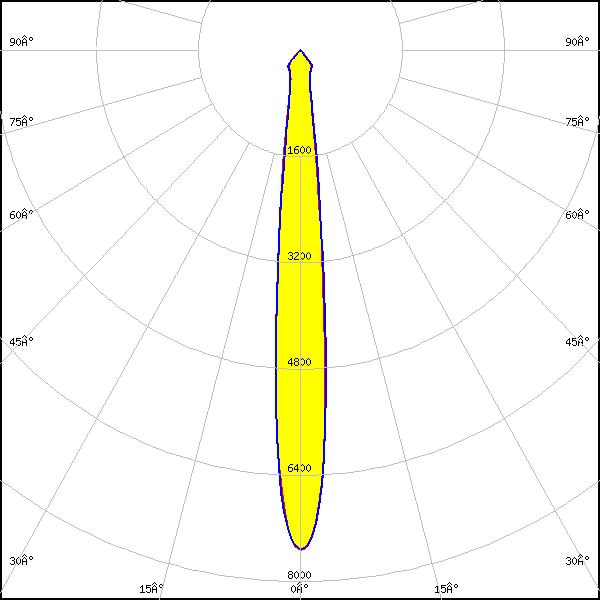

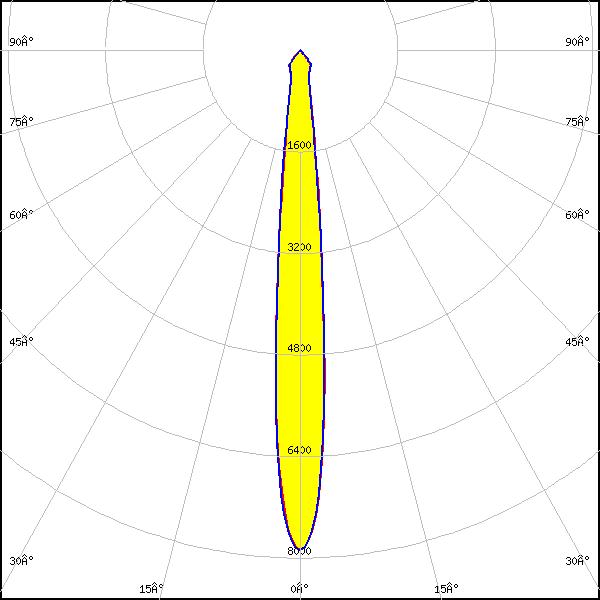

LED: Vero SE 13
Required components:
FWHM: 11°
FWTM: 26°
Peak intensity: 7.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

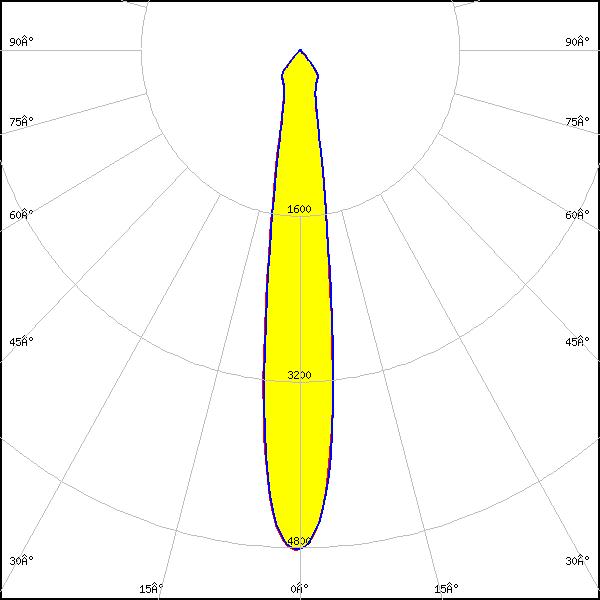

LED: Vero SE 18
Required components:
FWHM: 16°
FWTM: 39°
Peak intensity: 4.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

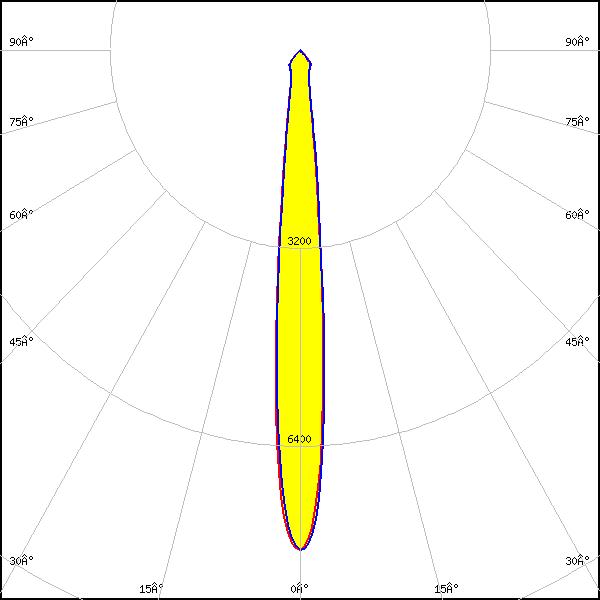

LED: VERO13
Required components:
FWHM: 11°
FWTM: 25°
Peak intensity: 8.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

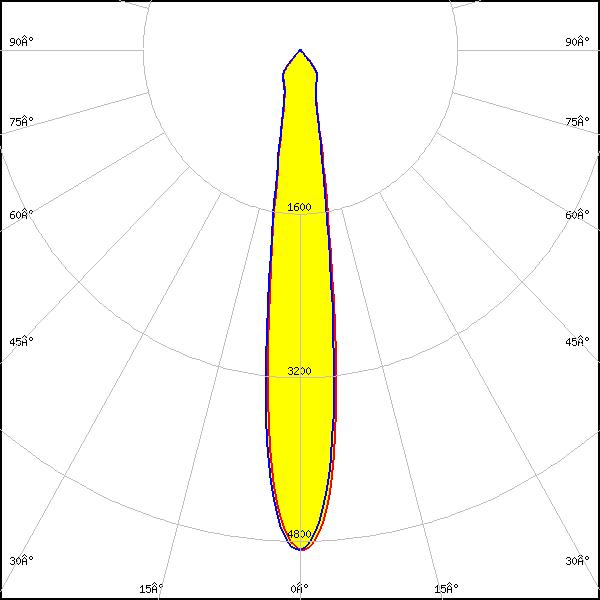

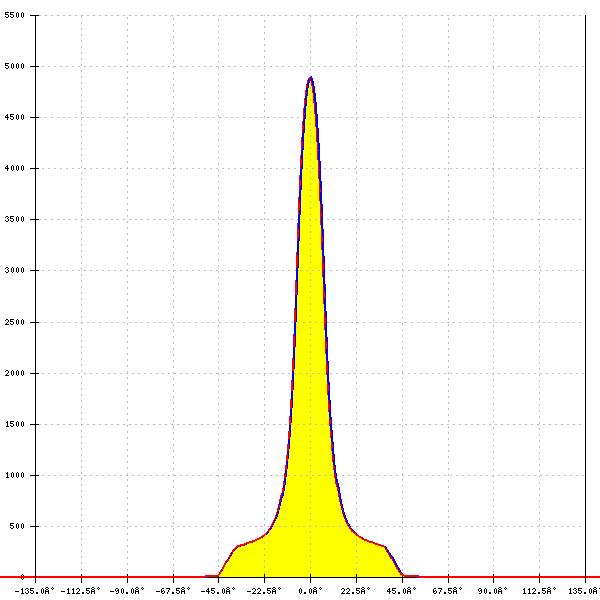

LED: VERO18
Required components:
FWHM: 15°
FWTM: 38°
Peak intensity: 4.900 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

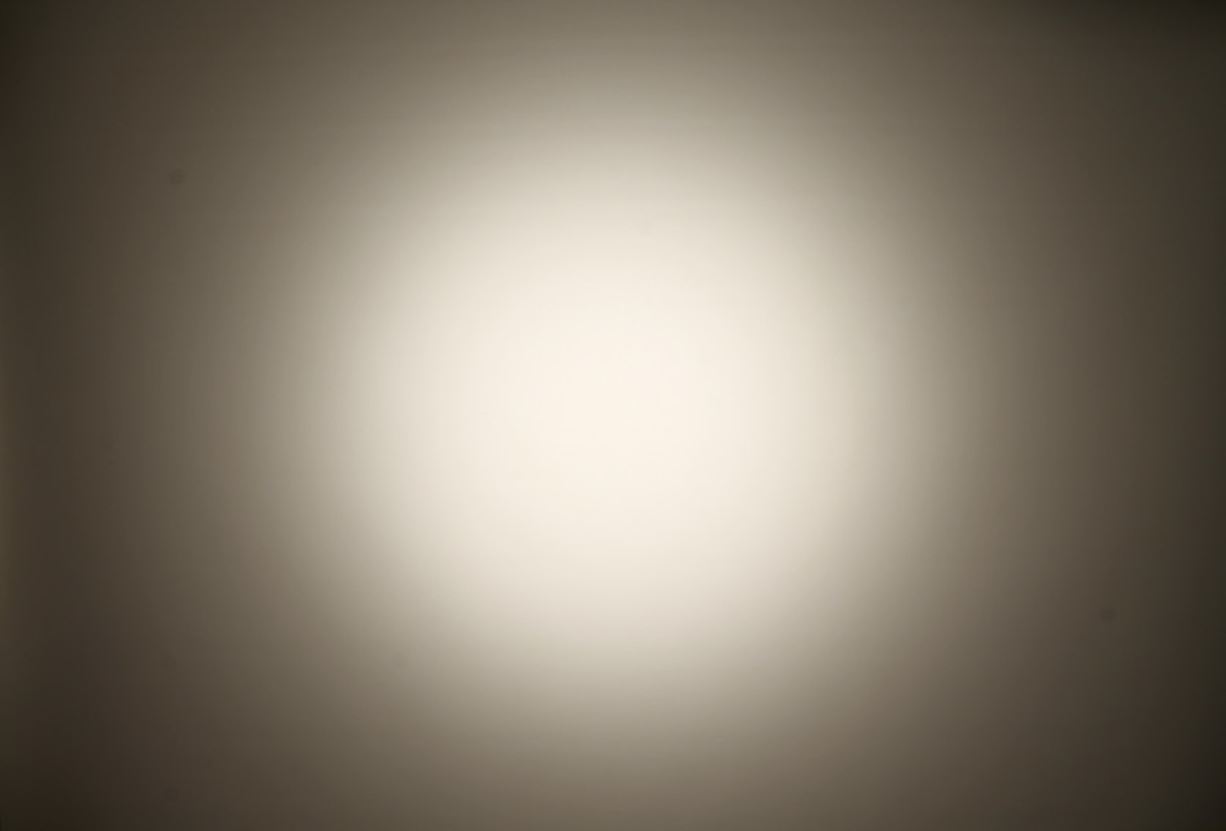

LED: VERO29
Required components:
FWHM: 27°
FWTM: 76°
Peak intensity: 2.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 15mm DP
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 482 Typ L2
FWHM: 13°
FWTM: 29°
Peak intensity: 6.929 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 15mm DP
Required components:
FWHM: 15°
FWTM: 38°
Peak intensity: 5.009 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 18mm (31W) DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 483 Typ L3
FWHM: 16°
FWTM: 38°
Peak intensity: 4.980 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 18mm (31W) DP
Required components:
FWHM: 17°
FWTM: 51°
Peak intensity: 3.774 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White

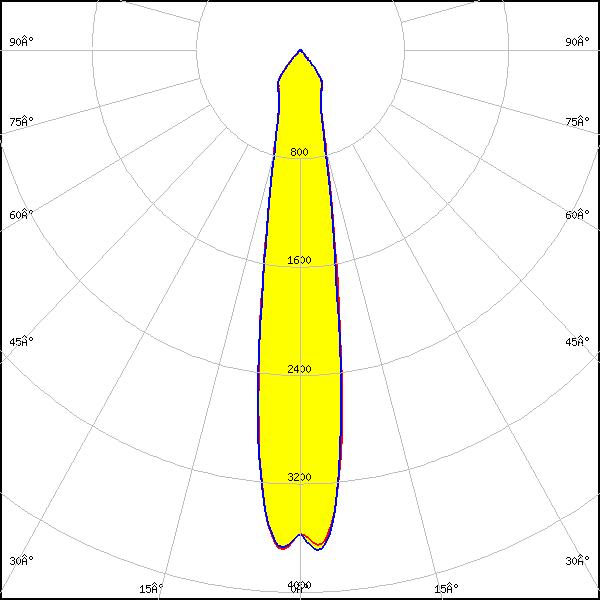

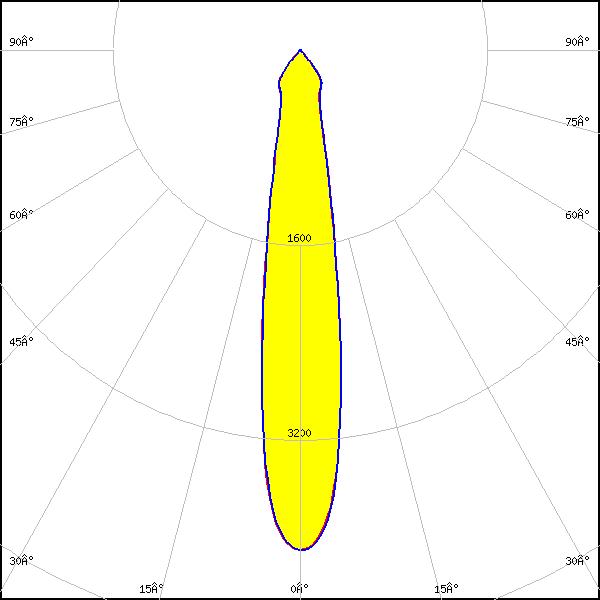

LED: Vesta TW 22mm DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 18°
FWTM: 47°
Peak intensity: 4.103 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

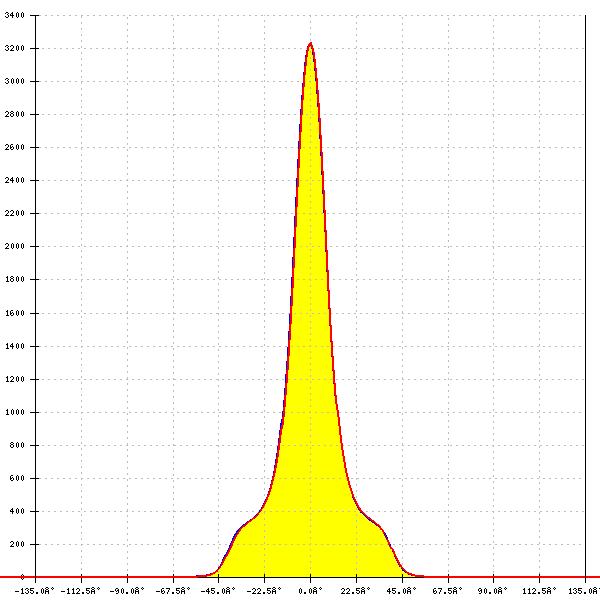

LED: Vesta TW 22mm DP
Required components:
FWHM: 20°
FWTM: 64°
Peak intensity: 3.230 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White

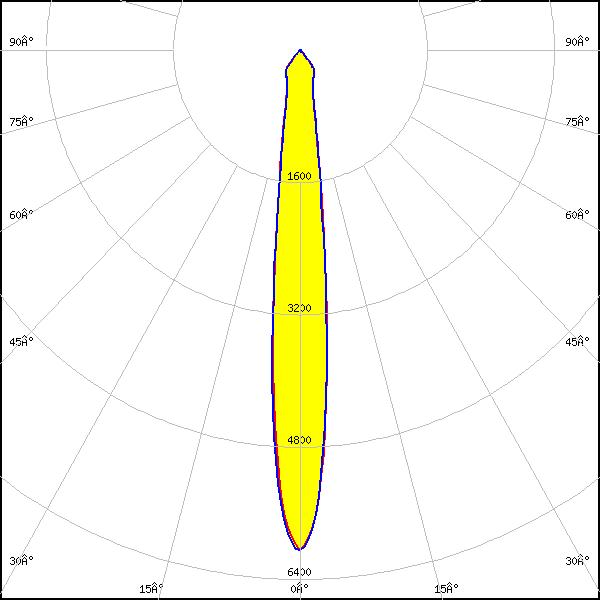

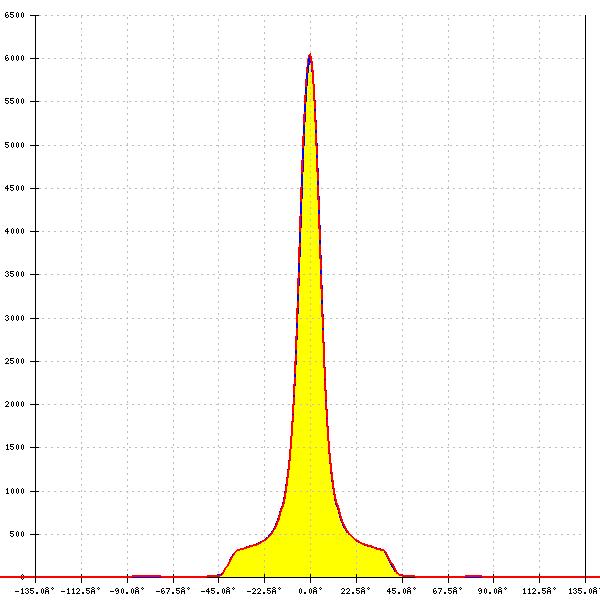

LED: CLL03x/CLU03x
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 13°
FWTM: 33°
Peak intensity: 6.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

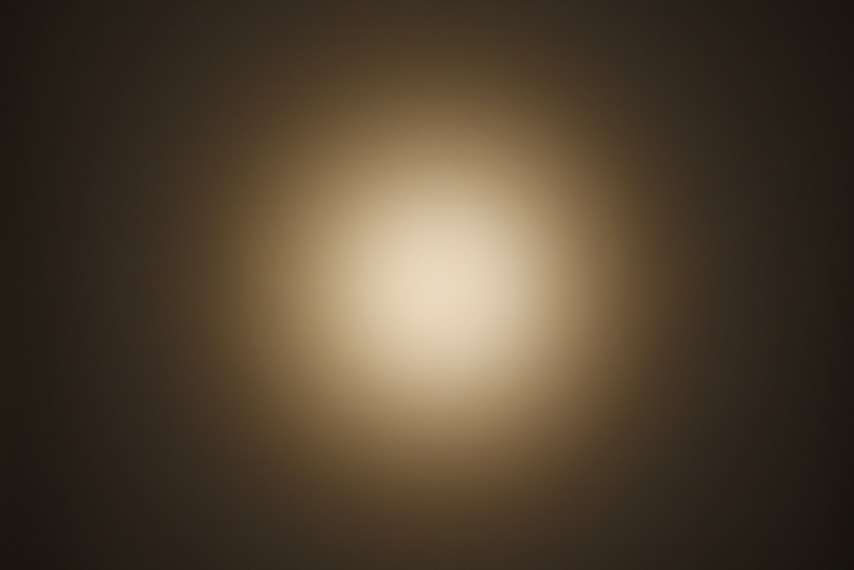

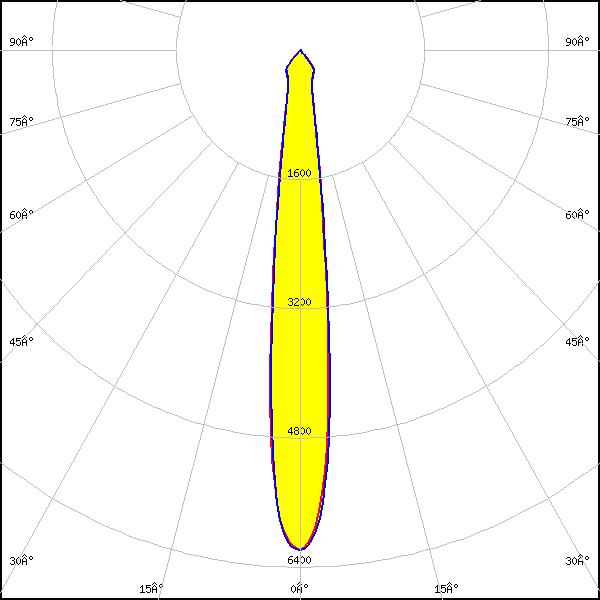

LED: CLL03x/CLU03x
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 31°
Peak intensity: 6.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

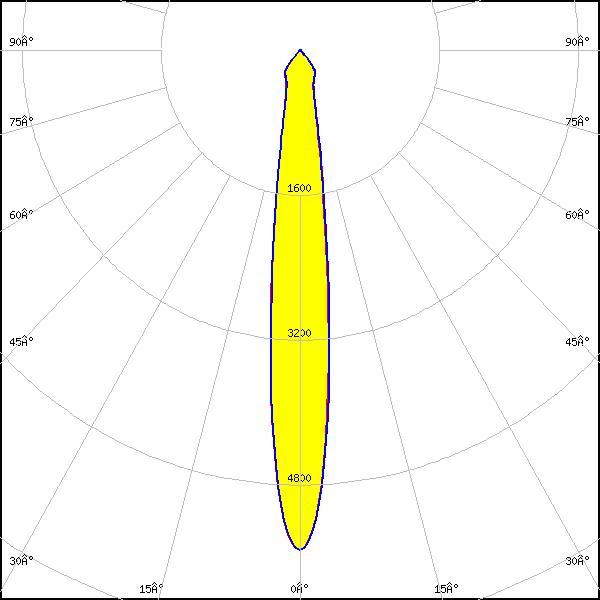

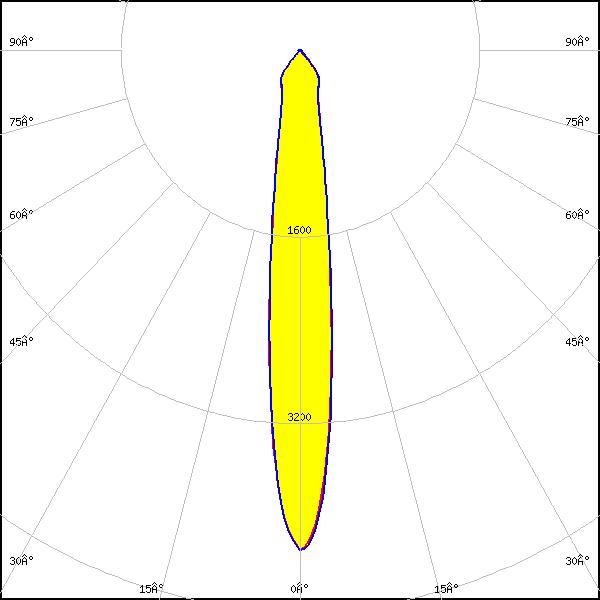

LED: CLL03x/CLU03x
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
F13671_ANGE-RZ-LENS
FWHM: 14°
FWTM: 35°
Peak intensity: 5.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 15°
FWTM: 41°
Peak intensity: 4.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

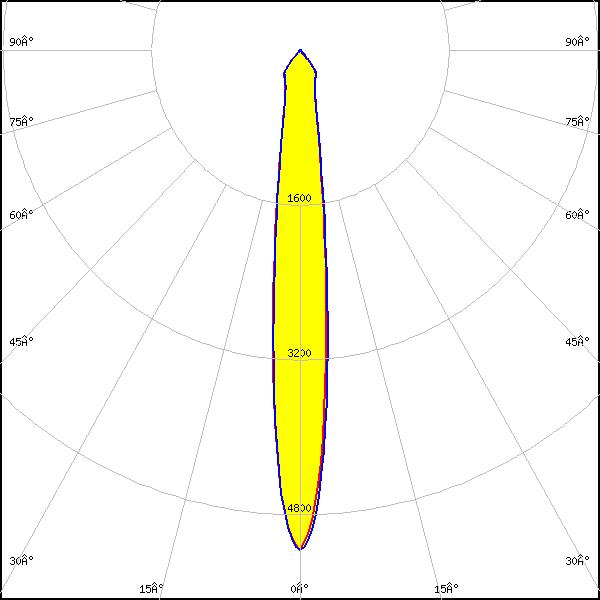

LED: CLL03x/CLU03x
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 15°
FWTM: 44°
Peak intensity: 4.300 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

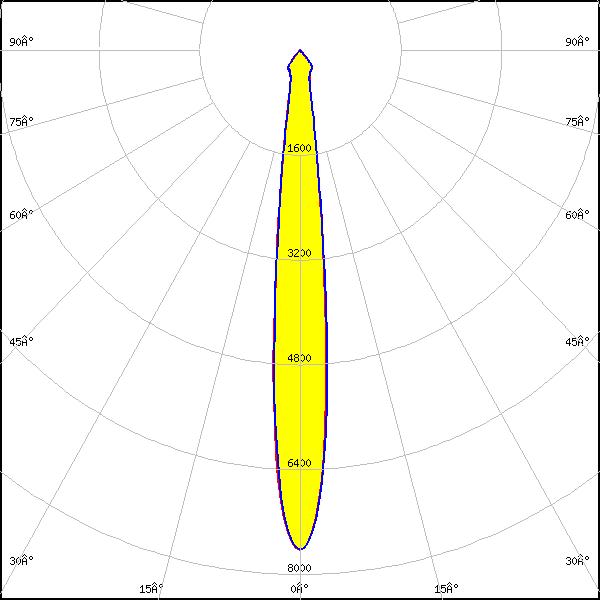

LED: CLL03x/CLU03x
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: 12°
FWTM: 27°
Peak intensity: 7.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

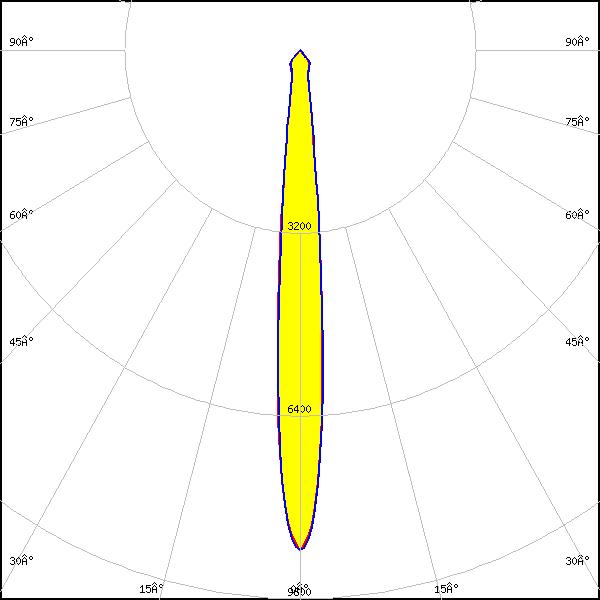

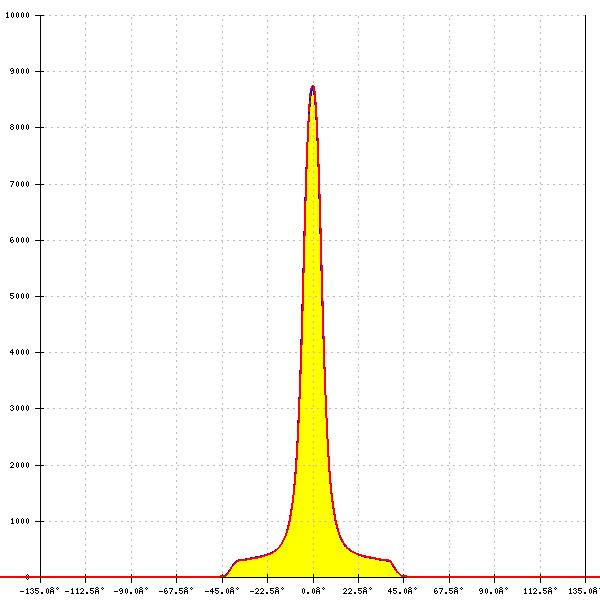

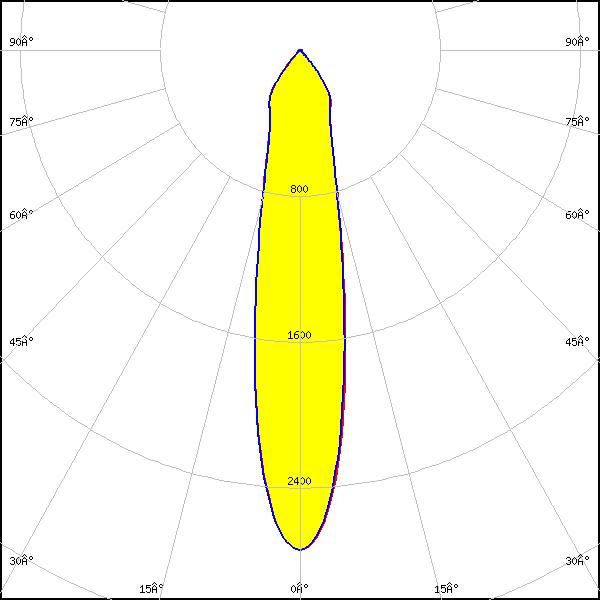

LED: CLL04x/CLU04x
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 21°
FWTM: 71°
Peak intensity: 2.700 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 19°
FWTM: 65°
Peak intensity: 3.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

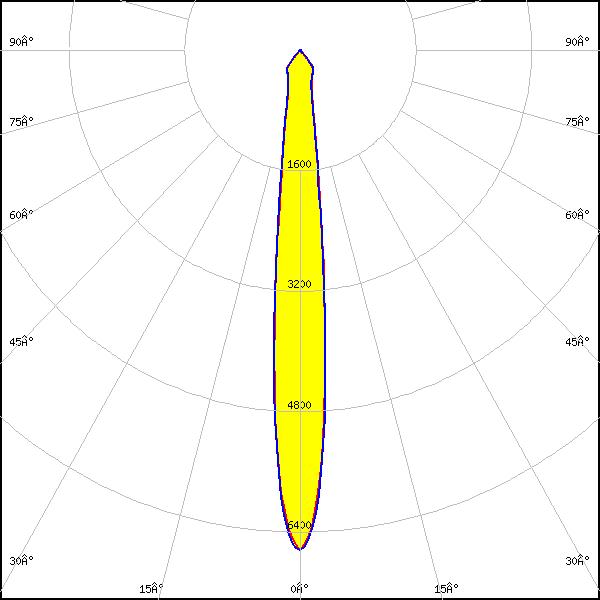

LED: CLU730/731/733
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 14°
FWTM: 41°
Peak intensity: 4.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU730/731/733
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 12°
FWTM: 30°
Peak intensity: 6.600 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

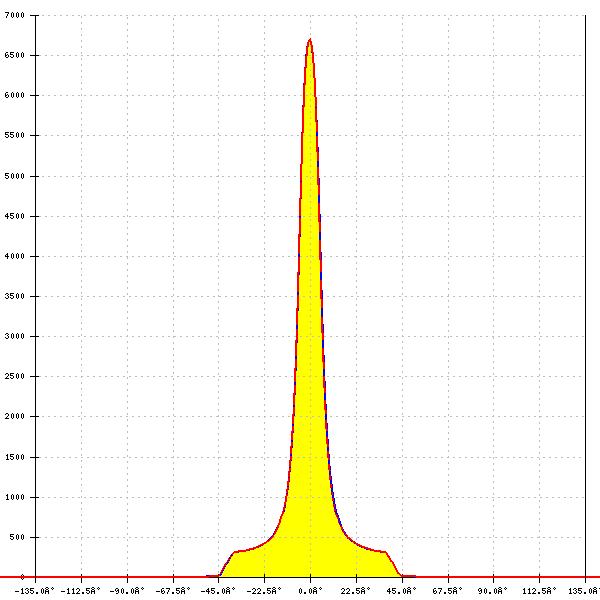

LED: CMA1840
Required components:
FWHM: 12°
FWTM: 29°
Peak intensity: 6.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

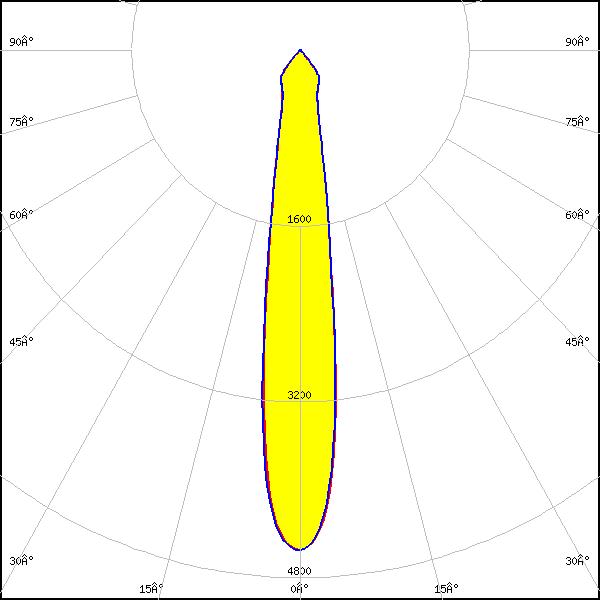

LED: CMA2550
Required components:
FWHM: 16°
FWTM: 43°
Peak intensity: 4.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

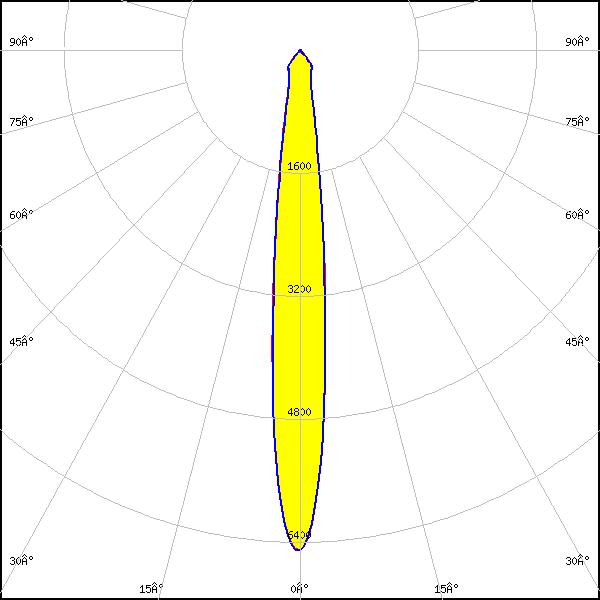

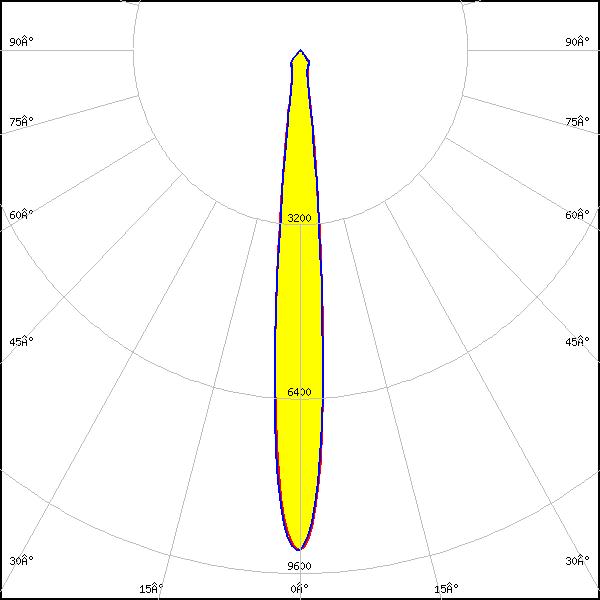

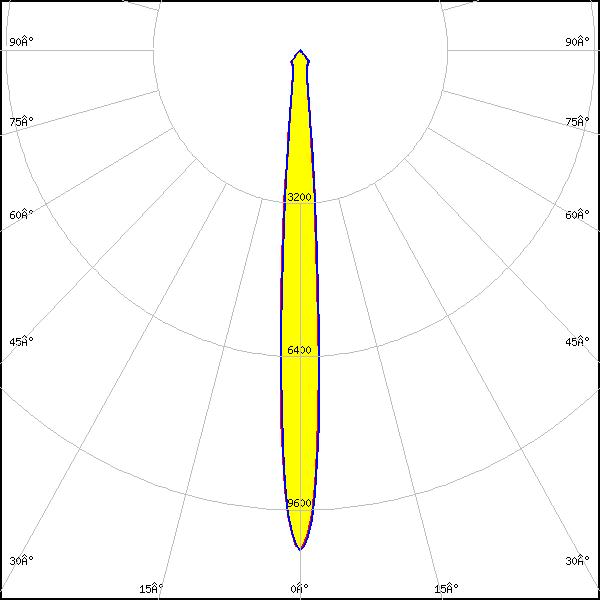

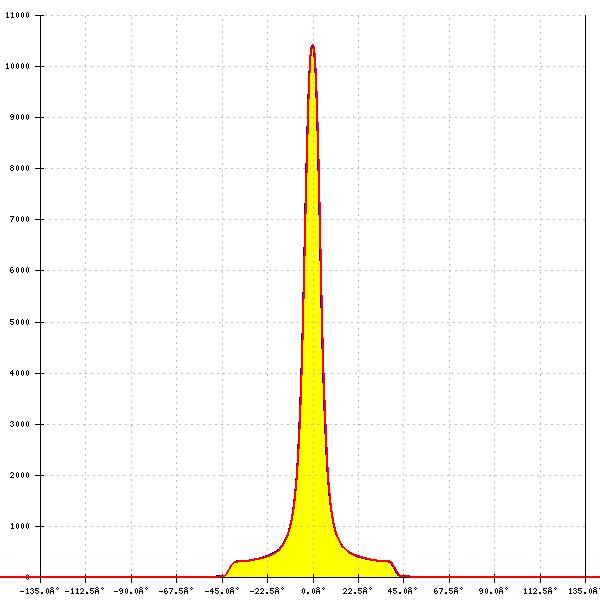

LED: CMT14xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 9°
FWTM: 21°
Peak intensity: 10.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT19xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 12°
FWTM: 31°
Peak intensity: 6.460 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT28xx
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 471 Typ L3
FWHM: 19°
FWTM: 61°
Peak intensity: 3.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

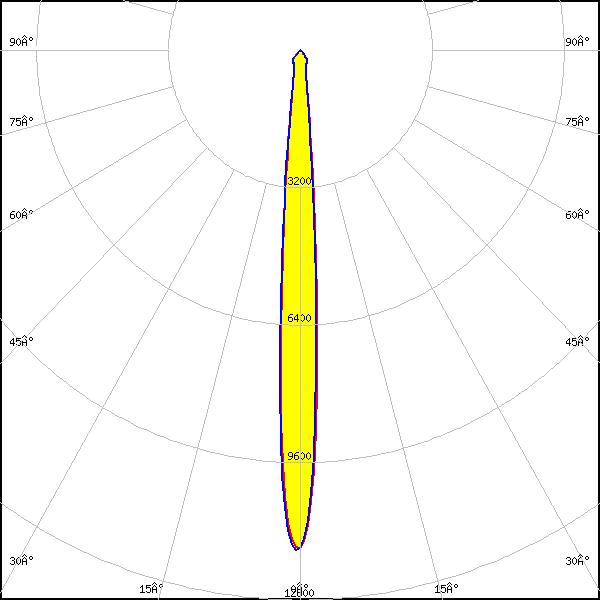

LED: CXA/B 15xx
Required components:
FWHM: 8°
FWTM: 20°
Peak intensity: 12.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

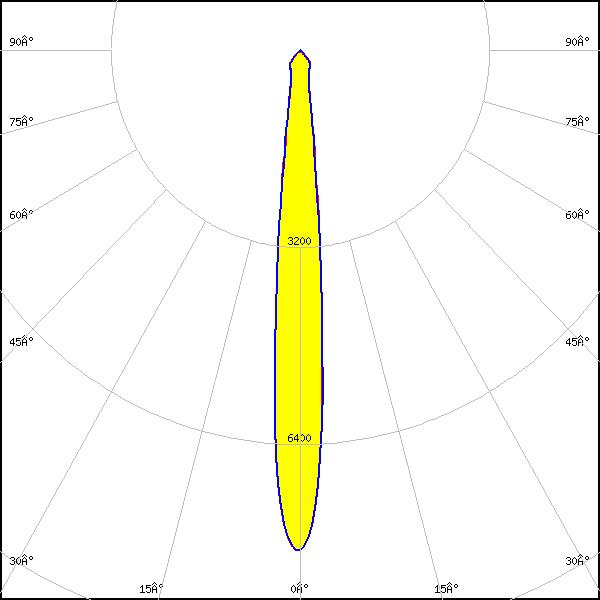

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 11°
FWTM: 25°
Peak intensity: 8.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

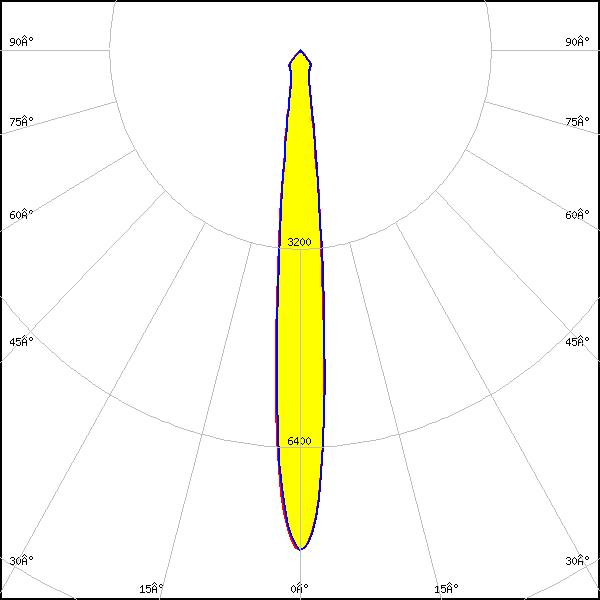

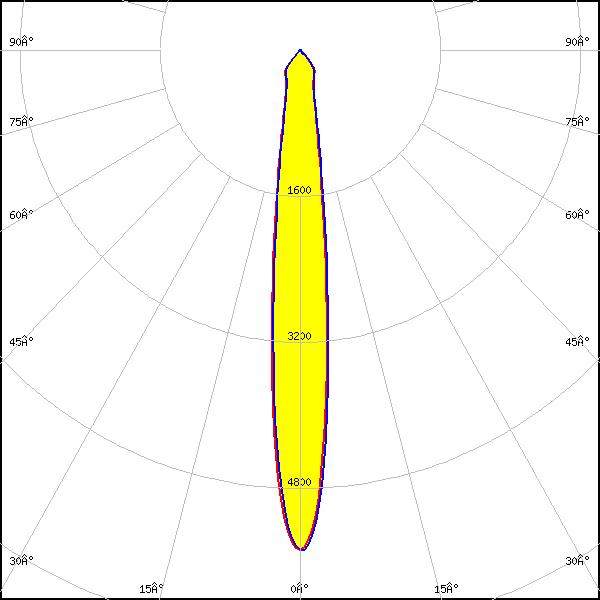

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 13°
FWTM: 35°
Peak intensity: 5.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 11°
FWTM: 26°
Peak intensity: 8.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

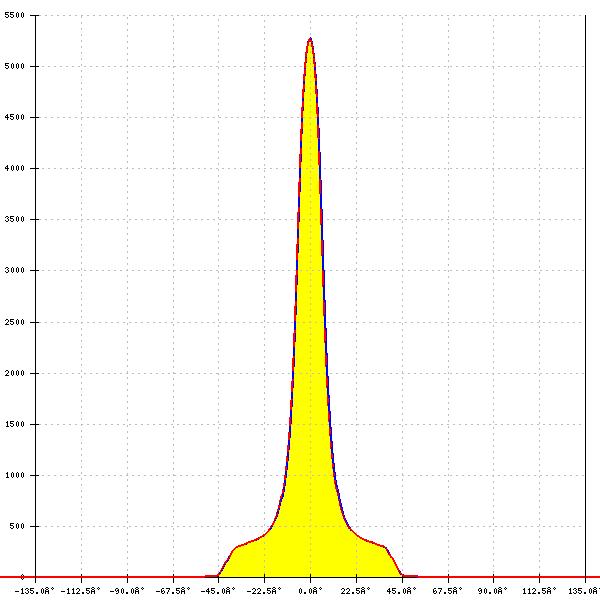

LED: CXA/B 25xx
Required components:
FWHM: 15°
FWTM: 38°
Peak intensity: 5.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

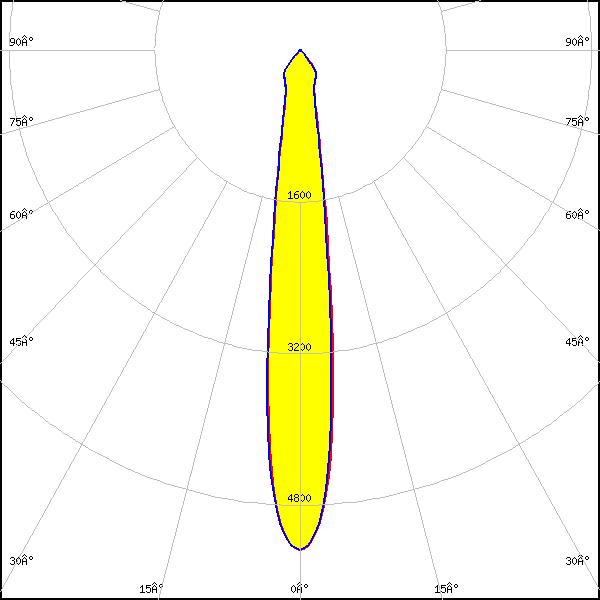

LED: CXA/B 30xx
Required components:
FWHM: 19°
FWTM: 55°
Peak intensity: 3.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

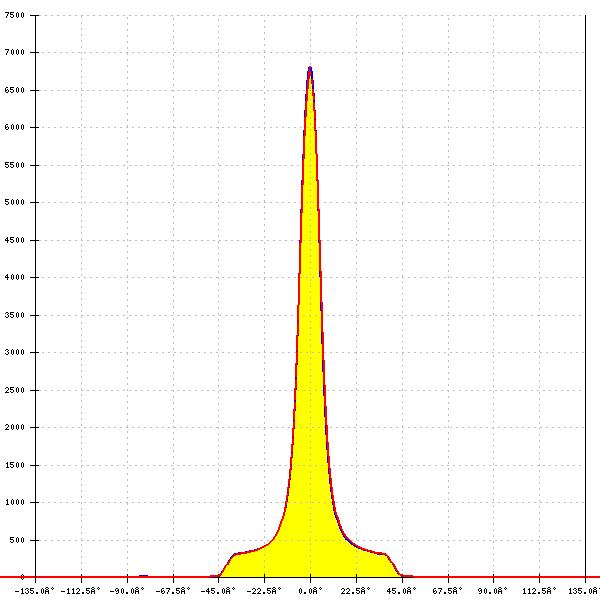

LED: LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 12°
FWTM: 28°
Peak intensity: 7.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

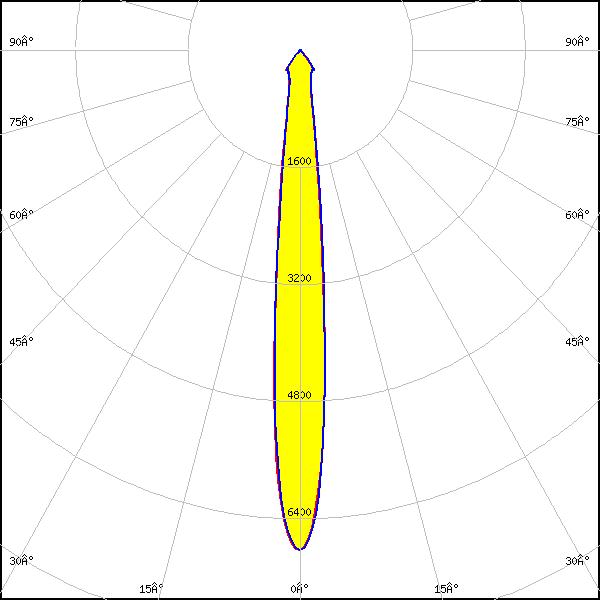

LED: LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F15176_ANGELETTE-LENS
FWHM: 12°
FWTM: 28°
Peak intensity: 6.800 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

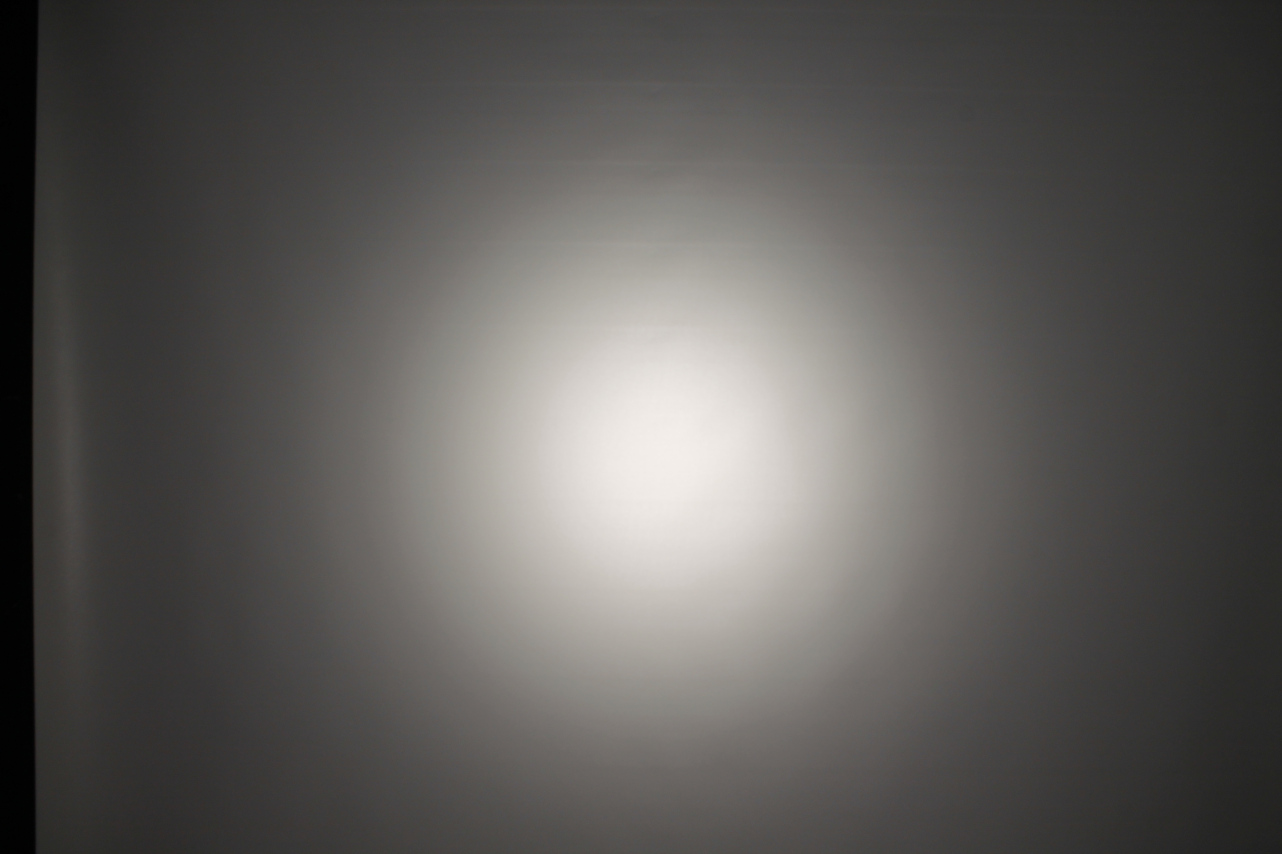

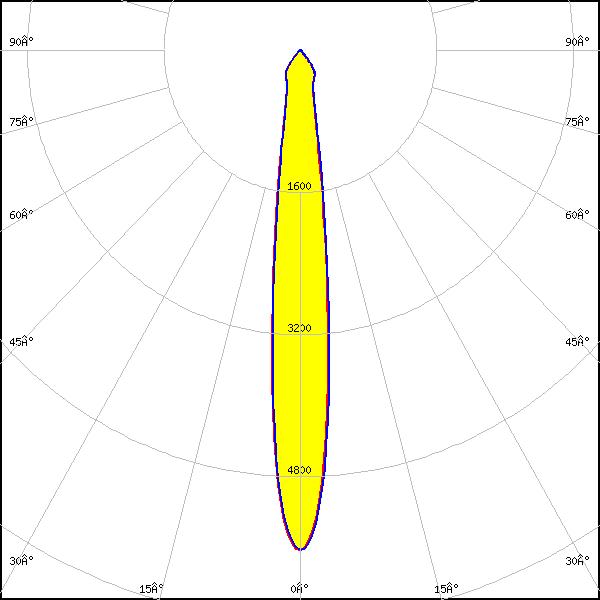

LED: LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F15412_ANGELETTE-DL
FWHM: 13°
FWTM: 33°
Peak intensity: 5.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

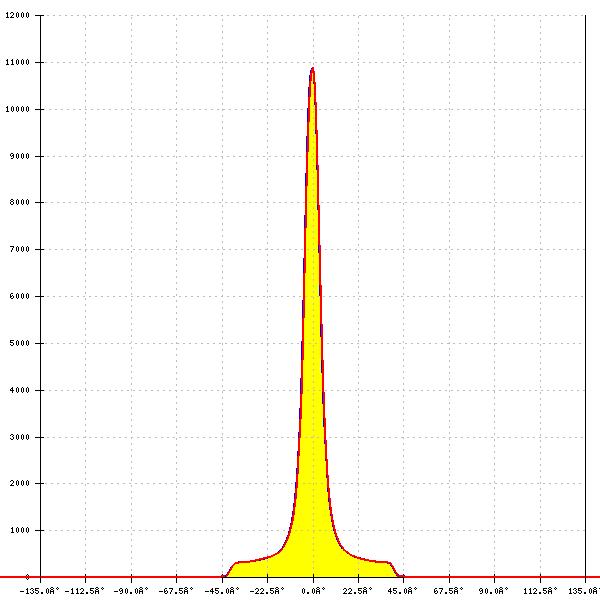

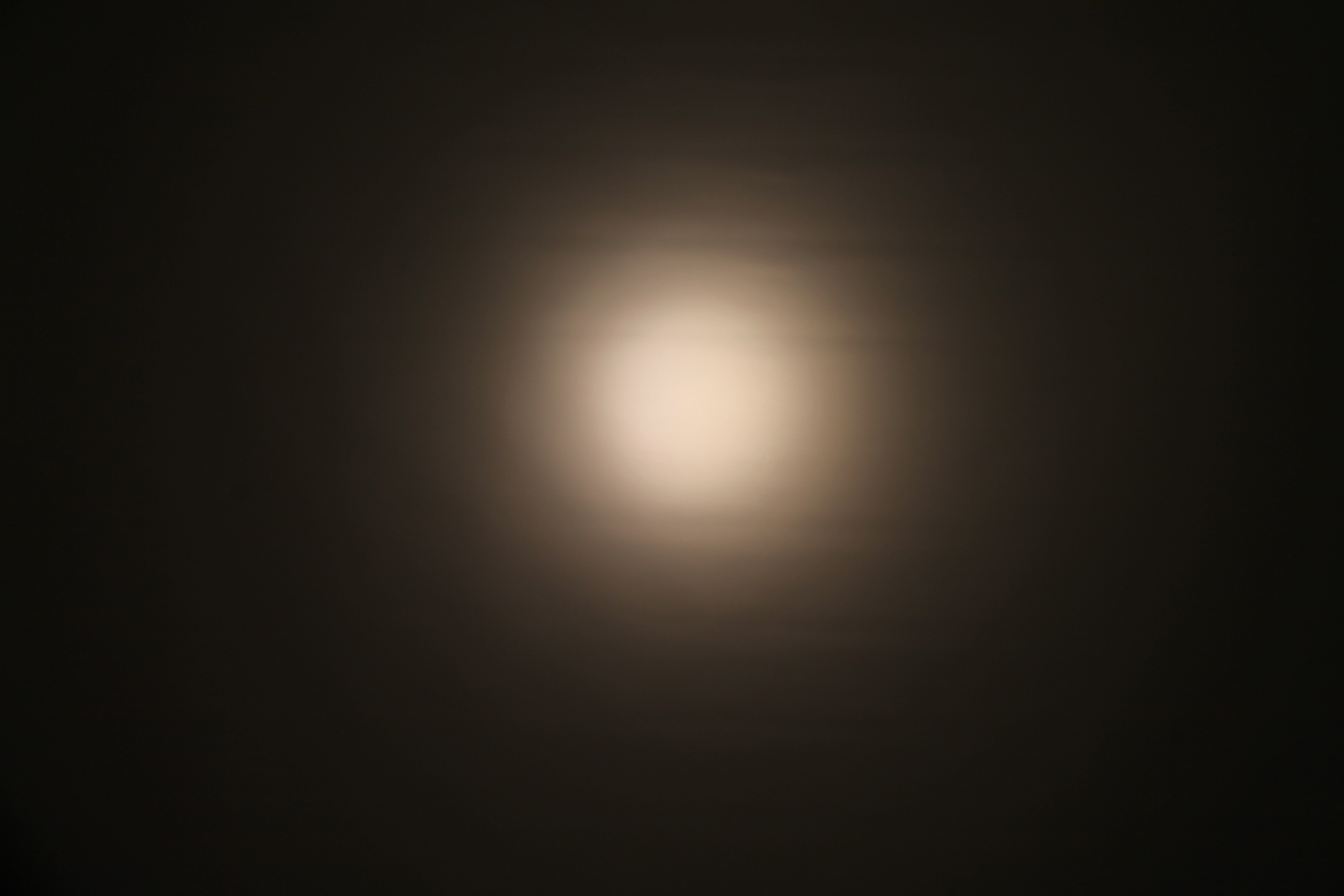

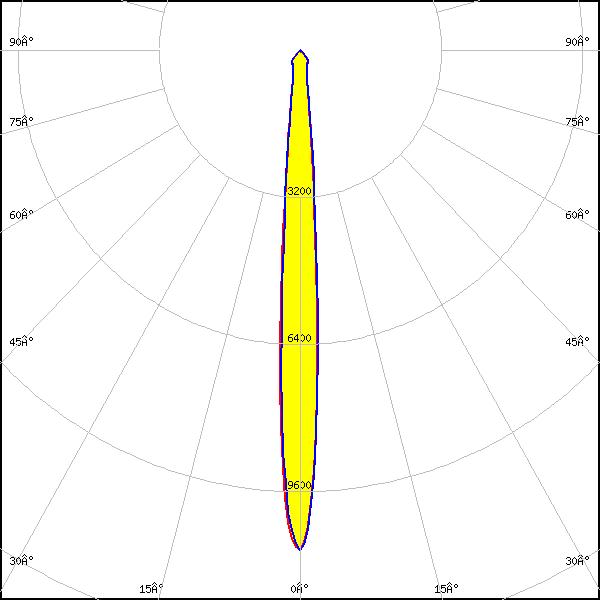

LED: LUXEON CoB 1204HD
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 21°
Peak intensity: 10.900 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

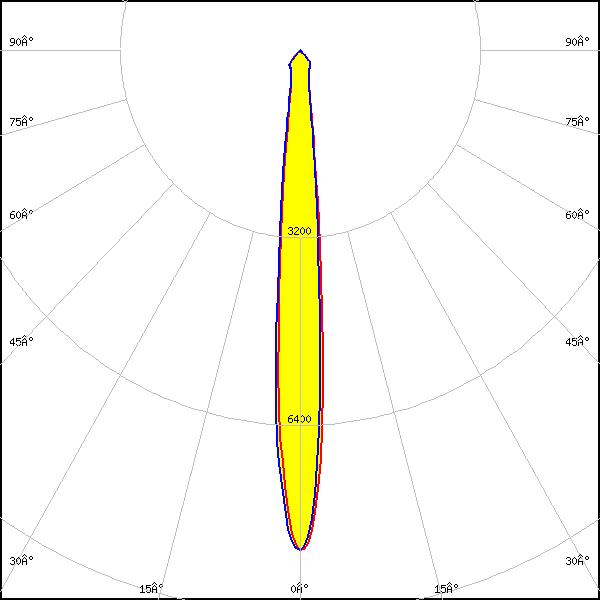

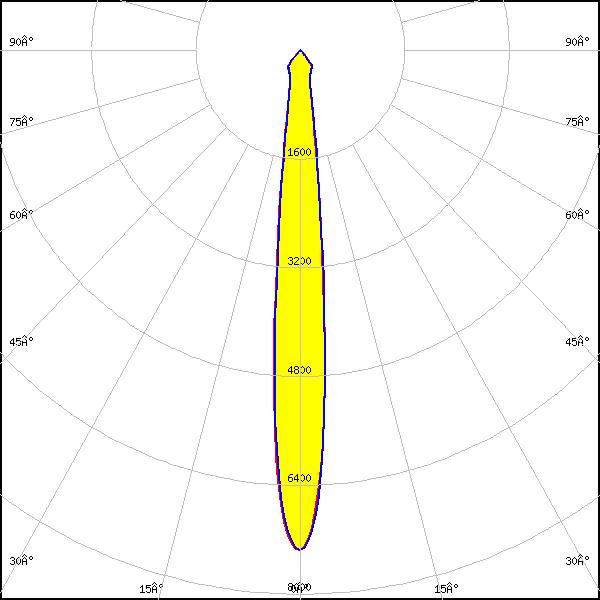

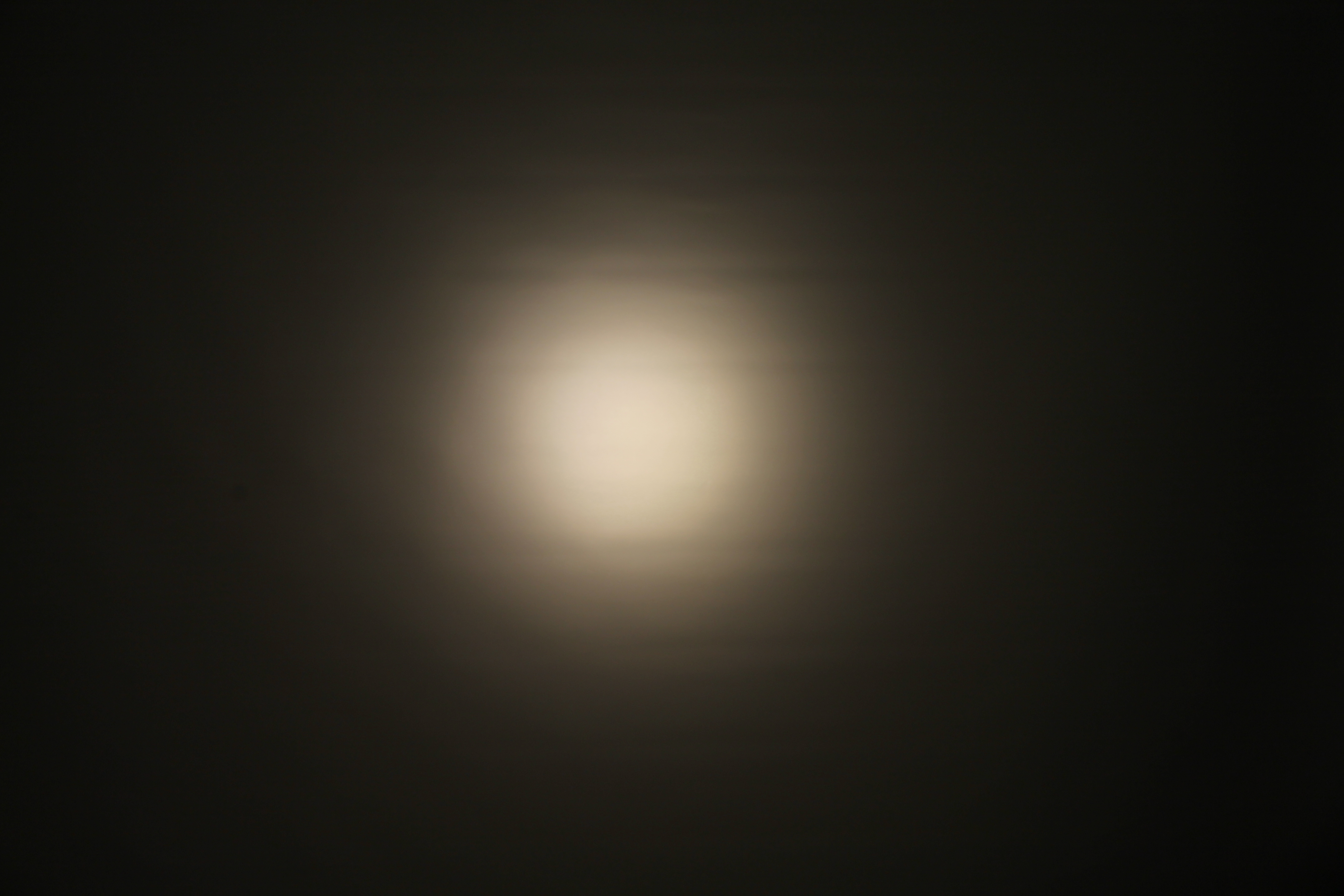

LED: LUXEON CoB 1205HD
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 25°
Peak intensity: 8.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

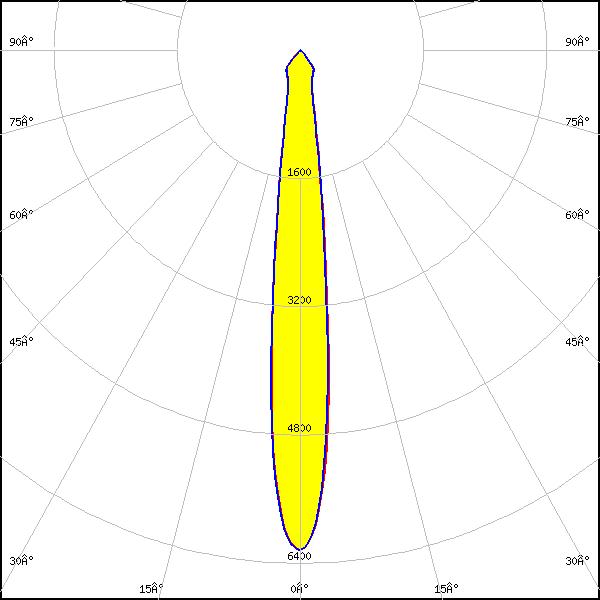

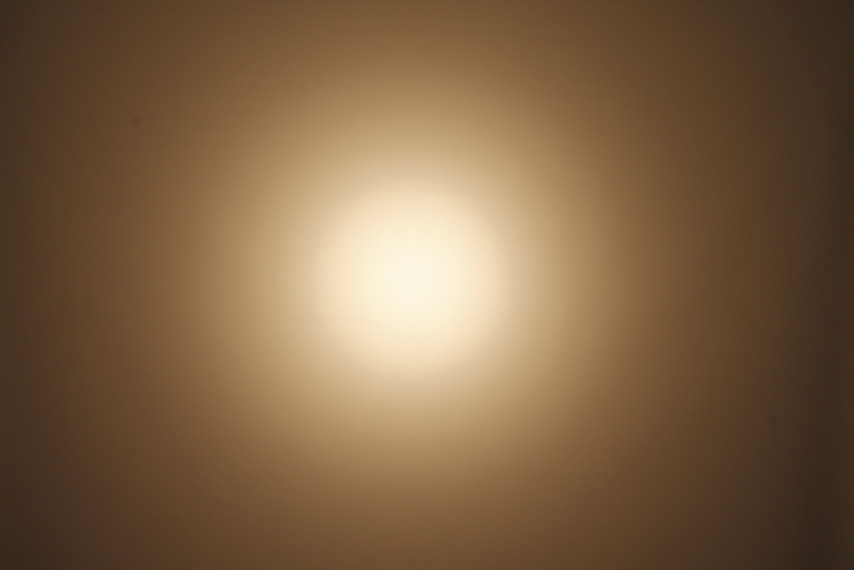

LED: LUXEON CoB 1208
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 31°
Peak intensity: 6.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

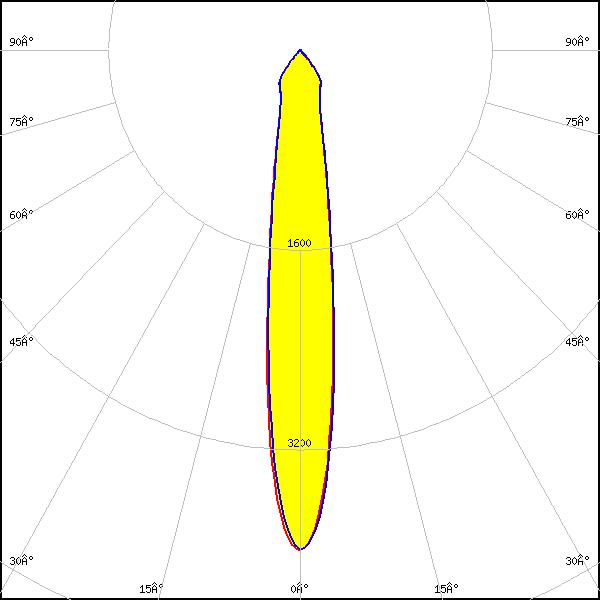

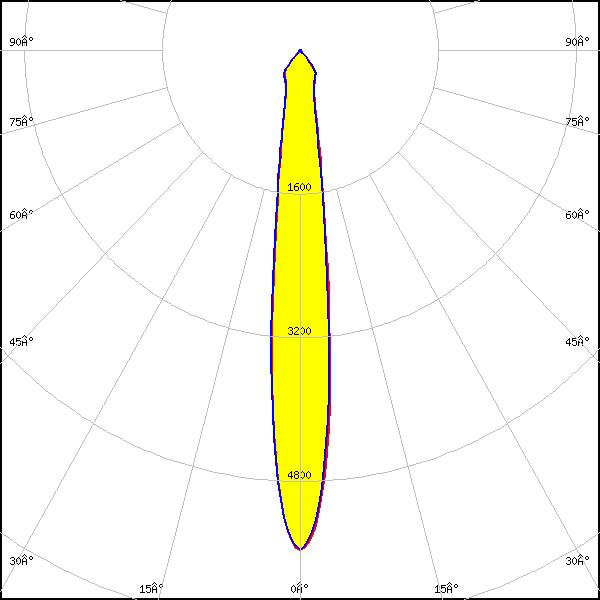

LED: LUXEON CoB 1208
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
FWHM: 13°
FWTM: 35°
Peak intensity: 5.600 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

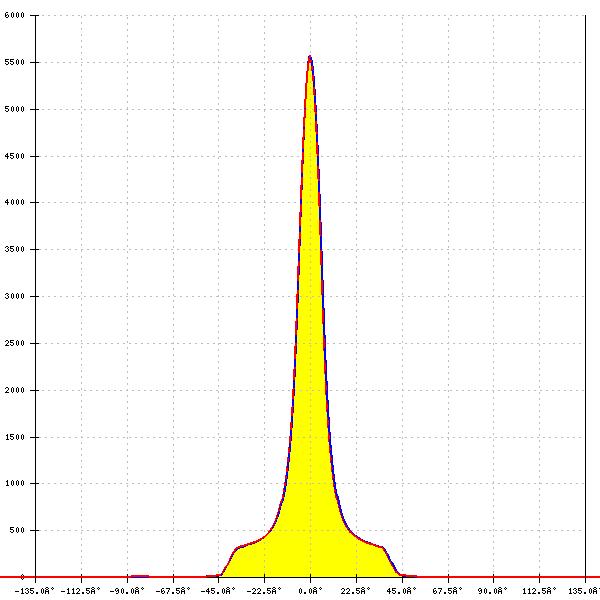

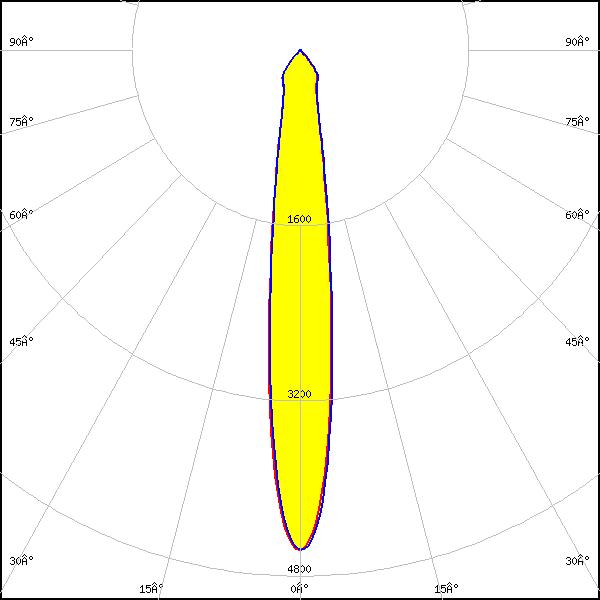

LED: LUXEON CoB 1208
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 16°
FWTM: 48°
Peak intensity: 4.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1208
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 15°
FWTM: 41°
Peak intensity: 4.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

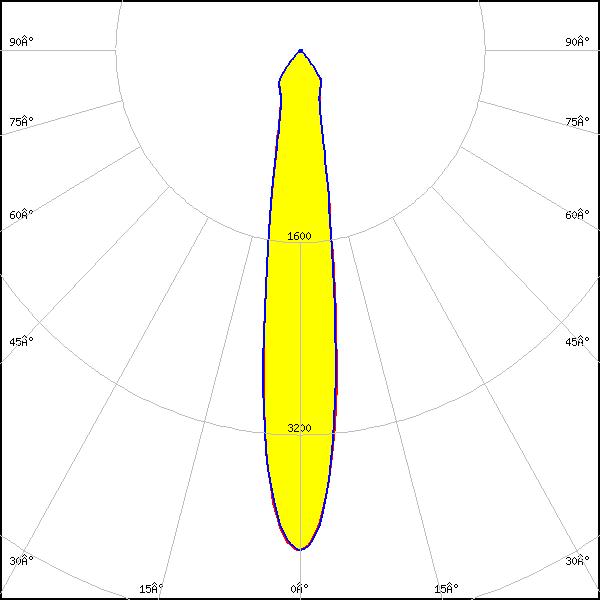

LED: LUXEON CoB 1211
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 17°
FWTM: 48°
Peak intensity: 4.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

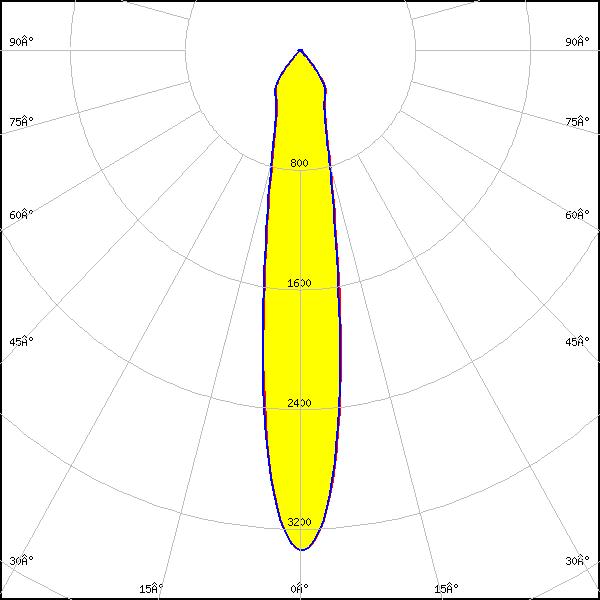

LED: LUXEON CoB 1211
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 18°
FWTM: 62°
Peak intensity: 3.300 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

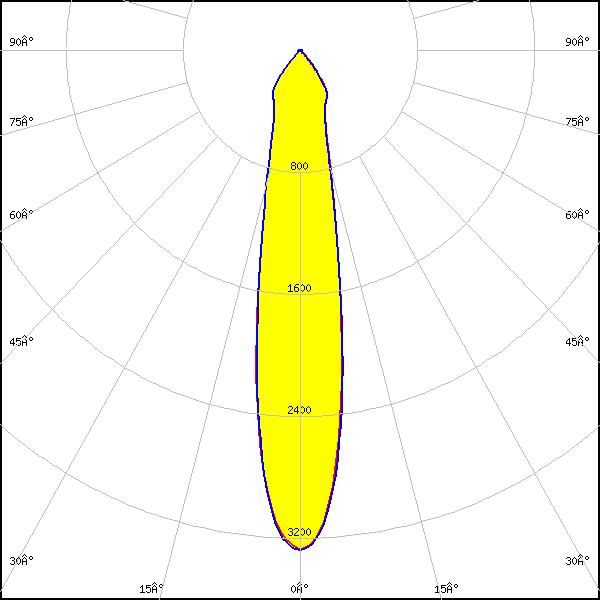

LED: LUXEON CoB 1213/1216/1812
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 20°
FWTM: 68°
Peak intensity: 3.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1213/1216/1812
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 21°
FWTM: 71°
Peak intensity: 2.700 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

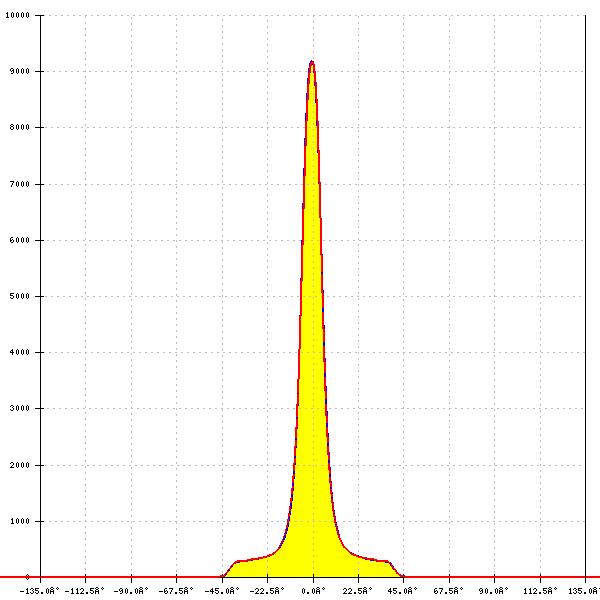

LED: CDM-14 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 11°
FWTM: 24°
Peak intensity: 9.200 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-14 (Dim-To-Warm)
Required components:
FWHM: 12°
FWTM: 31°
Peak intensity: 6.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

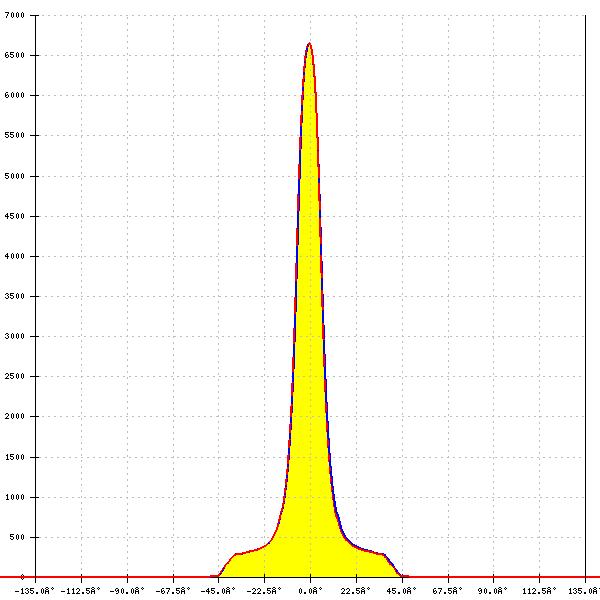

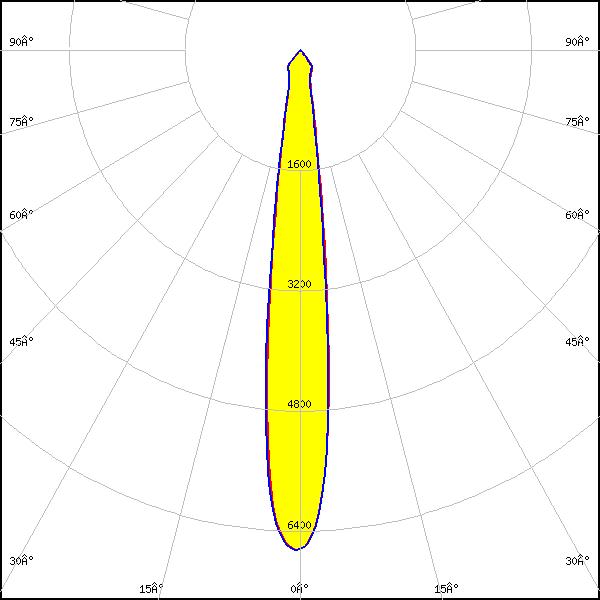

LED: CDM-18 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 14°
FWTM: 30°
Peak intensity: 6.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-18 (Dim-To-Warm)
Required components:
FWHM: 15°
FWTM: 36°
Peak intensity: 5.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

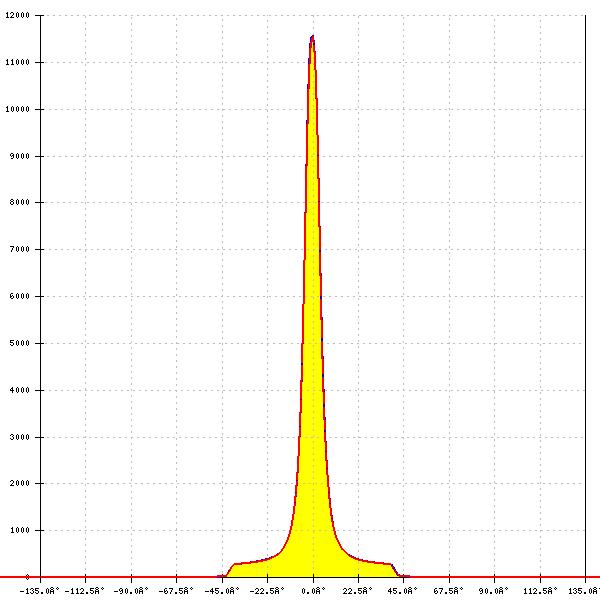

LED: CDM-9 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 490 Typ L1
FWHM: 8°
FWTM: 20°
Peak intensity: 11.600 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-9 (Dim-To-Warm)
Required components:
FWHM: 11°
FWTM: 28°
Peak intensity: 7.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-14 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 442 Typ L3
FWHM: 11°
FWTM: 24°
Peak intensity: 9.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-14 (Tunable White)
Required components:
FWHM: 12°
FWTM: 30°
Peak intensity: 6.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-14 RGBW
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 500 Typ L3-1
F13671_ANGE-RZ-LENS
FWHM: 12°
FWTM: 33°
Peak intensity: 6.037 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: RGBW
LED: CTM-14 RGBW
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 500 Typ L3-1
FWHM: 10°
FWTM: 24°
Peak intensity: 9.374 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: RGBW
LED: CTM-22 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 18°
FWTM: 52°
Peak intensity: 3.700 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-22 (Tunable White)
Required components:
FWHM: 19°
FWTM: 63°
Peak intensity: 3.100 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 16°
FWTM: 49°
Peak intensity: 4.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
FWHM: 13°
FWTM: 35°
Peak intensity: 5.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 13°
FWTM: 37°
Peak intensity: 5.200 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
FWHM: 10°
FWTM: 26°
Peak intensity: 8.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 23°
Peak intensity: 9.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 498 Typ L2
FWHM: 10°
FWTM: 23°
Peak intensity: 9.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM: 12°
FWTM: 32°
Peak intensity: 6.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 13°
FWTM: 29°
Peak intensity: 6.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 15°
FWTM: 37°
Peak intensity: 5.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

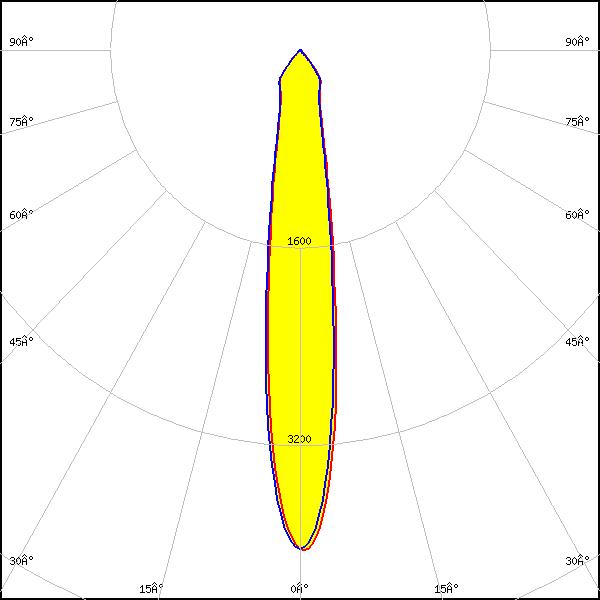

LED: PrevaLED Core Z4 LES19
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 16°
FWTM: 48°
Peak intensity: 4.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core Z4 LES19
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 14°
FWTM: 36°
Peak intensity: 5.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

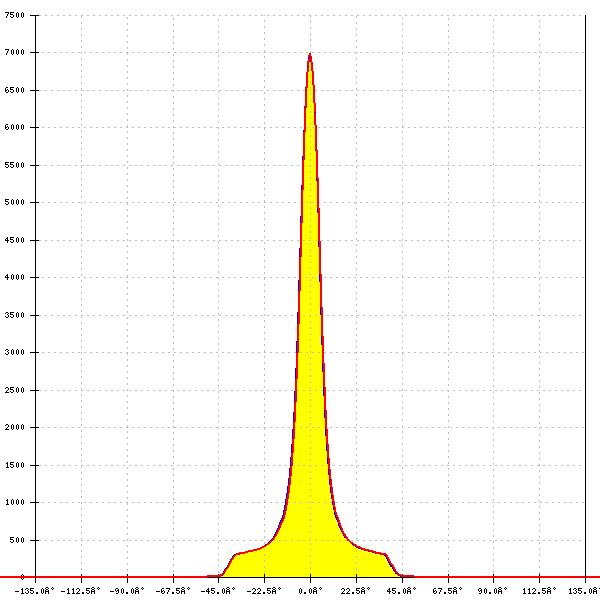

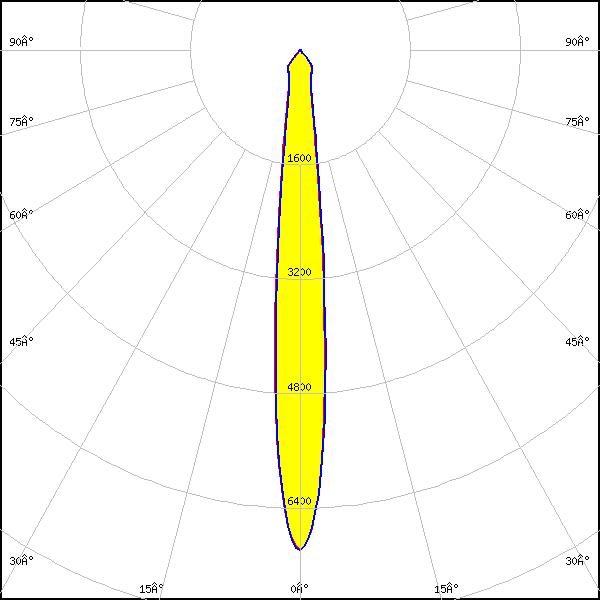

LED: Soleriq S13 19x19
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 12°
FWTM: 29°
Peak intensity: 7.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13 19x19
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 11°
FWTM: 26°
Peak intensity: 7.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

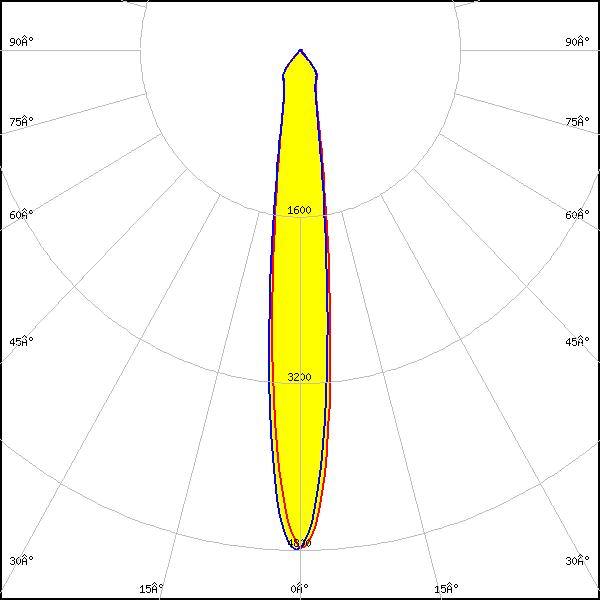

LED: Soleriq S13 19x19
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 14°
FWTM: 39°
Peak intensity: 4.800 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

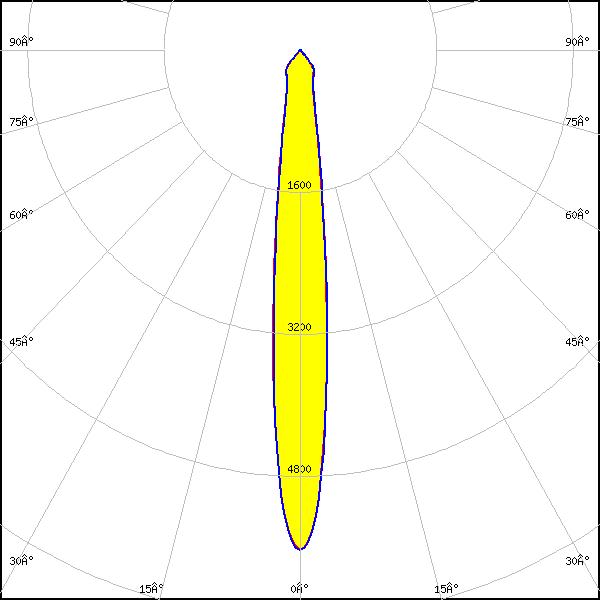

LED: Soleriq S13 19x19
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 13°
FWTM: 34°
Peak intensity: 5.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13 19x19
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 12°
FWTM: 29°
Peak intensity: 7.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S19
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 16°
FWTM: 47°
Peak intensity: 4.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

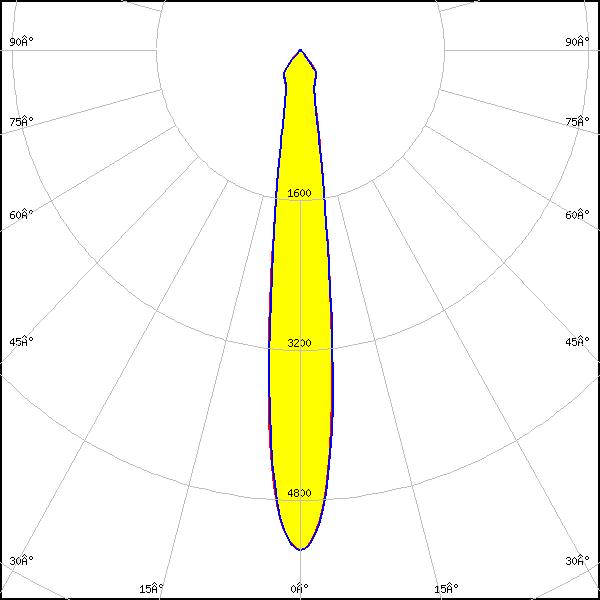

LED: Soleriq S19
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 14°
FWTM: 36°
Peak intensity: 5.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

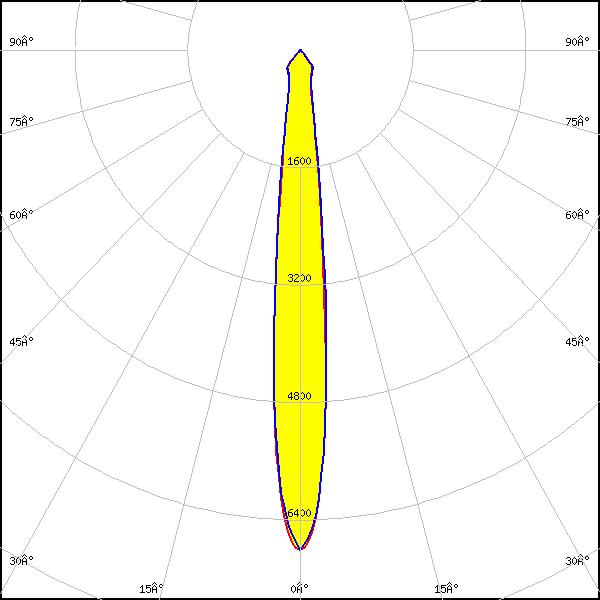

LED: Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 12°
FWTM: 29°
Peak intensity: 6.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 14°
FWTM: 39°
Peak intensity: 4.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

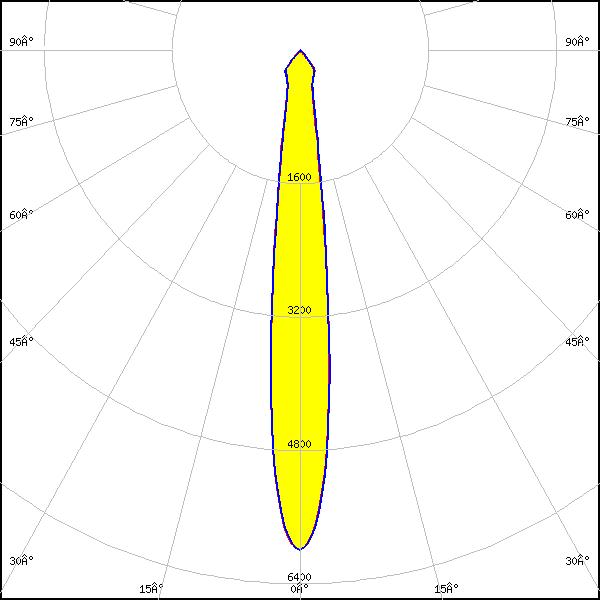

LED: Fortimo SLM L15 + SLM holder
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 32°
Peak intensity: 6.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L15 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 15°
FWTM: 43°
Peak intensity: 4.400 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L15 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 15°
FWTM: 43°
Peak intensity: 4.400 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

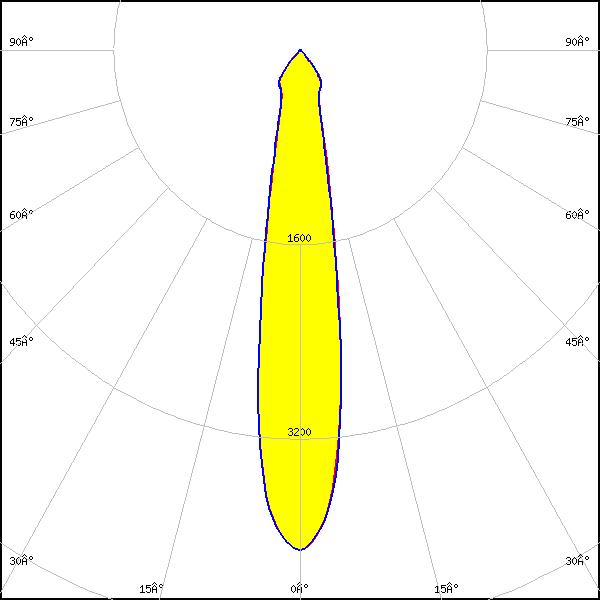

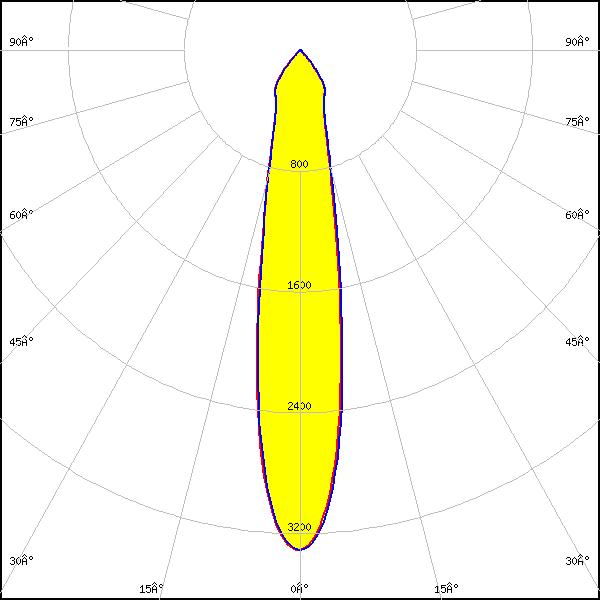

LED: LC035T (Tunable white)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 502 Typ L3
FWHM: 18°
FWTM: 46°
Peak intensity: 4.116 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: LC035T (Tunable white)
Required components:
FWHM: 20°
FWTM: 62°
Peak intensity: 3.311 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White

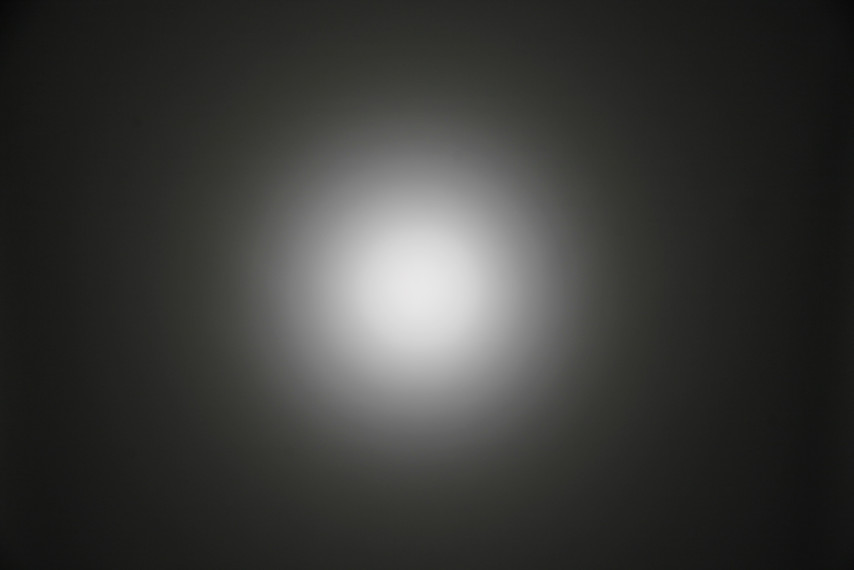

LED: LC040C
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 24°
Peak intensity: 8.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

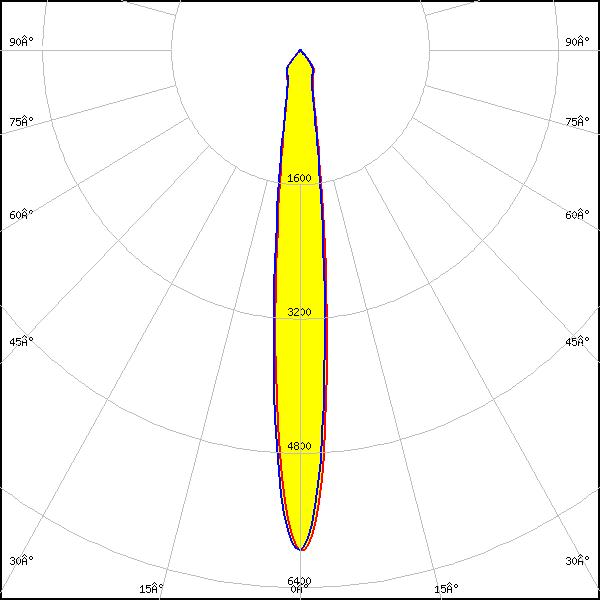

LED: LC040C
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 12°
FWTM: 32°
Peak intensity: 6.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

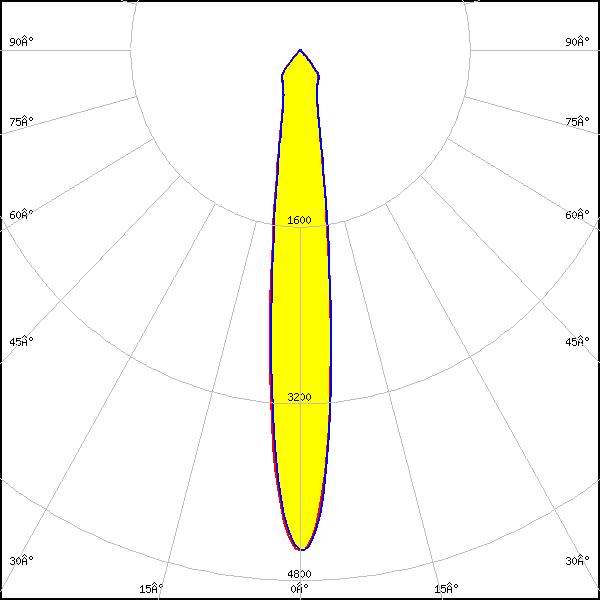

LED: AC Zhaga COB
Required components:
Optosource: SEHSMJD-A
F13671_ANGE-RZ-LENS
FWHM: 14°
FWTM: 41°
Peak intensity: 4.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

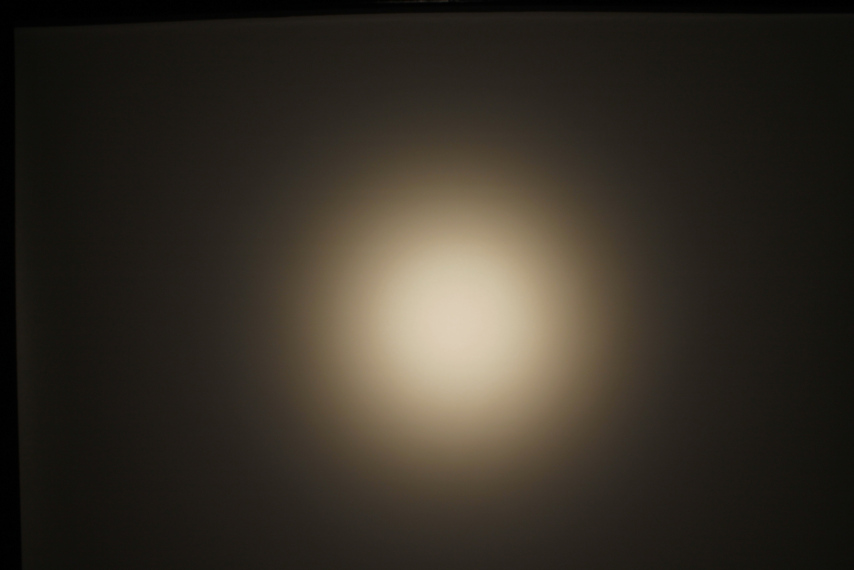

LED: MJT COB LES 14.5
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 14°
FWTM: 33°
Peak intensity: 5.700 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 22
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 431 Typ L3
FWHM: 19°
FWTM: 63°
Peak intensity: 3.400 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

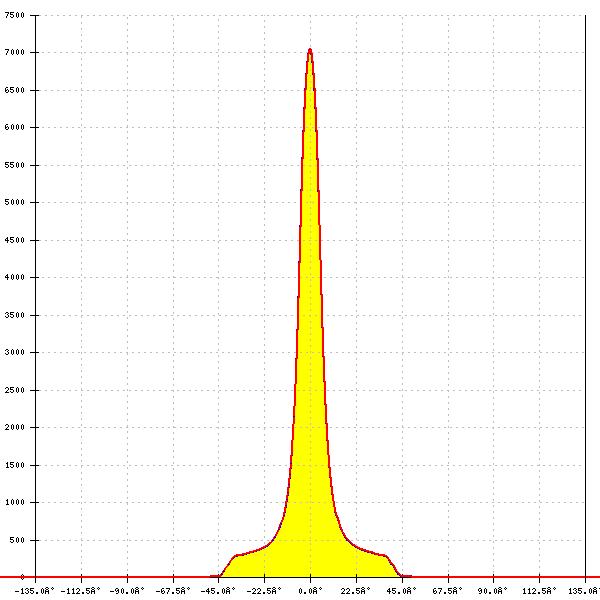

LED: WU-M-484
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 12°
FWTM: 29°
Peak intensity: 7.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: WU-M-484
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 13°
FWTM: 36°
Peak intensity: 5.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

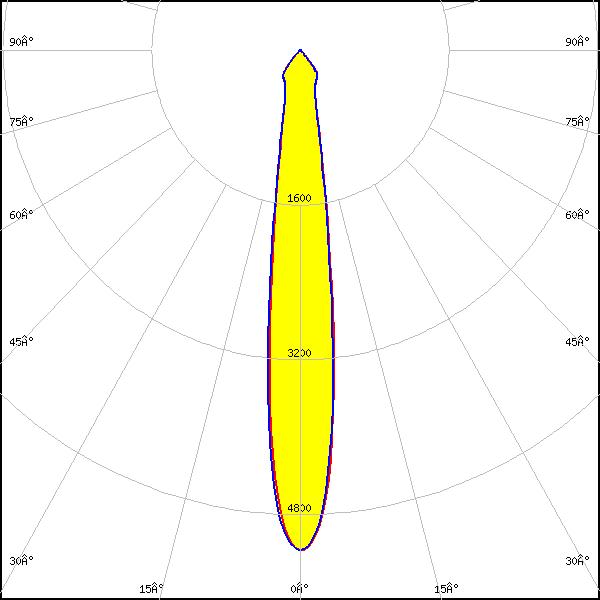

LED: XTM - 19mm LES
Required components:
FWHM: 15°
FWTM: 37°
Peak intensity: 5.200 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
