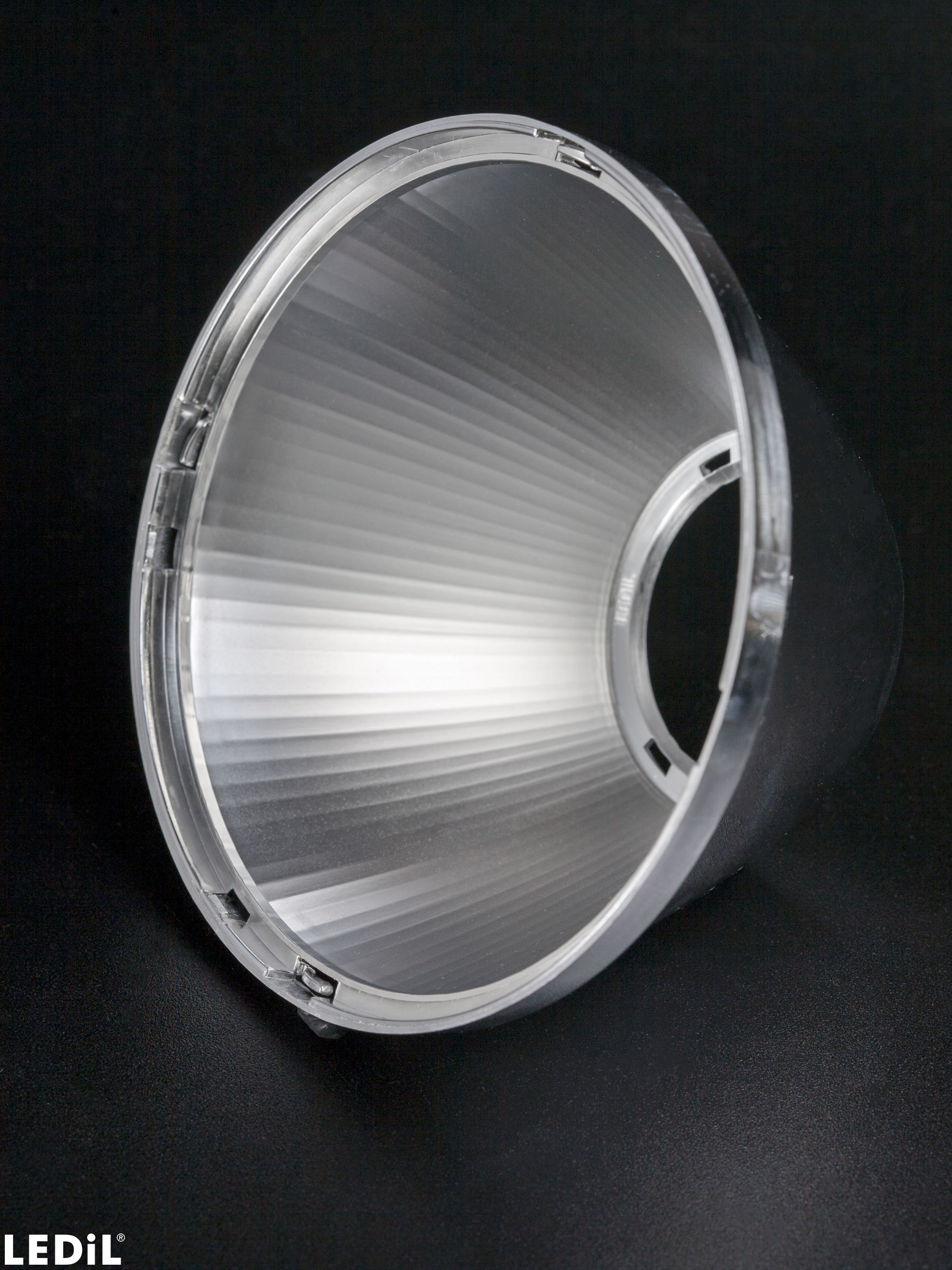

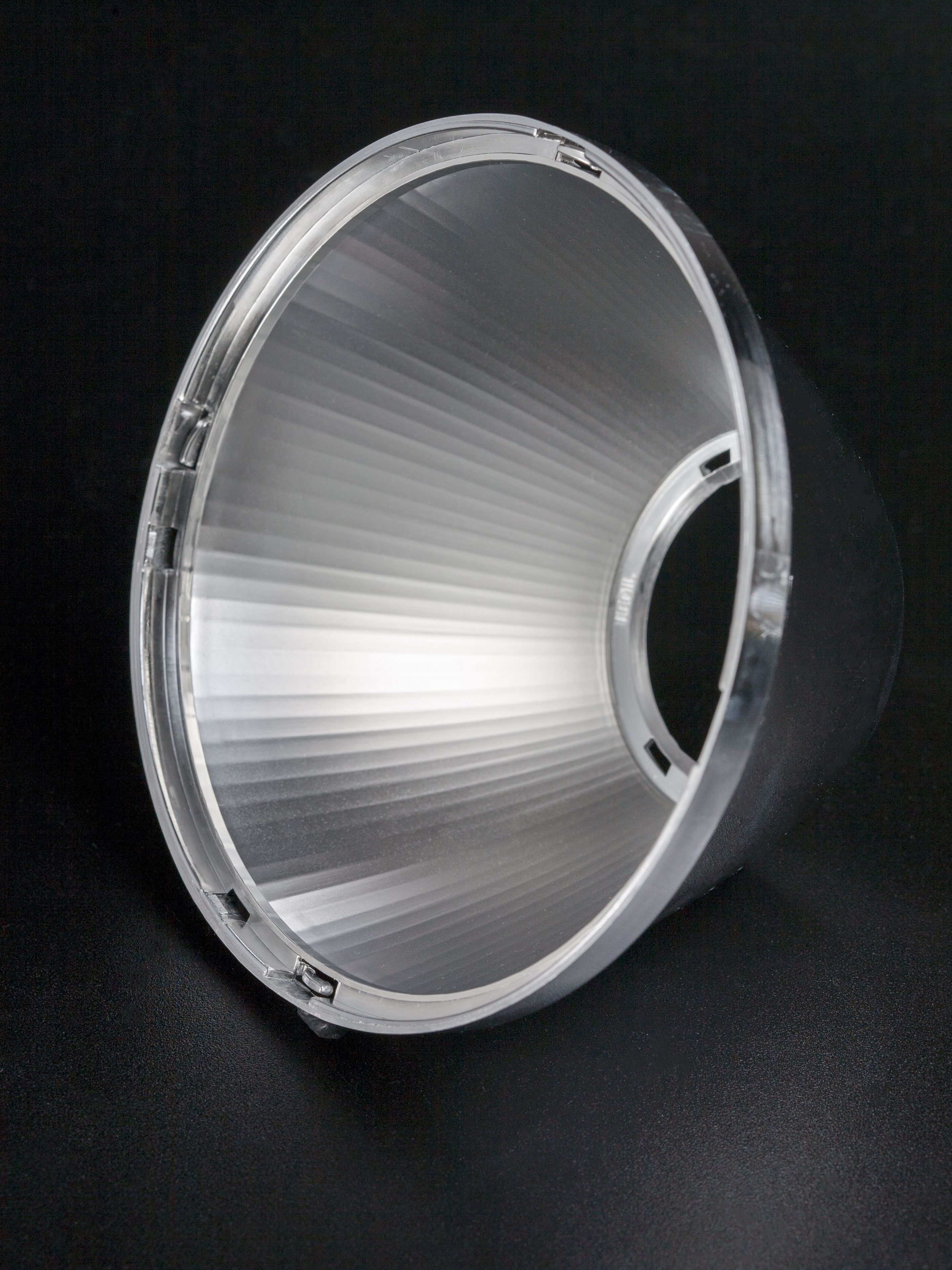

F14616_ANGELETTE-S-B

Print

~10° spot beam compatible with BJB connectors

Specification
  • Dimensions:
    110 mm
  • Height:
    57.3 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials
  • PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    180 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    7.4 kg
  • MPQ:
    45 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 140 mm
  • MOQ weight:
    3.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14616_ANGELETTE-S-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

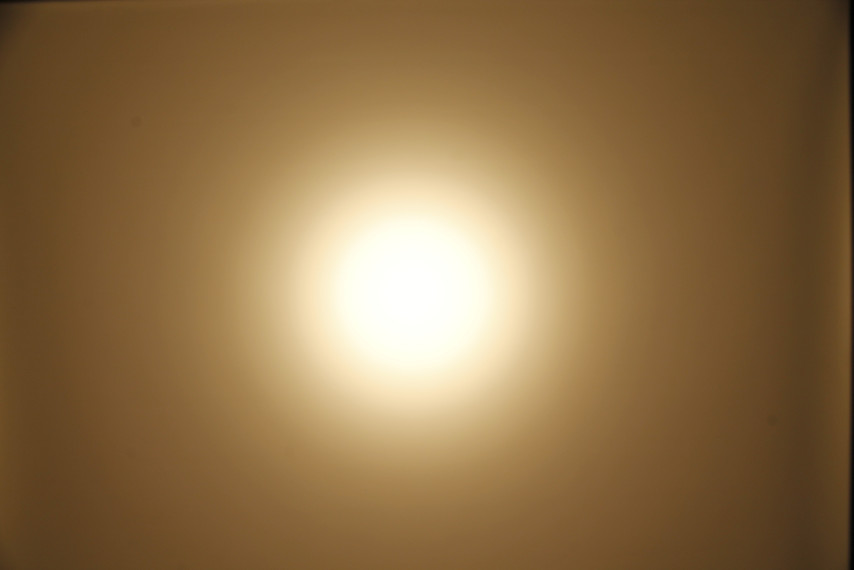

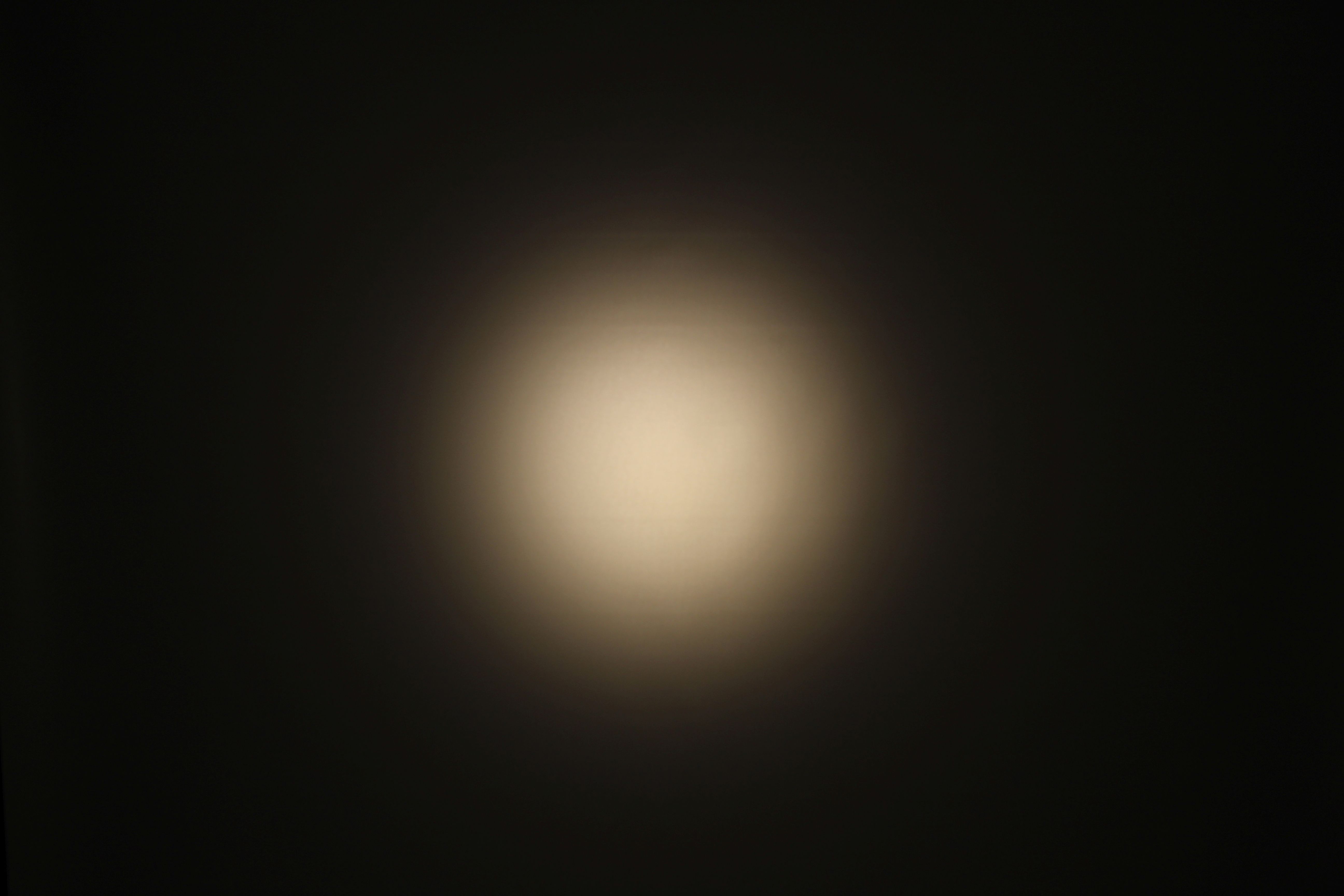

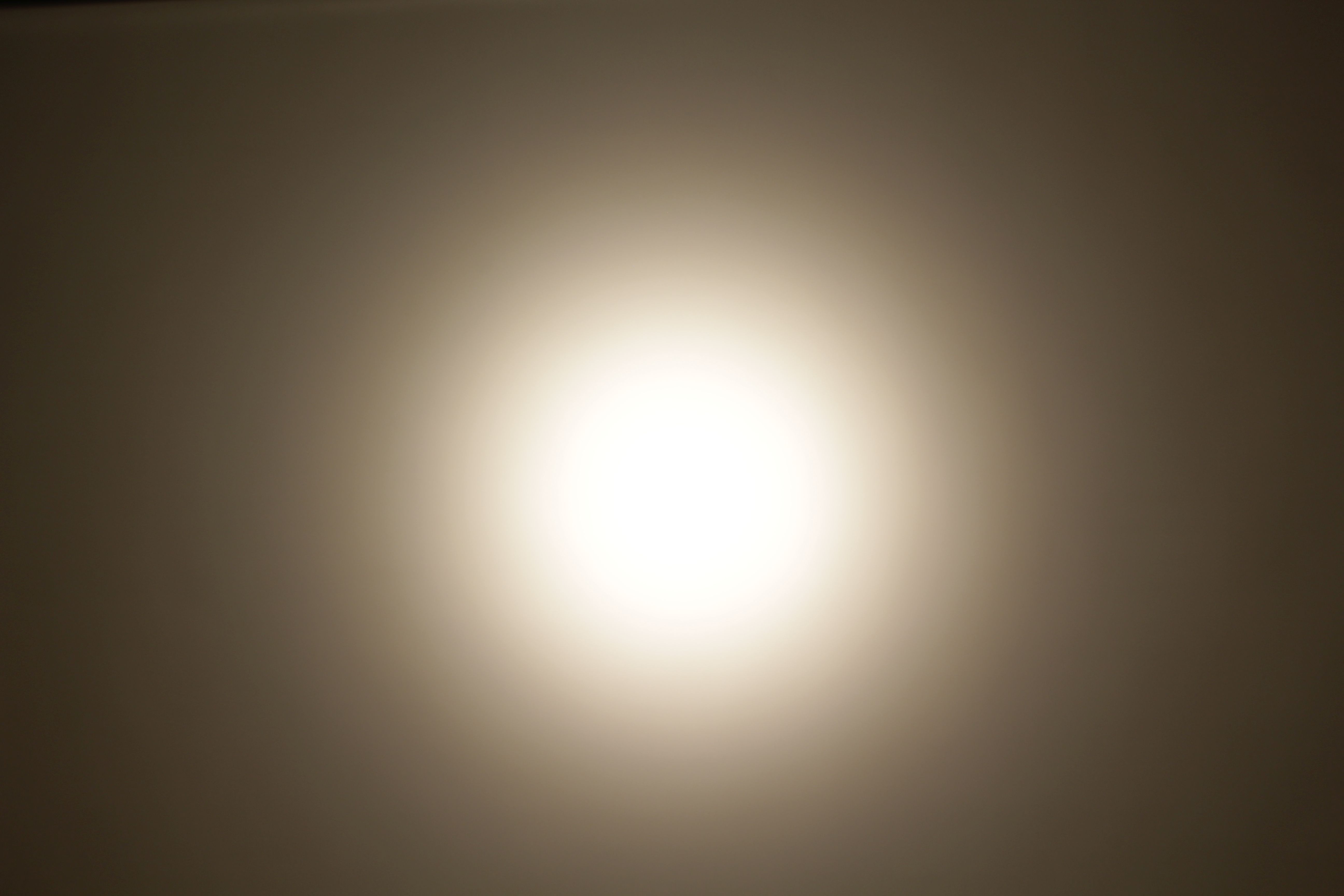

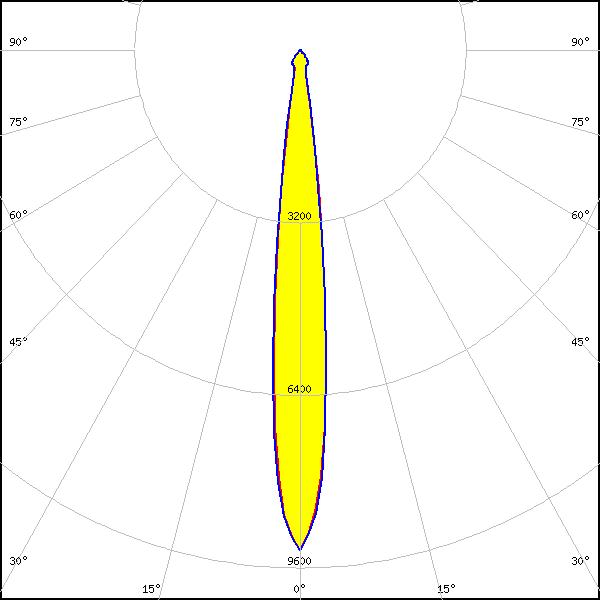

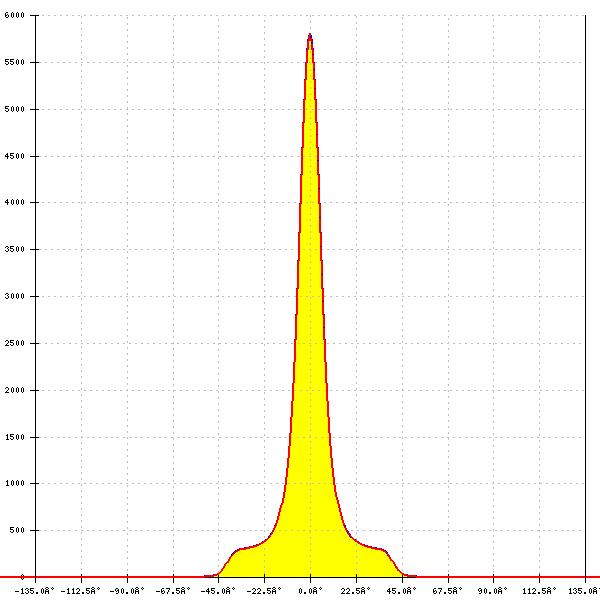

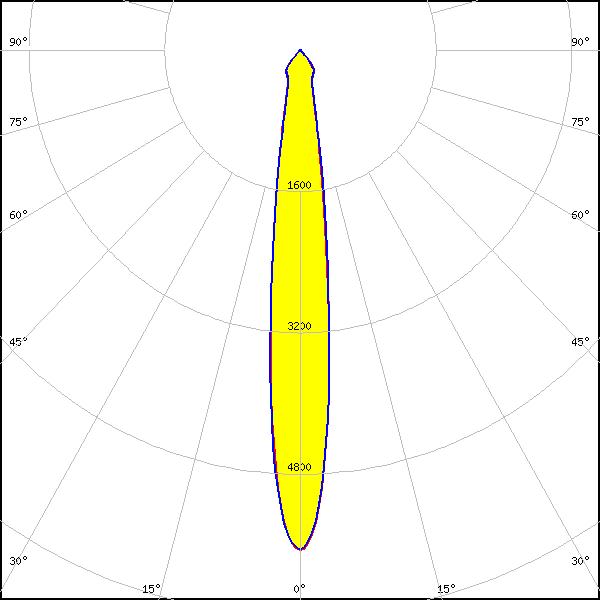

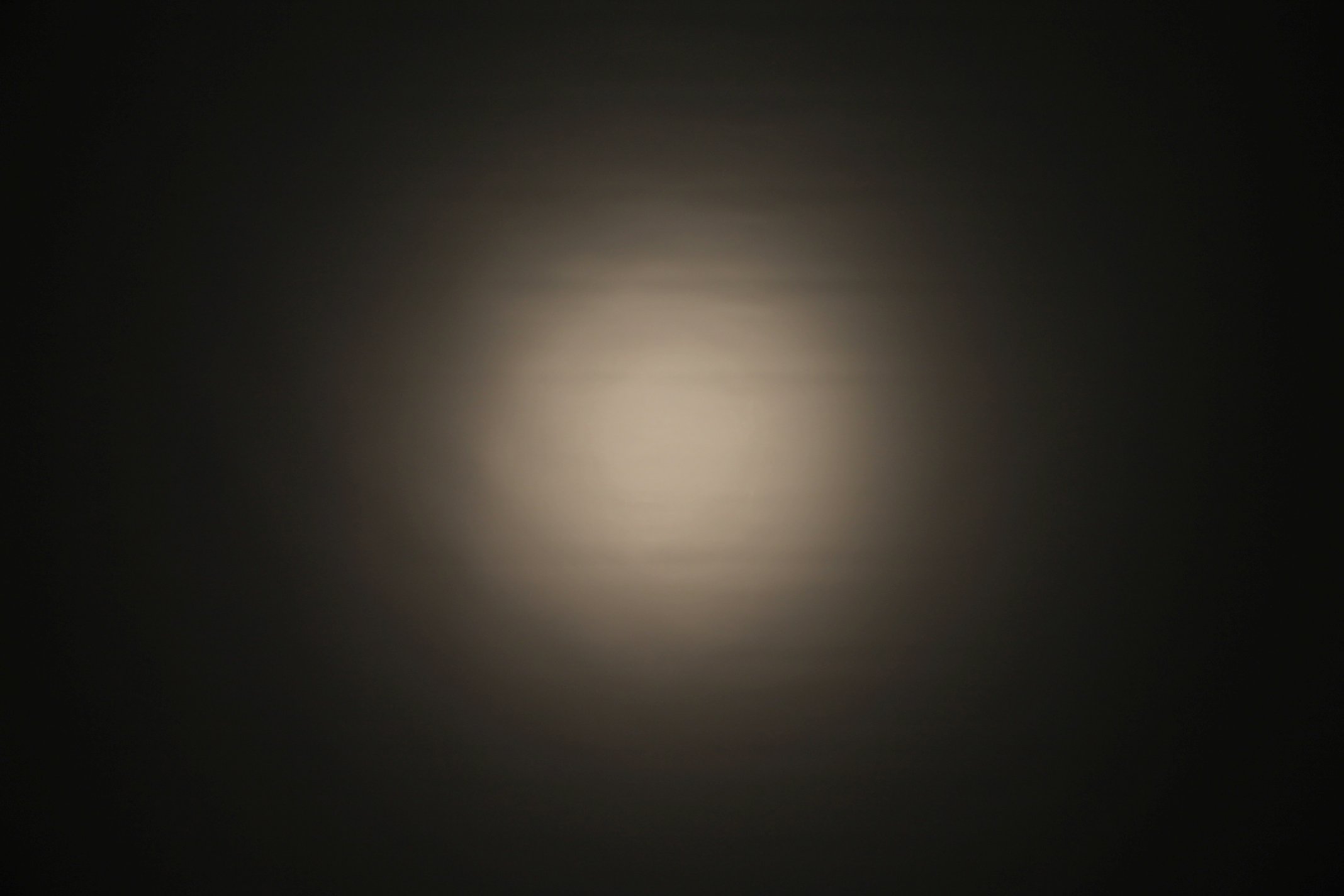

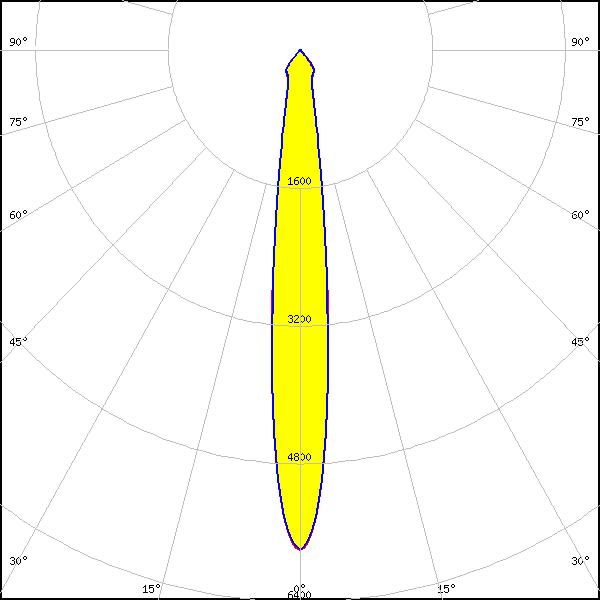

Optical results

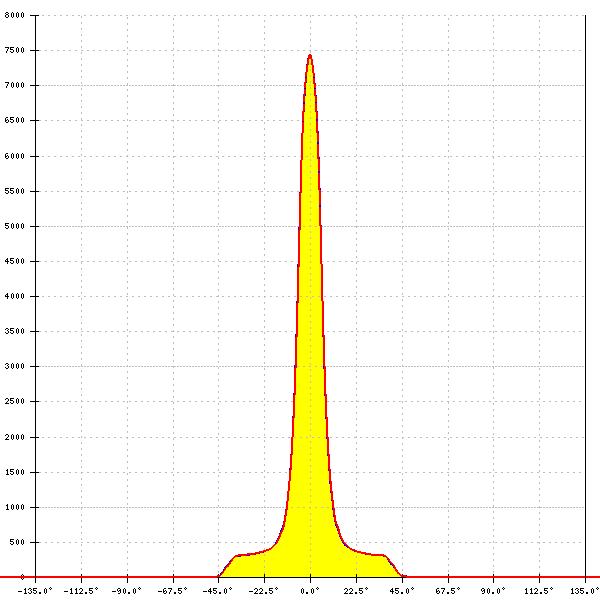

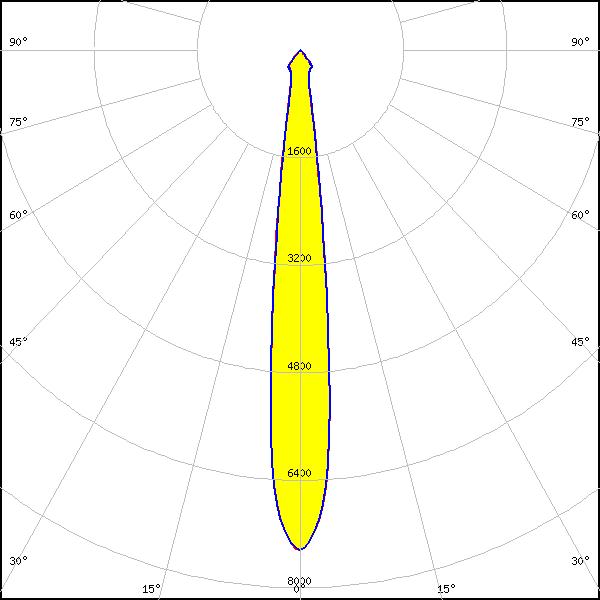

LED: V15 Gen6
Required components:
BJB: 47.319.2224
FWHM: 13°
Peak intensity: 7.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

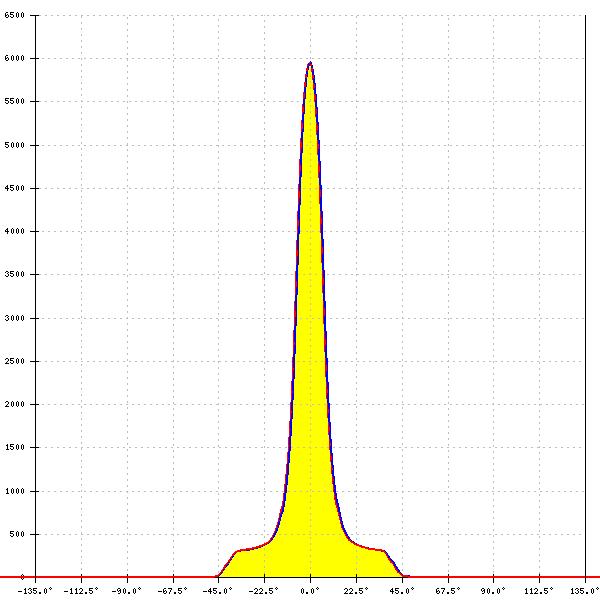

LED: V18 Gen6
Required components:
BJB: 47.319.2274
FWHM: 15°
Peak intensity: 6.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

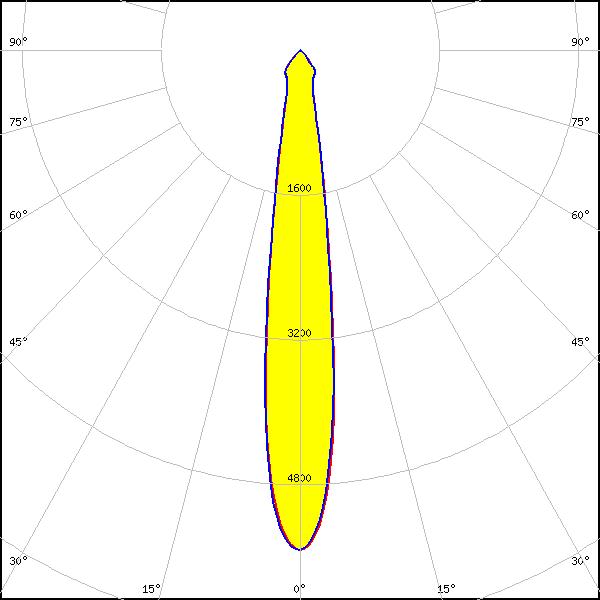

LED: V18 Gen7
Required components:
BJB: 47.319.2350
FWHM: 15°
Peak intensity: 5.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

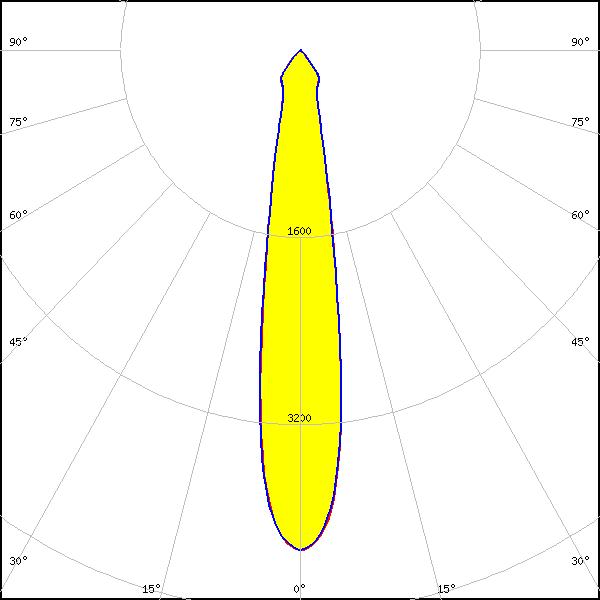

LED: V22 Gen6
Required components:
A.A.G. STUCCHI: 8102/G2
FWHM: 18°
Peak intensity: 4.3 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

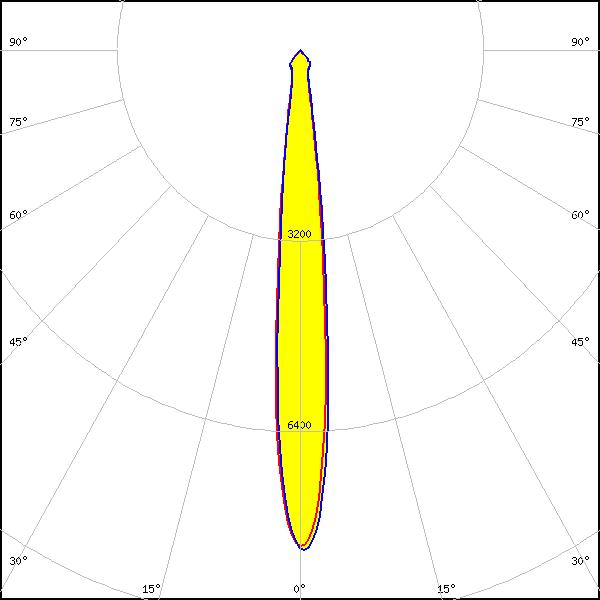

LED: CLL03x/CLU03x
Required components:
BJB: 47.319.2021
FWHM: 12°
Peak intensity: 8.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

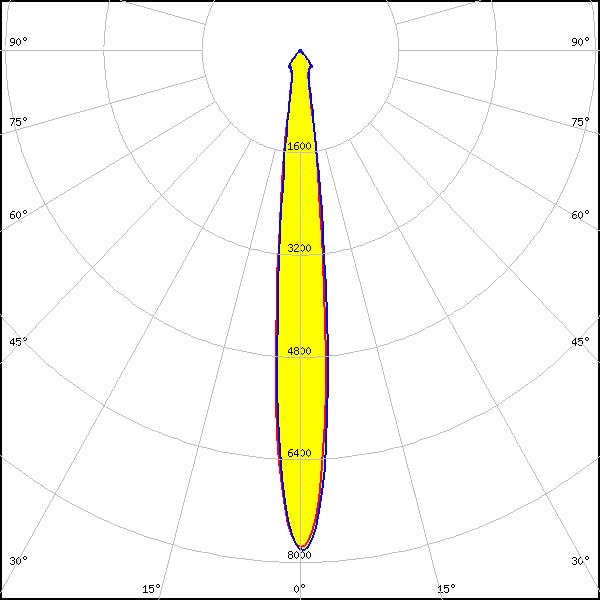

LED: CLL03x/CLU03x
Required components:
BJB: 47.319.2021
F15176_ANGELETTE-LENS
FWHM: 12°
Peak intensity: 7.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

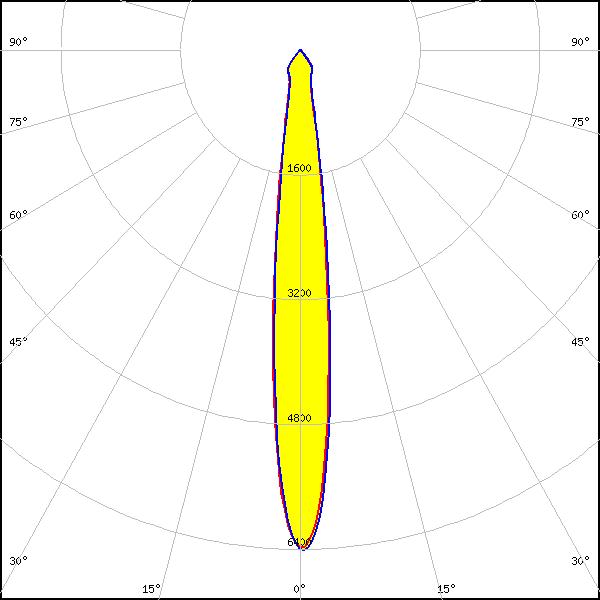

LED: CLL03x/CLU03x
Required components:
BJB: 47.319.2021
F15412_ANGELETTE-DL
FWHM: 13°
Peak intensity: 6.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

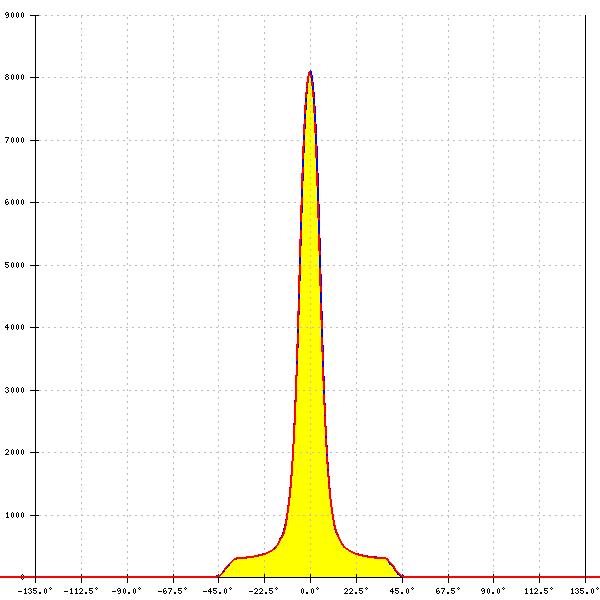

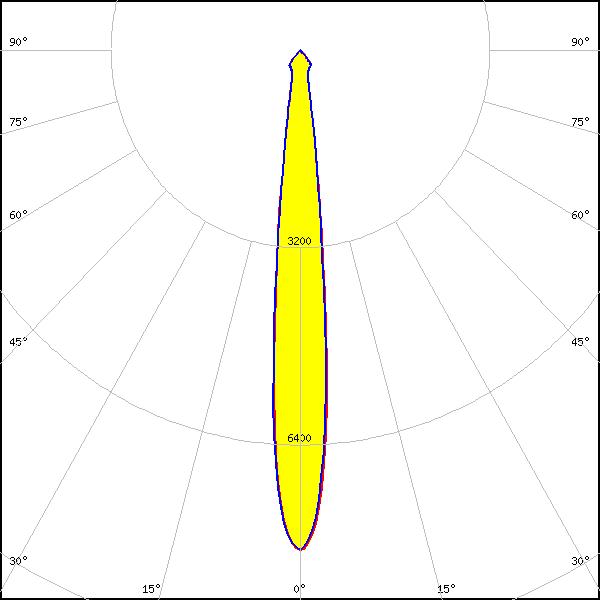

LED: CLL03x/CLU03x
Required components:
A.A.G. STUCCHI: 8101/G2
FWHM: 12°
Peak intensity: 8.1 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

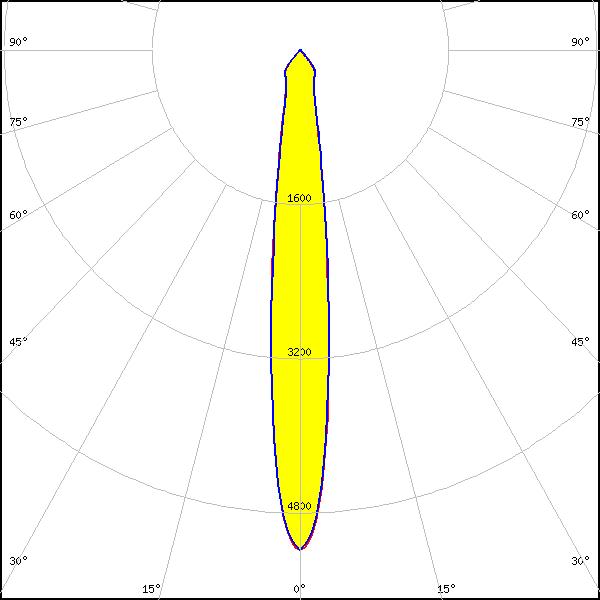

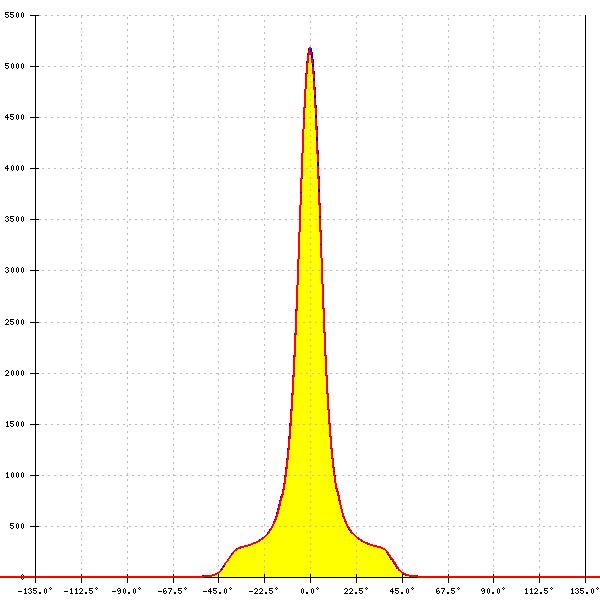

LED: CLL03x/CLU03x
Required components:
A.A.G. STUCCHI: 8101/G2
F13671_ANGE-RZ-LENS
FWHM: 14°
Peak intensity: 5.2 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

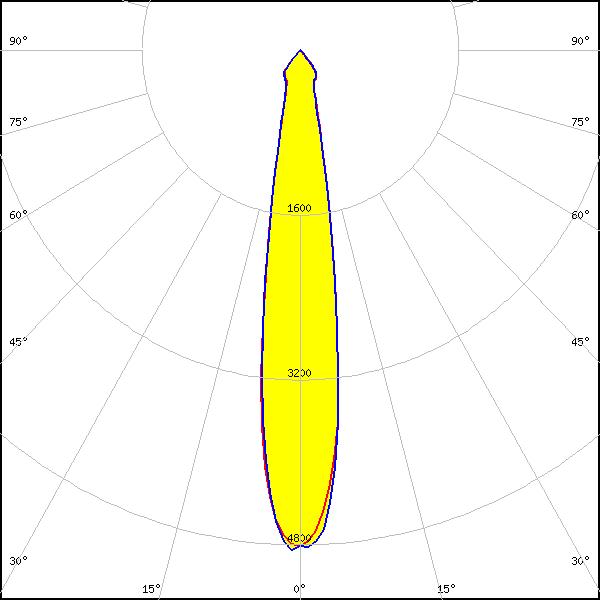

LED: CLL04x/CLU04x
Required components:
BJB: 47.319.2030
FWHM: 17°
Peak intensity: 4.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

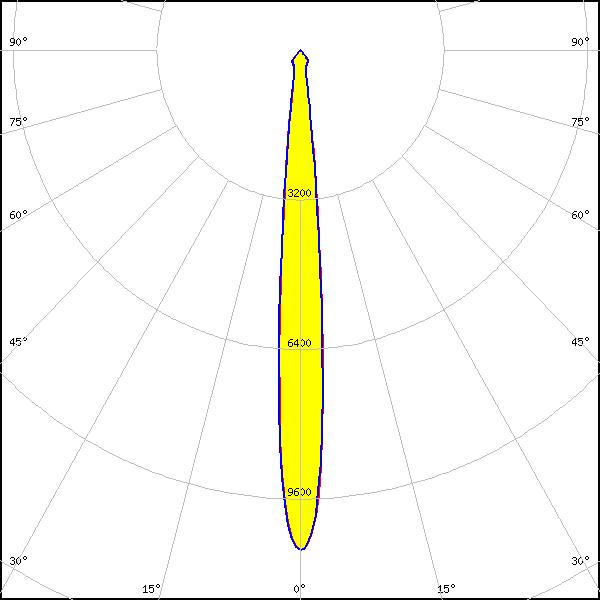

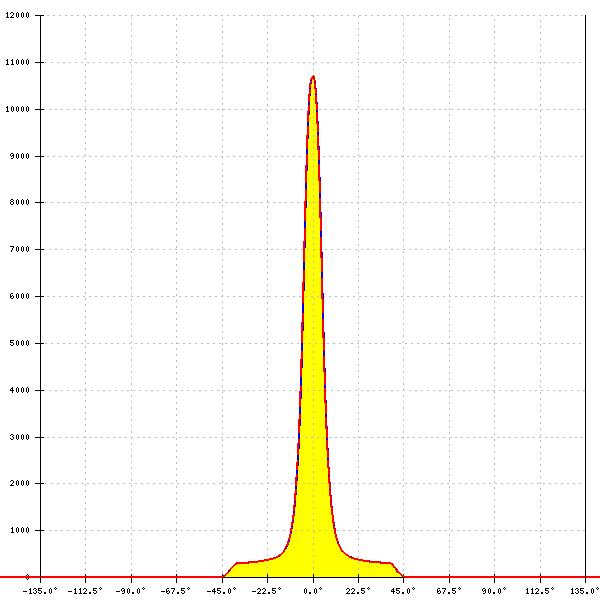

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
A.A.G. STUCCHI: 8403/G2
FWHM: 10°
Peak intensity: 10.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

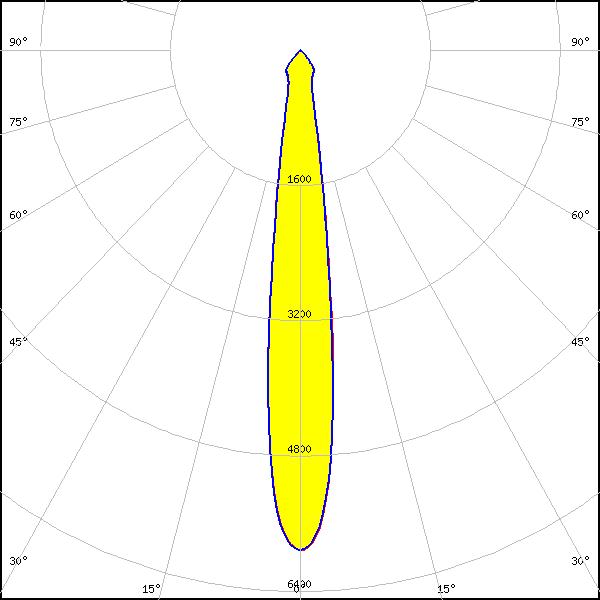

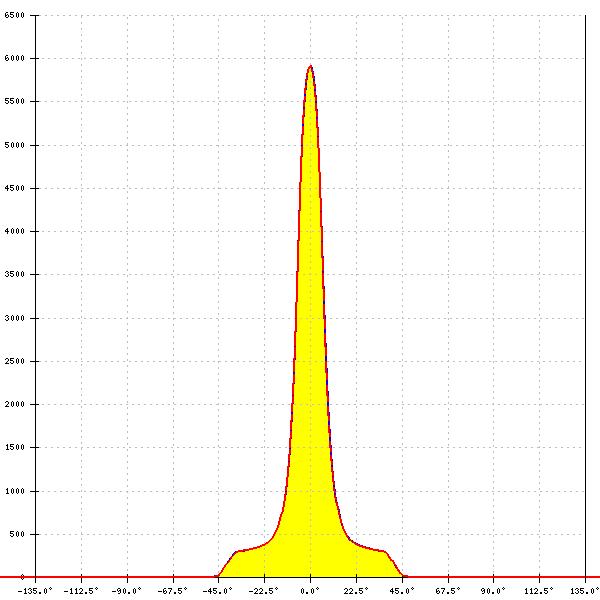

LED: CXA/B 25xx
Required components:
A.A.G. STUCCHI: 8401/G2
FWHM: 14°
Peak intensity: 5.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1208
Required components:
A.A.G. STUCCHI: 8301/G2
F15412_ANGELETTE-DL
FWHM: 12°
Peak intensity: 9.3 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

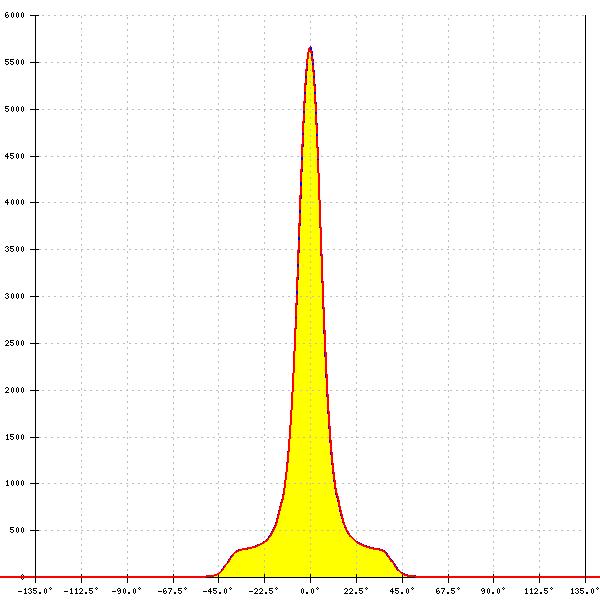

LED: LUXEON CoB 1208
Required components:
A.A.G. STUCCHI: 8301/G2
F13671_ANGE-RZ-LENS
FWHM: 14°
Peak intensity: 5.7 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

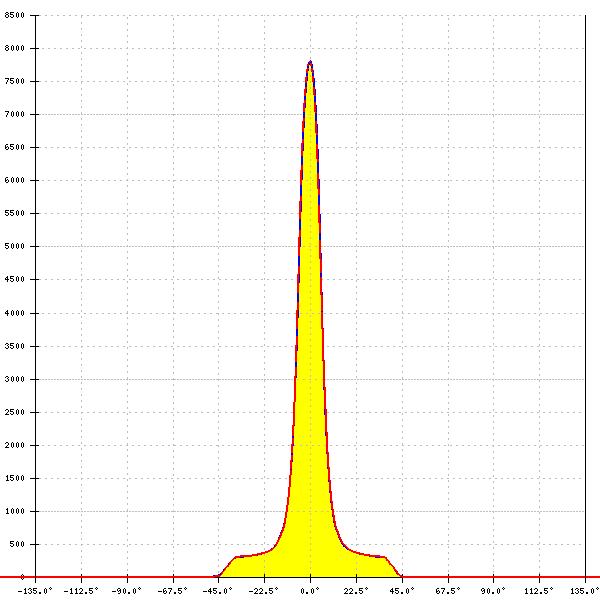

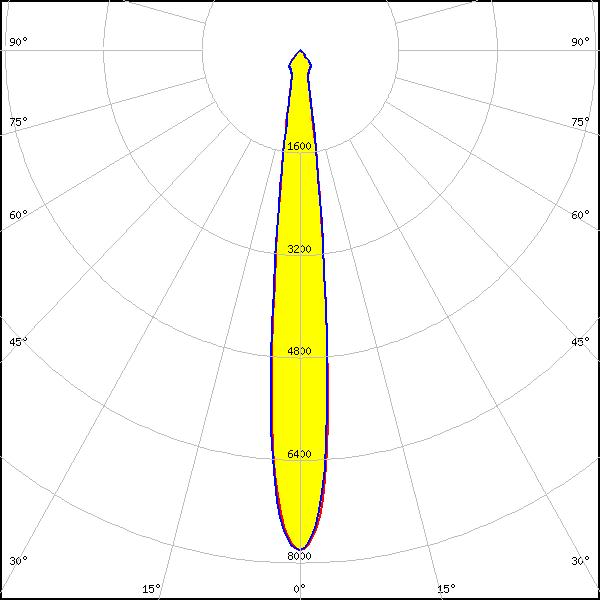

LED: LUXEON CoB 1208
Required components:
A.A.G. STUCCHI: 8301/G2
FWHM: 12°
Peak intensity: 7.8 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

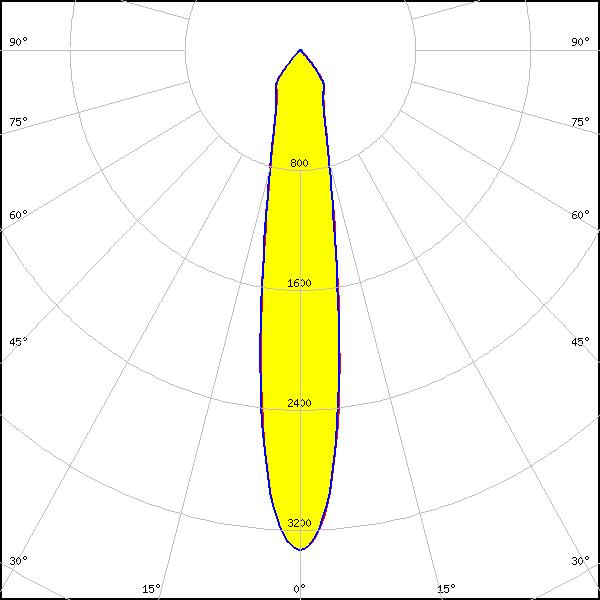

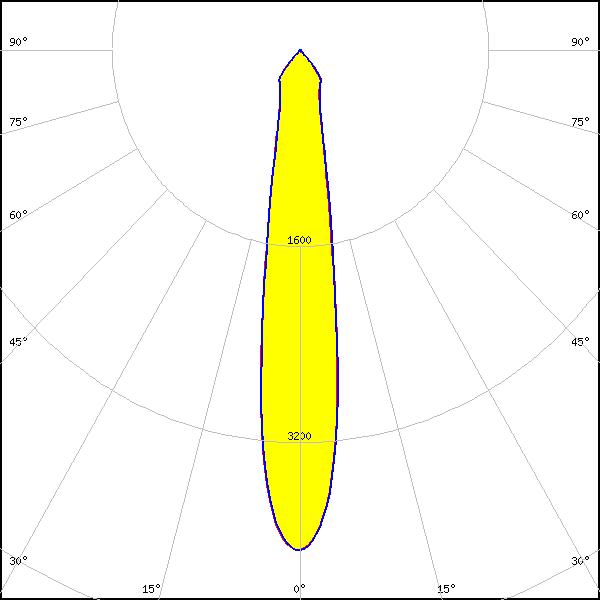

LED: Fortimo SLM L19 CoB
Required components:
BJB: 47.319.2030
FWHM: 17°
Peak intensity: 4.1 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

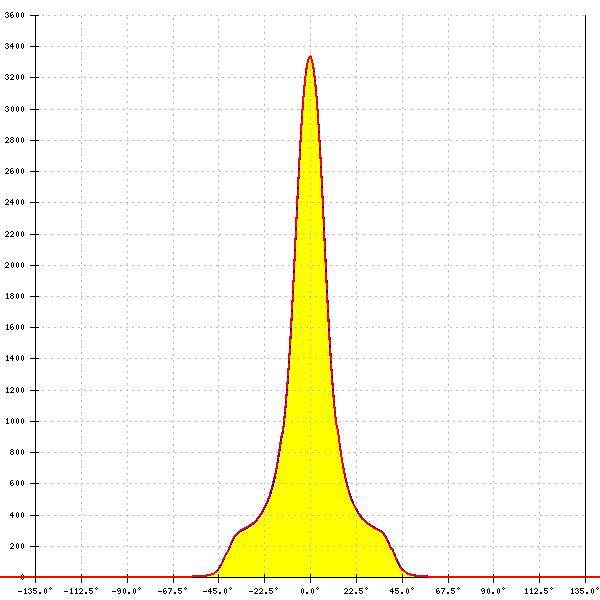

LED: Fortimo SLM L19 CoB
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 18°
Peak intensity: 3.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

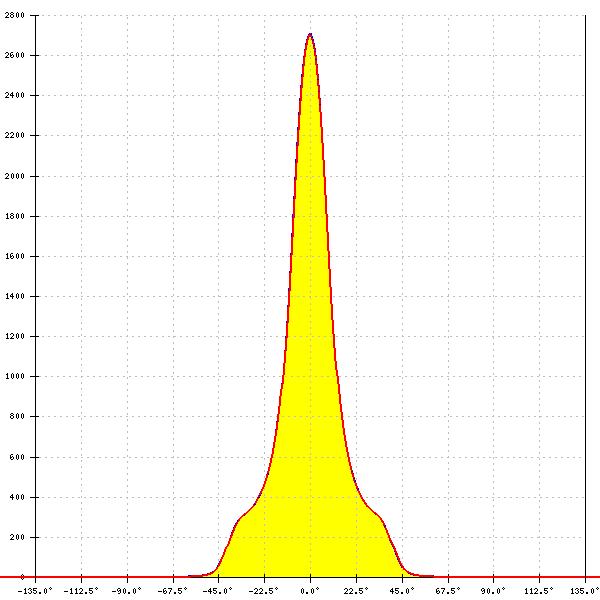

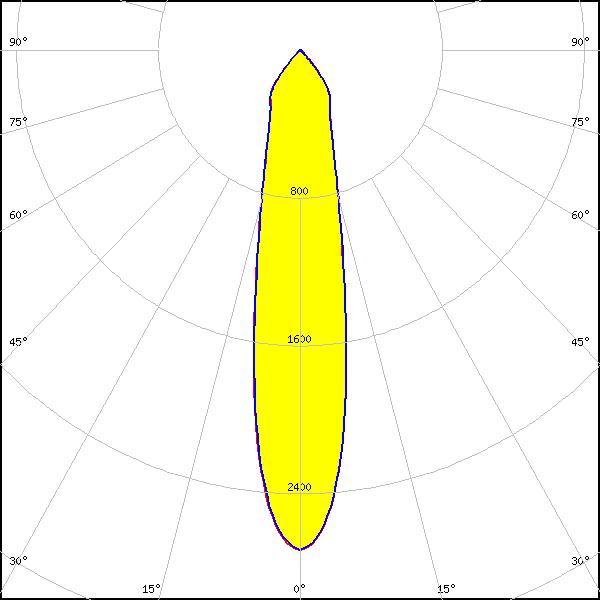

LED: Fortimo SLM L23 CoB
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 22°
Peak intensity: 2.7 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

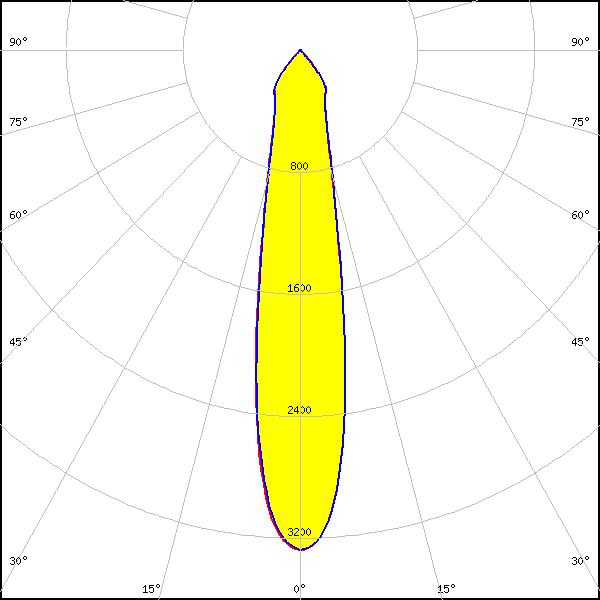

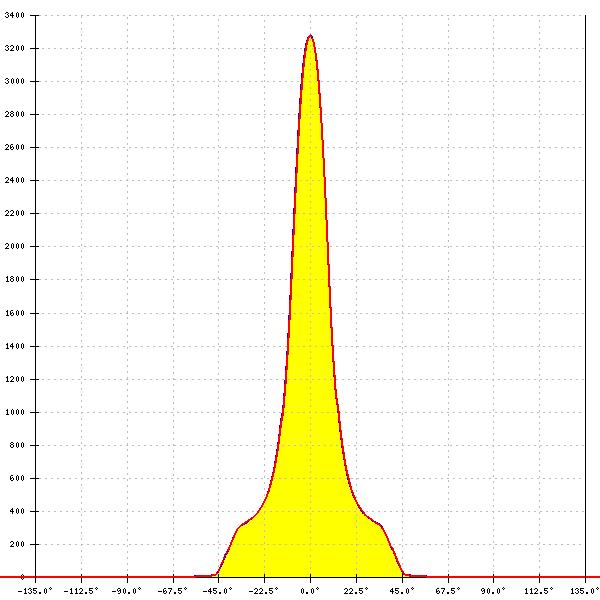

LED: Fortimo SLM L23 CoB
Required components:
BJB: 47.319.2030
FWHM: 20°
Peak intensity: 3.3 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
A.A.G. STUCCHI: 8101/G2
FWHM: 12°
Peak intensity: 7.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
BJB: 47.319.2021
FWHM: 12°
Peak intensity: 7.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

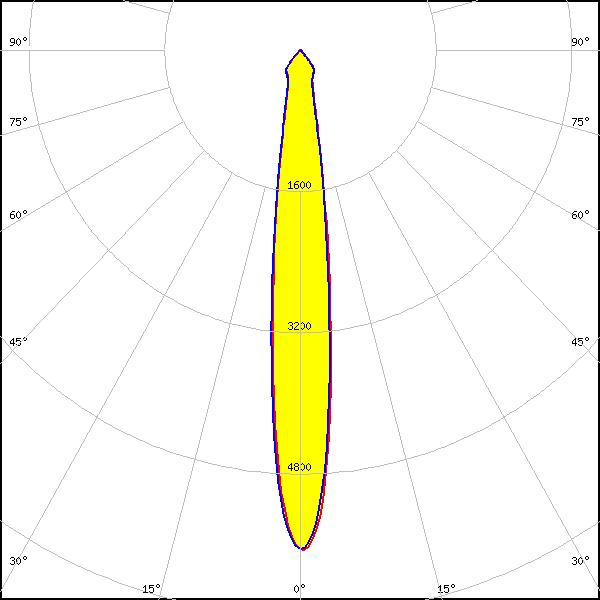

LED: LC016D / LC019D / LC026D / LC033D
Required components:
A.A.G. STUCCHI: 8101/G2
F13671_ANGE-RZ-LENS
FWHM: 14°
Peak intensity: 5.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
BJB: 47.319.2021
F13671_ANGE-RZ-LENS
FWHM: 14°
Peak intensity: 5.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LC040D / LC060D / LC080D
Required components:
BJB: 47.319.2030
FWHM: 18°
Peak intensity: 4.5 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

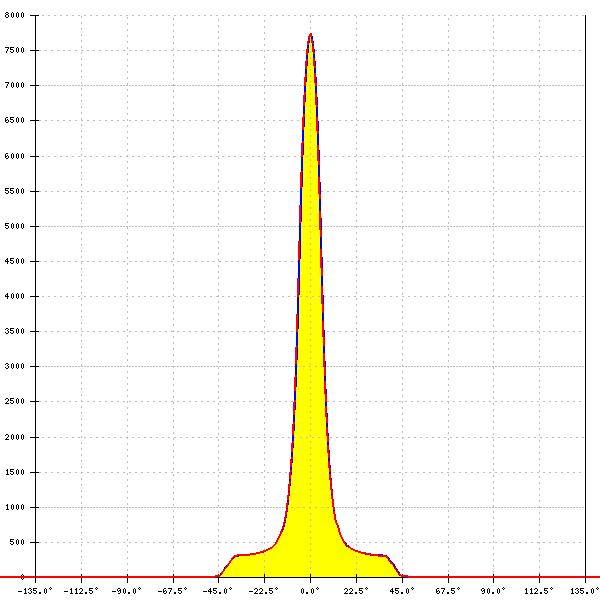

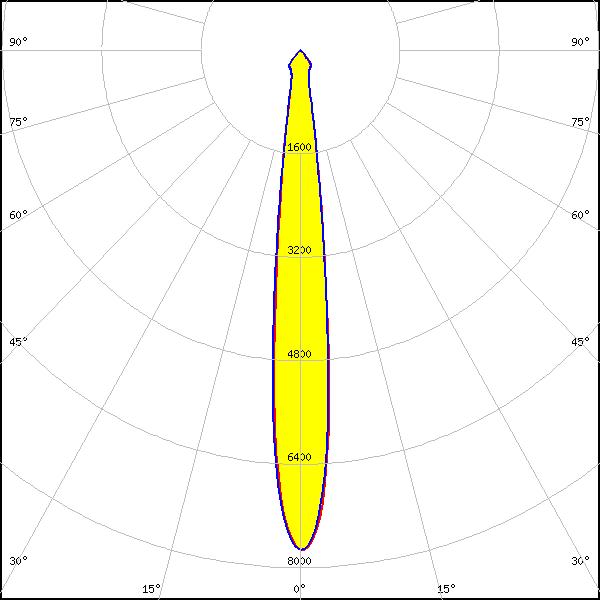

LED: SLE G7 LES15
Required components:
BJB: 47.319.2021
FWHM: 12°
Peak intensity: 7.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

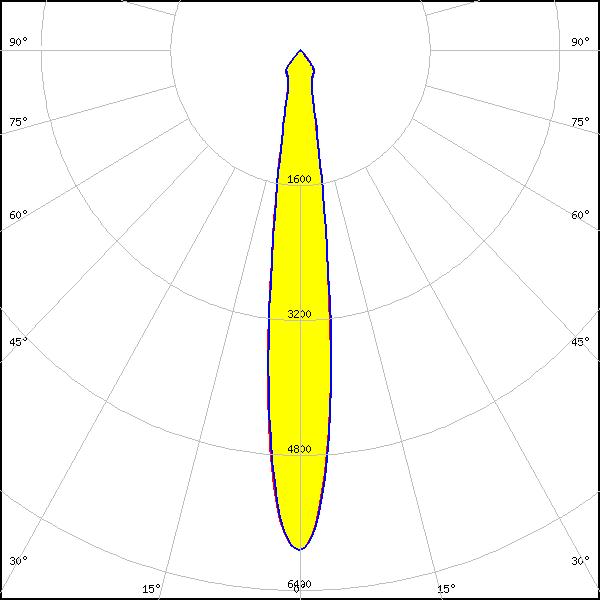

LED: SLE G7 LES17 H
FWHM: 14°
Peak intensity: 5.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

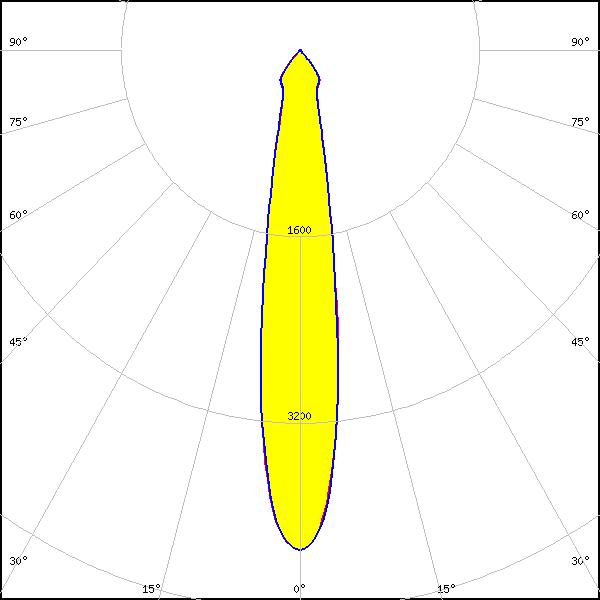

LED: SLE G7 LES21 H
FWHM: 18°
Peak intensity: 4.3 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

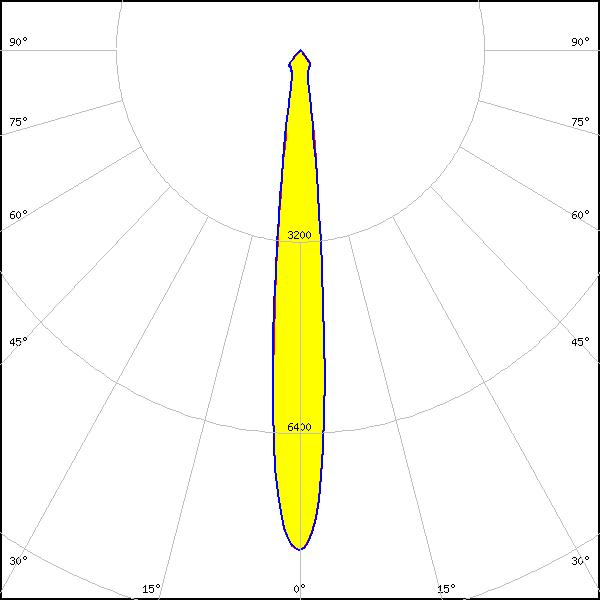

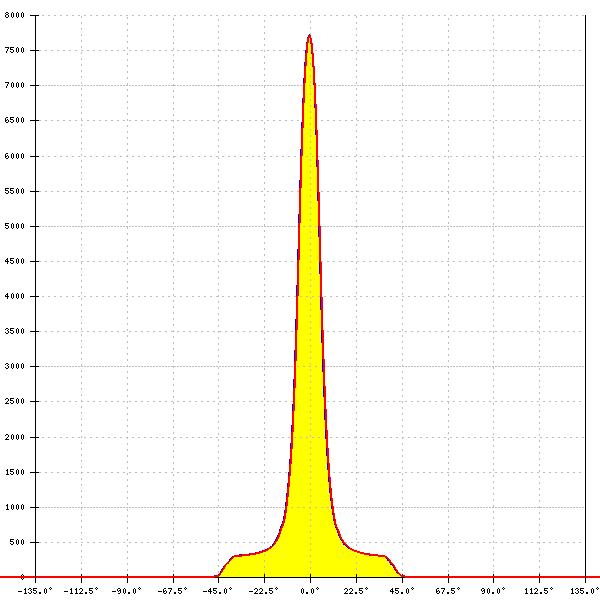

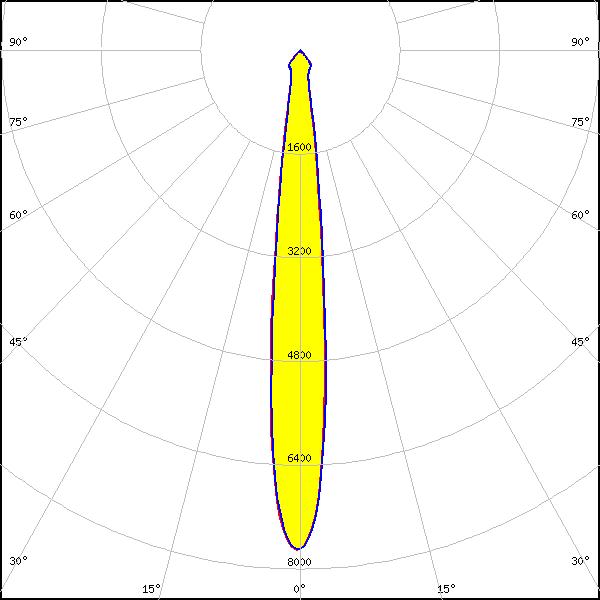

LED: XOB 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 11°
Peak intensity: 8.3 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
