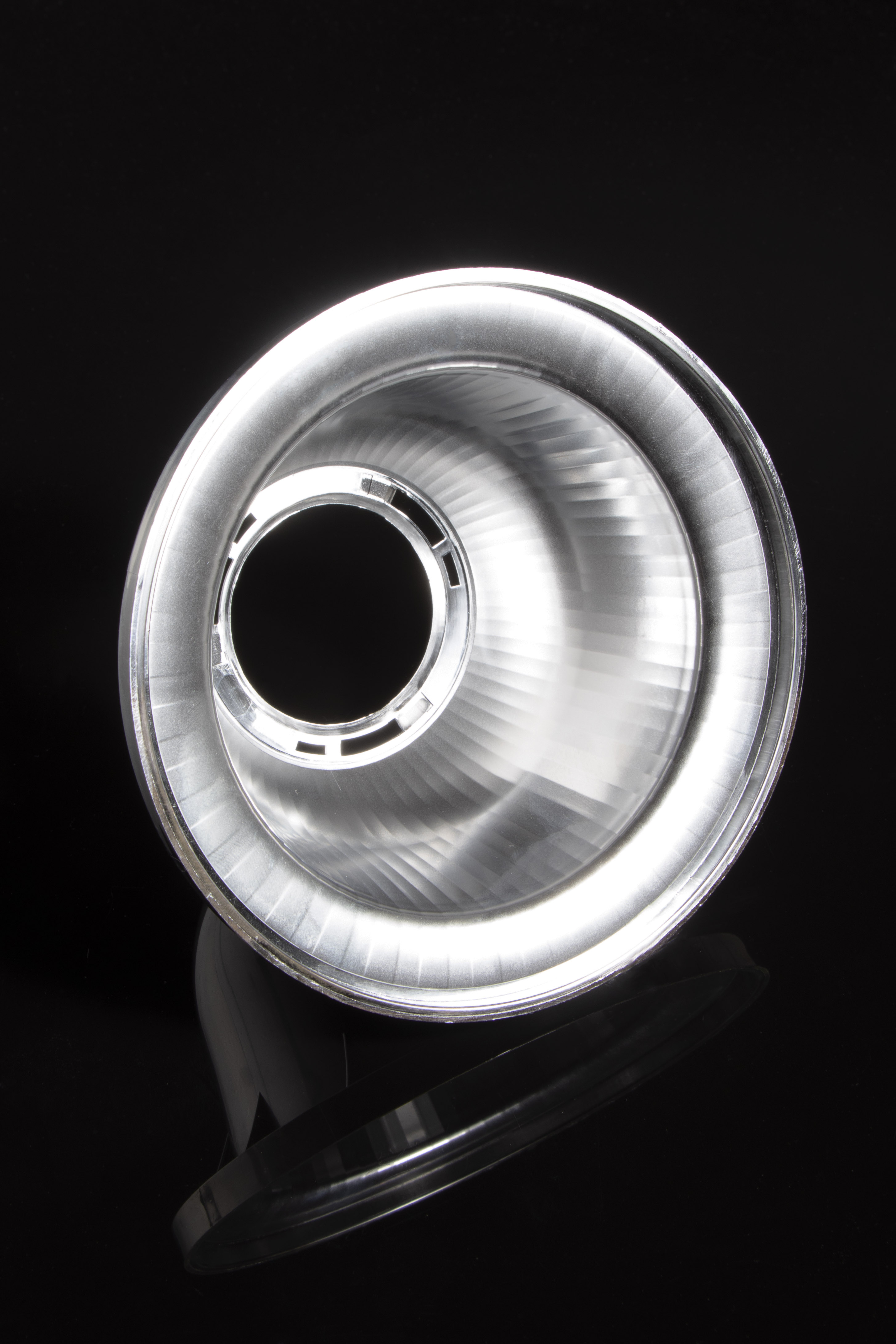

F14622_ANGELETTE-WW-PLAIN

Print

~60° wide beam. Clean appearance with no additional attachment interface.

Specification
  • Dimensions:
    110 mm
  • Height:
    57.30 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.3 kg
  • MPQ:
    30 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 260 mm
  • MOQ weight:
    4.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14622_ANGELETTE-WW-PLAIN

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

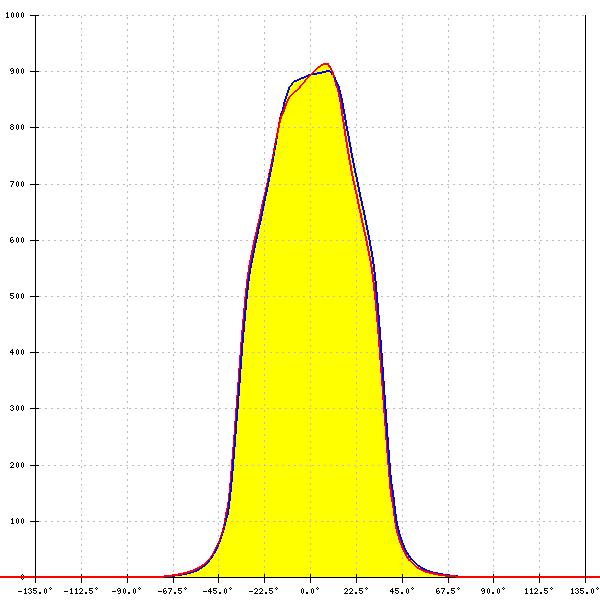

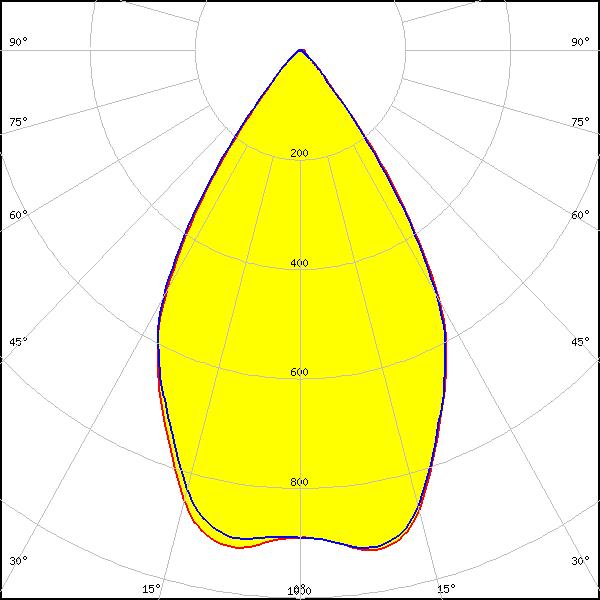

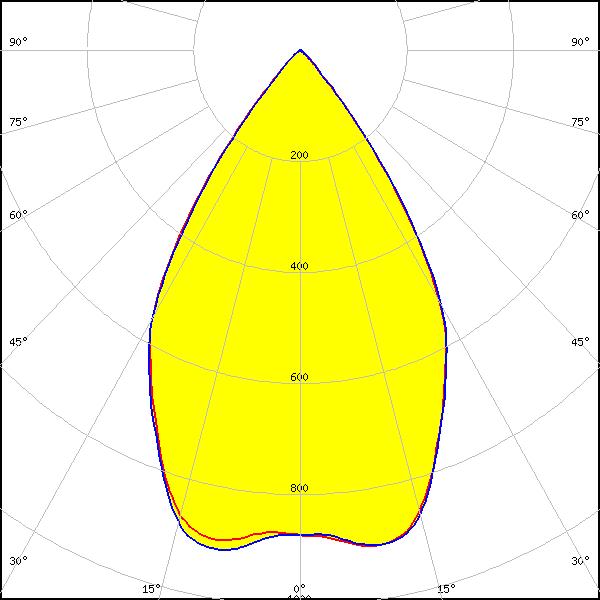

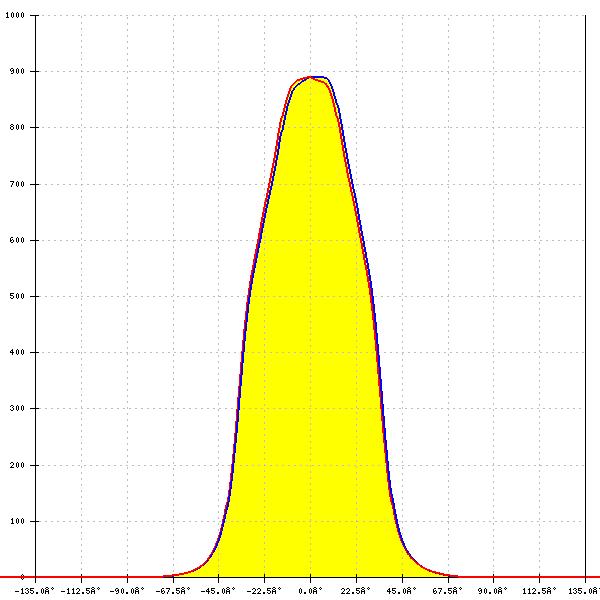

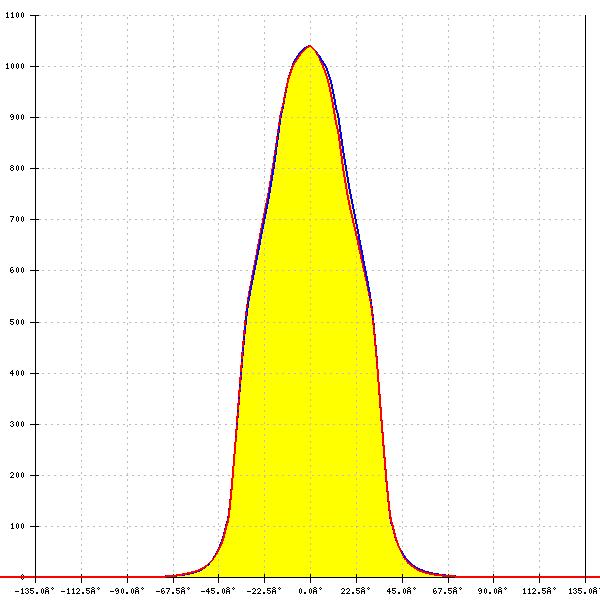

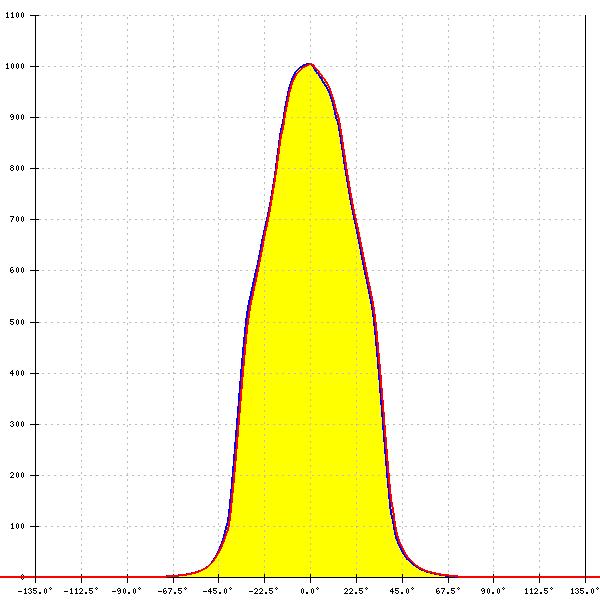

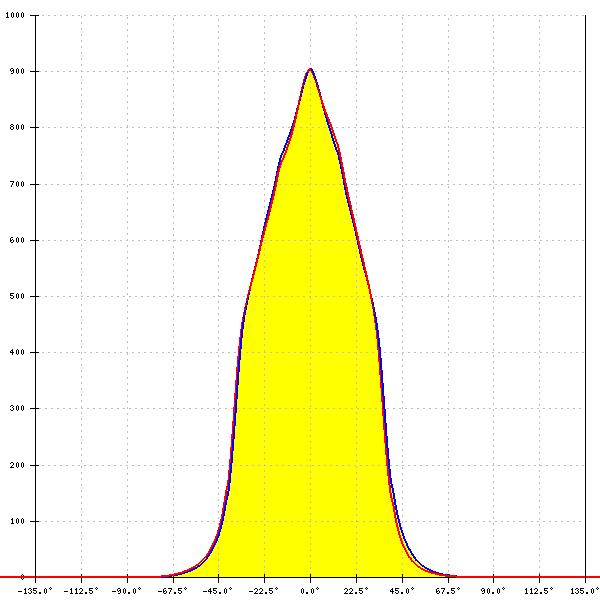

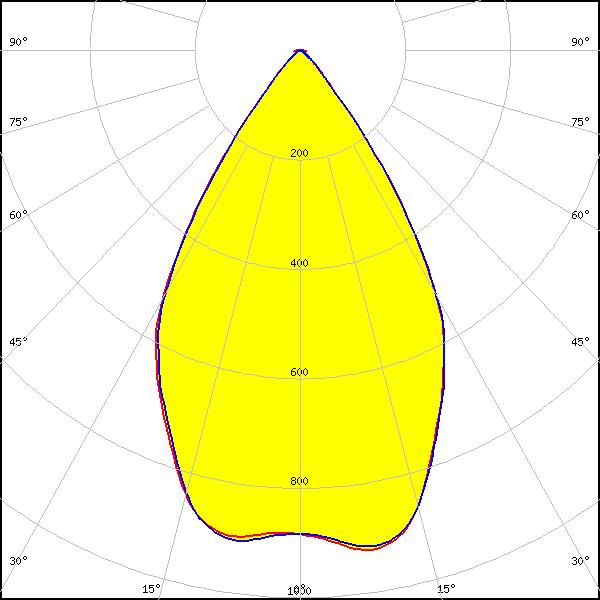

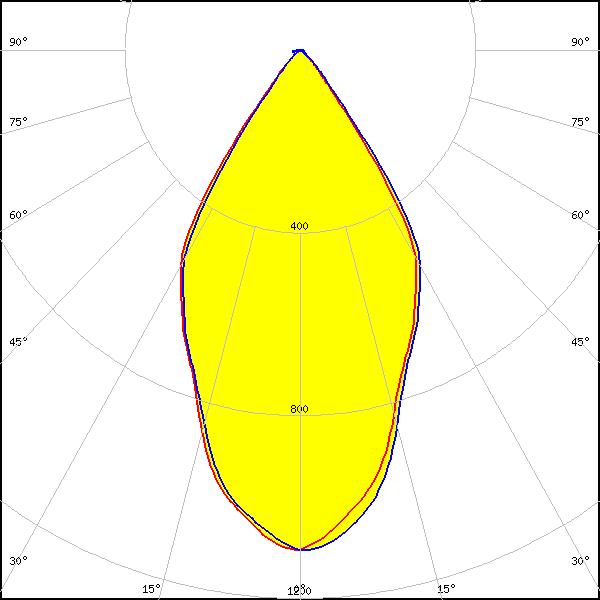

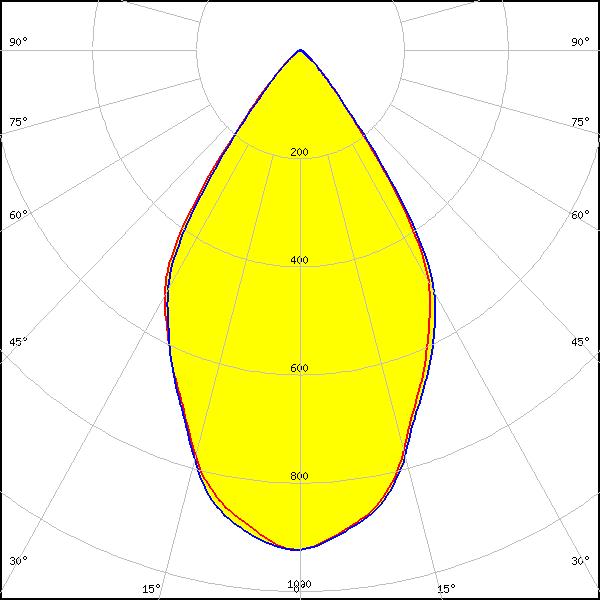

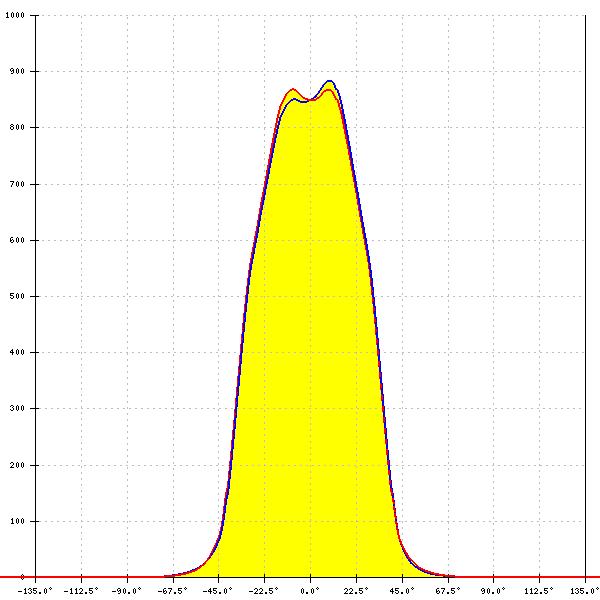

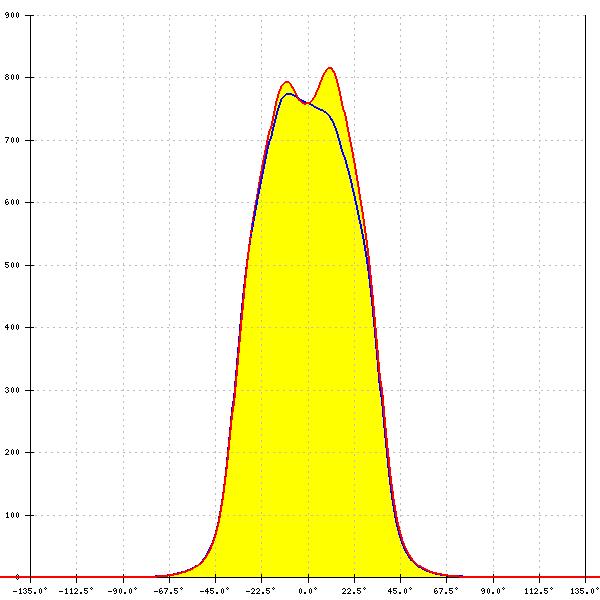

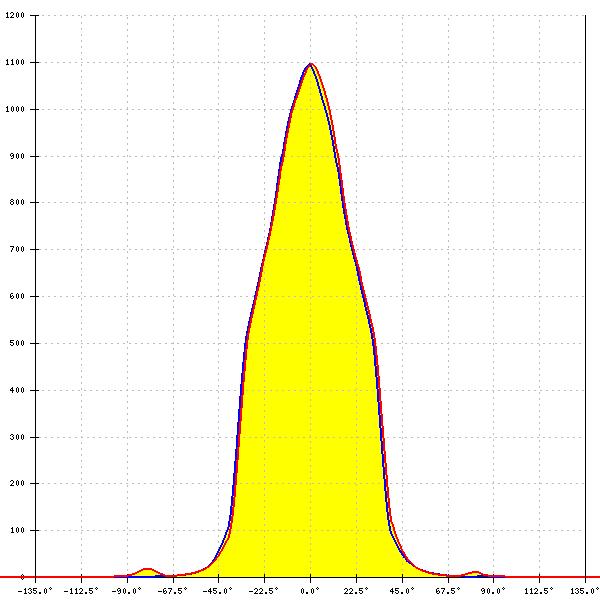

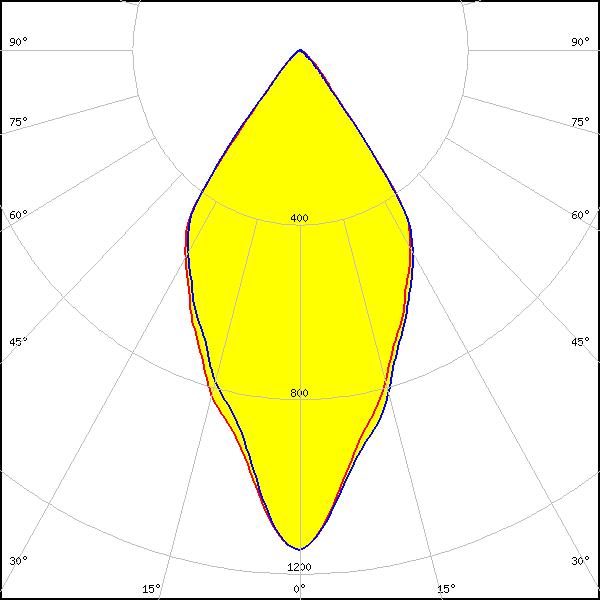

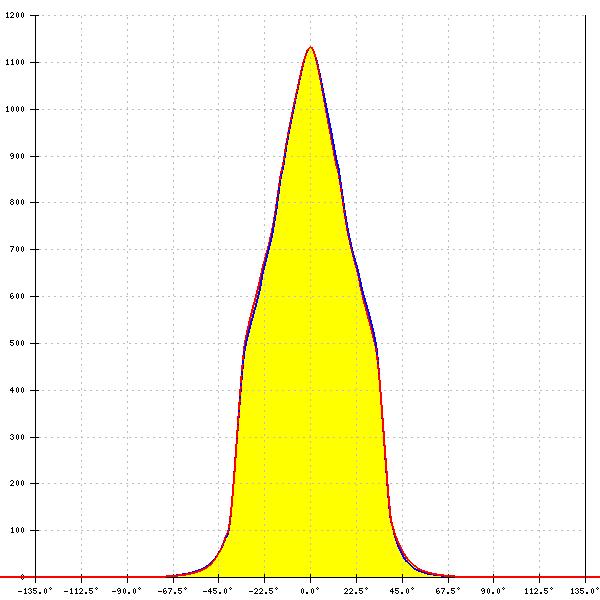

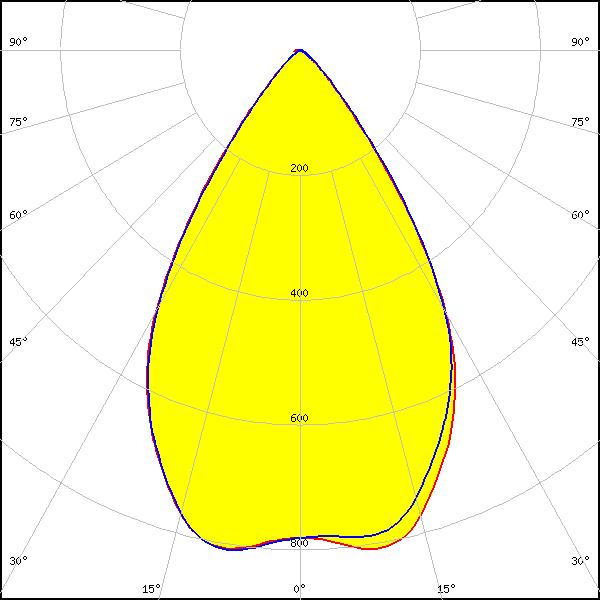

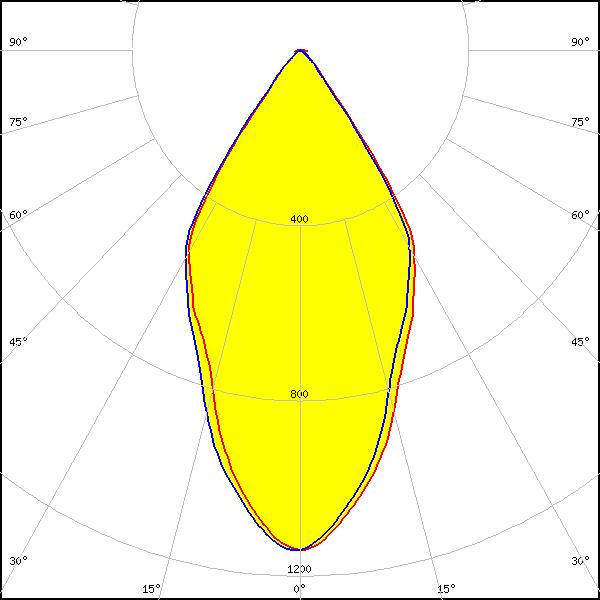

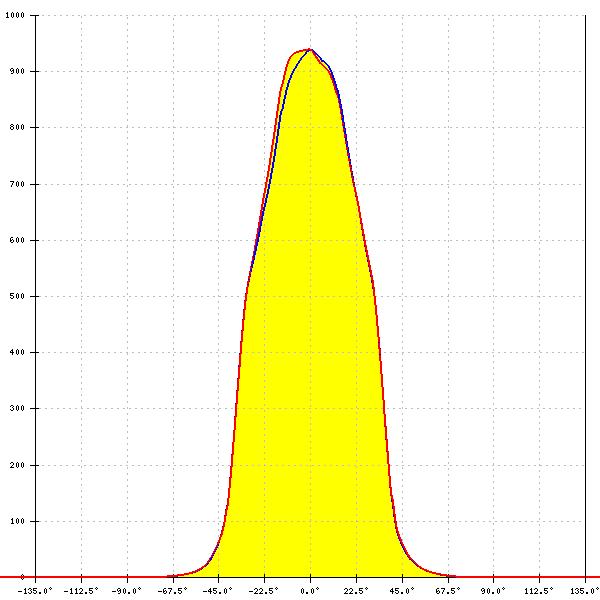

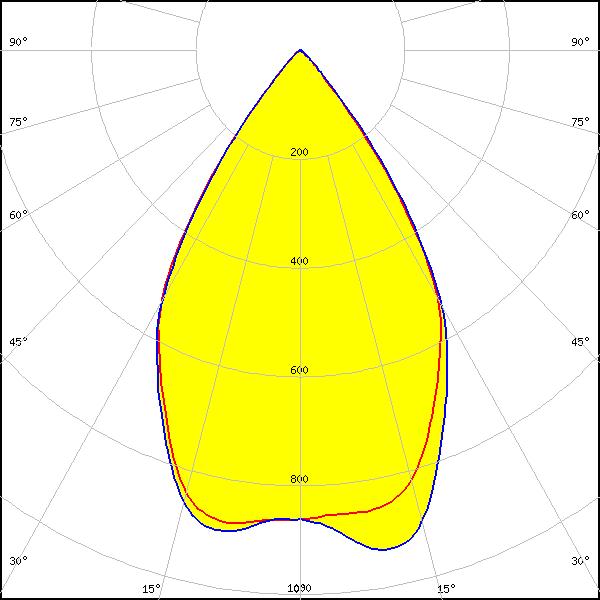

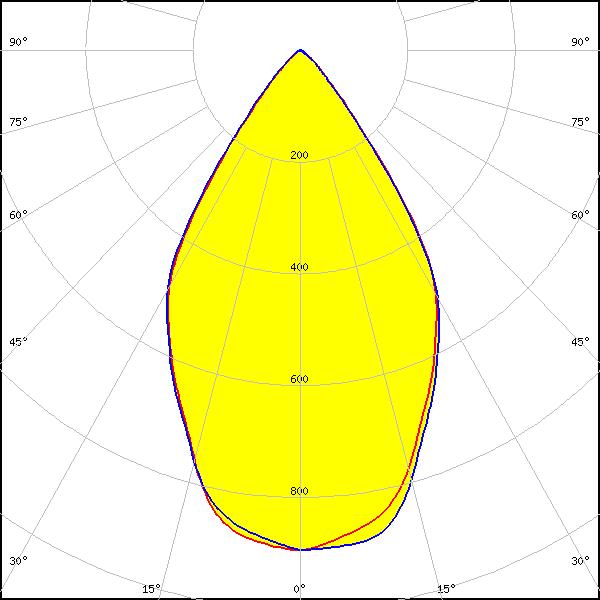

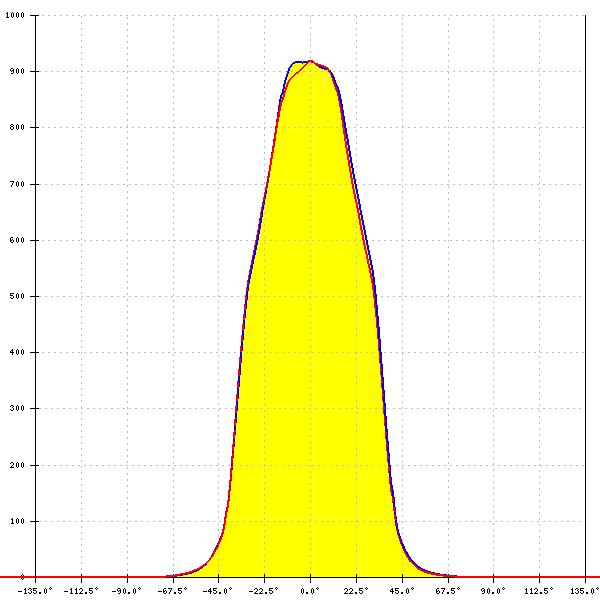

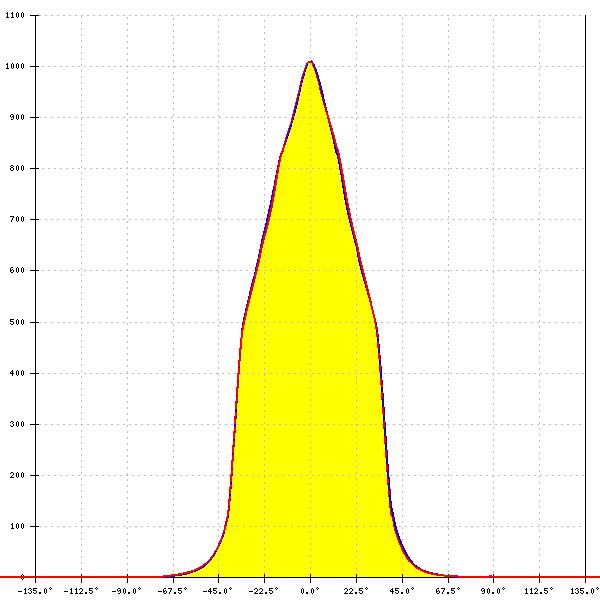

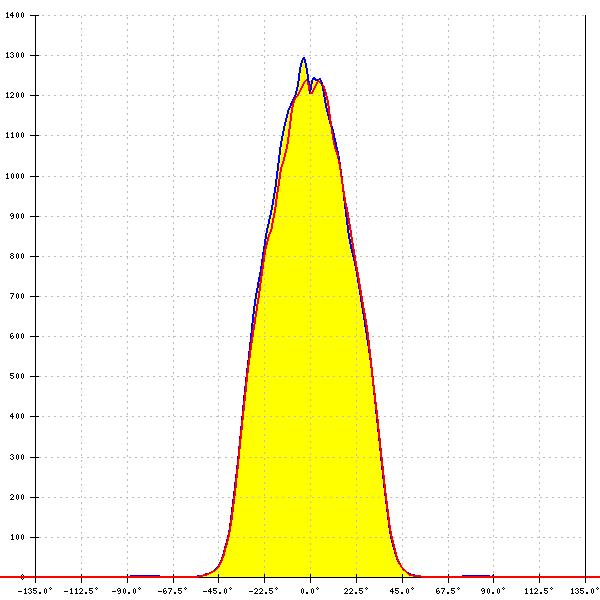

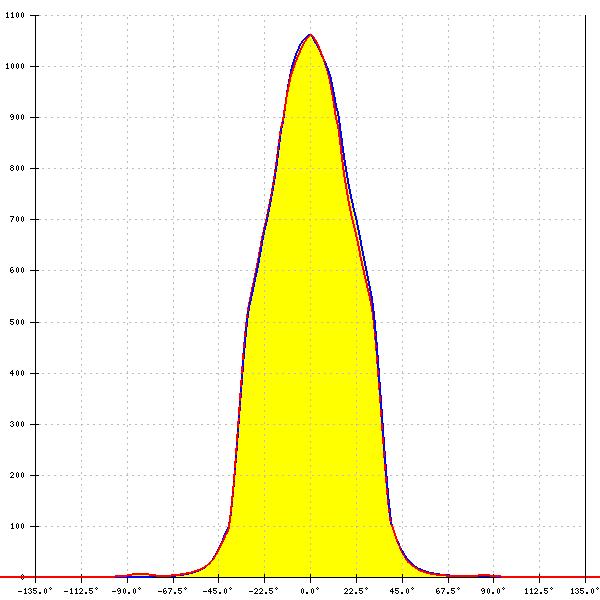

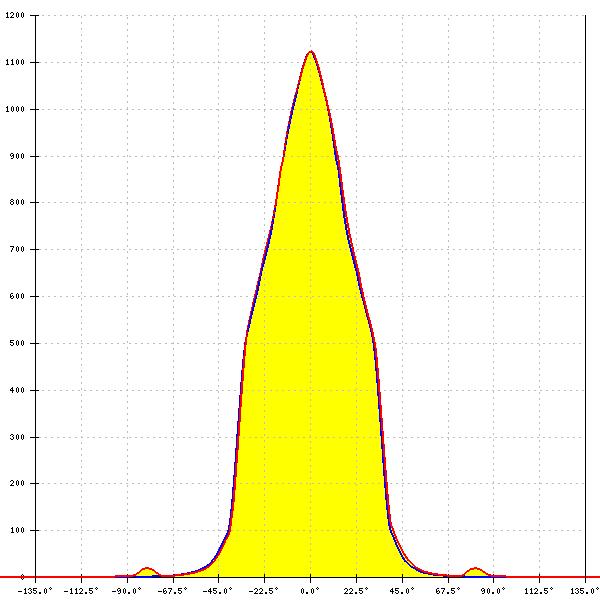

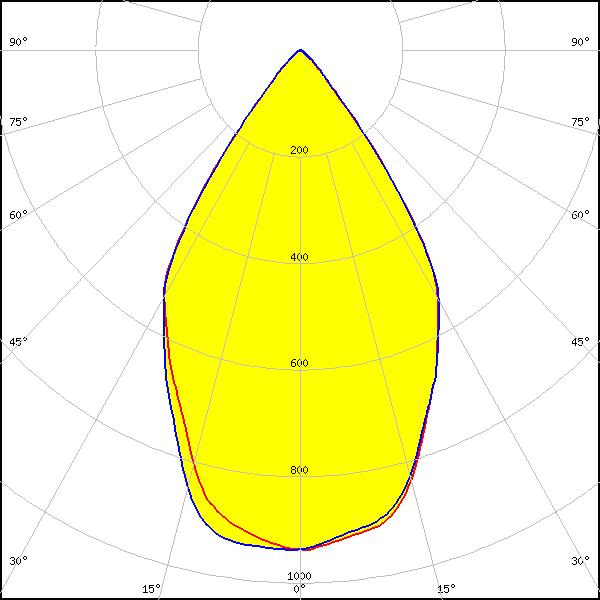

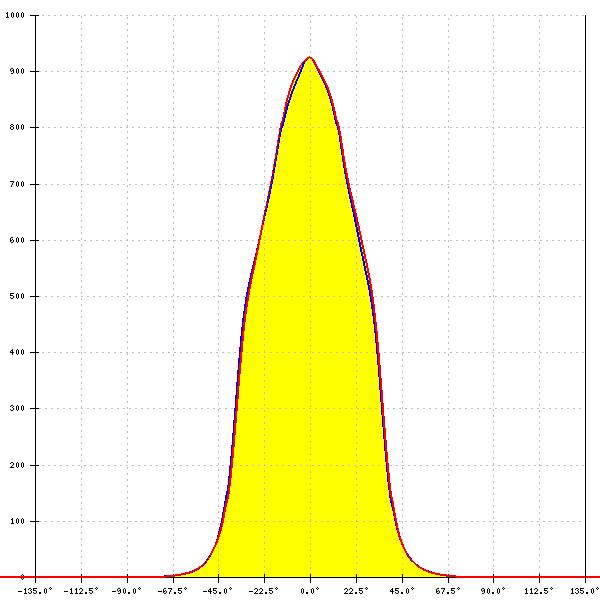

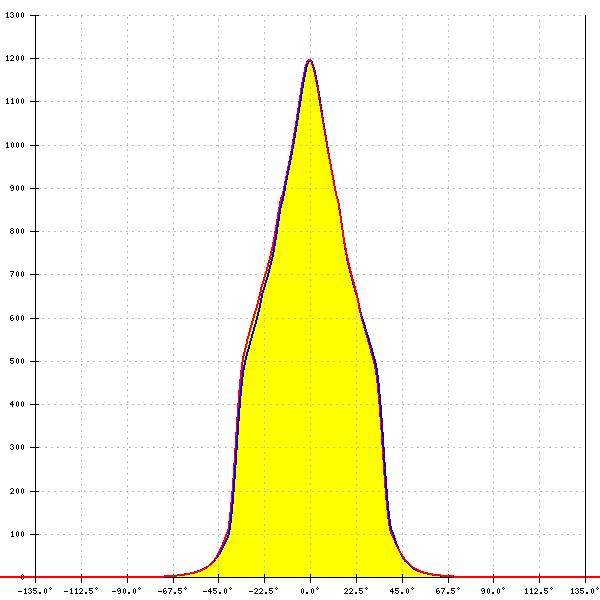

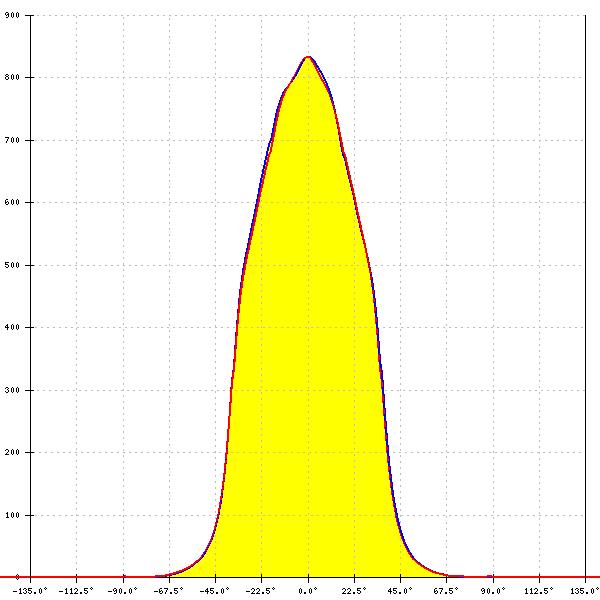

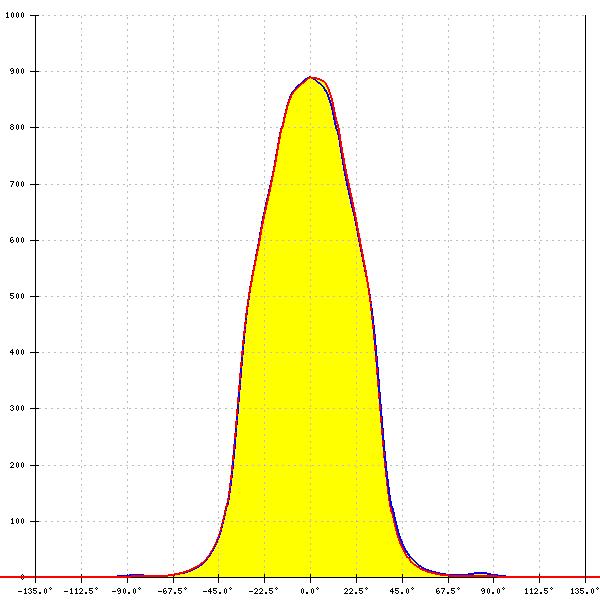

Optical results

LED: V13 Gen7
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 51°
FWTM: 79°
Peak intensity: 1.290 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 64°
FWTM: 86°
Peak intensity: 0.920 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

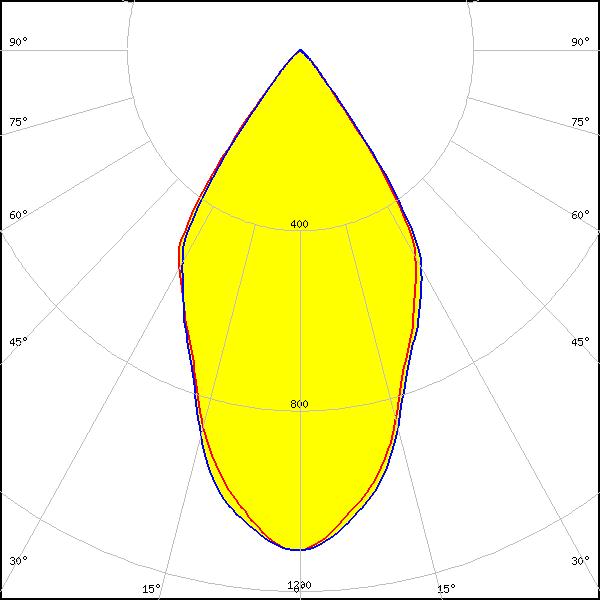

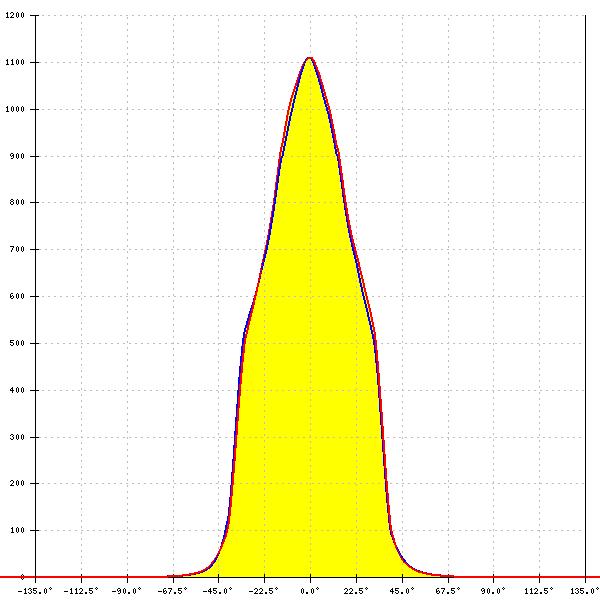

LED: V13 Gen7
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 59°
FWTM: 80°
Peak intensity: 1.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

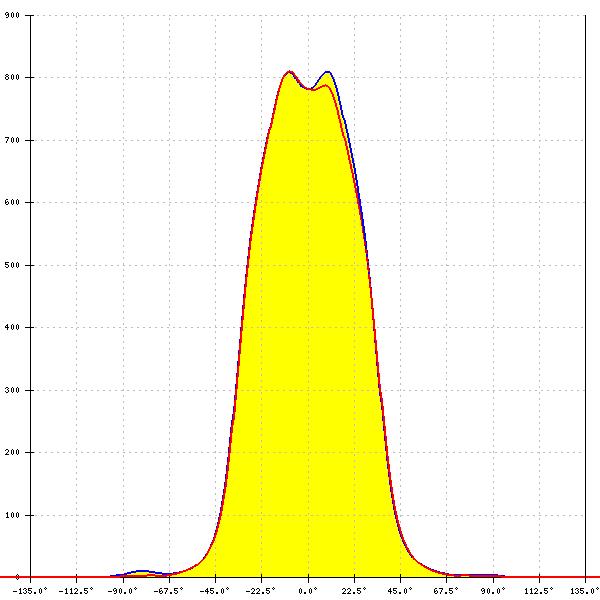

LED: V22 Gen6
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 65°
FWTM: 88°
Peak intensity: 0.810 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

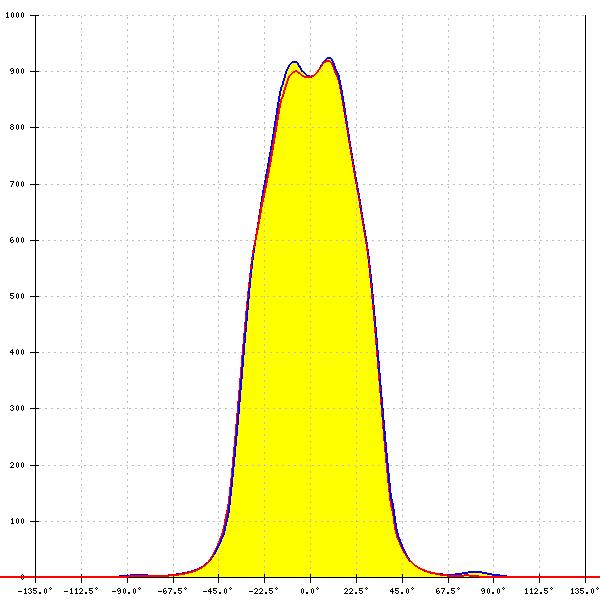

LED: V22 Gen6
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 63°
FWTM: 83°
Peak intensity: 0.920 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

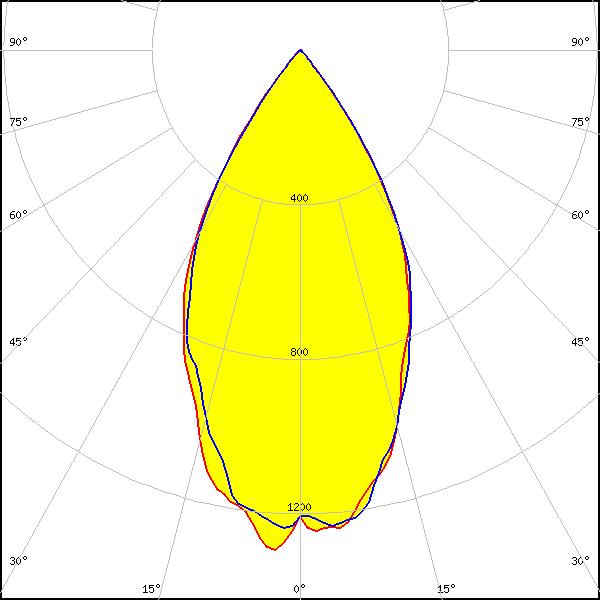

LED: V22 Gen7
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 55°
FWTM: 78°
Peak intensity: 1.345 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

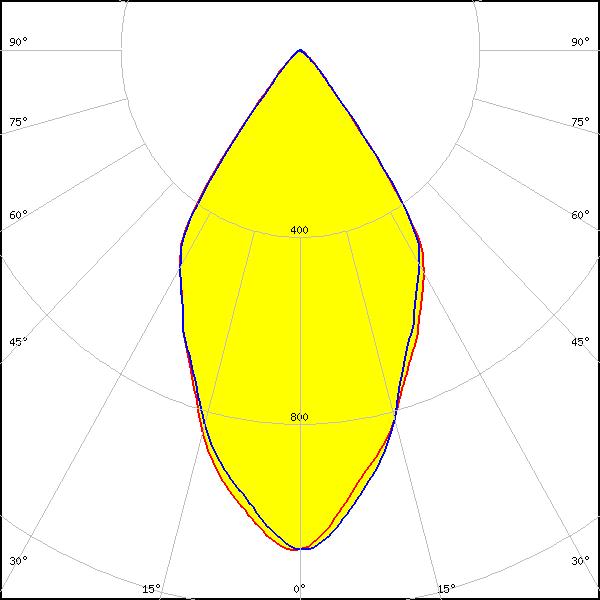

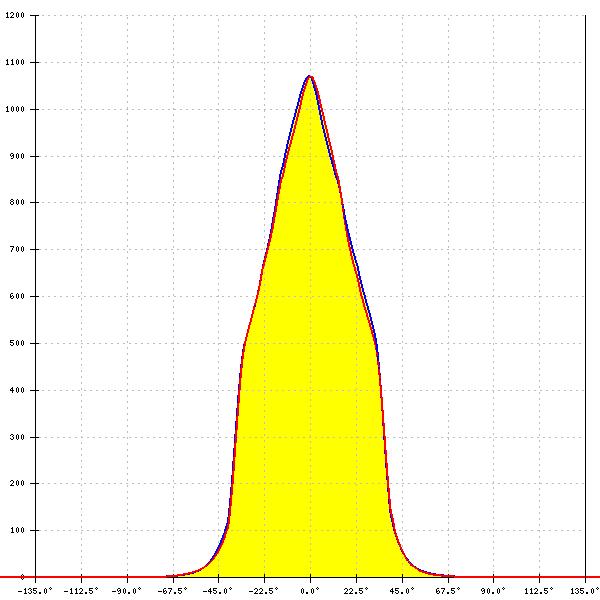

LED: VERO13
Required components:
FWHM: 60°
FWTM: 82°
Peak intensity: 1.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

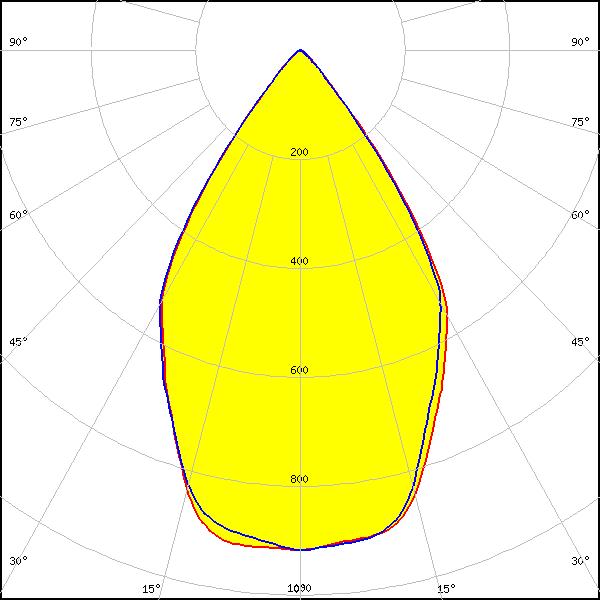

LED: VERO18
Required components:
FWHM: 66°
FWTM: 84°
Peak intensity: 0.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

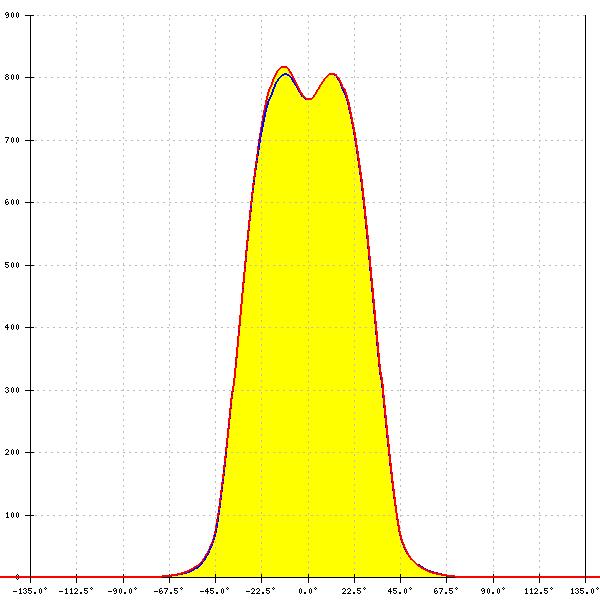

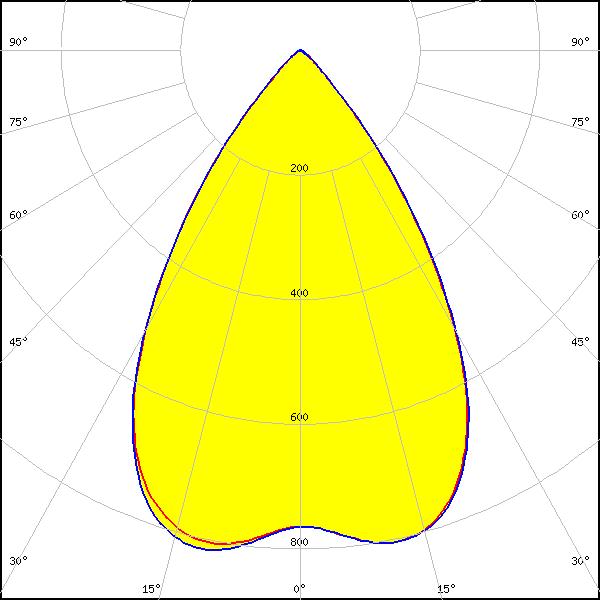

LED: VERO29
Required components:
FWHM: 68°
FWTM: 89°
Peak intensity: 0.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

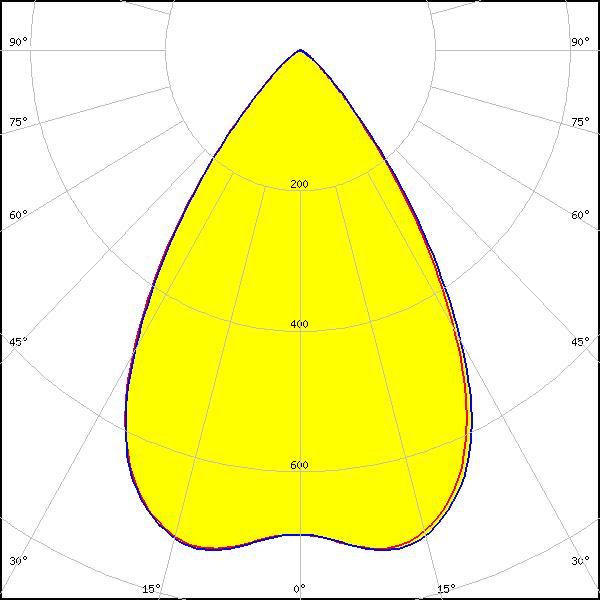

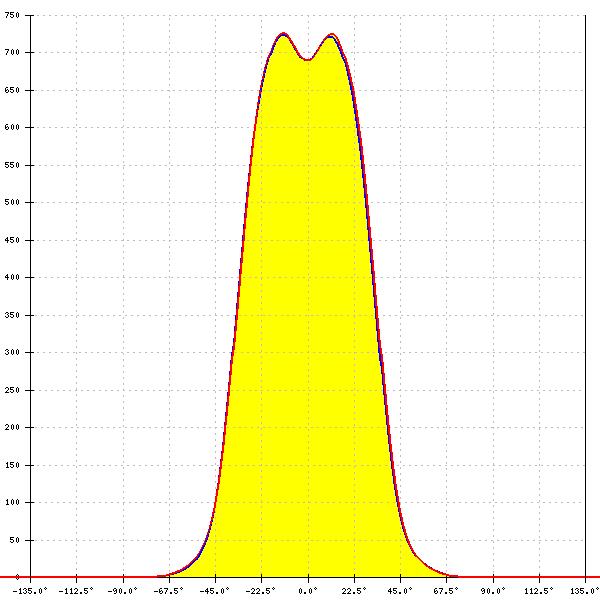

LED: VERO29
Required components:
FWHM: 69°
FWTM: 94°
Peak intensity: 0.700 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 15mm DP
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 482 Typ L2
FWHM: 65°
FWTM: 82°
Peak intensity: 0.984 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 15mm DP
Required components:
FWHM: 66°
FWTM: 86°
Peak intensity: 0.835 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 18mm (31W) DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 483 Typ L3
FWHM: 66°
FWTM: 83°
Peak intensity: 0.930 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 18mm (31W) DP
Required components:
FWHM: 67°
FWTM: 88°
Peak intensity: 0.822 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White

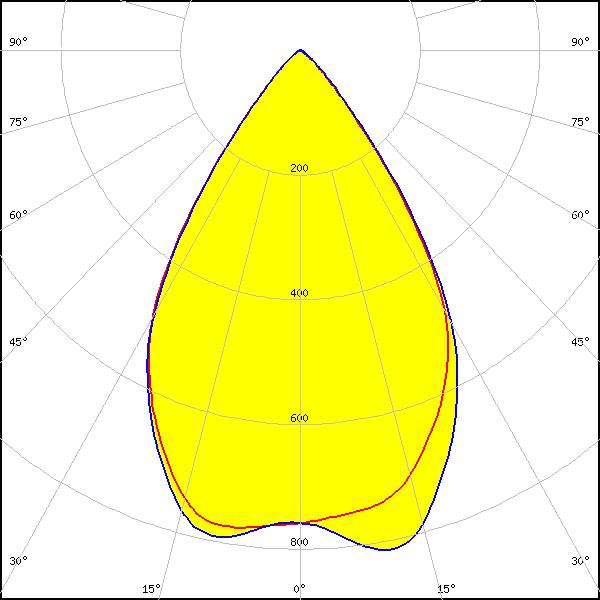

LED: Vesta TW 22mm DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 65°
FWTM: 83°
Peak intensity: 0.933 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 22mm DP
Required components:
FWHM: 66°
FWTM: 88°
Peak intensity: 0.815 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White

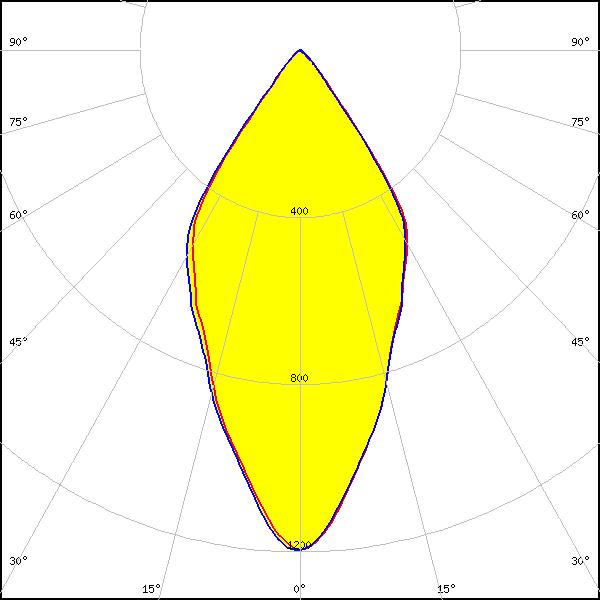

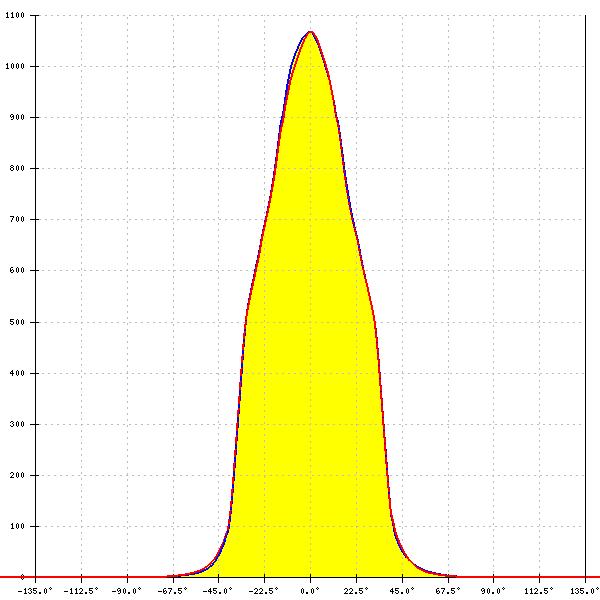

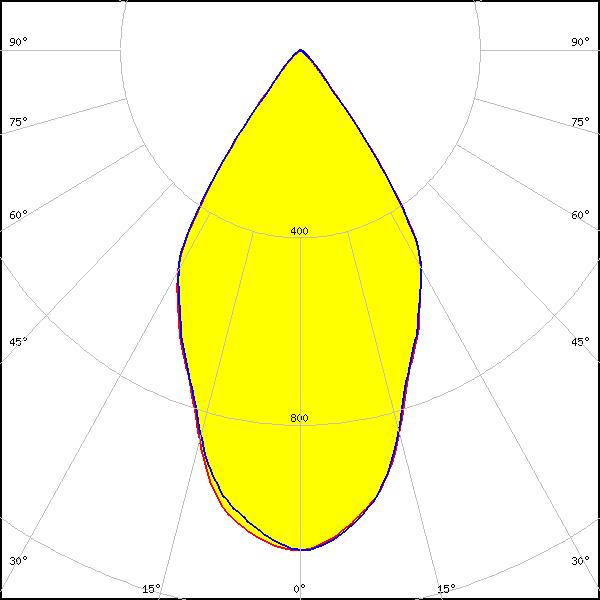

LED: CLL03x/CLU03x
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 61°
FWTM: 81°
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

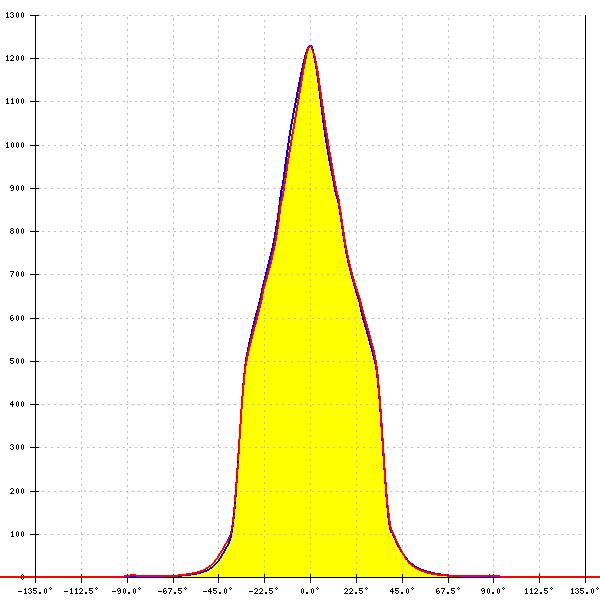

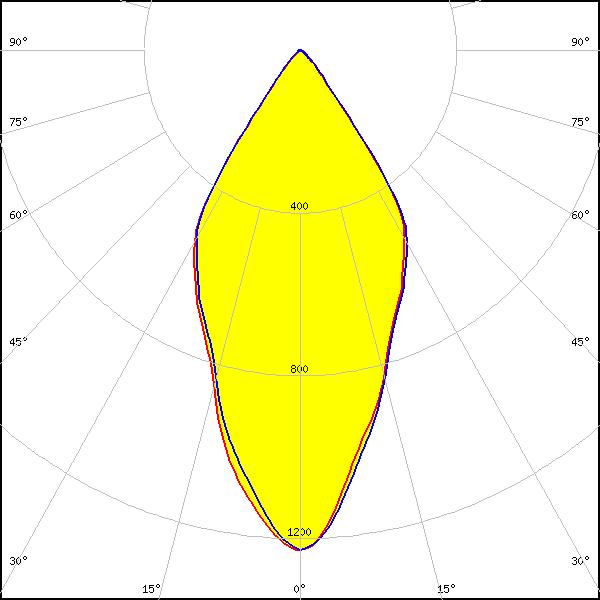

LED: CLL03x/CLU03x
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 59°
FWTM: 80°
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

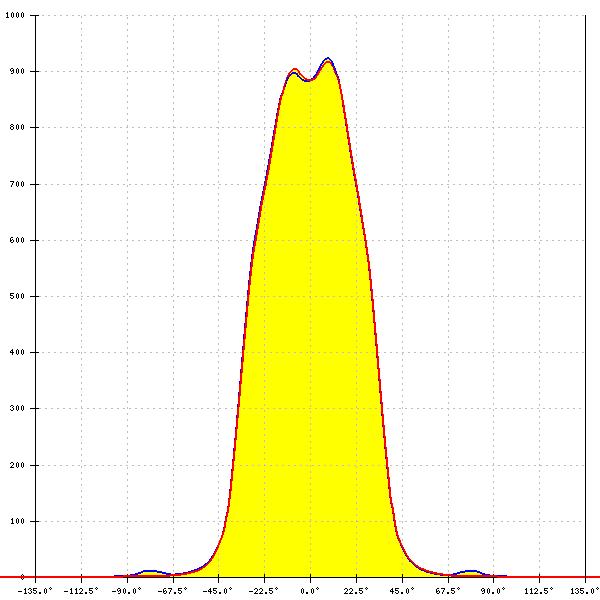

LED: CLL04x/CLU04x
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 63°
FWTM: 83°
Peak intensity: 0.930 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

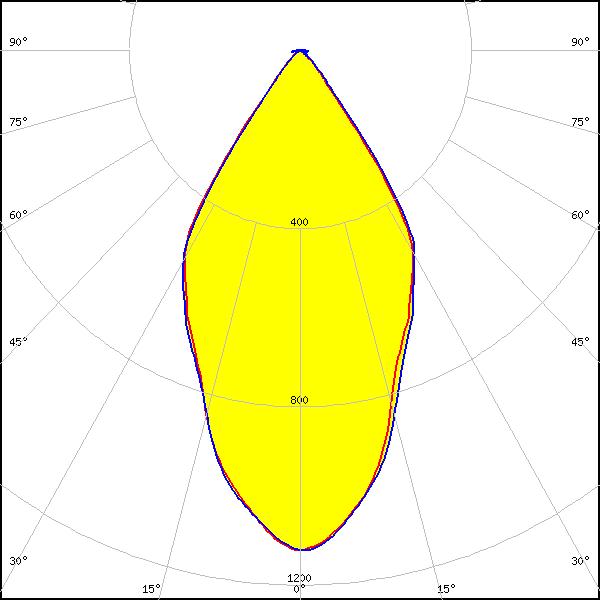

LED: CLU730/731/733
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 57°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

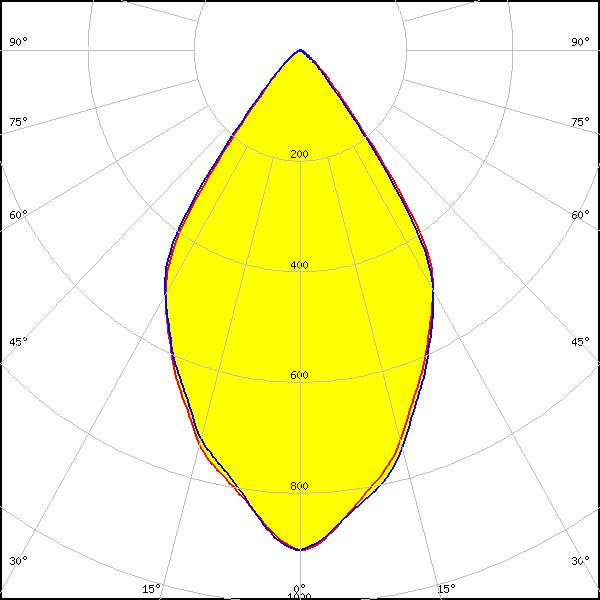

LED: CXA/B 15xx
Required components:
FWHM: 66°
FWTM: 88°
Peak intensity: 0.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

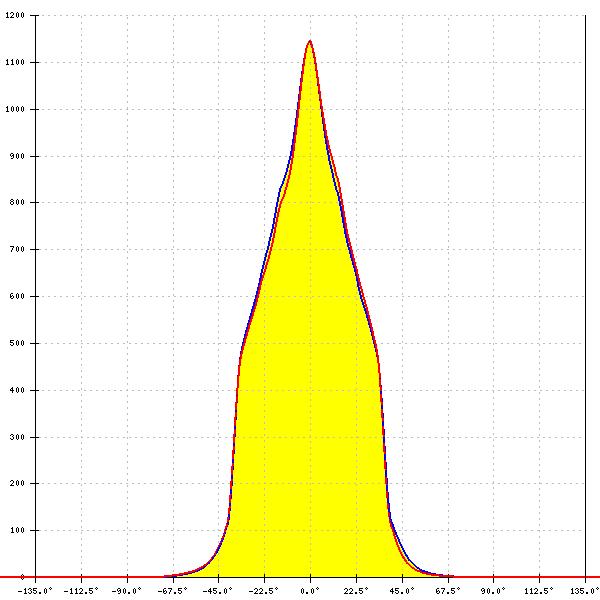

LED: CXA/B 15xx
Required components:
FWHM: 55°
FWTM: 81°
Peak intensity: 1.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

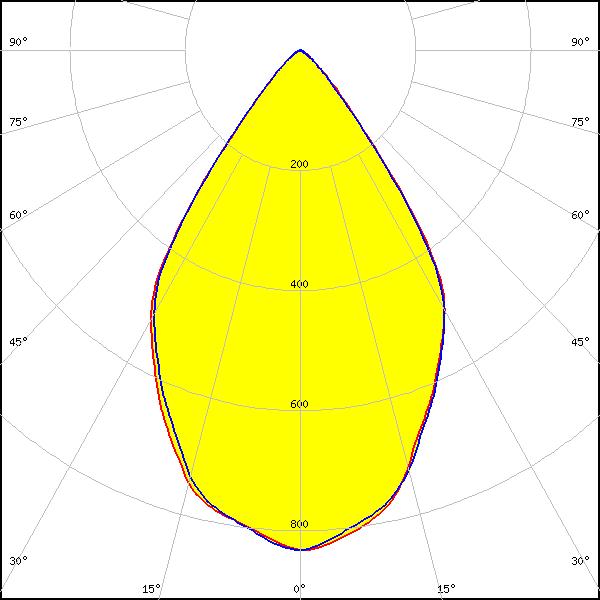

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 68°
FWTM: 89°
Peak intensity: 0.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

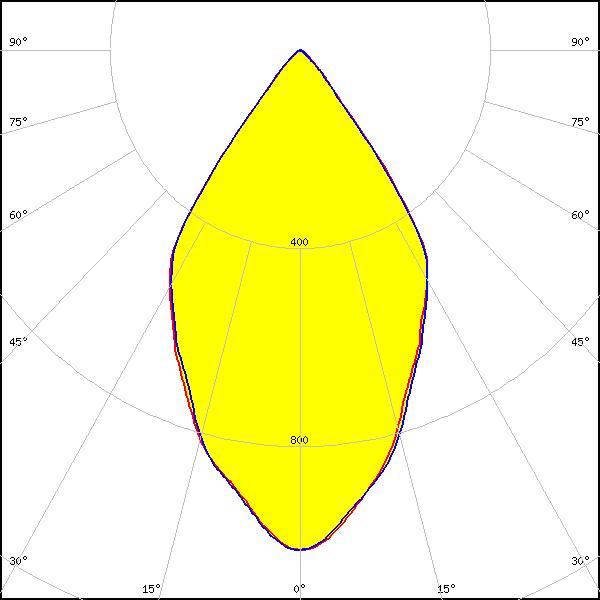

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 64°
FWTM: 83°
Peak intensity: 1.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

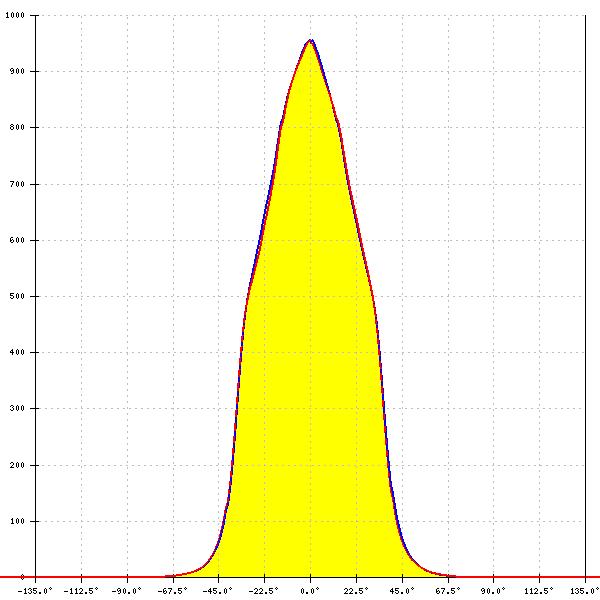

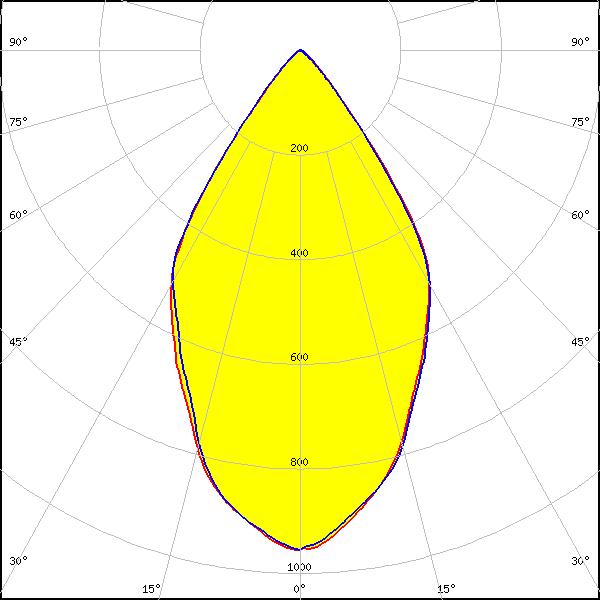

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 63°
FWTM: 85°
Peak intensity: 1.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

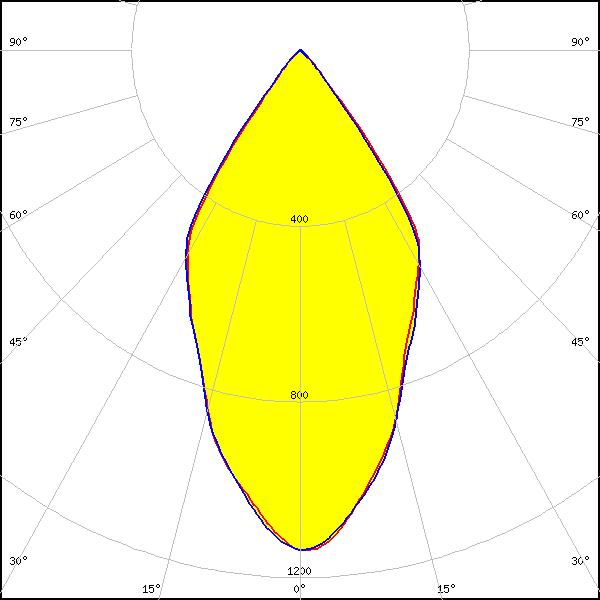

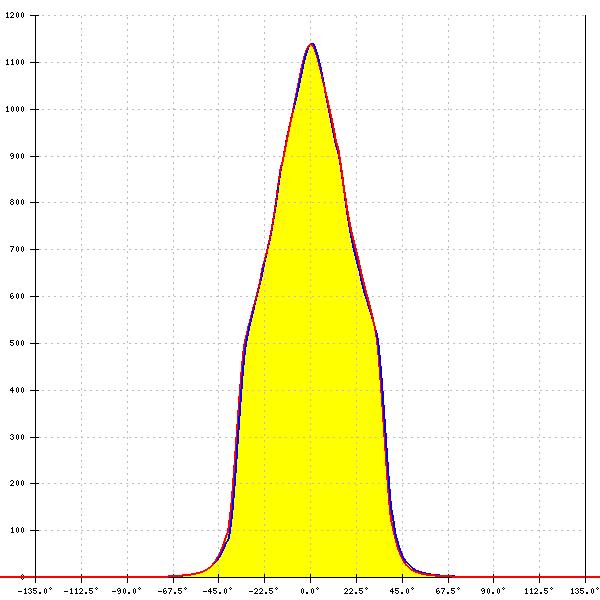

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 58°
FWTM: 80°
Peak intensity: 1.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

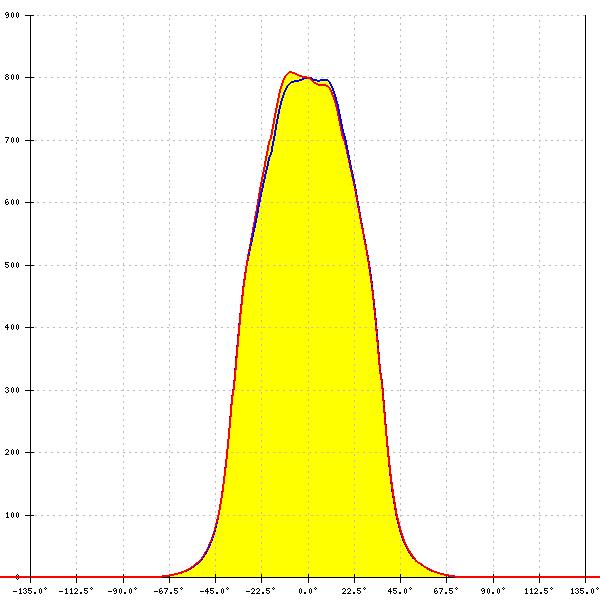

LED: CXA/B 25xx
Required components:
FWHM: 65°
FWTM: 84°
Peak intensity: 0.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

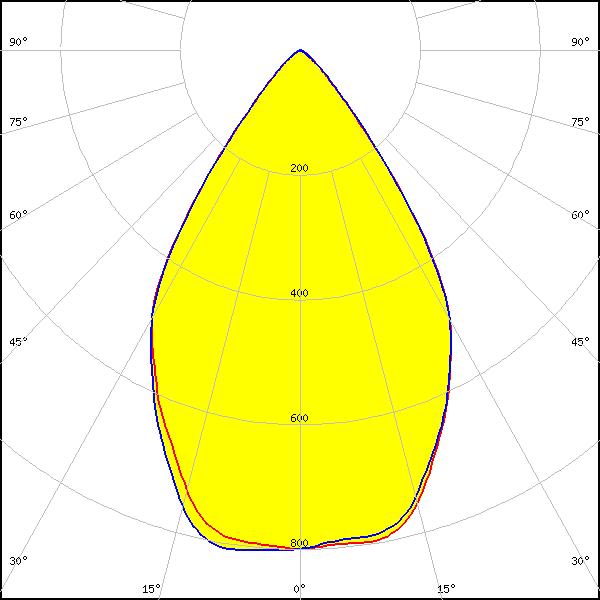

LED: CXA/B 25xx
Required components:
FWHM: 67°
FWTM: 90°
Peak intensity: 0.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

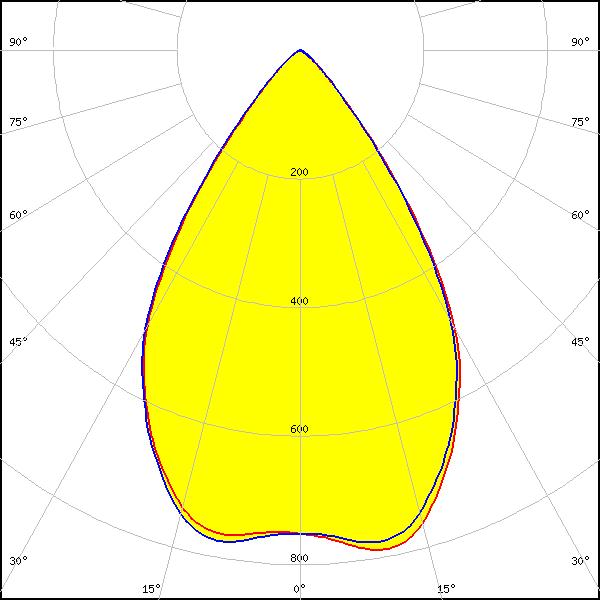

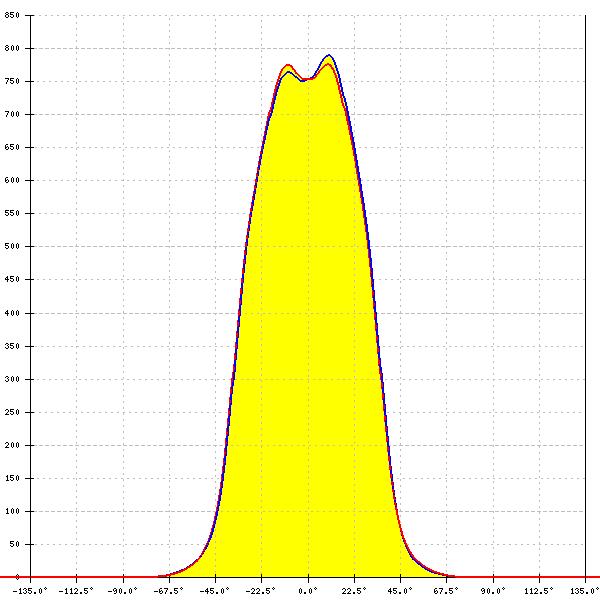

LED: CXA/B 30xx
Required components:
FWHM: 66°
FWTM: 86°
Peak intensity: 0.900 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

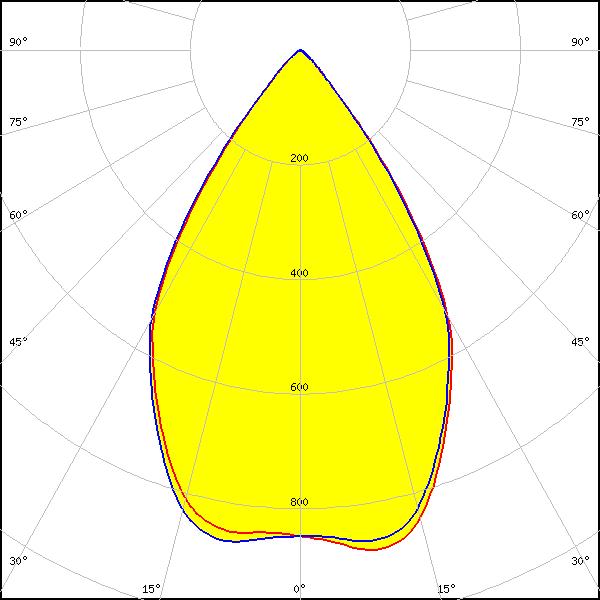

LED: CXA/B 30xx
Required components:
FWHM: 67°
FWTM: 91°
Peak intensity: 0.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

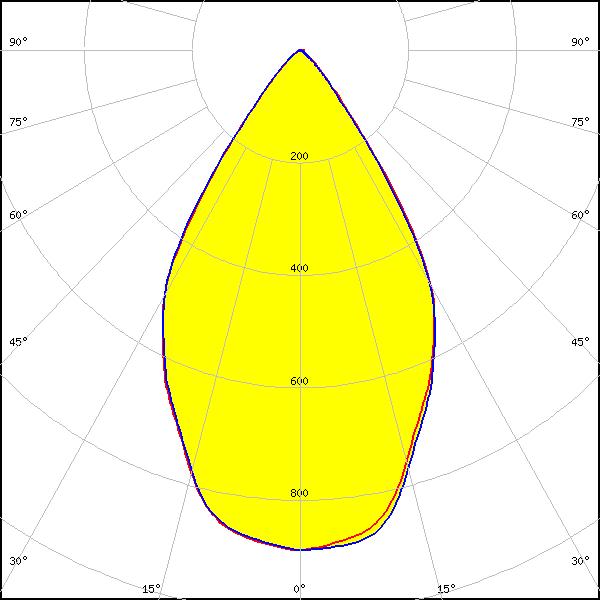

LED: LUXEON CoB 1208
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 63°
FWTM: 85°
Peak intensity: 0.890 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

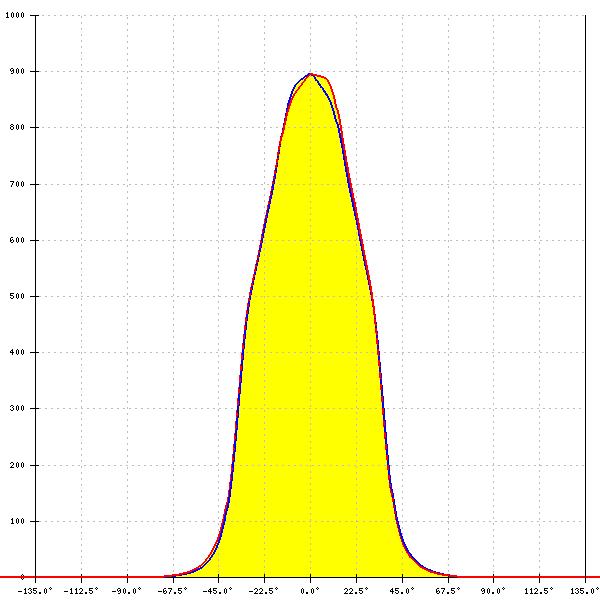

LED: LUXEON CoB 1208
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 64°
FWTM: 86°
Peak intensity: 0.890 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

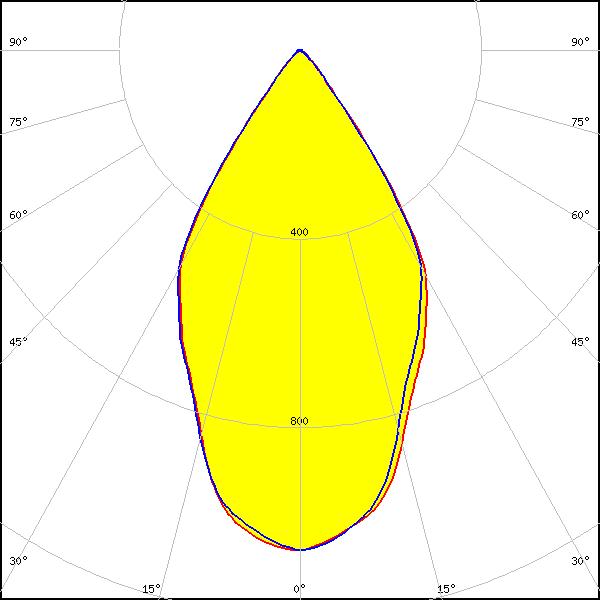

LED: LUXEON CoB 1208
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
FWHM: 61°
FWTM: 80°
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

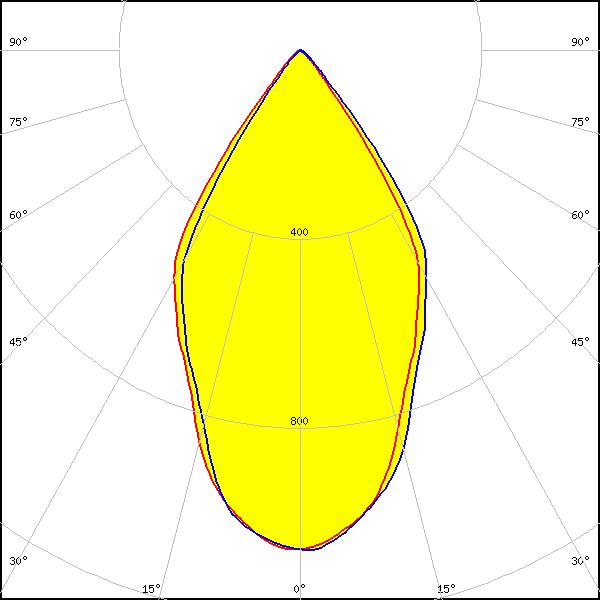

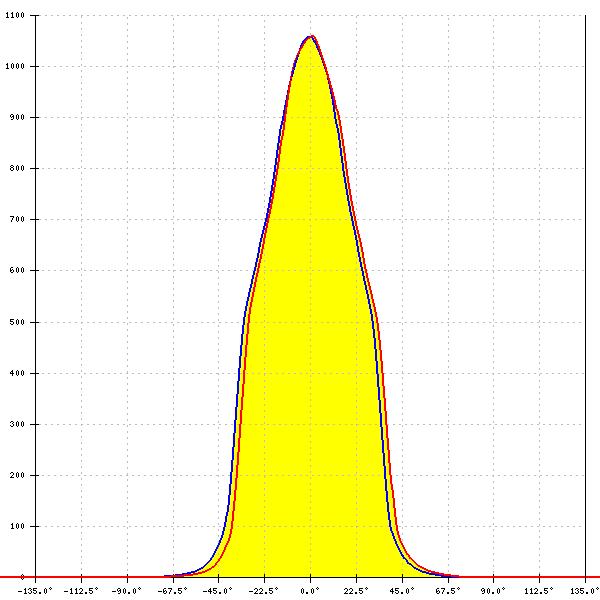

LED: LUXEON CoB 1208
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 61°
FWTM: 81°
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

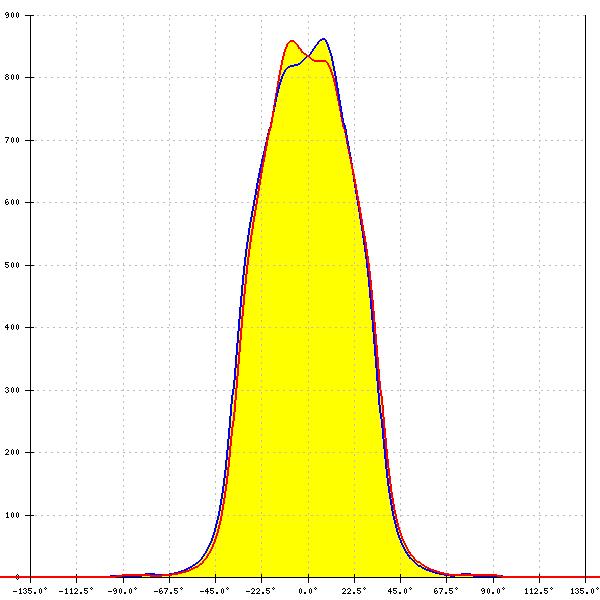

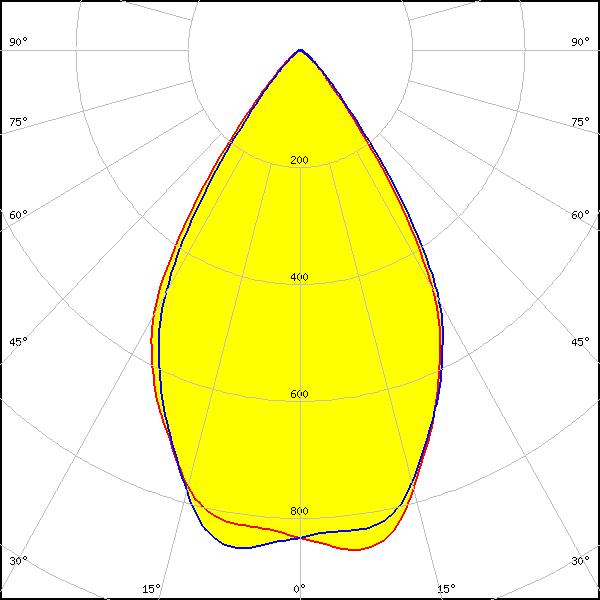

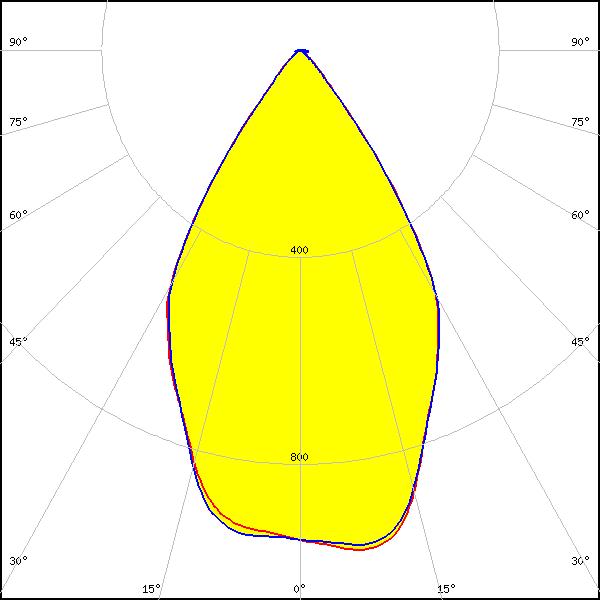

LED: LUXEON CoB 1211
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 64°
FWTM: 87°
Peak intensity: 0.870 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

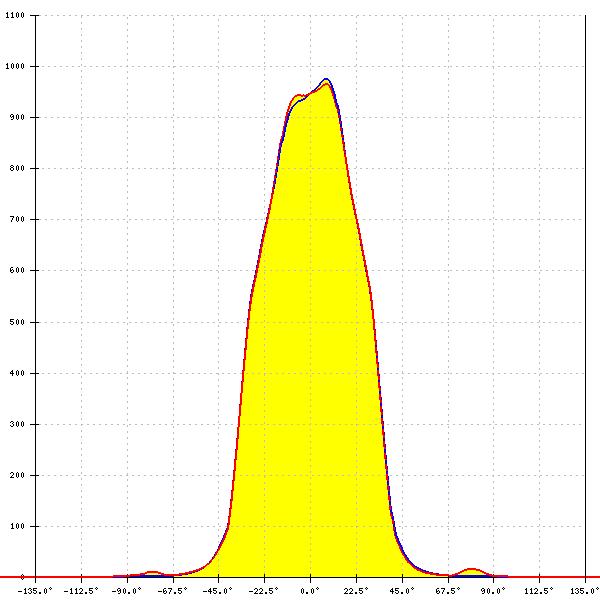

LED: LUXEON CoB 1211
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 63°
FWTM: 82°
Peak intensity: 0.970 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

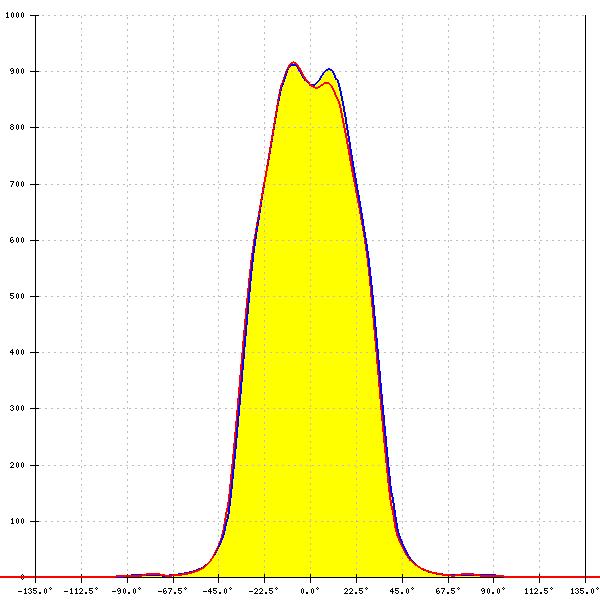

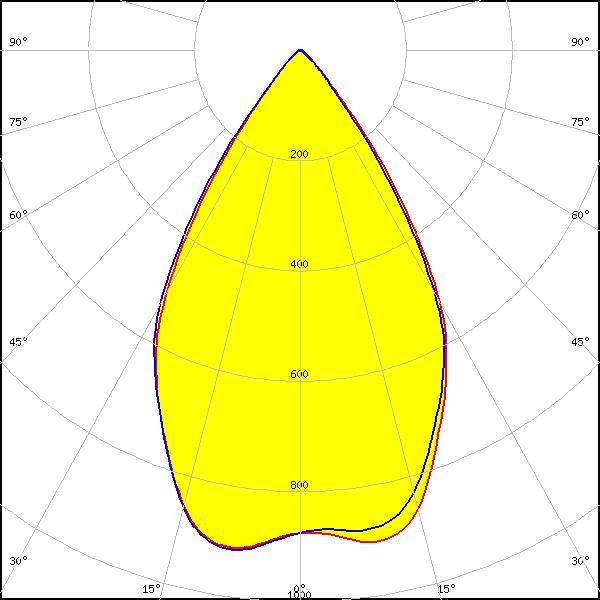

LED: LUXEON CoB 1213/1216/1812
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 63°
FWTM: 84°
Peak intensity: 0.920 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
FWHM: 51°
FWTM: 77°
Peak intensity: 1.200 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 53°
FWTM: 79°
Peak intensity: 1.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

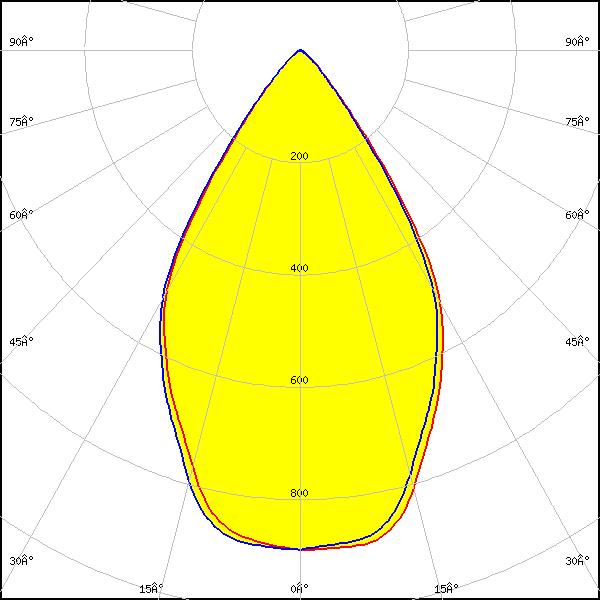

LED: PrevaLED Core Z4 LES19
Required components:
TE Connectivity: 2213130-2
F13671_ANGE-RZ-LENS
FWHM: 64°
FWTM: 86°
Peak intensity: 0.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core Z4 LES19
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 62°
FWTM: 81°
Peak intensity: 1.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

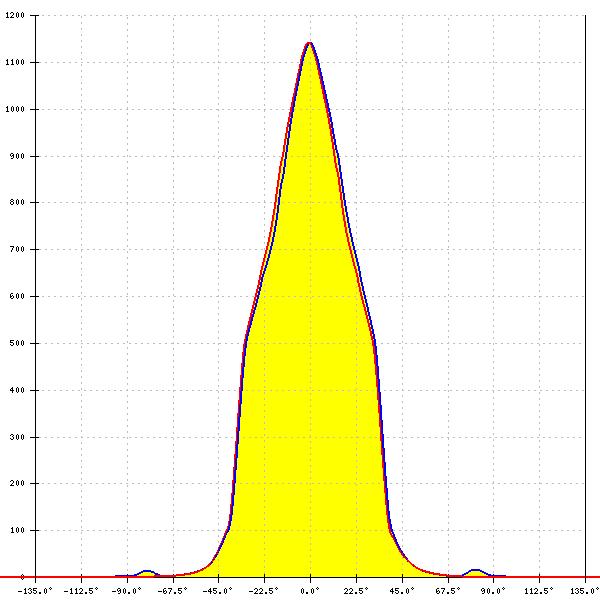

LED: Soleriq S13 19x19
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 56°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

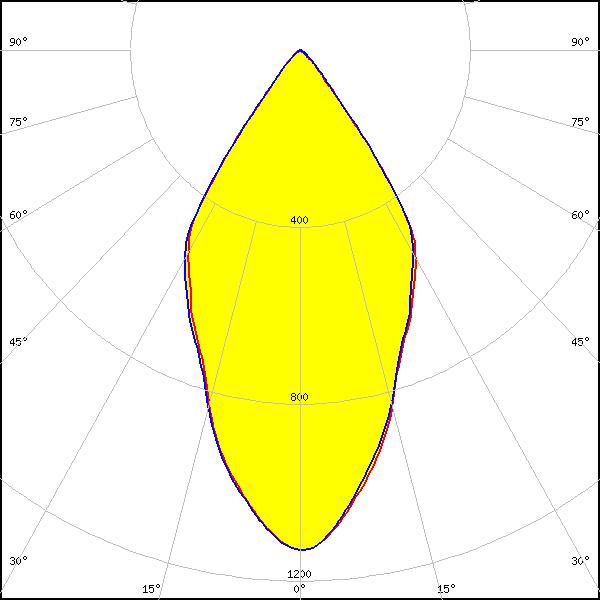

LED: Soleriq S13 19x19
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 56°
FWTM: 80°
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

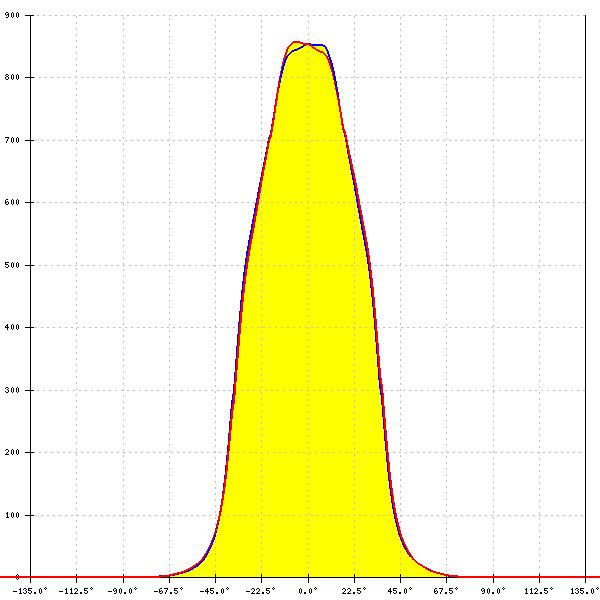

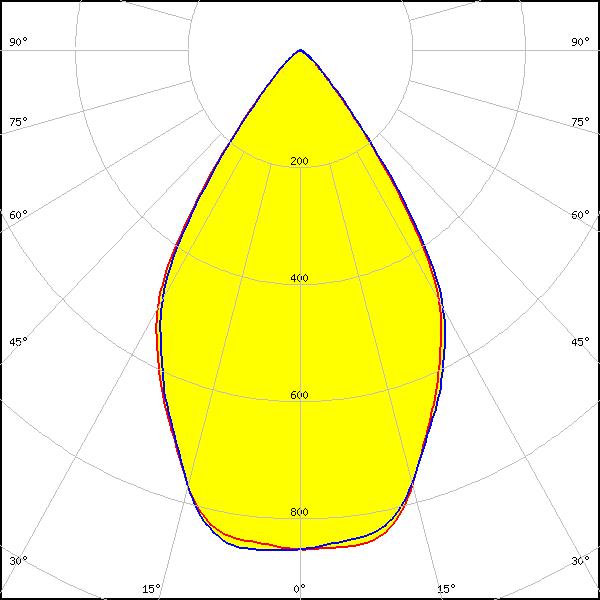

LED: Soleriq S19
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 65°
FWTM: 87°
Peak intensity: 0.860 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

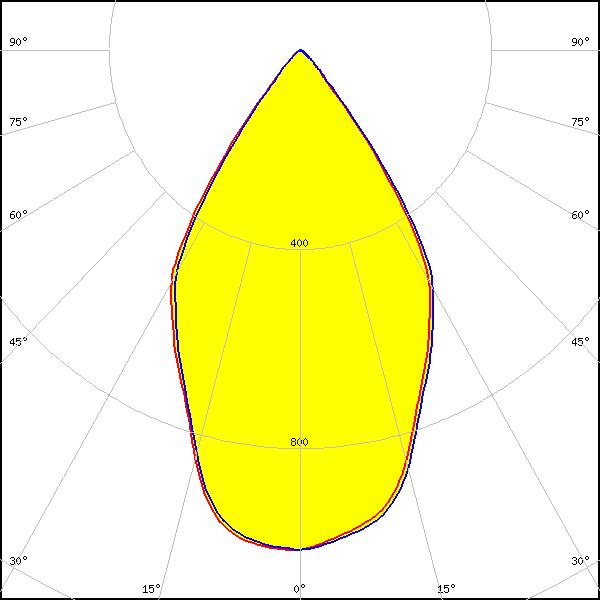

LED: Soleriq S19
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 63°
FWTM: 82°
Peak intensity: 1.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

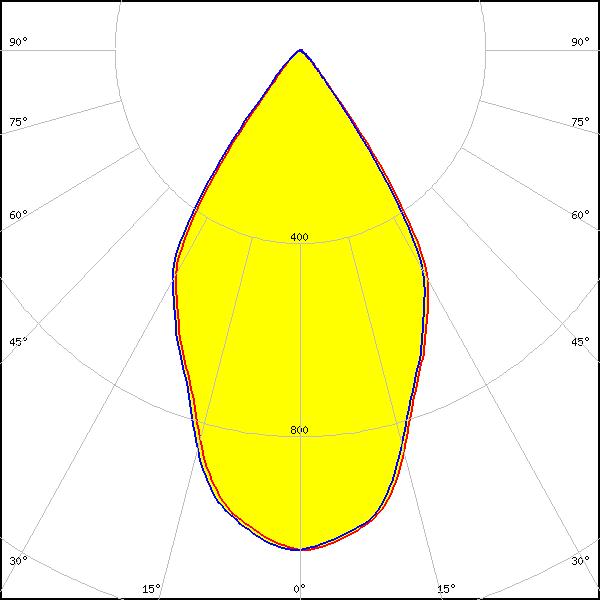

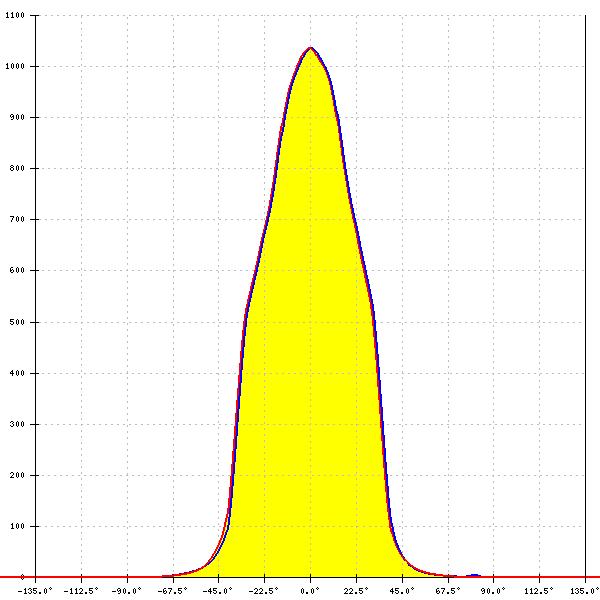

LED: Fortimo SLM L15 + SLM holder
Required components:
TE Connectivity: 2213134-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 62°
FWTM: 81°
Peak intensity: 1.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

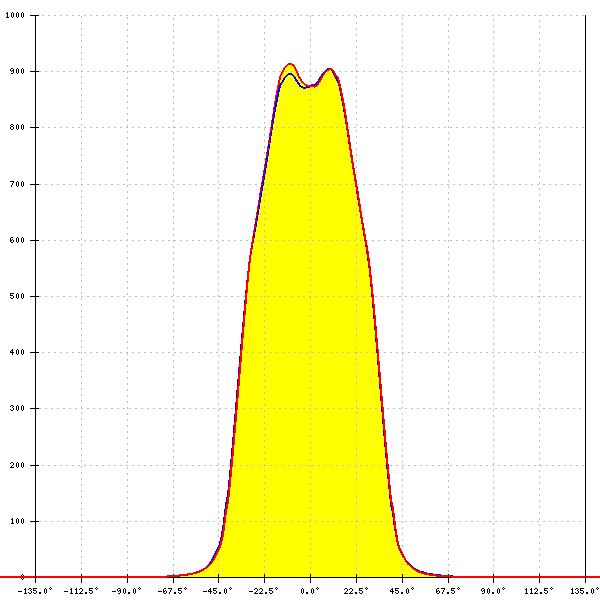

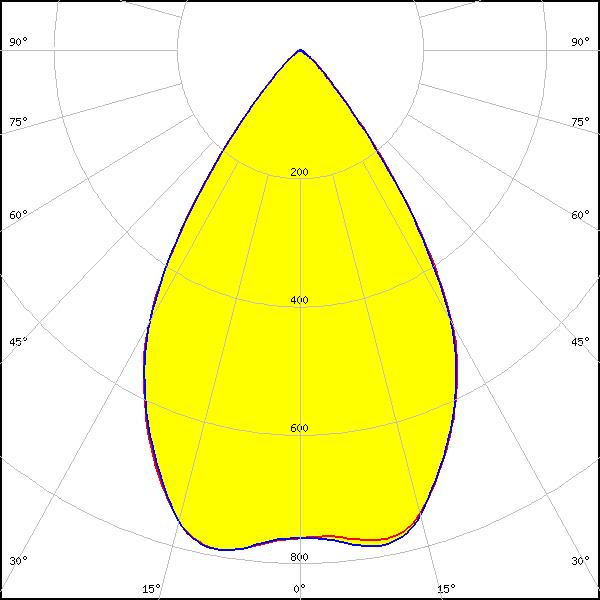

LED: LC035T (Tunable white)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 502 Typ L3
FWHM: 65°
FWTM: 84°
Peak intensity: 0.921 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: Tunable White

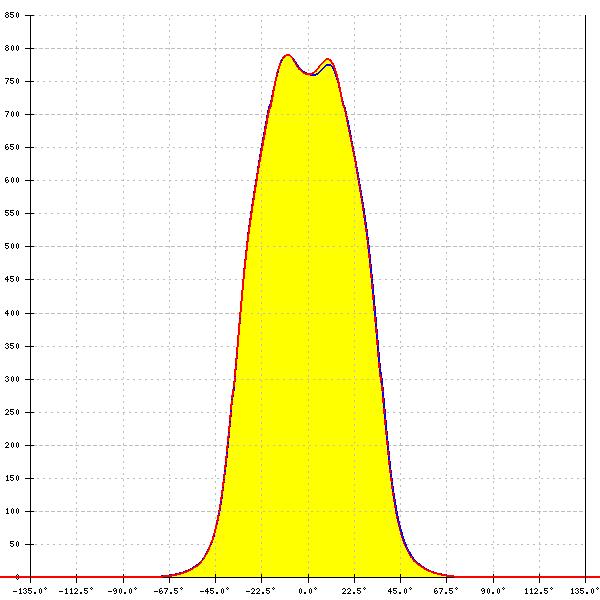

LED: LC035T (Tunable white)
Required components:
FWHM: 66°
FWTM: 89°
Peak intensity: 0.795 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White

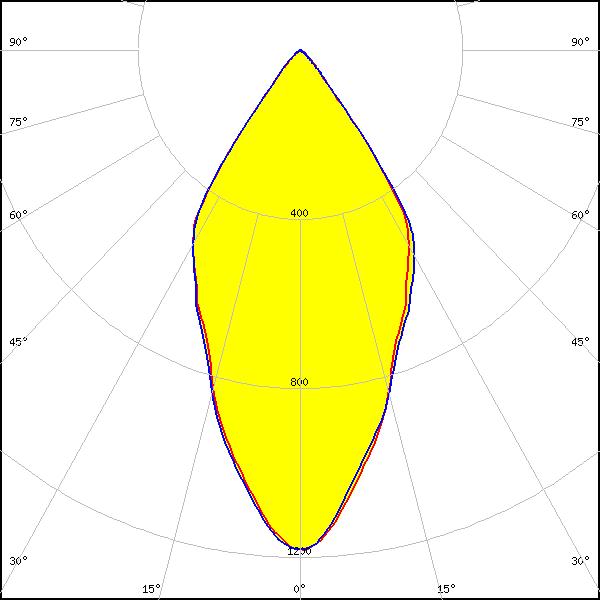

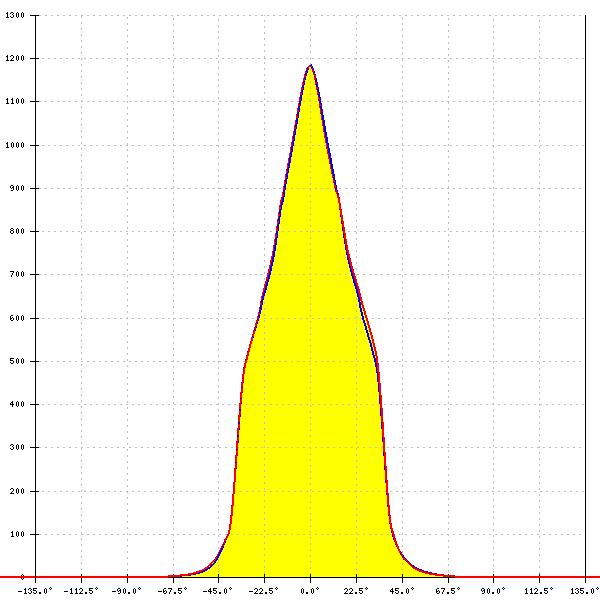

LED: LC040C
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 53°
FWTM: 79°
Peak intensity: 1.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

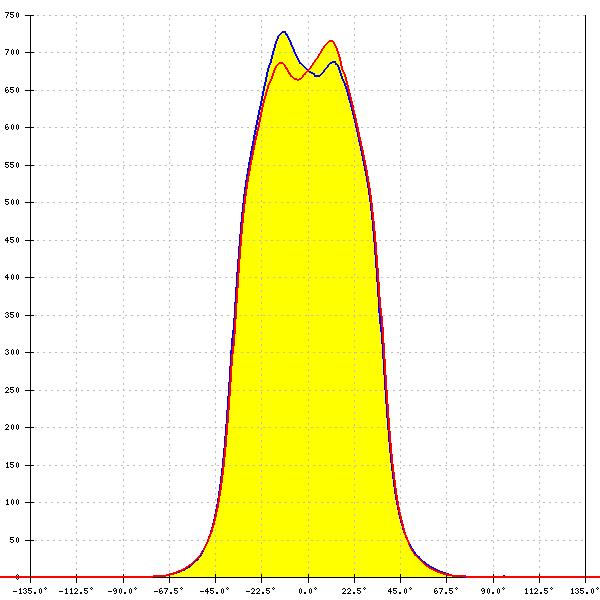

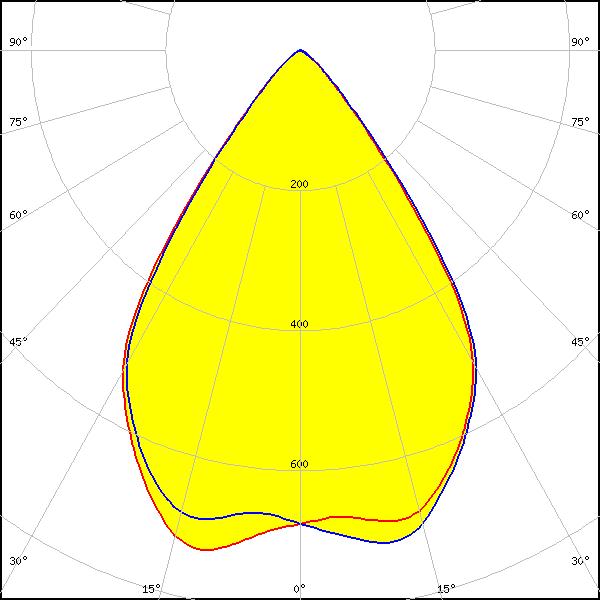

LED: AC Zhaga COB
Required components:
Optosource: SEHSMJD-A
F13671_ANGE-RZ-LENS
FWHM: 71°
FWTM: 92°
Peak intensity: 0.740 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

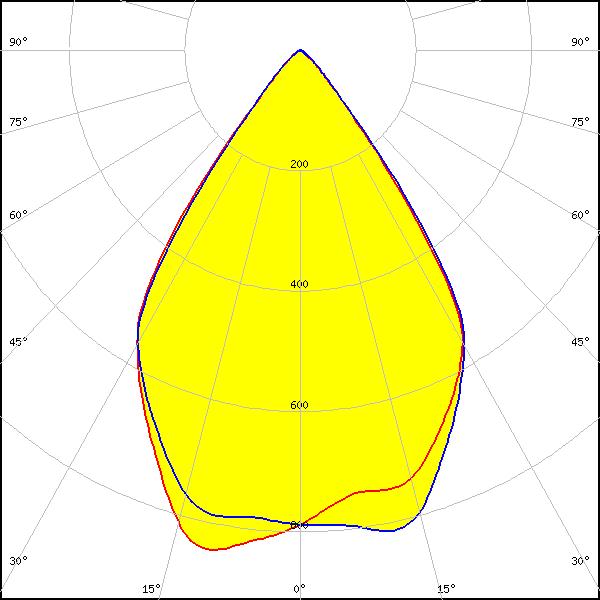

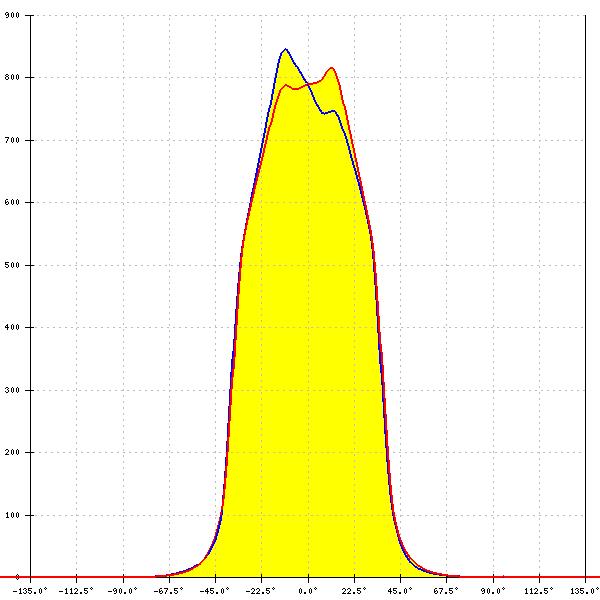

LED: AC Zhaga COB
Required components:
Optosource: SEHSMJD-A
FWHM: 70°
FWTM: 87°
Peak intensity: 0.850 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

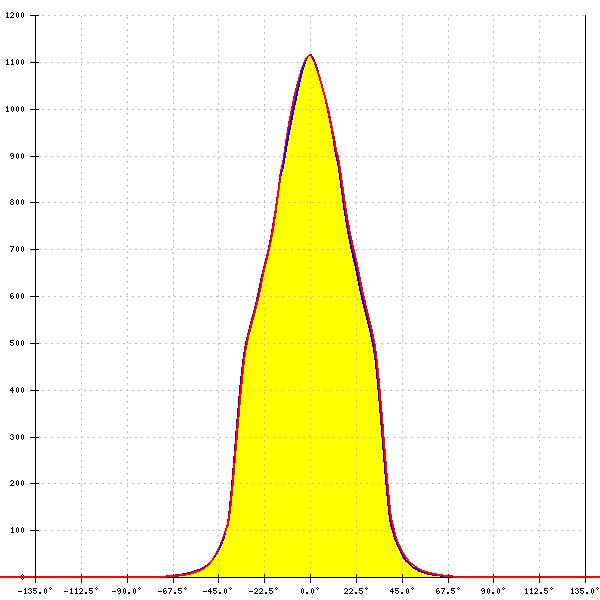

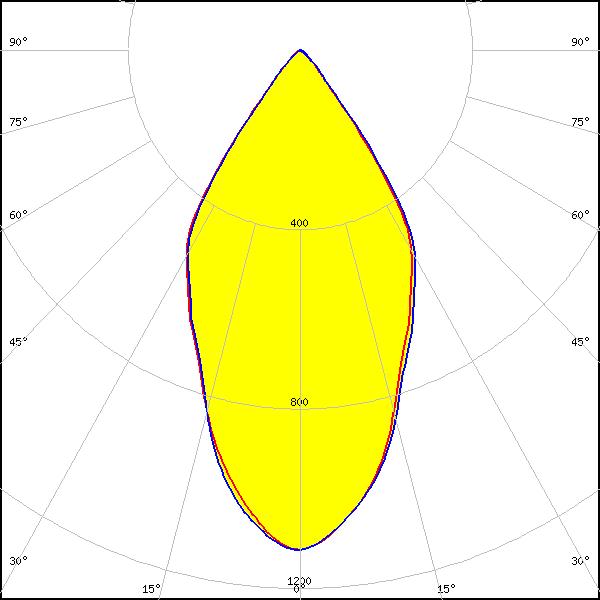

LED: WU-M-484
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 56°
FWTM: 81°
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

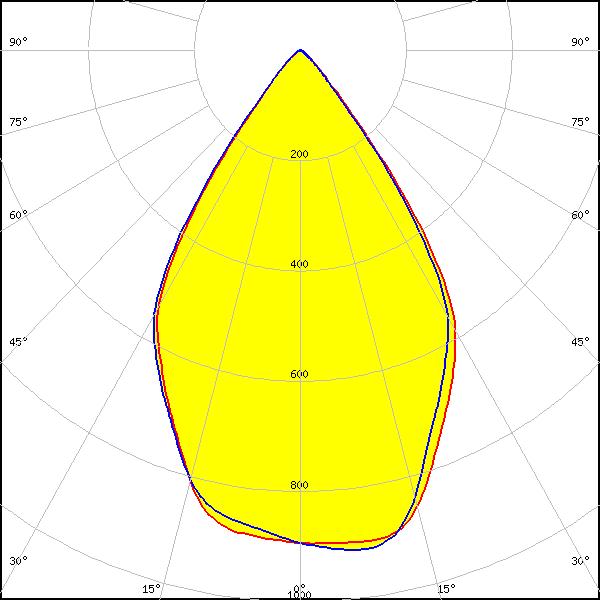

LED: XIM - 19mm LES
Required components:
FWHM: 66°
FWTM: 84°
Peak intensity: 0.920 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
