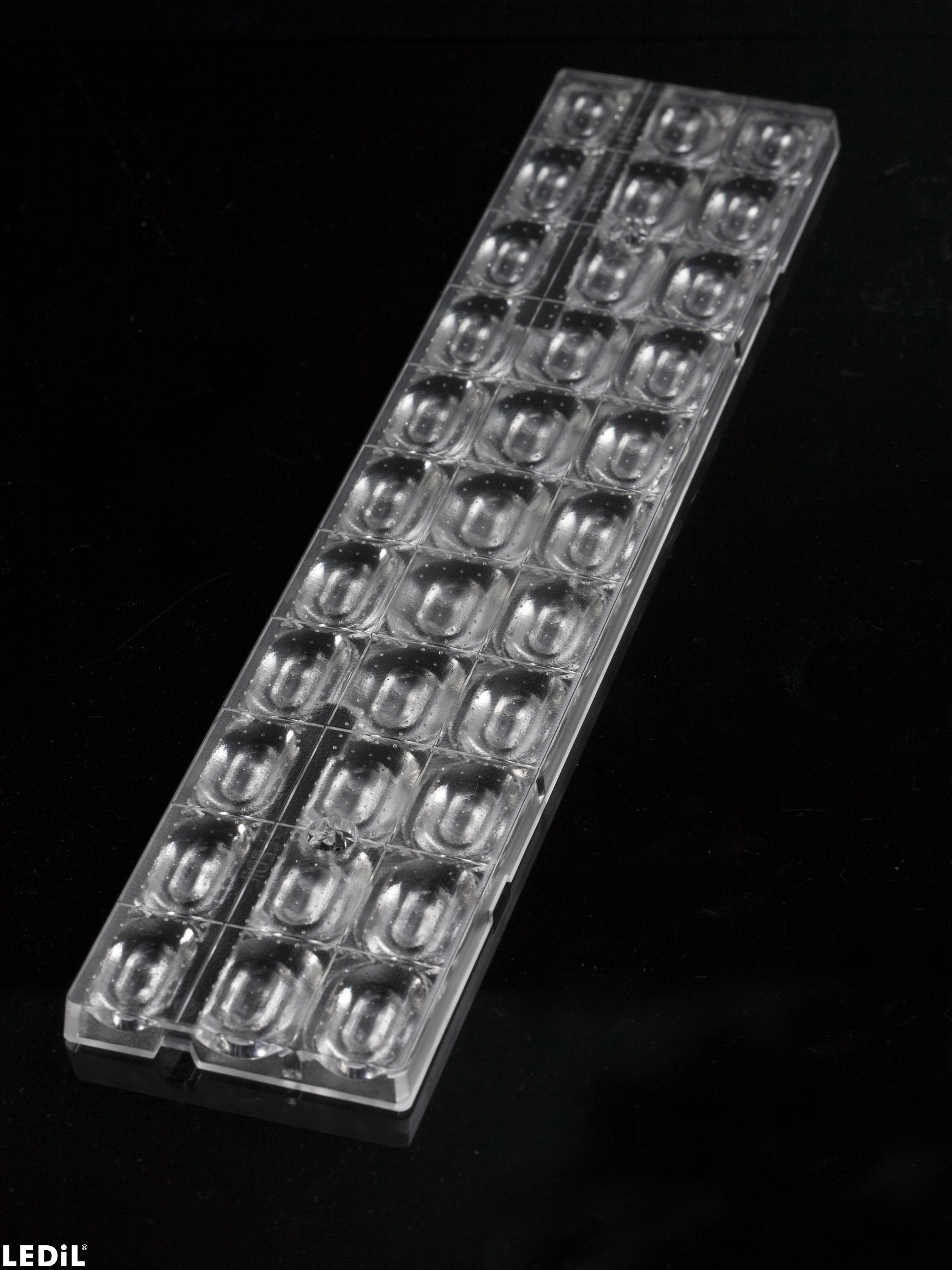

F15069_FLORENCE-O
Print~85° + 35° oval beam
Specification
-
Dimensions:61 x 286 mm
-
Height:8.45 mm
-
Fastening:screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
Ordering information
-
Quantity in box:72 pcs
-
Box size:398 x 298 x 140 mm
-
Box weight:7.5 kg
-
MPQ:6 pcs
-
MOQ:18 pcs
-
MOQ size:400 x 300 x 50 mm
-
MOQ weight:2.1 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

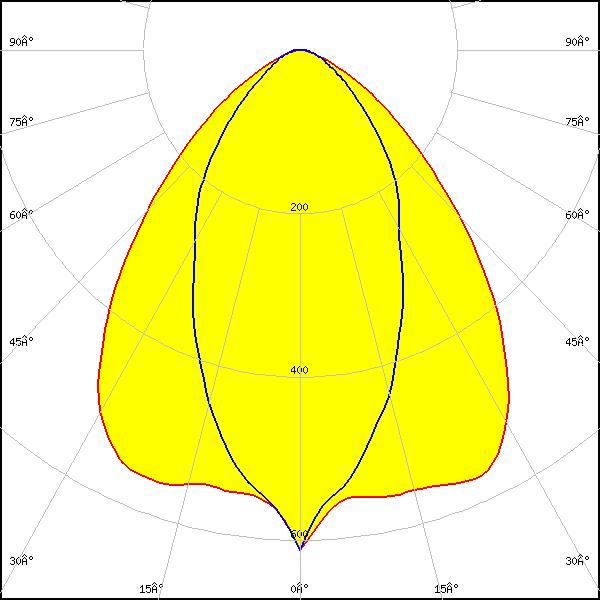

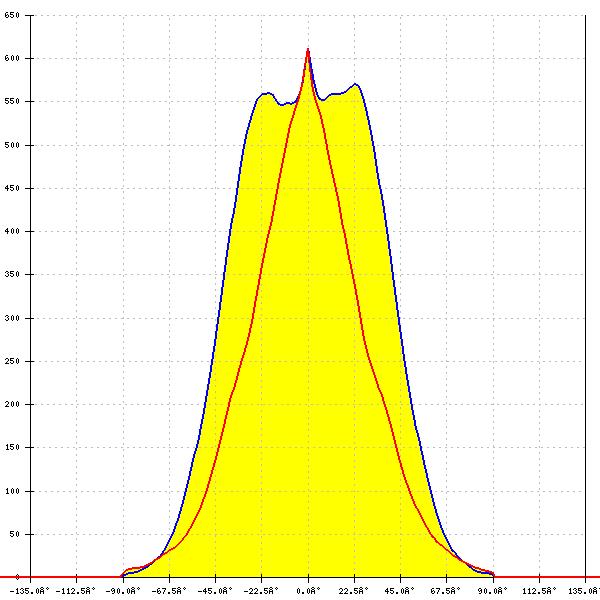

LED:
J Series 5050 6V P Class
FWHM:
87° + 51°
FWTM:
129° + 113°
Peak intensity:
0.612 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

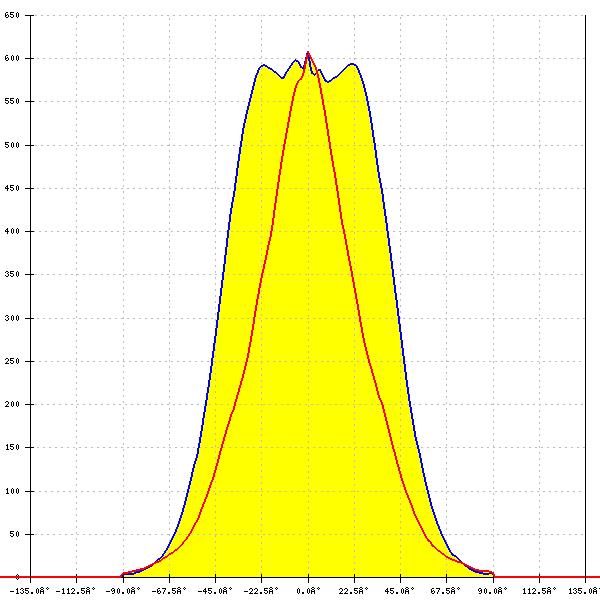

LED:

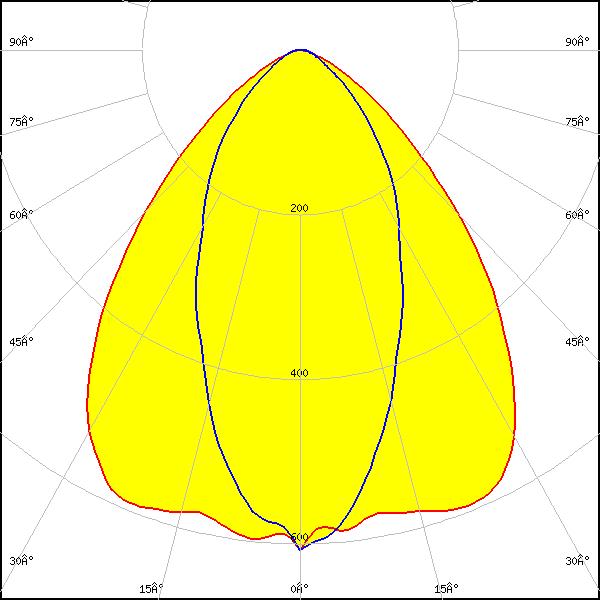

LUXEON 5050 Round LES
FWHM:
88° + 51°
FWTM:
126° + 109°
Peak intensity:
0.610 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

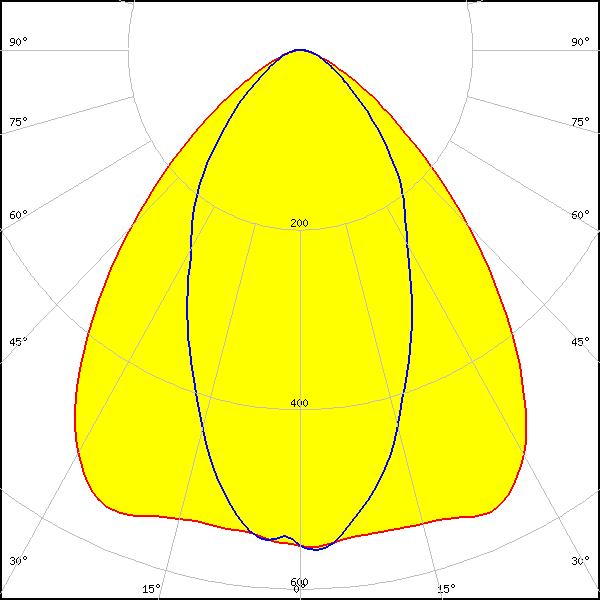

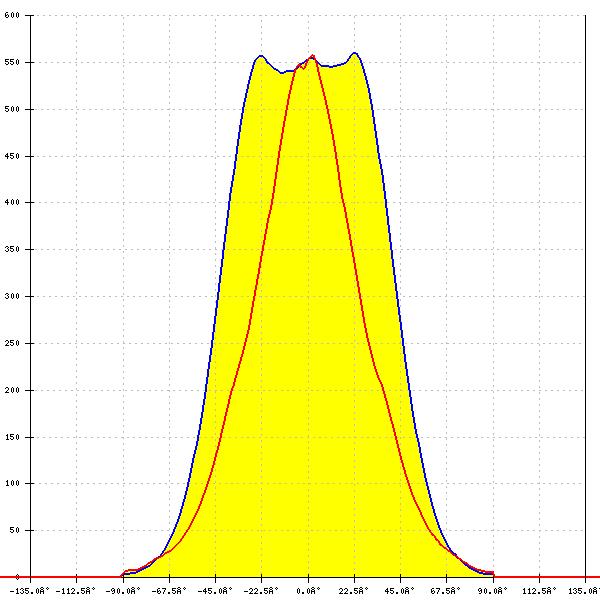

LED:
LUXEON 5050 Square LES
FWHM:
90° + 55°
FWTM:
128° + 115°
Peak intensity:
0.560 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

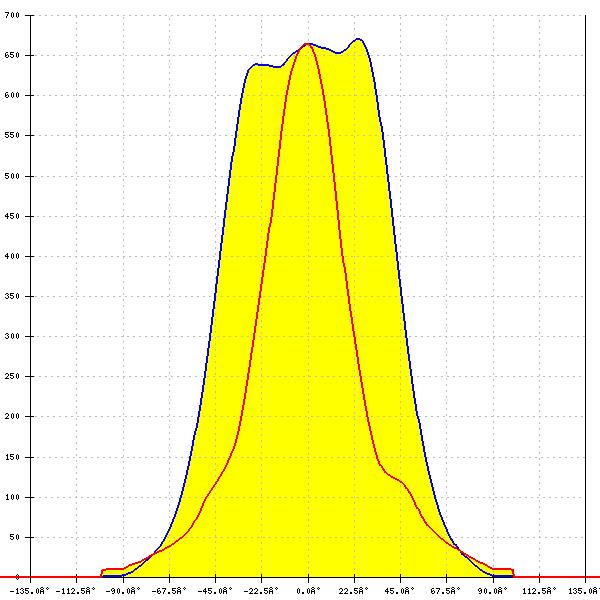

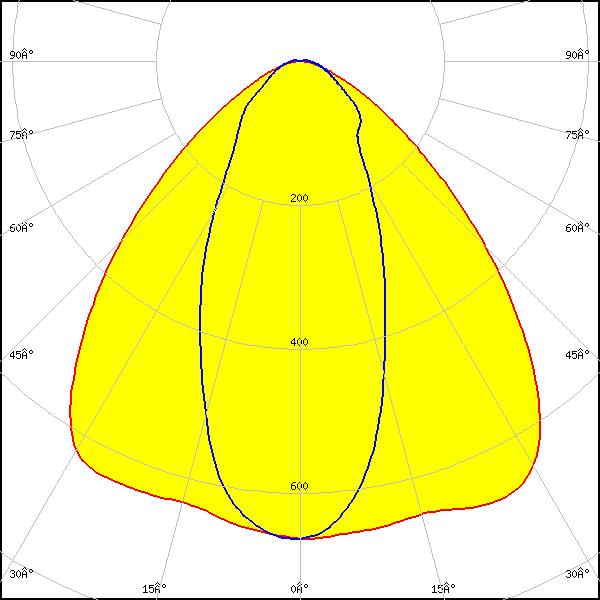

LED:
LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM:
93° + 45°
FWTM:
133° + 113°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

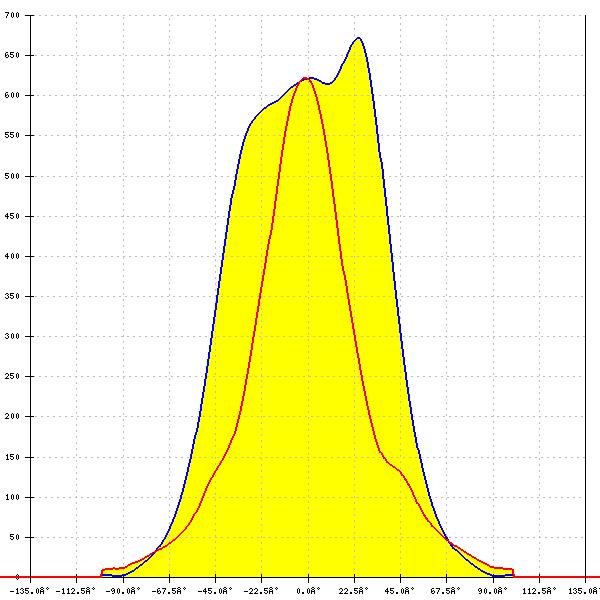

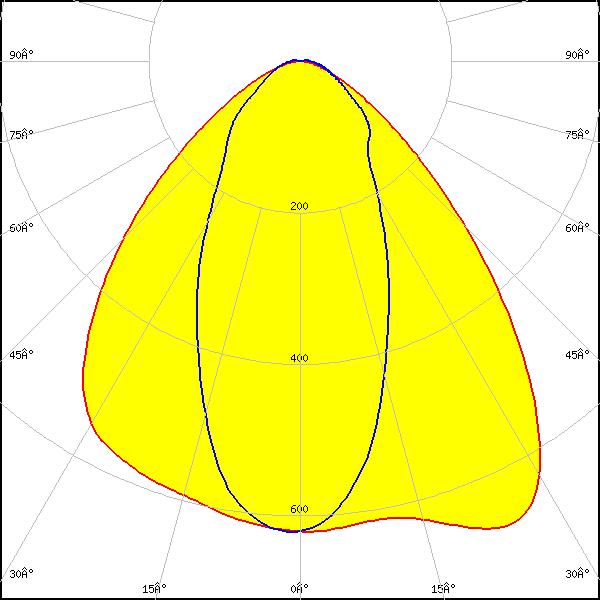

LED:
NFSW757H
FWHM:
88° + 48°
FWTM:
130° + 120°
Peak intensity:
0.672 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

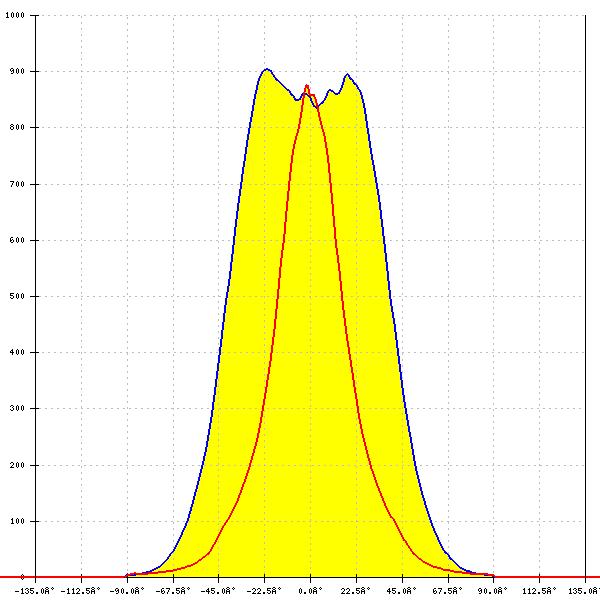

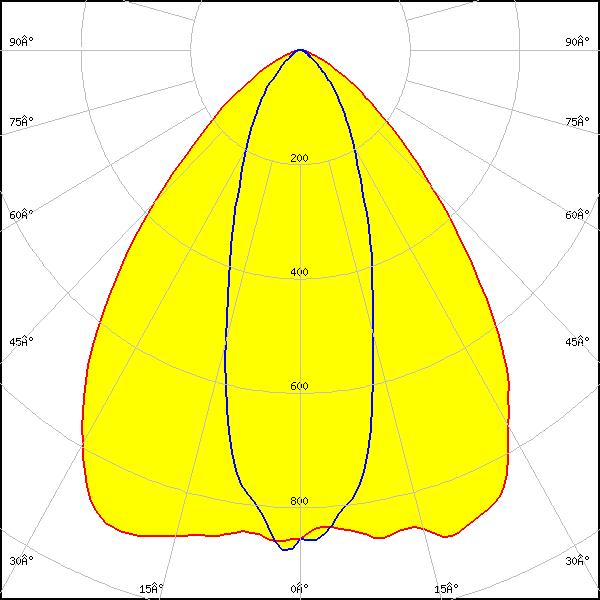

LED:
NFSx757G
FWHM:
83° + 35°
FWTM:
122° + 86°
Peak intensity:
0.904 cd/lm
Efficiency:
94 %
LEDs/each optic:
2
Light colour/type:
White
LED:

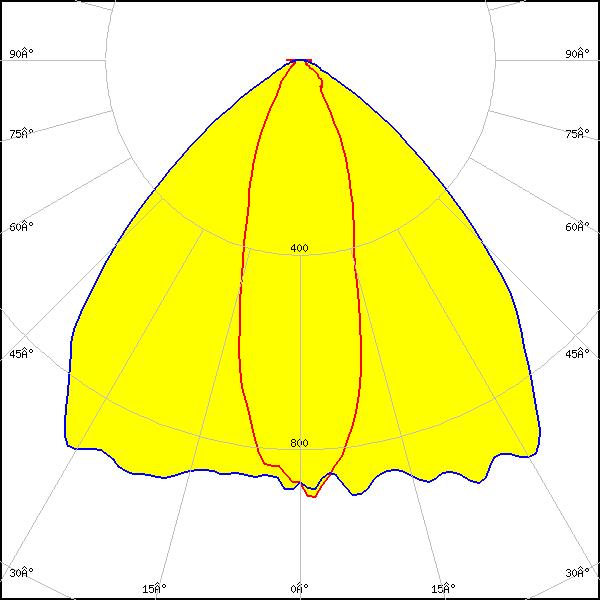

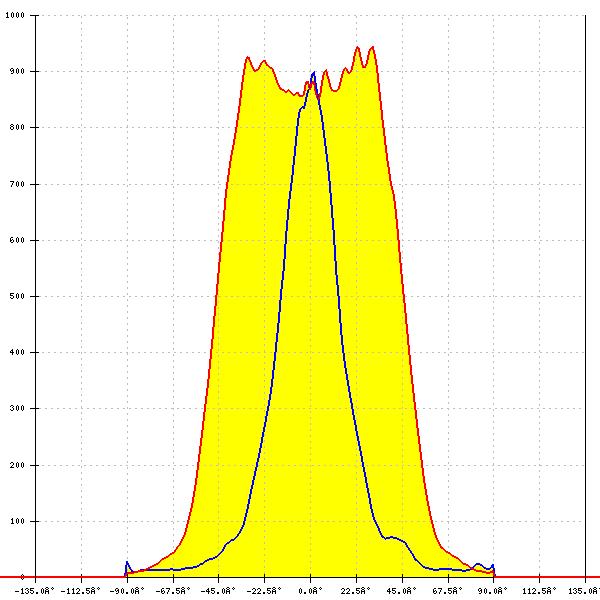

NVSxE21A
FWHM:
93° + 28°
FWTM:
121° + 71°
Peak intensity:
0.940 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

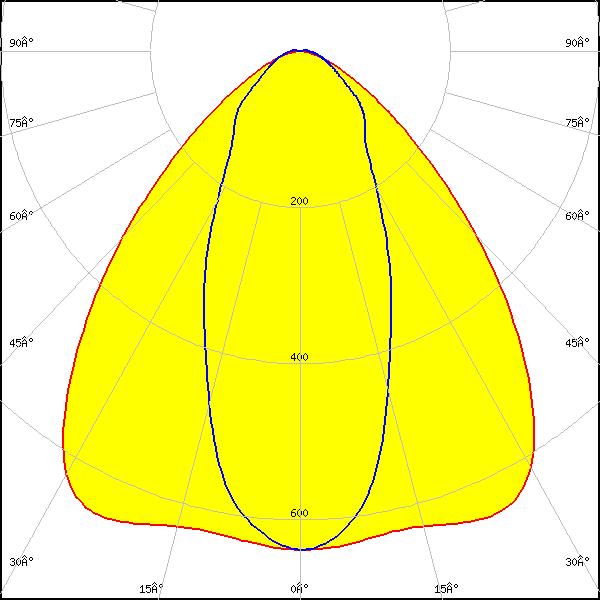

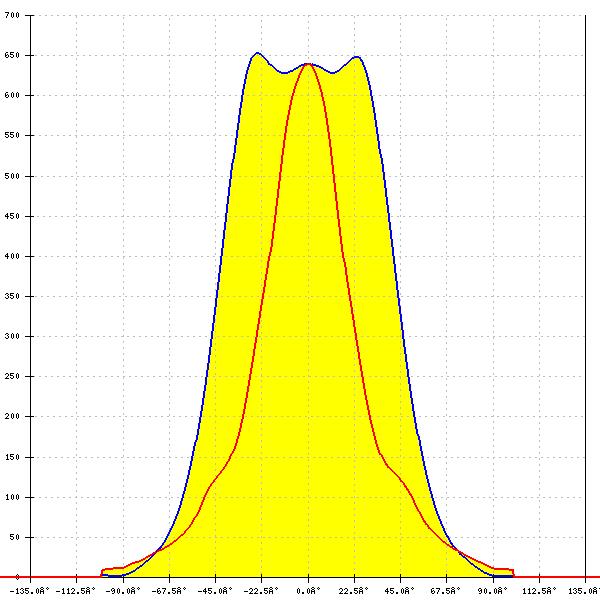

LED:
Duris E5
FWHM:
91° + 46°
FWTM:
131° + 115°
Peak intensity:
0.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

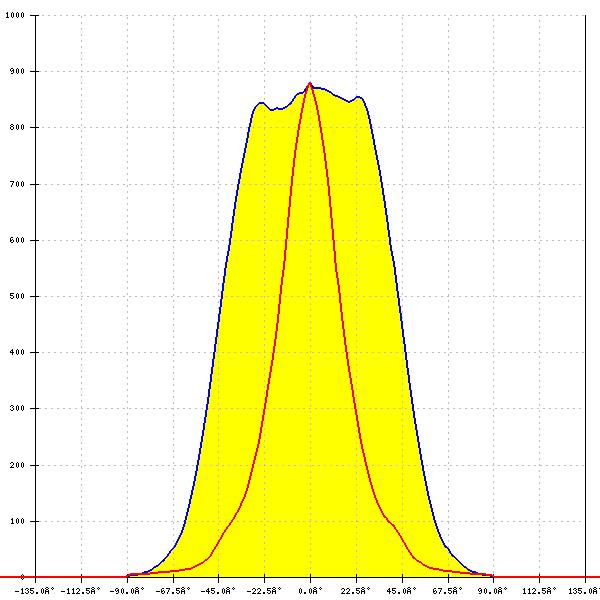

LED:

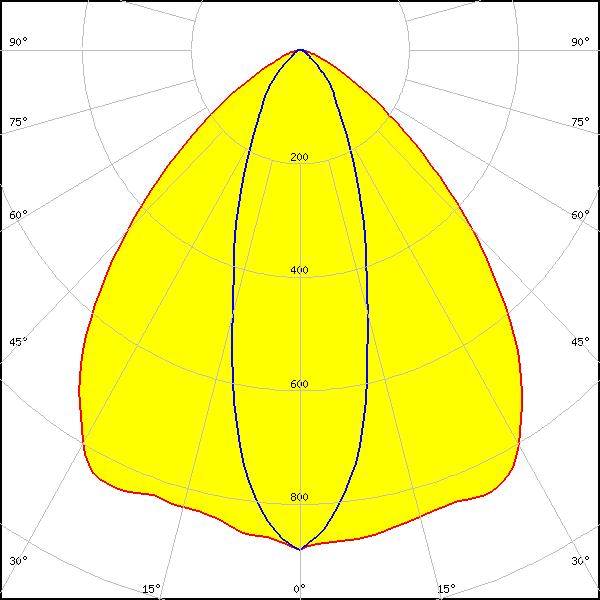

DURIS S5 (Single chip)
FWHM:
90° + 32°
FWTM:
125° + 82°
Peak intensity:
0.881 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

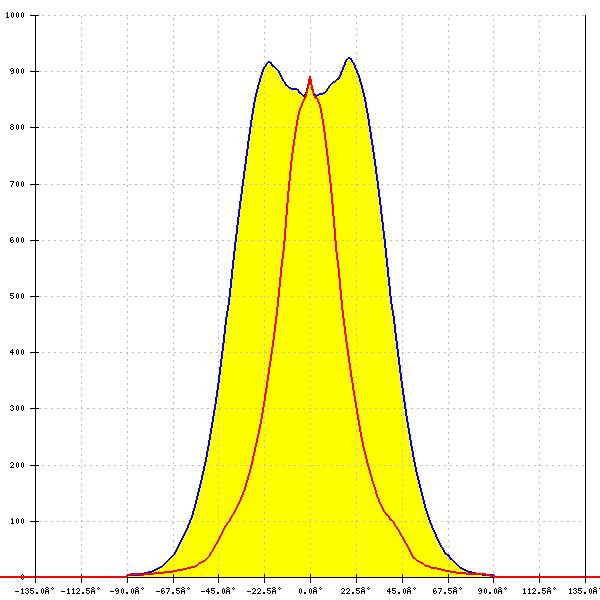

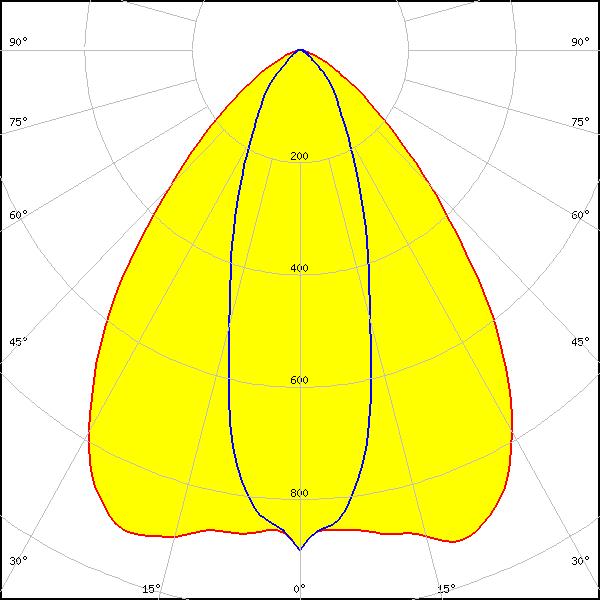

LED:
DURIS S5 (Single chip)
FWHM:
82° + 34°
FWTM:
120° + 84°
Peak intensity:
0.923 cd/lm
Efficiency:
92 %
LEDs/each optic:
2
Light colour/type:
White

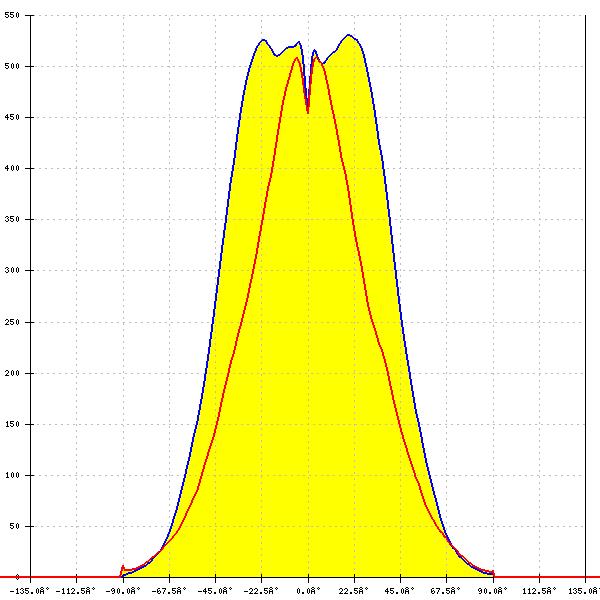

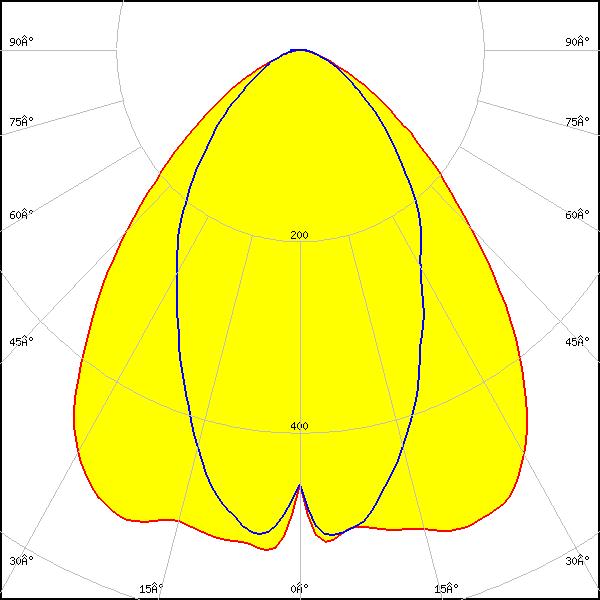

LED:
Duris S8
FWHM:
90° + 63°
FWTM:
132° + 125°
Peak intensity:
0.530 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

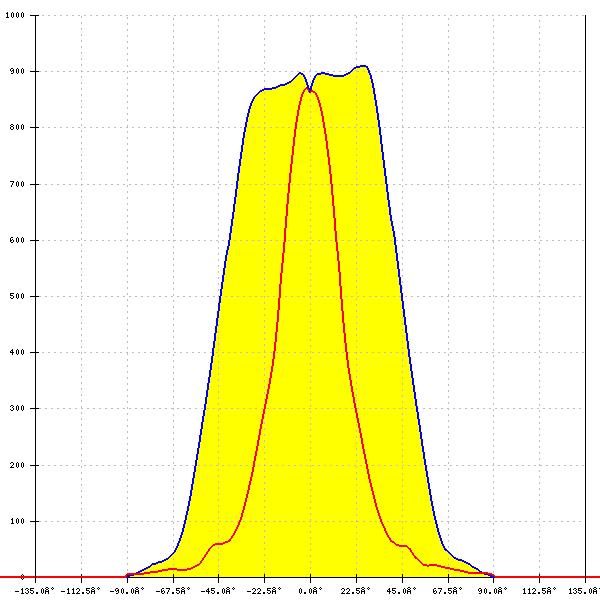

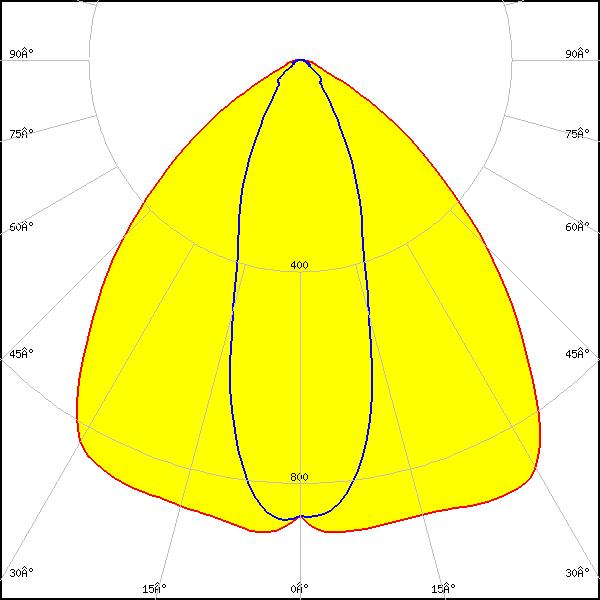

LED:
OSCONIQ C 2424 Gen1
FWHM:
92° + 33°
FWTM:
124° + 73°
Peak intensity:
0.910 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line VO 1ft MF 3R HV5
FWHM:
92° + 45°
FWTM:
132° + 115°
Peak intensity:
0.678 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM:
92° + 46°
FWTM:
132° + 116°
Peak intensity:
0.672 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft HF 3R HV5
FWHM:
91° + 48°
FWTM:
132° + 121°
Peak intensity:
0.639 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM:
92° + 46°
FWTM:
132° + 117°
Peak intensity:
0.663 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM:
91° + 48°
FWTM:
133° + 119°
Peak intensity:
0.635 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

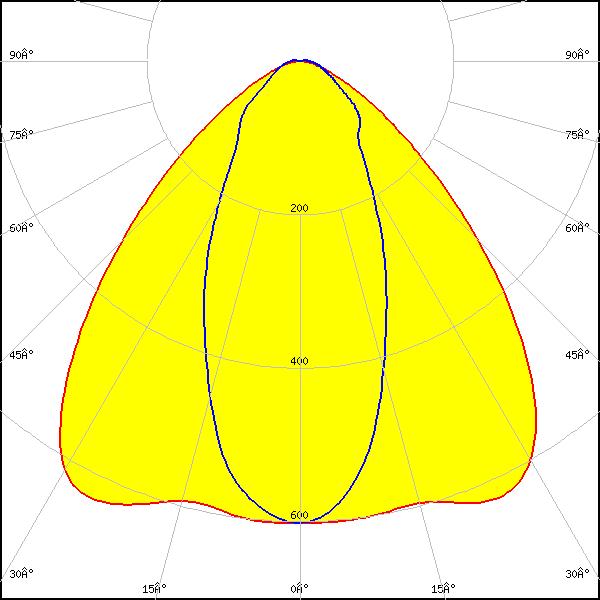

LED:
LM28xB Series
FWHM:
92° + 46°
FWTM:
131° + 112°
Peak intensity:
0.630 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

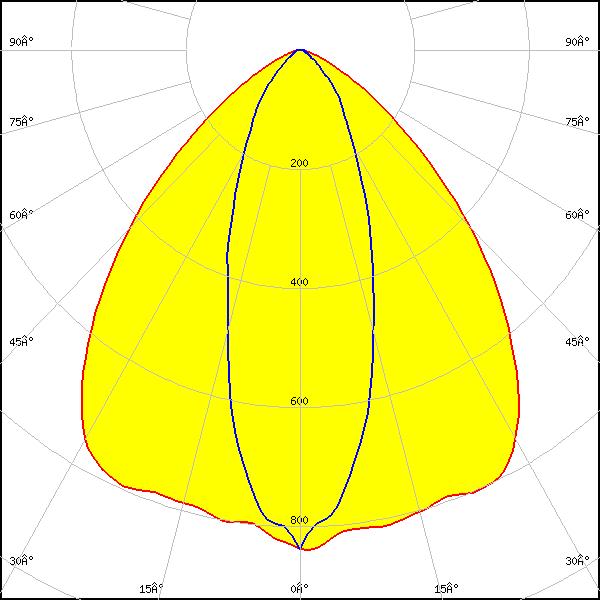

LED:

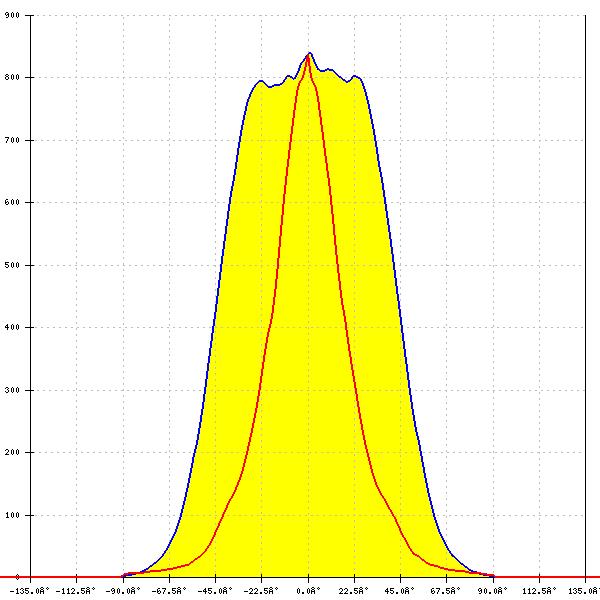

LM301B
FWHM:
90° + 35°
FWTM:
126° + 87°
Peak intensity:
0.840 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

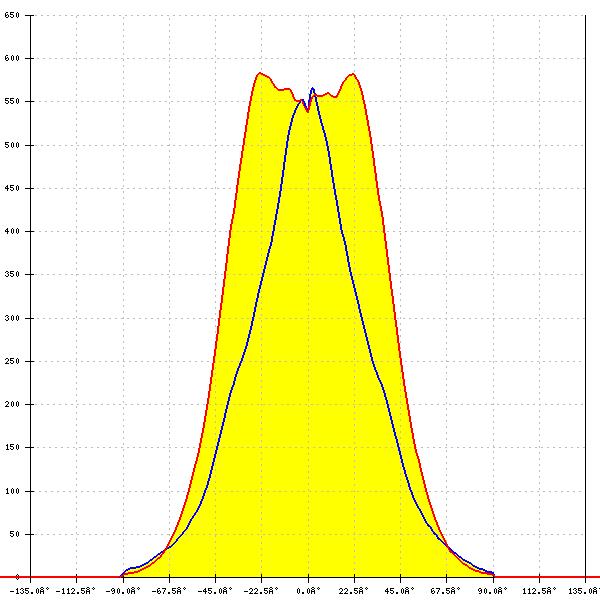

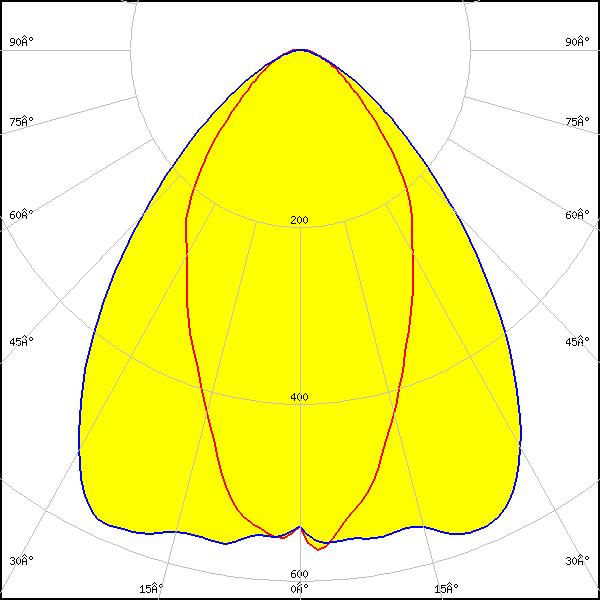

LED:
LM301B
FWHM:
86° + 56°
FWTM:
128° + 119°
Peak intensity:
0.583 cd/lm
Efficiency:
92 %
LEDs/each optic:
2
Light colour/type:
White

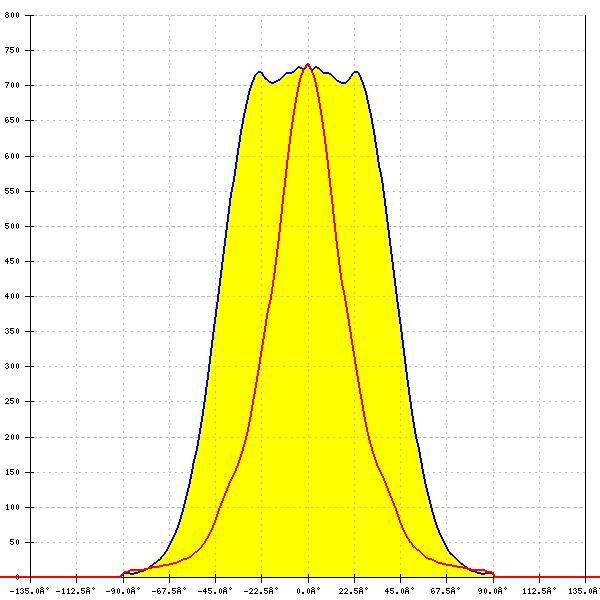

LED:

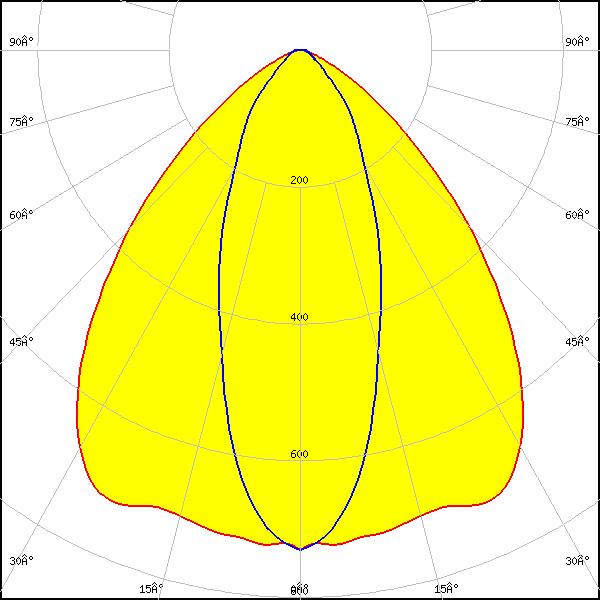

LM301D
FWHM:
90° + 40°
FWTM:
126° + 92°
Peak intensity:
0.731 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

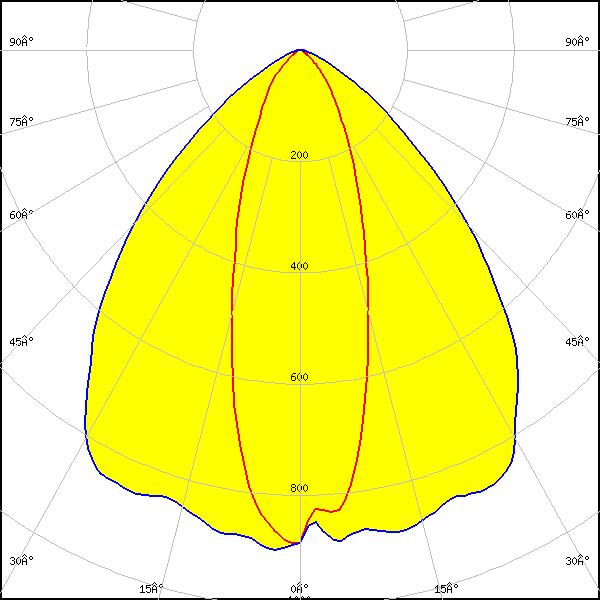

LED:

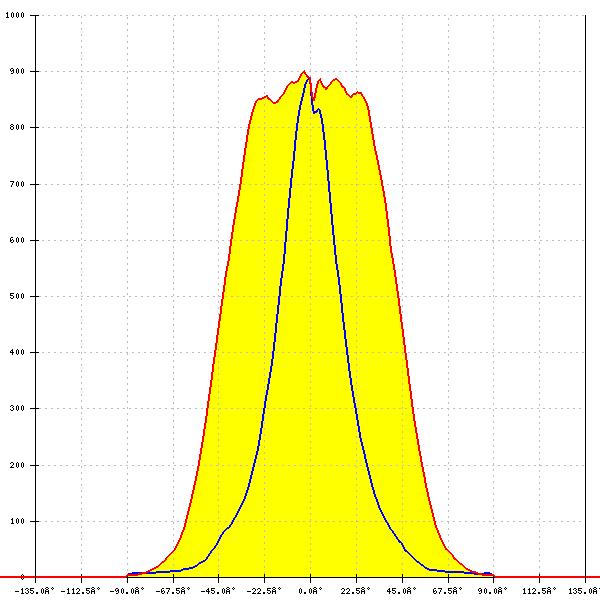

LM302B
FWHM:
90° + 33°
FWTM:
124° + 79°
Peak intensity:
0.920 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

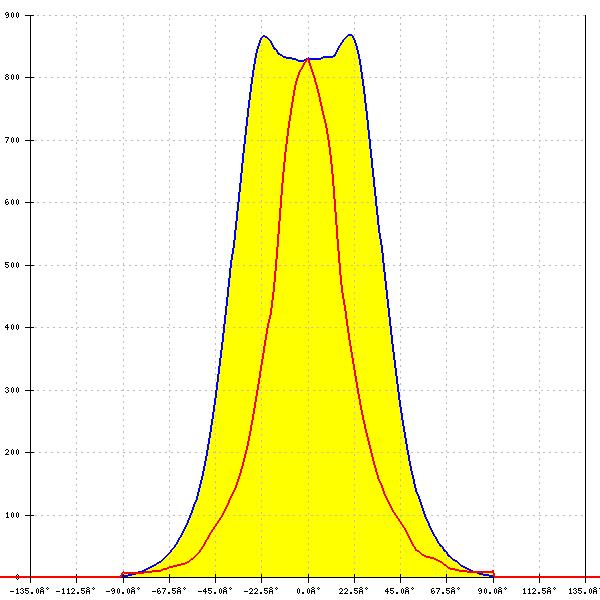

LED:

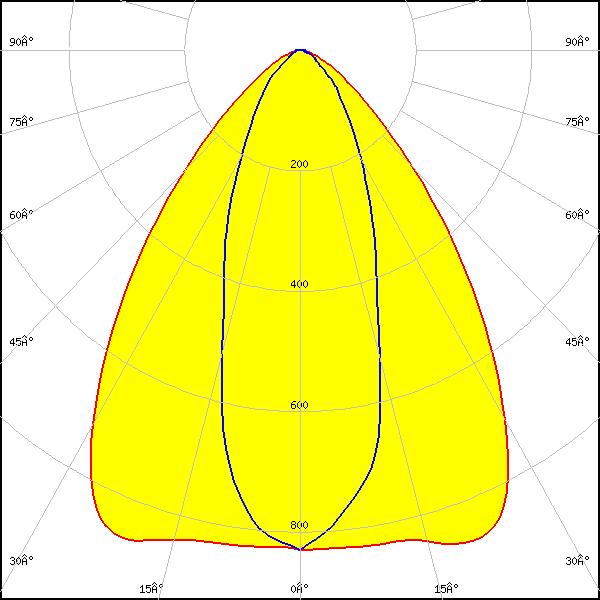

LM302Z plus
FWHM:
78° + 37°
FWTM:
117° + 91°
Peak intensity:
0.868 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White
LED:

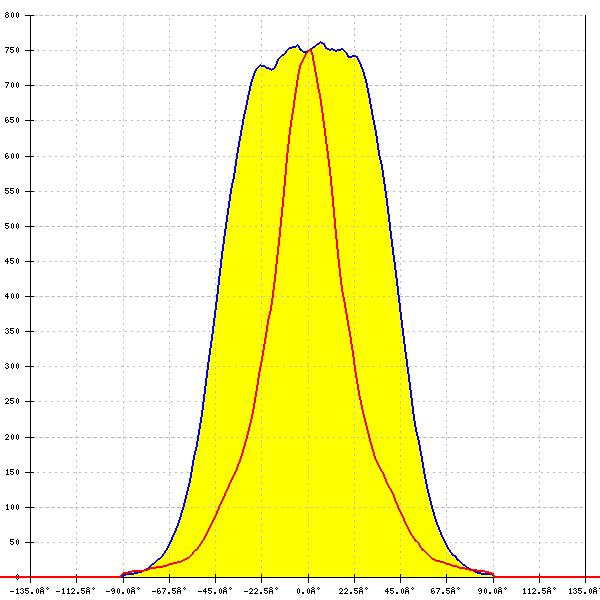

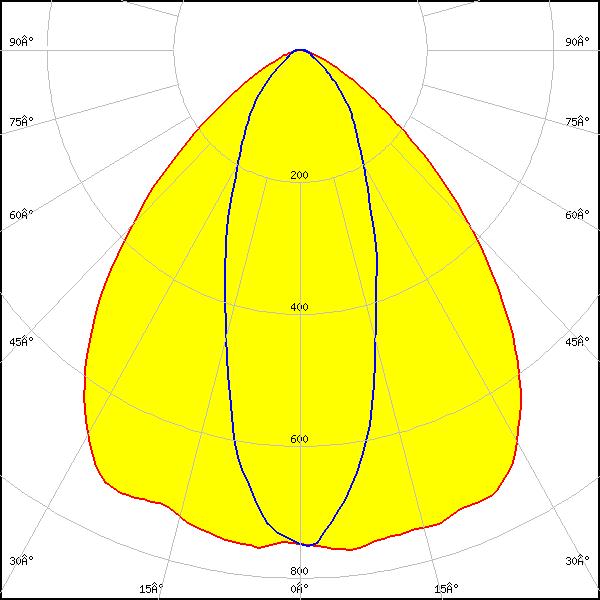

LM561B Plus
FWHM:
90° + 37°
FWTM:
126° + 95°
Peak intensity:
0.770 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

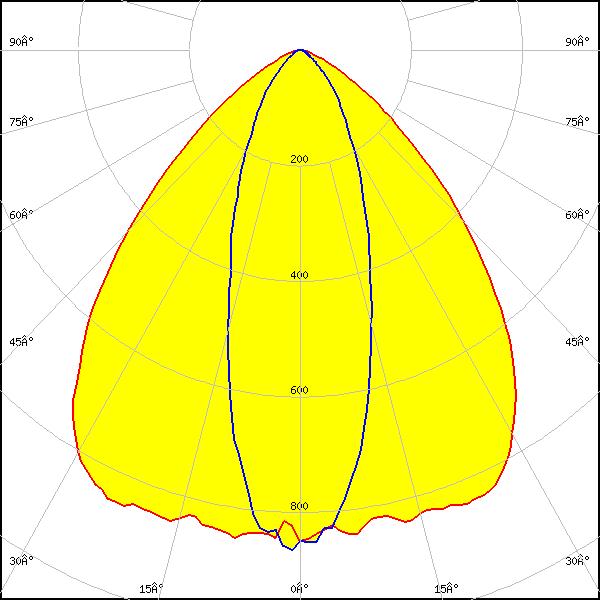

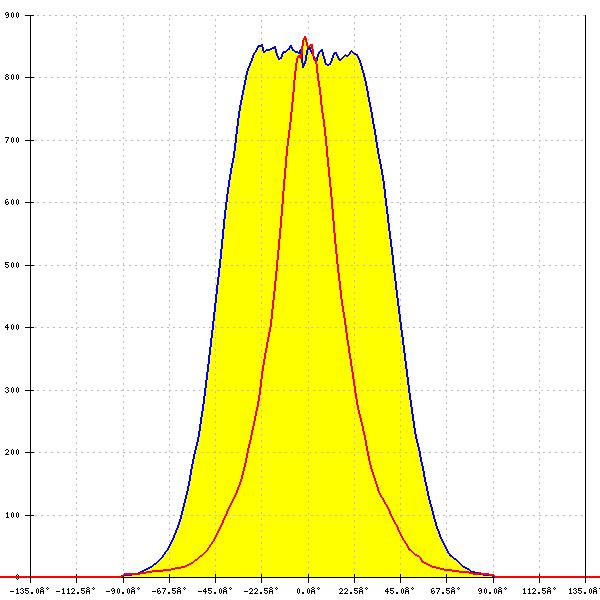

LED:
LM561C
FWHM:
90° + 35°
FWTM:
125° + 84°
Peak intensity:
0.890 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

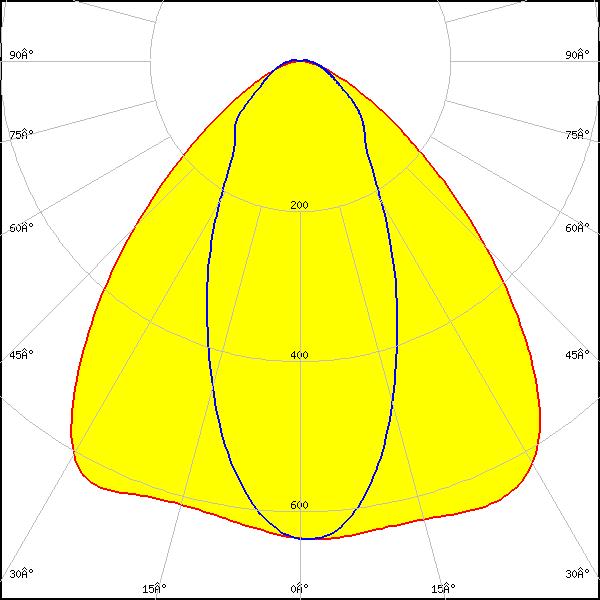

LED:

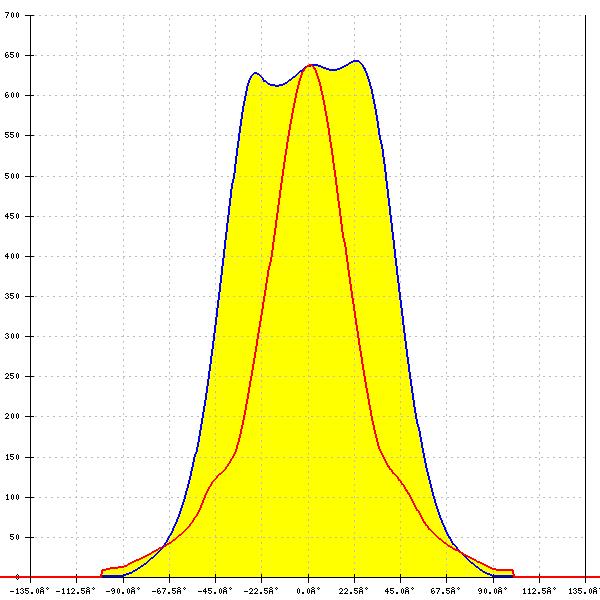

SEOUL 3030
FWHM:
91° + 47°
FWTM:
131° + 116°
Peak intensity:
0.643 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

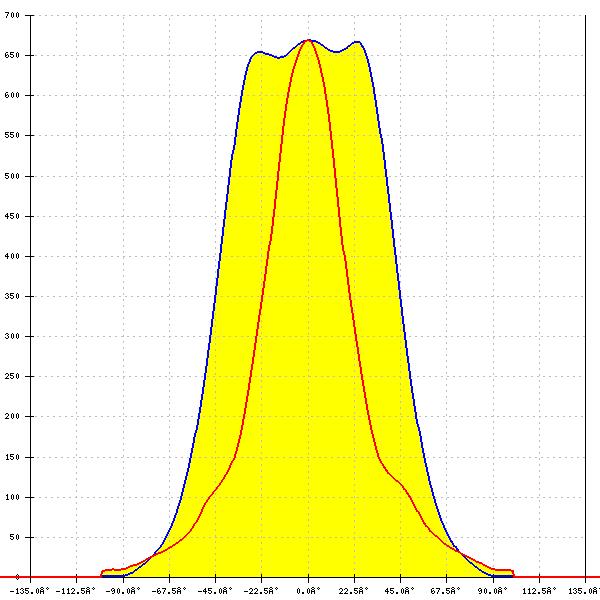

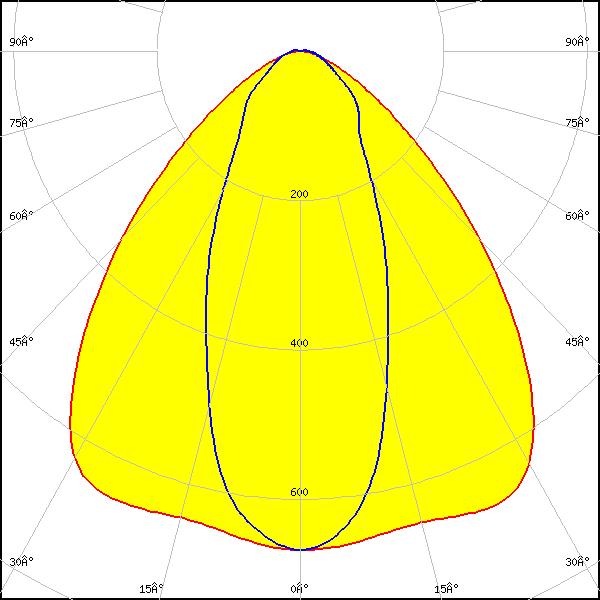

LED:
SEOUL 5630C
FWHM:
92° + 44°
FWTM:
132° + 111°
Peak intensity:
0.670 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

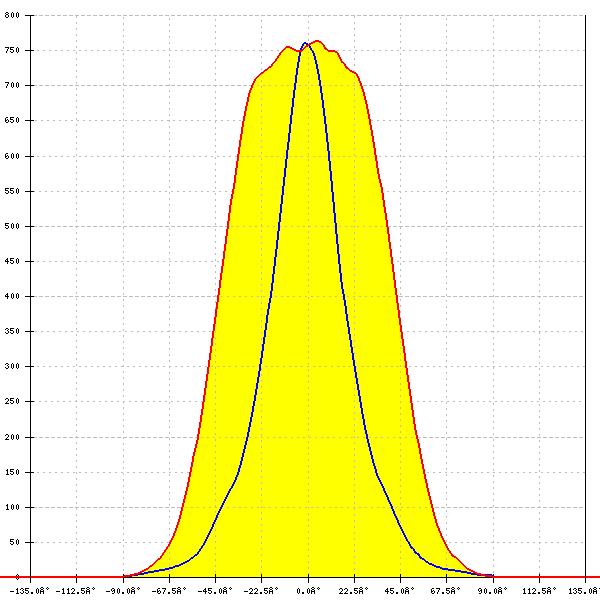

LED:

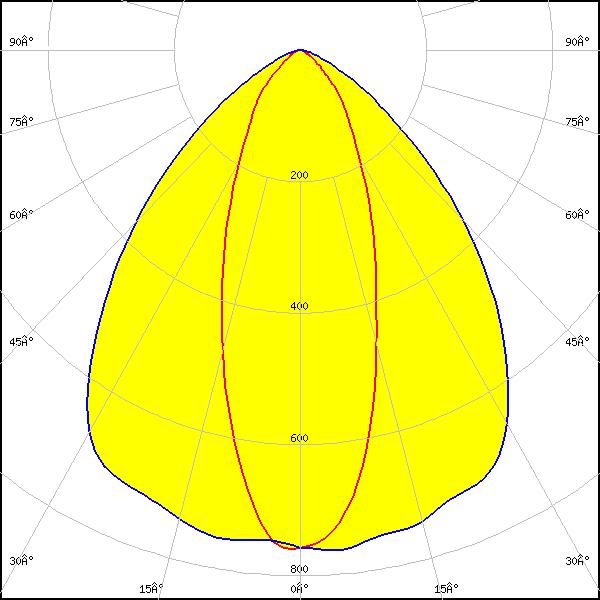

SEOUL 5630D
FWHM:
87° + 37°
FWTM:
126° + 90°
Peak intensity:
0.770 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
93° + 44°
FWTM:
132° + 116°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

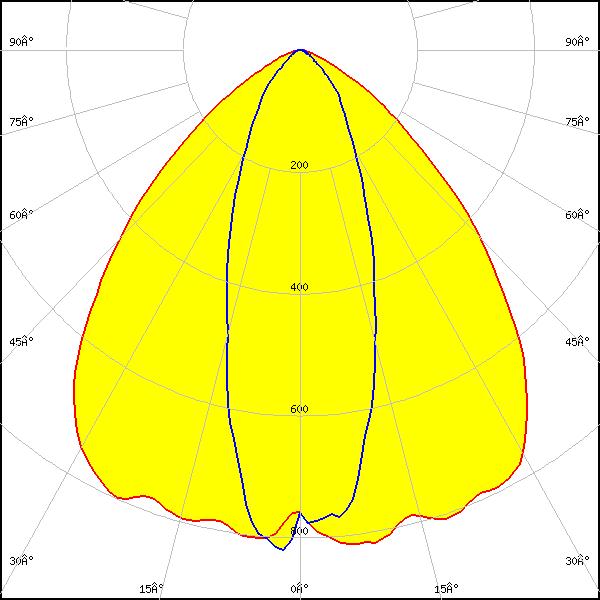

LED:

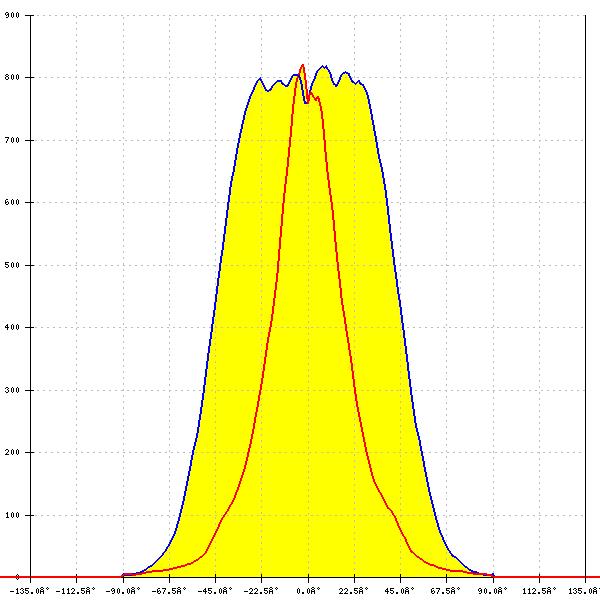

SEOUL DC 3030C
FWHM:
92° + 36°
FWTM:
128° + 87°
Peak intensity:
0.852 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

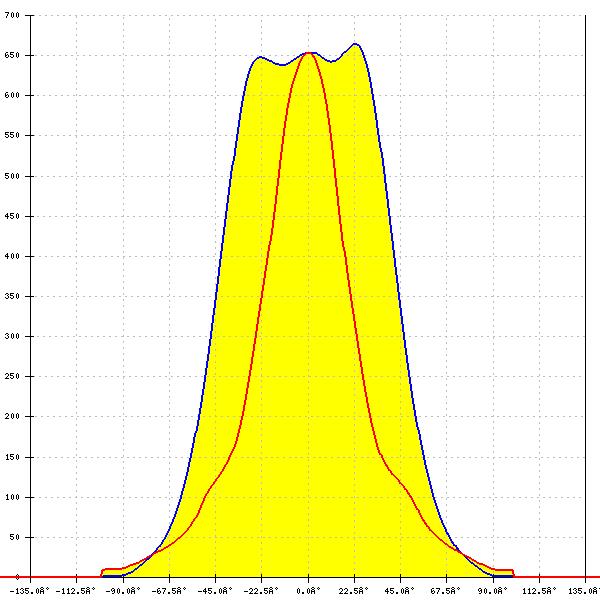

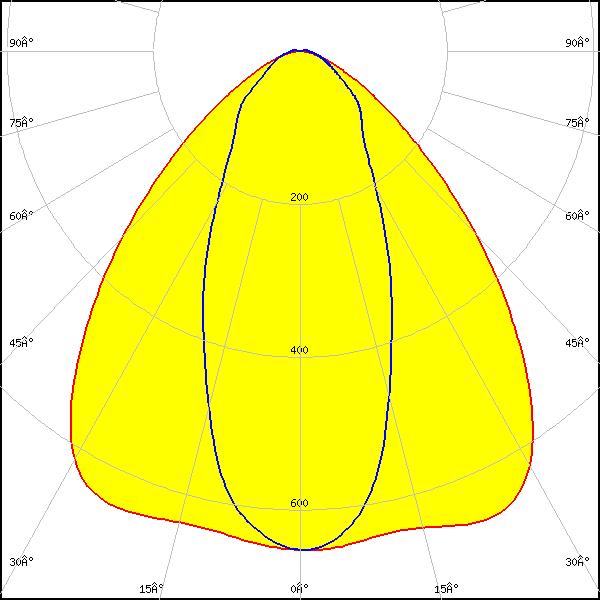

LLE G2 55x280mm 2000lm
FWHM:
91° + 46°
FWTM:
132° + 114°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
