F15244_FLORENCE-ZT25-S

Print

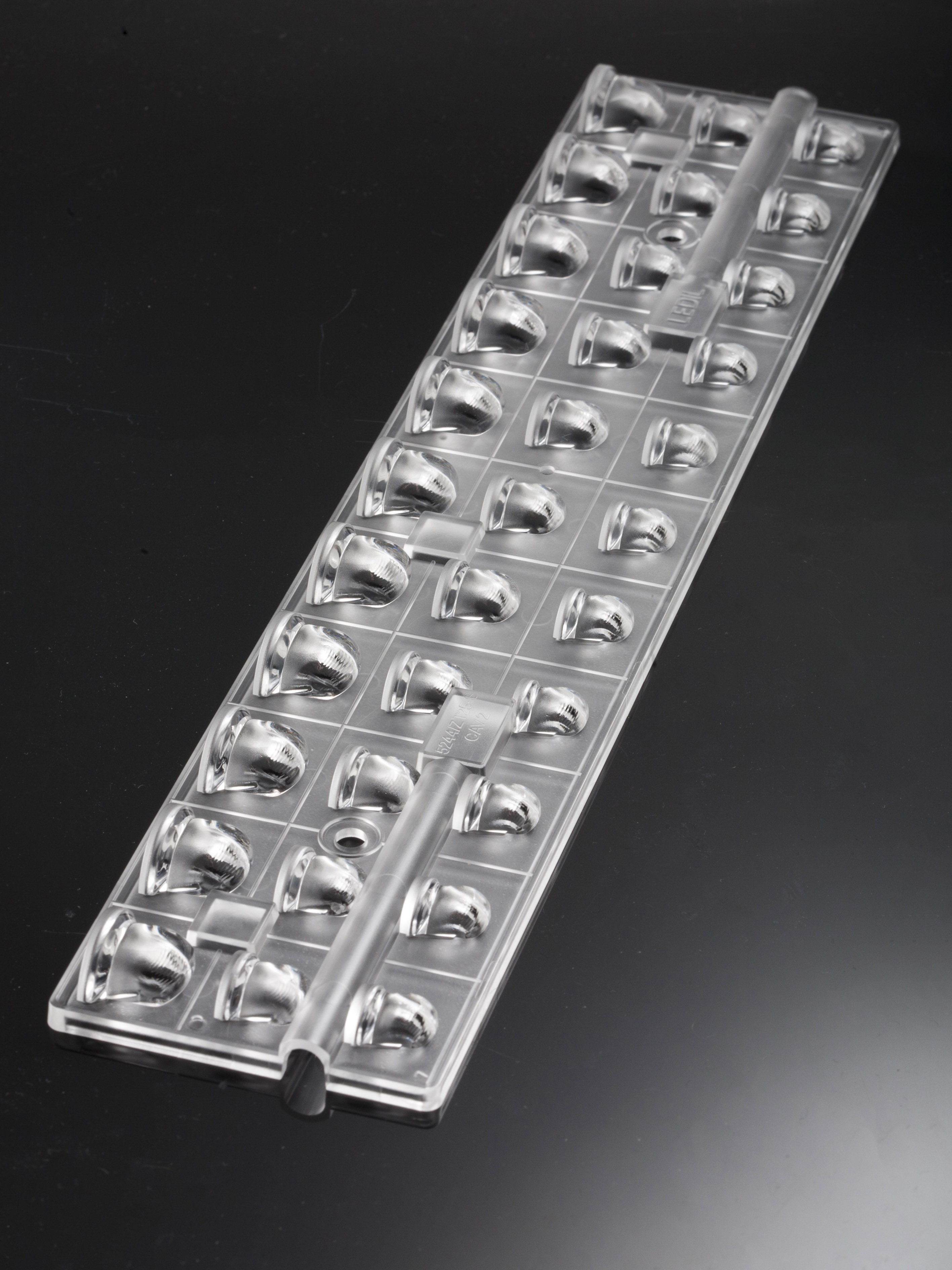

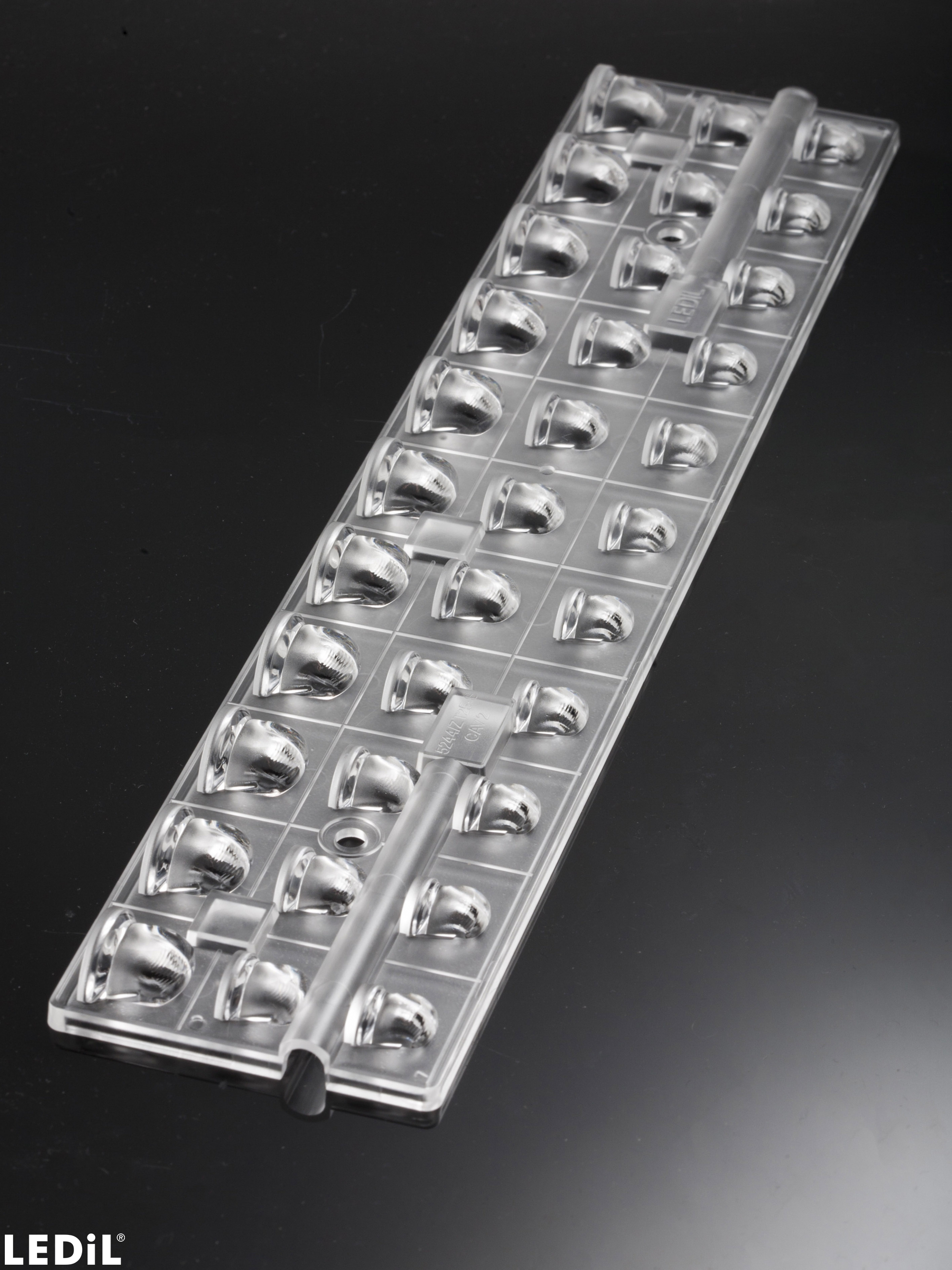

Single-sided asymmetric oval beam for aisle lighting

Specification
  • Dimensions:
    286 x  61 mm
  • Height:
    11.38 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    60 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    5.0 kg
  • MPQ:
    6 pcs
  • MOQ:
    18 pcs
  • MOQ size:
    400 x 300 x 50 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15244_FLORENCE-ZT25-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

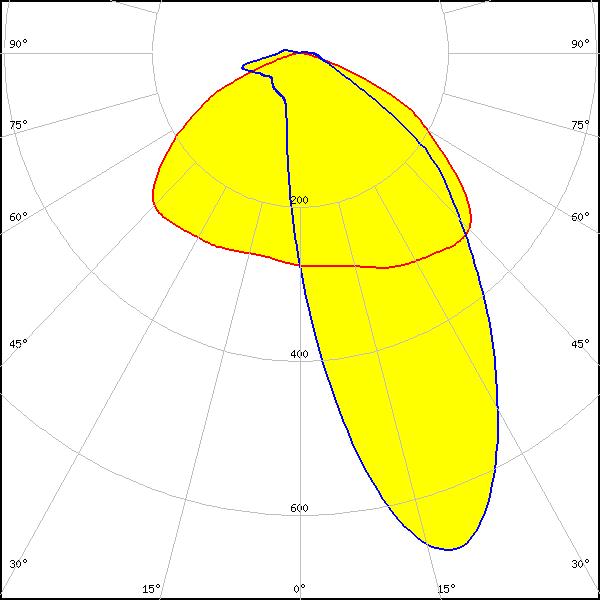

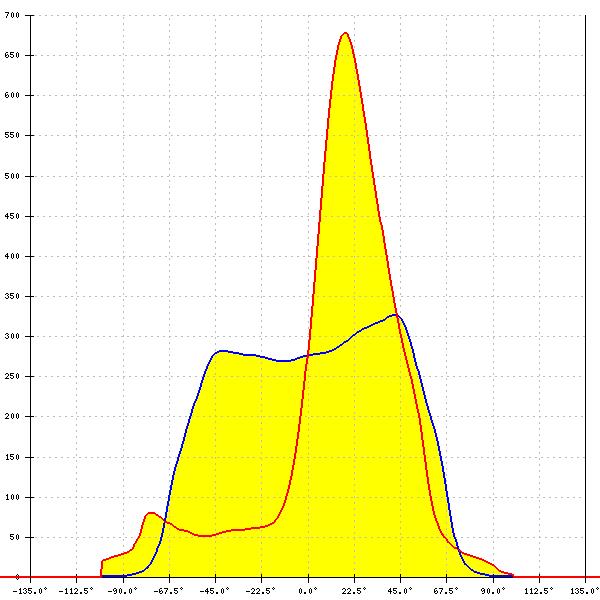

LED: LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

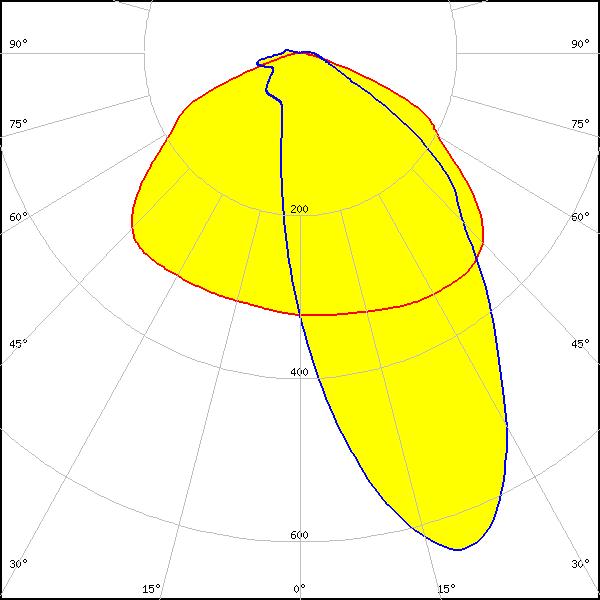

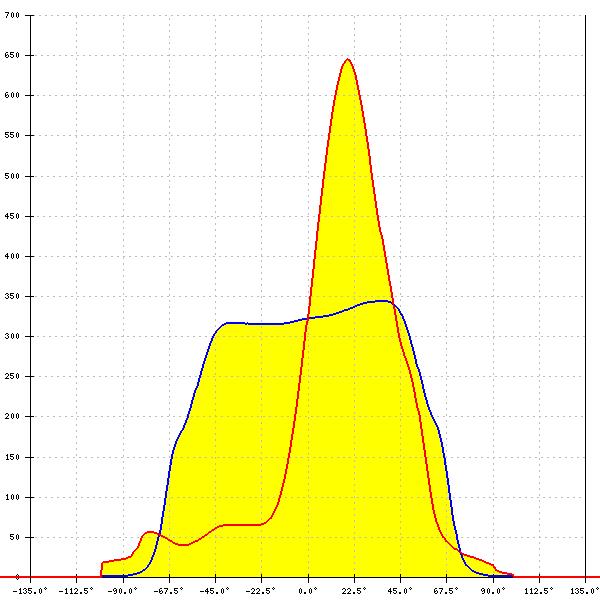

LED: NFSW757H
FWHM: asymmetric
Peak intensity: 0.648 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

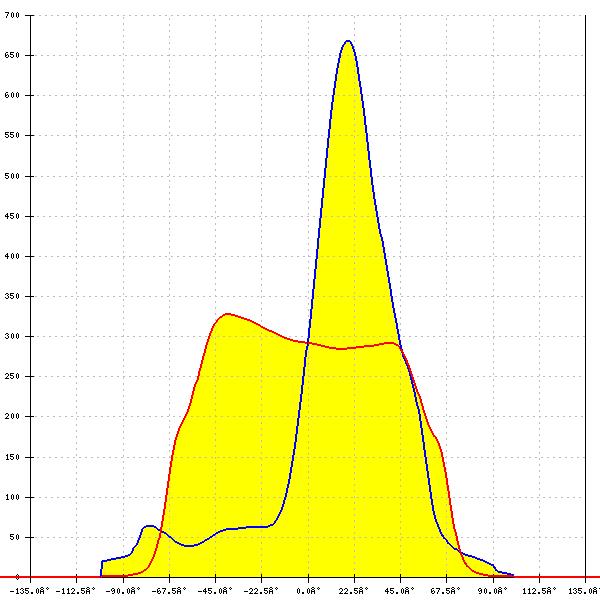

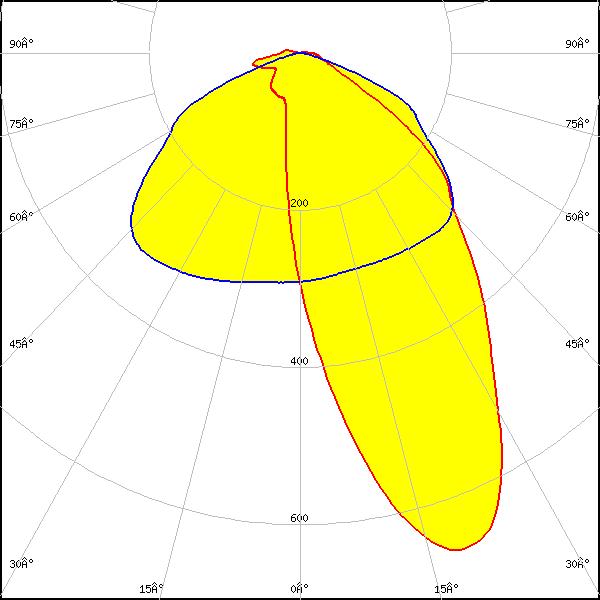

LED: PL-BAR-G3 1100 280x55
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

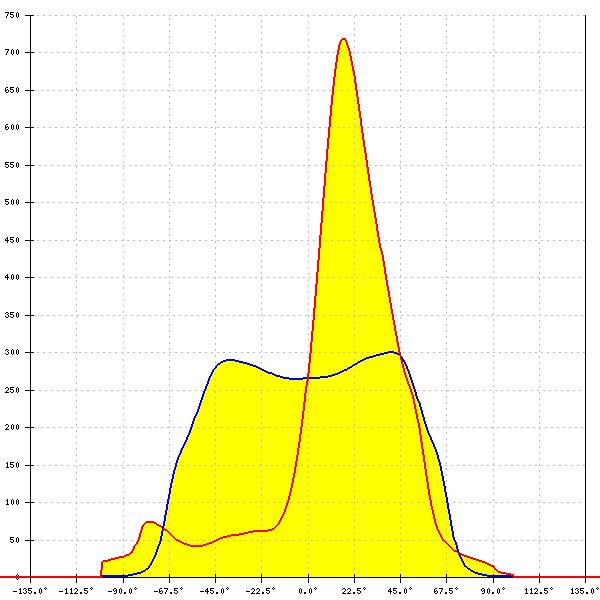

LED: PLG2-BAR-1100-xxx-280x55-DC
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

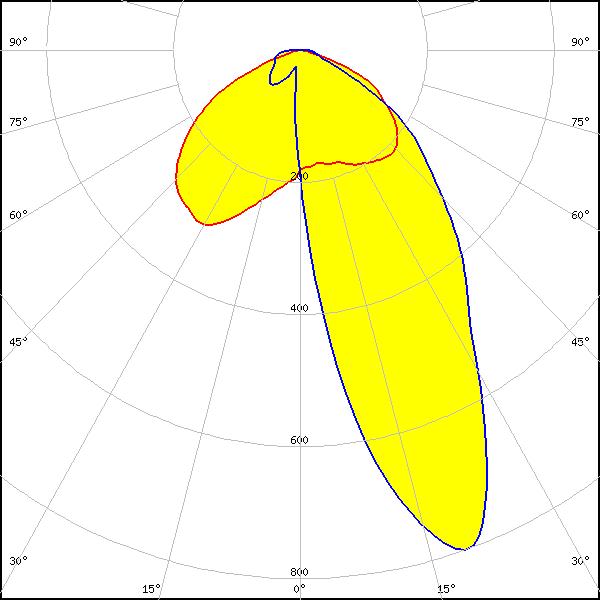

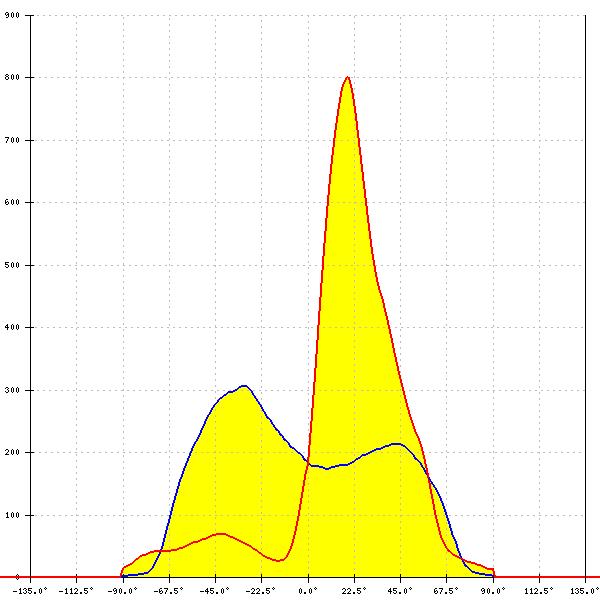

LED: Duris E 2835
FWHM: asymmetric
Peak intensity: 0.803 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour: White

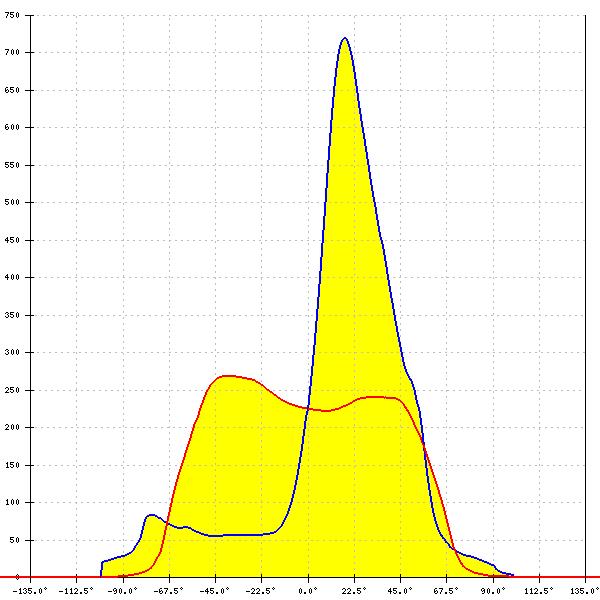

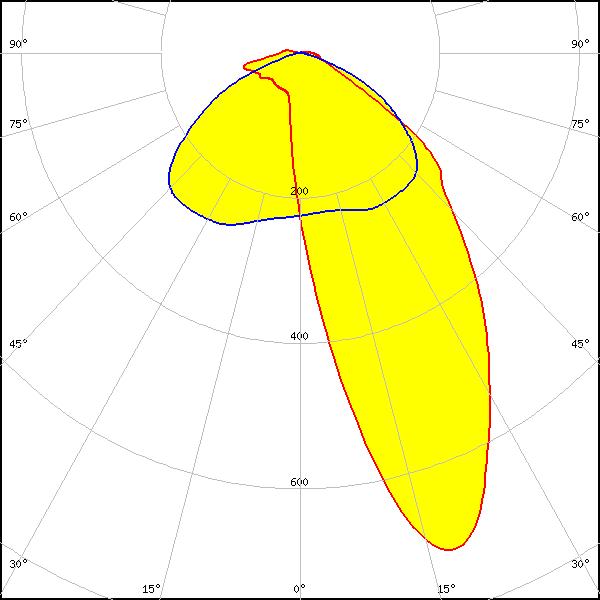

LED: Duris E5
FWHM: asymmetric
Peak intensity: 0.730 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

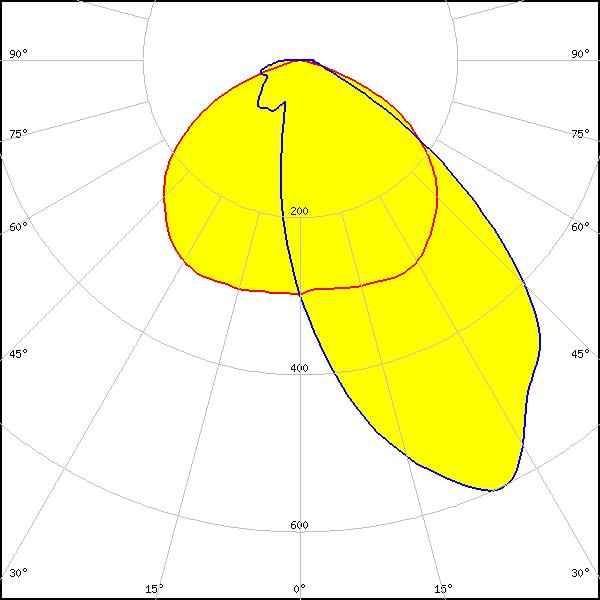

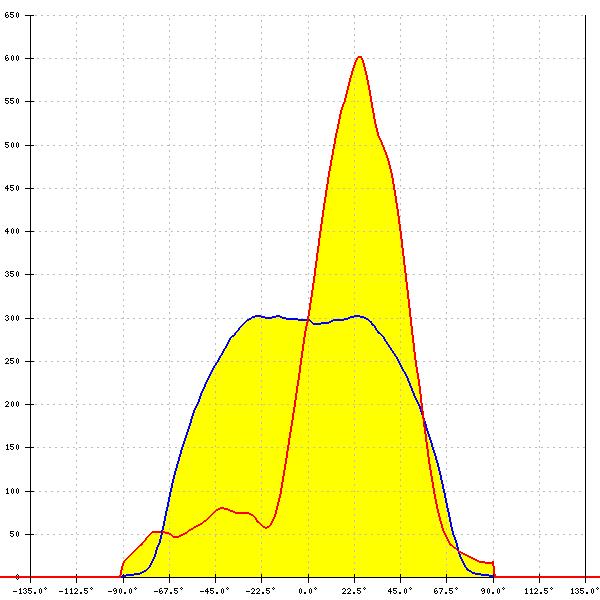

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.602 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line VO 1ft MF 3R HV5
FWHM: asymmetric
Peak intensity: 0.723 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft 1100lm 3R HV4
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

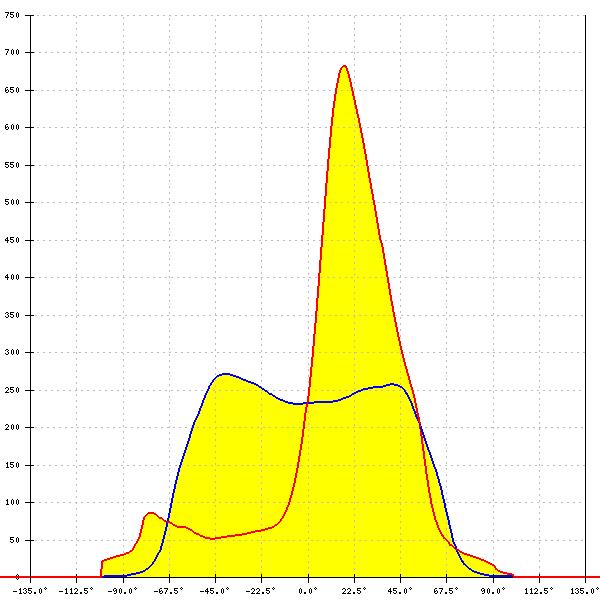

LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft HF 3R HV5
FWHM: asymmetric
Peak intensity: 0.656 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM: asymmetric
Peak intensity: 0.685 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM: asymmetric
Peak intensity: 0.668 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

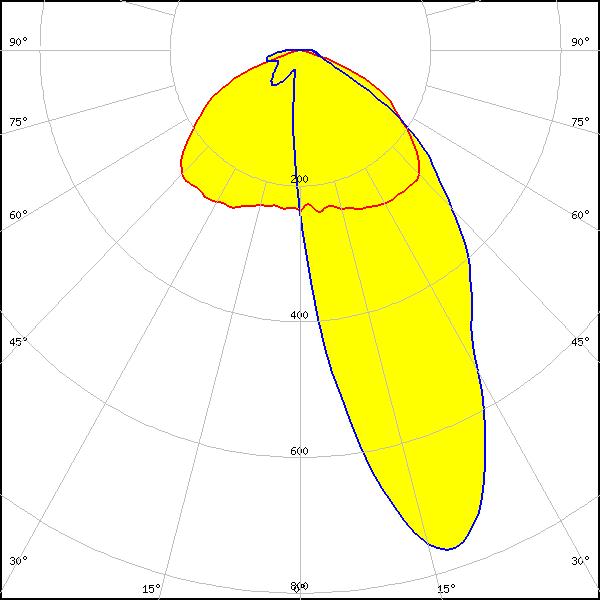

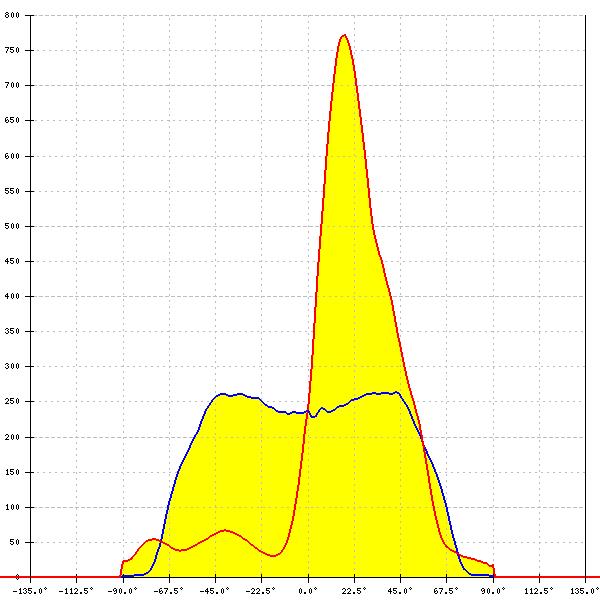

LED: LM28xB Series
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

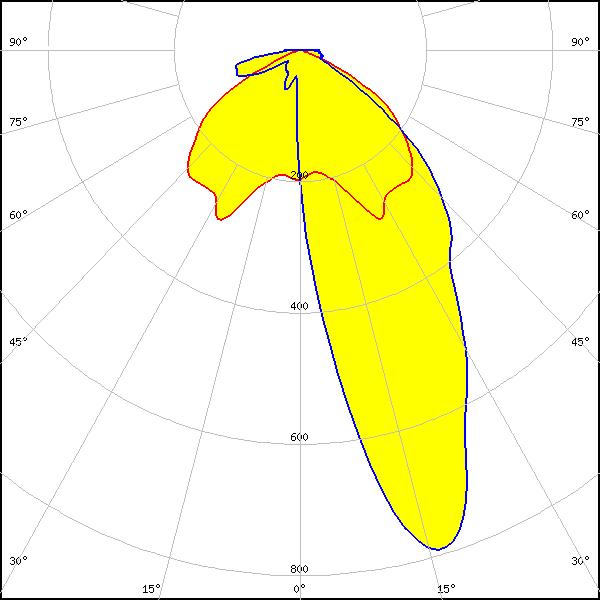

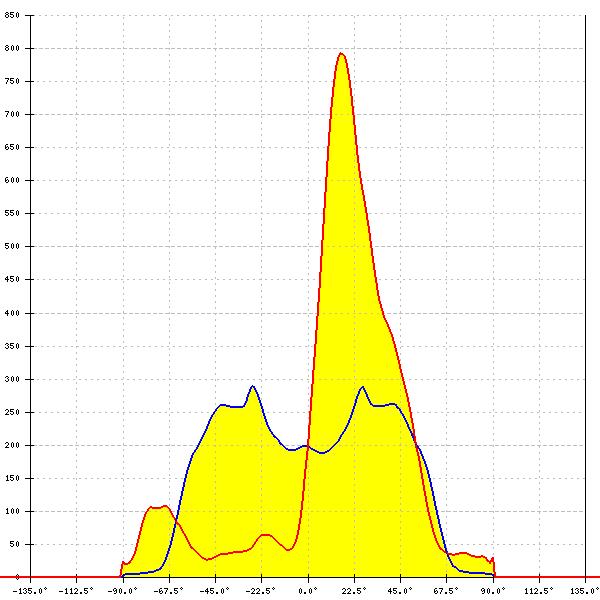

LED: LM301B
FWHM: asymmetric
Peak intensity: 0.795 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

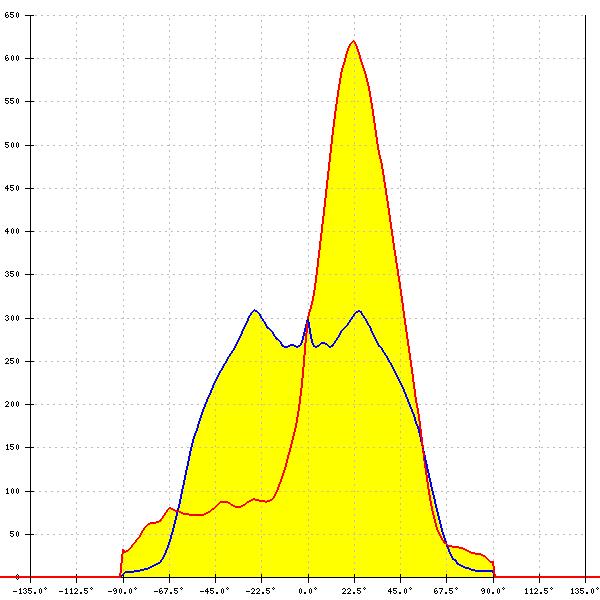

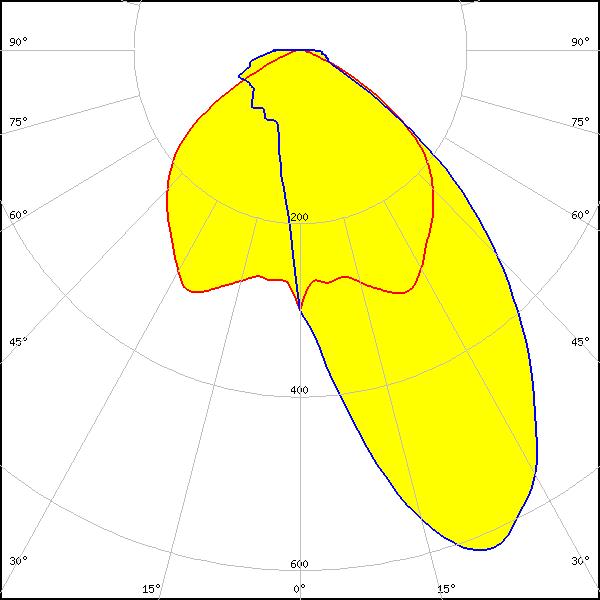

LED: LM301B
FWHM: asymmetric
Peak intensity: 0.623 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour: White

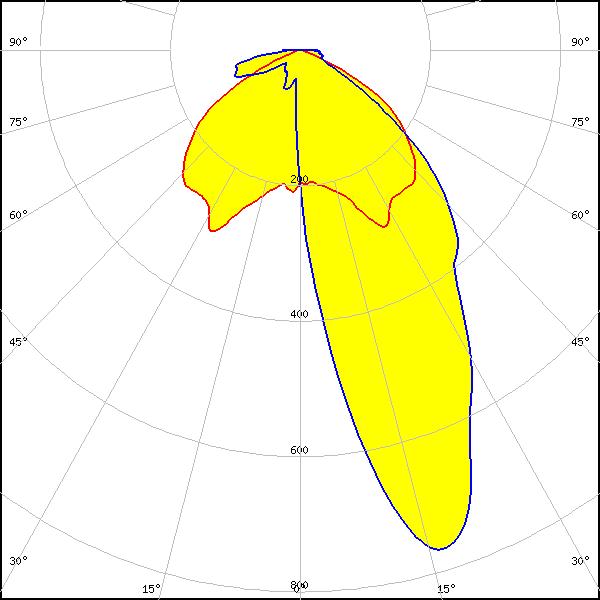

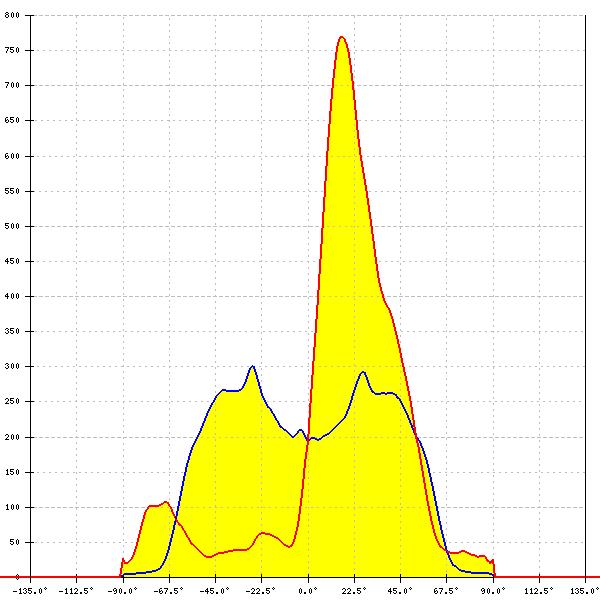

LED: LM302Z plus
FWHM: asymmetric
Peak intensity: 0.771 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

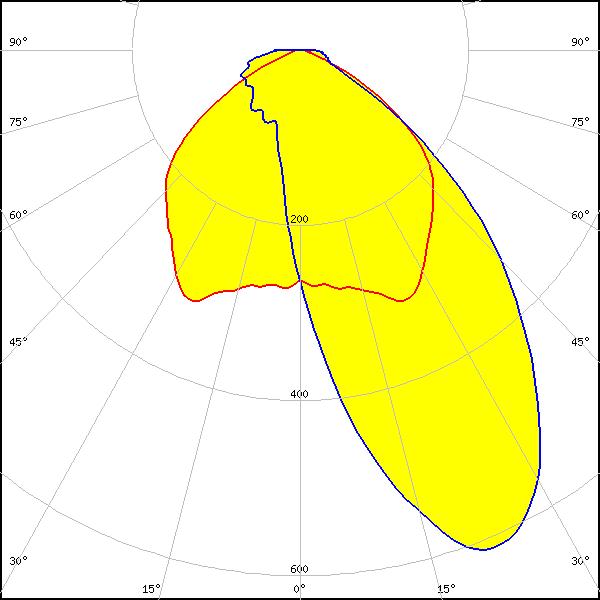

LED: LM302Z plus
FWHM: asymmetric
Peak intensity: 0.619 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour: White

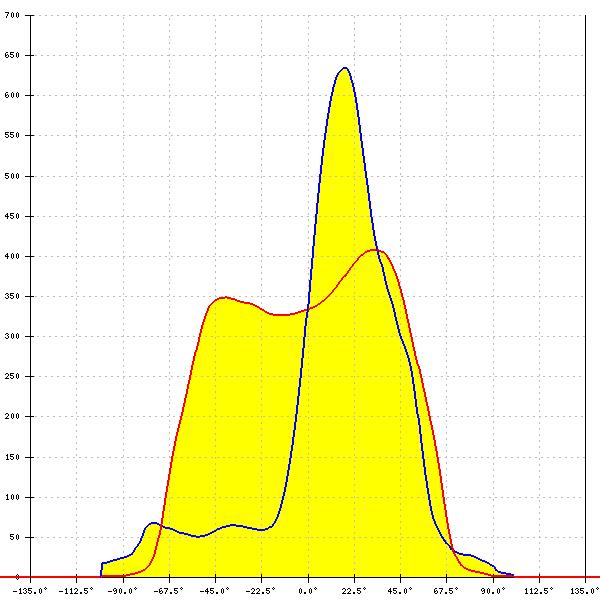

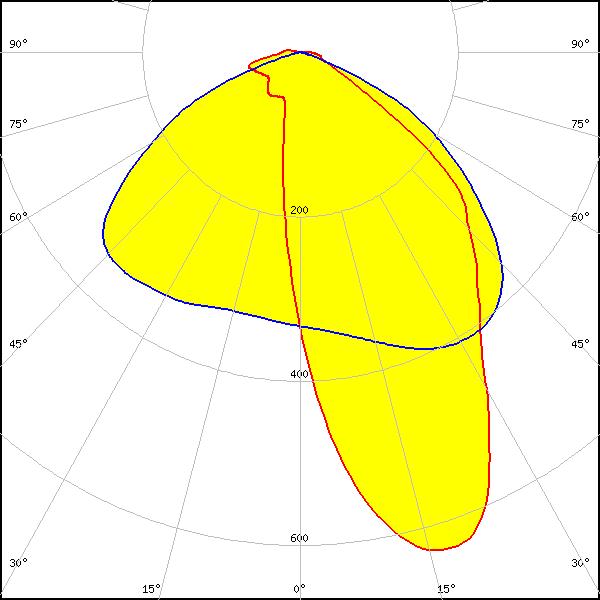

LED: LM561B Plus
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

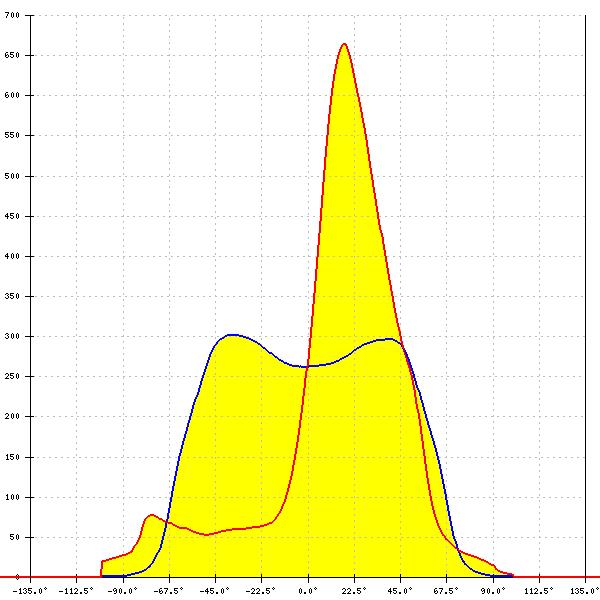

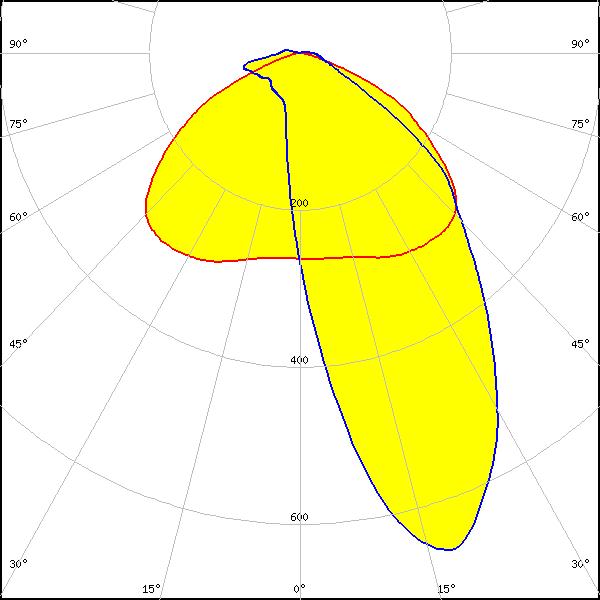

LED: LT-R286A
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

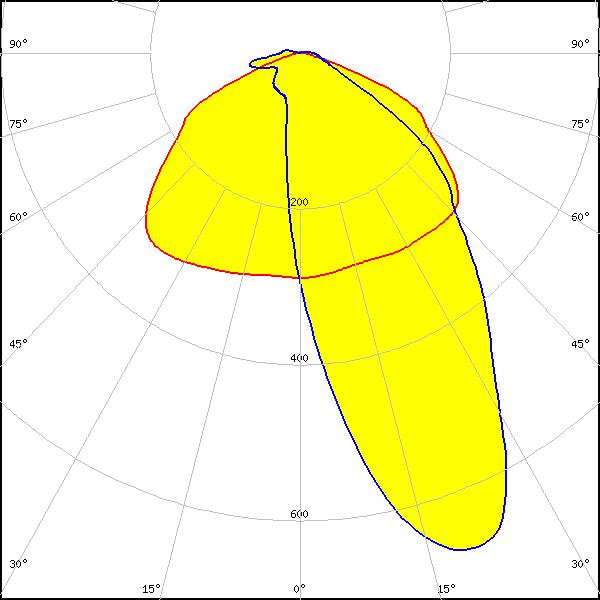

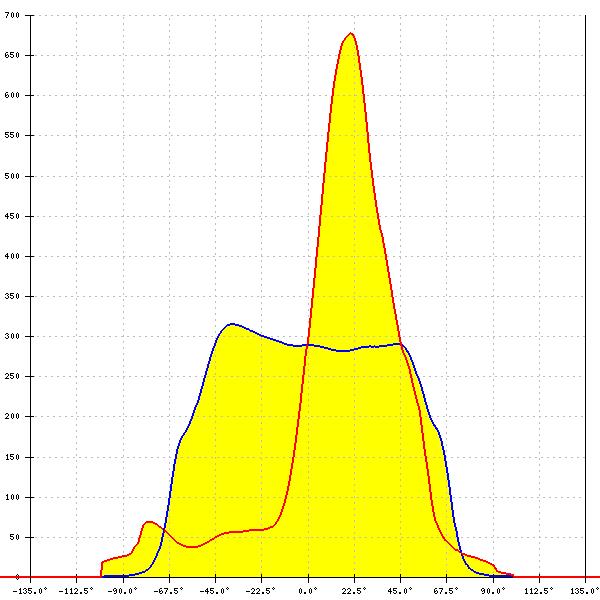

LED: SEOUL 3030
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

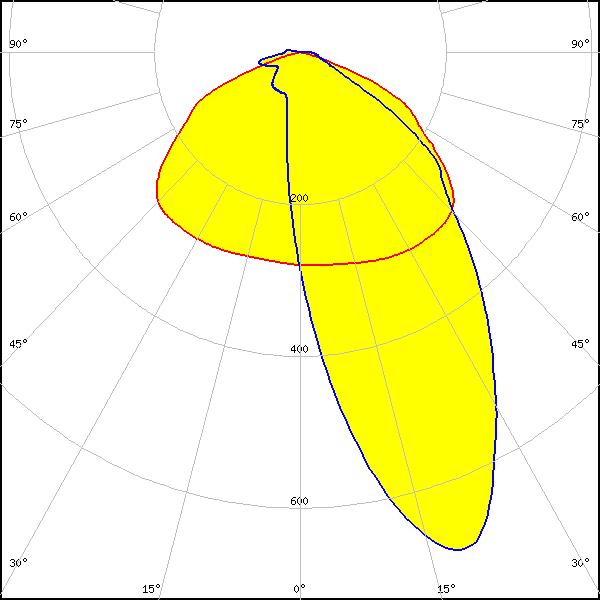

LED: SEOUL 5630
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

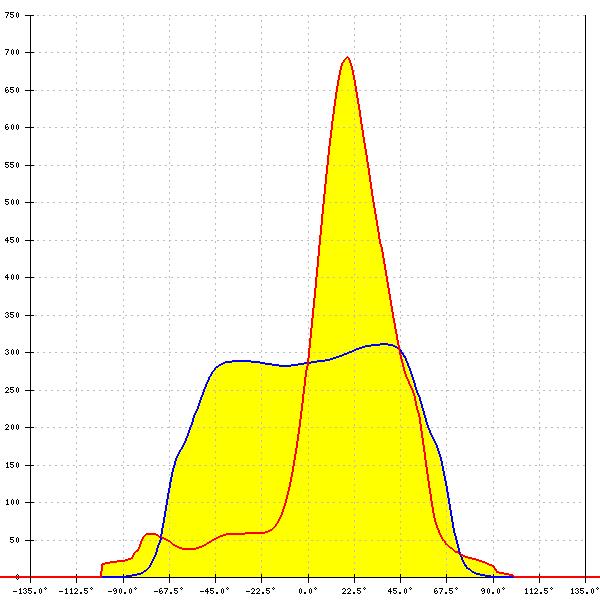

LED: SEOUL 5630C
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030
FWHM: asymmetric
Peak intensity: 0.710 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

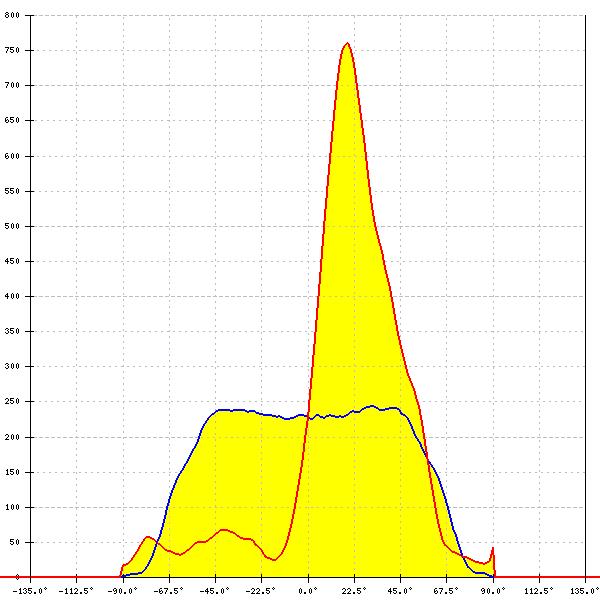

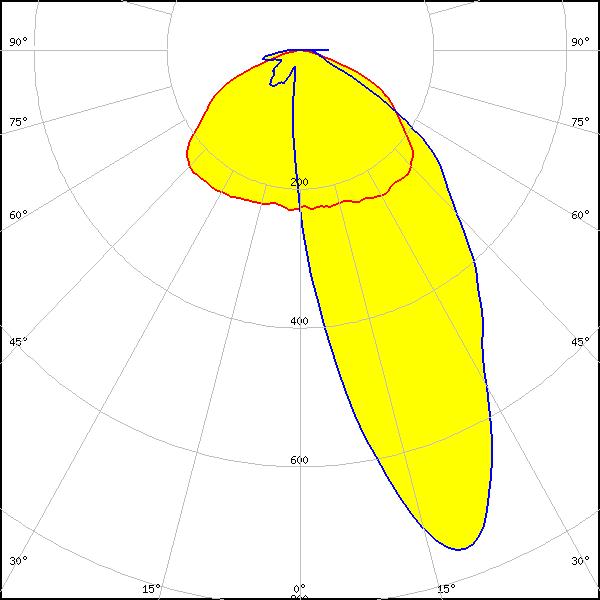

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

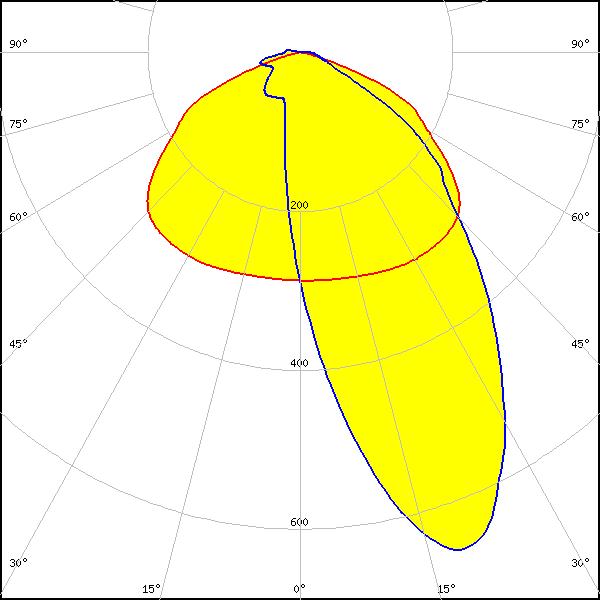

LED: LLE G2 55x280mm 2000lm
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
