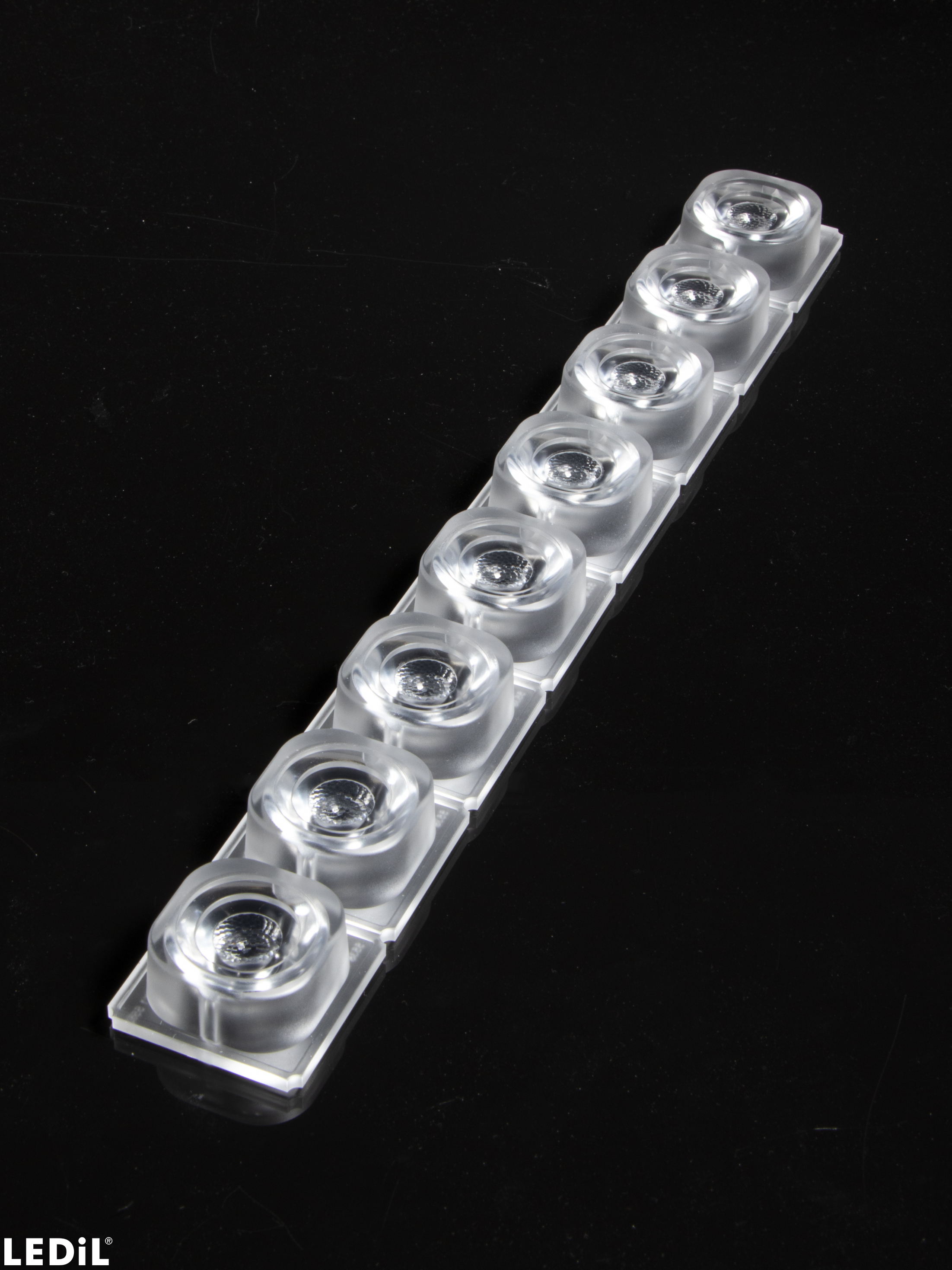

F15553_JENNY-8X1-20

Print

~20° beam. 8X1 variant.

Specification
  • Dimensions:
    280 x  35 mm
  • Height:
    14.51 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    10.9 kg
  • MPQ:
    10 pcs
  • MOQ:
    20 pcs
  • MOQ size:
    380 x 300 x 50 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15553_JENNY-8X1-20

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Use C14436_JENNY-HLD-A-BLK for fastening.

Optical results

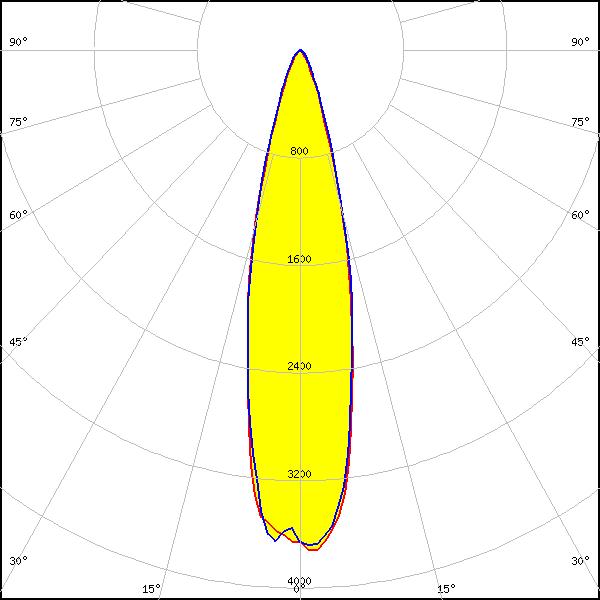

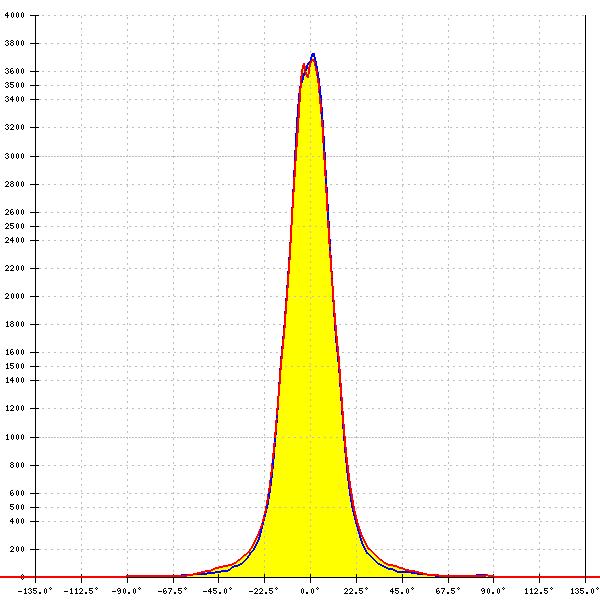

LED: MHD-E/G
FWHM: 24°
FWTM: 47°
Peak intensity: 3.720 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

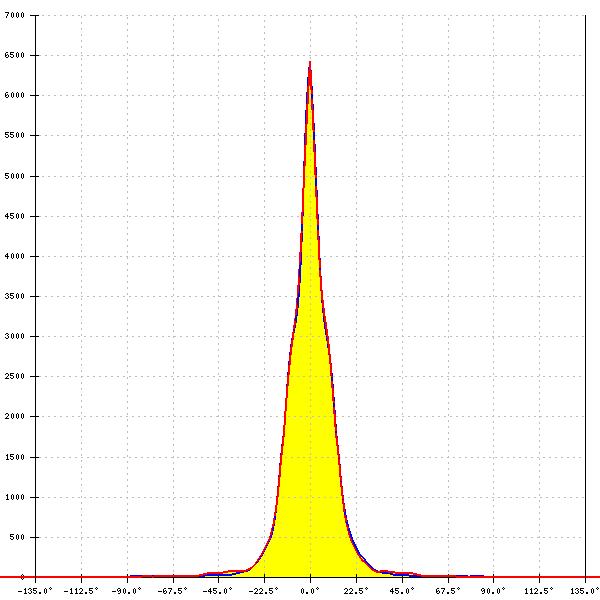

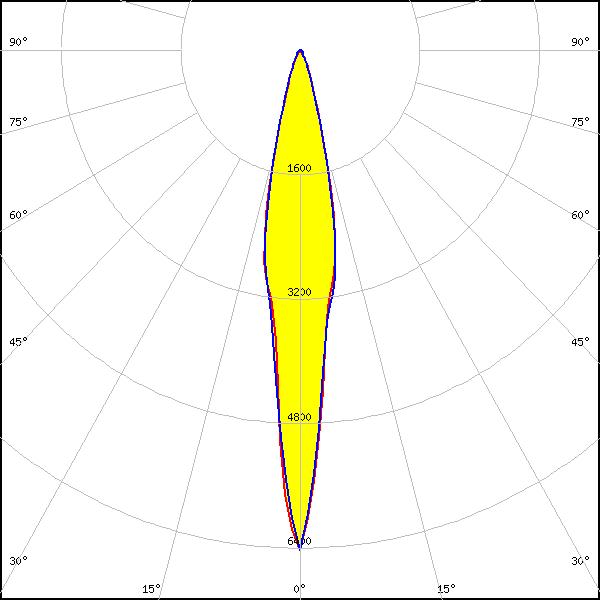

LED: MK-R
FWHM: 14°
FWTM: 36°
Peak intensity: 6.430 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: MK-R2
LEDs/each optic: 1
Light colour: White

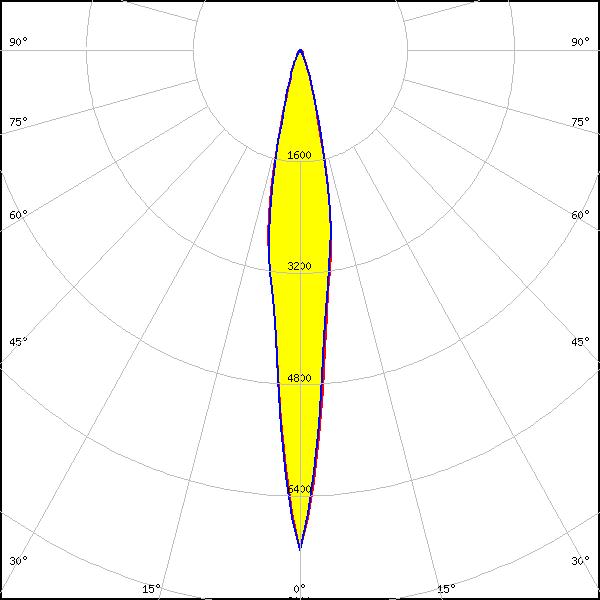

LED: XHP50
FWHM: 14°
FWTM: 34°
Peak intensity: 7.181 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

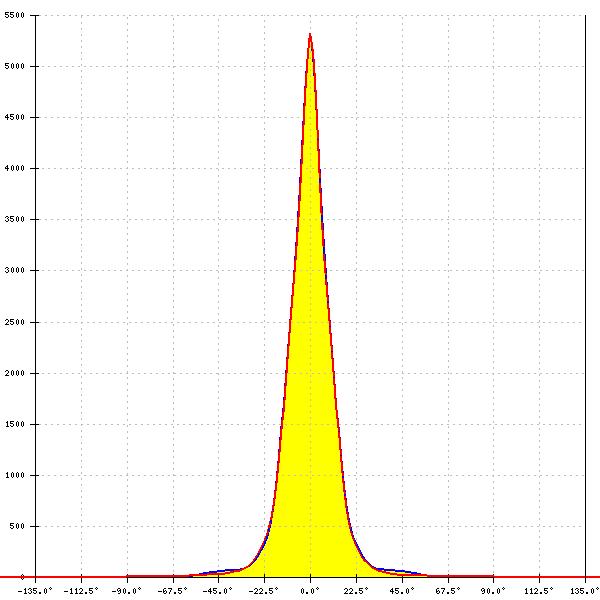

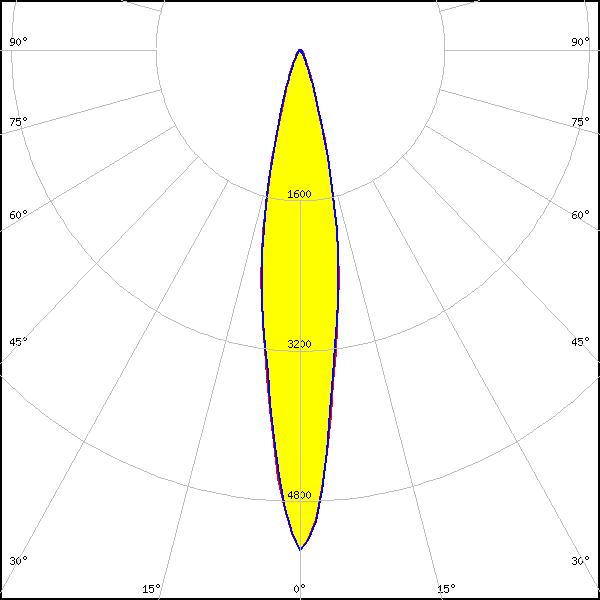

LED: XHP50.2
FWHM: 18°
FWTM: 38°
Peak intensity: 5.320 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

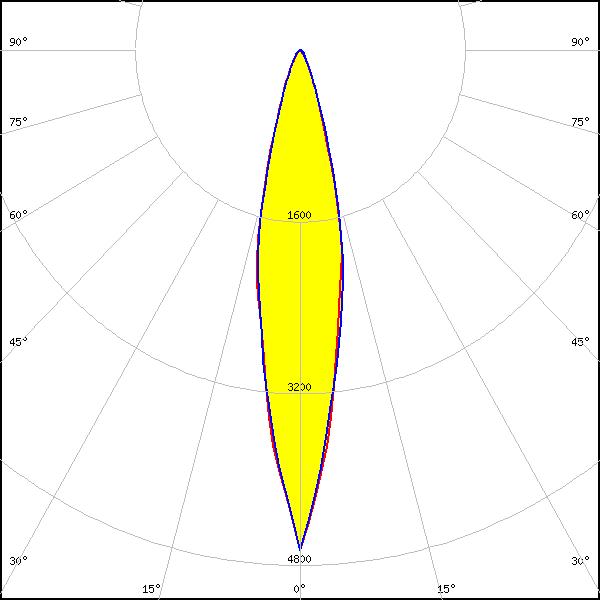

LED: XHP70
FWHM: 20°
FWTM: 43°
Peak intensity: 4.660 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

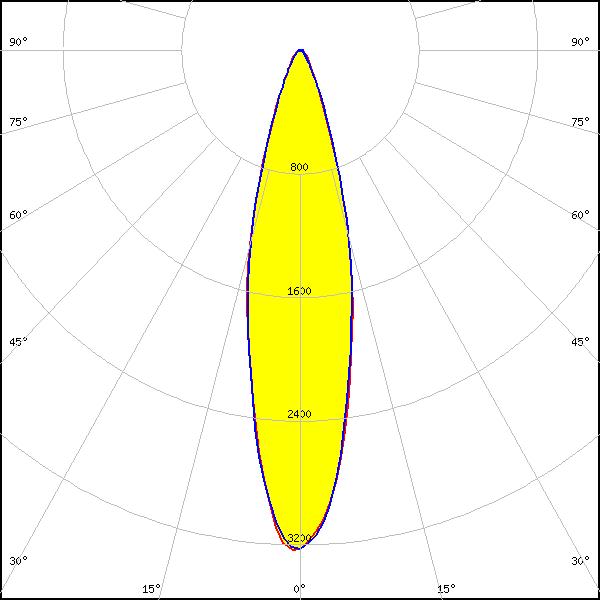

LED: XHP70.2
FWHM: 26°
FWTM: 50°
Peak intensity: 3.248 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

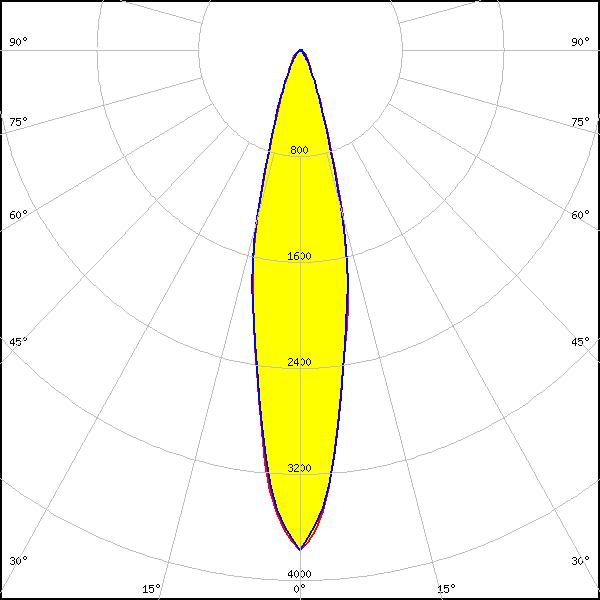

LED: XHP70.3 HD
FWHM: 23°
FWTM: 46°
Peak intensity: 3.773 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

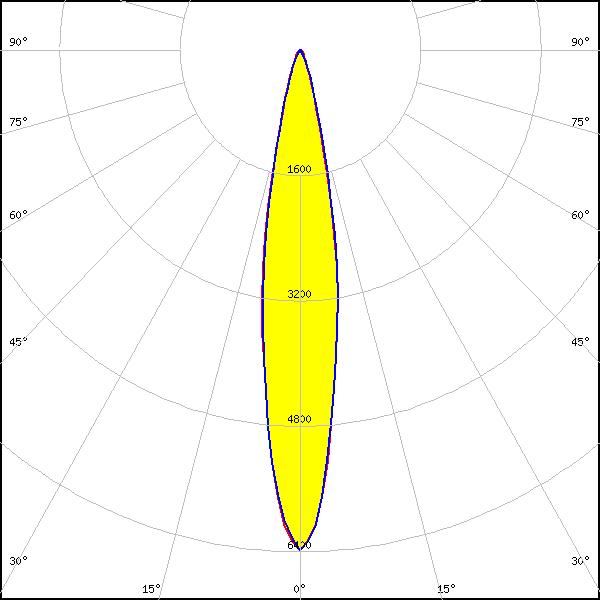

LED: XHP70.3 HI
FWHM: 18°
FWTM: 36°
Peak intensity: 6.384 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

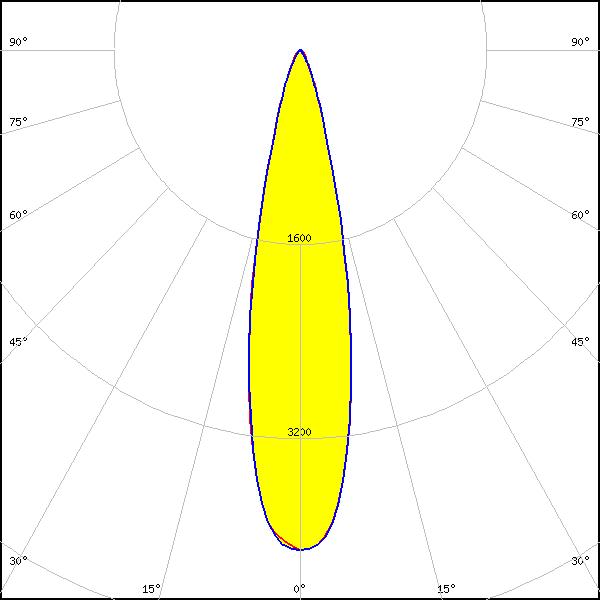

LED: LUXEON 7070
FWHM: 24°
FWTM: 44°
Peak intensity: 4.143 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

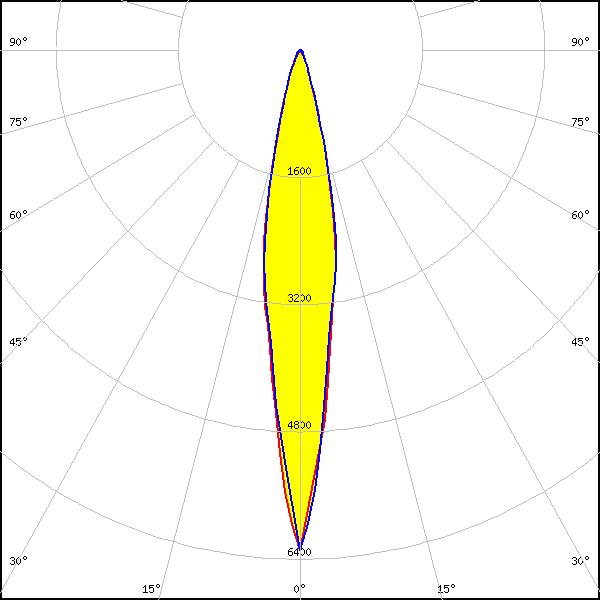

LED: LUXEON M/MX
FWHM: 16°
FWTM: 37°
Peak intensity: 6.290 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

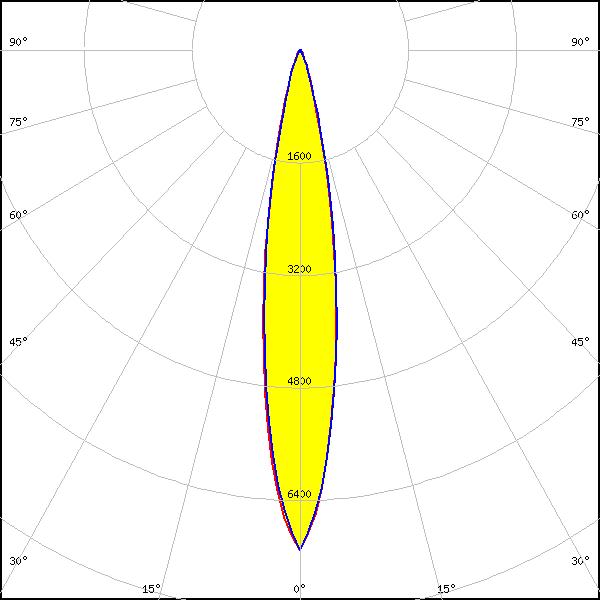

LED: NFMW48xA
Required components:
FWHM: 18°
FWTM: 34°
Peak intensity: 7.109 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

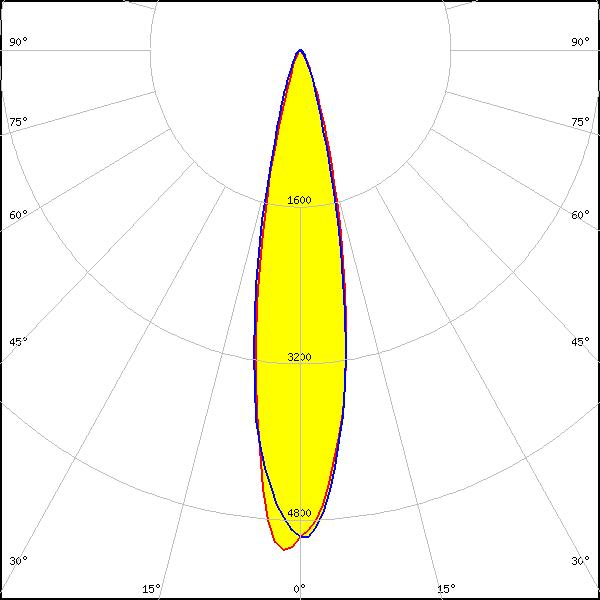

LED: Duris S10
FWHM: 21°
FWTM: 41°
Peak intensity: 5.080 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 7070
FWHM: 13°
FWTM: 34°
Peak intensity: 7.880 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
