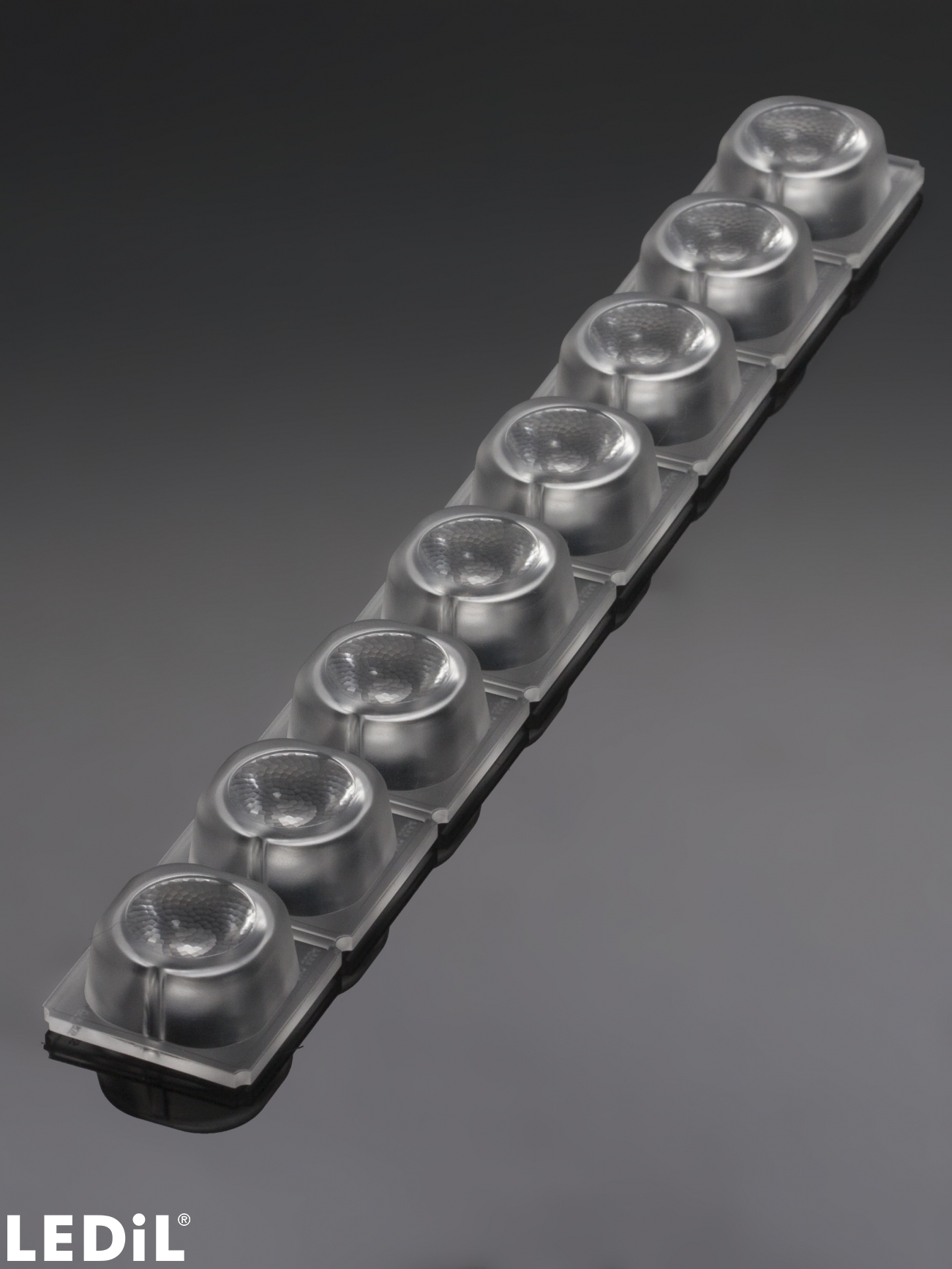

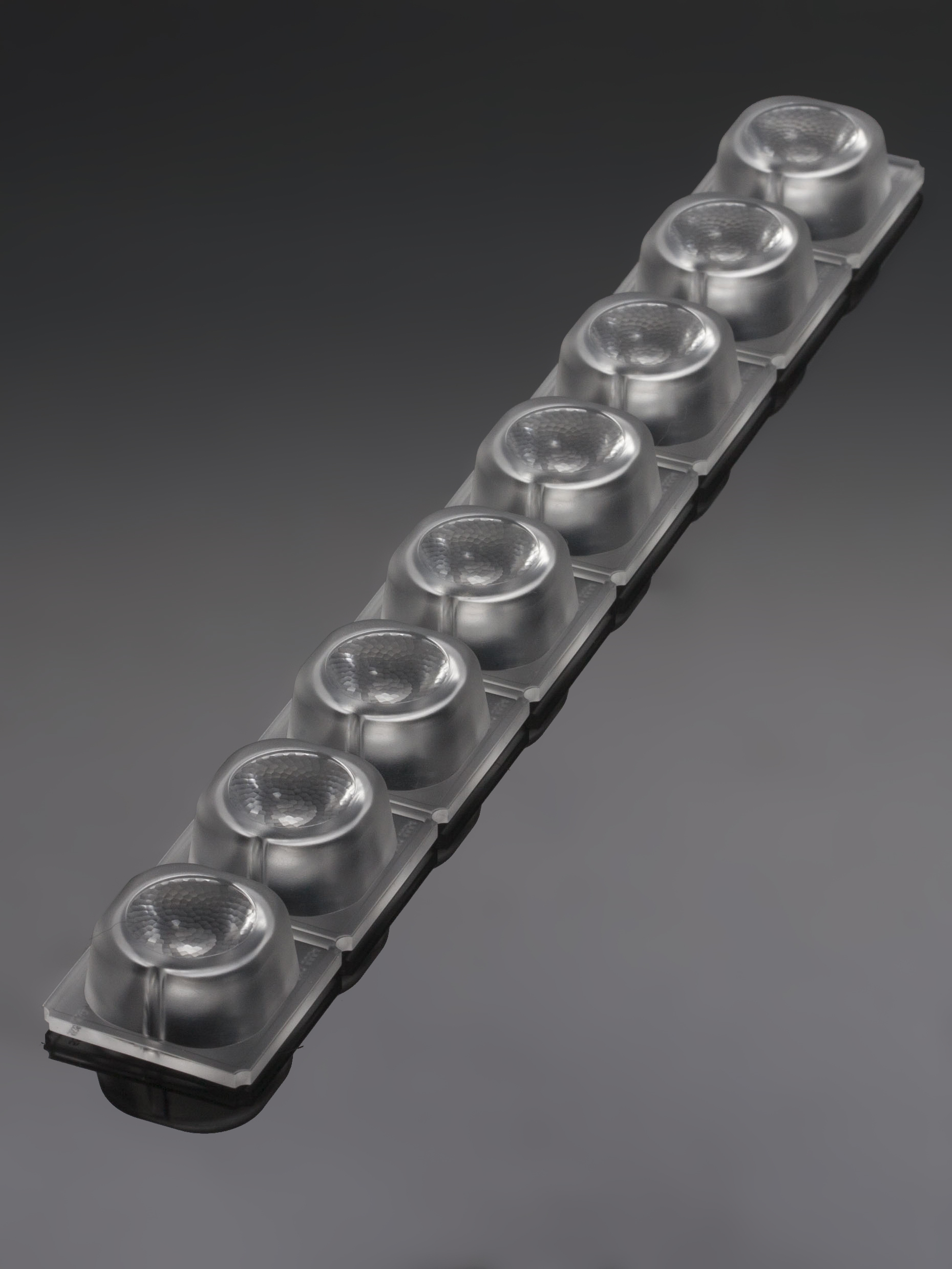

F15554_JENNY-8X1-40

Print

~40° beam. 8X1 variant.

Specification
  • Dimensions:
    280 x  35 mm
  • Height:
    15.00 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    140 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    9.7 kg
  • MPQ:
    10 pcs
  • MOQ:
    20 pcs
  • MOQ size:
    380 x 300 x 50 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15554_JENNY-8X1-40

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Use C14436_JENNY-HLD-A-BLK for fastening.

Optical results

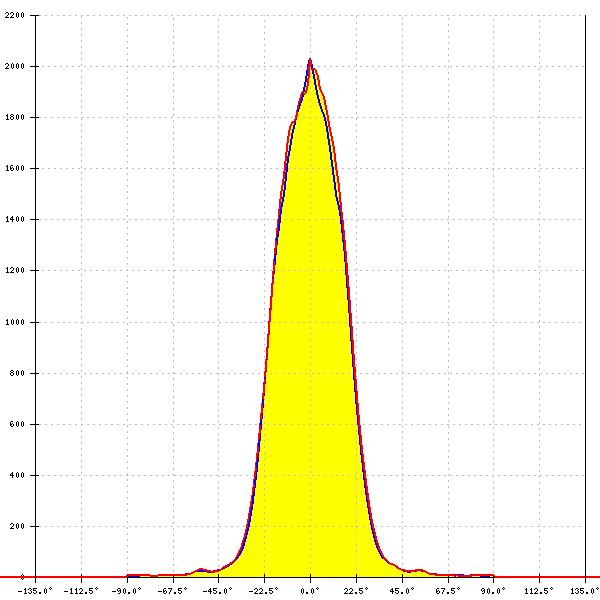

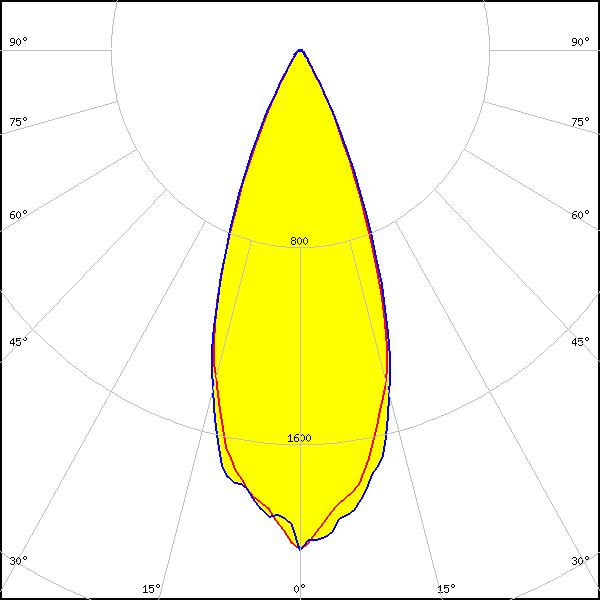

LED: MHD-E/G
FWHM: 39°
FWTM: 62°
Peak intensity: 2.030 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

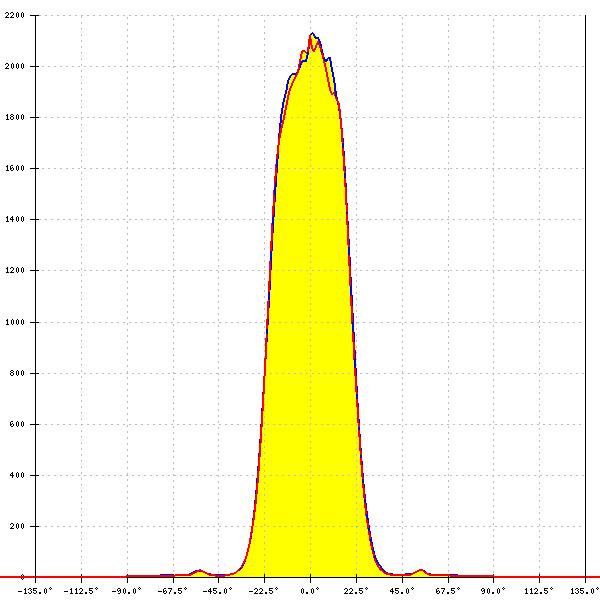

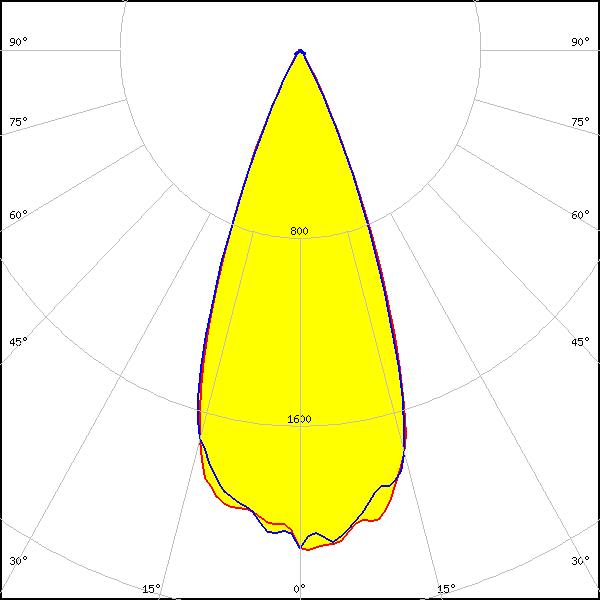

LED: MK-R
FWHM: 40°
FWTM: 56°
Peak intensity: 2.150 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: MK-R2
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
LEDs/each optic: 1
Light colour/type: White

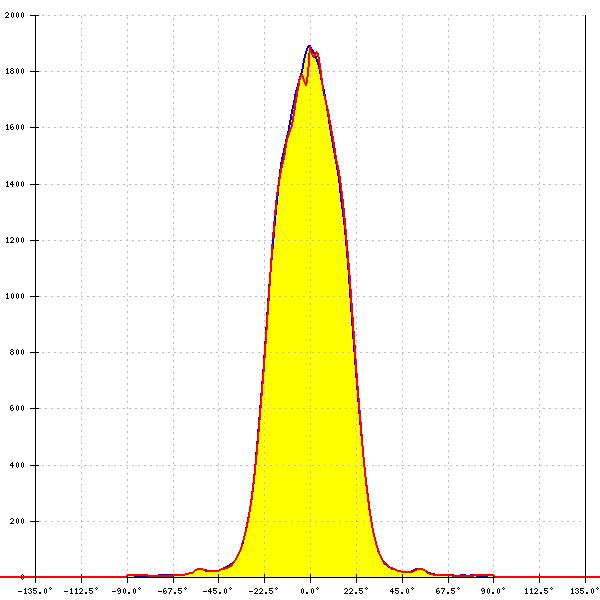

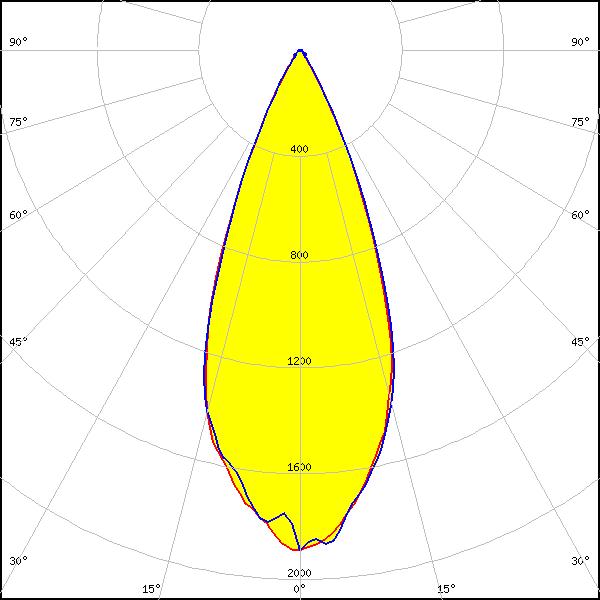

LED: XHP70
FWHM: 40°
FWTM: 62°
Peak intensity: 1.940 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

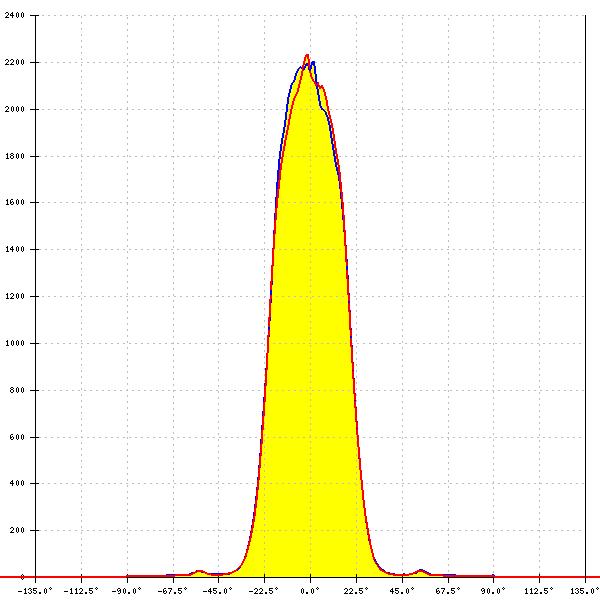

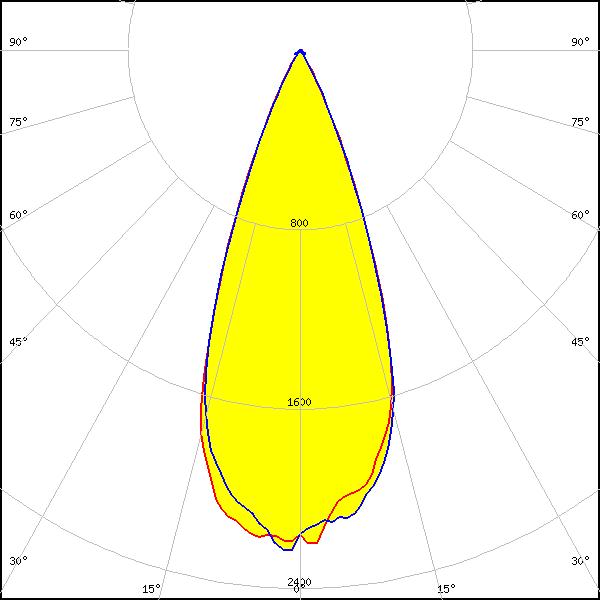

LED: LUXEON M/MX
FWHM: 39°
FWTM: 57°
Peak intensity: 2.230 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

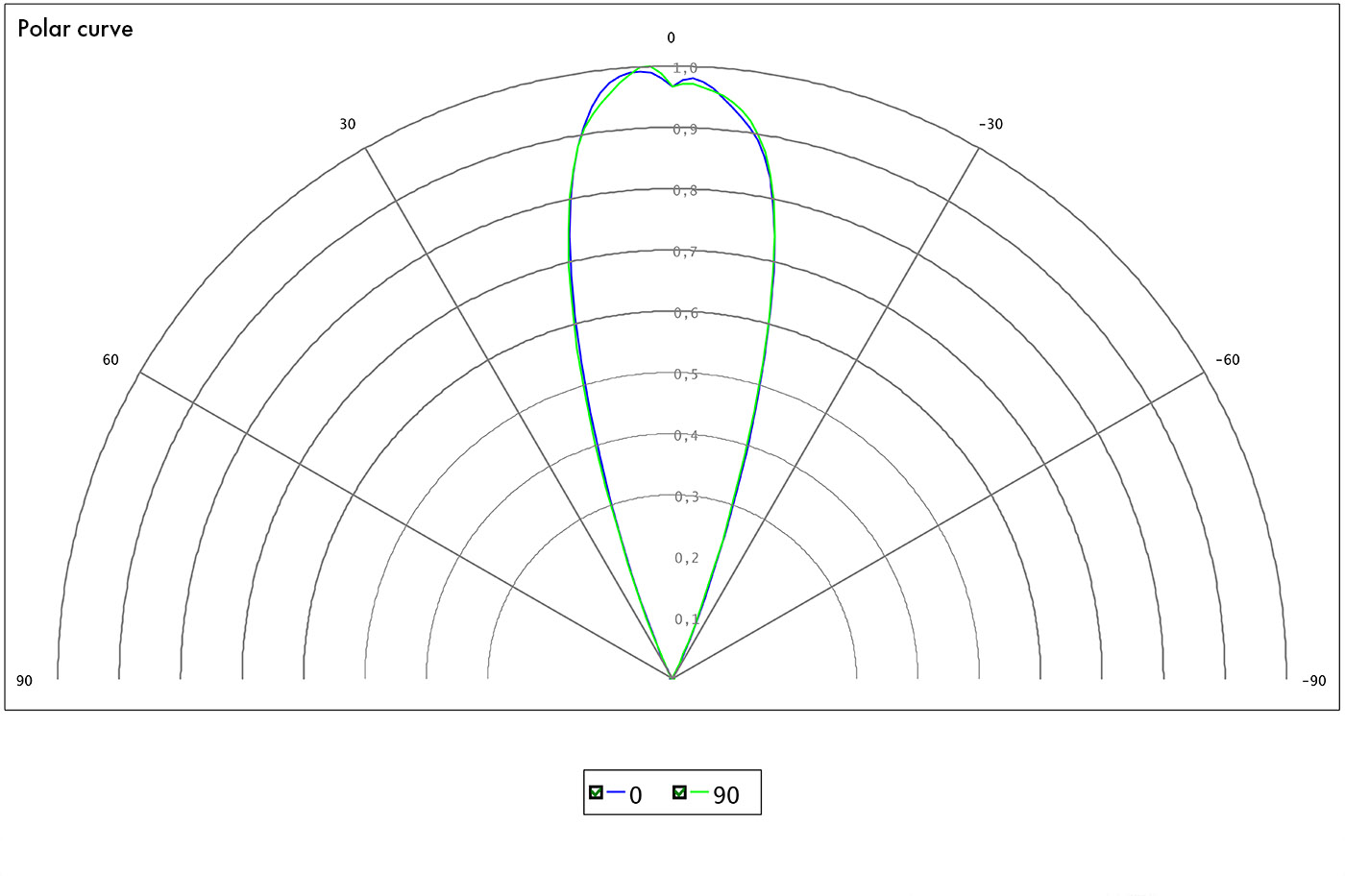

LED: NCSU276C
FWHM: 34°
FWTM: 46°
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: UV-A

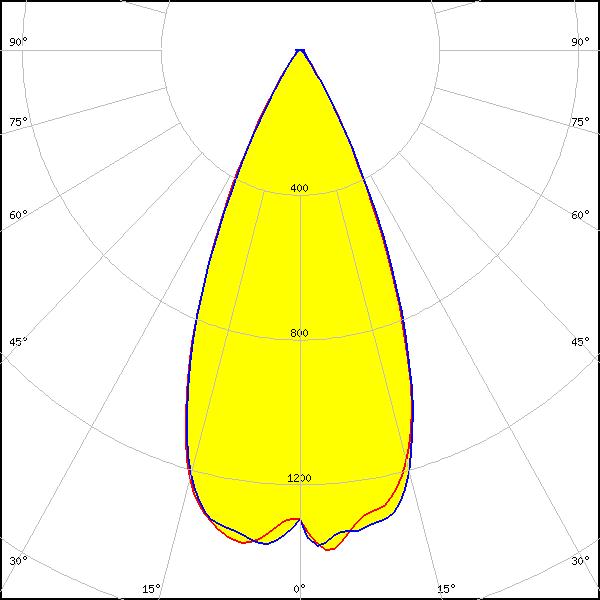

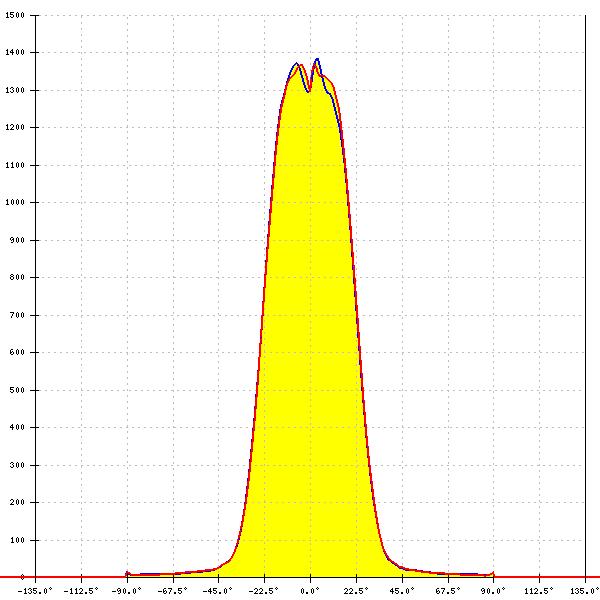

LED: NV4x144A
FWHM: 45°
FWTM: 66°
Peak intensity: 1.500 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

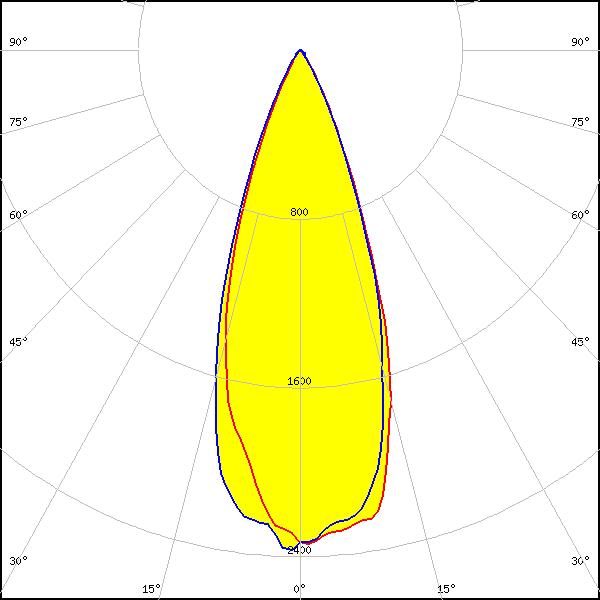

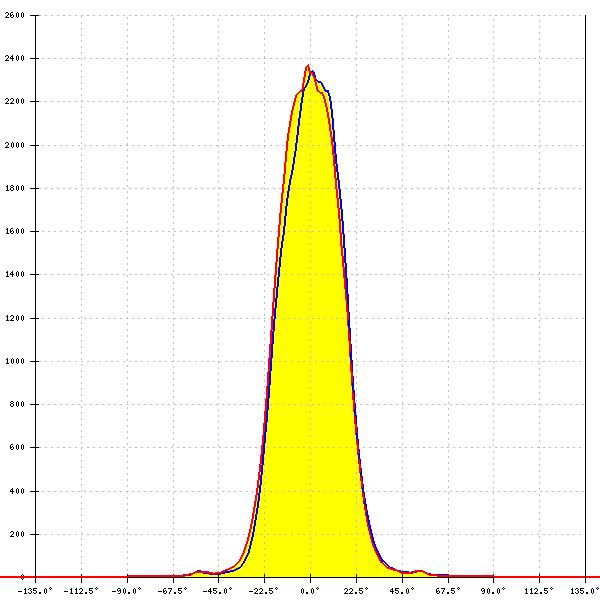

LED: Duris S10
FWHM: 36°
FWTM: 57°
Peak intensity: 2.420 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 7070
FWHM: 37°
FWTM: 54°
Peak intensity: 2.450 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
