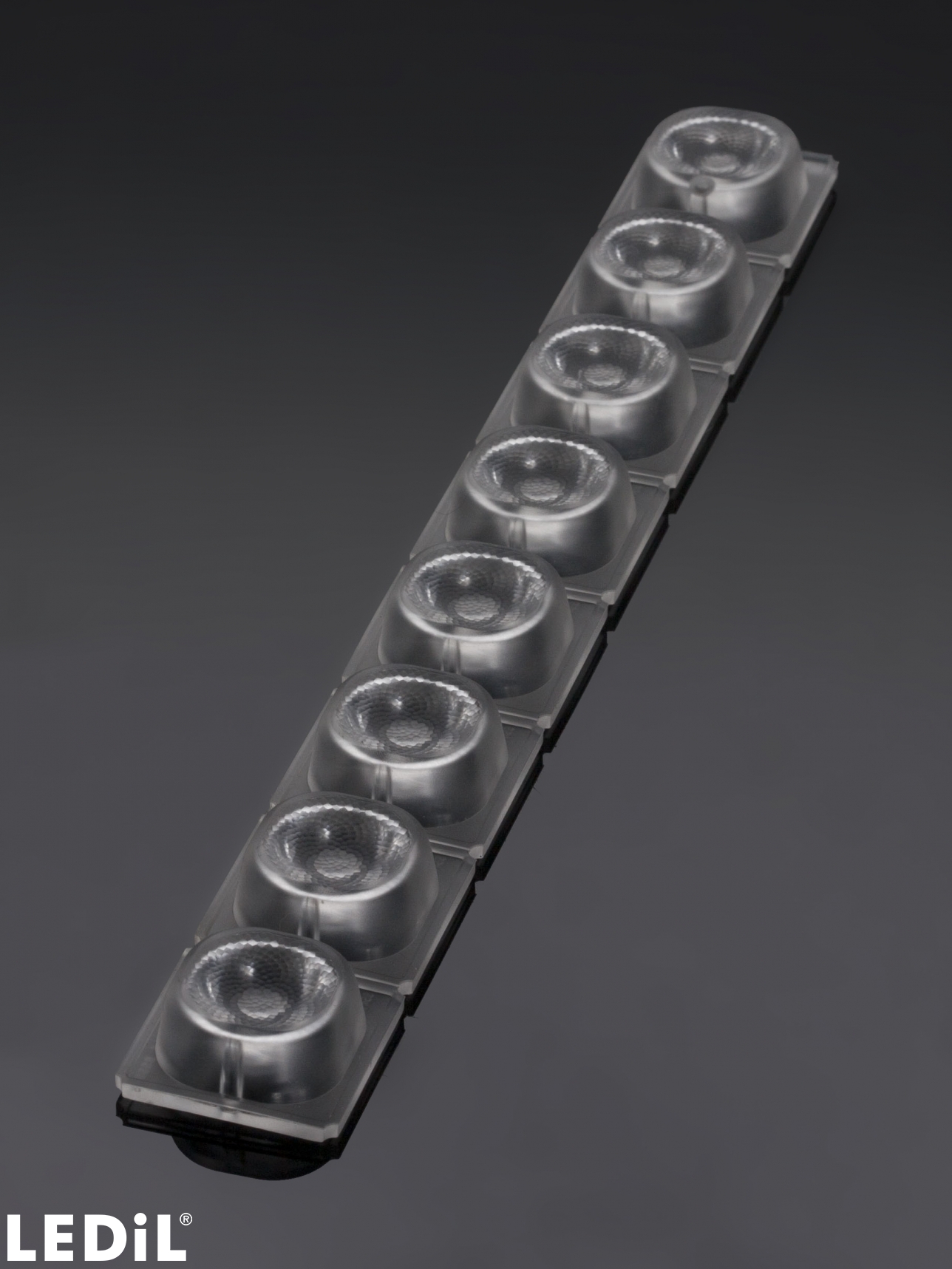

F15555_JENNY-8X1-60
Print
~60° beam. 8X1 variant.
Component Materials
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Use C14436_JENNY-HLD-A-BLK for fastening.
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

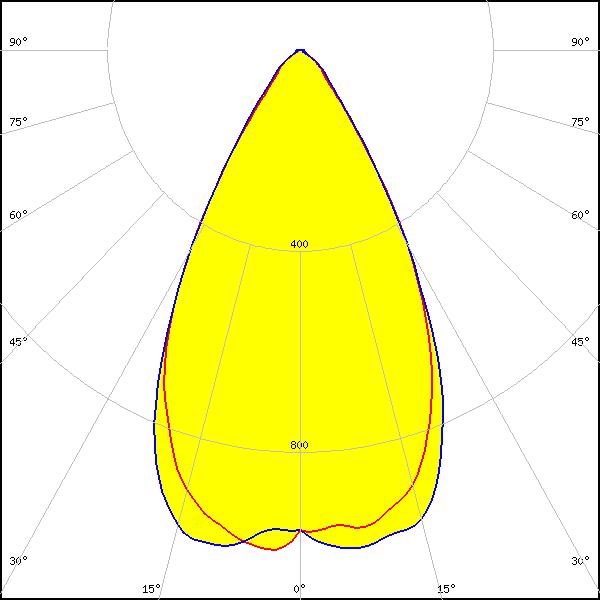

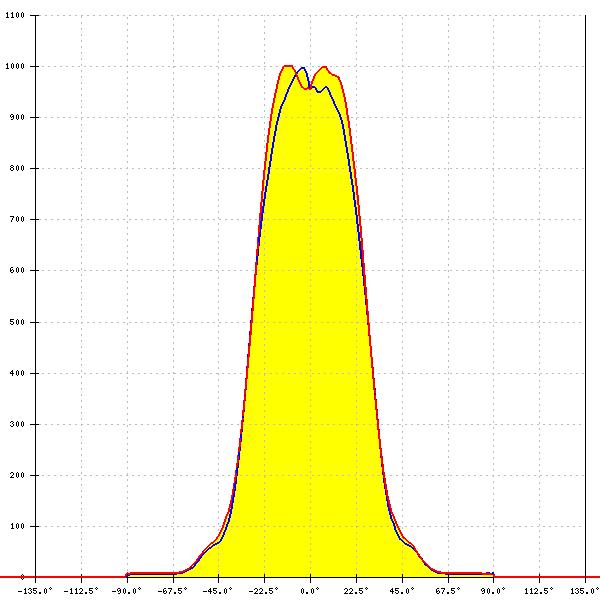

LED:
MHD-E/G
FWHM:
57°
FWTM:
84°
Peak intensity:
1.020 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

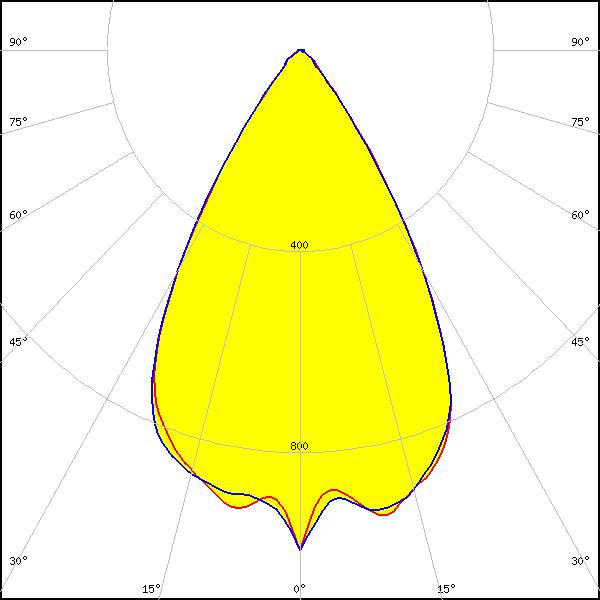

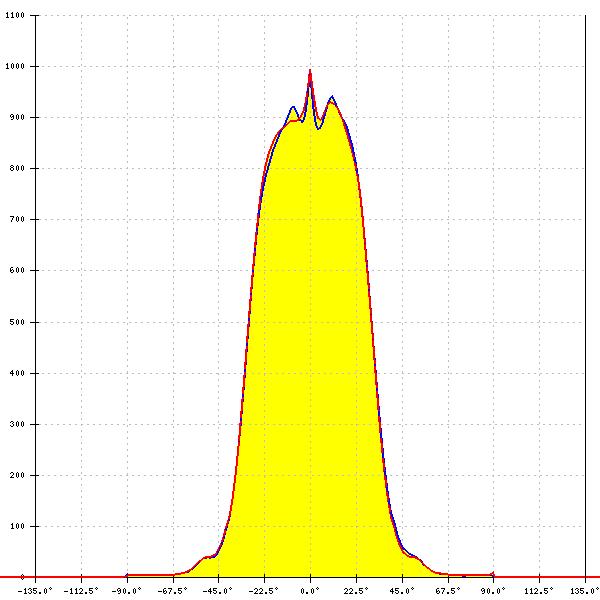

LED:
MK-R
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

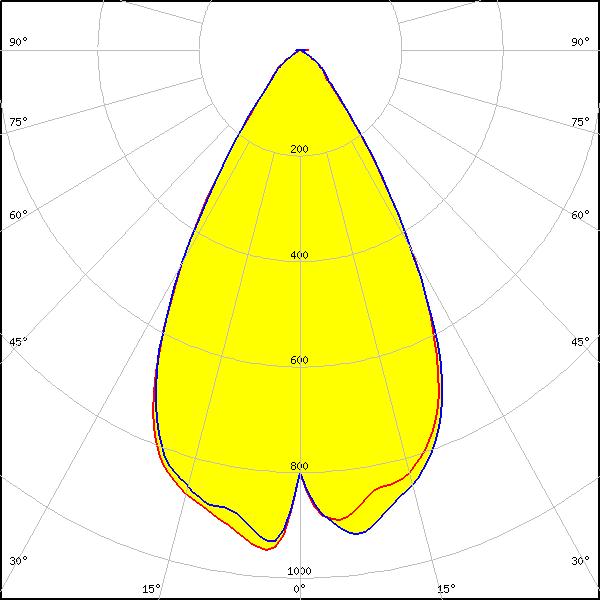

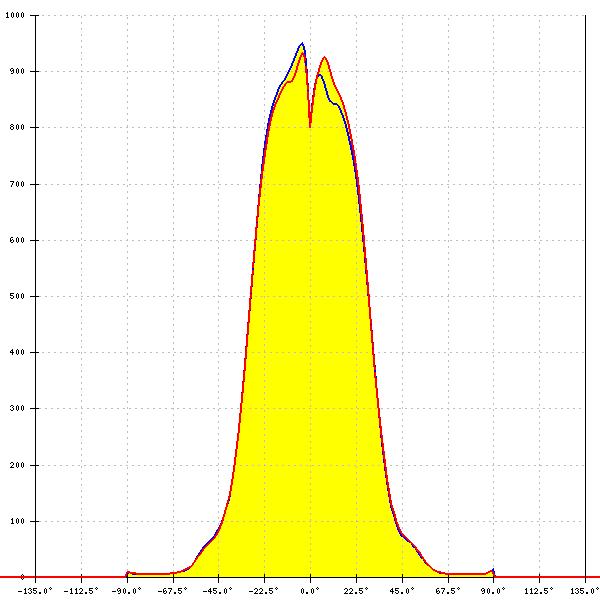

LED:
XHP70
FWHM:
59°
FWTM:
86°
Peak intensity:
0.950 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

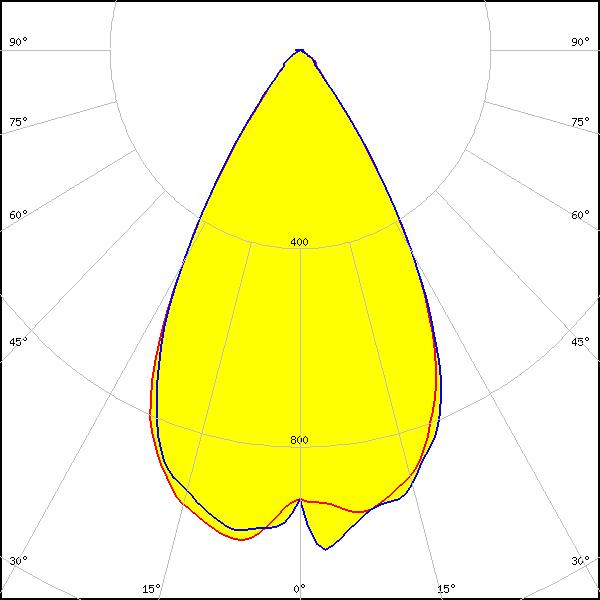

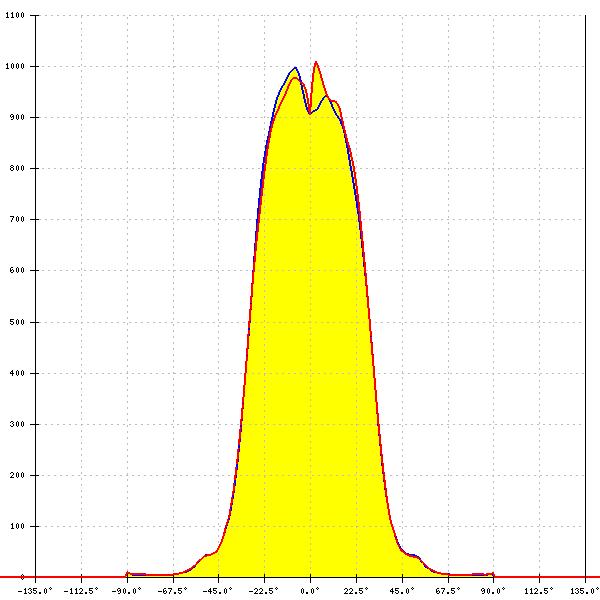

LED:
LUXEON M/MX
FWHM:
57°
FWTM:
81°
Peak intensity:
1.030 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

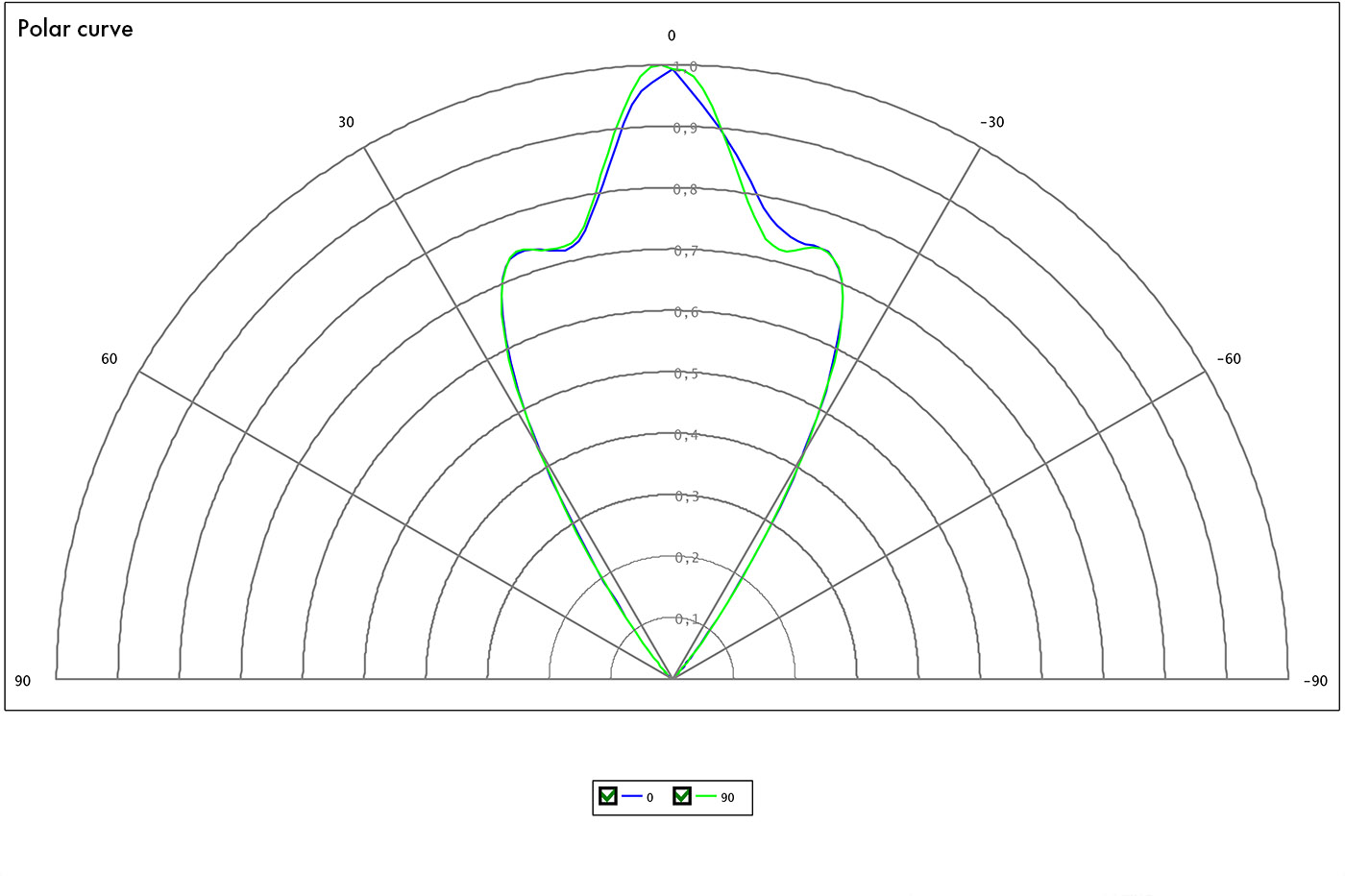

LED:
NCSU276C
FWHM:
58°
FWTM:
74°
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
UV-A

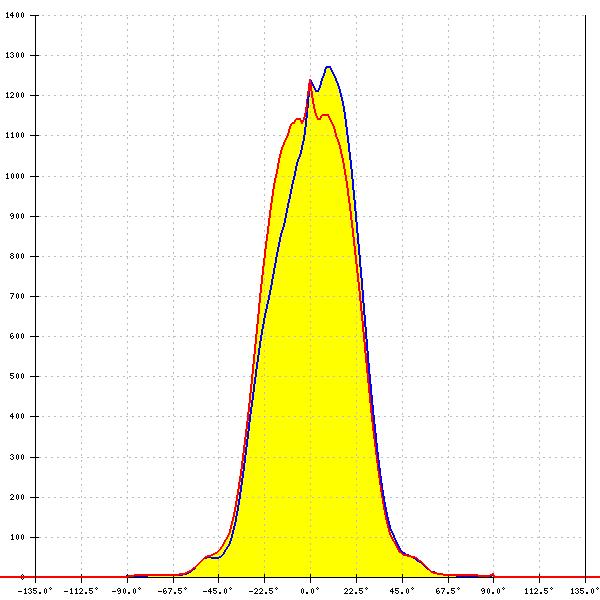

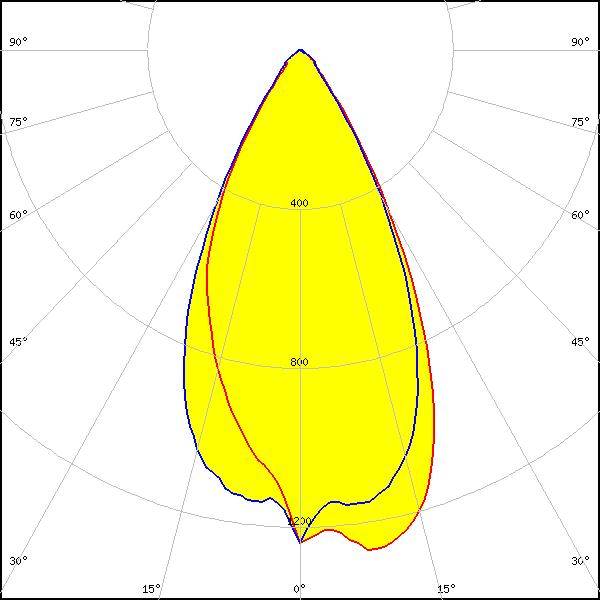

LED:
Duris S10
FWHM:
49°
FWTM:
77°
Peak intensity:
1.280 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
55°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
