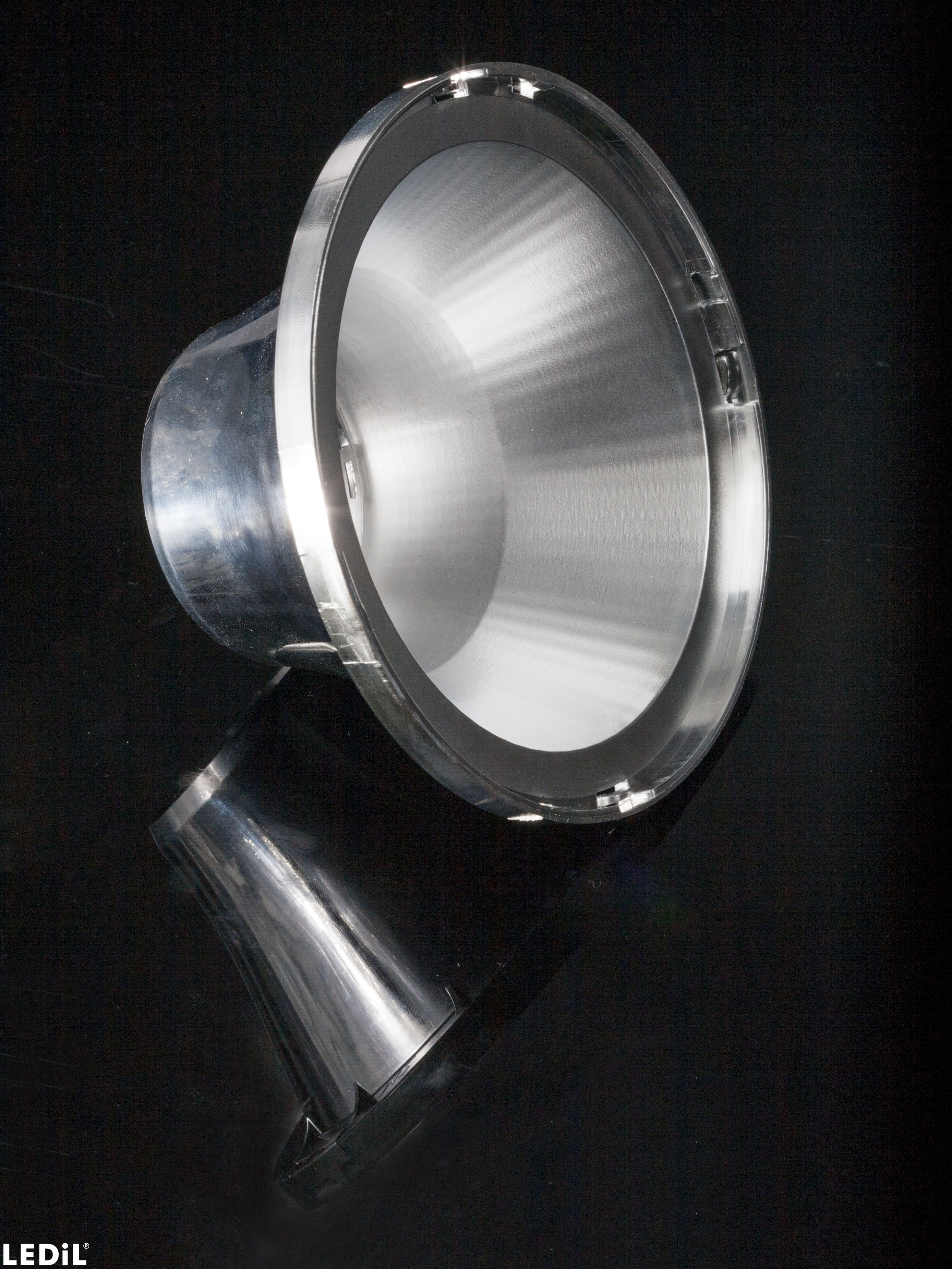

F16010_ANGELETTE-M2

Print

~35° medium beam

Specification
  • Dimensions:
    110 mm
  • Height:
    57.3 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials
  • PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.2 kg
  • MPQ:
    30 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 150 mm
  • MOQ weight:
    4.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16010_ANGELETTE-M2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

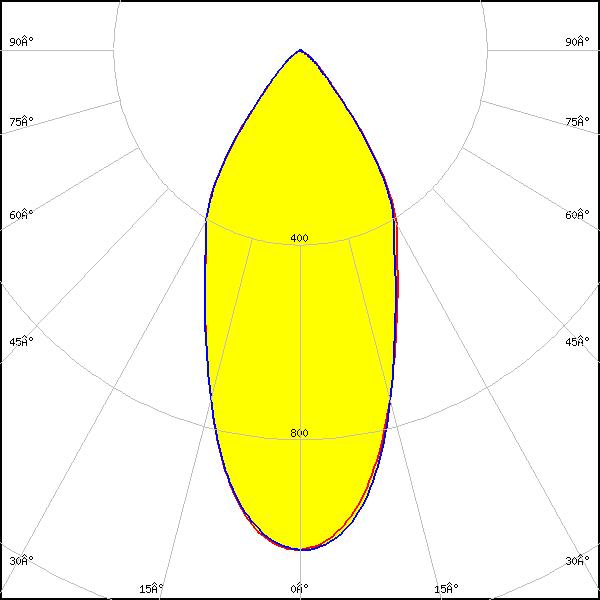

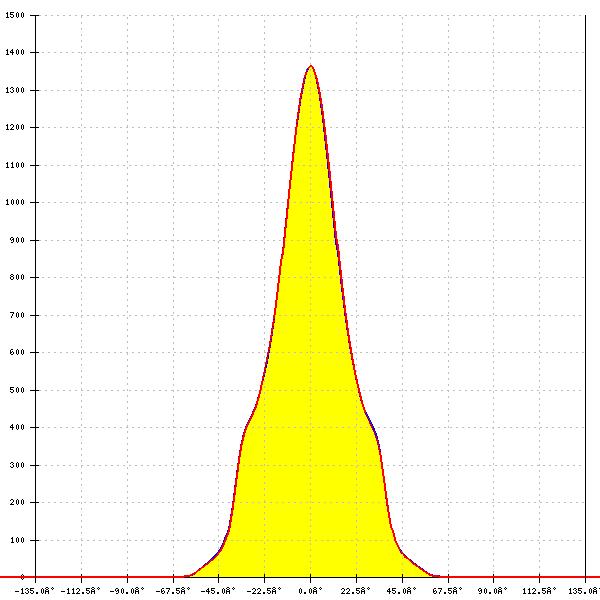

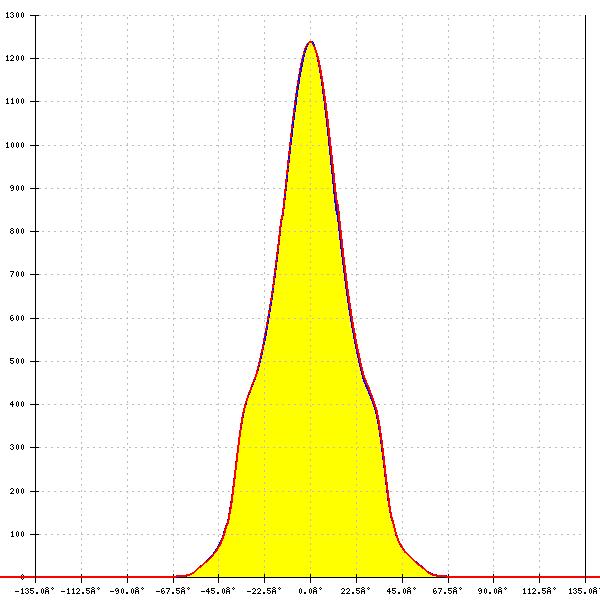

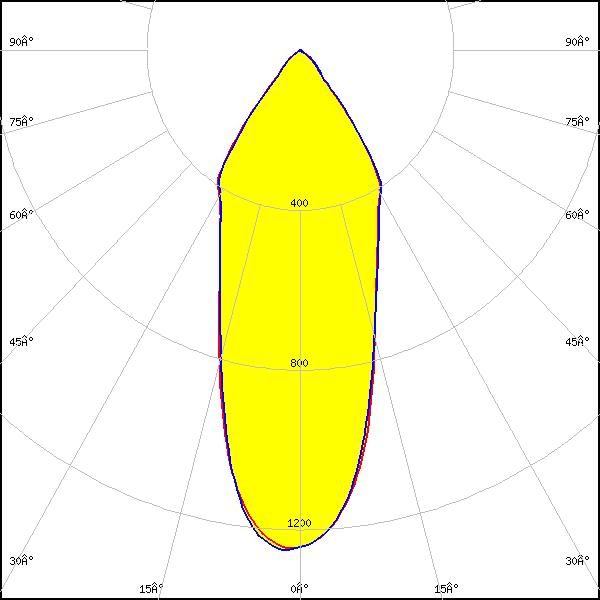

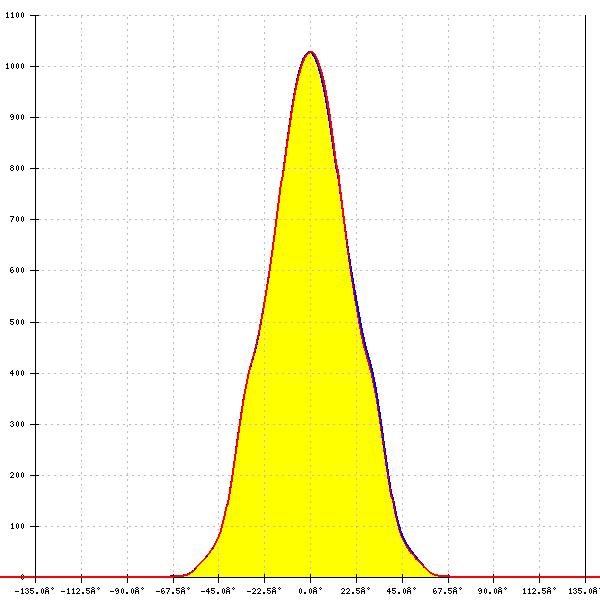

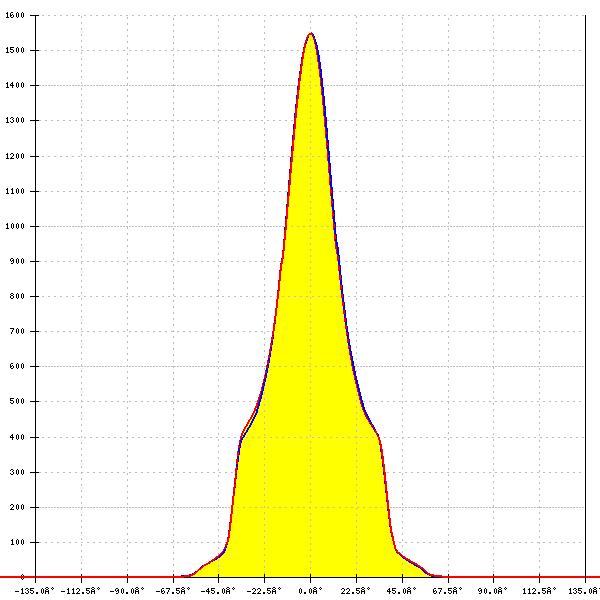

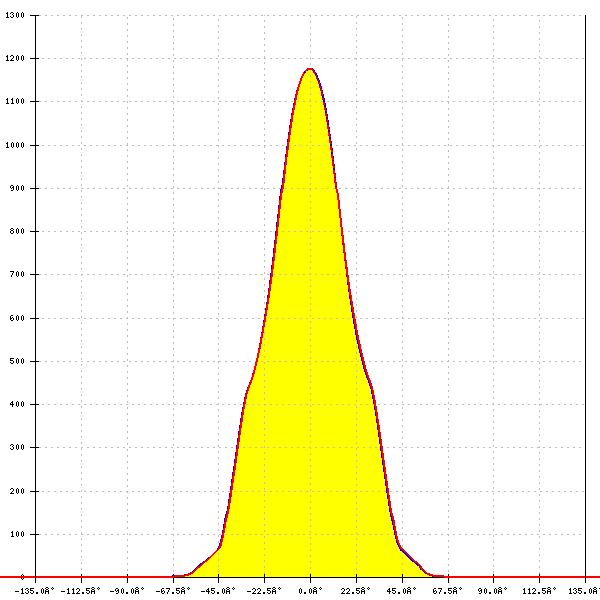

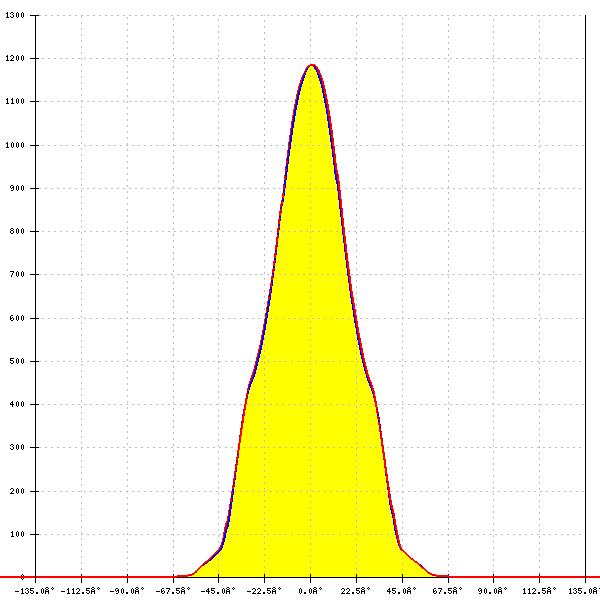

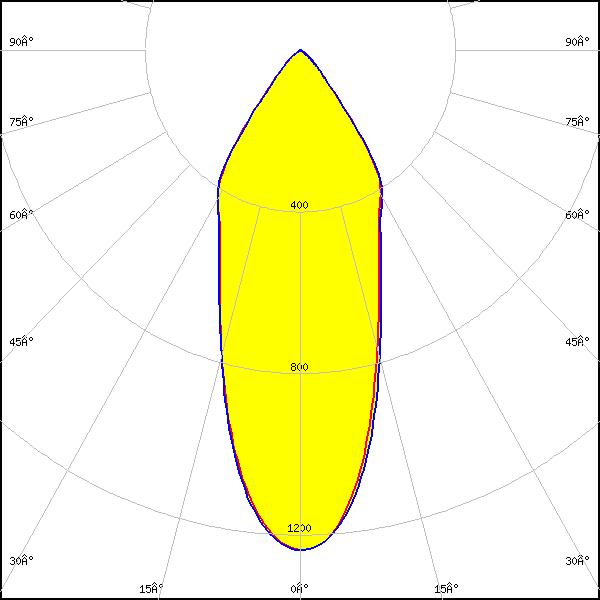

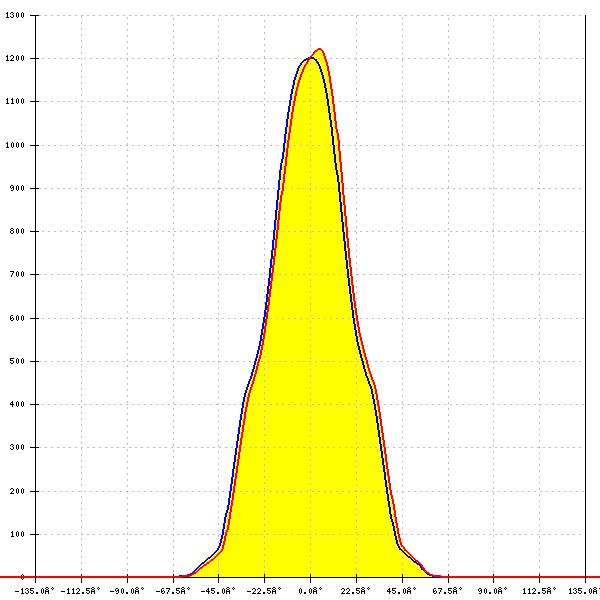

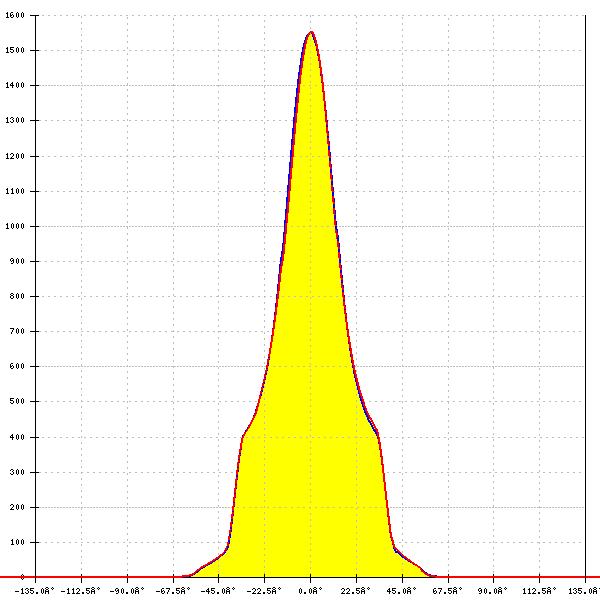

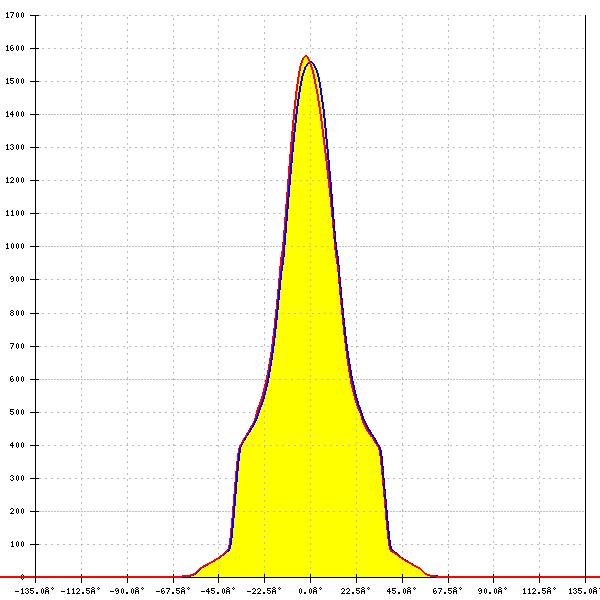

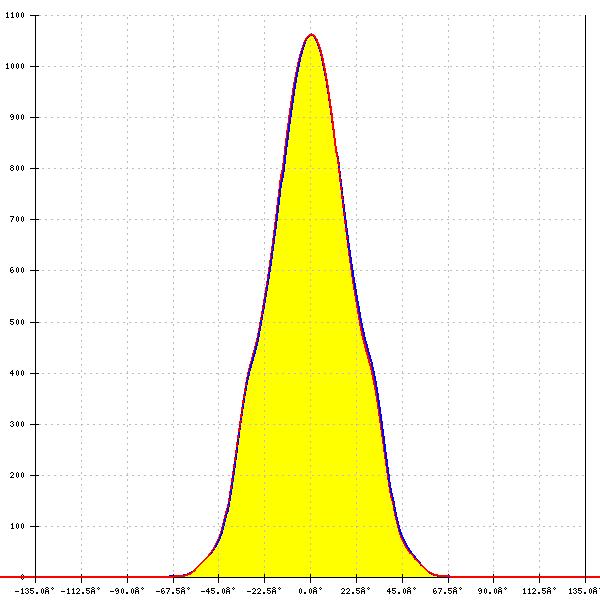

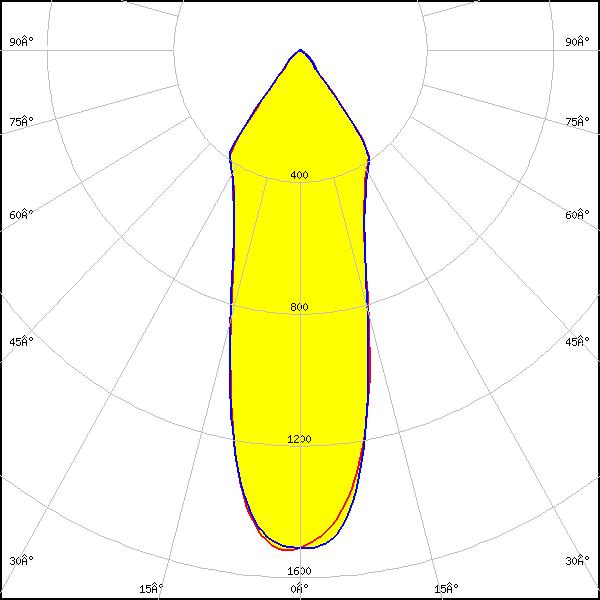

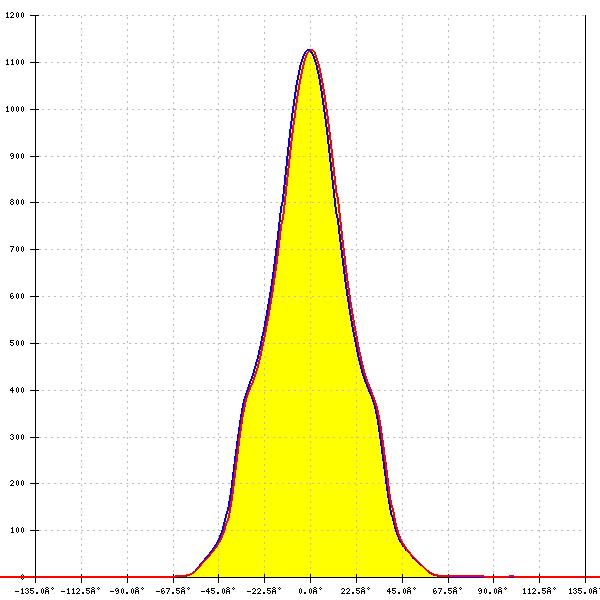

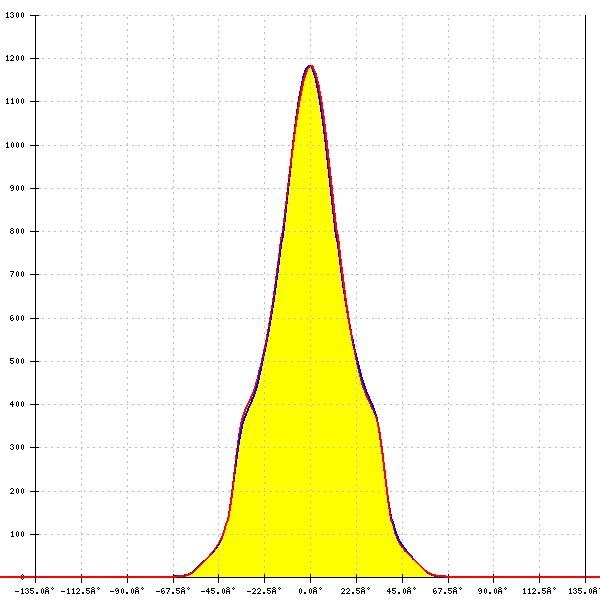

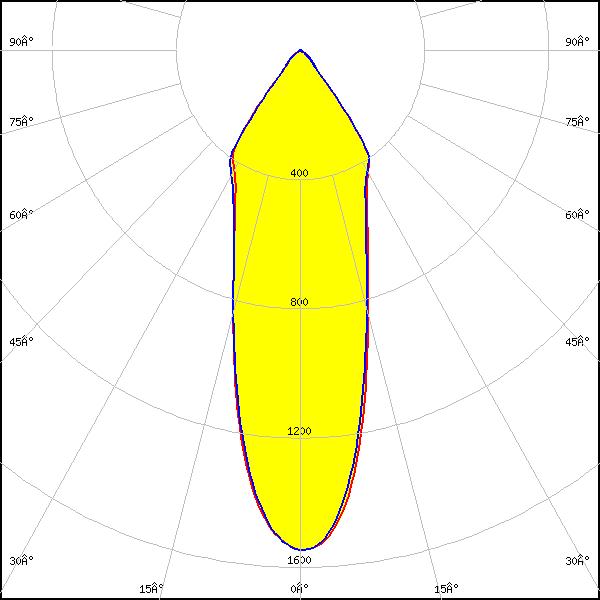

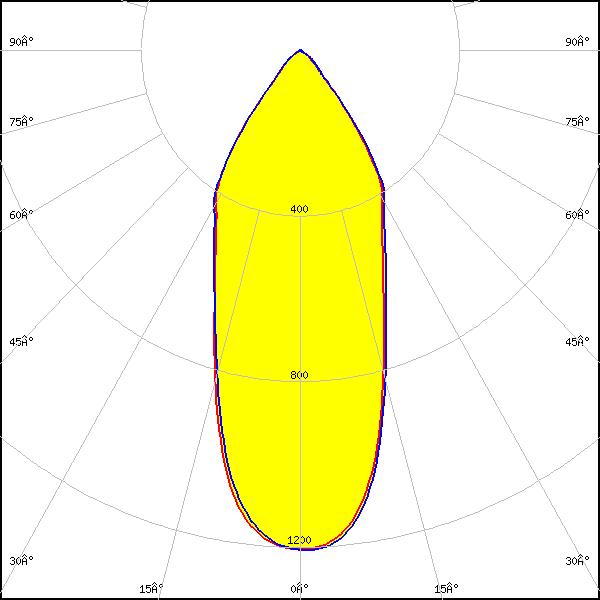

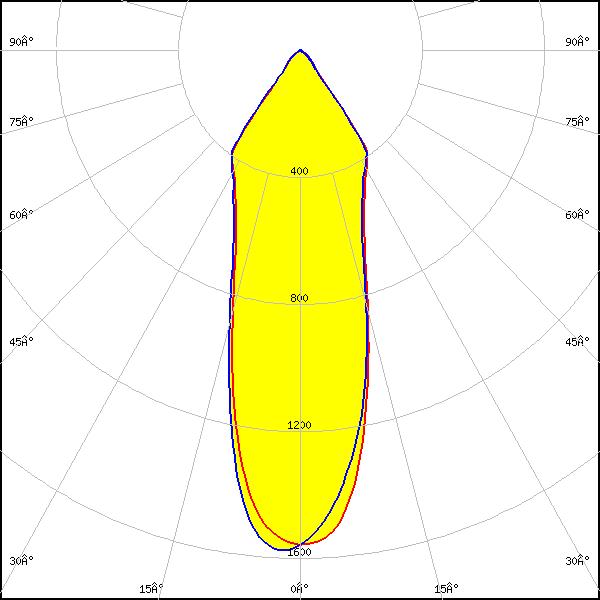

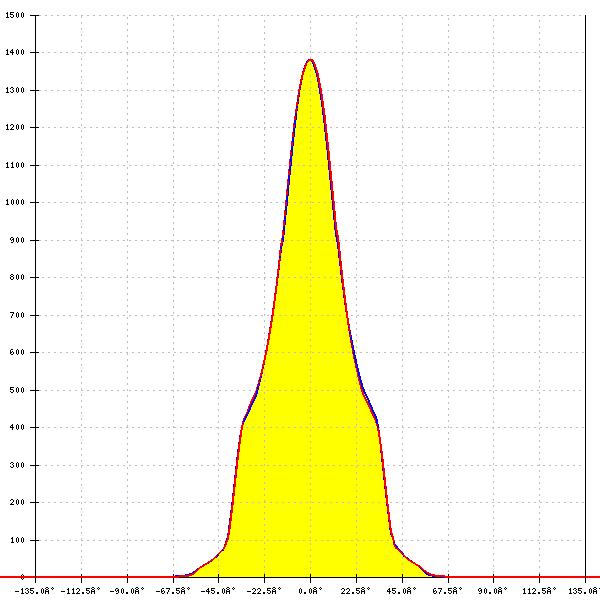

Optical results

LED: Vero SE 13
Required components:
FWHM: 33°
FWTM: 79°
Peak intensity: 1.5 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

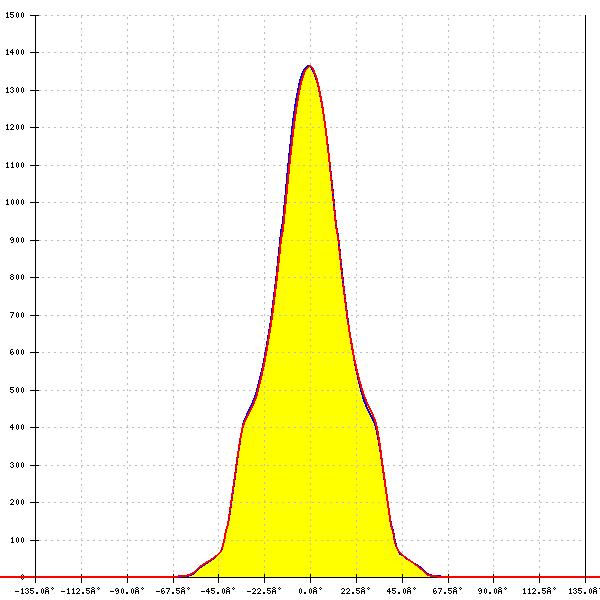

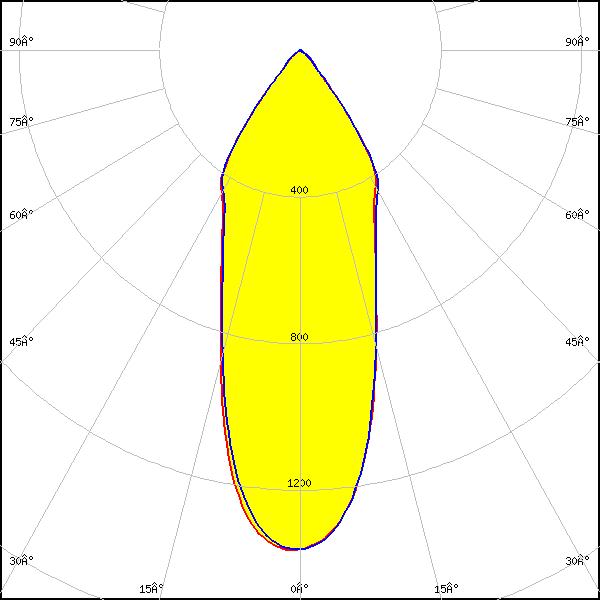

LED: Vero SE 18
Required components:
FWHM: 38°
FWTM: 81°
Peak intensity: 1.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

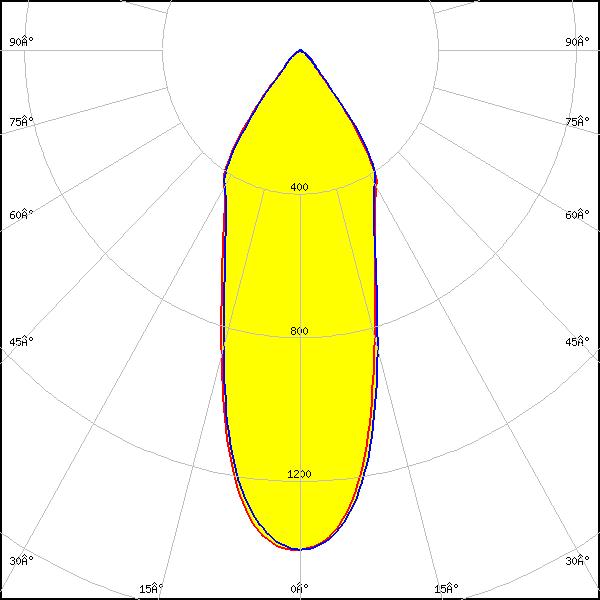

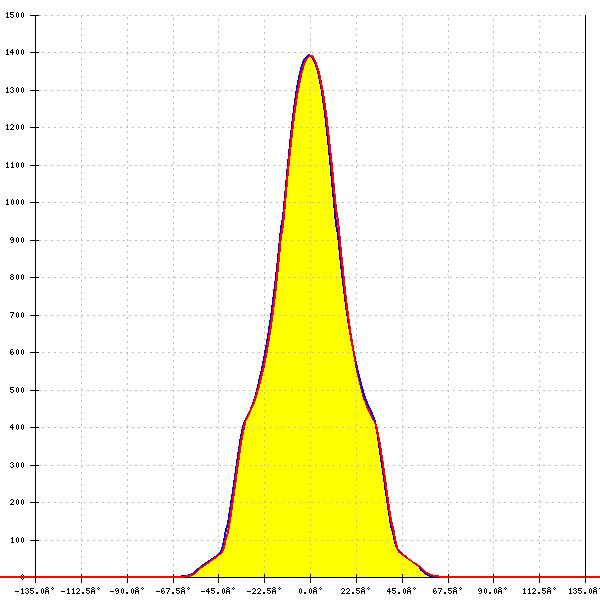

LED: VERO18
Required components:
FWHM: 37°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

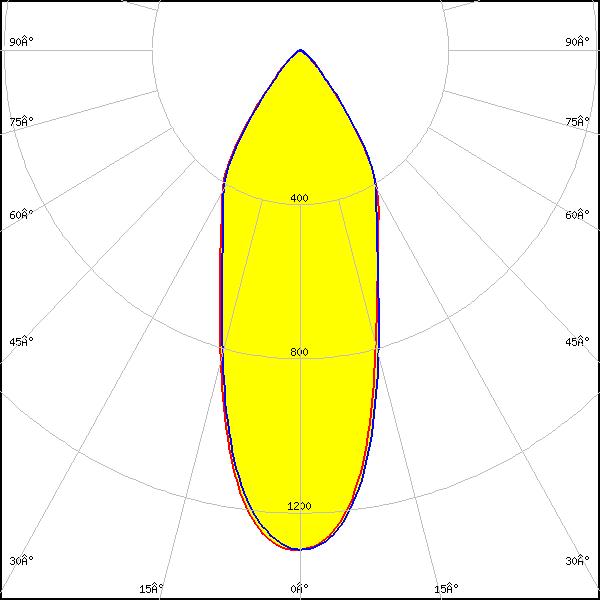

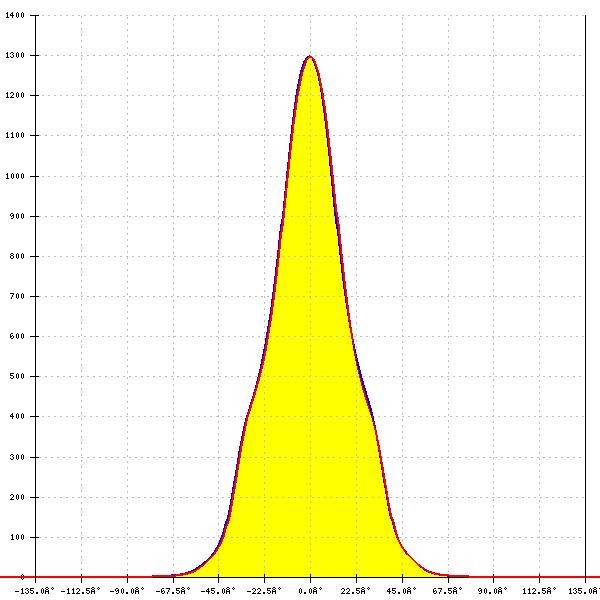

LED: VERO18
Required components:
FWHM: 38°
FWTM: 82°
Peak intensity: 1.3 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 15mm DP
Required components:

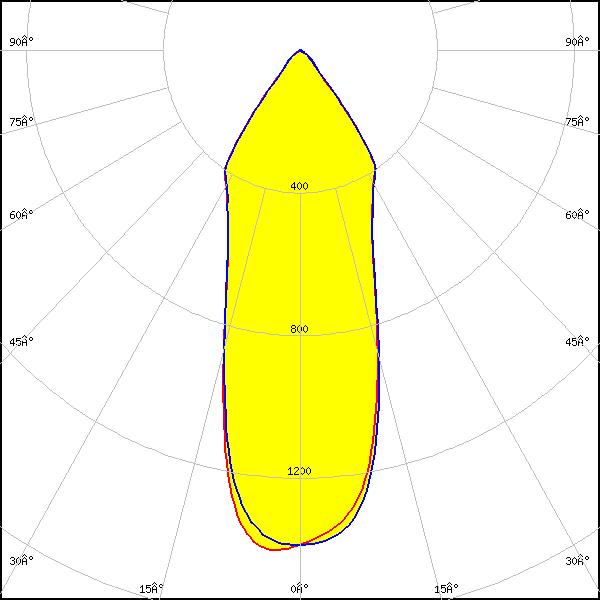

C13658_CLAMP-VERO13-18
Bender Wirth: 482 Typ L2
FWHM: 37°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 15mm DP
Required components:
FWHM: 39°
FWTM: 83°
Peak intensity: 1.2 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 18mm (31W) DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 483 Typ L3
FWHM: 41°
FWTM: 82°
Peak intensity: 1.3 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta TW 18mm (31W) DP
Required components:
FWHM: 43°
FWTM: 84°
Peak intensity: 1.1 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: Tunable White

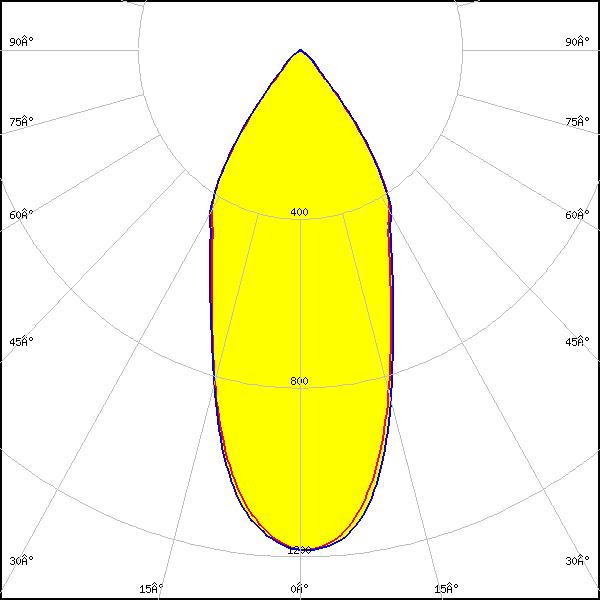

LED: Vesta TW 22mm DP
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 44°
FWTM: 83°
Peak intensity: 1.2 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White

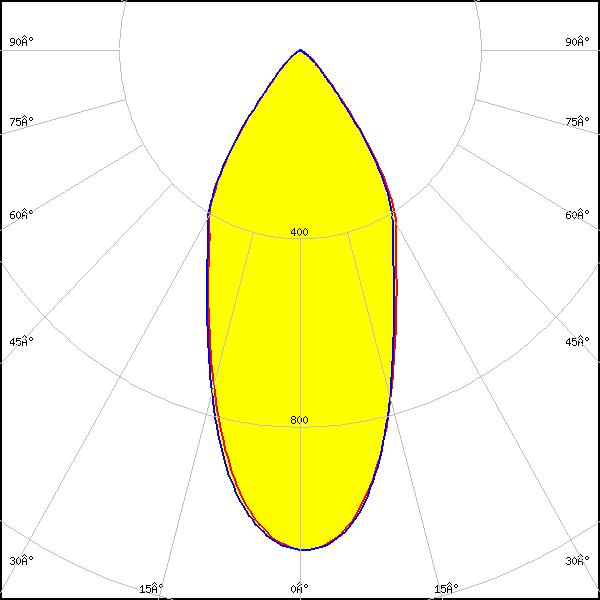

LED: Vesta TW 22mm DP
Required components:
FWHM: 46°
FWTM: 85°
Peak intensity: 1.1 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: Tunable White

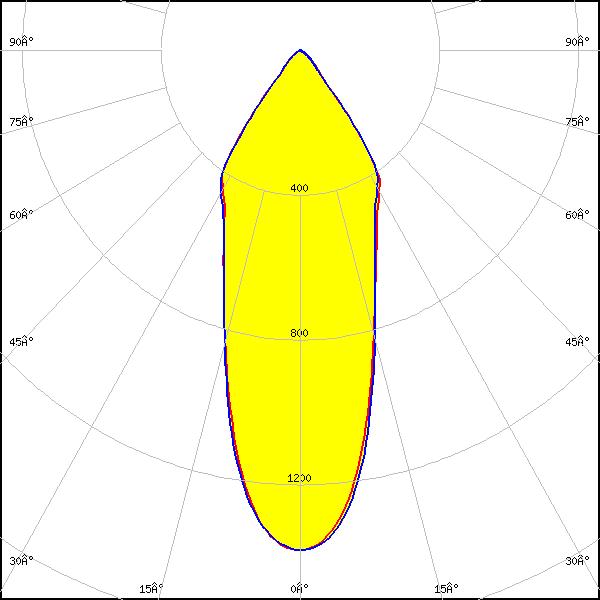

LED: CLL03x/CLU03x
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: 37°
FWTM: 79°
Peak intensity: 1.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
F13671_ANGE-RZ-LENS
FWHM: 39°
FWTM: 81°
Peak intensity: 1.2 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

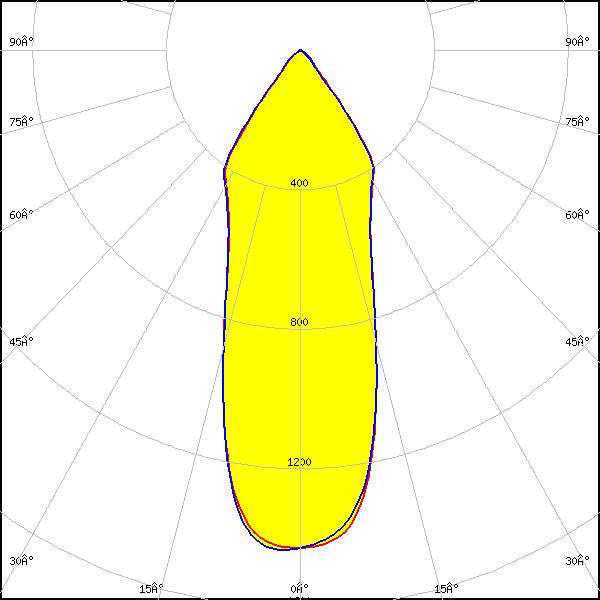

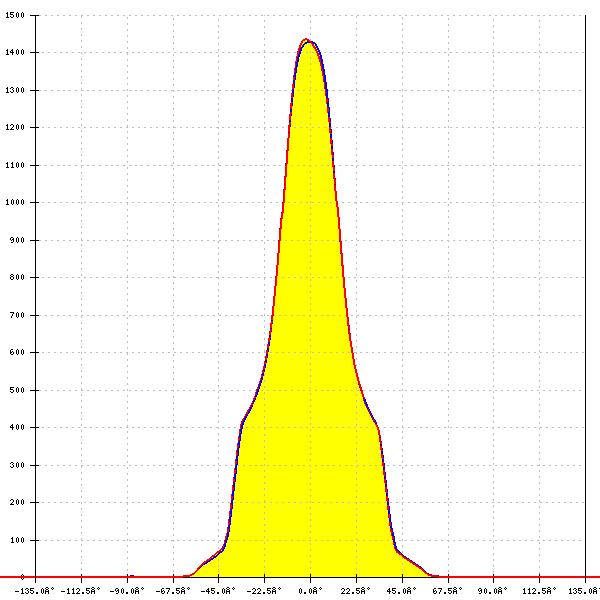

LED: CMA1840
Required components:
FWHM: 36°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

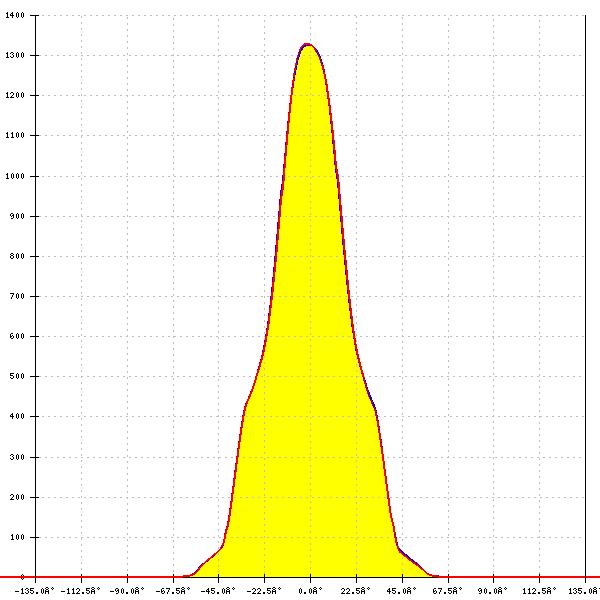

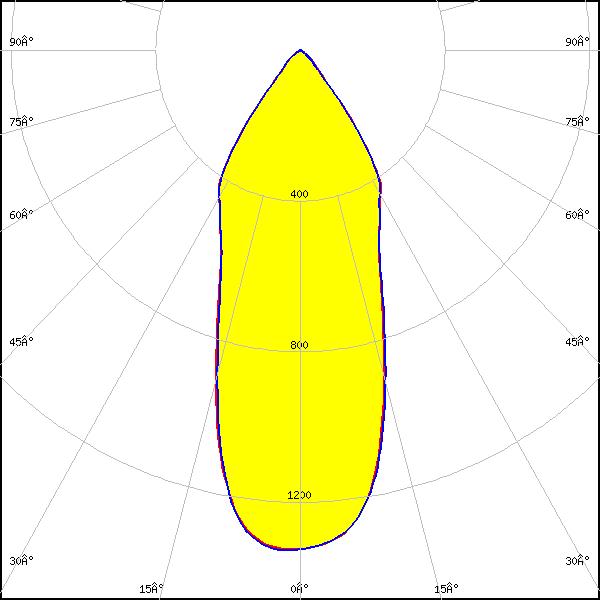

LED: CMA2550
Required components:
FWHM: 39°
FWTM: 81°
Peak intensity: 1.3 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

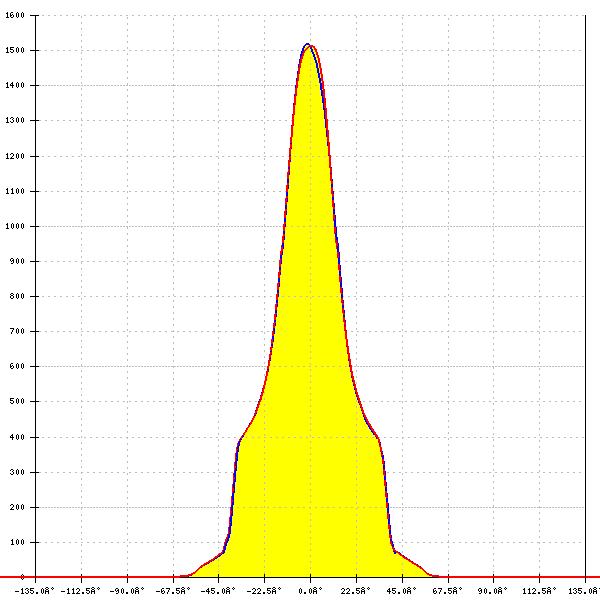

LED: CMT14xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 33°
FWTM: 79°
Peak intensity: 1.5 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

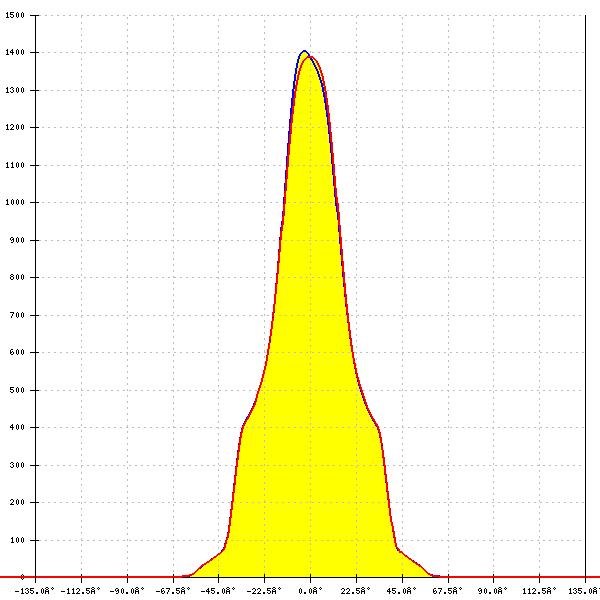

LED: CMT19xx
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 36°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

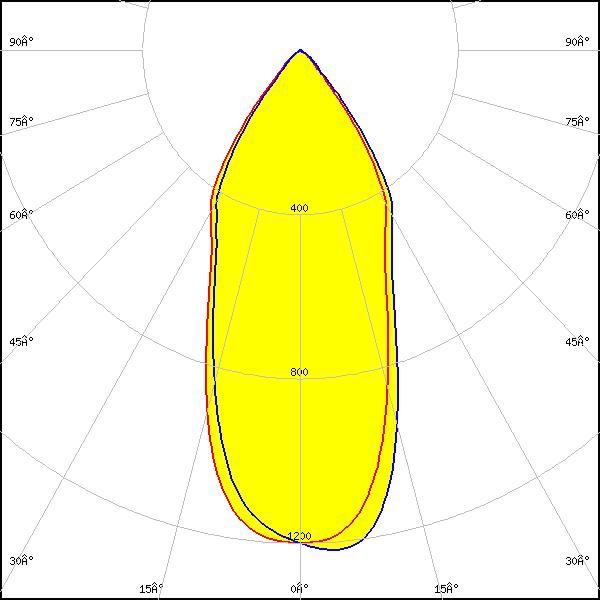

LED: CMT28xx
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 471 Typ L3
FWHM: 43°
FWTM: 83°
Peak intensity: 1.2 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

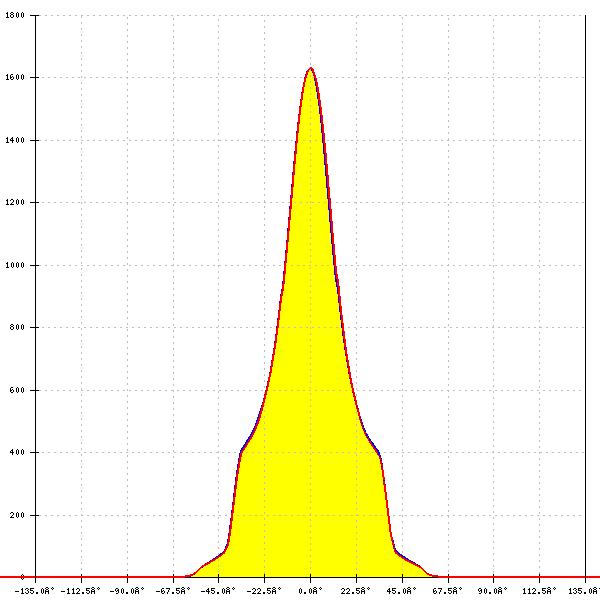

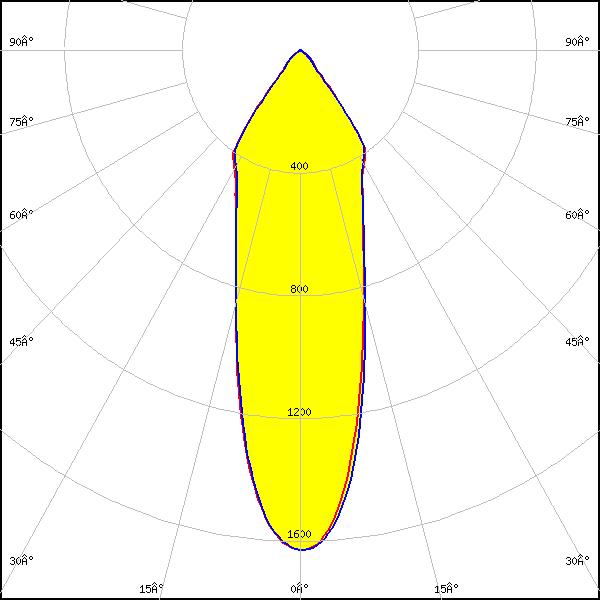

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 31°
FWTM: 79°
Peak intensity: 1.6 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

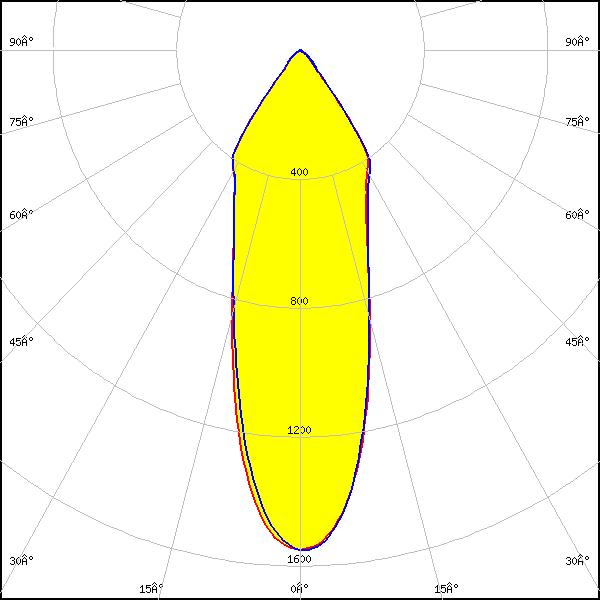

LED: LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 33°
FWTM: 78°
Peak intensity: 1.6 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

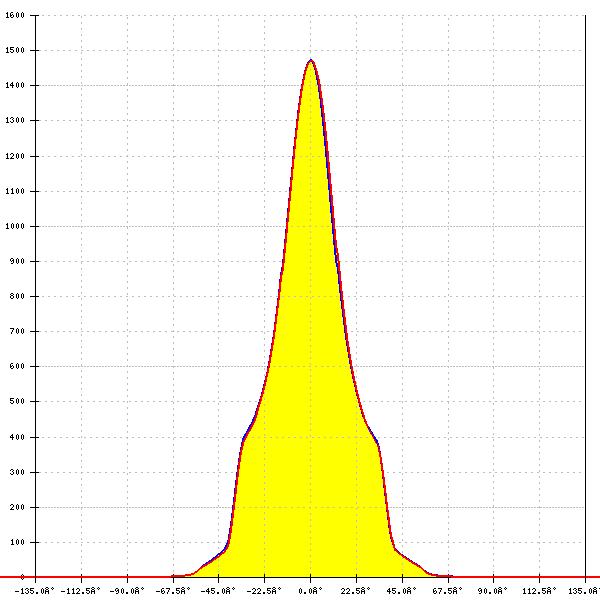

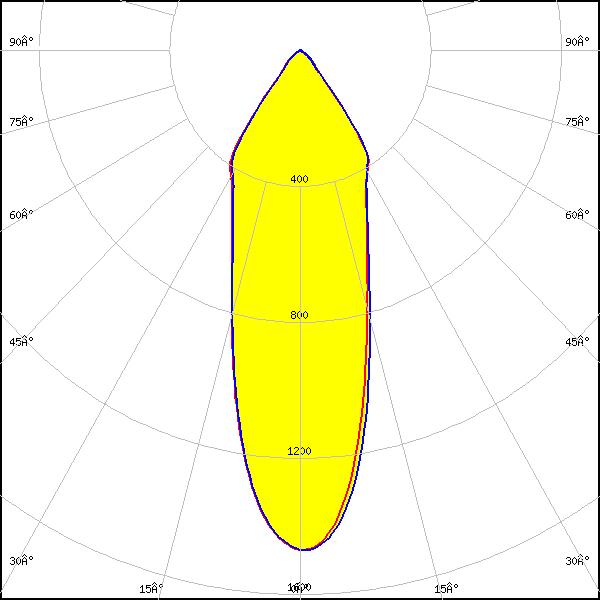

LED: LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F15176_ANGELETTE-LENS
FWHM: 33°
FWTM: 78°
Peak intensity: 1.5 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

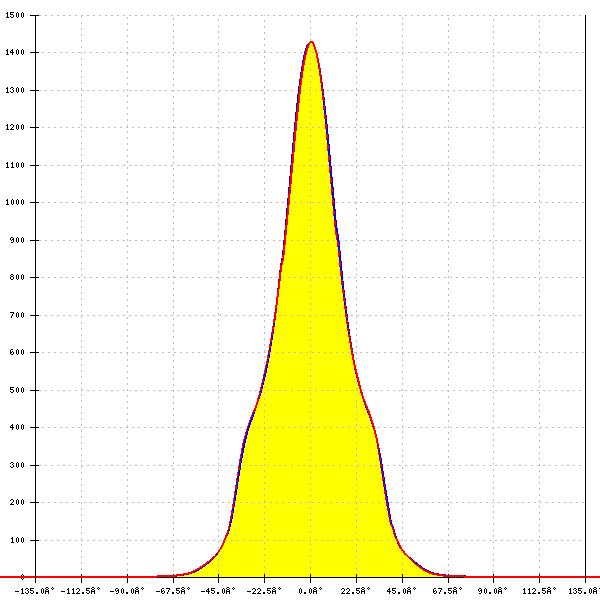

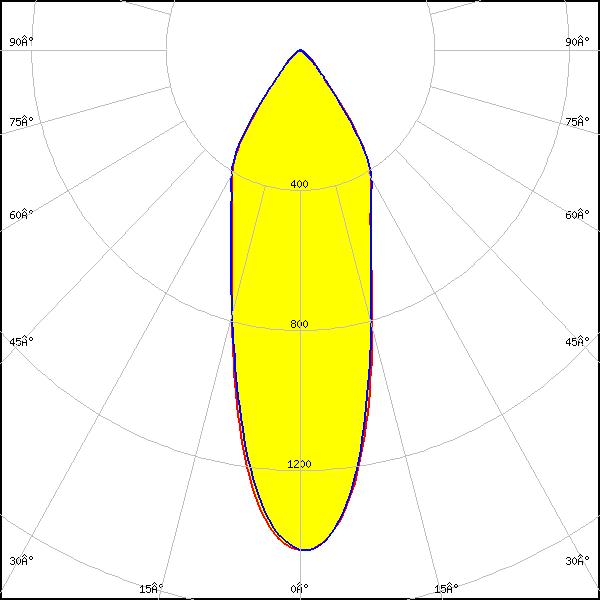

LED: LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F15412_ANGELETTE-DL
FWHM: 34°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

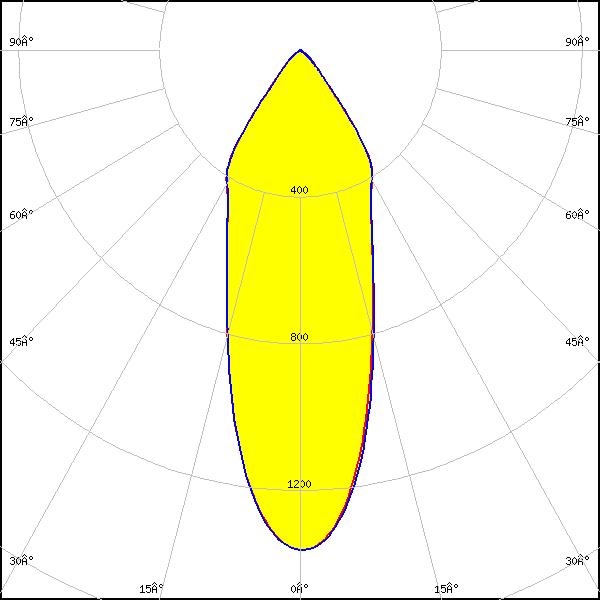

LED: LUXEON CoB 1204/1205
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 35°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1204HD
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 33°
FWTM: 77°
Peak intensity: 1.6 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

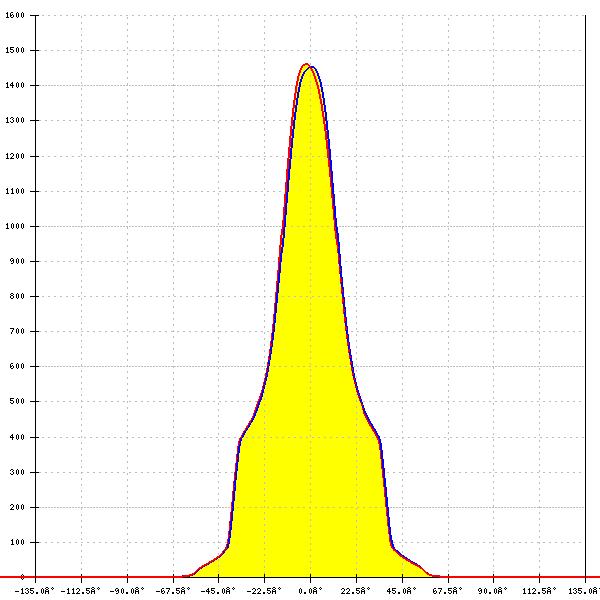

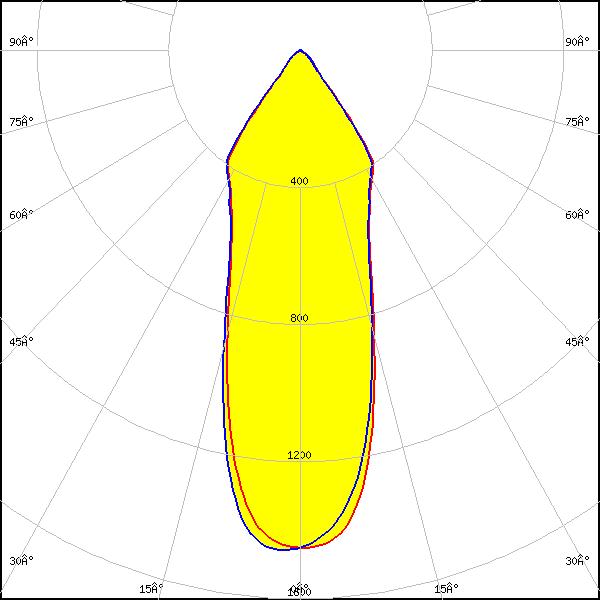

LED: LUXEON CoB 1205HD
Required components:
FWHM: 35°
FWTM: 78°
Peak intensity: 1.5 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

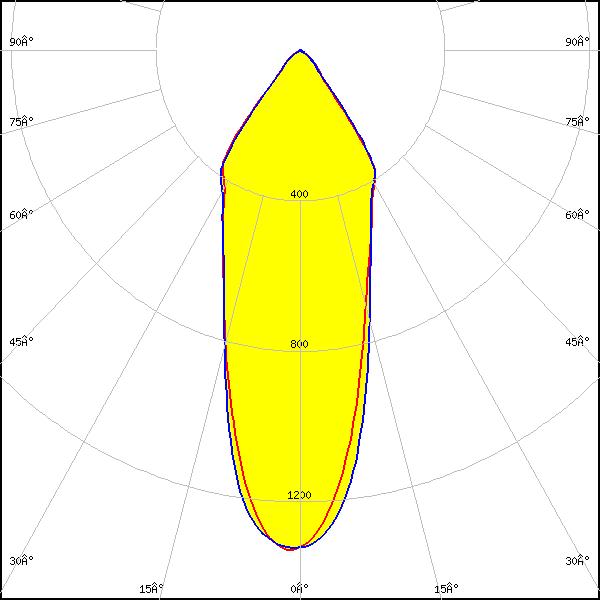

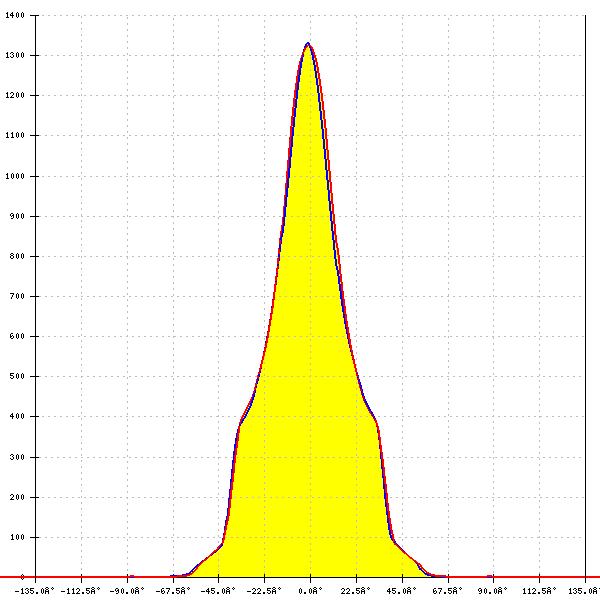

LED: CDM-14 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 35°
FWTM: 80°
Peak intensity: 1.3 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: CDM-14 (Dim-To-Warm)
Required components:
FWHM: 38°
FWTM: 82°
Peak intensity: 1.2 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: CDM-18 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 38°
FWTM: 81°
Peak intensity: 1.3 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

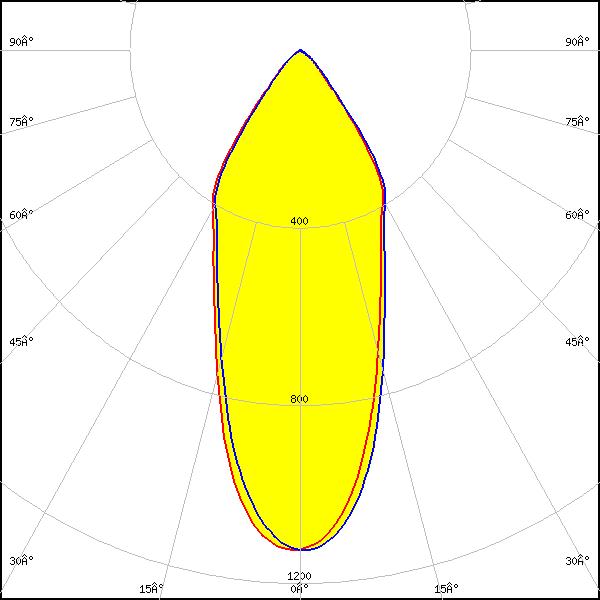

LED: CDM-18 (Dim-To-Warm)
Required components:
FWHM: 41°
FWTM: 83°
Peak intensity: 1.1 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

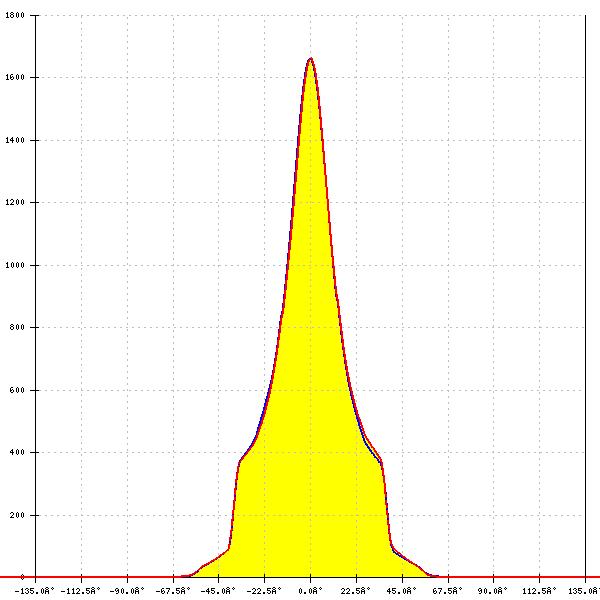

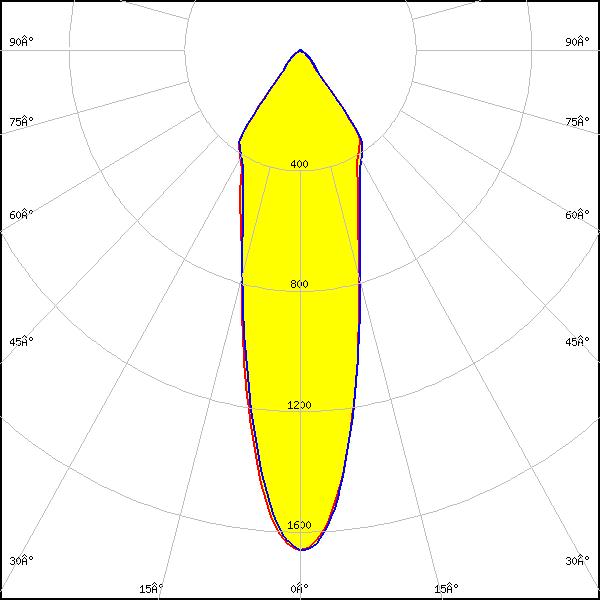

LED: CDM-9 (Dim-To-Warm)
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 490 Typ L1
FWHM: 28°
FWTM: 77°
Peak intensity: 1.7 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: CDM-9 (Dim-To-Warm)
Required components:
FWHM: 32°
FWTM: 79°
Peak intensity: 1.4 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

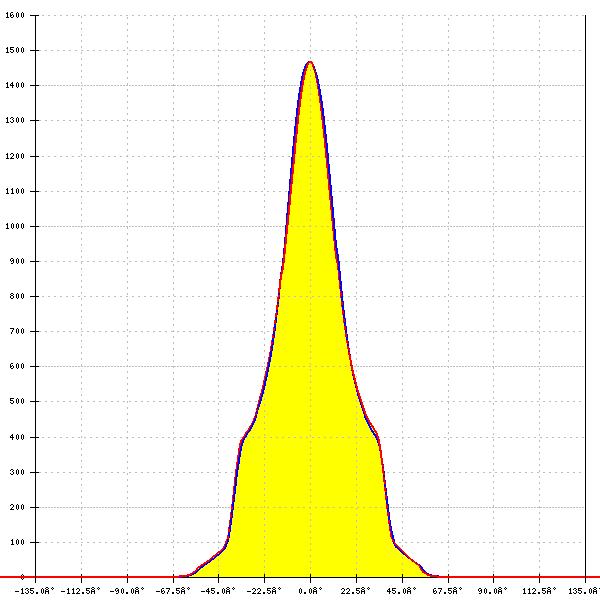

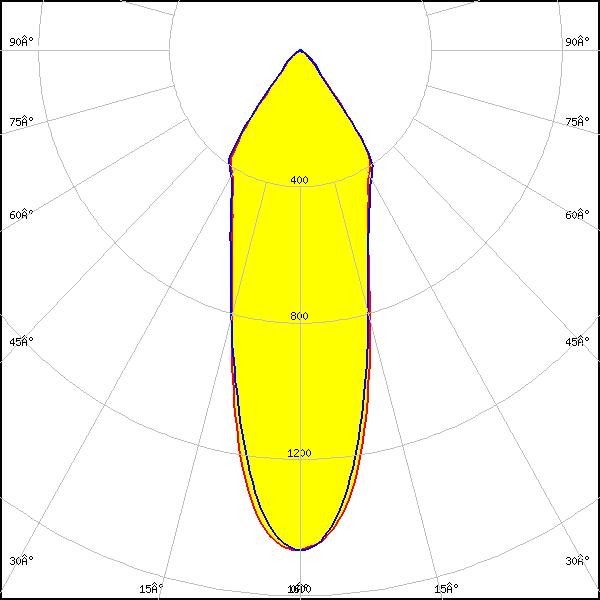

LED: CTM-14 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 442 Typ L3
FWHM: 33°
FWTM: 79°
Peak intensity: 1.5 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: CTM-14 (Tunable White)
Required components:
FWHM: 39°
FWTM: 82°
Peak intensity: 1.2 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

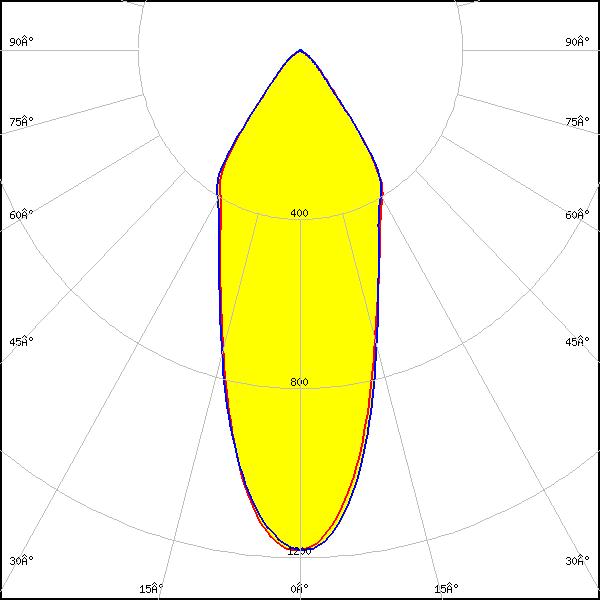

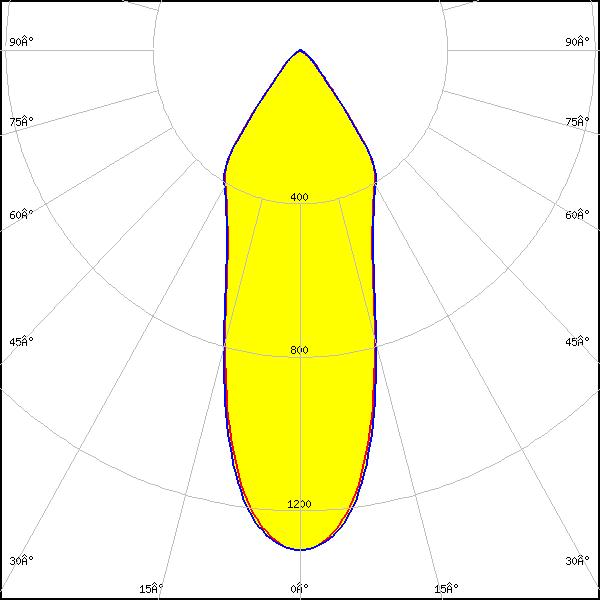

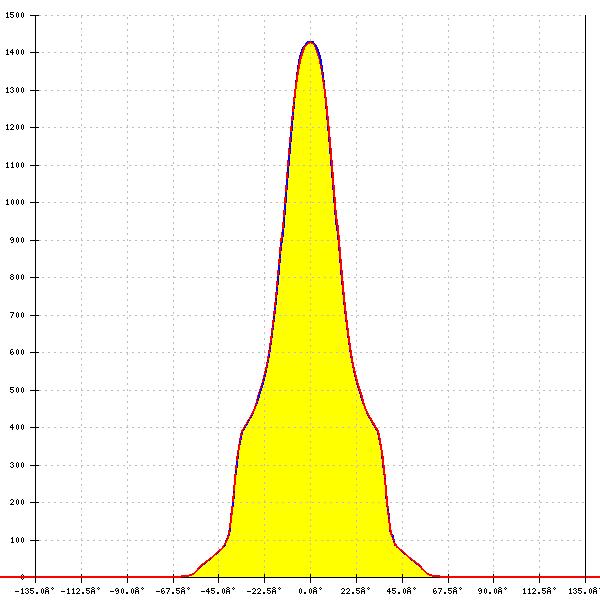

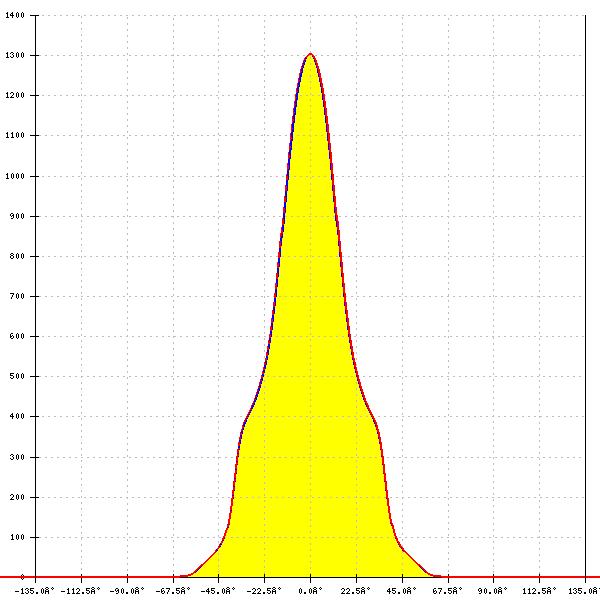

LED: CTM-14 RGBW
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 500 Typ L3-1
F13671_ANGE-RZ-LENS
FWHM: 36°
FWTM: 80°
Peak intensity: 1.3 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: RGBW

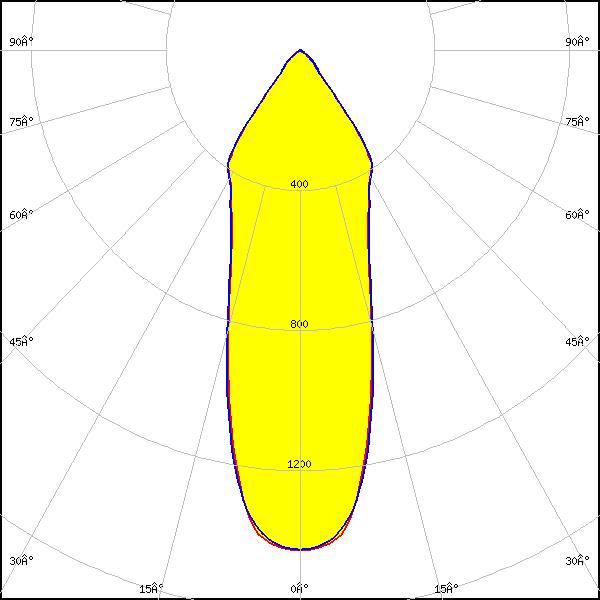

LED: CTM-14 RGBW
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 500 Typ L3-1
F13671_ANGE-RZ-LENS
FWHM: 34°
FWTM: 78°
Peak intensity: 1.5 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: RGBW

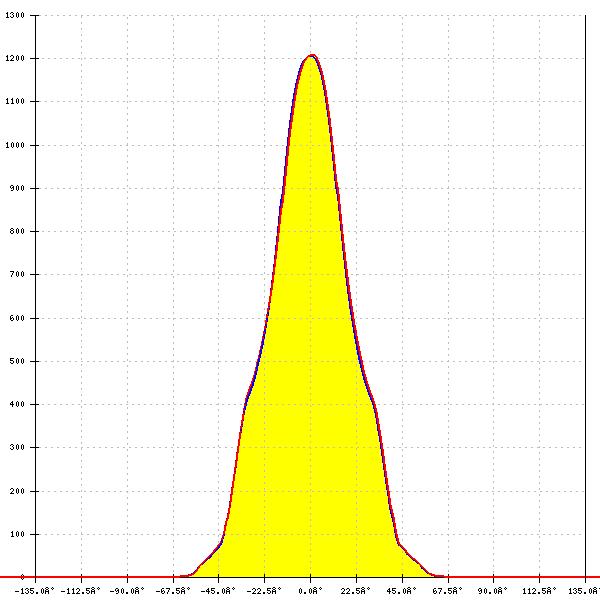

LED: CTM-22 (Tunable White)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 42°
FWTM: 83°
Peak intensity: 1.2 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: CTM-22 (Tunable White)
Required components:
FWHM: 43°
FWTM: 84°
Peak intensity: 1.1 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 498 Typ L2
FWHM: 31°
FWTM: 78°
Peak intensity: 1.6 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM: 34°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 38°
FWTM: 79°
Peak intensity: 1.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: PrevaLED Core G7 L15 H1
Required components:
FWHM: 40°
FWTM: 81°
Peak intensity: 1.2 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

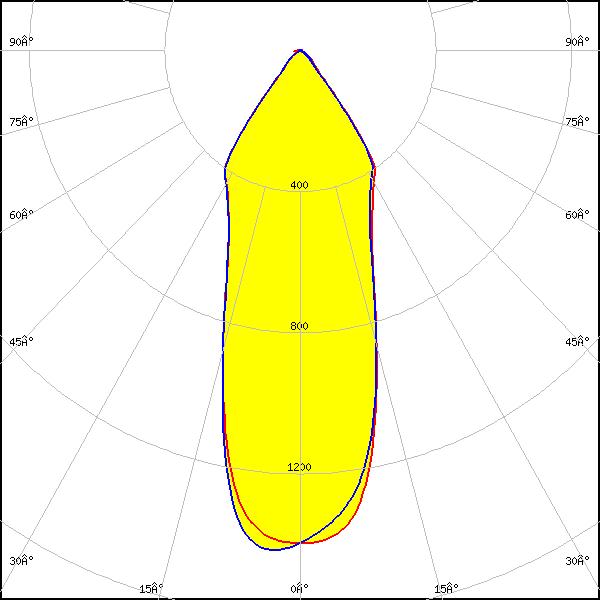

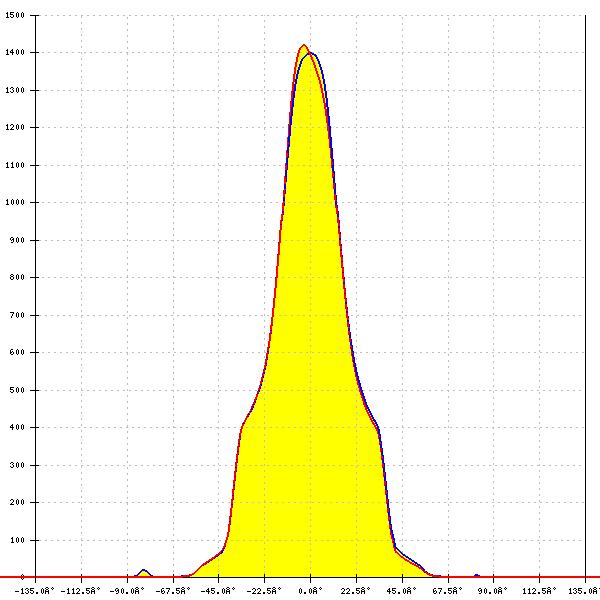

LED: Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 36°
FWTM: 79°
Peak intensity: 1.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 38°
FWTM: 81°
Peak intensity: 1.3 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L15 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 39°
FWTM: 82°
Peak intensity: 1.2 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

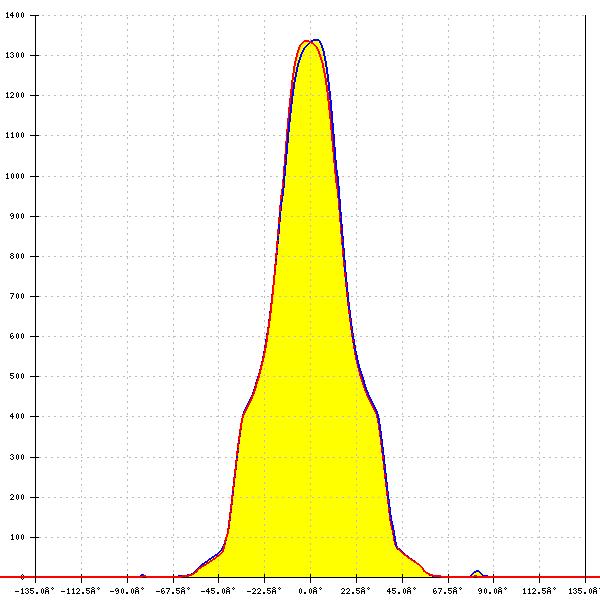

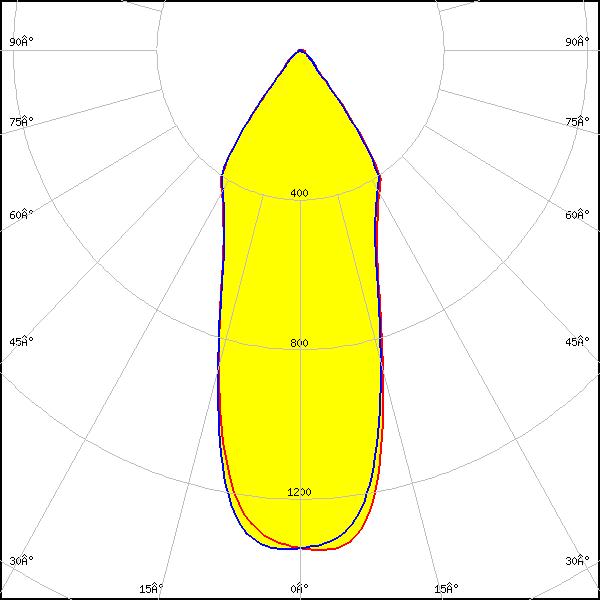

LED: Fortimo SLM L15 CoB
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 38°
FWTM: 80°
Peak intensity: 1.3 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

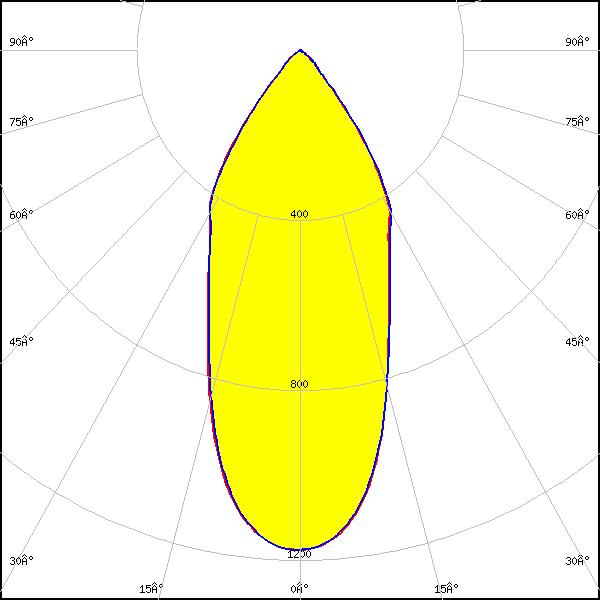

LED: LC035T (Tunable white)
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 502 Typ L3
FWHM: 44°
FWTM: 83°
Peak intensity: 1.2 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LC035T (Tunable white)
Required components:
FWHM: 47°
FWTM: 86°
Peak intensity: 1.0 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: Tunable White

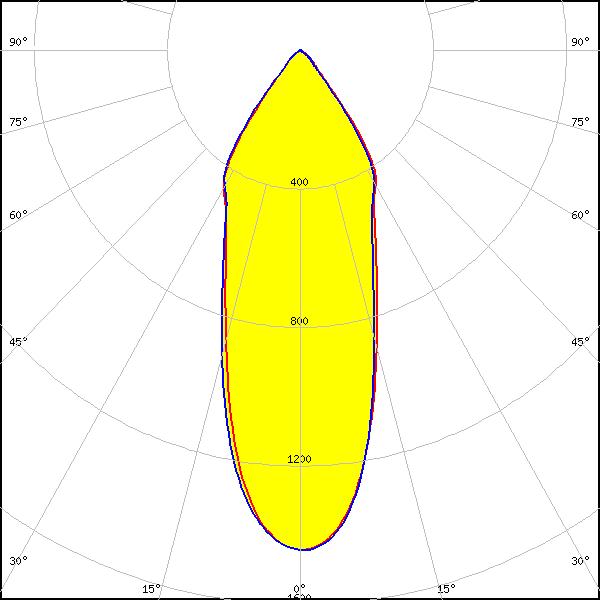

LED: XTM - 19mm LES
Required components:
FWHM: 37°
FWTM: 80°
Peak intensity: 1.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
