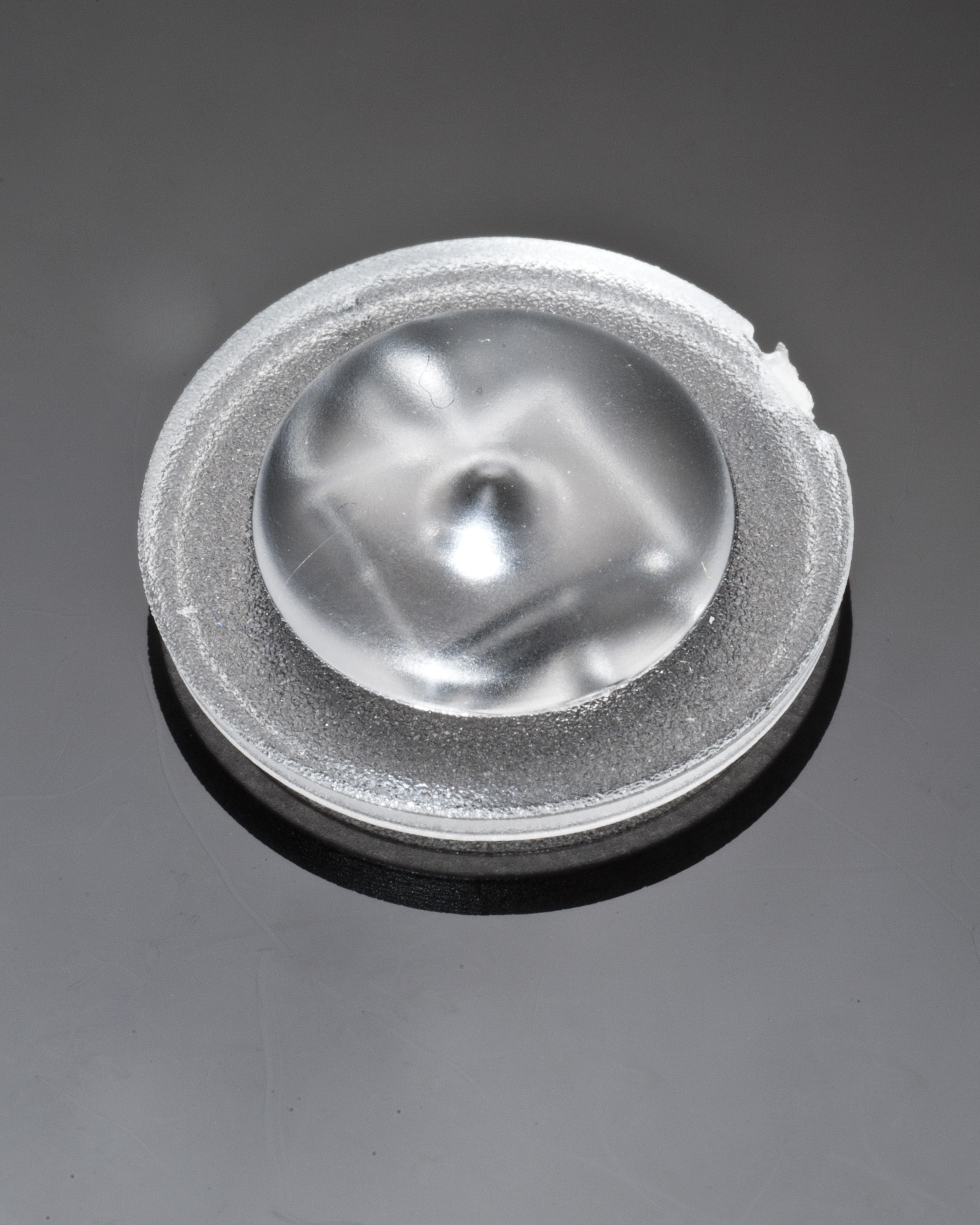

FA11948_JULIA-A
Print
~90° + 160° wide beam. Assembly with installation tape.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
J Series 2835
FWHM:
155°
FWTM:
169°
Peak intensity:
0.356 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

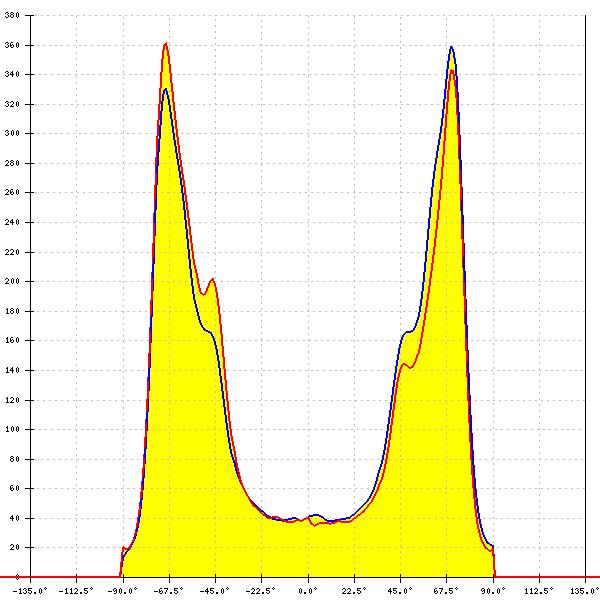

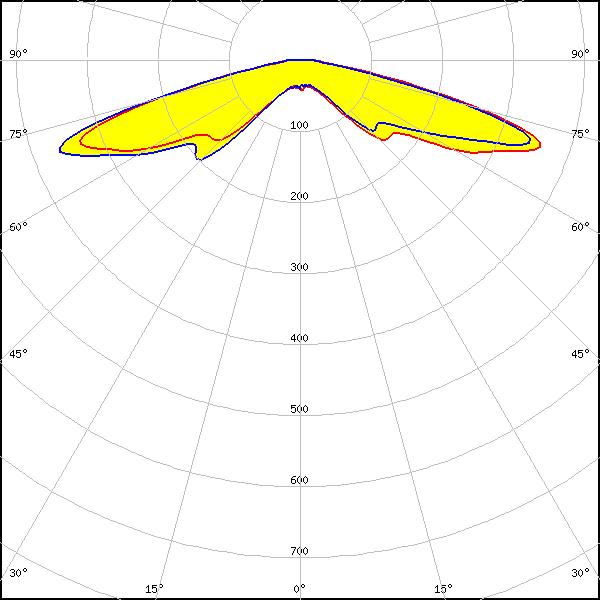

LED:
J Series 3030
FWHM:
153°
FWTM:
166°
Peak intensity:
0.370 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

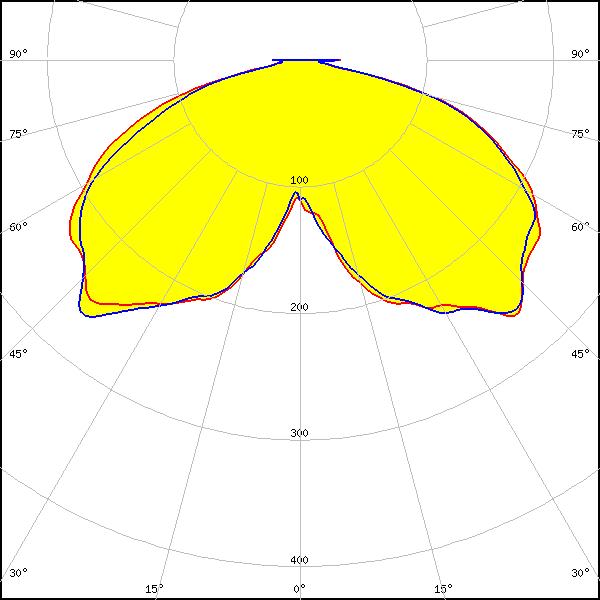

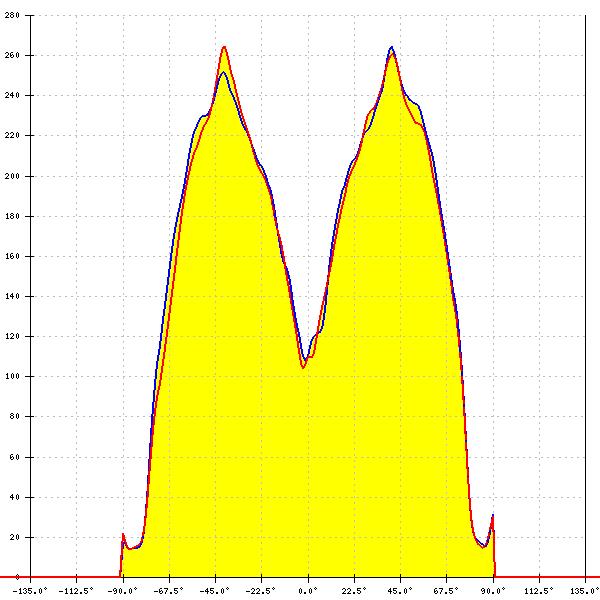

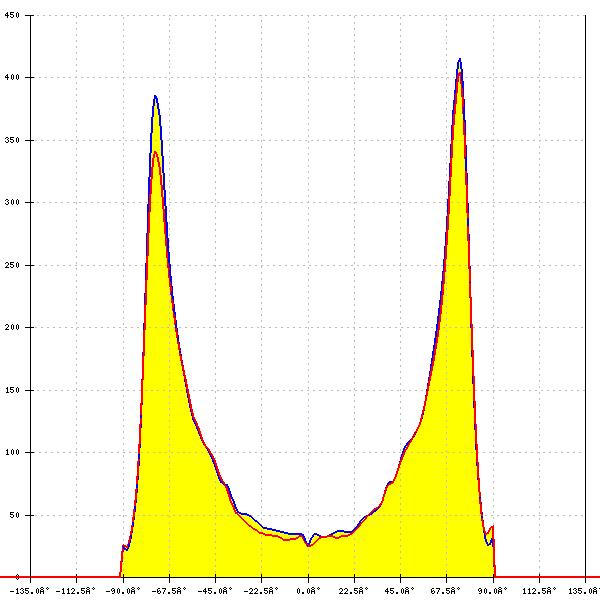

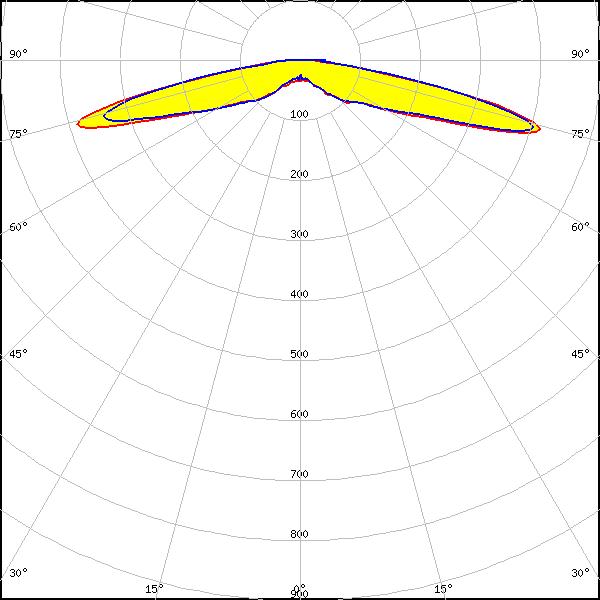

LED:
XE-G
FWHM:
141°
FWTM:
169°
Peak intensity:
0.271 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

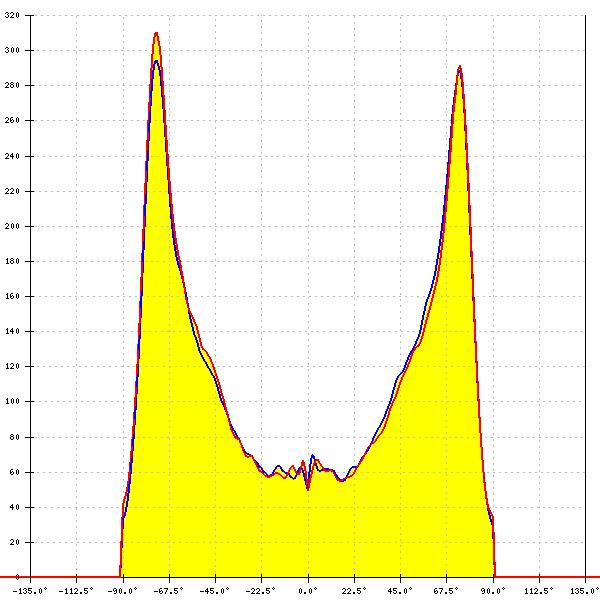

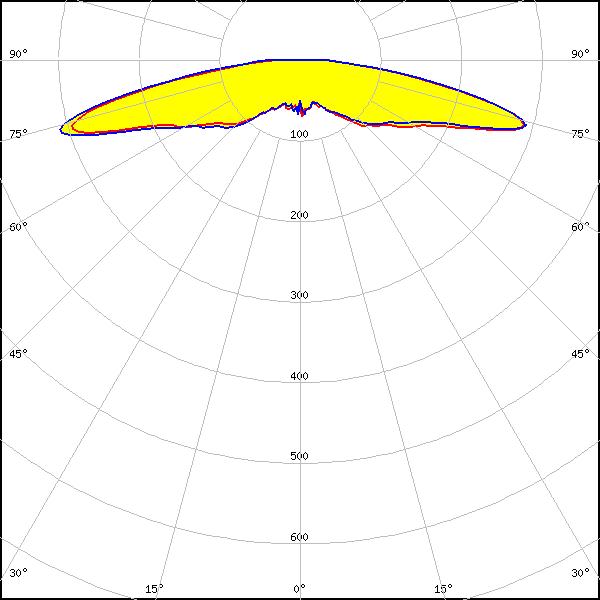

XP-G2 HE
FWHM:
162°
FWTM:
180°
Peak intensity:
0.310 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

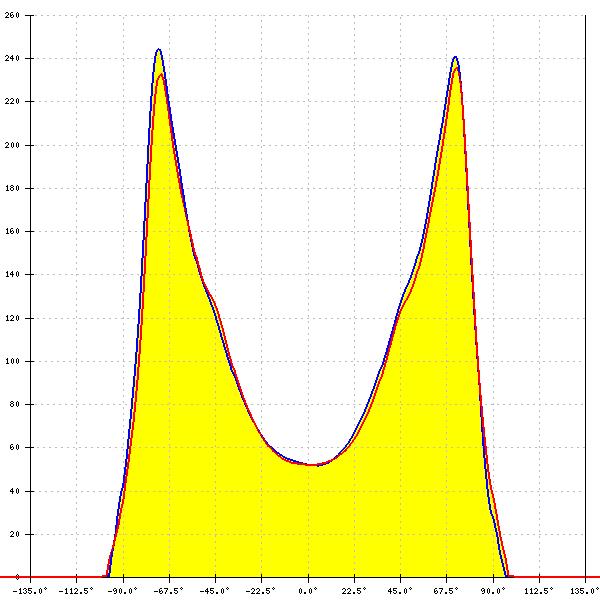

LED:

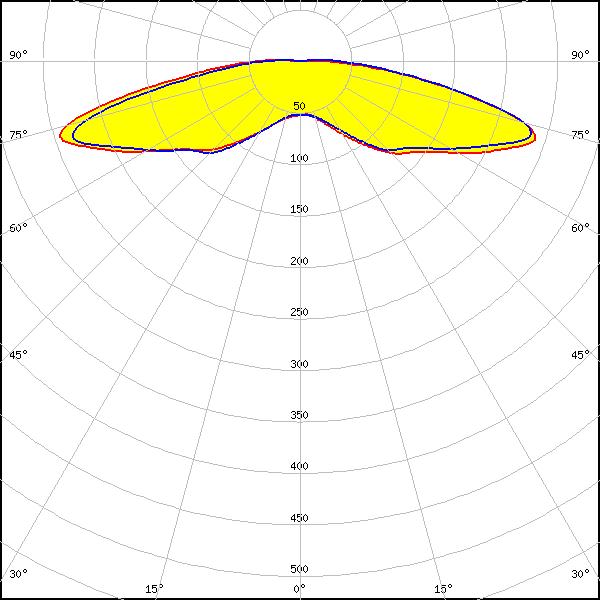

XP-G3
FWHM:
166°
FWTM:
187°
Peak intensity:
0.240 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Compact
FWHM:
141°
FWTM:
167°
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
IR

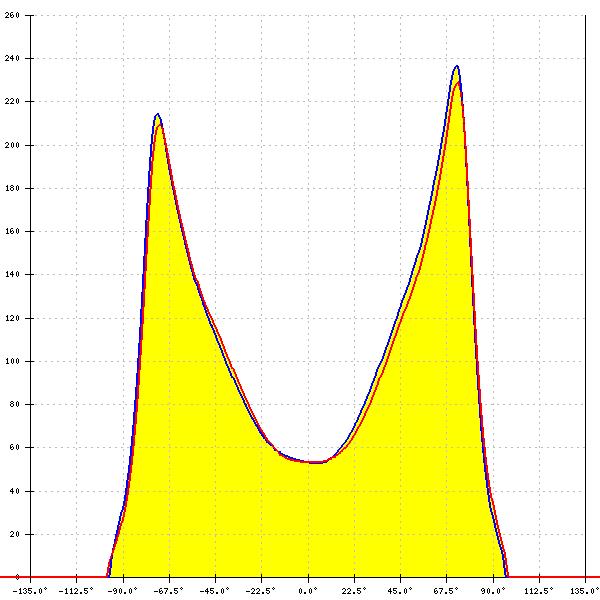

LED:

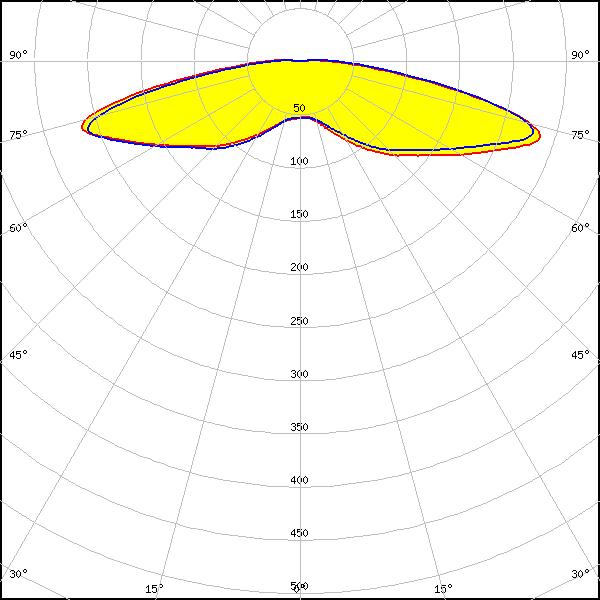

NVSW219F
FWHM:
166°
FWTM:
186°
Peak intensity:
0.240 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

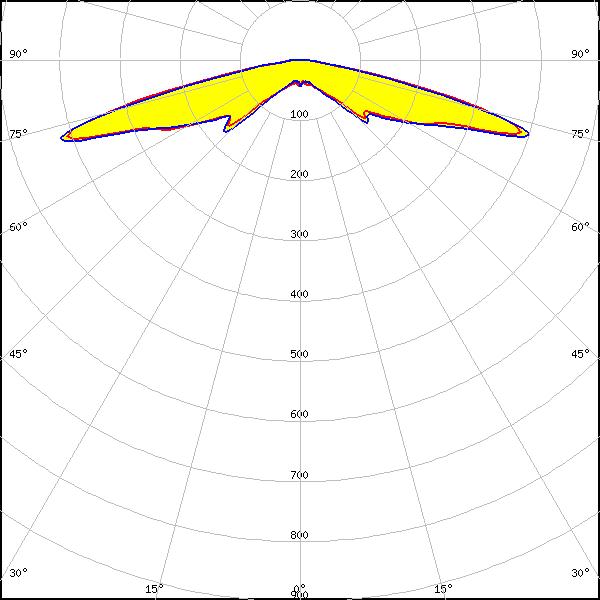

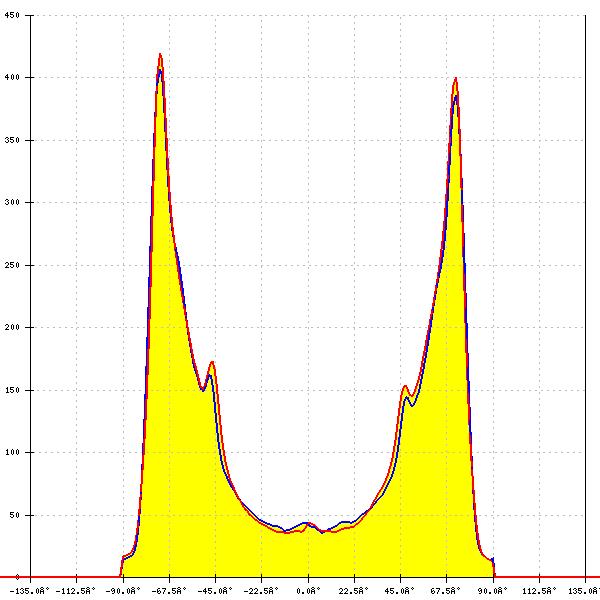

LED:
Duris E 2835
FWHM:
122°
FWTM:
150°
Peak intensity:
0.420 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

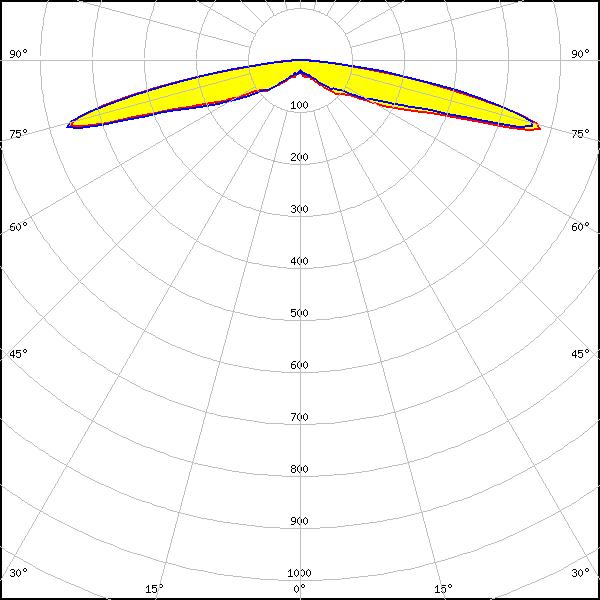

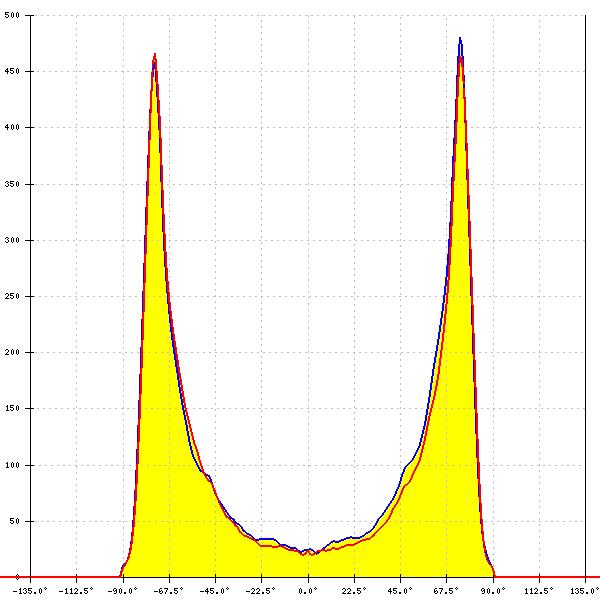

LED:
OSLON SSL 150
FWHM:
159°
FWTM:
-
Peak intensity:
0.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

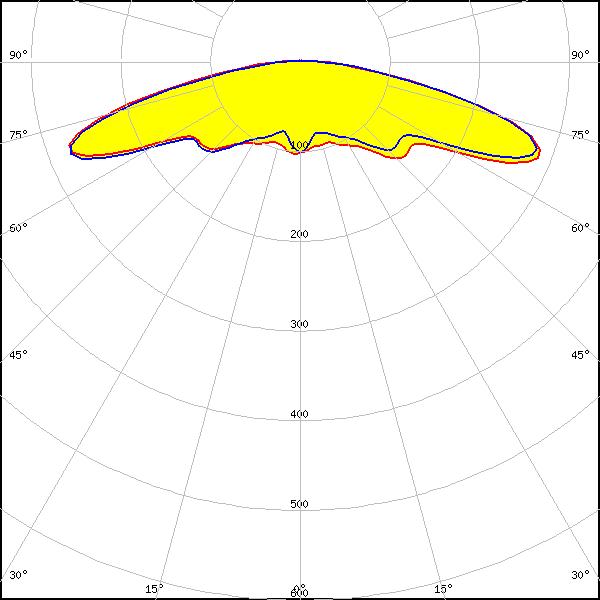

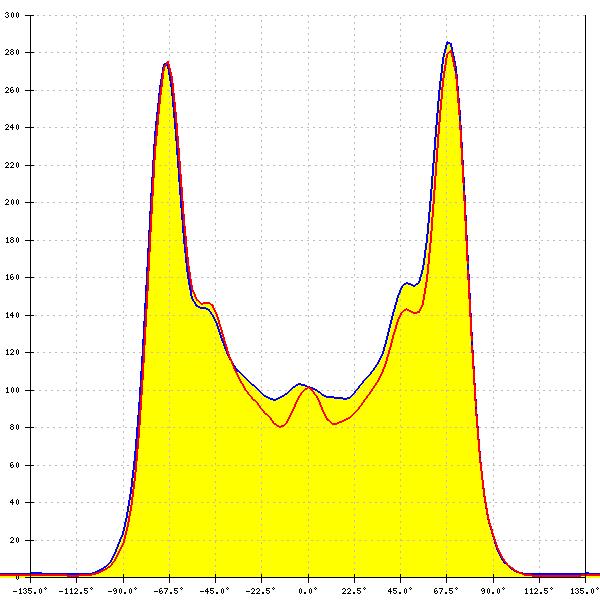

LH351C
FWHM:
158°
FWTM:
176°
Peak intensity:
0.296 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

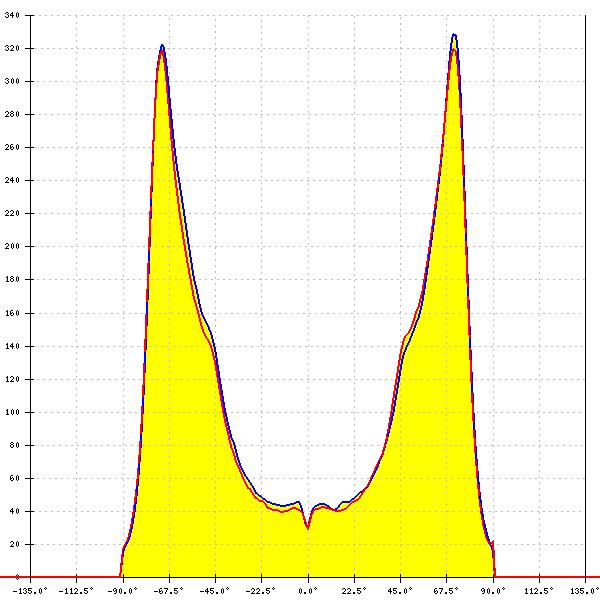

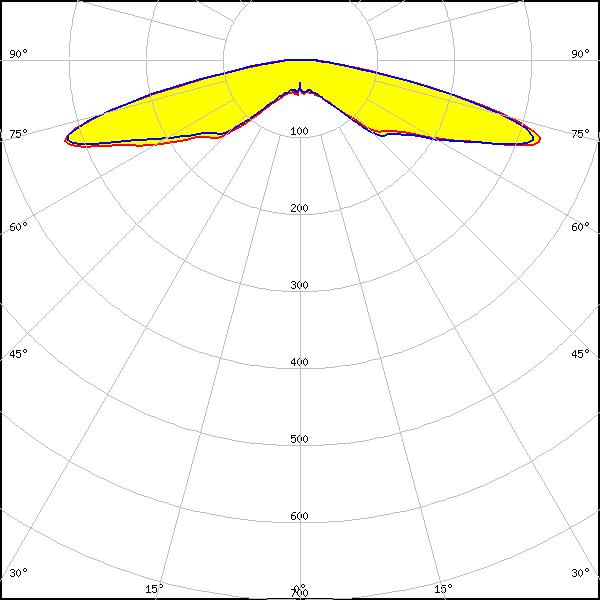

LM301B
FWHM:
156°
FWTM:
172°
Peak intensity:
0.328 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

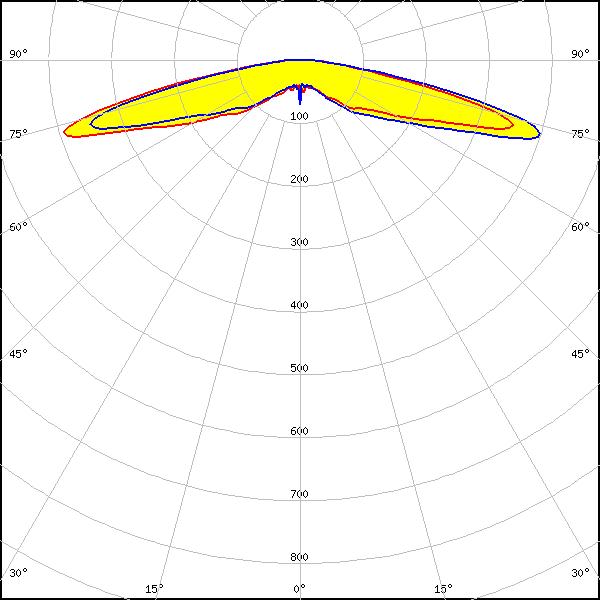

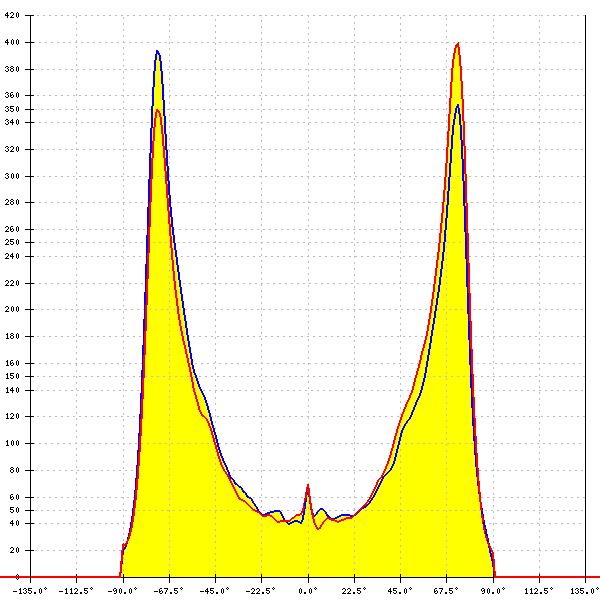

LED:
Z5
FWHM:
160°
FWTM:
-
Peak intensity:
0.240 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
