FN15187_STELLA-T4

Print

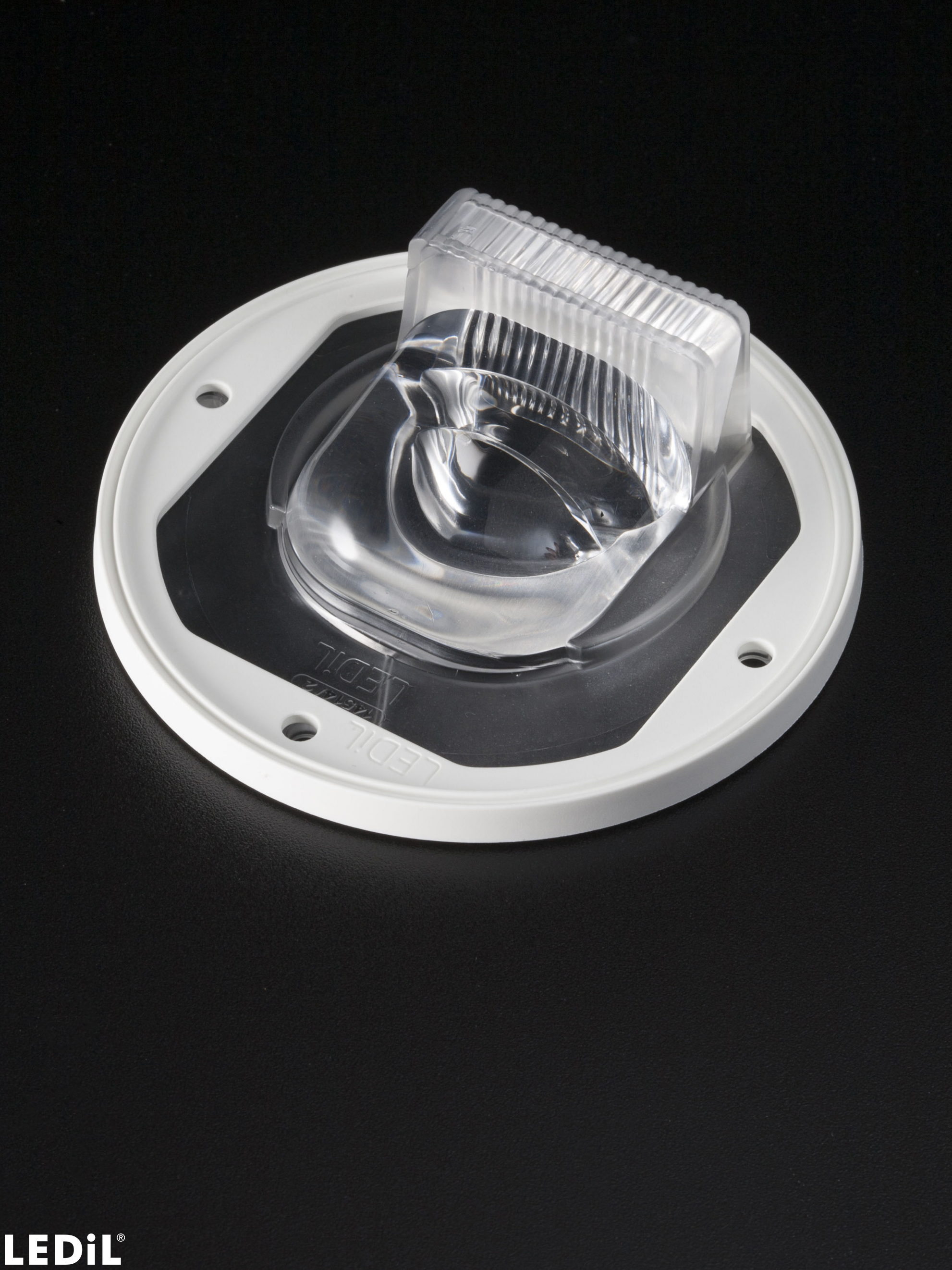

IESNA Type IV for wider roads and area lighting like car parks and gardens. Compatible with up to 23 mm LES size COBs. Variant with white frame.

Specification
  • Dimensions:
    90 mm
  • Height:
    26.90 mm
  • Fastening:
    screw
  • Colour:
    white
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    135 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.1 kg
  • MPQ:
    15 pcs
  • MOQ:
    135 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    7.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FN15187_STELLA-T4

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: V10 Gen7
LES size: 10.2 mm
Required components:
Bender Wirth: 486 Typ L1
FWHM: asymmetric
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
Bender Wirth: 477 Typ Z1
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

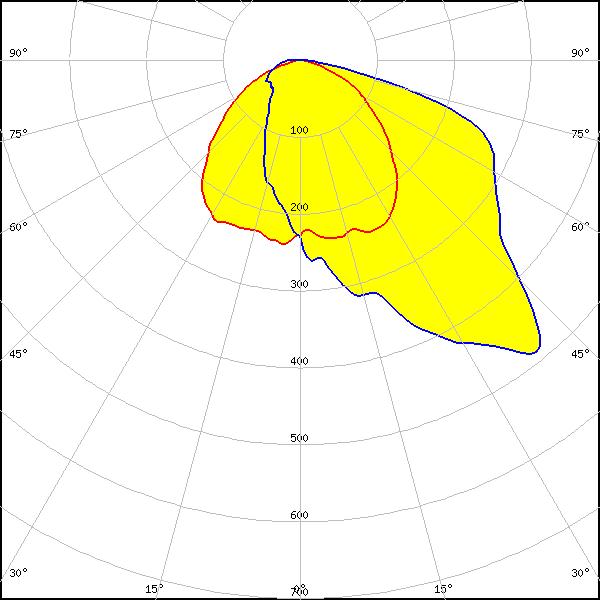

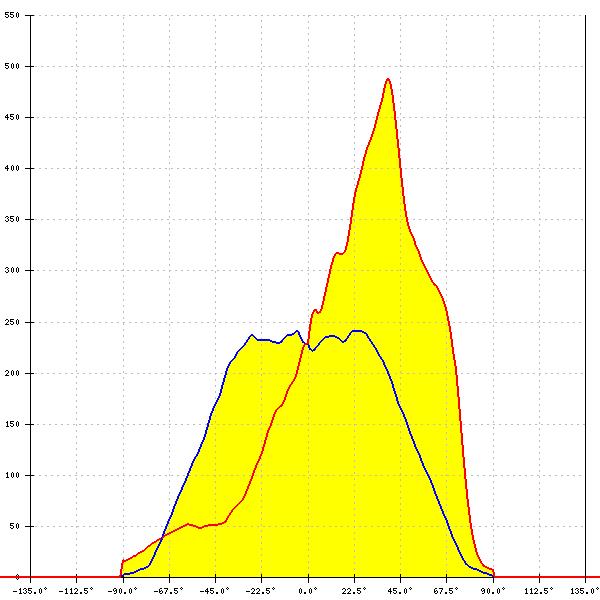

LED: V18 Gen7
LES size: 19.2 mm
FWHM: asymmetric
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

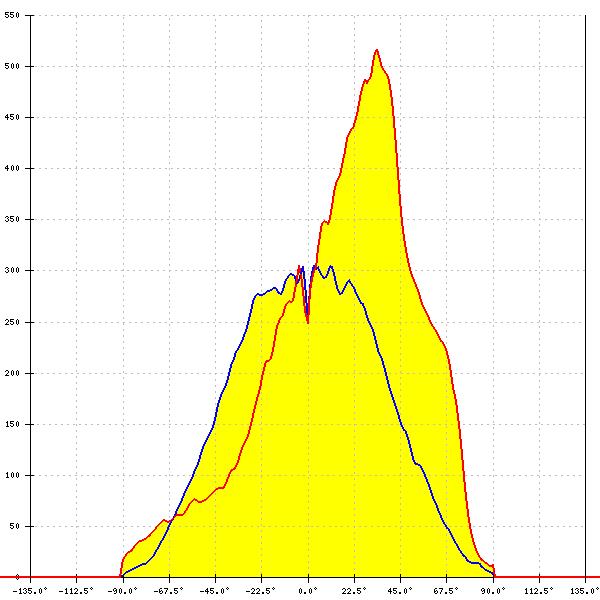

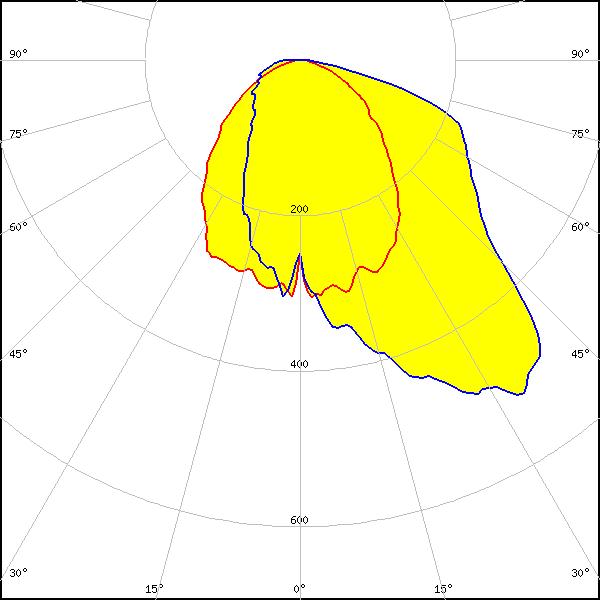

LED: V22 Gen7
LES size: 22.6 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM: asymmetric
Peak intensity: 0.516 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: V22 Gen7
LES size: 22.6 mm
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO18
LES size: 18.6 mm
FWHM: asymmetric
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

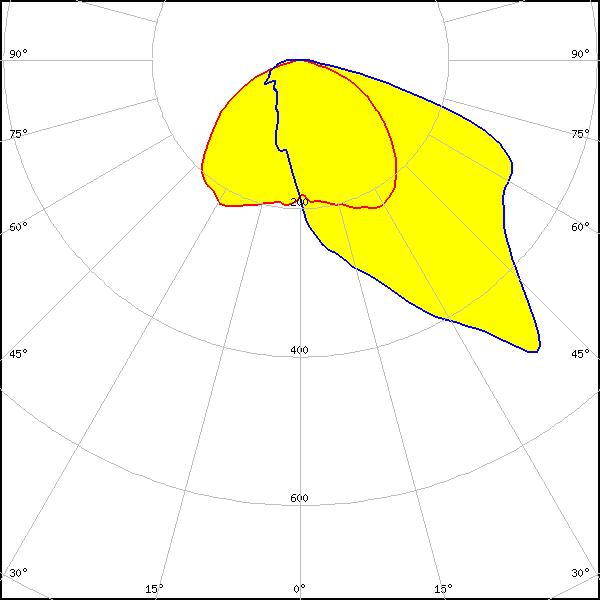

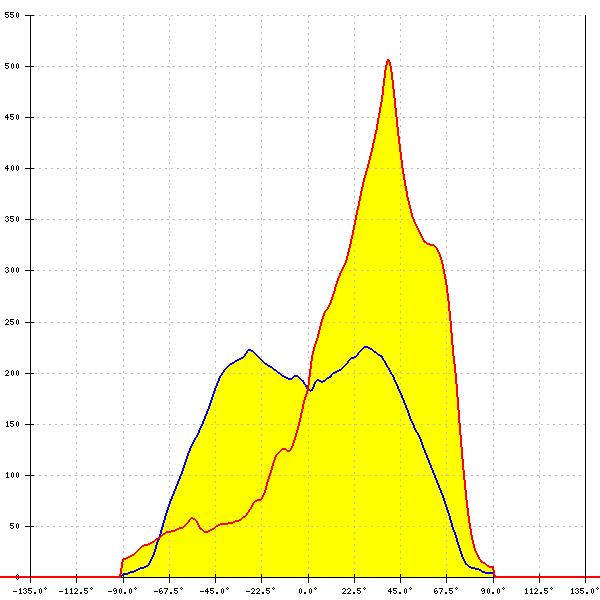

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ Z1
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
FWHM: asymmetric
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

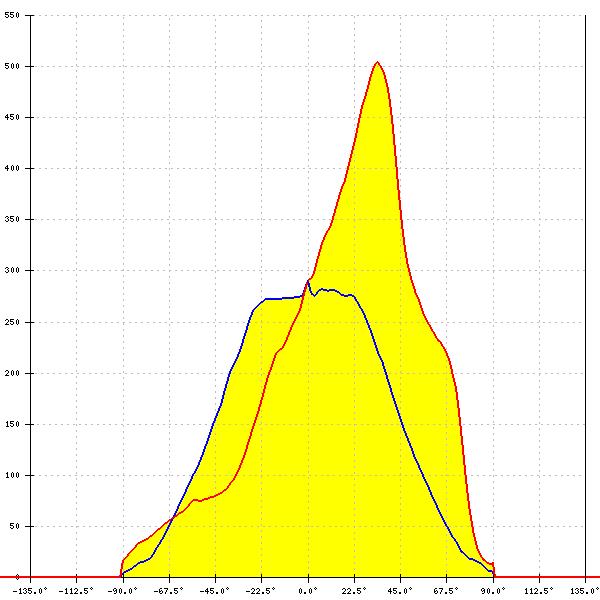

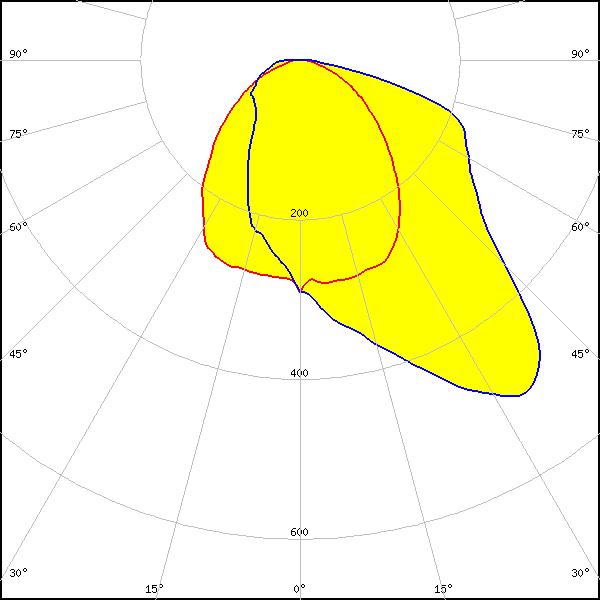

LED: CLL04x/CLU04x
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

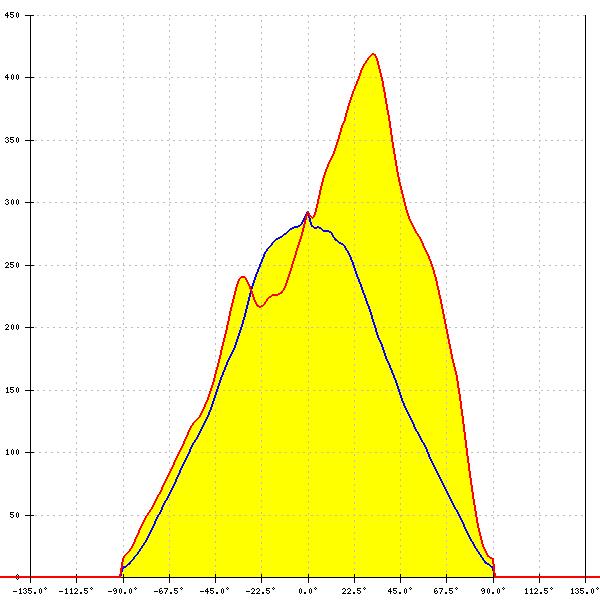

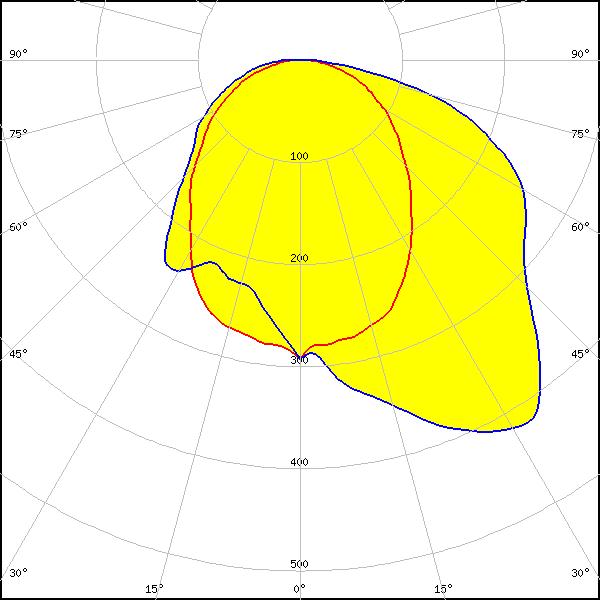

LED: CLL05x/CLU05x
LES size: 32.8 mm
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

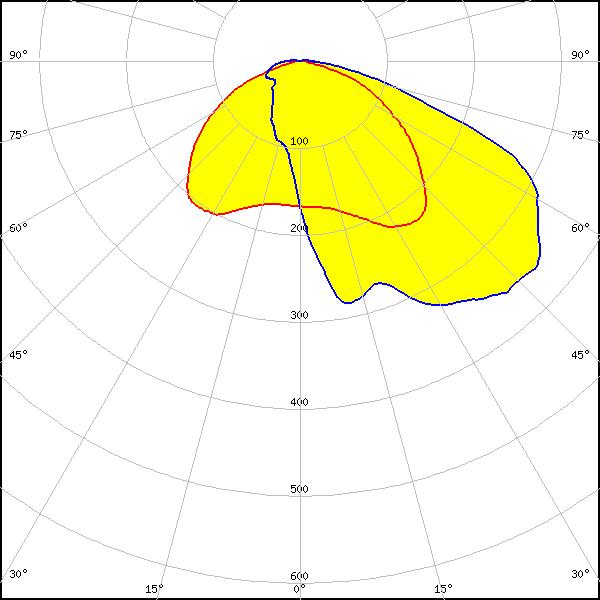

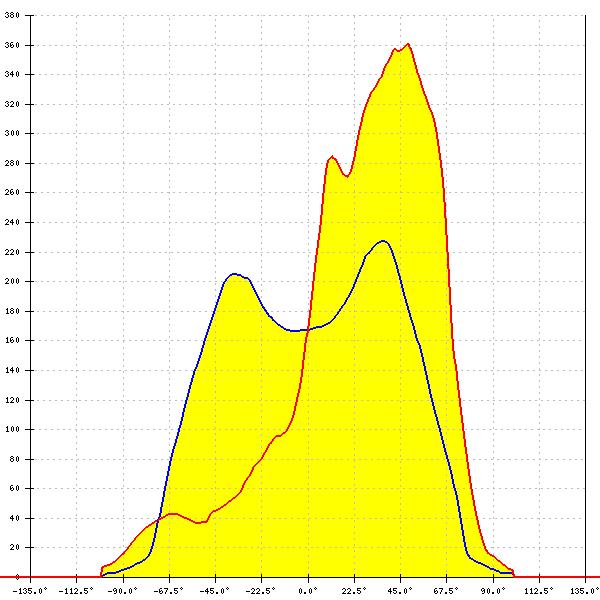

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1830
LES size: 14.0 mm
FWHM: asymmetric
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

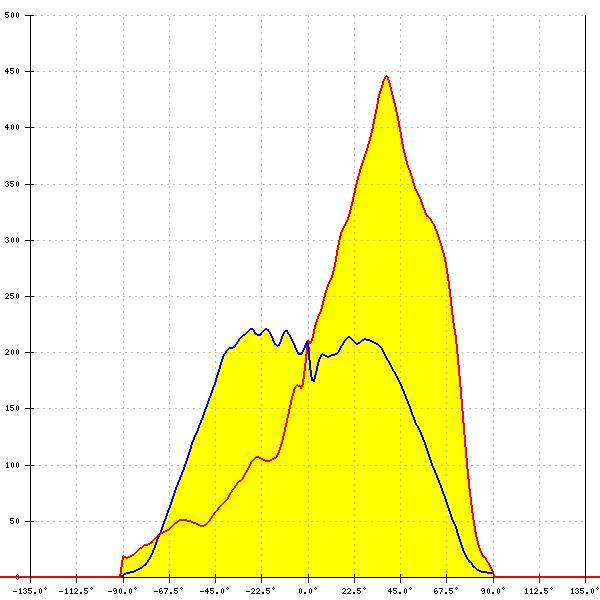

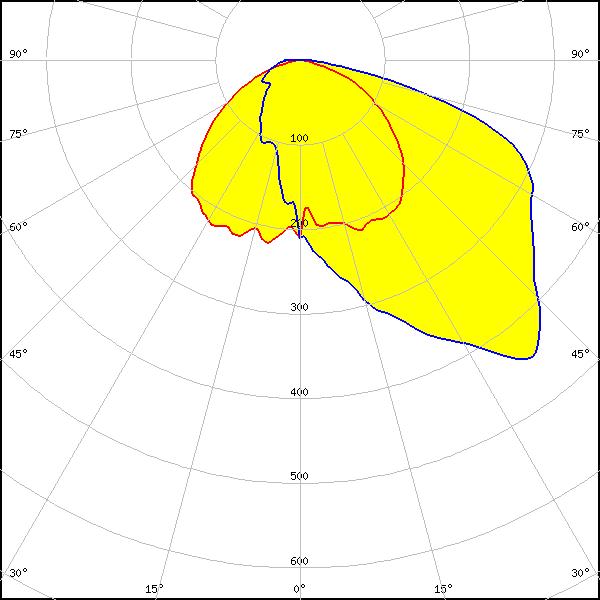

LED: CXA/B 25xx
LES size: 19.0 mm
FWHM: asymmetric
Peak intensity: 0.450 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 30xx
LES size: 23.0 mm
FWHM: asymmetric
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1208
LES size: 15.0 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1211
LES size: 18.5 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-18 (21.5x21.5)
LES size: 17.5 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

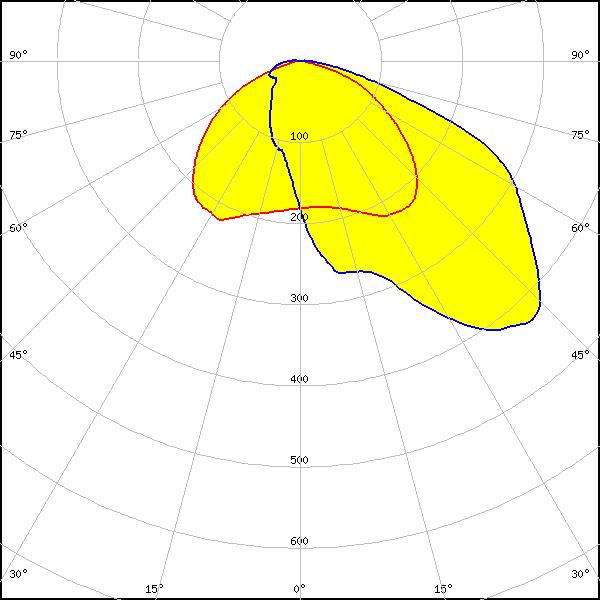

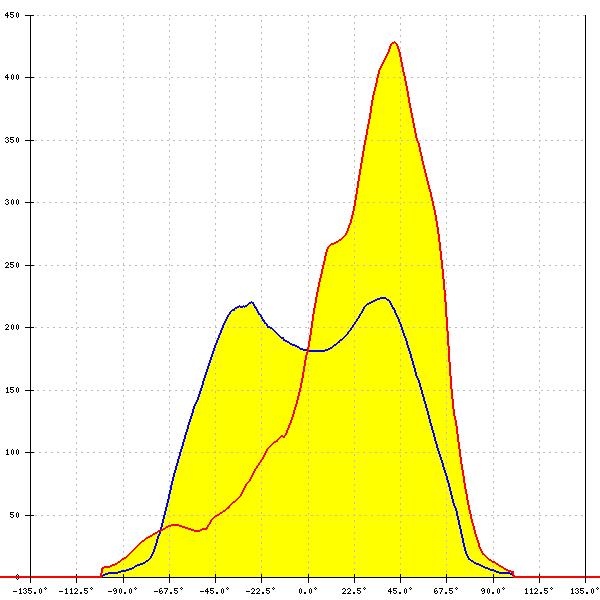

LED: COB J-Type
LES size: 14.6 mm
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13
LES size: 13.2 mm
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S19
LES size: 17.9 mm
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LC040D / LC060D / LC080D
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 14.5
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ Z1
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

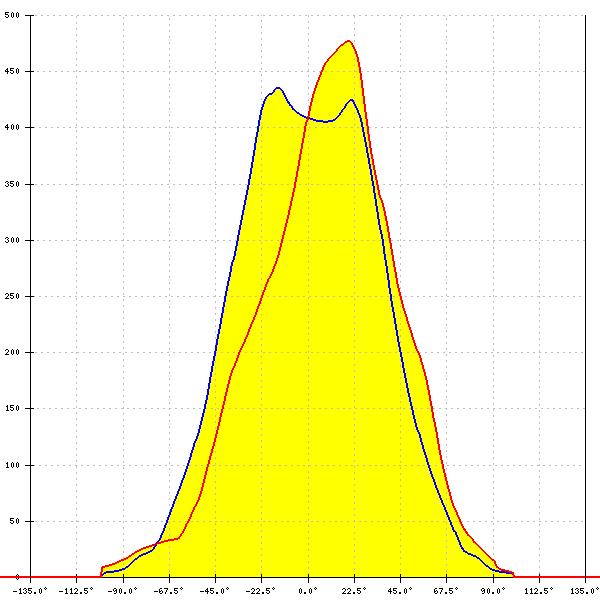

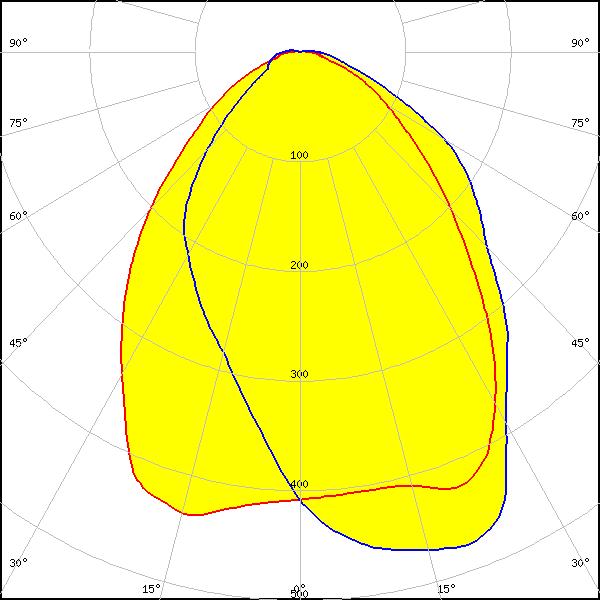

LED: MJT COB LES 22
LES size: 22.0 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
