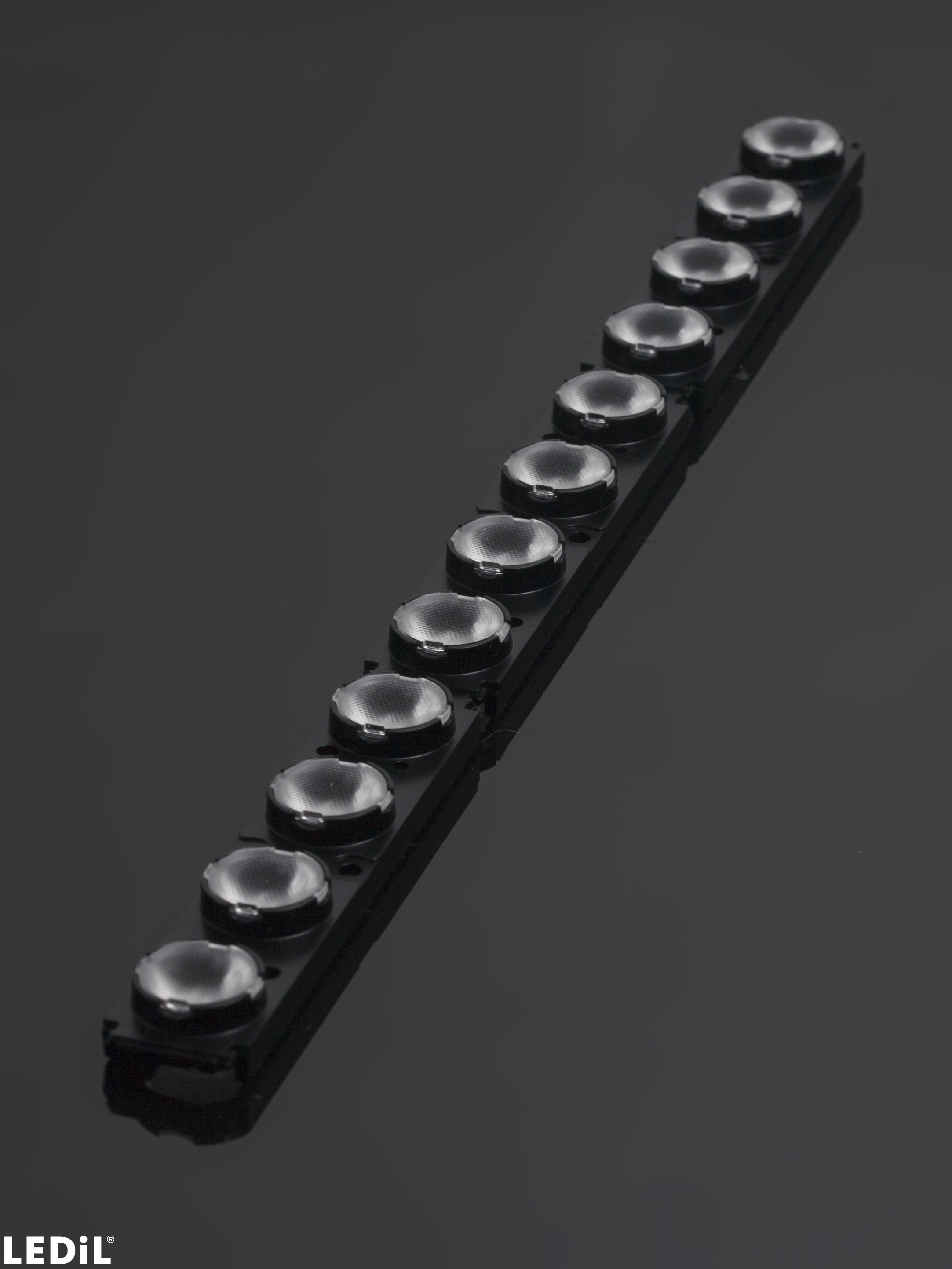

FP16391_FLORENTINA-HLD-BW

~60° batwing beam

Specification

Dimensions:

286 x 20 mm
Height:

10.20 mm
Fastening:

clips
Colour:

black
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

TINA-BW
Single lens
PMMA
FLORENTINA-HLD
Holder
PC
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

160 pcs
Box size:

398 x 298 x 140 mm
Box weight:

3.6 kg
MPQ:

16 pcs
MOQ:

32 pcs
MOQ size:

400 x 300 x 50 mm
MOQ weight:

1.1 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: FP16391_FLORENTINA-HLD-BW

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

FP16391_FLORENTINA-HLD-BW

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR146 - Change of Florentina holder designs

News

New Products - 2018-05-09

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Compatibility guide

FLORENTINA Assemblies

Application guide

Guide for Office Lighting Optics

News

Effective fashion retail lighting

Article

Understanding the standards but aiming higher

Article

Stylish yet functional LED office lighting

News

PRODUCT NEWS - FLORENTINA-OPEN

Application area

Indoor Architectural Lighting

Application area

Office Lighting

Application area

Retail Lighting

AVAILABLE LEDiL ACCESSORIES

FLORENCE-1R-CLIP-A

Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

FLORENCE-1R-CLIP-B

Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

FLORENTINA-SHD

Black shade for FLORENTINA (12X1) assemblies

FLORENCE-1R-CLIP-C

Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

FLORENTINA-SHD-WHT

White shade for FLORENTINA (12X1) assemblies

Optical results

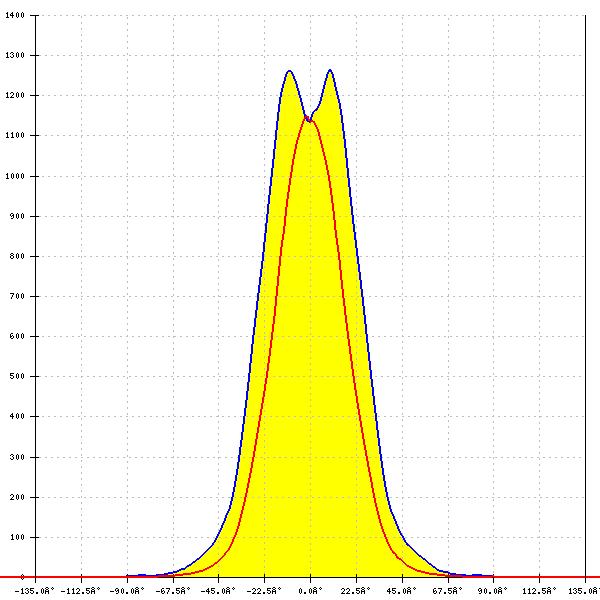

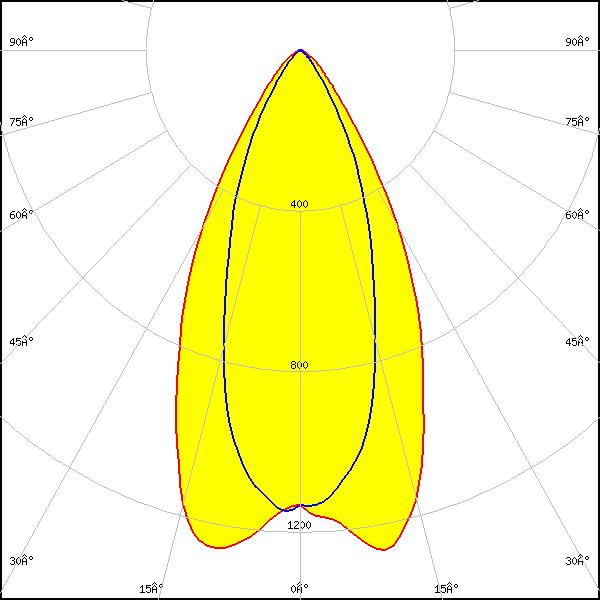

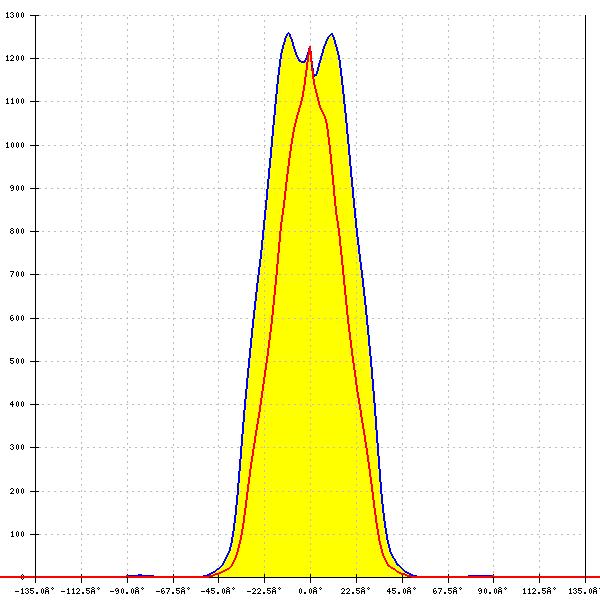

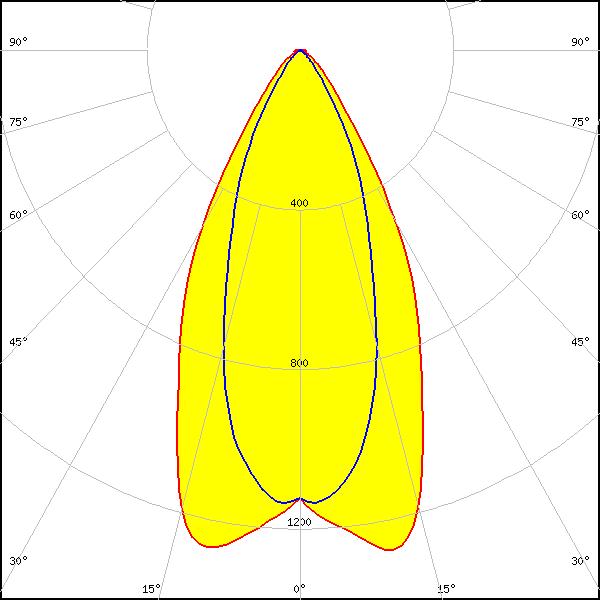

LED: JB3030 HE B Class

FWHM: asymmetric

Peak intensity: 1.278 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

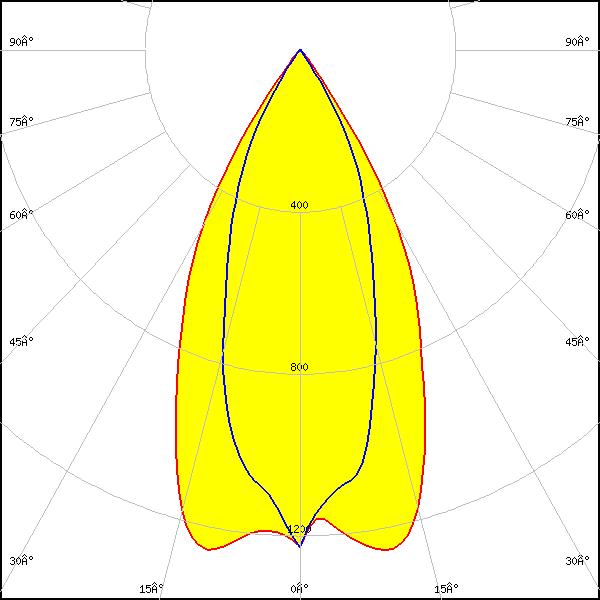

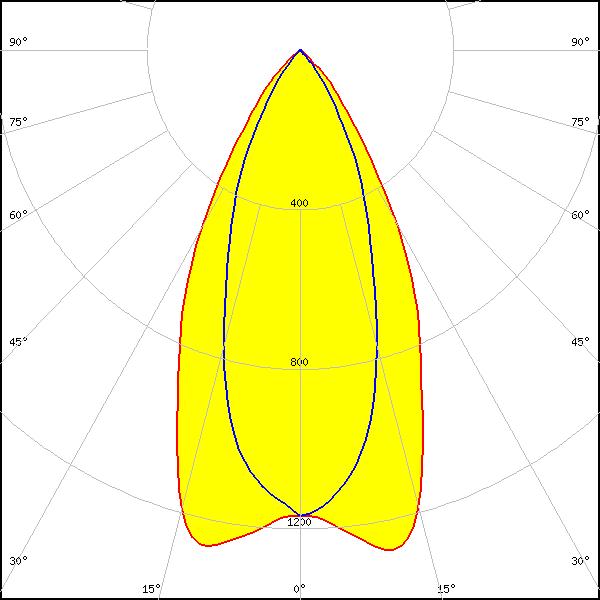

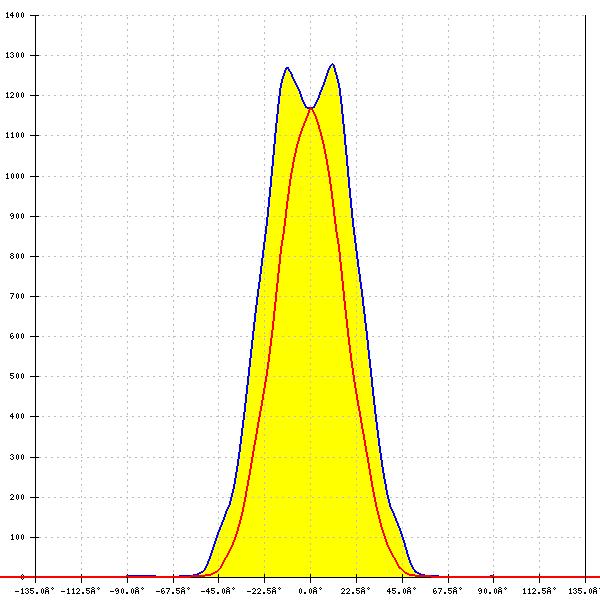

LED: JB3030 HE B Class

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 1.279 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

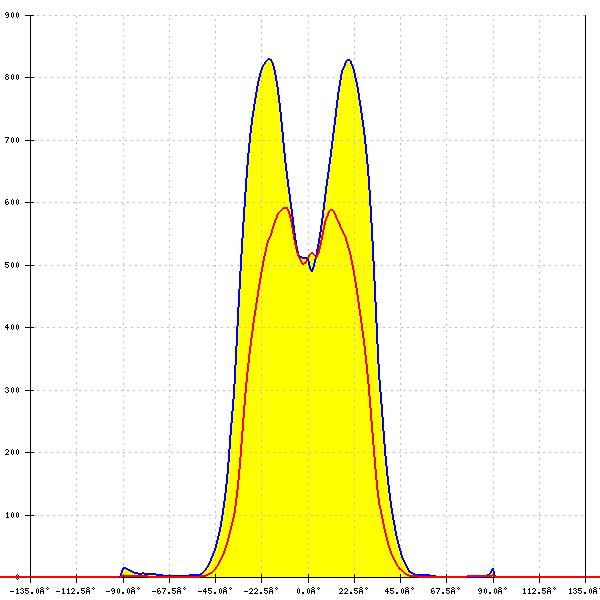

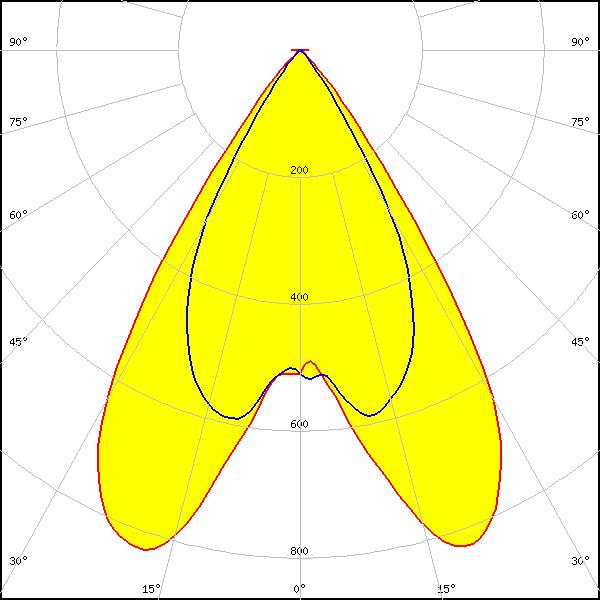

LED: XP-G3

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 0.855 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

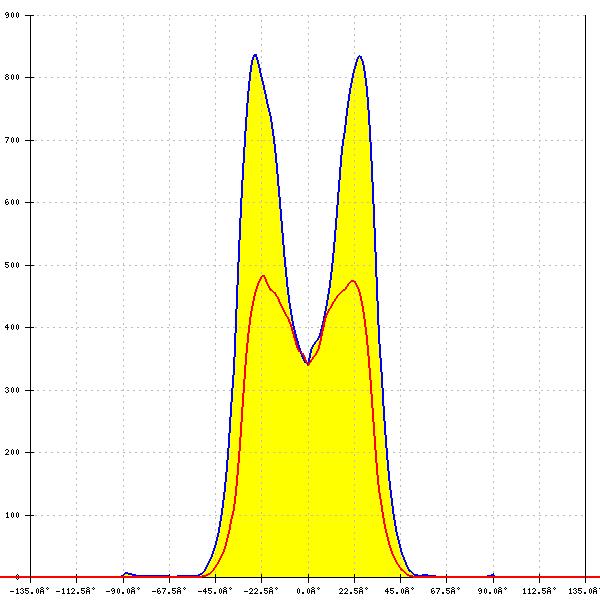

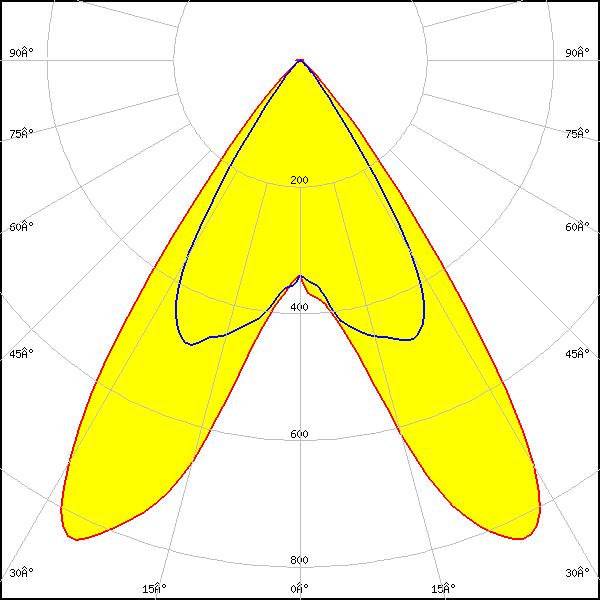

LED: XP-G4

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 0.898 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

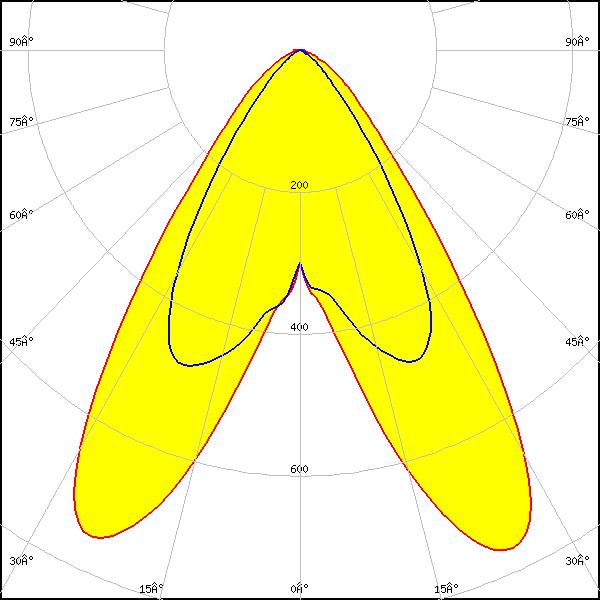

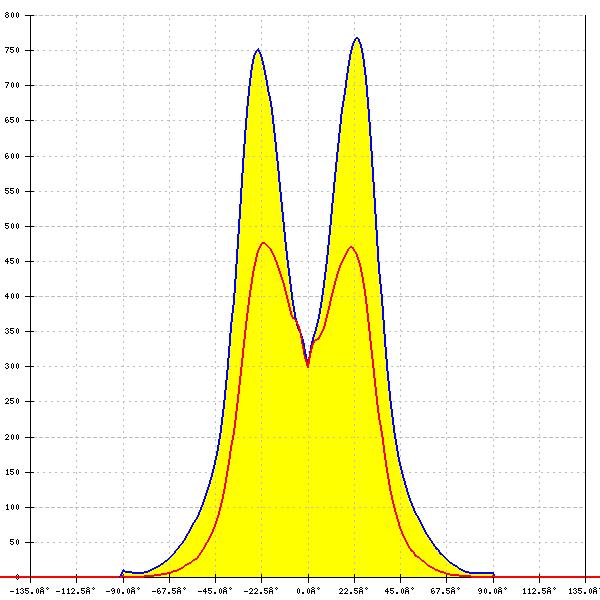

LED: LUXEON HL2X

FWHM: asymmetric

Peak intensity: 0.783 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

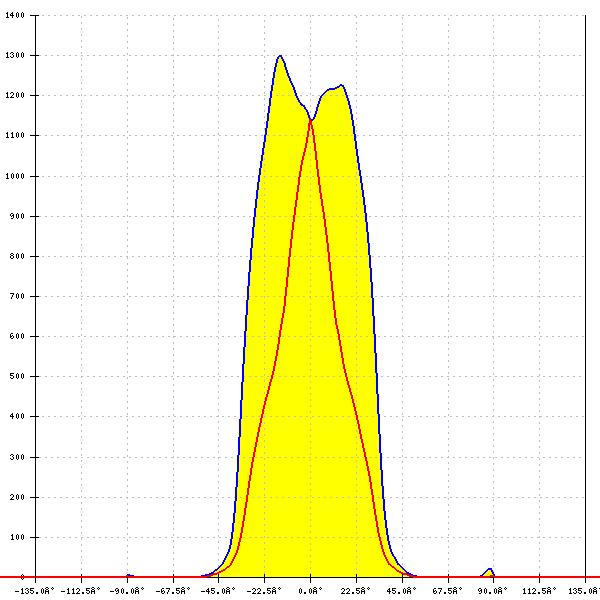

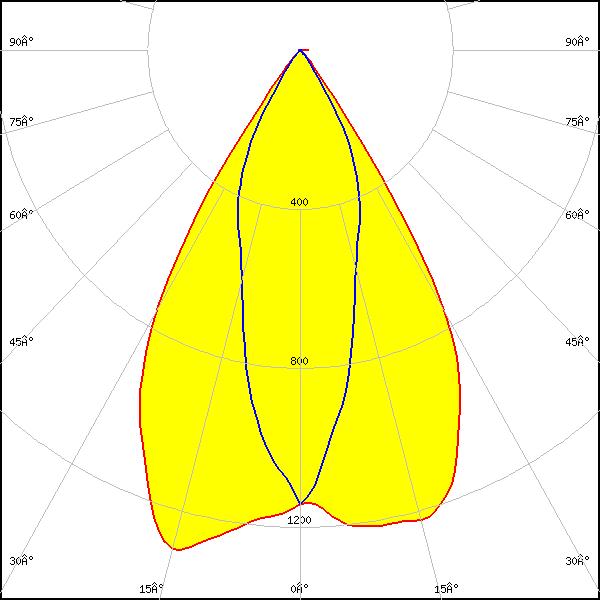

LED: NCSxE17A

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 1.300 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

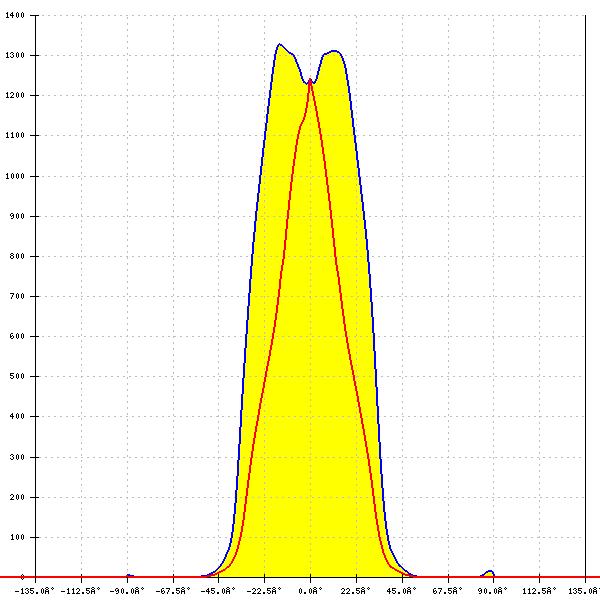

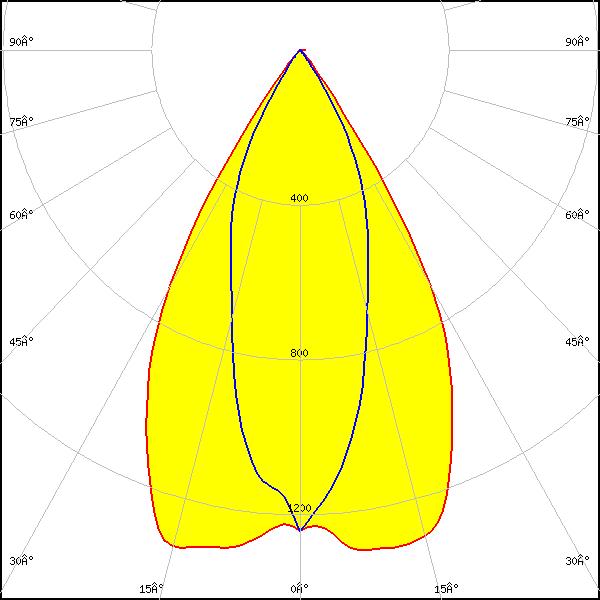

LED: NVSxE21A

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 1.340 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

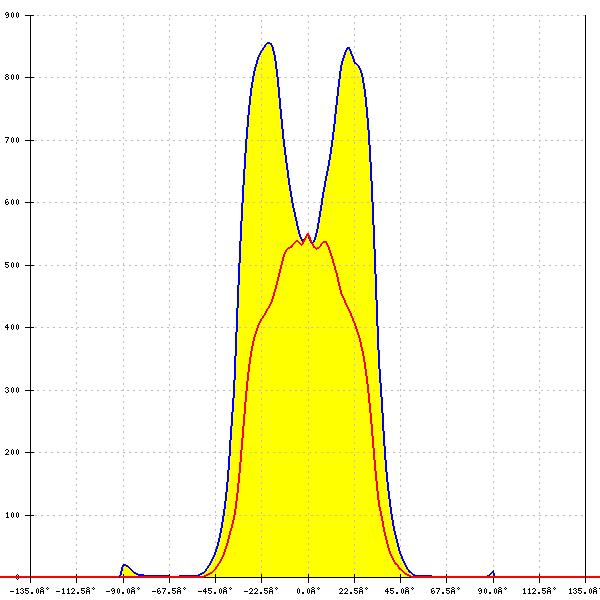

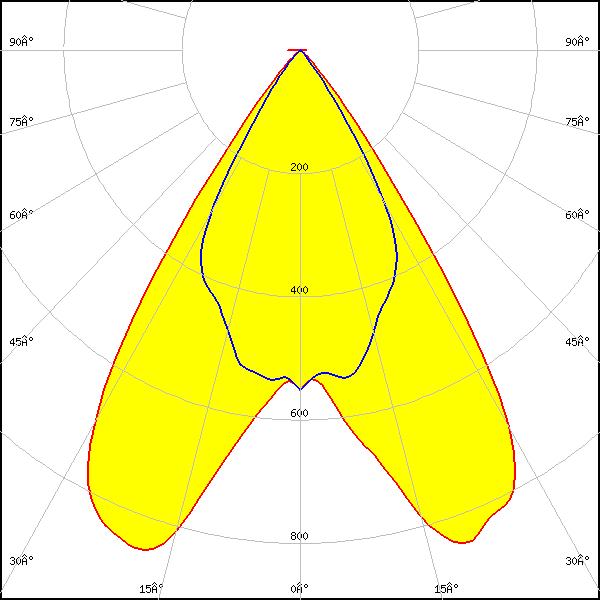

LED: OSLON Square CSSRM2/CSSRM3

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 0.917 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

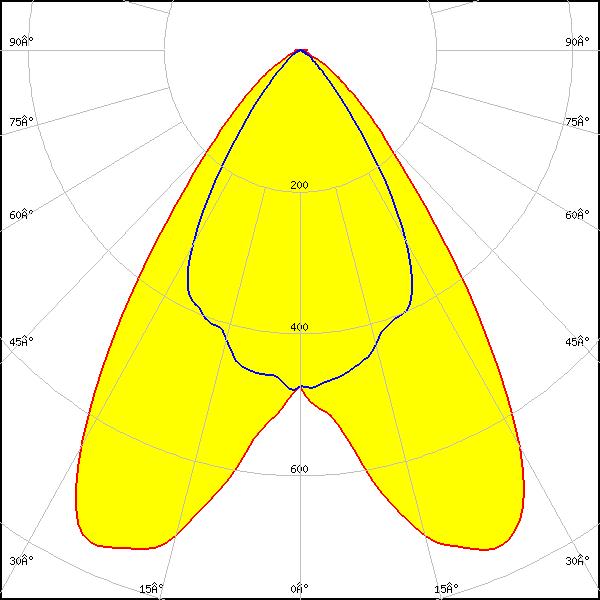

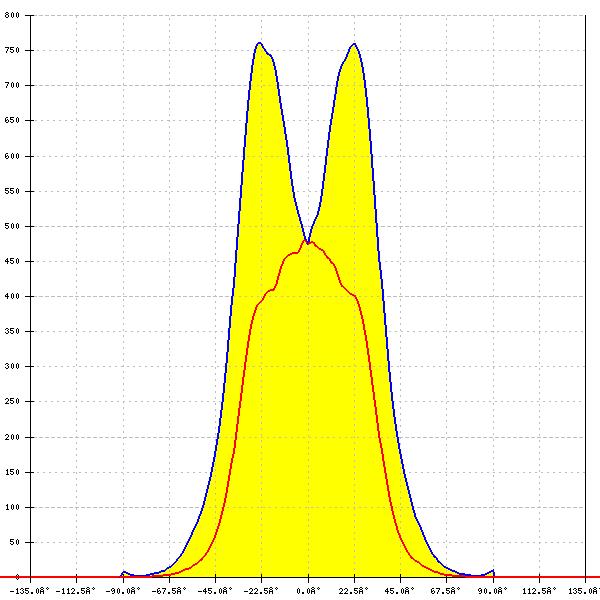

LED: OSLON Square EC

FWHM: asymmetric

Peak intensity: 0.779 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

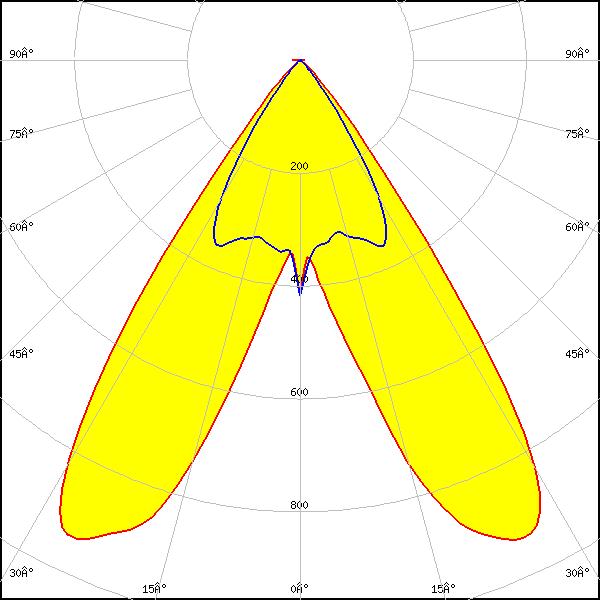

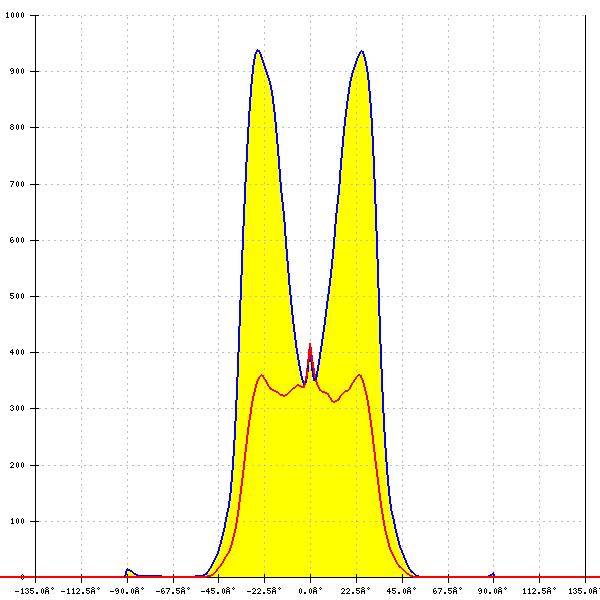

LED: OSLON SSL 150

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 1.069 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

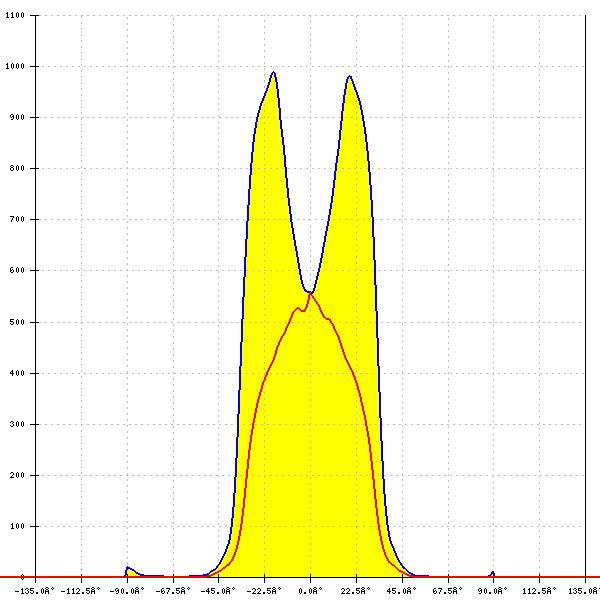

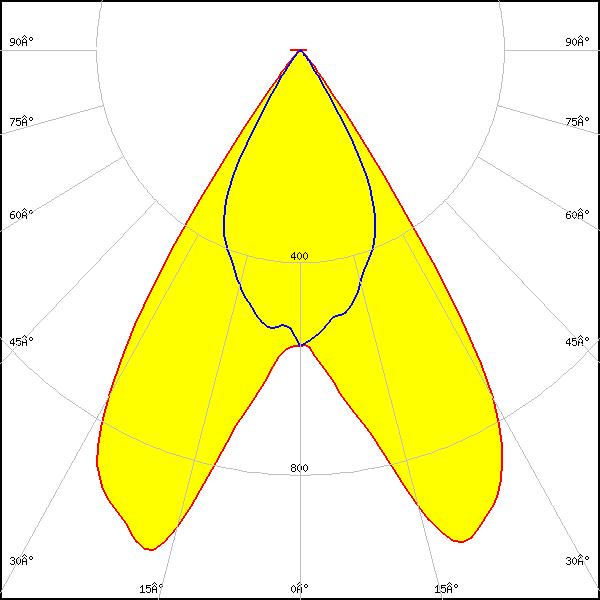

LED: OSLON SSL 80

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 1.034 cd/lm

Efficiency: 79 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

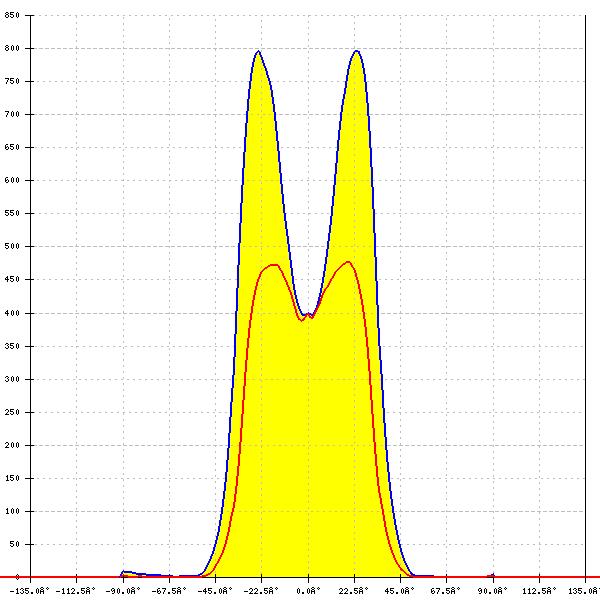

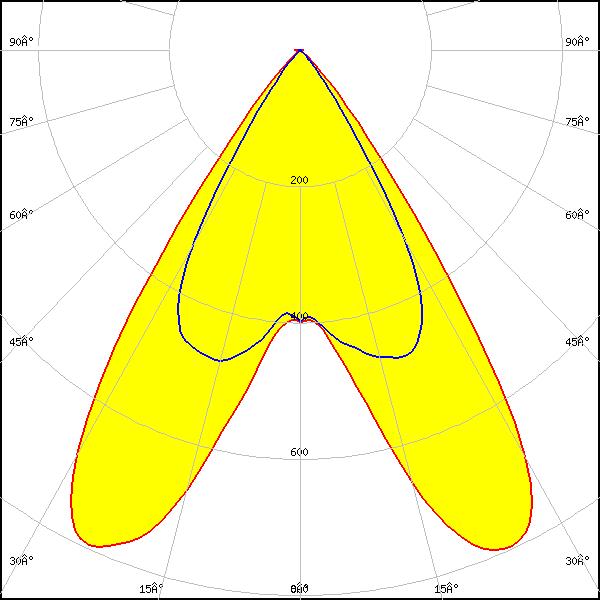

LED: LH351B

Required components:

C14446_FLORENTINA-SHD

FWHM: asymmetric

Peak intensity: 0.854 cd/lm

Efficiency: 76 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

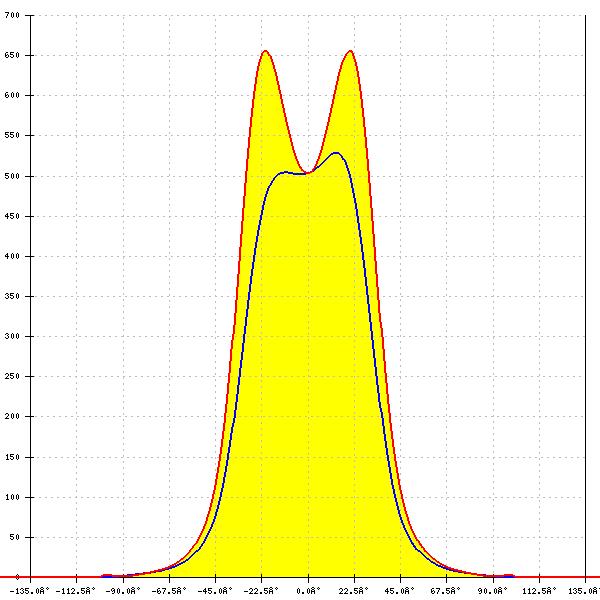

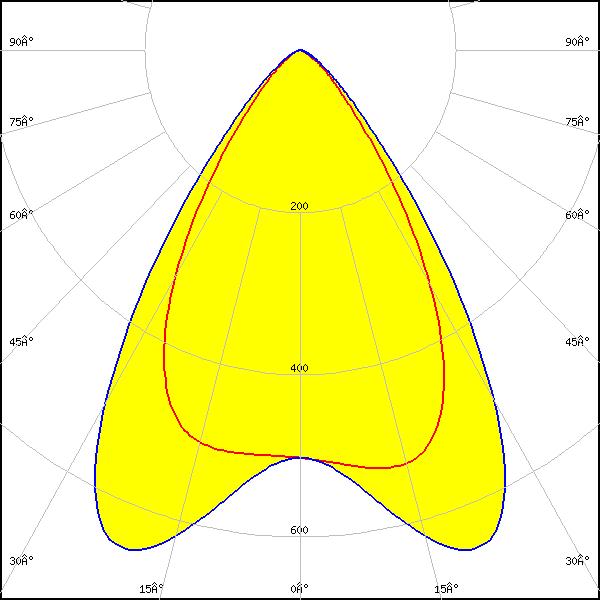

LED: LH351B

FWHM: asymmetric

Peak intensity: 0.700 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
