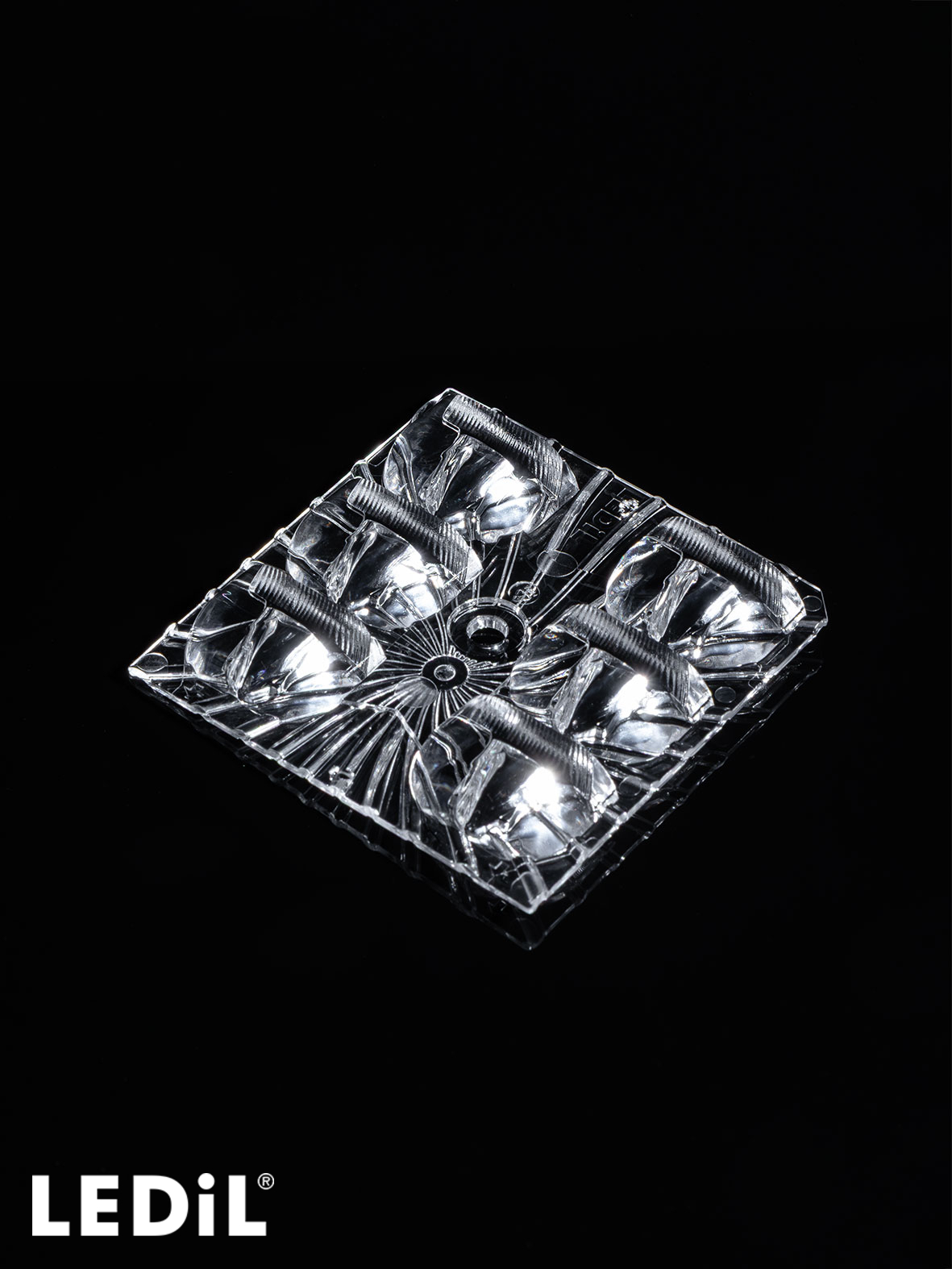

L20122_STRADA-2X3-5050-DWC
PrintUniversal road lighting beam with excellent mixed illuminance and luminance uniformity. Typically IESNA Type III (medium). Variant made from PC.
Specification
-
Dimensions:50 x 50 mm
-
Height:6.50 mm
-
Fastening:screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
Ordering information
-
Quantity in box:1200 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:10.5 kg
-
MPQ:240 pcs
-
MOQ:1200 pcs
-
MOQ size:480 x 280 x 300 mm
-
MOQ weight:10.5 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
- PCB drawing
Related Content
AVAILABLE LEDiL ACCESSORIES

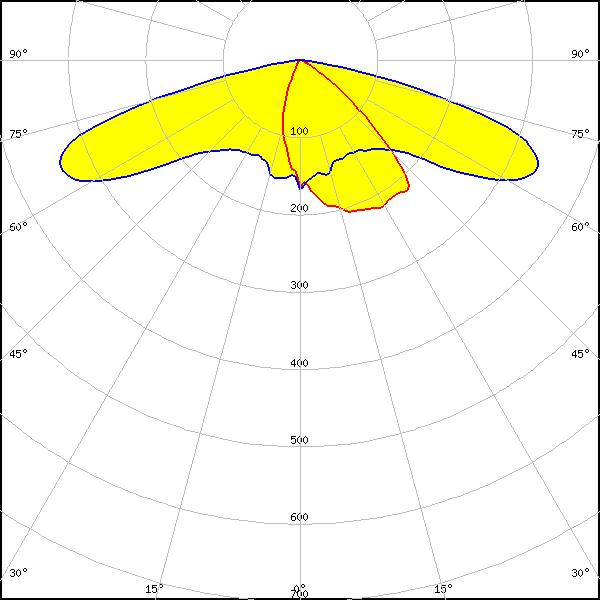

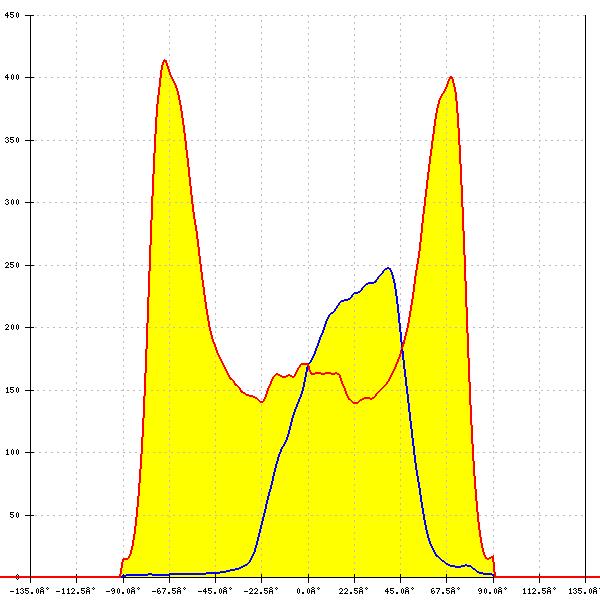

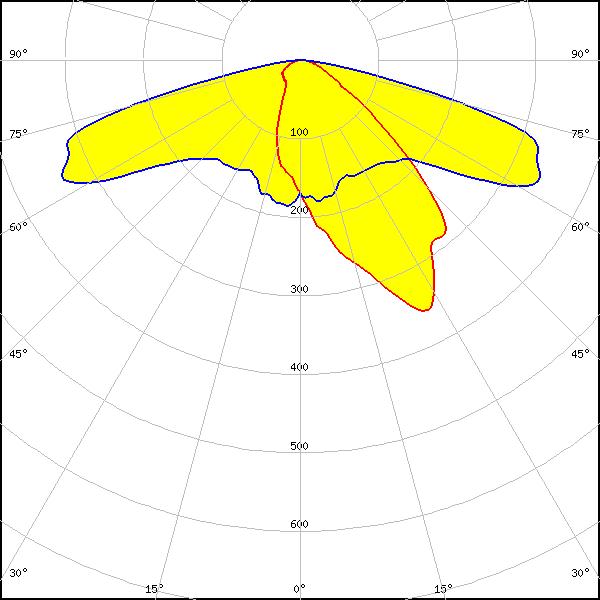

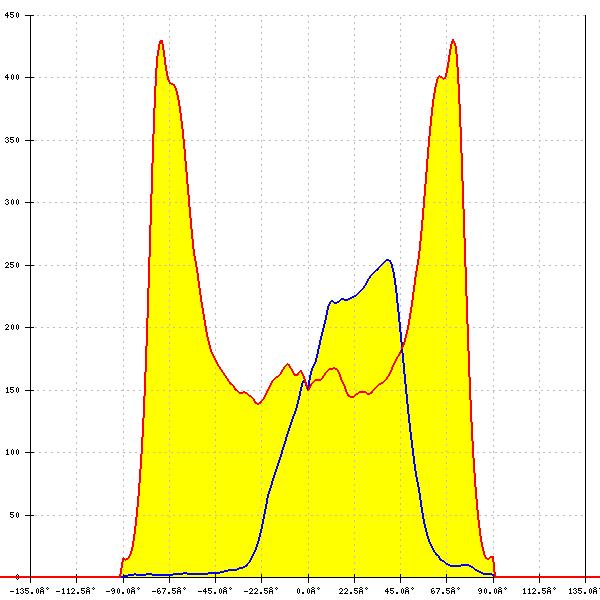

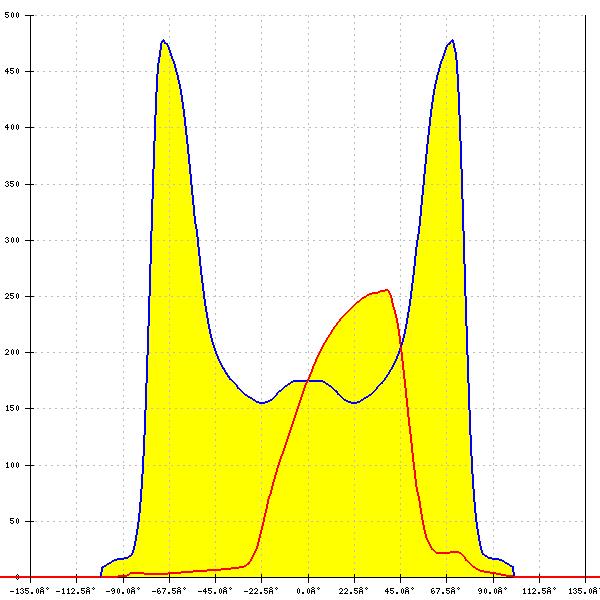

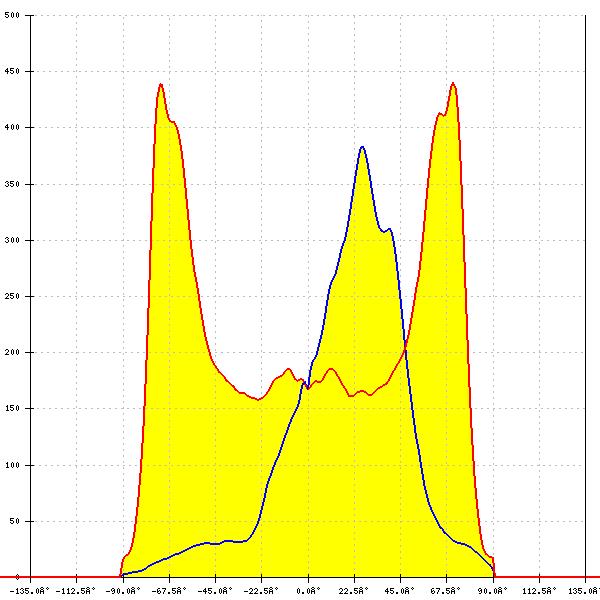

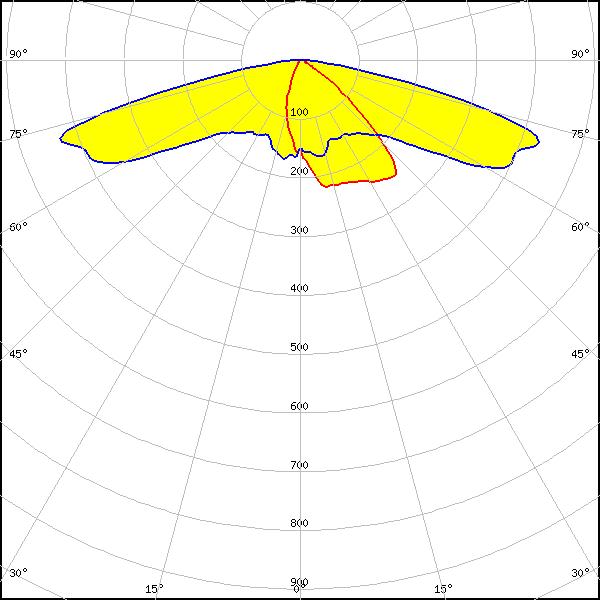

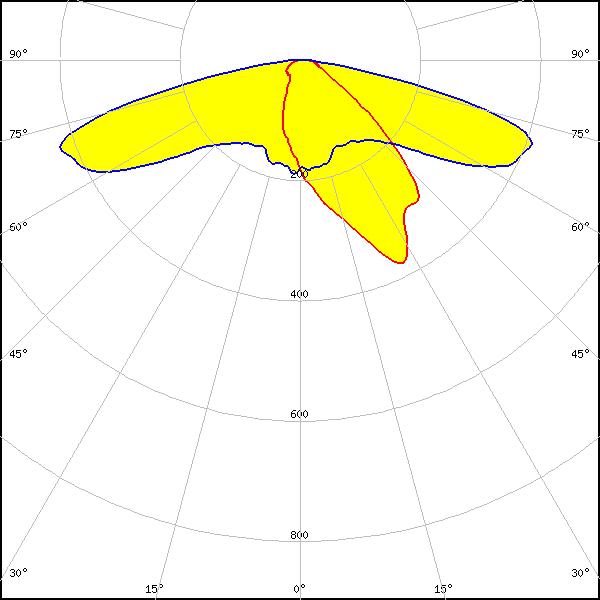

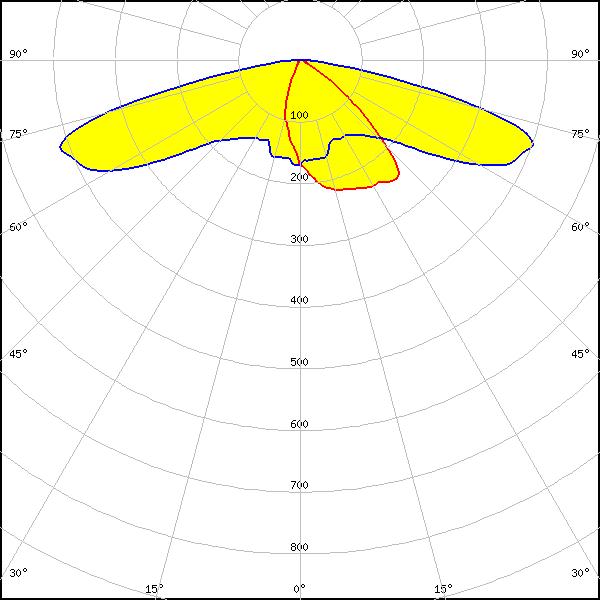

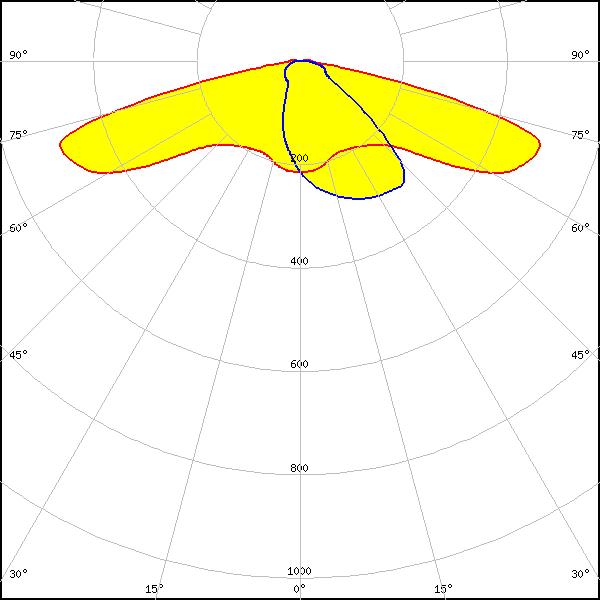

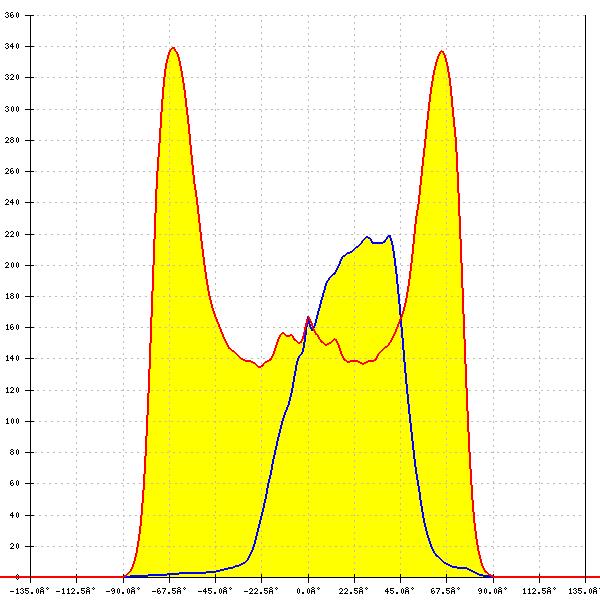

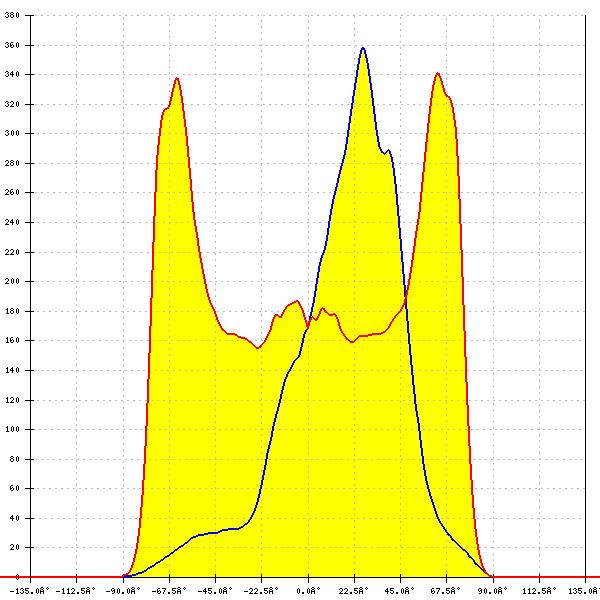

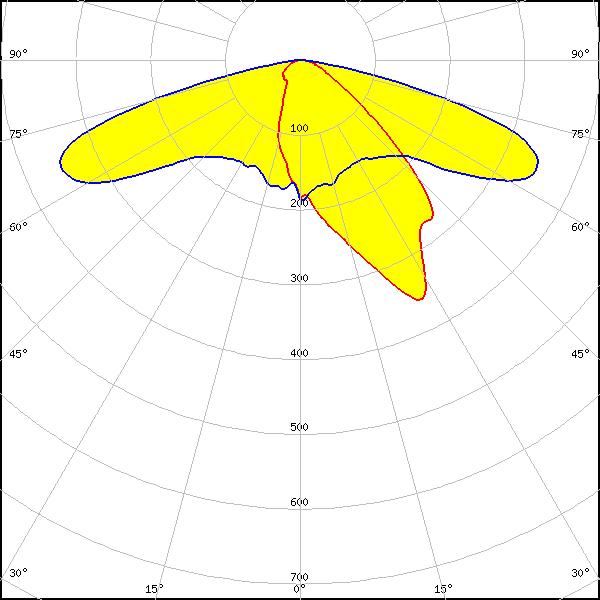

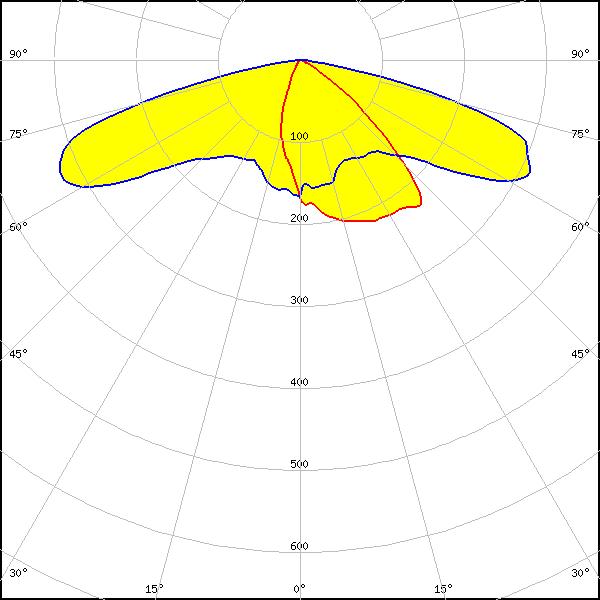

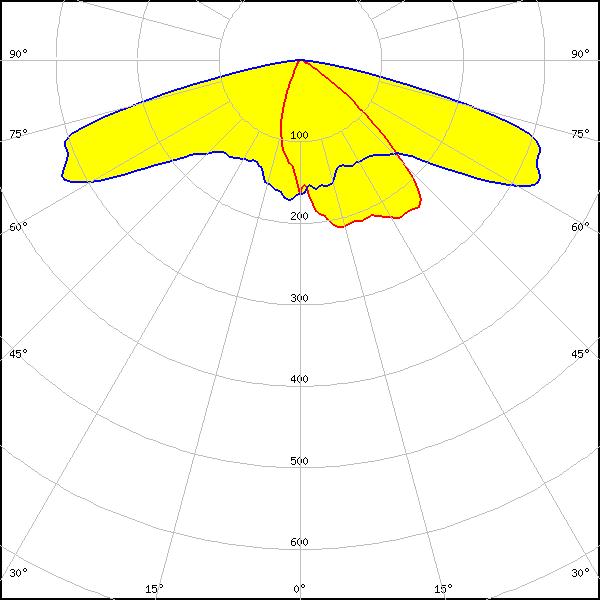

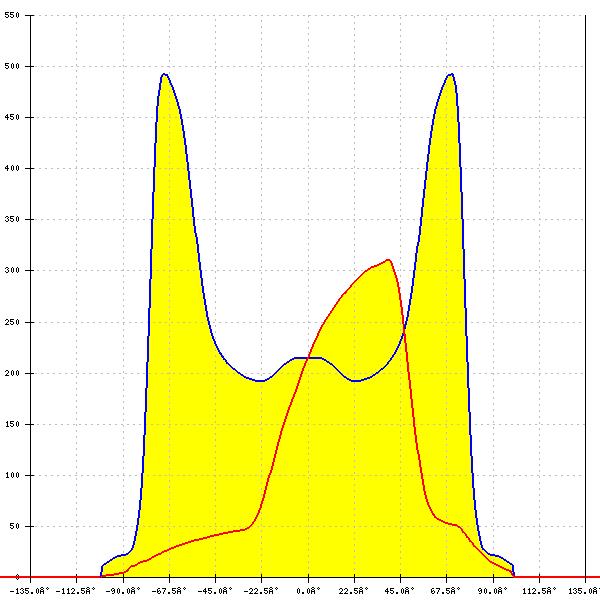

Optical results
LED:
Bridgelux SMD 3535 (3B1)
FWHM: asymmetric
Peak intensity:
0.451 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

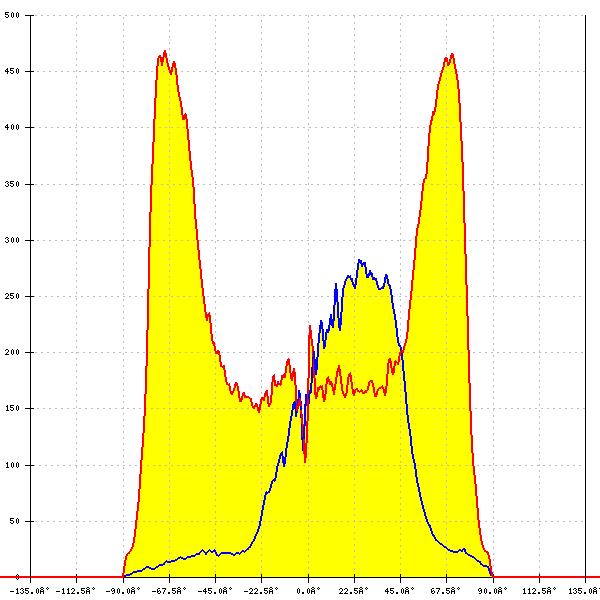

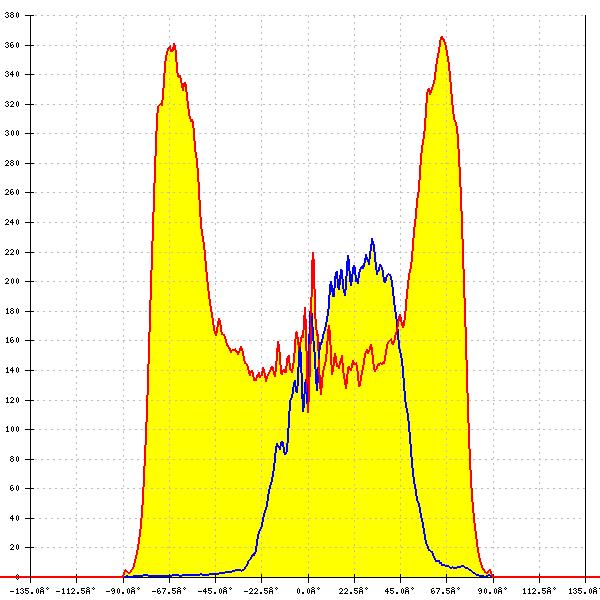

LED:

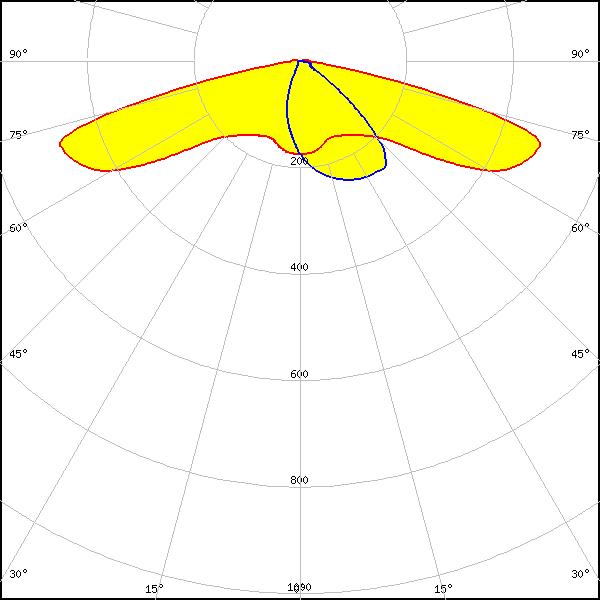

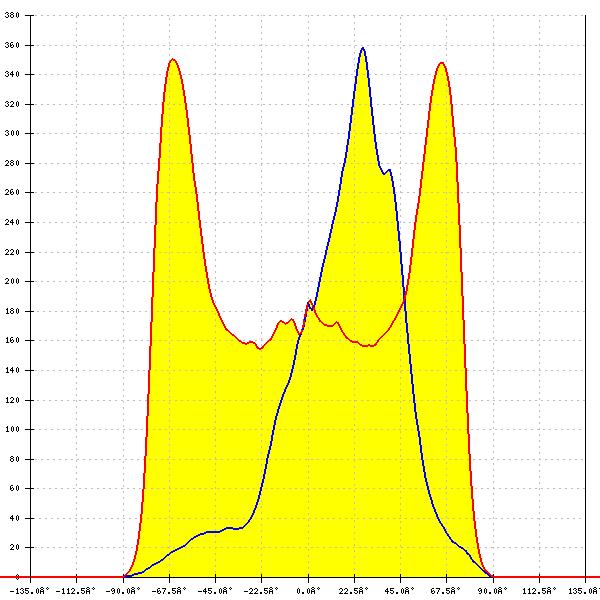

J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.398 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.384 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White

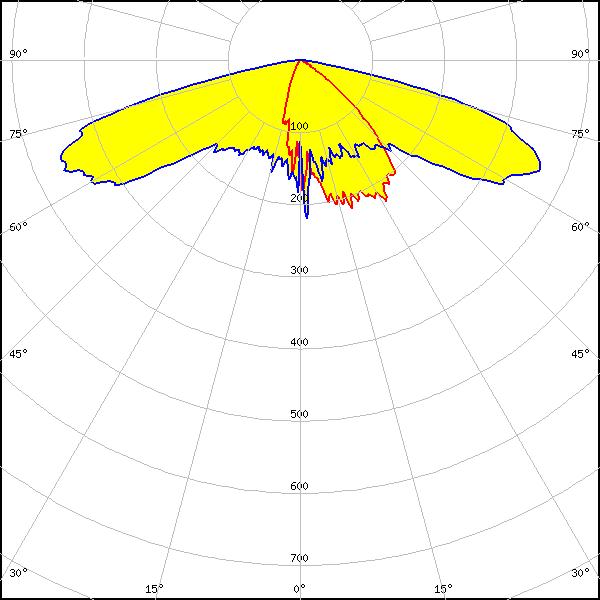

LED:
J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.532 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

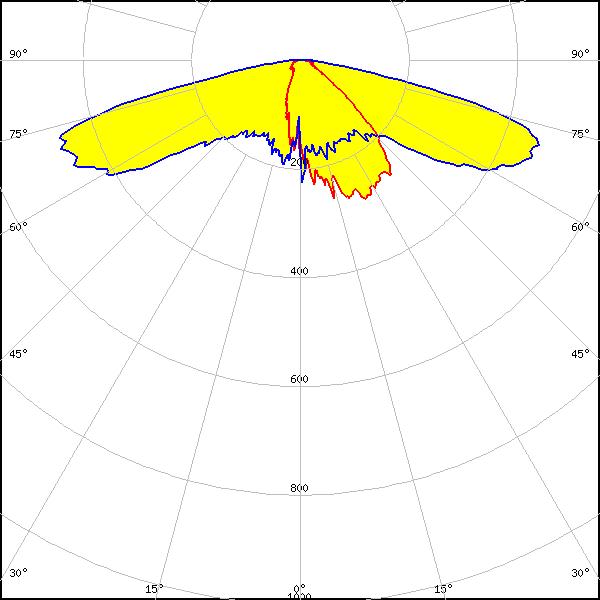

LED:
J Series 5050C 6V E Class
Required components:
FWHM: asymmetric
Peak intensity:
0.553 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

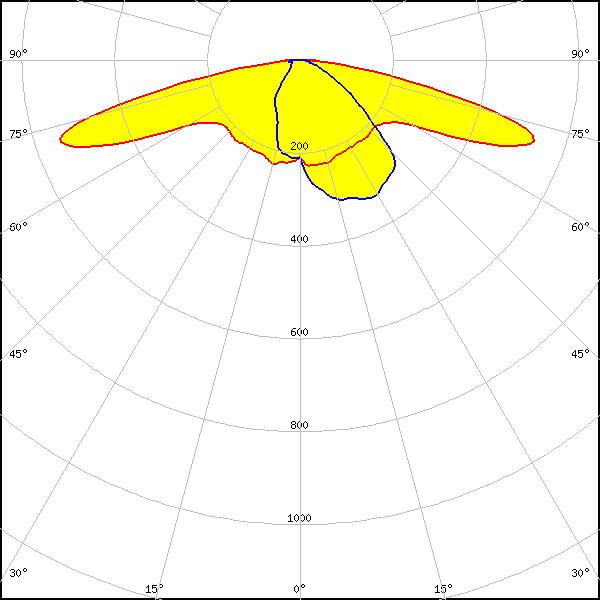

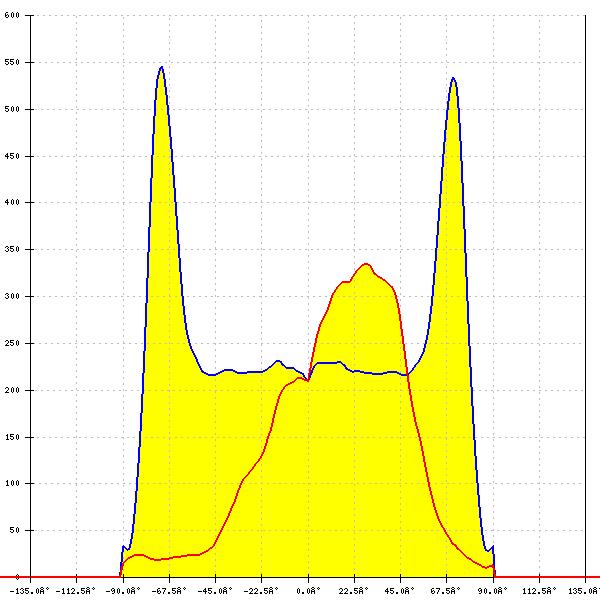

LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.592 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

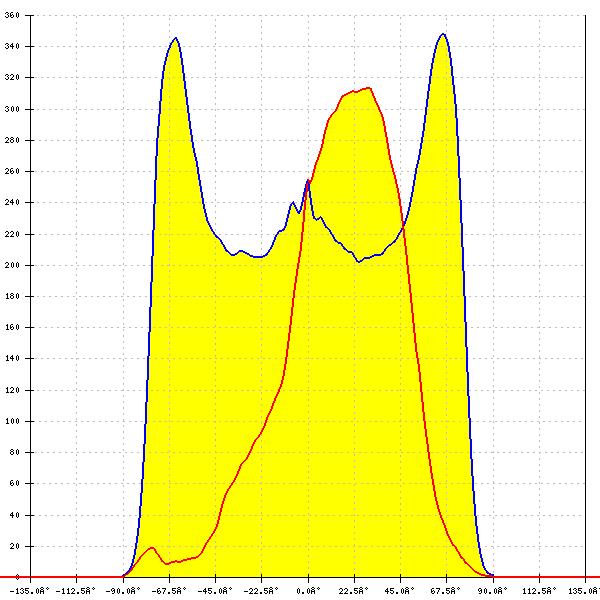

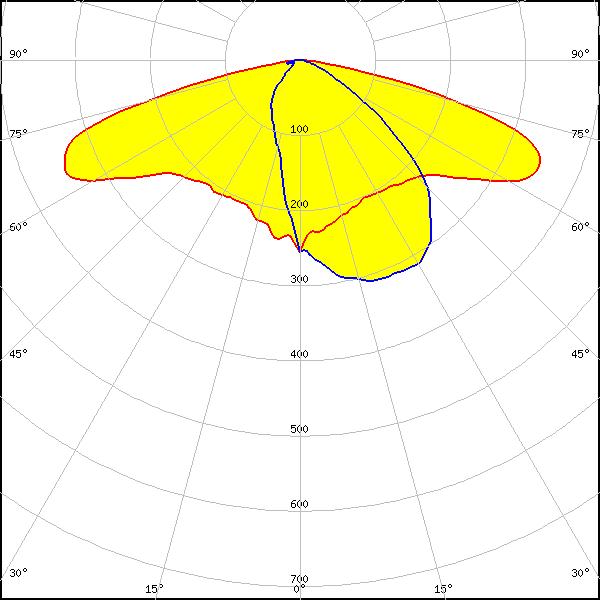

LED:
LUXEON 5050 HE
FWHM: asymmetric
Peak intensity:
0.387 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

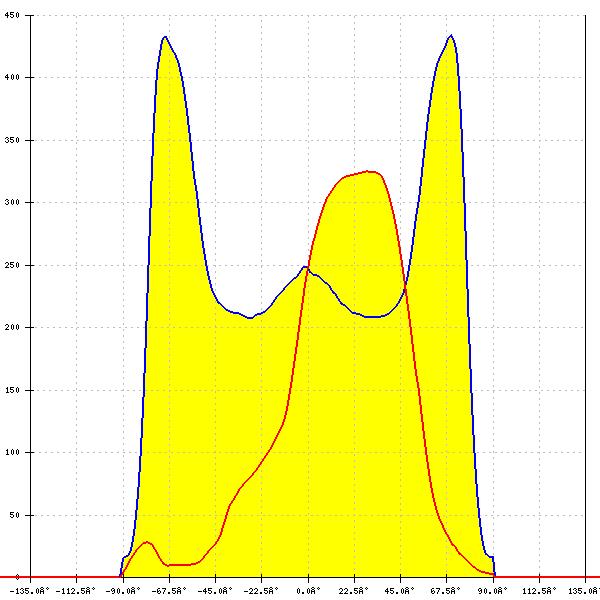

LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.481 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

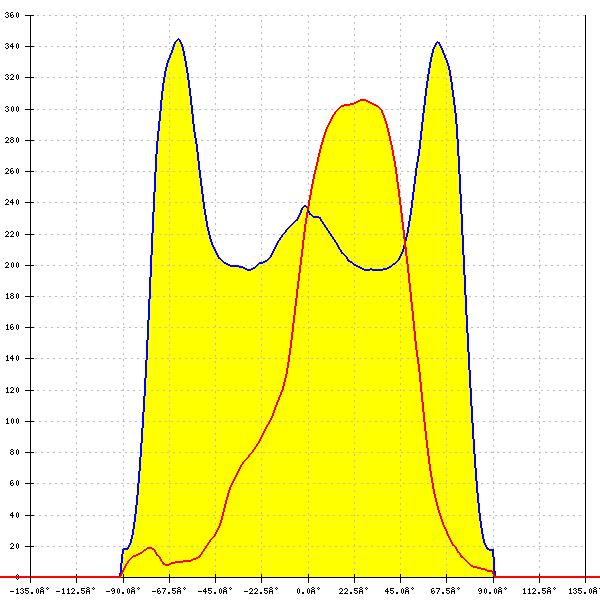

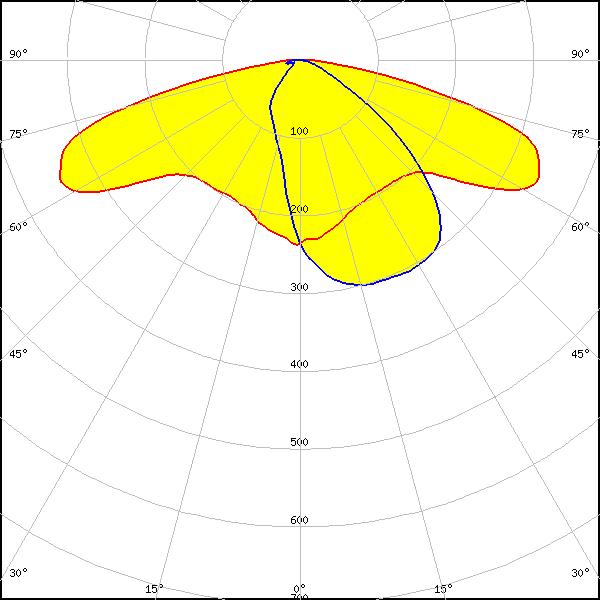

LED:
LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.377 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

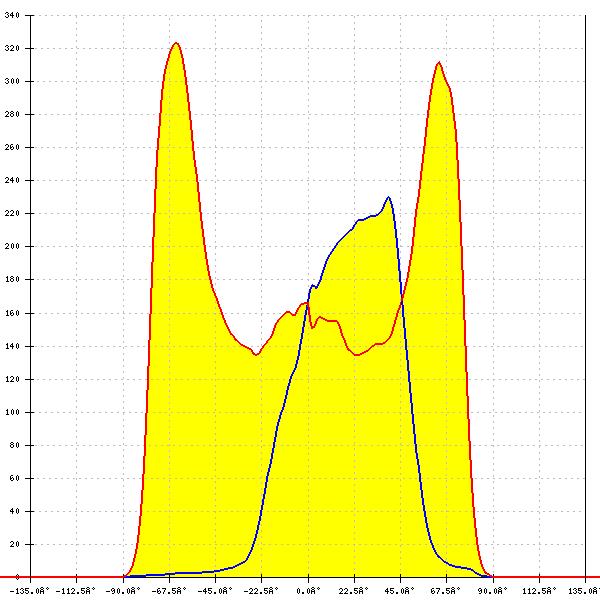

LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.373 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

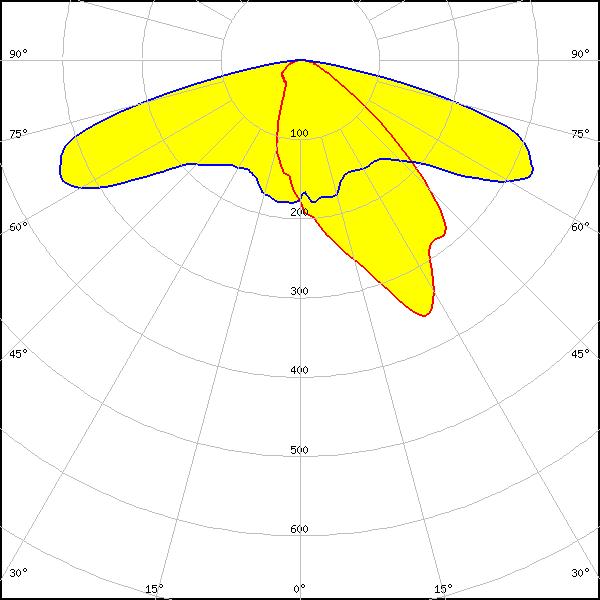

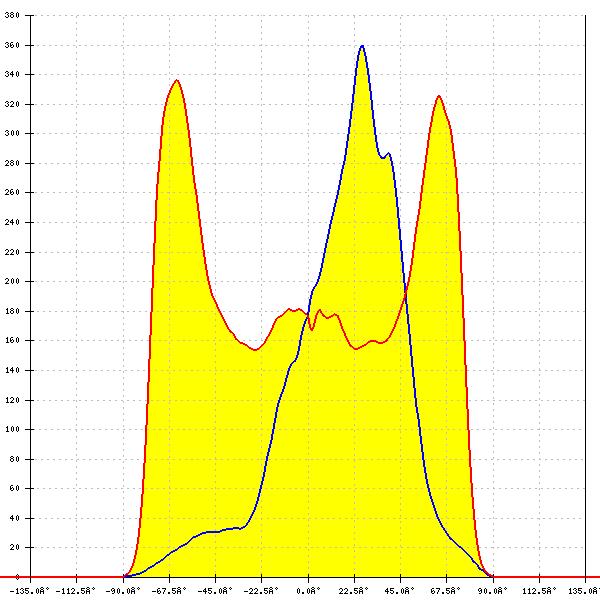

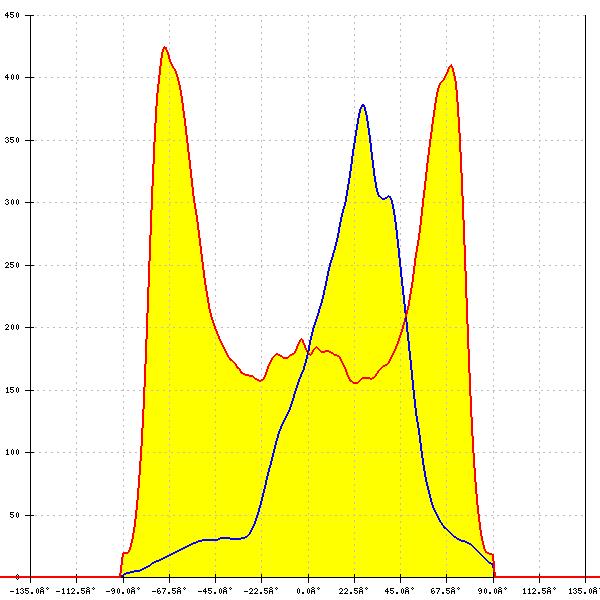

LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity:
0.482 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity:
0.467 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

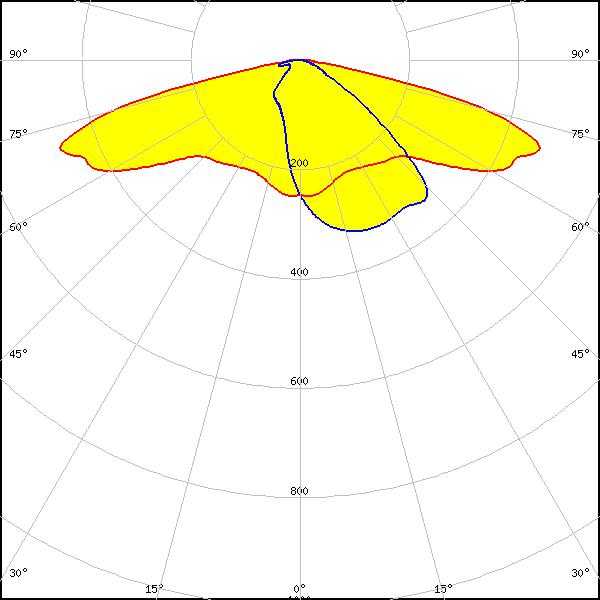

LED:
LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity:
0.379 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity:
0.363 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.499 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

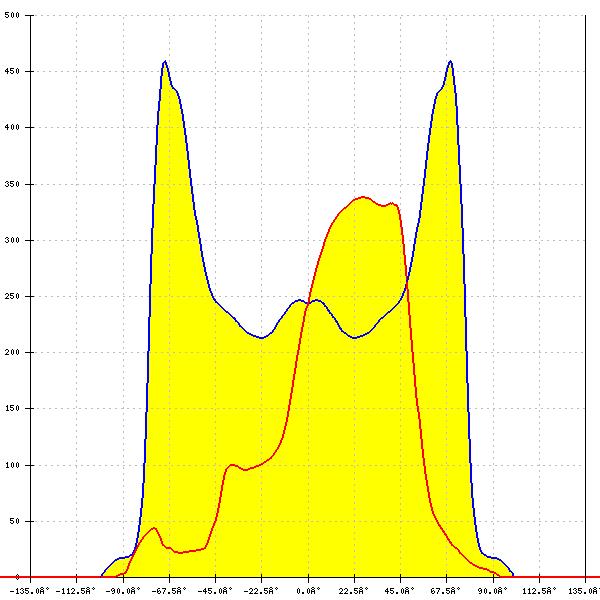

LED:
Flexus 2x3 G1 6x5050
FWHM: asymmetric
Peak intensity:
0.379 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

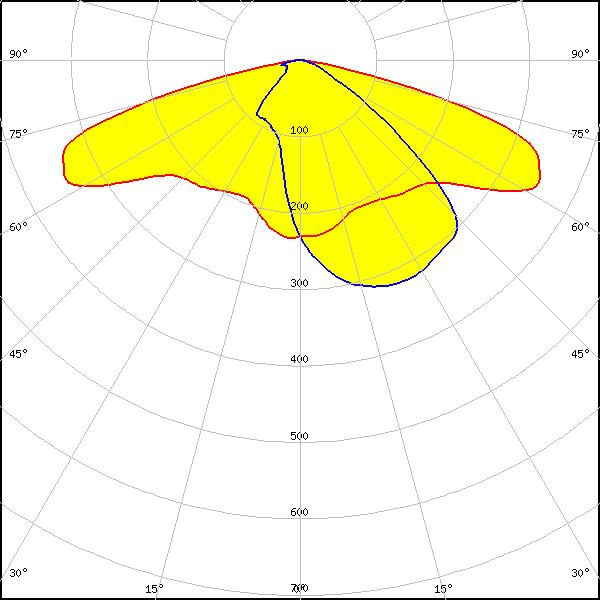

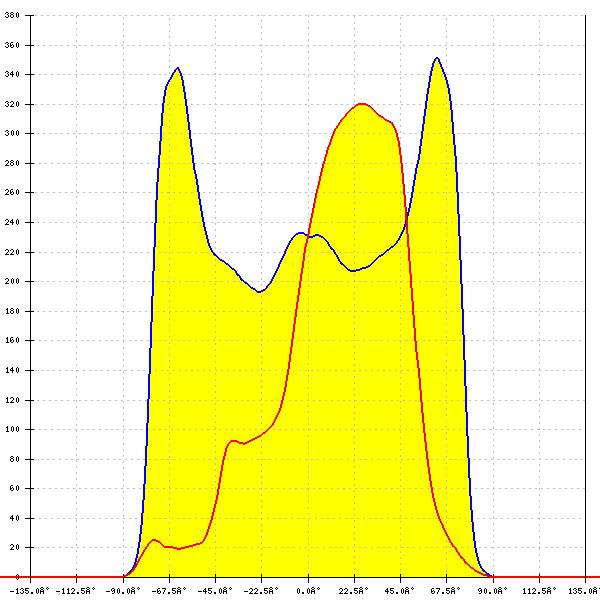

LED:
Flexus 2x3 G1 6x5050
FWHM: asymmetric
Peak intensity:
0.479 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

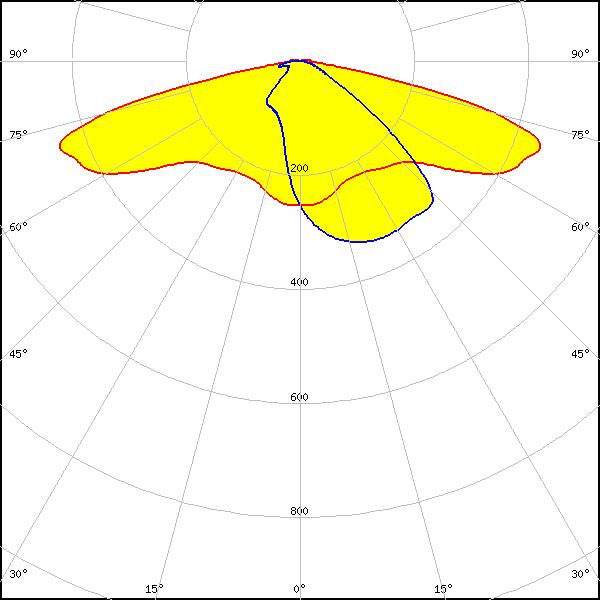

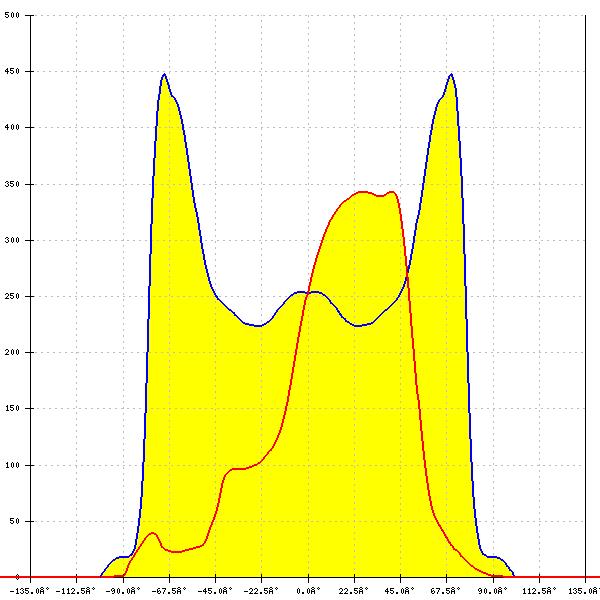

RecLED 224x50mm 3800lm 740 72V 4x 2x3 5050 LHP NTC G6
FWHM: asymmetric
Peak intensity:
0.478 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

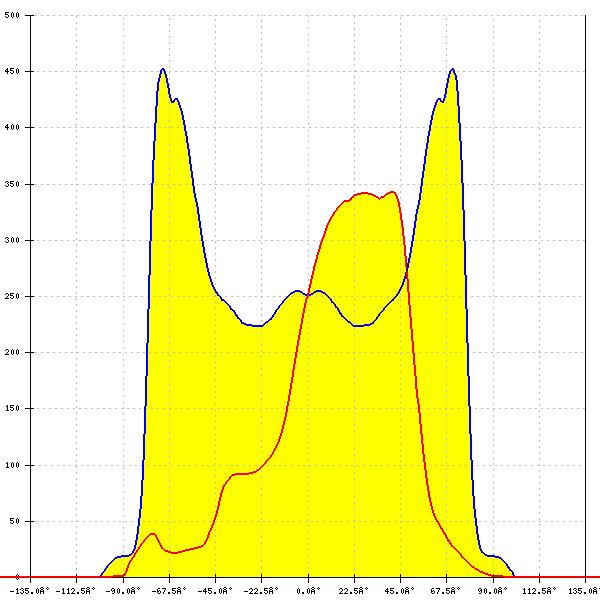

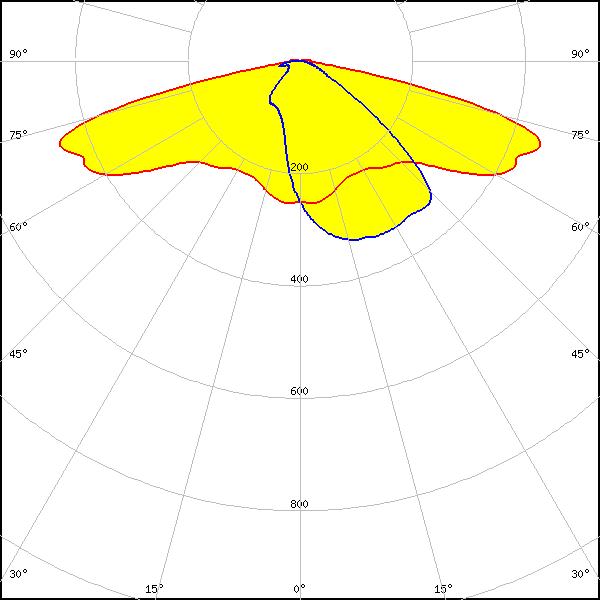

RecLED 224x50mm 3800lm 740 72V 4x 2x3 5050 S9 NTC G5
FWHM: asymmetric
Peak intensity:
0.480 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

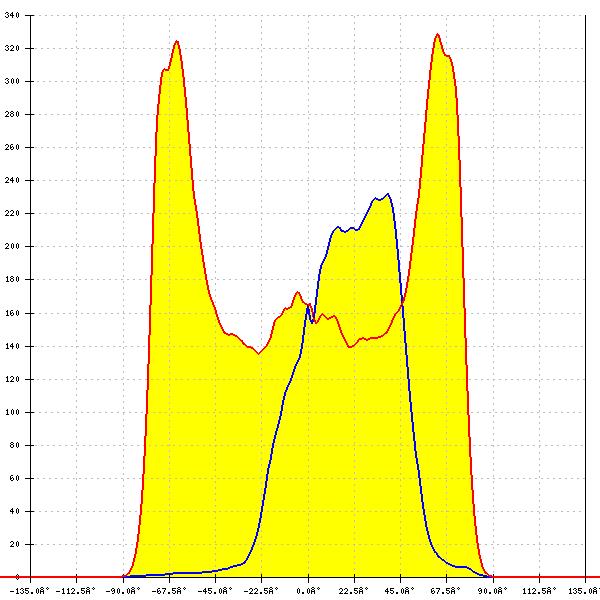

OSCONIQ S 5050 (Q9LR35)
Required components:
FWHM: asymmetric
Peak intensity:
0.506 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
Required components:
FWHM: asymmetric
Peak intensity:
0.491 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
Required components:
FWHM: asymmetric
Peak intensity:
0.387 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
Required components:
FWHM: asymmetric
Peak intensity:
0.373 cd/lm
Efficiency:
57 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x12 DA (2x3) UHE
FWHM: asymmetric
Peak intensity:
0.382 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x12 DA (2x3) UHE
FWHM: asymmetric
Peak intensity:
0.481 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
