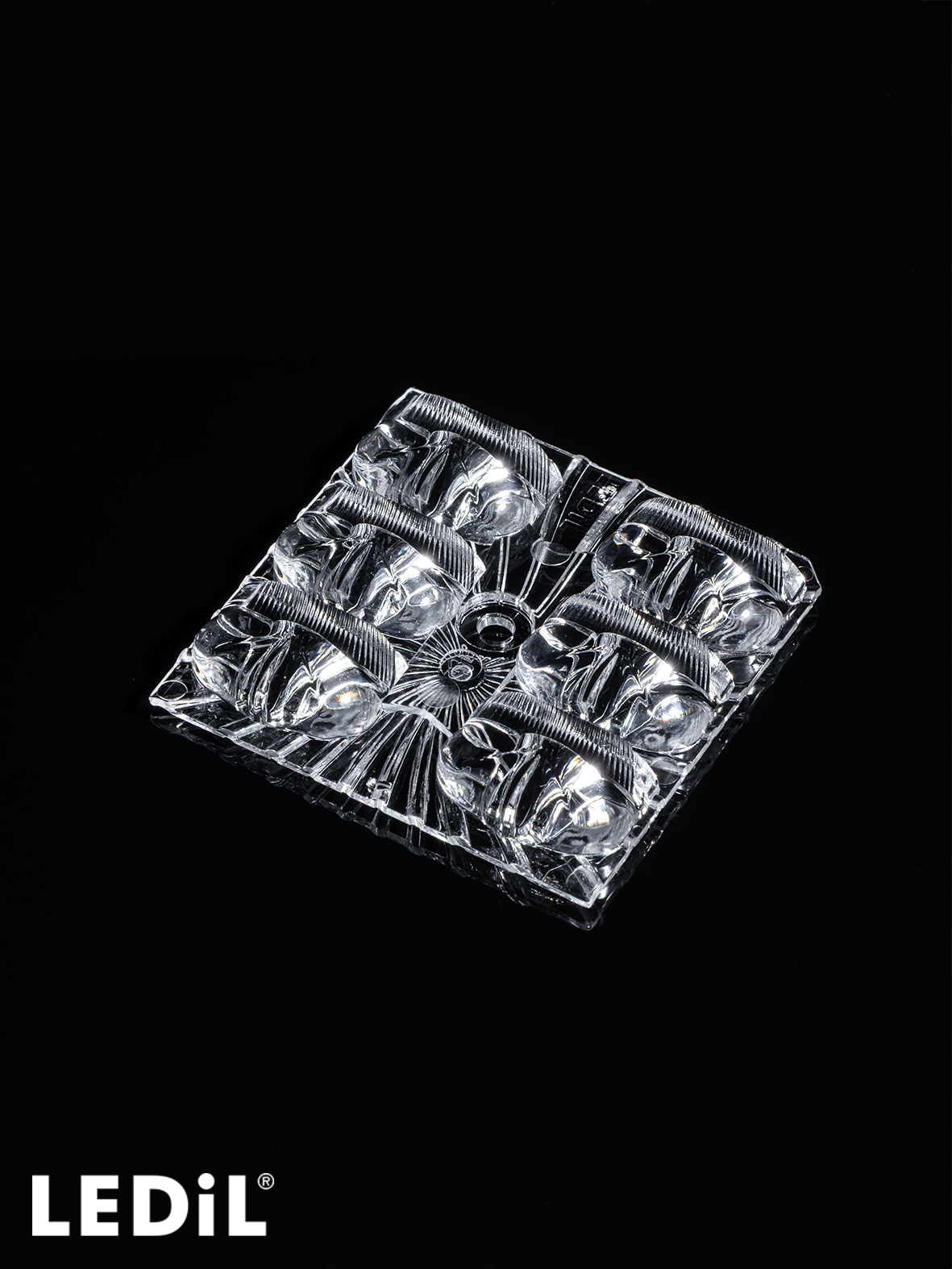

L20124_STRADA-2X3-5050-ME

Beam capable to achieve super long pole distances with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height. Variant made from PC.

Specification

Dimensions:

50 x 50 mm
Height:

6.90 mm
Fastening:

screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

800 pcs
Box size:

480 x 280 x 300 mm
Box weight:

8.2 kg
MPQ:

160 pcs
MOQ:

800 pcs
MOQ size:

480 x 280 x 300 mm
MOQ weight:

8.2 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: L20124_STRADA-2X3-5050-ME

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

L20124_STRADA-2X3-5050-ME

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Catalogue

LEDiL Latest products catalogue Q1 2025

Application guide

Guide for Street lighting optics

News

New beams and products - September 2024

News

STRADA-2X3 – Cut costs, not quality

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

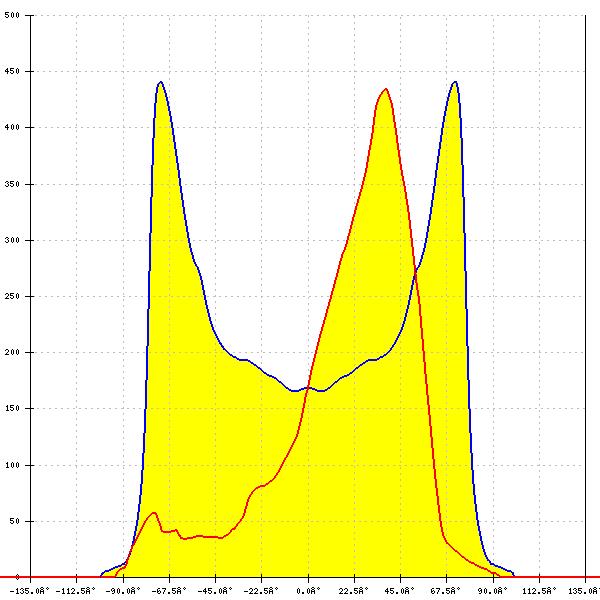

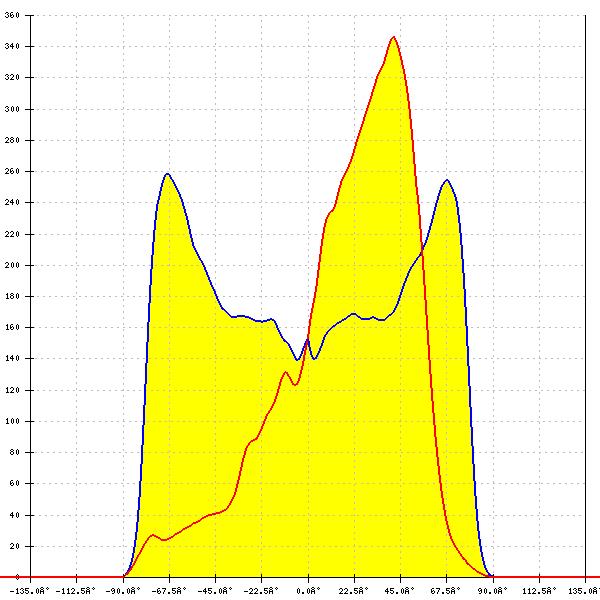

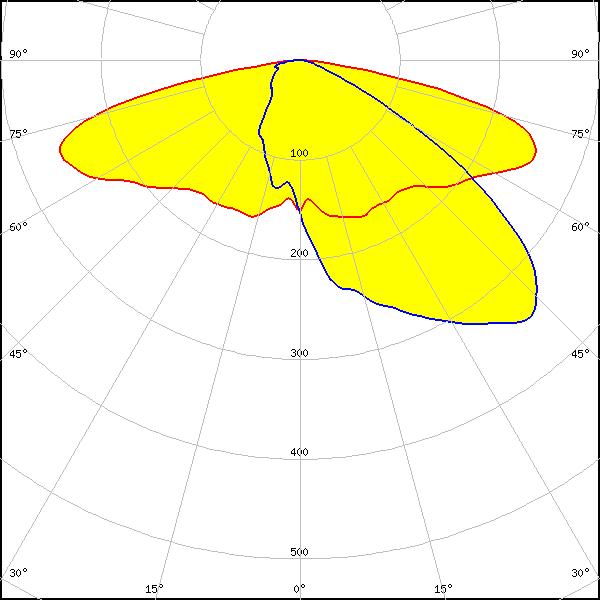

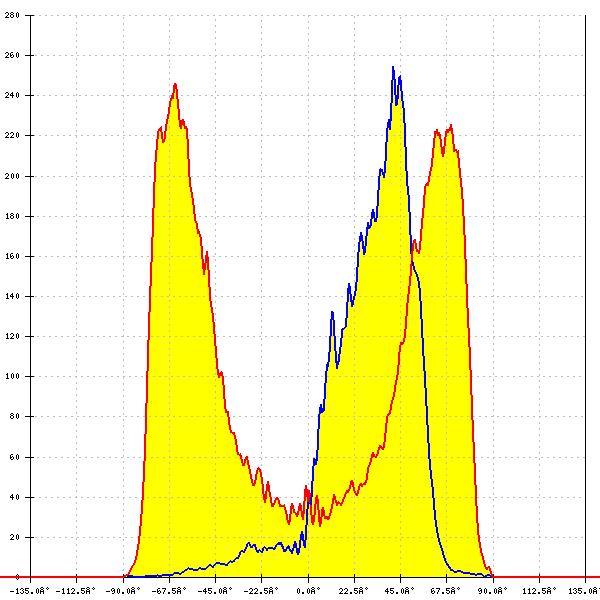

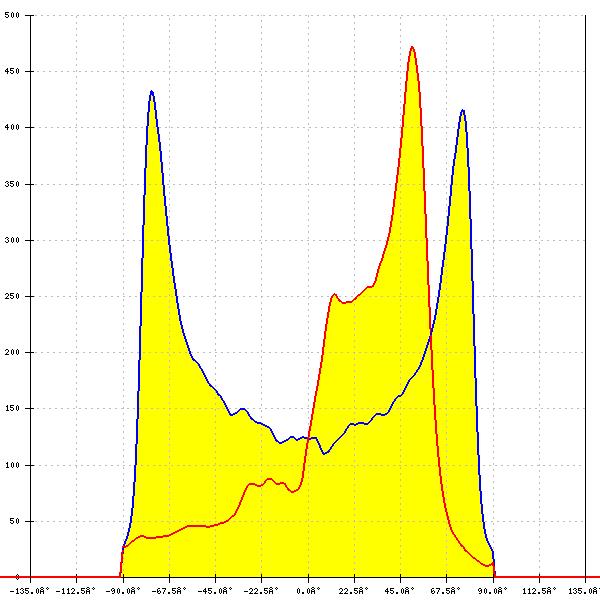

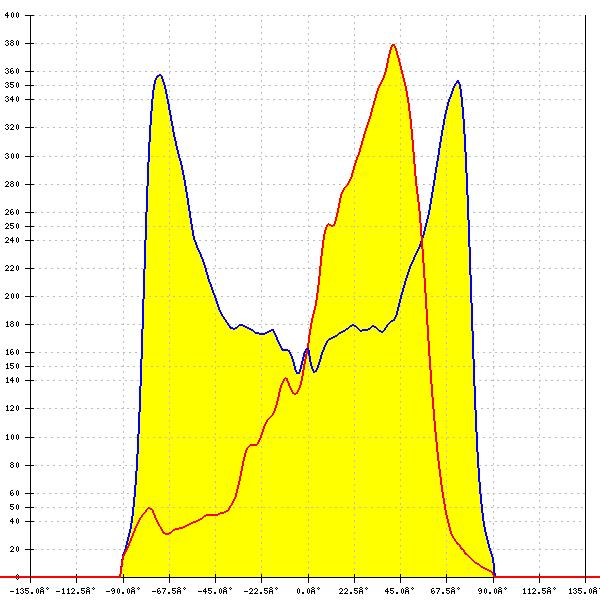

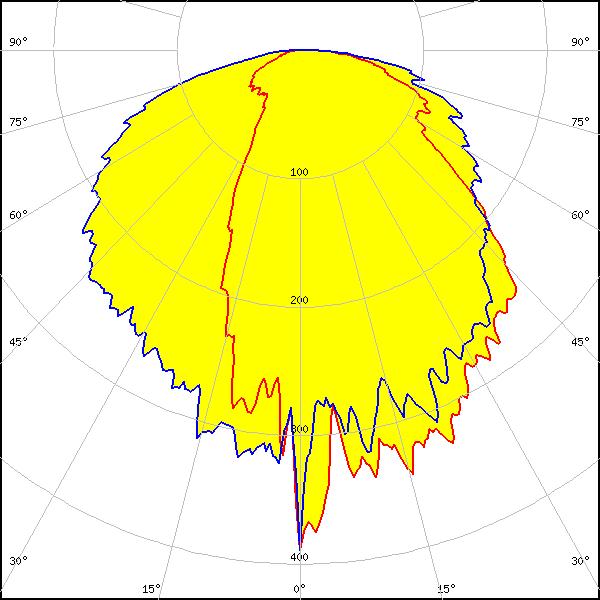

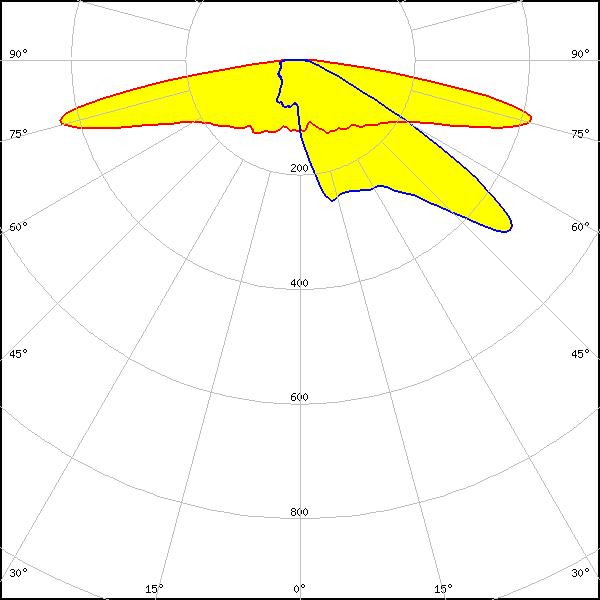

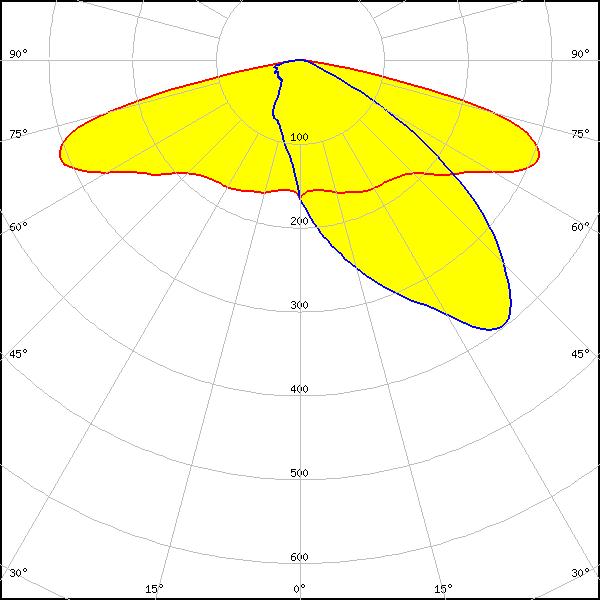

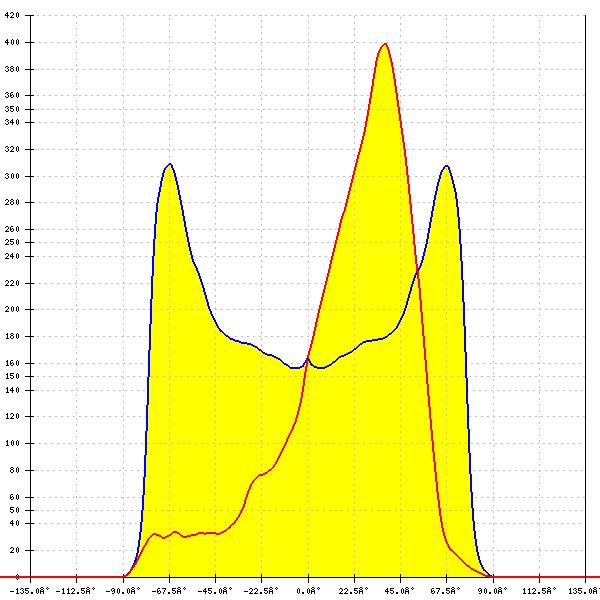

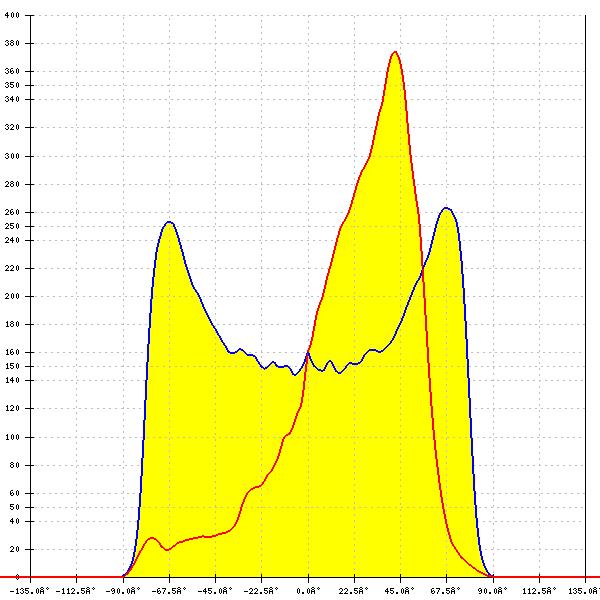

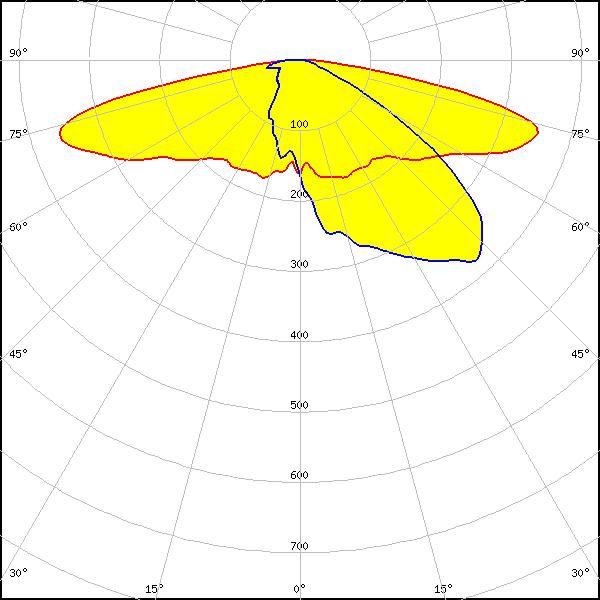

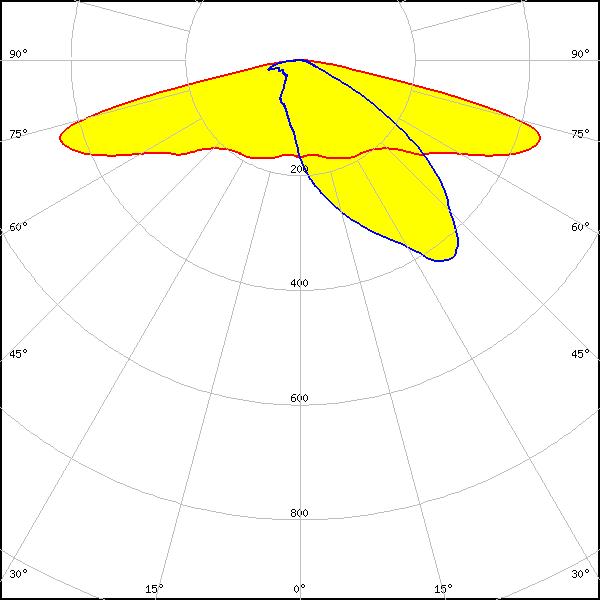

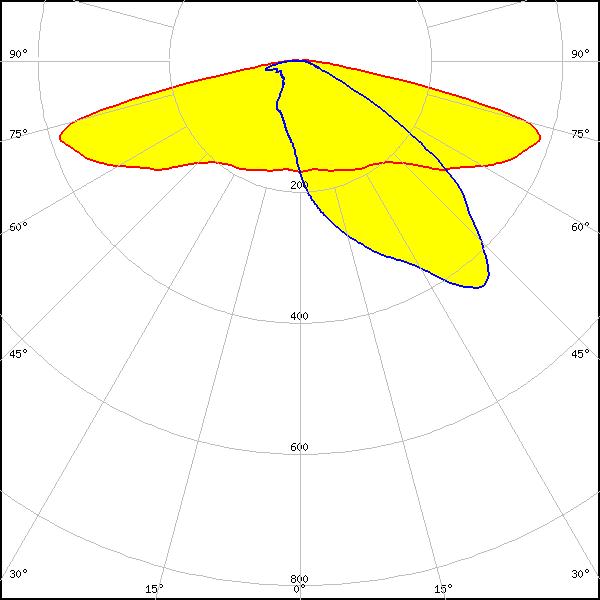

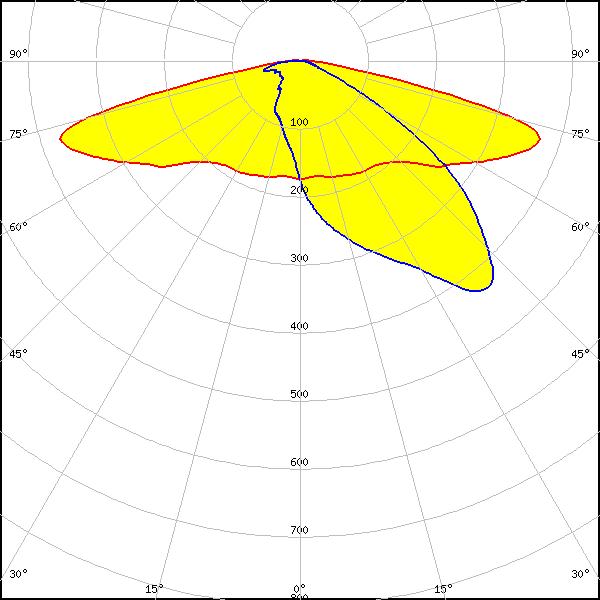

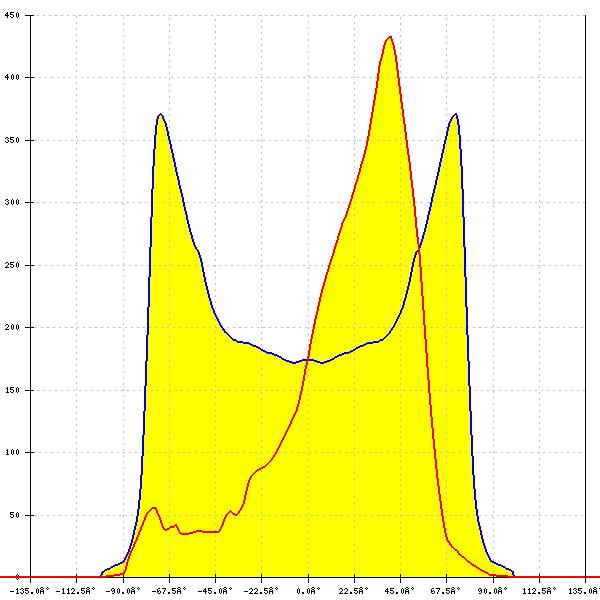

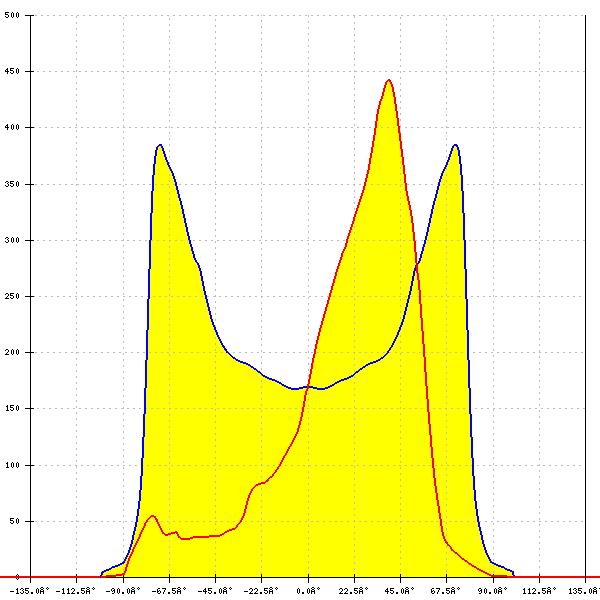

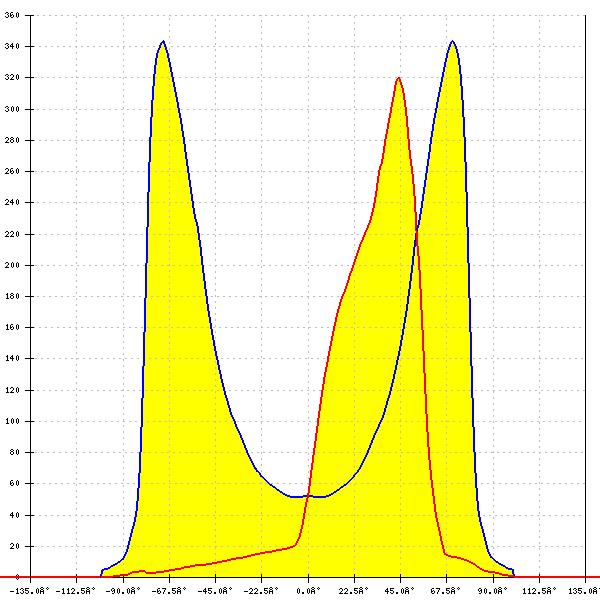

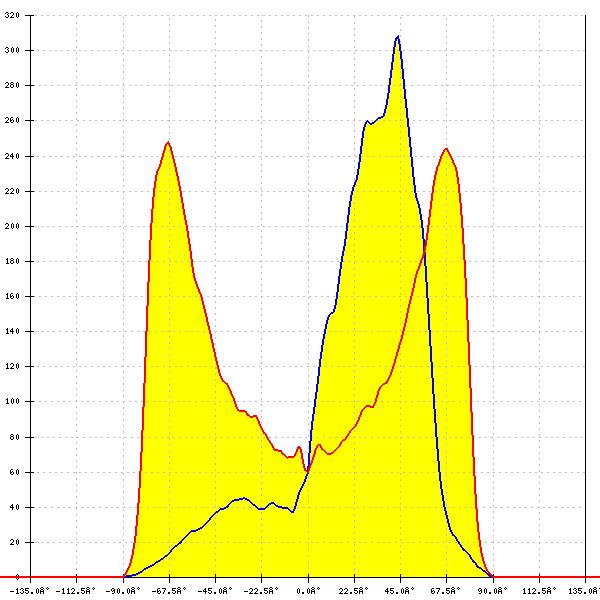

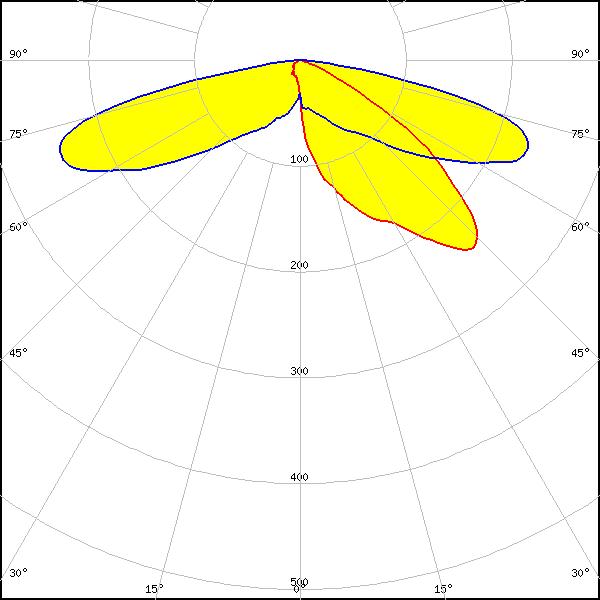

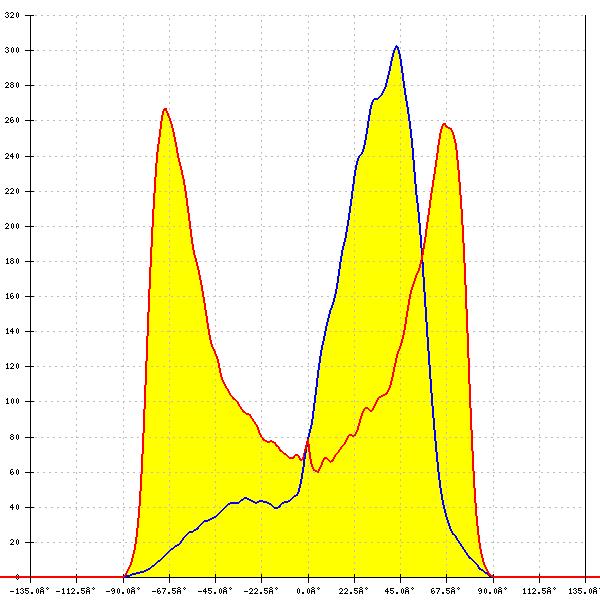

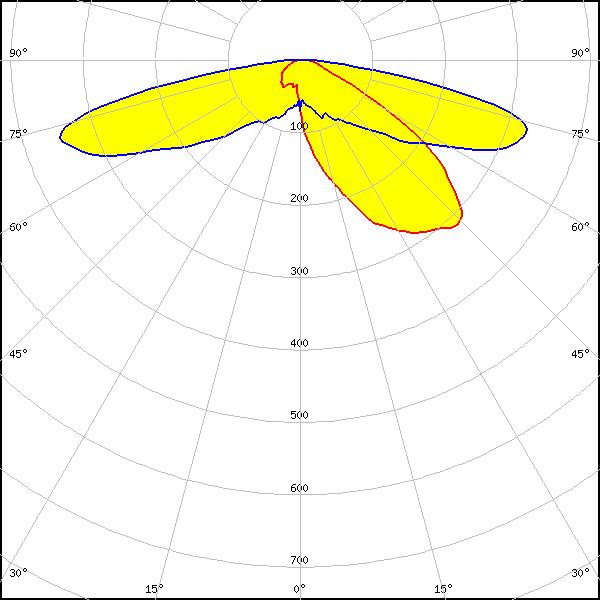

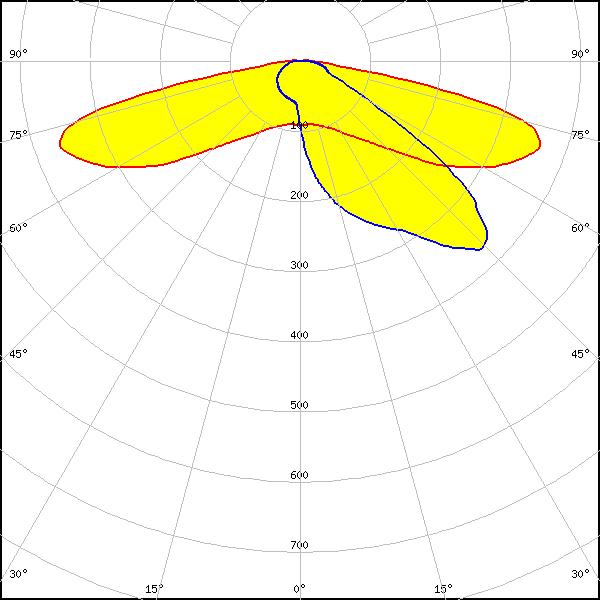

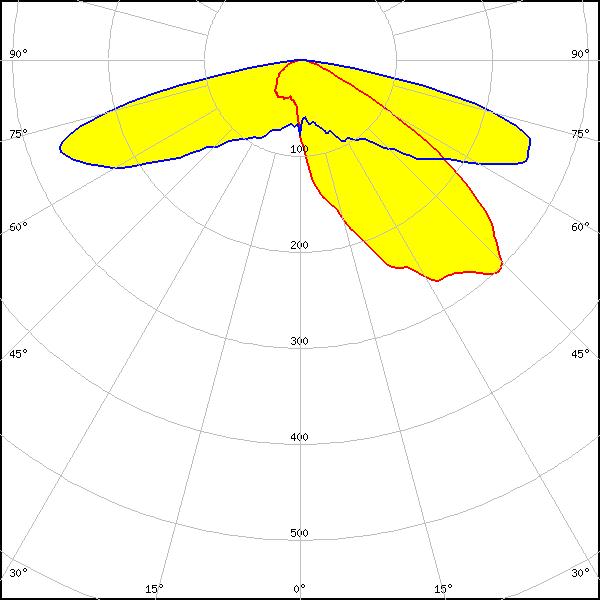

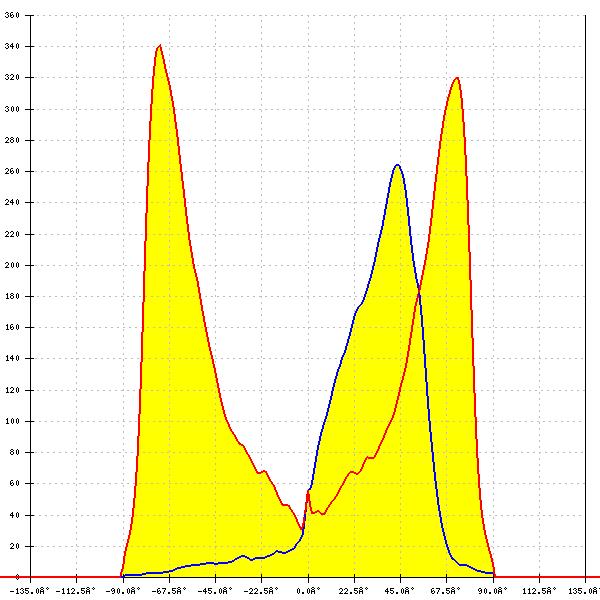

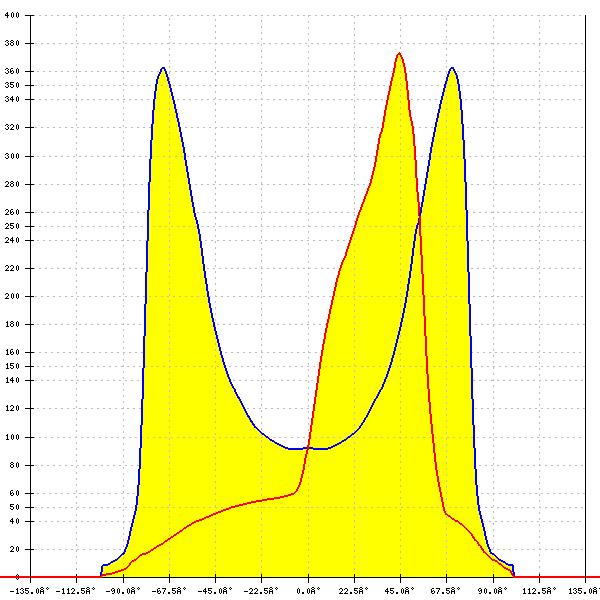

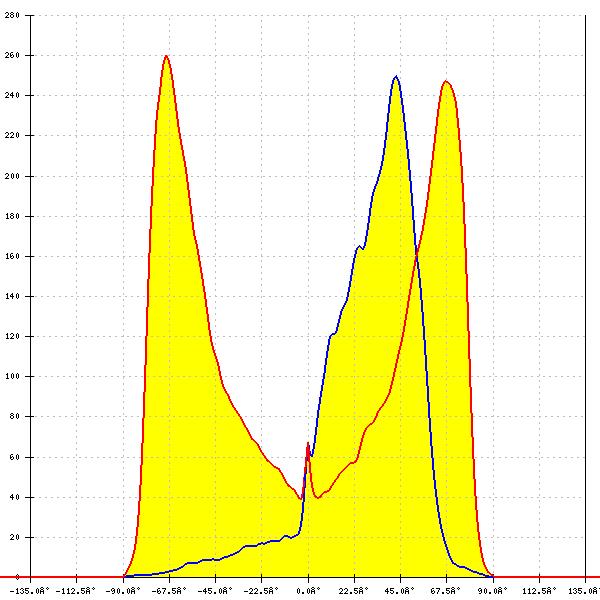

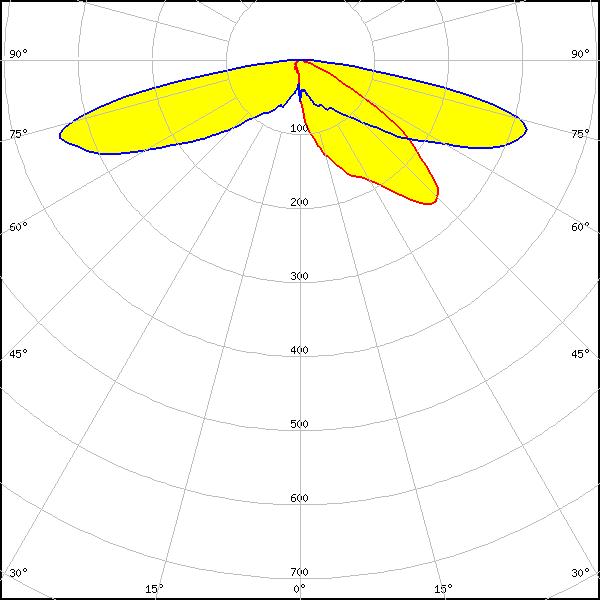

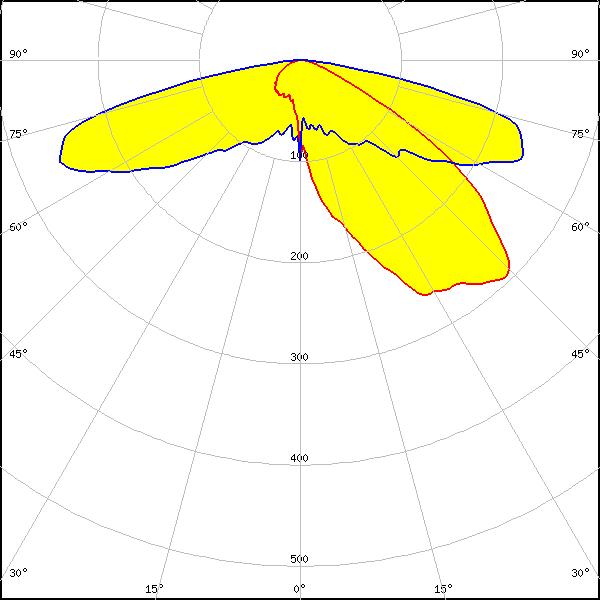

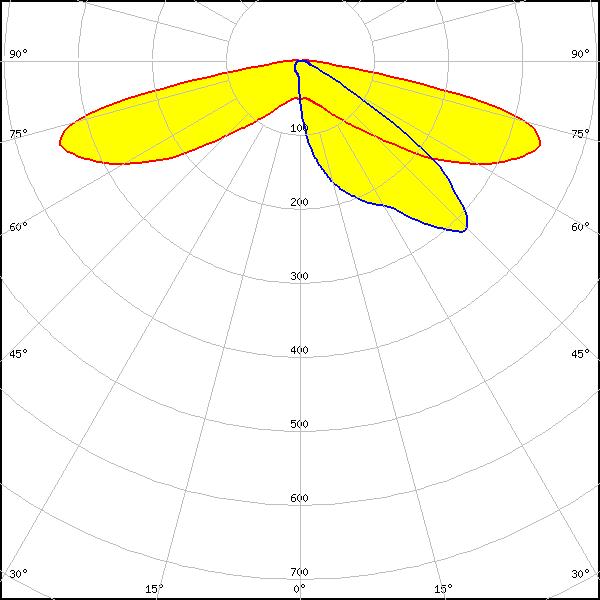

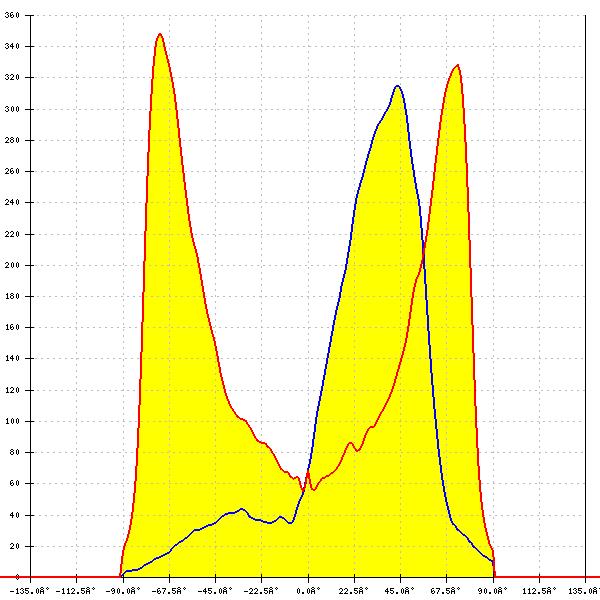

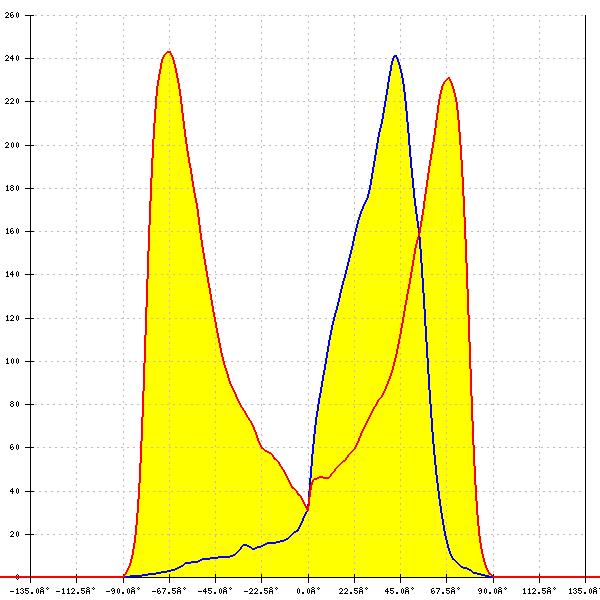

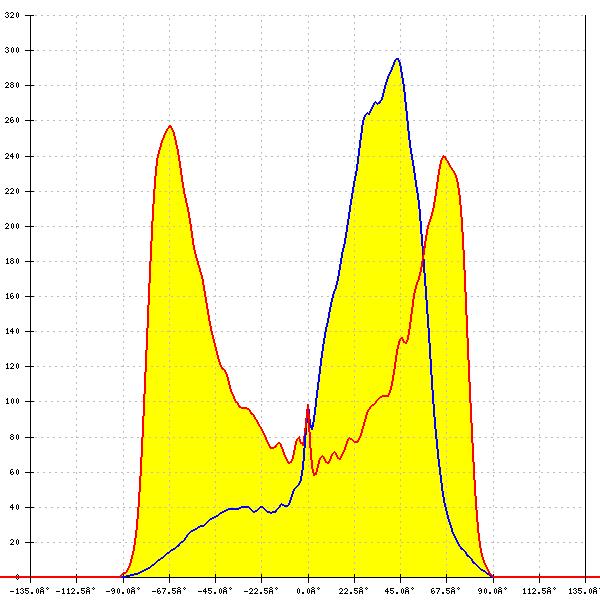

Optical results

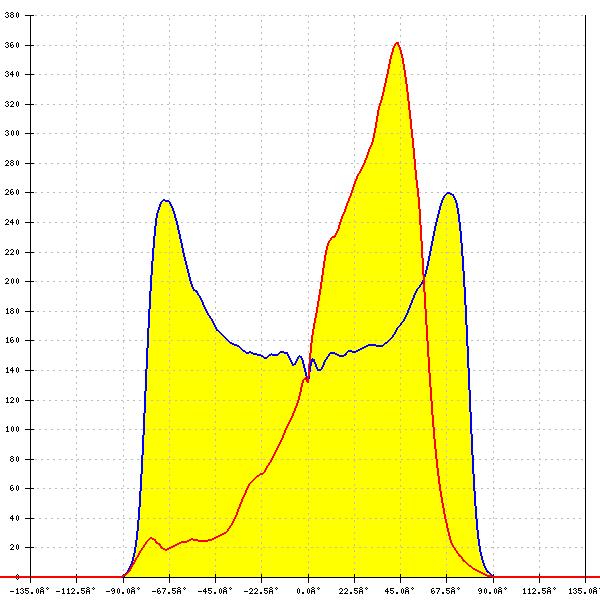

LED: LUXEON 5050 HE

FWHM: asymmetric

Peak intensity: 0.441 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

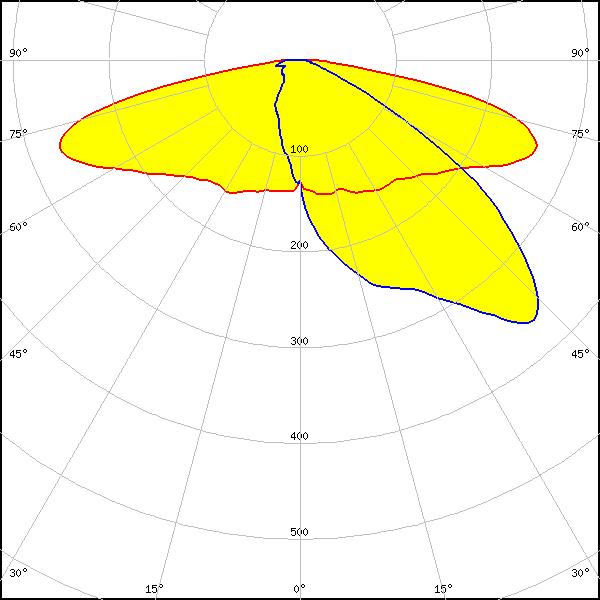

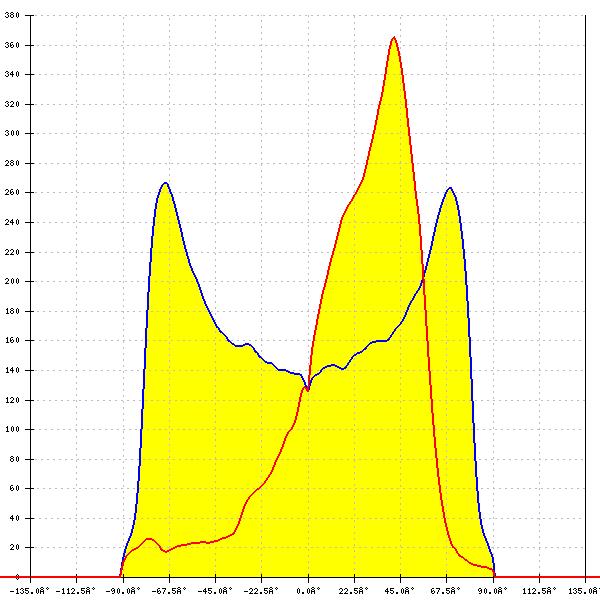

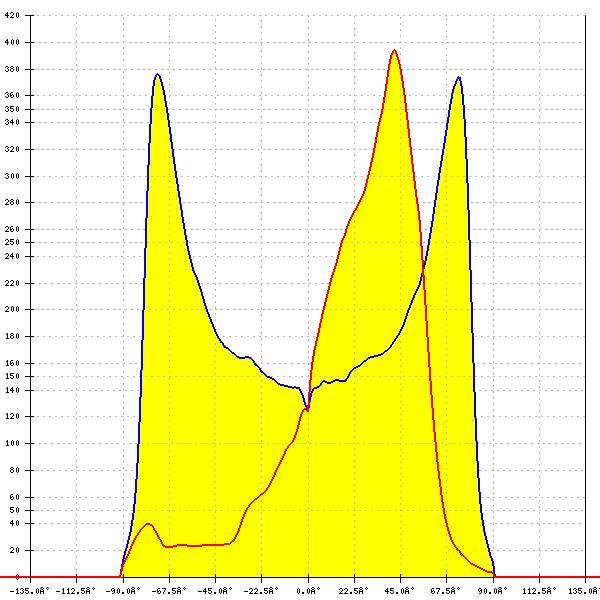

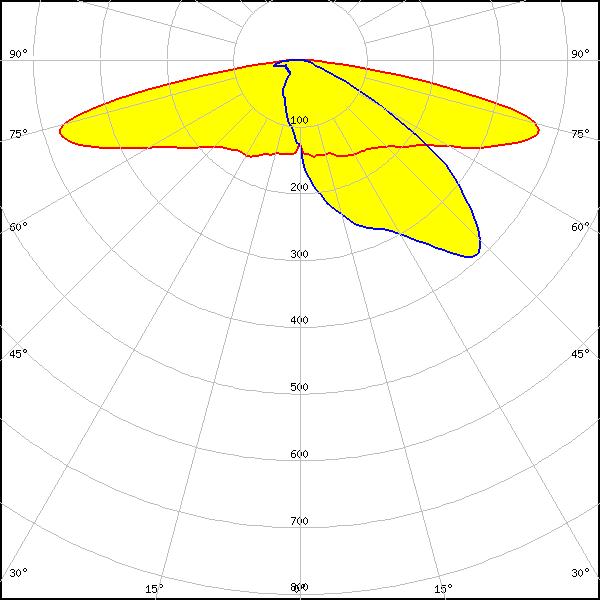

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.606 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.436 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

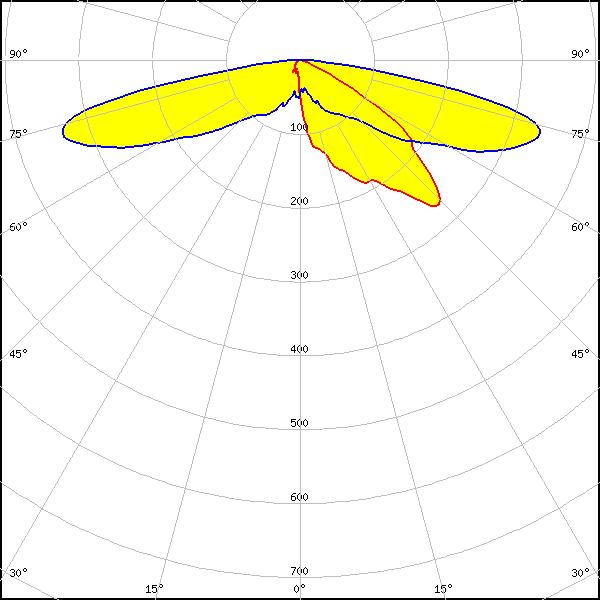

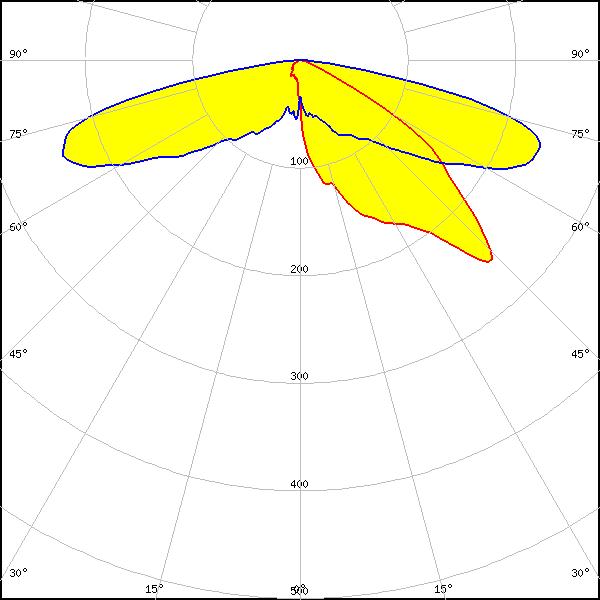

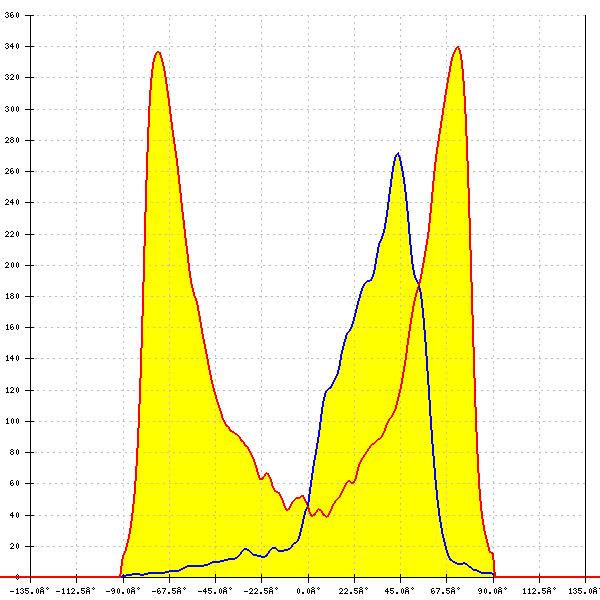

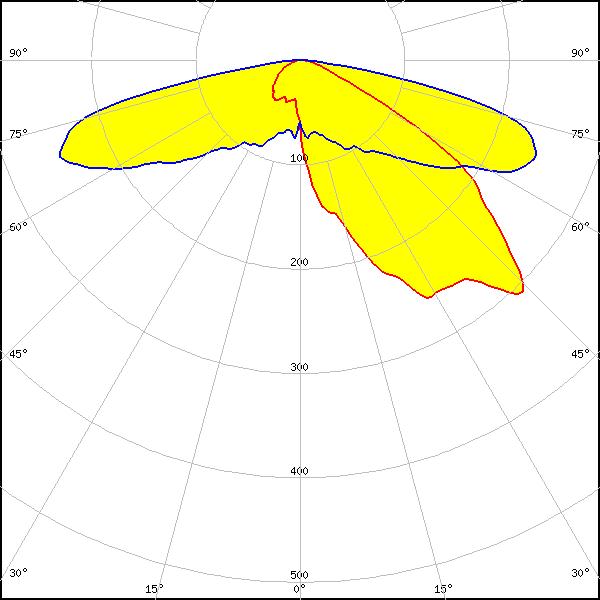

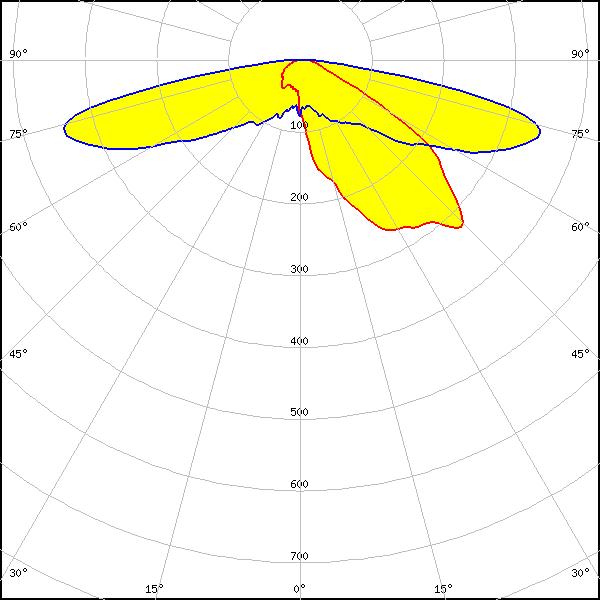

LED: OSCONIQ S 5050 (Q9LR35)

FWHM: asymmetric

Peak intensity: 0.659 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

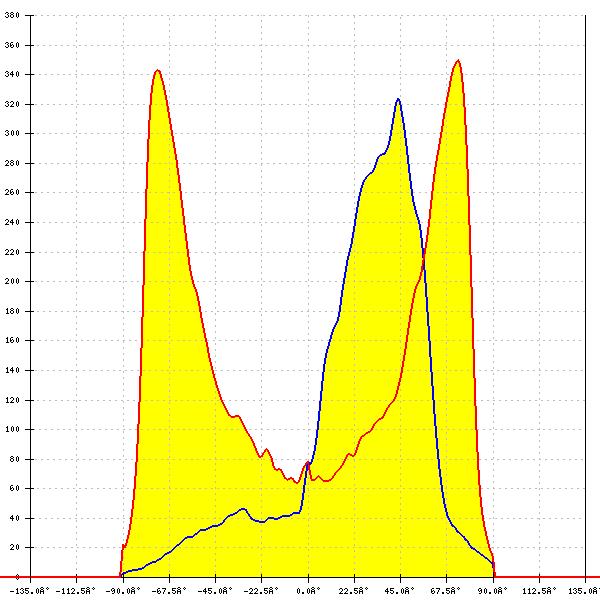

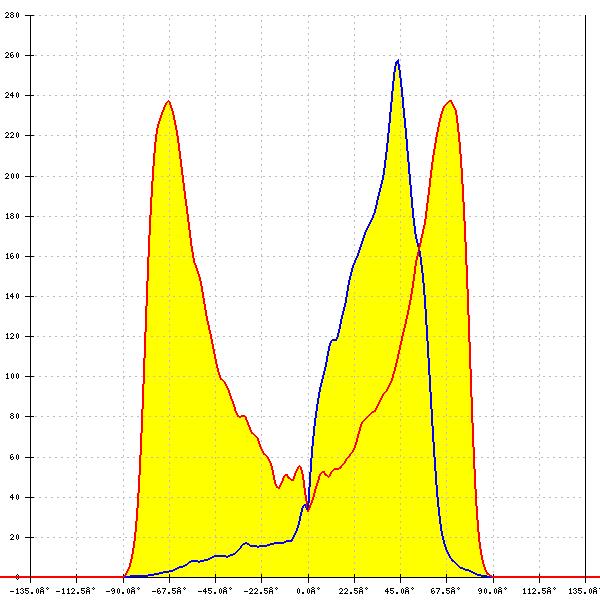

LED: OSCONIQ S 5050 (Q9LR35)

FWHM: asymmetric

Peak intensity: 0.452 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

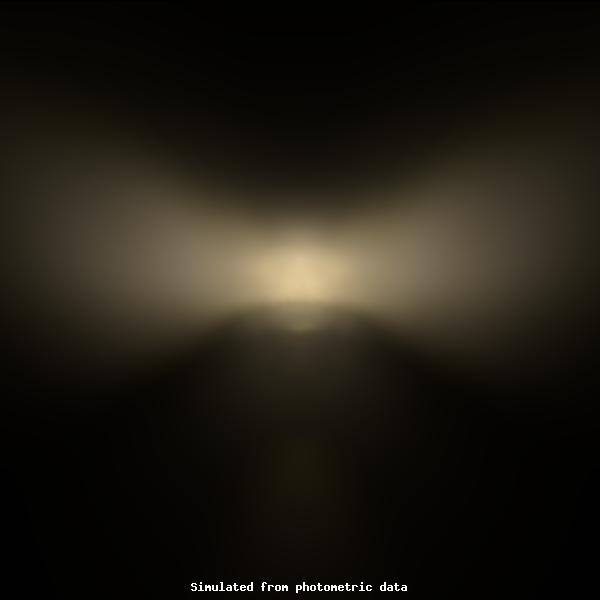

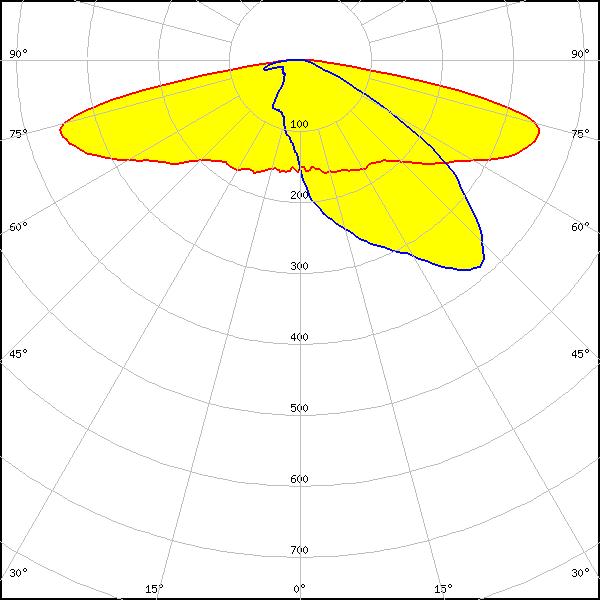

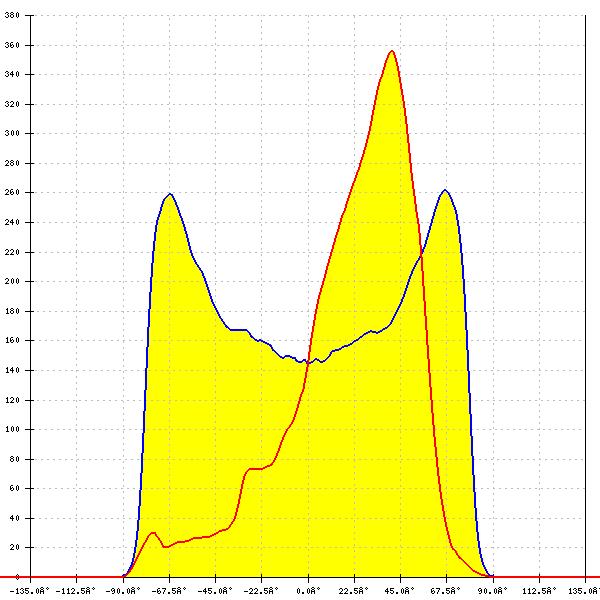

LED: Seoul 5050 G-Series

FWHM: asymmetric

Peak intensity: 0.583 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Seoul 5050 G-Series

FWHM: asymmetric

Peak intensity: 0.411 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
