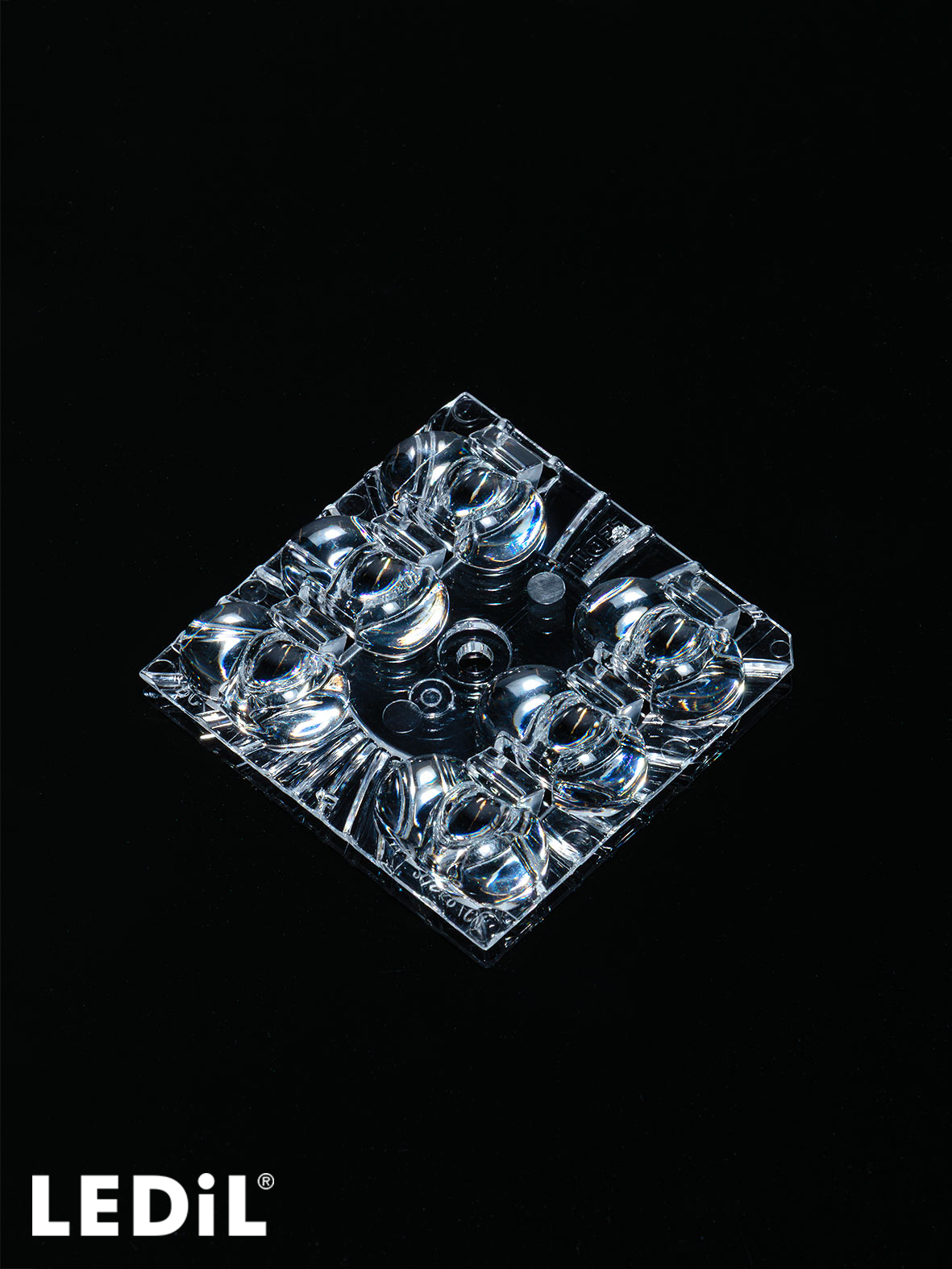

L20258_STRADA-2X3-5050-T3-PC

IESNA Type III (medium) beam for roads that are equal to or wider than mounting height. Variant made from PC.

Specification

Dimensions:

50 x 50 mm
Height:

8.33 mm
Fastening:

screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PC
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

800 pcs
Box size:

480 x 280 x 300 mm
Box weight:

8.5 kg
MPQ:

160 pcs
MOQ:

800 pcs
MOQ size:

480 x 280 x 300 mm
MOQ weight:

8.5 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: L20258_STRADA-2X3-5050-T3-PC

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

L20258_STRADA-2X3-5050-T3-PC

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

New beams and products – October 2025

Application guide

Guide for Street lighting optics

Catalogue

LEDiL Latest products catalogue 2026

News

New beams and products - September 2024

News

STRADA-2X3 – Cut costs, not quality

Application guide

Guide for Urban lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

AVAILABLE LEDiL ACCESSORIES

STRADA-2X3-SHD-BLK

Black shade for additional backlight control.

STRADA-2X3-SHD-WHT

White shade for additional backlight control.

Optical results

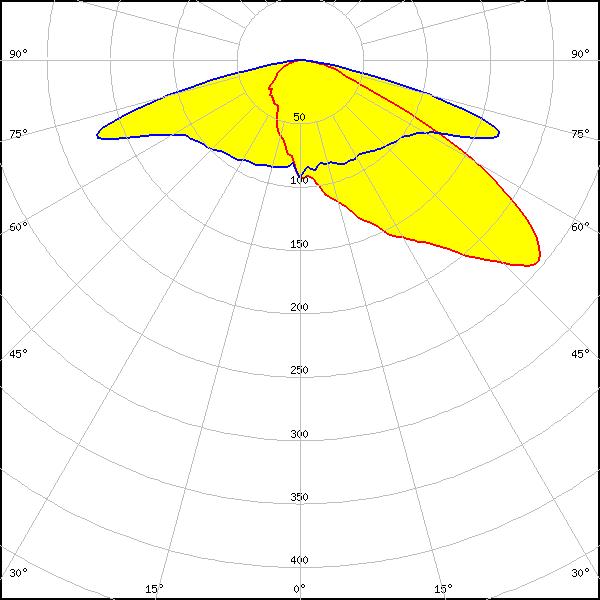

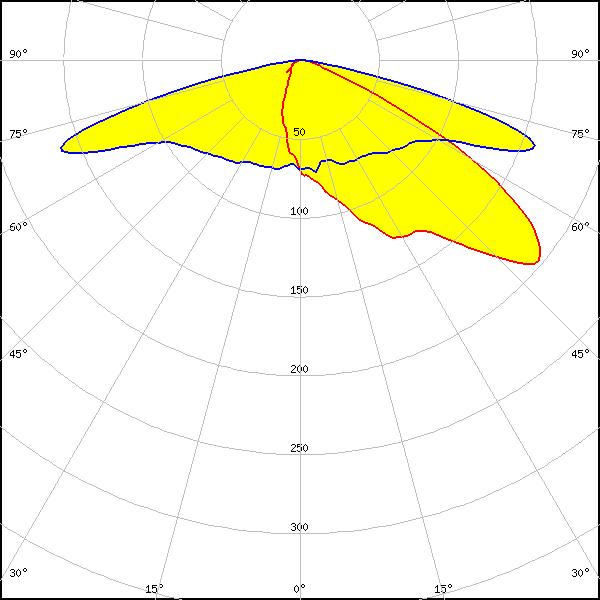

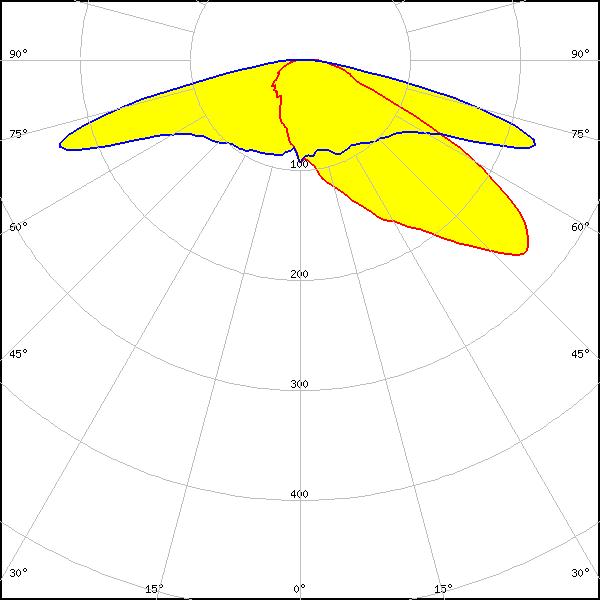

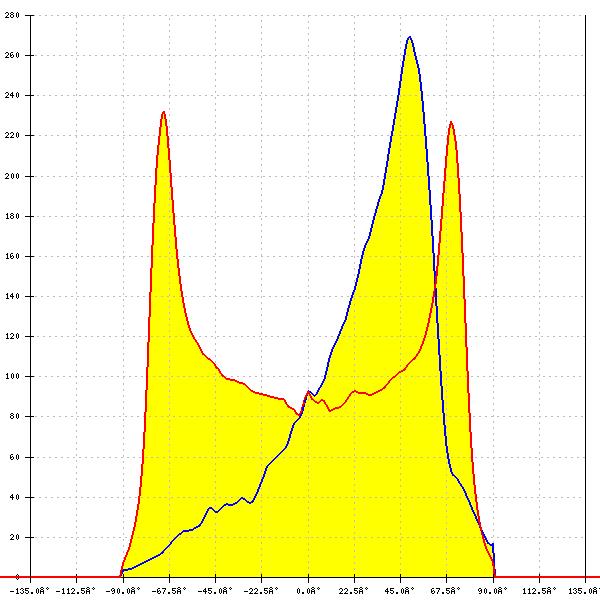

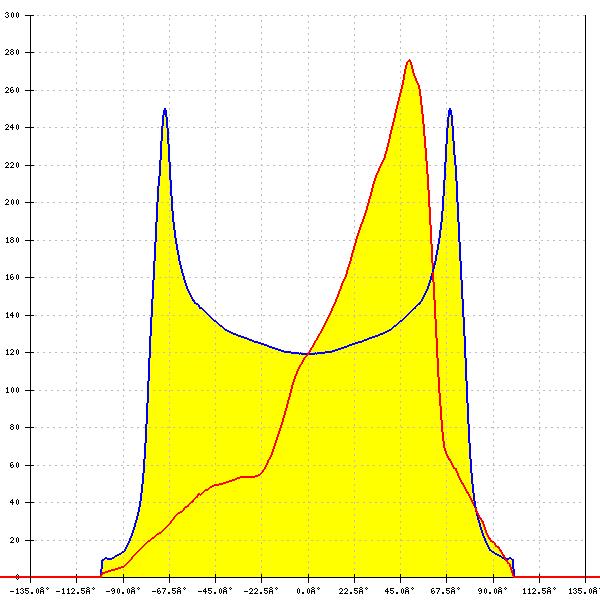

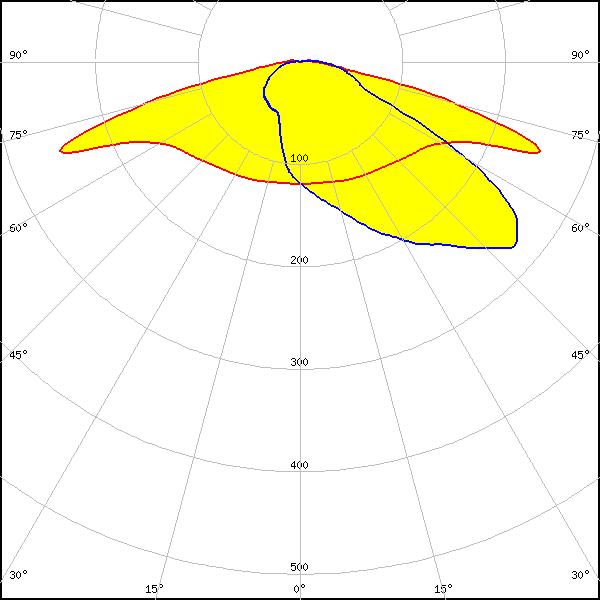

LED: J Series 5050C 6V E Class

Required components:

L20660_STRADA-2X3-SHD-WHT

FWHM: asymmetric

Peak intensity: 0.455 cd/lm

Efficiency: 55 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

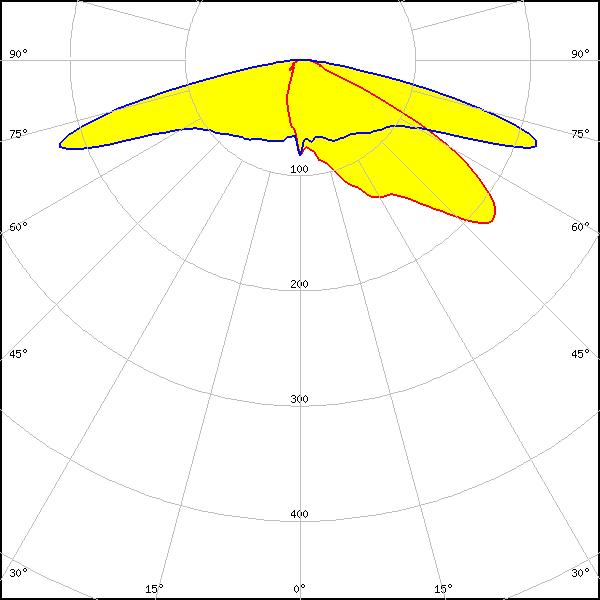

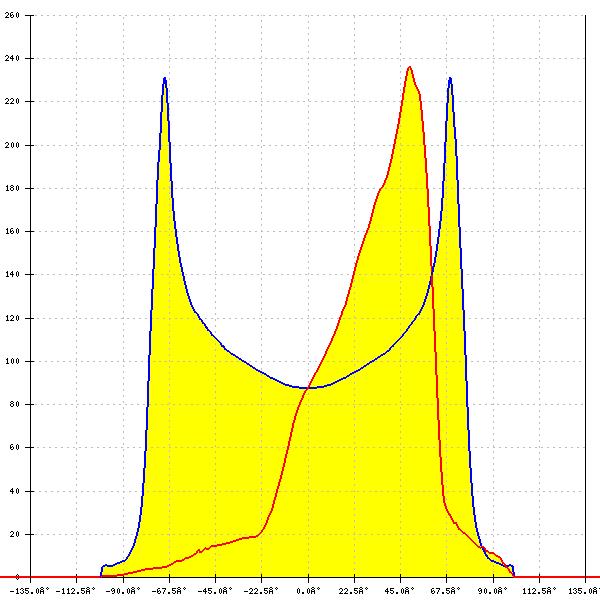

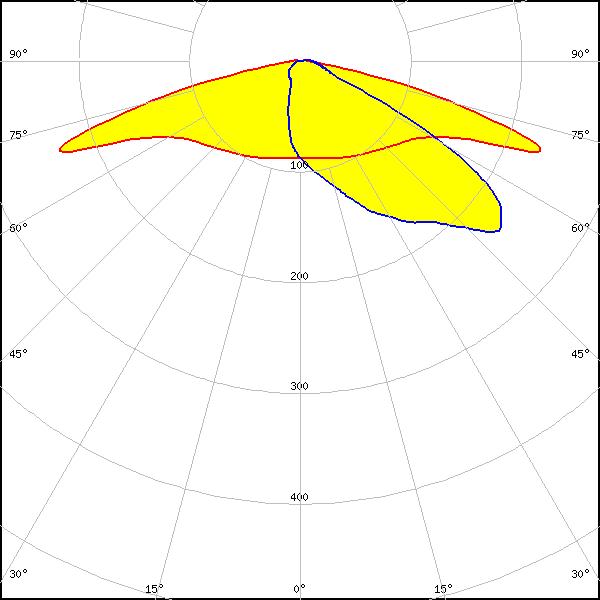

LED: J Series 5050C 6V E Class

Required components:

L20659_STRADA-2X3-SHD-BLK

FWHM: asymmetric

Peak intensity: 0.444 cd/lm

Efficiency: 45 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

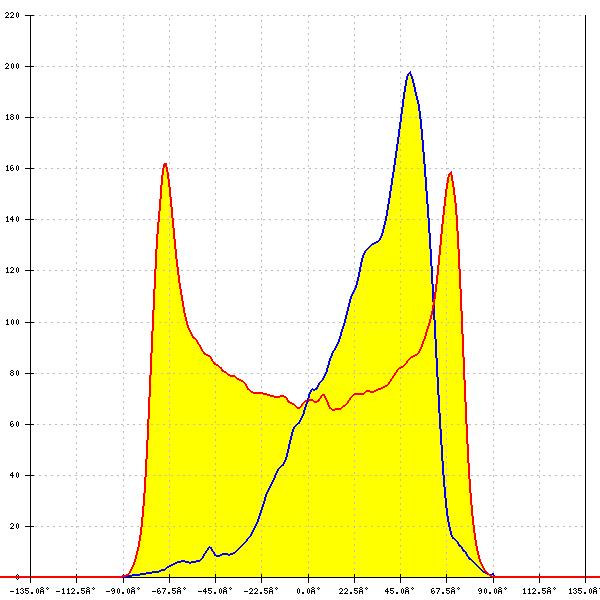

LED: J Series 5050C 6V E Class

Required components:

L20659_STRADA-2X3-SHD-BLK

FWHM: asymmetric

Peak intensity: 0.798 cd/lm

Efficiency: 61 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

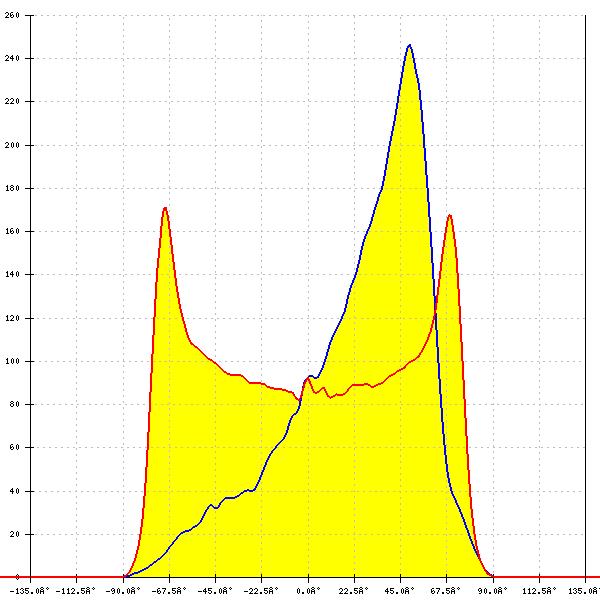

LED: J Series 5050C 6V E Class

Required components:

L20660_STRADA-2X3-SHD-WHT

FWHM: asymmetric

Peak intensity: 0.814 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

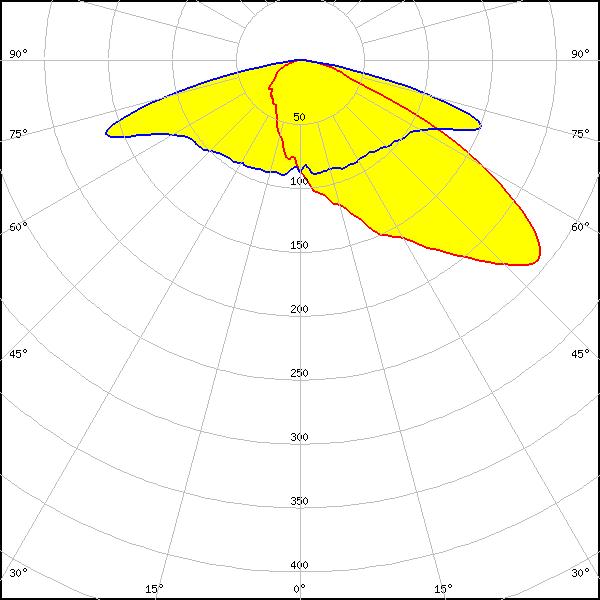

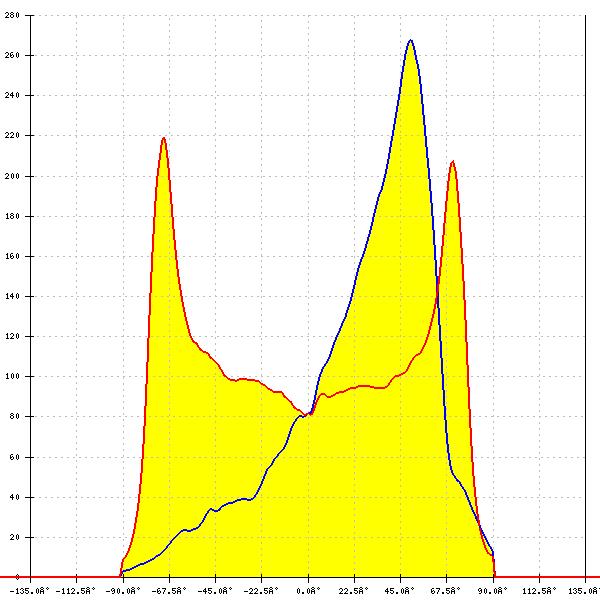

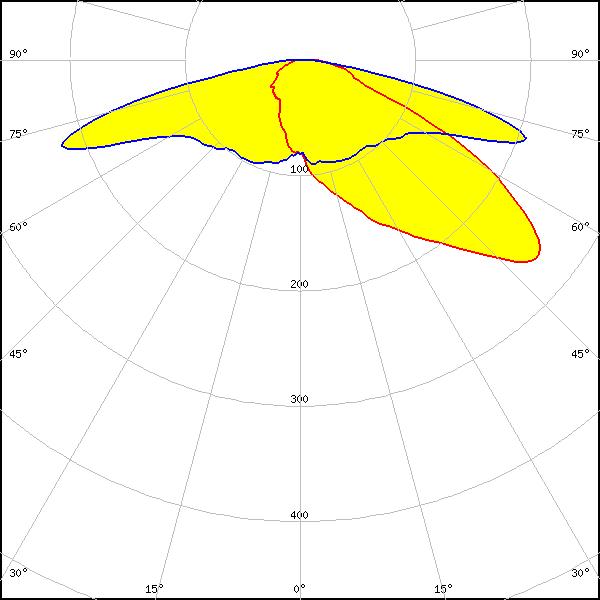

LED: LUXEON 5050 Square LES

Required components:

L20660_STRADA-2X3-SHD-WHT

FWHM: asymmetric

Peak intensity: 0.624 cd/lm

Efficiency: 67 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

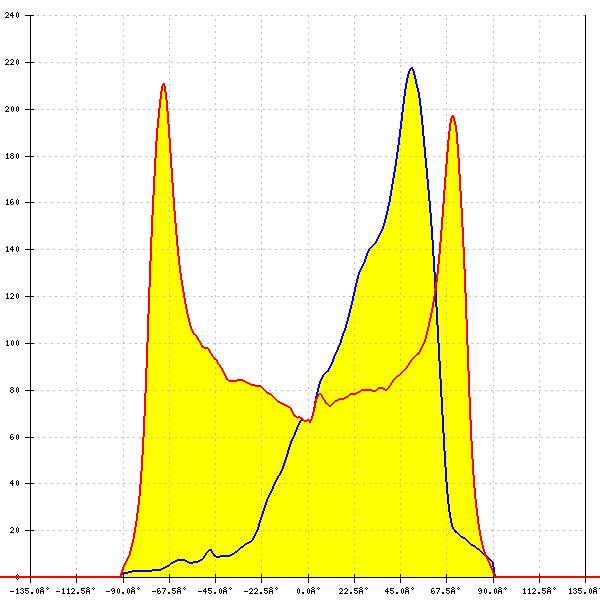

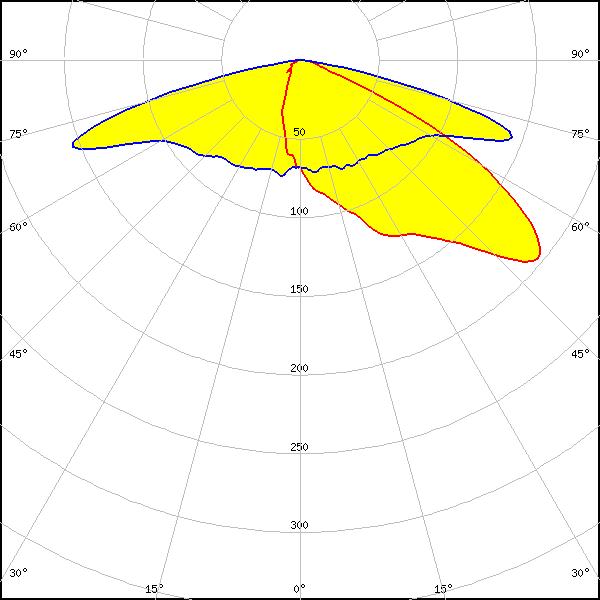

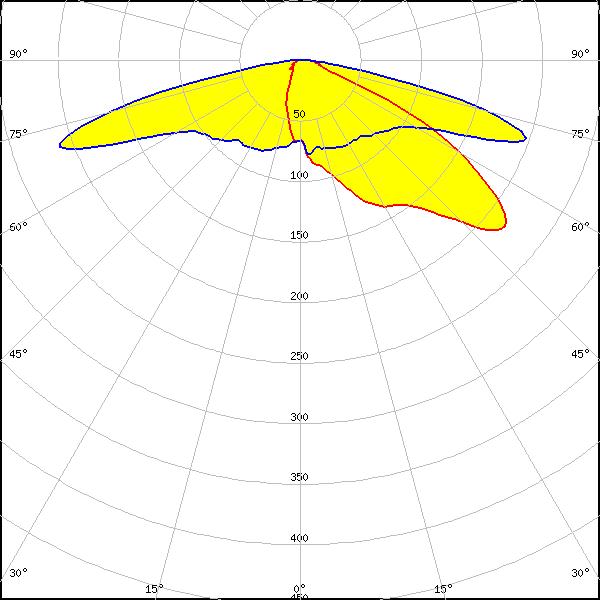

LED: LUXEON 5050 Square LES

Required components:

L20659_STRADA-2X3-SHD-BLK

FWHM: asymmetric

Peak intensity: 0.611 cd/lm

Efficiency: 56 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

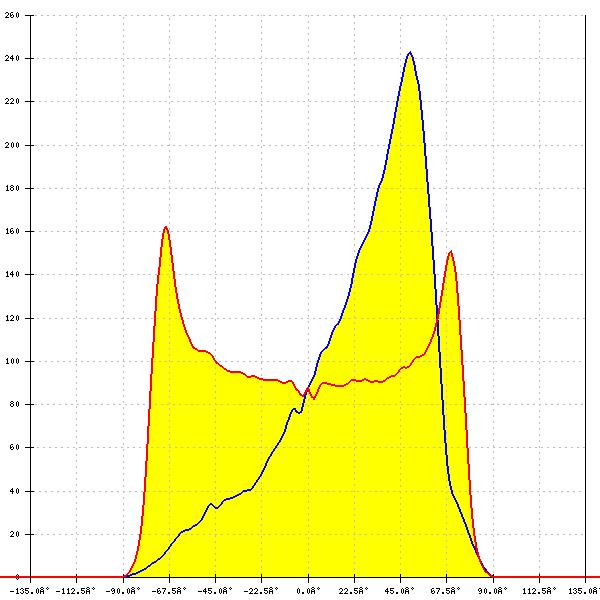

LED: LUXEON 5050 Square LES

Required components:

L20660_STRADA-2X3-SHD-WHT

FWHM: asymmetric

Peak intensity: 0.428 cd/lm

Efficiency: 55 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Square LES

Required components:

L20659_STRADA-2X3-SHD-BLK

FWHM: asymmetric

Peak intensity: 0.418 cd/lm

Efficiency: 45 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

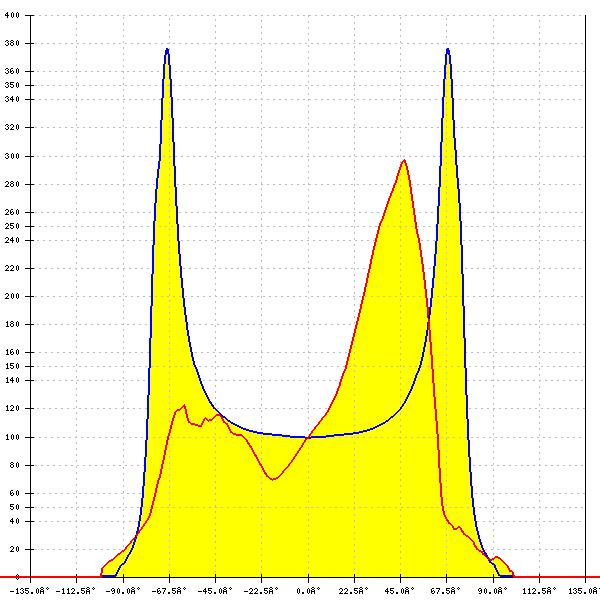

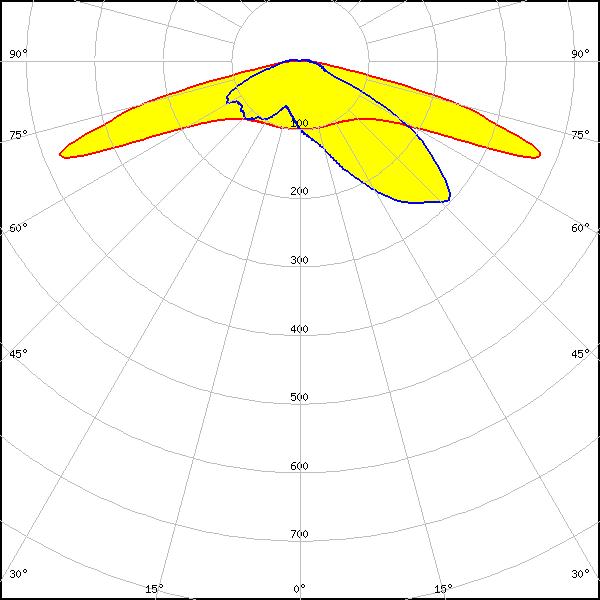

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.848 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

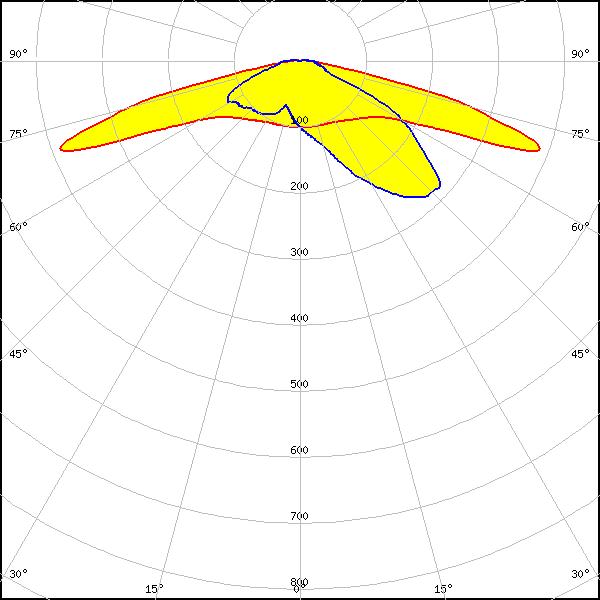

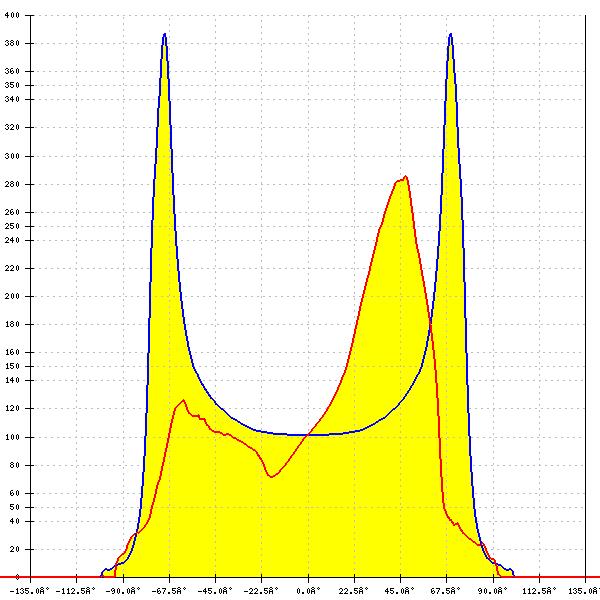

LED: Flexus 2x3 G1 6x5050

FWHM: asymmetric

Peak intensity: 0.523 cd/lm

Efficiency: 70 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

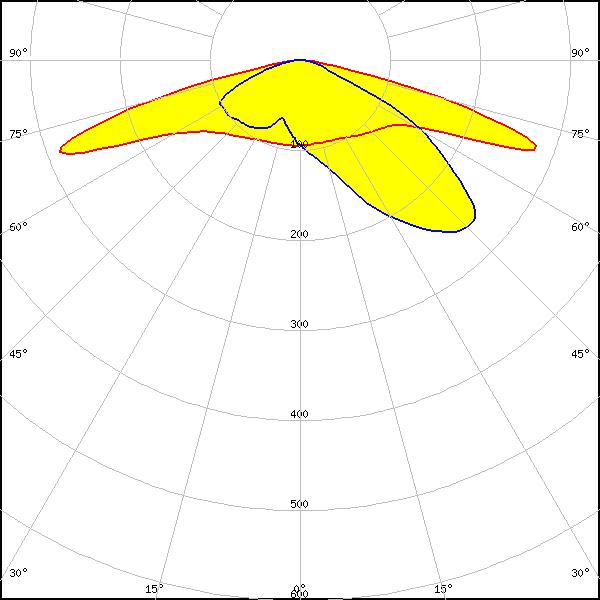

LED: Flexus 2x3 G1 6x5050

FWHM: asymmetric

Peak intensity: 0.828 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

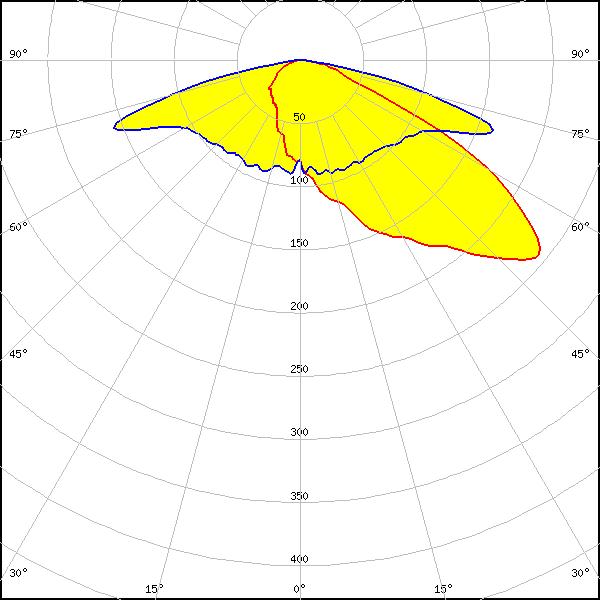

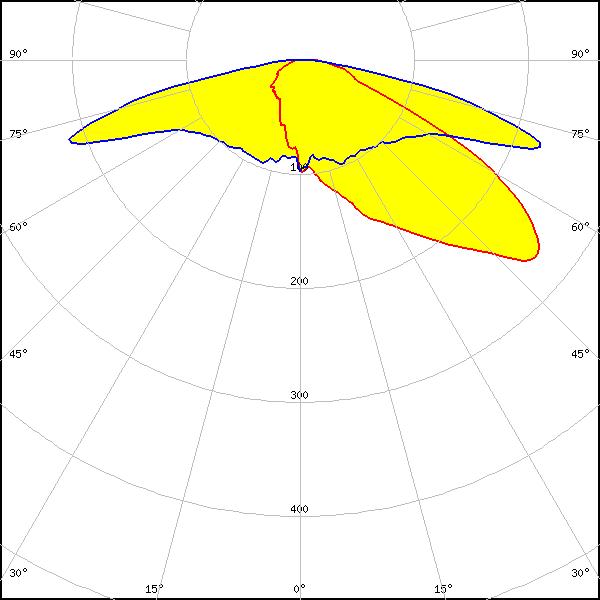

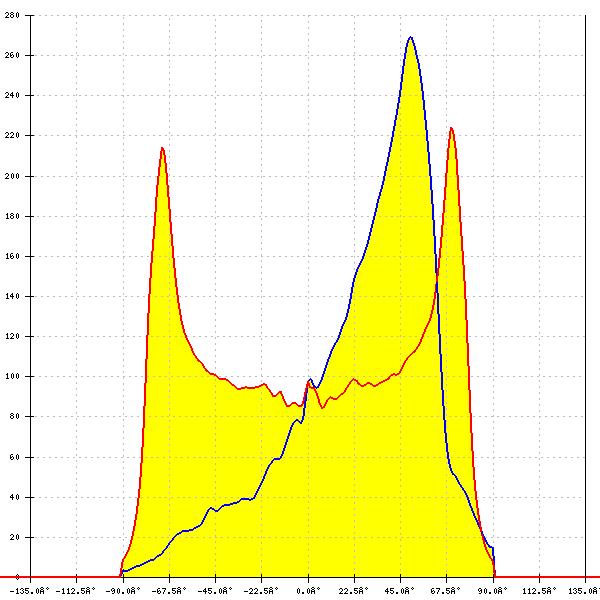

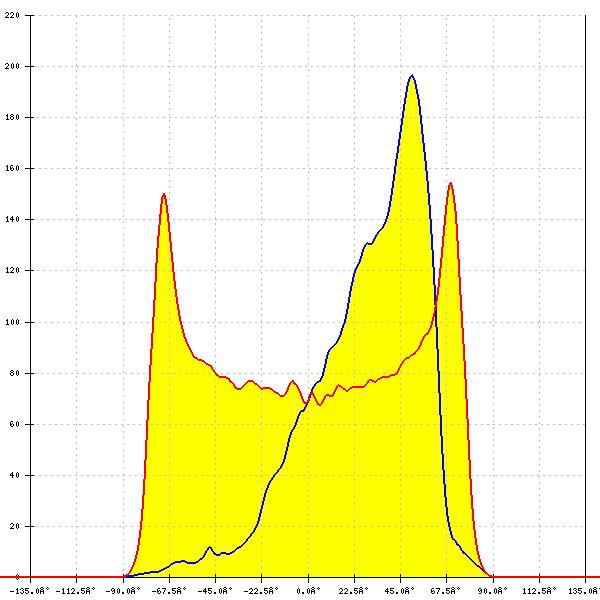

LED: OSCONIQ S 5050 (Q9LR35)

Required components:

L20660_STRADA-2X3-SHD-WHT

FWHM: asymmetric

Peak intensity: 0.651 cd/lm

Efficiency: 67 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

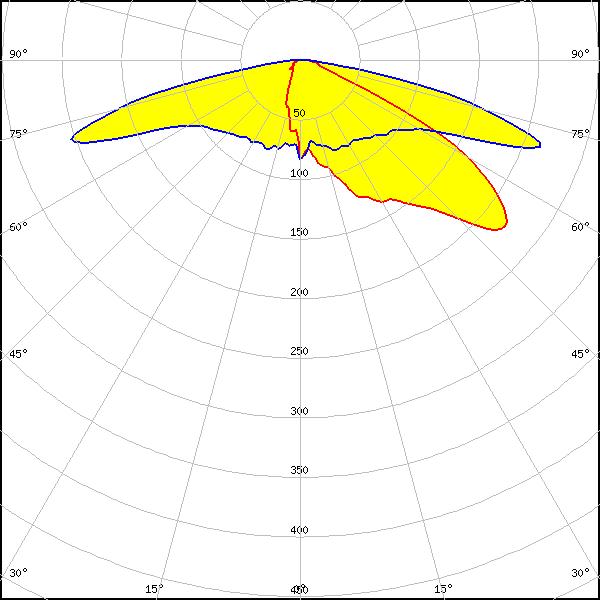

LED: OSCONIQ S 5050 (Q9LR35)

Required components:

L20659_STRADA-2X3-SHD-BLK

FWHM: asymmetric

Peak intensity: 0.640 cd/lm

Efficiency: 56 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

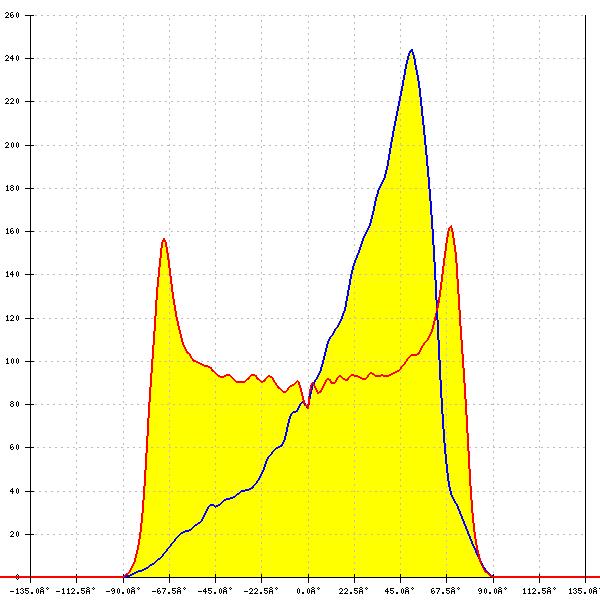

LED: OSCONIQ S 5050 (Q9LR35)

Required components:

L20660_STRADA-2X3-SHD-WHT

FWHM: asymmetric

Peak intensity: 0.443 cd/lm

Efficiency: 55 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

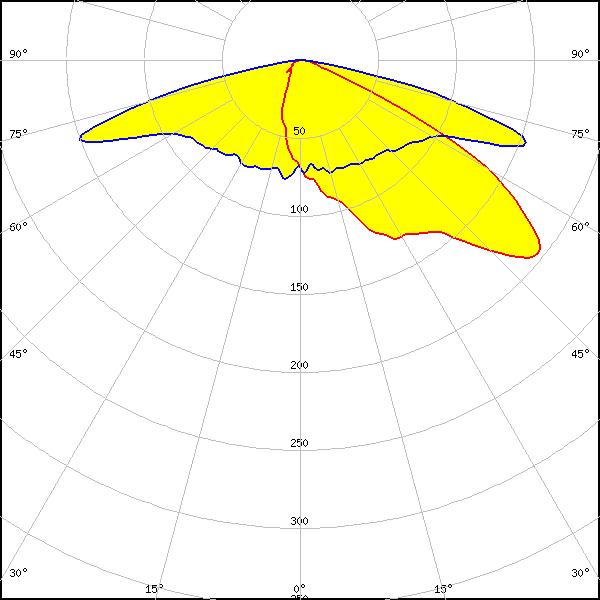

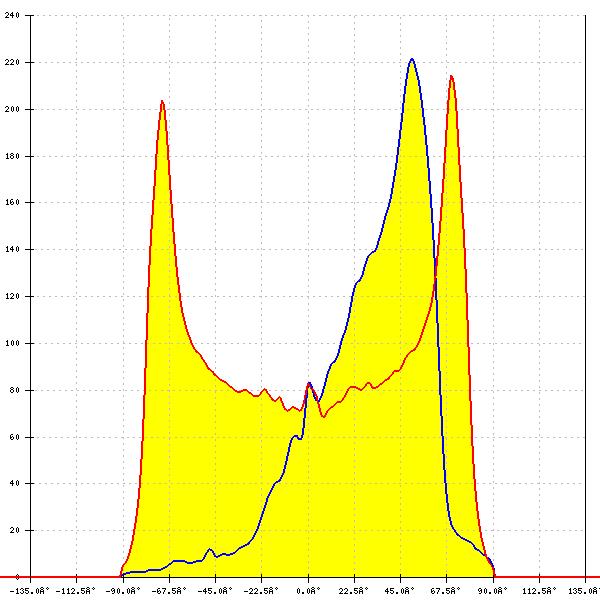

LED: OSCONIQ S 5050 (Q9LR35)

Required components:

L20659_STRADA-2X3-SHD-BLK

FWHM: asymmetric

Peak intensity: 0.430 cd/lm

Efficiency: 45 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
