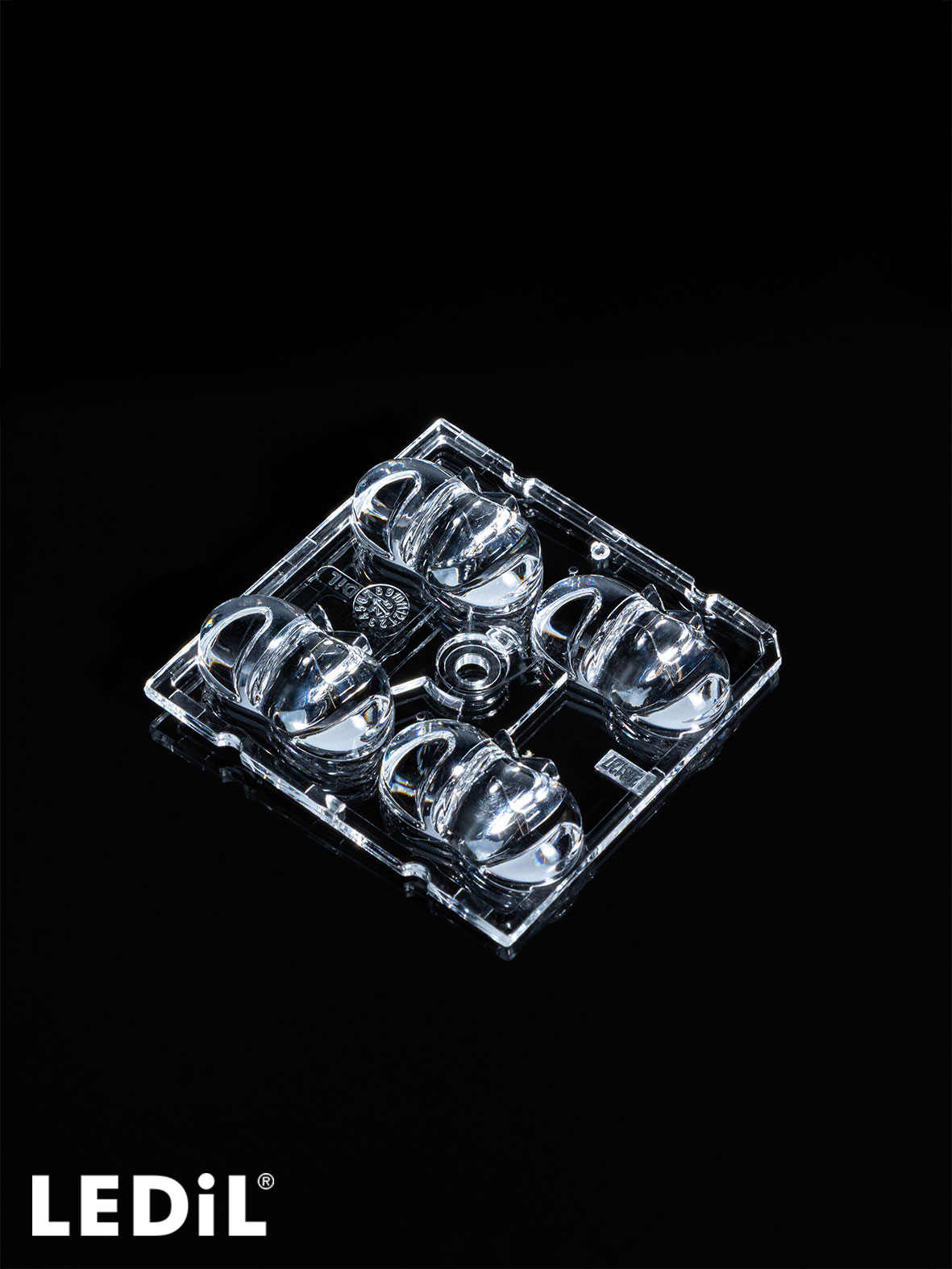

    L20312_STRADA-2X2-5050-MEW3

    Print

    Beam with extremely low glare fulfilling EN13201 M-class requirements for wet road surfaces in North Europe.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.20 mm
    • Fastening:
      screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.7 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      1.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      L20312_STRADA-2X2-5050-MEW3
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    M3 Street lighting with STRADA-2X2-5050-MEW3 (N2 wet)

    Application example

    M3b Street lighting with STRADA-2X2-5050-MEW3 (R2 wet)

    News

    New beams and products – November 2025

    Application area

    Urban lighting with LEDiL optics

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

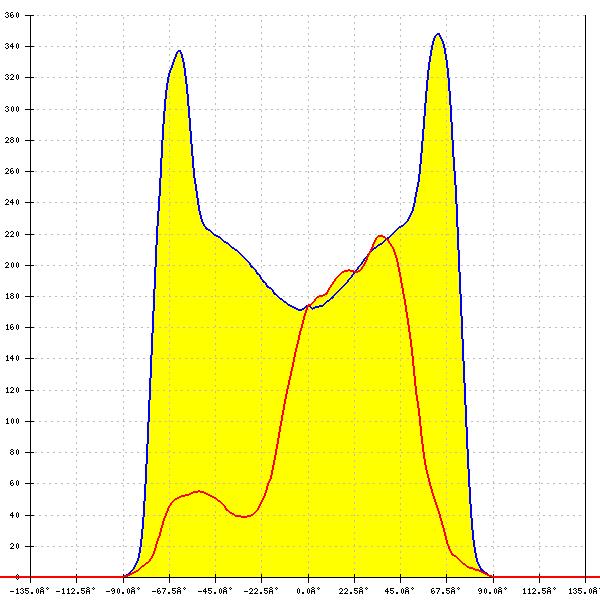

    Optical results

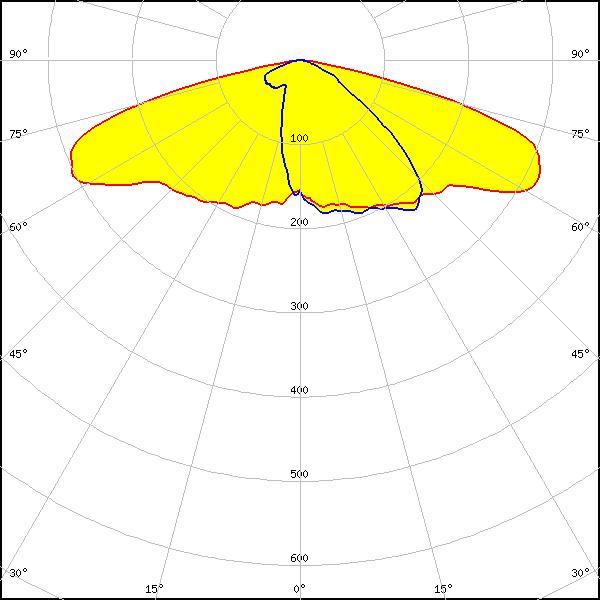

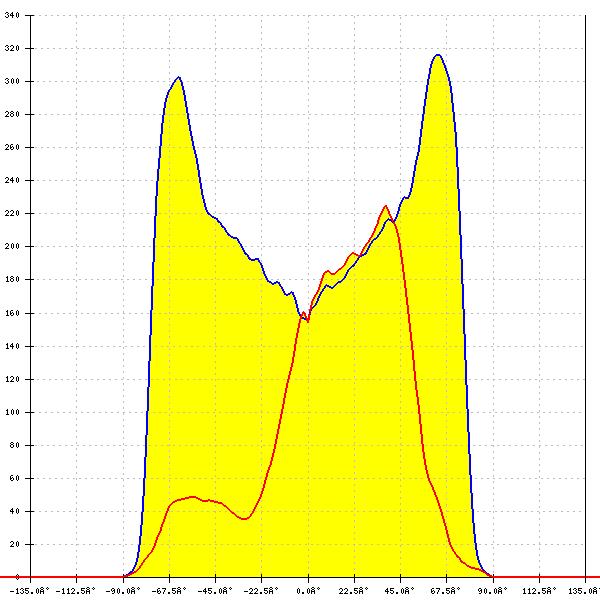

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.609 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

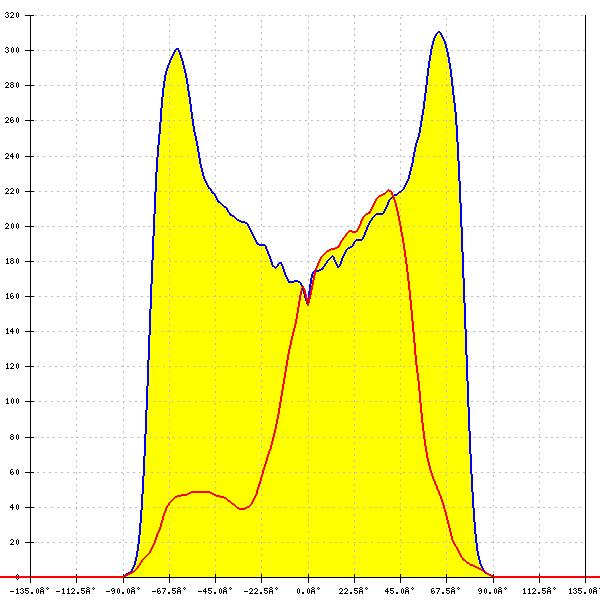

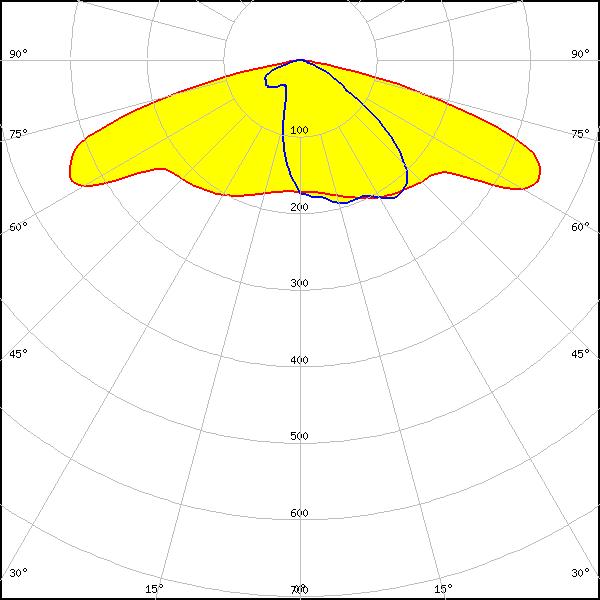

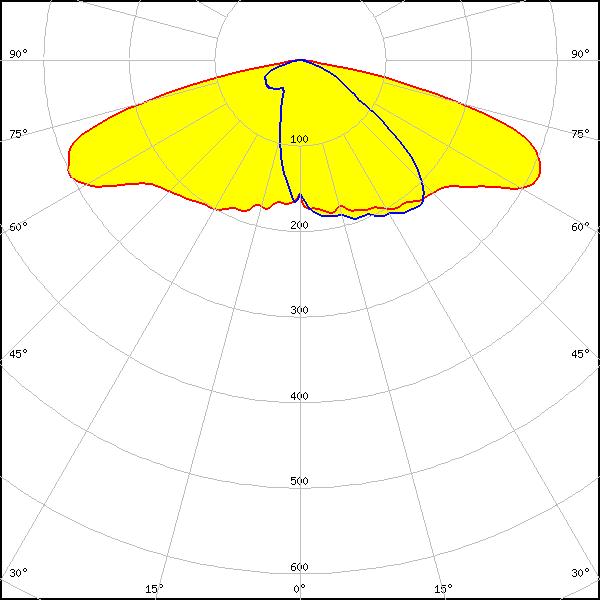

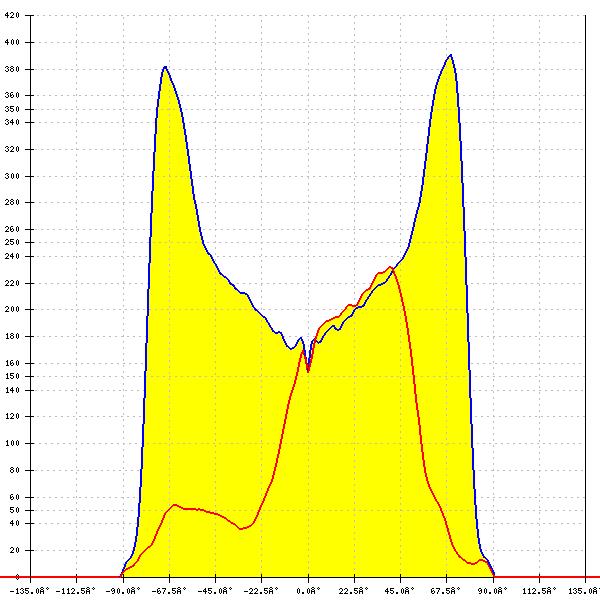

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.722 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.591 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

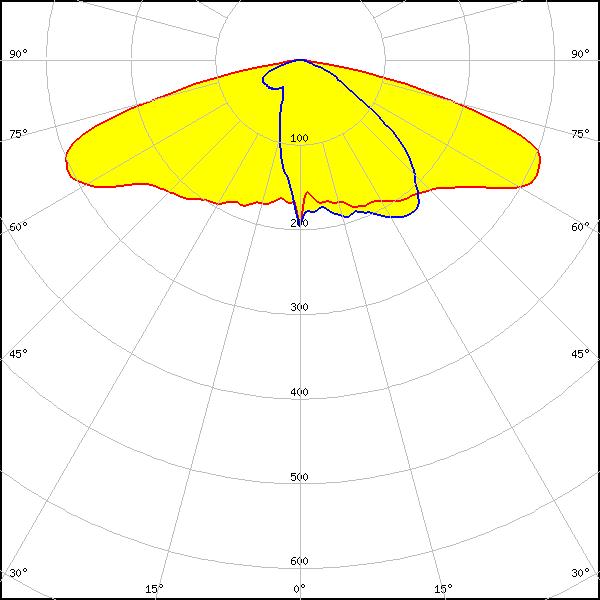

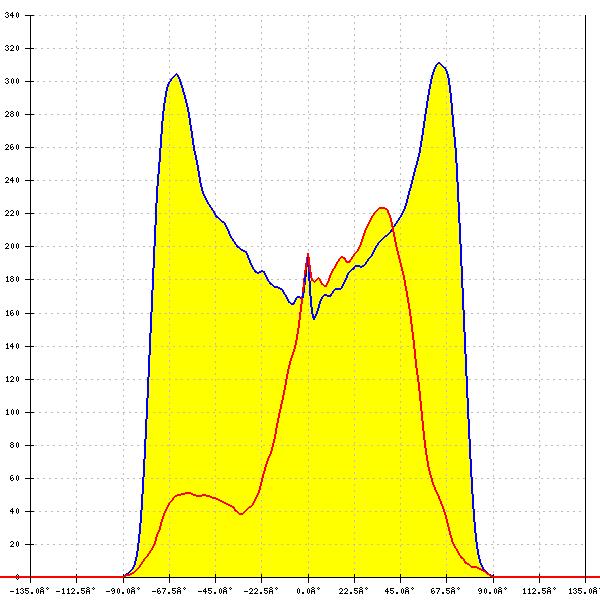

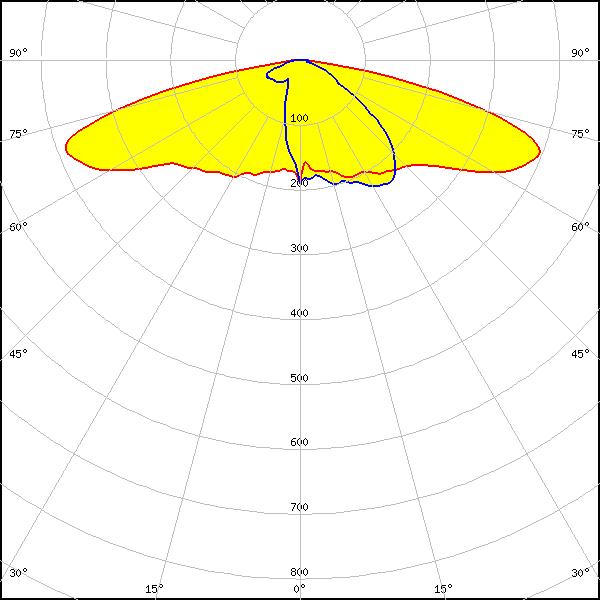

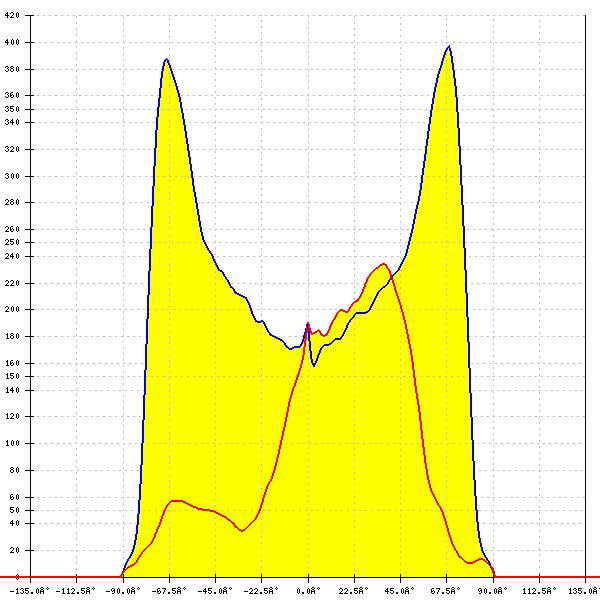

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.688 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.558 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

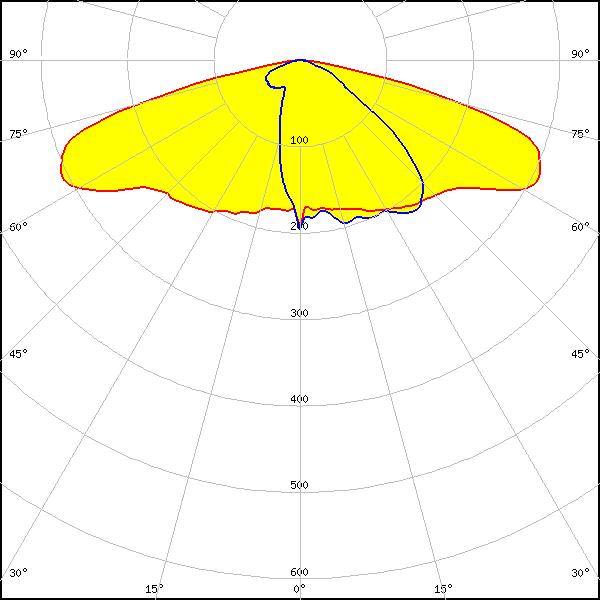

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.728 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.592 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

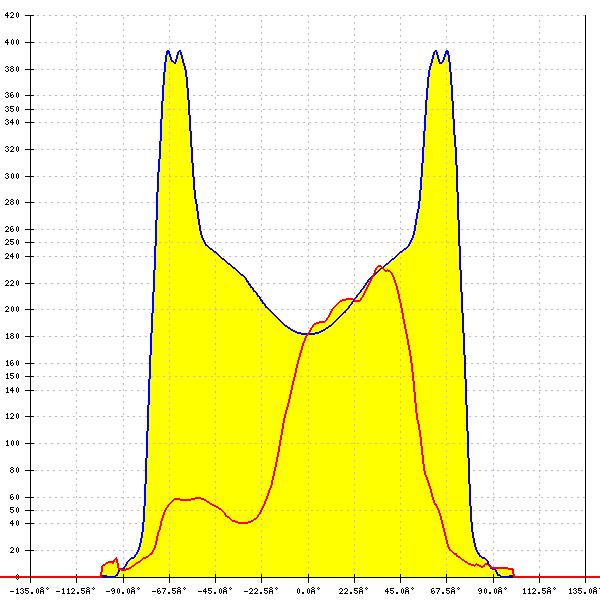

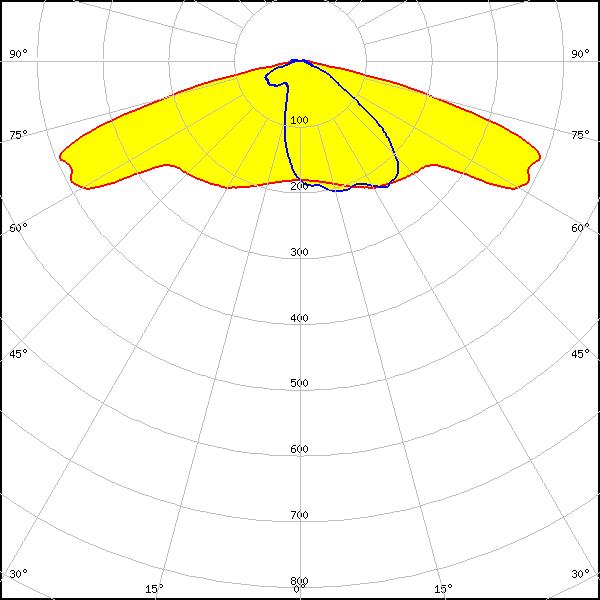

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.655 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

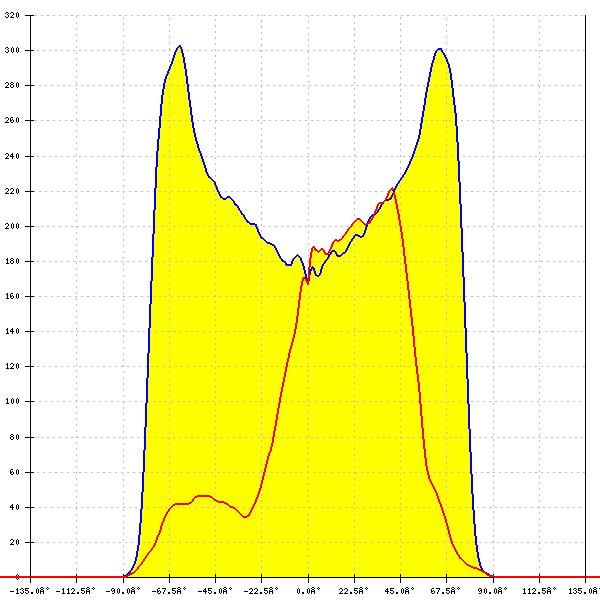

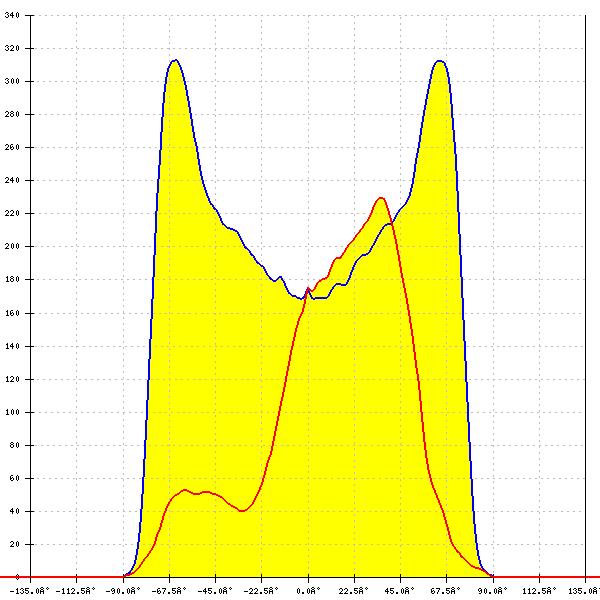

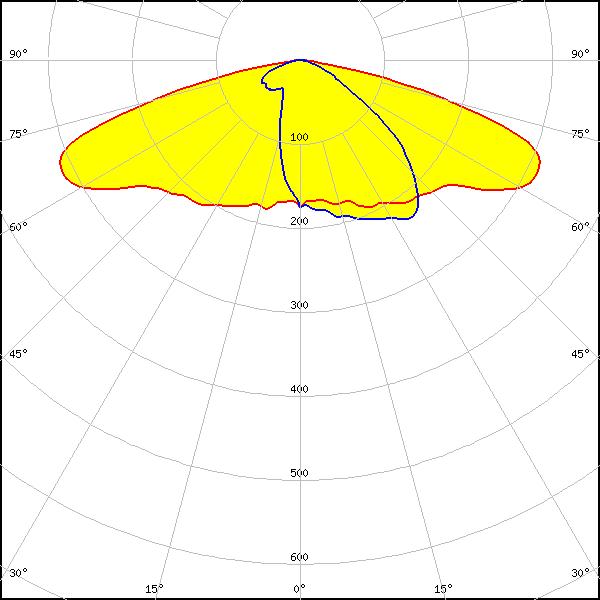

    LED: OSCONIQ S 5050 (Q9LR35)
    FWHM: asymmetric
    Peak intensity: 0.593 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x2 DA G5
    FWHM: asymmetric
    Peak intensity: 0.577 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
