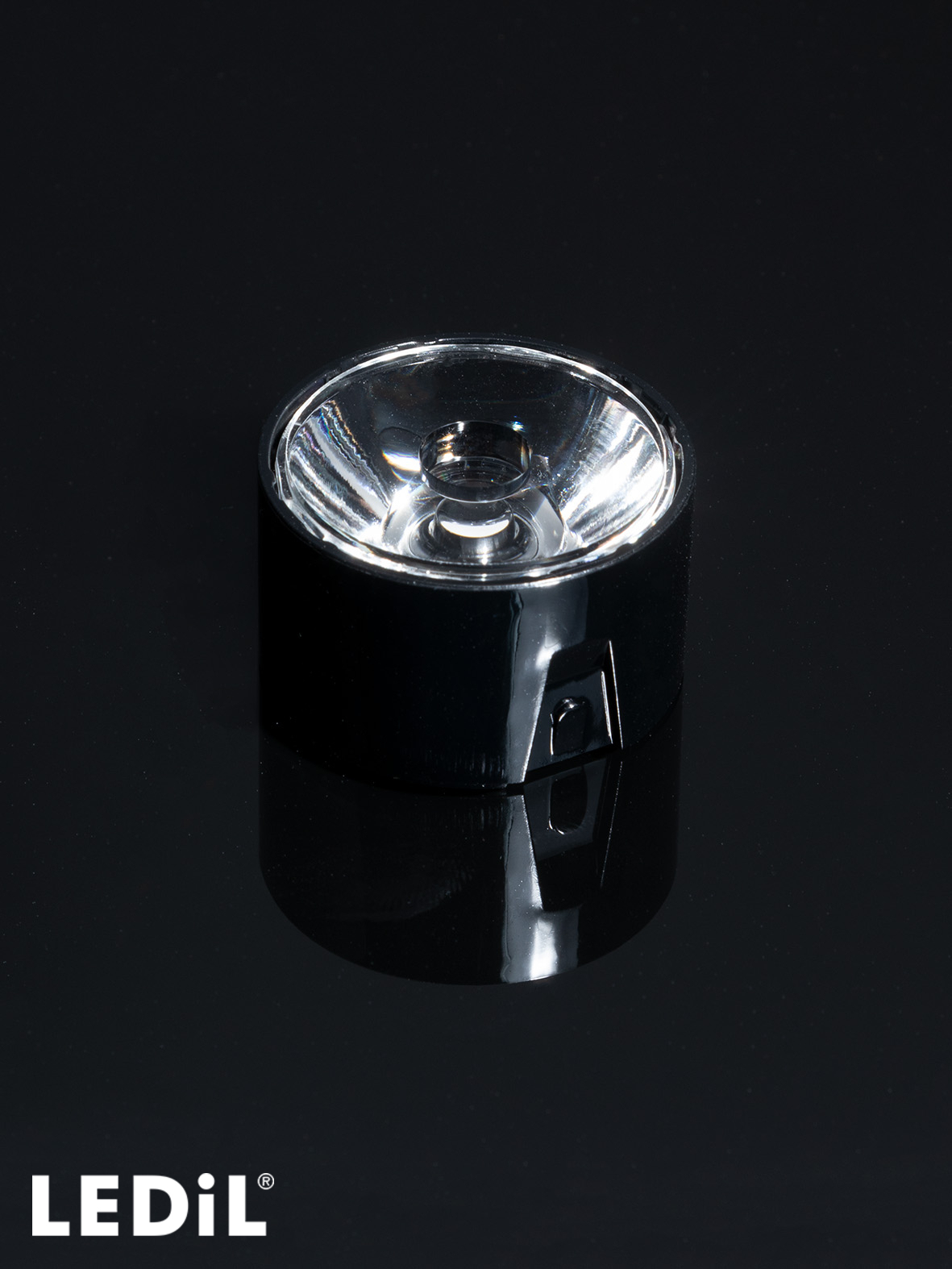

    LP20248_OLGA-SC2-RS2

    Print

    ~5° spot beam beam. Optimized for high-power 3535 size LED packages. Assembly with black SC2-holder.

    Specification
    • Dimensions:
      32 mm
    • Height:
      18.99 mm
    • Fastening:
      solder clip
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      10.0 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      LP20248_OLGA-SC2-RS2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New solder clip connection for fast and secure lens installation

    Application guide

    Guide for Retail Lighting Optics

    News

    OLGA – Expanding possibilities in architectural lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Moscow Paleontological Museum

    News

    PRODUCT NEWS - OLGA

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOLDER-CLIP-2

    Reel with 2nd generation of solder clips for easy lens mounting

    Optical results

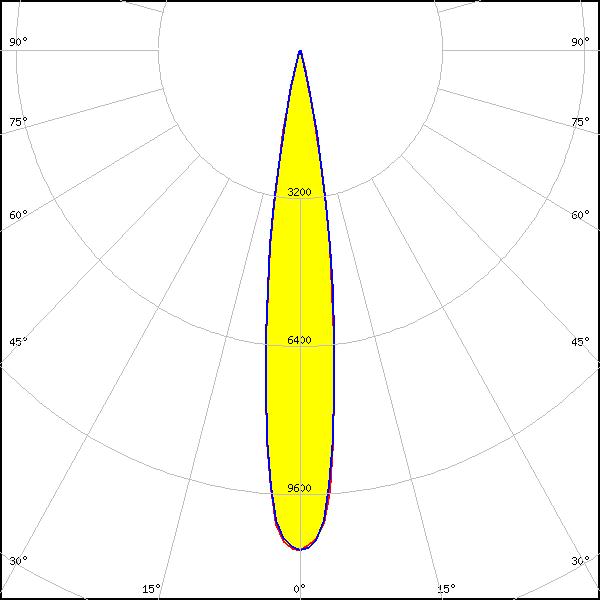

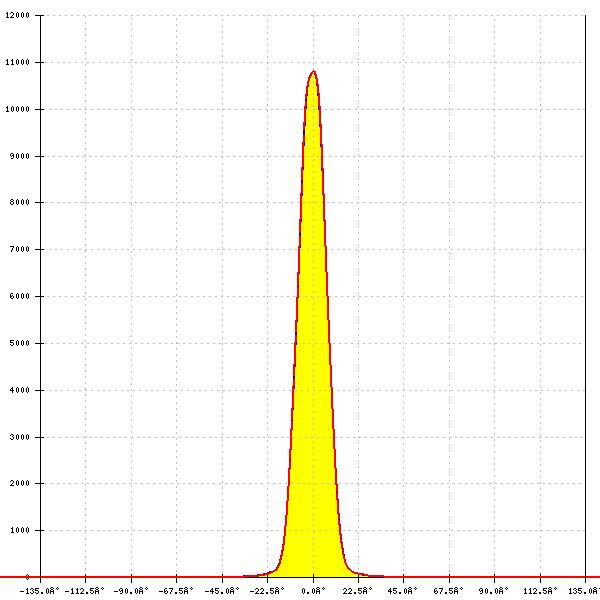

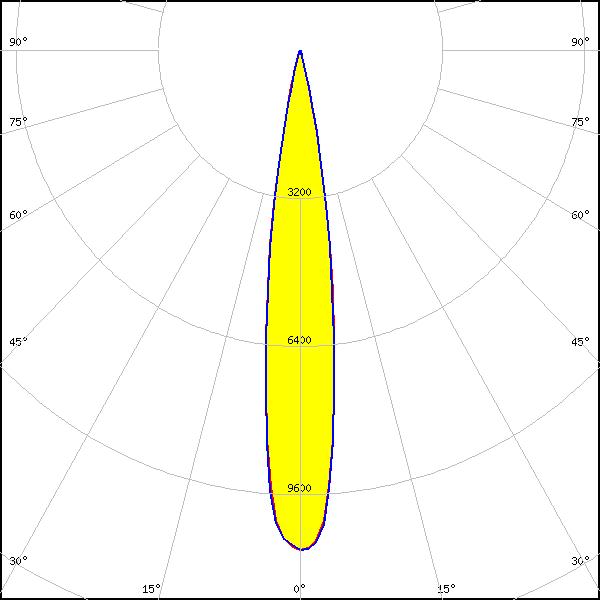

    LED: XHP35.2 HD
    FWHM: 16°
    FWTM: 26°
    Peak intensity: 10.833 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

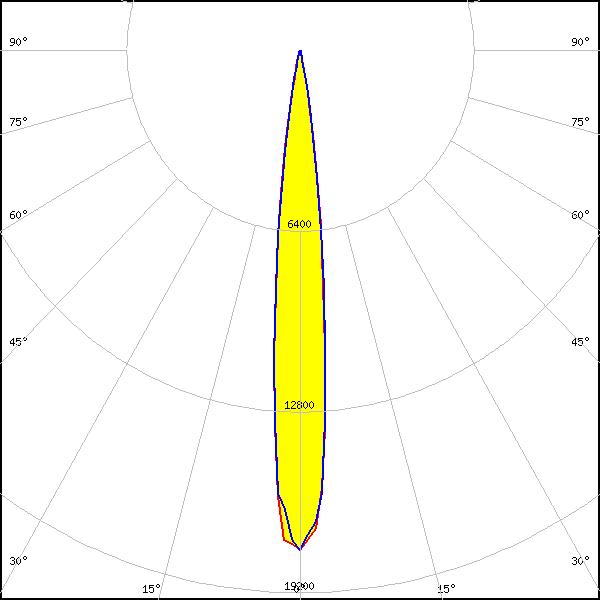

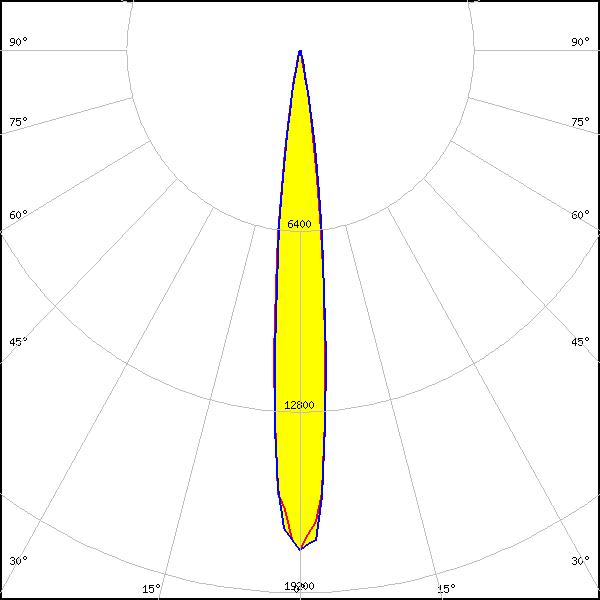

    LED: XHP35.2 HI
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.945 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

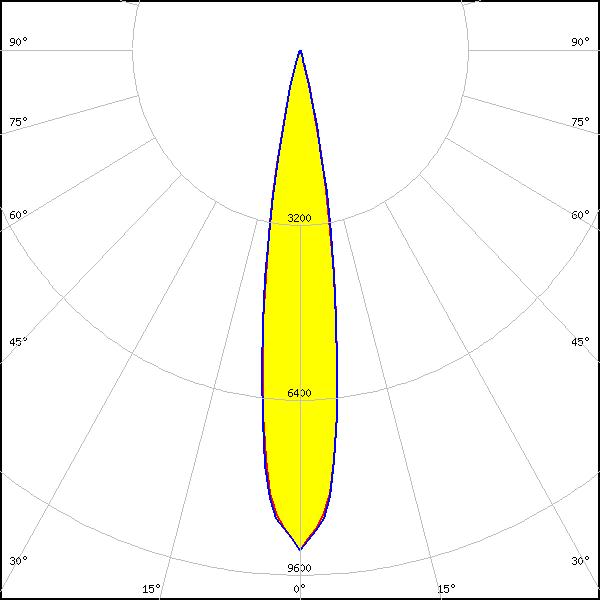

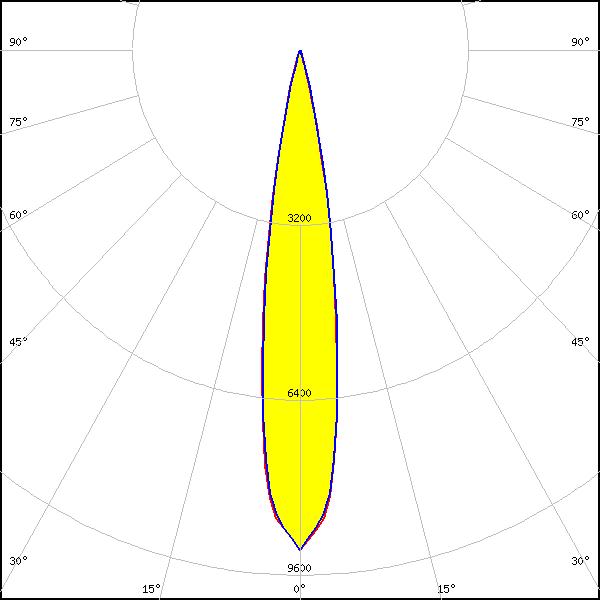

    LED: XHP50.3 HD
    FWHM: 17°
    FWTM: 28°
    Peak intensity: 9.149 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

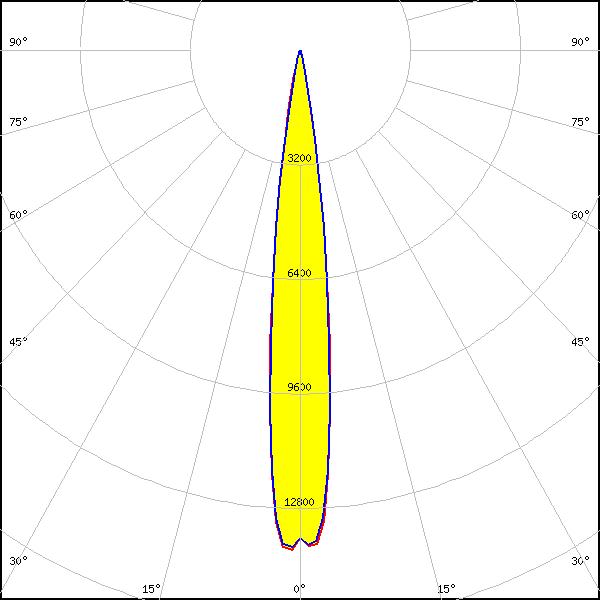

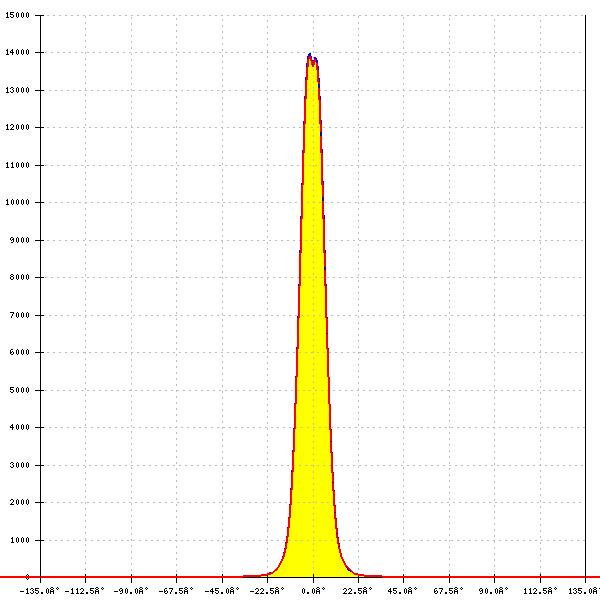

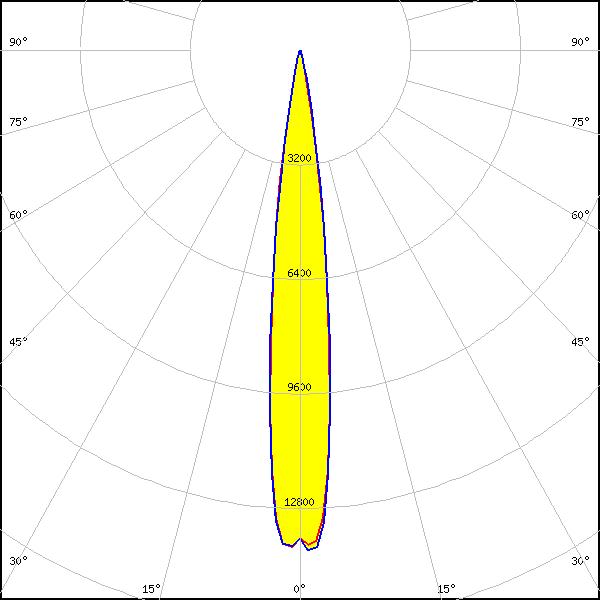

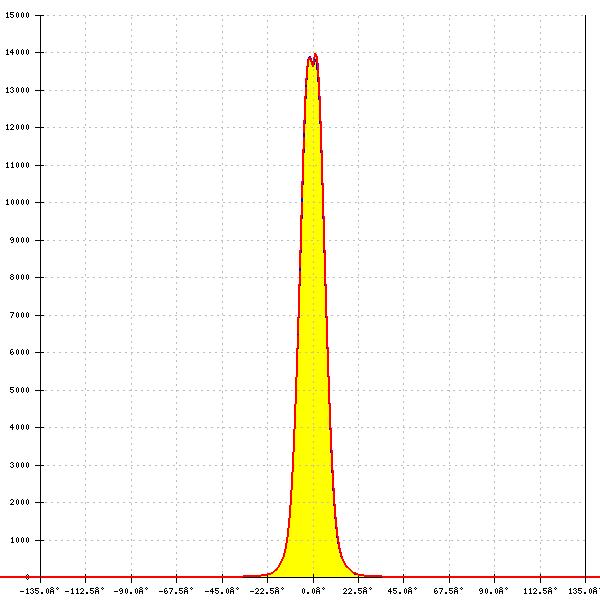

    LED: XHP50.3 HI
    FWHM: 14°
    FWTM: 24°
    Peak intensity: 13.987 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

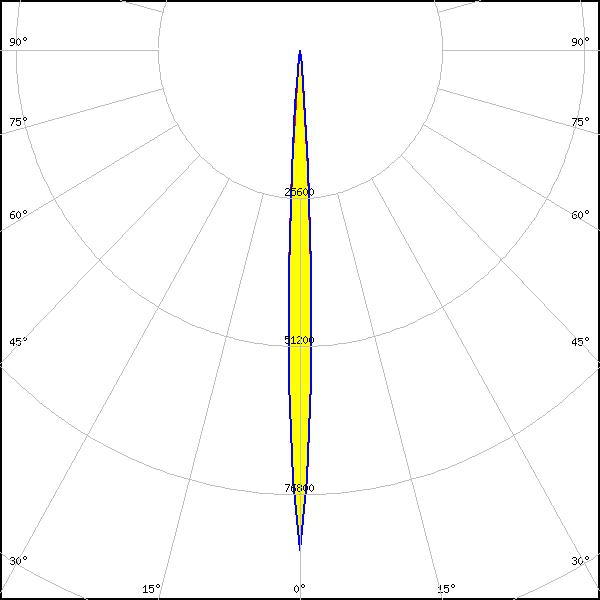

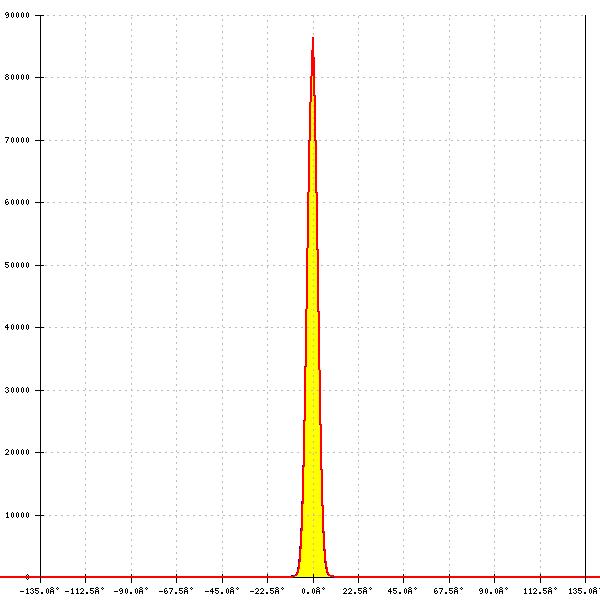

    LED: XP-E2
    FWHM: 6°
    FWTM: 10°
    Peak intensity: 86.422 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

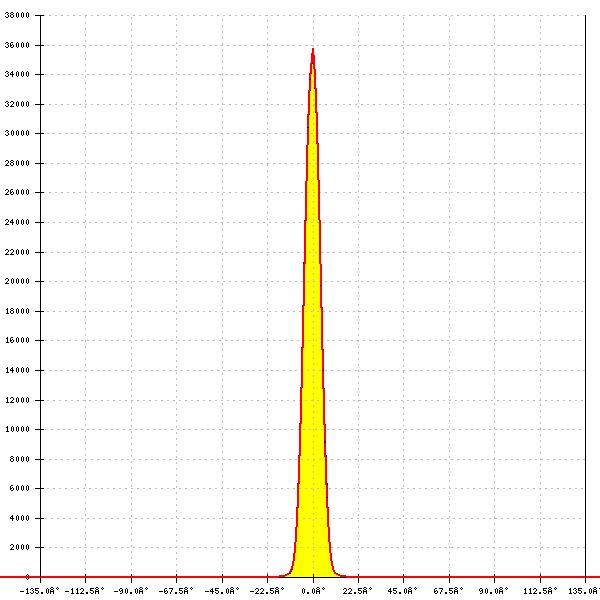

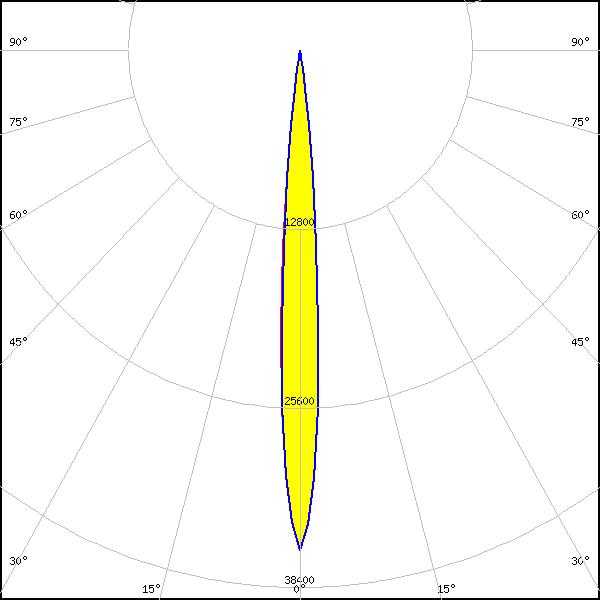

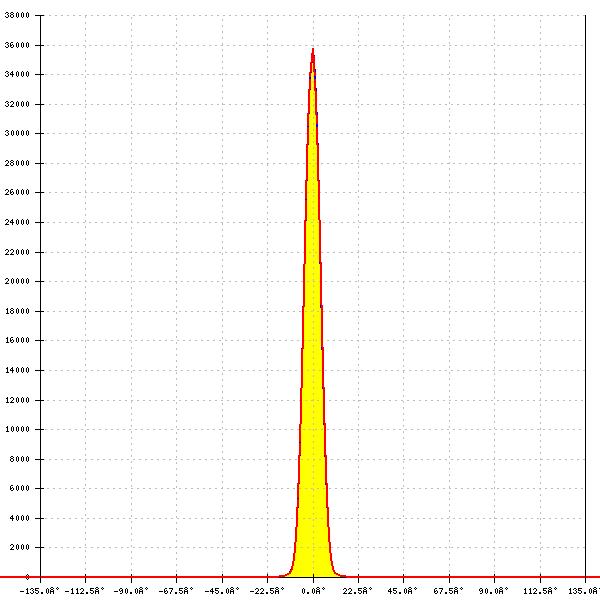

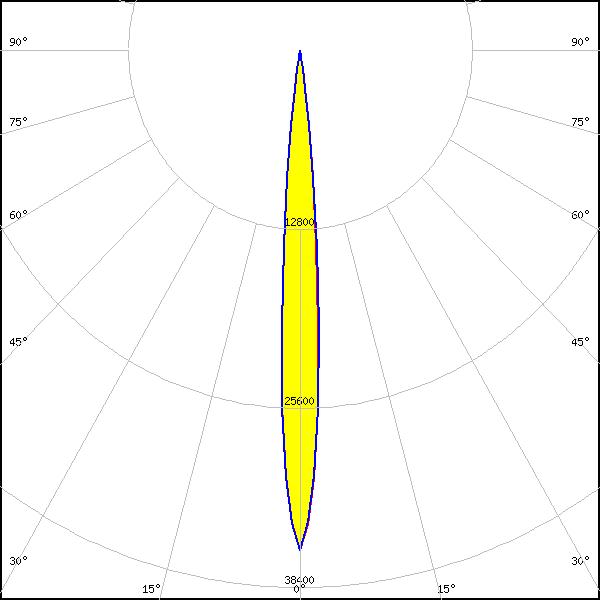

    LED: XP-G4
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 35.758 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

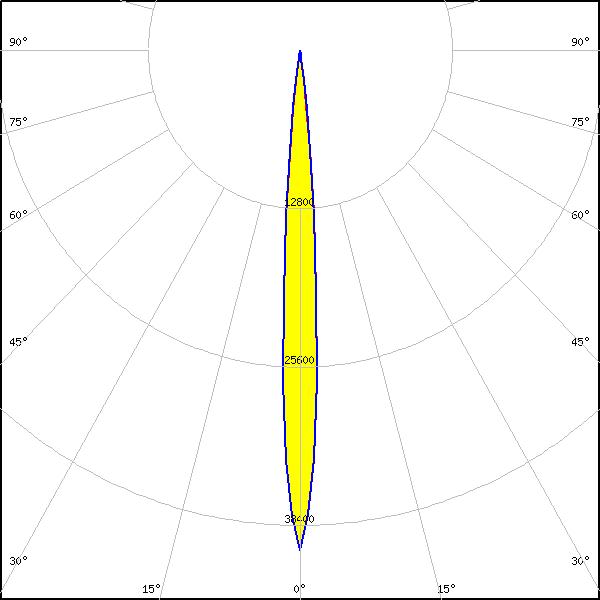

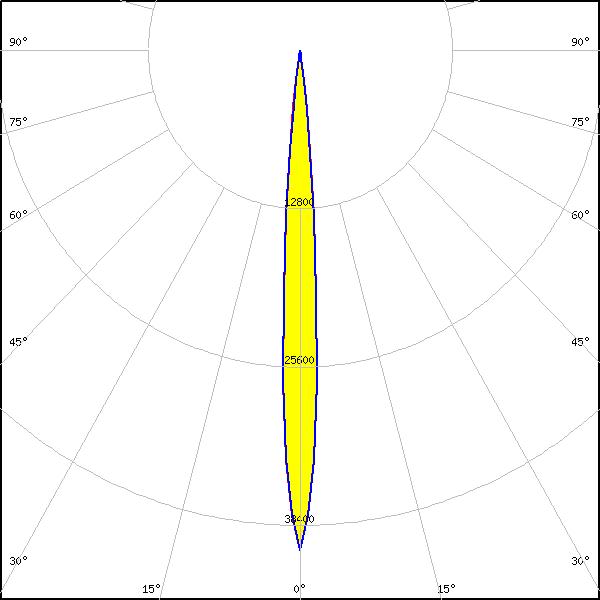

    LED: XP-L HI
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 40.414 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

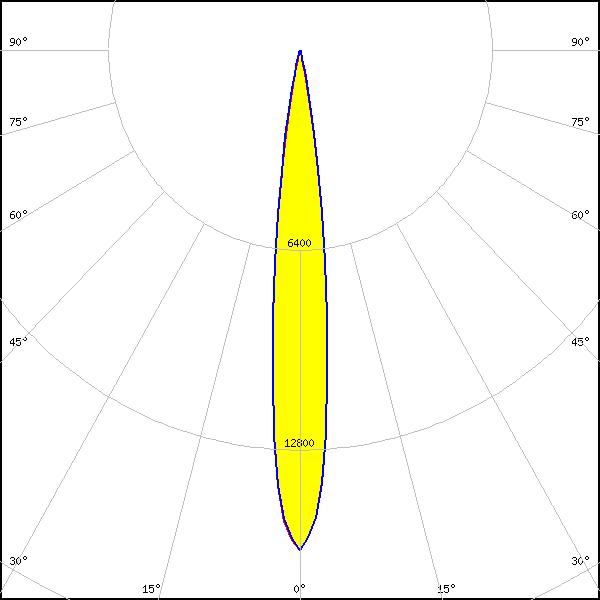

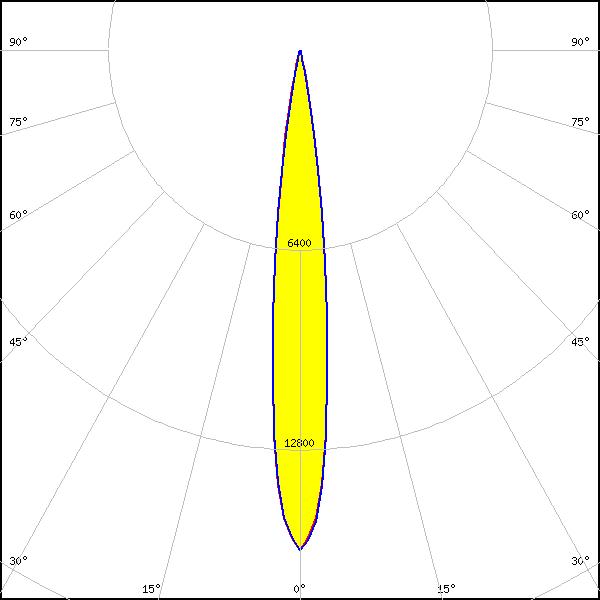

    LED: XP-L2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 16.016 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

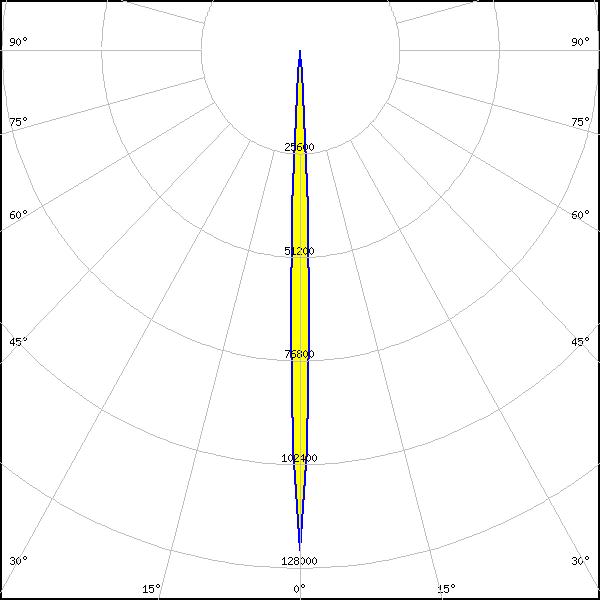

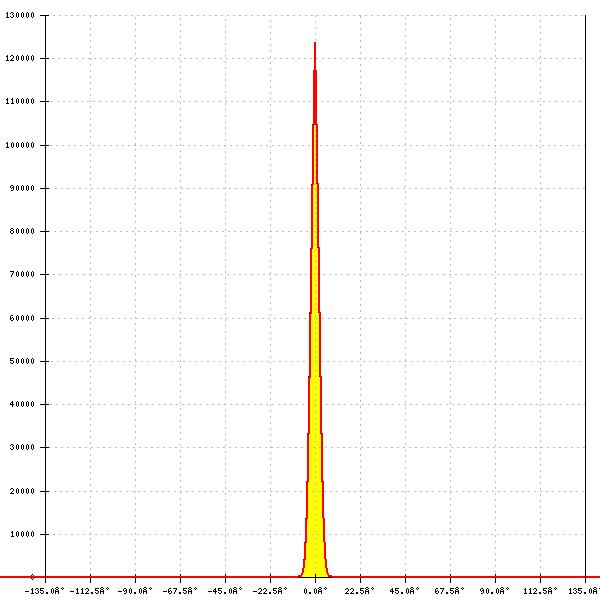

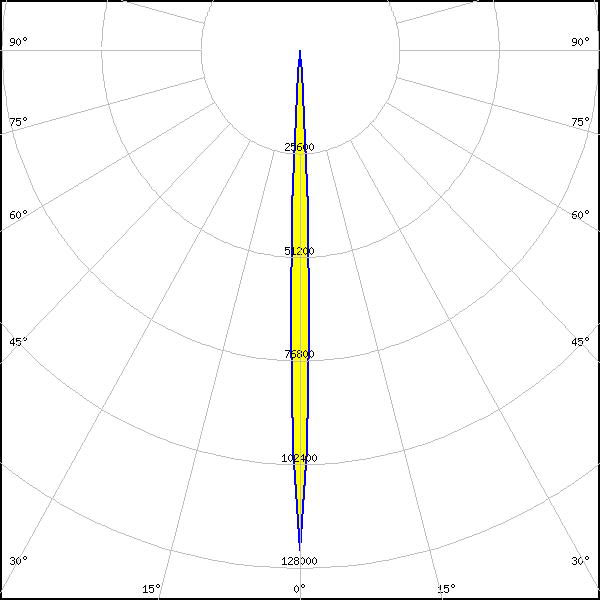

    LED: XP-P
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 123.643 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

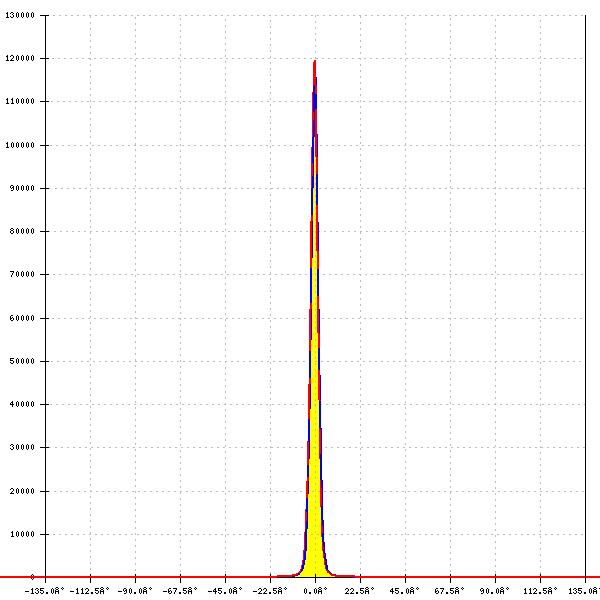

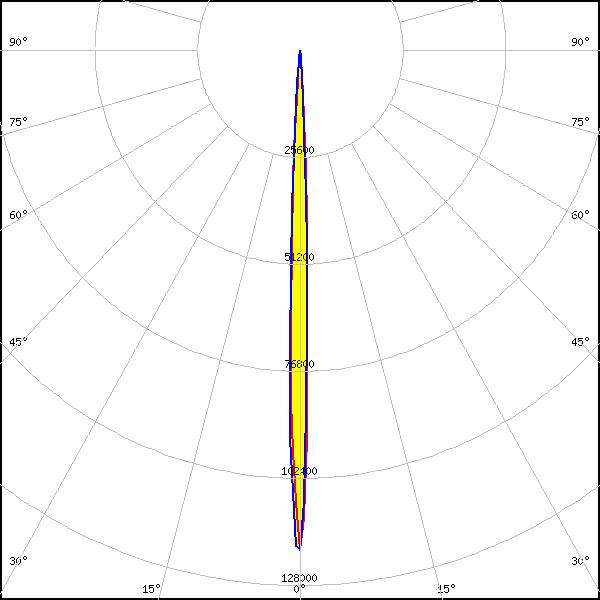

    LED: XQ-E HI
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 119.650 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

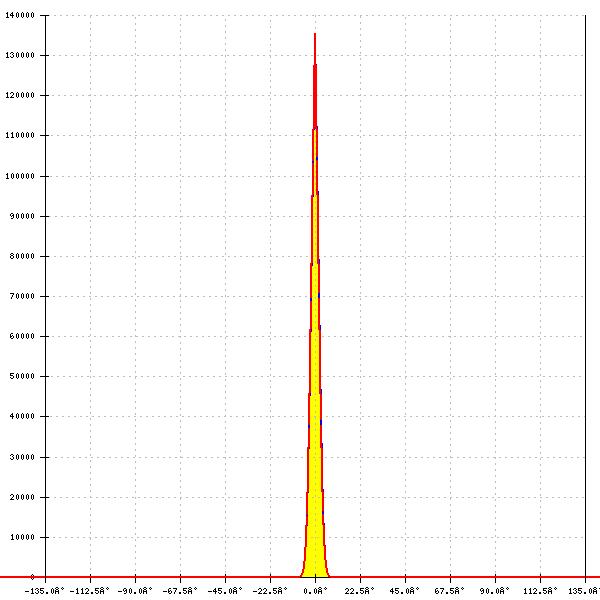

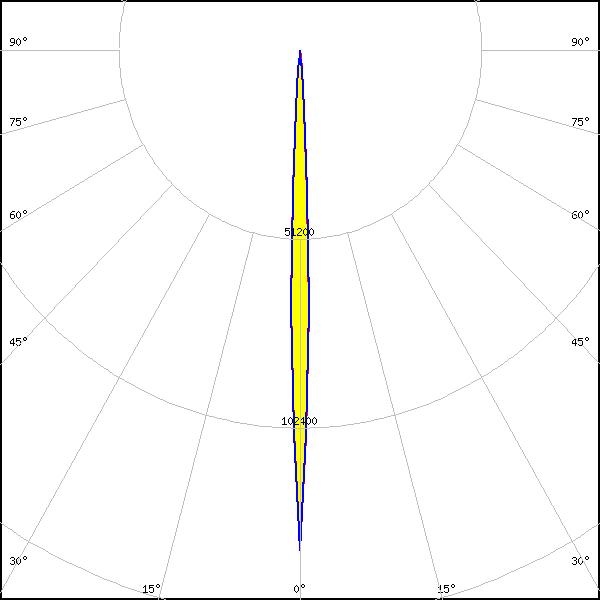

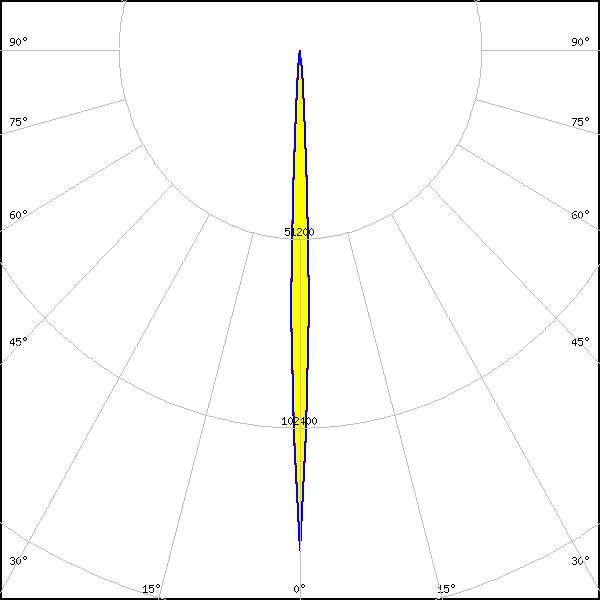

    LED: LUXEON CZ
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 135.576 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

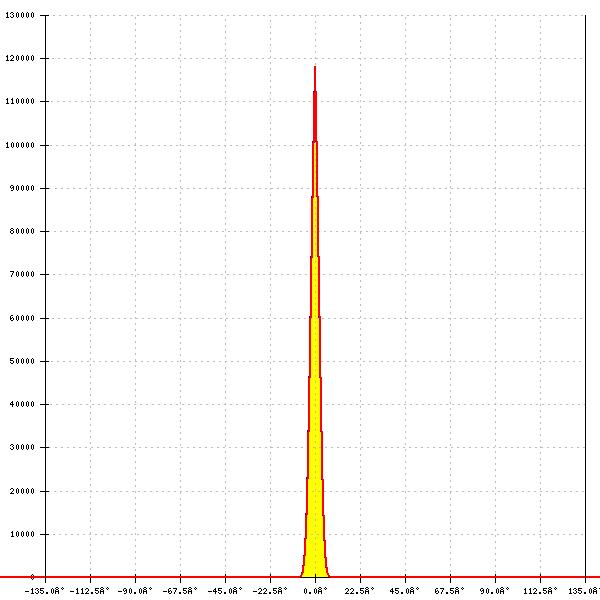

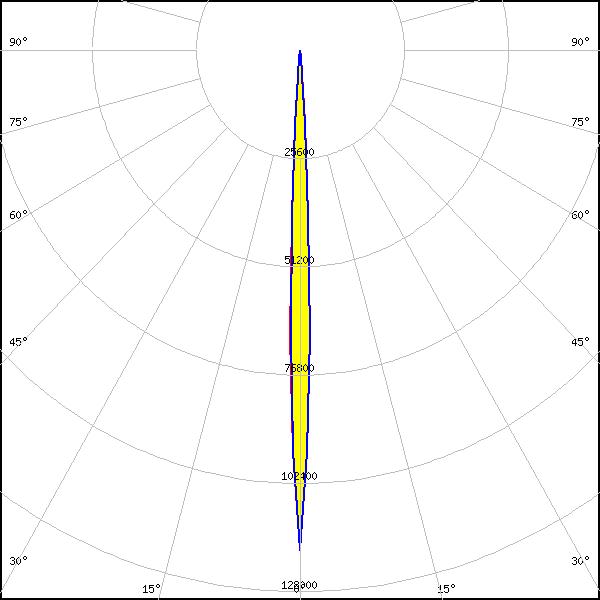

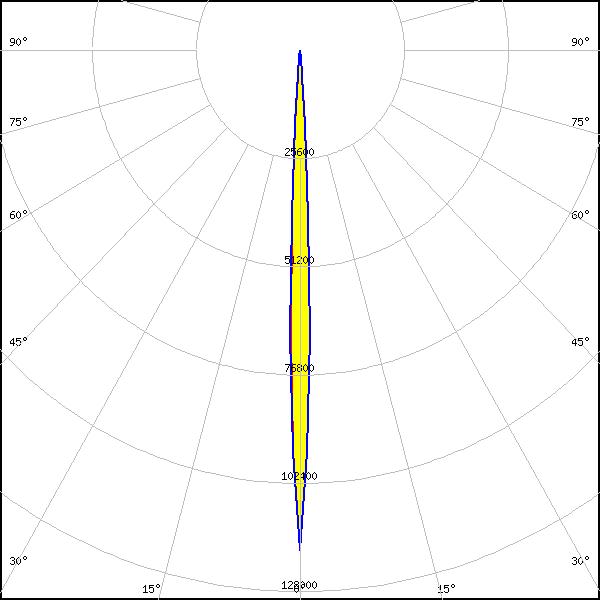

    LED: LUXEON Rubix
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 118.257 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

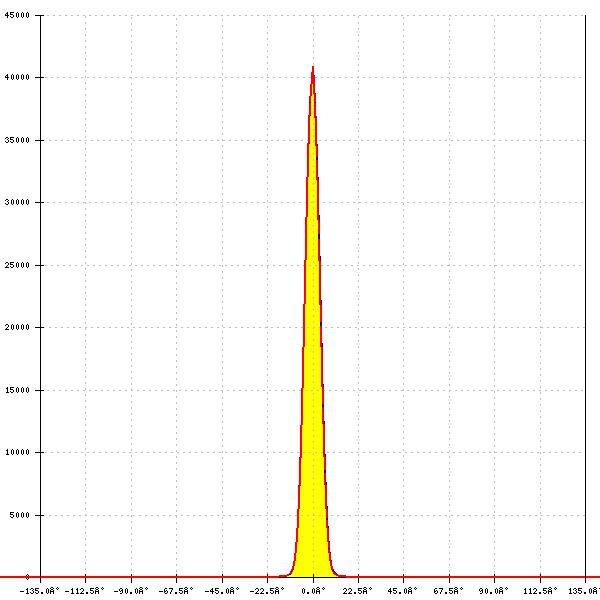

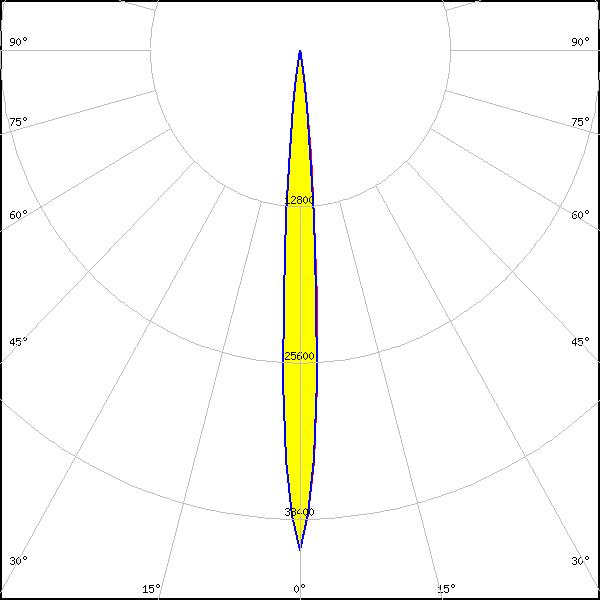

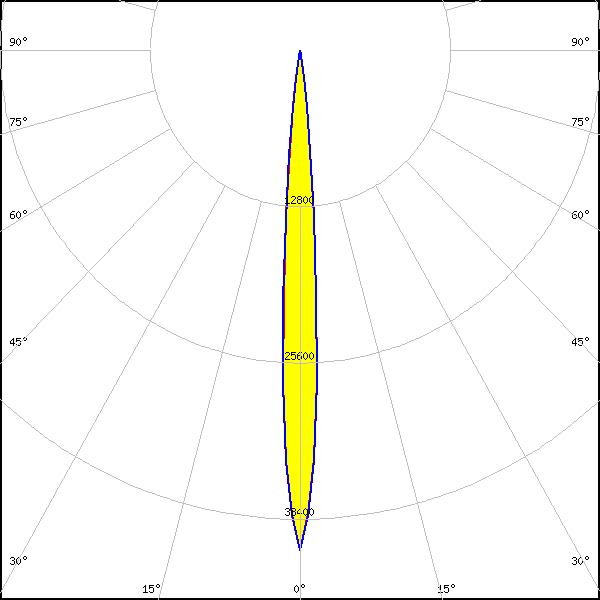

    LED: LUXEON TX
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 40.952 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

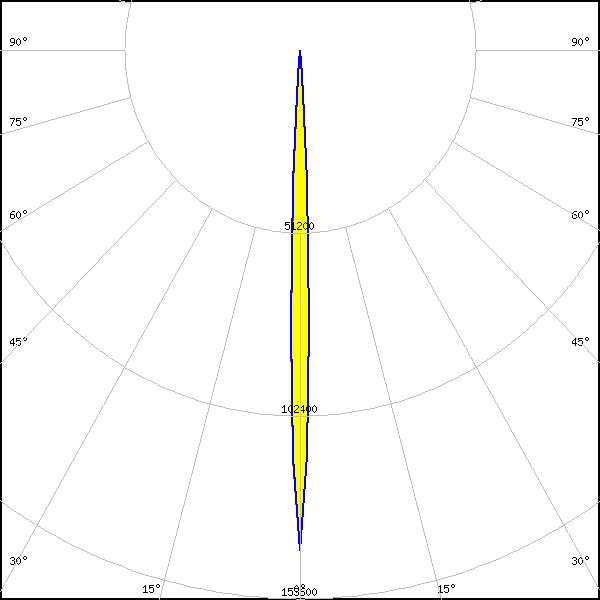

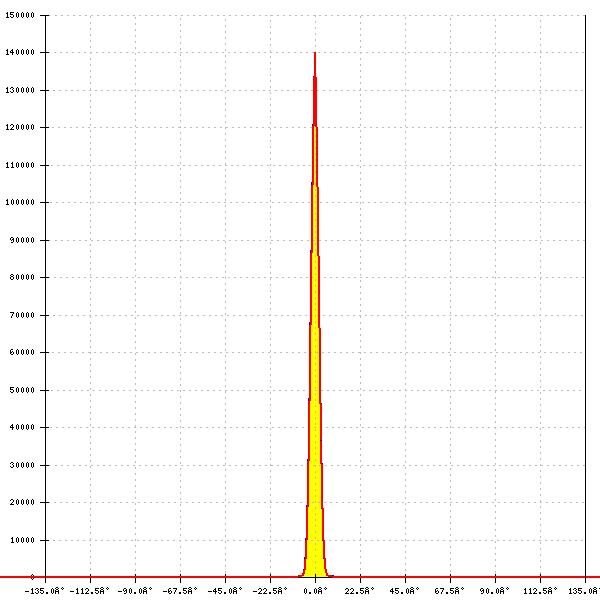

    LED: SFT-10-CG
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 140.017 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: PC Green

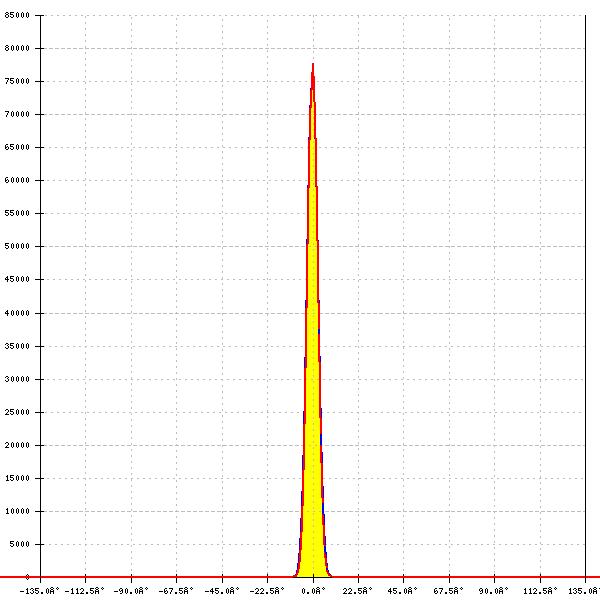

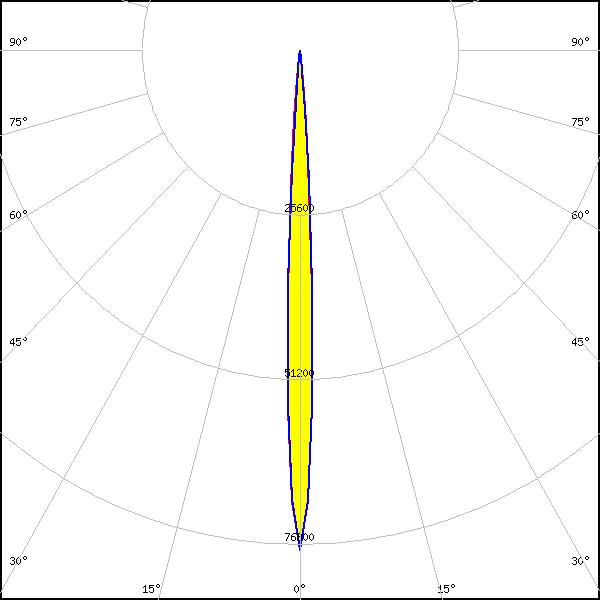

    LED: SFT-20-CG
    FWHM: 6°
    FWTM: 11°
    Peak intensity: 77.766 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: PC Green

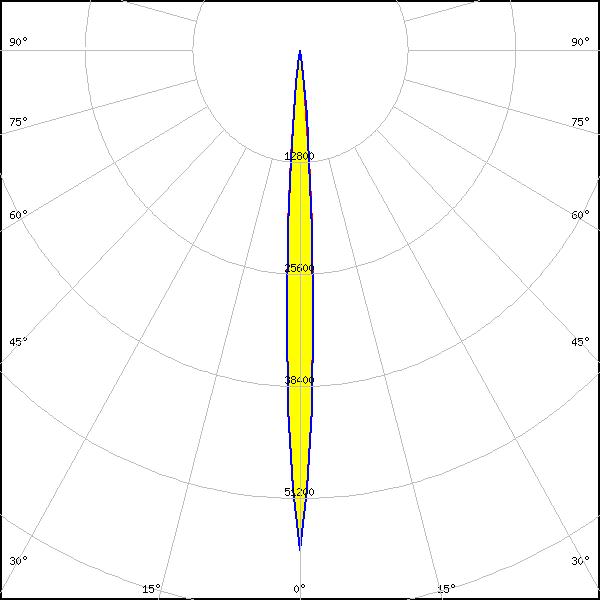

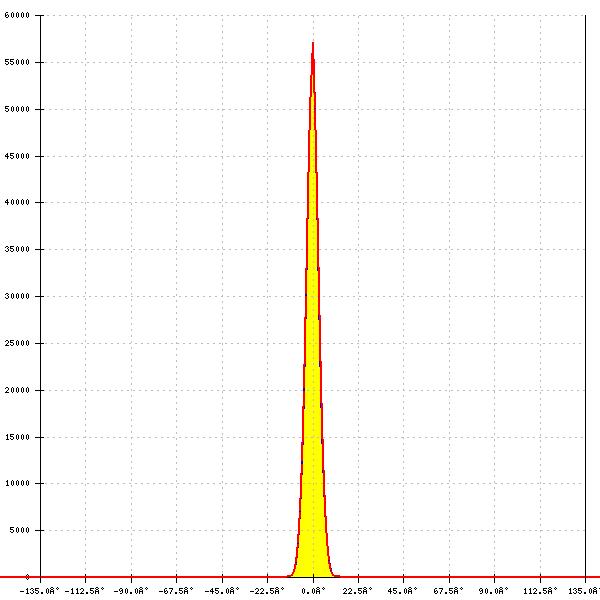

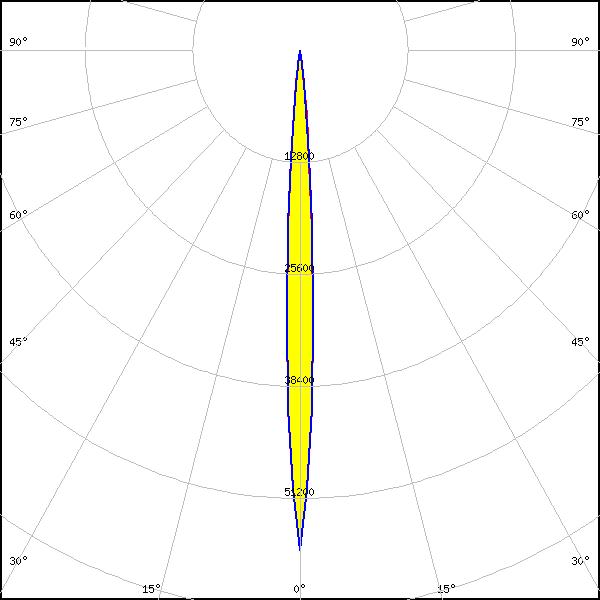

    LED: OSCONIQ C 2424 Gen1
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 57.135 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

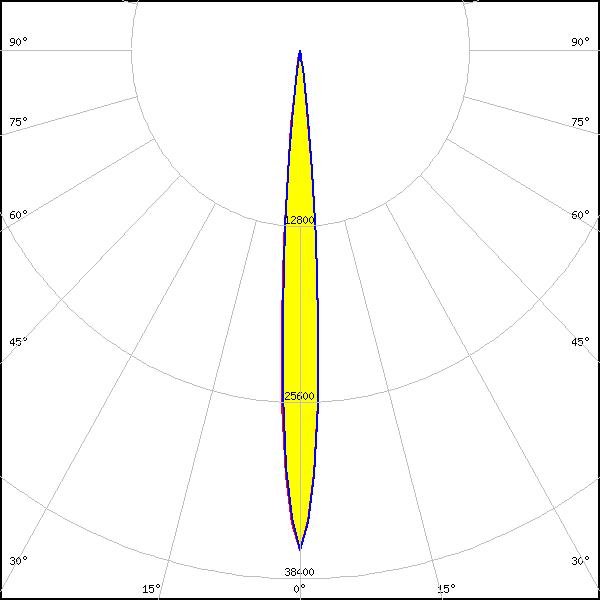

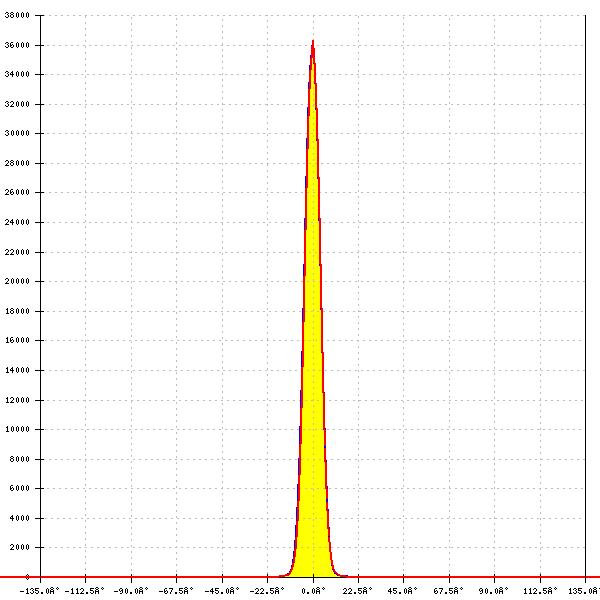

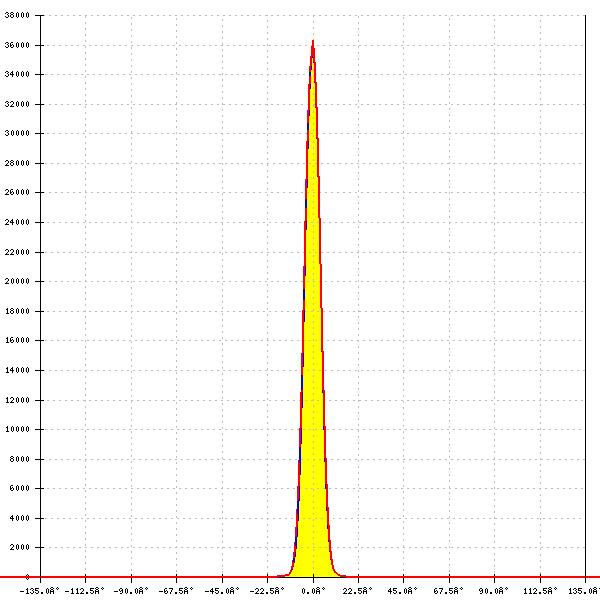

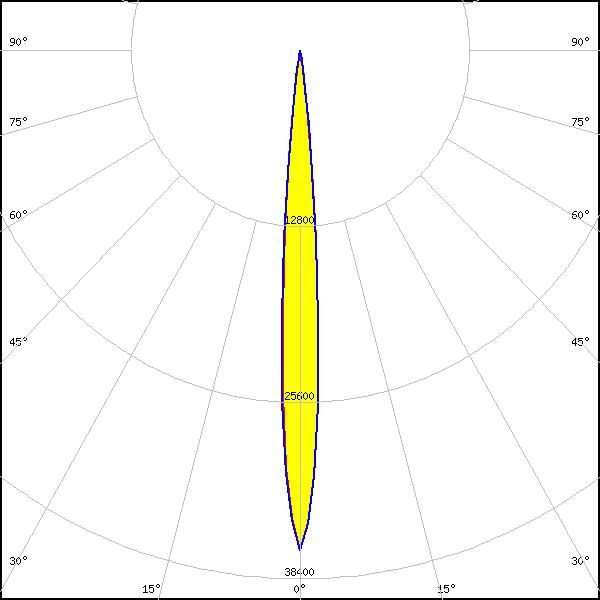

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 36.331 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

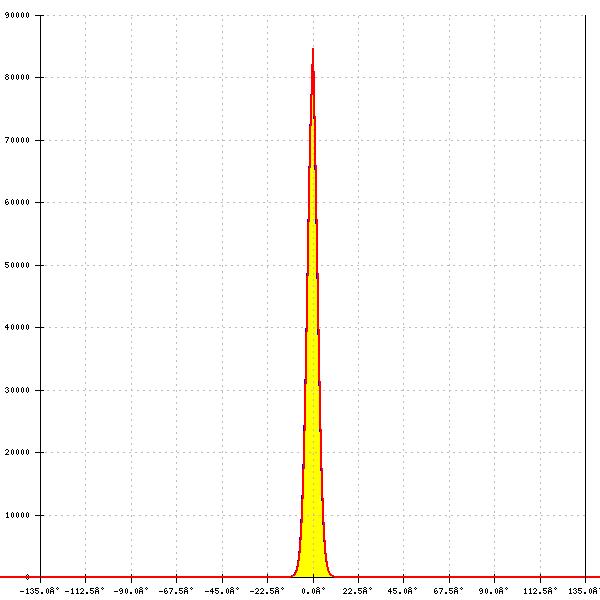

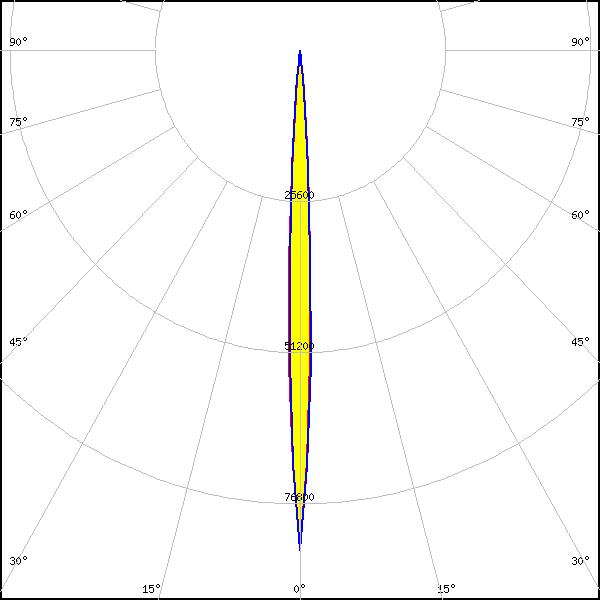

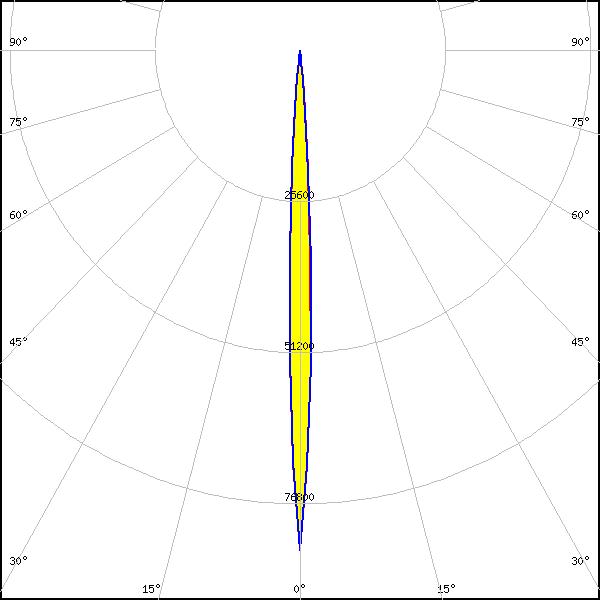

    LED: OSLON SSL 150
    FWHM: 6°
    FWTM: 10°
    Peak intensity: 84.676 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
