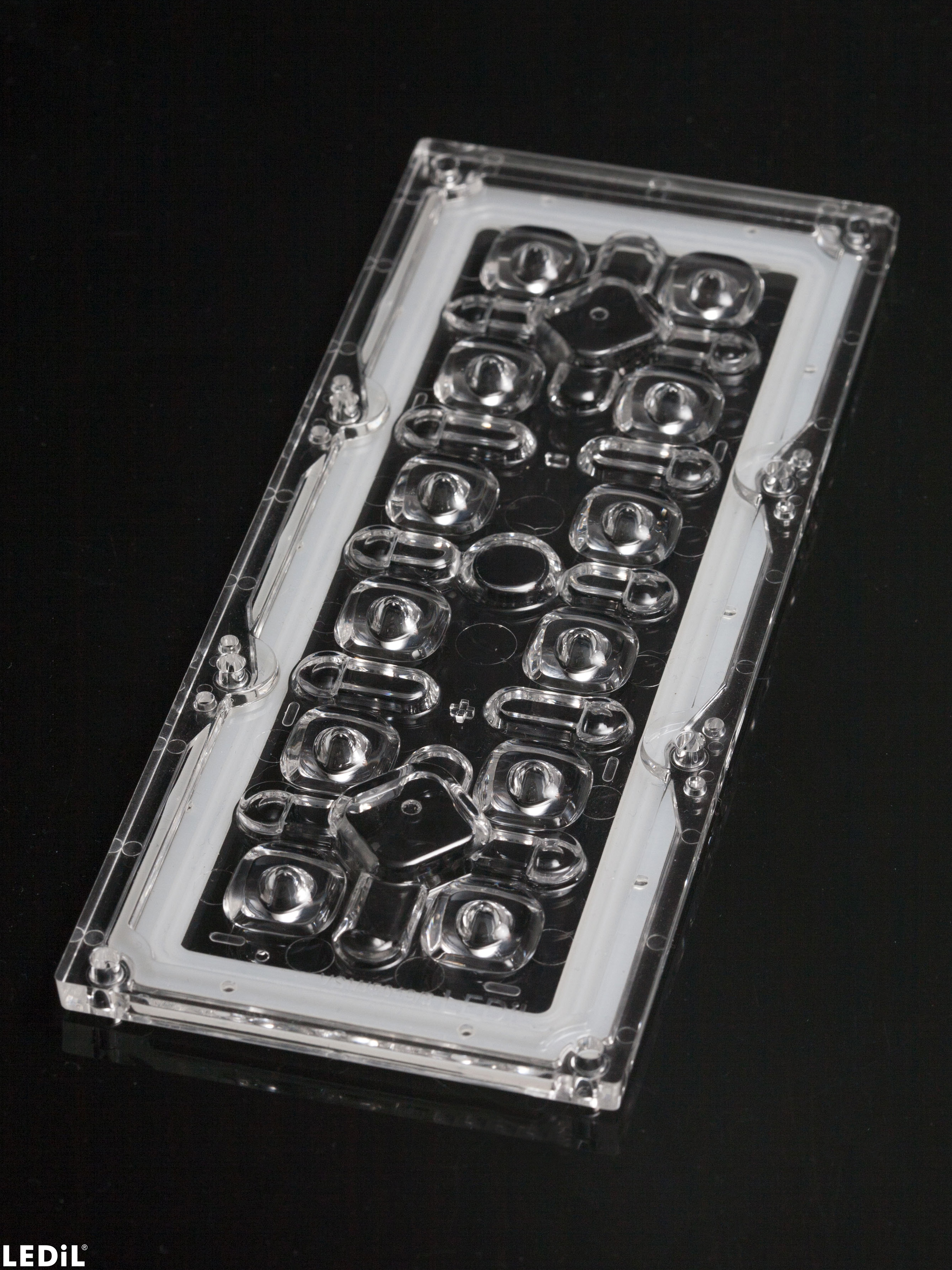

    CS15020_STRADA-IP-2X6-VSM

    Print

    IESNA Type V (square) beam for wide area lighting such as car parks

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      8.00 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      6.6 kg
    • MPQ:
      40 pcs
    • MOQ:
      40 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      2.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS15020_STRADA-IP-2X6-VSM
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Horticultural lighting

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Case story

    Nikis Avenue in Greece

    Case story

    A3 motorway

    Case story

    Russian DIY chain Leroy Merlin

    News

    PRODUCT NEWS - STRADA-IP-2X6-VSM

    PCN

    Product change notification NR125.b - Packing method and quantity changes 050916

    Application area

    Horticultural Lighting

    Application guide

    Guide for Street lighting optics

    Reference product

    The Oaken sustainability in street lighting

    Application area

    Urban lighting with LEDiL optics

    PCN

    Product change notification NR164 - Material change for STRADA- and HB-IP-2X6 lens gaskets

    Case story

    GM-TRAC LED headlight

    PCN

    Product change notification NR134.a - Change of packaging methods 200417

    Installation guide

    STRADA-IP-2X6 Installation Guide

    Application guide

    Guide for Urban lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

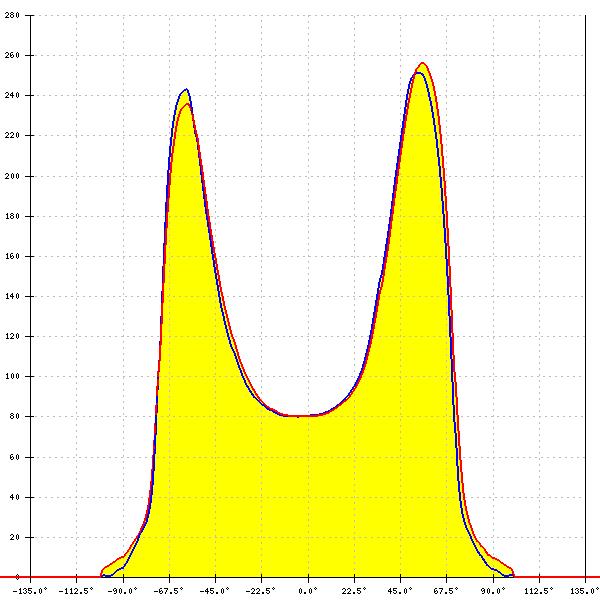

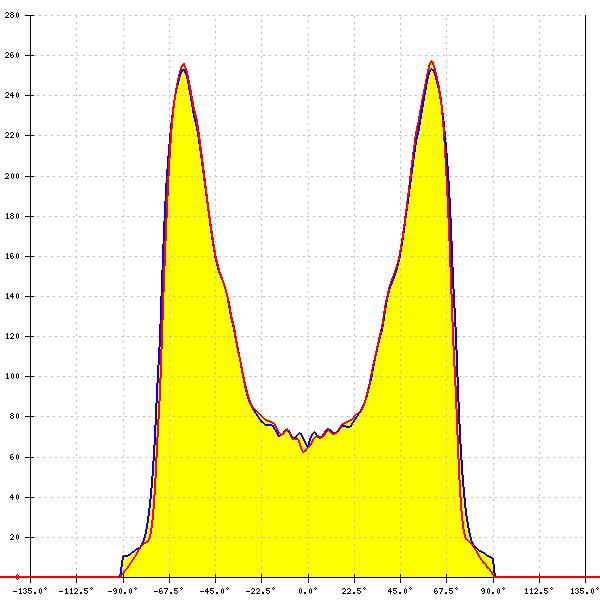

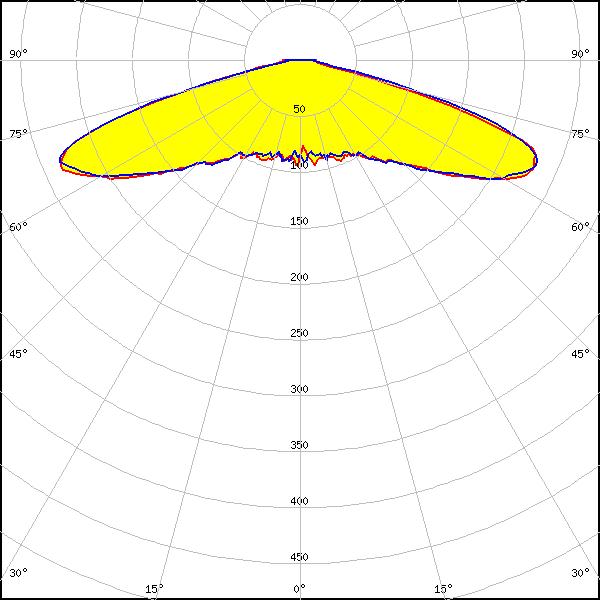

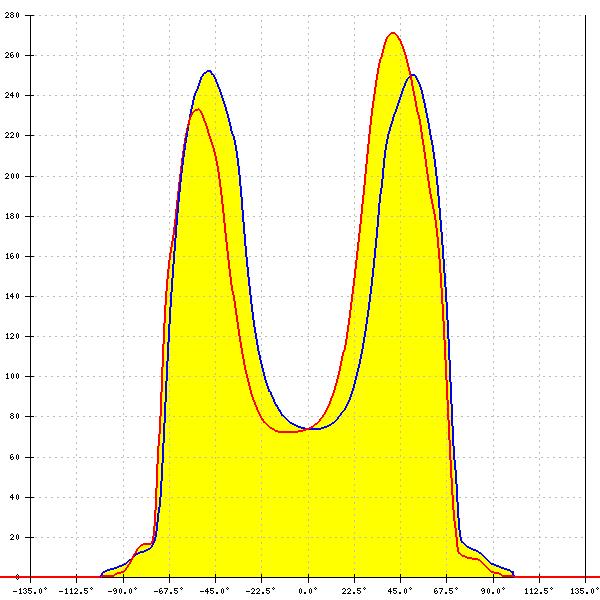

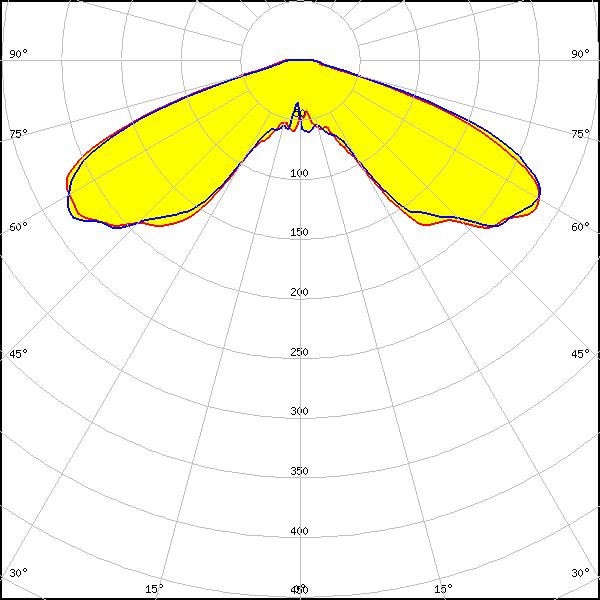

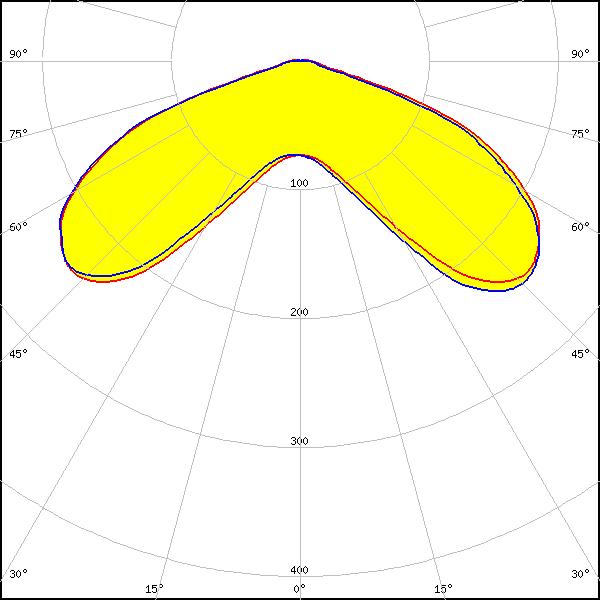

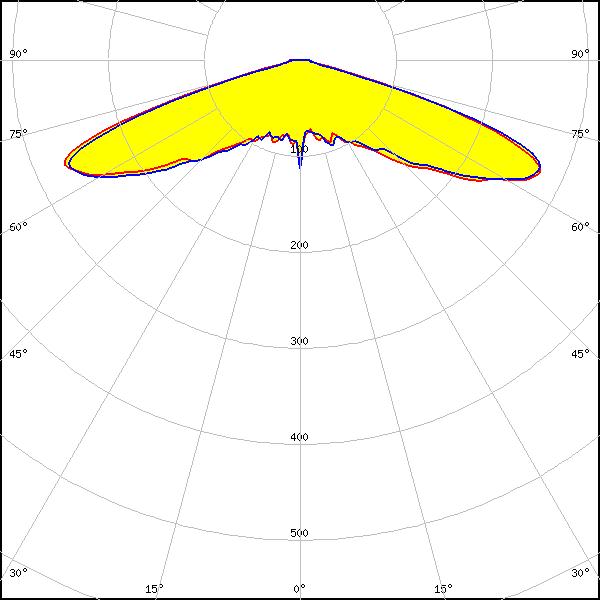

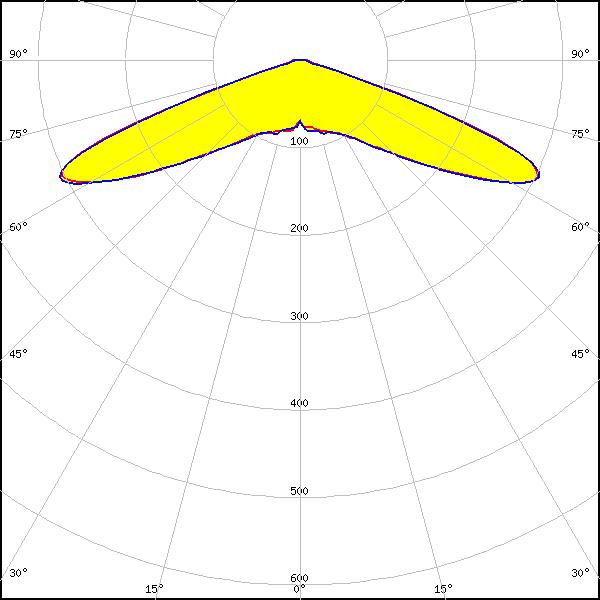

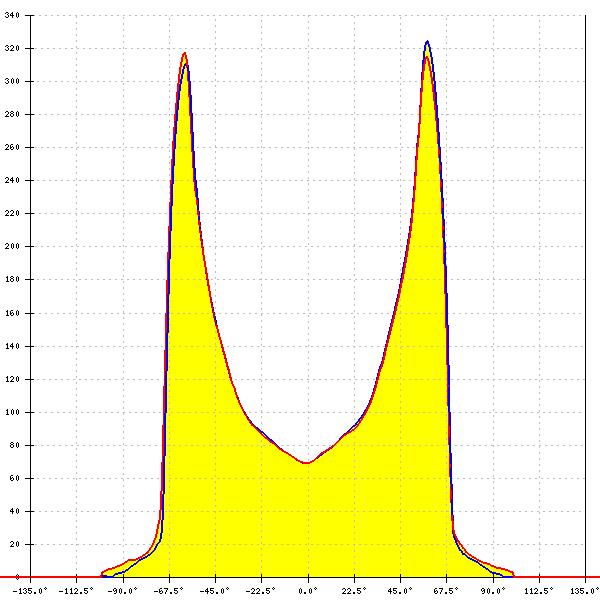

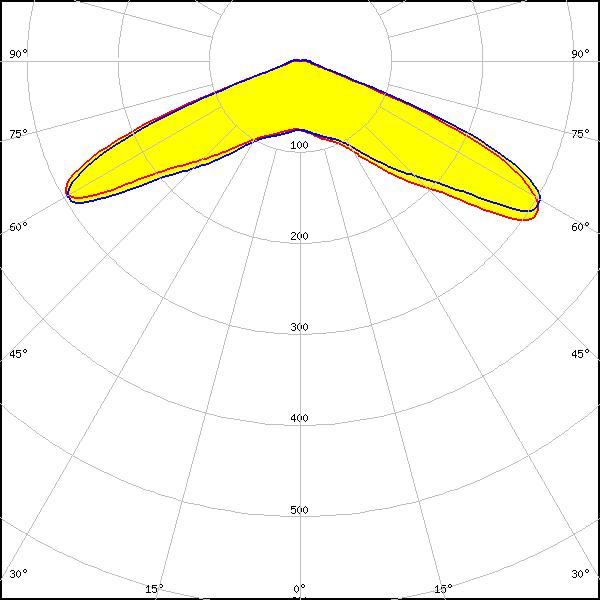

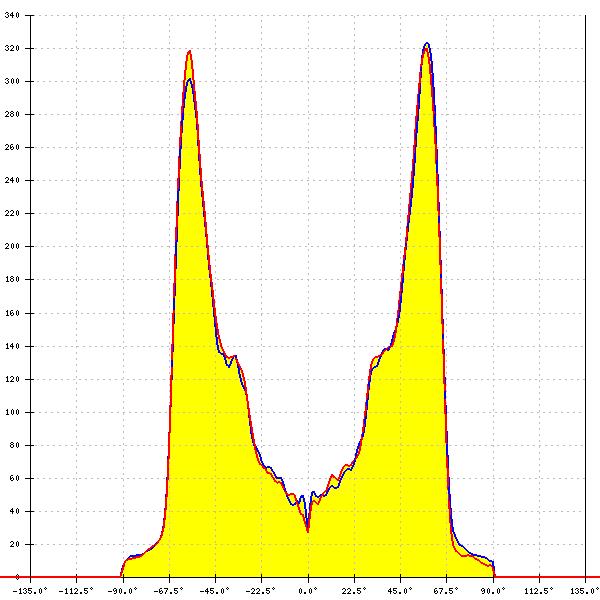

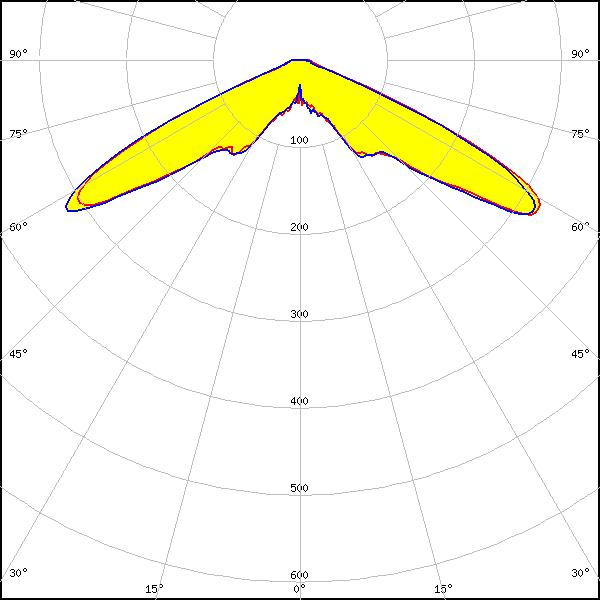

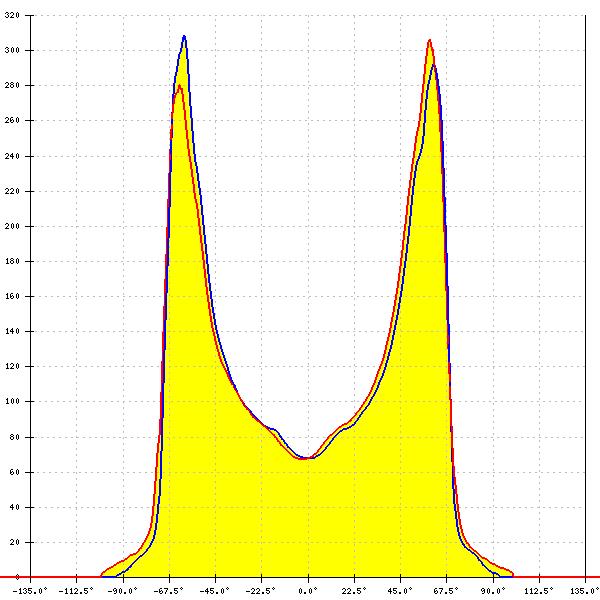

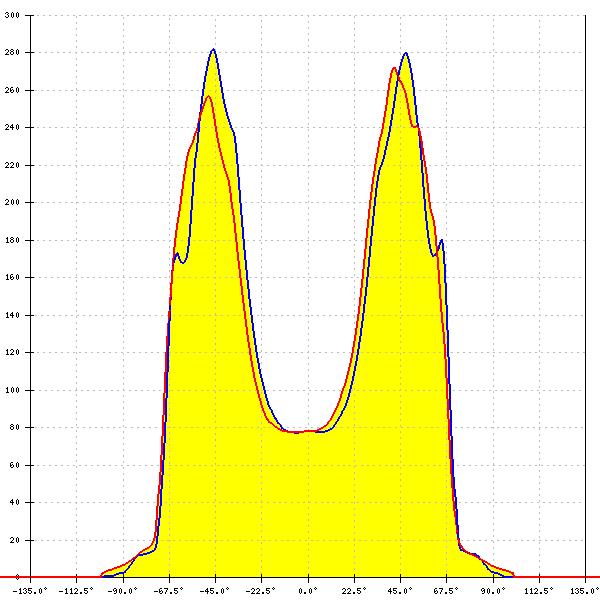

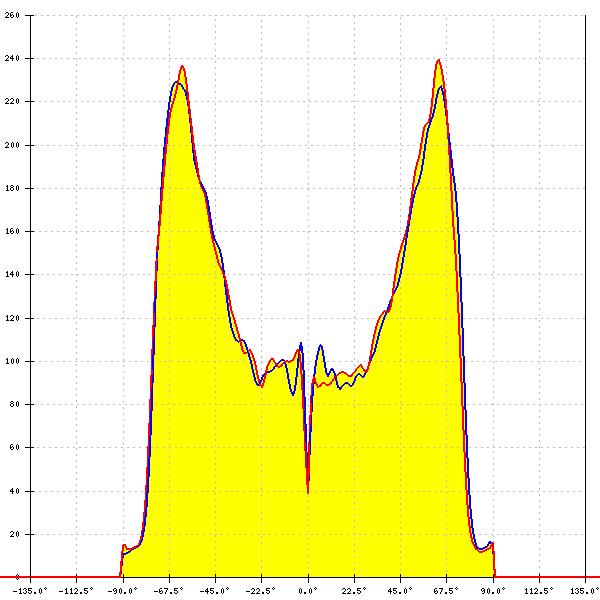

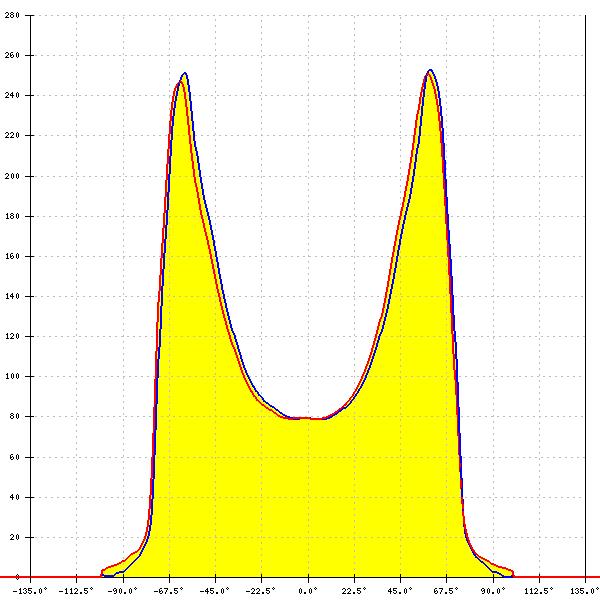

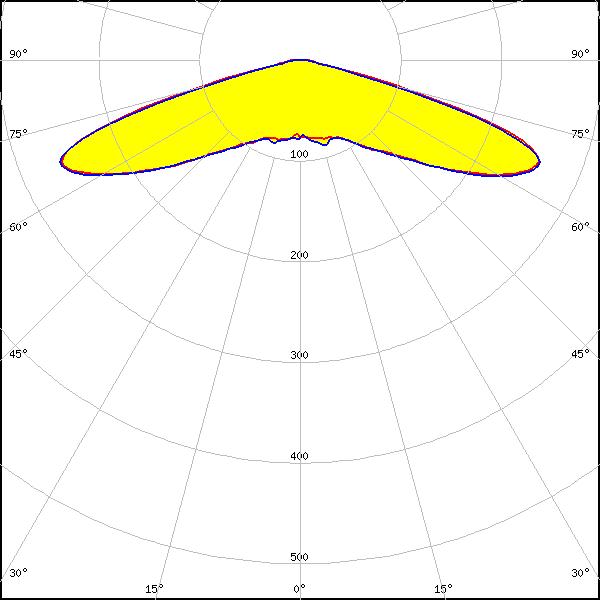

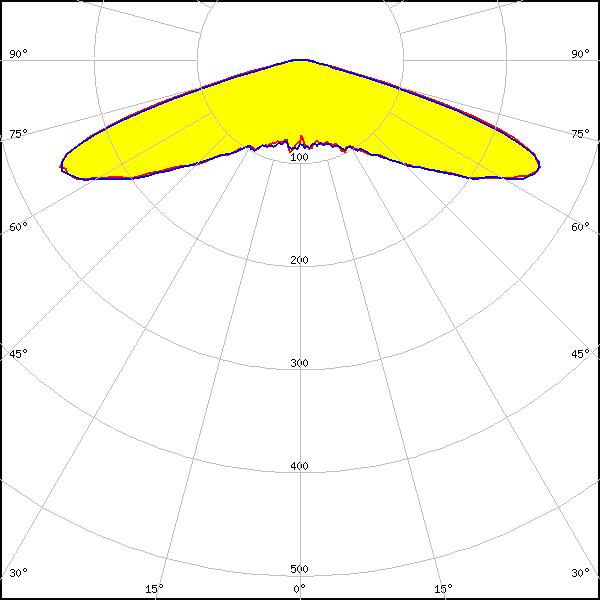

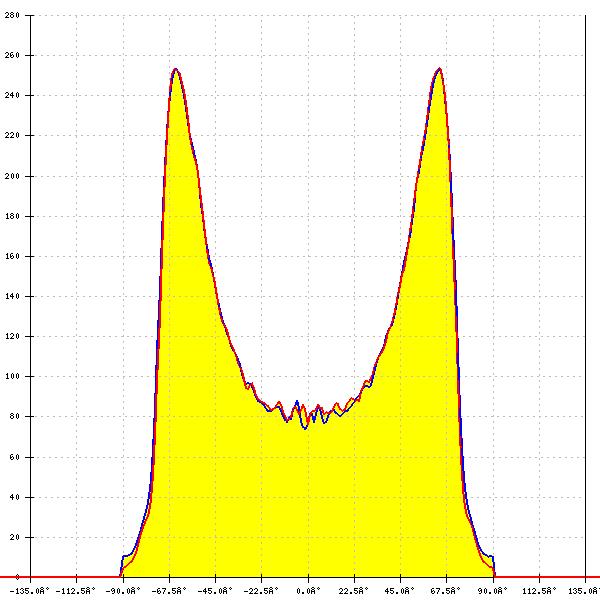

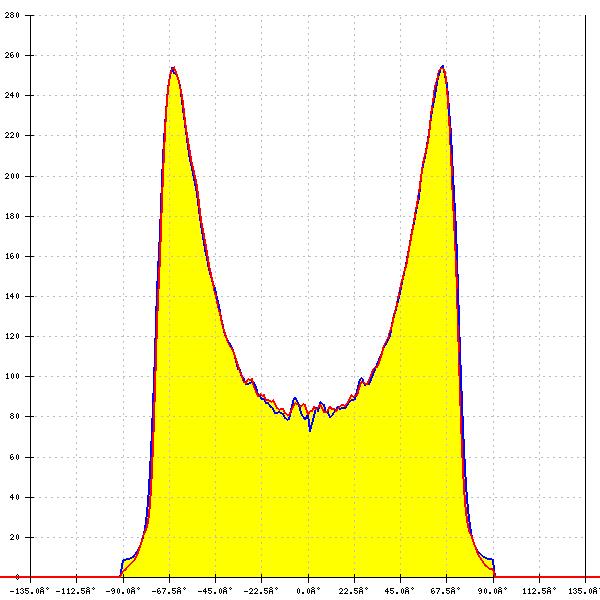

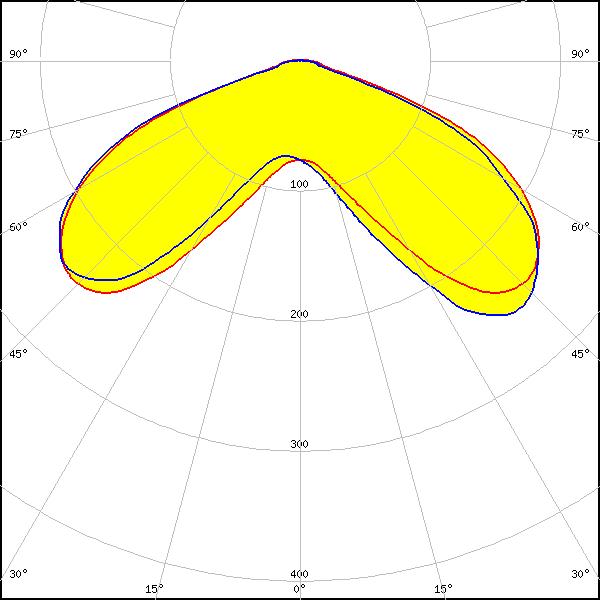

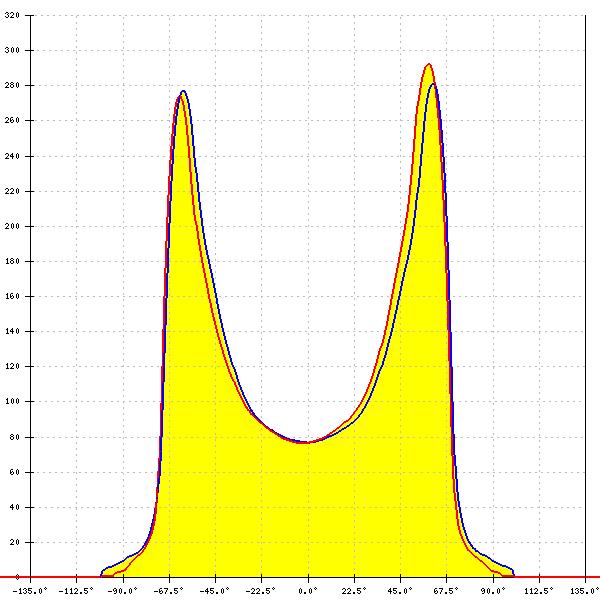

    Optical results

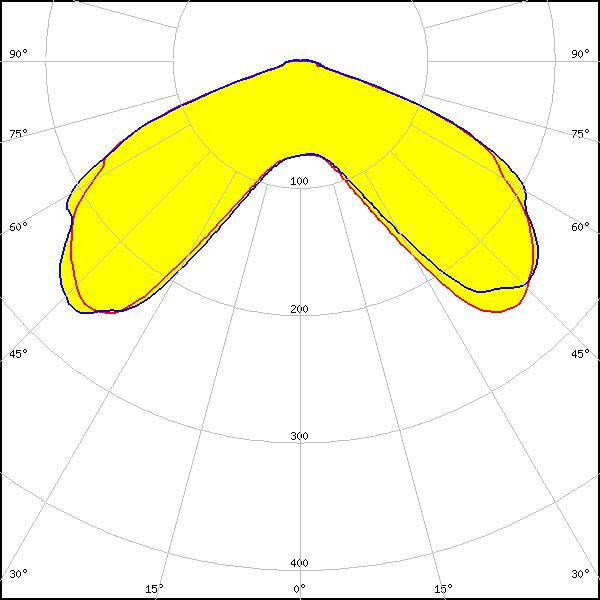

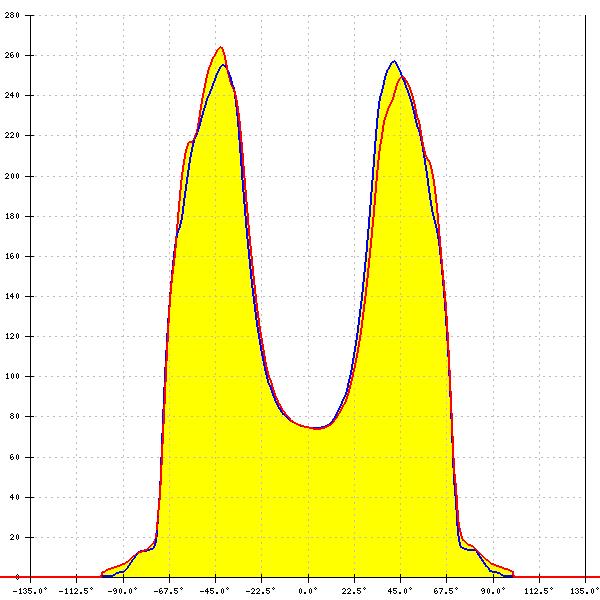

    LED: Bridgelux SMD 5050
    FWHM: 136°
    FWTM: 146°
    Peak intensity: 0.350 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

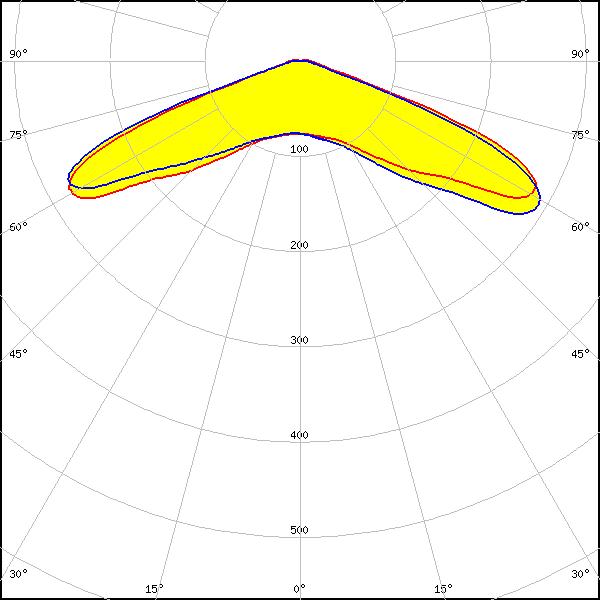

    LED: QUICK FLUX 2x6 LED XG xxx G7+
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

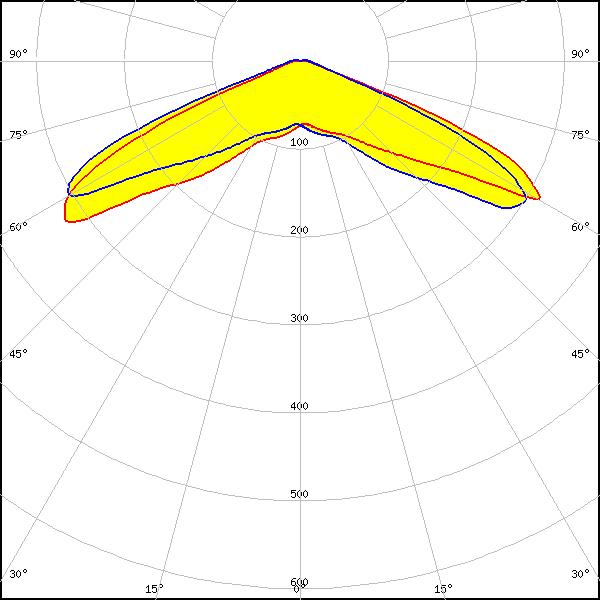

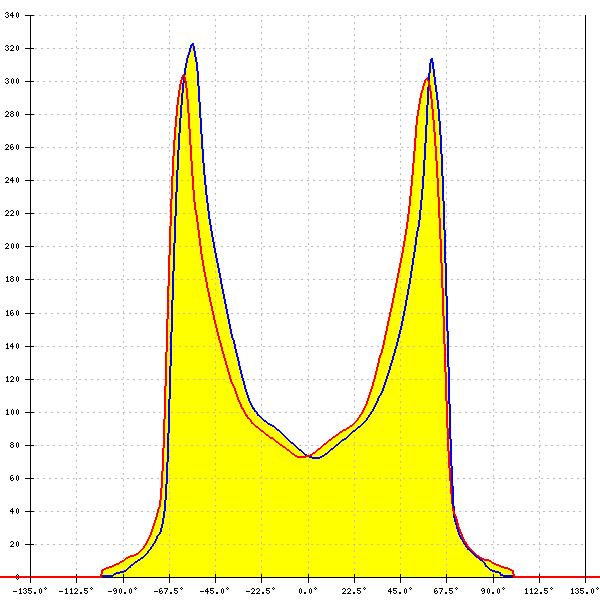

    LED: QUICK FLUX 2x6 LED XT xxx G5
    FWHM: 136°
    FWTM: 149°
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

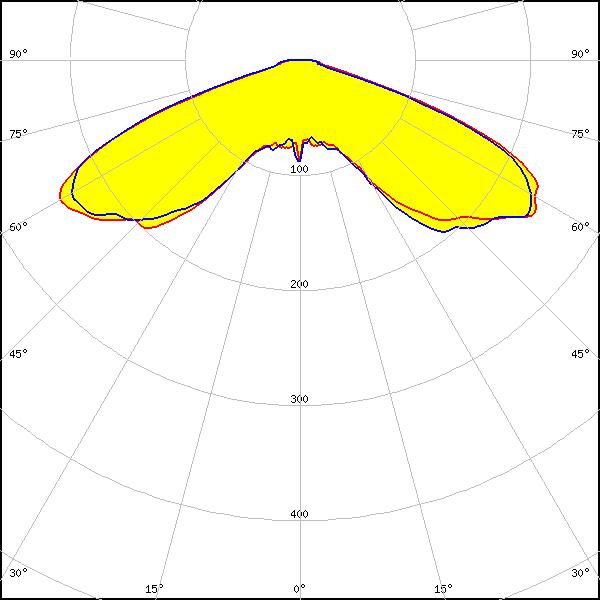

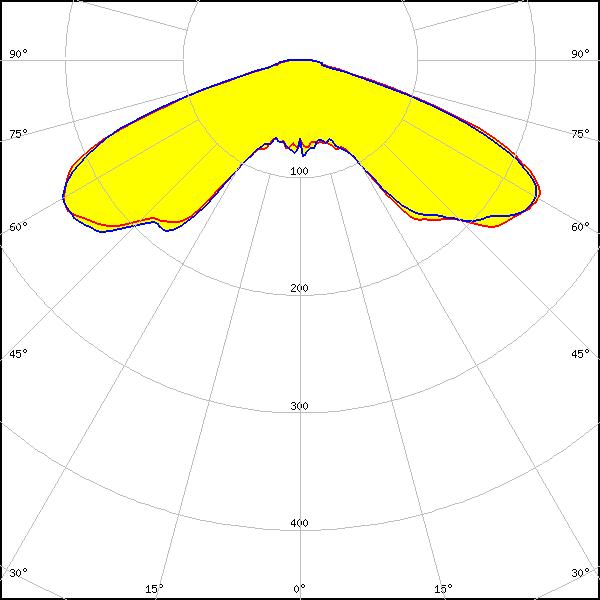

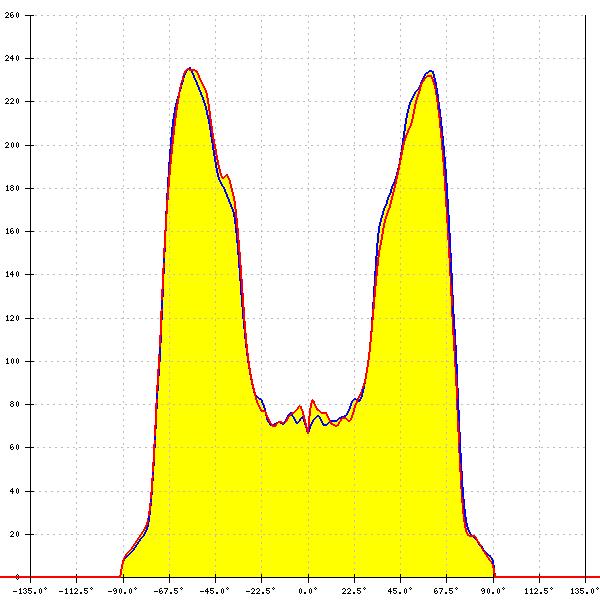

    LED: J Series 5050 6V P Class
    FWHM: 143°
    FWTM: 156°
    Peak intensity: 0.336 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 6V P Class
    FWHM: 141°
    FWTM: 153°
    Peak intensity: 0.334 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

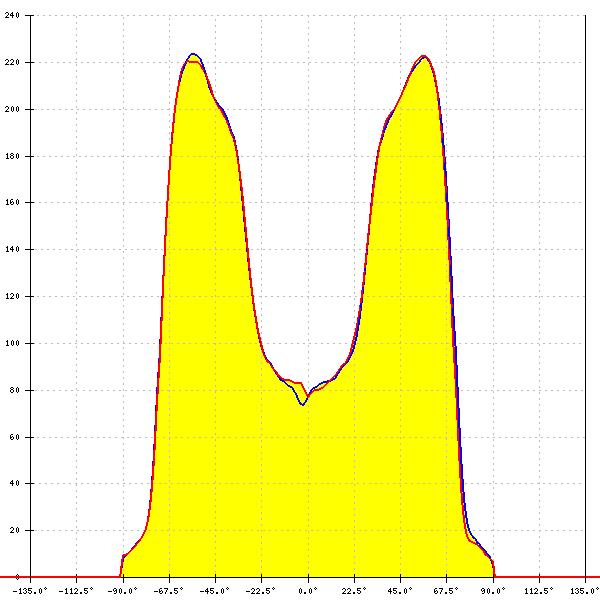

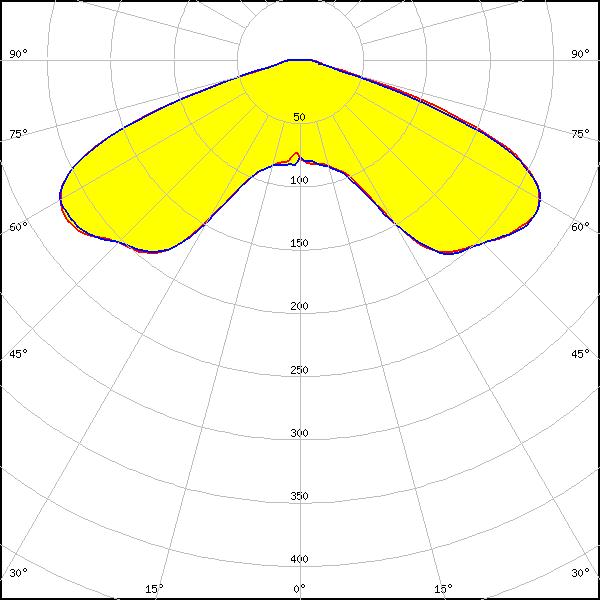

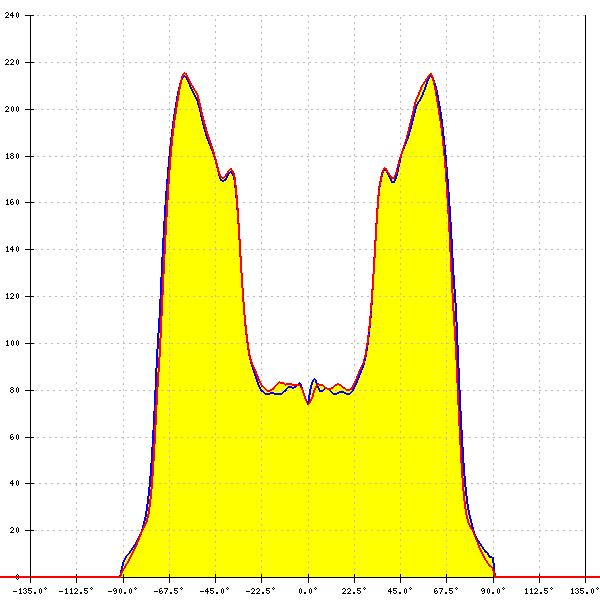

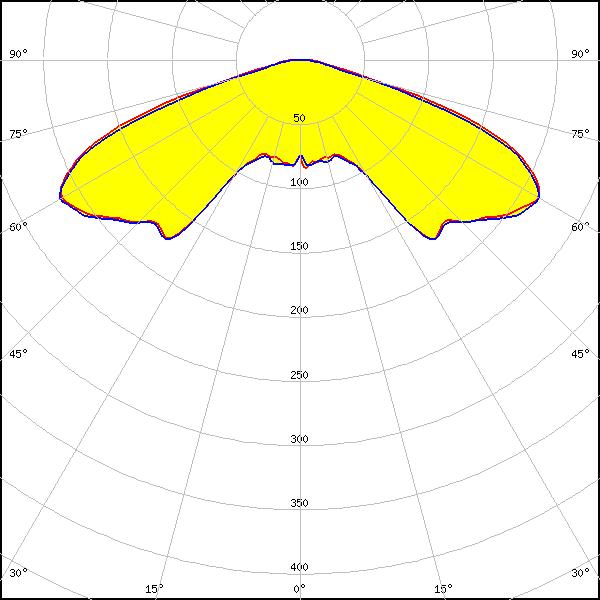

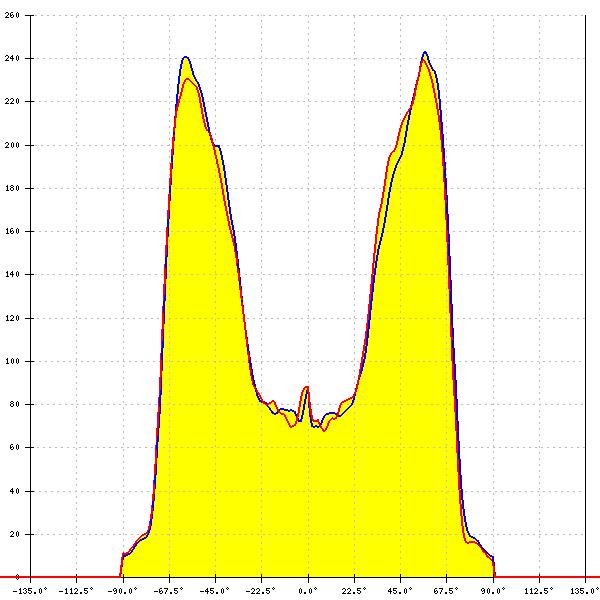

    LED: J Series 5050B 30V K Class
    FWHM: 143°
    FWTM: 159°
    Peak intensity: 0.308 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: 142°
    FWTM: 155°
    Peak intensity: 0.306 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

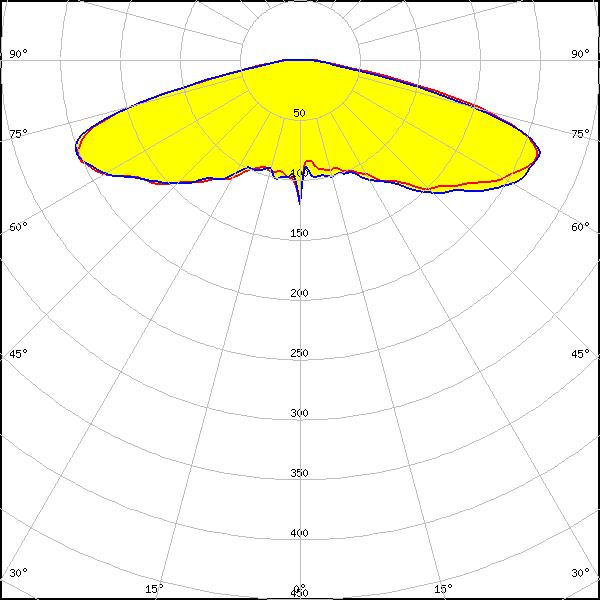

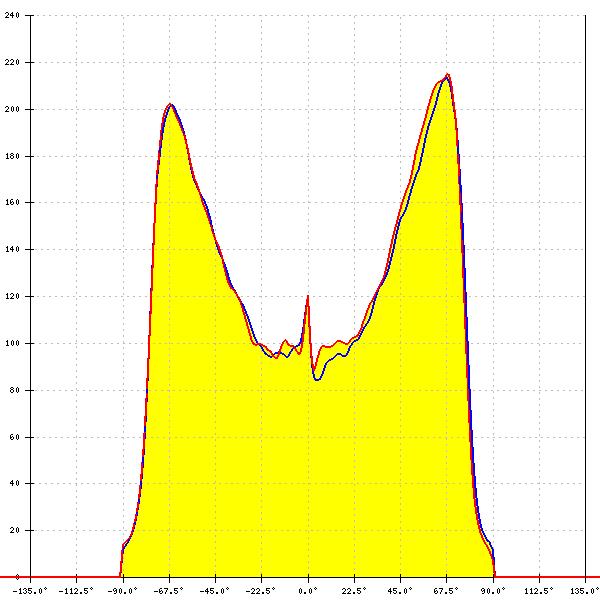

    LED: XHP35 HD
    FWHM: 157°
    FWTM: 171°
    Peak intensity: 0.280 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

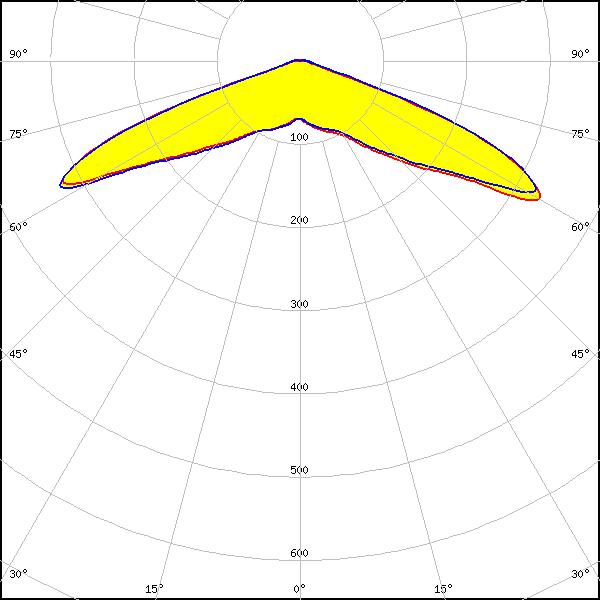

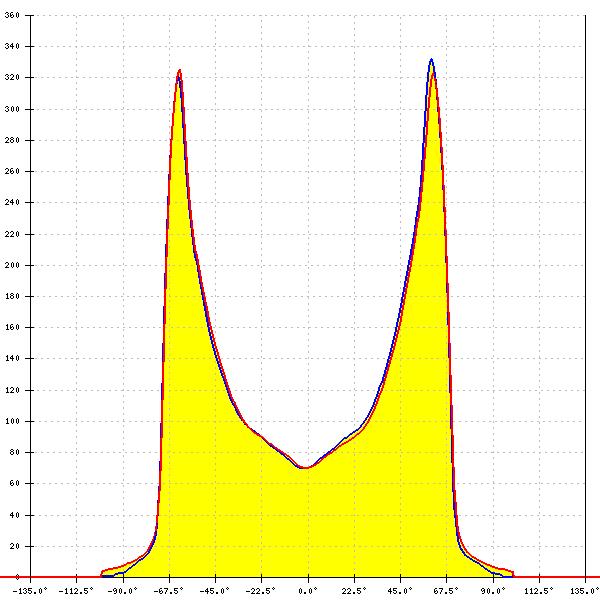

    LED: XP-G2
    FWHM: 140°
    FWTM: 146°
    Peak intensity: 0.550 cd/lm
    LEDs/each optic: 1
    Light colour/type: White

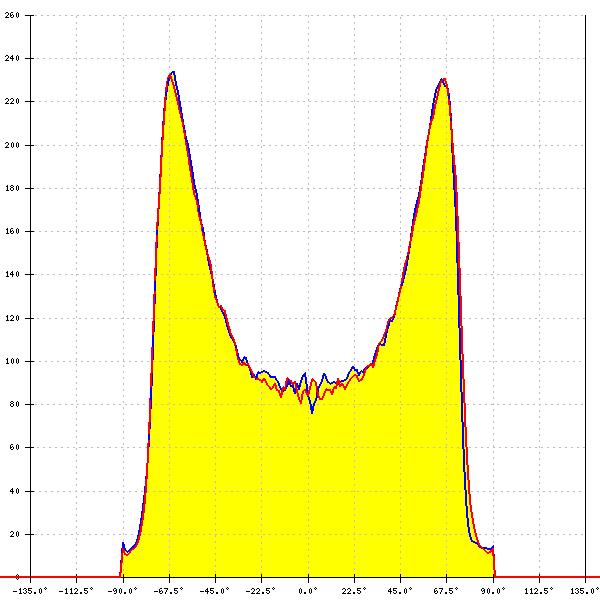

    LED: XP-G2 HE
    FWHM: 150°
    FWTM: 161°
    Peak intensity: 0.347 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

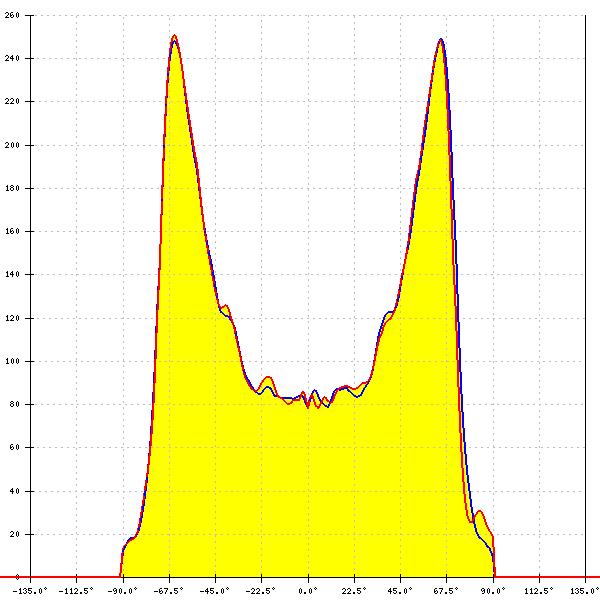

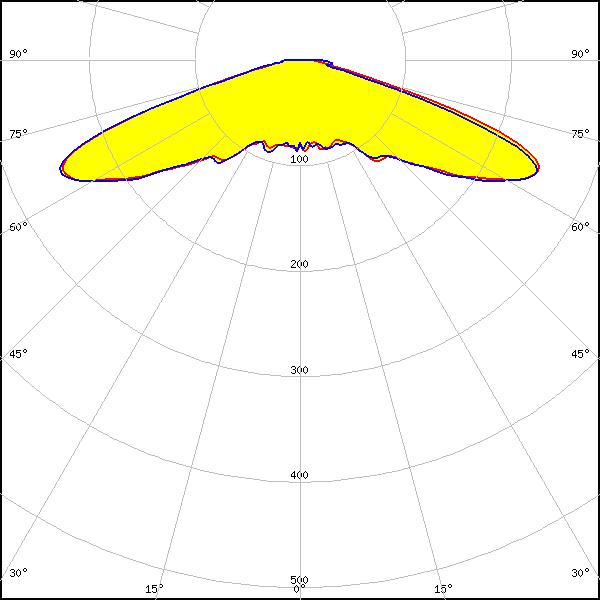

    LED: XP-G3
    FWHM: 146°
    FWTM: 167°
    Peak intensity: 0.372 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

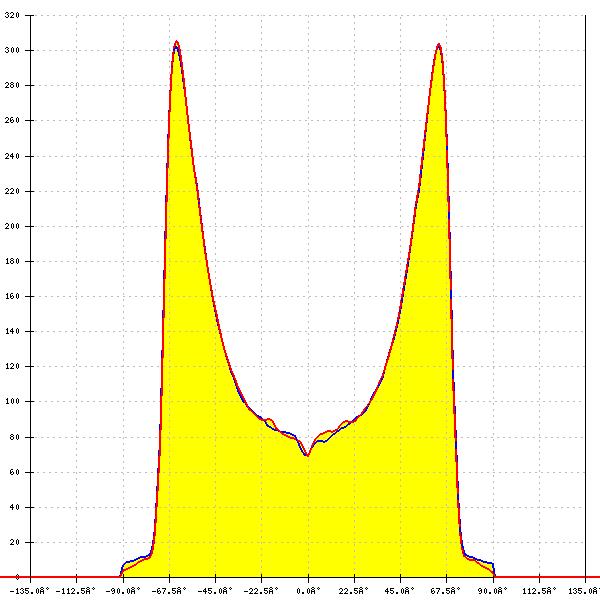

    LED: XP-G4
    FWHM: 140°
    FWTM: 148°
    Peak intensity: 0.458 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

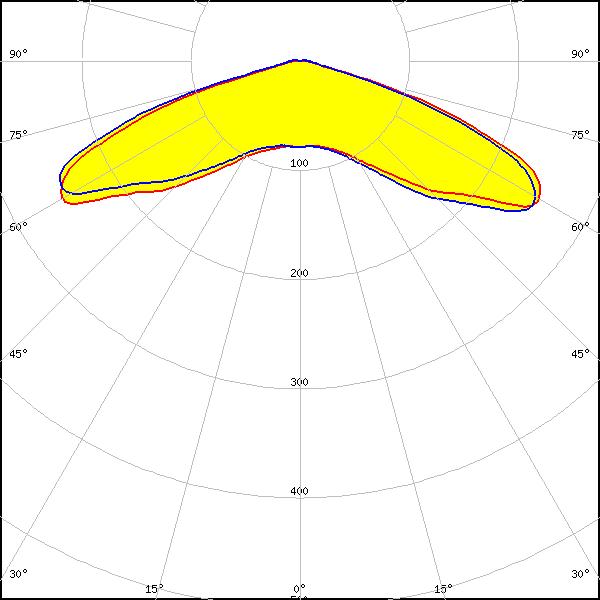

    LED: XP-L HD
    FWHM: 145°
    FWTM: 154°
    Peak intensity: 0.410 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

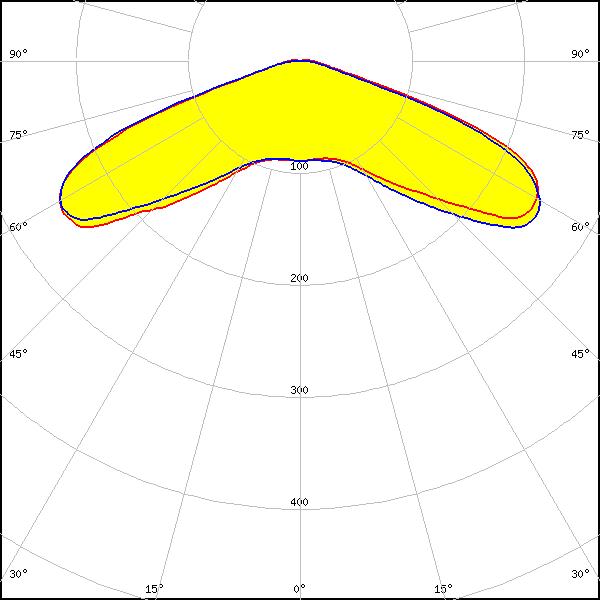

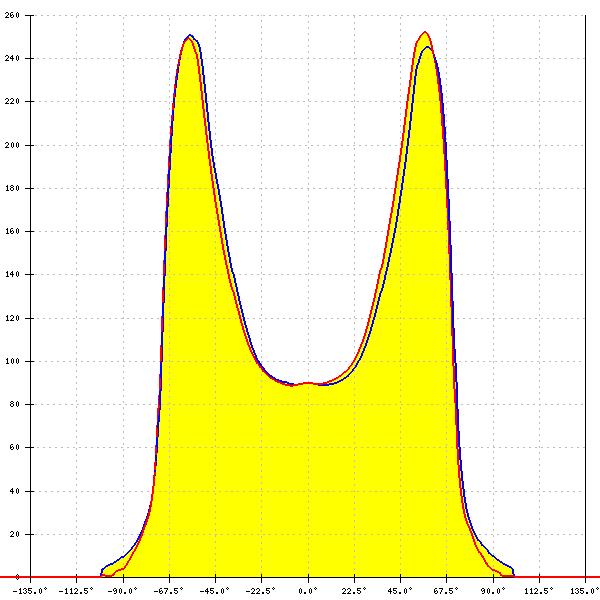

    LED: XP-L2
    FWHM: 142°
    FWTM: 159°
    Peak intensity: 0.380 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

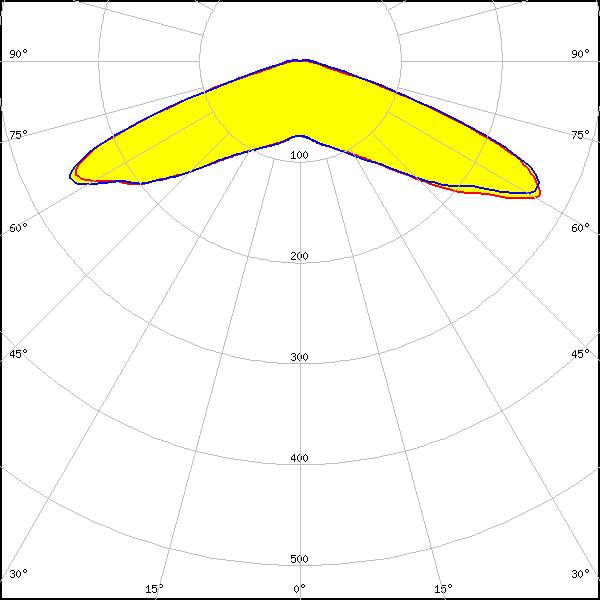

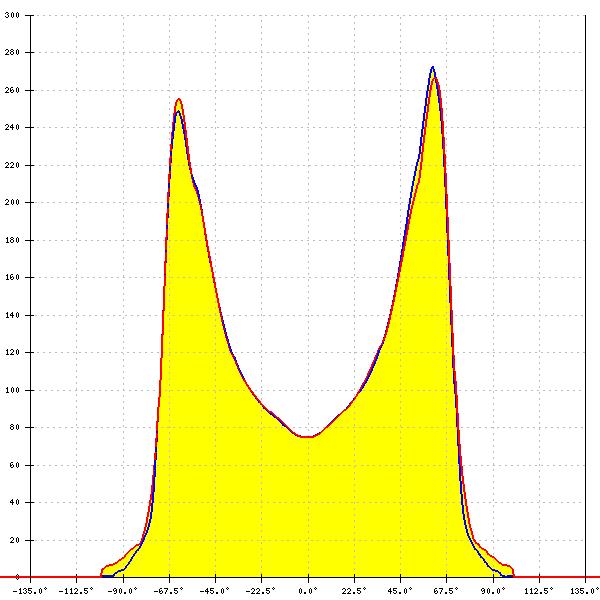

    LED: XT-E
    FWHM: 142°
    FWTM: 158°
    Peak intensity: 0.470 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E HE
    FWHM: 132°
    FWTM: 145°
    Peak intensity: 0.530 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

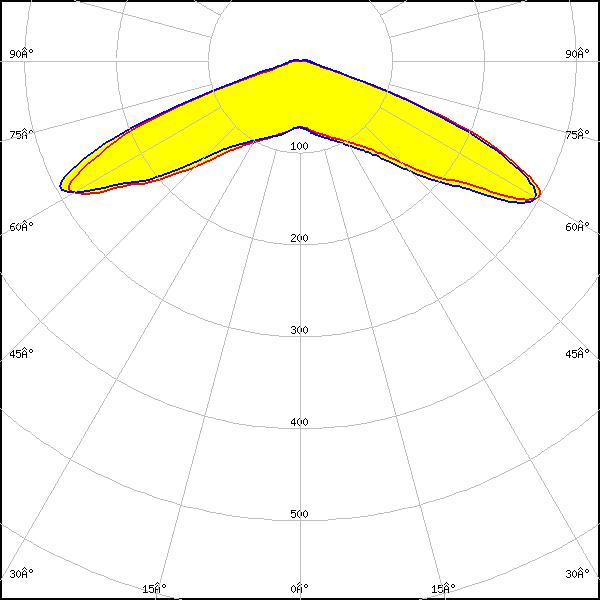

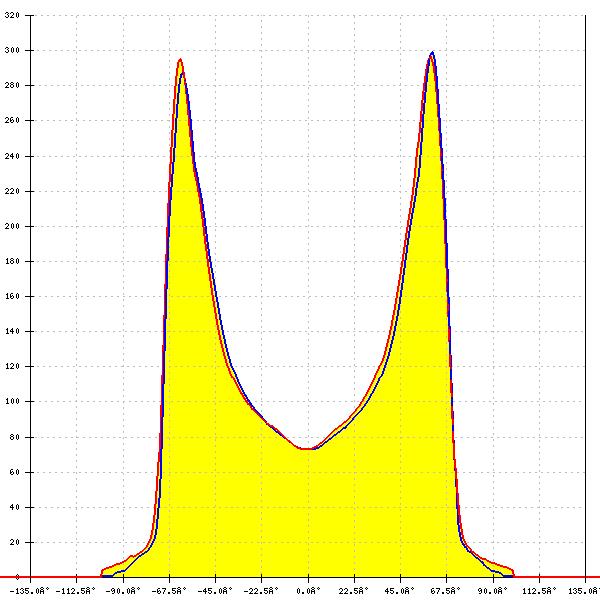

    LED: PrevaLED Brick HP IP 2x6
    FWHM: 138°
    FWTM: 146°
    Peak intensity: 0.486 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

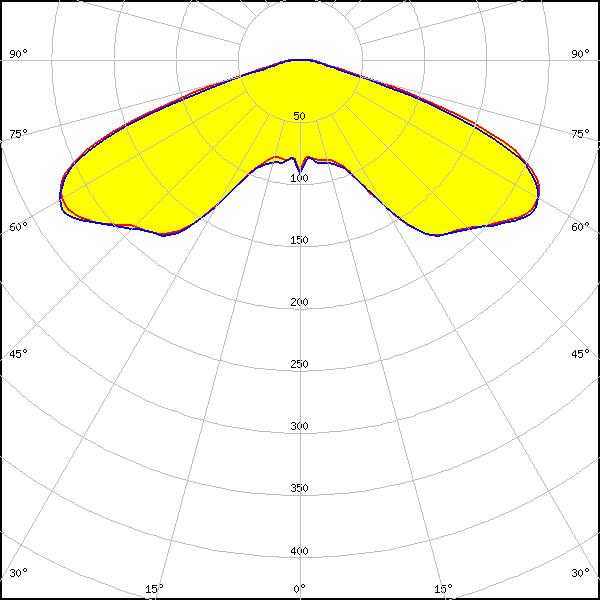

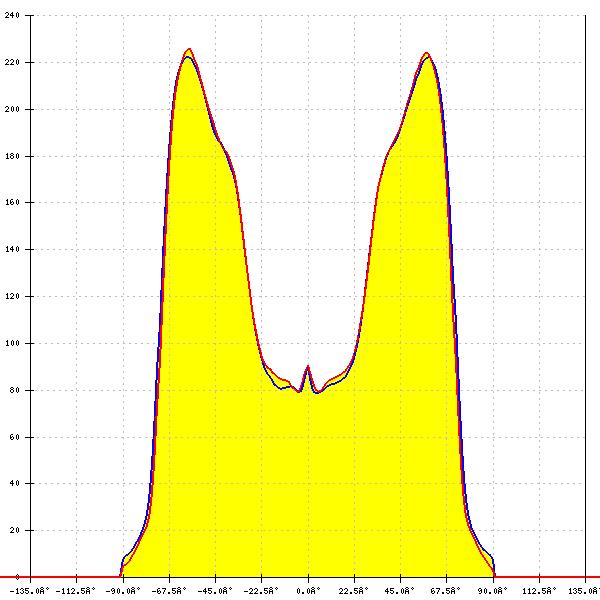

    LED: LUXEON 5050 HE
    FWHM: 143°
    FWTM: 157°
    Peak intensity: 0.321 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

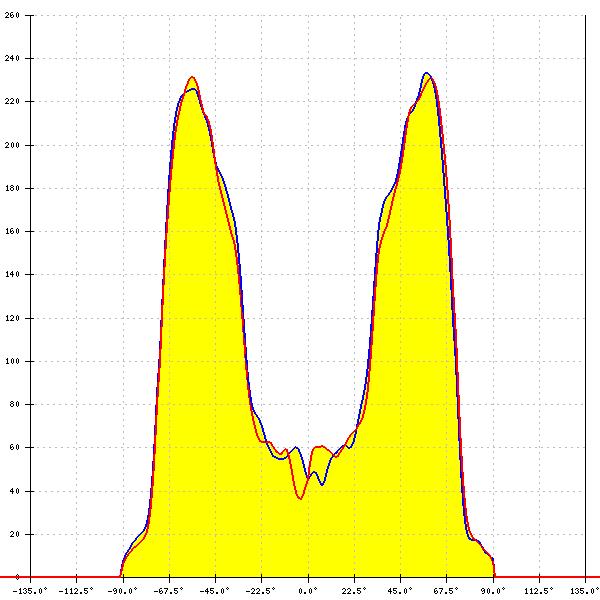

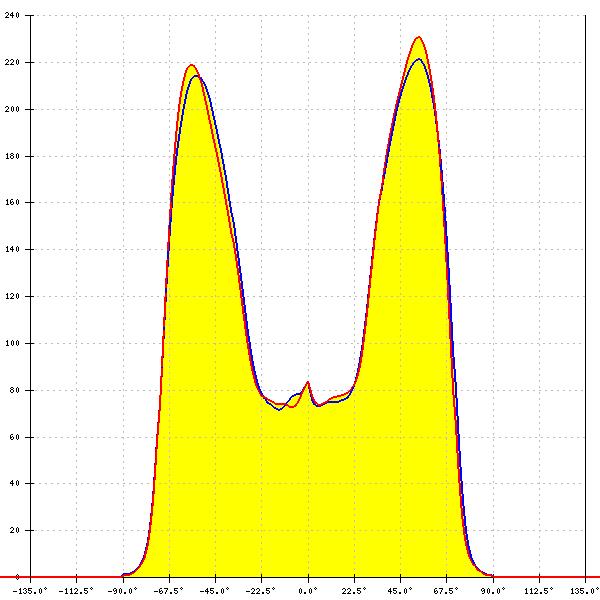

    LED: LUXEON 5050 Round LES
    FWHM: 143°
    FWTM: 156°
    Peak intensity: 0.320 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

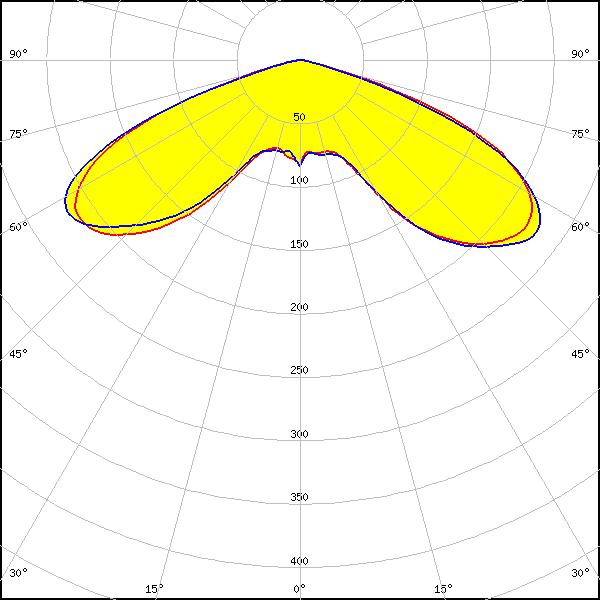

    LED: LUXEON 5050 Round LES
    FWHM: 139°
    FWTM: 152°
    Peak intensity: 0.290 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

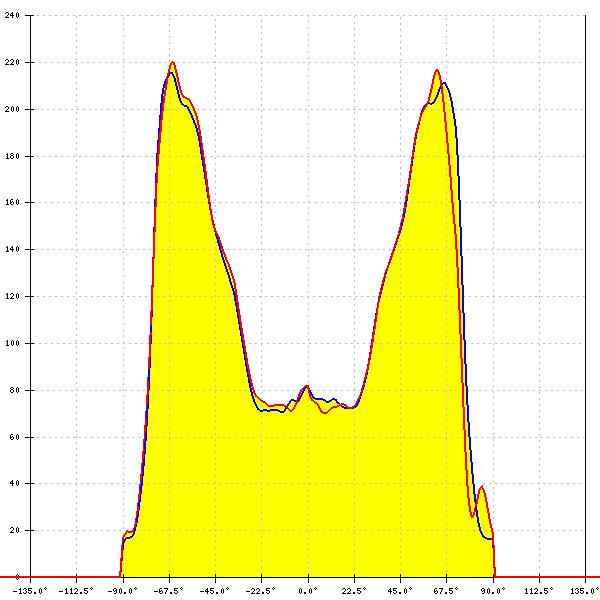

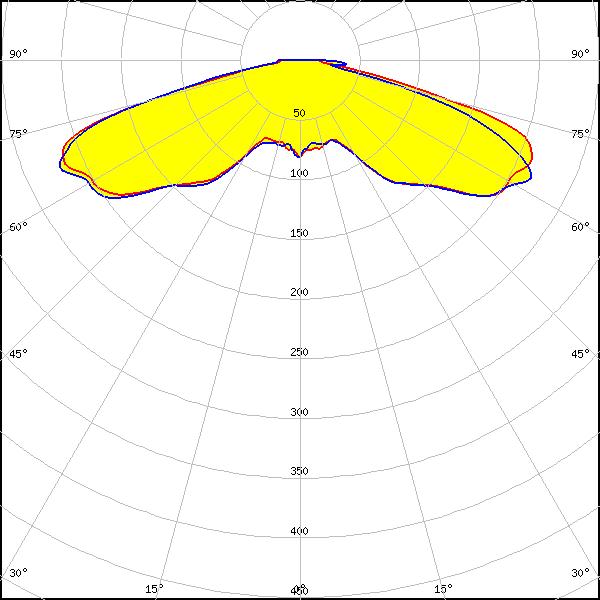

    LED: LUXEON C
    FWHM: 150°
    FWTM: 168°
    Peak intensity: 0.299 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: RGBW

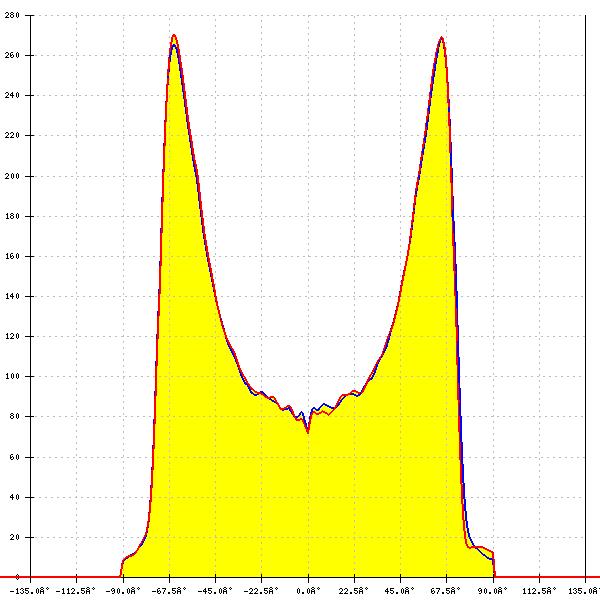

    LED: LUXEON HL2X
    FWHM: 144°
    FWTM: 154°
    Peak intensity: 0.391 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-V
    FWHM: 148°
    FWTM: 157°
    Peak intensity: 0.390 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

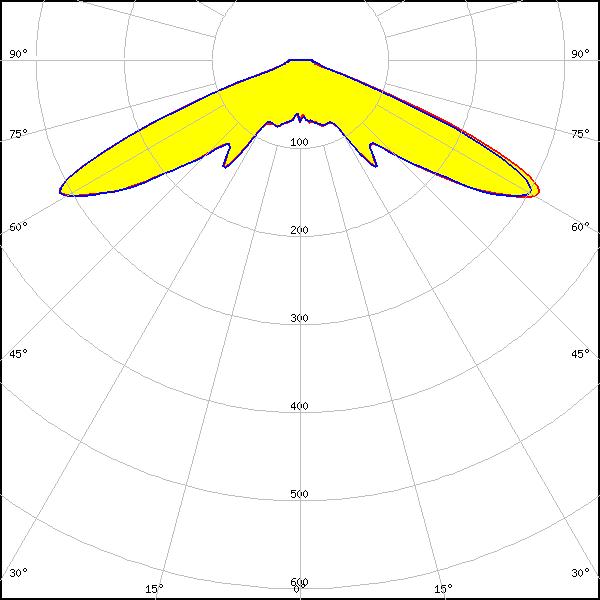

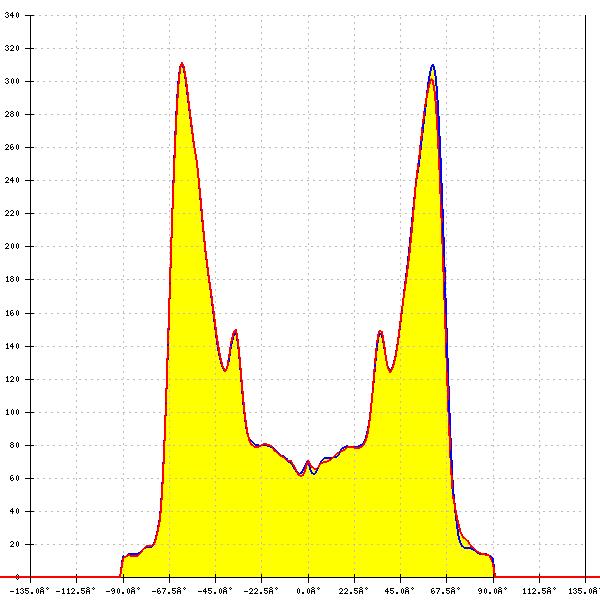

    LED: LUXEON HL2Z
    FWHM: asymmetric
    Peak intensity: 0.485 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

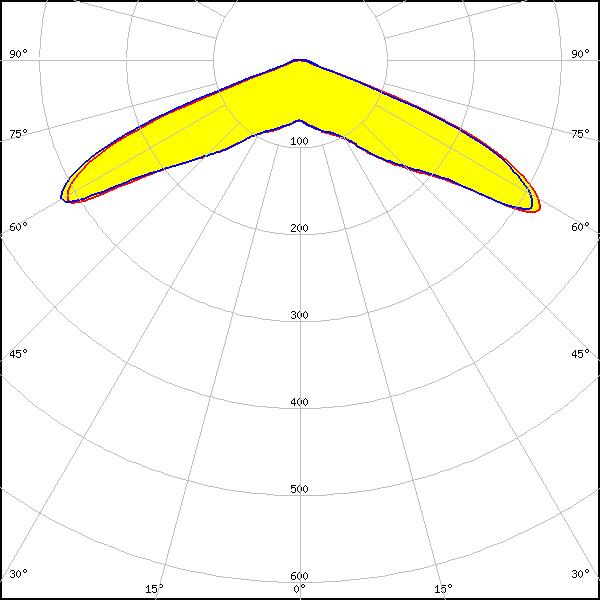

    LED: LUXEON T
    FWHM: 137°
    FWTM: 142°
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

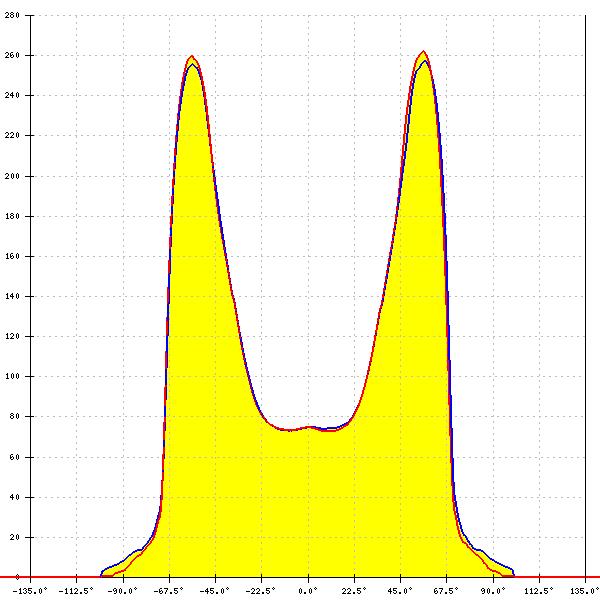

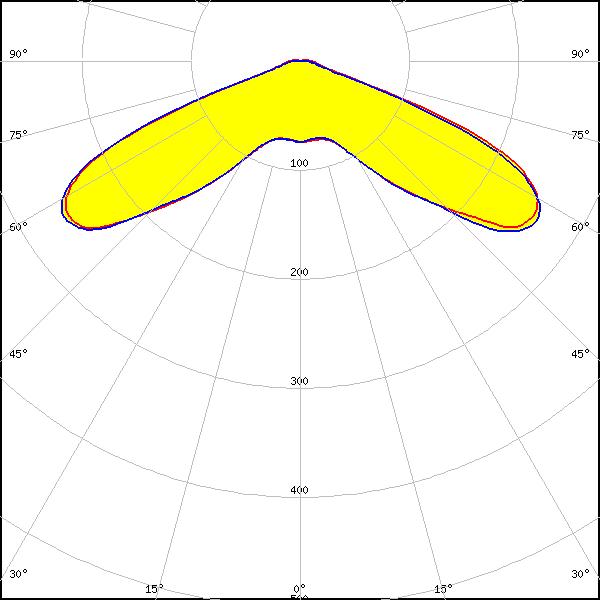

    LED: LUXEON V
    FWHM: 139°
    FWTM: 149°
    Peak intensity: 0.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

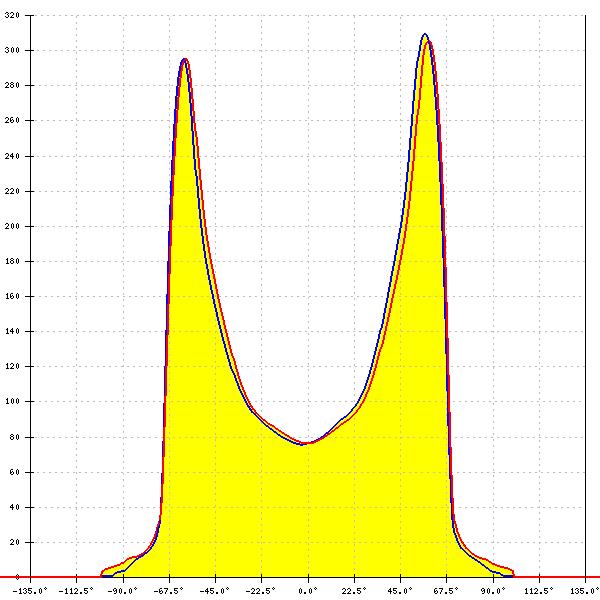

    LED: LUXEON V2
    FWHM: 136°
    FWTM: 144°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

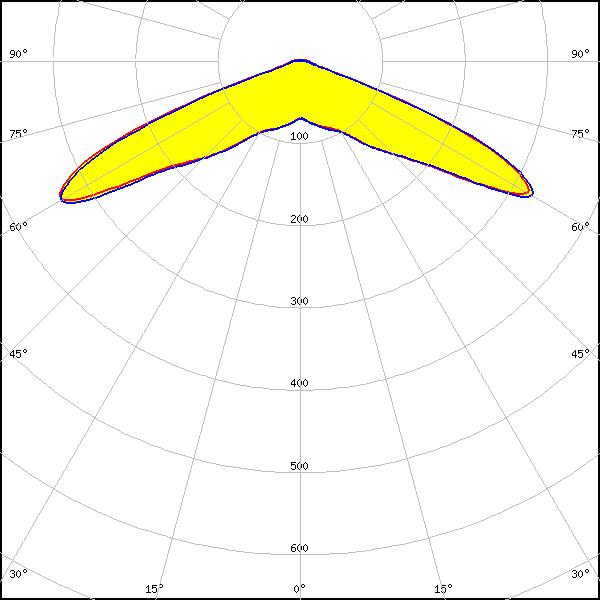

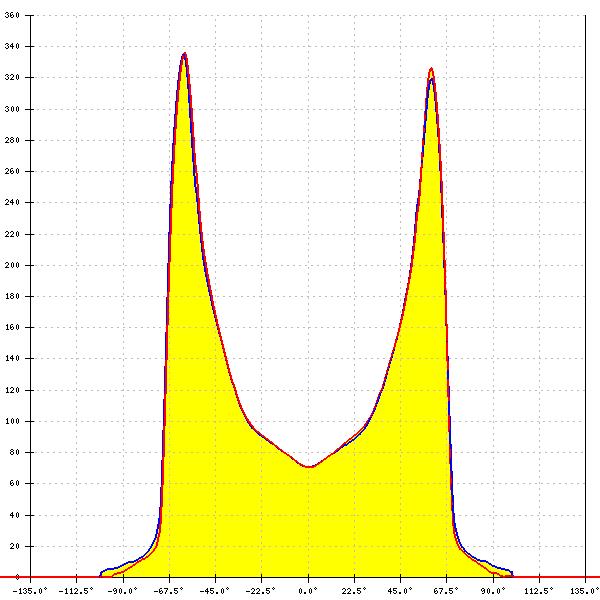

    LED: LUXEON XR-TX (L2T0-xxxx012M0000)
    FWHM: 137°
    FWTM: 145°
    Peak intensity: 0.540 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

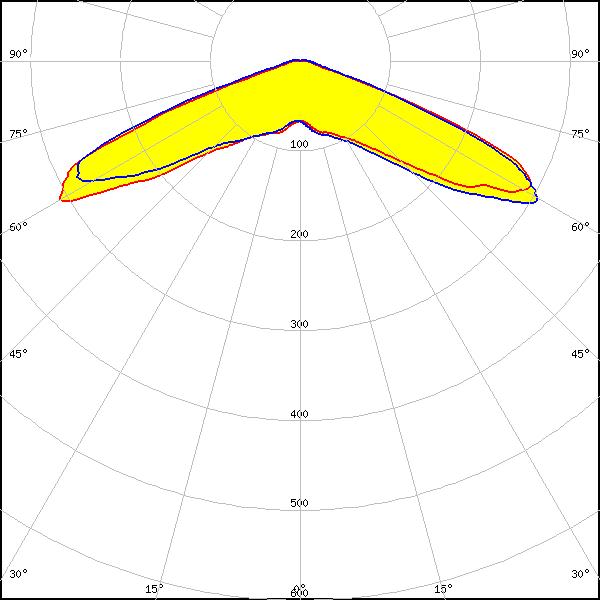

    LED: SST-10-B130
    FWHM: 138°
    FWTM: 146°
    Peak intensity: 0.525 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Deep Red

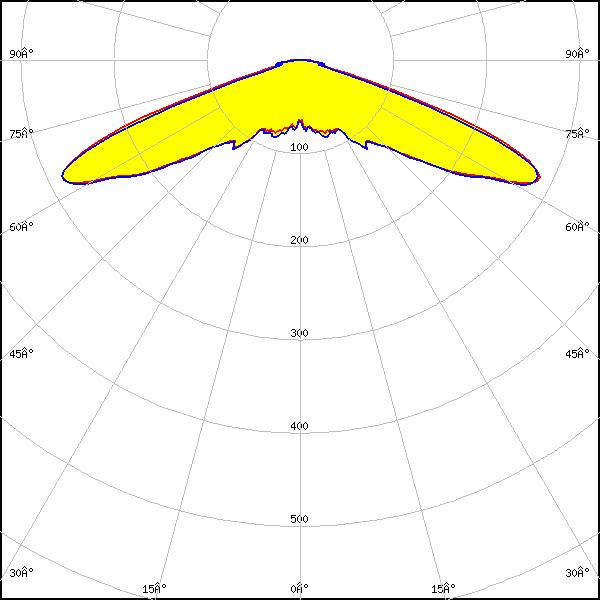

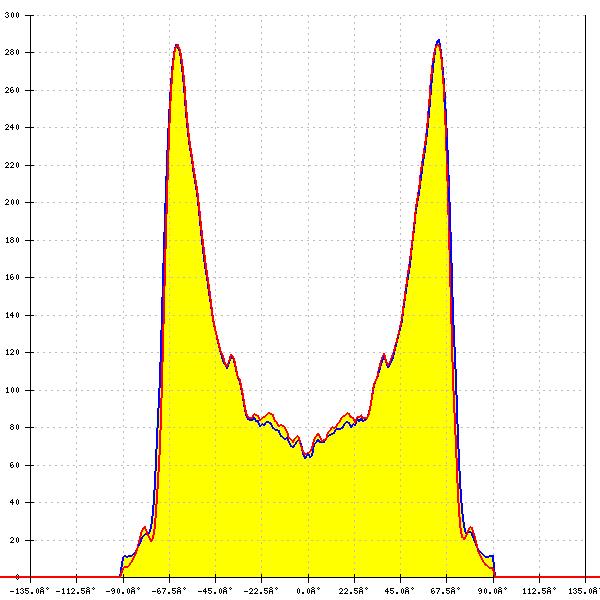

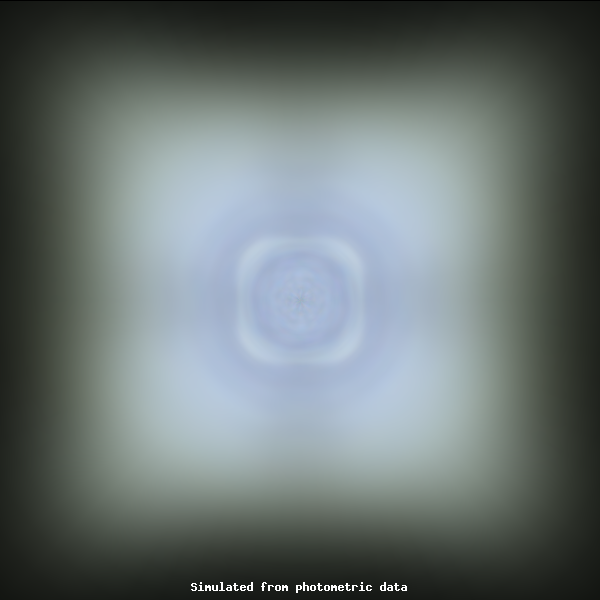

    LED: SST-20 Gen2
    FWHM: 142° + 140°
    FWTM: 152° + 148°
    Peak intensity: 0.482 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

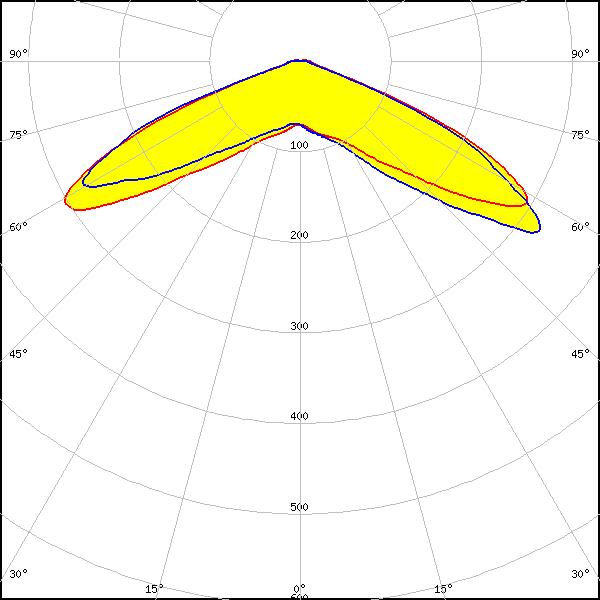

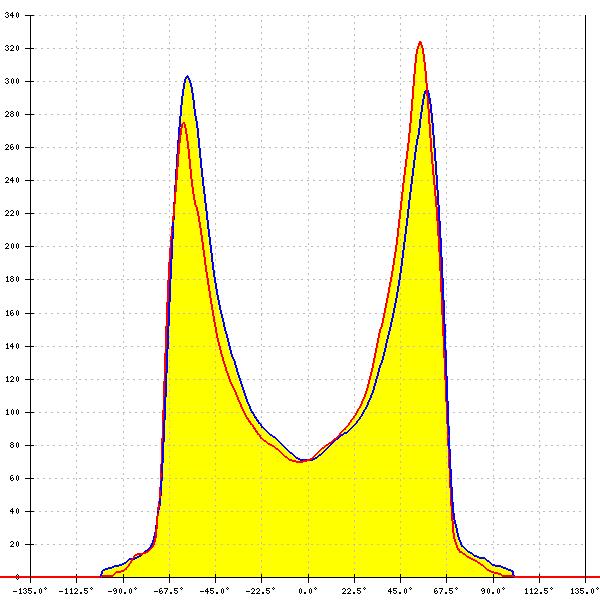

    LED: RecLED 146x45mm 2900lm 730 2x6 IP G1
    FWHM: asymmetric
    Peak intensity: 0.505 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

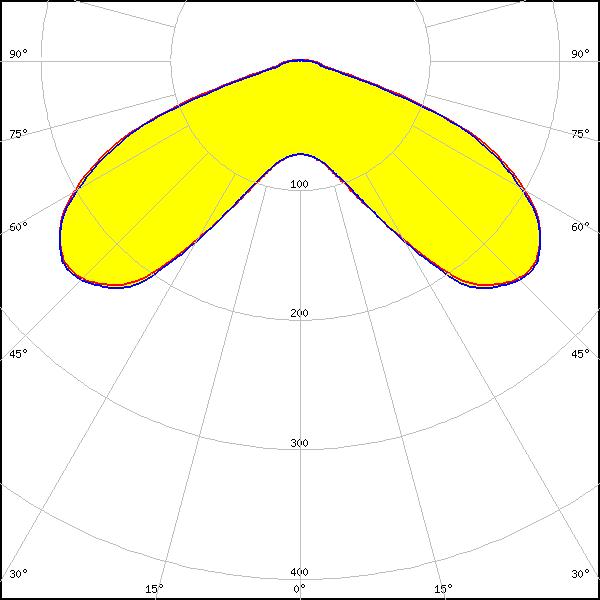

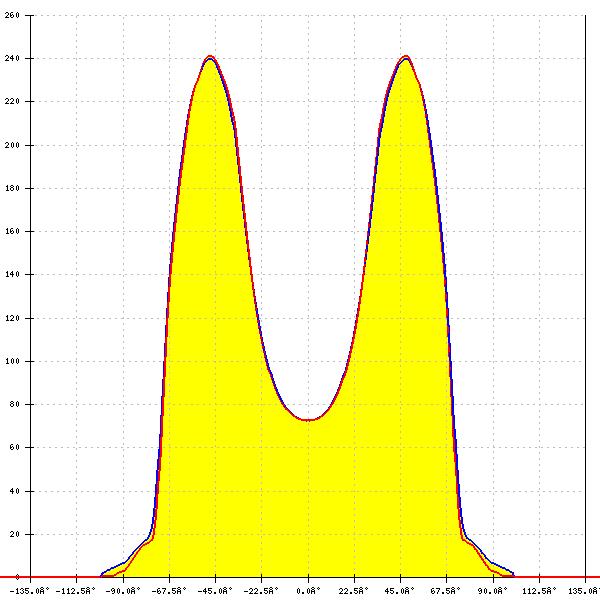

    LED: RecLED 146x45mm 2900lm 740 36V 2x6 IP 5050 LHP NTC G6
    FWHM: asymmetric
    Peak intensity: 0.350 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

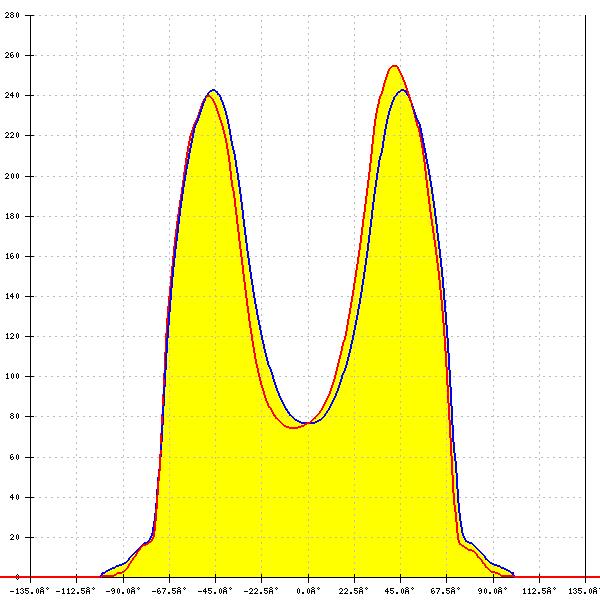

    LED: RecLED 146x45mm 2900lm 740 36V 2x6 IP 5050 S9 NTC G5
    FWHM: asymmetric
    Peak intensity: 0.354 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

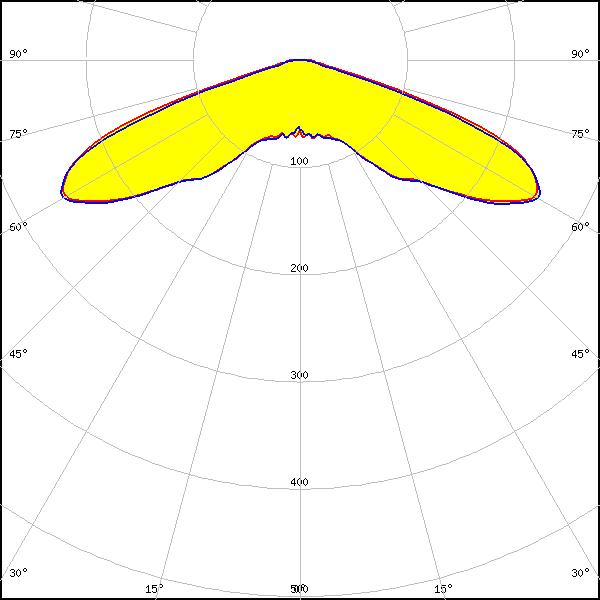

    LED: NV4WB35AM
    FWHM: 143°
    FWTM: 154°
    Peak intensity: 0.388 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

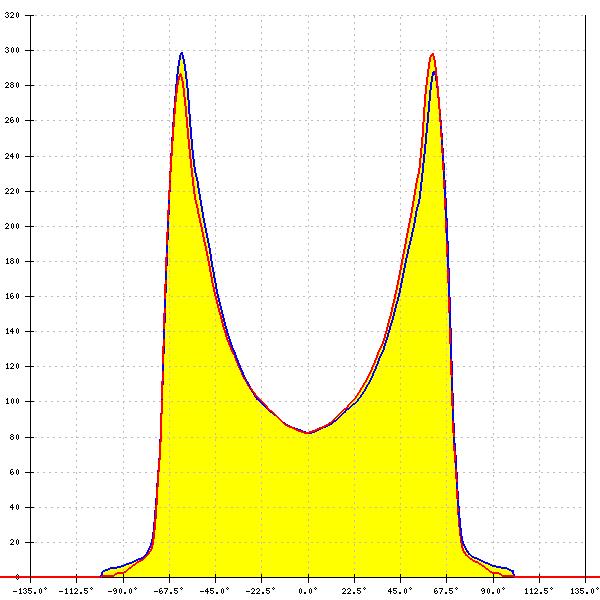

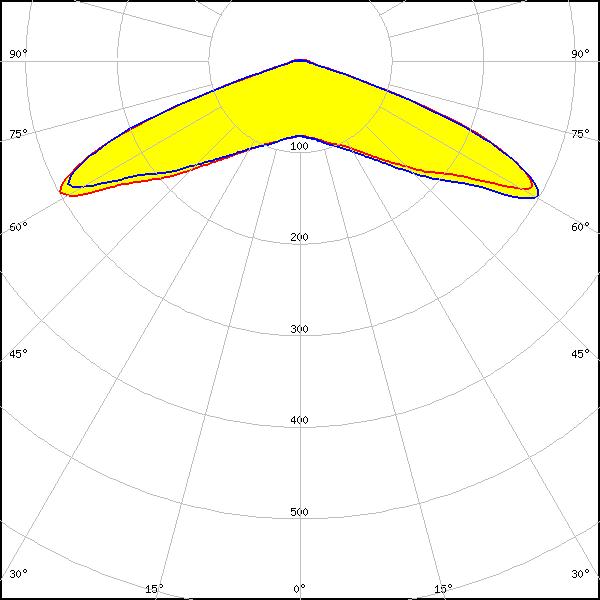

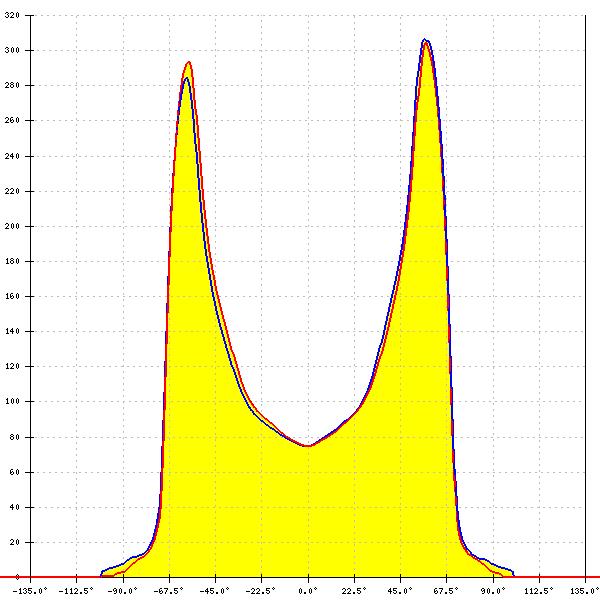

    LED: NVSW219D
    FWHM: 141°
    FWTM: 150°
    Peak intensity: 0.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

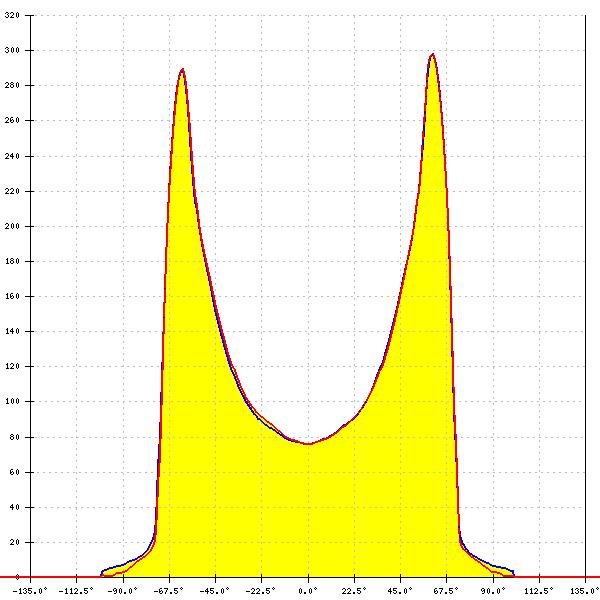

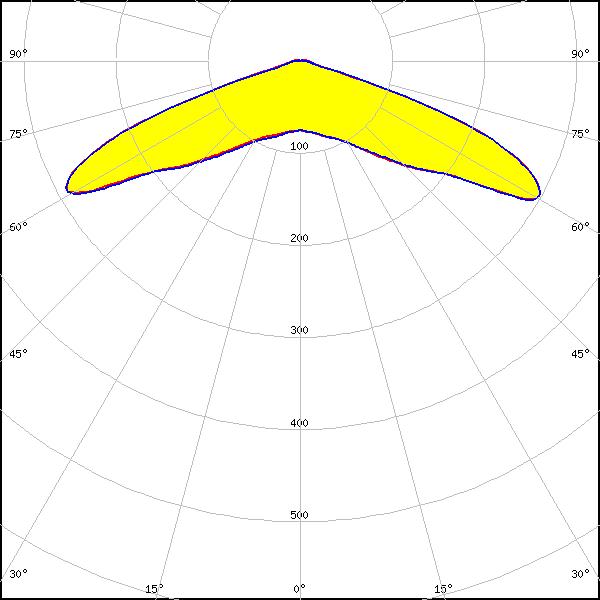

    LED: NVSW219F-V2
    FWHM: 141°
    FWTM: 147°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

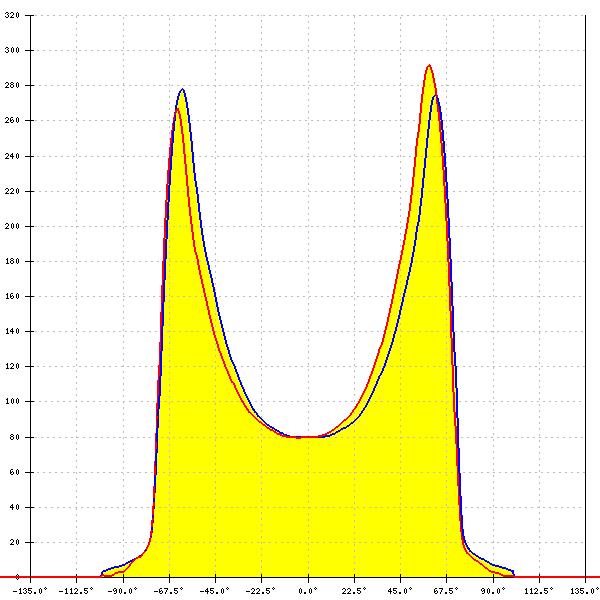

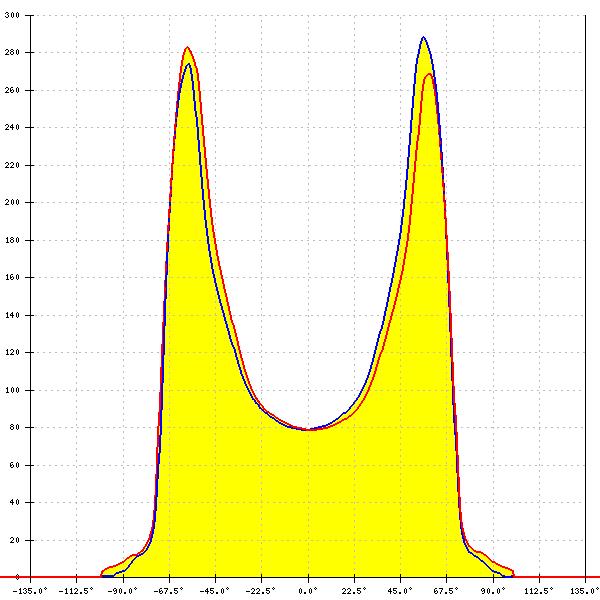

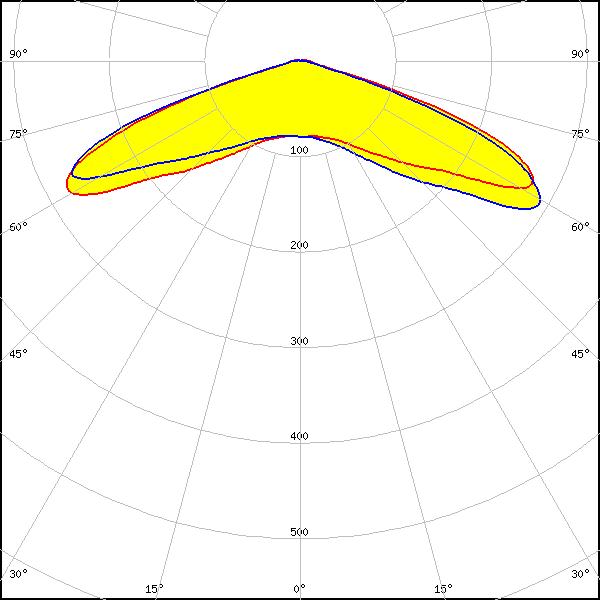

    LED: NVSW319B
    FWHM: 145°
    FWTM: 153°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

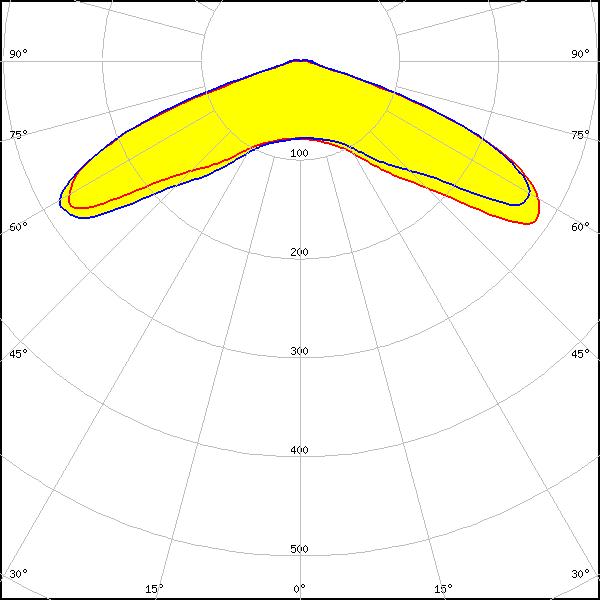

    LED: NVSW3x9A
    FWHM: 140°
    FWTM: 149°
    Peak intensity: 0.430 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

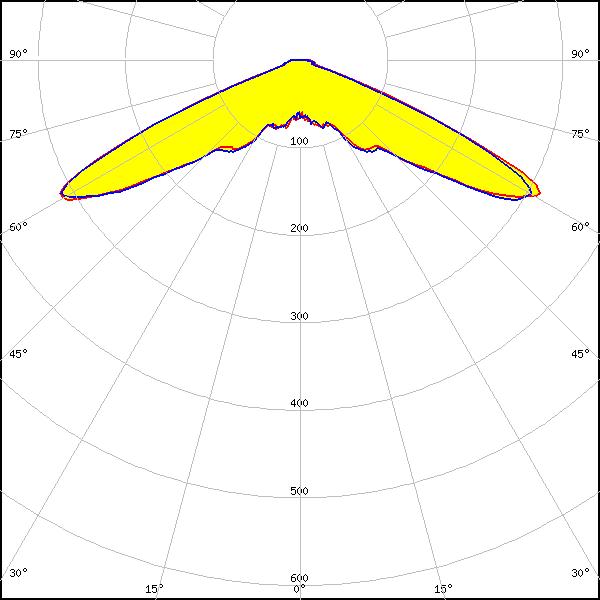

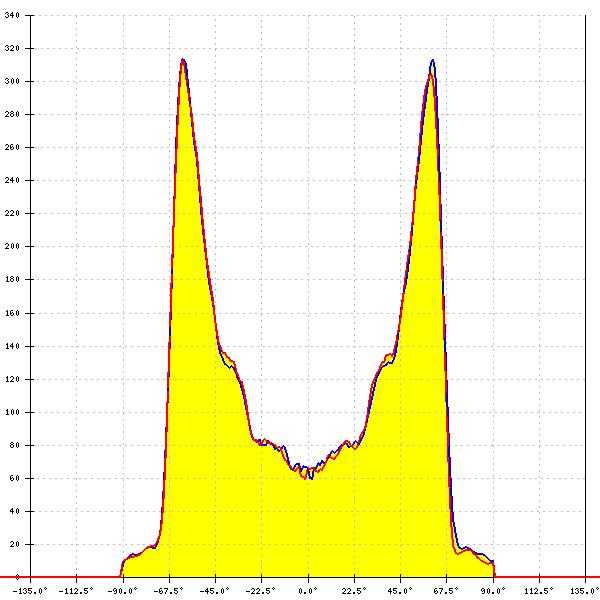

    LED: NVSxE21A
    FWHM: 136°
    FWTM: 145°
    Peak intensity: 0.520 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

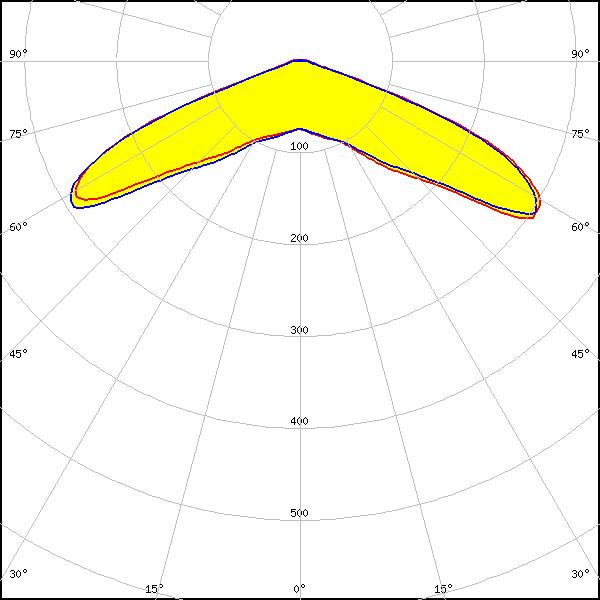

    LED: NVSxx19B/NVSxx19C
    FWHM: 140°
    FWTM: 149°
    Peak intensity: 0.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

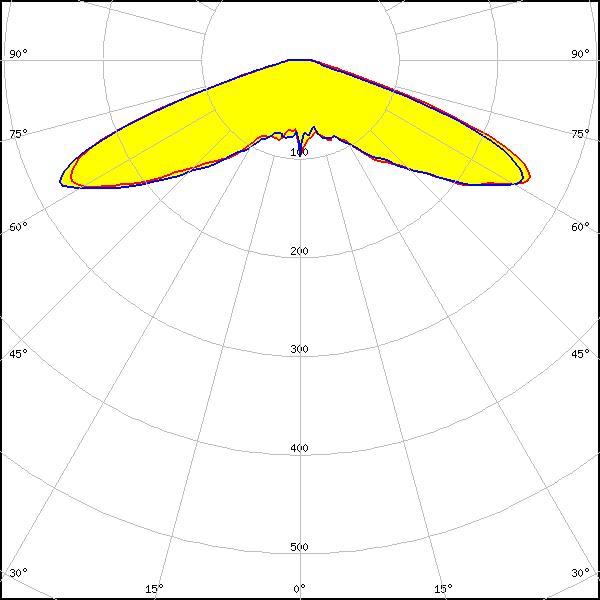

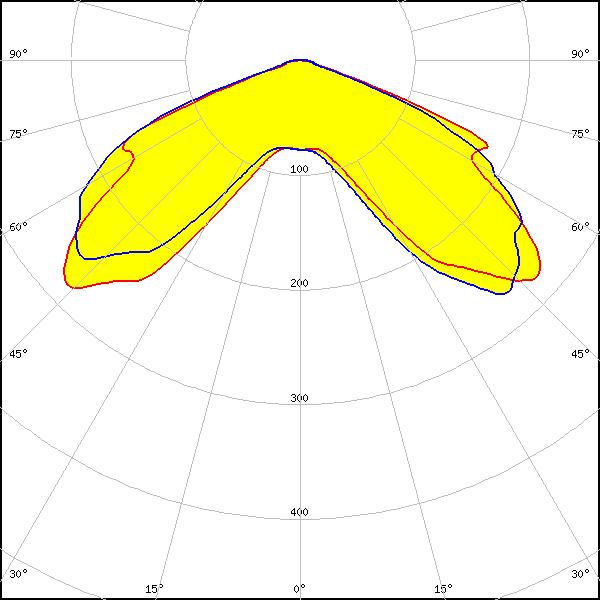

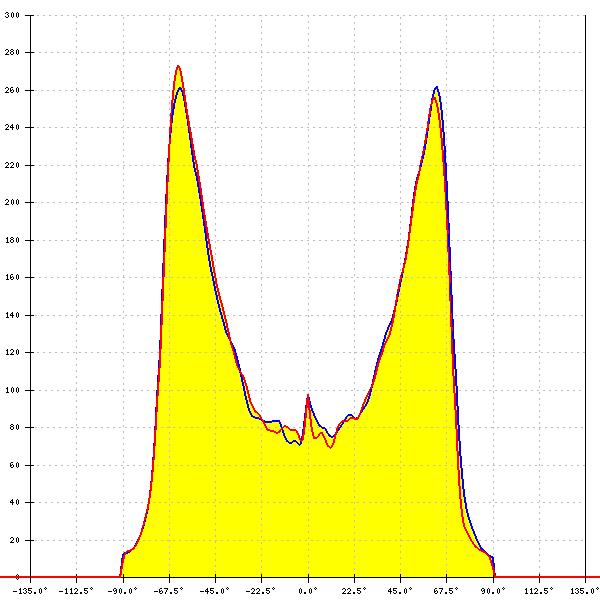

    LED: Duris S8
    FWHM: 137°
    FWTM: 148°
    Peak intensity: 0.370 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

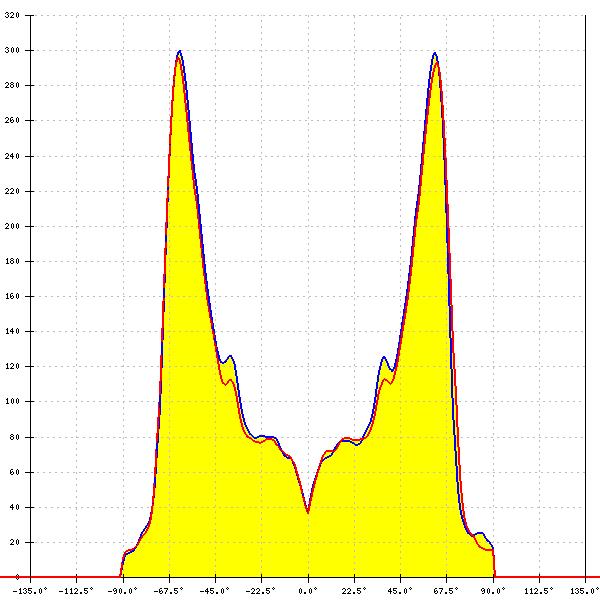

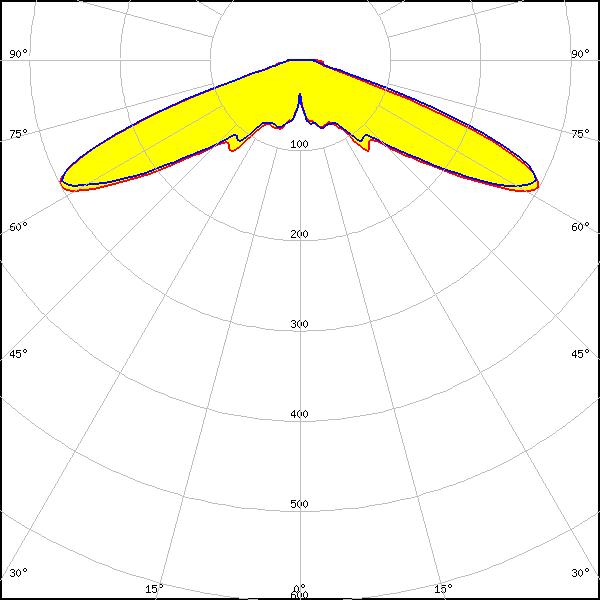

    LED: OSCONIQ P 3030
    FWHM: 141°
    FWTM: 154°
    Peak intensity: 0.445 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

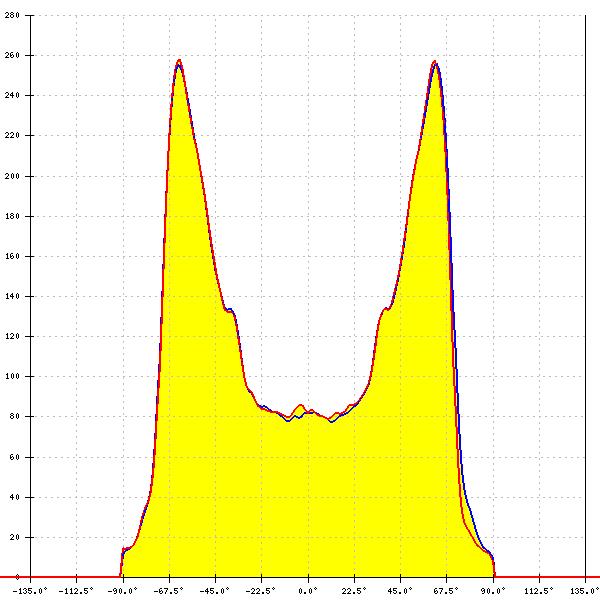

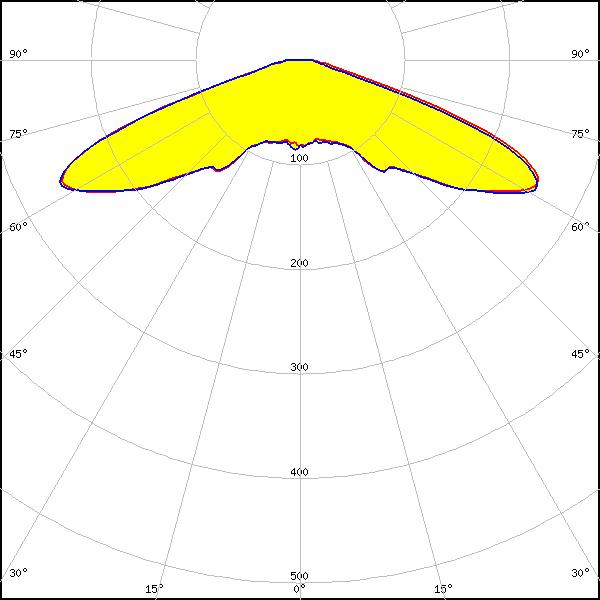

    LED: OSCONIQ P 3737 (3W) PUSTA1
    FWHM: asymmetric
    Peak intensity: 0.377 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W) PUSTA1
    FWHM: asymmetric
    Peak intensity: 0.380 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

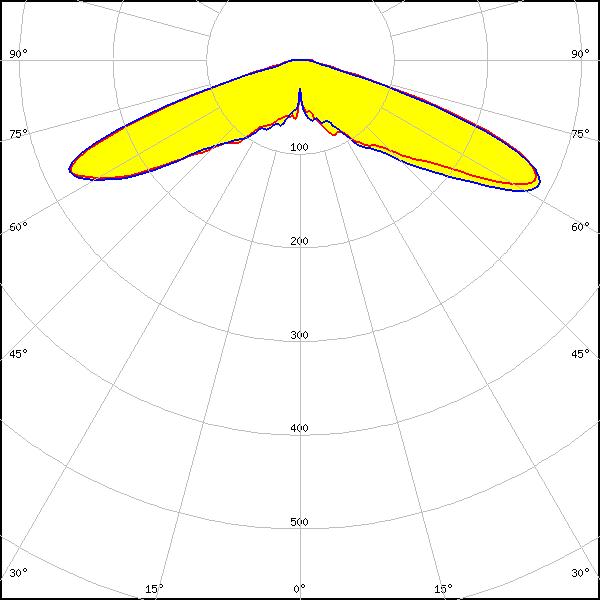

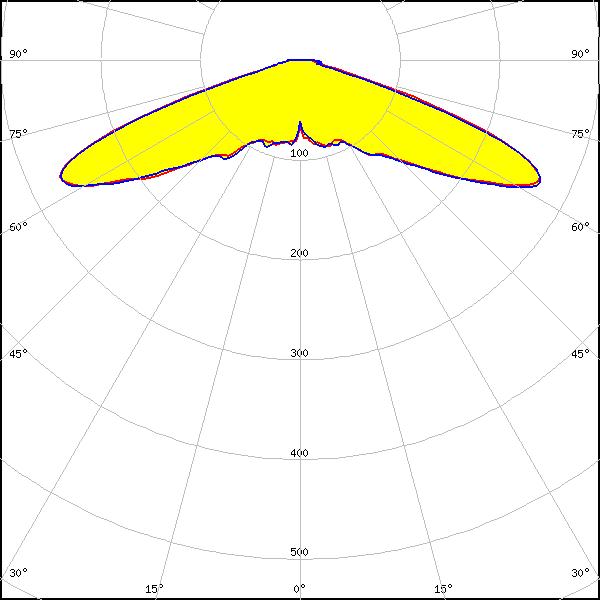

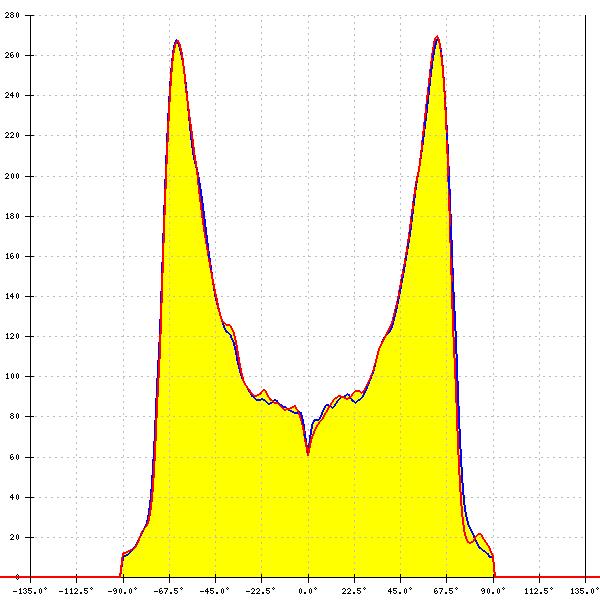

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 143°
    FWTM: 155°
    Peak intensity: 0.401 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

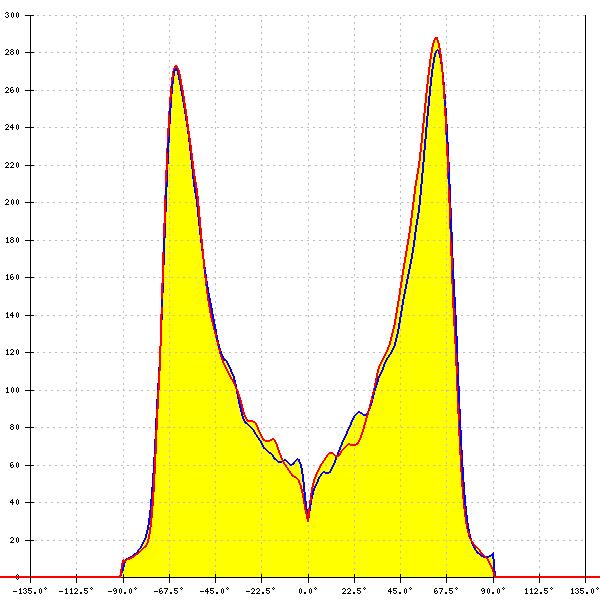

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 142°
    FWTM: 156°
    Peak intensity: 0.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

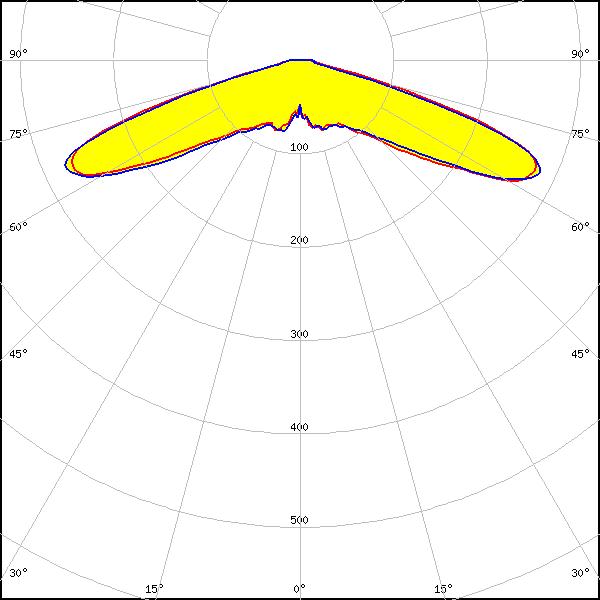

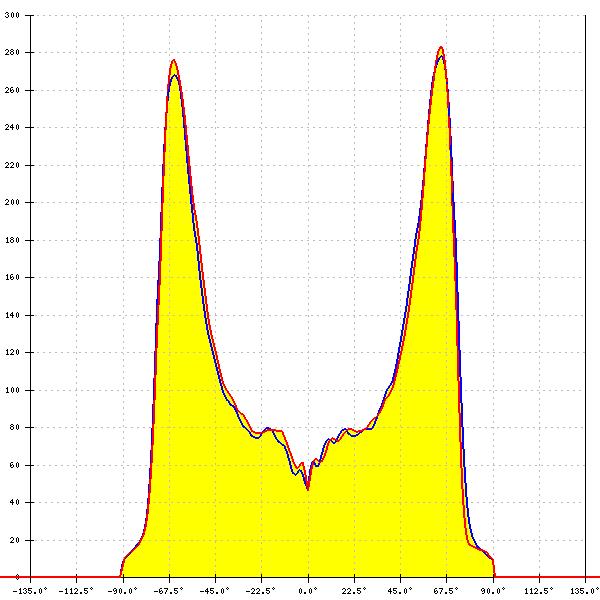

    LED: OSLON SSL 150
    FWHM: 145°
    FWTM: 157°
    Peak intensity: 0.430 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x6 DP G4
    FWHM: 140°
    FWTM: 146°
    Peak intensity: 0.550 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x6 DP G5
    FWHM: 139°
    FWTM: 148°
    Peak intensity: 0.487 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

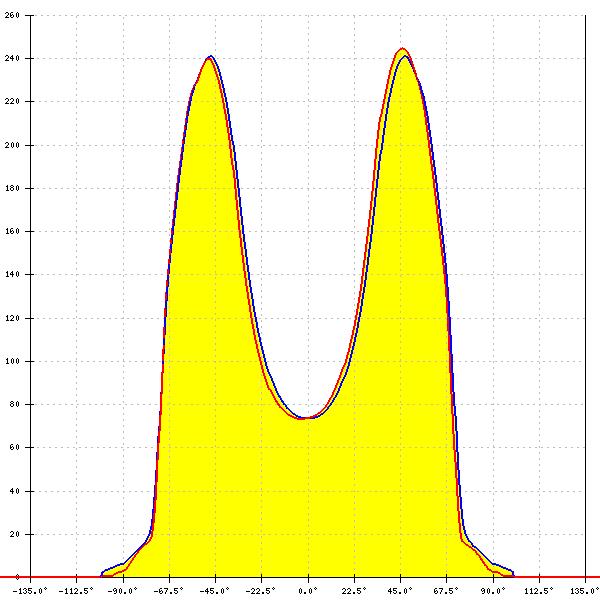

    LED: Fortimo FastFlex LED 2x6 DP HE
    FWHM: 138°
    FWTM: 150°
    Peak intensity: 0.351 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

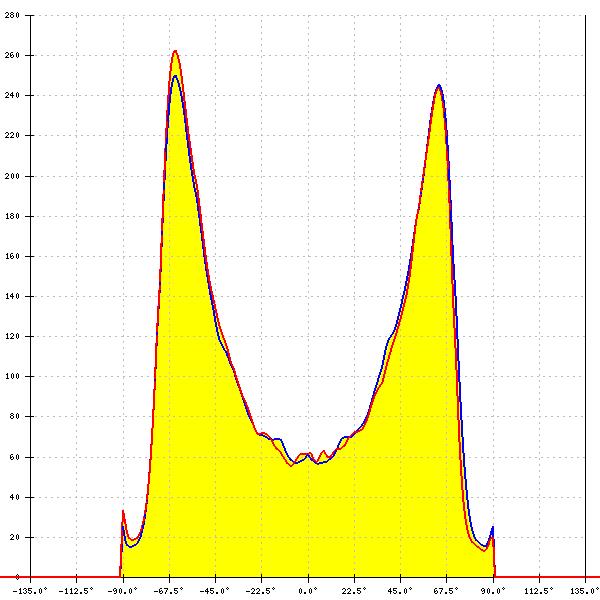

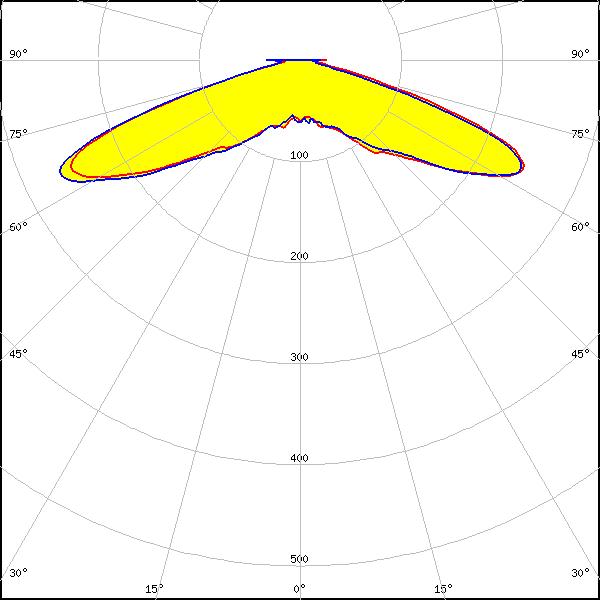

    LED: Fortimo FastFlex LED 2x6 DPX G4
    FWHM: 144°
    FWTM: 158°
    Peak intensity: 0.380 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

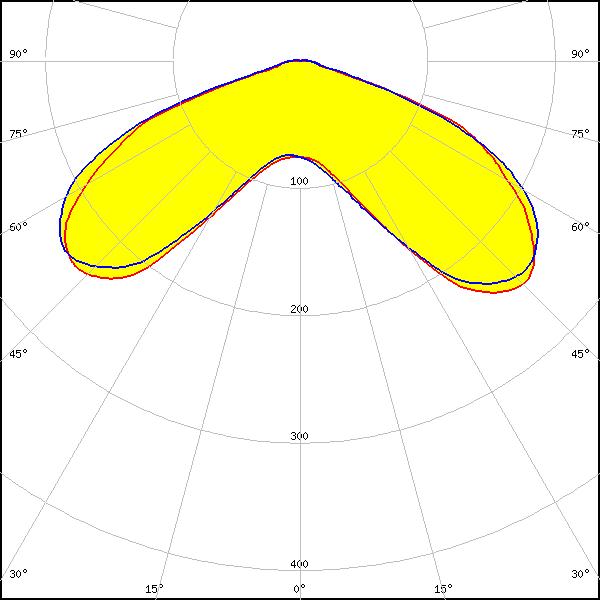

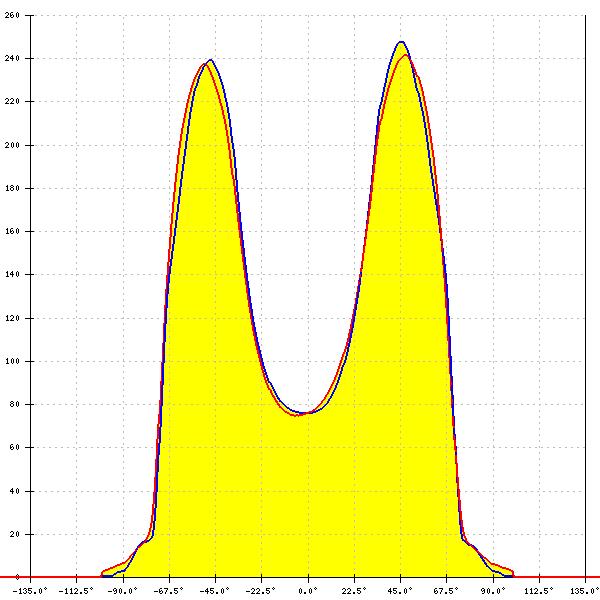

    LED: HiLOM RM12 ZP (LH502C)
    FWHM: 138°
    FWTM: 150°
    Peak intensity: 0.363 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

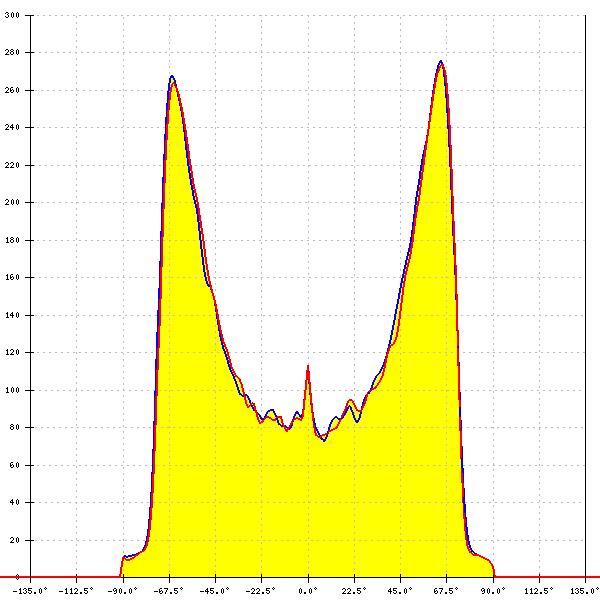

    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.410 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

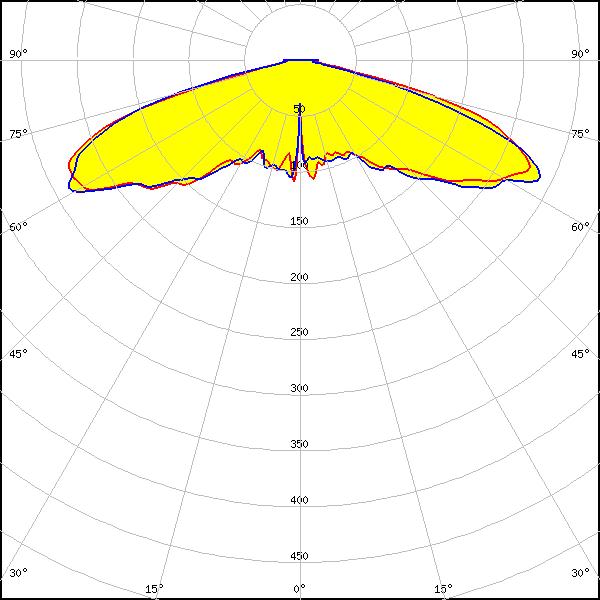

    LED: LH351D
    FWHM: 156°
    FWTM: 164°
    Peak intensity: 0.330 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

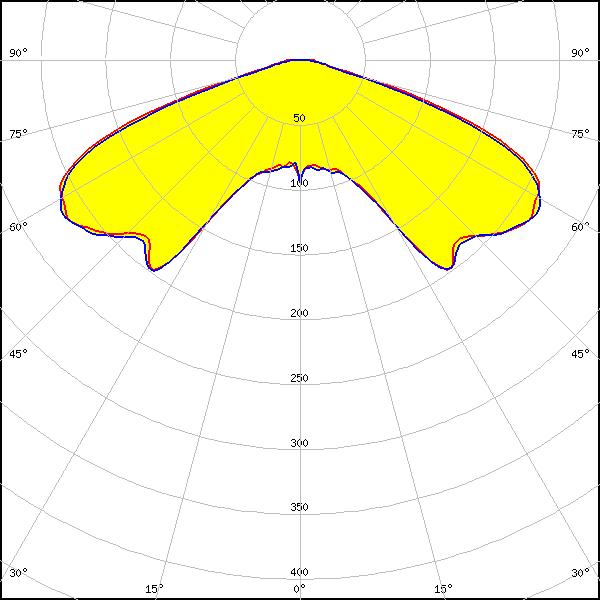

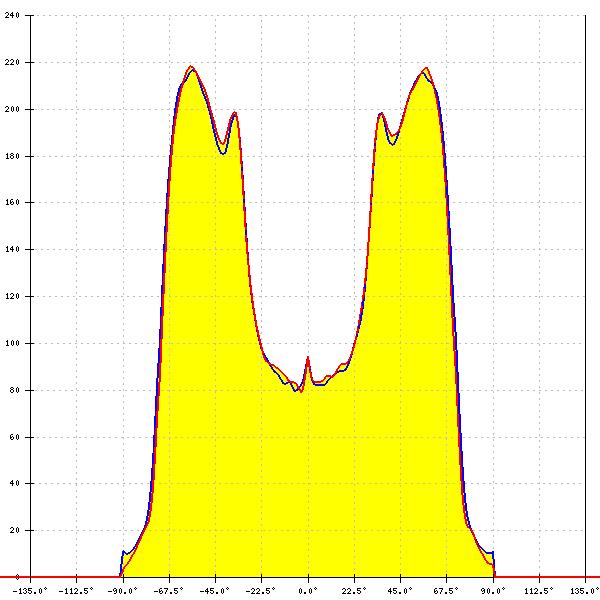

    LED: LH502D
    FWHM: 144° + 142°
    FWTM: 158° + 156°
    Peak intensity: 0.319 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

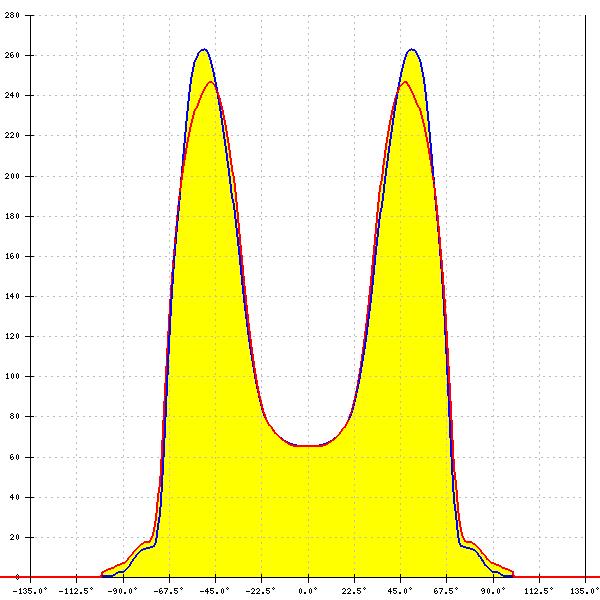

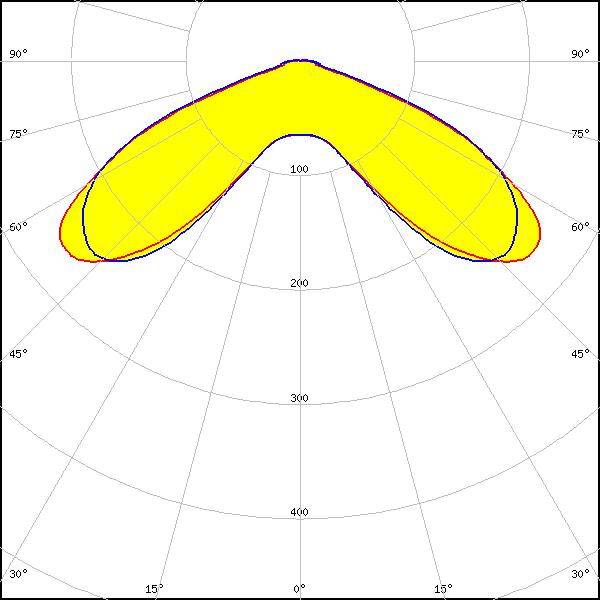

    LED: BALAM-VP-5250-750-36
    FWHM: 134°
    FWTM: 147°
    Peak intensity: 0.386 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

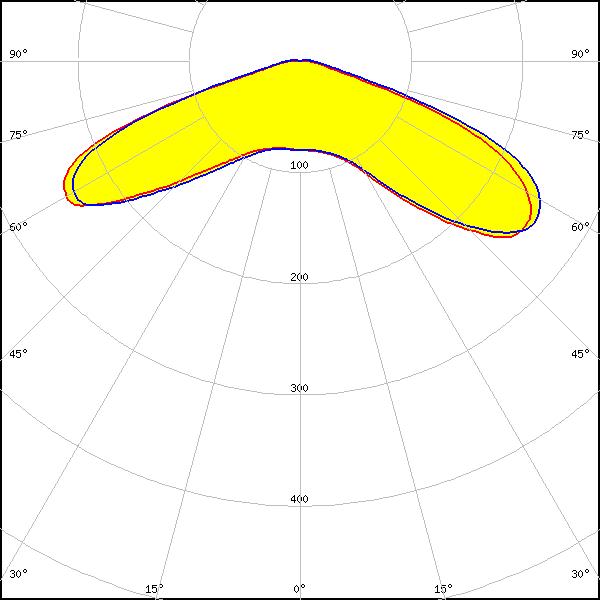

    LED: ROY-S26XPL2 (XP-L2)
    FWHM: 141°
    FWTM: 158°
    Peak intensity: 0.378 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

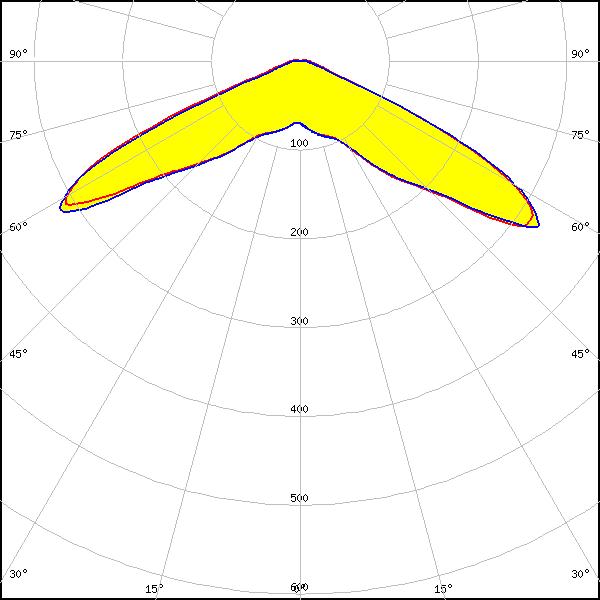

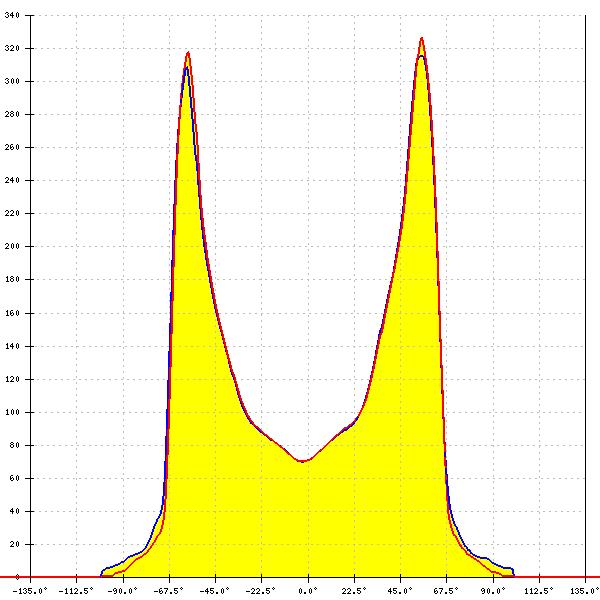

    LED: XLE-S22C4XTEHE (XT-E HE)
    FWHM: 132°
    FWTM: 145°
    Peak intensity: 0.530 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

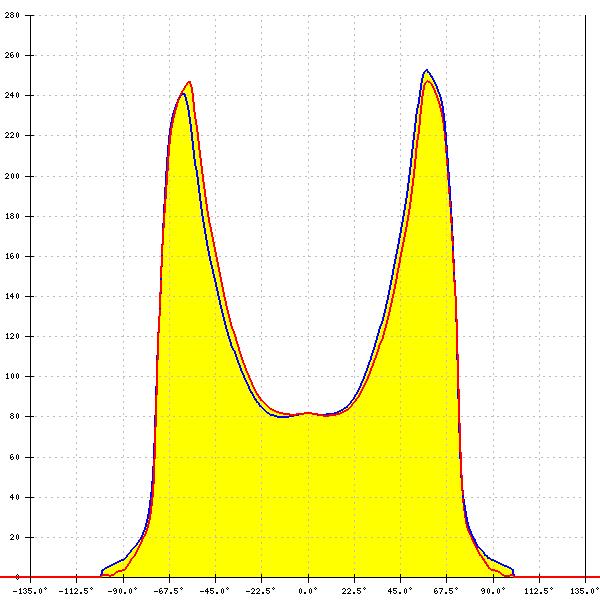

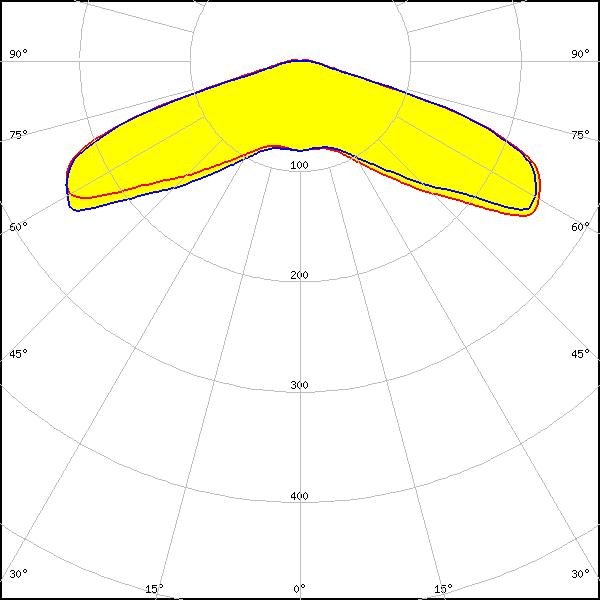

    LED: XLE-S26XHP35 (XHP35 HD)
    FWHM: 148°
    FWTM: 160°
    Peak intensity: 0.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

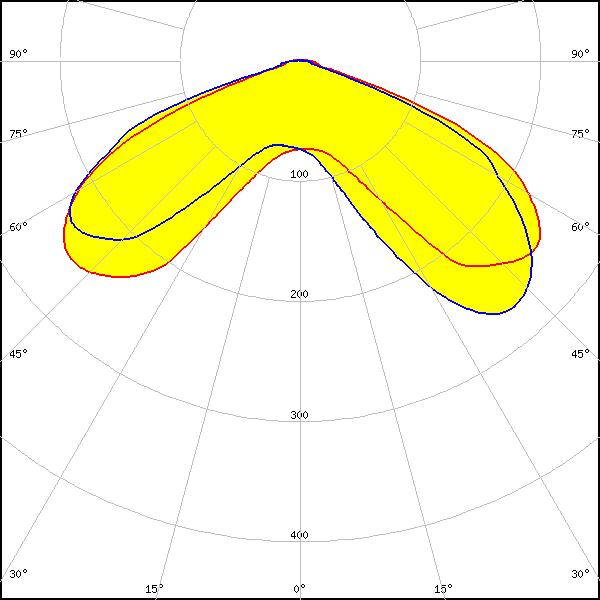

    LED: 2x6 5050 module - SMJD-3625012F-XX
    FWHM: 135°
    FWTM: 146°
    Peak intensity: 0.370 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

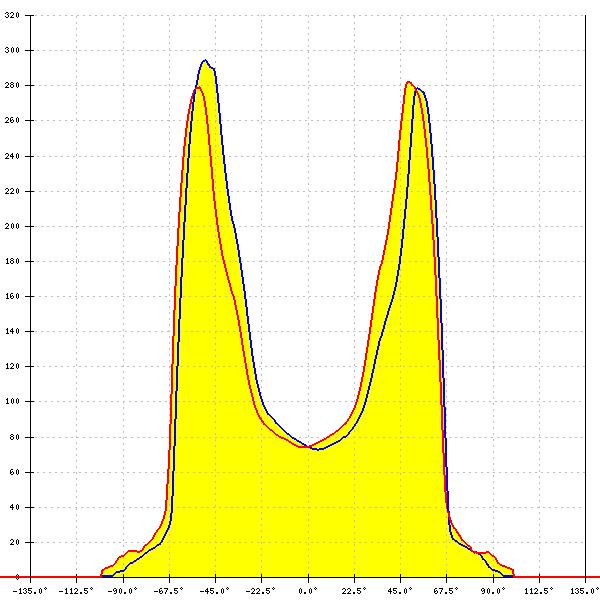

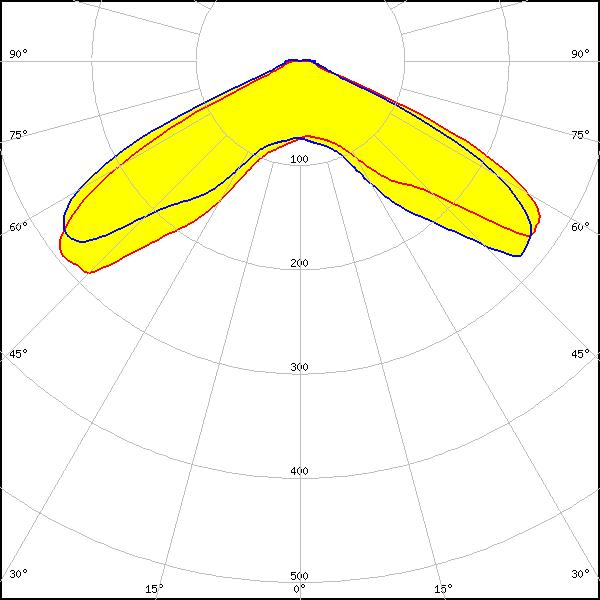

    LED: SMJQ-D36W12Mx
    FWHM: 131°
    FWTM: 141°
    Peak intensity: 0.470 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SMJQ-D36W12Px
    FWHM: 137°
    FWTM: 146°
    Peak intensity: 0.460 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M1/Z5M2
    FWHM: 131°
    FWTM: 140°
    Peak intensity: 0.510 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

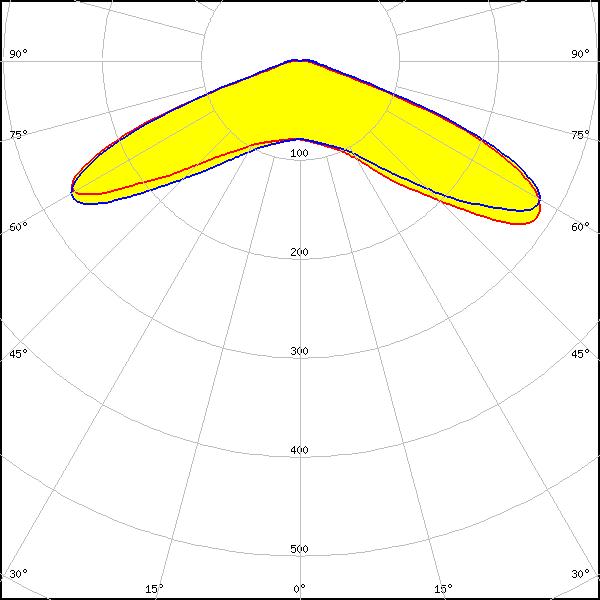

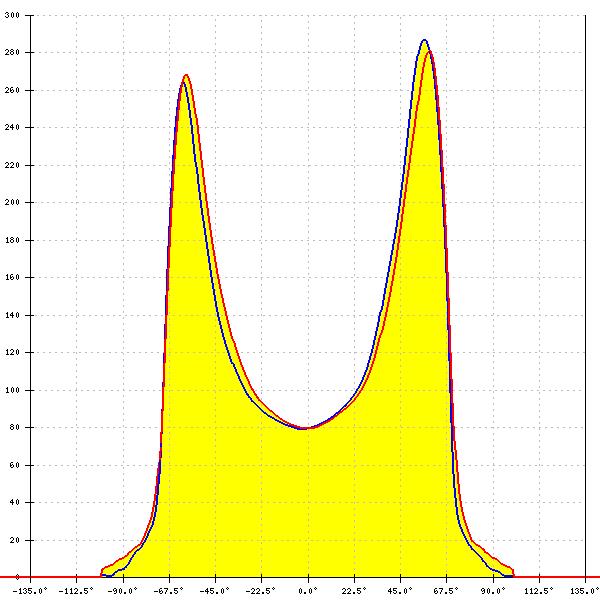

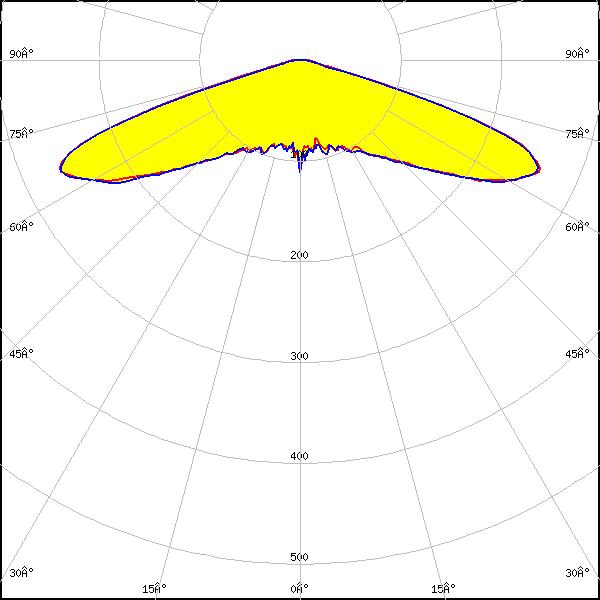

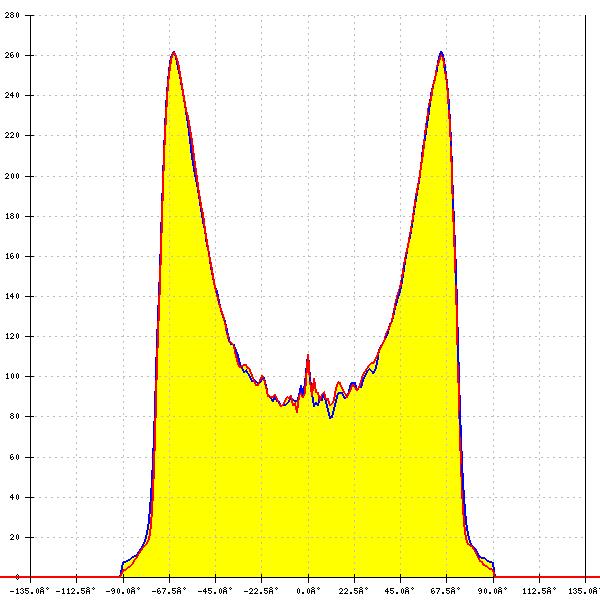

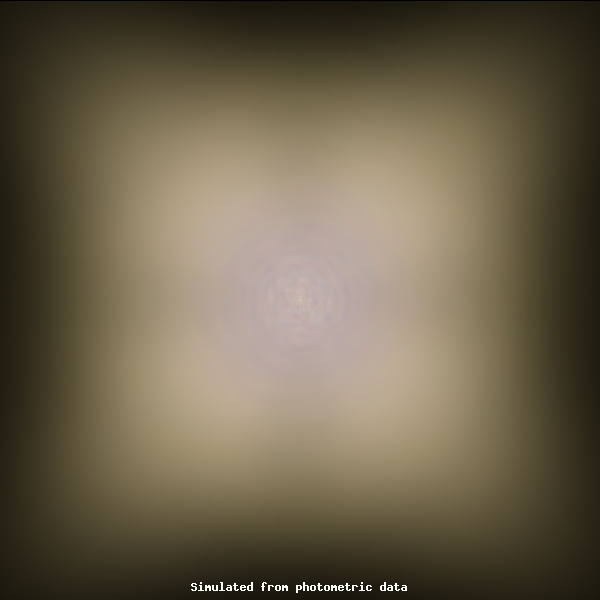

    LED: Z5M3
    FWHM: 141°
    FWTM: 154°
    Peak intensity: 0.451 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: 146° + 144°
    FWTM: 154° + 152°
    Peak intensity: 0.402 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

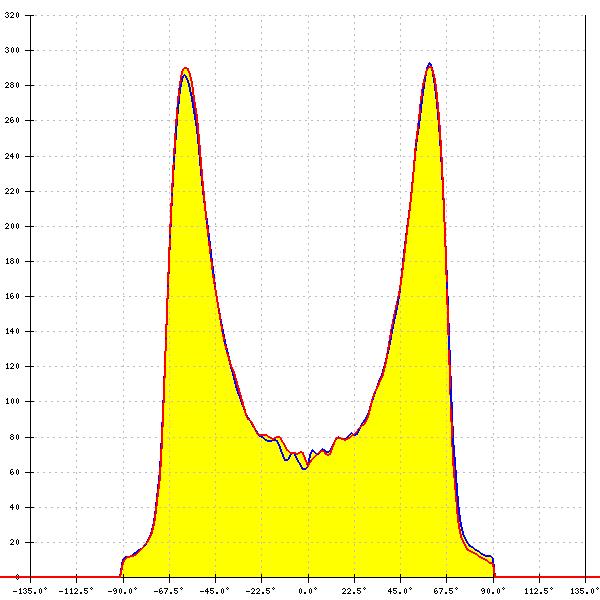

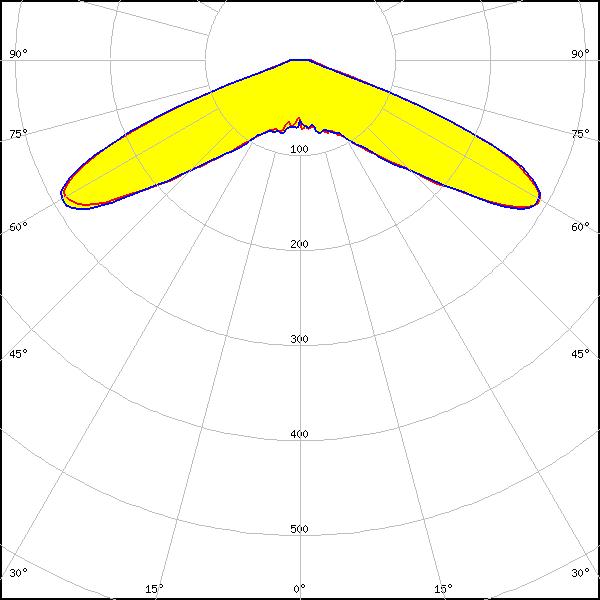

    LED: Z5M4
    FWHM: 138°
    FWTM: 150°
    Peak intensity: 0.444 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

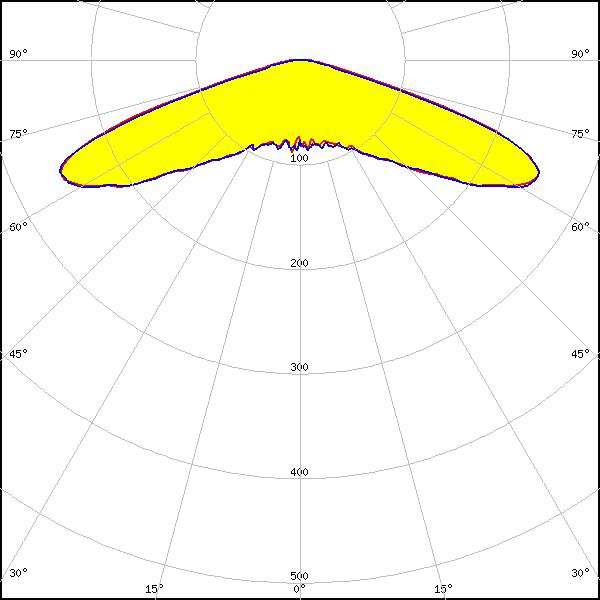

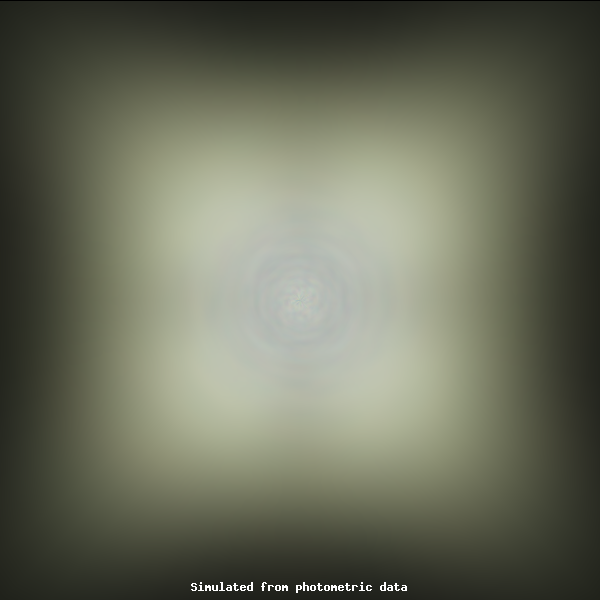

    LED: Z5M4-E1
    FWHM: 146° + 144°
    FWTM: 162° + 160°
    Peak intensity: 0.395 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

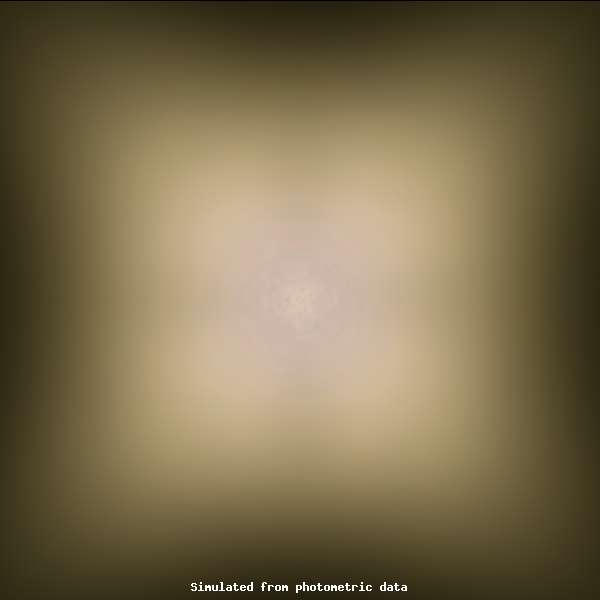

    LED: Z5M4-E2
    FWHM: 147° + 146°
    FWTM: 158° + 156°
    Peak intensity: 0.395 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: 131°
    FWTM: 141°
    Peak intensity: 0.470 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

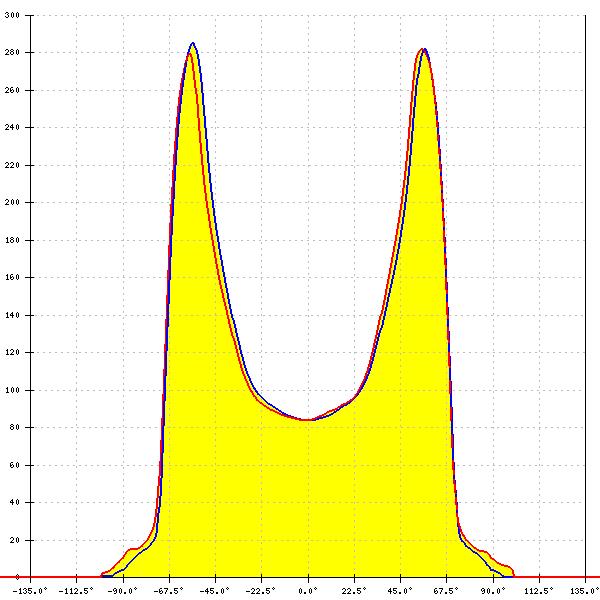

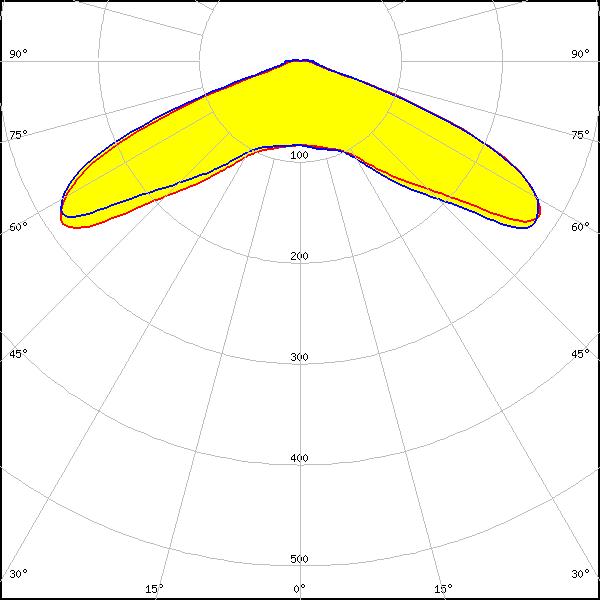

    LED: Z8Y22P
    FWHM: 137°
    FWTM: 146°
    Peak intensity: 0.460 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

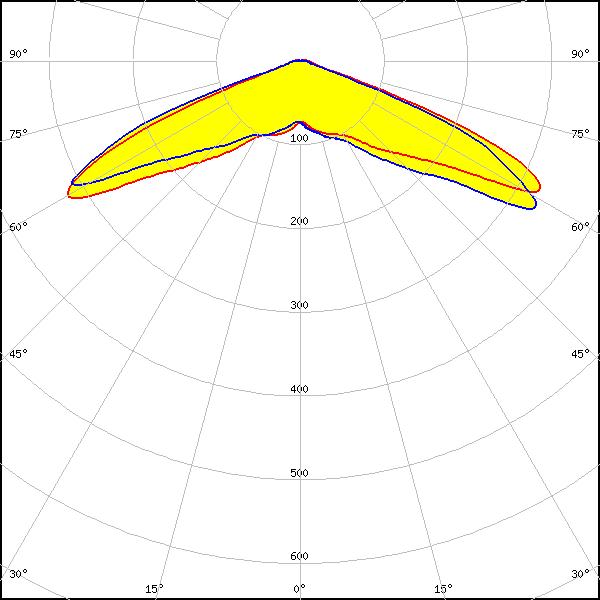

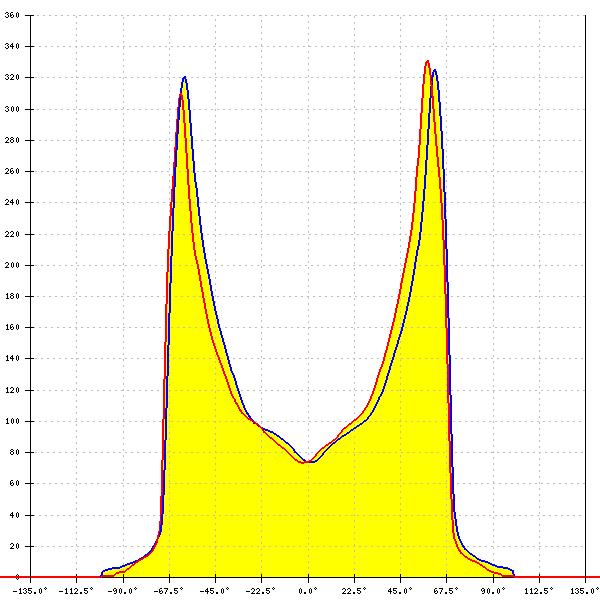

    LED: RLE 2x6 3000lm HP EXC2 OTD
    FWHM: 138°
    FWTM: 144°
    Peak intensity: 0.560 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

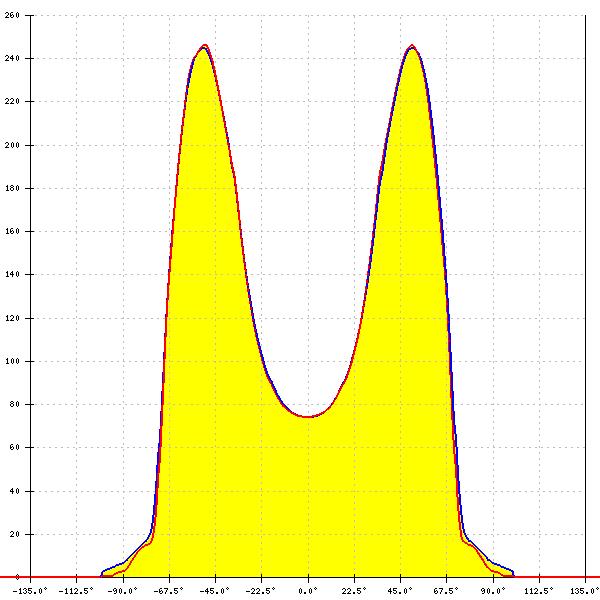

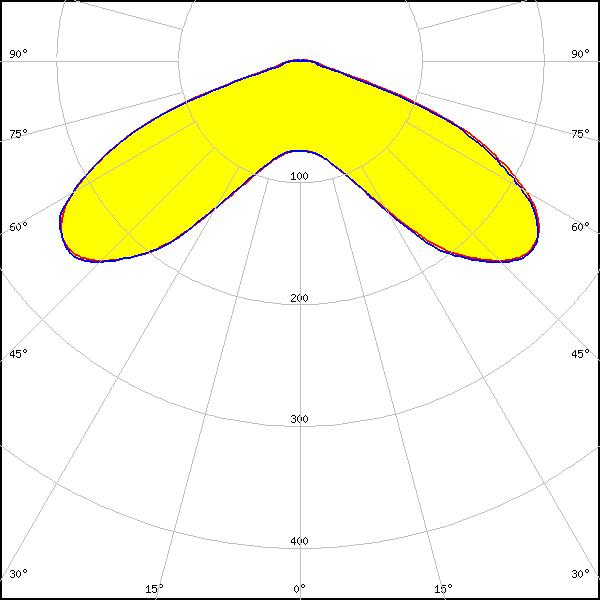

    LED: RLE 2x6 4500lm HP HE EXC3 OTD Z19
    FWHM: 137°
    FWTM: 150°
    Peak intensity: 0.369 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
