C12469_LISA2-R-PIN
Print

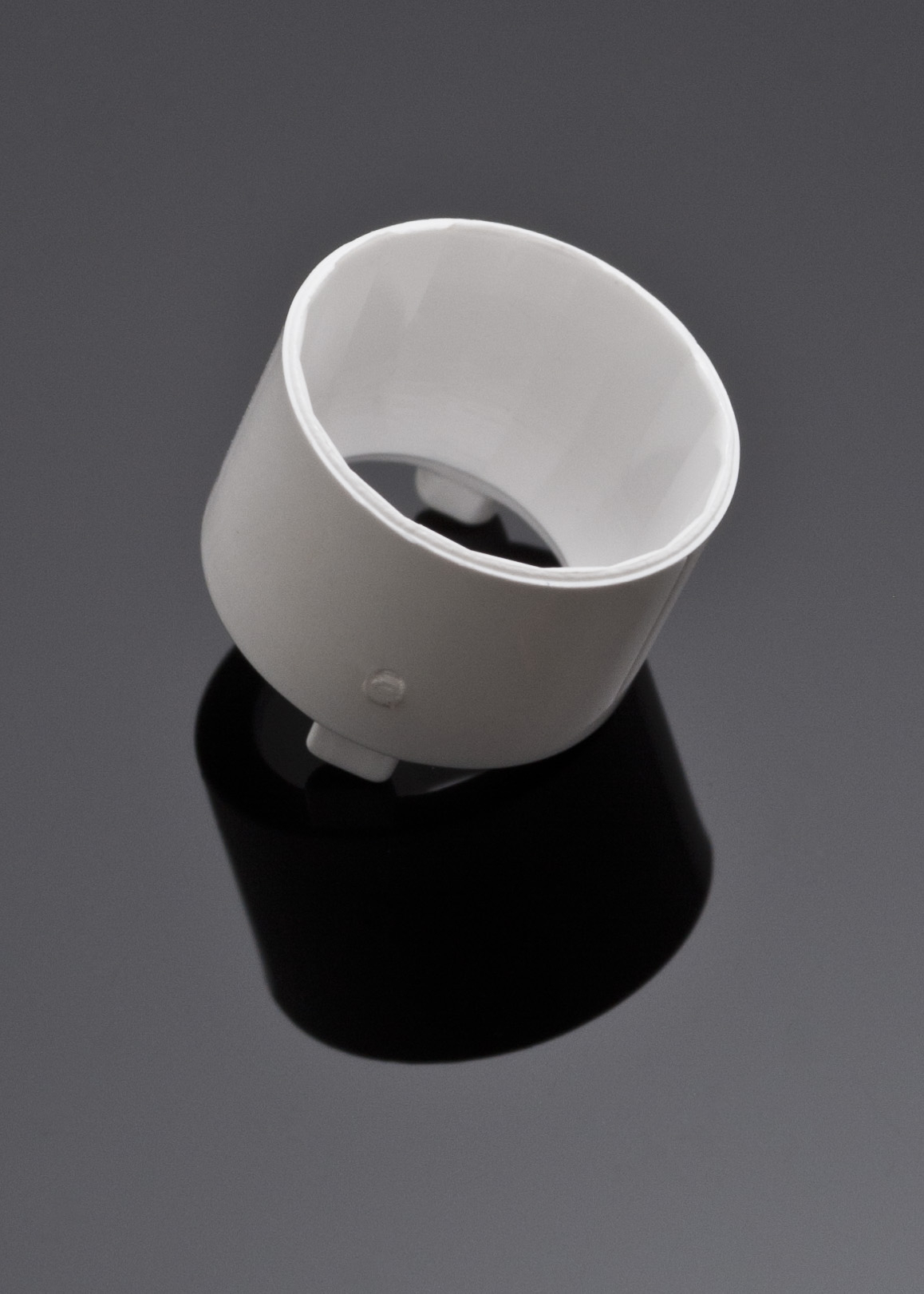

White mini reflector with ~80° wide beam. 6.5 mm high with location pin installation.
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

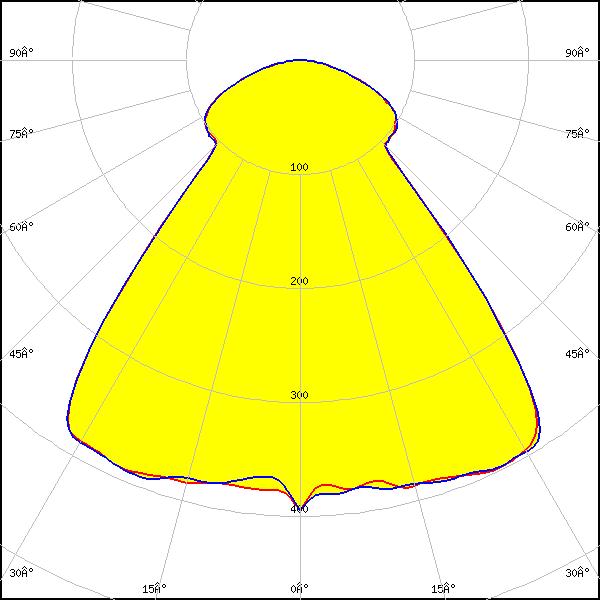

Optical results
LED:
XB-D
FWHM:
81°
FWTM:
148°
Peak intensity:
0.380 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

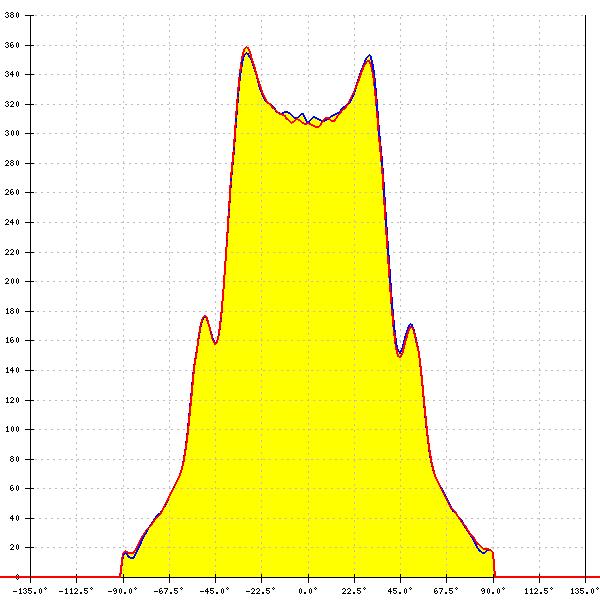

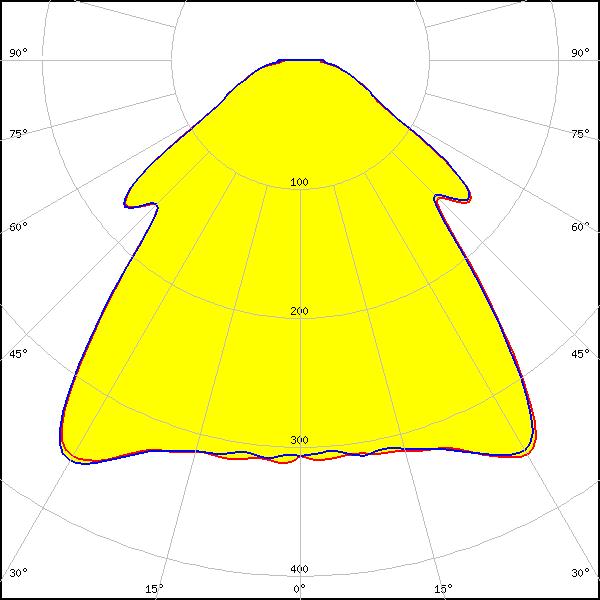

LED:
XD16
FWHM:
82°
FWTM:
151°
Peak intensity:
0.360 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

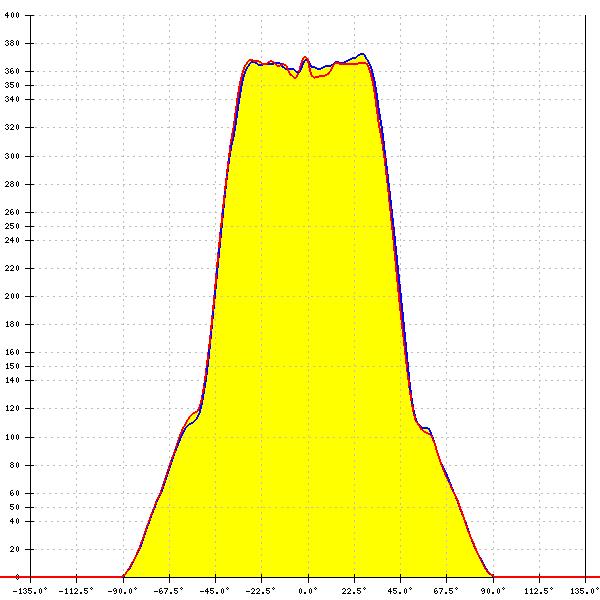

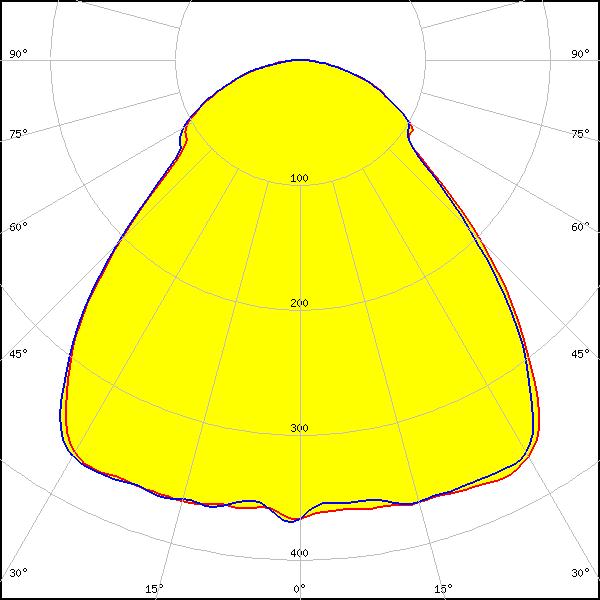

LED:
XHP35 HD
FWHM:
91°
FWTM:
154°
Peak intensity:
0.370 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

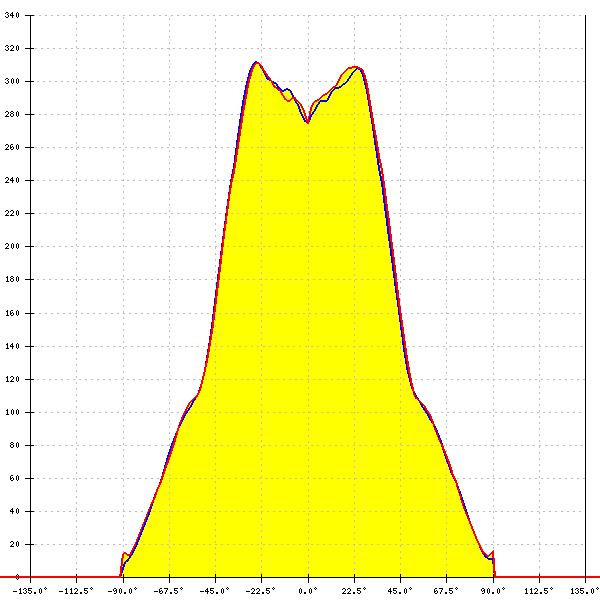

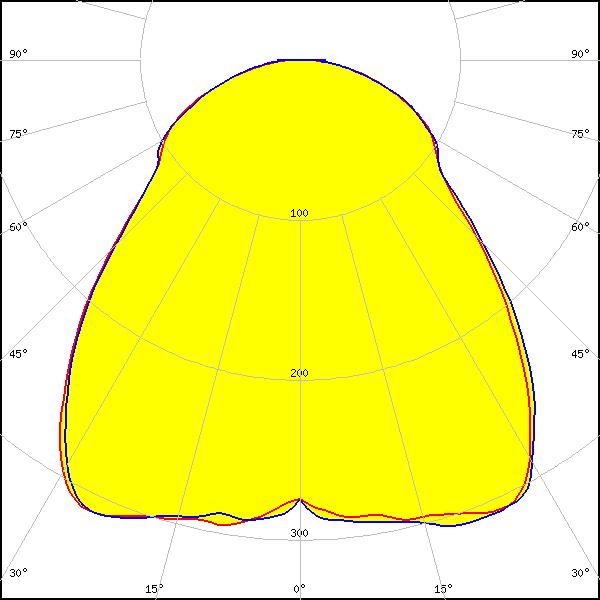

LED:
XHP35.2 HD
FWHM:
91°
FWTM:
159°
Peak intensity:
0.314 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
82°
FWTM:
152°
Peak intensity:
0.350 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

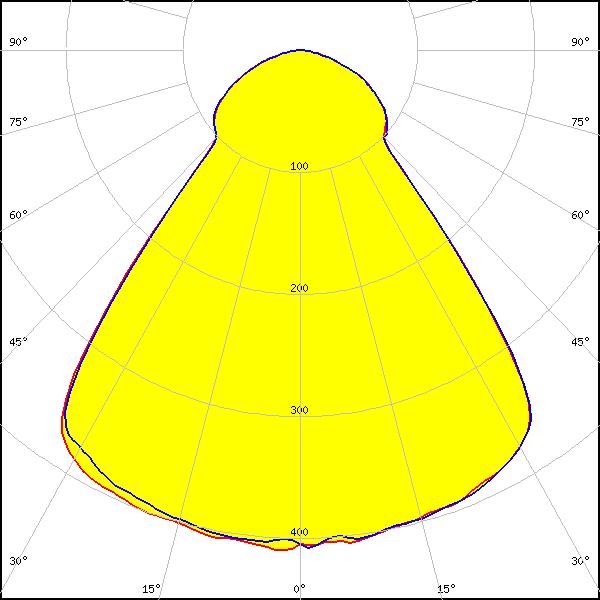

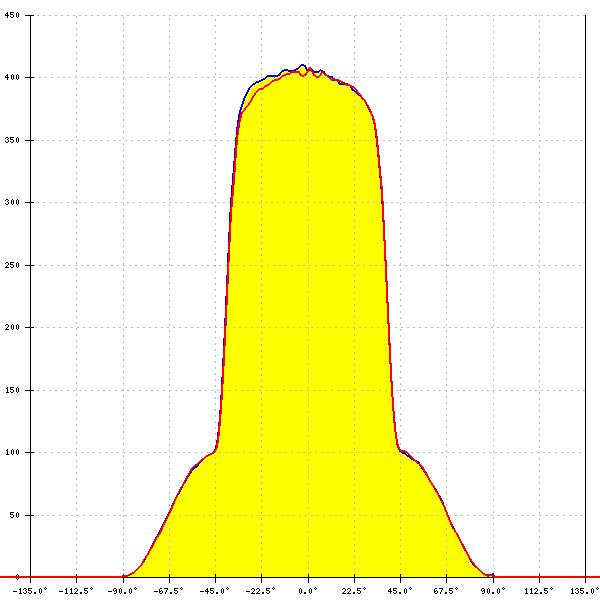

LED:
XP-E2
FWHM:
79°
FWTM:
142°
Peak intensity:
0.415 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

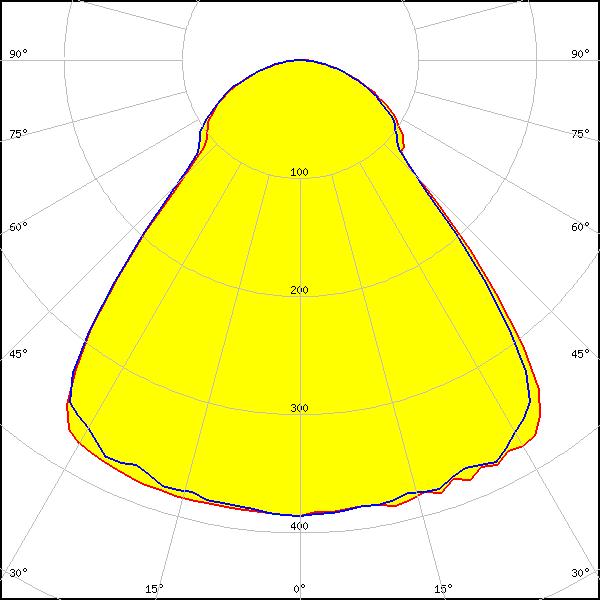

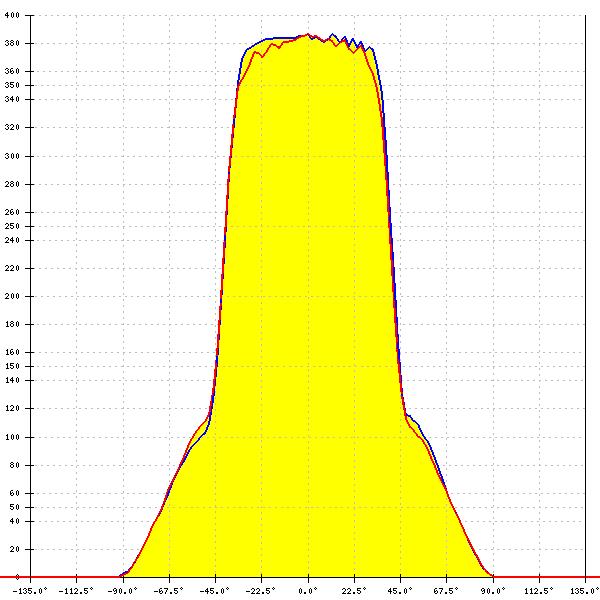

LED:
XP-G
FWHM:
86°
FWTM:
154°
Peak intensity:
0.330 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

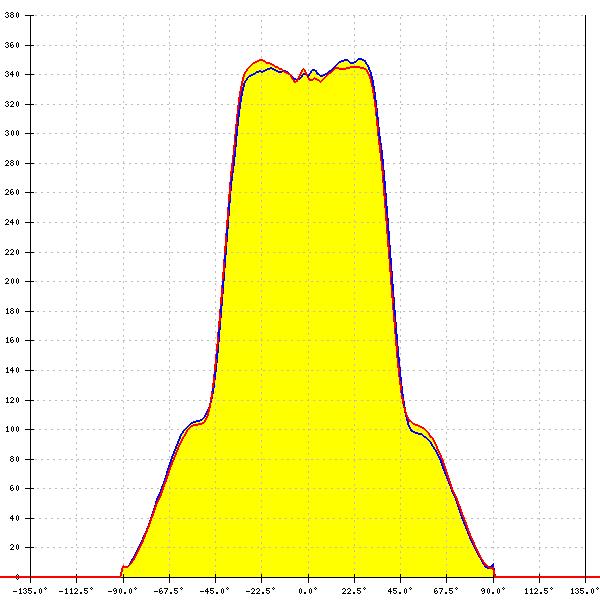

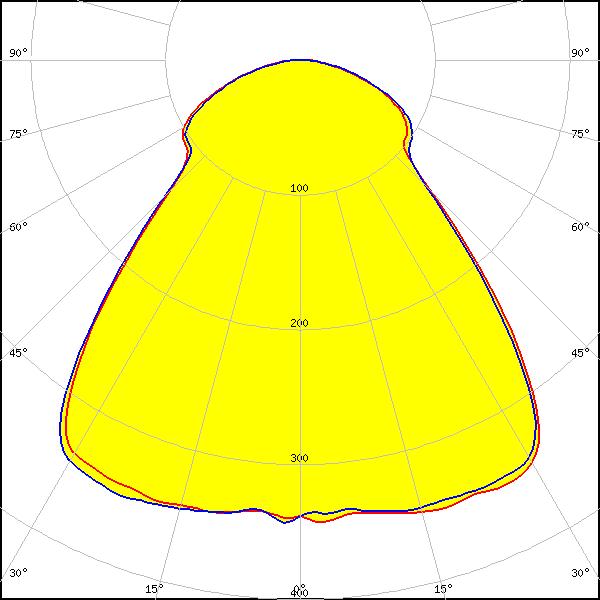

LED:
XP-G2 HE
FWHM:
85°
FWTM:
154°
Peak intensity:
0.352 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

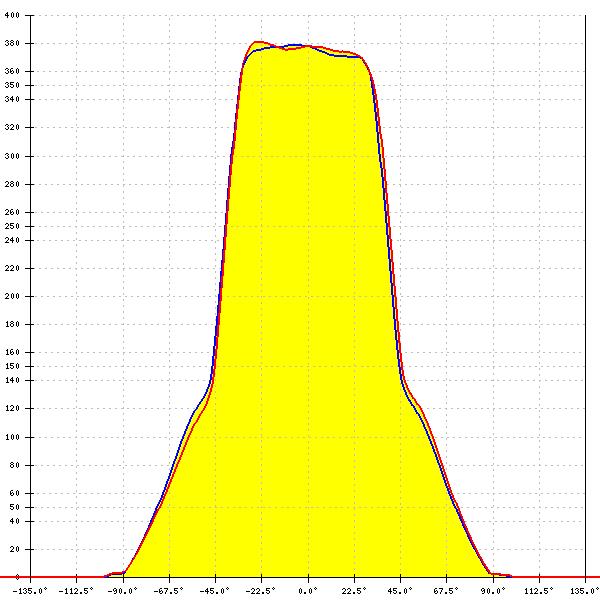

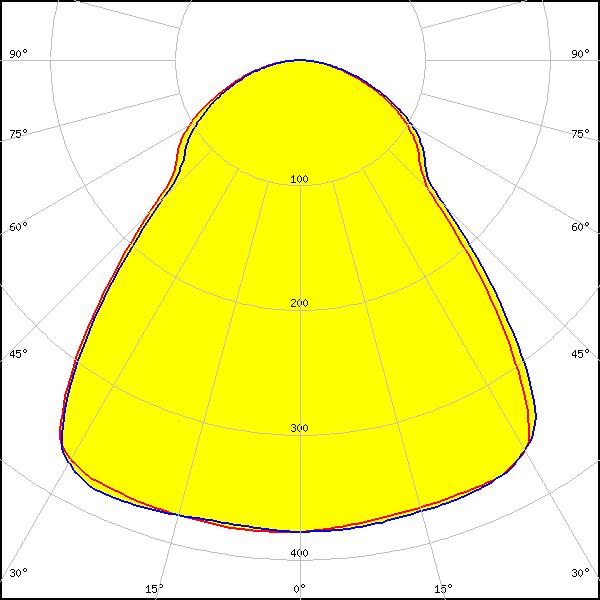

LED:
XP-G3
FWHM:
86°
FWTM:
152°
Peak intensity:
0.380 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

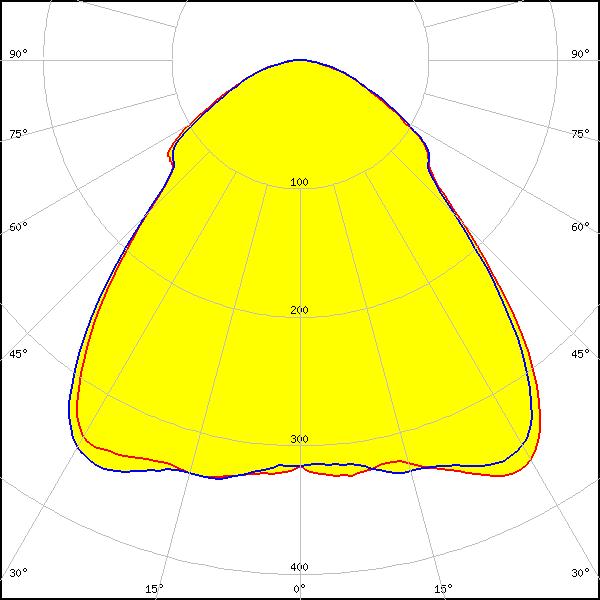

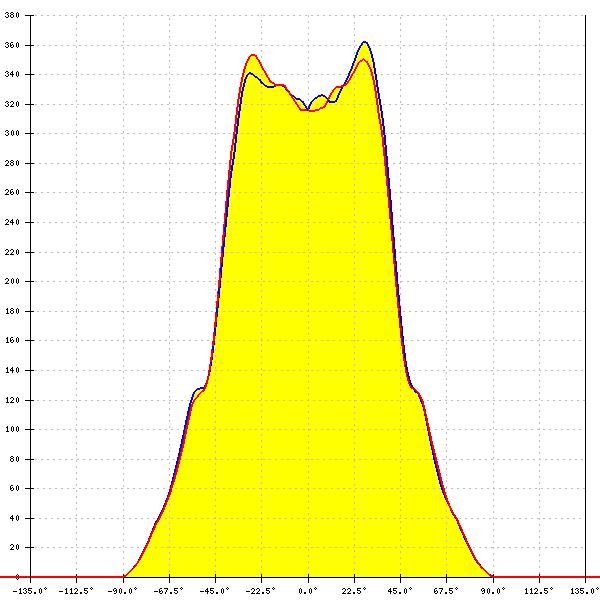

LED:
XP-L HD
FWHM:
81°
FWTM:
145°
Peak intensity:
0.360 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HD
FWHM:
76°
FWTM:
145°
Peak intensity:
0.450 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

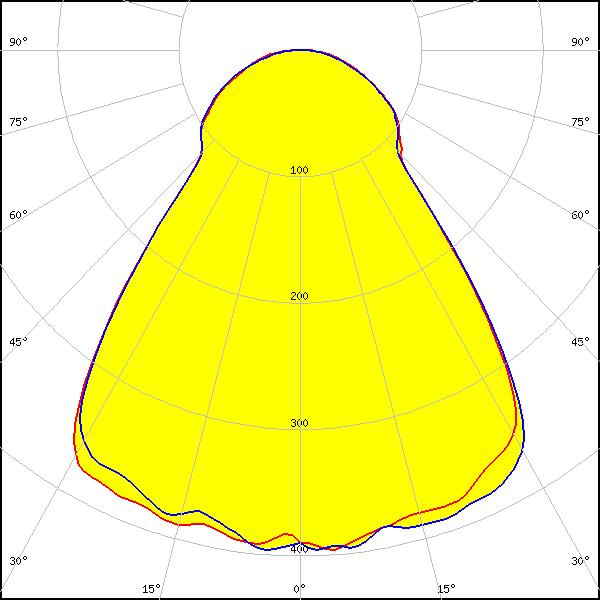

LED:
XT-E
FWHM:
78°
FWTM:
150°
Peak intensity:
0.403 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
80°
FWTM:
144°
Peak intensity:
0.460 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

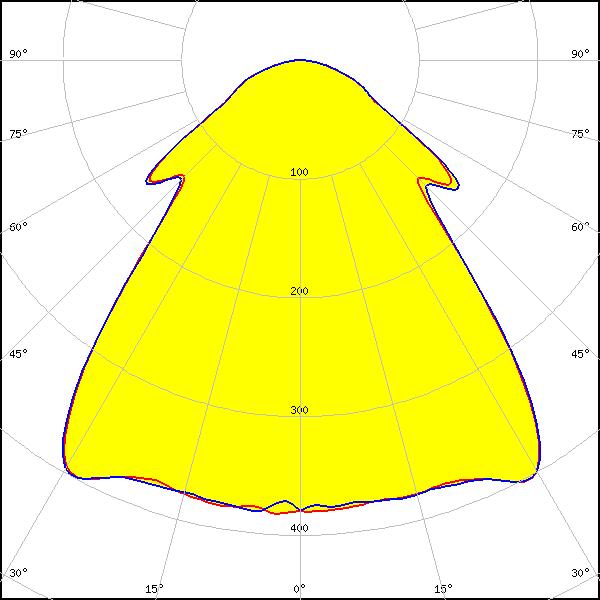

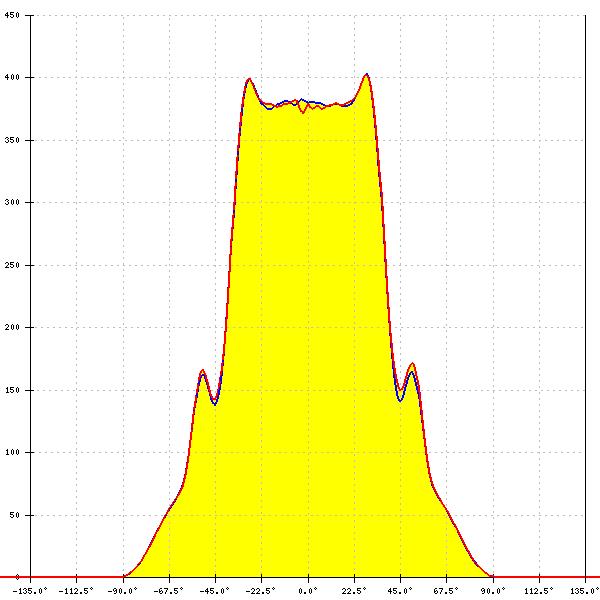

LED:
LUXEON 2835 Architectural
FWHM:
80°
FWTM:
144°
Peak intensity:
0.405 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
83°
FWTM:
152°
Peak intensity:
0.370 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON C
FWHM:
84°
FWTM:
154°
Peak intensity:
0.380 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

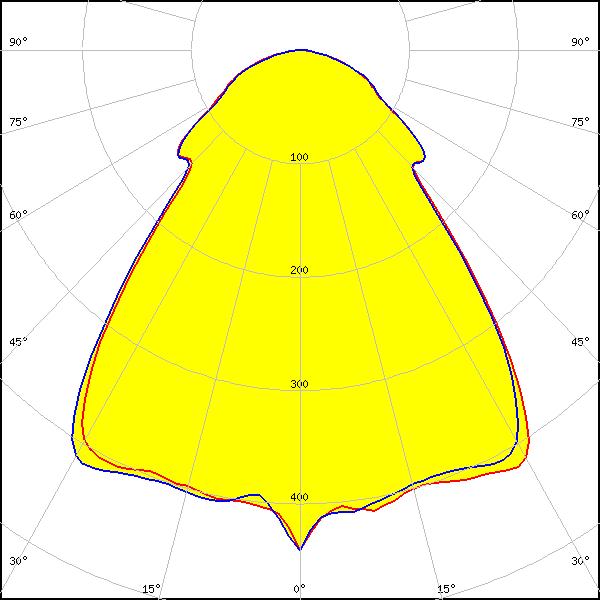

LED:

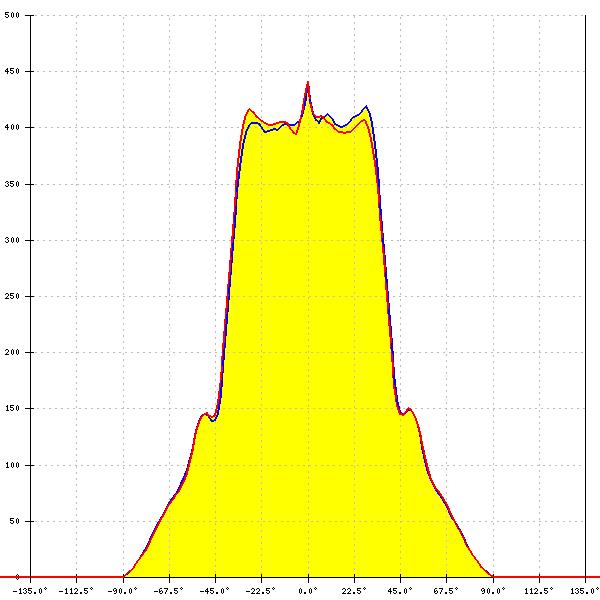

LUXEON H50-2
FWHM:
80°
FWTM:
146°
Peak intensity:
0.440 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
77°
FWTM:
144°
Peak intensity:
0.410 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
83°
FWTM:
152°
Peak intensity:
0.360 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

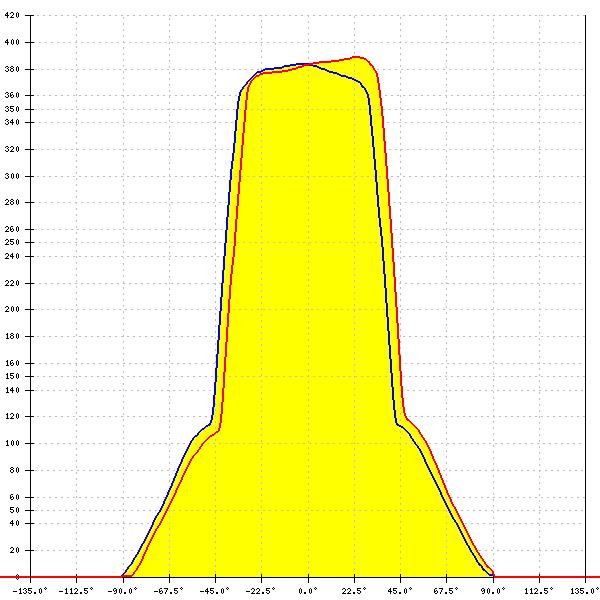

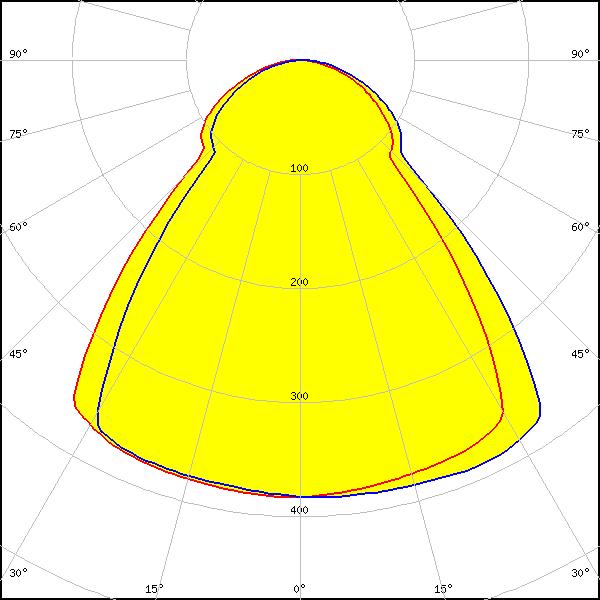

LED:
LUXEON T
FWHM:
82°
FWTM:
148°
Peak intensity:
0.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z
FWHM:
78°
FWTM:
146°
Peak intensity:
0.440 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

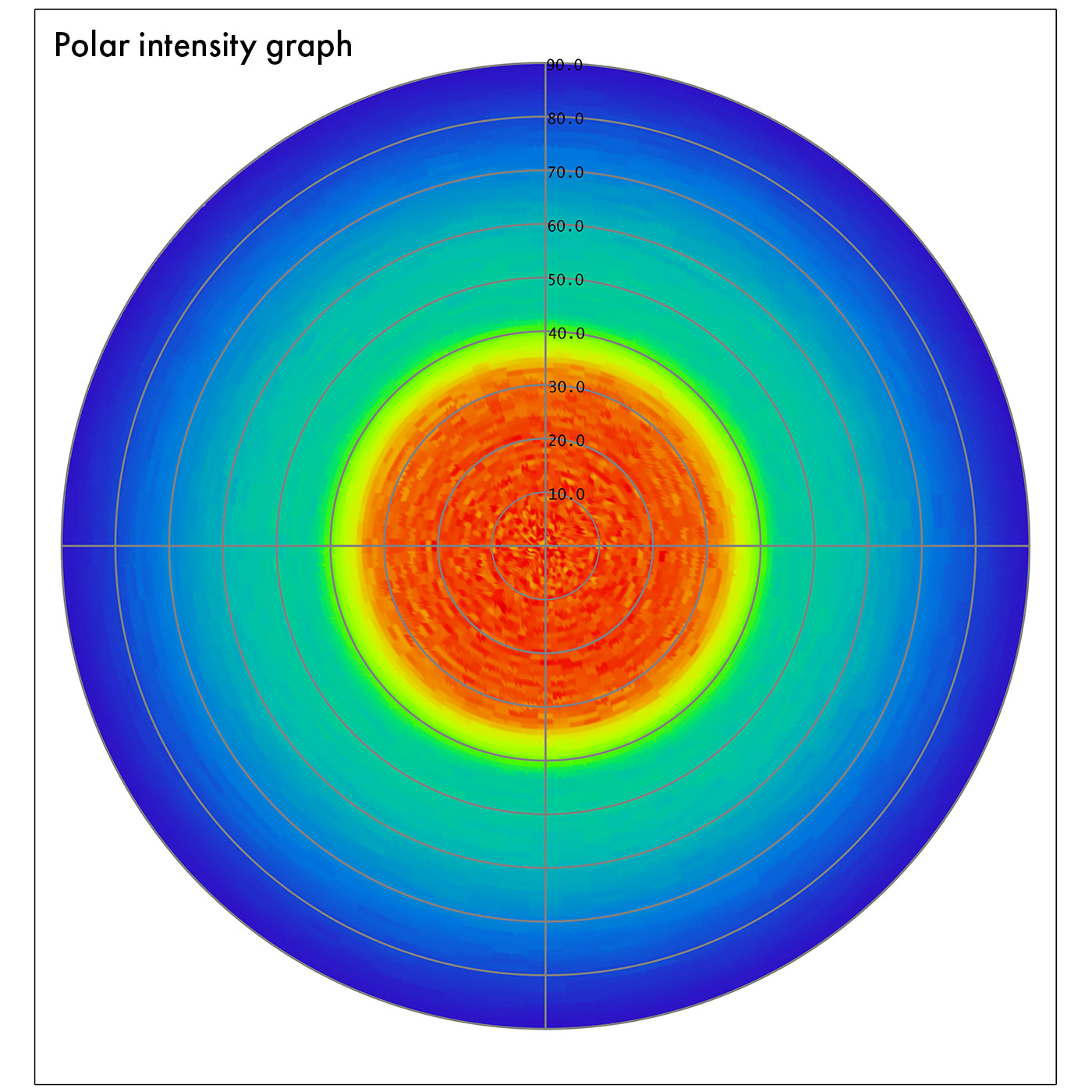

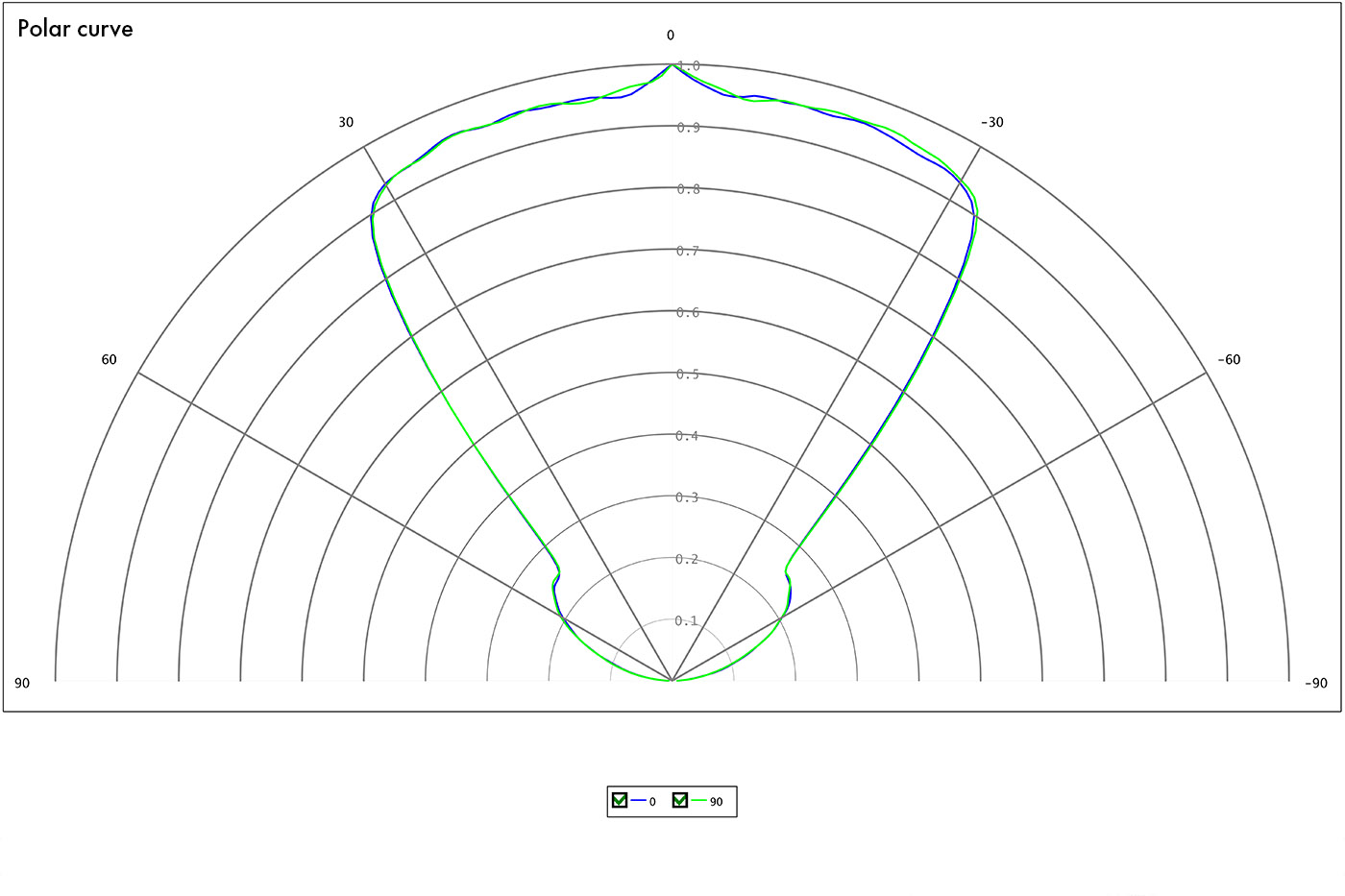

LED:
SST-10-B130
FWHM:
80°
FWTM:
149°
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
NCSxx19A
FWHM:
78°
FWTM:
146°
Peak intensity:
0.460 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
80°
FWTM:
148°
Peak intensity:
0.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

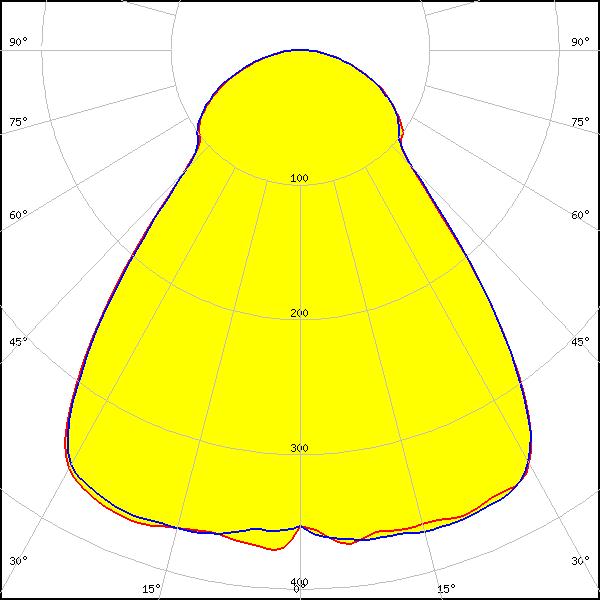

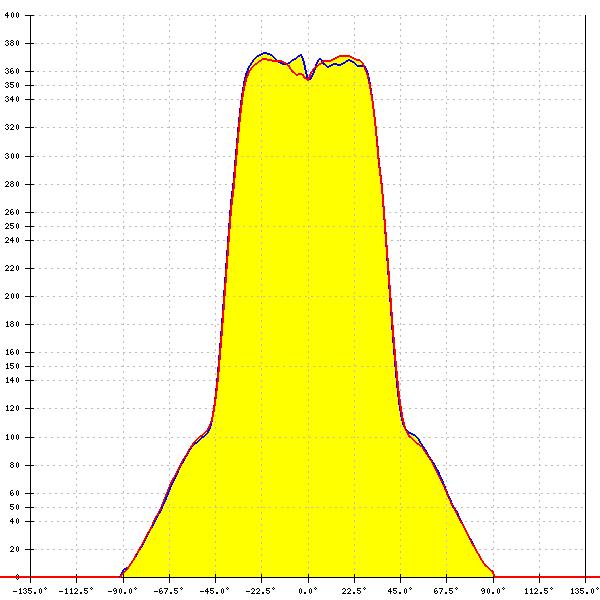

LED:
NVSxx19B/NVSxx19C
FWHM:
82°
FWTM:
150°
Peak intensity:
0.376 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

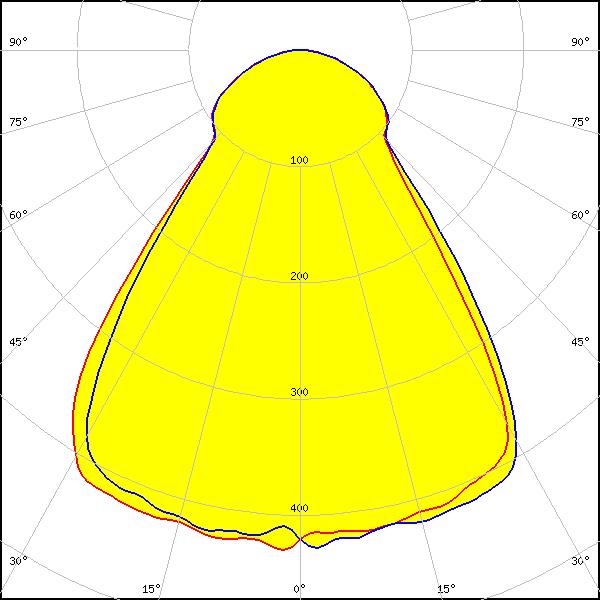

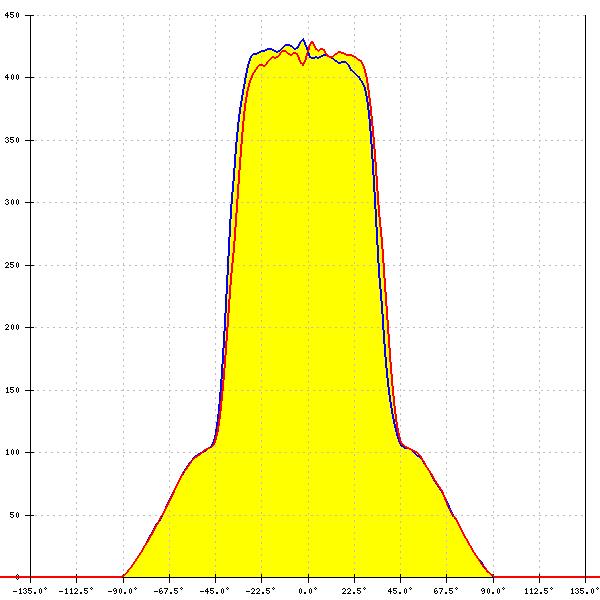

LED:
DURIS S5 (2 chip)
FWHM:
76°
FWTM:
146°
Peak intensity:
0.434 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 2226
FWHM:
78°
FWTM:
147°
Peak intensity:
0.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Signal
FWHM:
80°
FWTM:
150°
Peak intensity:
0.399 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Green
LED:
OSLON Signal
FWHM:
78°
FWTM:
148°
Peak intensity:
0.408 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
Yellow
LED:
OSLON Signal
FWHM:
82°
FWTM:
152°
Peak intensity:
0.368 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Red

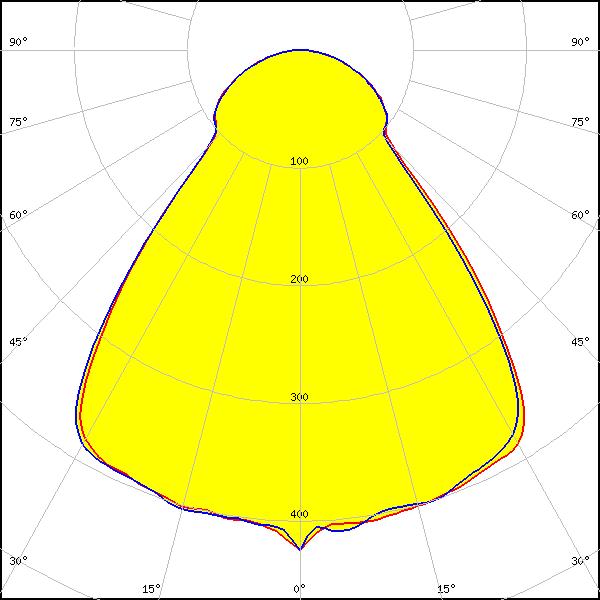

LED:

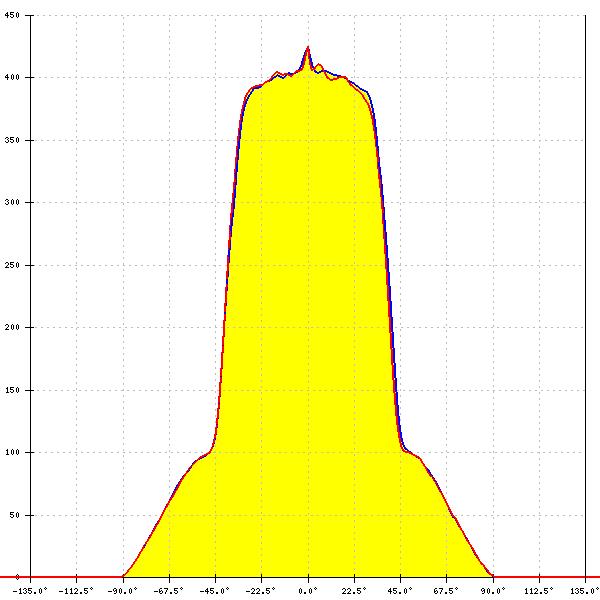

OSLON Square CSSRM2/CSSRM3
FWHM:
80°
FWTM:
146°
Peak intensity:
0.426 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

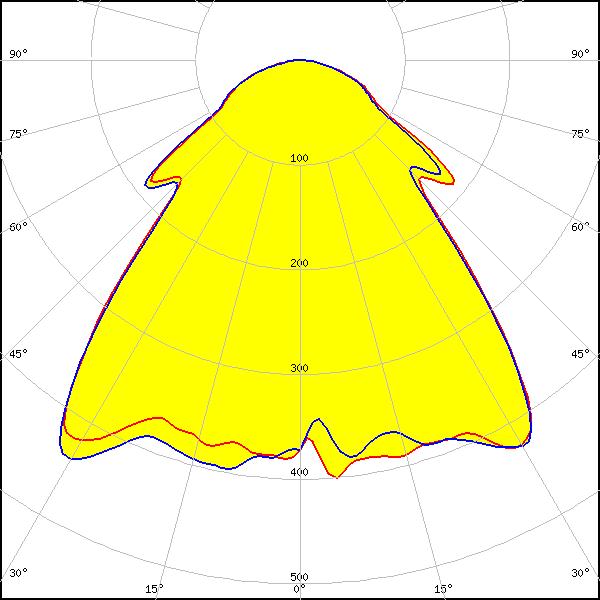

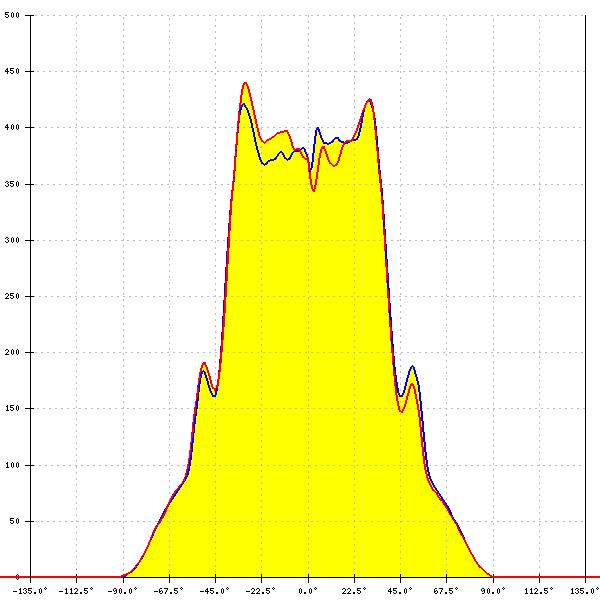

LED:
OSLON Square EC
FWHM:
82°
FWTM:
152°
Peak intensity:
0.370 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
83°
FWTM:
156°
Peak intensity:
0.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

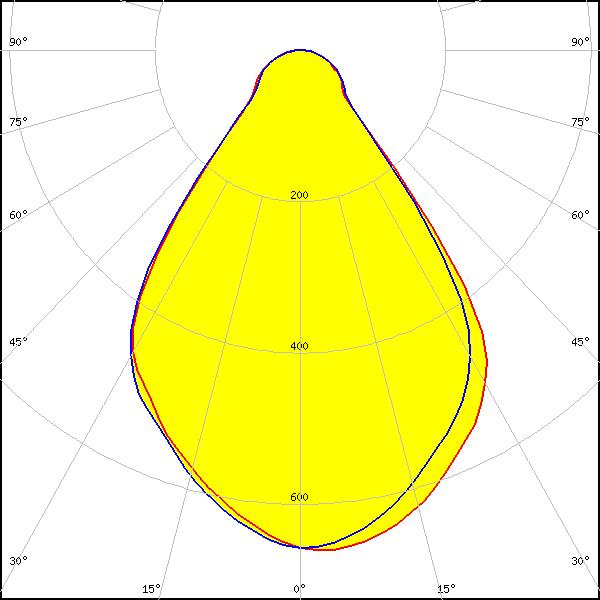

LED:

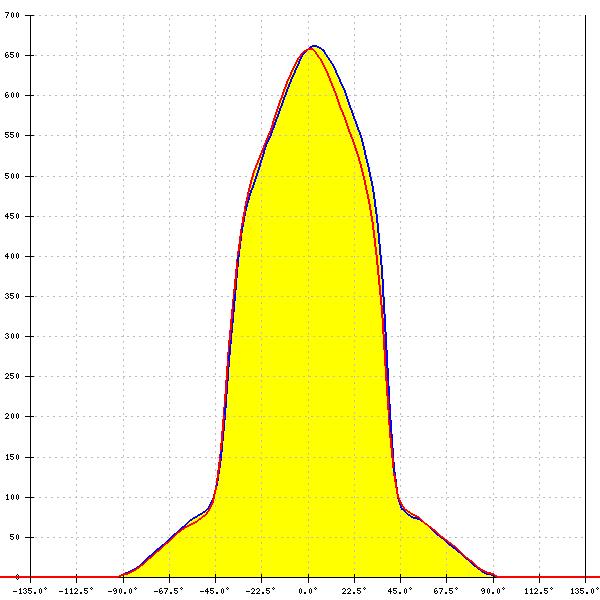

OSLON SSL 80
FWHM:
76°
FWTM:
132°
Peak intensity:
0.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4727AS
FWHM:
55°
FWTM:
83°
Peak intensity:
0.958 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
IR

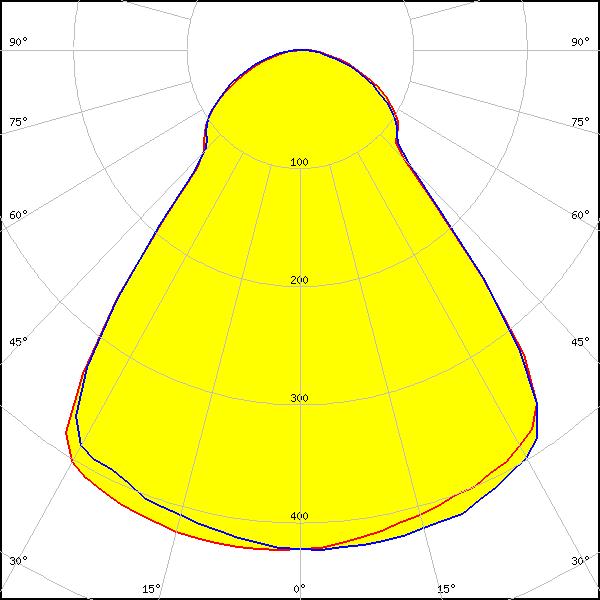

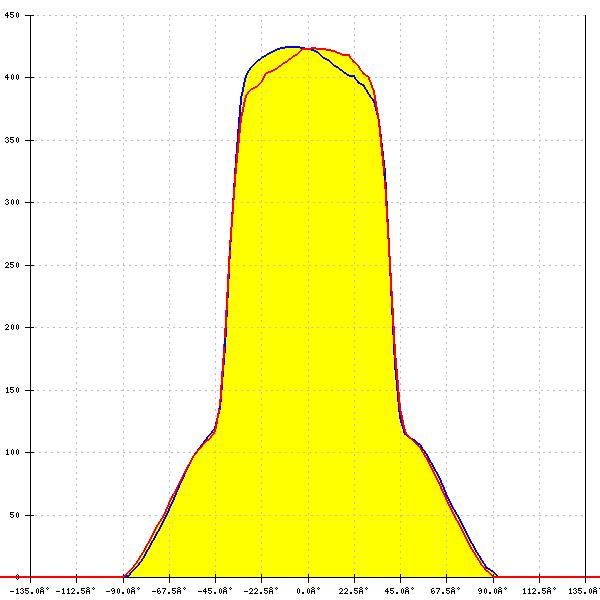

LED:
Z5
FWHM:
80°
FWTM:
150°
Peak intensity:
0.360 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

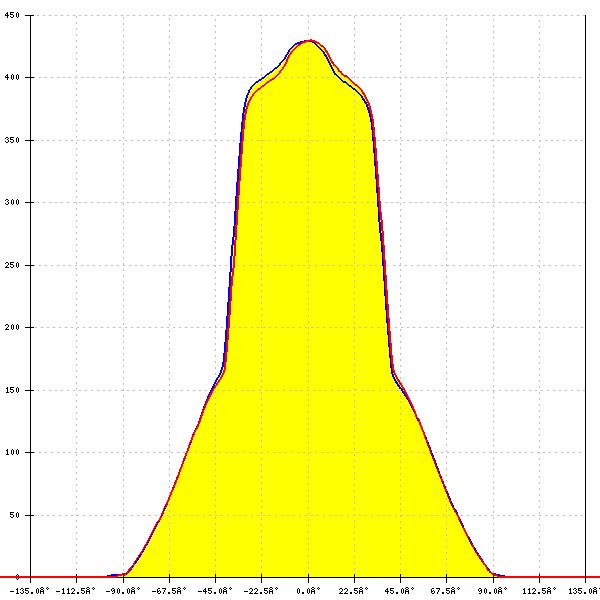

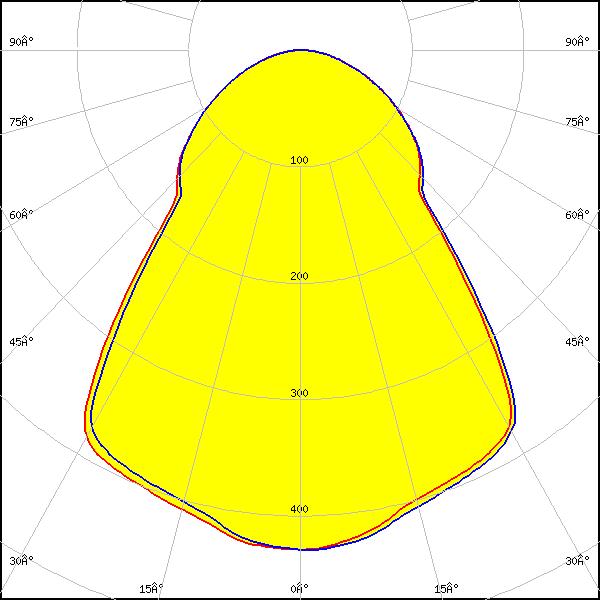

Z8Y15
FWHM:
76°
FWTM:
148°
Peak intensity:
0.430 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

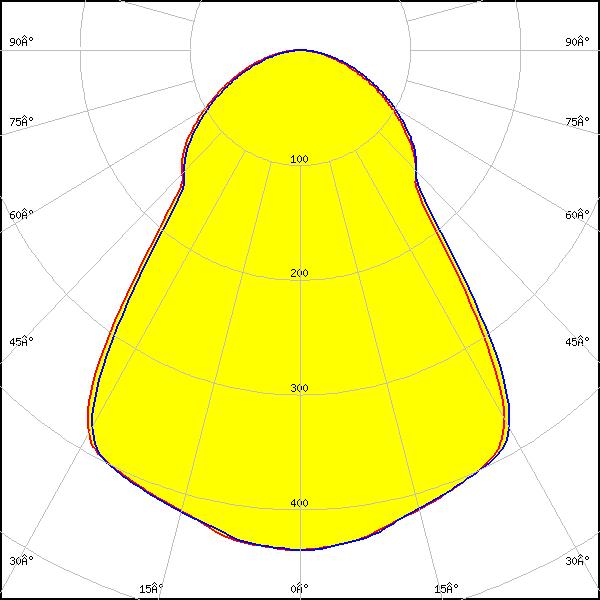

LED:

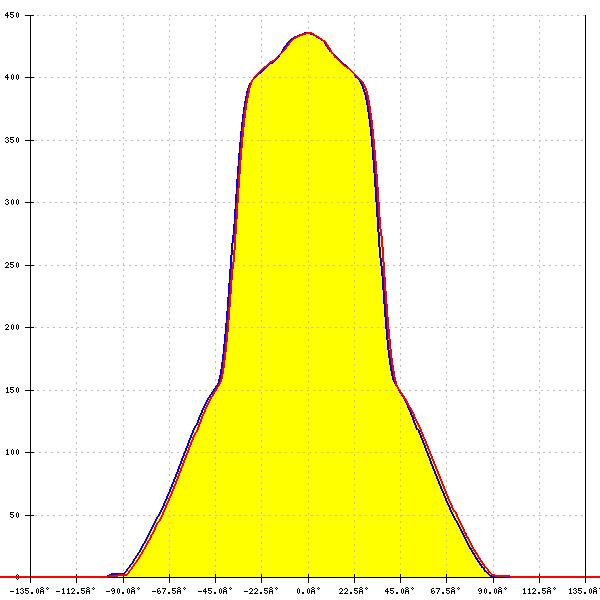

Z8Y19
FWHM:
76°
FWTM:
147°
Peak intensity:
0.435 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
