    C13604_STRADA-2X2-FN

    Print

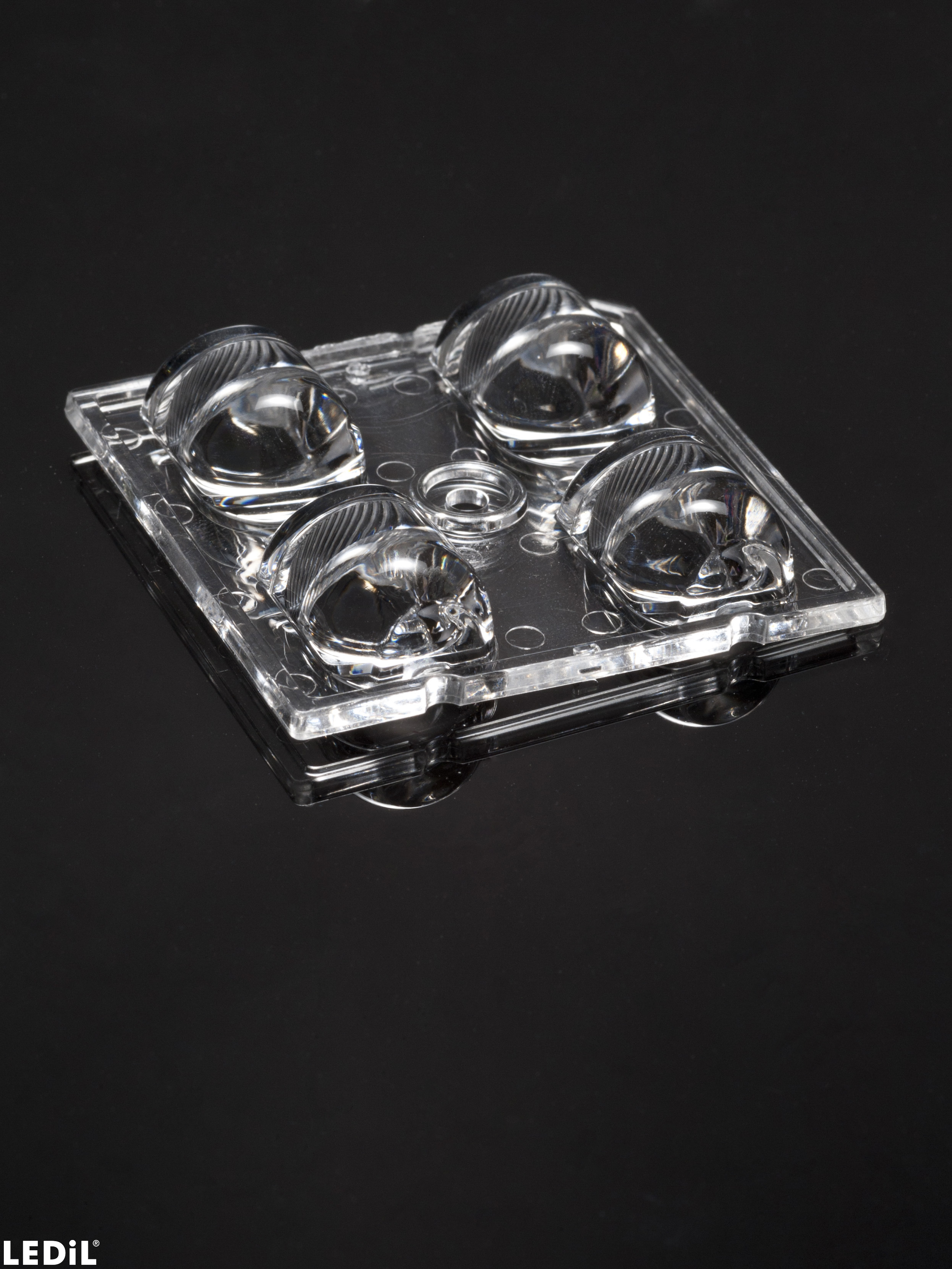

    Narrow forward throw beam for area lighting. Excellent for lighting stadiums and airports from high masts.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      10.00 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.8 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13604_STRADA-2X2-FN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Sports lighting optics

    Application example

    Difference of F-beams on the ground

    Application area

    Sports outdoor lighting

    Application area

    SPORTS INDOOR LIGHTING

    Case story

    Lauben Bozen medieval lighting

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    Application area

    Tunnel and Transportation Lighting

    Catalogue

    LEDiL Latest products catalogue Q1 2025

    Application guide

    Guide for Street lighting optics

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Reference product

    Bollard lamp for urban environments

    Case story

    Naberezhne Highway in Kiev

    Application area

    Industrial Lighting

    Installation guide

    STRADA-2X2 Installation guide

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADA-2X2-SHD-WHT

    White shade for additional backlight control.

    STRADA-2X2-SHD-BLK

    Black shade for additional backlight control.

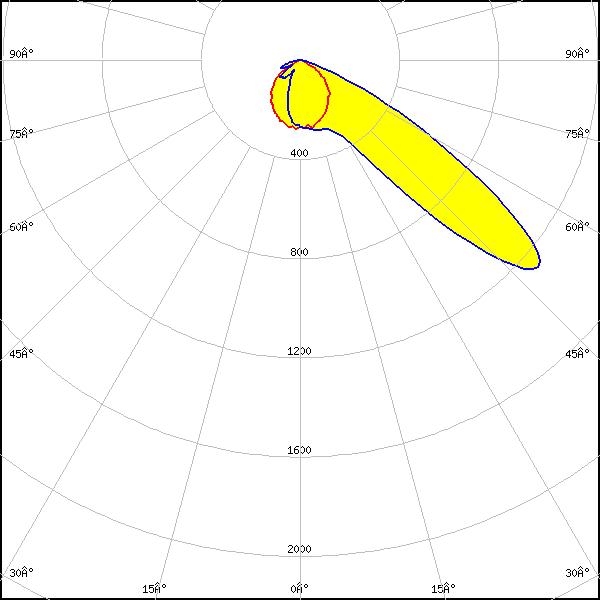

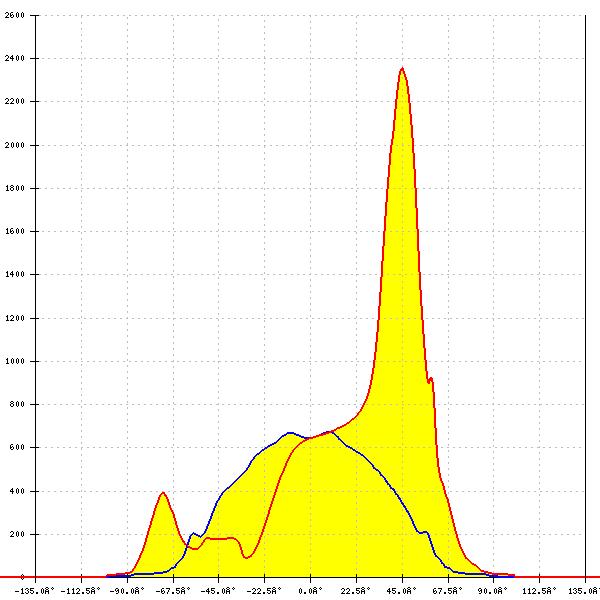

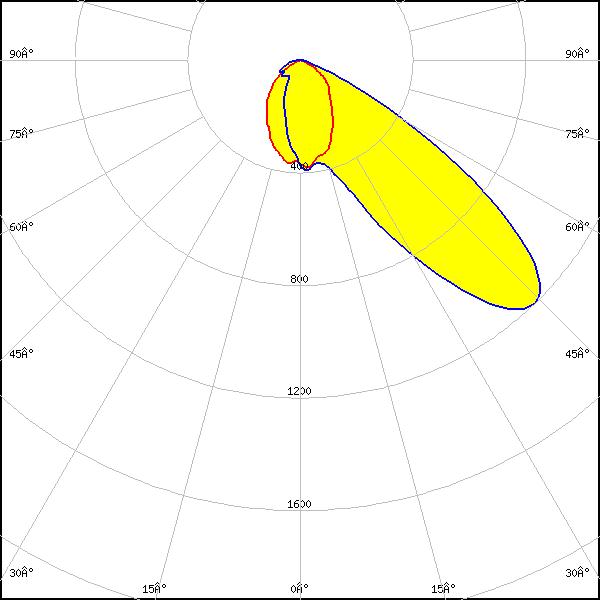

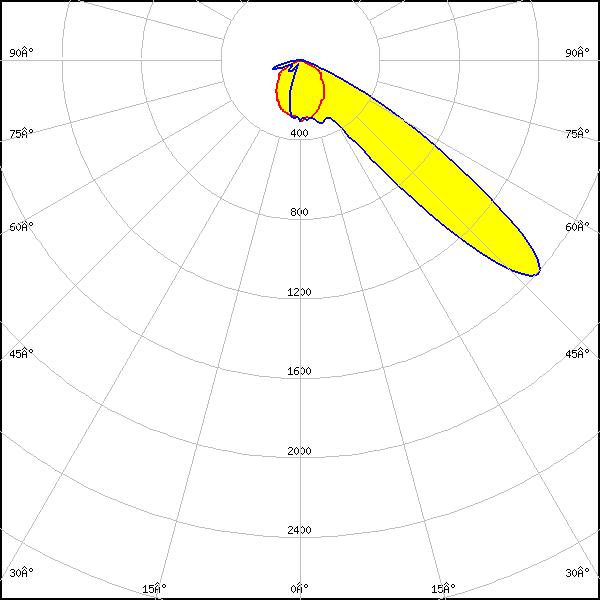

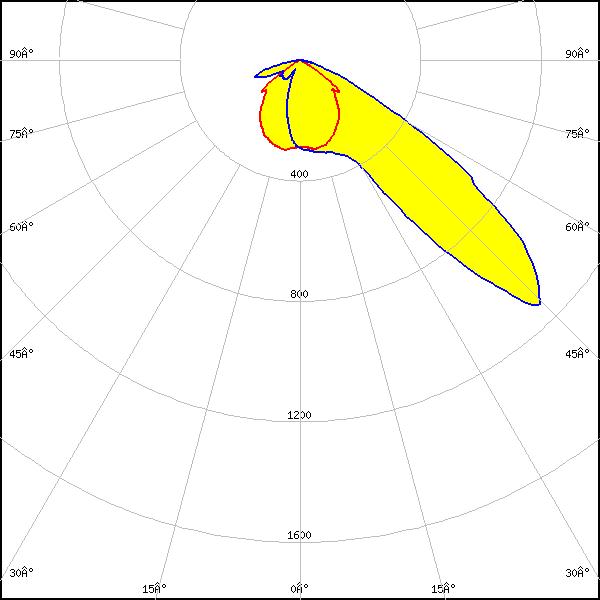

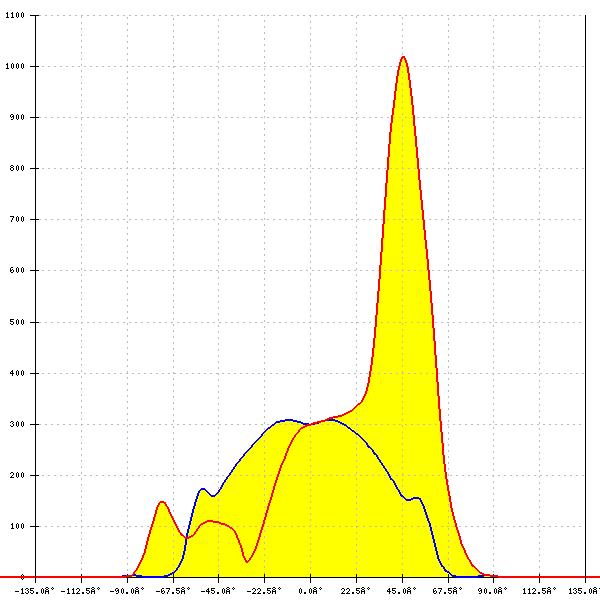

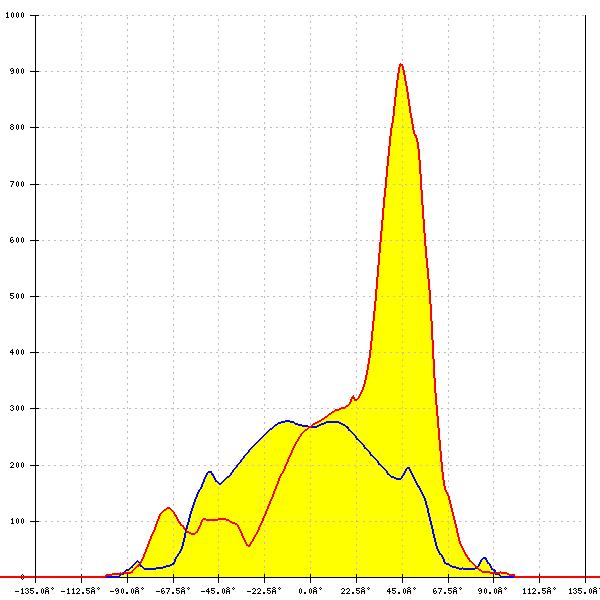

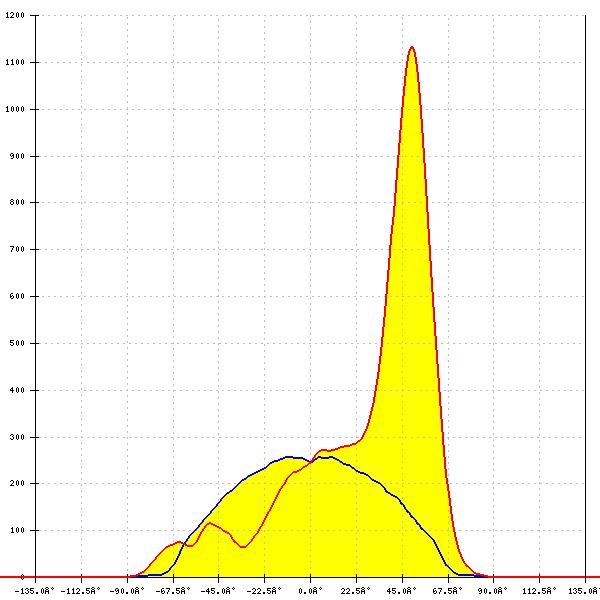

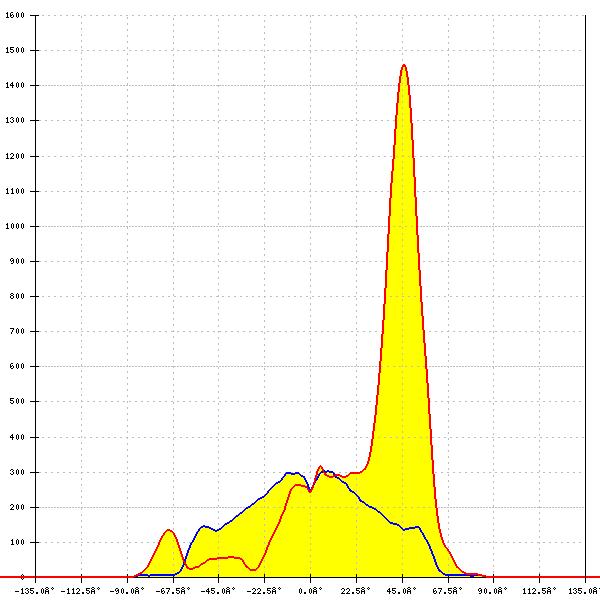

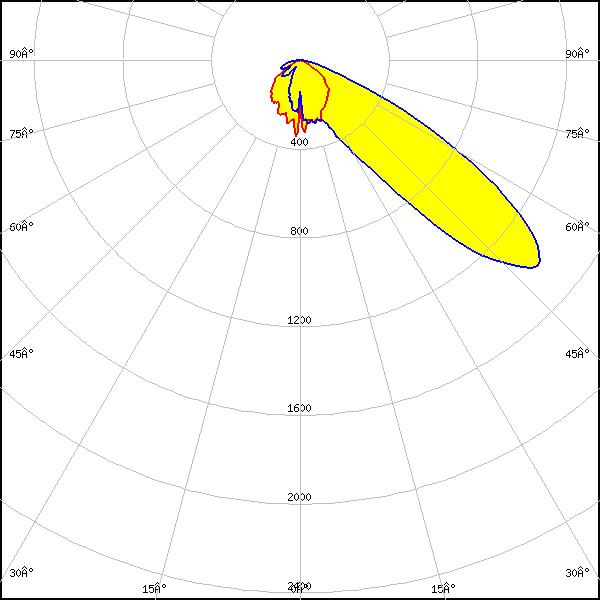

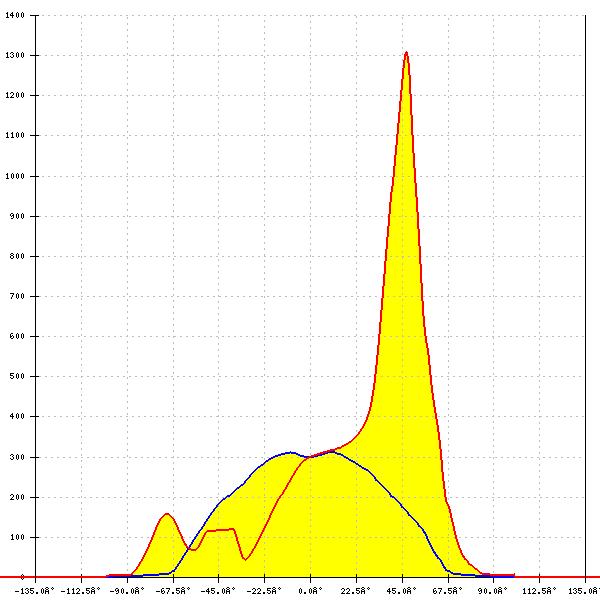

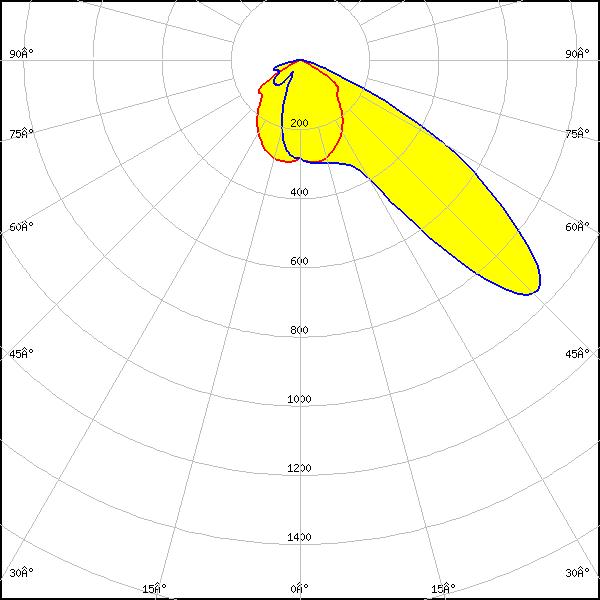

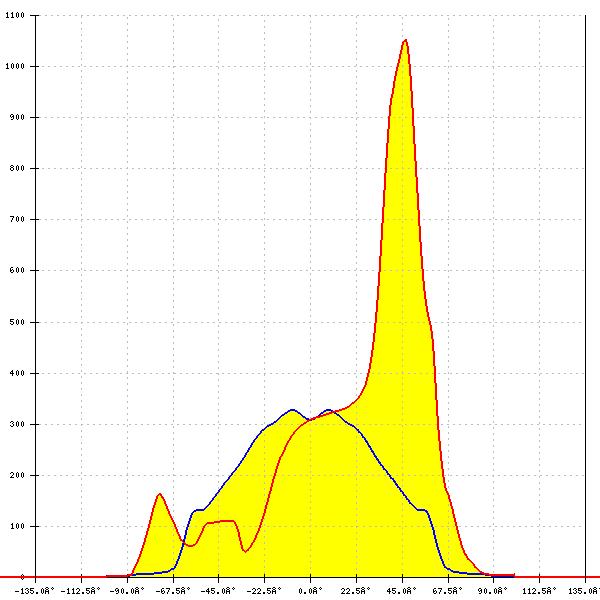

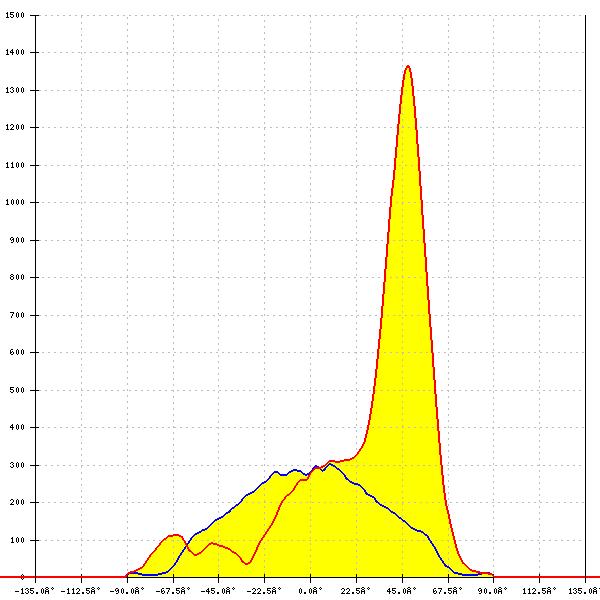

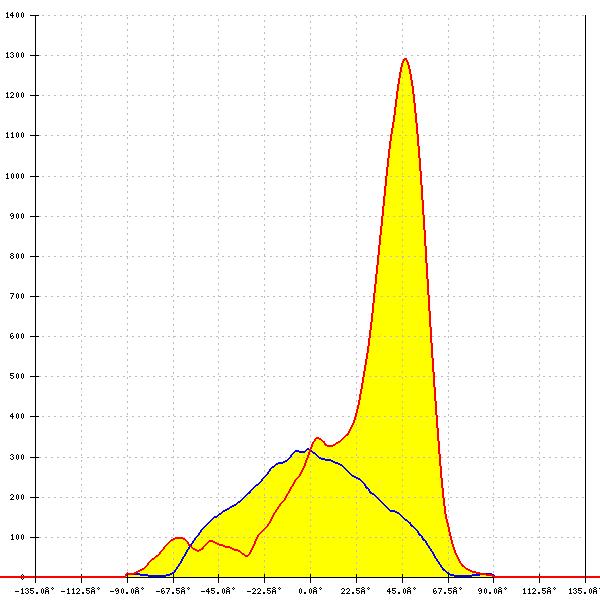

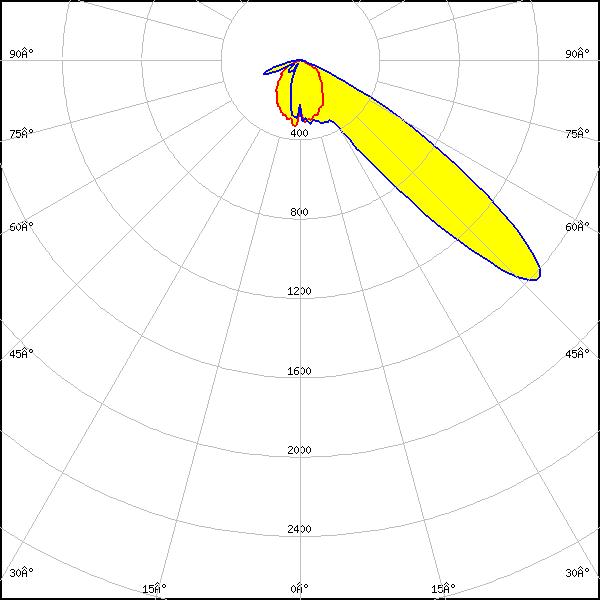

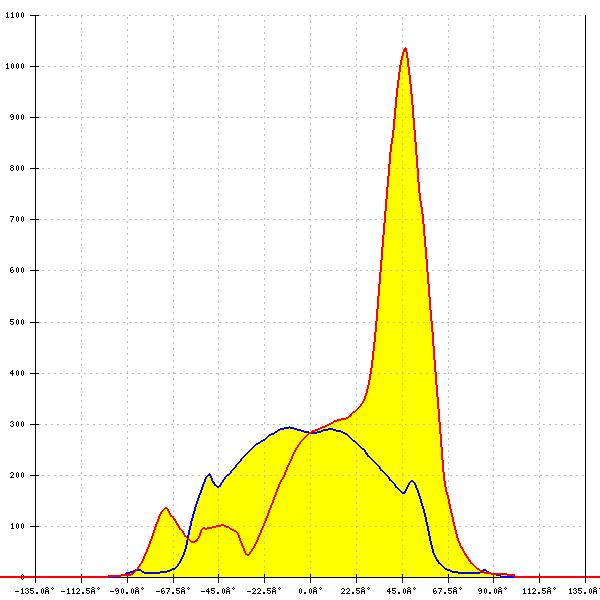

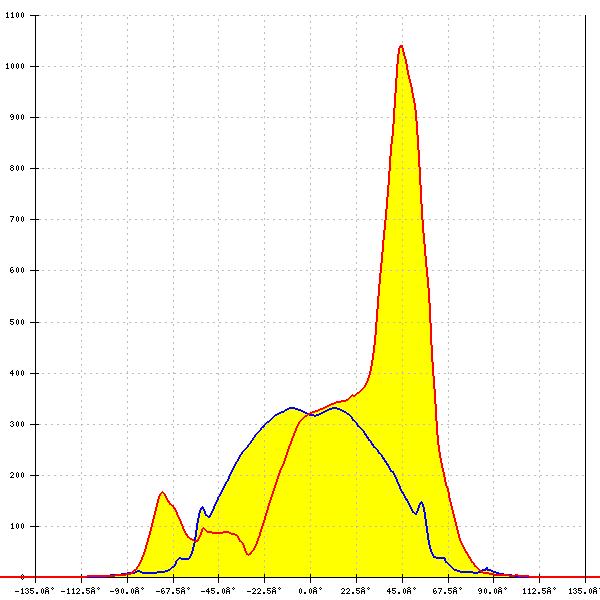

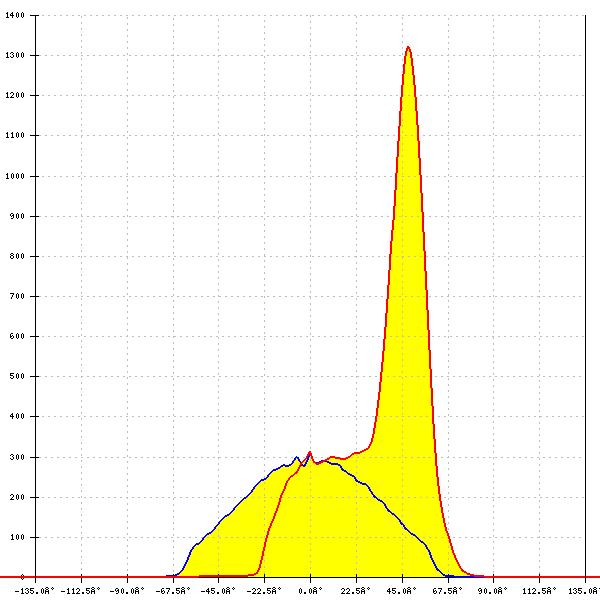

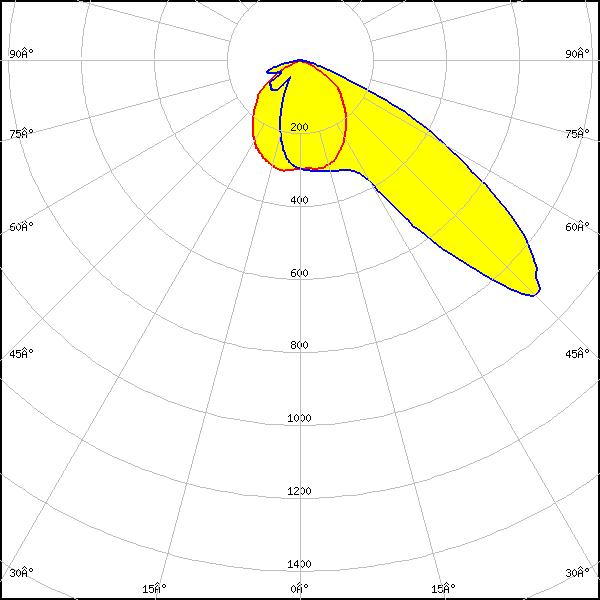

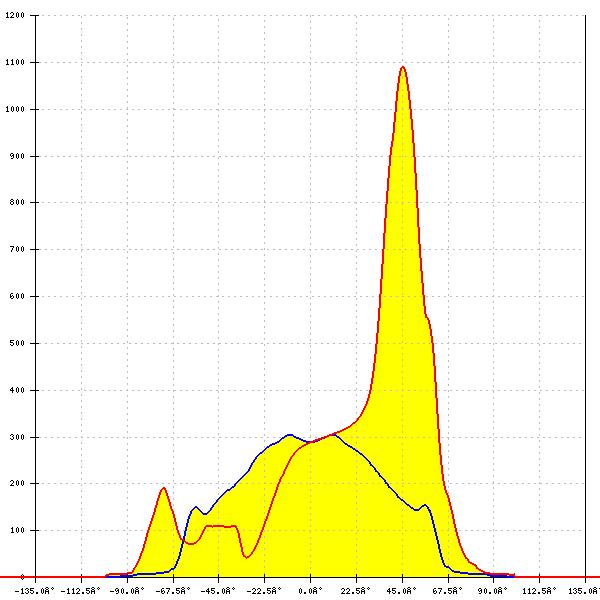

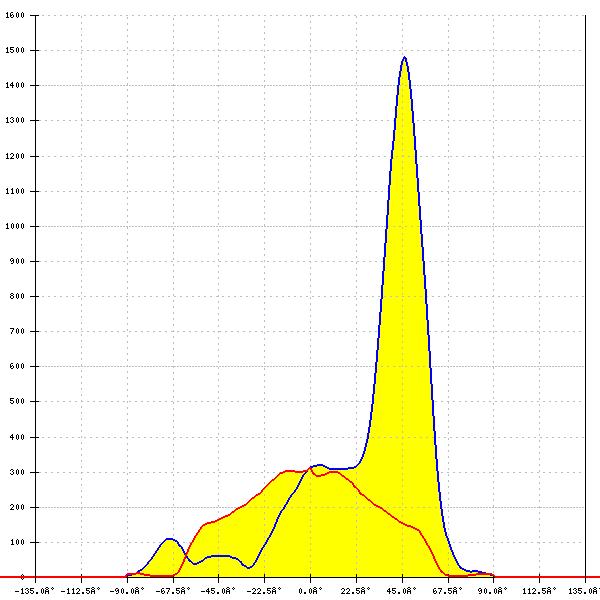

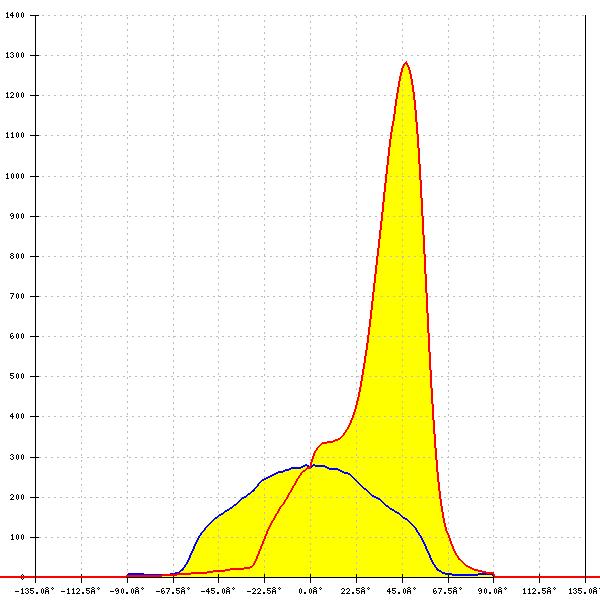

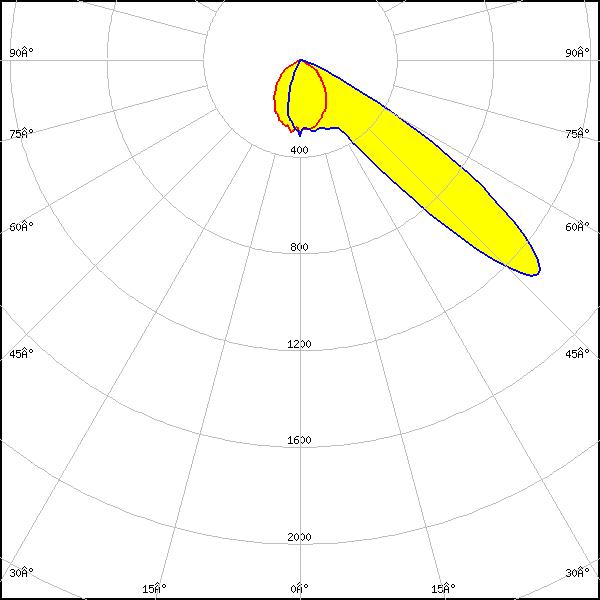

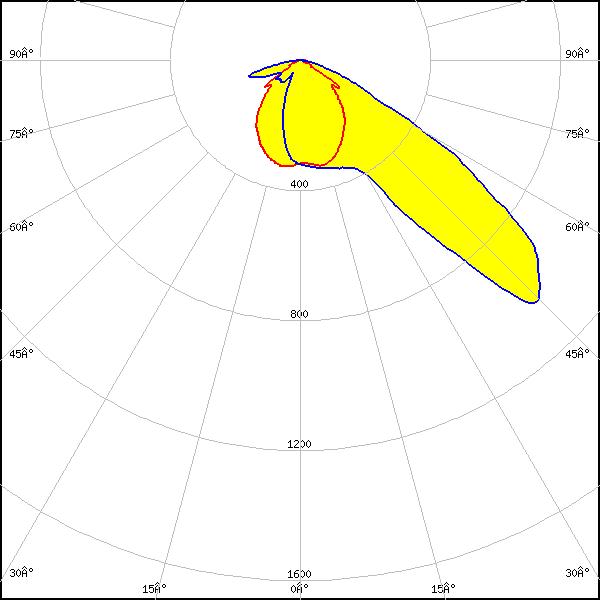

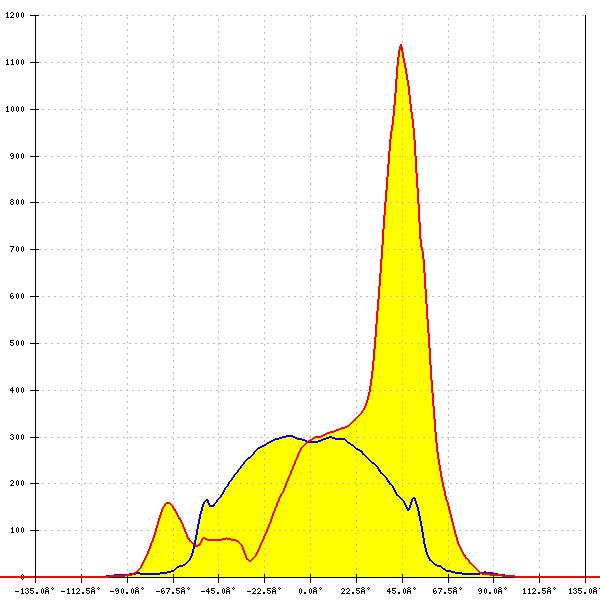

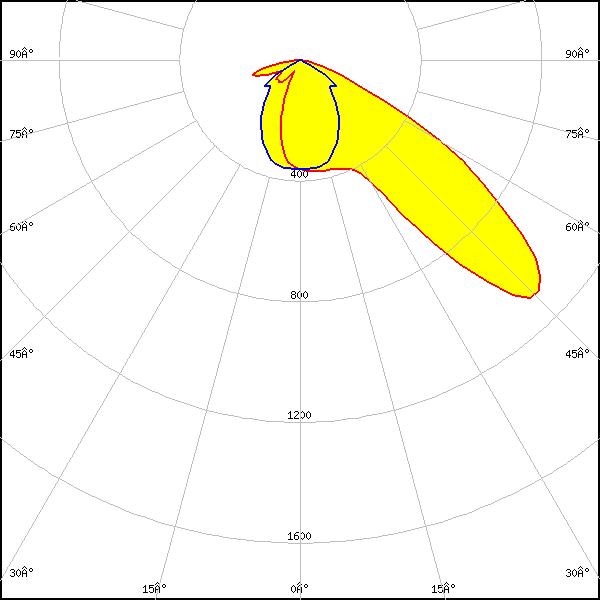

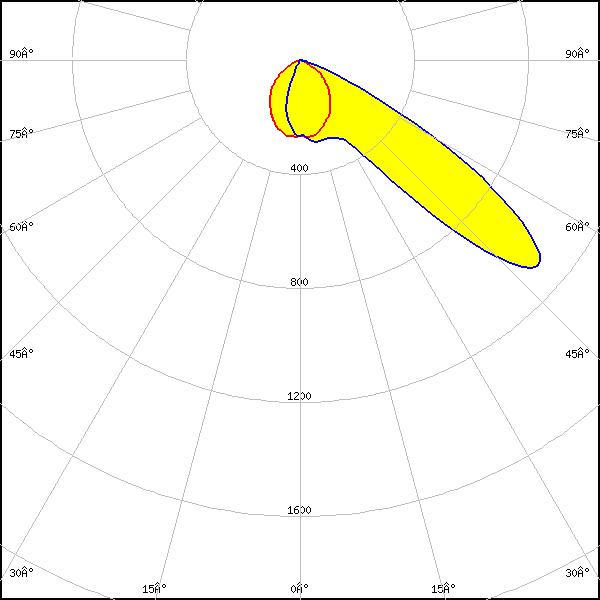

    Optical results

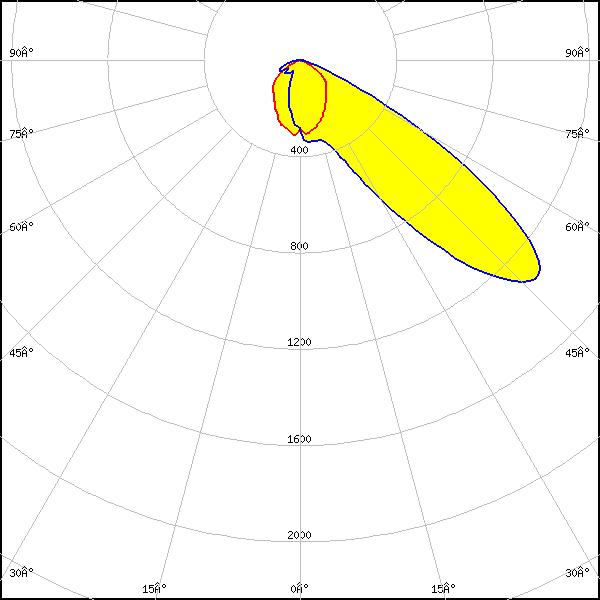

    LED: J Series 5050 6V P Class
    FWHM: asymmetric
    Peak intensity: 1.161 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 6V P Class
    FWHM: asymmetric
    Peak intensity: 1.333 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

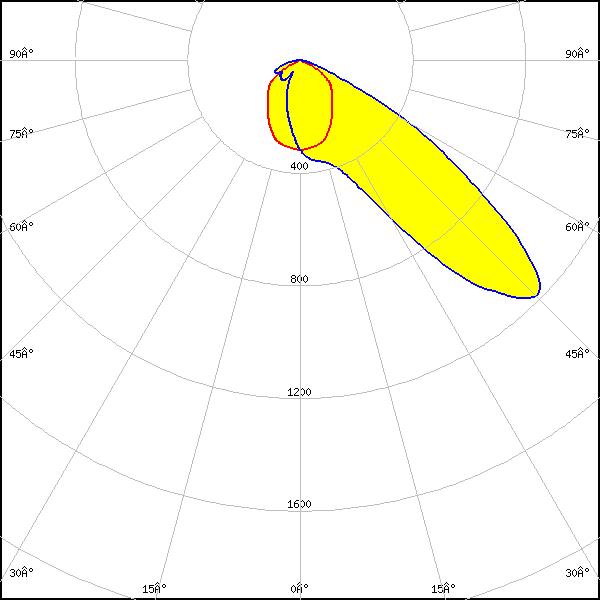

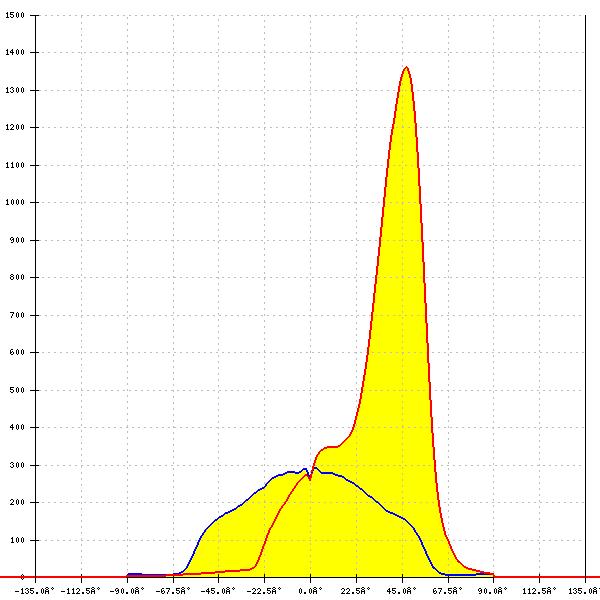

    LED: J Series 5050C 6V E Class
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.362 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

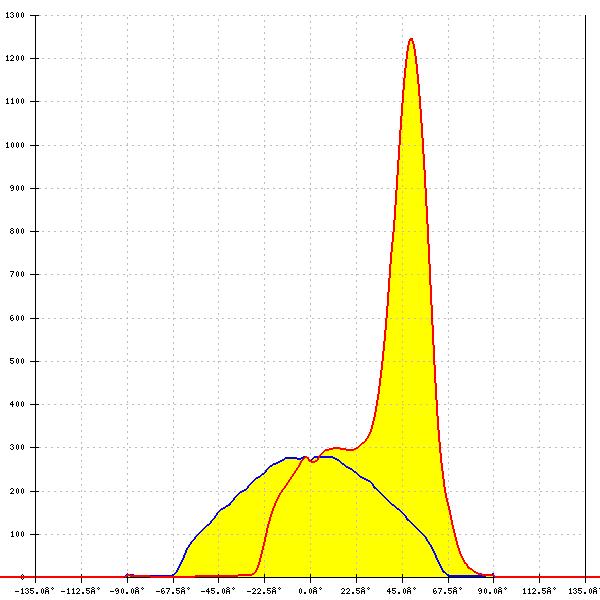

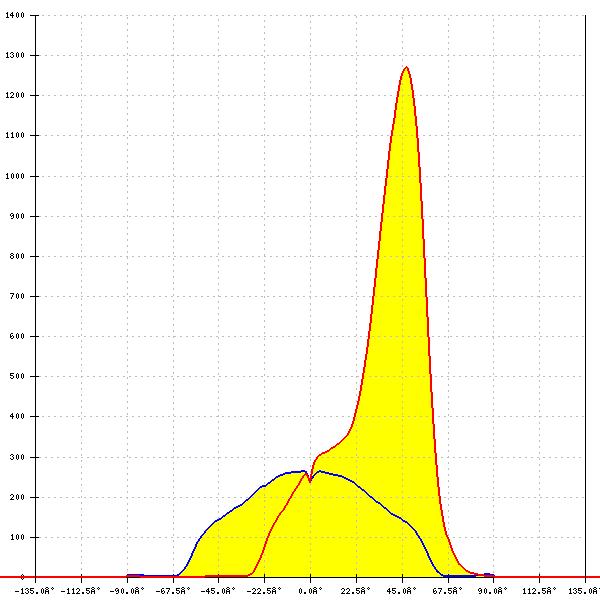

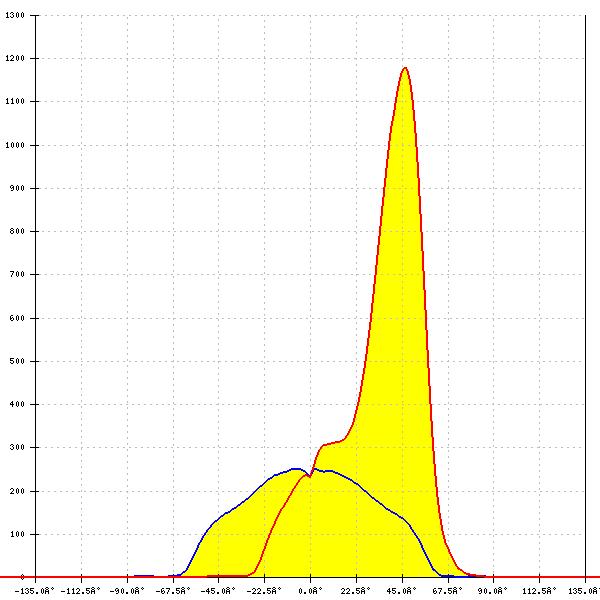

    LED: J Series 5050C 6V E Class
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.351 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 1.185 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

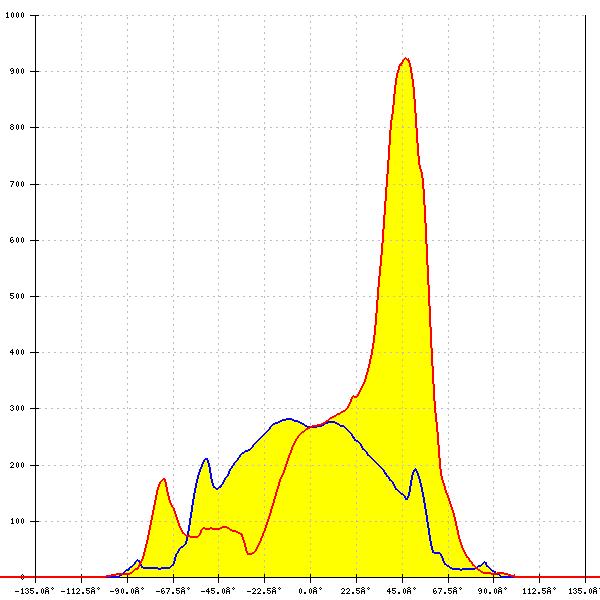

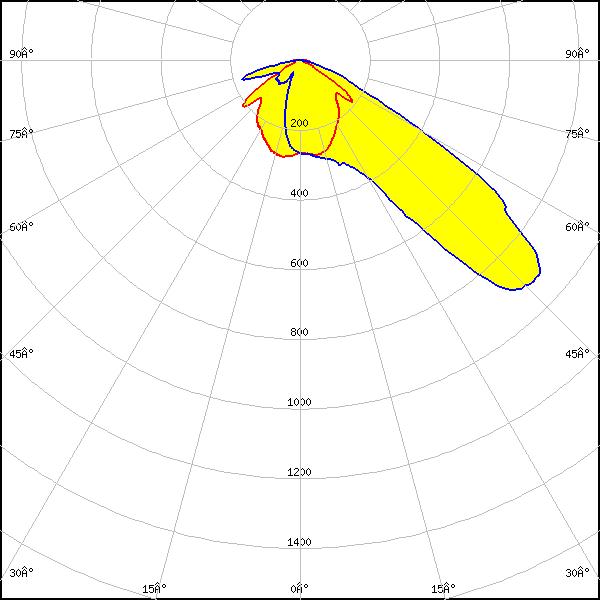

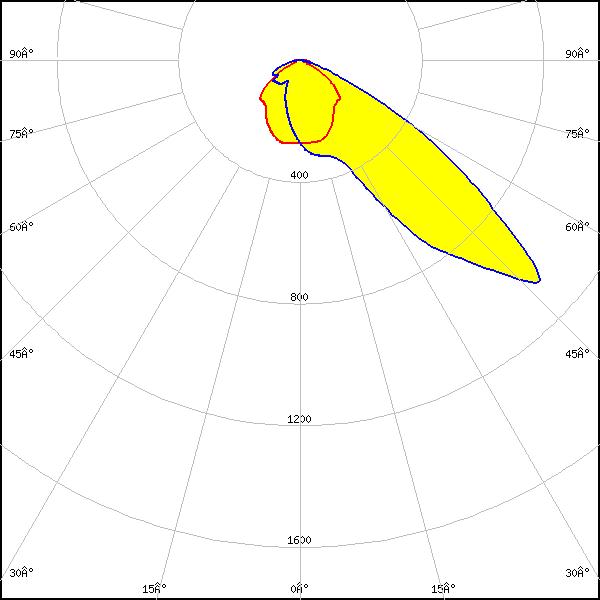

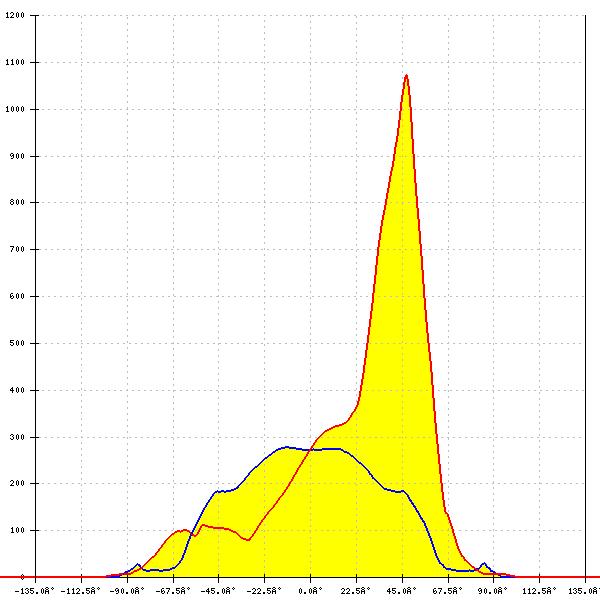

    LED: XD16
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

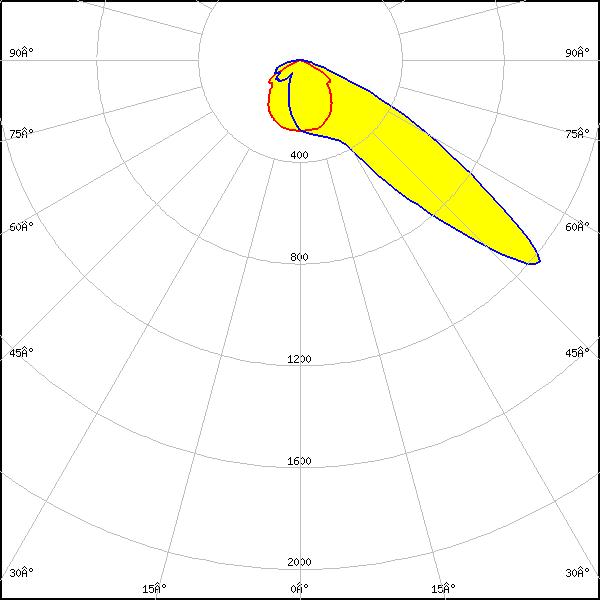

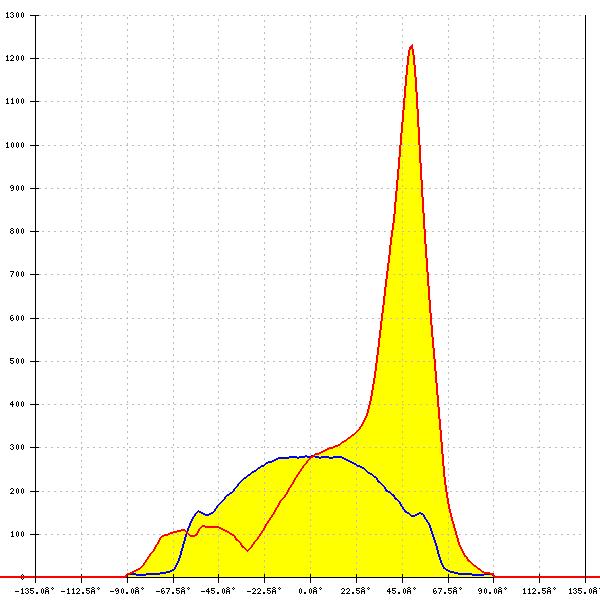

    LED: XM-L
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

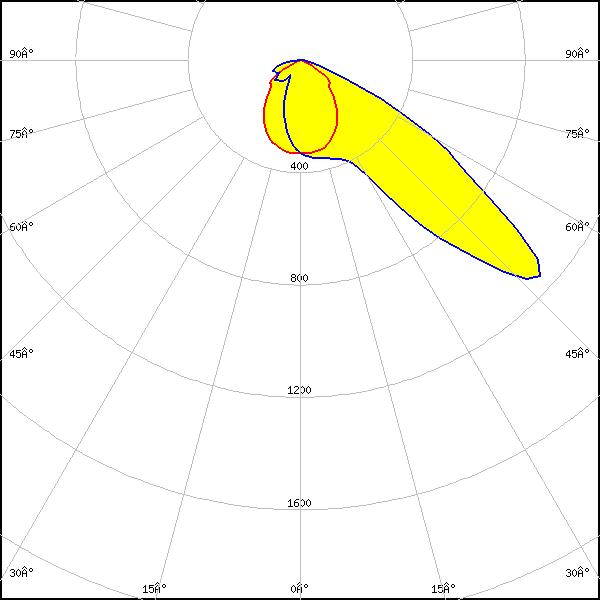

    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

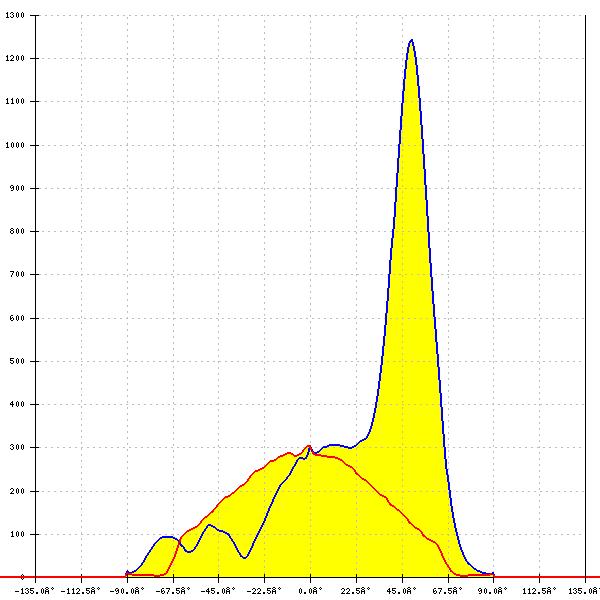

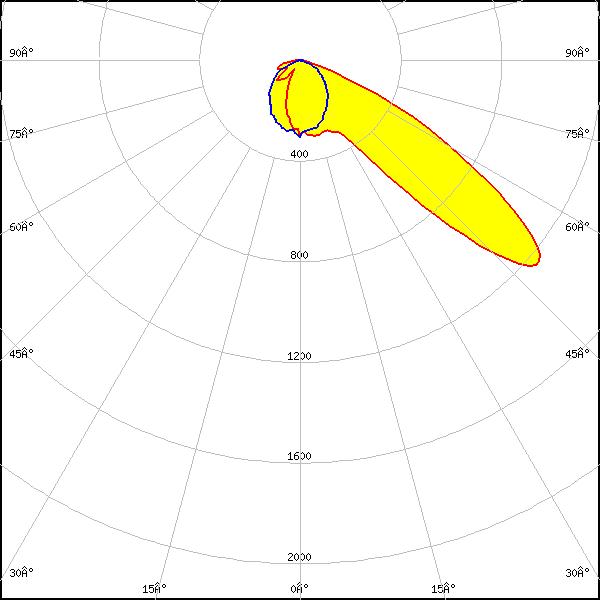

    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 1.242 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

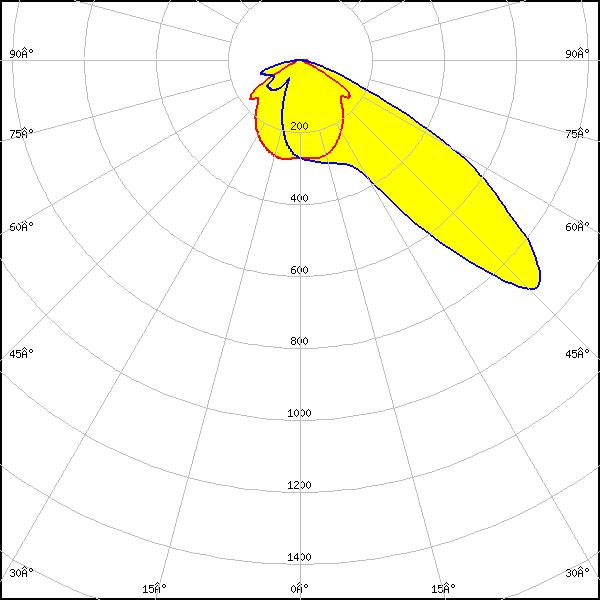

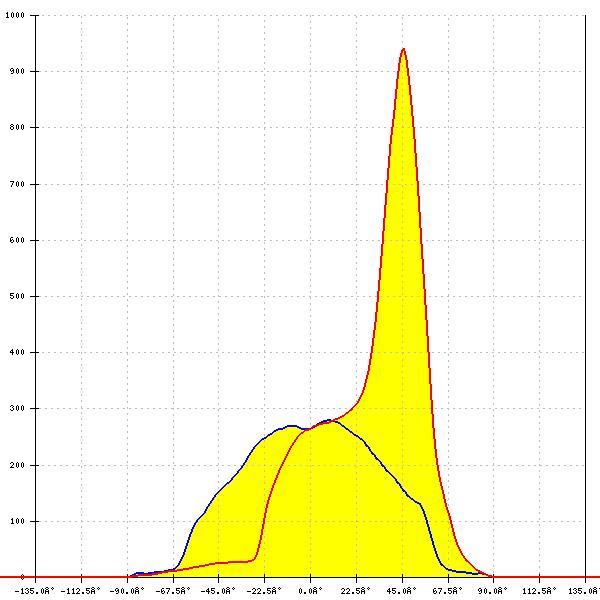

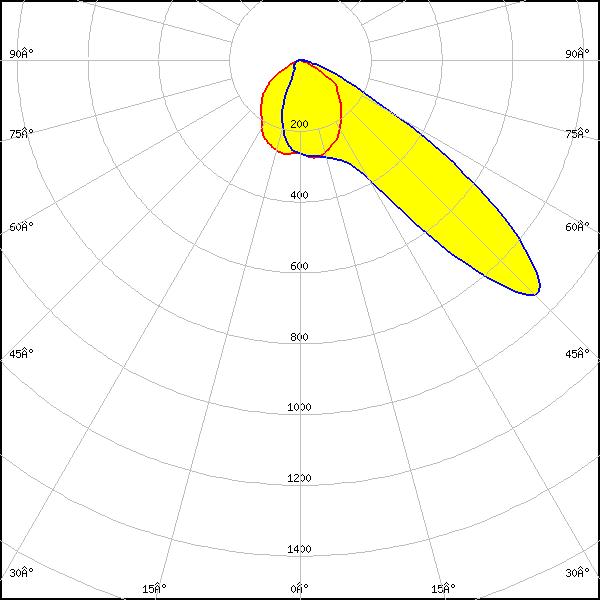

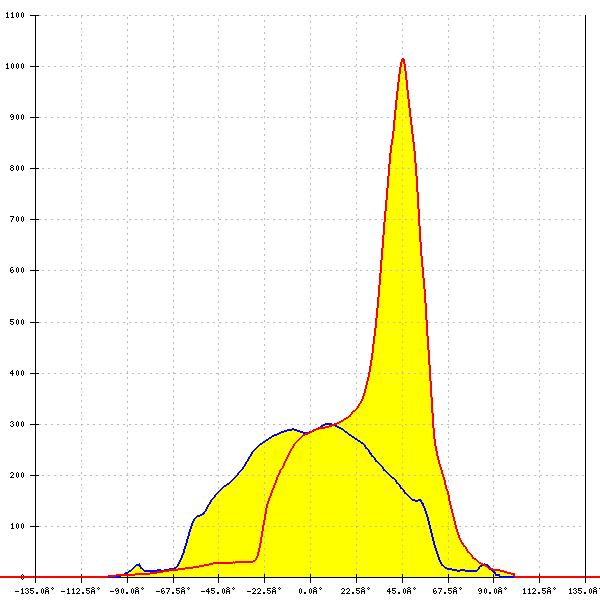

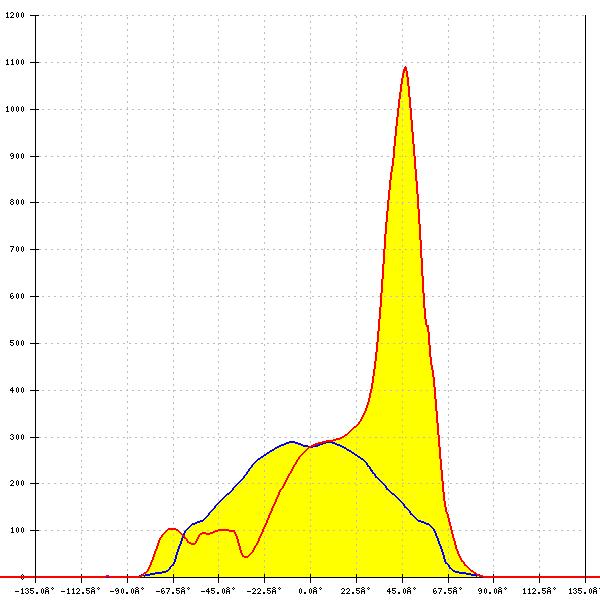

    LED: XP-G3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.959 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.130 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

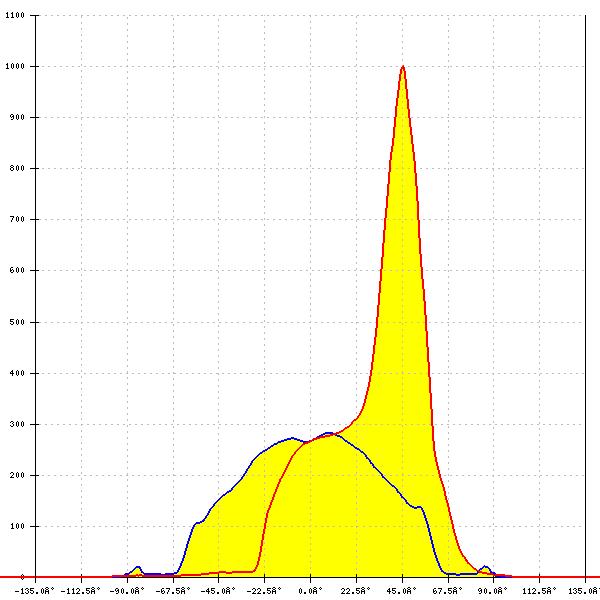

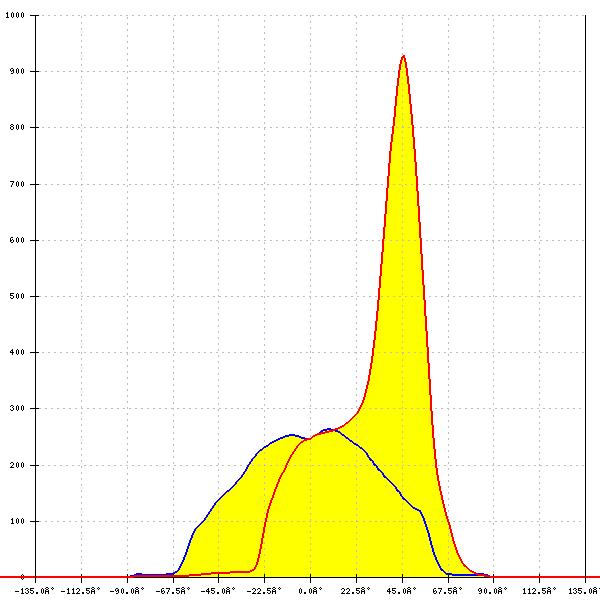

    LED: XP-G3
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.096 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

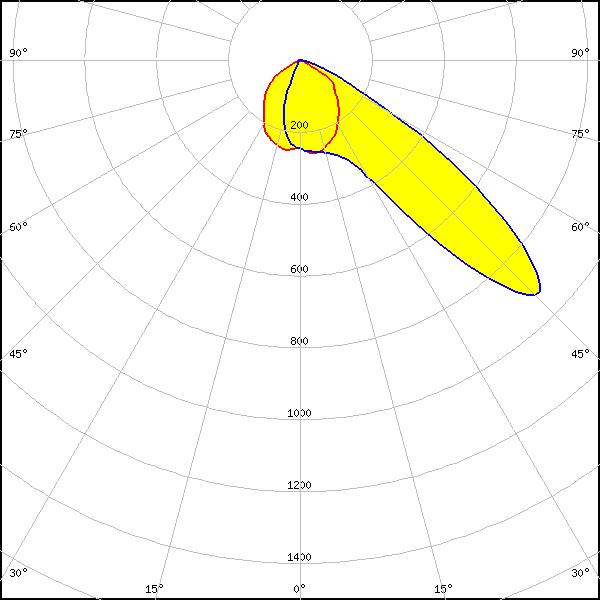

    LED: XP-G3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.108 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

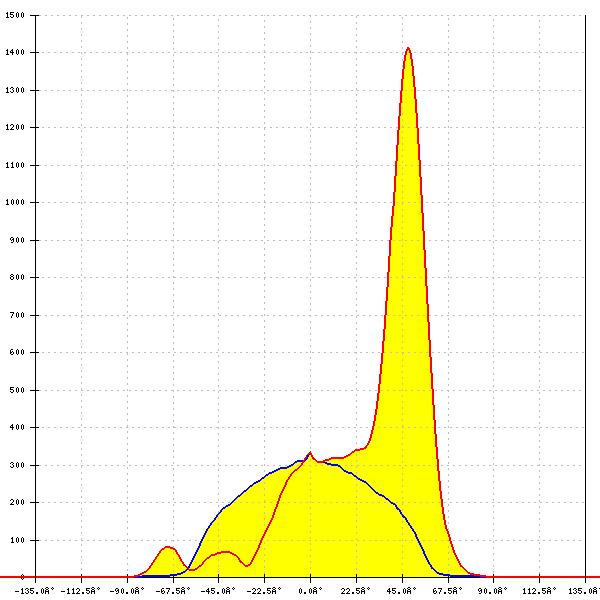

    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 1.656 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 1.415 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

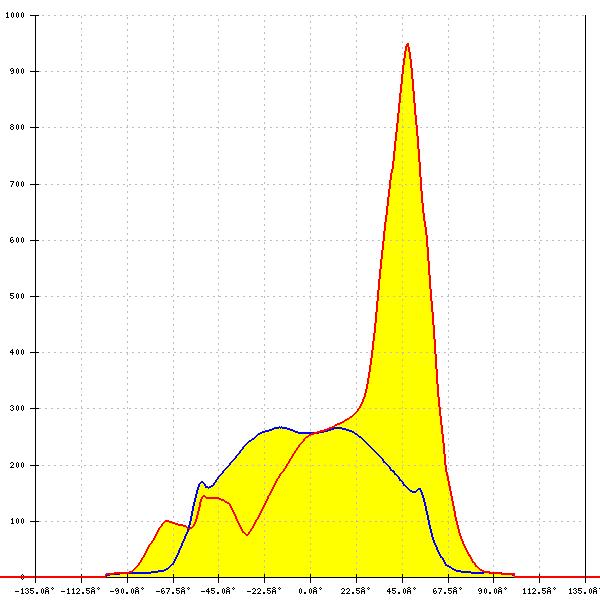

    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

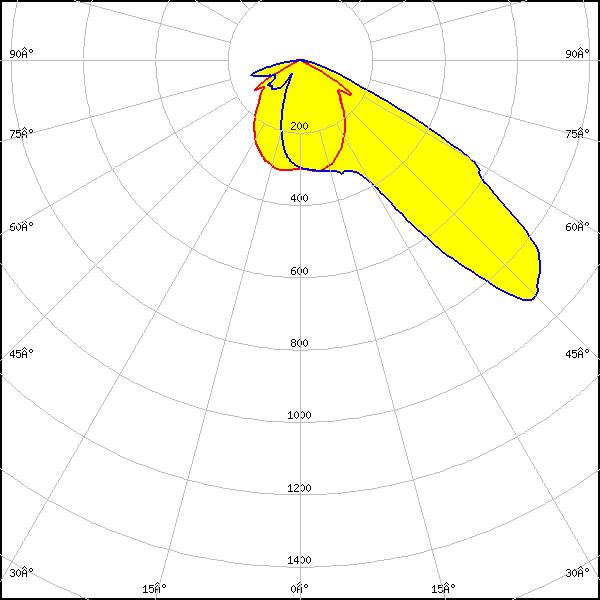

    LED: XP-L HI
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

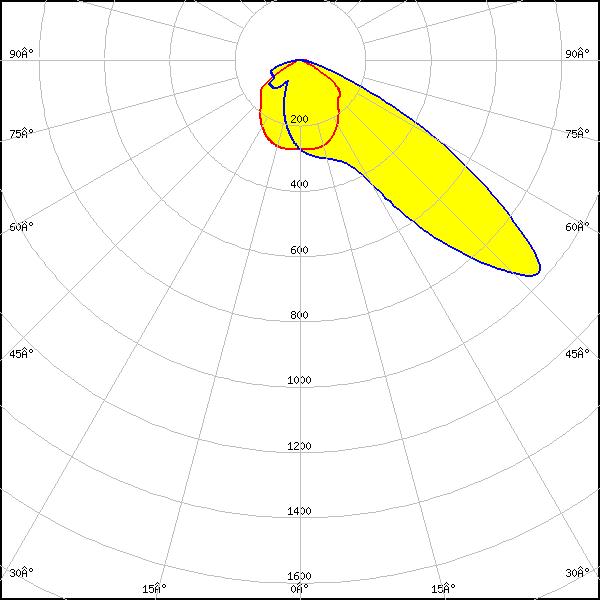

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 1.129 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.980 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

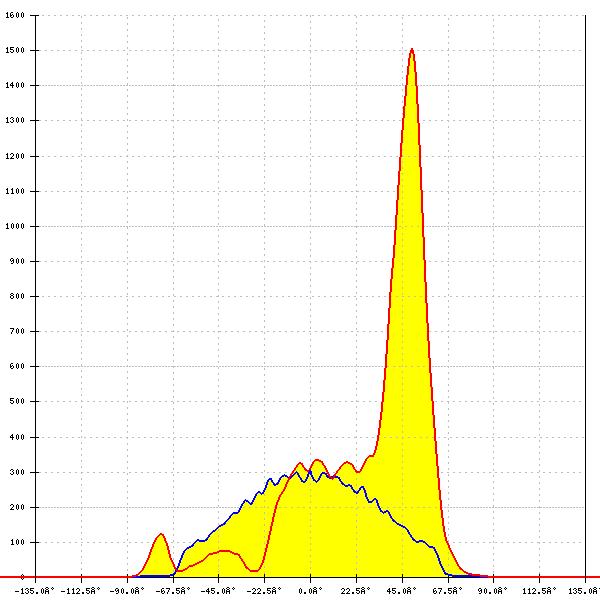

    LED: XP-P
    FWHM: asymmetric
    Peak intensity: 1.506 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

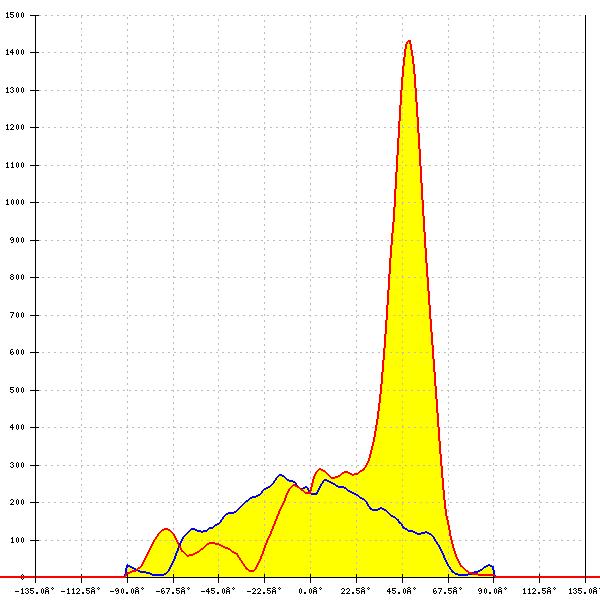

    LED: XT-E
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White

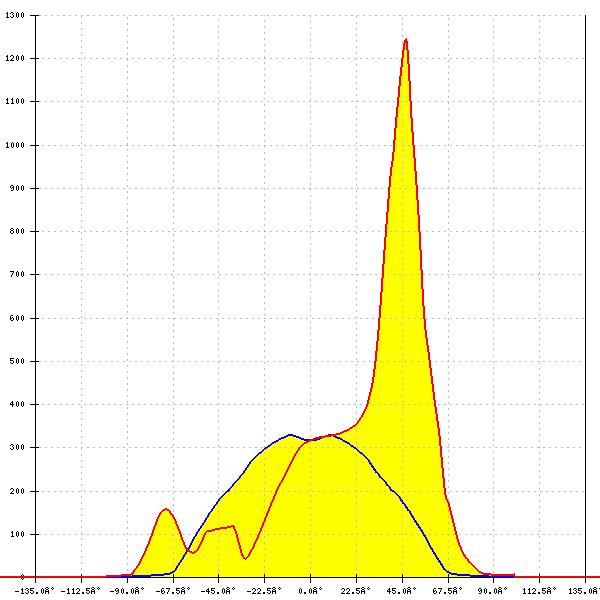

    LED: PL-BRICK HP 3800 2x8 SSG
    FWHM: asymmetric
    Peak intensity: 1.295 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Brick HP 2x8
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

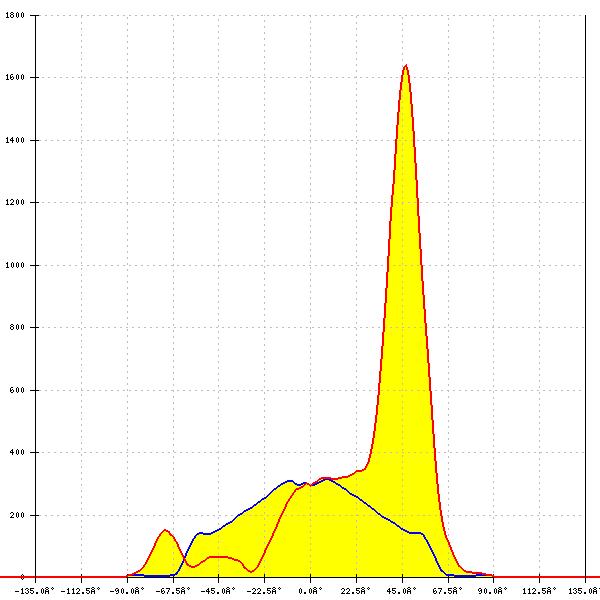

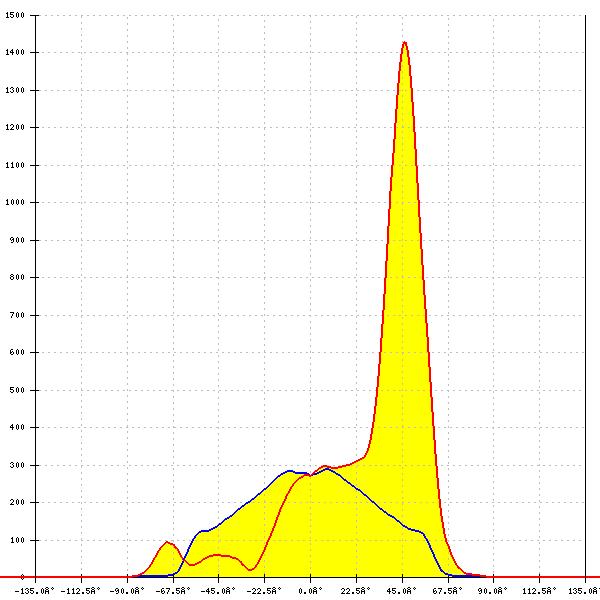

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 1.427 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 1.640 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

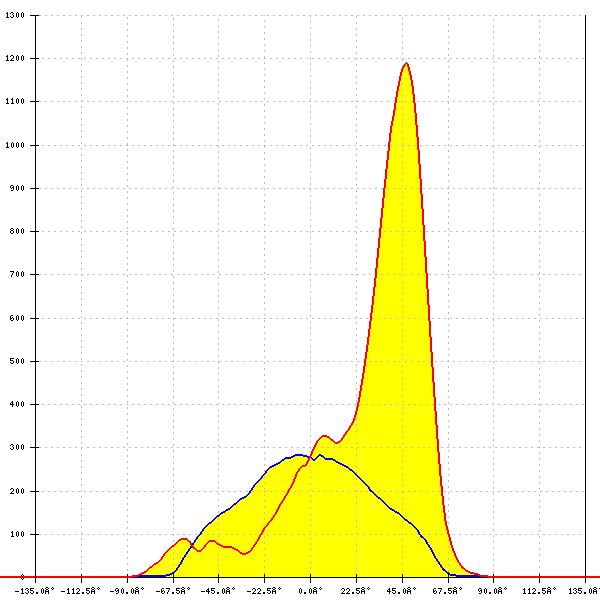

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.190 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

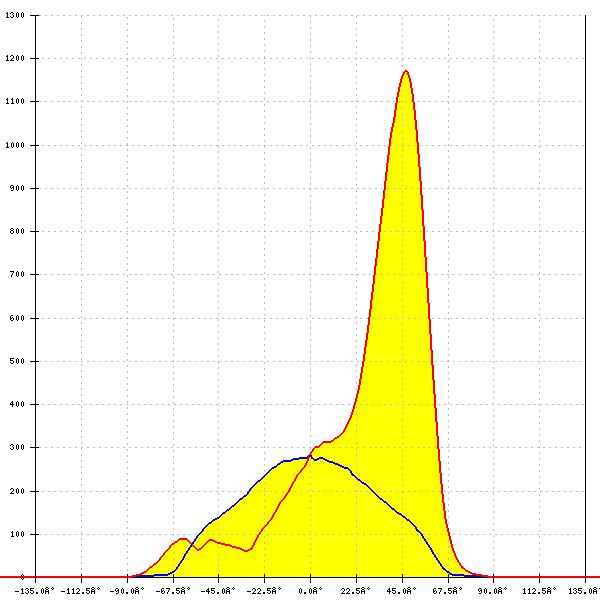

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.171 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.298 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

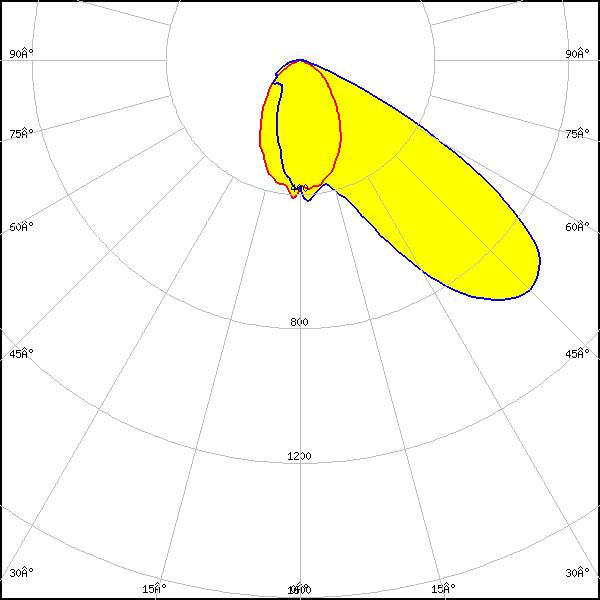

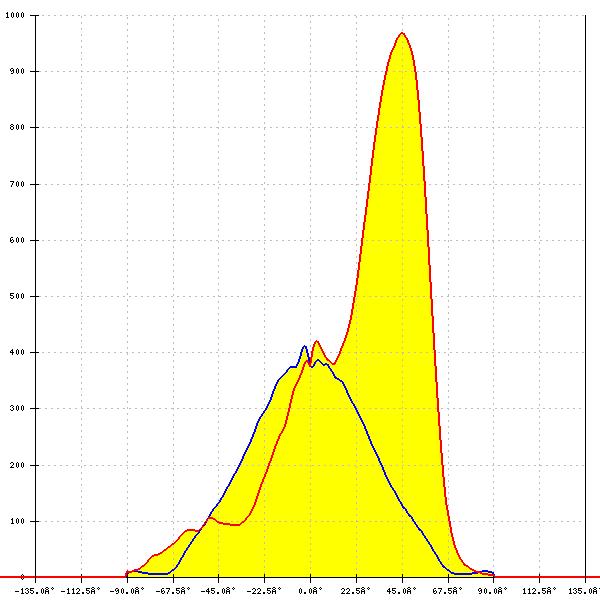

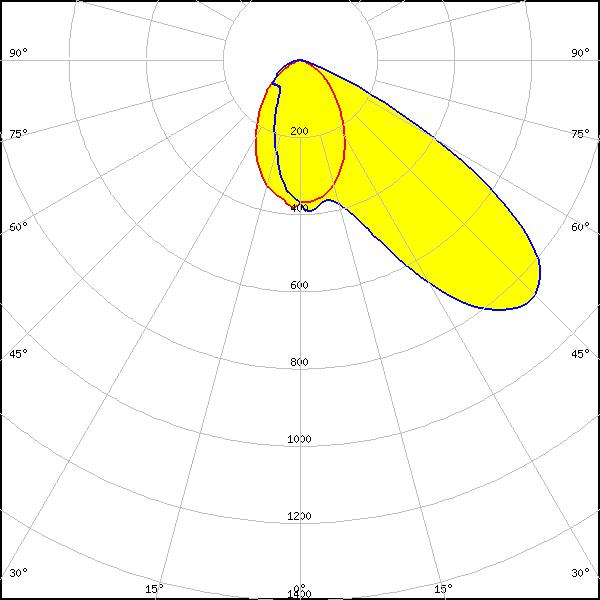

    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.967 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.863 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

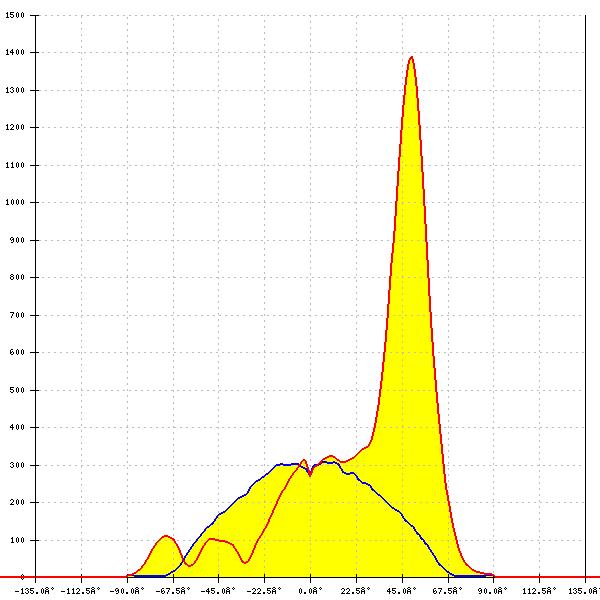

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 1.387 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

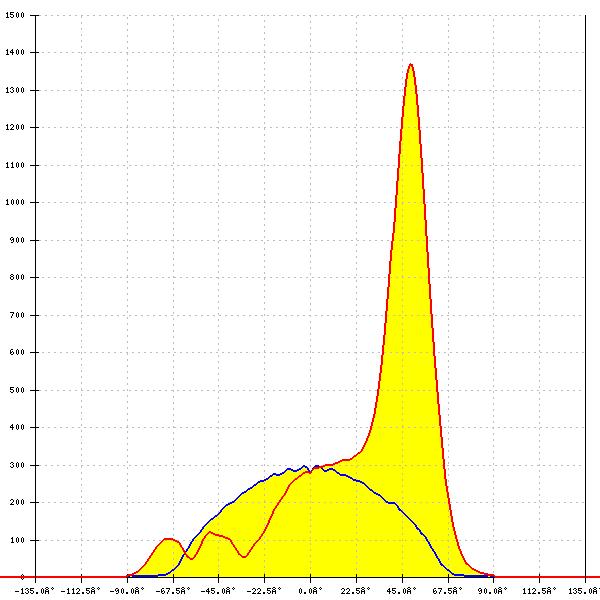

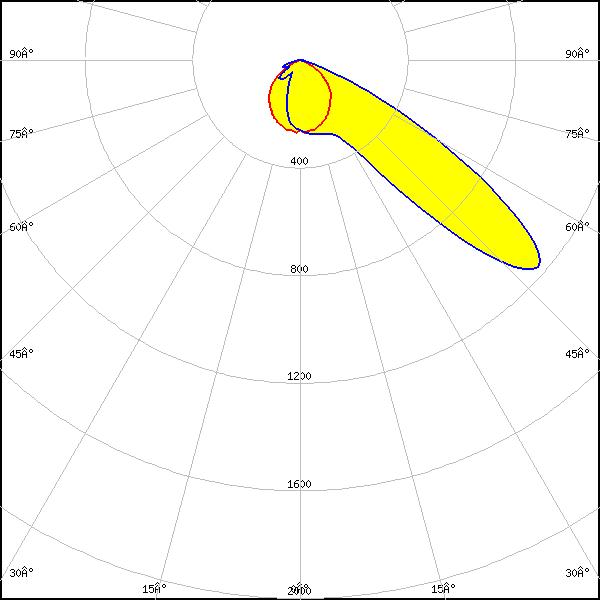

    LED: LUXEON HL2X-D
    FWHM: asymmetric
    Peak intensity: 1.369 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-D
    FWHM: asymmetric
    Peak intensity: 1.171 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

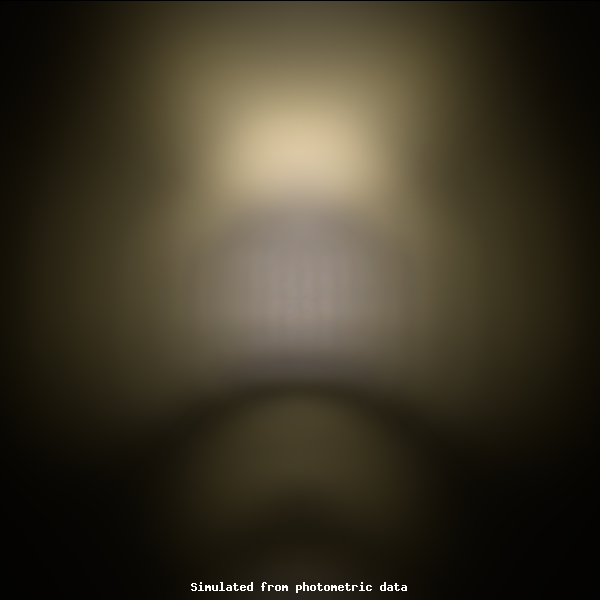

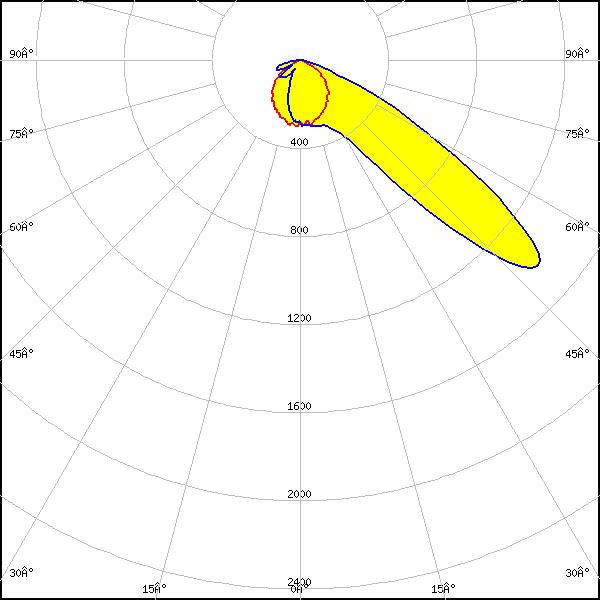

    LED: LUXEON HL2X-E
    FWHM: asymmetric
    Peak intensity: 1.271 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X-E
    FWHM: asymmetric
    Peak intensity: 1.429 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

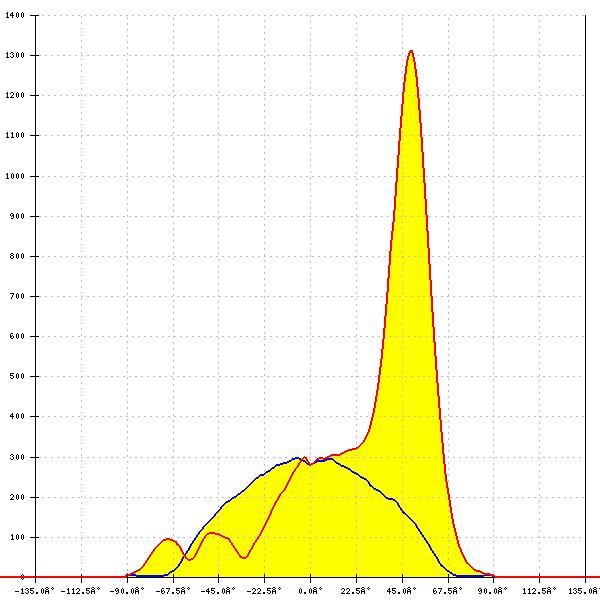

    LED: LUXEON HL2X-P
    FWHM: asymmetric
    Peak intensity: 1.311 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

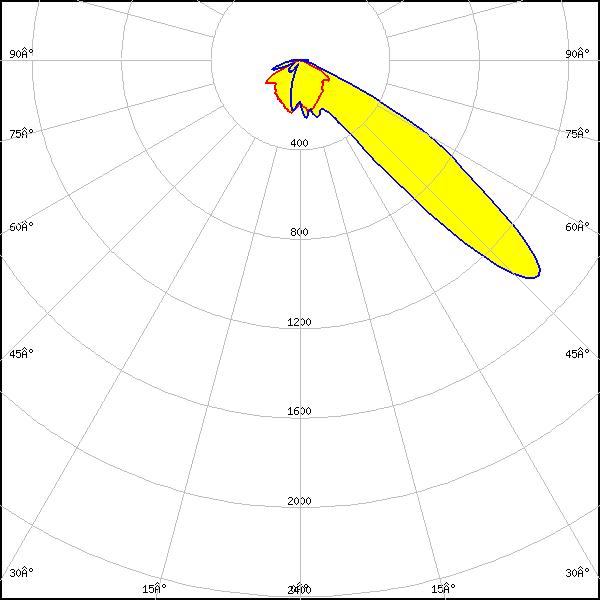

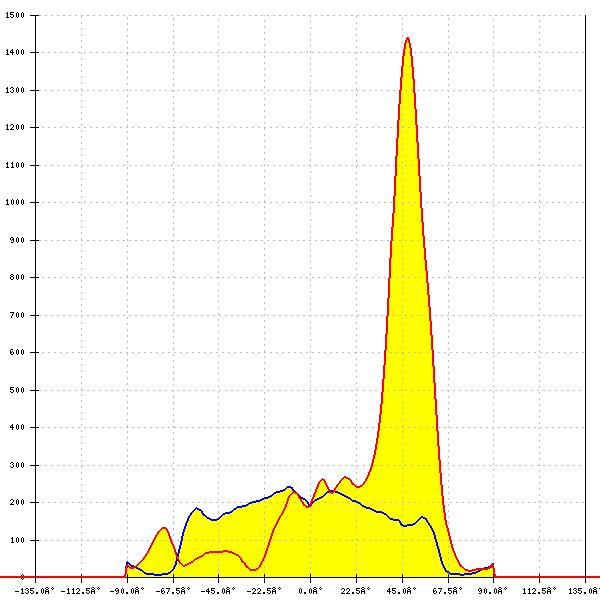

    LED: LUXEON IR Domed 150 (L1I0-0xxx150000000)
    FWHM: asymmetric
    Peak intensity: 1.440 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

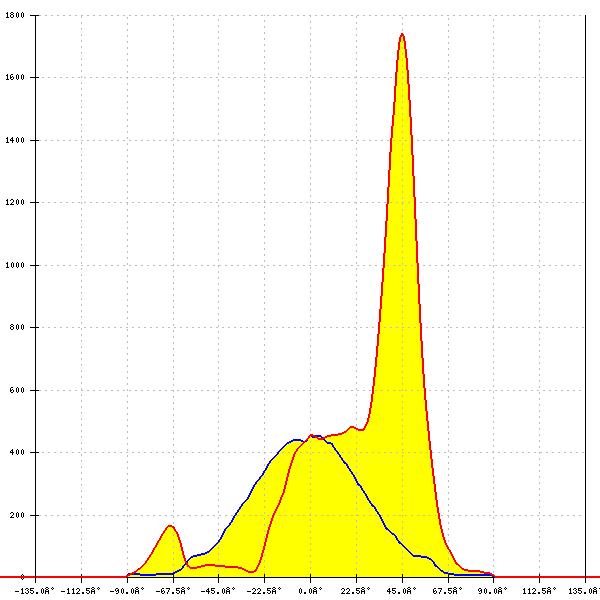

    LED: LUXEON IR Domed 90 (L1I0-0xxx090000000)
    FWHM: asymmetric
    Peak intensity: 1.743 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

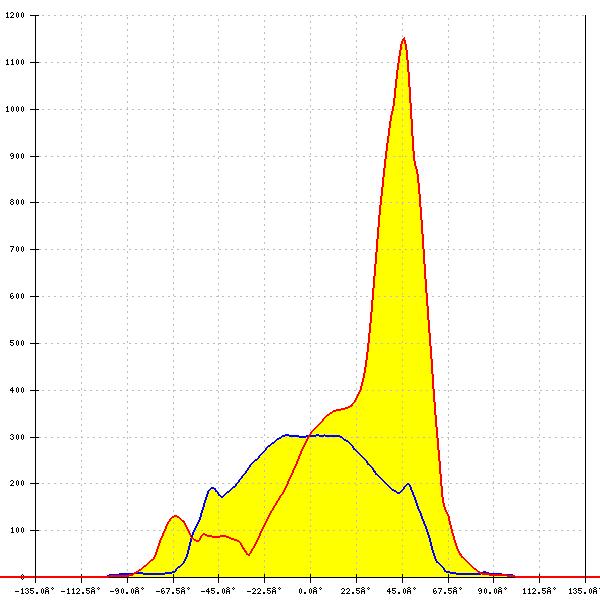

    LED: LUXEON MZ
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Q
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

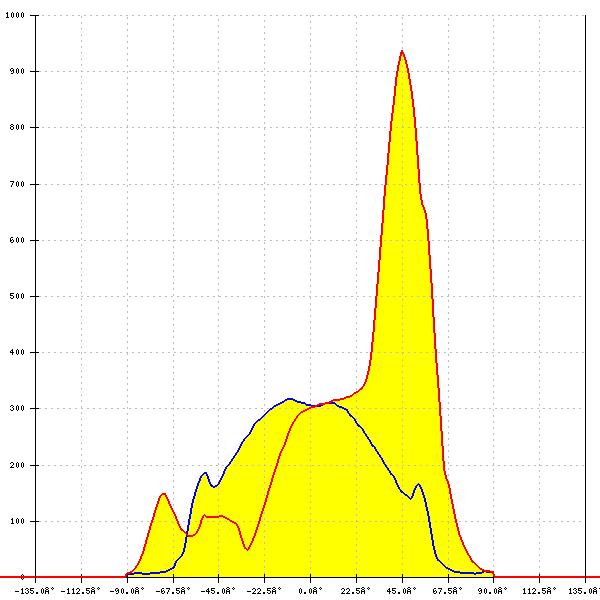

    LED: LUXEON T
    FWHM: asymmetric
    Peak intensity: 1.060 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

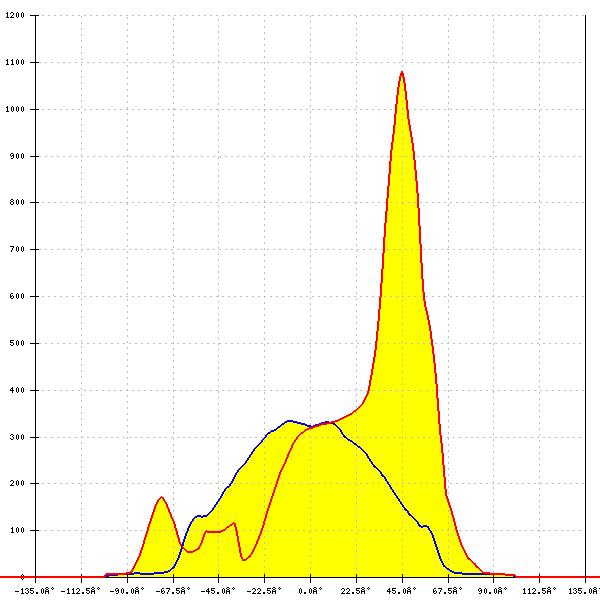

    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

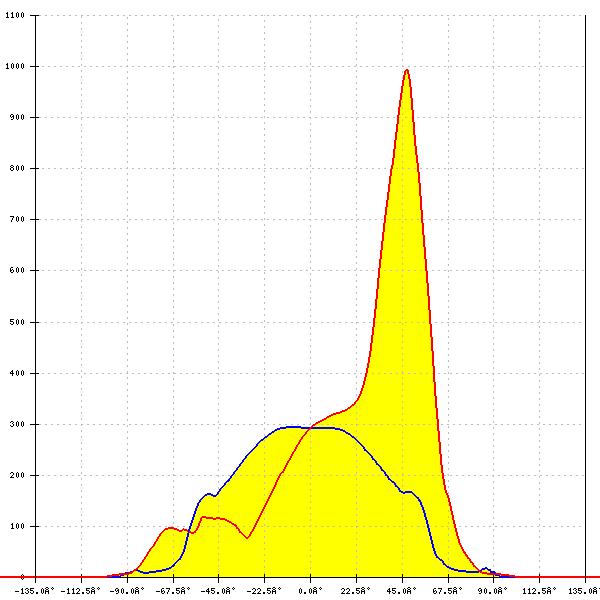

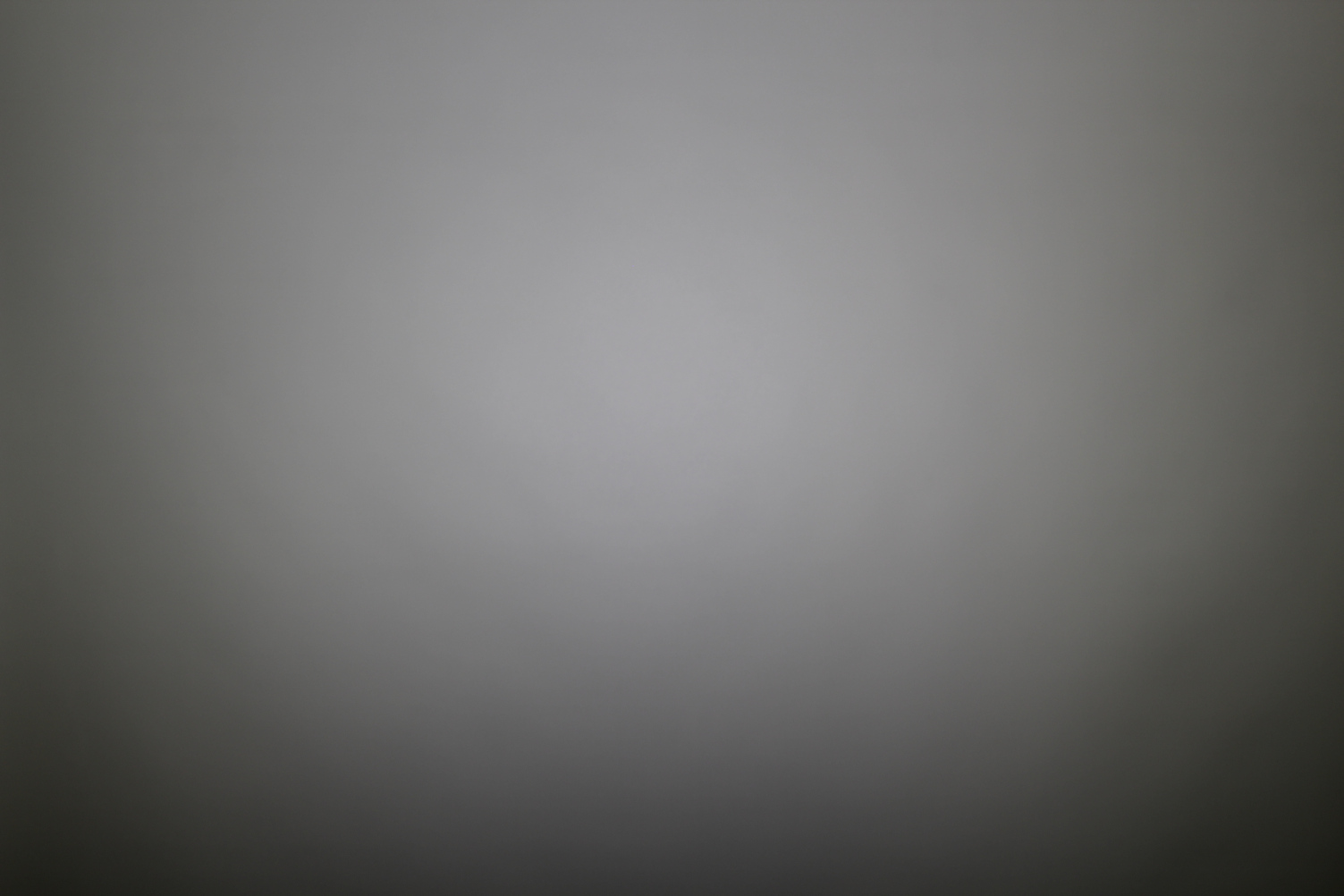

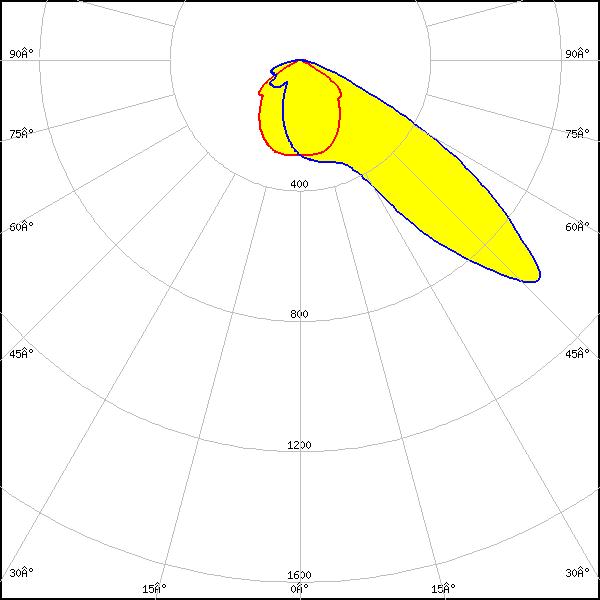

    LED: LUXEON V
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

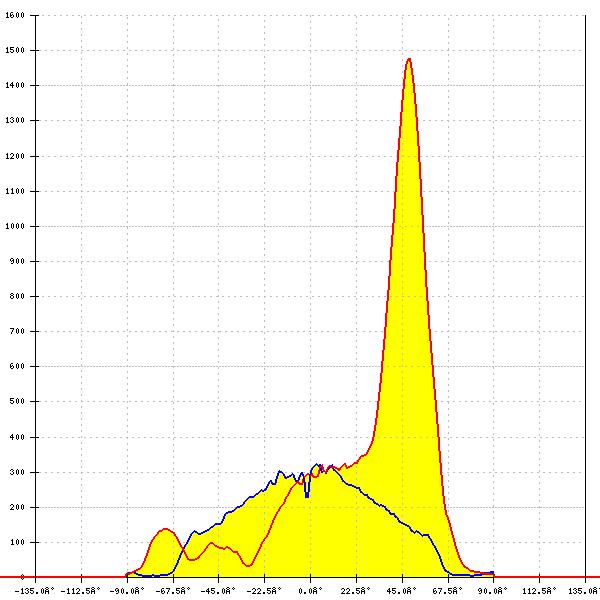

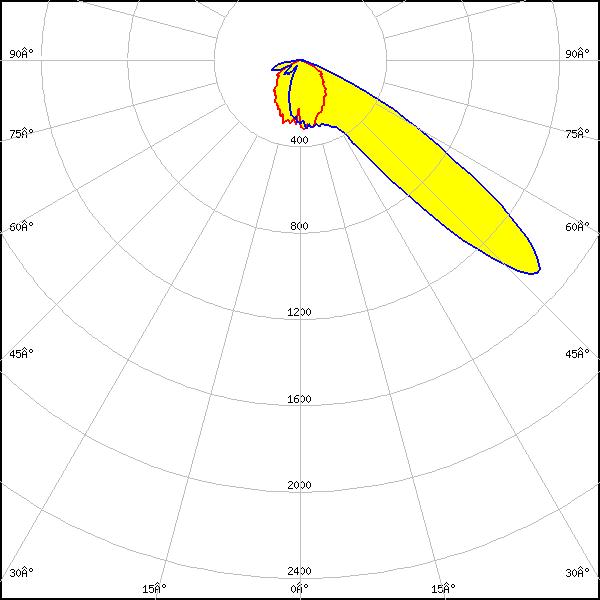

    LED: LUXEON V2
    FWHM: asymmetric
    Peak intensity: 1.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

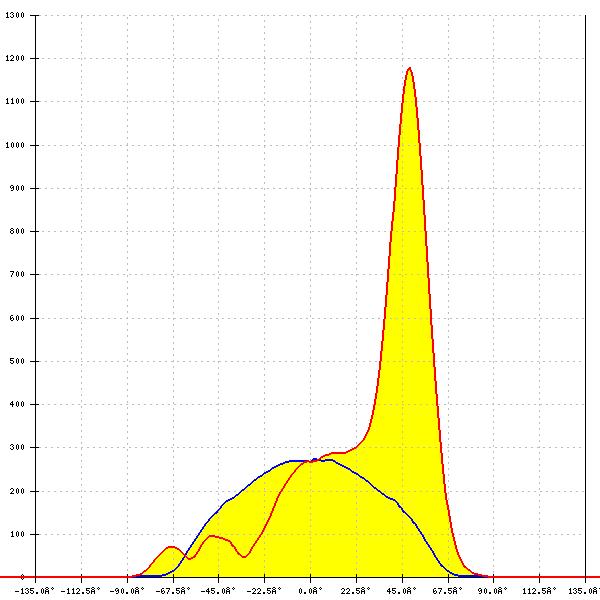

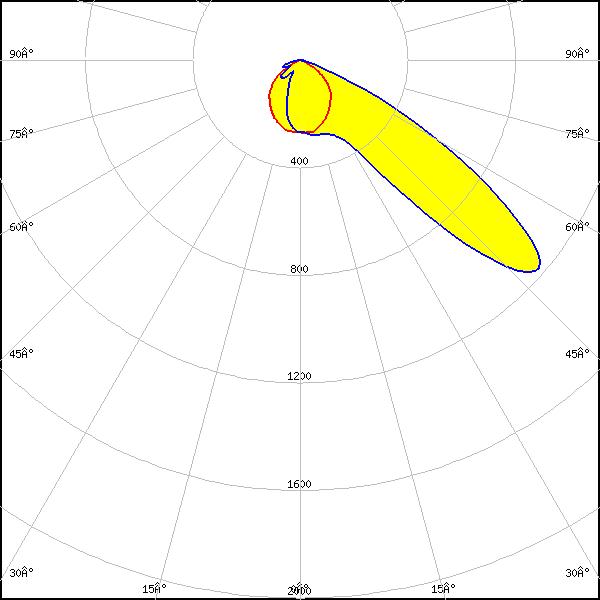

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 1.376 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 1.178 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

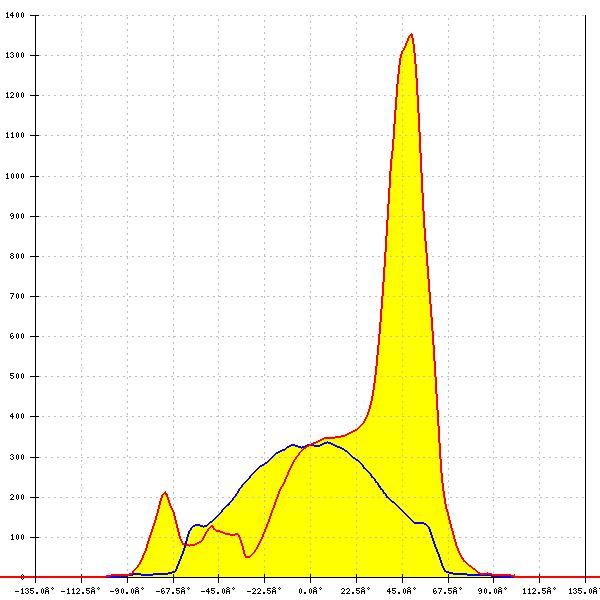

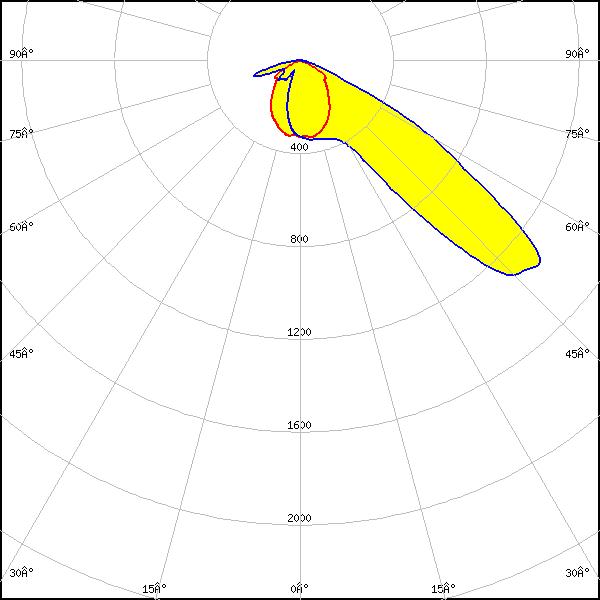

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: asymmetric
    Peak intensity: 1.399 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

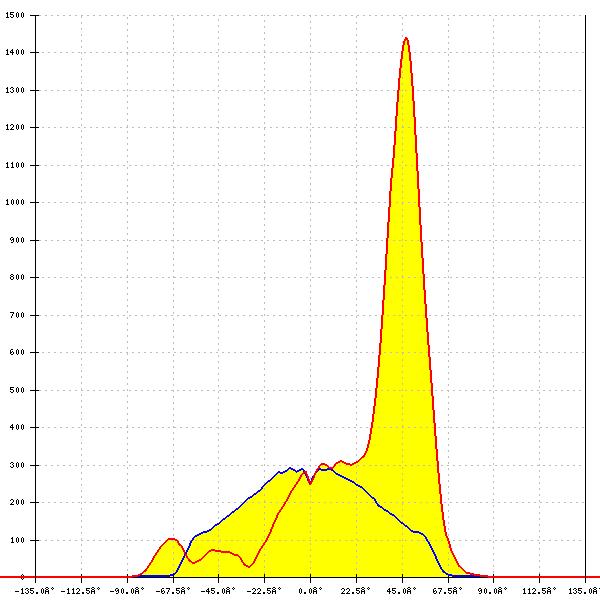

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 1.440 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    FWHM: asymmetric
    Peak intensity: 1.453 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

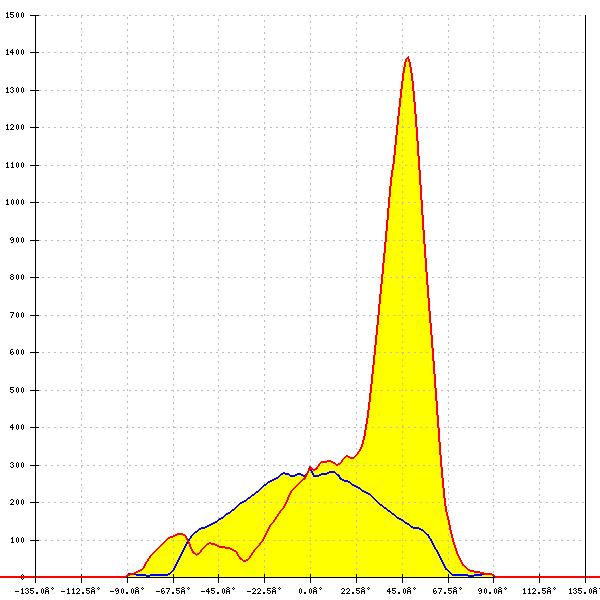

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.387 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

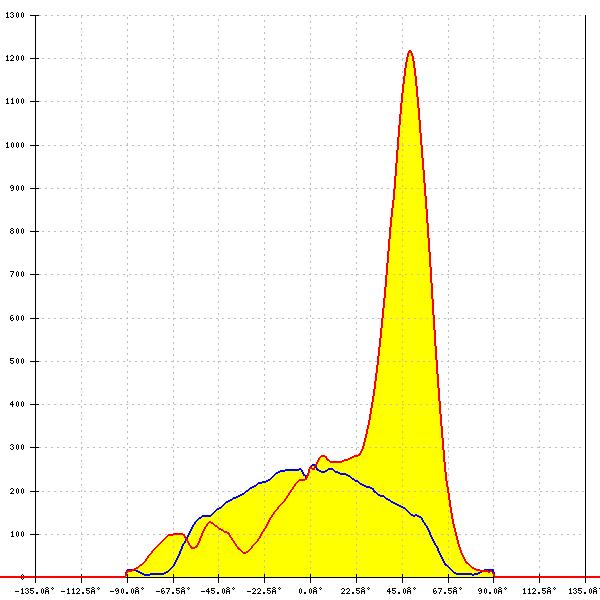

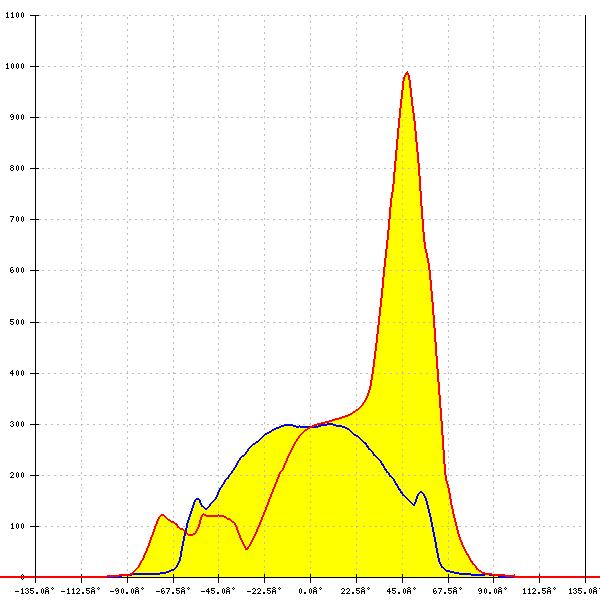

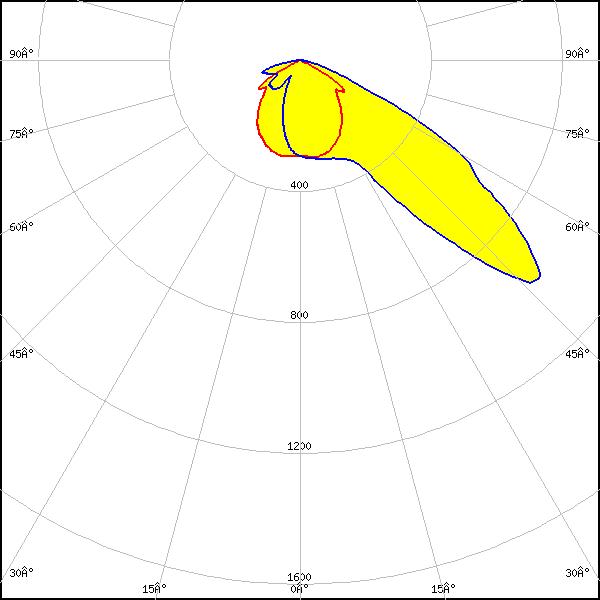

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

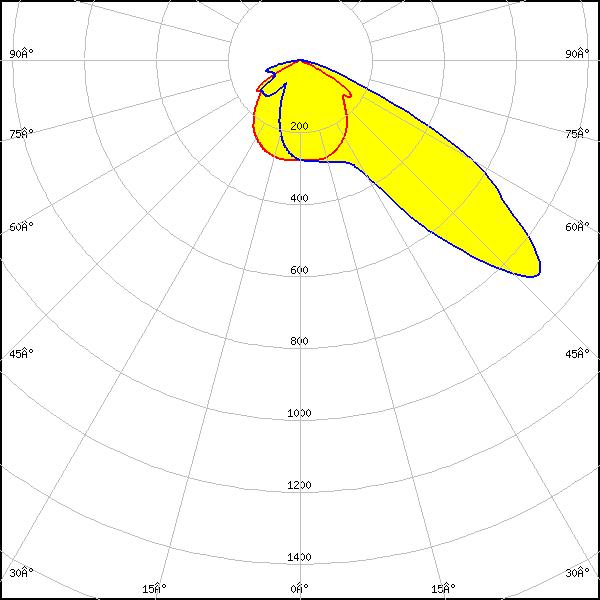

    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

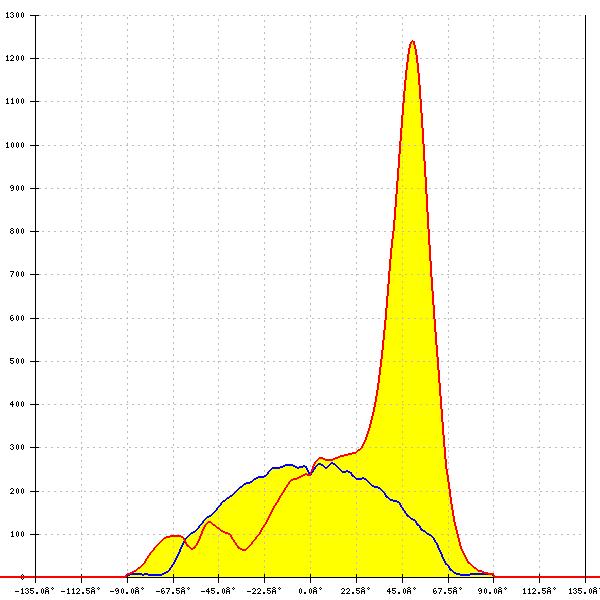

    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 1.241 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 1.134 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

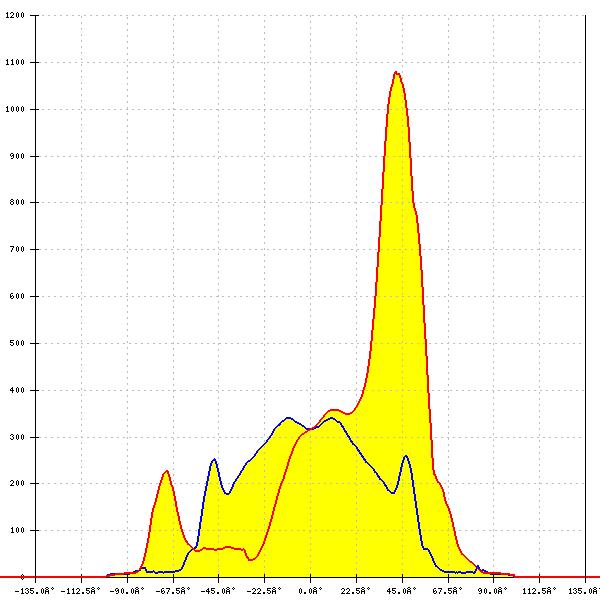

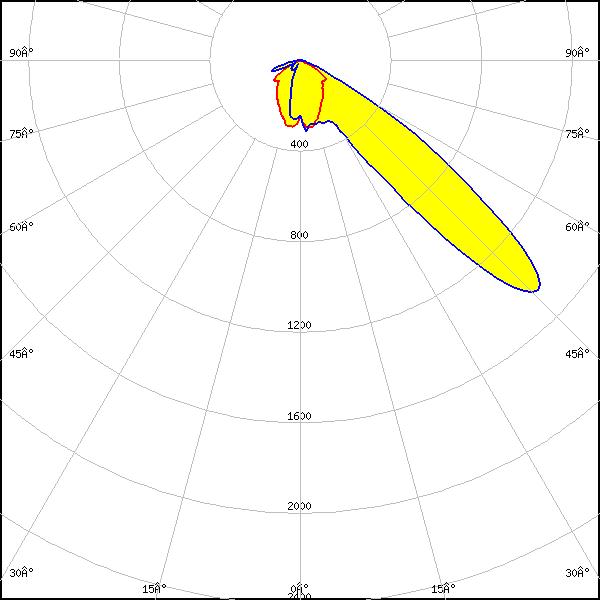

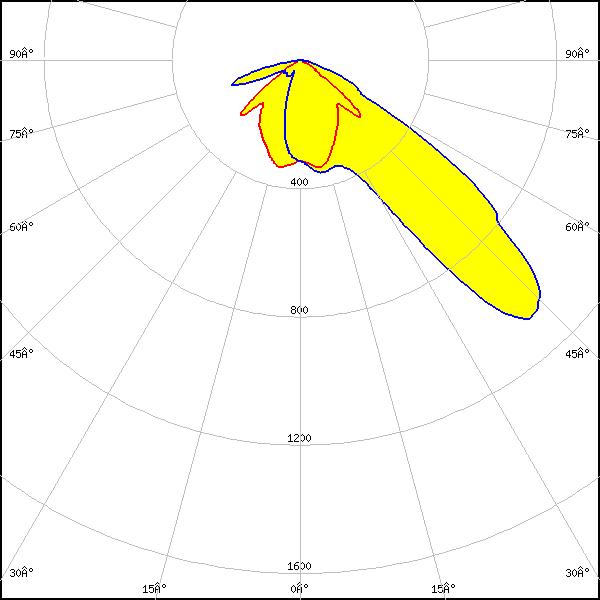

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.460 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NWSx229A
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

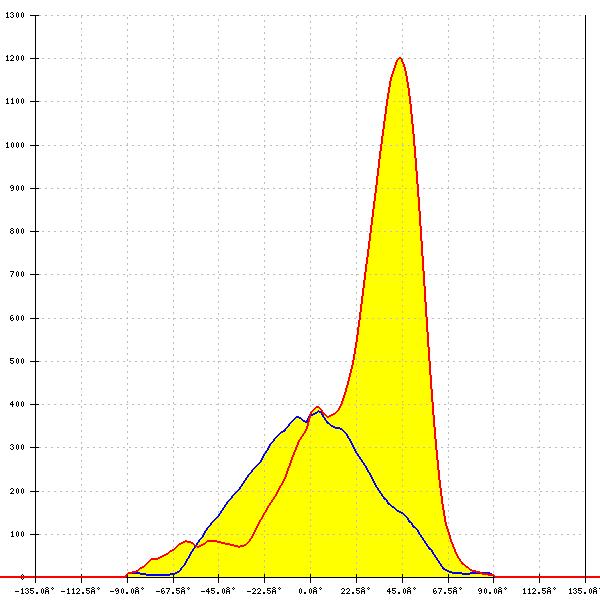

    LED: Duris S10
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

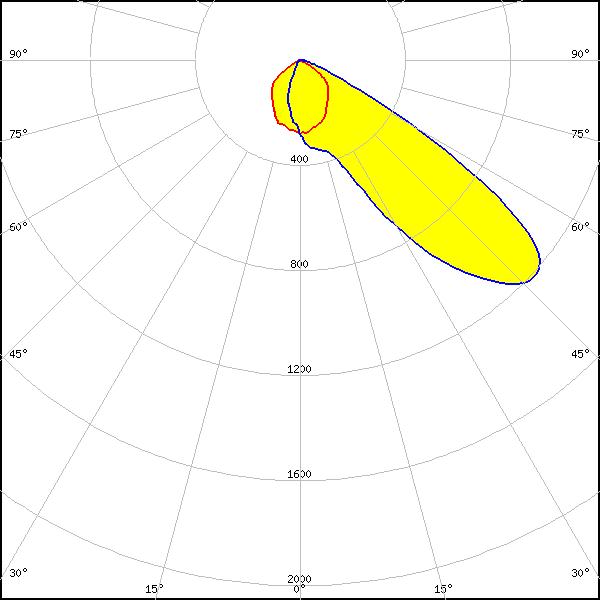

    LED: Duris S8
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.211 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

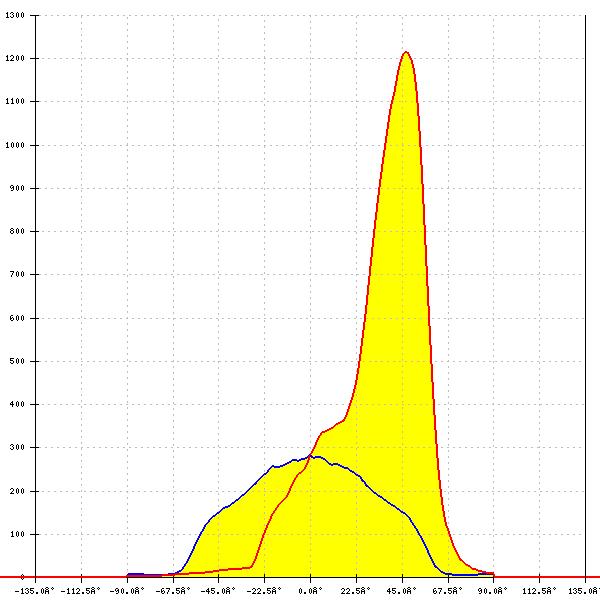

    LED: Duris S8
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.214 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 1.122 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 1.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 1.414 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 1.370 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

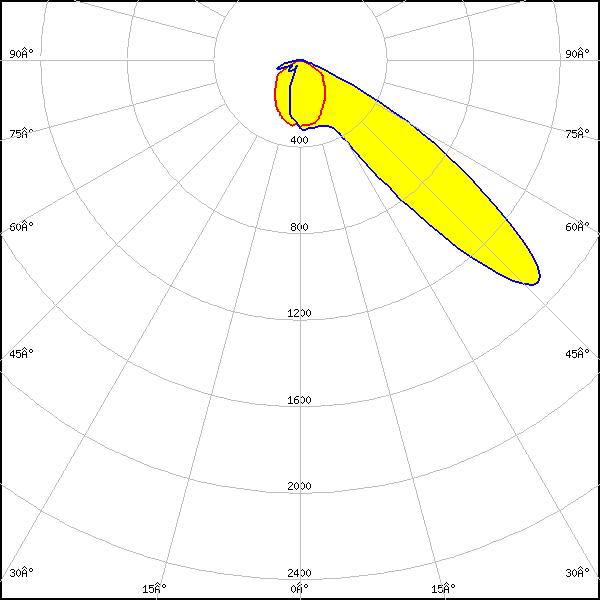

    LED: OSCONIQ P 3737 Flat
    FWHM: asymmetric
    Peak intensity: 1.505 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR35)
    FWHM: asymmetric
    Peak intensity: 1.298 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR35)
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.275 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR35)
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.302 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

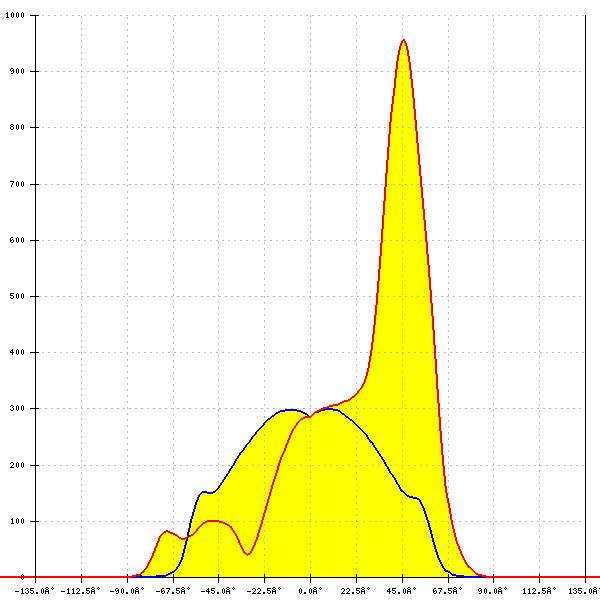

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.963 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square Flat
    FWHM: asymmetric
    Peak intensity: 1.609 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square PC
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSTAR Projection Compact (KW.CSLNM1.TG)
    FWHM: asymmetric
    Peak intensity: 1.556 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

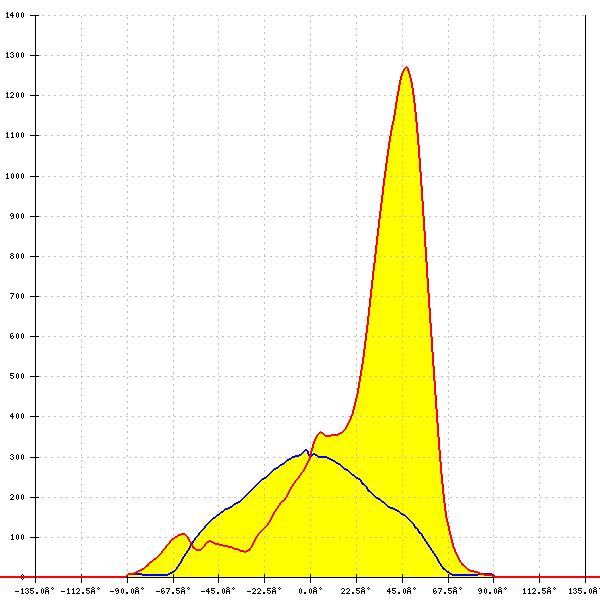

    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 1.270 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 1.098 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

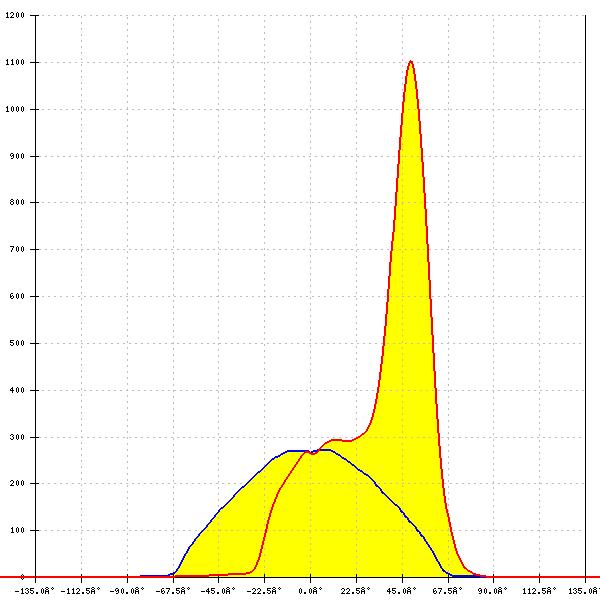

    LED: Fortimo FastFlex LED 2x8 DA G4+
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.245 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.102 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: asymmetric
    Peak intensity: 1.136 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 1.214 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

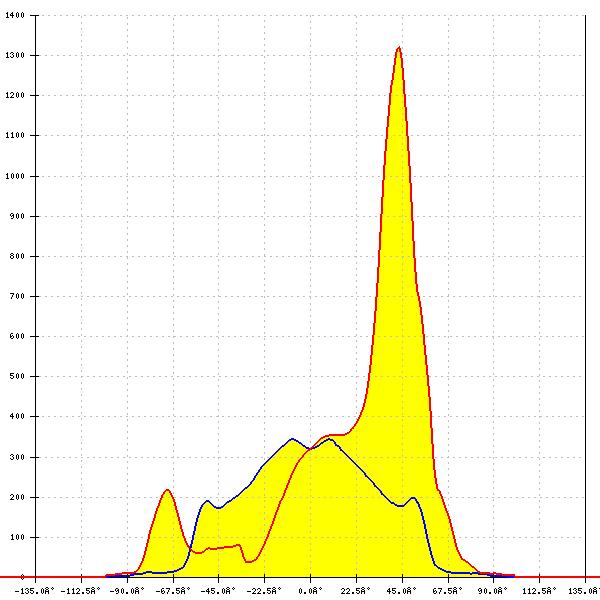

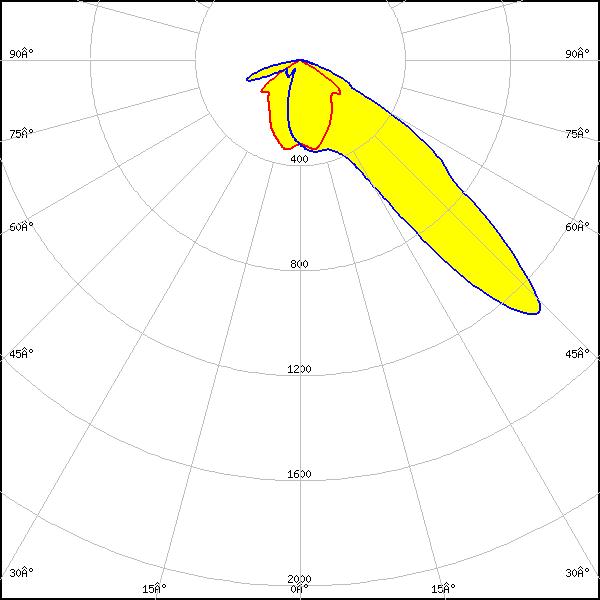

    LED: HiLOM RC12 Z (LH181B)
    FWHM: asymmetric
    Peak intensity: 1.363 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 1.166 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 1.331 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH16 (LH351C)
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

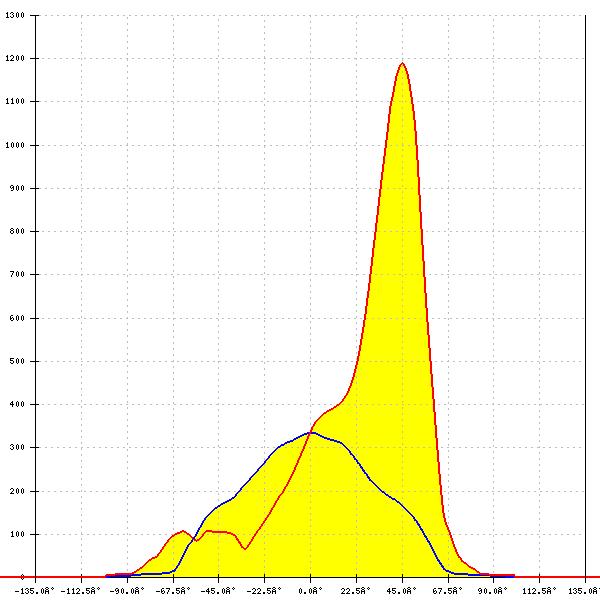

    LED: HiLOM RM12 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 1.188 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM16 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 1.185 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

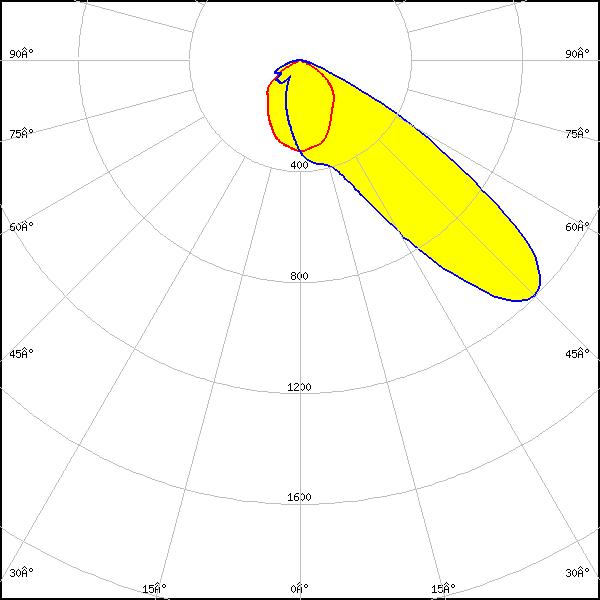

    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 1.196 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH231B
    FWHM: asymmetric
    Peak intensity: 1.585 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH231B
    FWHM: asymmetric
    Peak intensity: 1.480 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

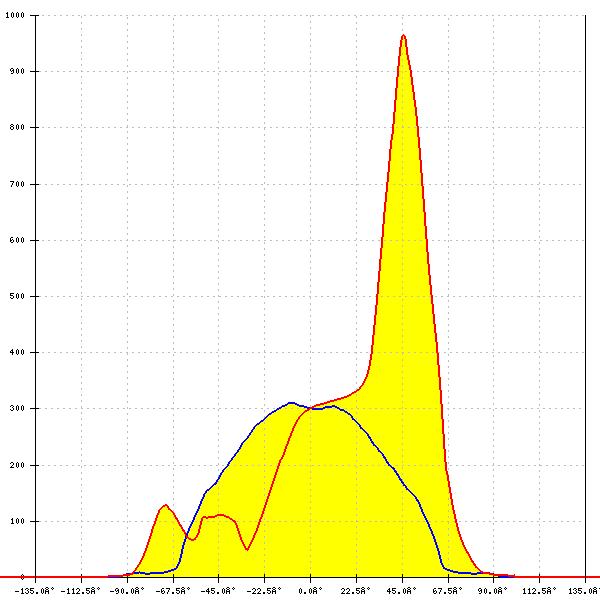

    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 1.030 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 1.080 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 1.452 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

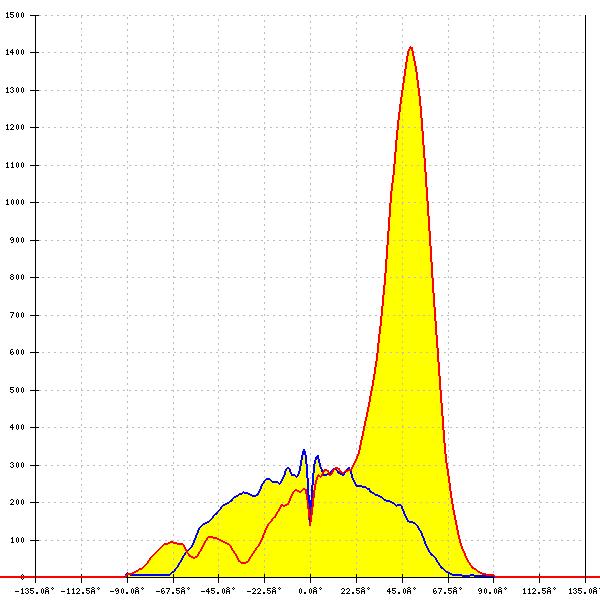

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 1.400 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 1.140 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 1.290 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.271 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.282 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 1.126 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    FWHM: asymmetric
    Peak intensity: 1.630 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: asymmetric
    Peak intensity: 1.199 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MJT 5050
    FWHM: asymmetric
    Peak intensity: 1.246 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 1.239 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.240 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 1.251 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

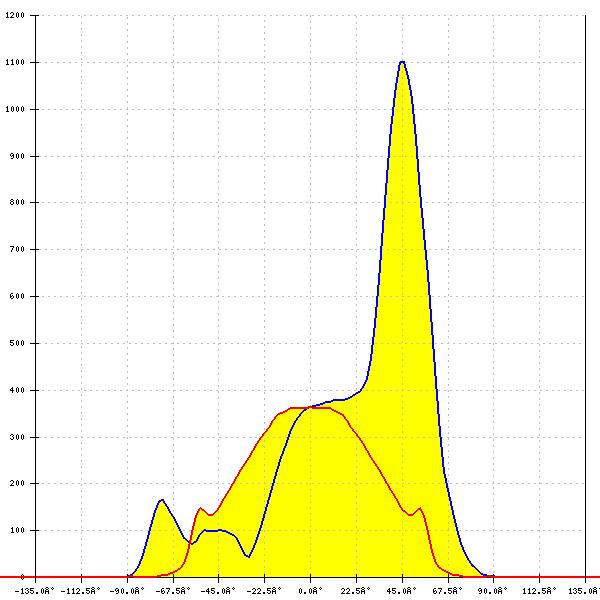

    LED: Z5M1/Z5M2
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

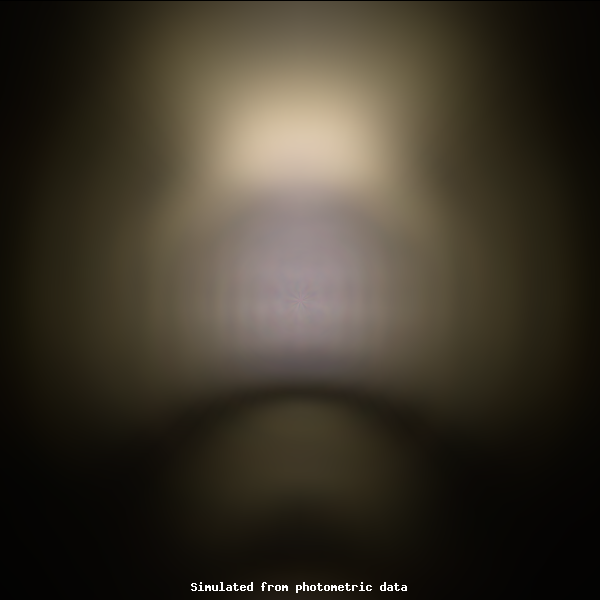

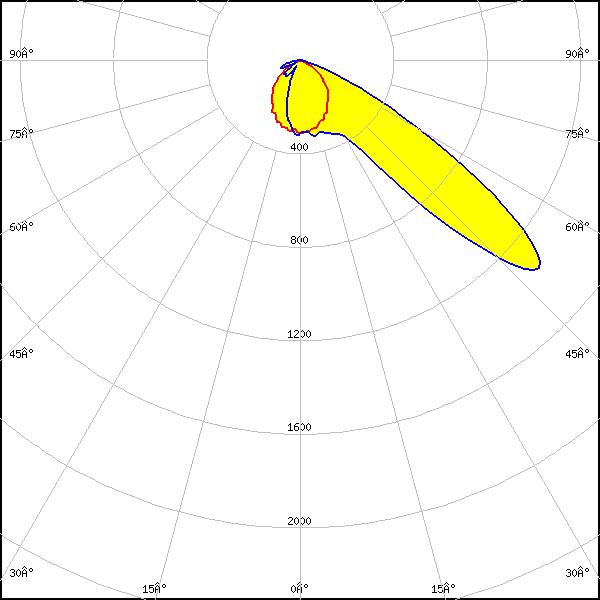

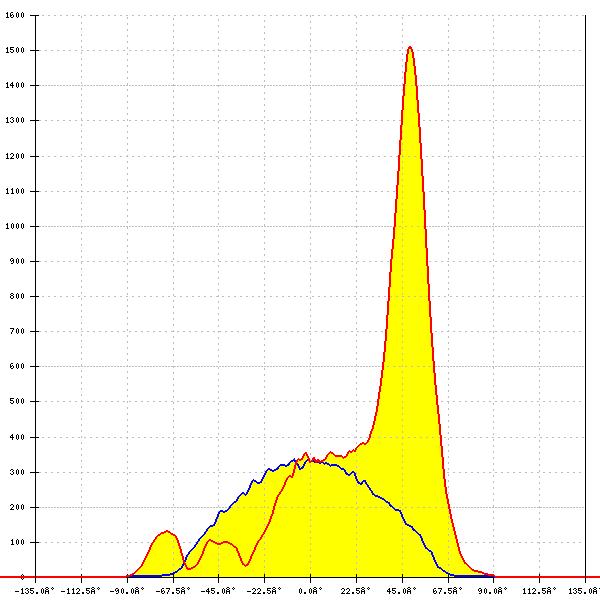

    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.990 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: asymmetric
    Peak intensity: 1.514 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: asymmetric
    Peak intensity: 1.354 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 1.434 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 1.237 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

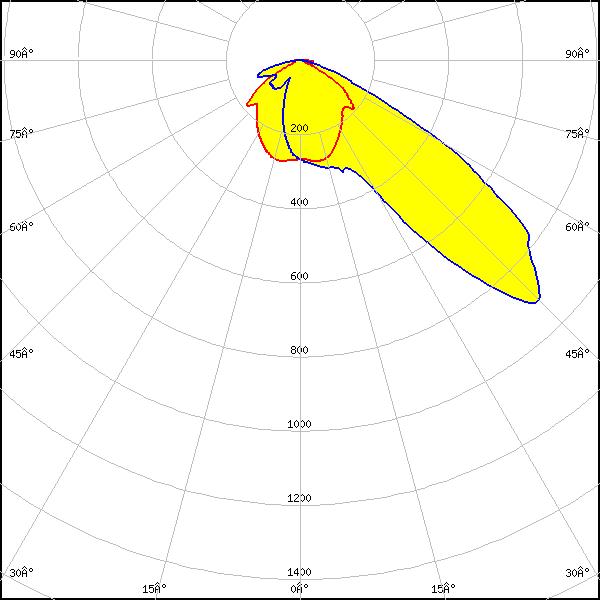

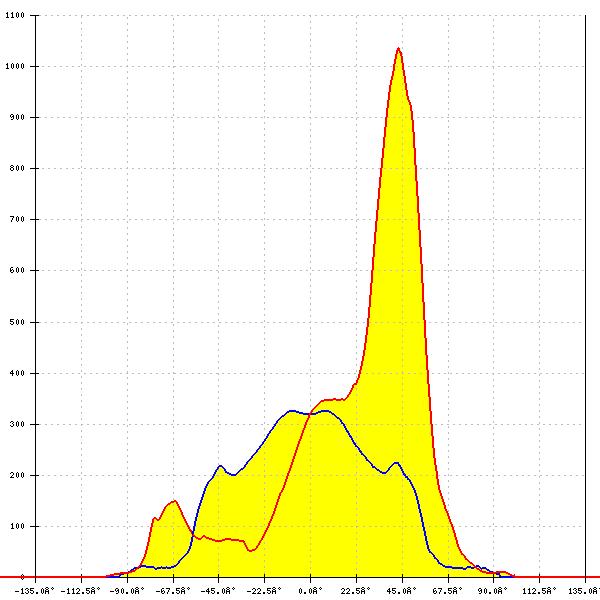

    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22P
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

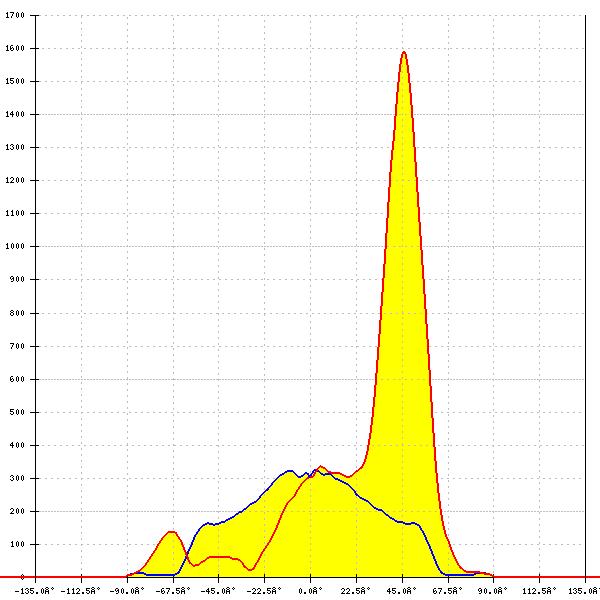

    LED: Z8Y22T
    FWHM: asymmetric
    Peak intensity: 1.592 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

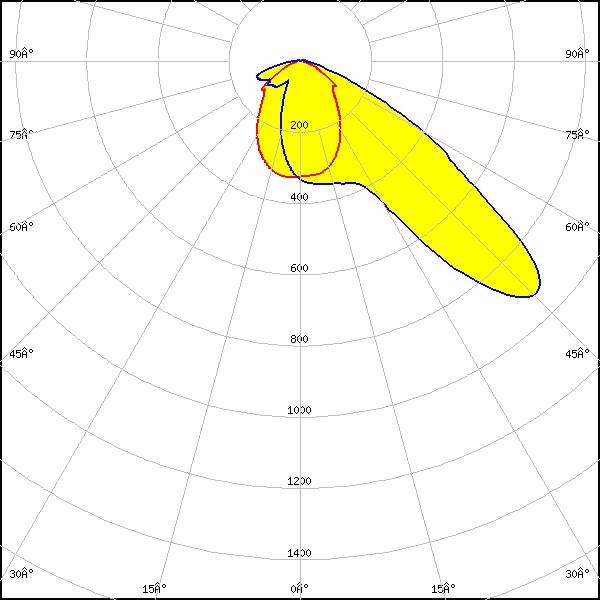

    LED: TL1L3
    FWHM: asymmetric
    Peak intensity: 0.940 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: TL1L4
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

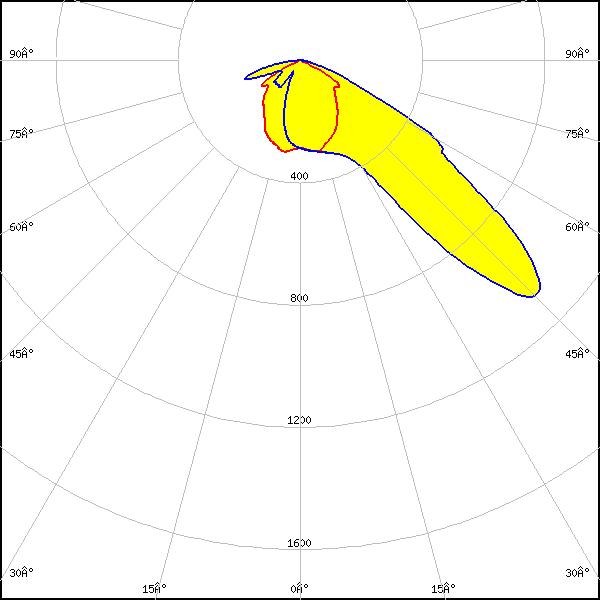

    LED: RLE 2x8 4000lm HP EXC2 OTD
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.323 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 1.163 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 1.153 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x133mm 2000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
