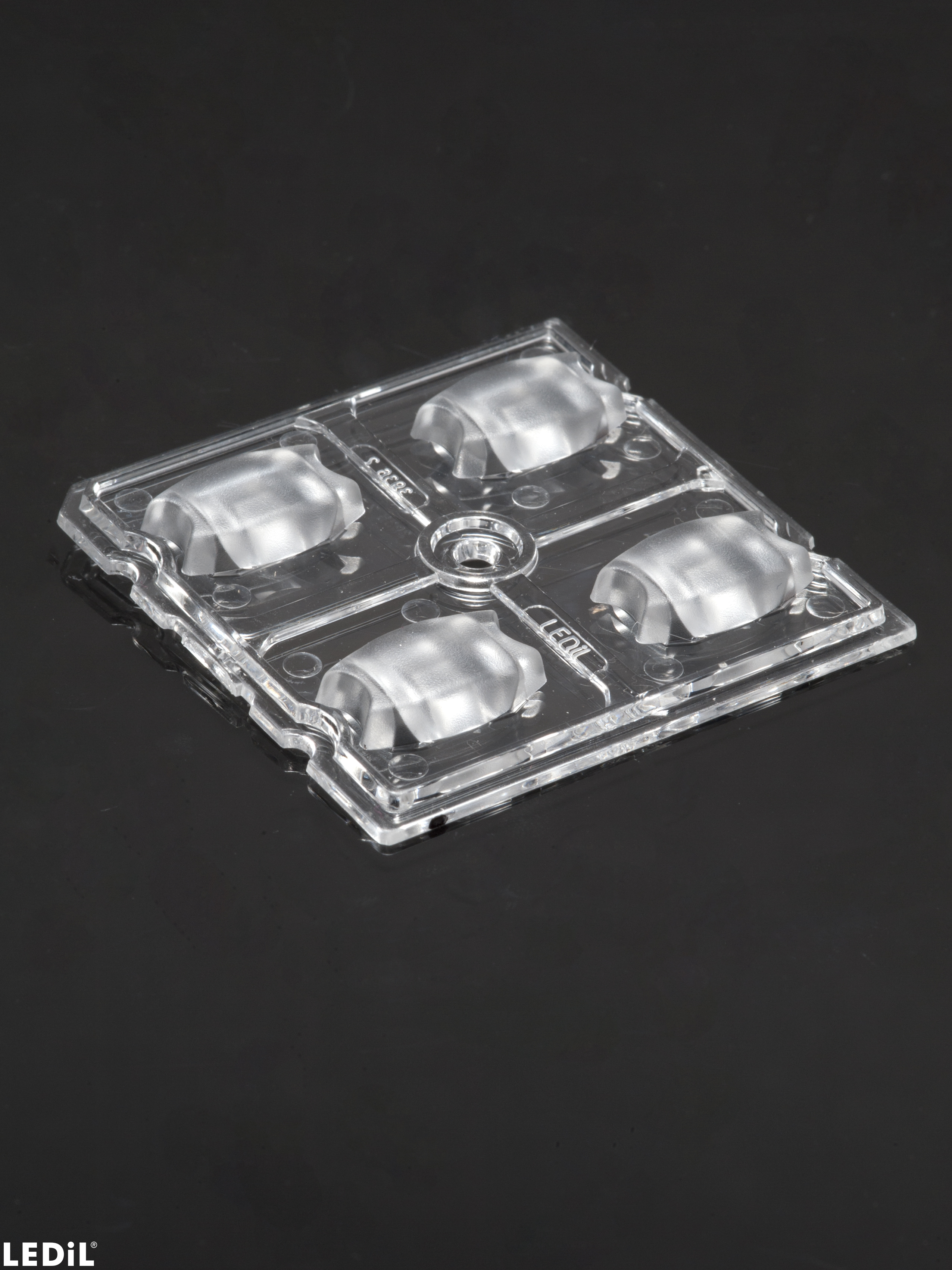

C13936_STRADA-2X2-B2-STP

Print

Beam for area lighting and applications demanding a wide oval beam pattern

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    5.18 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.5 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13936_STRADA-2X2-B2-STP

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

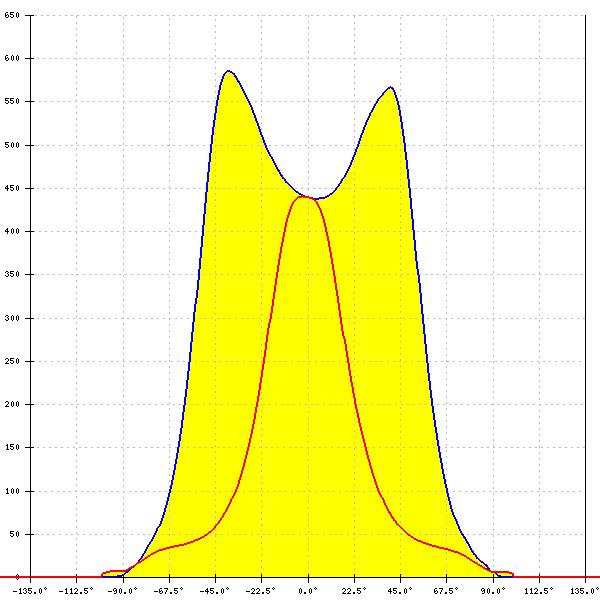

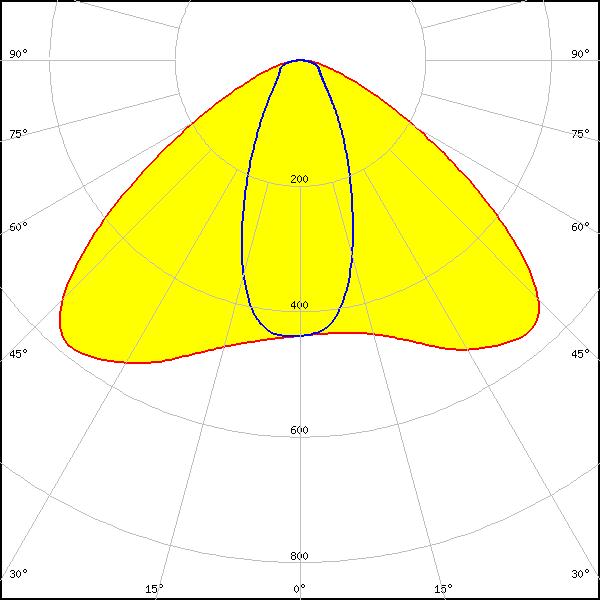

LED: QUICK FLUX XTP 2x4 xxx LS G5
FWHM: 118° + 45°
FWTM: 152° + 105°
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX XTP 2x6 xxx LS G5
FWHM: 119° + 45°
FWTM: 152° + 105°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

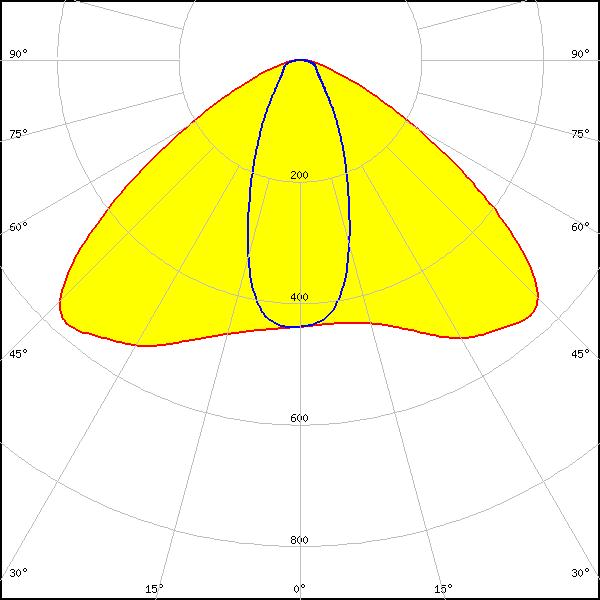

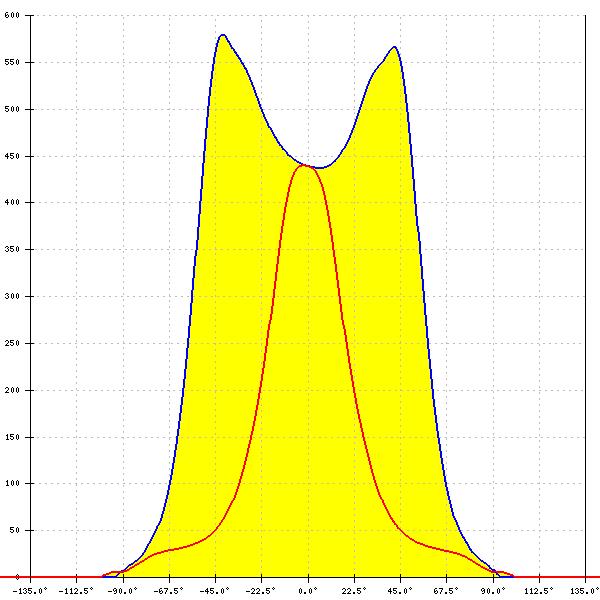

LED: XP-G2
FWHM: 119° + 43°
FWTM: 150° + 96°
Peak intensity: 0.580 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

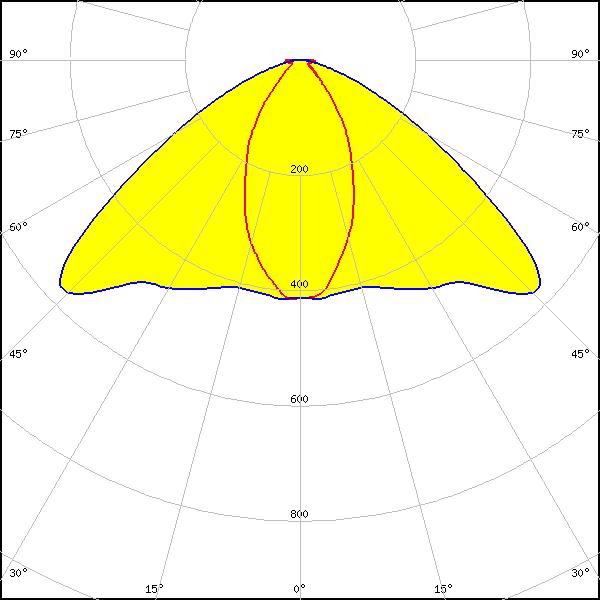

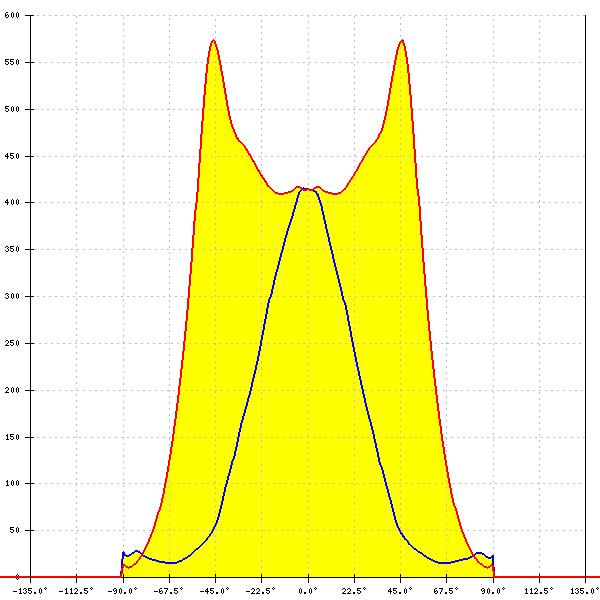

LED: XP-G2 HE
FWHM: 116° + 53°
FWTM: 148° + 97°
Peak intensity: 0.573 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

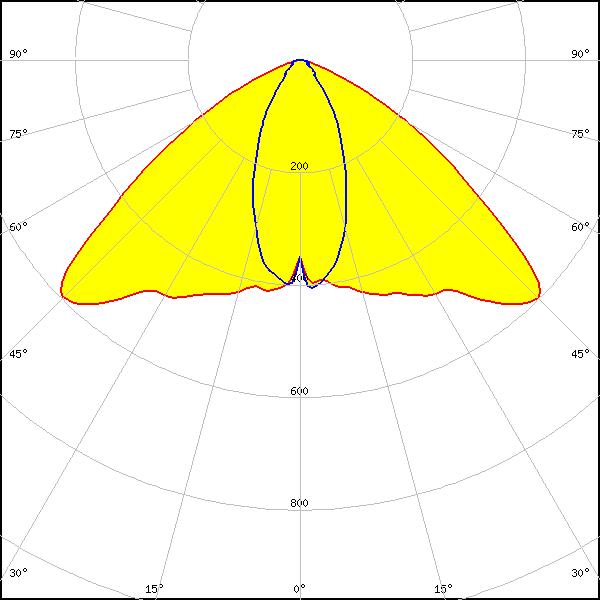

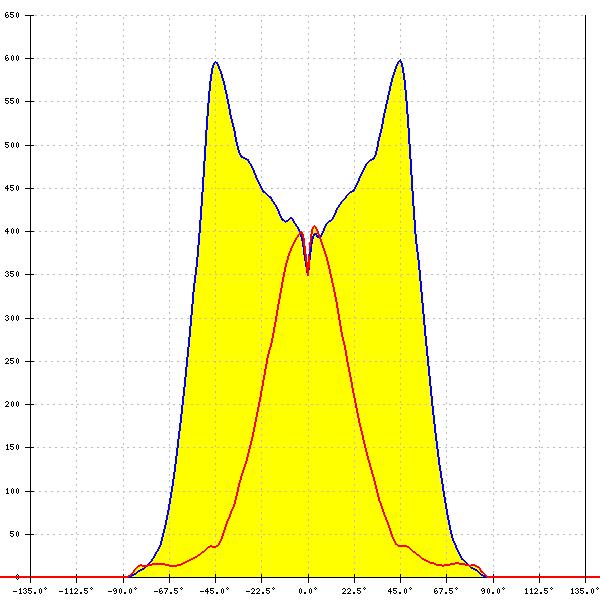

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.598 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: 118° + 45°
FWTM: 155° + 111°
Peak intensity: 0.560 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

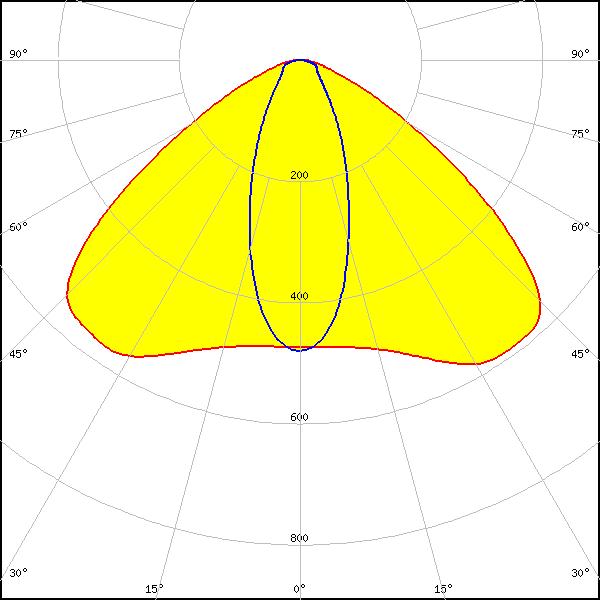

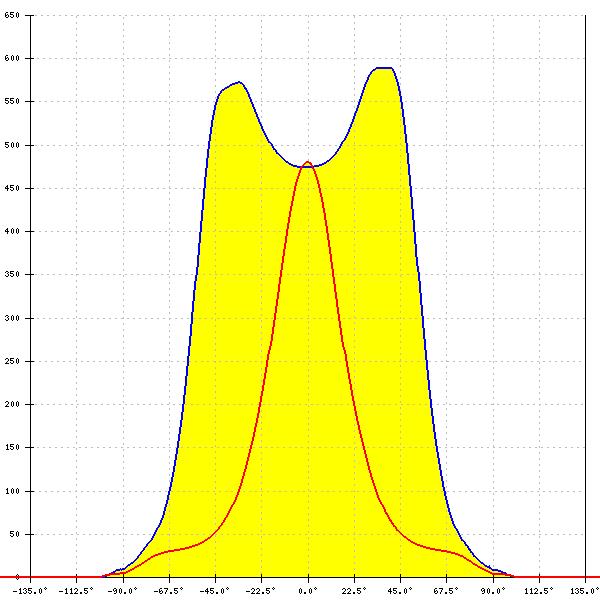

LED: XP-L HI
FWHM: 117° + 40°
FWTM: 149° + 93°
Peak intensity: 0.590 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

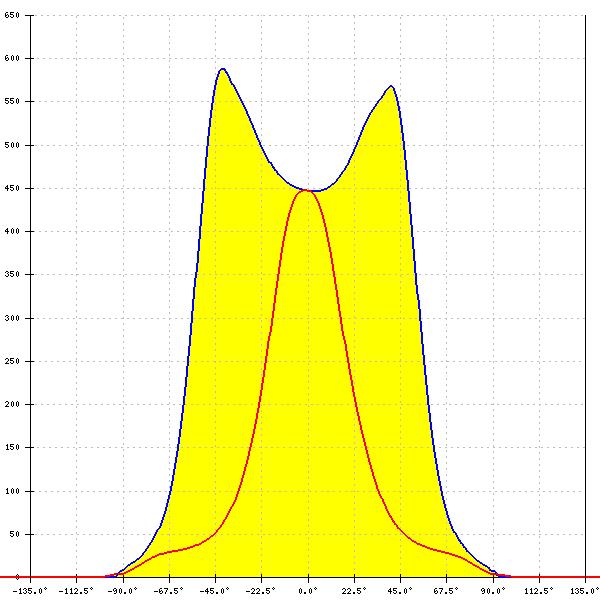

LED: LUXEON TX
FWHM: 117° + 43°
FWTM: 148° + 98°
Peak intensity: 0.590 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

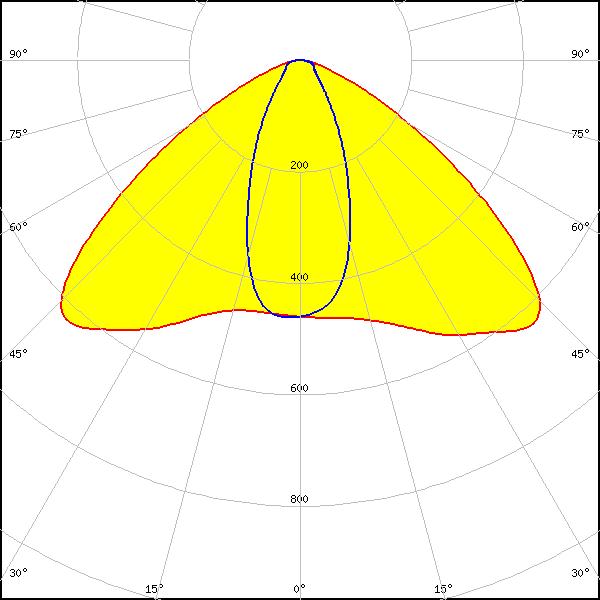

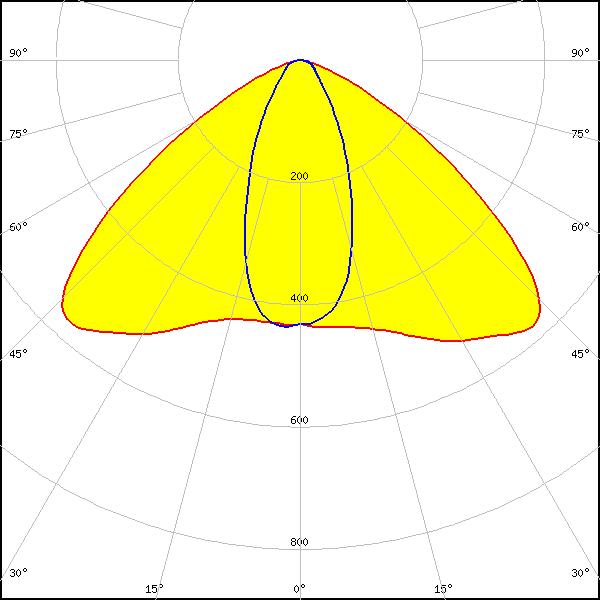

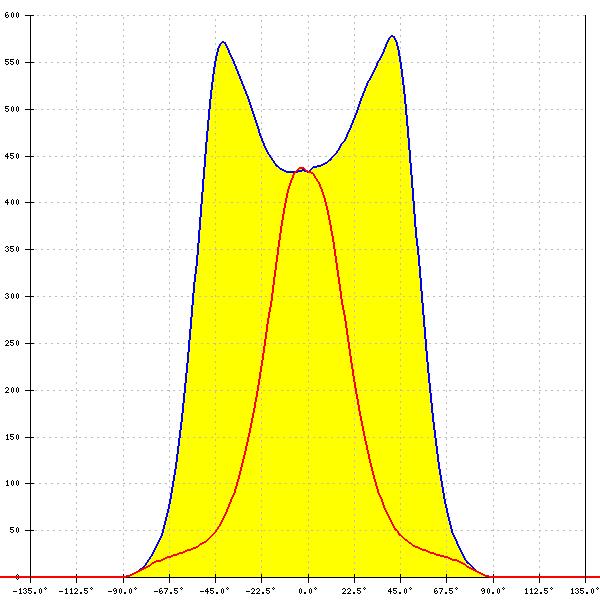

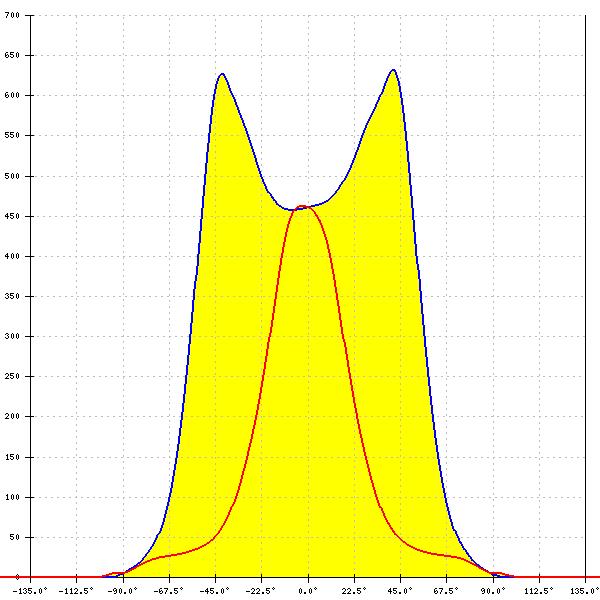

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: 112° + 45°
FWTM: 138° + 93°
Peak intensity: 0.578 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.631 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

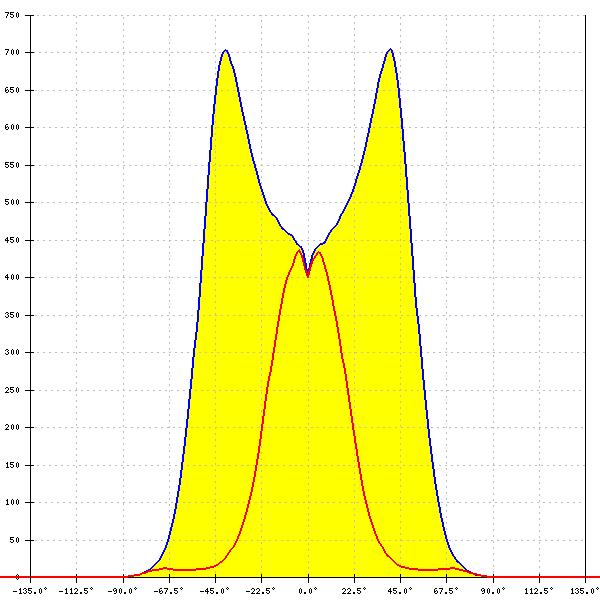

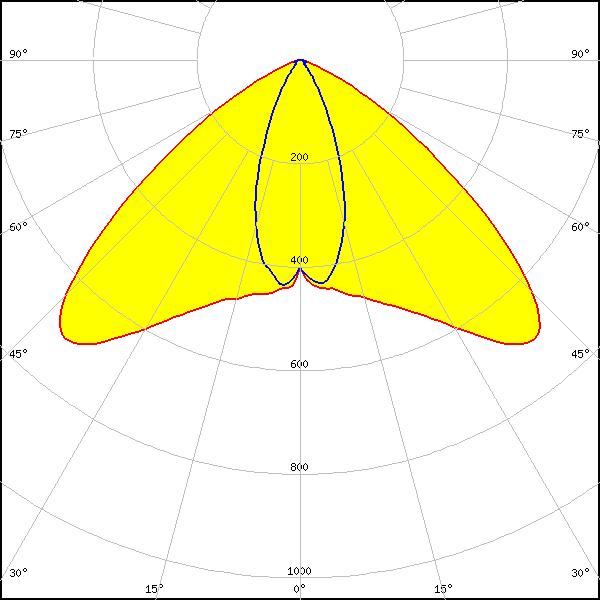

LED: NF2x757G
FWHM: 106° + 42°
FWTM: 132° + 72°
Peak intensity: 0.705 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

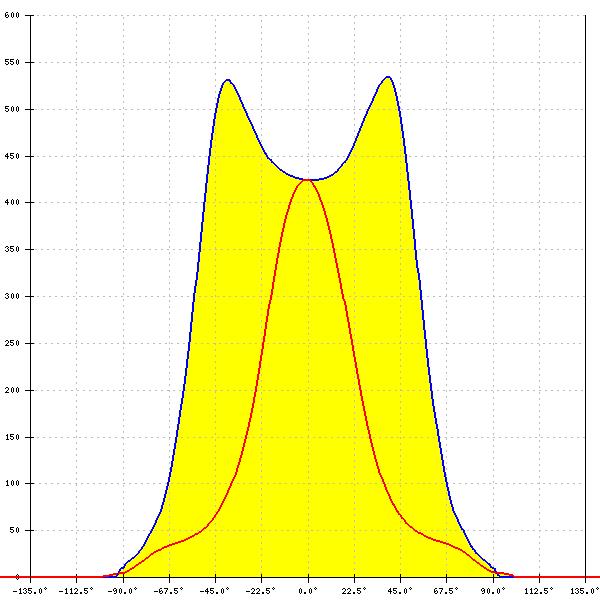

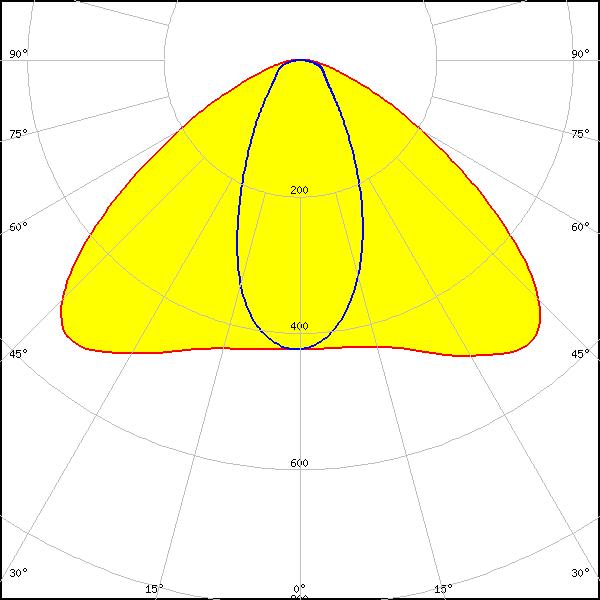

LED: NVSW3x9A
FWHM: 119° + 49°
FWTM: 155° + 115°
Peak intensity: 0.530 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

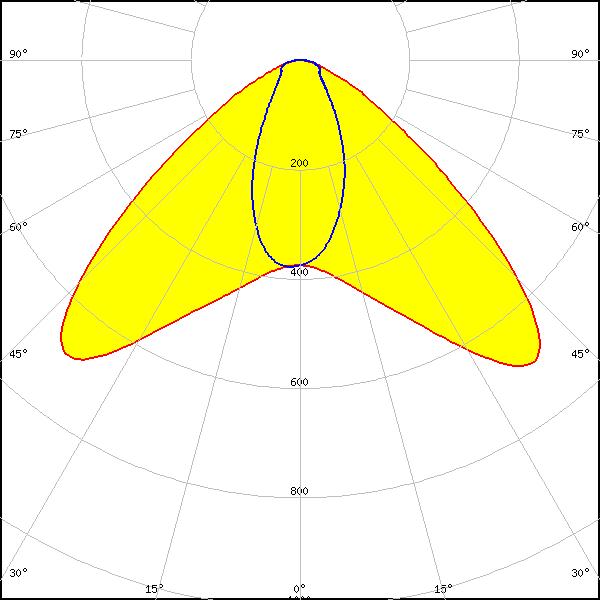

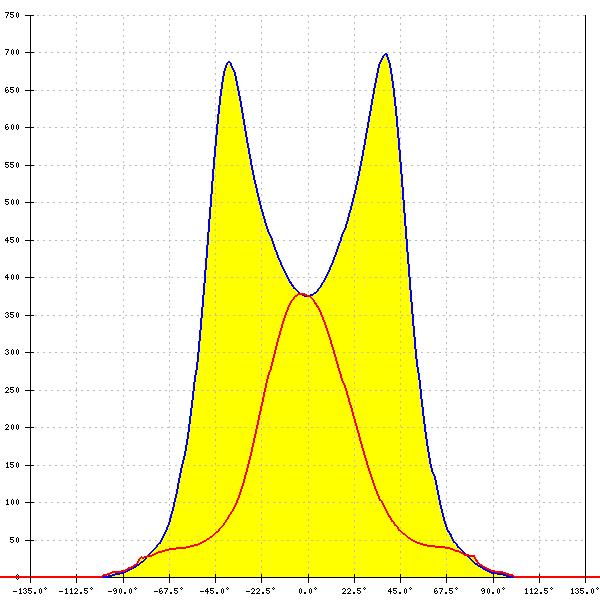

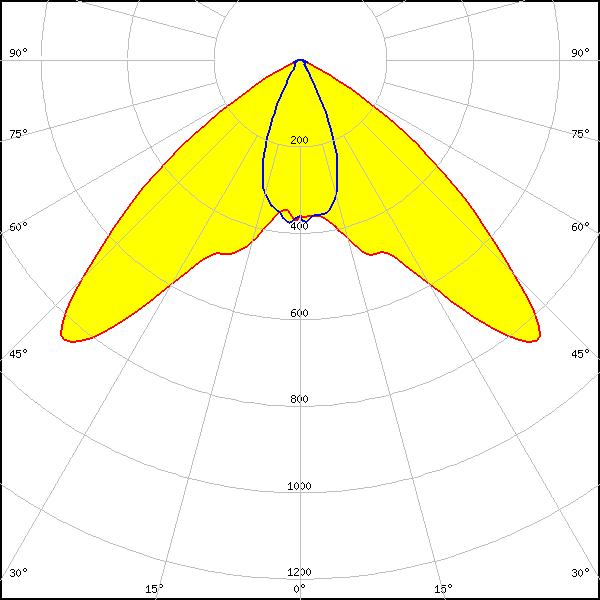

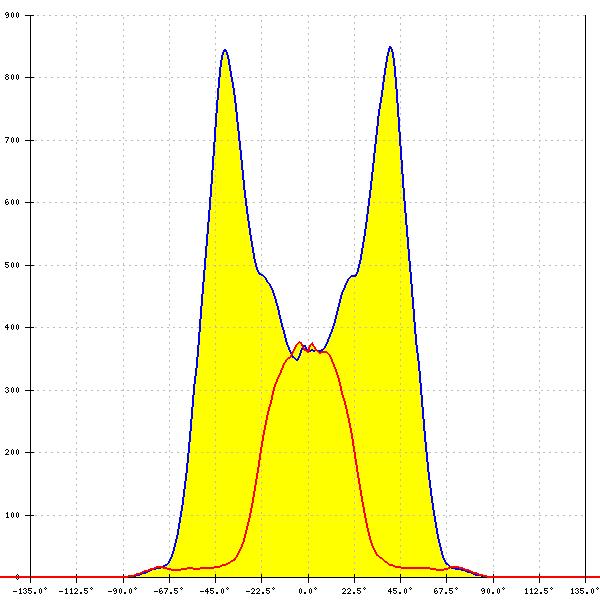

LED: NVSxE21A
FWHM: 104° + 46°
FWTM: 124° + 68°
Peak intensity: 0.850 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: 116° + 51°
FWTM: 148° + 134°
Peak intensity: 0.700 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Brick HP 2x8
FWHM: 118° + 43°
FWTM: 149° + 96°
Peak intensity: 0.580 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: 111° + 45°
FWTM: 140° + 105°
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

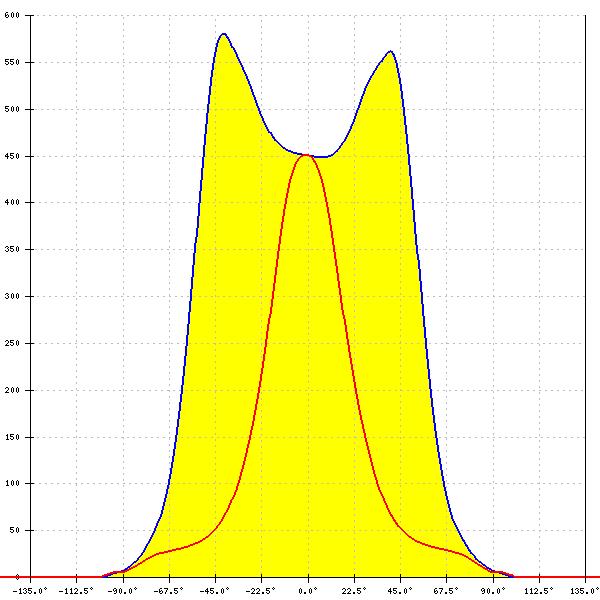

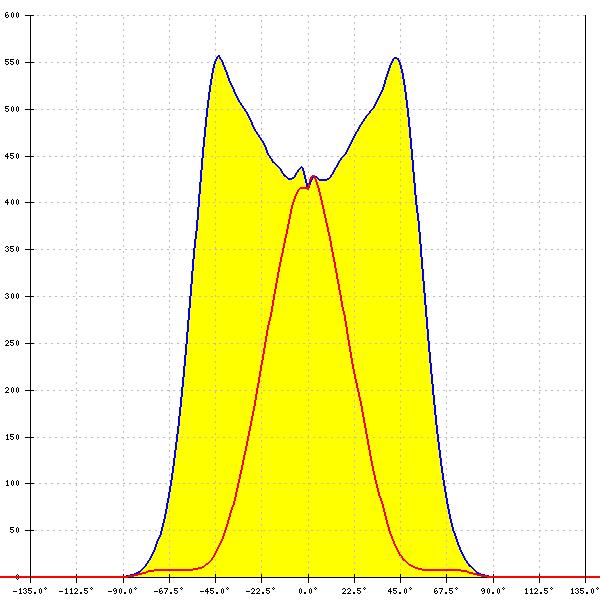

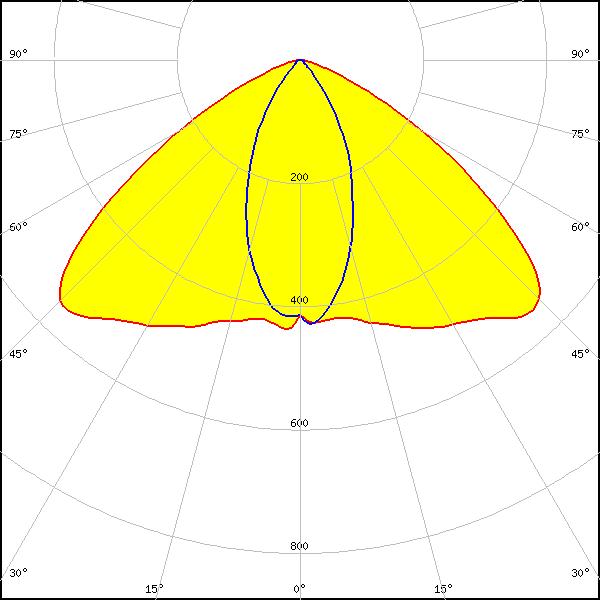

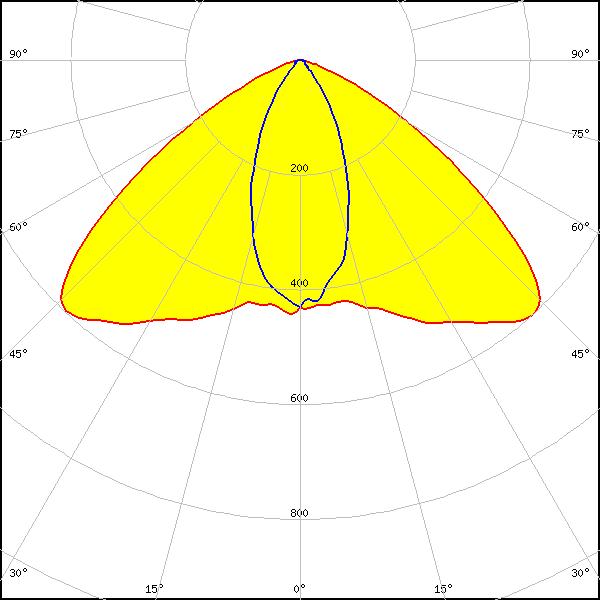

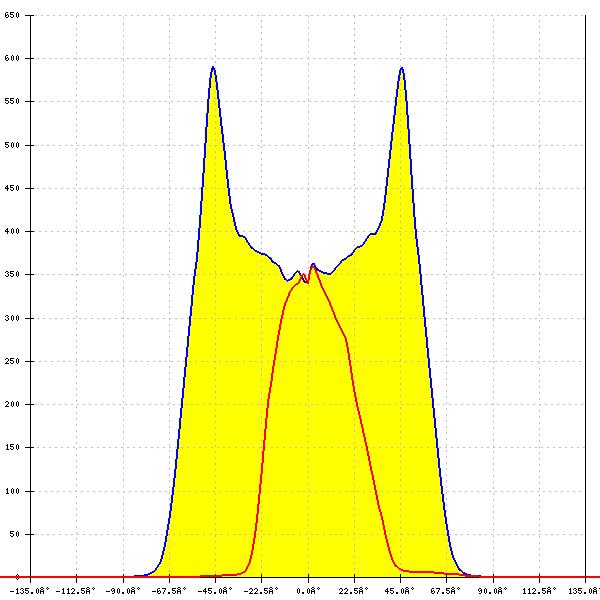

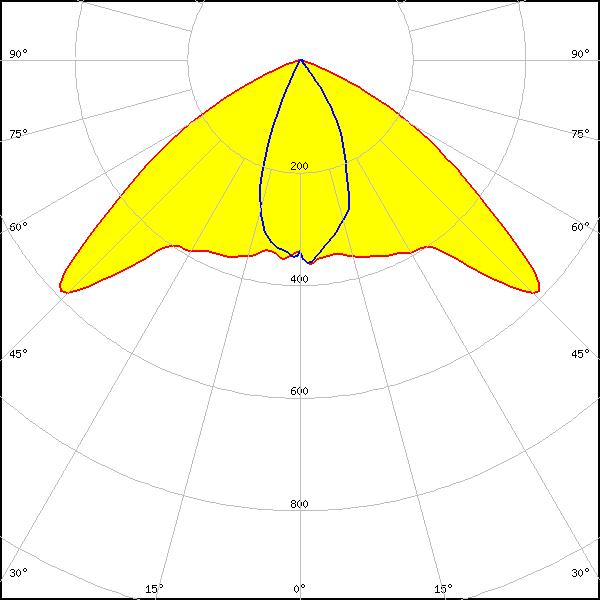

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 116° + 46°
FWTM: 142° + 82°
Peak intensity: 0.556 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.601 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

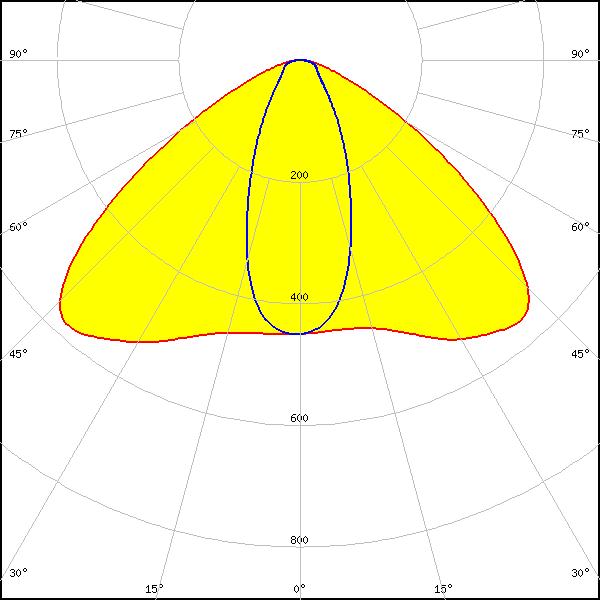

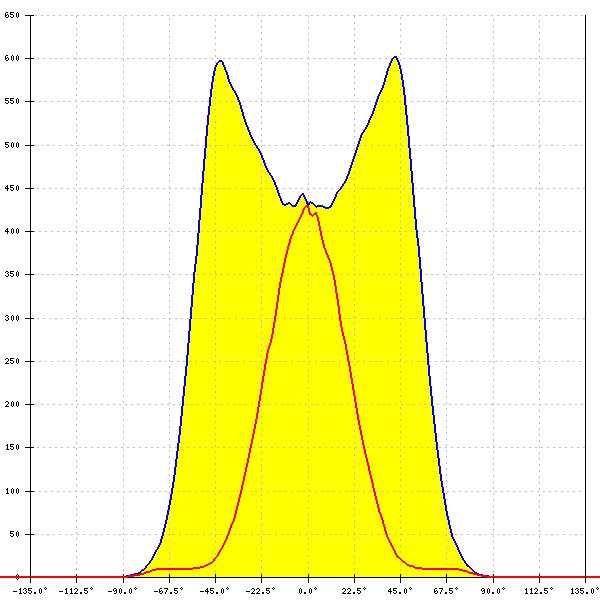

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 118° + 43°
FWTM: 149° + 96°
Peak intensity: 0.580 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

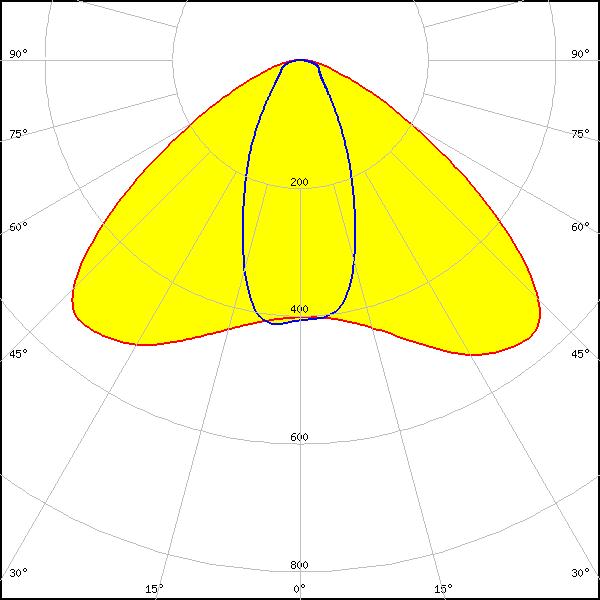

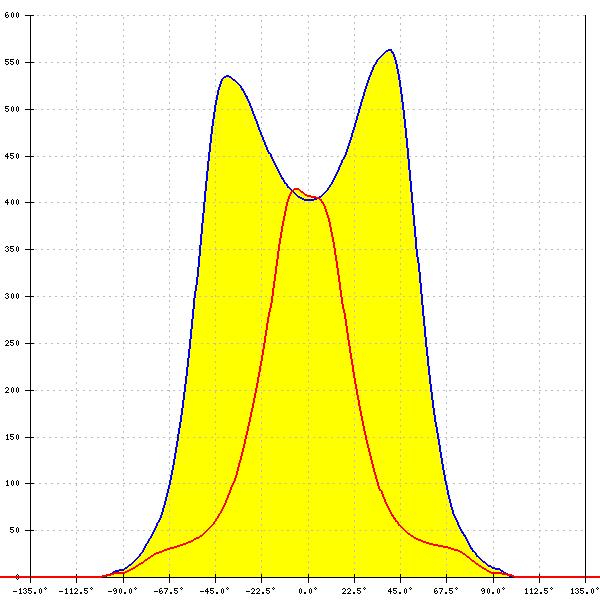

LED: OSLON Square PC
FWHM: 120° + 48°
FWTM: 154° + 106°
Peak intensity: 0.560 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

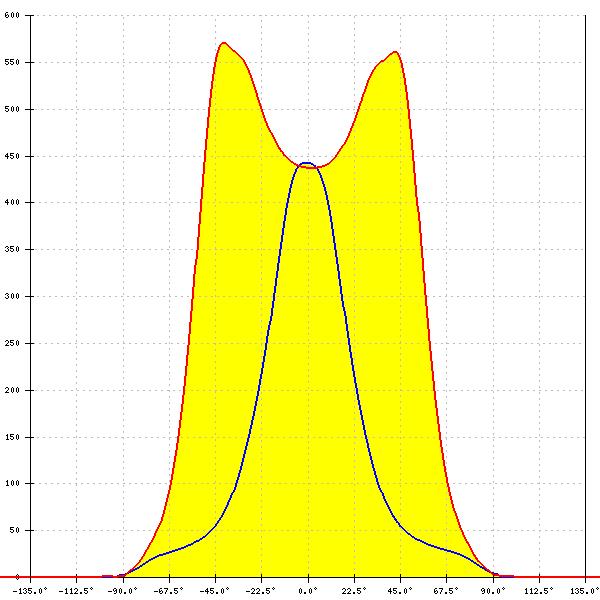

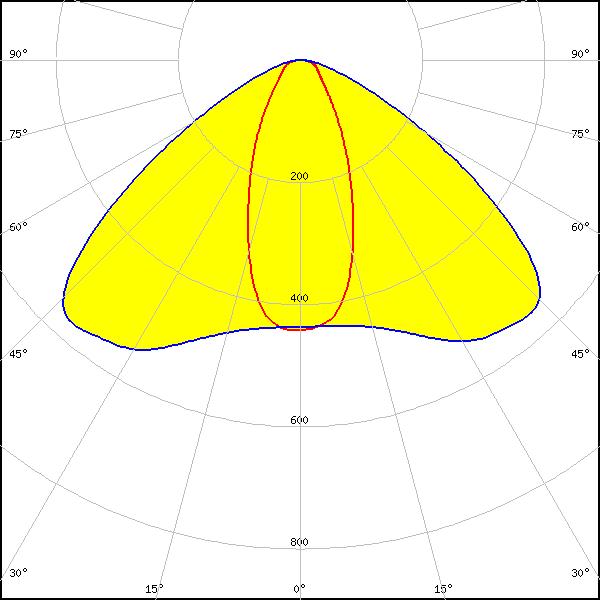

LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: 120° + 44°
FWTM: 151° + 100°
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity: 0.535 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

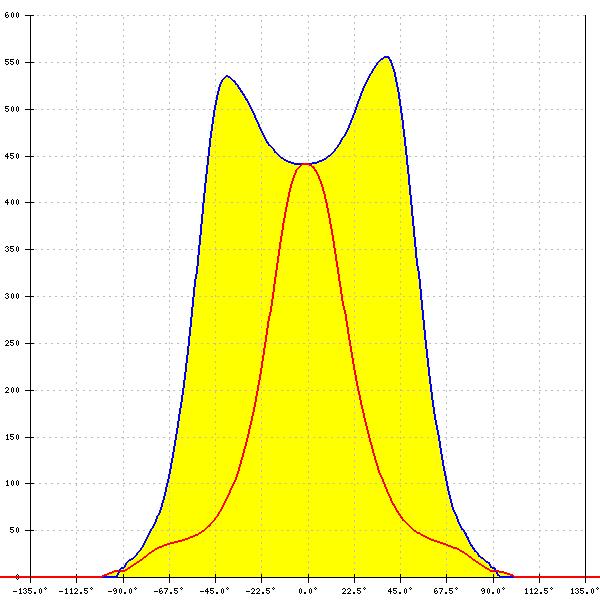

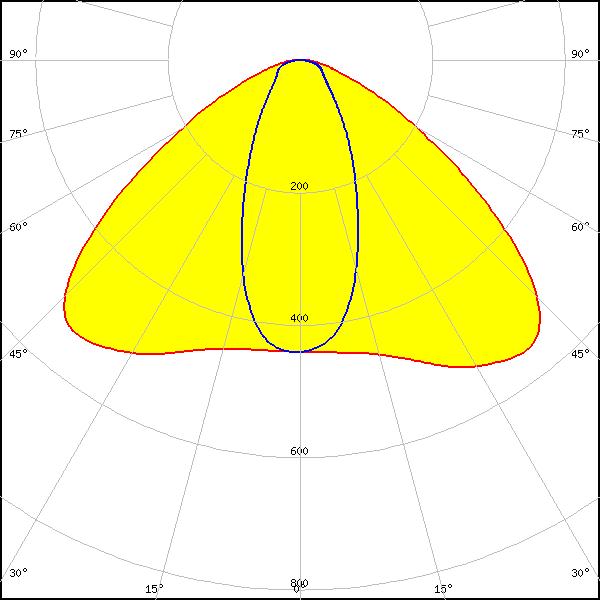

LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: 112° + 64°
FWTM: 121° + 149°
Peak intensity: 0.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

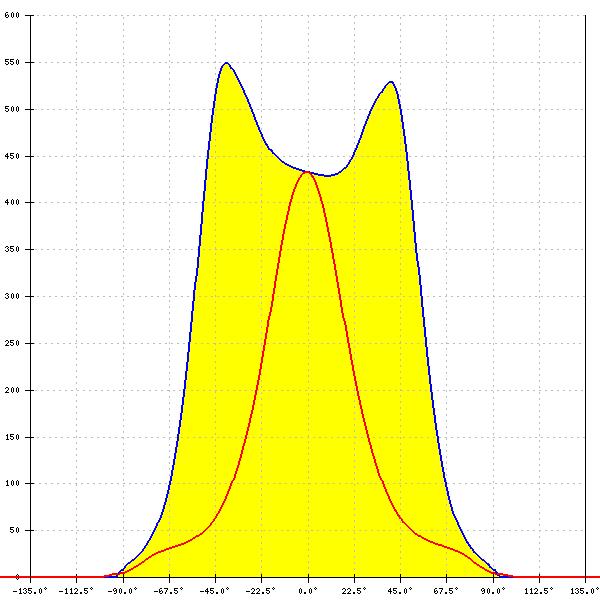

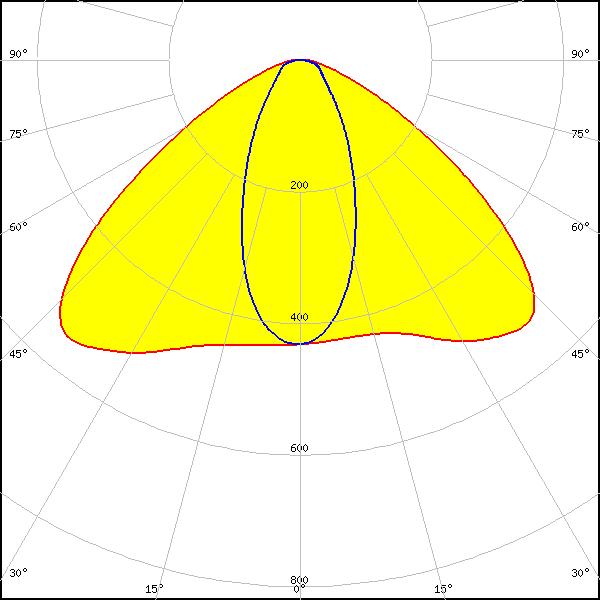

LED: LH351B
FWHM: 118° + 46°
FWTM: 152° + 109°
Peak intensity: 0.550 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

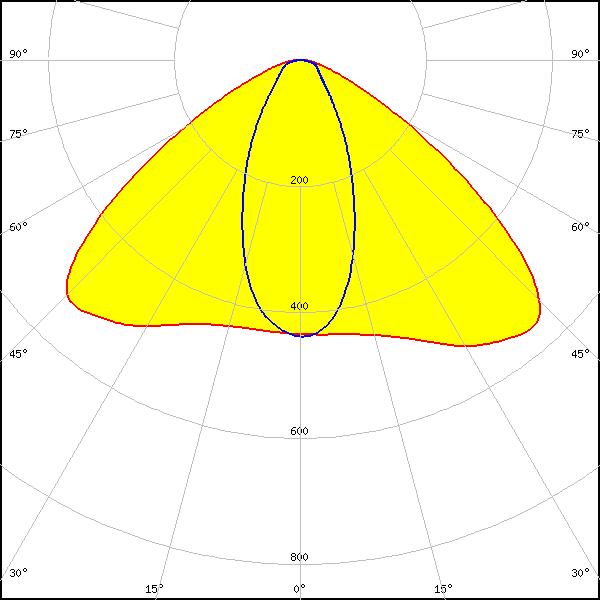

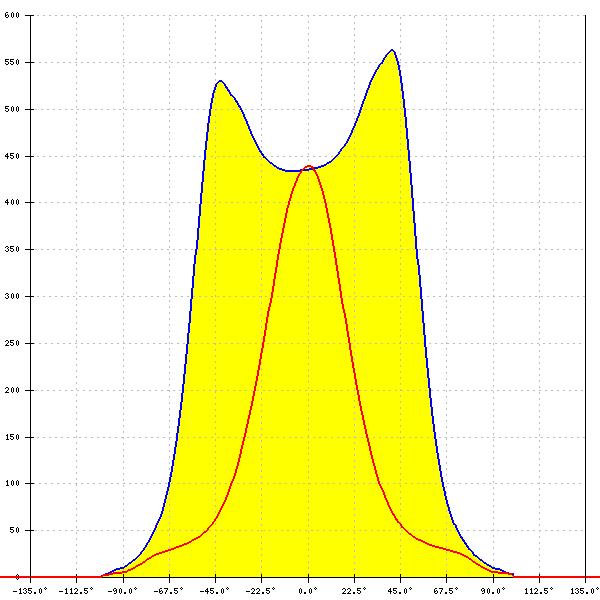

LED: LH351Z
FWHM: 118° + 47°
FWTM: 0° + 0°
Peak intensity: 0.560 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

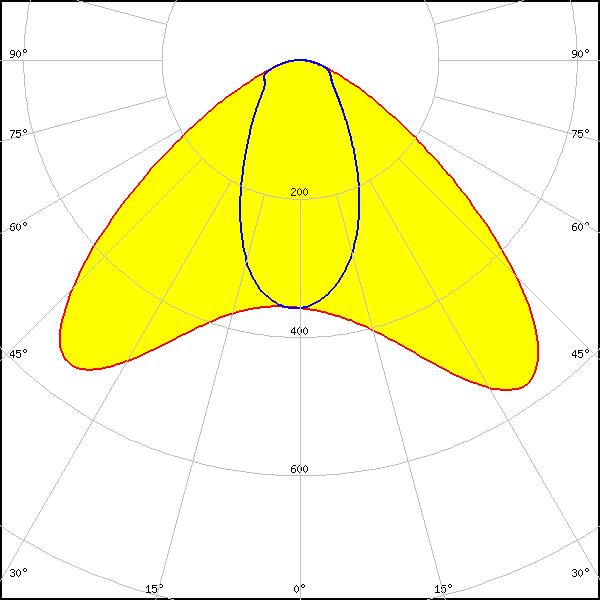

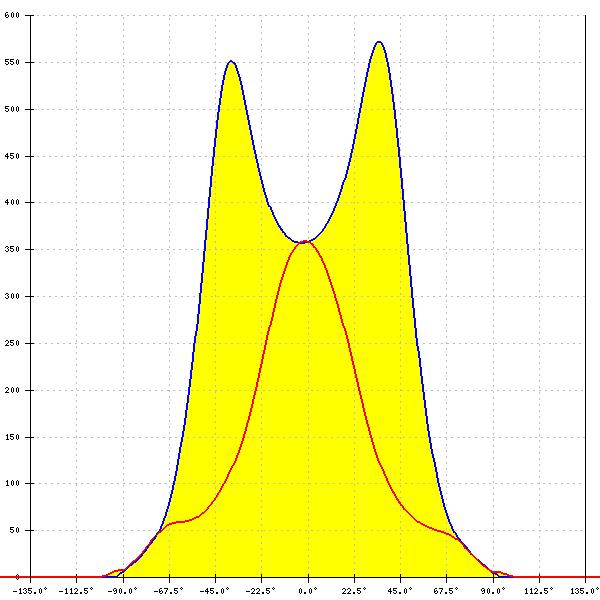

LED: Z8Y22
FWHM: 116° + 55°
FWTM: 151° + 152°
Peak intensity: 0.570 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

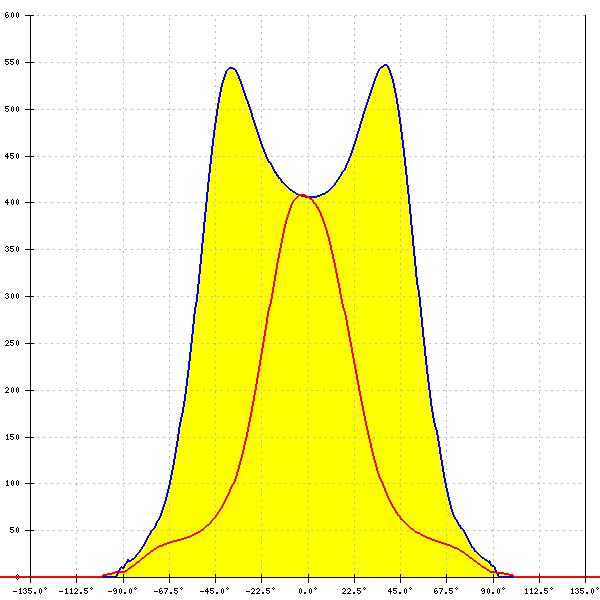

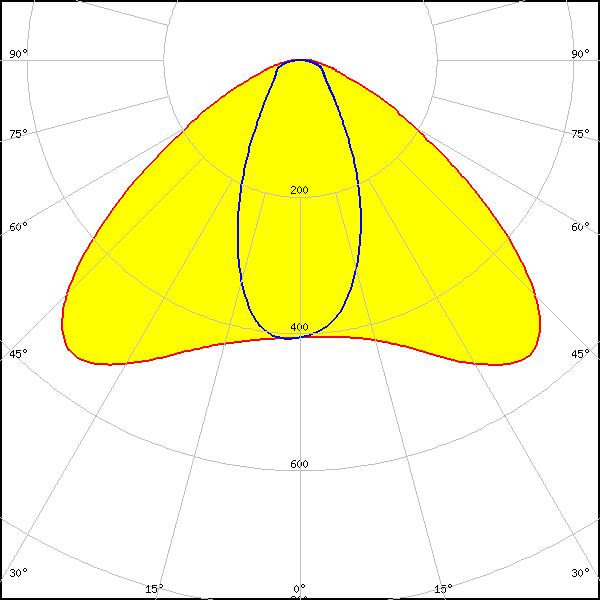

LED: Z8Y22P
FWHM: 118° + 50°
FWTM: 156° + 120°
Peak intensity: 0.550 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

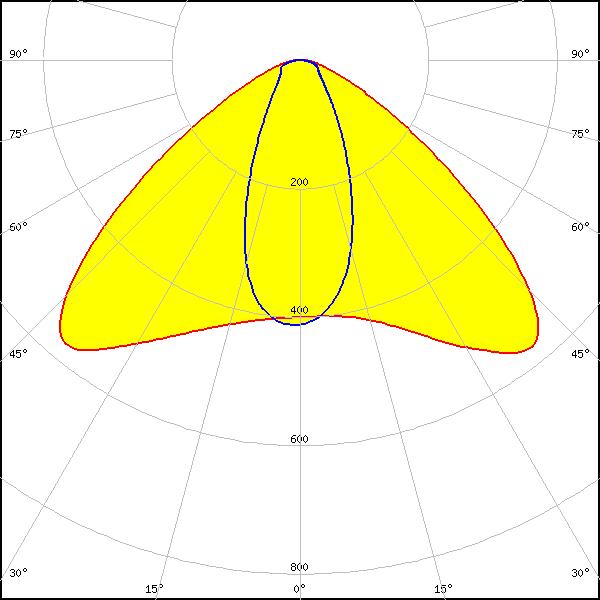

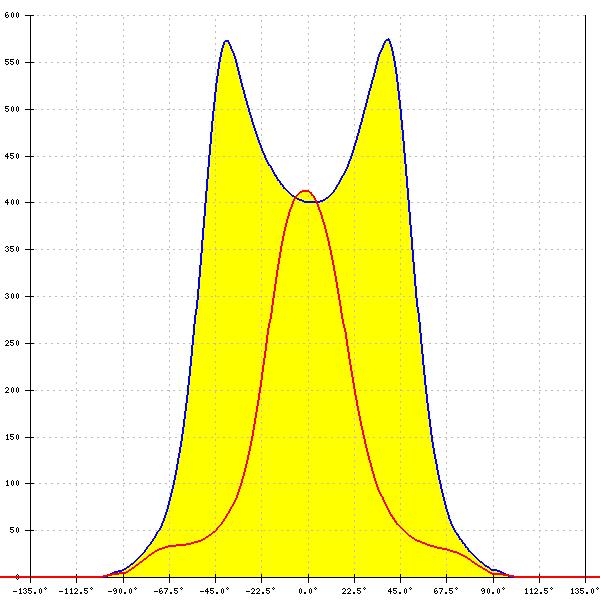

LED: TL1L4
FWHM: 116° + 45°
FWTM: 149° + 102°
Peak intensity: 0.570 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x4 2000lm HP EXC2 OTD
FWHM: 119° + 44°
FWTM: 151° + 105°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

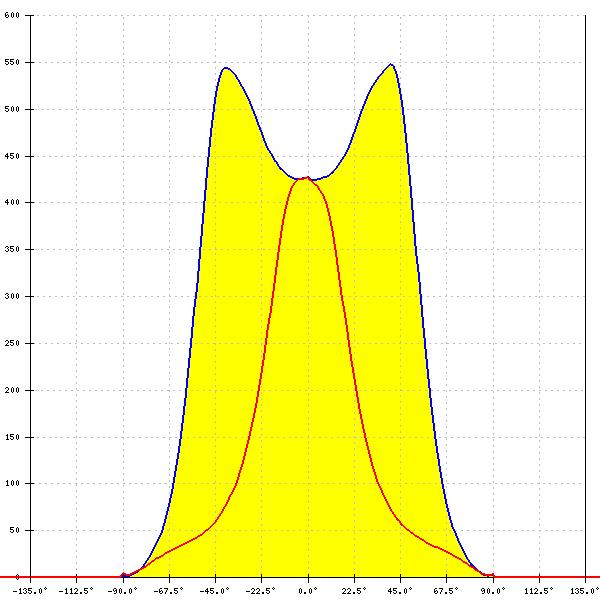

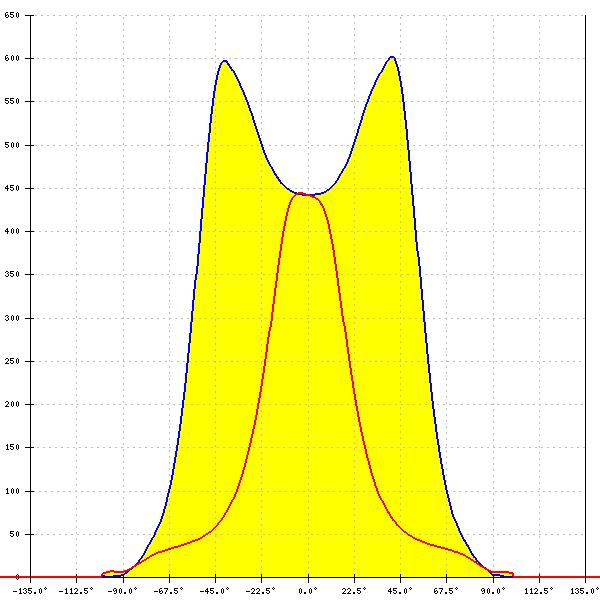

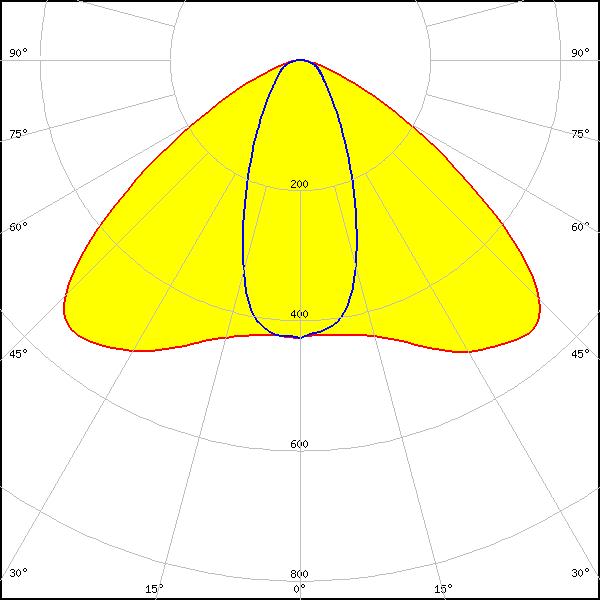

LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 0.547 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

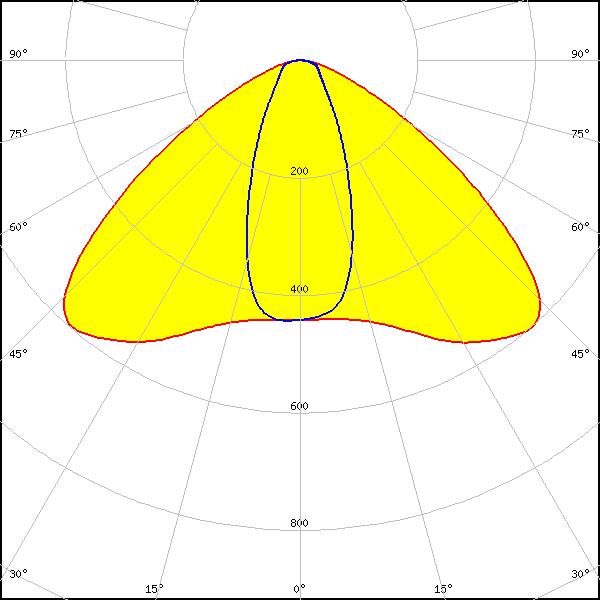

LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: 119° + 44°
FWTM: 151° + 105°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

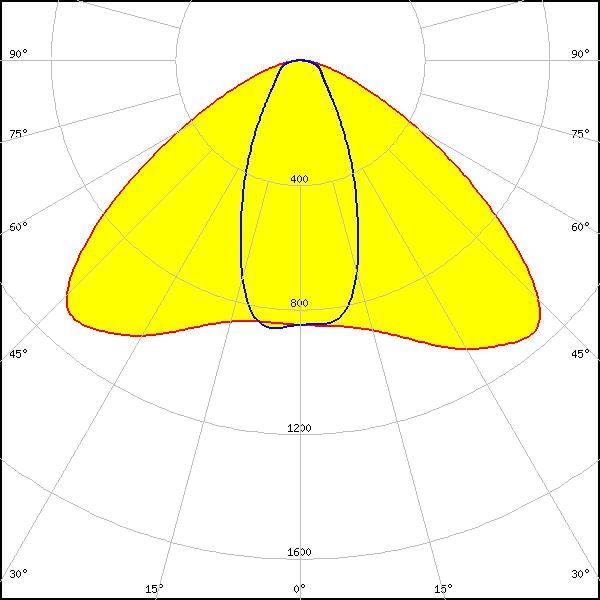

LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: 121° + 48°
FWTM: 154° + 113°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: 121° + 48°
FWTM: 154° + 113°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

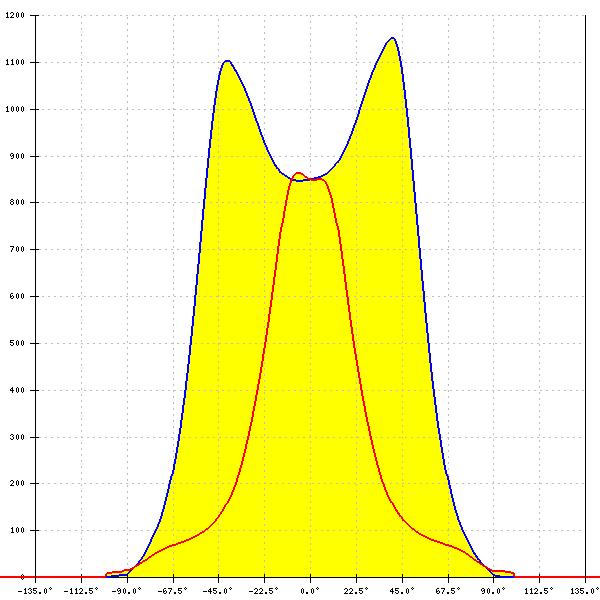

LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: 121° + 48°
FWTM: 154° + 113°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: 121° + 48°
FWTM: 154° + 113°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
