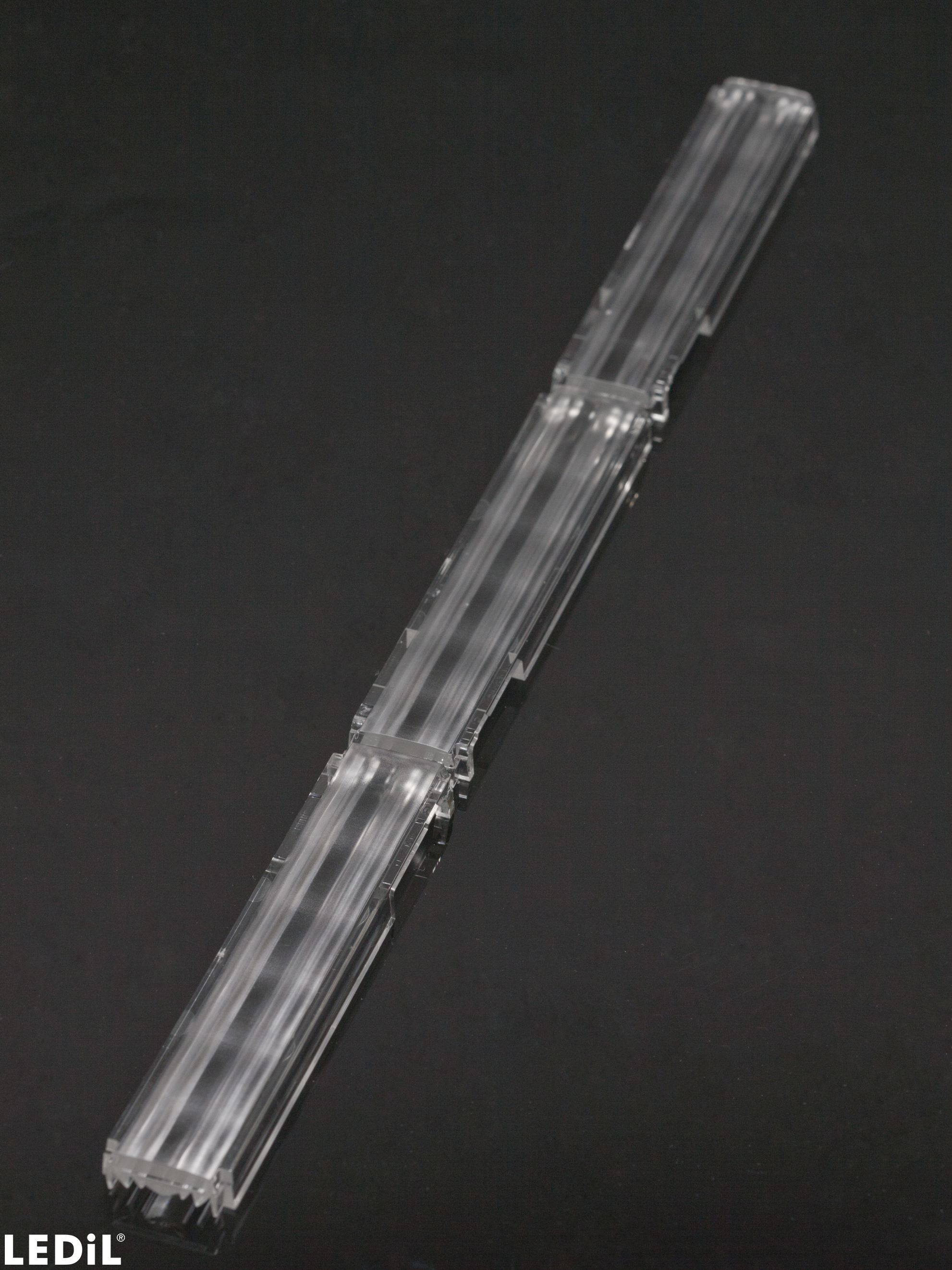

C14454_FLORENCE-1R-O

Print

~95° + 30° oval beam

Specification
  • Dimensions:
    286 x  20 mm
  • Height:
    7.00 mm
  • Fastening:
    glue, clips
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    210 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.1 kg
  • MPQ:
    15 pcs
  • MOQ:
    45 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C14454_FLORENCE-1R-O

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: L0-280024-xxx-C0800-L267
FWHM: 92° + 35°
FWTM: 131° + 89°
Peak intensity: 0.780 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

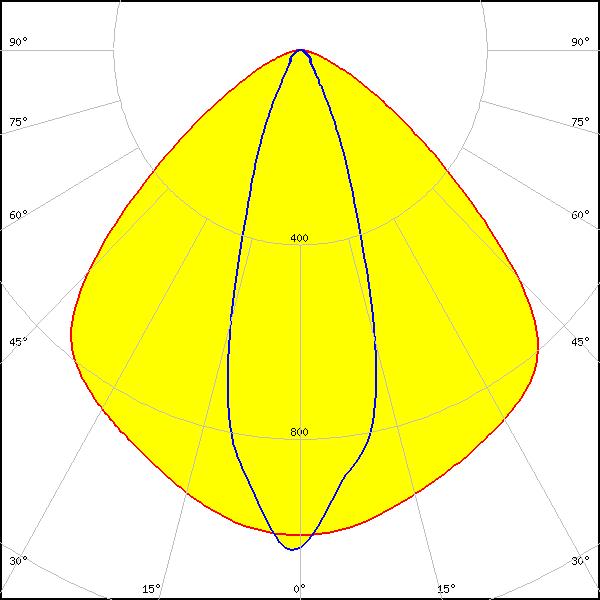

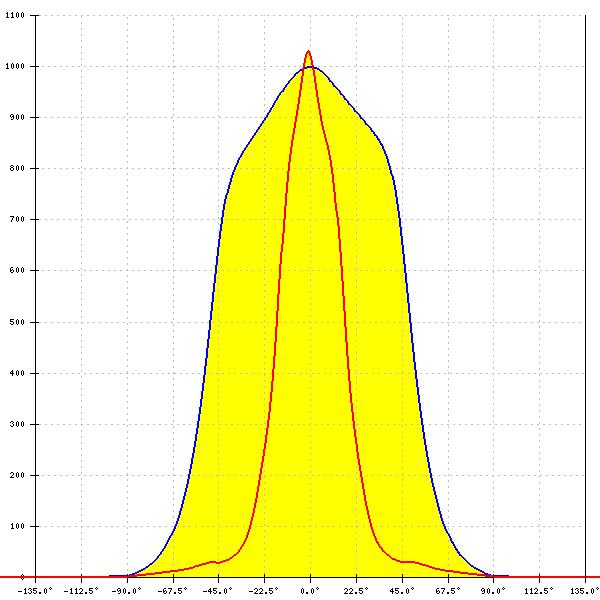

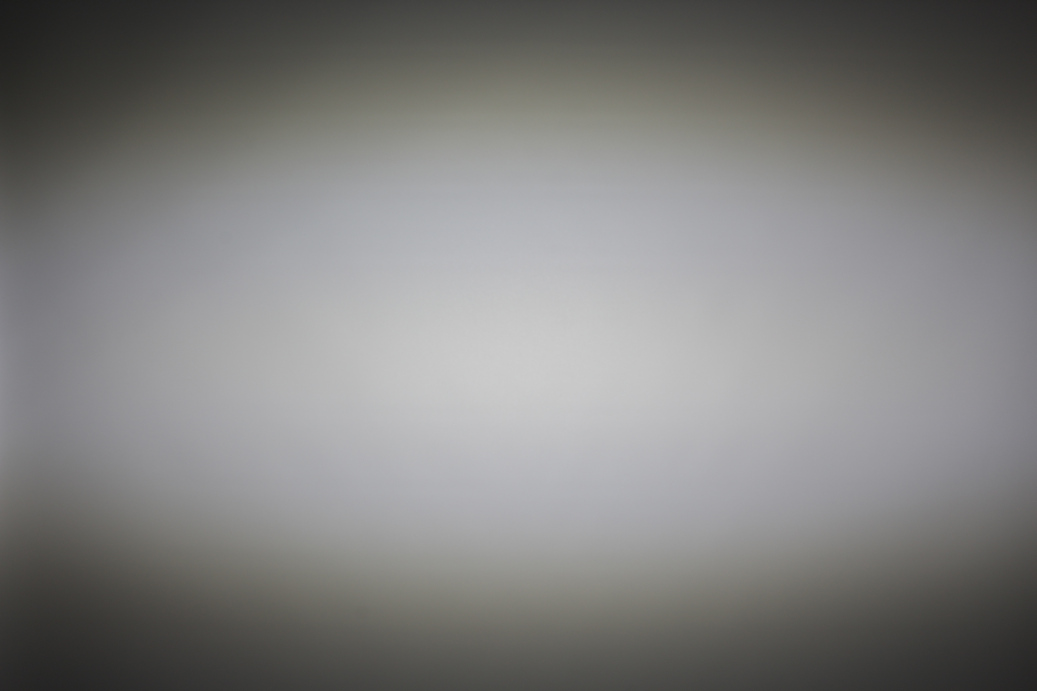

LED: LUXEON 3014
FWHM: 98° + 33°
FWTM: 133° + 59°
Peak intensity: 1.030 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

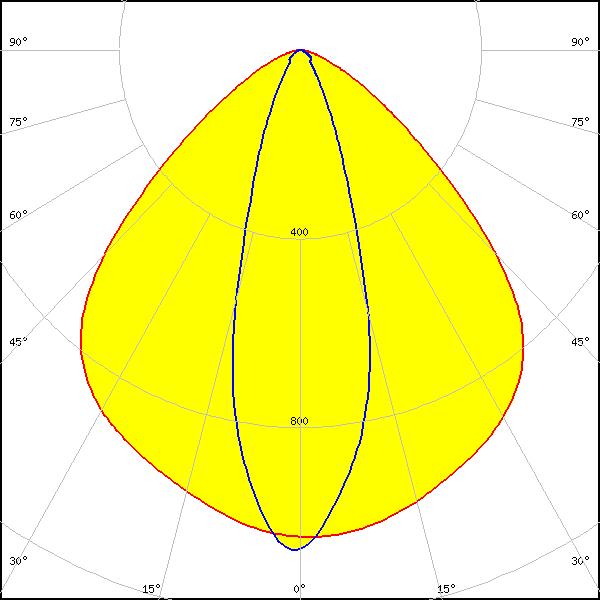

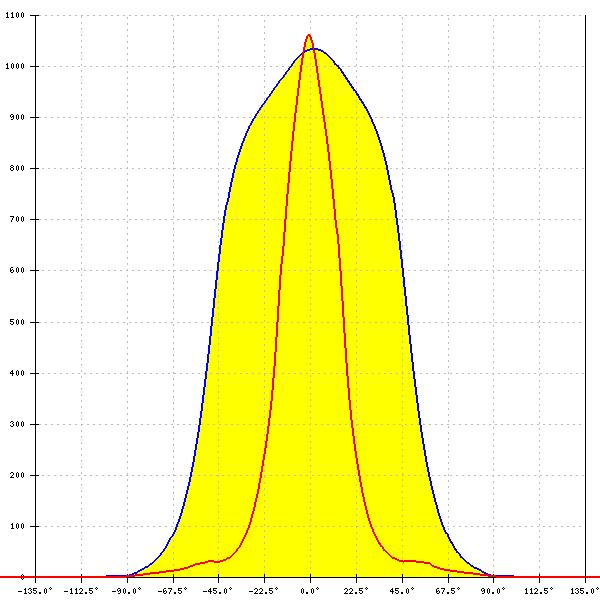

LED: LUXEON 3020
FWHM: 95° + 31°
FWTM: 131° + 59°
Peak intensity: 1.060 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

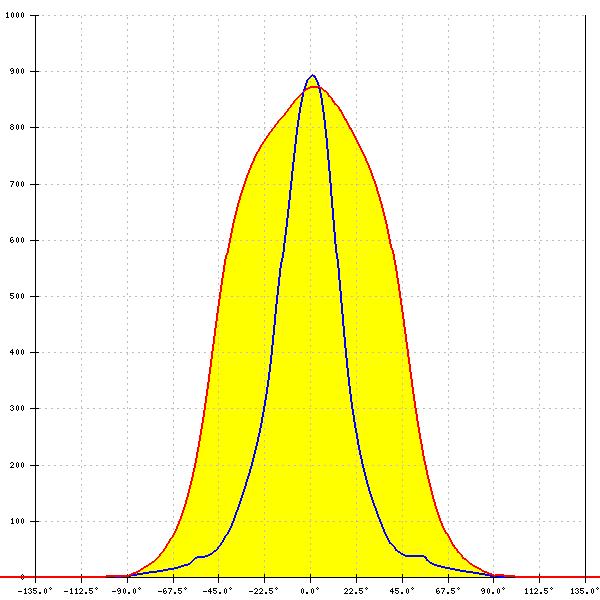

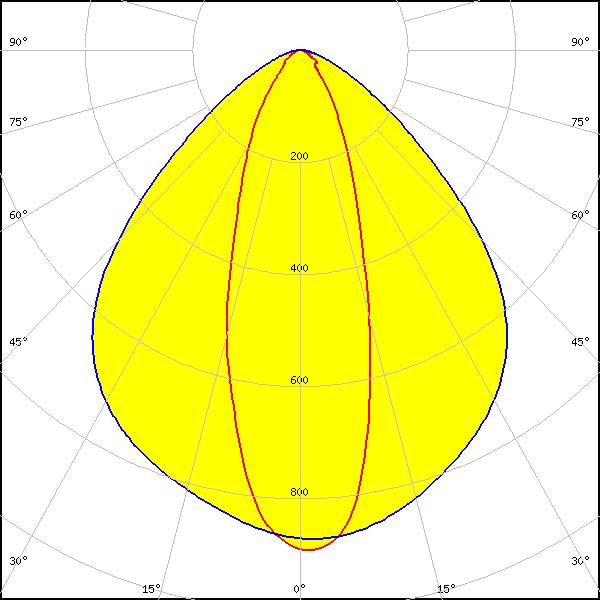

LED: LUXEON 3030 2D (Round LES)
FWHM: 93° + 34°
FWTM: 131° + 75°
Peak intensity: 0.890 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

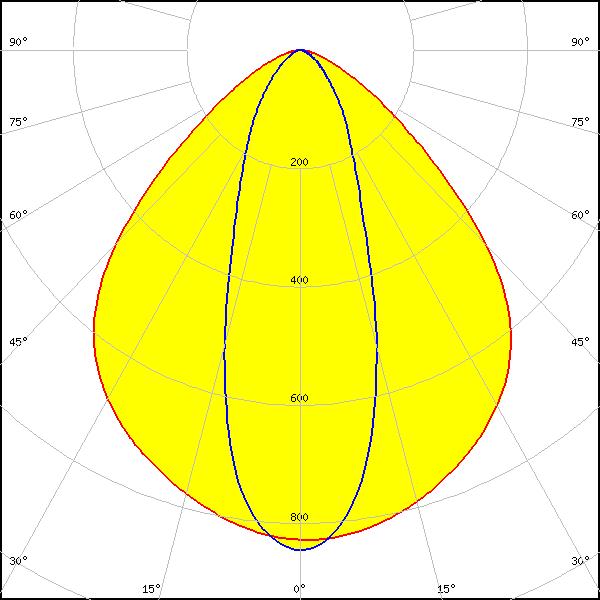

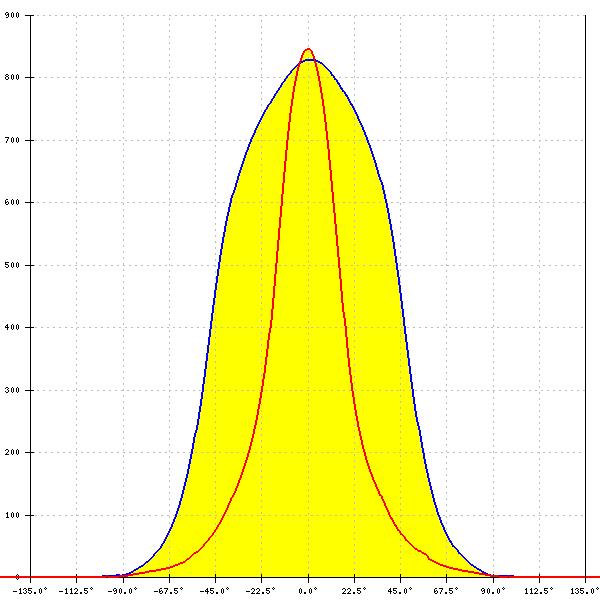

LED: LUXEON 3535L
FWHM: 93° + 35°
FWTM: 132° + 85°
Peak intensity: 0.850 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

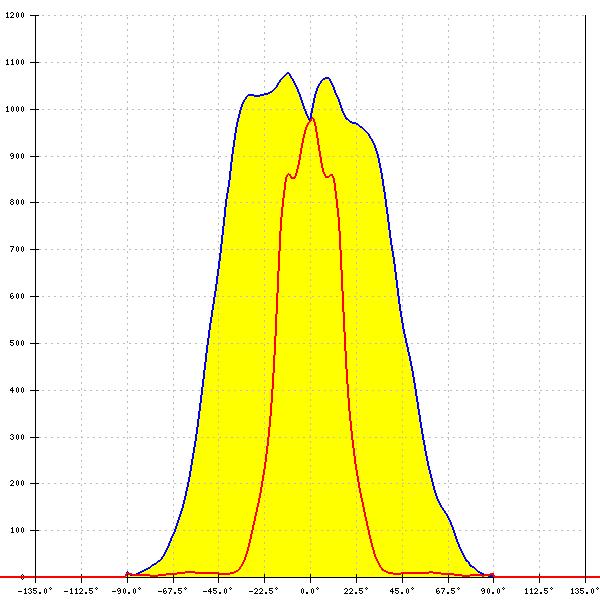

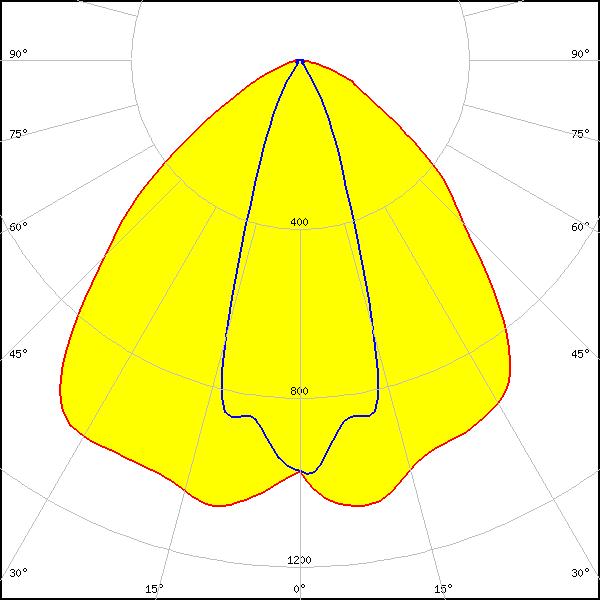

LED: LUXEON CZ
FWHM: 95° + 33°
FWTM: 136° + 56°
Peak intensity: 1.080 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

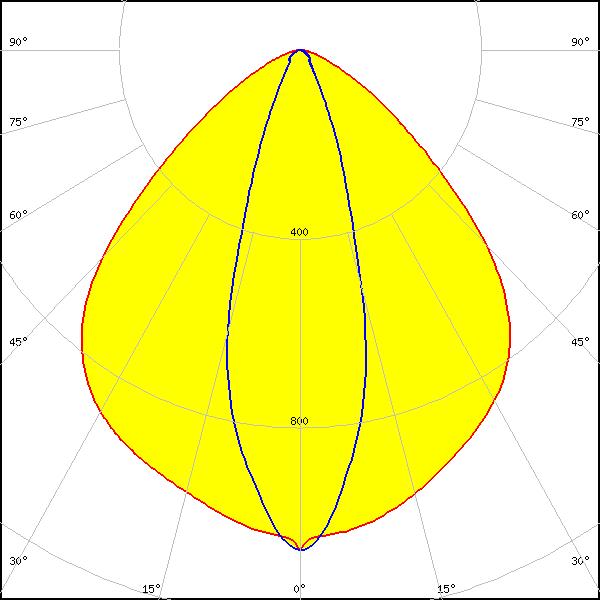

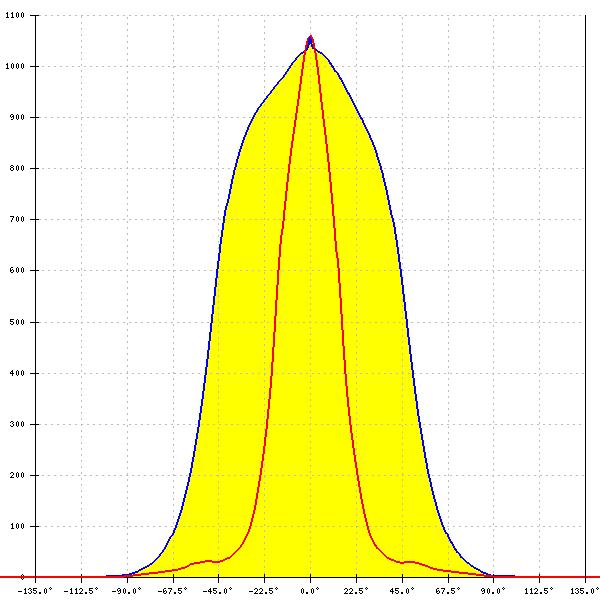

LED: MP-2016
FWHM: 94° + 31°
FWTM: 130° + 57°
Peak intensity: 1.100 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

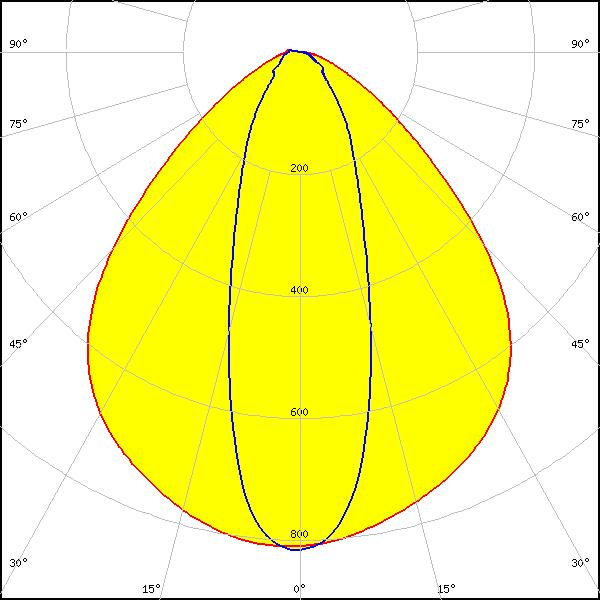

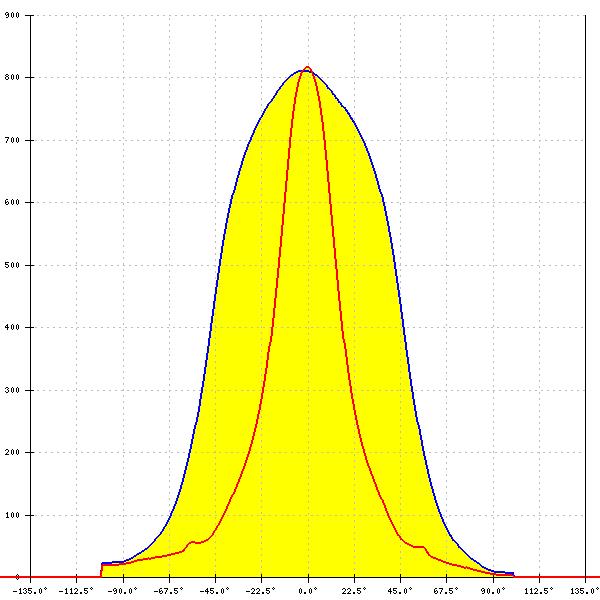

LED: NF2x757D
FWHM: 93° + 34°
FWTM: 137° + 85°
Peak intensity: 0.820 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

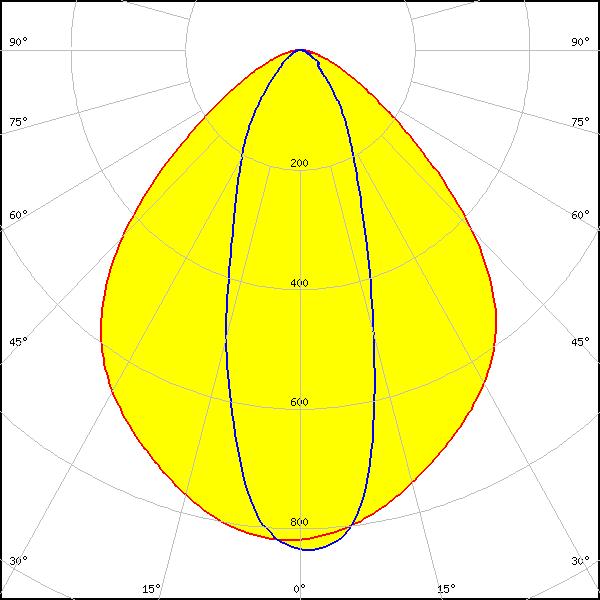

LED: NF2x757G
FWHM: 92° + 35°
FWTM: 133° + 84°
Peak intensity: 0.870 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

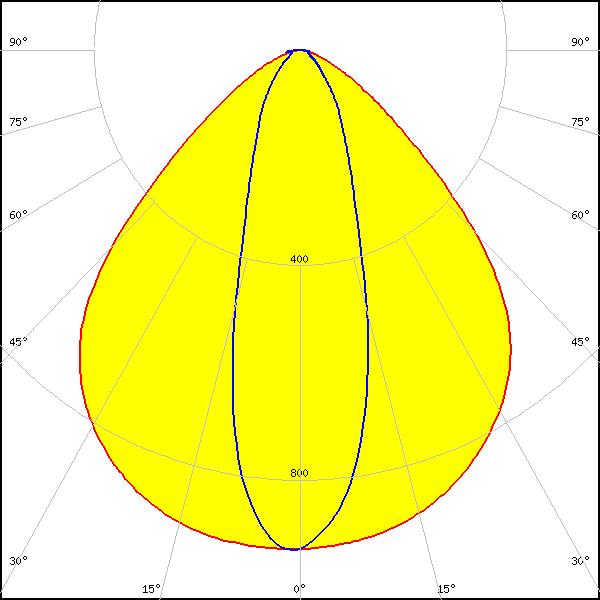

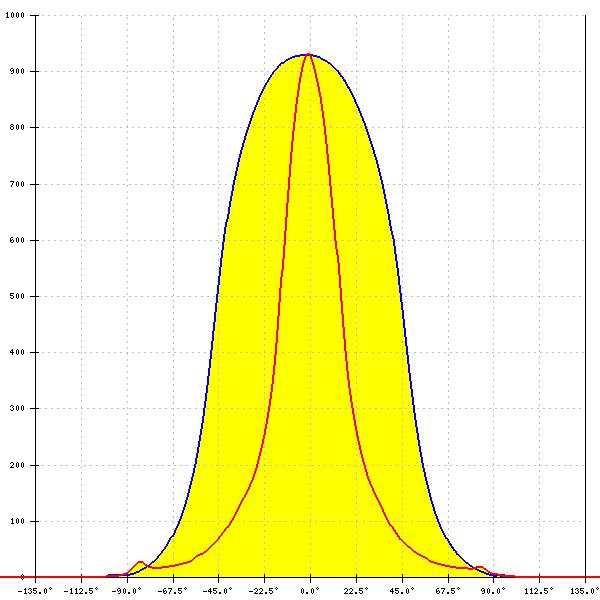

LED: NFSW757H
Required components:
FWHM: 92° + 31°
FWTM: 129° + 80°
Peak intensity: 0.931 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

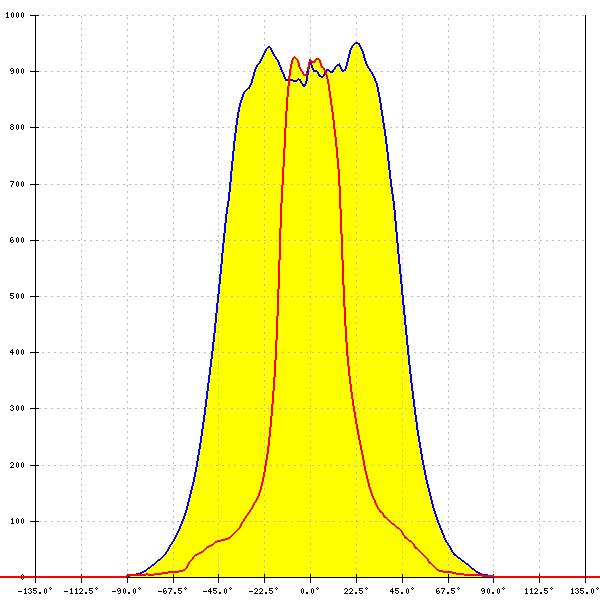

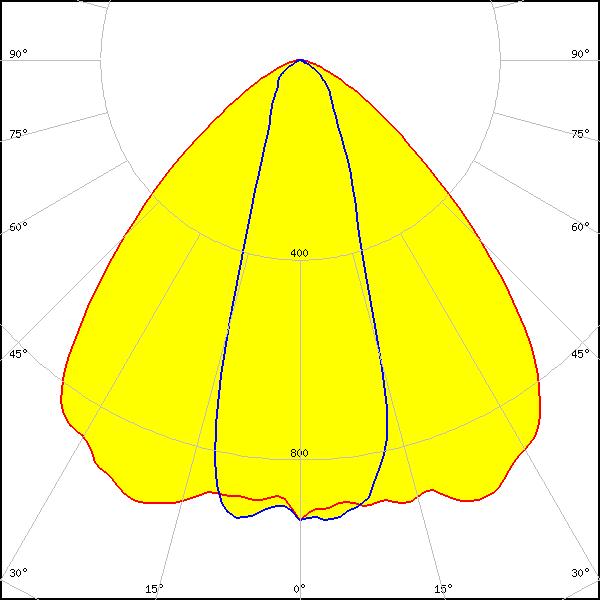

LED: Duris E 2835
FWHM: 92° + 30°
FWTM: 127° + 71°
Peak intensity: 0.950 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

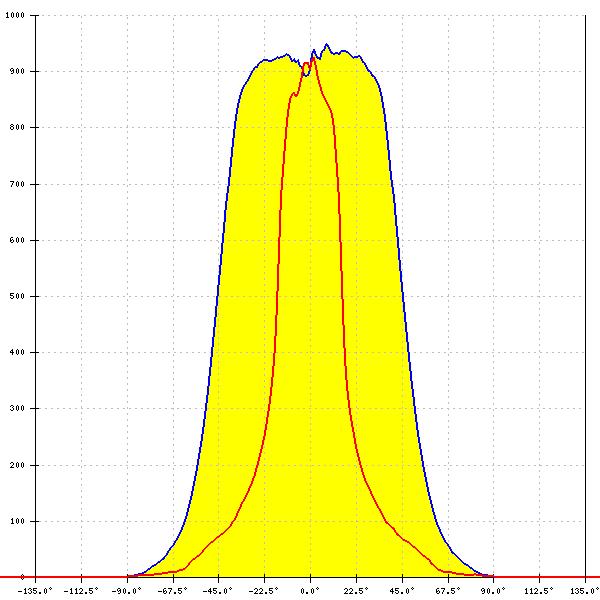

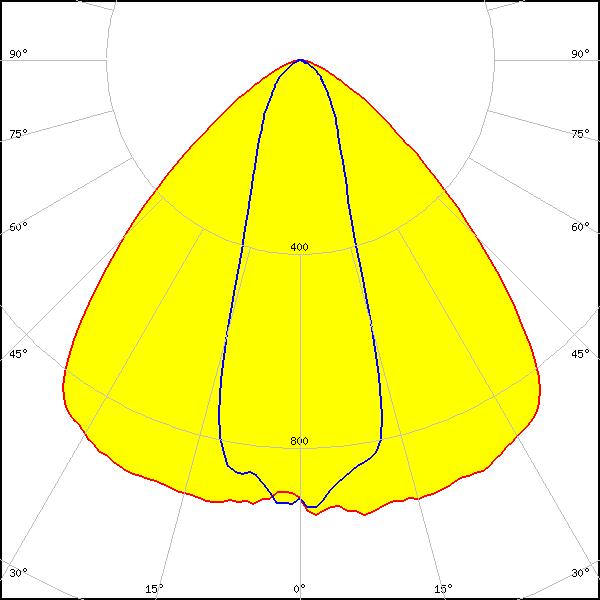

LED: Duris E5
FWHM: 92° + 32°
FWTM: 125° + 78°
Peak intensity: 0.950 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

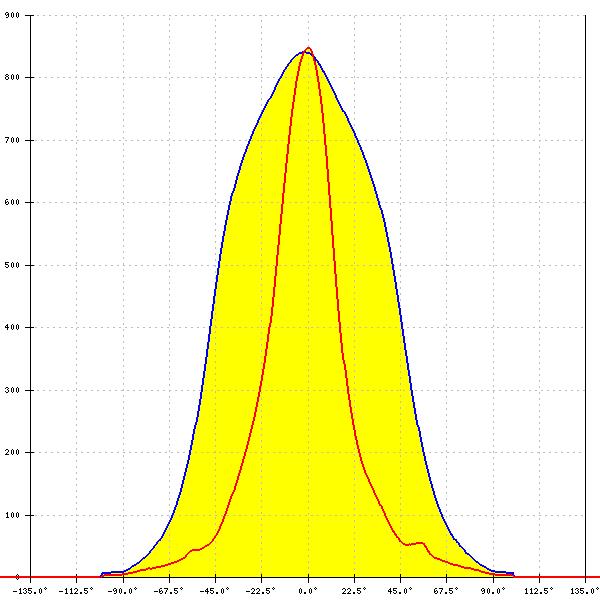

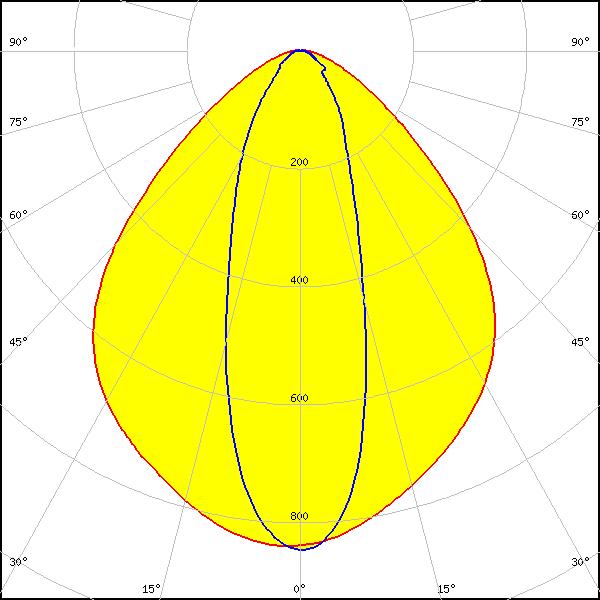

LED: Duris S5 (2 chip)
FWHM: 92° + 33°
FWTM: 135° + 92°
Peak intensity: 0.850 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

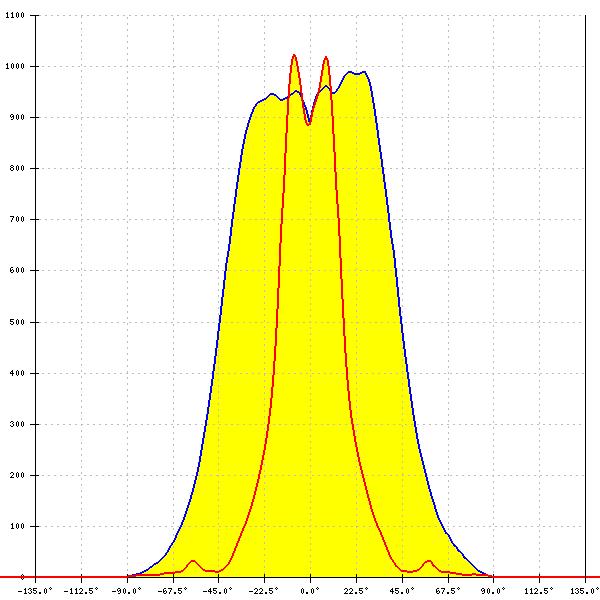

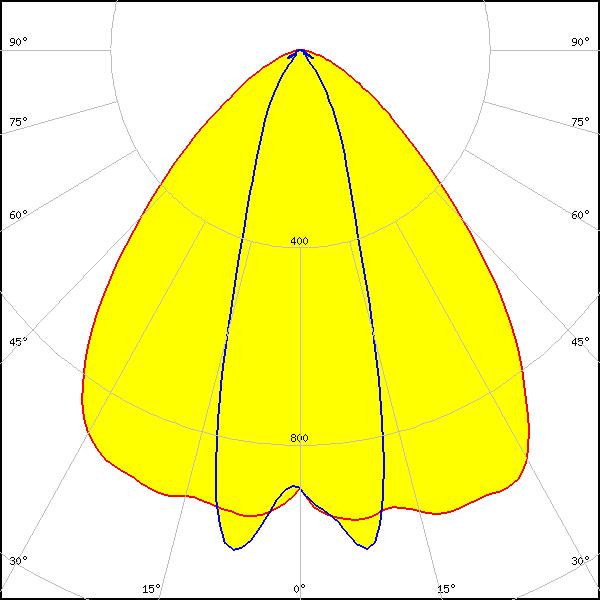

LED: OSCONIQ C 2424
FWHM: 89° + 32°
FWTM: 129° + 65°
Peak intensity: 1.043 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

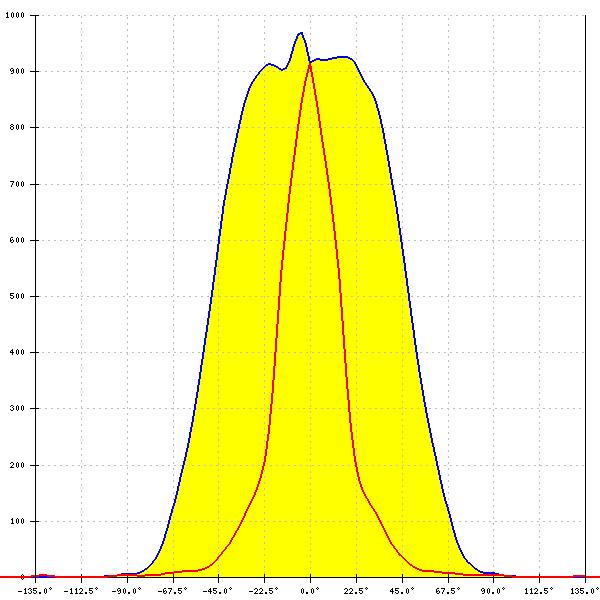

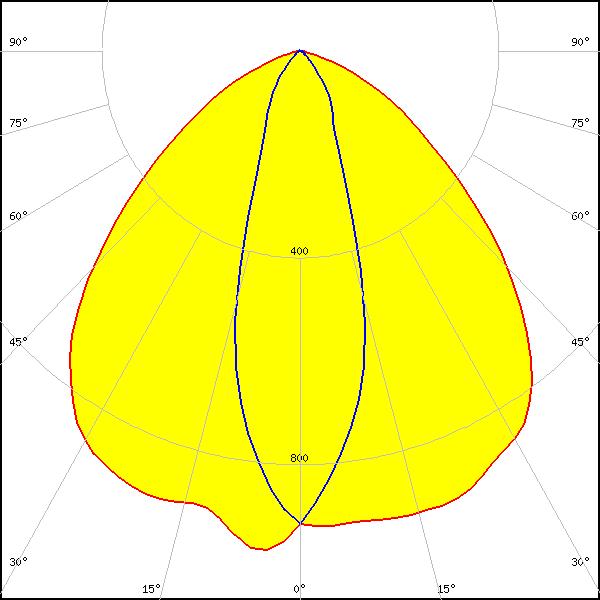

LED: OSLON SSL 150
FWHM: 98° + 32°
FWTM: 140° + 70°
Peak intensity: 0.978 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: Far Red

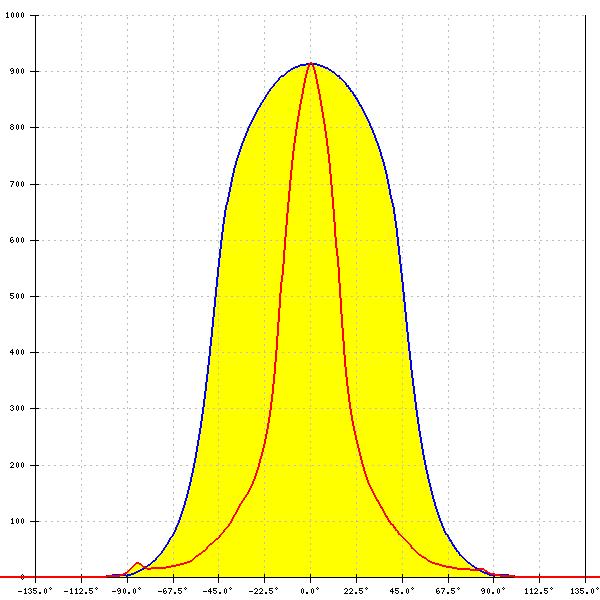

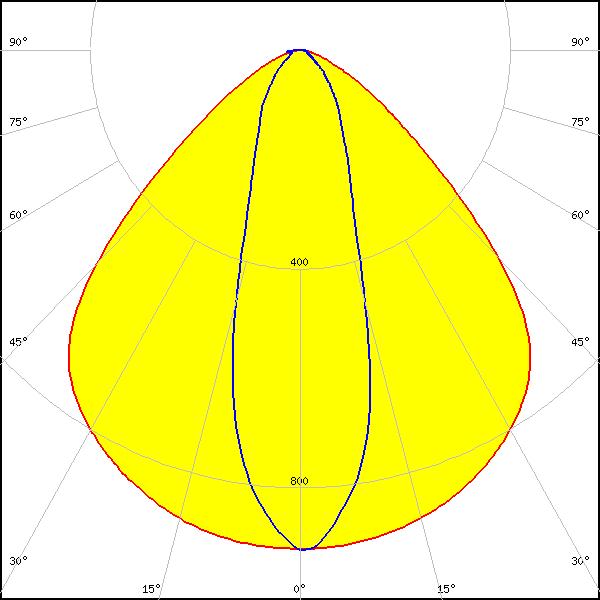

LED: Fortimo LED Line 1ft 2000lm 1R HV4
Required components:
FWHM: 95° + 31°
FWTM: 131° + 81°
Peak intensity: 0.910 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft HF 1R HV5
Required components:
FWHM: 94° + 34°
FWTM: 132° + 82°
Peak intensity: 0.877 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft MF 1R HV5 & LV5
Required components:
FWHM: 93° + 34°
FWTM: 131° + 80°
Peak intensity: 0.880 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

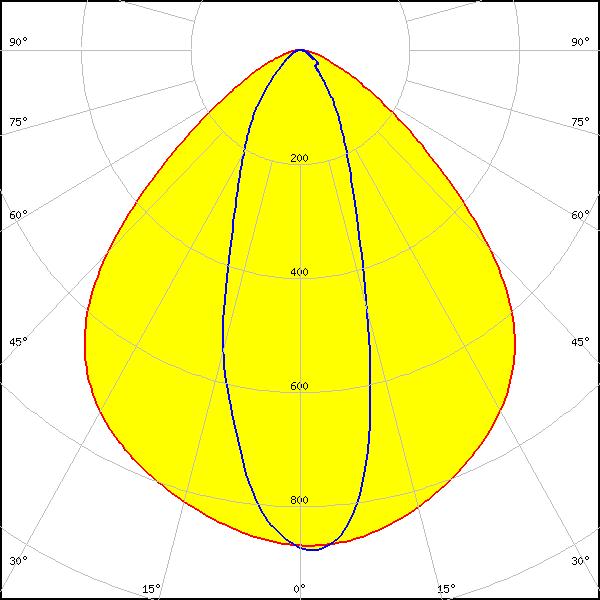

LED: LM28xB Series
FWHM: 94° + 34°
FWTM: 132° + 80°
Peak intensity: 0.880 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

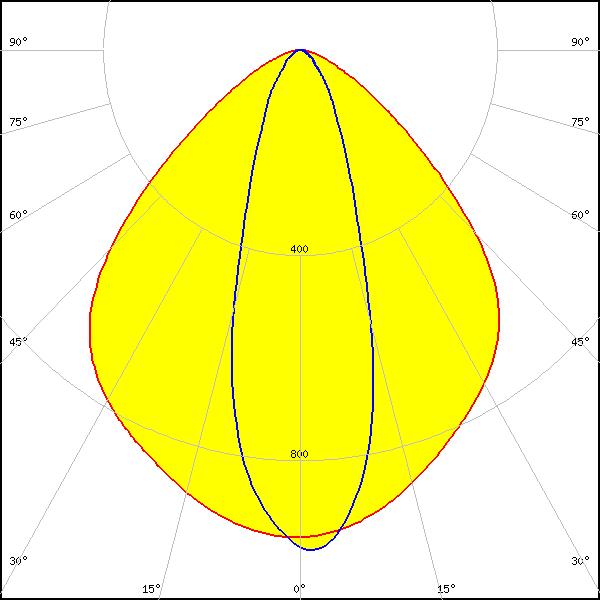

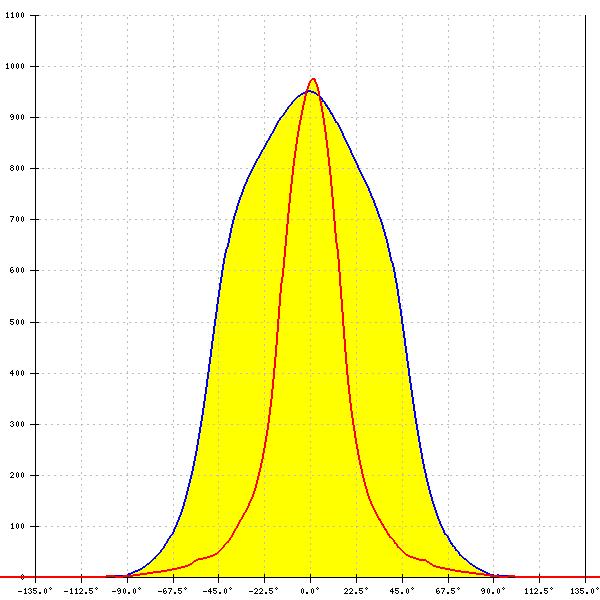

LED: LM301A
FWHM: 93° + 32°
FWTM: 132° + 73°
Peak intensity: 0.975 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

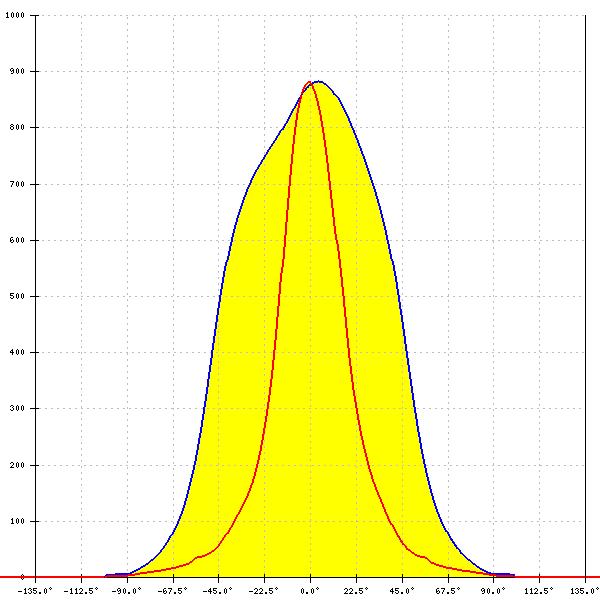

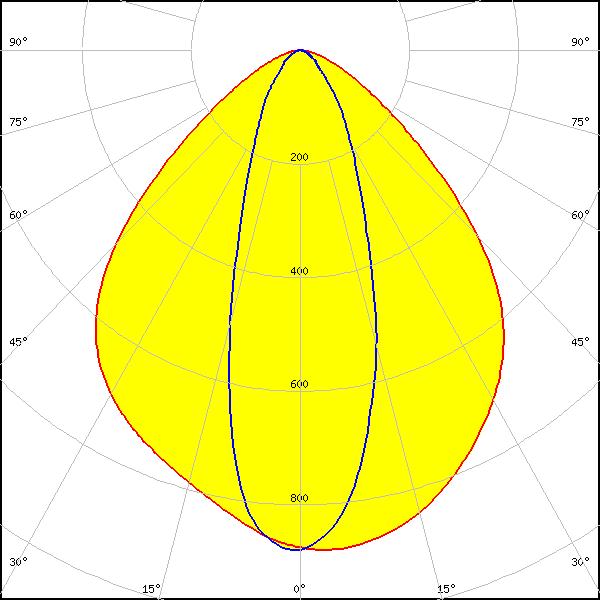

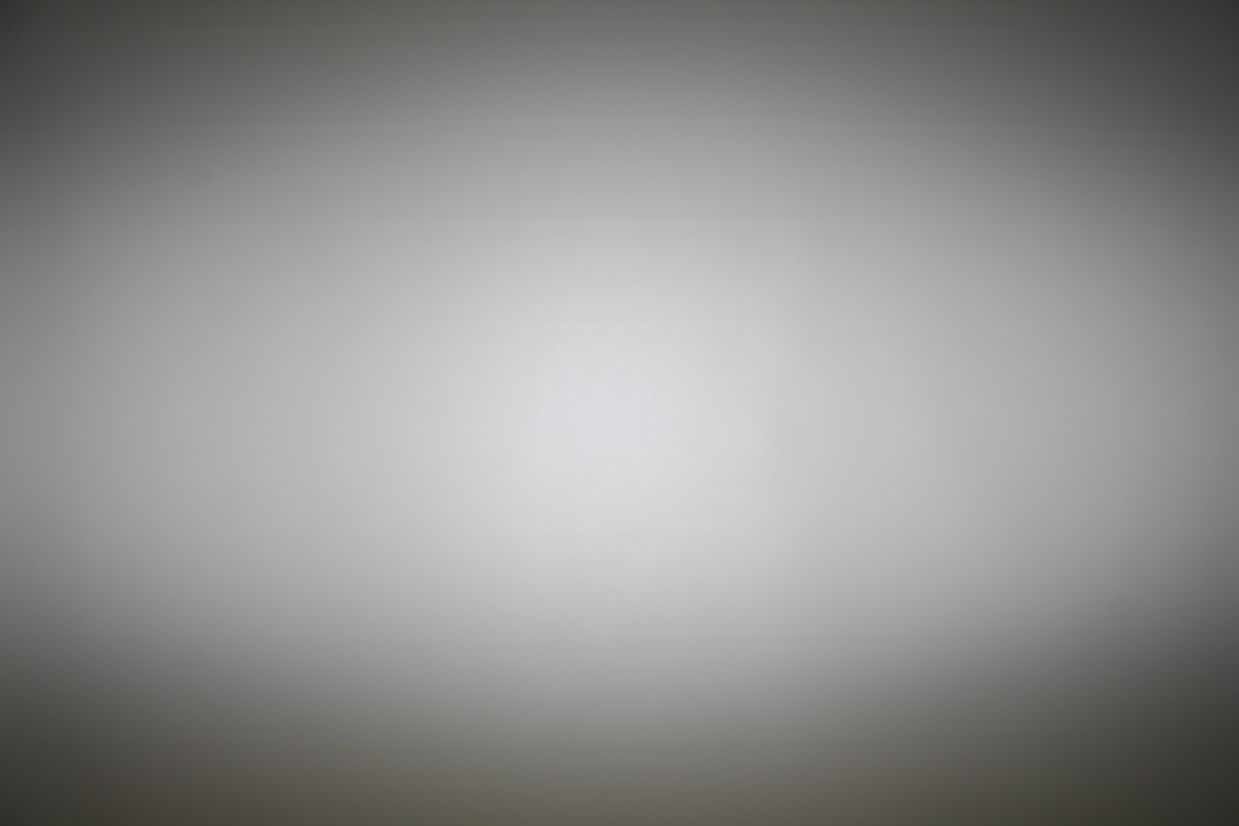

LED: LM302A
FWHM: 92° + 34°
FWTM: 132° + 80°
Peak intensity: 0.880 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

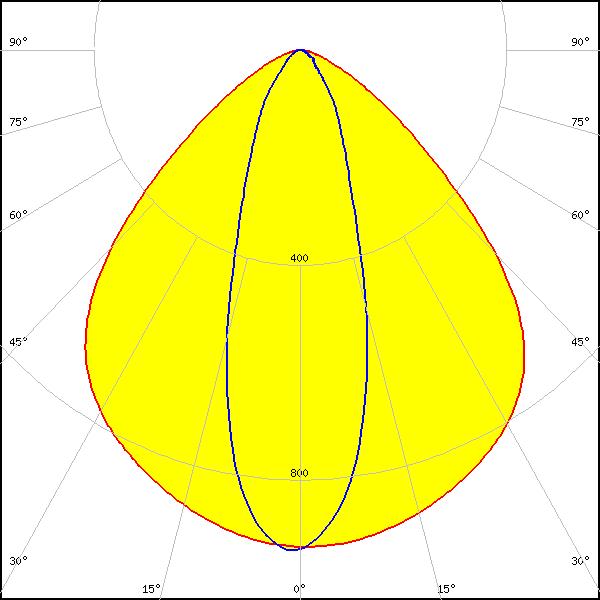

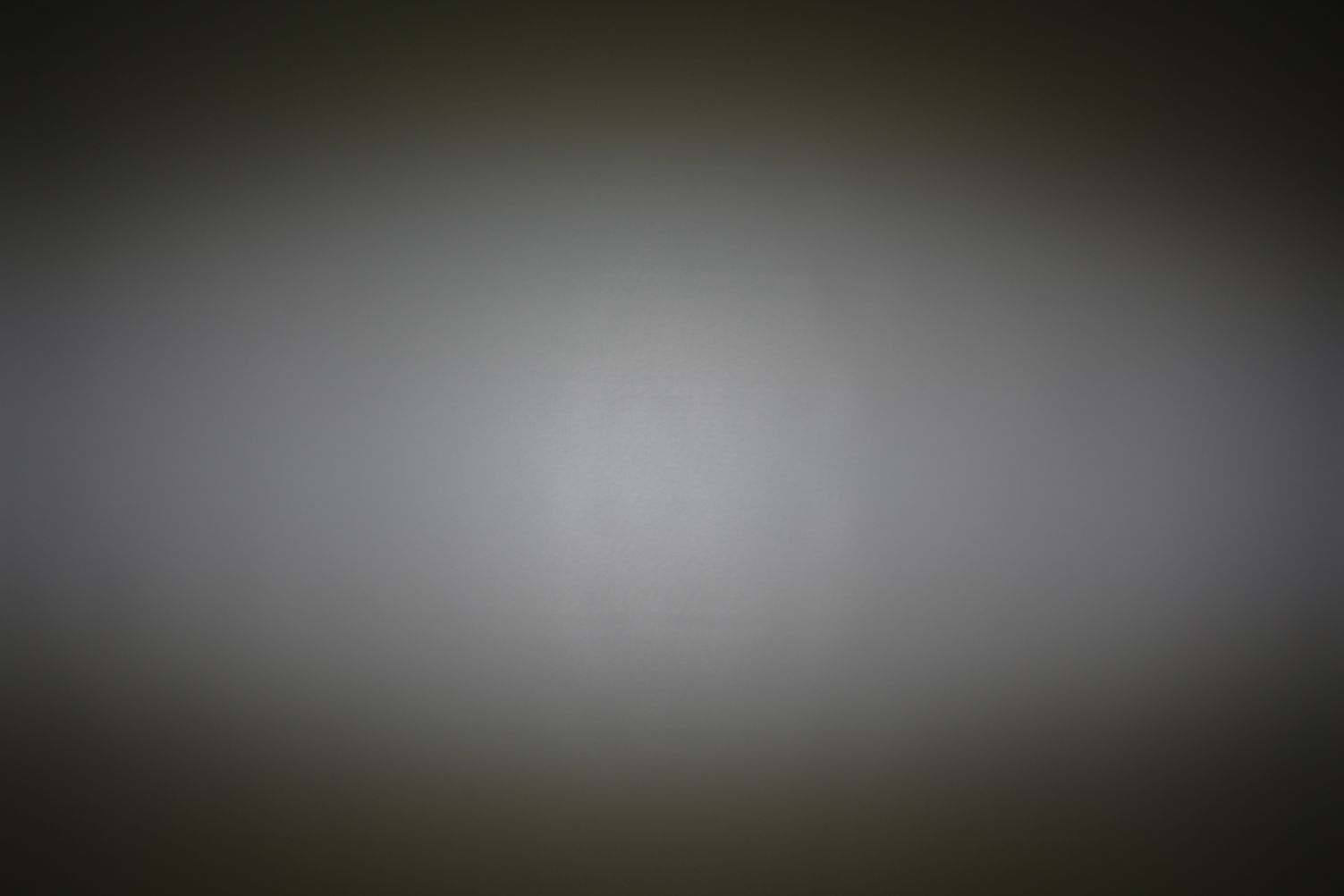

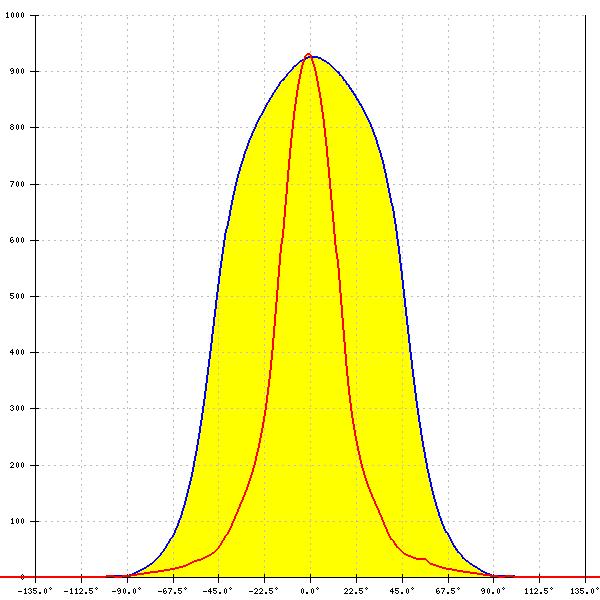

LED: LM561C
FWHM: 94° + 32°
FWTM: 131° + 75°
Peak intensity: 0.930 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

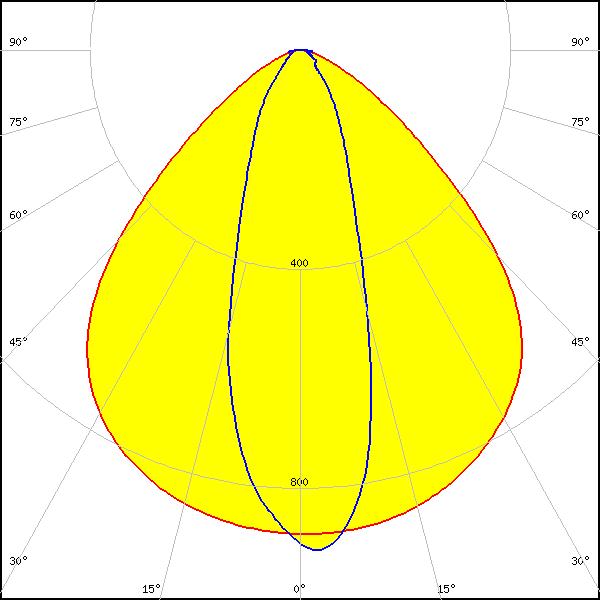

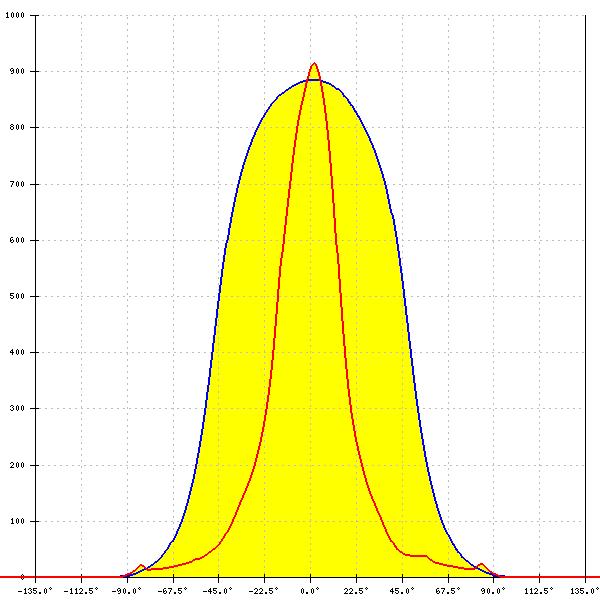

LED: LT-S282N
FWHM: 95° + 32°
FWTM: 131° + 76°
Peak intensity: 0.910 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

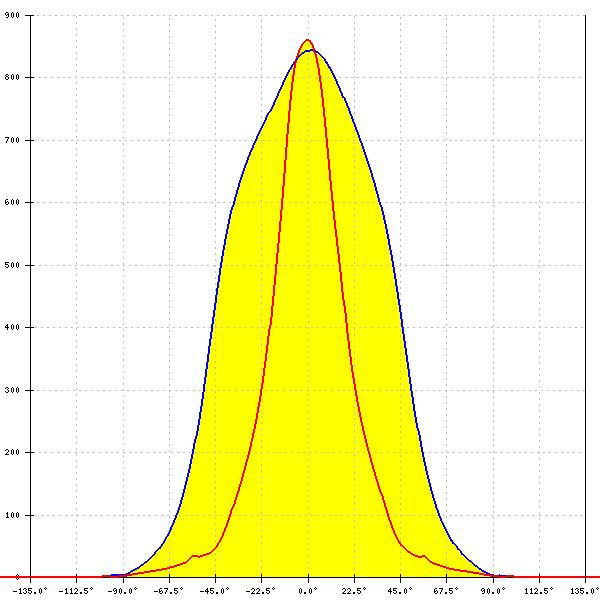

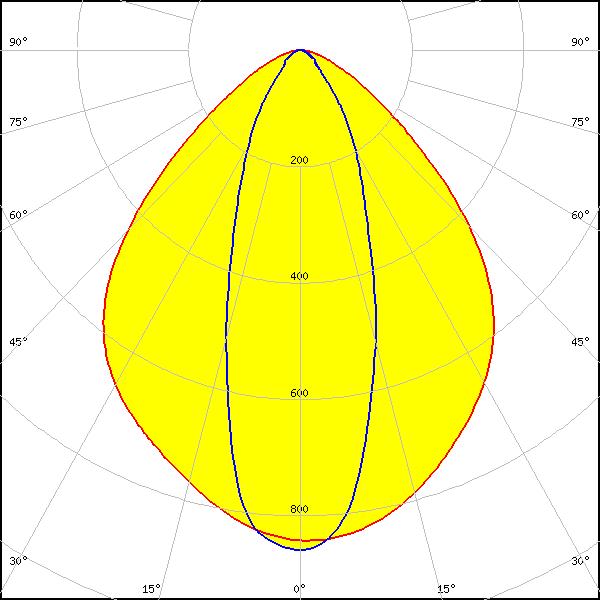

LED: SEOUL 3030
FWHM: 91° + 35°
FWTM: 132° + 79°
Peak intensity: 0.860 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030
Required components:
FWHM: 92° + 30°
FWTM: 129° + 67°
Peak intensity: 0.990 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

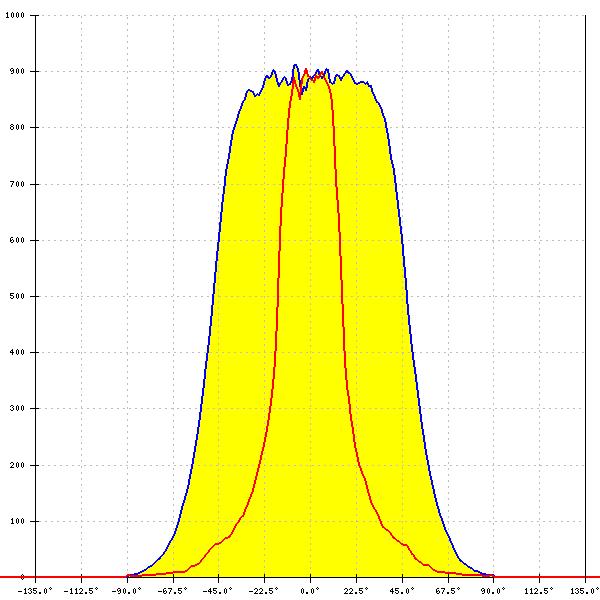

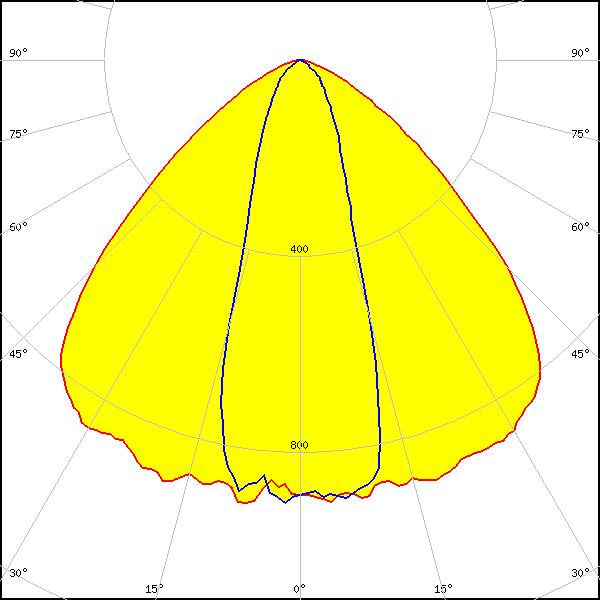

LED: SEOUL DC 3030C
FWHM: 98° + 32°
FWTM: 131° + 73°
Peak intensity: 0.961 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
