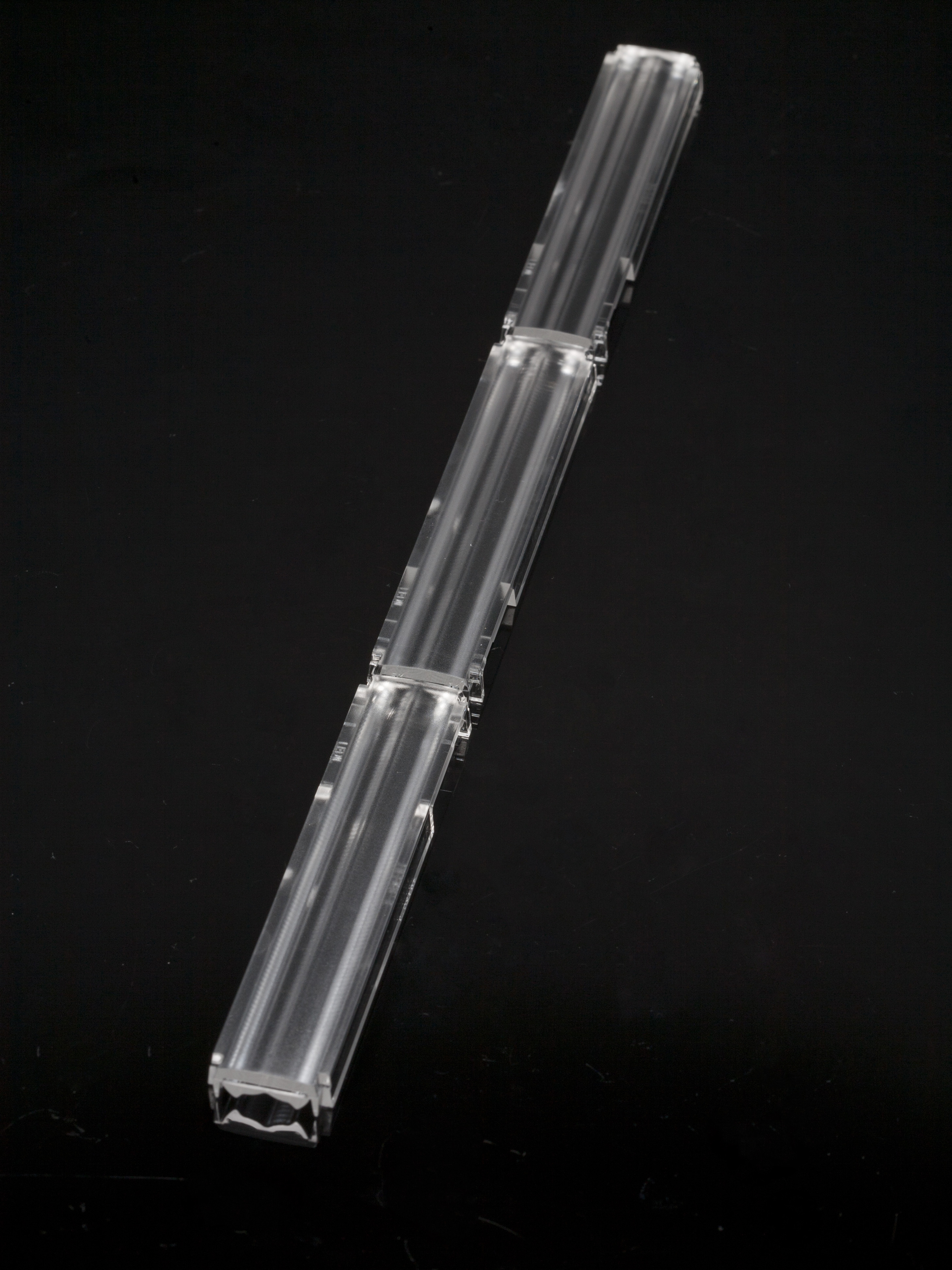

    C14642_FLORENCE-1R-UP

    Print

    Asymmetric beam for uplighting

    Specification
    • Dimensions:
      286 x  20 mm
    • Height:
      6.9 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • PMMA
    Ordering information
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.2 kg
    • MPQ:
      15 pcs
    • MOQ:
      45 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
       Subscribe to LEDiL Newsletters
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14642_FLORENCE-1R-UP

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General Installation Guide

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.1_2020_WEB

    Application guide

    Guide_for_Office_Lighting_Optics_WEB_v.1.1_2020

    News

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    News

    Linear lighting solutions

    News

    Understanding the standards but aiming higher

    News

    Stylish yet functional LED office lighting

    News

    PRODUCT NEWS - FLORENCE-1R

    News

    PRODUCT NEWS - FLORENCE-1R

    News

    PRODUCT NEWS - FLORENCE-1R-UP

    News

    PRODUCT NEWS - FLORENCE-1R

    PCN

    Product change notification NR103.a - Change of packaging quantities 280515

    PCN

    Product change notification NR103.a - Change of packaging quantities 280515

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Compatibility guide

    FLORENCE-1R Compatibility Guide

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    C14409_FLORENCE-1R-CLIP-B

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

    C14751_FLORENCE-1R-CLIP-C

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

    C14353_FLORENCE-1R-CLIP-A

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

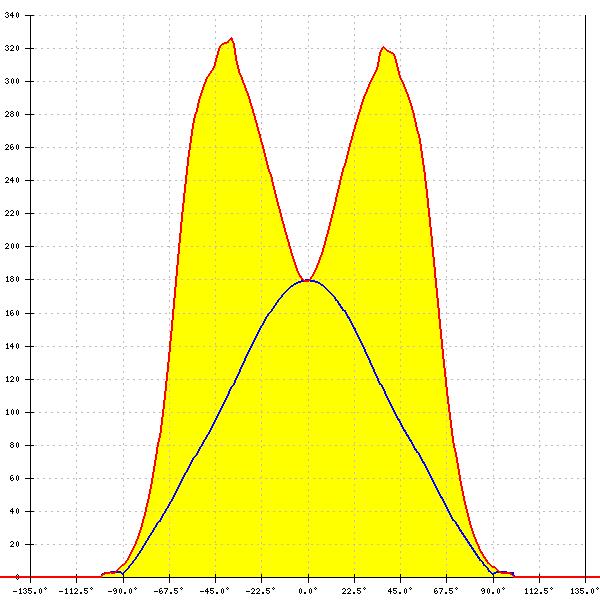

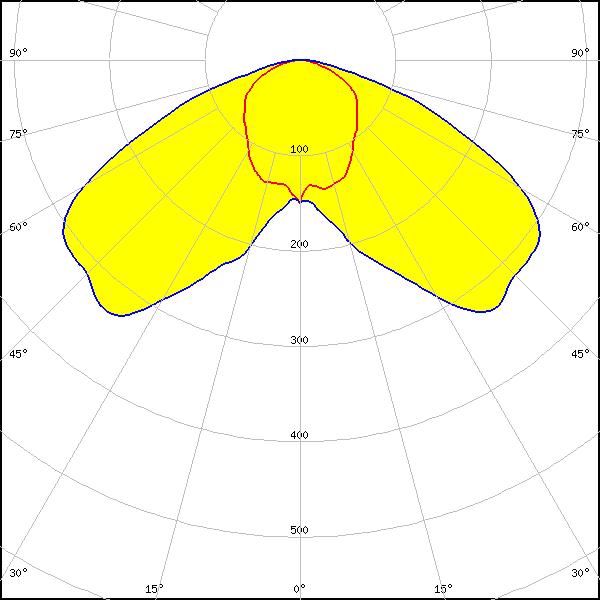

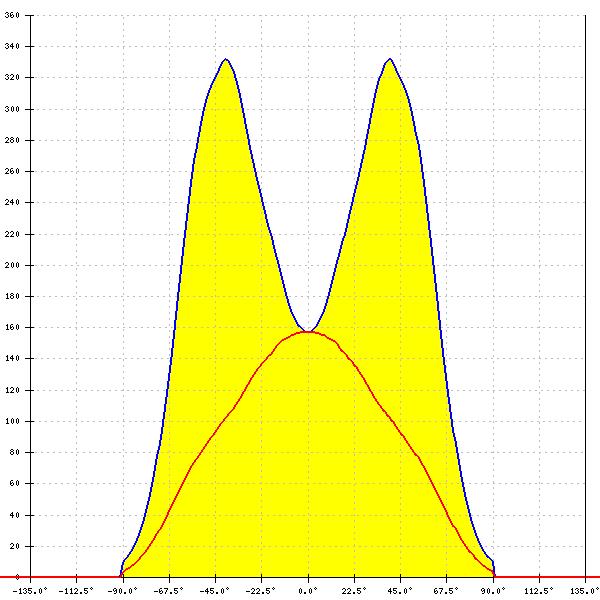

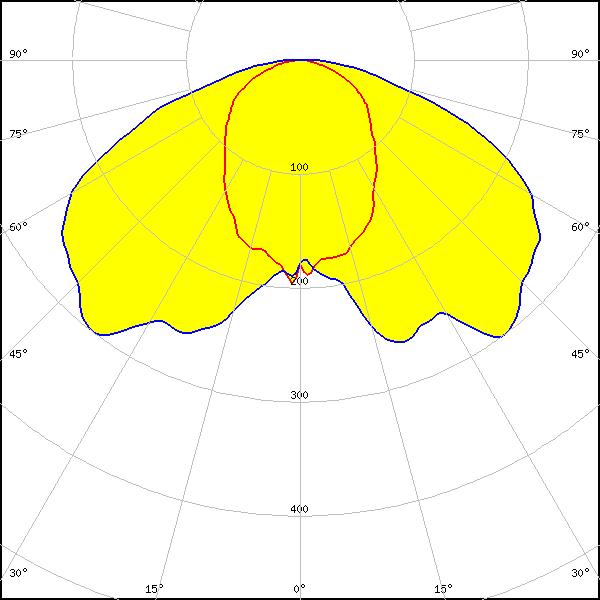

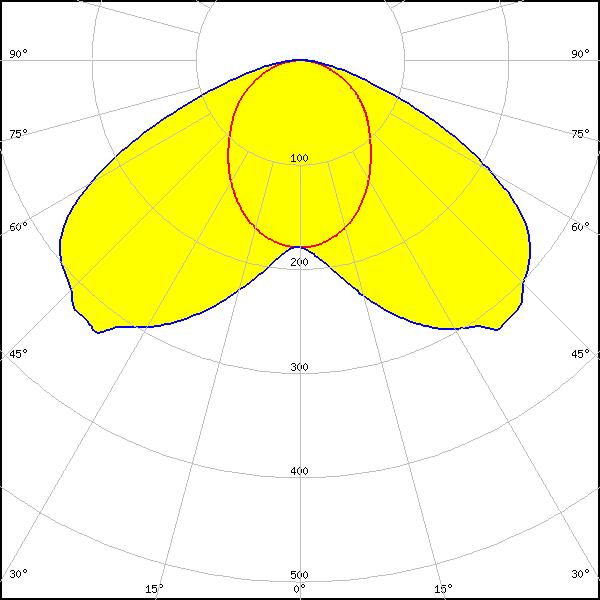

    Optical results

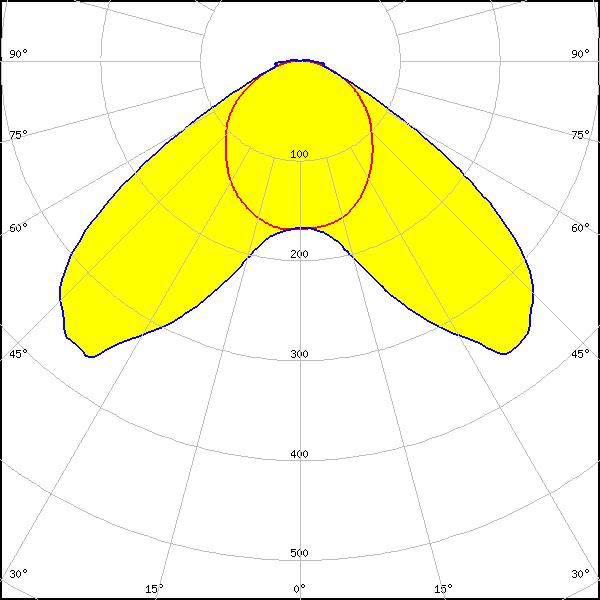

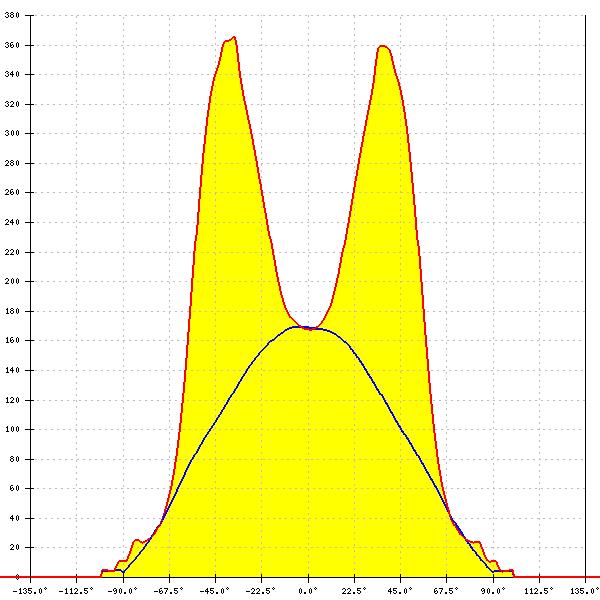

    LED: CALGD0414-M8W1
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

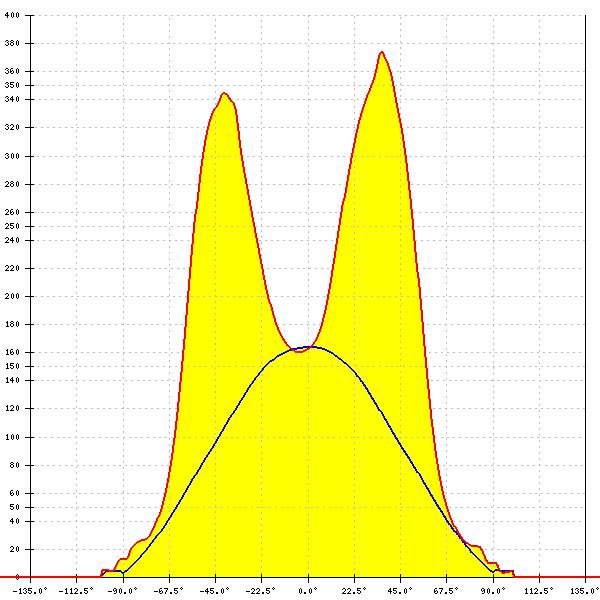

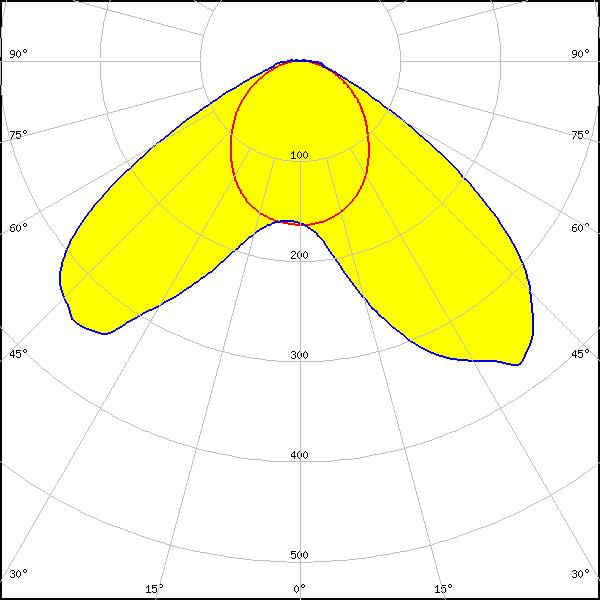

    LED: CALGD0814-M17W1
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

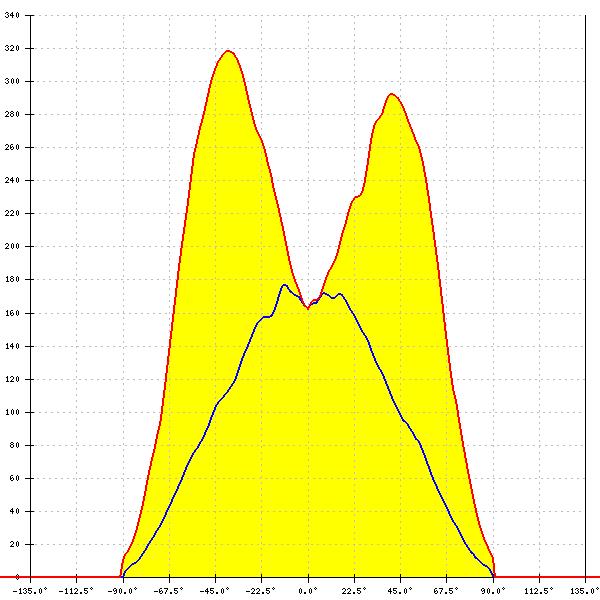

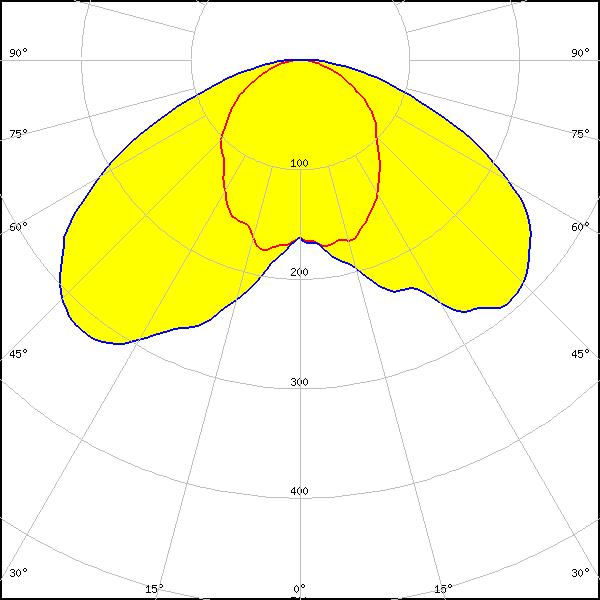

    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

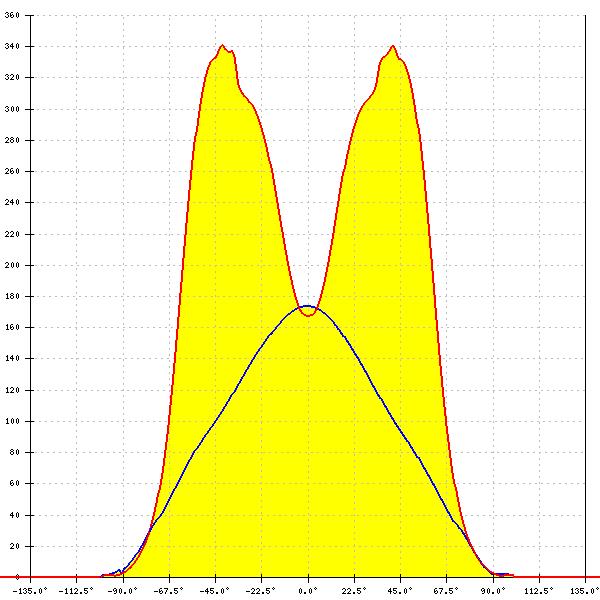

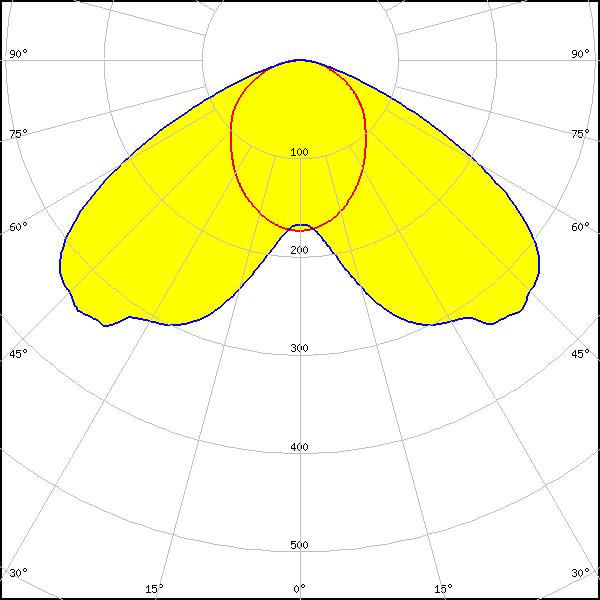

    LED: Duris S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: Fortimo LED Line 1ft 2000lm 1R HV4
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White
    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White
    LED: L0-280024-xxx-C0800-L267
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

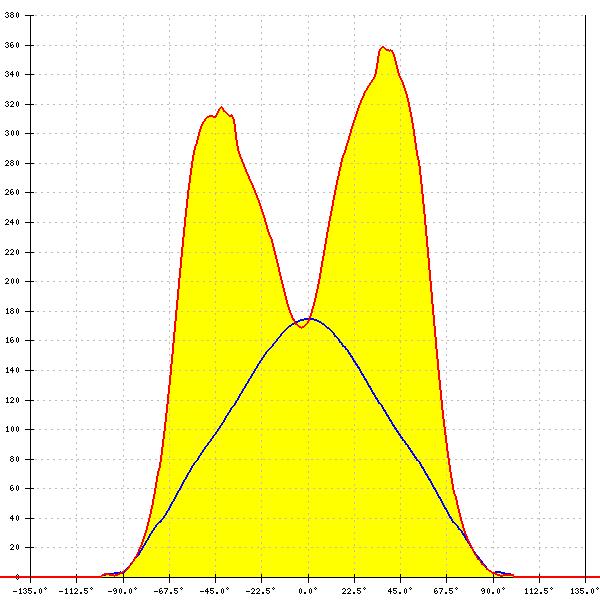

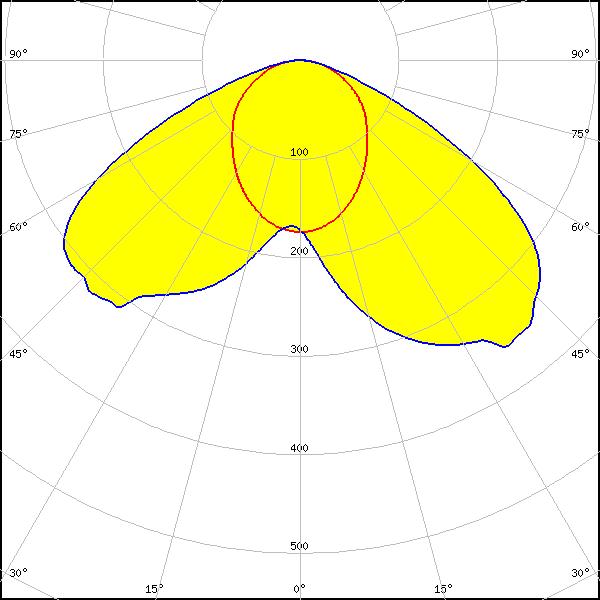

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

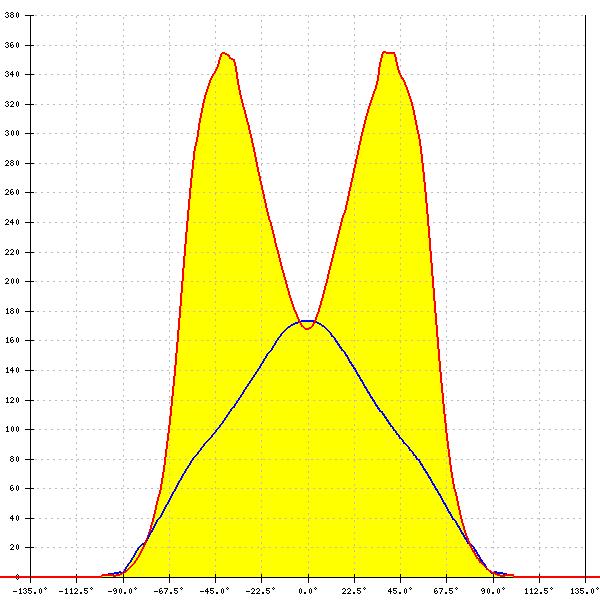

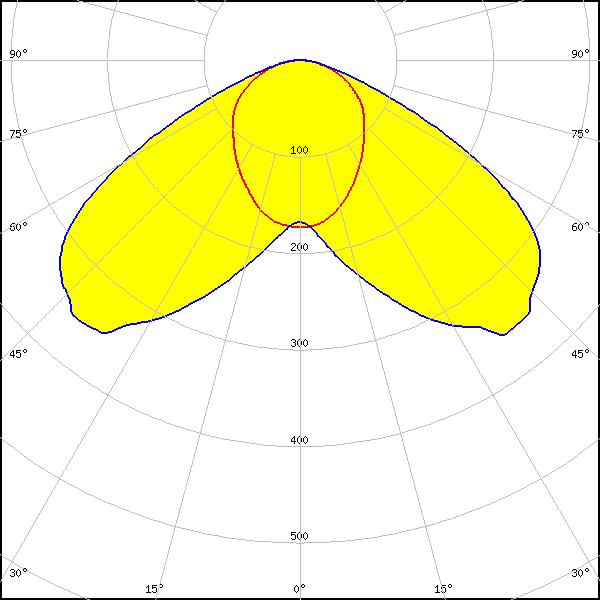

    LED: LM301A
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

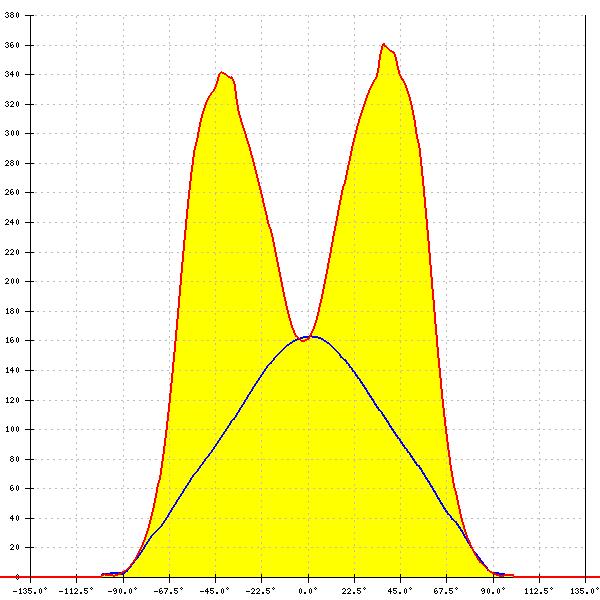

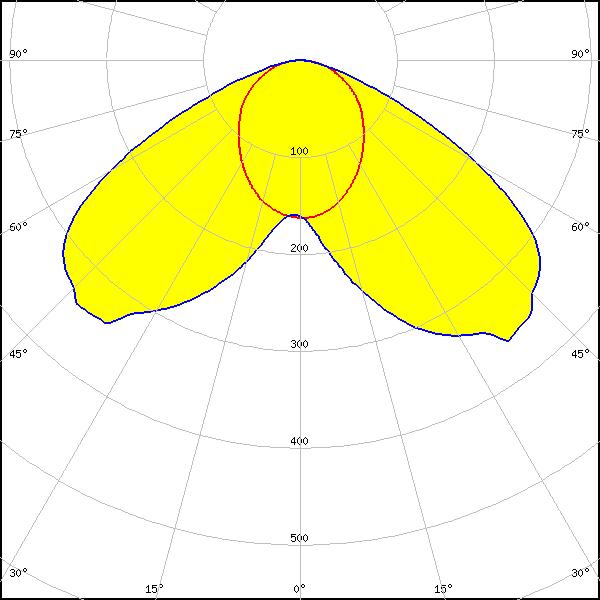

    LED: LM561C
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

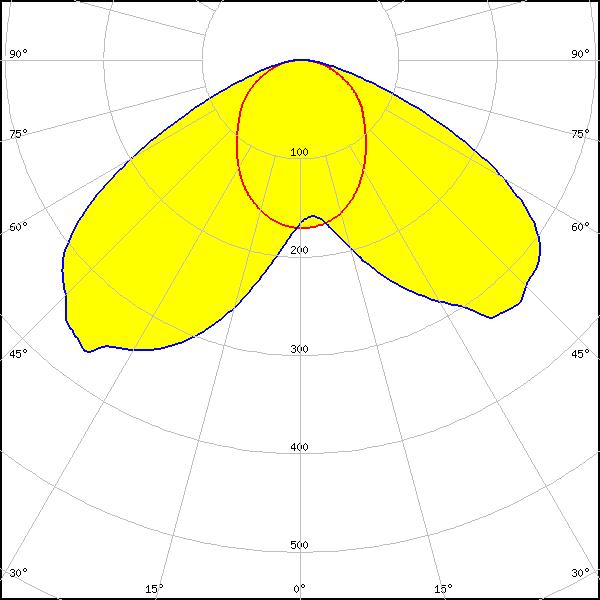

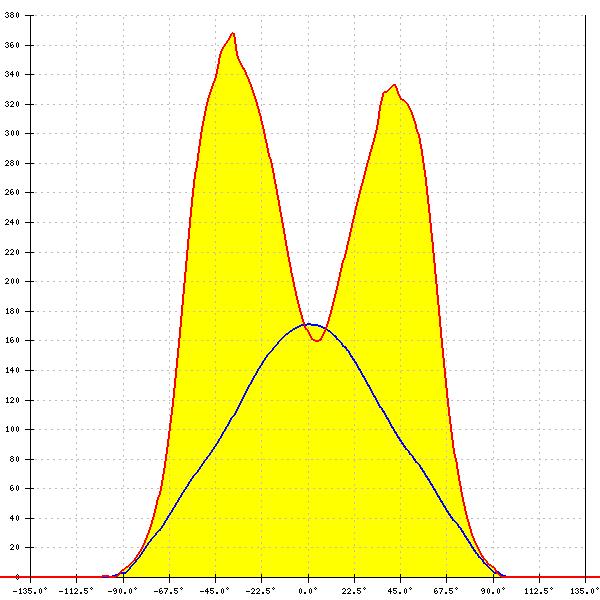

    LED: LT-S282N
    FWHM: asymmetric
    Peak intensity: 0.5 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

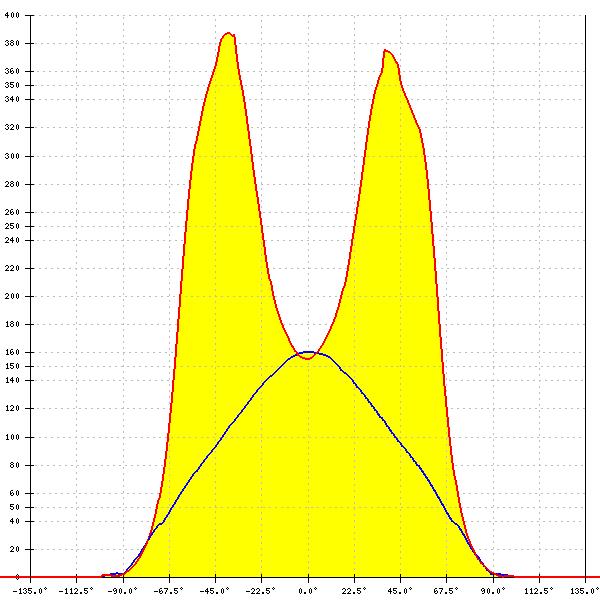

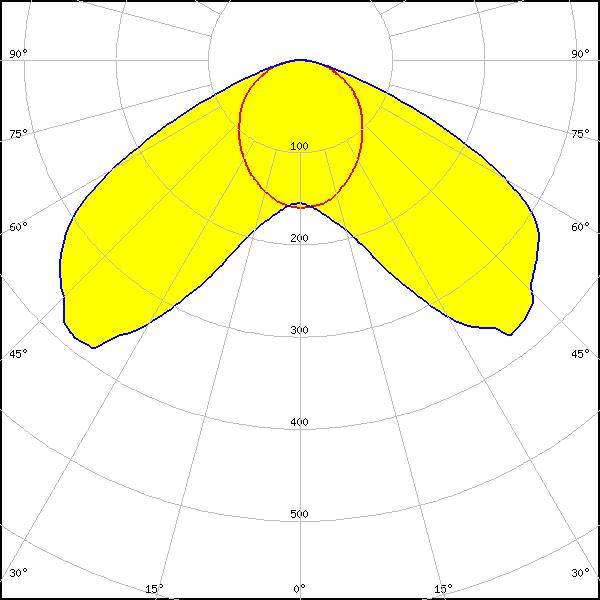

    LED: LUXEON 3014
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

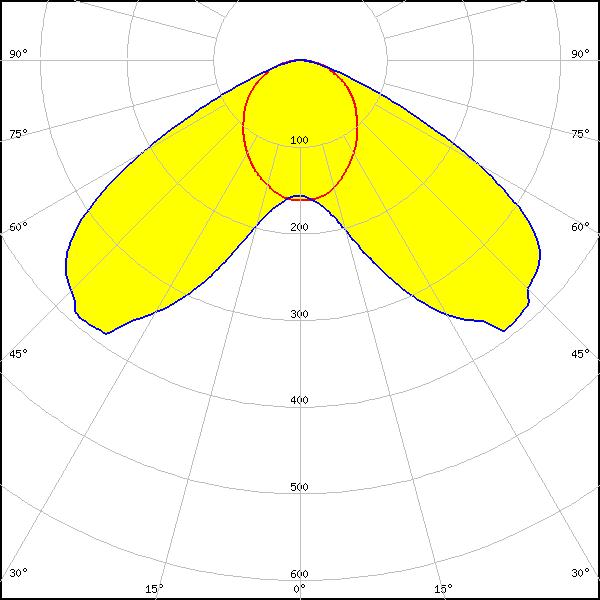

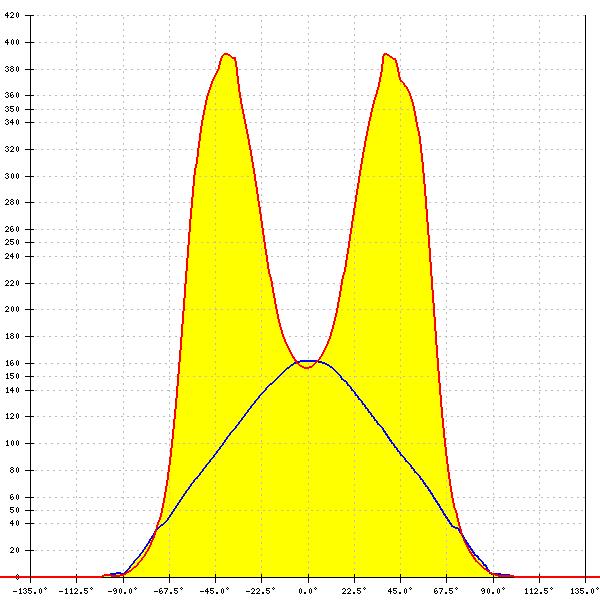

    LED: LUXEON 3020
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

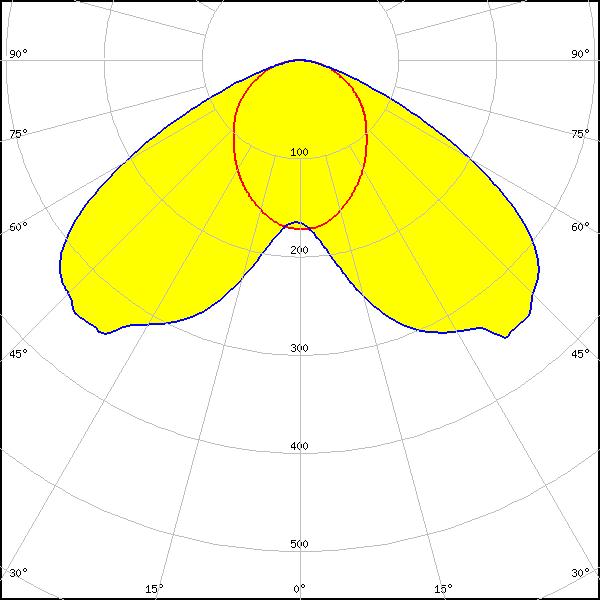

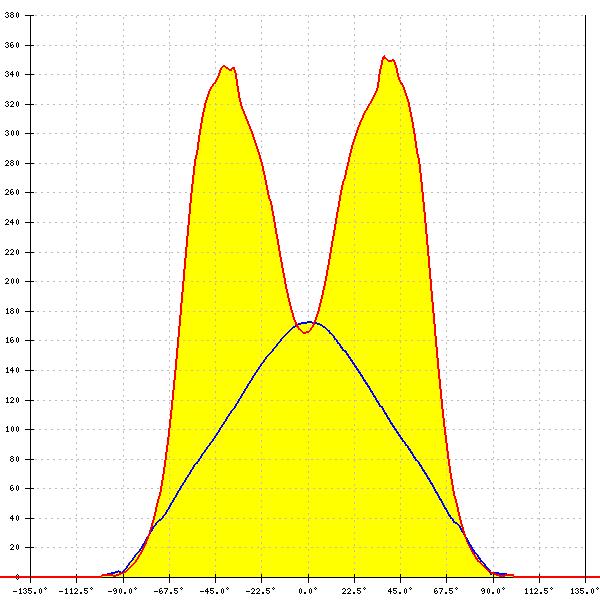

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

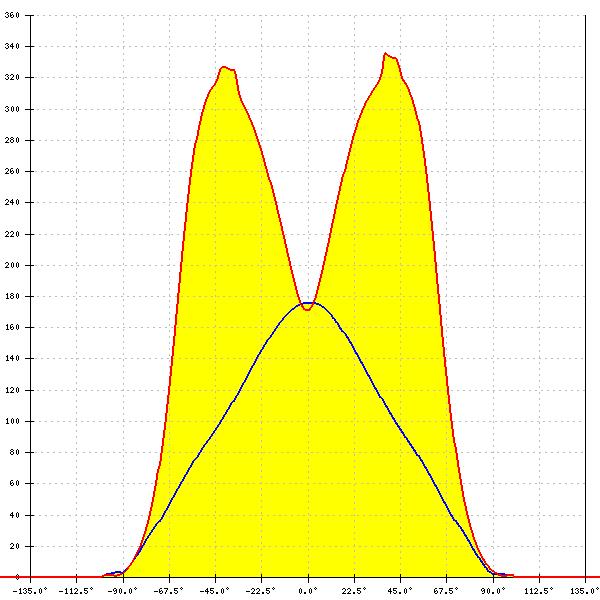

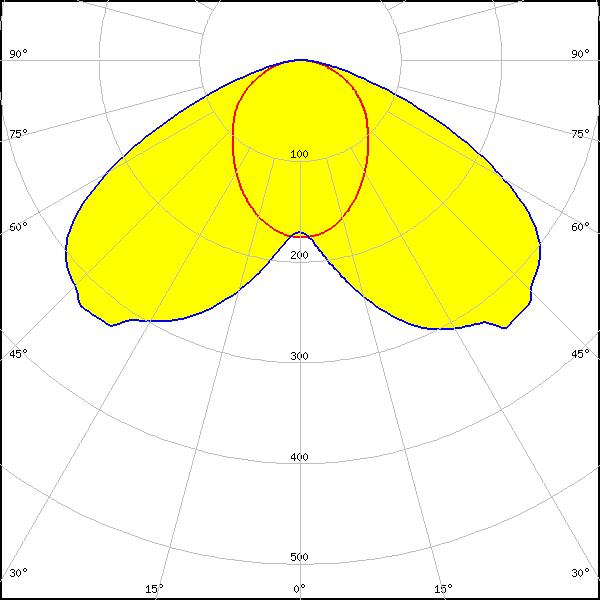

    LED: LUXEON 3535L
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

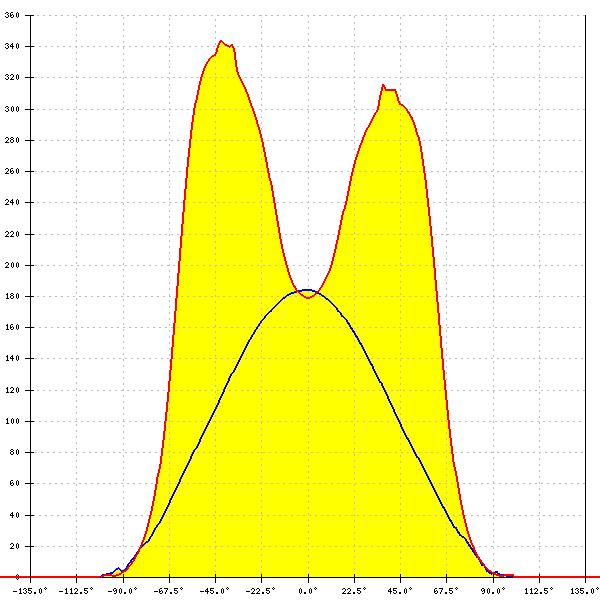

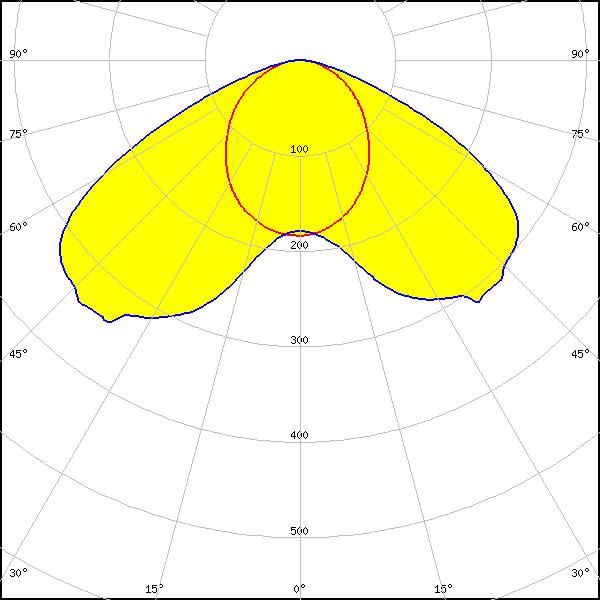

    LED: LUXEON Rebel
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

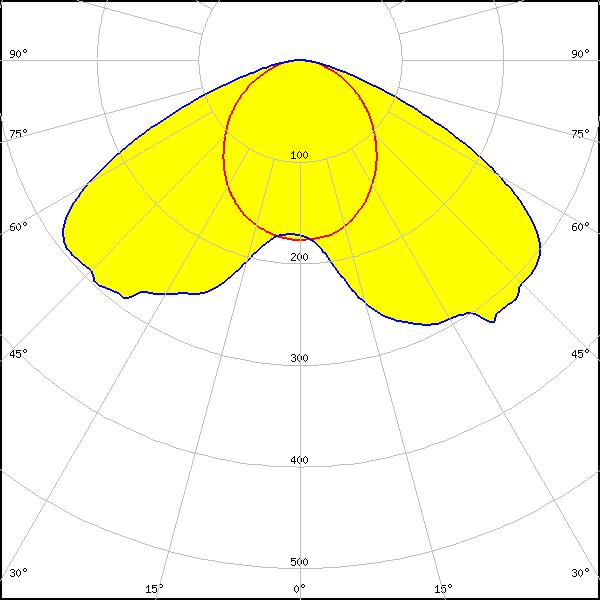

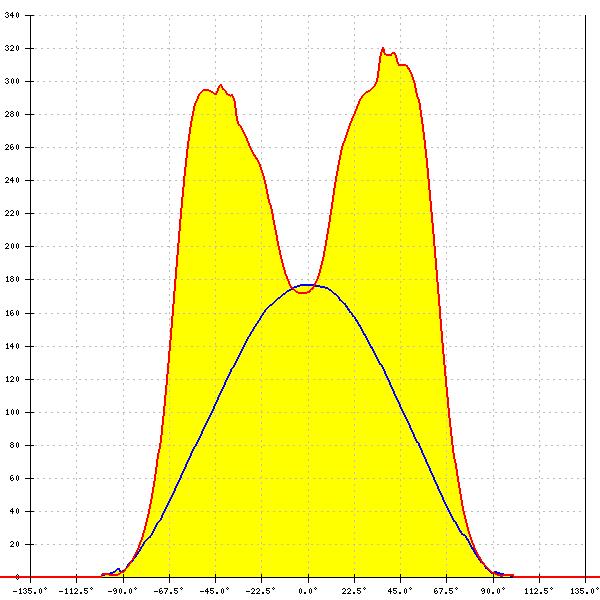

    LED: LUXEON Rebel ES
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

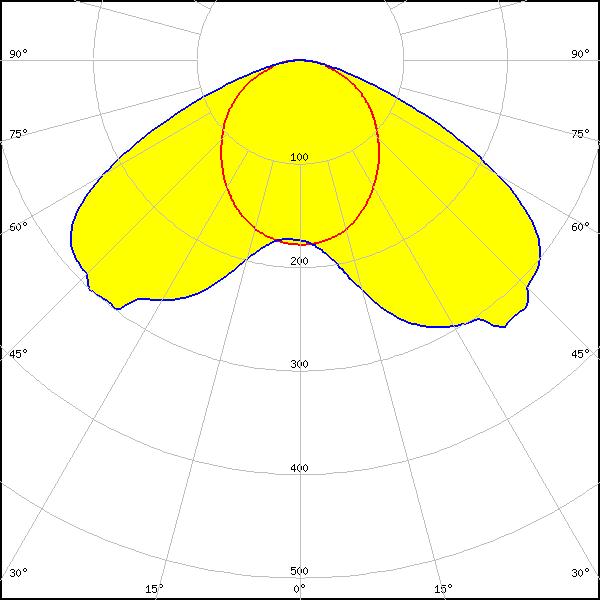

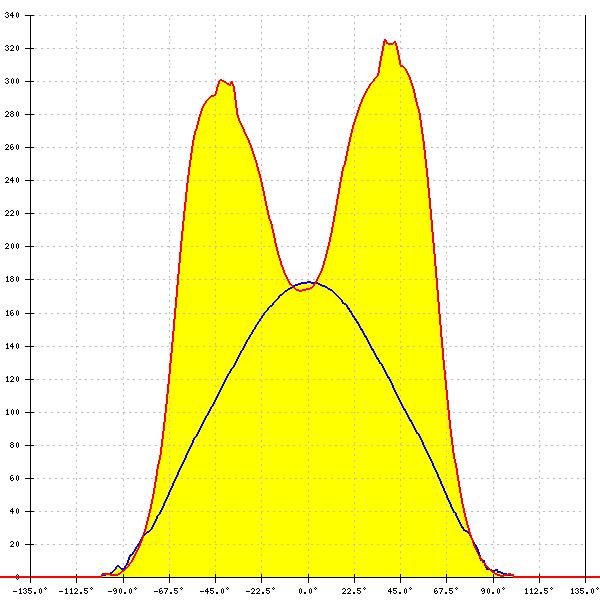

    LED: NCSxx19B
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

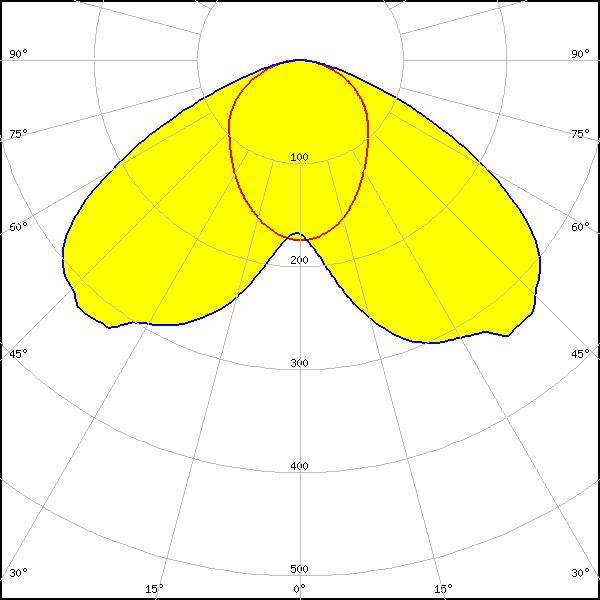

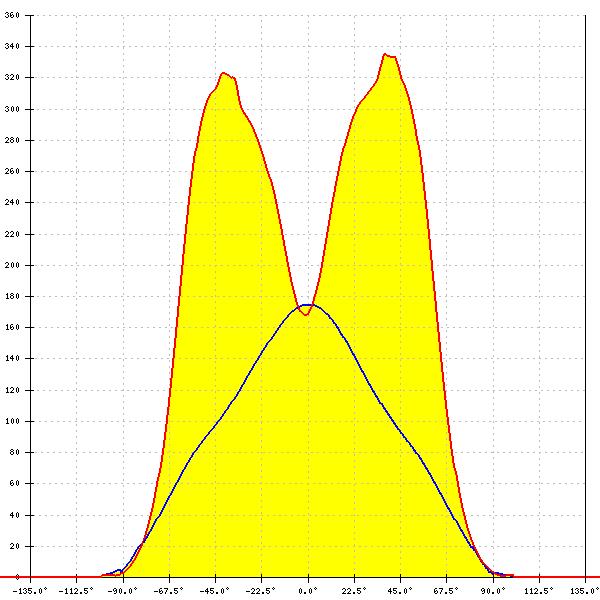

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

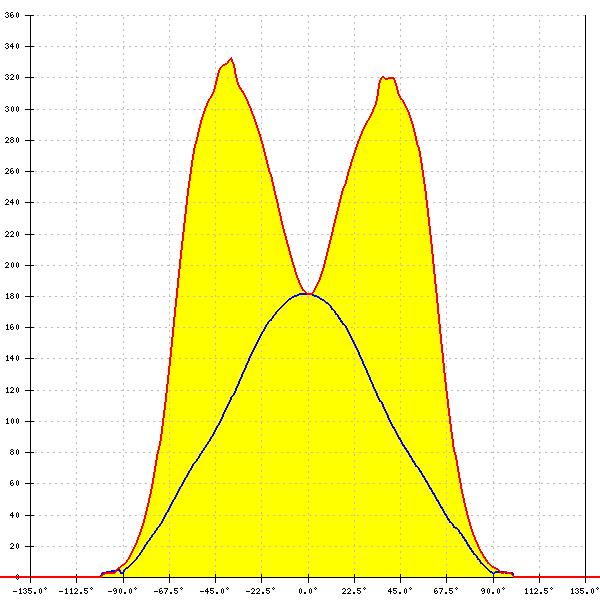

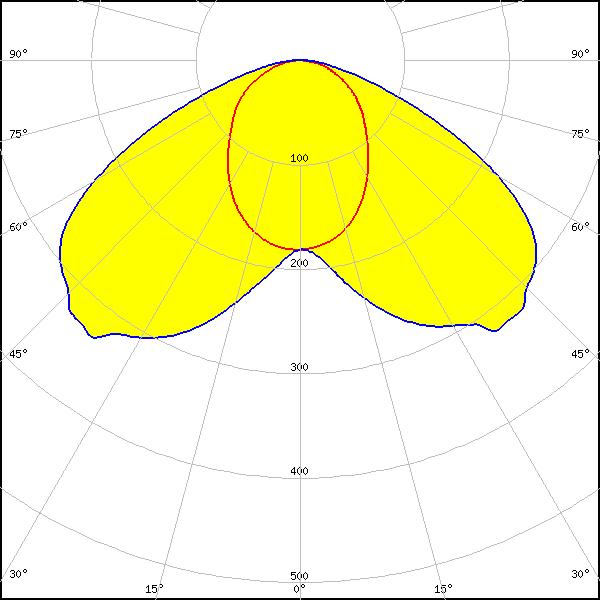

    LED: NFSW757H
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

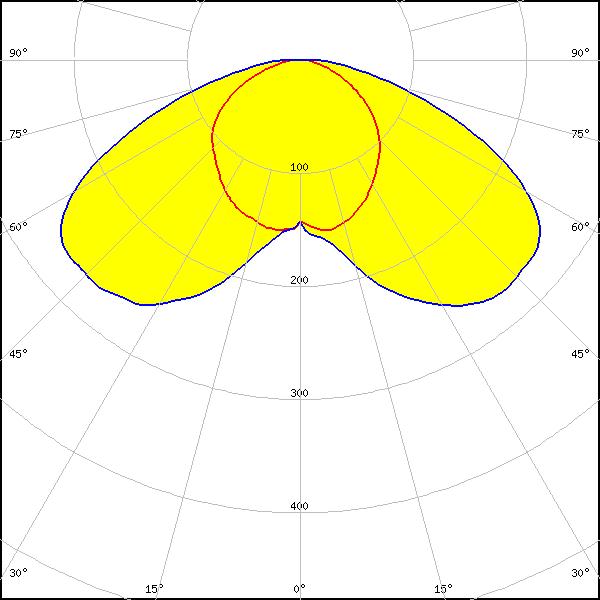

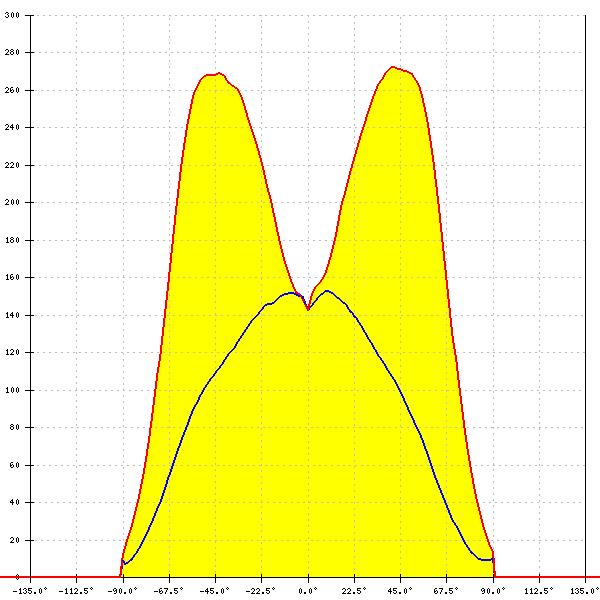

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: Red

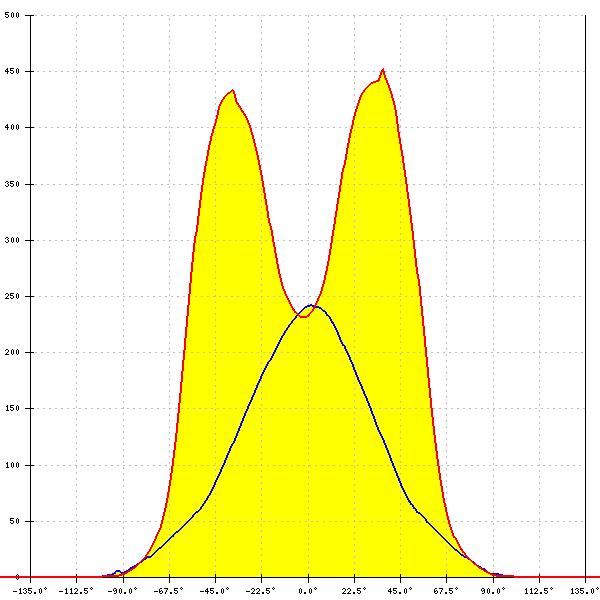

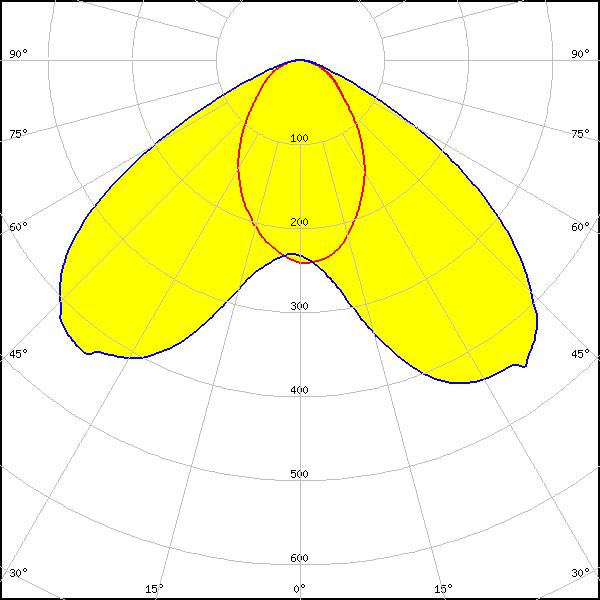

    LED: OSLON SSL 80
    FWHM: asymmetric
    Peak intensity: 0.5 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

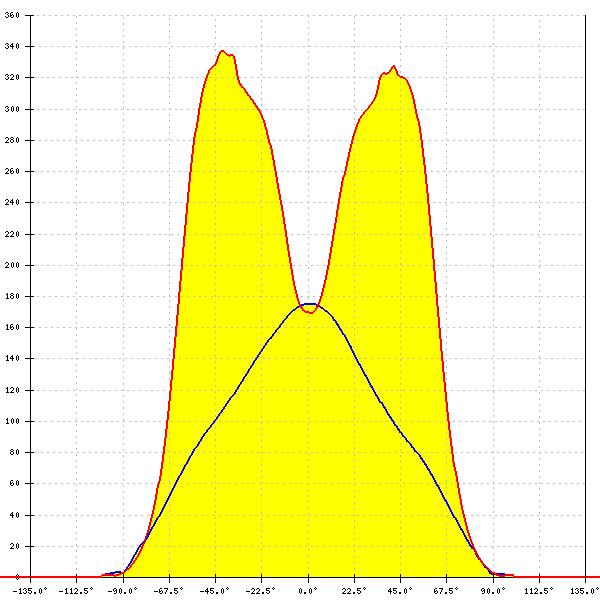

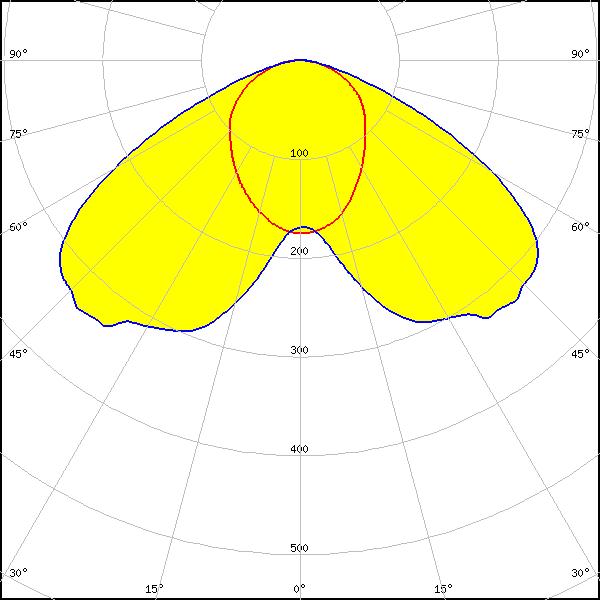

    LED: SEOUL 3030
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: SEOUL DC 3030
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

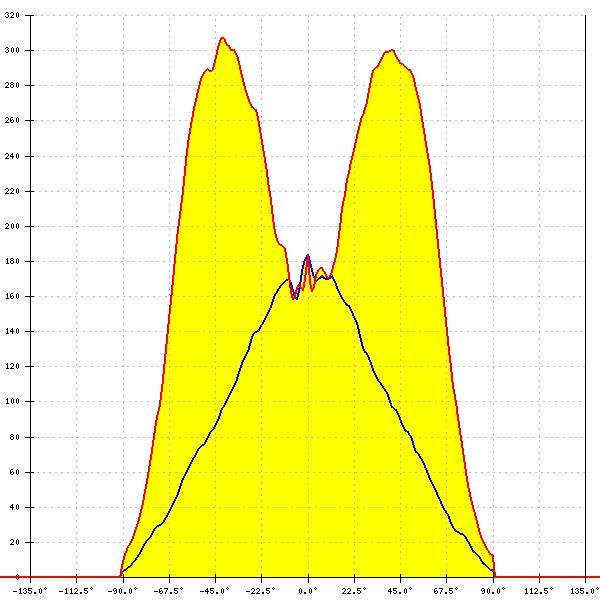

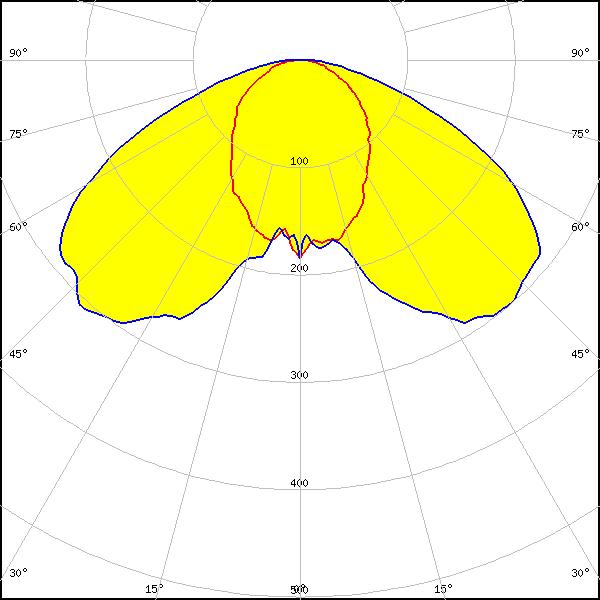

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

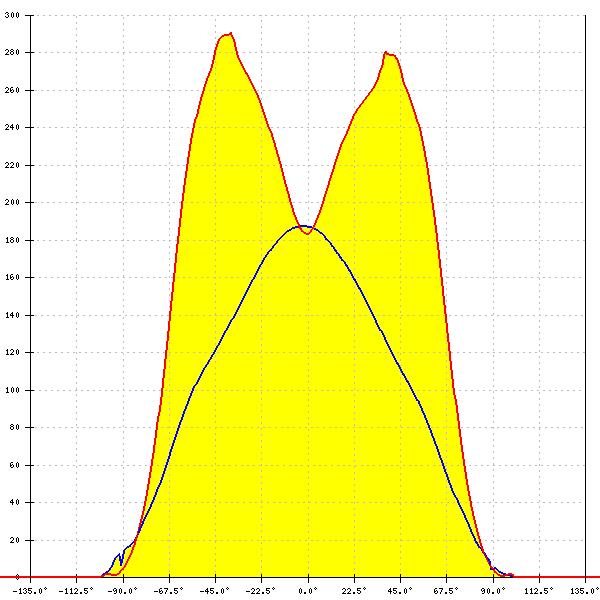

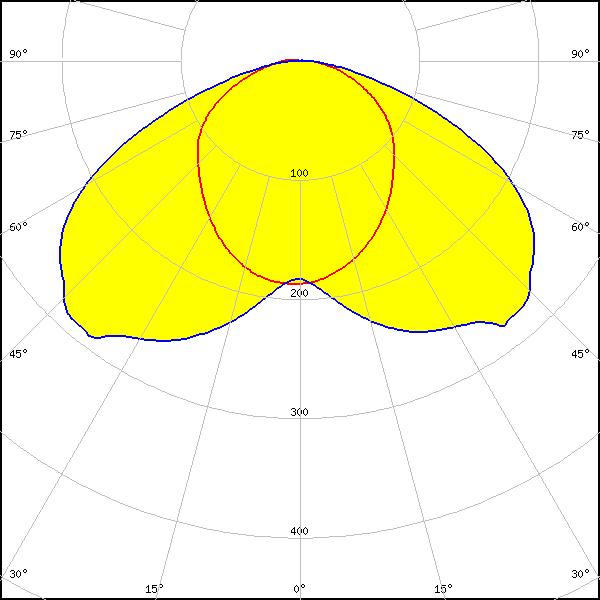

    LED: XH-B/G
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

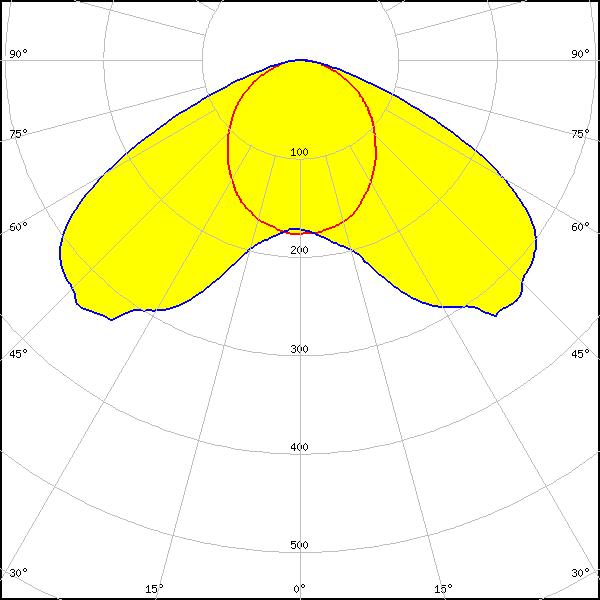

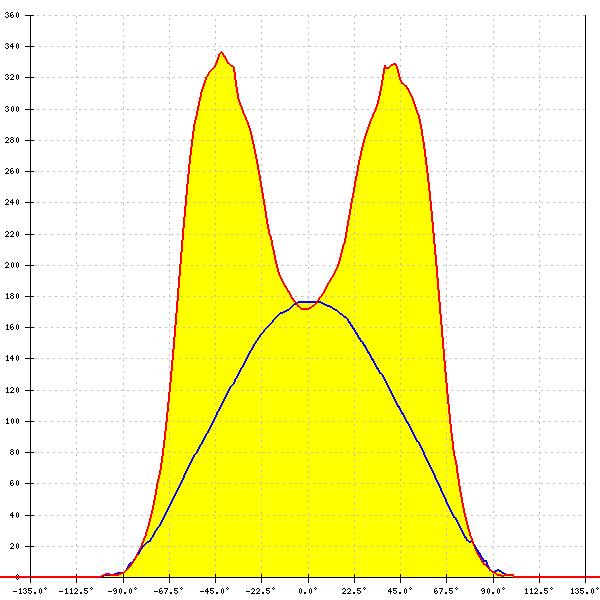

    LED: XP-E
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

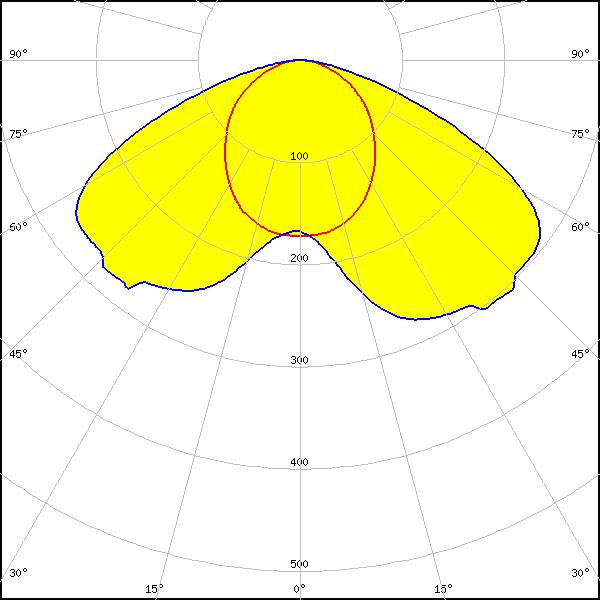

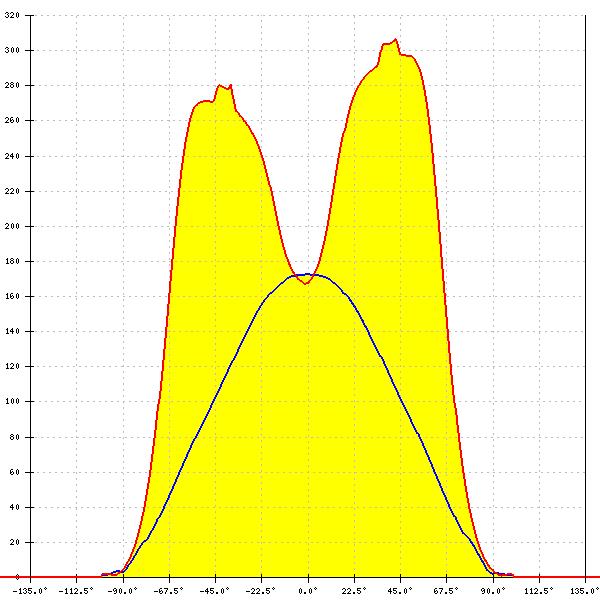

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.3 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White
