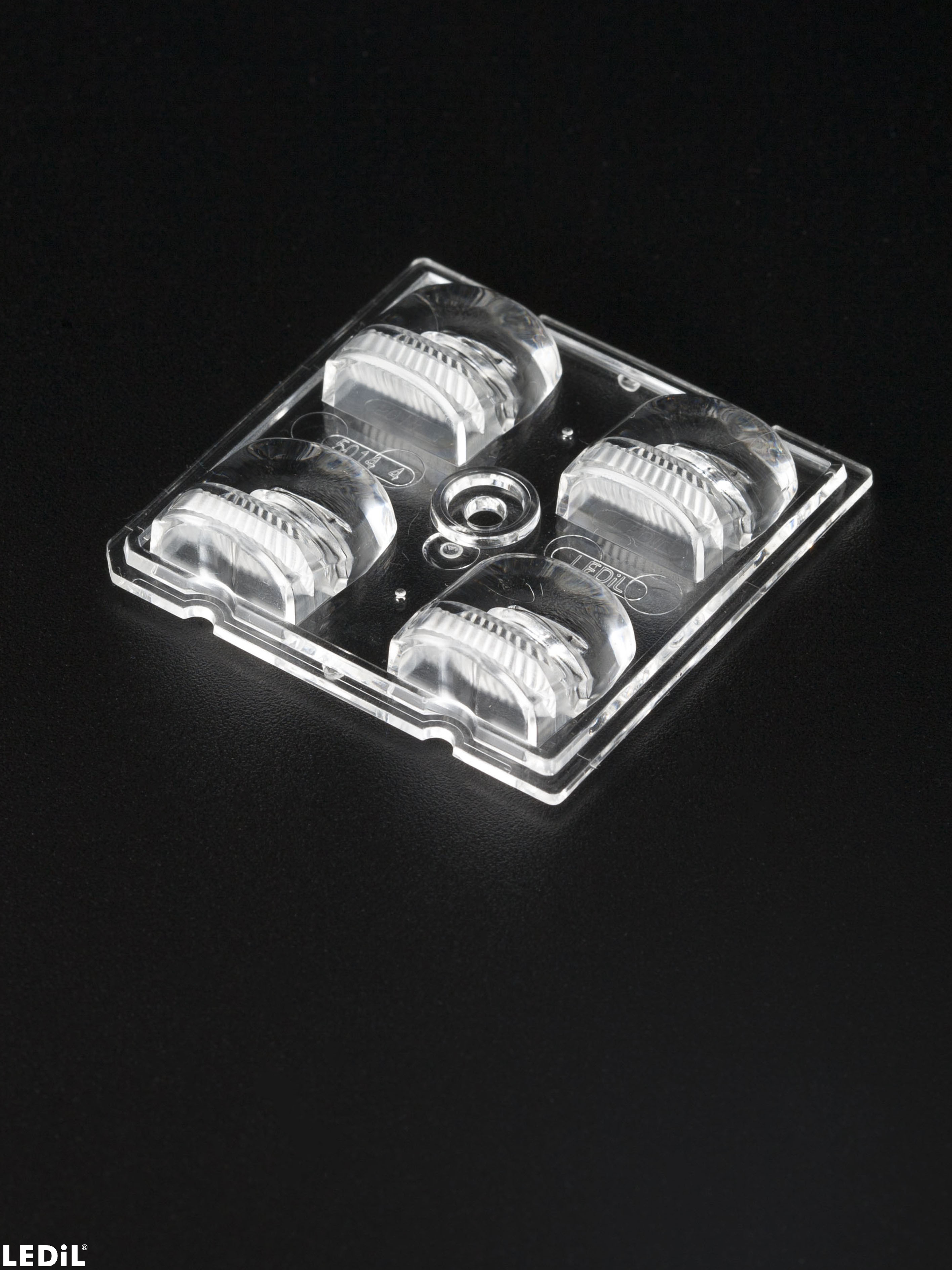

C15014_STRADA-2X2-T4-B

Print

Wide IESNA Type IV forward-throw beam for wide area lighting like car parks

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    9.02 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.3 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C15014_STRADA-2X2-T4-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

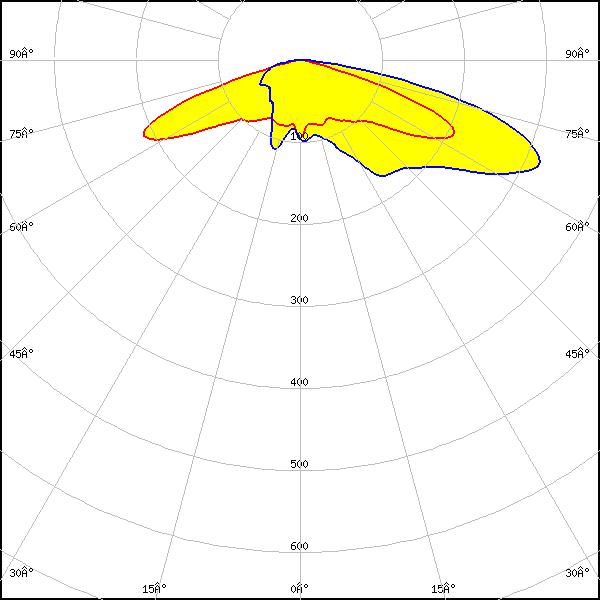

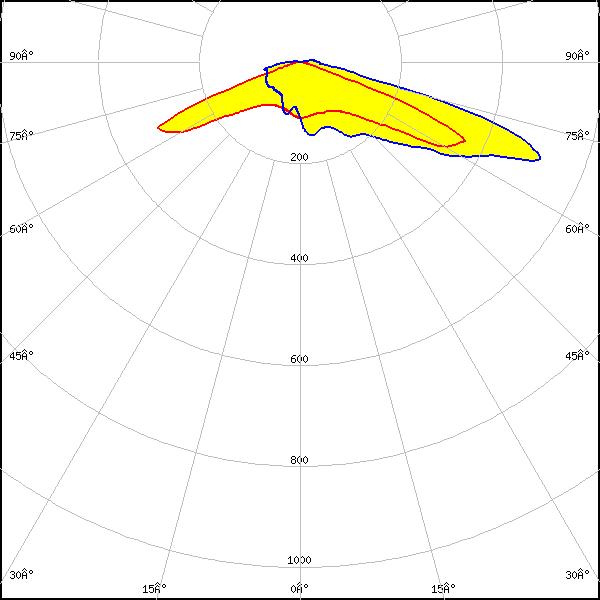

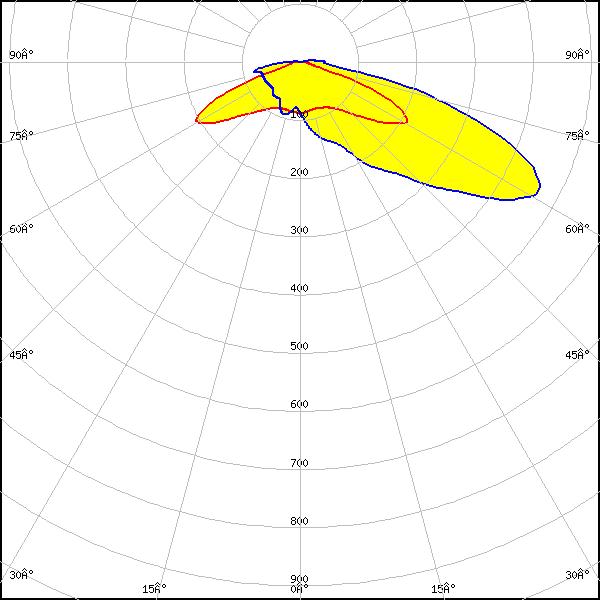

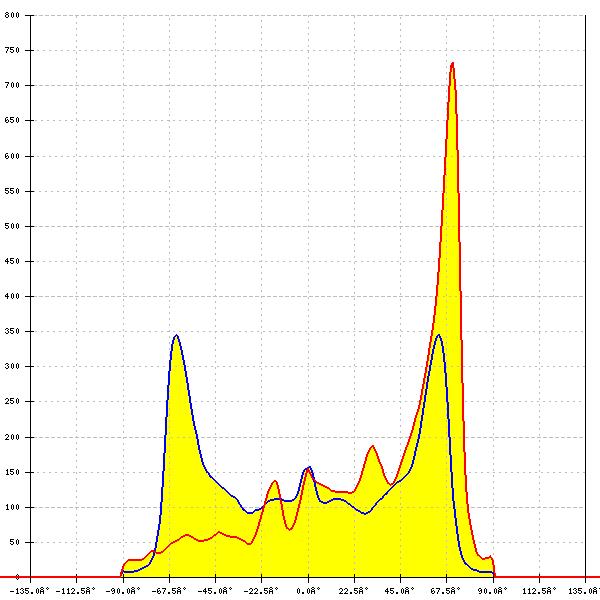

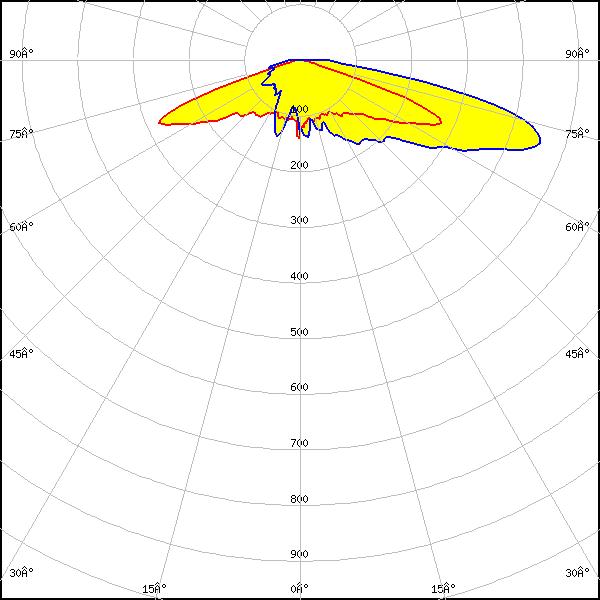

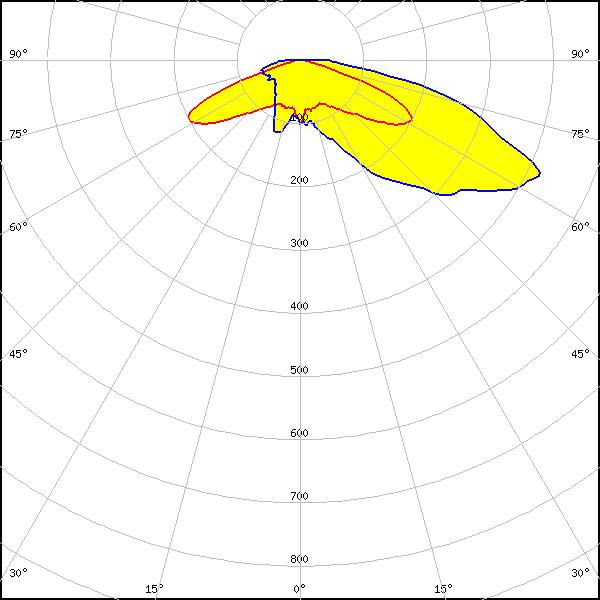

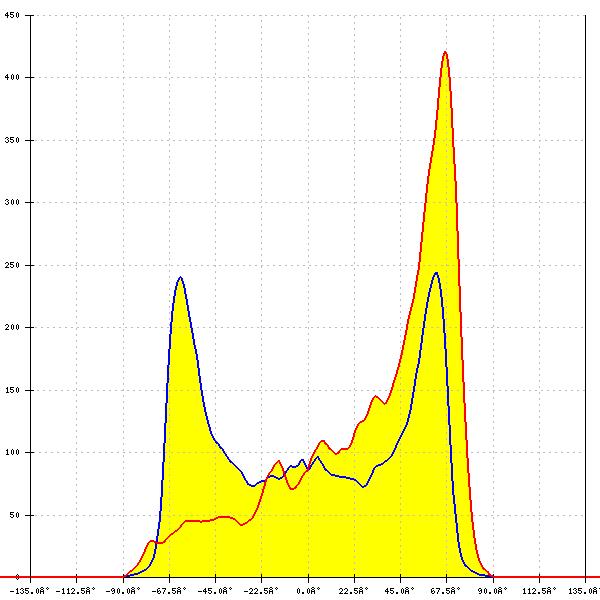

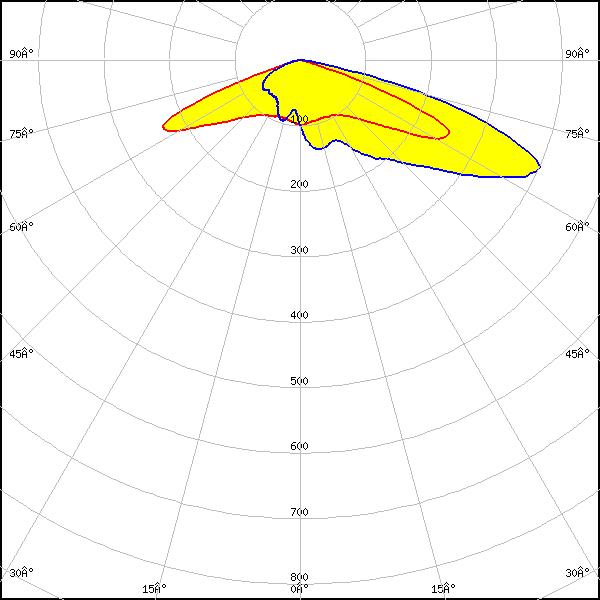

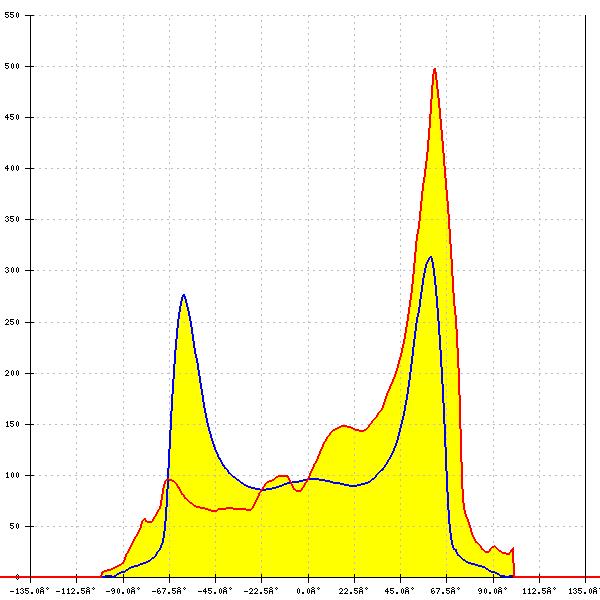

Optical results

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX XTP 2x4 xxx LS G5
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

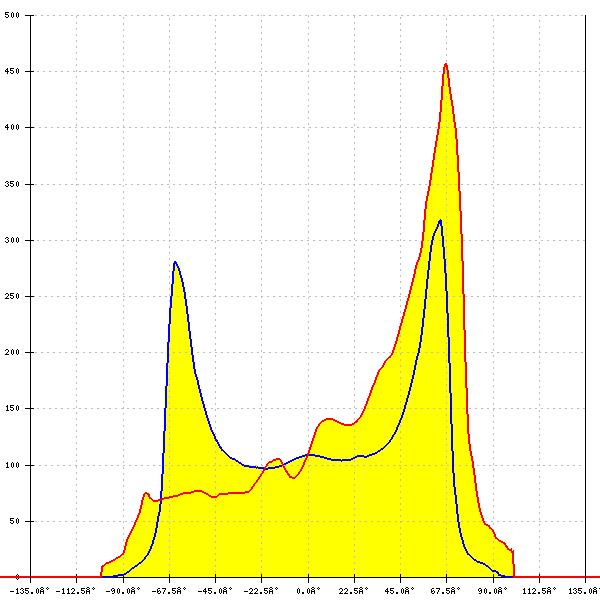

LED: QUICK FLUX XTP 2x6 xxx LS G5
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX XTP 2x8 xxx LS G5
FWHM: asymmetric
Peak intensity: 0.980 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

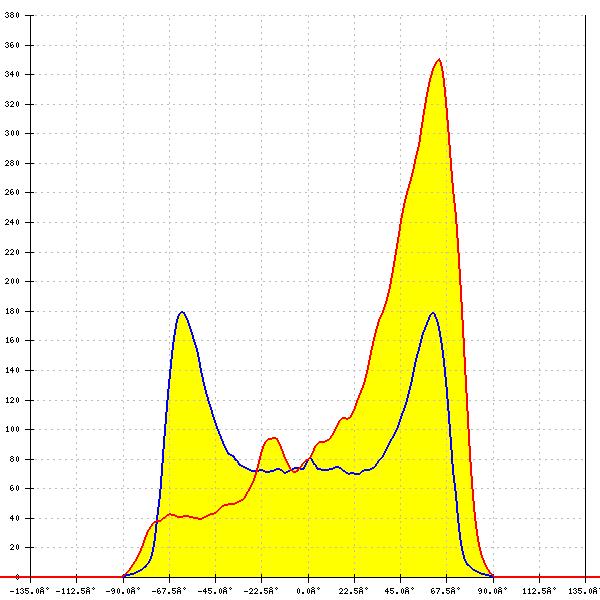

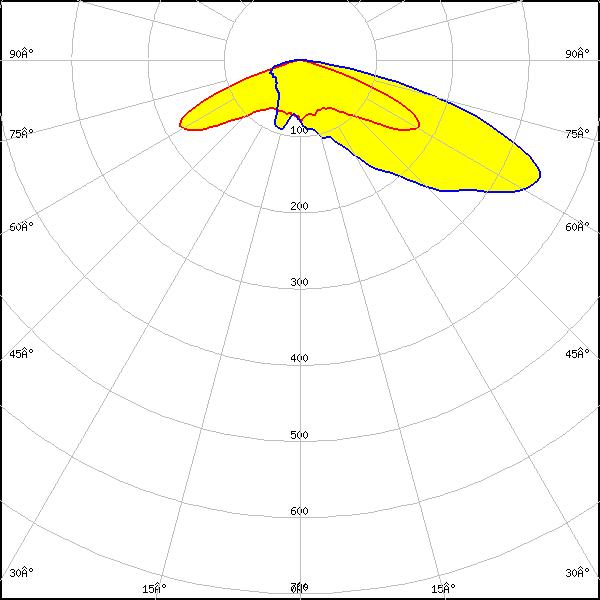

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.434 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

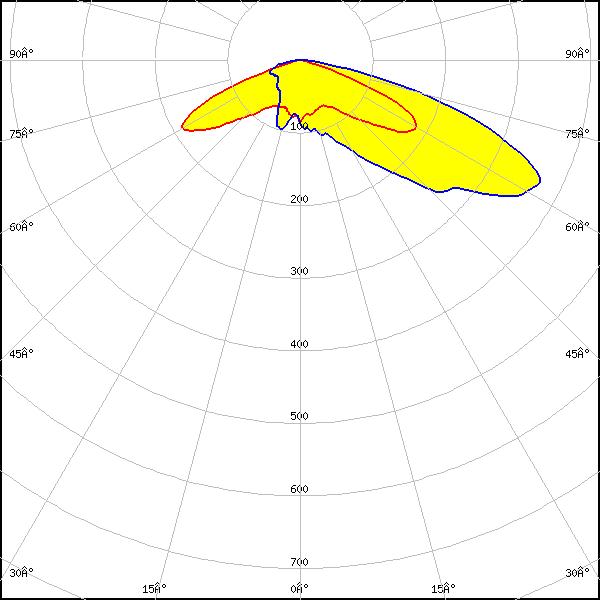

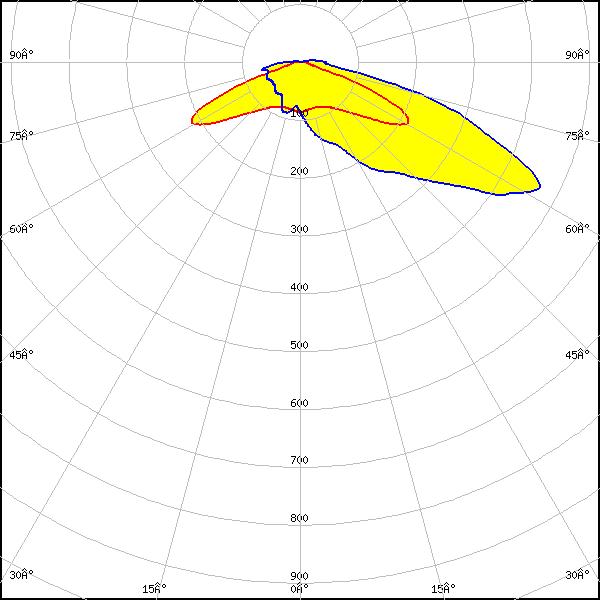

LED: J Series 5050 Square LES 6V
FWHM: asymmetric
Peak intensity: 0.466 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

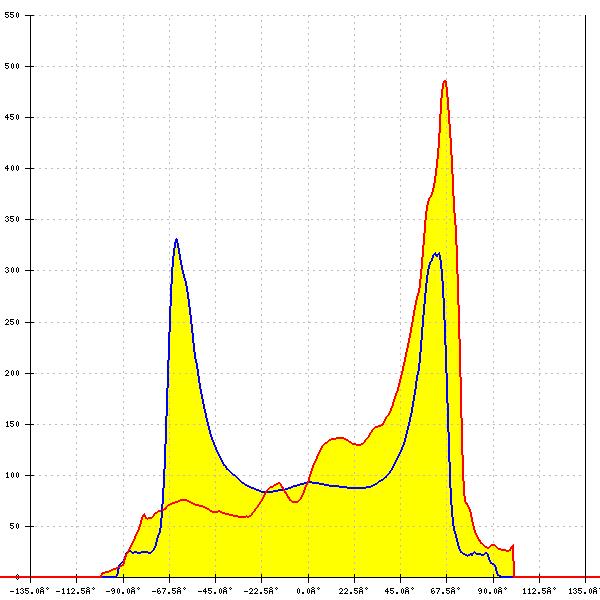

LED: XD16
FWHM: asymmetric
Peak intensity: 1.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: XD16
FWHM: asymmetric
Peak intensity: 0.690 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

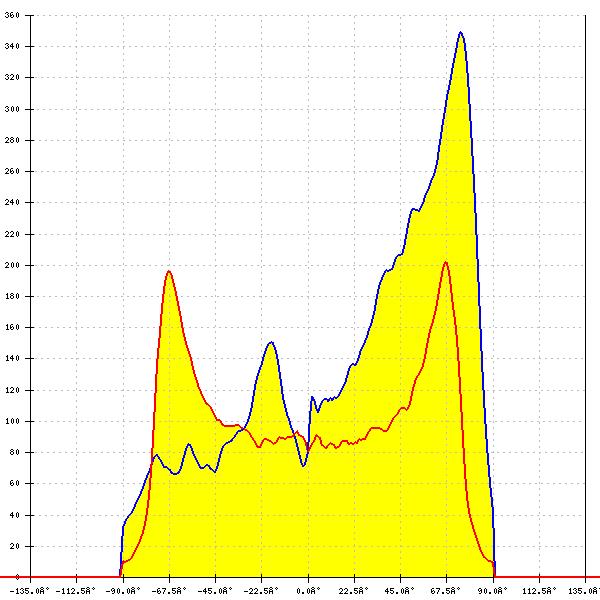

LED: XHP35 HD
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

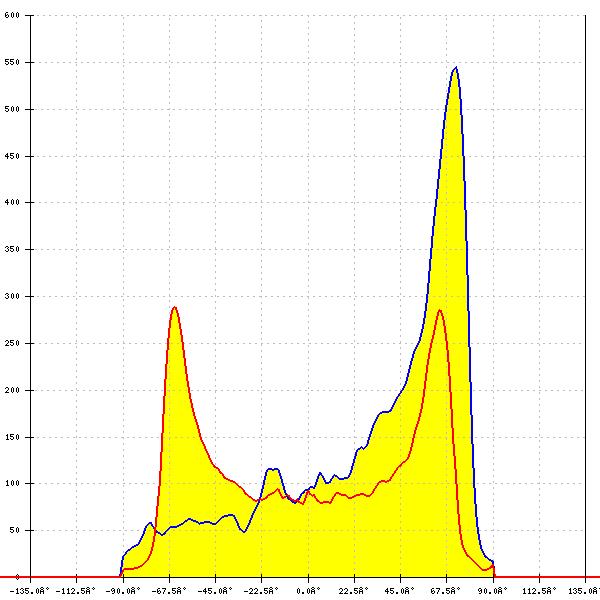

LED: XHP35 HI
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

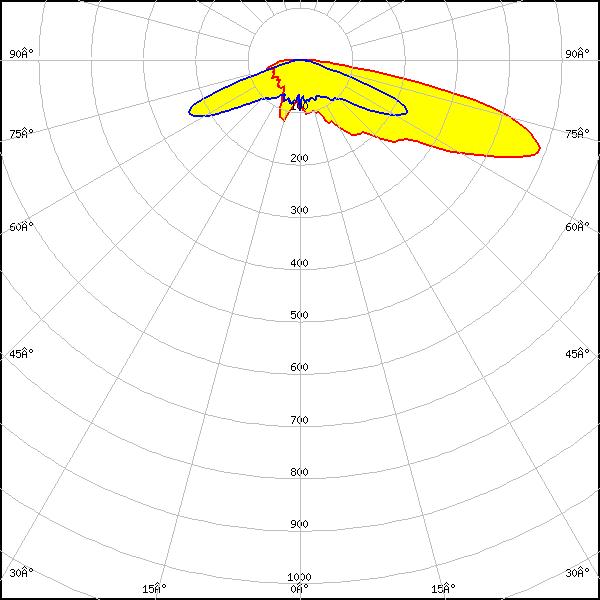

LED: XM-L
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

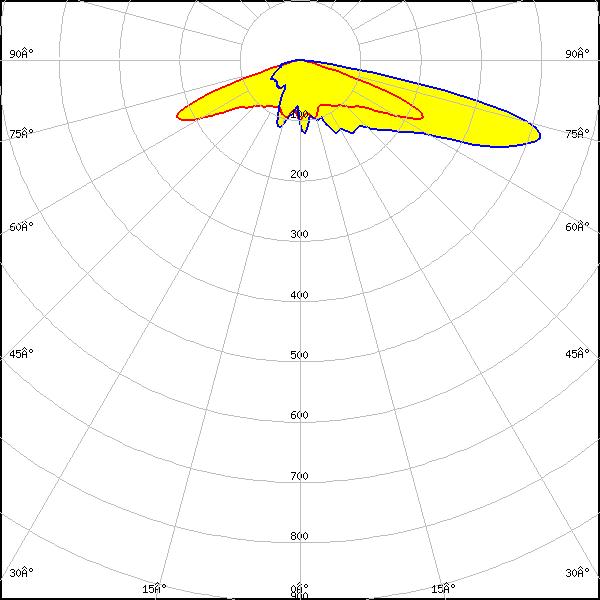

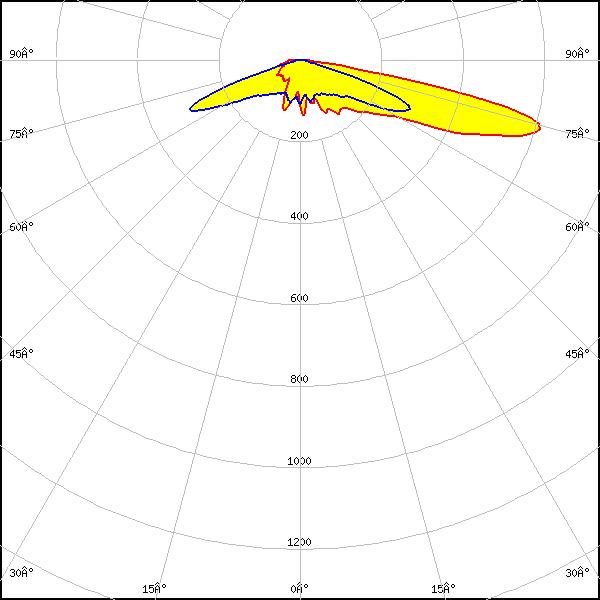

LED: XP-G2
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White
LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.556 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White

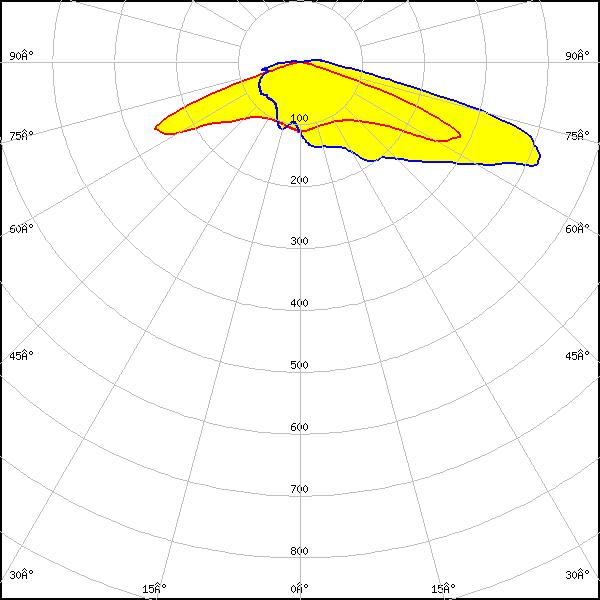

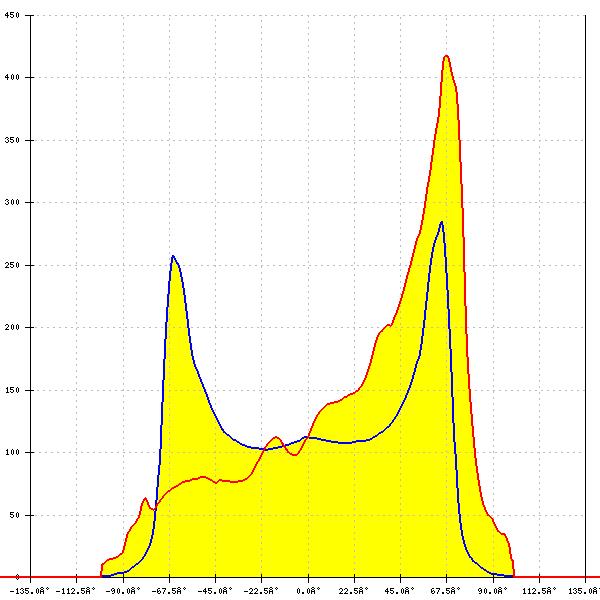

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.857 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

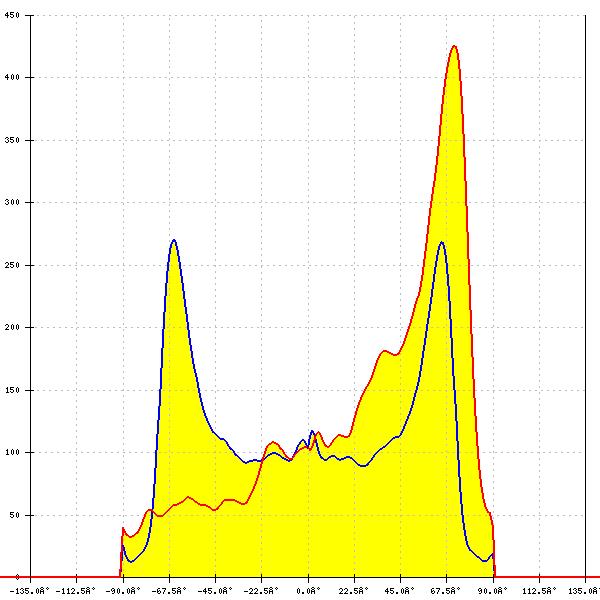

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

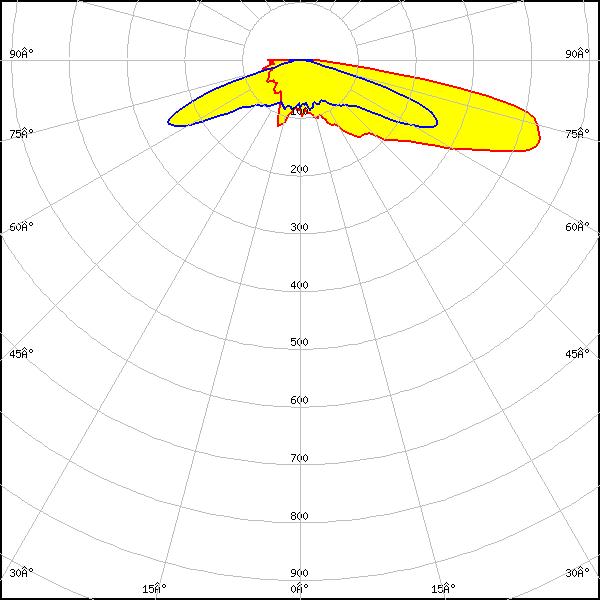

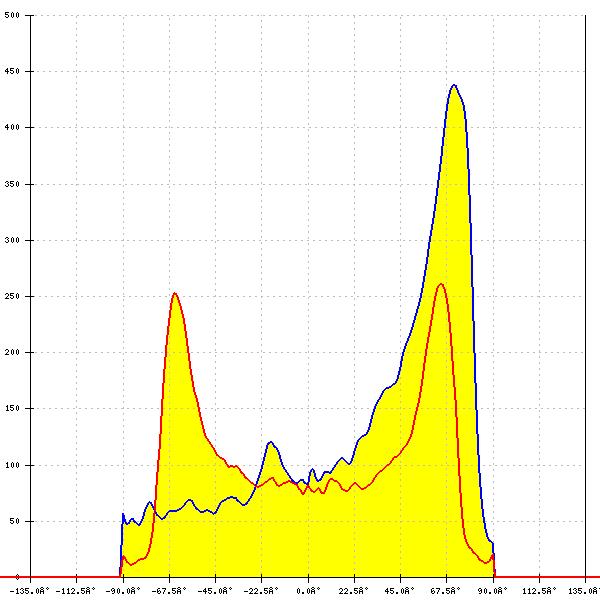

LED: XP-L HD
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

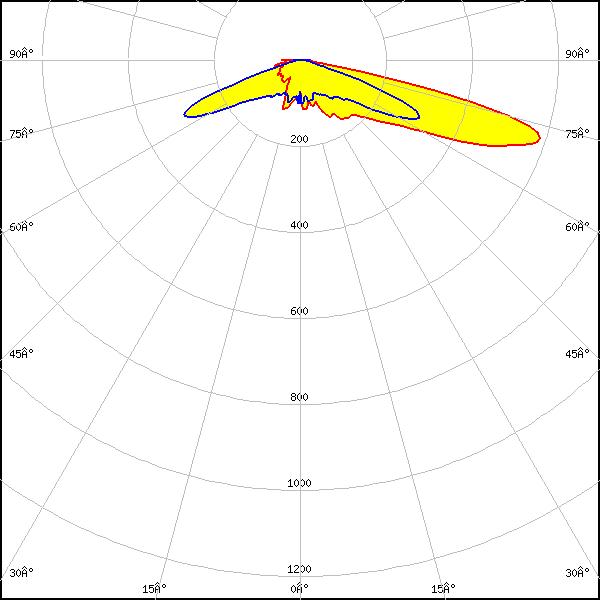

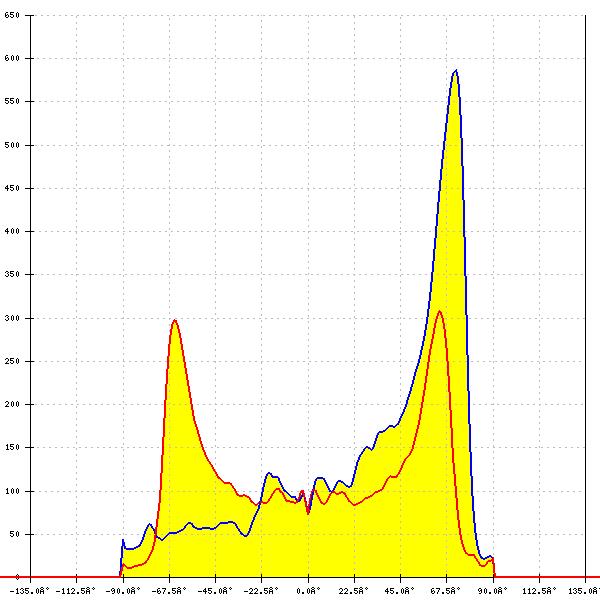

LED: XP-L HI
FWHM: asymmetric
Peak intensity: 0.980 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

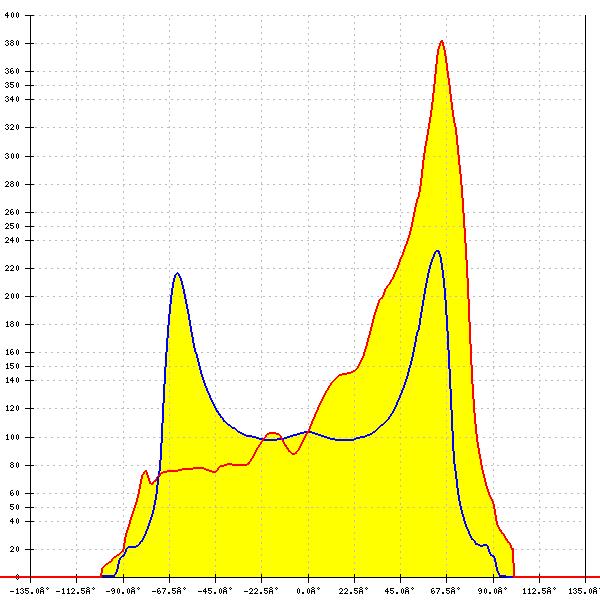

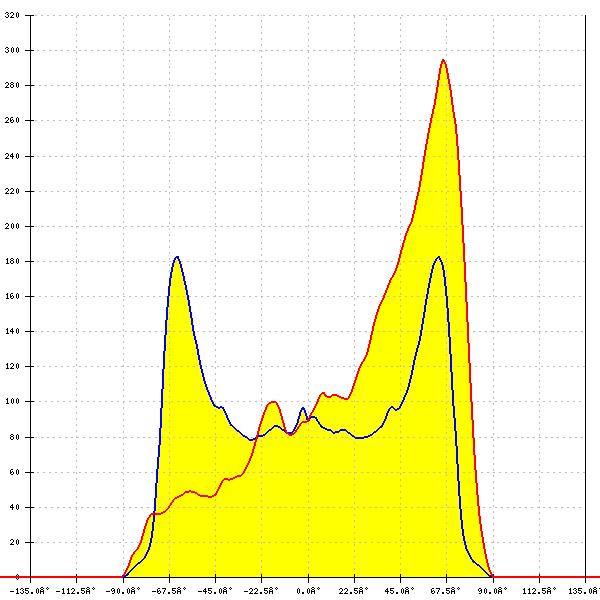

LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.407 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

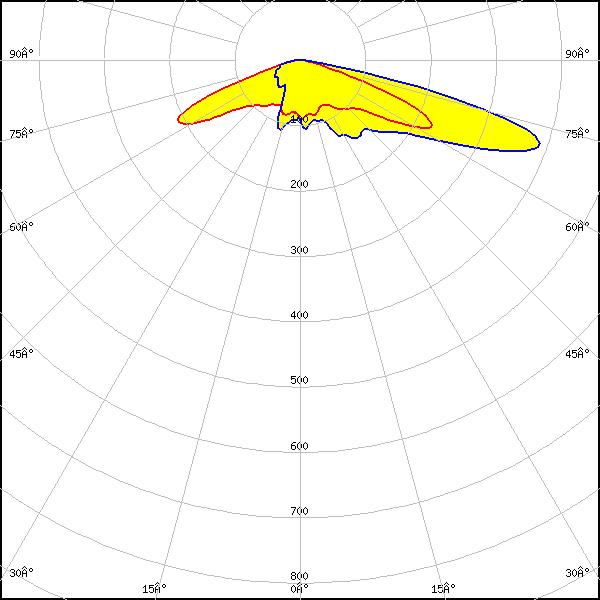

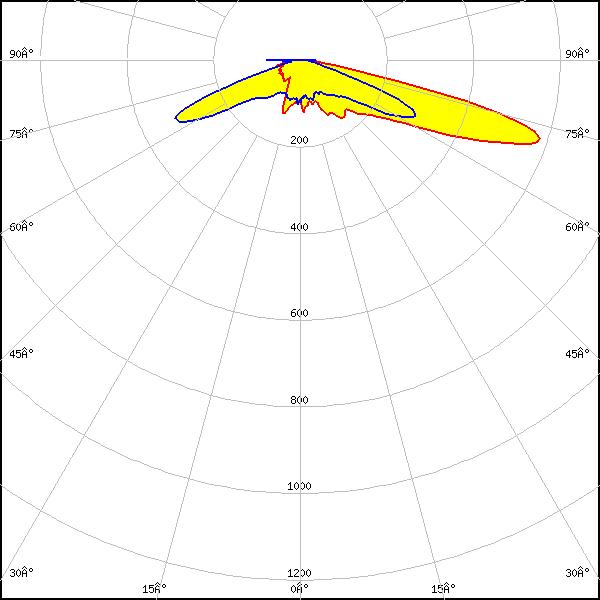

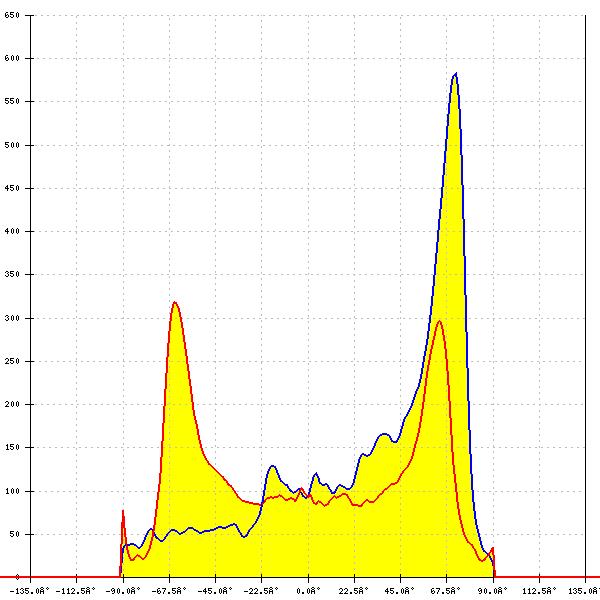

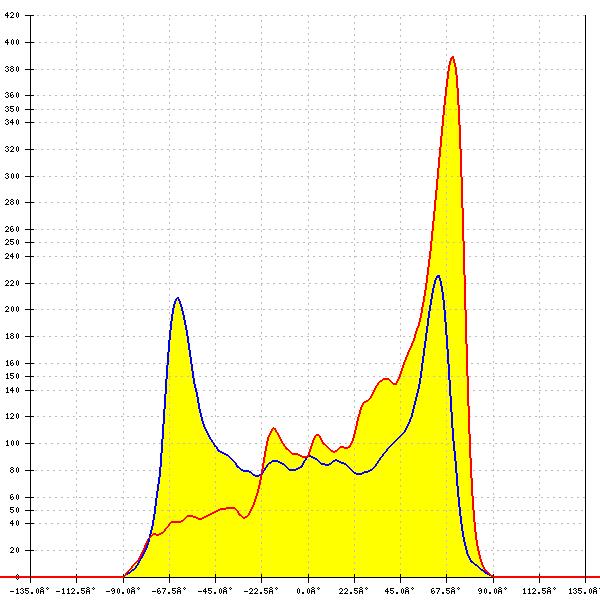

LED: XT-E
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

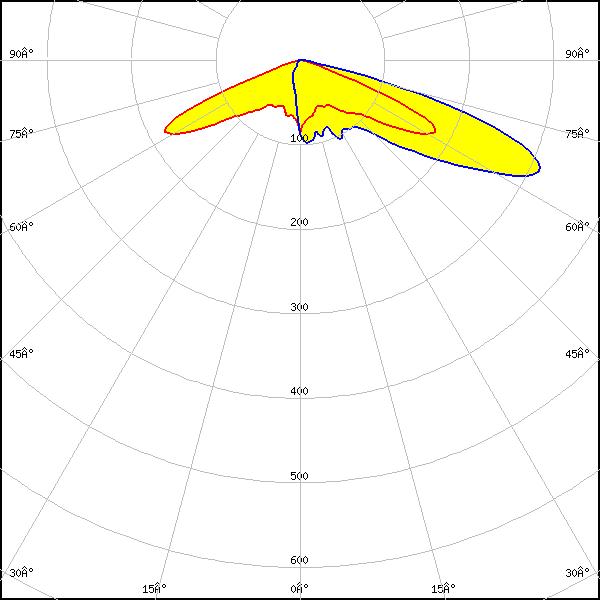

LED: XT-E
Required components:
FWHM: asymmetric
Peak intensity: 0.526 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White

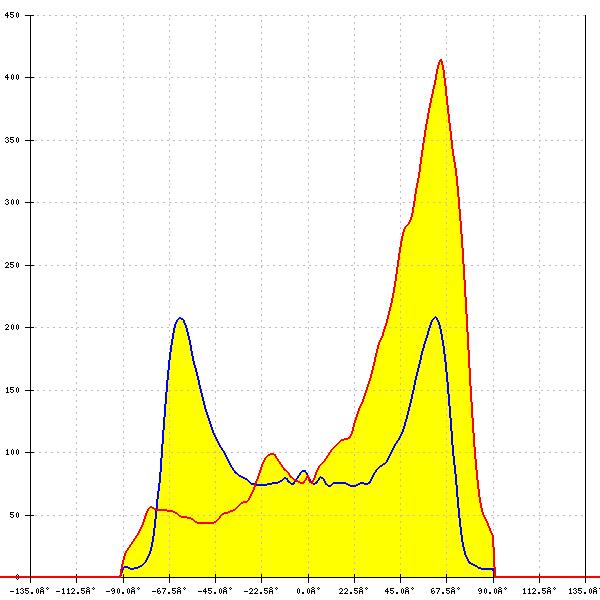

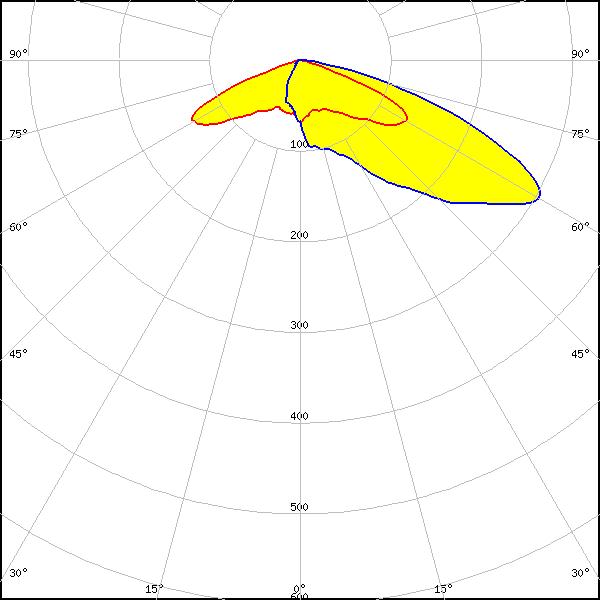

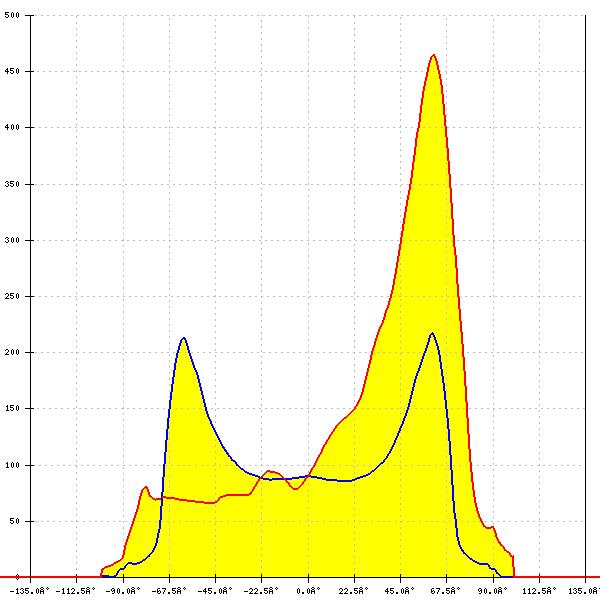

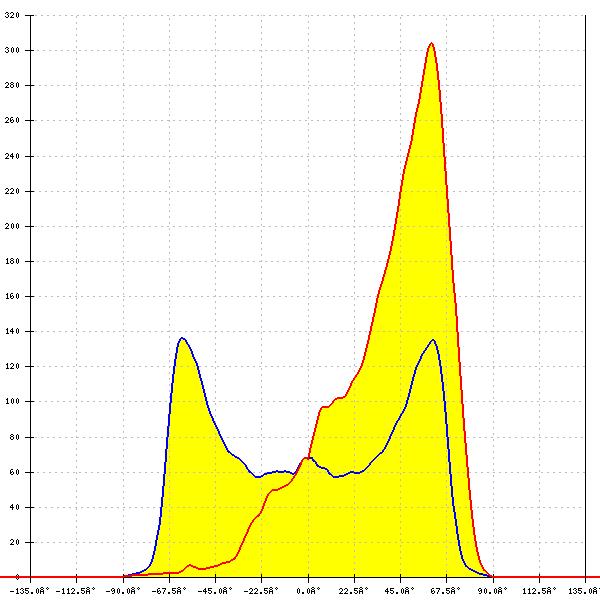

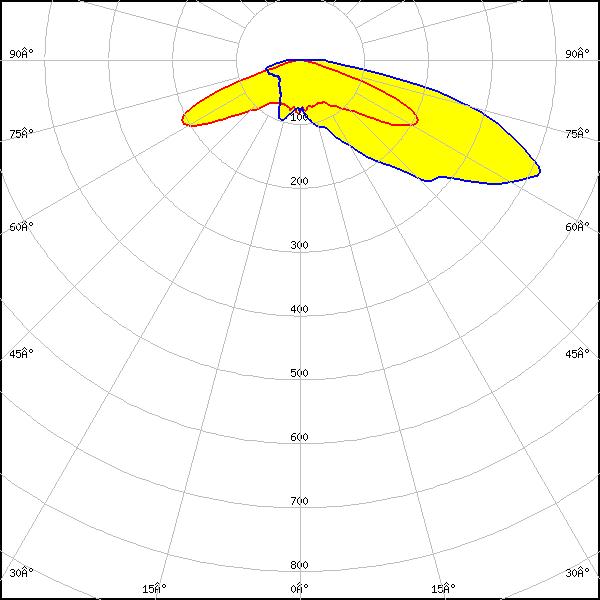

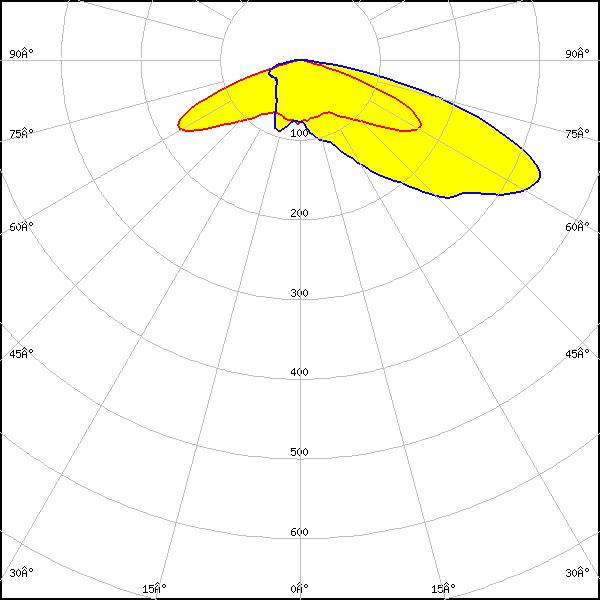

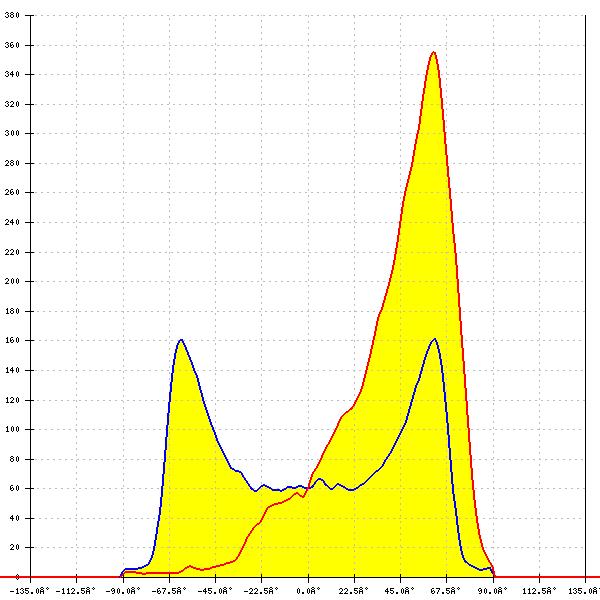

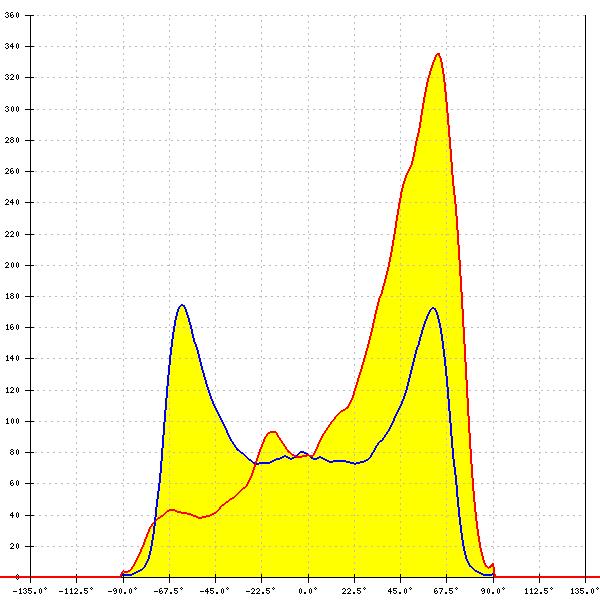

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.593 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

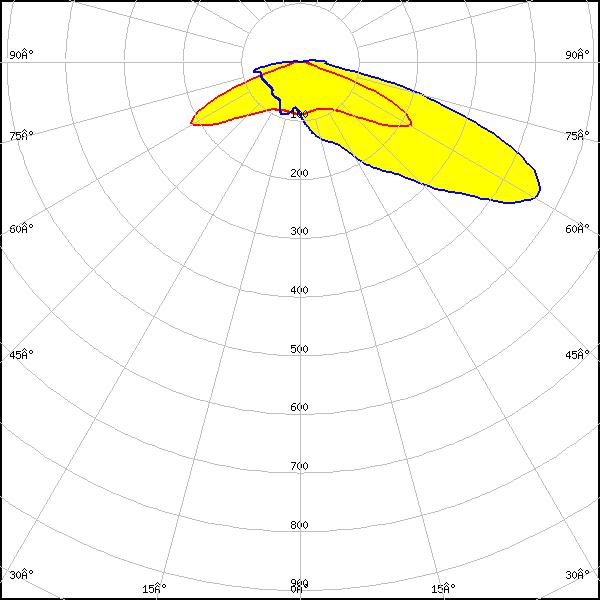

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.481 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

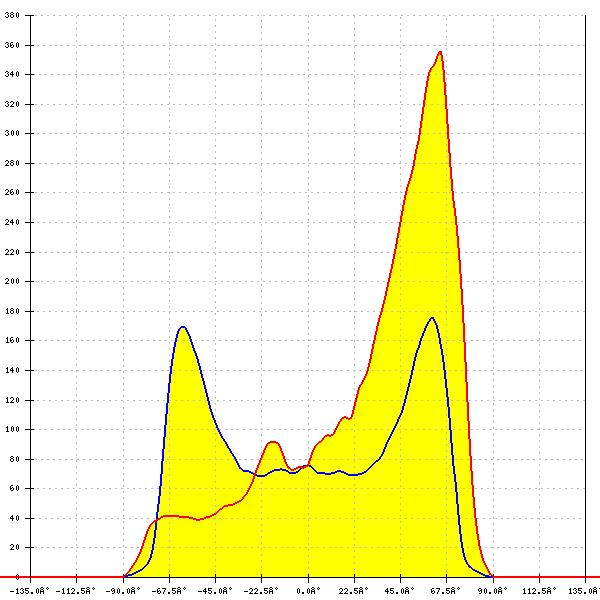

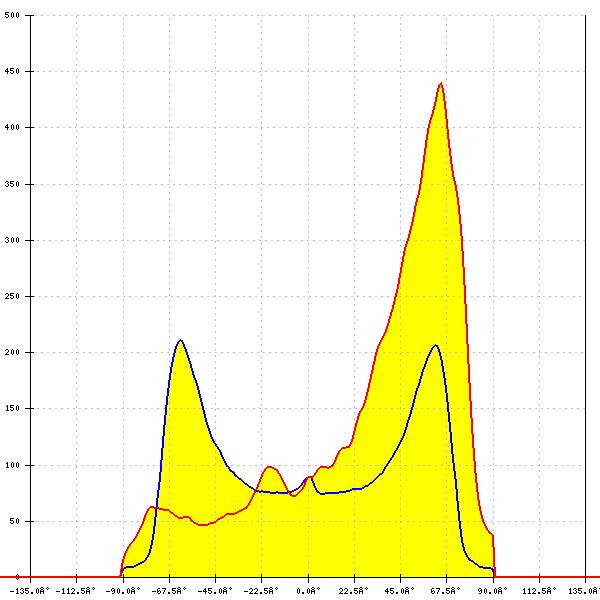

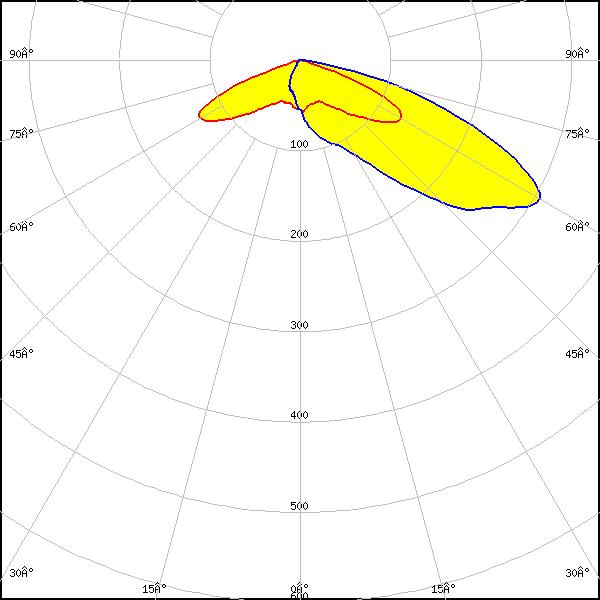

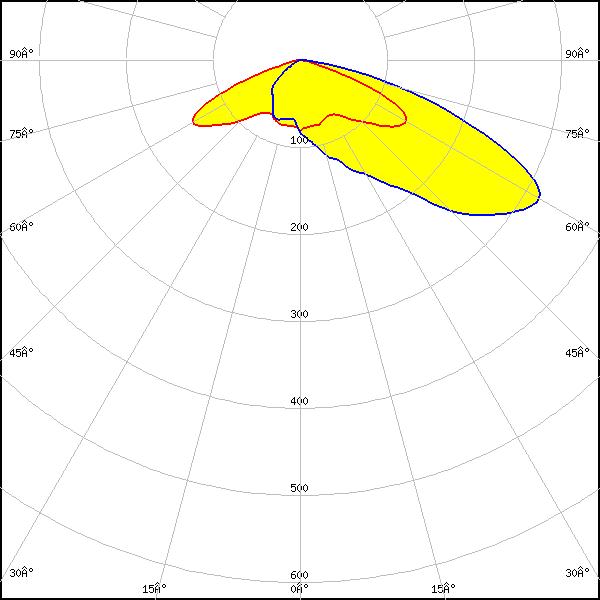

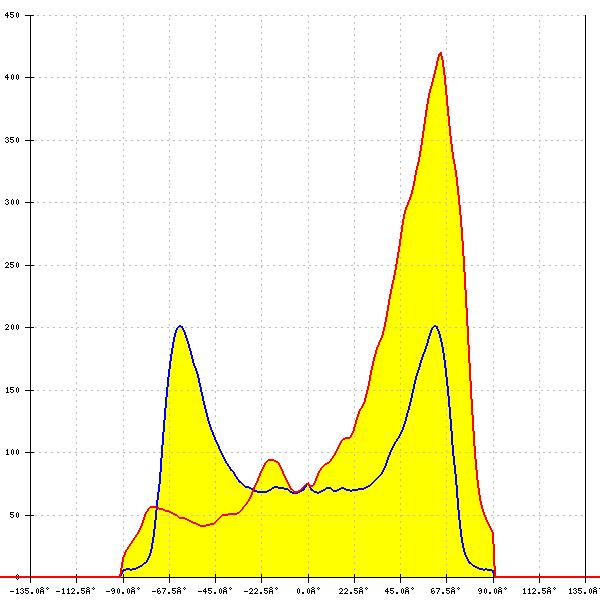

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.595 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

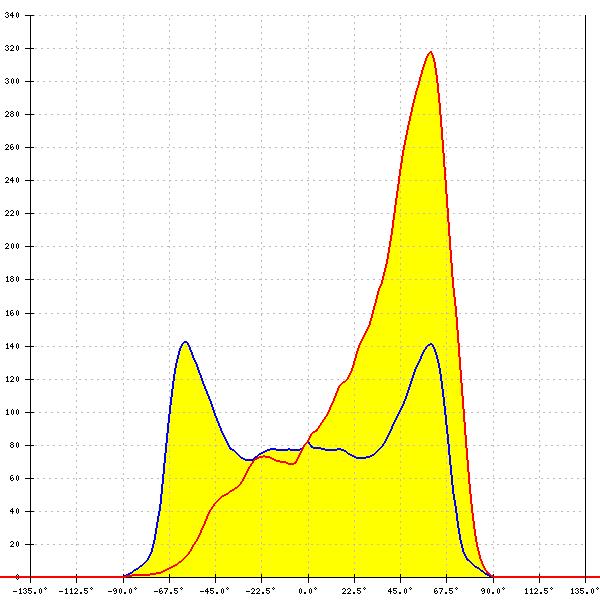

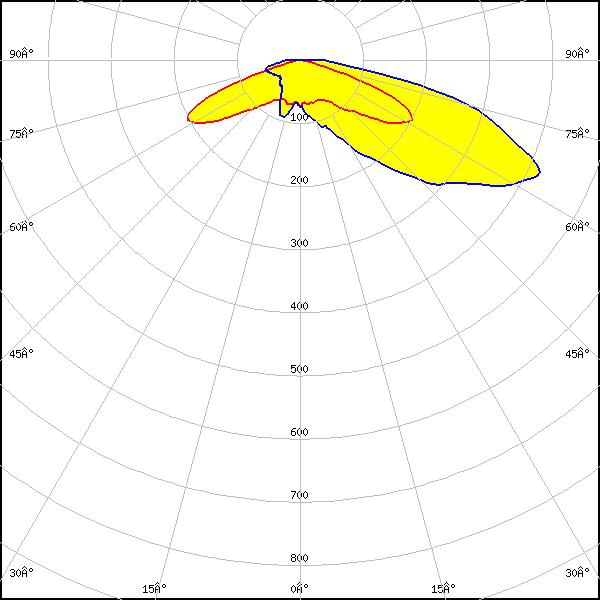

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.579 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.416 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

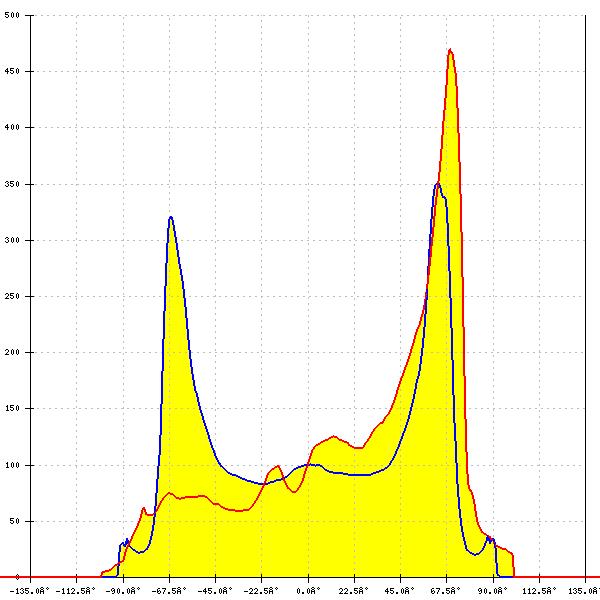

LED: LUXEON C
FWHM: asymmetric
Peak intensity: 1.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: PC Amber

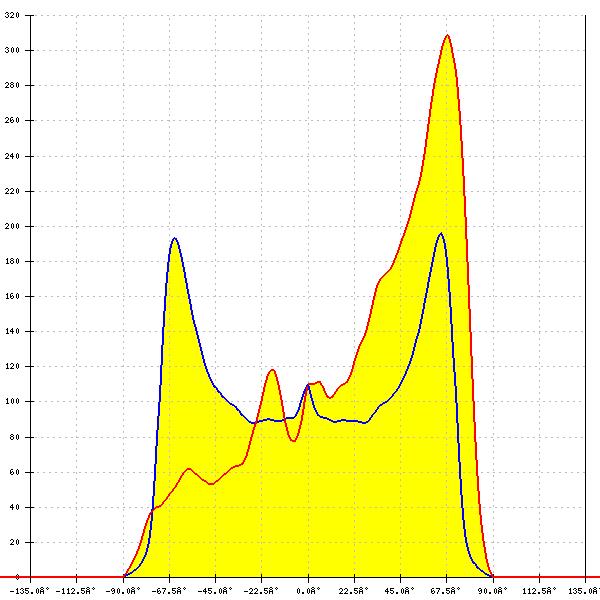

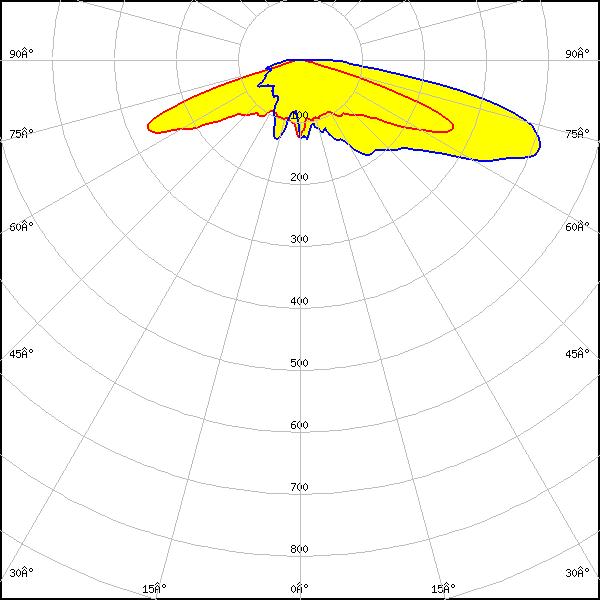

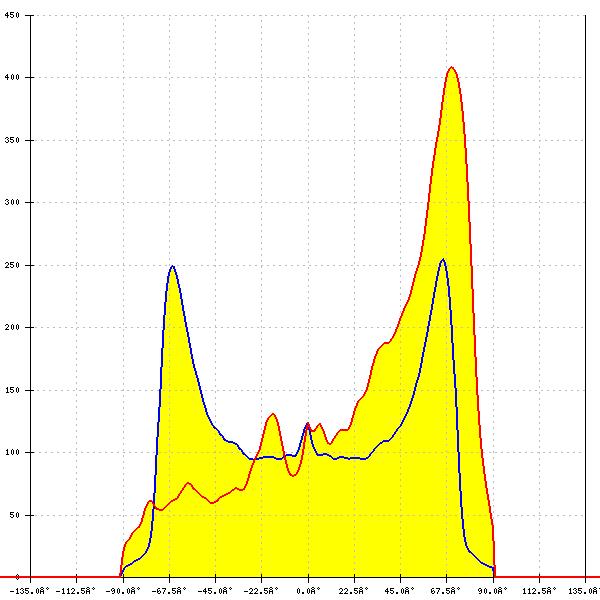

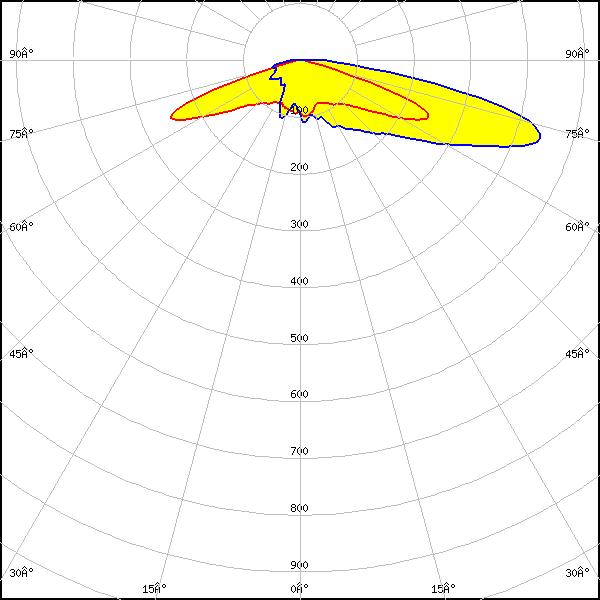

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.678 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

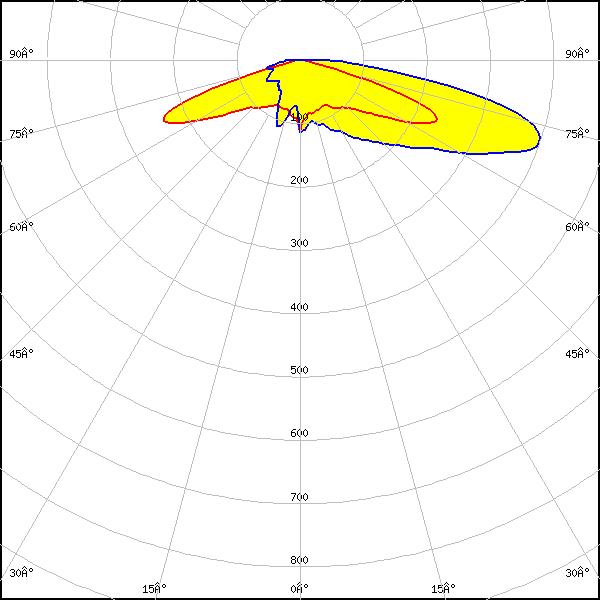

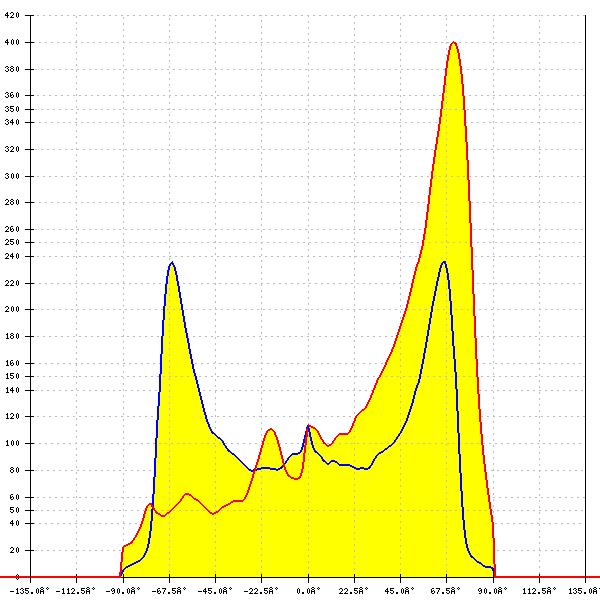

LED: LUXEON HL2X-P
FWHM: asymmetric
Peak intensity: 0.619 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

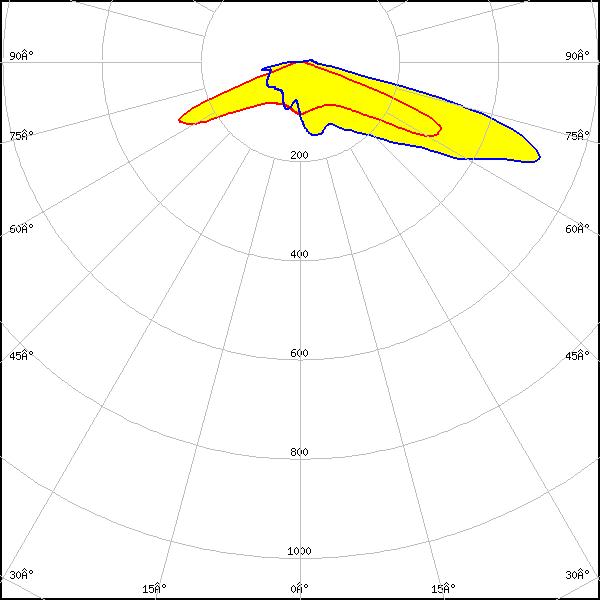

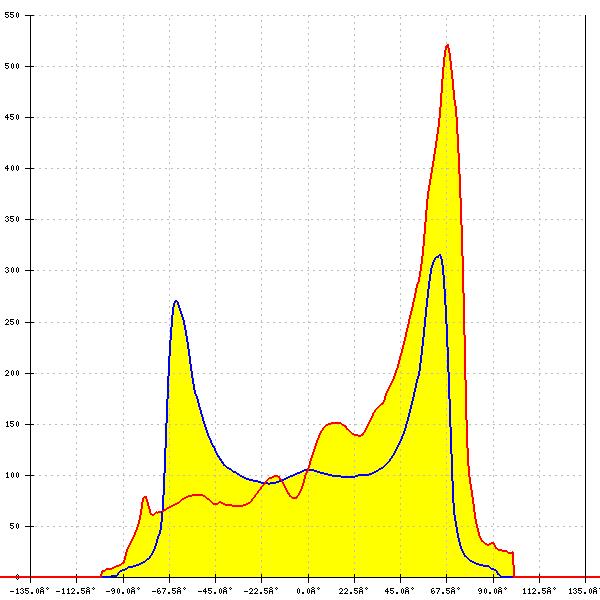

LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

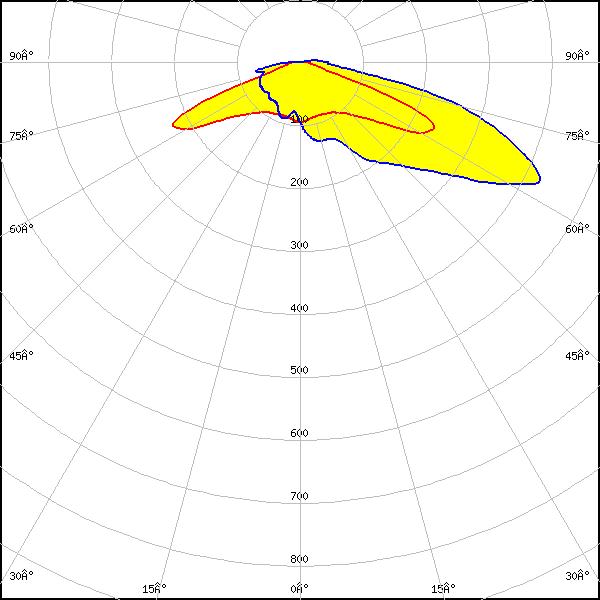

LED: LUXEON V
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

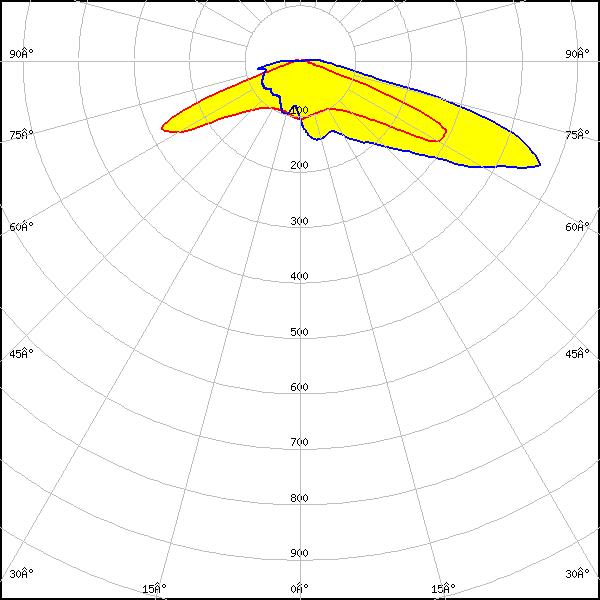

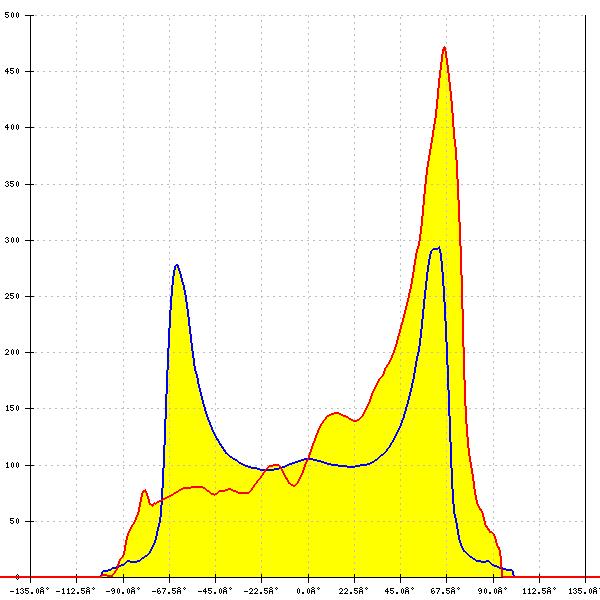

LED: LUXEON V2
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

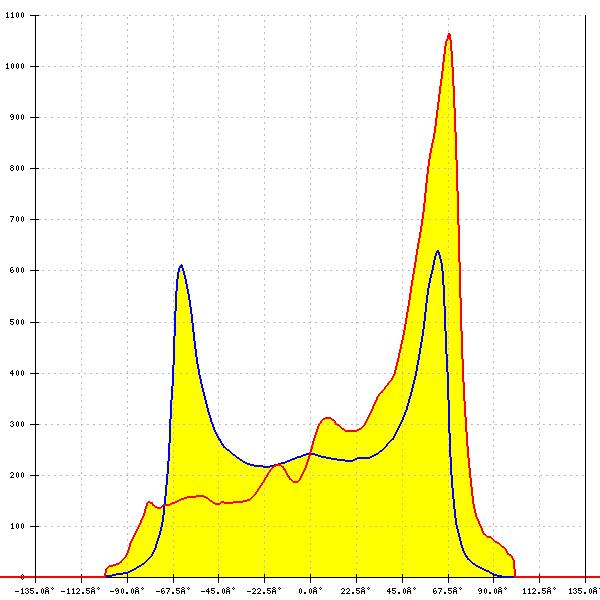

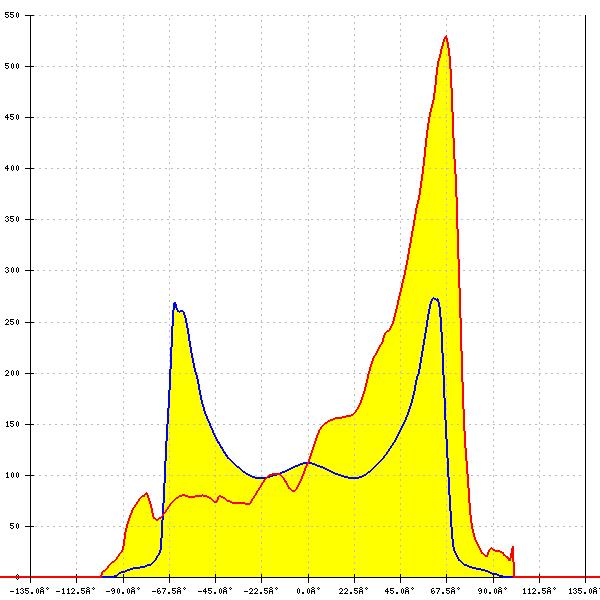

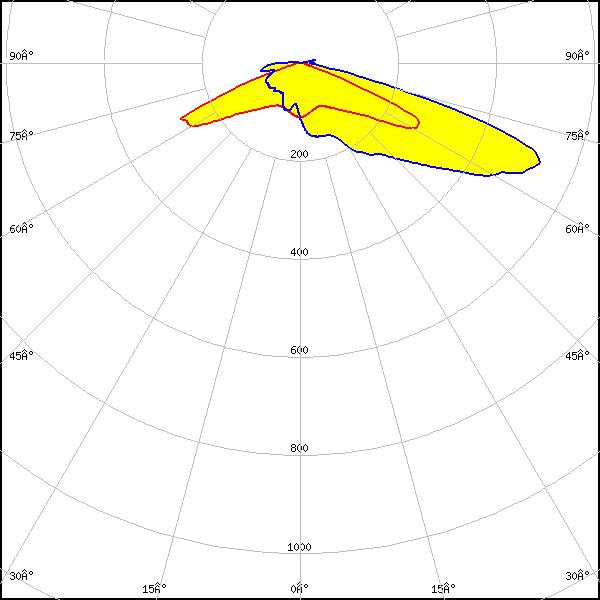

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 1.059 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: NCSxx19B
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

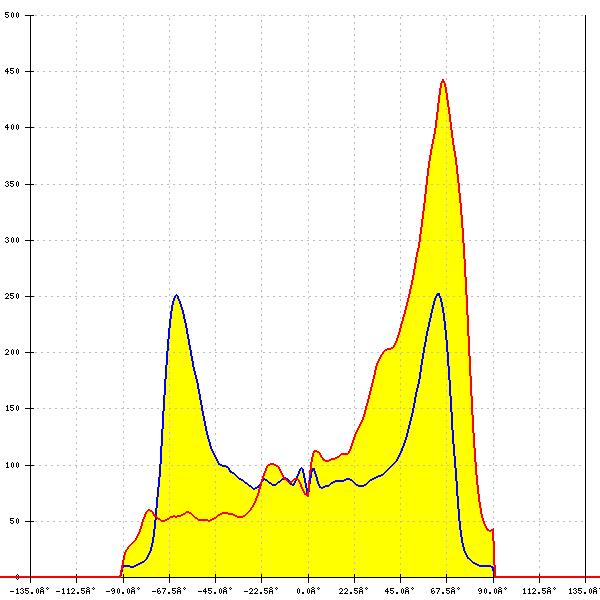

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.713 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

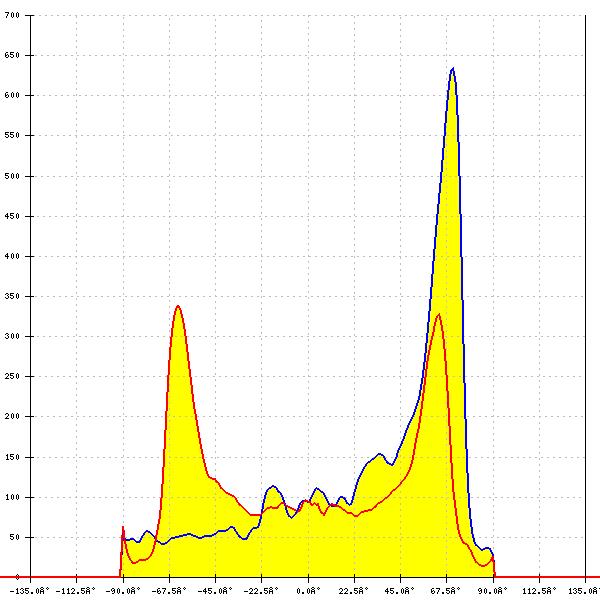

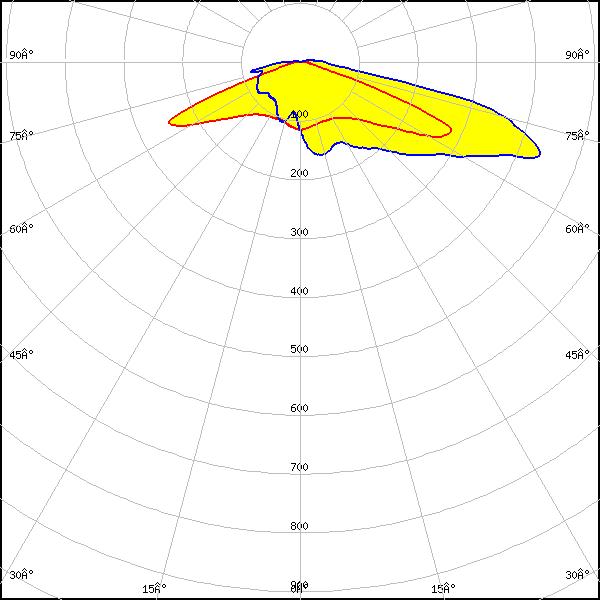

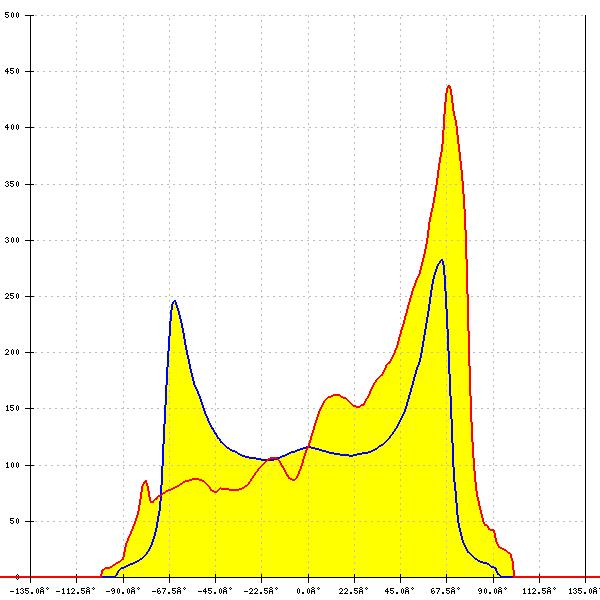

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.830 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

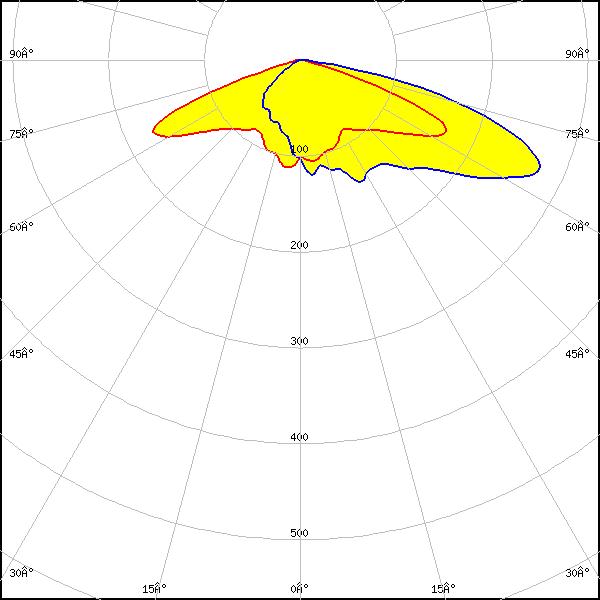

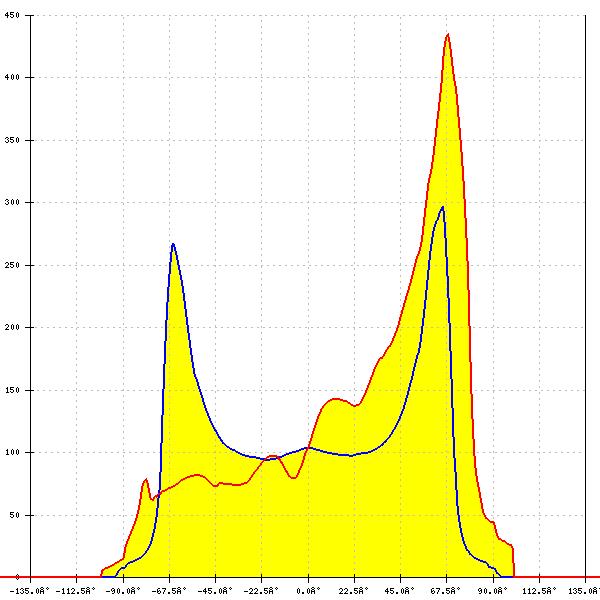

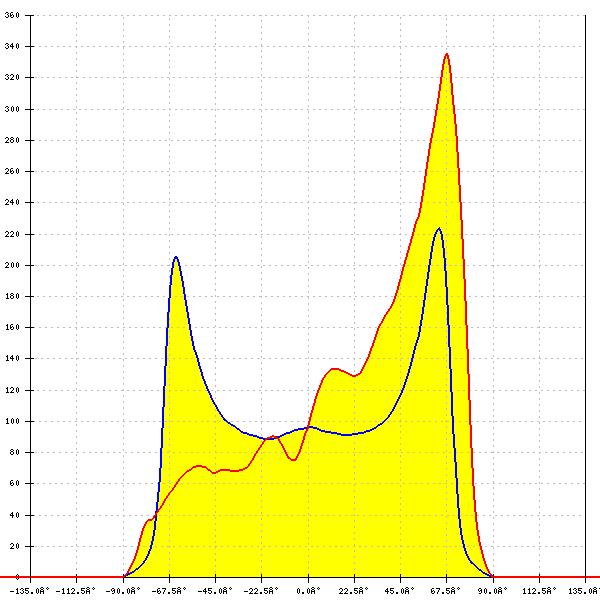

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.532 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.950 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.443 cd/lm
Efficiency: 65 %
LEDs/each optic: 1
Light colour: White
LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 0.830 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

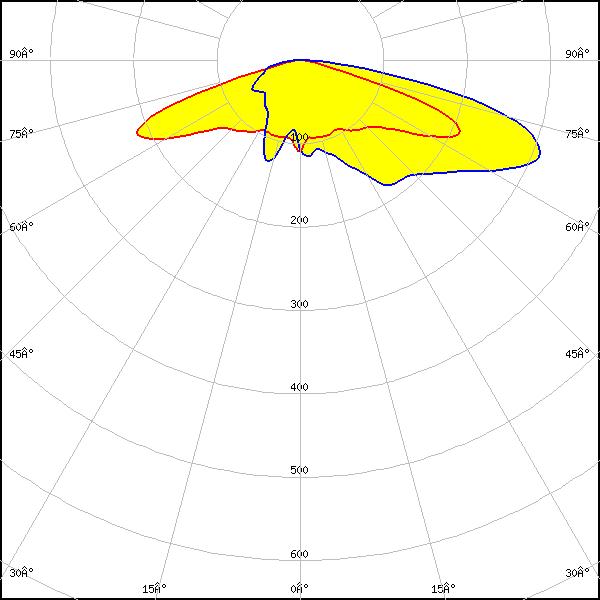

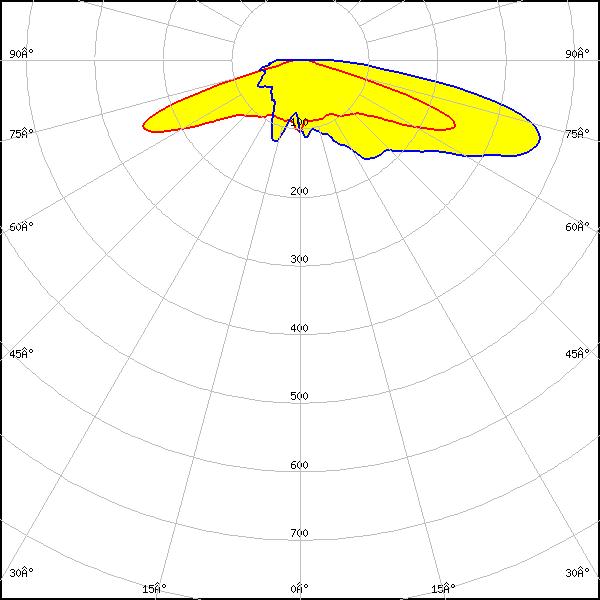

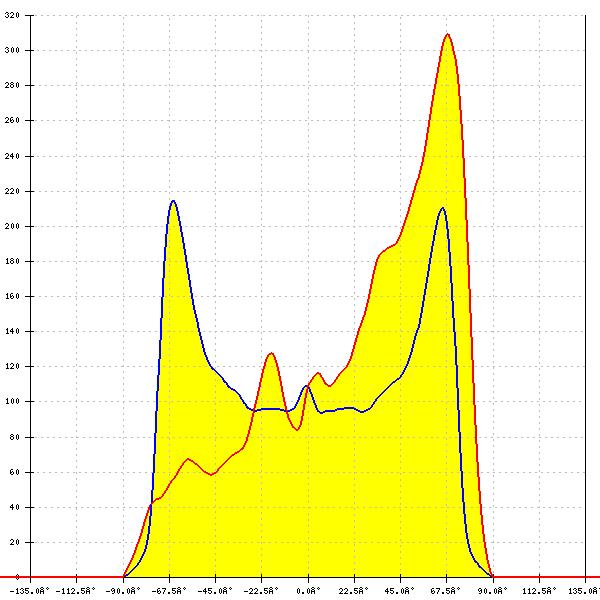

LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.649 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.414 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

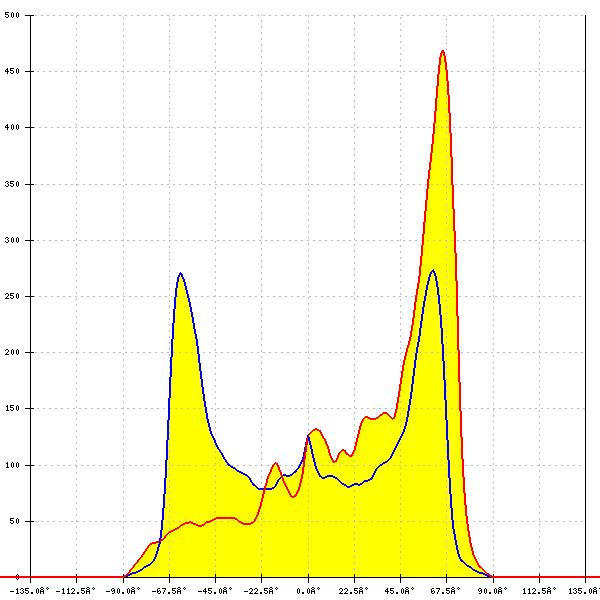

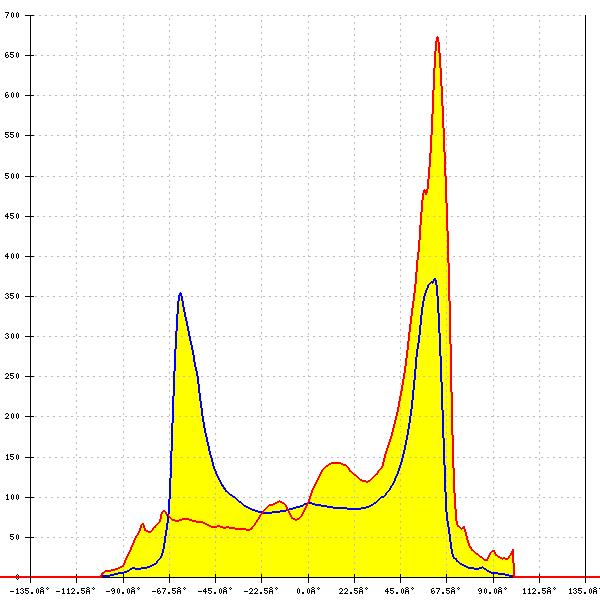

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.732 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

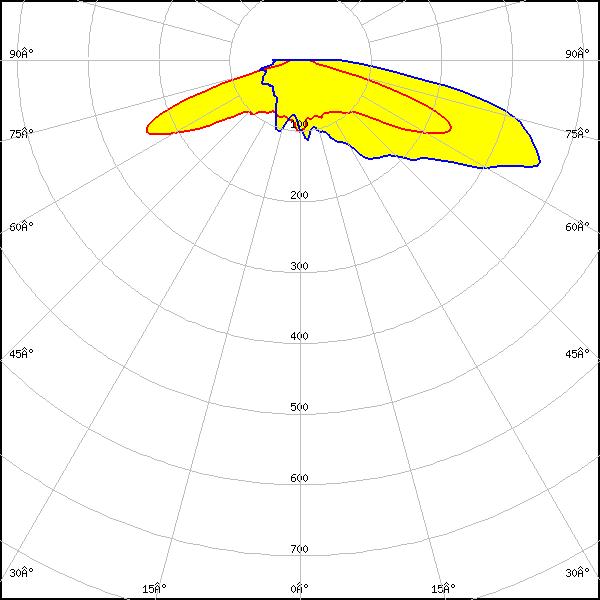

LED: NWSx229A
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: PL-BRICK HP 3800 2x8 SSG
FWHM: asymmetric
Peak intensity: 0.884 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

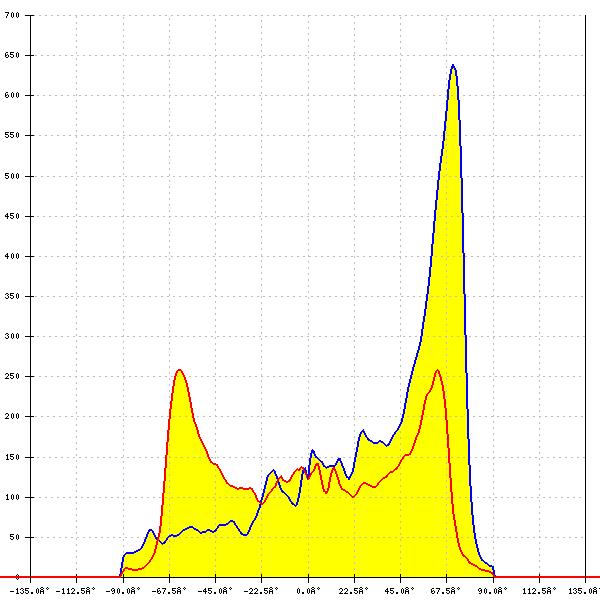

LED: PrevaLED Brick HP 2x8
FWHM: asymmetric
LEDs/each optic: 1
Light colour: White

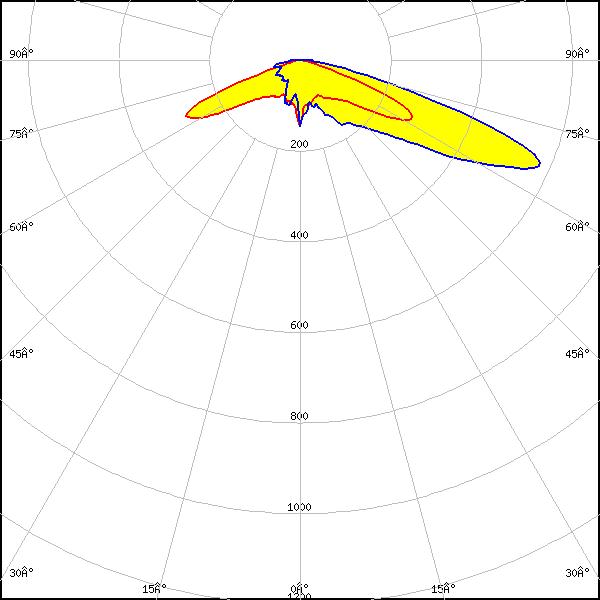

LED: Duris S5 (2 chip)
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

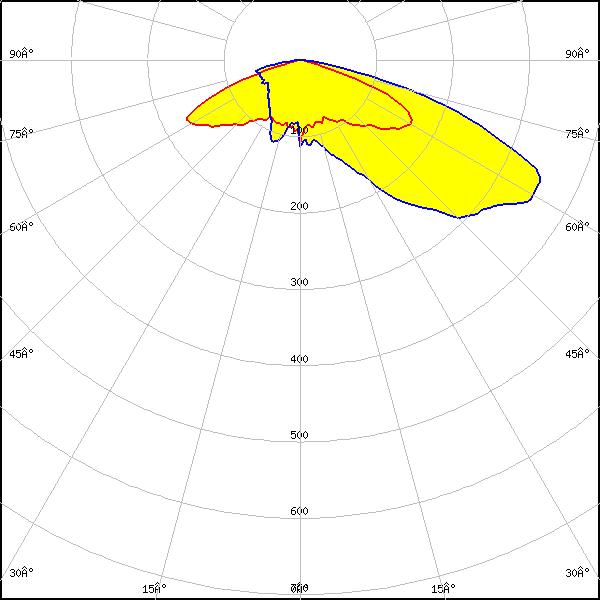

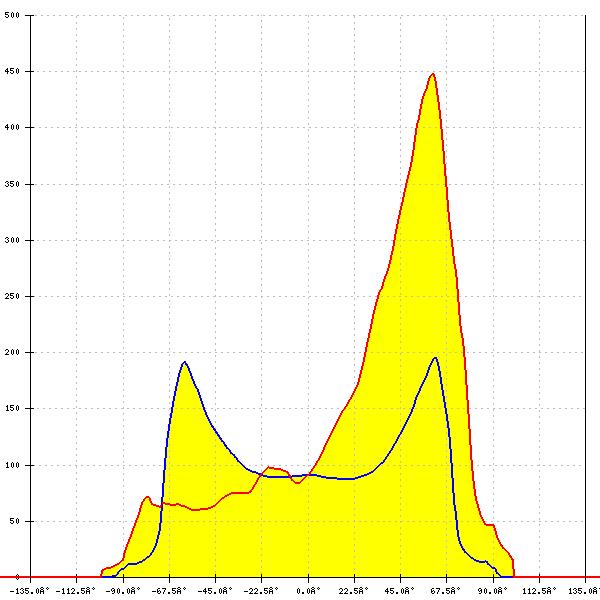

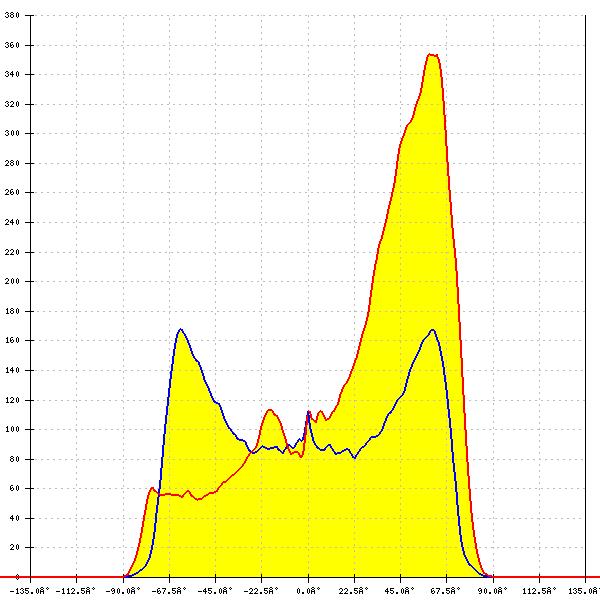

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.420 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.443 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.585 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.467 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour: White

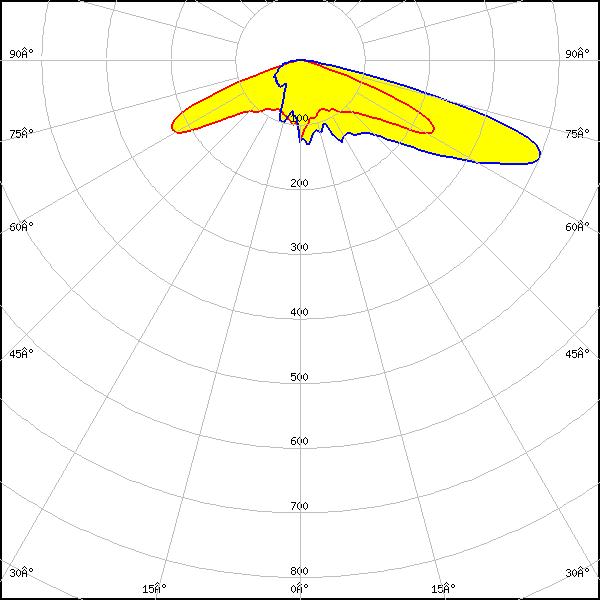

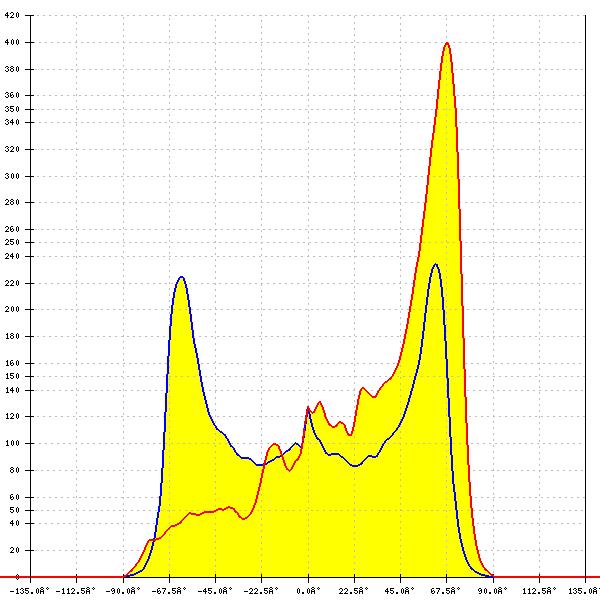

LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 0.950 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.690 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

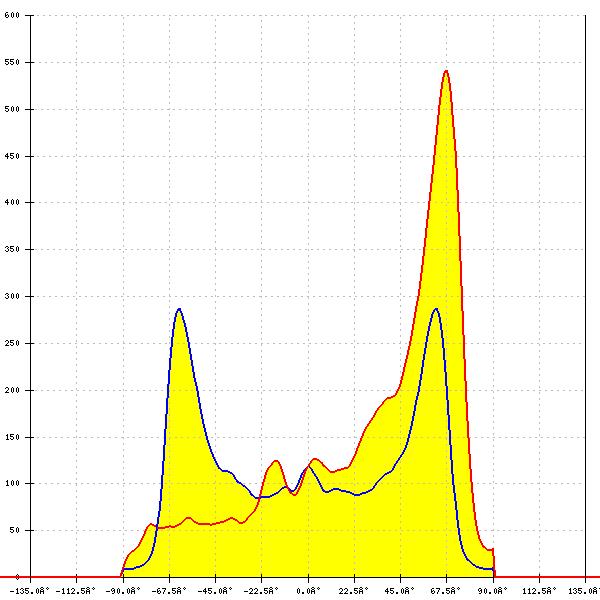

LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 0.812 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.542 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

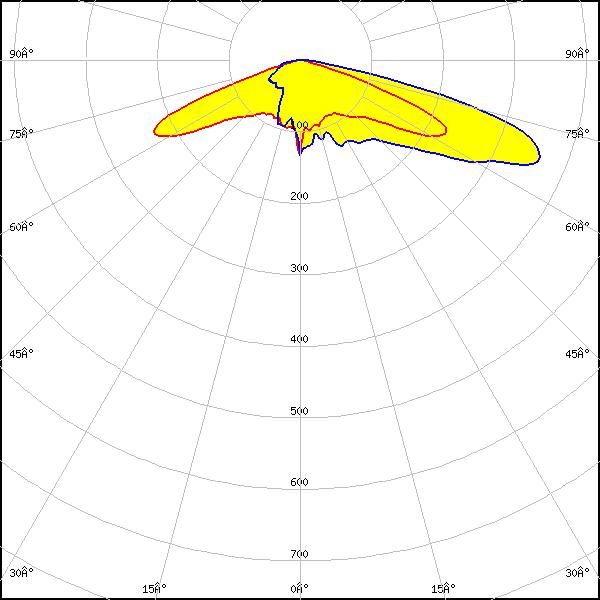

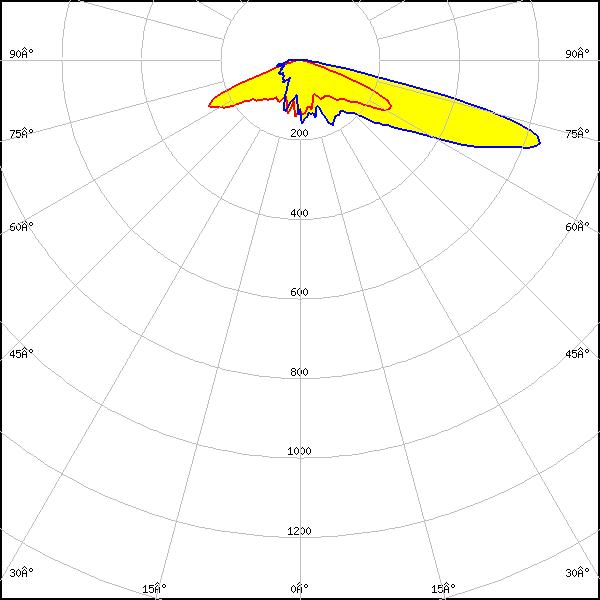

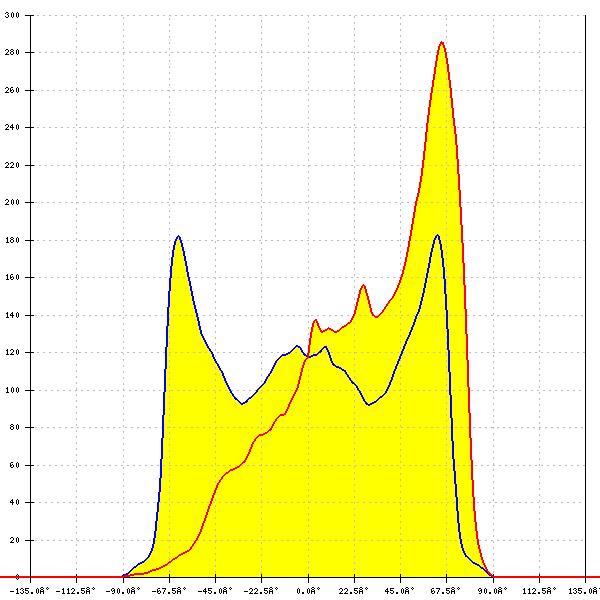

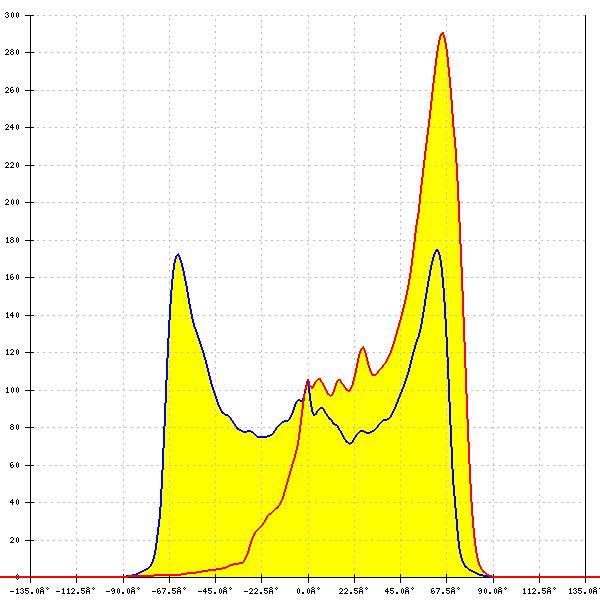

LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 63 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.805 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

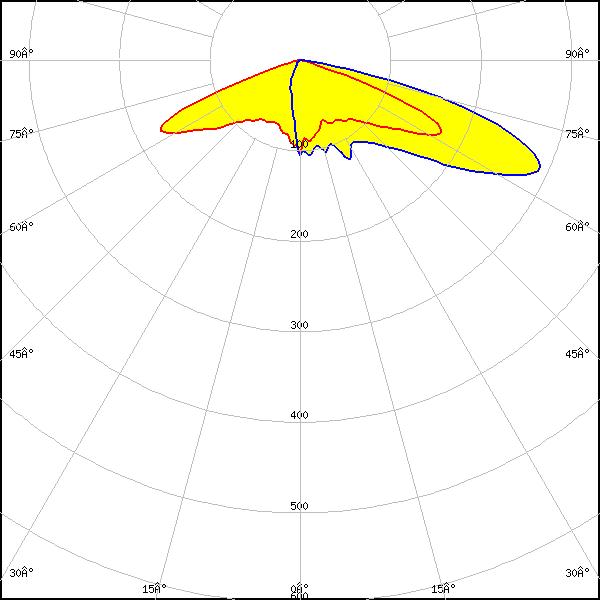

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.716 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.880 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.541 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White

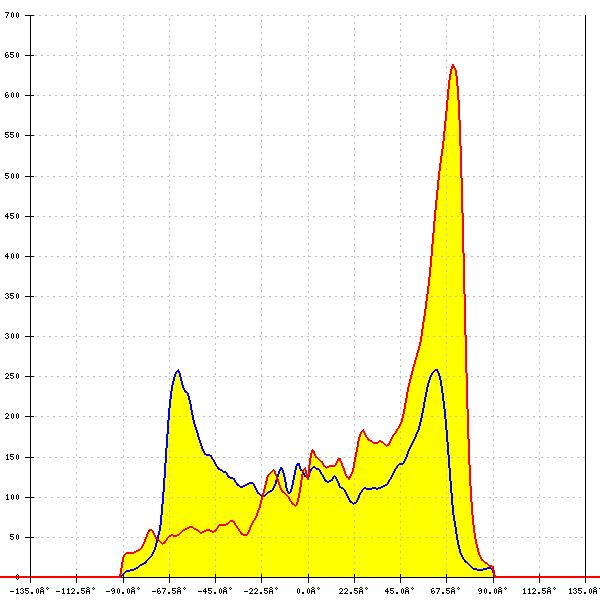

LED: OSLON Square Flat
FWHM: asymmetric
Peak intensity: 0.947 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square PC
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

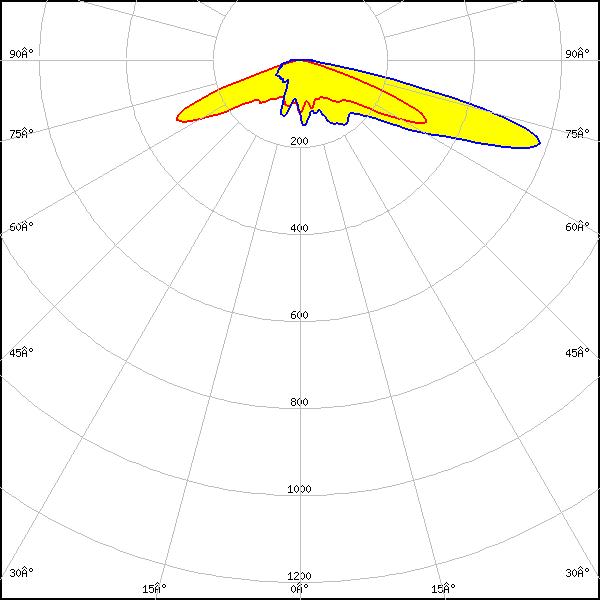

LED: OSTAR Projection Compact (Kx.CSLNM1.xx)
FWHM: asymmetric
Peak intensity: 0.961 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: asymmetric
Peak intensity: 1.020 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity: 0.857 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 1.023 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

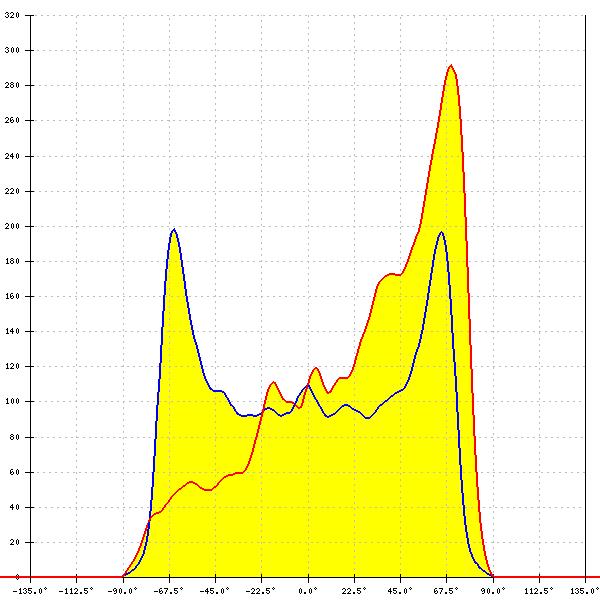

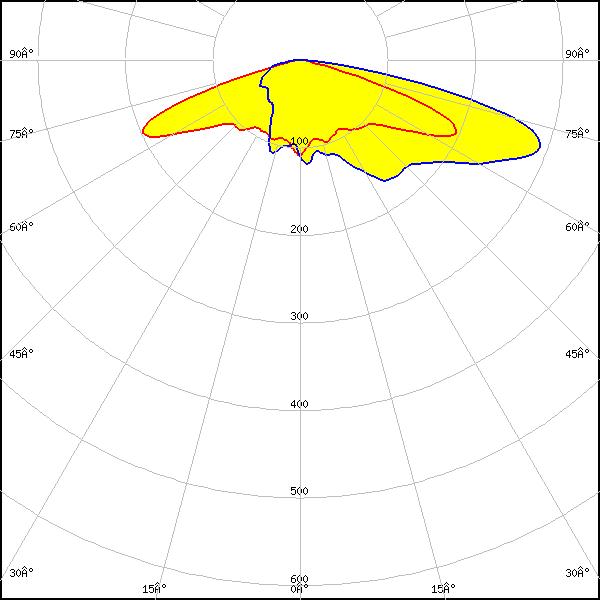

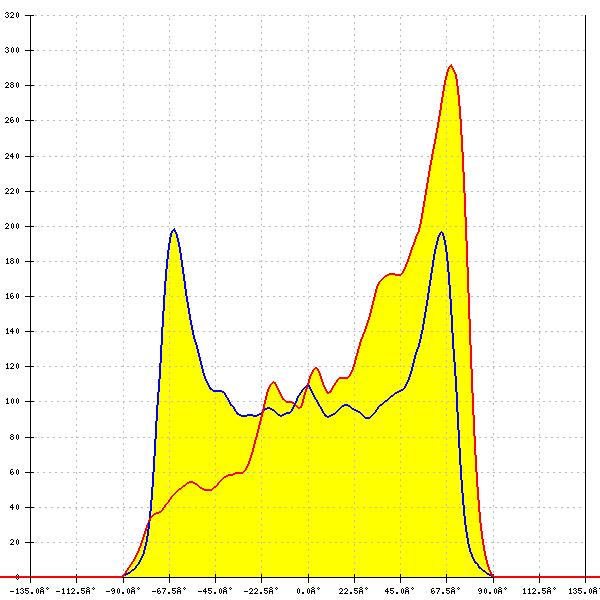

LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: asymmetric
Peak intensity: 0.710 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

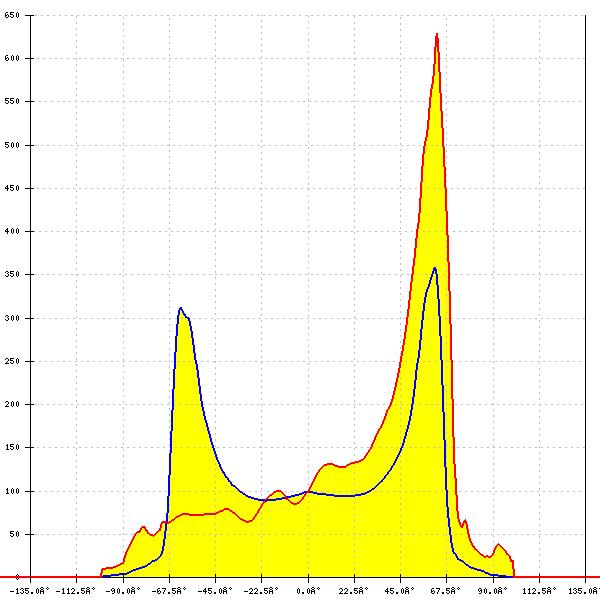

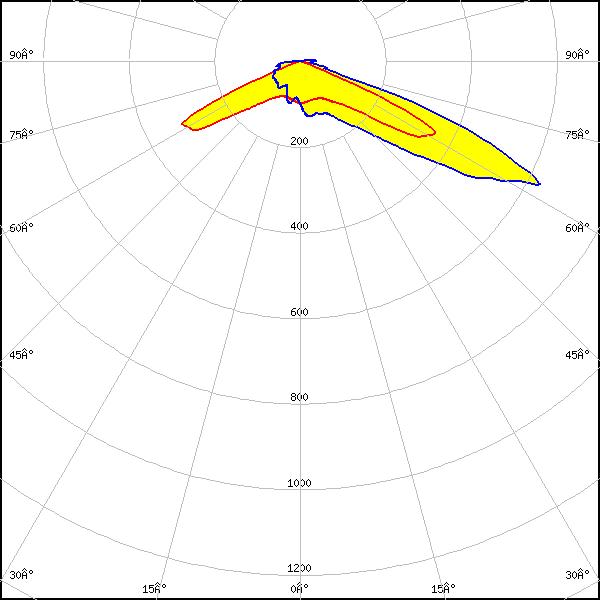

LED: HiLOM RC12 Z (LH181B)
FWHM: asymmetric
Peak intensity: 1.136 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

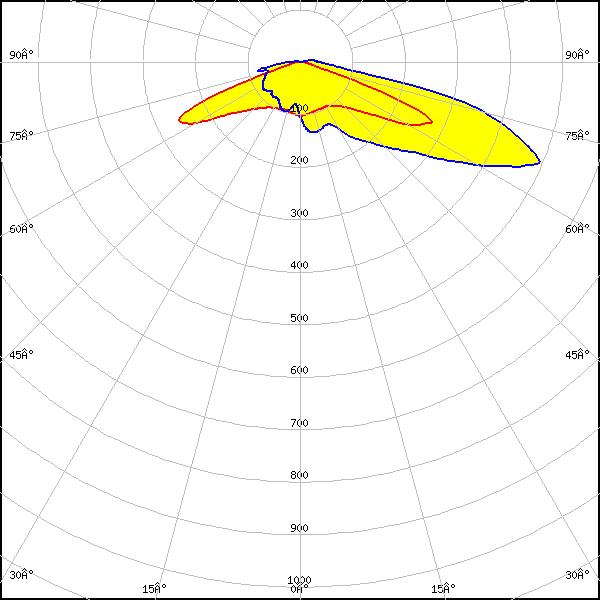

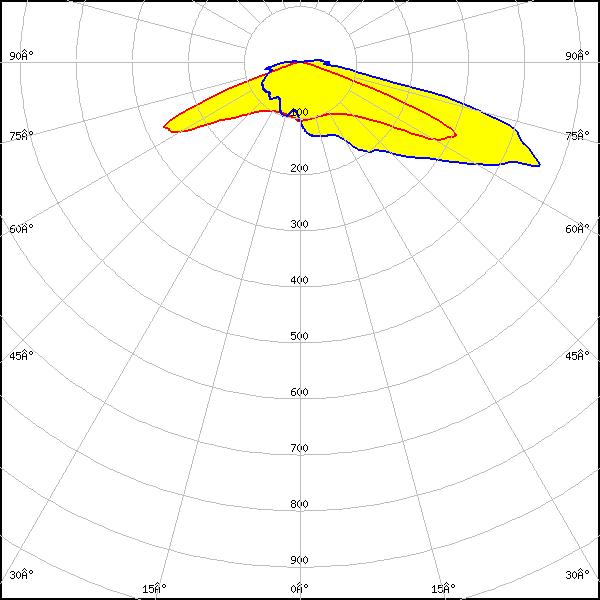

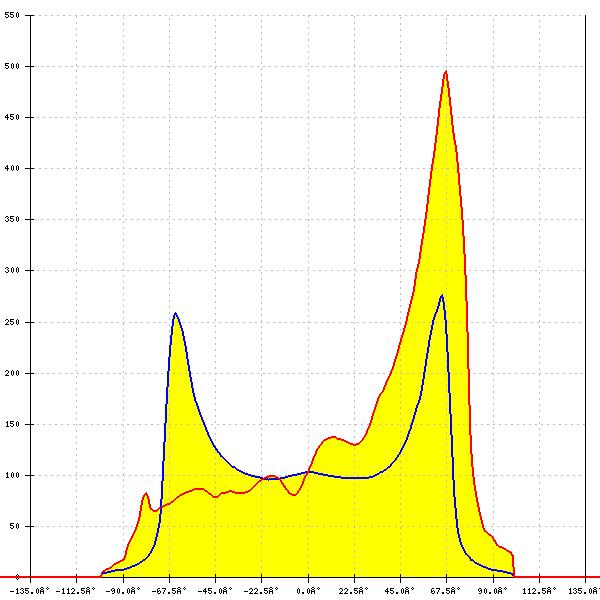

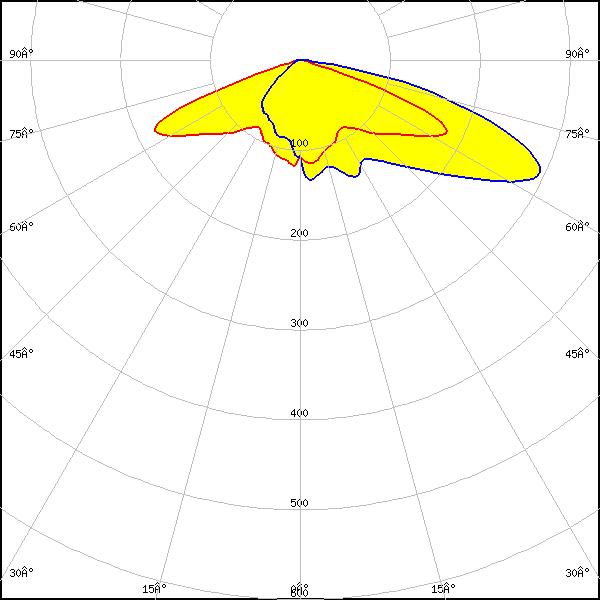

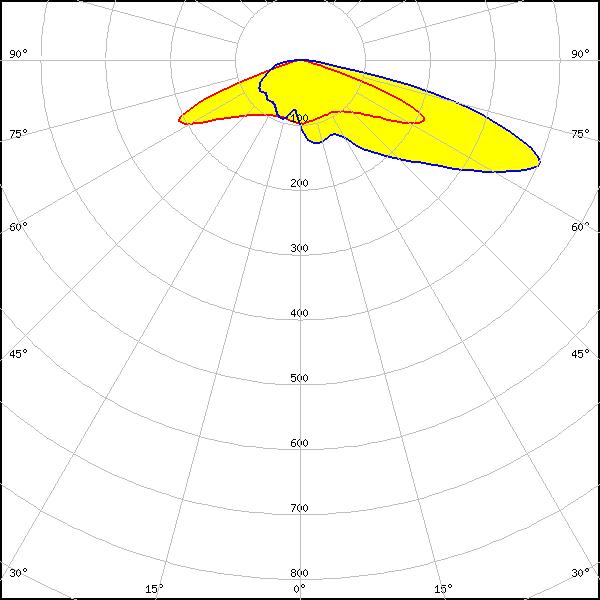

LED: HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity: 0.886 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

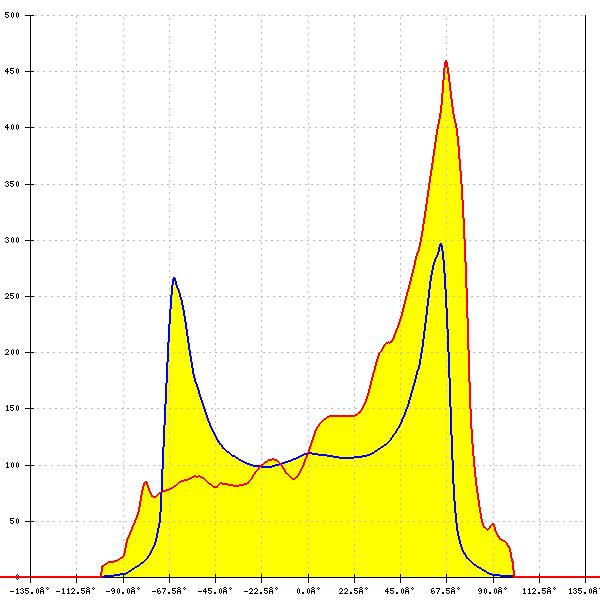

LED: HiLOM RH16 (LH351C)
FWHM: asymmetric
Peak intensity: 0.850 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

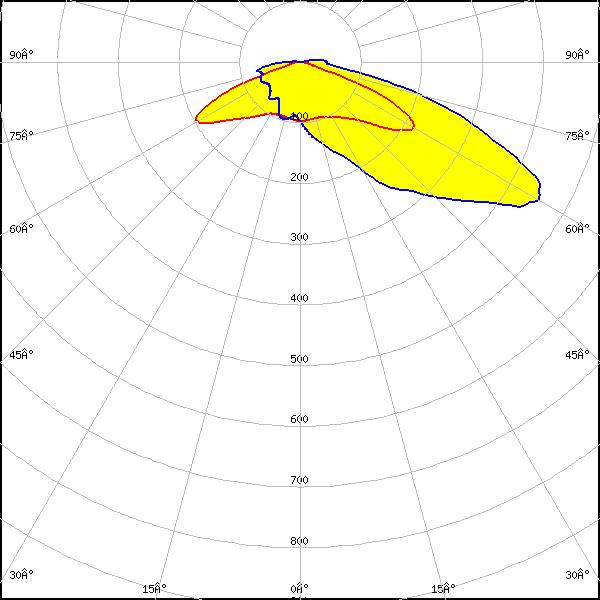

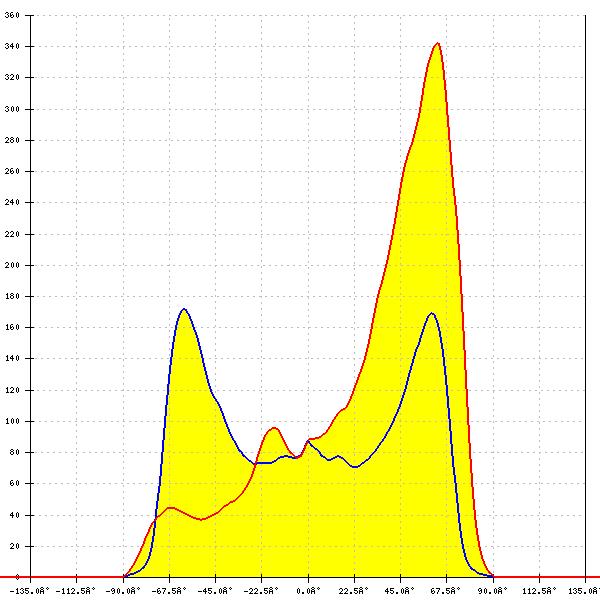

LED: HiLOM RM12 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.621 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

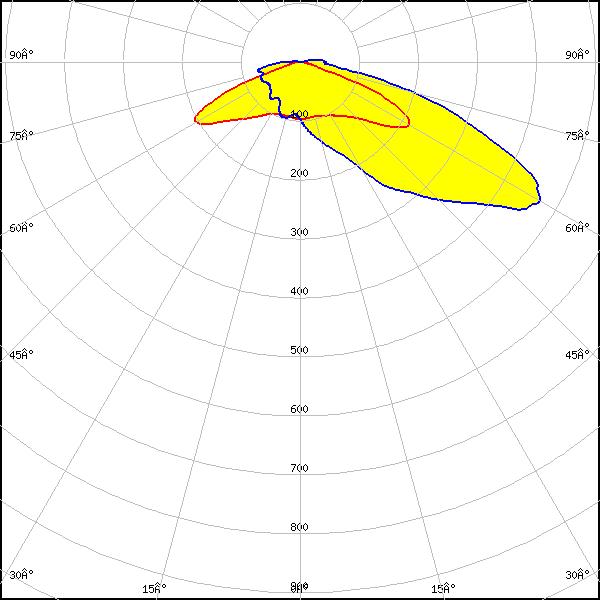

LED: HiLOM RM16 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.617 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

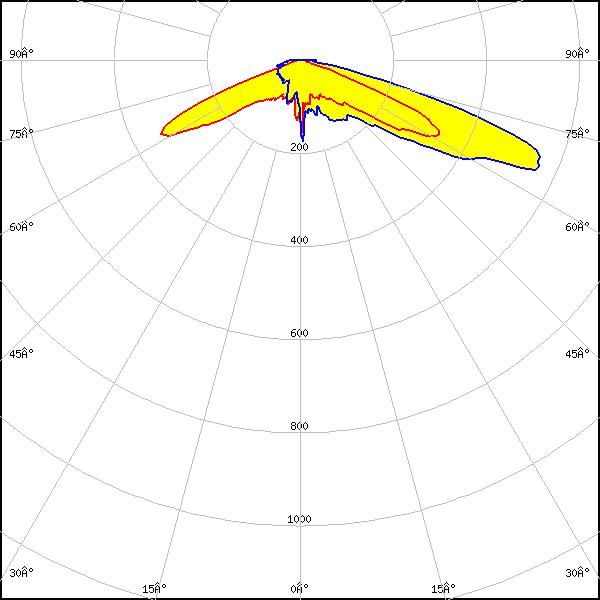

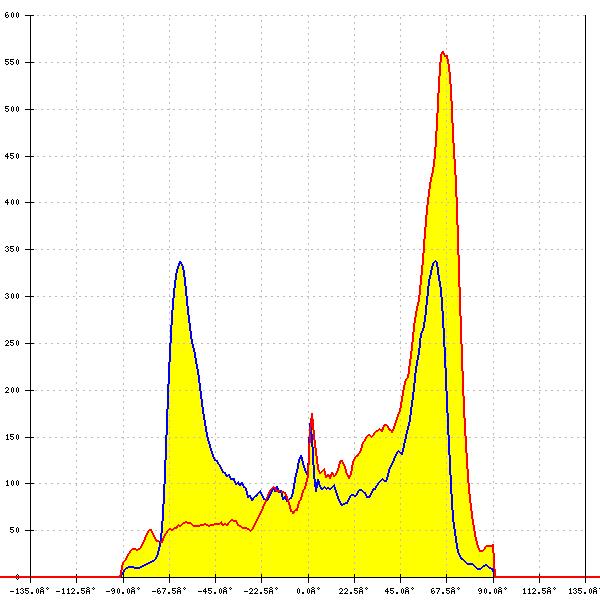

LED: LH181B
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

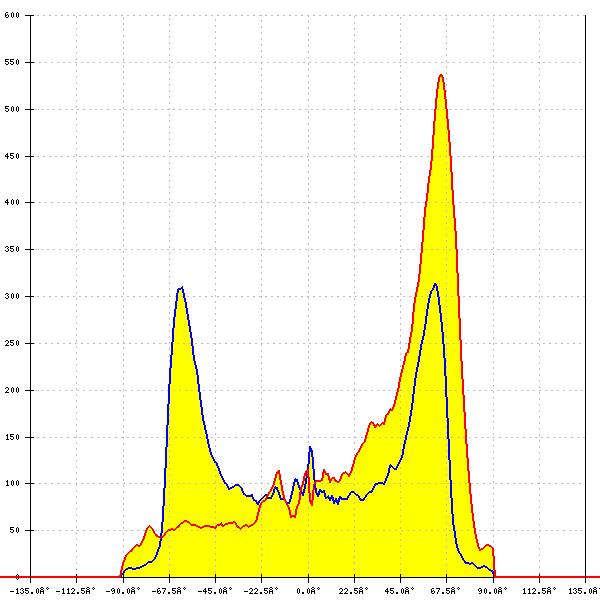

LED: LH231B
FWHM: asymmetric
Peak intensity: 0.988 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

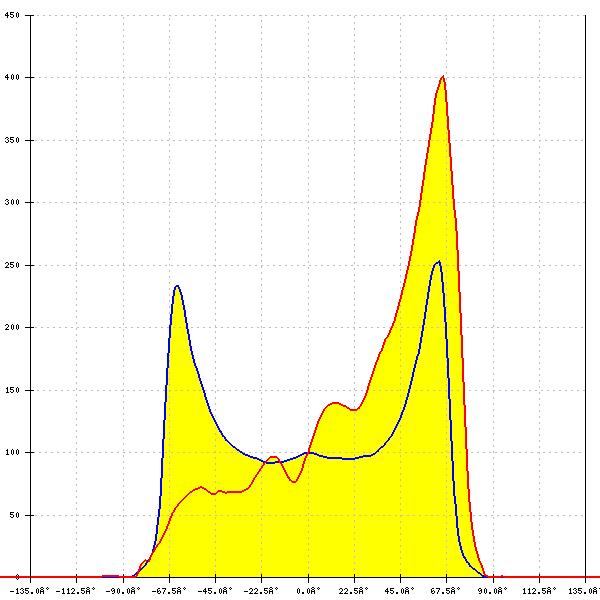

LED: LH351B
FWHM: asymmetric
Peak intensity: 0.648 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 0.562 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH351D
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH508A
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

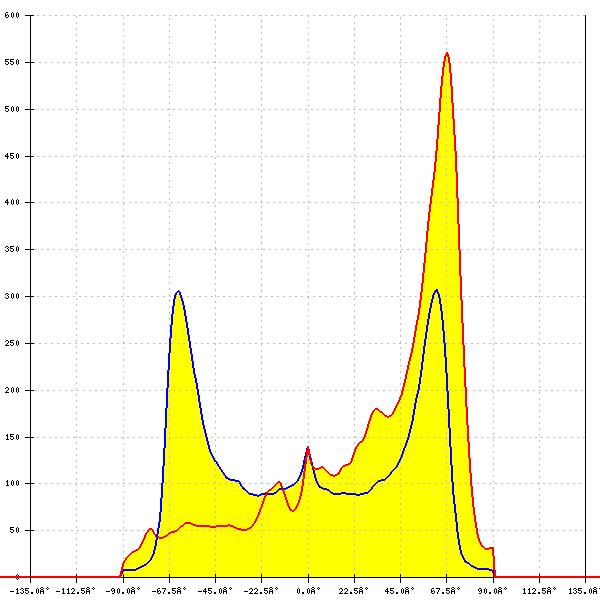

LED: LM301B
FWHM: asymmetric
Peak intensity: 0.921 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LED-Pa-L15c2W11c2-xxx-C050-01
FWHM: asymmetric
Peak intensity: 1.146 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

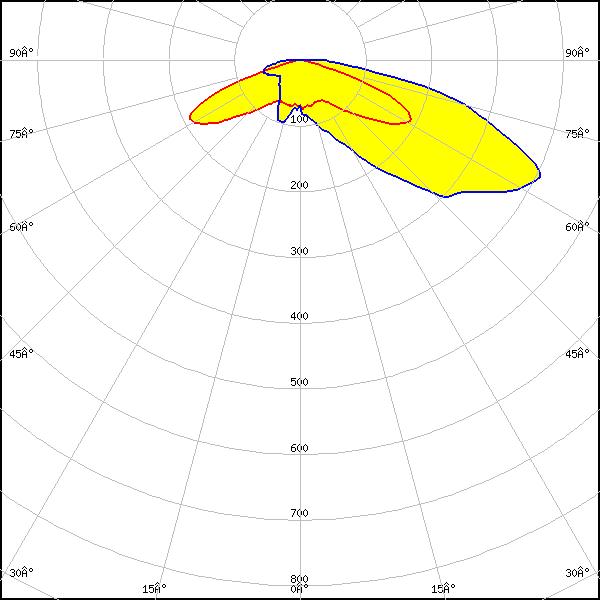

LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.548 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

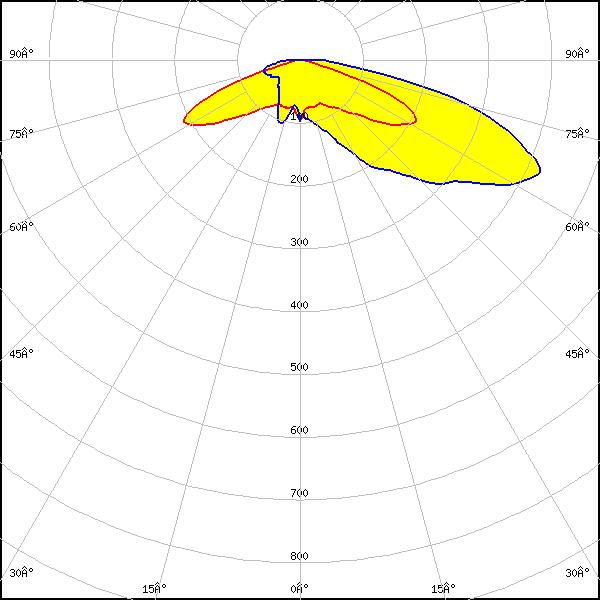

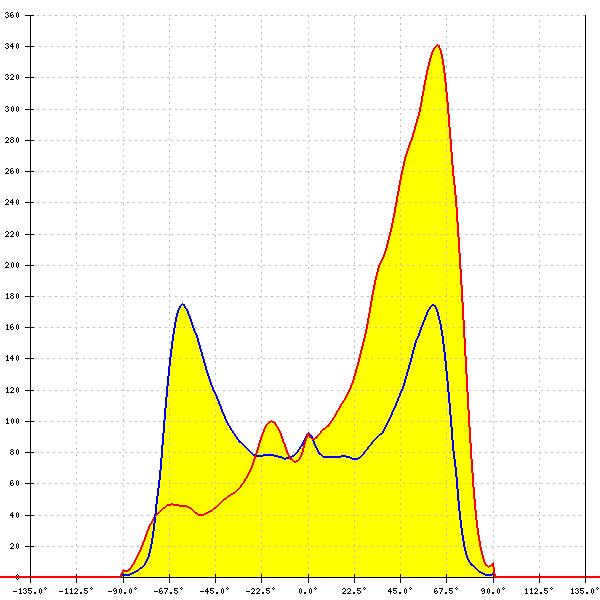

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.578 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

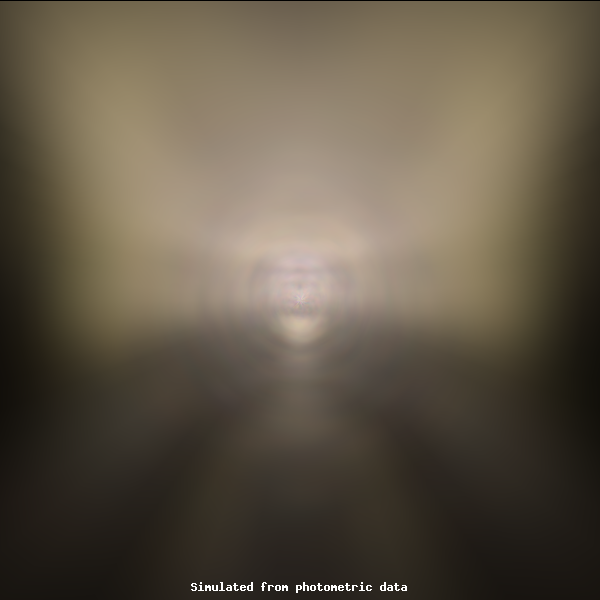

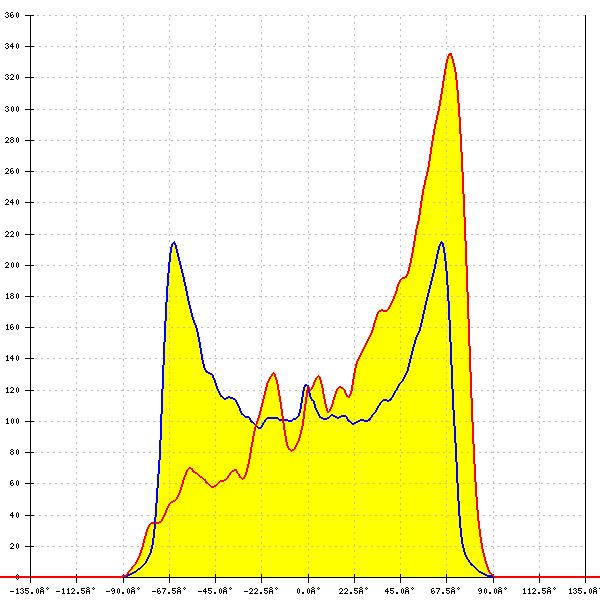

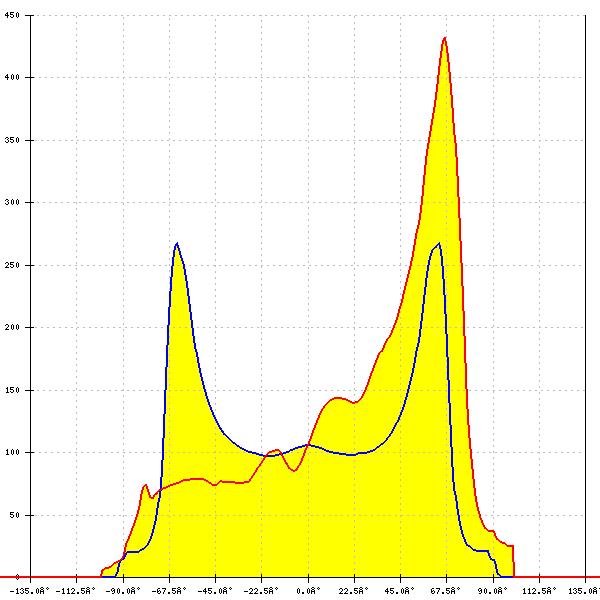

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.545 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.890 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

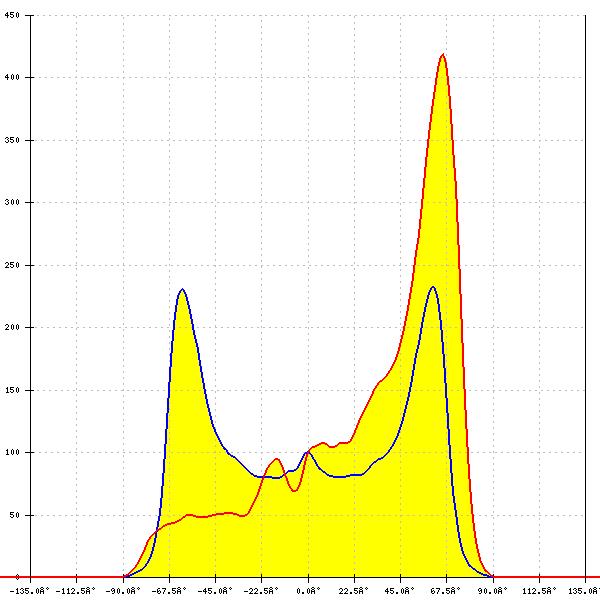

LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.767 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.531 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

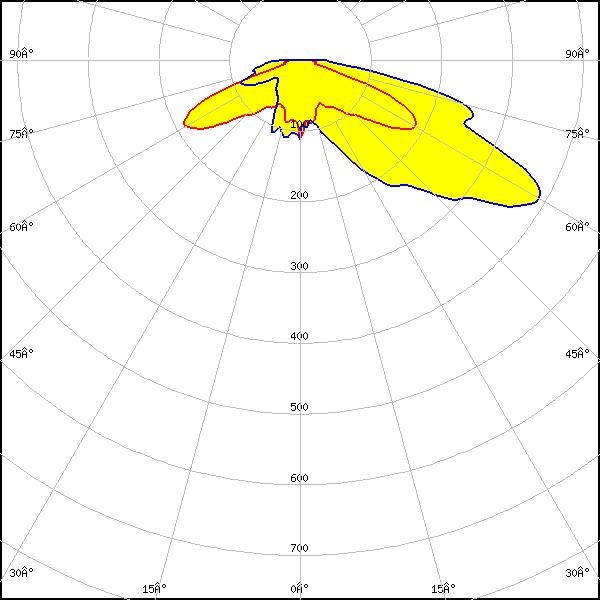

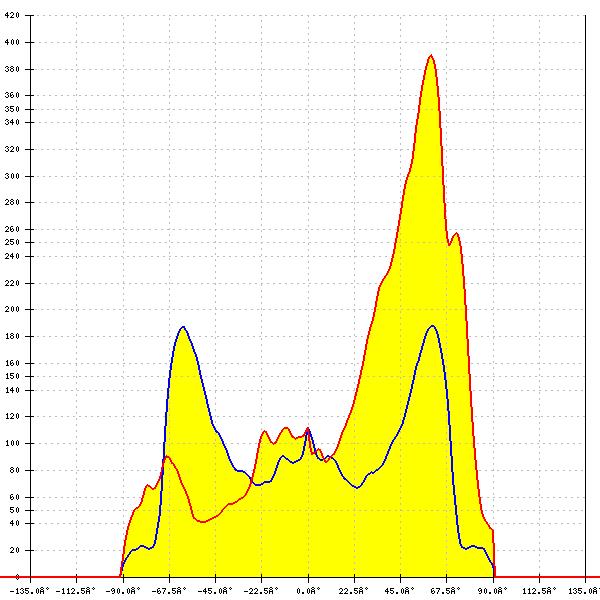

LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.585 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour: White

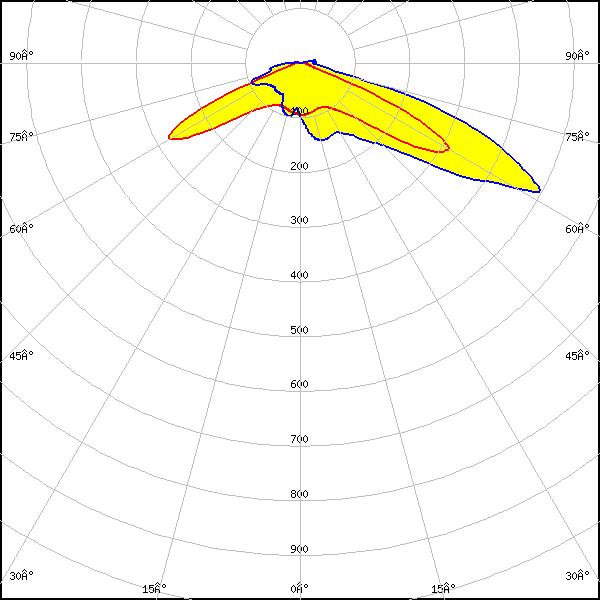

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

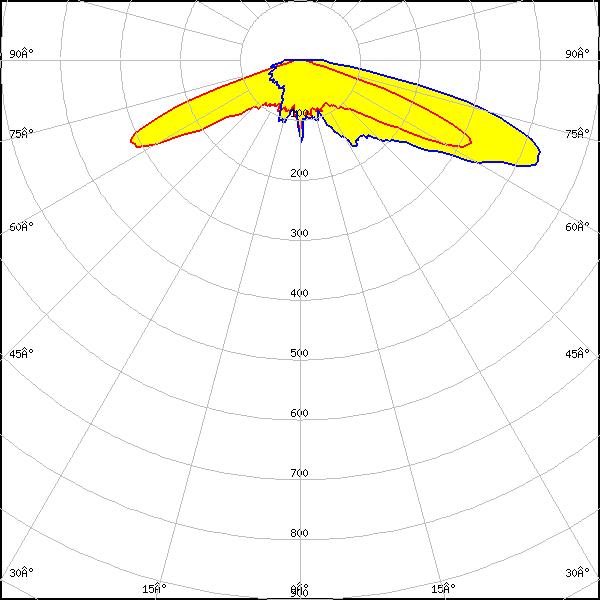

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: RLE 2x4 2000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 1.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 1.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
